FREEPASS10
PORTABLE SOUND SYSTEM
USER MANUAL MANUALE D'USO
FCC COMPLIANCE NOTICE
This device complies with part 15 of the FCC rules. Opera on is subject to the following two condi ons:
(1)This device may not cause harmful interference, and
(2)this device must accept any interference received, including interference that may cause undesired opera on.
CAUTION: Changes or modifica ons not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protec on against harmful interference in a residen al installa on. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruc on manual, may cause harmful interference to radio communica ons. However, there is no guarantee that interference will not occur in a par cular installa on. If this equipment does cause harmful interference to radio or television recep on, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separa on between the equipment and receiver.
•Connect the equipment into an outlet on a circuit di erent from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government o ce, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and condi ons of the
purchase contract. This product should not be mixed with other commercial wastes for disposal.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure, that may be of su cient magnitude to cons tute a risk of electric shock to persons.
The exclama on point within an equilateral triangle is intended to alert the user to the presence of important opera ng and maintenance (servicing) instruc ons in the literature accompanying the appliance.
The informa on contained in this publica on has been carefully prepared and checked. However no responsibility will be taken for any errors. All rights are reserved and this document cannot be copied, photocopied or reproduced in part or completely without wri en consent being obtained in advance from PROEL. PROEL reserves the right to make any aesthe c, func onal or design modifica on to any of its products without any prior no ce. PROEL assumes no responsibility for the use or applica on of the products or circuits described herein.
|
|
|
|
Il marchio riportato sul prodo o o sulla documentazione indica che il prodo o non deve essere smal to con altri rifiu |
domes |
ci al |
||||
|
|
|
|
termine del ciclo di vita. Per evitare eventuali danni all’ambiente si invita l’utente a separare questo prodo |
o da altri |
pi di rifiu |
e di |
|||
|
|
|
|
riciclarlo in maniera responsabile per favorire il riu lizzo sostenibile delle risorse materiali. Gli uten |
domes |
ci sono invita |
a conta |
are |
||
|
|
|
|
il rivenditore presso il quale è stato acquistato il prodo o o l’u cio locale preposto per tu e le informazioni rela |
ve alla raccolta |
|||||
|
|
|
|
di erenziata e al riciclaggio per questo po di prodo |
o. Gli uten aziendali sono invita a conta |
are il proprio fornitore e verificare i |
||||
|
|
|
|
|||||||
termini e le condizioni del contra o di acquisto. Questo prodo |
o non deve essere smal to unitamente ad altri rifiu |
commerciali. |
|
|
Il simbolo del lampo con freccia in un triangolo equilatero intende avver re l'u lizzatore per la presenza di "tensioni pericolose" non isolate all'interno dell'involucro del prodo o, che possono avere una intensità su ciente a cos tuire rischio di scossa ele rica alle persone.
Il punto esclama vo in un triangolo equilatero intende avver |
re l'u lizzatore per la presenza di importan istruzioni per l'u lizzo e la |
manutenzione nella documentazione che accompagna il prodo |
o. |
Le informazioni contenute in questo documento sono state a entamente reda e e controllate. Tu avia non è assunta alcuna responsabilità per eventuali inesa ezze. Tu i diri sono riserva e questo documento non può essere copiato, fotocopiato, riprodo o per intero o in parte senza previo consenso scri o della PROEL. PROEL si riserva il diri o di apportare senza preavviso cambiamen e modifiche este che, funzionali o di design a ciascun proprio prodo o. PROEL non assume alcuna responsabilità sull’uso o sul l’applicazione dei prodo o dei circui qui descri .
INDEX

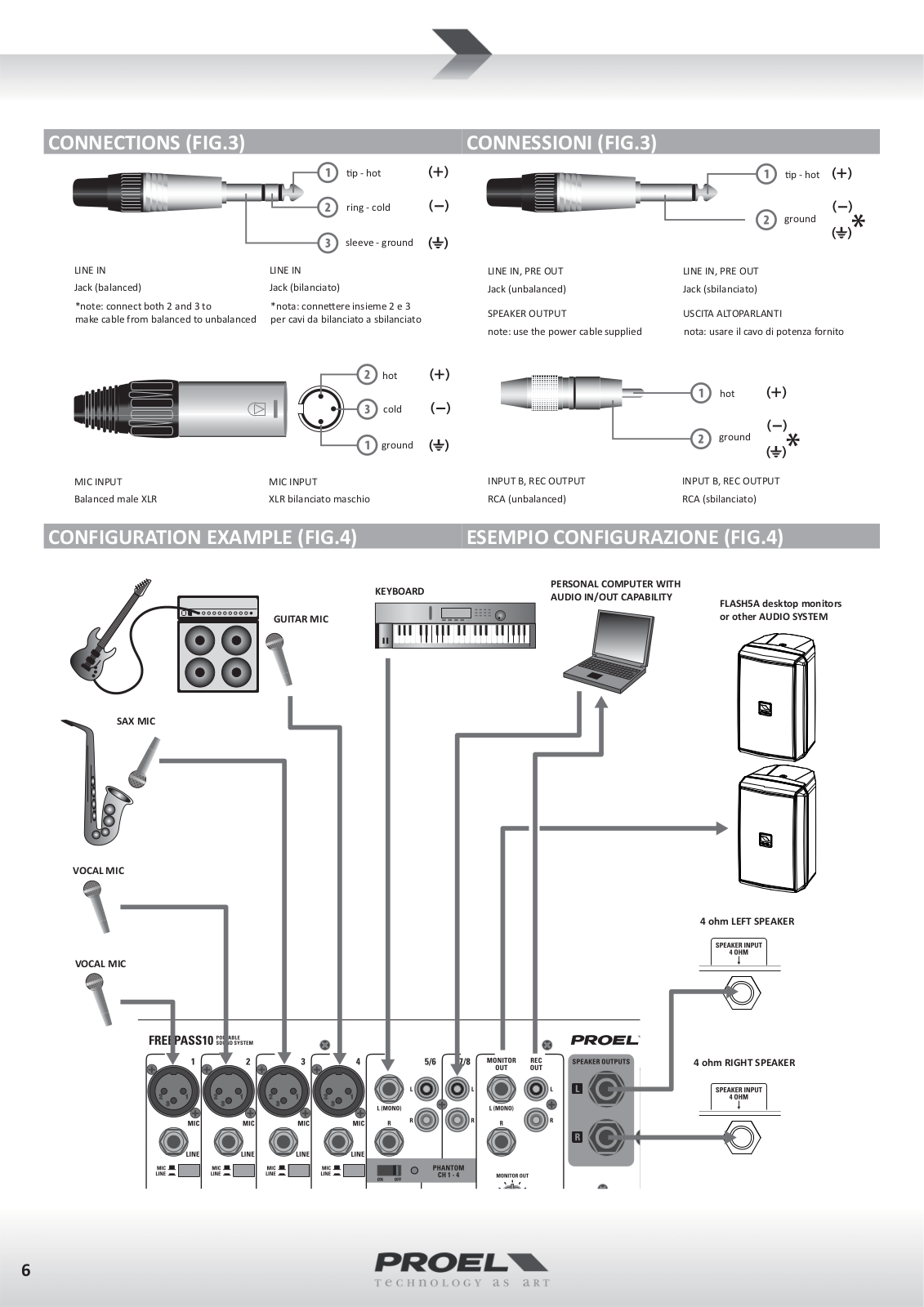

TECHNICAL SPECIFICATIONS . . . . . . . . . . . . . . . . . 3 DIMENSIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 CONTROL PANEL (FIG.1) . . . . . . . . . . . . . . . . . . . . . 5 SPEAKER PANEL (FIG.2) . . . . . . . . . . . . . . . . . . . . . 5 OPTIONAL ACCESSORIES . . . . . . . . . . . . . . . . . . . . 5 CONNECTIONS (FIG.3) . . . . . . . . . . . . . . . . . . . . . . 6 CONFIGURATION EXAMPLE (FIG.4) . . . . . . . . . . . . 6 SAFETY AND PRECAUTIONS . . . . . . . . . . . . . . . . . . 7 GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . 8 OPERATING INSTRUCTIONS (FIG. 1 / 2 / 3 / 4) . . . 8
INDICE
SPECIFICHE TECNICHE . . . . . . . . . . . . . . . . . . . . . . 3 DIMENSIONI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 PANNELLO DI CONTROLLO (FIG.1) . . . . . . . . . . . . . 5 PANNELLO ALTOPARLANTE (FIG.2). . . . . . . . . . . . . 5 ACCESSORI OPZIONALI . . . . . . . . . . . . . . . . . . . . . . 5 CONNESSIONI (FIG.3) . . . . . . . . . . . . . . . . . . . . . . . 6 ESEMPIO CONFIGURAZIONE (FIG.4) . . . . . . . . . . . 6 AVVERTENZE PER LA SICUREZZA . . . . . . . . . . . . . 11 INFORMAZIONI GENERALI . . . . . . . . . . . . . . . . . . 12 ISTRUZIONI OPERATIVE (FIG. 1 / 2 / 3 / 4). . . . . . 12
TECHNICAL SPECIFICATIONS |
SPECIFICHE TECNICHE |
|
MIXER SECTION |
MONO channels (4) |
MIC input (XLR-F), LINE input (3/4" jack) |
|
|
STEREO channels (2) |
LINE input (3/4" jack / 2 x RCA) |
|
|
Input Channel EQ |
HIGH: +/-15dB 10 kHz, LOW: +/- 15dB 100 Hz |
|
|
Phantom power |
+ 15 V (CH 1-4) |
|
|
Dynamic processor |
COMPRESSOR / LIMITER (CH 1-2) |
|
|
Internal E ects |
ECHO / DELAY (CH 1-4) |
|
|
MONITOR out |
2 x 3/4" jack |
|
|
REC out |
2 x RCA |
|
|
Main EQ |
VOICE / MUSIC |
|
|
SPEAKER out |
2 x 3/4" jack (LEFT + RIGHT) |
|
|
Metering |
2x6-LED VU-METER |
|
|
|
AMPLIFIER SECTION |
|
|
Type |
Class D with SMPS (Switch Mode Power Supply) |
|
|
Maximum Output Power |
2 x 250 W @ 4 ohm (1 KHz, 1% THD) |
|
|
Frequency Response |
MUSIC: 20 Hz - 20 KHz, VOICE: 80 Hz - 20 KHz |
|
|
|
LOUDSPEAKER SECTION |
|
|
System |
2 Way - Vented Box |
|
|
Low Frequency Device |
2x10” woofer with 2.5" VC |
|
|
High Frequency Device |
1” compression driver 1.35" VC - horn loaded |
|
|
Angular Coverage |
90° H x 60° V |
|
|
Impedance |
4 ohm |
|
|
Frequency Response |
65 Hz - 20 kHz (-10 dB) |
|
|
Max SPL |
121 dB |
|
|
Construc on |
Black polypropylene, metal grille |
|
|
Handles |
1 x top |
|
|
Pole holder |
1 x bo om |
|
|
Flying points |
2 x M8 bo om |
|
|
|
GENERAL SPECIFICATION |
|
|
Power Supply |
230 VAC / 120 VAC (switchable) 50/60 Hz |
|
|
Consump on |
400 W |
|
|
Dimensions (W x H x D) |
Speaker: 500x320x290 mm |
|
Mixer: 320x180x90 mm |
Weight |
System: 25 kg / Speaker: 10.6 kg / Mixer: 2.4 kg |
|
|
|
SEZIONE MIXER |
Canali MONO (4) |
ingresso MIC (XLR-F) + ingresso LINE (Jack 6,3mm) |
|
|
Canali STEREO (2) |
ingresso LINE (Jack 6,3mm / 2 x RCA) |
|
|
Equalizzatori Ingressi |
ALTI: +/-15dB 10 kHz, BASSI: +/- 15dB 100 Hz |
|
|
Alimentazione Phantom |
+ 15 V (CH 1-4) |
|
|
Processori dinamici |
COMPRESSOR / LIMITER (CH 1-2) |
|
|
E e o Interno |
ECHO / DELAY (CH 1-4) |
|
|
Uscita MONITOR |
2 x JACK 6,3mm |
|
|
Uscita REC |
2 x RCA |
|
|
EQ Main |
VOICE / MUSIC |
|
|
Uscita SPEAKER |
2 x jack 6,3mm (LEFT + RIGHT) |
|
|
Misurazione Livello |
2x6-LED VU-METER |
|
|
|
SEZIONE AMPLIFICATORE |
|
|
Tipo |
Classe D con SMPS (alimentatore switching) |
|
|
Potenza di Uscita max |
2 x 250 W @ 4 ohm (1 KHz, 1% THD) |
|
|
Risposta in Frequenza |
MUSIC: 20 Hz - 20 KHz, VOICE: 80 Hz - 20 KHz |
|
|
|
SEZIONE ALTOPARLANTE |
|
|
Sistema |
2 Vie - Bass Reflex |
|
|
Altoparlante Bassi |
2x10” woofer con 2.5" VC |
|
|
Altoparlante Al |
1” driver a compressione 1.35" VC con tromba |
|
|
Copertura Angolare |
90° O x 60° V |
|
|
Impedenza nominale |
4 ohm |
|
|
Risposta in Frequenza |
65 Hz - 20 kHz (-10 dB) |
|
|
SPL 1w 1m |
121 dB |
|
|
Costruzione |
Polipropilene Nero, Griglia Metallica |
|
|
Maniglie |
1 sopra |
|
|
Flangia per supporto |
1 so o |
|
|
Pun di sospensione |
2 x M8 so o |
|
|
|
SPECIFICHE GENERALI |
|
|
Alimentazione |
230 VAC / 120 VAC (commutabile) 50/60 Hz |
|
|
Assorbimento |
400 W |
|
|
Dimensioni (L x A x P) |
Altoparlante: 500x320x290 mm |
|
Mixer: 320x180x90 mm |
Peso |
Sistema: 25 kg / Altop.: 10.6 kg / Mixer: 2.4 kg |
|
|
3
DIMENSIONS |
|
<![if ! IE]> <![endif]>32.0 cm |
<![if ! IE]> <![endif]>12.6" |
18.0 cm |
9.0 cm |
7.1" |
3.5" |
DIMENSIONI
2
1
3
|
<![if ! IE]> <![endif]>50.0 cm |
<![if ! IE]> <![endif]>19.7" |
29.0 cm |
32.0 cm |
|
11.4" |
12.6" |
|
|
Pole holder |
Handle
4
CONTROL PANEL (FIG.1) |
PANNELLO DI CONTROLLO (FIG.1) |
10 9 11 13 15 16 17 20
1
2
3
4
5
6
7
8
12 14 18 19 26
SPEAKER PANEL (FIG.2) |
PANNELLO ALTOPARLANTE (FIG.2) |
29
28
27
25
23
21
22
24
30
OPTIONAL ACCESSORIES |
ACCESSORI OPZIONALI |
Suggested op onal accessories: FRE300KIT
Pair of aluminium speaker stands, provided with a prac cal nylon carrying bag.
Accessorio opzionale suggerito: FRE300KIT
Coppia di supporti in alluminio per casse acus che forni in pra ca borsa di trasporto in Nylon.
5
