Pride Mobility 6000Z 4S User Manual
QUANTUM
6 0 0 0 Z S E R I E S
SAFETY GUIDELINES
WARNING! A Quantum Rehab Provider or a qualified technician must perform the initial setup
of this power chair and must perform all of the procedures in this manual.
The symbols below are used throughout this owner's manual and on the power chair to identify warnings and
important information. It is very important for you to read them and understand them completely.
WARNING! Indicates a potentially hazardous condition/situation. Failure to follow designated
procedures can cause either personal injury, component damage, or malfunction. On the
product, this icon is represented as a black symbol on a yellow triangle with a black border.
MANDATORY! These actions should be performed as specified. Failure to perform mandatory
actions can cause personal injury and/or equipment damage. On the product, this icon is
represented as a white symbol on a blue dot with a white border.
PROHIBITED! These actions are prohibited. These actions should not be performed at any time
or in any circumstances. Performing a prohibited action can cause personal injury and/or
equipment damage. On the product, this icon is represented as a black symbol with a red circle
and red slash.
INTENDED USE
The intended use of the Pride Mobility Products device is to provide mobility to persons limited to a seated
position that have the capability of operating a powered wheelchair.
Quick Reference Information
Quantum Rehab Provider: _________________________________________________________________
Address: _______________________________________________________________________________
Phone Number: ___________________________________________________________________________
Purchase Date: __________________________________________________________________________
NOTE: This owner’s manual is compiled from the latest specifications and product information available at
the time of publication. We reserve the right to make changes as they become necessary. Any changes to our
products may cause slight variations between the illustrations and explanations in this manual and the product
you have purchased. The latest/current version of this manual is available on our website.
This product is manufactured by:
Pride Mobility Products Corp.
182 Susquehanna Avenue
Exeter, PA 18643
USA
Copyright © 2012
Pride Mobility Products Corp.
INFMANU3447/Rev F/May 2012
CONTENTS
I. INTRODUCTION ..................................................................................................................................4
II. SAFETY ...................................................................................................................................................5

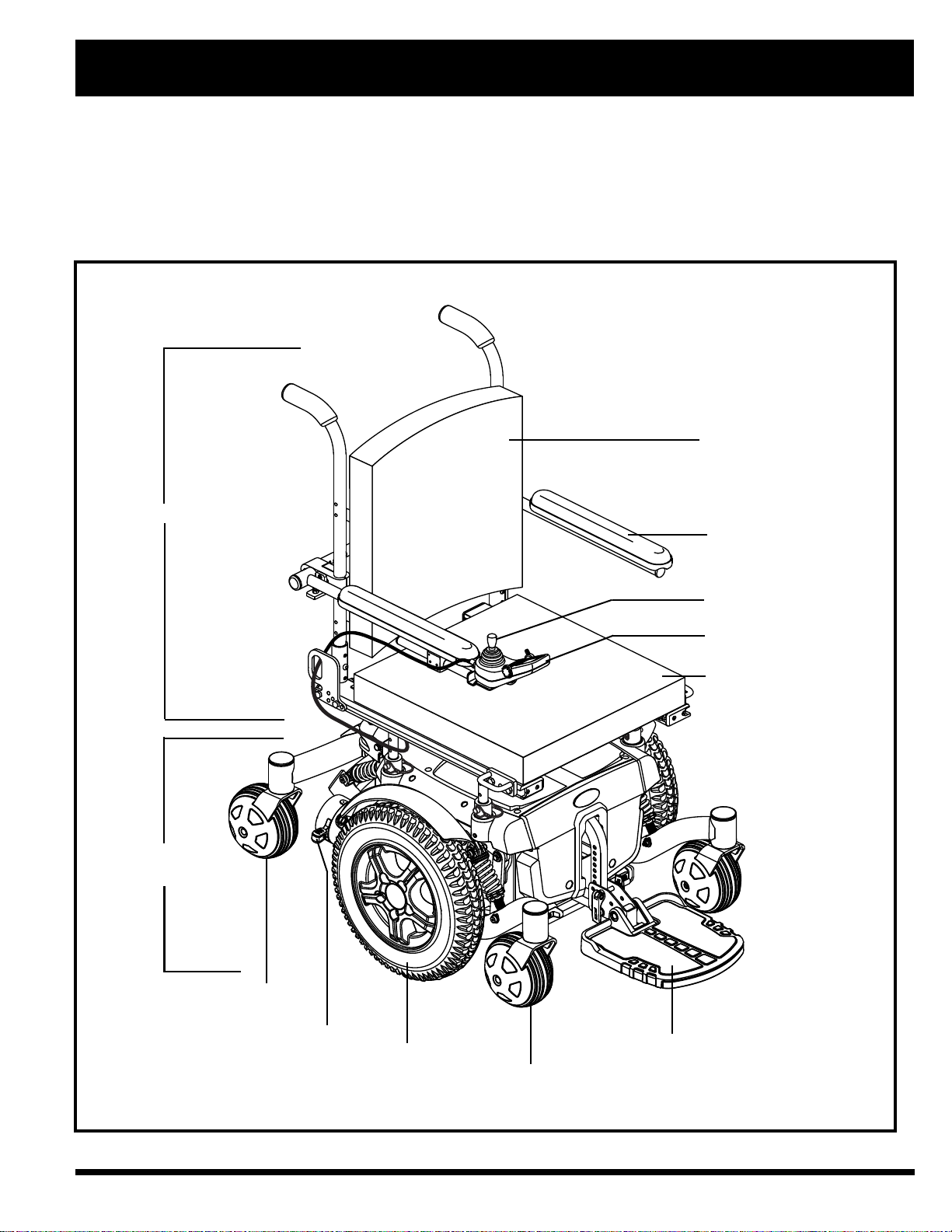

III. YOUR POWER CHAIR .....................................................................................................................17
IV. ASSEMBLY ..........................................................................................................................................21
V. COMFORT ADJUSTMENTS .........................................................................................................24
VI. BATTERIES AND CHARGING .....................................................................................................29
VII. CARE AND MAINTENANCE .........................................................................................................33
LANGUAGE USAGE
This owner’s manual is intended for distribution in all English-speaking countries where Pride Power Chairs are
sold. We have chosen to compose this manual using language and spelling common to the USA. Since we recognize that not all English-speaking countries use the same words or spellings, please refer to the following chart for
some common word variations that may be encountered throughout this manual.
USA Variation USA Variation USA Variation
asphalt tarmac backward(s) rearward(s) center centre
color colour cord lead curb kerb
elevator lift meter metre provider dealer; agent
sidewalk pavement tire tyre trunk boot
turn signal turn indicator yard grounds wrench spanner
caster castor pocketbook handbag
Figure 1. Word Variations
counterclockwise
anticlockwise
Quantum 6000Z Series www.pridemobility.com 3
I. INTRODUCTION
SAFETY
WELCOME to Quantum Rehab, a division of Pride Mobility Products (Pride). The power chair you have purchased combines state-of-the-art components with safety, comfort, and styling in mind. We are confident that
these design features will provide you with the conveniences you expect during your daily activities. Once you
understand how to safely operate and care for your power chair, it should give you years of trouble free operation
and service.
Read and follow all instructions, warnings, and notes in this manual before attempting to operate your power chair
for the first time. You must also read all instructions, warnings, and notes contained in any supplemental instructional booklets for the controller, front riggings, and/or seating system that accompanied your power chair before
initial operation. Your safety depends upon you, as well as your provider, caretaker, or healthcare professional in
using good judgement.
If there is any information in this manual which you do not understand, or if you require additional assistance for
setup or operation, please contact your Quantum Rehab Provider. Failure to follow the instructions in this
manual and those located on your power chair can lead to personal injury and/or damage to the power
chair, including voiding the warranty.
PURCHASER’S AGREEMENT
By accepting delivery of this product, you promise that you will not change, alter, or modify this product or
remove or render inoperable or unsafe any guards, shields, or other safety features of this product; fail, refuse, or
neglect to install any retrofit kits from time to time provided by Pride to enhance or preserve the safe use of this
product.
SHIPPING AND DELIVERY
Before using your power chair, make sure your delivery is complete as some components may be individually
packaged. If you do not receive a complete delivery, please contact your Quantum Rehab Provider immediately.
Where damage has occurred during transport, either to the packaging or content, please contact the delivery company responsible.
INFORMATION EXCHANGE
We want to hear your questions, comments, and suggestions about this manual. We would also like to hear about
the safety and reliability of your new power chair, and about the service you received from your Quantum Rehab
Provider.
Please notify us of any change of address, so we can keep you apprised of important information about safety,
new products, and new options that can increase your ability to use and enjoy your power chair. Please feel free
to contact us at the address below:
USA: Canada: Australia:
Pride Mobility Products Corporation Pride Mobility Products Company Pride Mobility Product Australia Pty. Ltd.
Attn.: Customer Care Department 380 Vansickle Road Unit 350 20-24 Apollo Drive
182 Susquehanna Avenue St. Catharines, Ontario L2R 6P7 Hallam, Victoria 3803
Exeter, PA 18643-2694 1-888-570-1113 Australia
info@pridemobility.com
1-800-424-8205
NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact us and
we will be glad to send you a new one immediately.
4 www.pridemobility.com Quantum 6000Z Series
II. SAFETY
PRODUCT SAFETY SYMBOLS
The symbols below are used on the power chair to identify warnings, mandatory actions, and prohibited actions.
It is very important for you to read and understand them completely.
Read and follow the information in the owner’s manual.
Maximum seating weight.
Do not allow unsupervised children to play near the power chair while the batteries are
charging.
Keep your hands away from the tires when driving. Be aware that loose fitting clothing
can become caught in drive tires.
Do not use a cell phone, walkie/talkie, laptop, or other radio transmitter while
operating.
Avoid exposure to rain, snow, ice, salt, or standing water whenever possible. Maintain
and store in a clean and dry condition.
Indicates flammable material. Do not expose to heat sources such as open flame or
sparks. Do not transport batteries with flammable or combustible items.
Quantum 6000Z Series www.pridemobility.com 5
II. SAFETY
Keep tools and other metal objects away from battery terminals. Contact with
tools can cause electrical shock.
Do not connect an extension cord to the AC/DC converter or the battery charger.
Removal of grounding prong can create electrical hazard. If necessary, properly
install an approved 3-pronged adapter to an electrical outlet having 2-pronged
plug access.
Do not mix AGM and Gel-Cell batteries. Always use batteries of the same type
and chemistry.
Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive
conditions.
Do not use batteries with different amp-hour (Ah) capacities. Do not mix old and
new batteries. Always replace both batteries at the same time.
Corrosive chemicals contained in battery.
EMI/RFI - This product has been tested and passed at an immunity level of 20 V/m.
Explosive conditions exist!
6 www.pridemobility.com Quantum 6000Z Series
II. SAFETY
Indicates electrical shock hazard.
Do not place power chair in freewheel mode on a decline.
Do not place power chair in freewheel mode on an incline.

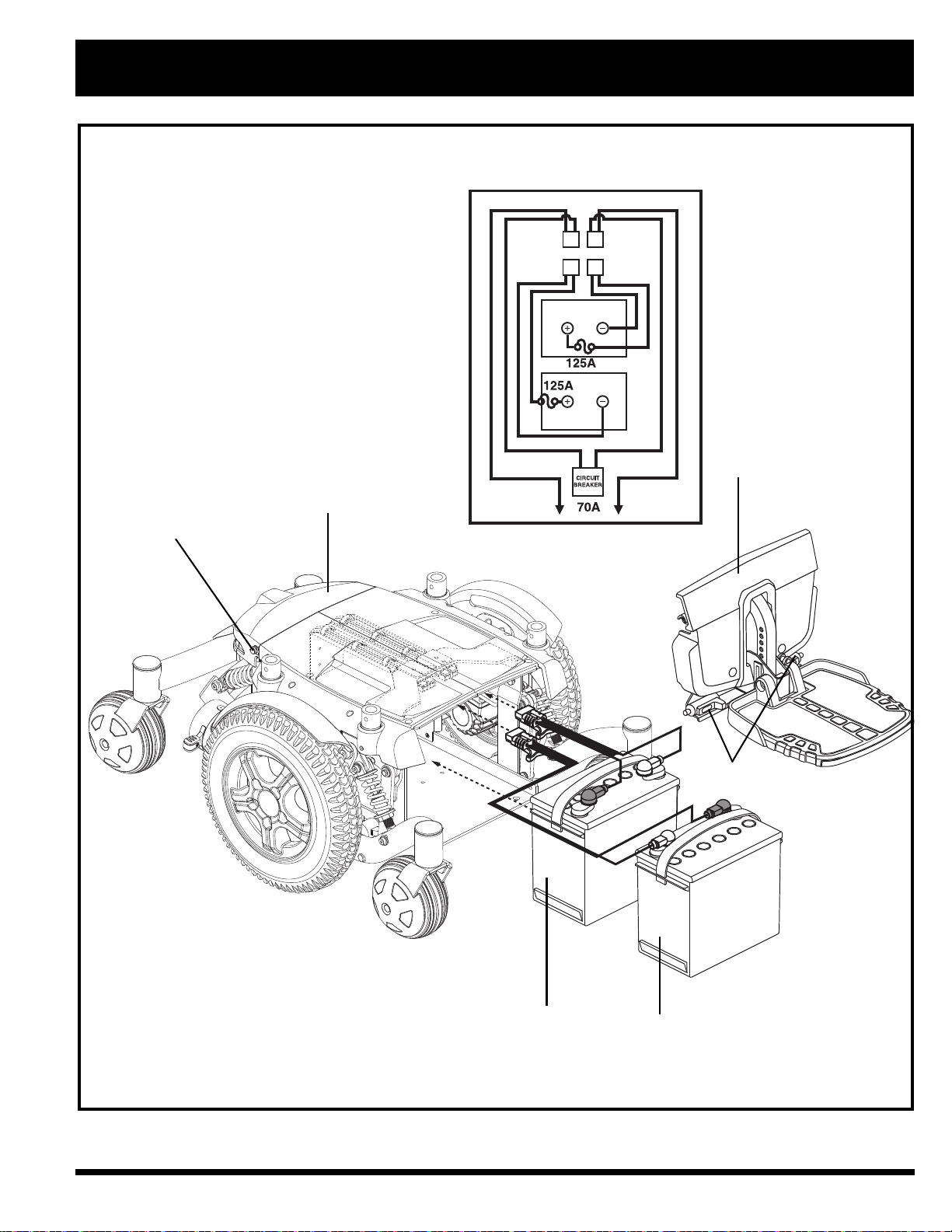

Battery Set Configuration:
+ = Positive (Red) Terminal Post
- = Negative (Black) Terminal Post
Connect Red wire to Red Positive (+) Terminal Post.
Connect Black wire to Black Negative (–) Terminal Post.
Battery posts, terminals, and related accessories contain lead and lead
compounds. Wear goggles and gloves when handling batteries and wash hands
after handling.
Disposal and recycling - Contact your Quantum Rehab Provider for information on
proper disposal and recycling of your Pride product and its packaging.
Quantum 6000Z Series www.pridemobility.com 7
II. SAFETY

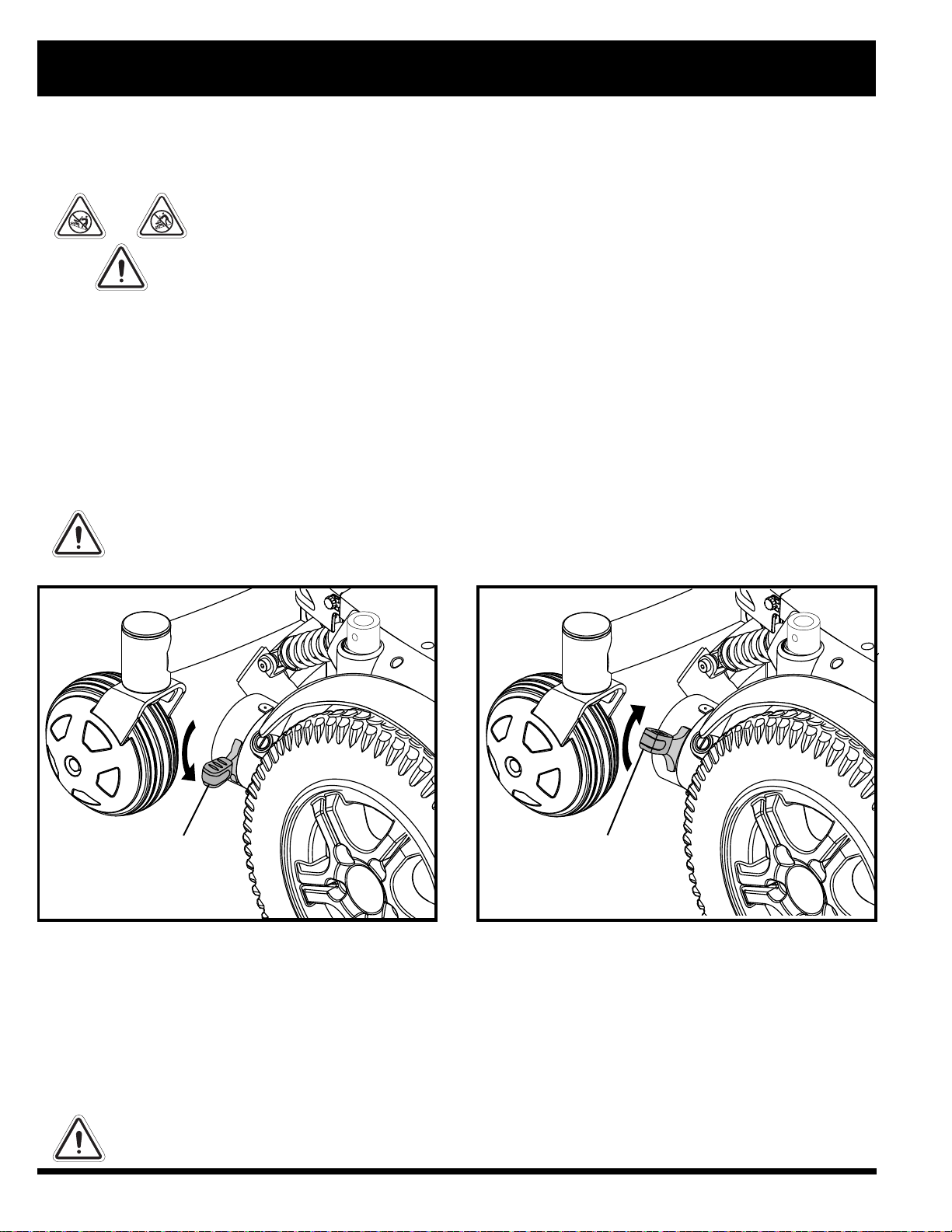

Locked and in drive mode.
Place unit on level ground and stand to one side when changing from drive mode to
freewheel mode or freewheel mode to drive mode.
Unlocked and in freewheel mode.

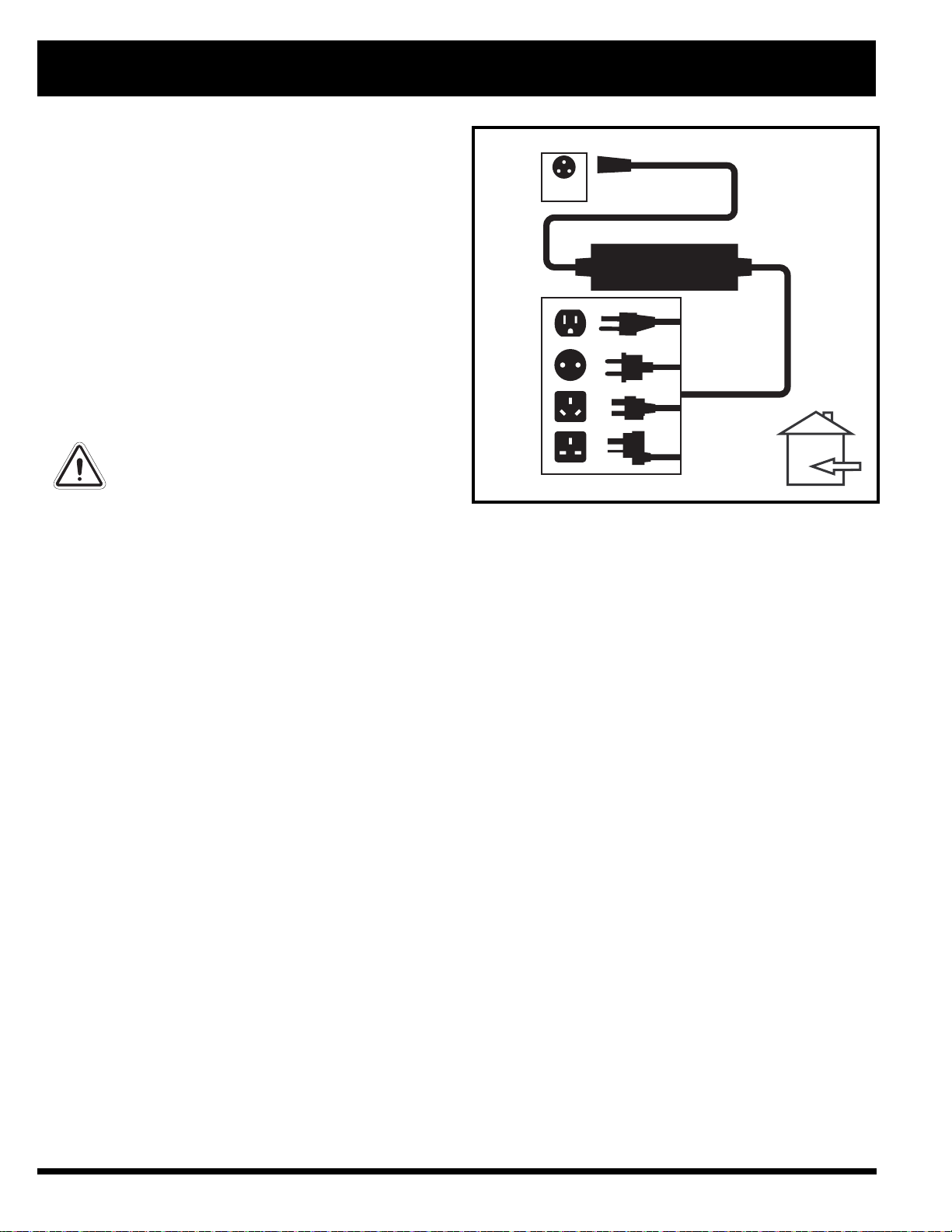

Battery charger for indoor use only.
Indicates that power chair, with similarly labeled seating system, conforms to ANSI/
RESNA WC/Vol. 4, Section 19 for transport of an occupied power chair in a motor
vehicle.

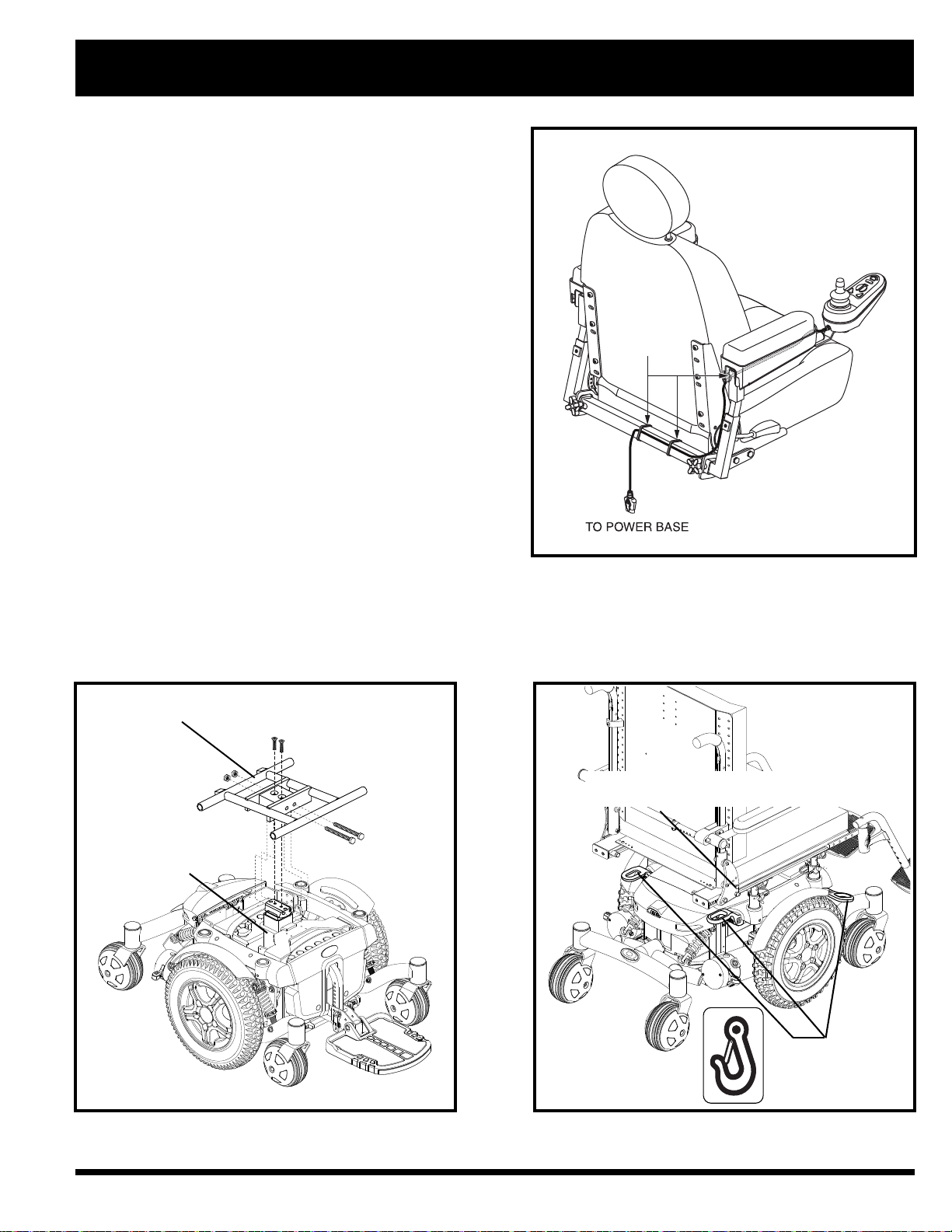

Indicates power chair securement points.
8 www.pridemobility.com Quantum 6000Z Series
II. SAFETY
GENERAL GUIDELINES
MANDATORY! Do not operate your new power chair for the first time without completely reading
and understanding this owner’s manual.
Your power chair is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an
extensive variety of products to best fit the individual needs of the power chair user. Please be aware that the final
selection and purchasing decision regarding the type of power chair to be used is the responsibility of the power
chair user, who is capable of making such a decision, and his/her healthcare professional (i.e., medical doctor,
physical therapist, etc.).
The contents of this manual are based on the expectation that a mobility device expert has properly fitted the
power chair to the user and has assisted the prescribing healthcare professional and/or the Quantum Rehab Provider in the instruction process for the use of the product.
There are certain situations, including some medical conditions, where the power chair user will need to practice
operating the power chair in the presence of a trained attendant. A trained attendant can be defined as a family
member or care professional specially trained in assisting a power chair user in various daily living activities.
As you begin using your power chair during daily activities, you will probably encounter situations in which you
will need some practice. Simply take your time and you will soon be in full and confident control as you maneuver
through doorways, on and off of elevators, up and down ramps, and over moderate terrain.
Below are some precautions, tips, and other safety considerations that will help you become accustomed to operating your power chair safely.
Modifications
Pride has designed and engineered your power chair to provide maximum mobility and utility. A wide range of
accessories is available from your Quantum Rehab Provider to further customize your power chair to better suit
your needs and/or preferences. However, under no circumstances should you modify, add, remove, or disable any
feature, part, or function of your power chair.
WARNING! Do not modify your power chair in any way not authorized by Pride. Do not use
accessories if they have not been tested or approved for Pride products.
Pre-Ride Safety Check
Get to know the feel of your power chair and its capabilities. Pride recommends that you perform a safety check
before each use to make sure your power chair operates smoothly and safely. Before riding, you should be trained
in the safe use of this power chair by your Quantum Rehab Provider.
Perform the following inspections prior to using your power chair:
Check for proper tire inflation. Maintain but do not exceed the psi/bar/kPa air pressure rating indicated on each
tire if equipped with pneumatic tires.
Check all electrical connections. Make sure they are tight and not corroded.
Check all controller connections to the power base. Make sure they are secured properly.
Check the brakes. See VII. “Care and Maintenance.”
Check battery charge. See VI. “Batteries and Charging.”
Ensure the manual freewheel levers are in drive mode before sitting on the power chair.
NOTE: If you discover a problem, contact your Quantum Rehab Provider for assistance.
Quantum 6000Z Series www.pridemobility.com 9
II. SAFETY
Weight Limitations
Your power chair is rated for a maximum weight capacity. Please refer to the specifications table for this limit.
Keep in mind that the maximum weight capacity includes the combined weight of the user and any accessories
mounted to the power chair.
MANDATORY! Stay within the specified weight capacity of your power chair. Exceeding the
weight capacity voids your warranty. Pride will not be held responsible for injuries and/or
property damage resulting from failure to observe weight limitations.
WARNING! Do not carry passengers on your power chair. Carrying passengers on your power
chair may affect the center of gravity, resulting in a tip or a fall.

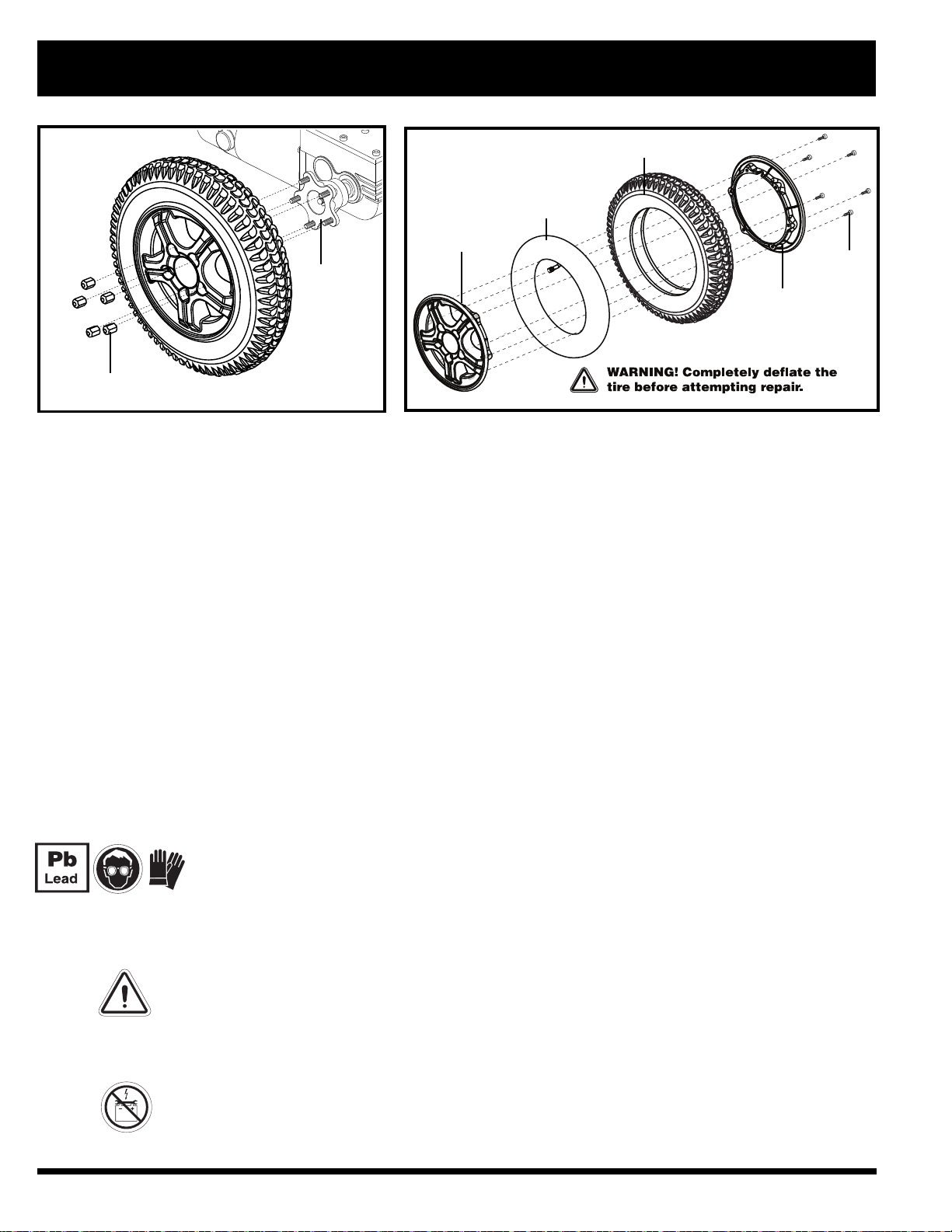

Tire Inflation
If your power chair is equipped with pneumatic tires, you should check or have the air pressure checked regularly.
Proper inflation pressures will prolong the life of your tires and help ensure the smooth operation of your power
chair.
WARNING! It is important that the bar/psi/kPa air pressure rating indicated on the tire be
maintained in pneumatic tires at all times. Do not underinflate or overinflate your tires. Low
pressure may result in loss of control, and overinflated tires may burst. Failure to maintain the
psi/bar/kPa air pressure rating indicated on pneumatic tires at all times may result in tire and/or
wheel failure.
WARNING! Inflate your power chair drive tires from a regulated air source with an available
pressure gauge. Inflating your tires from an unregulated air source could overinflate them,
resulting in a burst tire.
NOTE: If the tires on your power chair list the psi rating only, use the following conversion formulas to find
the bar or kPa rating: bar = psi x 0.06895; kPa = psi x 6.89476.
Incline Information
More and more buildings have ramps with specified degrees of inclination, designed for easy and safe access.
Some ramps may have turning switchbacks (180-degree turns) that require you to have good cornering skills on
your power chair.
Proceed with extreme caution as you approach the downgrade of a ramp or other incline.
Take wide swings with your power chair’s front wheels around any tight corners. If you do that, the power
chair’s rear wheels will follow a wide arc, not cut the corner short, and not bump into or get hung up on any
railing corners.
When driving down a ramp, keep the power chair’s speed adjustment set to the slowest speed setting to ensure
a safely controlled descent.
Avoid sudden stops and starts.
When climbing an incline, try to keep your power chair moving. If you must stop, start up again slowly and then
accelerate cautiously. When driving down an incline, set your power chair to the slowest speed setting and drive
in the forward direction only. If your power chair starts to move down the incline faster than you anticipated or
desired, allow it to come to a complete stop by releasing the joystick, then push the joystick forward slightly to
ensure a safely controlled descent.
WARNING! When on any sort of an incline or decline, never place the power chair in
freewheel mode while seated on it or standing next to it.
WARNING! When climbing an incline, do not zigzag or drive at an angle up the face of
the incline. Drive your power chair straight up the incline. This greatly reduces the
possibility of a tip or a fall. Always exercise extreme caution when negotiating an
incline.
10 www.pridemobility.com Quantum 6000Z Series
II. SAFETY
WARNING! You should not travel up or down a potentially hazardous incline (i.e., areas covered
with snow, ice, cut grass, or wet leaves).
WARNING! Never travel down an incline rearward. Doing so may cause the power chair to tip.
Always exercise extreme caution when negotiating an incline.
WARNING! If your power chair is equipped with a reclining seatback, do not attempt to negotiate
inclines with the seat in a reclined position. Do not attempt to negotiate obstacles with the seat
in a reclined position unless an attendant is present to help stabilize the chair. Failure to heed
may result in the power chair tipping over.
WARNING! Even though your power chair is capable of climbing slopes greater than those listed
in the product specifications, do not, under any circumstances, exceed the incline guidelines or
any other specifications presented in this manual. Doing so could cause instability in your power
chair.
WARNING! Any attempt to climb or descend a slope steeper than that listed in the product
specifications may put your power chair in an unstable position and cause it to tip.
Freewheel Mode

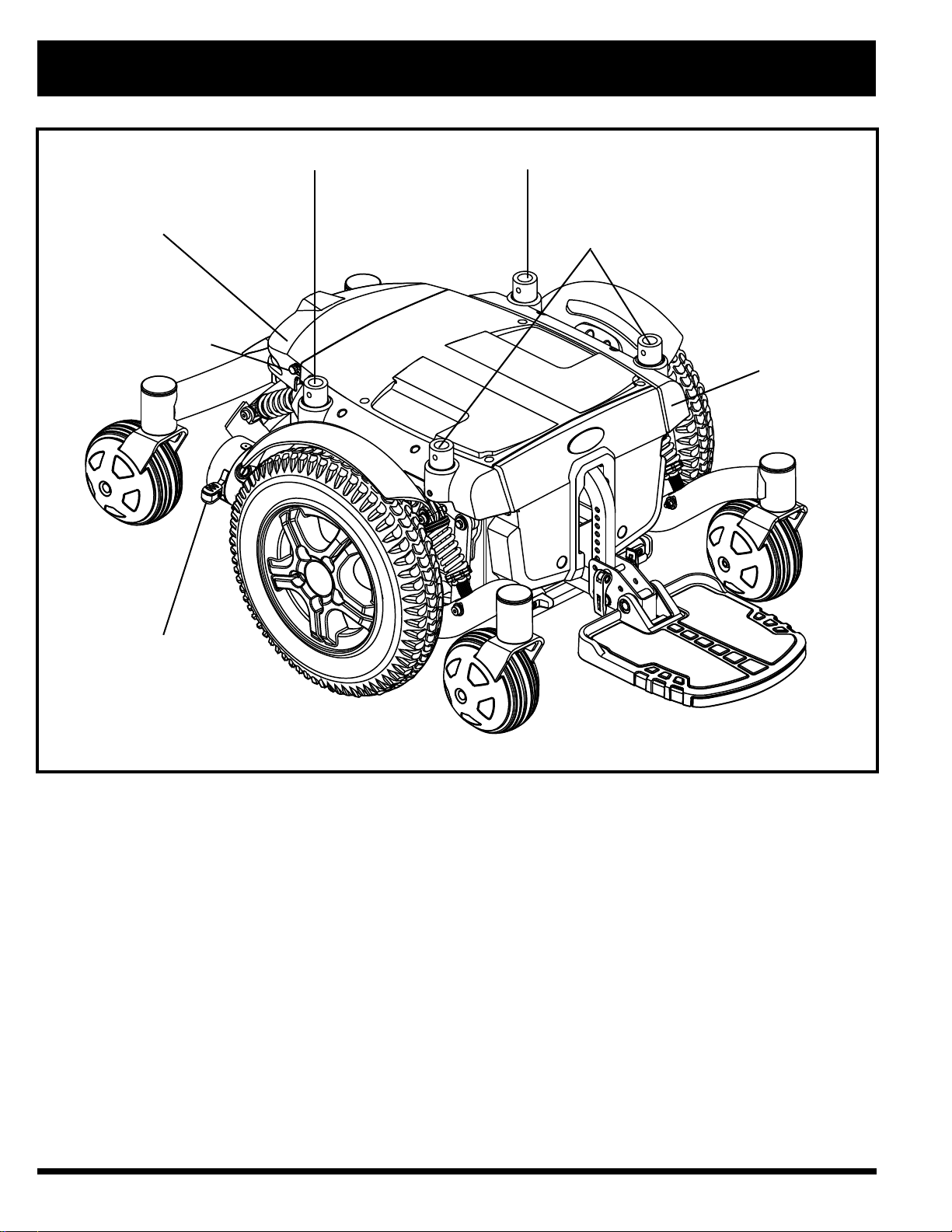

Your power chair is equipped with two manual freewheel levers to allow for manual maneuverability by a trained
attendant. For more information about how to place your power chair into and out of freewheel mode, see III.
“Your Power Chair.”
WARNING! Do not use your power chair in freewheel mode without an attendant
present.
WARNING! Do not attempt to personally place your power chair in freewheel mode
while seated on it. Ask an attendant for assistance if necessary.
WARNING! Do not place your power chair in freewheel mode while on an incline or
decline. This could cause the chair to roll uncontrollably on its own.
Braking Information
Your power chair is equipped with two powerful brake systems:
Regenerative — uses electricity to rapidly slow the vehicle when the joystick returns to the center/stop
position.
Disc Park Brake — activates mechanically after regenerative braking slows the vehicle to near stop, or when
power is removed from the system for any reason.
Cornering Information
While your power chair is equipped with front and rear caster wheels, excessively high cornering speeds can still
create the possibility of tipping. Factors which affect the possibility of tipping include, but are not limited to:
cornering speed, steering angle (how sharply you are turning), uneven road surfaces, inclined road surfaces, riding
from an area of low traction to an area of high traction (such as passing from a grassy area to a paved area –
especially at high speed while turning), and abrupt directional changes. High cornering speeds are not recommended. If you feel that you may tip over in a corner, reduce your speed and steering angle (i.e., lessen the
sharpness of the turn) to prevent your power chair from tipping.
WARNING! When cornering sharply, reduce your speed and maintain a stable center of gravity.
This greatly reduces the possibility of a tip or fall.
Quantum 6000Z Series www.pridemobility.com 11
II. SAFETY
Public Streets and Roadways
WARNING! You should not operate your power chair on public streets and roadways. Be aware
that it may be difficult for traffic to see you when you are seated on your power chair. Obey all
local pedestrian traffic rules. Wait until your path is clear of traffic, and then proceed with
extreme caution.
Outdoor Driving Surfaces
Your power chair is designed to provide optimum stability under normal driving conditions—dry, level surfaces
composed of concrete, blacktop, or asphalt. However, Pride recognizes that there will be times when you will
encounter other surface types. For this reason, your power chair is designed to perform admirably on packed soil,
grass, and gravel. Feel free to use your power chair safely on lawns and in park areas.
Avoid driving on uneven terrain and/or soft surfaces.
Avoid tall grass that can entangle the running gear.
Avoid loosely packed gravel and sand.
Do not use your power chair in fresh or salt water.
Do not use your power chair at the edge of a stream, lake, or ocean.
If you feel unsure about a driving surface, avoid that surface.
Inclement Weather Precautions
Exposure of your power chair to inclement weather conditions should be avoided whenever possible. If suddenly
caught up in rain, snow, severe cold or heat while operating your power chair, proceed to shelter at the earliest
opportunity. Thoroughly dry your power chair before storing, charging, or operating your power chair.
PROHIBITED! Operating in rain, snow, salt, mist/spray conditions, and on icy/slippery surfaces
can have an adverse effect on the electrical system. Maintain and store your power chair in a
dry and clean condition.
WARNING! Prolonged exposure to hot or cold conditions may affect the temperature of
upholstered and non-upholstered items on the power chair, possibly resulting in skin irritation.
Exercise caution when using the power chair in extremely hot or cold conditions or when
exposing your power chair to direct sunlight for prolonged periods of time.
Stationary Obstacles (Steps, Curbs, etc.)
Proceed with extreme caution when driving near raised surfaces, unprotected ledges and/or drop-offs (curbs, porches,

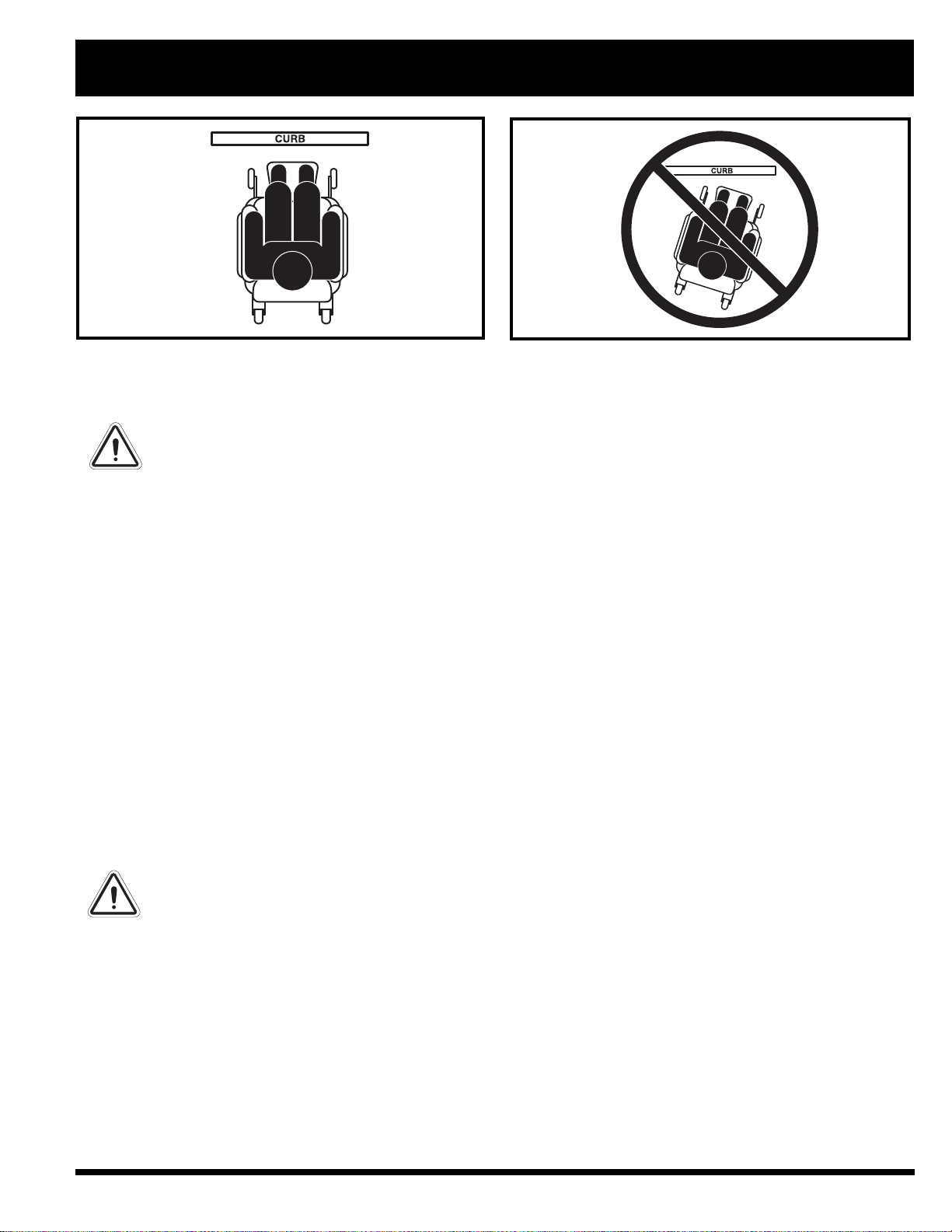

stairs, etc.). Be sure your power chair is traveling perpendicular to any curb you may be required to navigate.
To navigate up over a curb or stationary obstacle:
1. Approach the curb or obstacle slowly, and make sure the power chair is traveling perpendicular to the obstacle.
See figure 2.
2. Increase the forward spped just before the front wheels come in contact with the obstacle.
3. Reduce the forward speed only after the rear wheels have cleared the obstacle.
To navigate down a curb or stationary object:
1. Approach the curb or obstacle slowly, and make sure the power chair is travleing perpendicular to the obstacle.
See figure 2.
2. Reduce the forward speed just before the front wheels come in contact with the obstacle.
3. Increase the forward speed only after the rear wheels have cleared the obstacle and you are once again on a level
surface.
WARNING! Even though your power chair may be capable of handling greater obstacles, Pride
recommends that you do not attempt to negotiate a curb that is higher than 2 in. (5 cm). Doing
so could cause instability in your power chair.
WARNING! Do not attempt to have your power chair proceed backward down any step, curb, or
other obstacle. This may cause the power chair to tip.
12 www.pridemobility.com Quantum 6000Z Series
Loading...
