*NOTE: Travel Scooter options vary by country. Please contact your Provider to determine which options are available for your
Travel Scooter.
NOTE: Please become familiar with your Travel Scooter’s model number. The number can be found on the
product speci cation sheet in your owner’s package. Throughout this owner’s manual, Travel Scooter attributes
are indenti ed by model number (far left-hand column on Travel Scooter Features Table). Knowing your unit’s
model number will aid you in determining your particular Travel Scooter’s unique characteristics.
CAUTION! Federal law restricts this device to sale by or on the order of a physician or
other certi ed personnel licensed by the law of the State (US only) or region in which
this personnel practices to use or order the use of the device.
NOTE: This owner’s manual is compiled from the latest speci cations and product information available at
the time of publication. We reserve the right to make changes as they become necessary. Any changes to our
products may cause slight variations between the illustrations and explanations in this manual and the product
you have purchased. The latest/current version of this manual is available on our website.
NOTE: This product is compliant with WEEE, RoHS, and REACH directives and requirements.
NOTE: This product meets IPX4 classi cation (IEC 60529).
NOTE: The Travel Scooter and its components are not made with natural rubber latex. Consult with the
manufacturer regarding any after-market accessories.
Copyright © 2017
INFMANU4392/Rev F/March 2017
SAFETY GUIDELINES ............................................................................................... 3
I. SAFETY ............................................................................................................ 4
II. YOUR TRAVEL SCOOTER ................................................................................ 6
III. BATTERIES AND CHARGING ......................................................................... 13
IV. OPERATION ................................................................................................... 19
V. COMFORT ADJUSTMENTS ............................................................................ 21
VI. DISASSEMBLY AND ASSEMBLY .................................................................... 24
VII. BASIC TROUBLESHOOTING .......................................................................... 26
VIII. CARE AND MAINTENANCE ........................................................................... 28
WARNING! An authorized Provider or quali ed technician must perform the initial setup of this
scooter and must perform all of the procedures in this manual.
The symbols below are used throughout this owner’s manual and on the scooter to identify warnings and important
information. It is very important for you to read them and understand them completely.
WARNING! Indicates a potentially hazardous condition/situation. Failure to follow designated
procedures can cause either personal injury, component damage, or malfunction. On the
product, this icon is represented as a black symbol on a yellow triangle with a black border.
MANDATORY! These actions should be performed as speci ed. Failure to perform mandatory
actions can cause personal injury and/or equipment damage. On the product, this icon is
represented as a white symbol on a blue dot with a white border.
PROHIBITED! These actions are prohibited. These actions should not be performed at any
time or in any circumstances. Performing a prohibited action can cause personal injur y and/or
equipment damage. On the product, this icon is represented as a black symbol with a red circle
and red slash.
3
The symbols below are used on the Travel Scooter to identify warnings, mandatory actions, and prohibited actions.
It is very important for you to read and understand them completely.
NOTE: There are more warnings identi ed and explained in the Consumer Safety Guide that is included
with your Travel Scooter. Please become familiar with all the warnings and safety information found in the
Consumer Safety Guide and refer to this resource often.
Read and follow the information in the owner’s manual.
MODEL #
Scooter information label.
Fully charge batteries before operating.
Remove key from an unattended Travel Scooter.
Indicates tie-down points on the Travel Scooter.
Does not meet ISO 7176-19 standards for occupied transport in a motor
vehicle. When traveling in a motor vehicle, do not sit in your Travel Scooter.
Manufactured in.
4
MANDATORY! Do not operate your new Travel Scooter for the rst time without completely
reading and understanding this owner’s manual and the Consumer Safety Guide.
Your Travel Scooter is a state-of-the-art life-enhancement device designed to increase mobility. We provide an
extensive variety of products to best t the individual needs of the Travel Scooter user. Please be aware that the
nal selection and purchasing decision regarding the type of Travel Scooter to be used is the responsibility of the
Travel Scooter user who is capable of making such a decision and his/her healthcare professional (i.e., medical
doctor, physical therapist, etc.).
The contents of this manual are based on the expectation that a mobility device expert has properly tted the
Travel Scooter to the user and has assisted the prescribing healthcare professional and/or the authorized Provider
in the instruction process for the use of the product.
There are certain situations, including some medical conditions, where the Travel Scooter user will need to practice
operating the Travel Scooter in the presence of a trained attendant. A trained attendant can be de ned as a family
member or care professional specially trained in assisting a Travel Scooter user in various daily living activities.
As you begin using your Travel Scooter during daily activities, you will probably encounter situations in which
you will need some practice. Simply take your time and you will soon be in full and con dent control as you
maneuver through doorways, on and off elevators, up and down ramps, and over moderate terrain.
Additional general information can be found on the supplemental information sheets and booklets included in
your Owner’s Package. Please fully read and review the information, and keep it readily available for future
reference.
Below are some precautions, tips, and other safety considerations that will help you become accustomed to
operating the Travel Scooter safely.
Get to know the feel of your Travel Scooter and its capabilities. We recommend that you perform a safety check
before each use to make sure your Travel Scooter operates smoothly and safely.
Perform the following inspections prior to using your Travel Scooter:
Check the condition of the tires. Make sure they are not damaged or excessively worn.
Check all electrical connections. Make sure they are tight and not corroded.
Check all harness connections. Make sure they are secured properly.
Check the brakes to ensure they operate properly.
Check the battery condition meter to ensure the batteries are fully charged.
Ensure the manual freewheel lever is in drive mode before sitting on the Travel Scooter.
If you discover a problem, contact your authorized Provider for assistance. Please refer to the Contact Information
insert in your Owner’s Package.
5

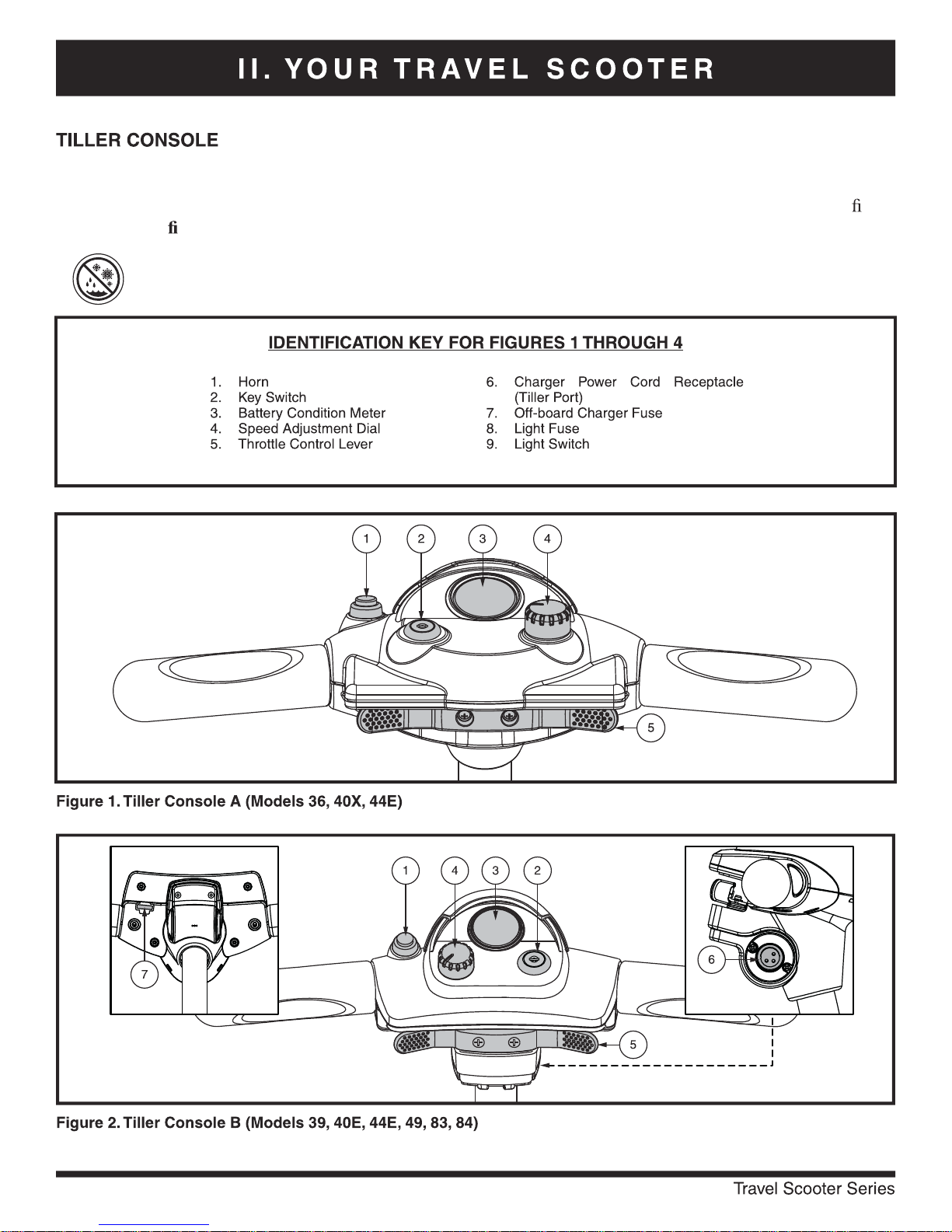

The tiller console houses all controls needed to drive your Travel Scooter, including the key switch, throttle
control lever, horn button, speed adjustment dial, and the battery condition meter. Please refer to the Travel
Scooter Features Table on the inside of the front cover of this owner’s manual to determine which console gure
to choose. See gures 1 through 4.
PROHIBITED! Do not expose the tiller console to moisture. In the event that the tiller console
does become exposed to moisture, do not attempt to operate your Travel Scooter until the tiller
console has dried thoroughly.
6
This button activates a warning horn. Your Travel Scooter must be turned on for the horn to be operational. Do
not hesitate to use the warning horn when doing so may prevent accident or injury.
Insert the key into the key switch and turn it clockwise to power up (turn on) your Travel Scooter.
Turn the key counterclockwise to power down (turn off) your Travel Scooter.
Although the key can be left in the key switch when the Travel Scooter is powered down, we recommend removing
it to prevent unauthorized use of your Travel Scooter.
WARNING! If the key is moved to the “off” position while your Travel Scooter is in motion, the
electronic brakes will engage and your Travel Scooter will come to an abrupt stop!
When the key is fully inserted into the key switch and turned clockwise to power up your scooter, this meter
indicates approximate battery strength. For further information on the battery condition meter, see III. “Batteries
and Charging.”
7
This dial allows you to preselect and limit your Travel Scooter’s top speed.
The image of the tortoise represents the slowest speed setting.
The image of the hare represents the fastest speed setting.
This lever allows you to control the forward speed and the reverse speed of your scooter up to the maximum speed
you preset with the speed adjustment dial.
To use throttle control lever for models equipped with Tiller Consoles A and B:
To move Forward, use your right thumb to push the right side of the throttle control lever.
To move Rearward, use your left thumb to push the left side of the throttle control lever.
To use throttle control lever for models equipped with Tiller Consoles C and D:
To Move Forward, use either of the following:
Use your left thumb to push the left side of the throttle control lever.
Use your right hand ngers to pull back on the right side of the throttle control lever.
To Move Rearward, use either of the following:
Use your right thumb to push the right side of the throttle control lever.
Use your left hand ngers to pull back on the left side of the throttle control lever.
Release the throttle control lever and allow your scooter to come to a complete stop before engaging the other side
of the lever. When the throttle control lever is completely released, it automatically returns to the center “stop”
position and engages your scooter’s brakes.
This switch controls your Travel Scooter’s lighting
system. See gure 4.
Toggle the switch forward to turn on the lighting
system.
Toggle the switch rearward to turn off the lighting
system.
WARNING! Scooter users are required
to use their lights when visibility is
restricted—day or night.
The manual freewheel lever, anti-tip wheels, and
motor/transaxle assembly are located on your Travel
Scooter as shown. See gure 5.
WARNING! Before placing your
Travel Scooter into or taking it out
of freewheel mode, remove the key
from the key switch. Never sit on a
Travel Scooter when it is in freewheel
mode. Never put a Travel Scooter in
freewheel mode on any incline.
8
Whenever you need or want to push your Travel Scooter for short distances, you can put it in freewheel mode.
1. Locate the manual freewheel lever at the top right of the rear section.
2. Push forward on the manual freewheel lever to disable the drive system and the brake system. You may now
push your Travel Scooter.
3. Push the manual freewheel lever rearward to reengage the drive and the brake systems; this takes your Travel
Scooter out of freewheel mode.
WARNING! When your Travel Scooter is in freewheel mode, the braking system is disengaged.
Disengage the drive motors only on a level surface.
Ensure the key is removed from the key switch.
Stand to the side of the scooter to engage or disengage freewheel mode. Never sit on a
scooter to do this.
After you have nished pushing your Travel Scooter, always return it to the drive mode to
lock the brakes.
The motor/transaxle assembly is an electromechanical unit that converts electrical energy from your Travel
Scooter’s batteries into the controlled mechanical energy that drives the Travel Scooter’s wheels.
The anti-tip wheels are an integral and important safety feature of your Travel Scooter. They are bolted to the
frame at the rear of the Travel Scooter.
PROHIBITED! Do not remove the anti-tip wheels or modify your Travel Scooter in any way that is
not authorized by your Provider.
WARNING! The anti-tip wheels may cause interference with the smooth transition of your Travel
Scooter when ascending or descending a curb. Contact your authorized Provider for more
information.
When the voltage in your Travel Scooter’s batteries becomes low or the Travel Scooter is heavily strained because
of excessive loads or steep inclines, the main circuit breaker may trip to protect the motor and electronics from
damage. See gure 6.
The main circuit breaker reset button pops out when the breaker trips.
When the breaker trips, the entire electrical system of your Travel Scooter shuts down.
Allow a minute or two for your Travel Scooter’s electronics to “rest.”
Push in the reset button to reset the main circuit breaker.
If the main circuit breaker trips frequently, you may need to charge your batteries more often. You may also
need to have your authorized Provider perform a load test on your Travel Scooter’s batteries.
If the main circuit breaker trips repeatedly, see your authorized Provider for service.
9
Your Travel Scooter is equipped with an innovative, easy-to-remove battery pack. A handle on the top of the
battery pack makes it easy to lift the pack off of the Travel Scooter with one hand. The battery pack contains two
rechargable batteries, and may contain the charger power cord receptacle, the main circuit breaker (reset button),
and the battery pack fuse. See gure 6.
Battery Pack Style A Battery Pack Style B Battery Pack Style C
10
(Travel Scooter Deck)(Travel Scooter Deck)
