Owner’s Manual
Alber Technologies Limited,
Chantry Court, Sovereign Way,
Chester, England. CH1 4QN
Tel: 01244 394240 Fax: 01244 394254
Email: Info@alber.co.uk www.alber.co.uk
SAFETY GUIDELINES
Please read and follow all instructions in this owners manual before attempting to operate your
power chair for the first time. If there is anything in this manual you do not understand, or if you
require additional assistance for set-up, contact your local authorized Pride provider.
Using your Pride product safely depends upon your diligence in following the warnings, cautions,
and instructions in this owners manual. Using your Pride product safely also depends upon your
own good judgement and/or common sense, as well as that of your provider, caregiver, and/or
healthcare professional. Pride is not responsible for injuries and/or damage resulting from any
persons failure to follow the warnings, cautions, and instructions in this owners manual. Pride
is not responsible for injuries and/or damage resulting from any persons failure to exercise
good judgement and/or common sense.
The symbols below are used throughout this owners manual to identify warnings and cautions. It
is very important for you to read and understand them completely.
WARNING! Failure to heed the warnings in this owners manual may result in personal injury.
CAUTION! Failure to heed the cautions in this owners manual may result in damage to your power
chair.
Copyright © 2001
Pride Mobility Products Ltd.
2 Jazzy 1103
CONTENTS
I. INTRODUCTION ......................................................................................................................... 4
II. SAFETY ......................................................................................................................................... 6
III. OPERATION ................................................................................................................................. 8
IV. COMFORT ADJUSTMENTS................................................................................................ 18
V. DISASSEMBLY ......................................................................................................................... 22
VI. CARE AND MAINTENANCE ................................................................................................ 23

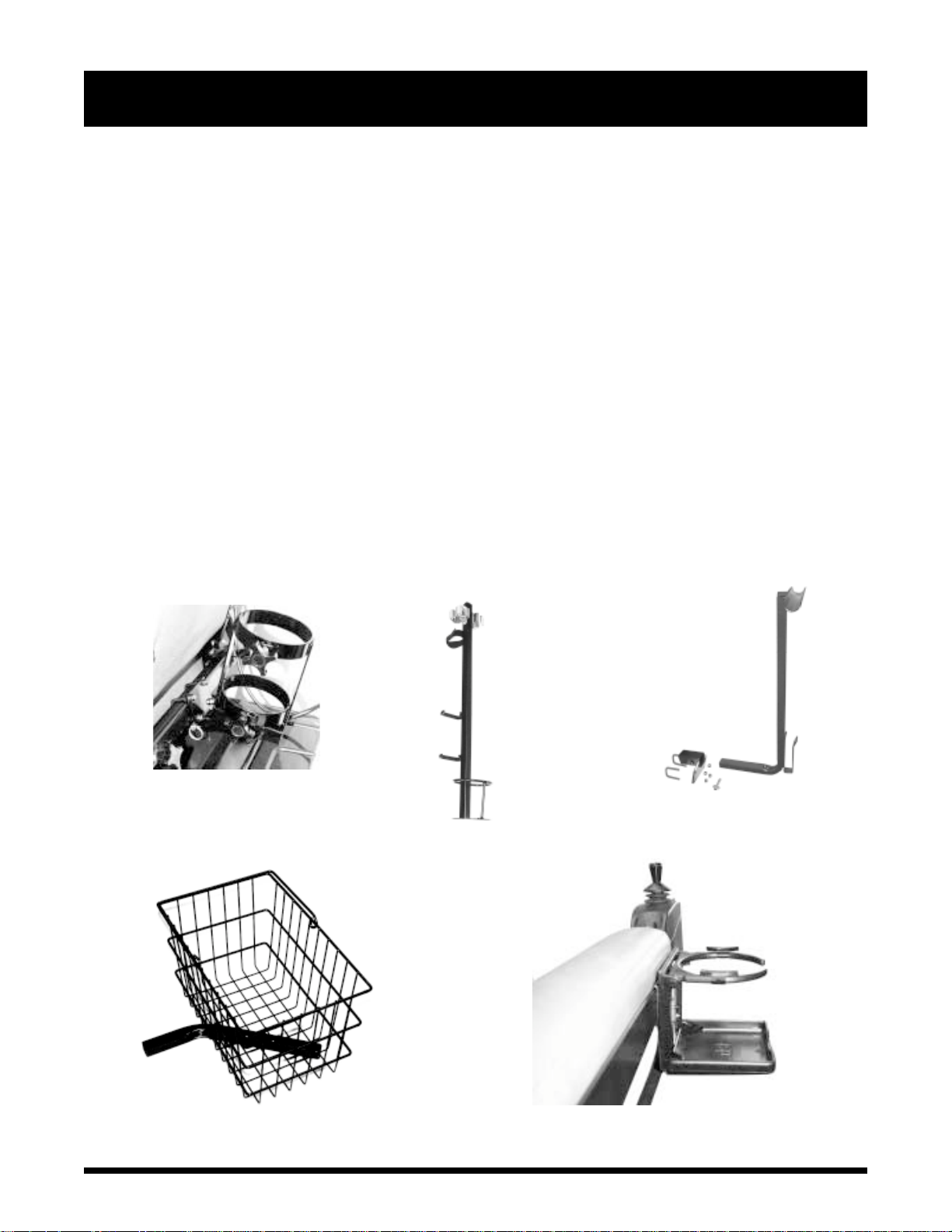

VII. OPTIONAL ACCESSORIES................................................................................................. 28
VIII. WARRANTY ............................................................................................................................... 32
3Jazzy 1103
I. INTRODUCTION
Welcome to
Pride Mobility Products, Ltd. (Pride)
. Congratulations on the purchase of your new Jazzy power
chair. The Jazzy 1103 design combines the most advanced state-of-the-art components with modern, attractive
styling. We are certain that the design features and trouble-free operation of your new Jazzy power chair will add
convenience to your daily living.
At Pride, your safety is important to us. Please read and follow all of the instructions in this manual before
you attempt to operate your Jazzy for the first time. These instructions were produced for your benefit. Your
understanding of these instructions is essential for the safe operation of your new Jazzy power chair.
Pride is not liable for damage to property or personal injury arising out of unsafe use of a Jazzy power chair. Pride
is also not liable for any property damage or personal injury arising out of the failure of any person and or/user to
following the instructions and recommendations set forth in this manual or any other instructions or recommendations contained in other Jazzy related literature issued by Pride or contained on the Jazzy power chair itself.
This owners manual is compiled from the latest specifications and product information available at the time of
publication. We reserve the right to make changes as they become necessary. Any changes to our products may
cause slight variations between the illustrations and explanations in this manual and the product you had purchased.
If you experience any problems with your Jazzy that your are unable to solve, or if you do not feel capable of safely
following any of the instructions and/or recommendations as contained in this manual, please contact your authorized
Pride provider for assistance.
Once you understand how to operate and take care of your Jazzy, we are certain that it will give you years of trouble-free
service and enjoyment.
Information Exchange
We want to hear your questions, comments, and suggestions about this manual. We would also like to hear about the
safety and reliability of your new Jazzy power chair, and about the service you received from your authorized Pride
provider.
Please notify us of any change of address, so we can keep you apprised of important information about safety, new
products, and new options that can increase your ability to use and enjoy your Jazzy. Please feel free to write us at the
address below:
Alber Technologies Limited,
Chantry Court, Sovereign Way,
Chester, England. CH1 4QN
Tel: 01244 394240 Fax: 01244 394254
Email: Info@alber.co.uk www.alber.co.uk
4 Jazzy 1103
I. INTRODUCTION
Pride Owners Club
As an owner of a Pride product, you are invited to register your products warranty and enroll in the Pride Owners
Club. You may do so by filling out and returning your enclosed registration card or by visiting Prides web site at
www.pridemobility.com. As a registered member, each time you visit our site, you will have access to the most
interactive and honest educational venue available today for people with mobility needs, their families and friends.
From our home page, click on the button that reads Owners Club to enter a page dedicated to current and
potential Pride product owners. You will gain access to interviews, stories, recreation ideas, daily living tips,
product and funding information, and interactive message boards. On these message boards you are invited to
speak with other Pride customers as well as Pride representatives who are available to assist you with any questions or concerns you may have. You will receive a free gift simply for registering with the Pride Owners Club.
My Authorized Pride Provider is:
Name:_______________________________________________________________________________
Address:_____________________________________________________________________________
Phone Number:________________________________________________________________________
Quick Reference Information:
Jazzy Model:__________________________________________________________________________
Serial Number:__________________________________________________________________________
Purchase Date:________________________________________________________________________
NOTE: If you ever lose or misplace your warranty card or your copy of this manual, call or write to us and
we will be glad to send you a new one immediately.
5Jazzy 1103
II. SAFETY
The Jazzy 1103 is a state-of-the-art life-enhancement device designed to enhance your mobility. There are,
however, certain situationsincluding some medical conditionswhere you will need to practice operating your
Jazzy 1103 in the presence of an attendant. Below are some safety tips that are designed to help you become
accustomed to your new Jazzy.
WARNING: The Jazzy 1103 is a motorized vehicle. When you are seated in your
Jazzy 1103 and you anticipate that you are going to be in a stationary
position for an extended period of time, turn off the power. This eliminates
the possibility of unexpected movement and conserves battery power.
TRANSFERS
Transferring onto and off of your Jazzy 1103 requires a good sense of balance. Be sure to have an attendant or
health care professional present while learning to properly transfer yourself. To eliminate the possibility of injury,
we ask that you verify the following before attempting a transfer:
1. Be sure the power is turned off.
2. Be sure the Jazzy 1103 is not in the freewheel mode.
3. Make sure the armrests are flipped up or removed from the powered wheelchair.
4. Tip the footrest up; this helps to keep your feet from hanging up on the footrest during the transfer.
WARNING: Avoid putting all of your weight on the footrest.
This may cause the Jazzy 1103 to tip and cause injury!
MOTOR VEHICLE TRANSPORT
Though your Jazzy may be equipped with a positioning belt, this belt was not designed with the intent of providing
proper restraint during motor vehicle transport.
l Never sit on or allow anyone to sit on the Jazzy 1103 in a moving vehicle.
l Always be sure your Jazzy 1103 is properly secured when being transported.
TIE-DOWN SYSTEM DISCLAIMER
Neither Pride nor its providers assume responsibility for the Jazzy used in vehicle tie-down applications.
WEIGHT LIMITATIONS
Your Jazzy 1103 is rated for an 113 kg/18 stone maximum weight limit. Exceeding the weight limit voids your Jazzy
warranty and may result in personal injury.
STAIRS AND ESCALATORS
Wheelchairs are not designed to travel up or down stairs or escalators. Always use an elevator. If you try to
navigate steps or escalators, you can cause injury to yourself and others.
6 Jazzy 1103
II. SAFETY
PUBLIC ROADS AND PARKING LOTS
WARNING: Do not operate your Jazzy 1103 on public streets and roadways. Please
be aware it may be difficult for traffic to see you when you are seated in your
Jazzy. To ensure your safety, always assume you cannot be seen. Obey all local
pedestrian traffic rules. Safety accessories like reflectors, fluorescent flags, and
various lighting packages are available to order from your Pride provider.
STEPS AND KERBS
l Do not attempt to climb a step or kerb higher than 3 cm.
l Always have assistance when attempting to climb a step or kerb lower than 3 cm.
l Never attempt to proceed backwards down any step, kerb, or other obstacle. Doing so could cause the
Jazzy 1103 to tip.
INCLINES AND UNEVEN TERRAIN
When climbing an incline, do not zigzag or drive at an angle up the face of the incline. Drive your Jazzy straight up
the incline. This greatly reduces the possibility of a tip or fall. Always exercise extreme caution when navigating an
incline.
l Never travel up or down an incline that can be potentially hazardous (e.g., areas covered with snow, ice, wet
leaves, or cut grass).
l When climbing an incline, try to keep the chair moving. If you must stop, start up again slowly and accelerate
cautiously.
When moving down an incline, do so slowly and in the forward direction only. If your Jazzy 1103 starts to move
faster than you anticipated, allow the unit to come to a complete stop by releasing the joystick. Then push the
joystick forward slightly and continue traveling down the incline.
MAXIMUM RECOMMENDED INCLINE
Pride has performed extensive incline testing with your Jazzy 1103. Our results have shown that the maximum
incline you can climb is 8.7% grade at maximum weight capacity. An 8.7% grade is the angle of most handicap
access ramps. Any attempt to climb a steeper slope may put your Jazzy in an unstable position.
8.7% Grade
7Jazzy 1103
III. OPERATION
JAZZY 1103 COMPONENTS
Your Jazzy has two main assemblies: the seat and the power base. See figure 1. There are a variety of seating
options that are designed to accommodate most users. Typically, the seating system includes armrests, seatback,
seat base, and joystick. Your Jazzy seat may also have some optional accessories attached to it, such as a basket,
cane/crutch holder, a cup holder, or a power seat switch.
The power base is the heart of the Jazzy. The power base assembly includes two motor/brake assemblies, two
anti-tip assemblies, two drive wheels, two anti-tip wheels, a caster assembly with two rear casters, two batteries,
power seat actuator (optional), a connector housing, and all wiring harnesses. See figure 1 below and figures 2
and 3.
SEAT ASSEMBLY
POWER BASE ASSEMBLY
ARMRESTS
SEAT

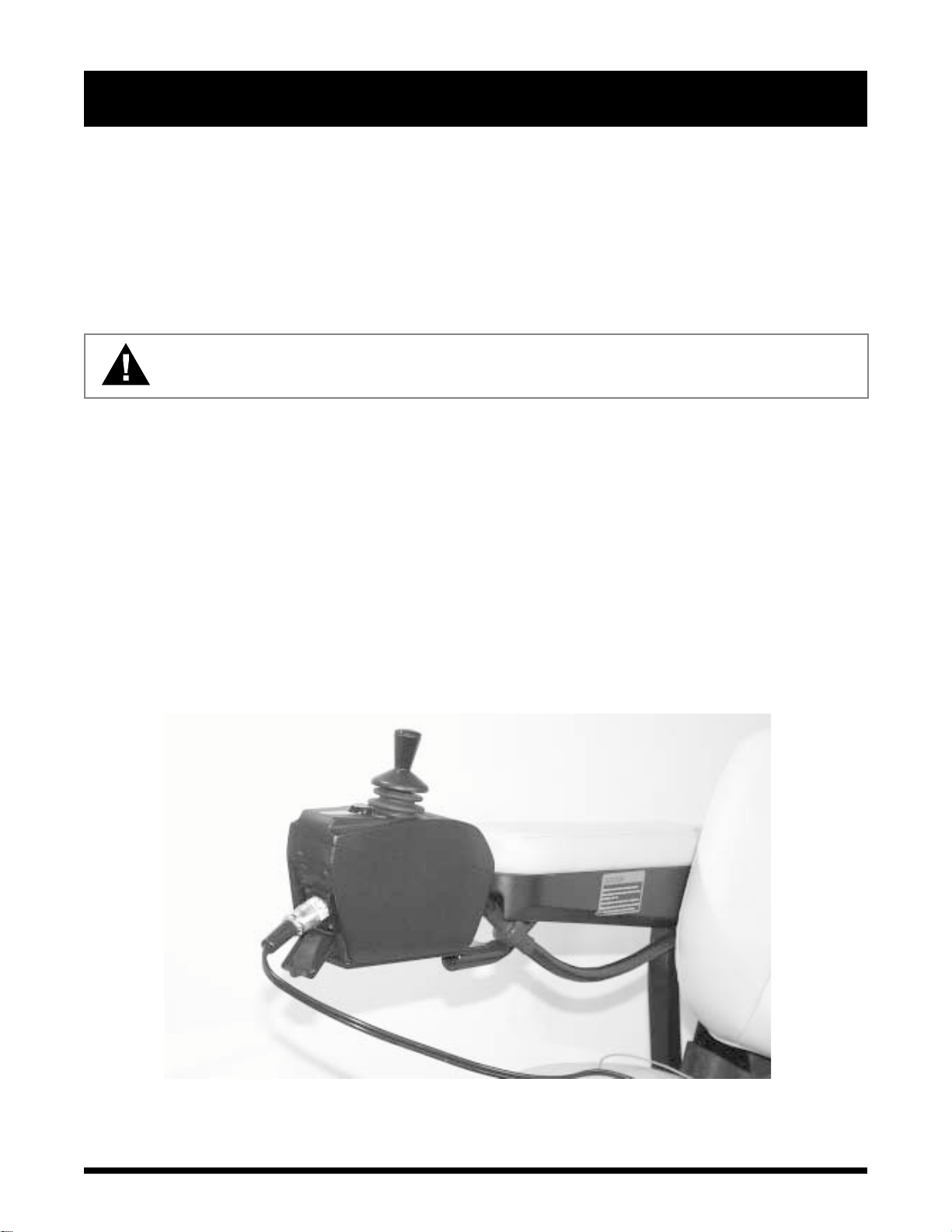

JOYSTICK
CONTROLLER
BODY
SHROUD
FREEWHEEL LEVER
FOOTREST
ANTI-TIP
CASTER
WHEEL
DRIVE WHEEL
FIGURE 1. The Jazzy 1103
WHEELS
8 Jazzy 1103
III. OPERATION
Specifications
Suspension: Full suspension
Drive Wheels: 25 cm pneumatic, center-mounted (solid tyres are optional)
Rear Casters: 20 cm solid, rear articulating
Anti-tip: 15 cm solid, front mounted
Max. Speed: 6 km/hr
Brakes: “Intelligent Braking,” electronic regenerative, disc park brake
Ground Clearance: 9 cm
Turning Radius: 47 cm
Overall Size: Length: 91 cm
Width: 58 cm
Seating Options: Low Back
Medium Back (standard)
Highback with headrest
Power Elevating Option A vailable
Drive Train: T wo-motor, mid-wheel, high speed
Batteries: Two 12 volt, U-1 batteries
Range: Up to 32 km
Battery Charger: 5-amp Off-board
3-amp Onboard (optional)
Electronics: 50-amp Pilot Controller
W ei ght Capac ity: 113 kg/18 stone
Component Weights: Base: 37 kg
Seat: 13 kg
Batteries: 11 kg each
W arranty: Lifetime limited warranty on frame
2-year electronics warranty
18 months on drive motors
9Jazzy 1103
III. OPERATION
MOTOR/BRAKE ASSEMBLY
BATTERY
FREEWHEEL
LEVERS
(Disengaged
Position)
SEAT POST
CONNECTOR HOUSING
BATTERY CHARGER
BATTERY
MOTOR/BRAKE ASSEMBLY
FIGURE 2. Jazzy 1103 Power Base (shroud
removed)
MAIN CIRCUIT BREAKER
JOYSTICK CONTROLLER CONNECTORS
FIGURE 3. Electronics Connector Housing (non
power seat)
10 Jazzy 1103
