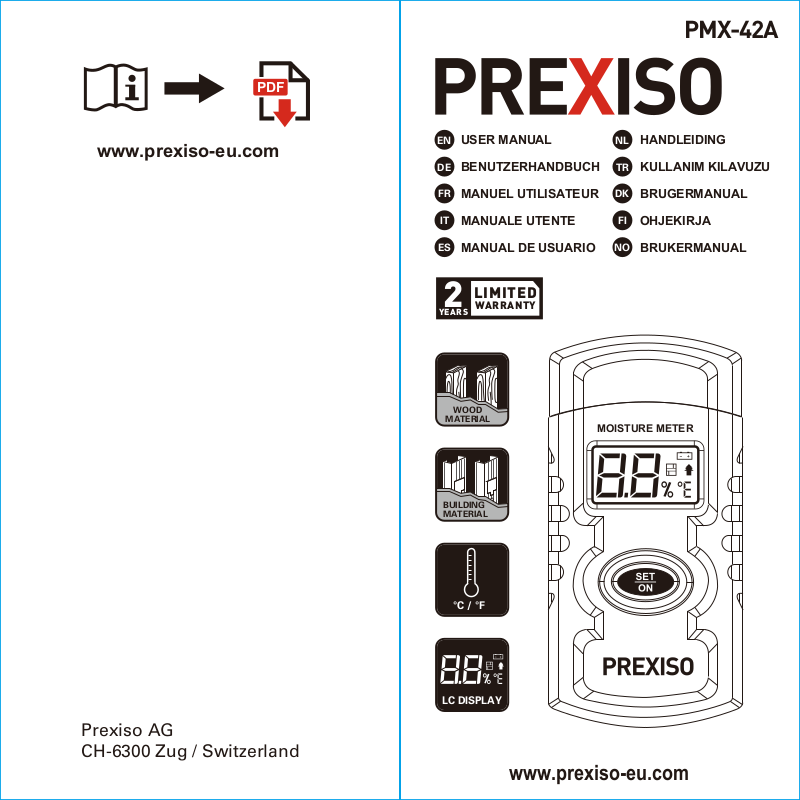

Prexiso PMX-42A User Manual

www.prexiso-eu.com

PMX-42A

PDF

EN

USER MANUAL

DE

BENUTZERHANDBUCH

FR

MANUEL UTILISATEUR

IT

MANUALE UTENTE

ES

MANUAL DE USUARIO

LIMITED

2

WARRANTY

YEARS

WOOD

MATERIAL

BUILDING
MATERIAL

°C / °F

NL

HANDLEIDING

TR

KULLANIM KILAVUZU

DK

BRUGERMANUAL

FI

OHJEKIRJA

NO

BRUKERMANUAL

MOISTURE METER

Prexiso AG
CH-6300 Zug / Switzerland

LC DISPLAY

www.prexiso-eu.com

IMPORTANT:

Read before Using

The safety instructions and the user manual should be
read through carefully before using the product.

SAFETY INSTRUCTION:

1. Keep the instrument dry.

2. Keep the probe clean.

3. Keep the instrument and battery out of reach of infants and
children.

4. Some factors (such as material type and temperature can affect
moisture measurement result, and may make it necessary to
correct the displayed value. Don’t use the instrument in the case
of inspections or for reference purposes.

5. When the symbol” “appears,the batteries are low and
should be replaced.

Ensure that battery polarity connections are correct when
replacing batteries.

If you are not using the instrument for a long time, remove the
battery.

FUNCTION

This instrument can be used to detect and evaluate the moisture
level in sawn timber (also paper, cardboard) and hardened
materials(mortar, concrete and plaster). It displays the moisture
level directly. In addition, the device can be set up to measure the
ambient temperature.

PRODUCT OVERVIEW

A

B

MOISTURE METER

C

D

E

PARTS DESCRIPTION

A
B
C

D

E

EN

Probe Cover

Probe

LCD

On switch; switch between
measuring mode

Battery compartment (rear)

DISPLAY

C

a

a. Measured value display
b. Low battery indicator
c. Measuring mode of Building materials
d. Measuring mode of Wood
e. Unit of measurement ˚C / ˚F
f. Unit of measurement %

OPERATION INSTRUCTION

1. INSERT BATTERIES

Open the battery compartment and
insert the LR44 batteries according
to the symbols. Pay attention to the
polarity while inserting the batteries.

Change batteries when
battery symbol is flashing.

2. SWITCHING ON/OFF

The device switches off automatically if
no operation for 15 seconds

3. MEASURING MODE CHANGE

The device switches off automatically if
no operation for 15 seconds

f

Device on

1 sec1x3 sec1x1 sec1x1 sec1x1 sec

Symbols flash

21

b

d

e

ON

1x
