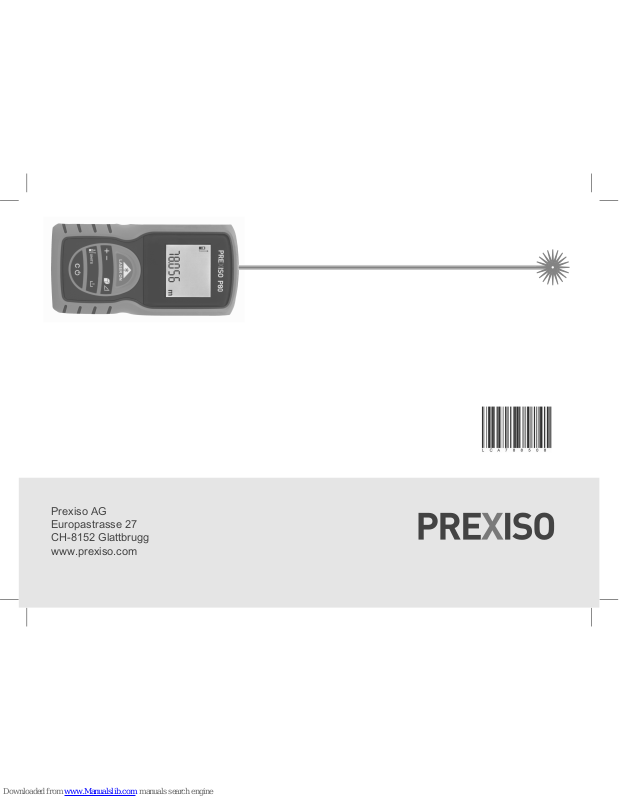

Prexiso P80 User Manual
3UH[LVR$*
(XURSDVWUDVVH
&+*ODWWEUXJJ
ZZZSUH[LVRFRP
PREXISO P80 788508
1
EN
Table of Contents
Instrument Set-up - - - - - - - - - - - - - - - - - - - - - - - - - -2
Overview - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -2
Display - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -2
Insert batteries - - - - - - - - - - - - - - - - - - - - - - - - - - - - -2
Operations - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -3
Switching ON/OFF- - - - - - - - - - - - - - - - - - - - - - - - - - -3
Clear - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -3
Message Codes - - - - - - - - - - - - - - - - - - - - - - - - - - - -3
Adjusting measuring reference - - - - - - - - - - - - - - - - - -3
Multifunctional endpiece- - - - - - - - - - - - - - - - - - - - - - - 3
Unit setting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -3
Measuring Functions - - - - - - - - - - - - - - - - - - - - - - -4
Measuring single distance - - - - - - - - - - - - - - - - - - - - -4
Permanent measuring - - - - - - - - - - - - - - - - - - - - - - - -4
Add / Subtract - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -4
Area- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -5
Volume- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -5
Pythagoras (2-point) - - - - - - - - - - - - - - - - - - - - - - - - -6
Pythagoras (3-point) - - - - - - - - - - - - - - - - - - - - - - - - -6
Memory (last 10 values)- - - - - - - - - - - - - - - - - - - - - - -7
Technical Data- - - - - - - - - - - - - - - - - - - - - - - - - - - - -8
Message Codes- - - - - - - - - - - - - - - - - - - - - - - - - - - -8
Care - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -8
Disposal - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -8
Warranty- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -8
Safety Instructions - - - - - - - - - - - - - - - - - - - - - - - - -9
Symbols used - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -9
Permitted use - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -9
Prohibited use- - - - - - - - - - - - - - - - - - - - - - - - - - - - - -9
Hazards in use- - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9
Limits of use - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9
Areas of responsibility - - - - - - - - - - - - - - - - - - - - - - -10
Electromagnetic Compatibility (EMC)- - - - - - - - - - - - -10
FCC statement (applicable in U.S.) - - - - - - - - - - - - - -10
Laser classification- - - - - - - - - - - - - - - - - - - - - - - - - -10
Labelling - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -11
PREXISO P80 788508
2
EN
Instrument Set-up
Overview
The safety instructions and the user manual should be
read through carefully before the product is used for the
first time.
The person responsible for the product must ensure that
all users understand these directions and adhere to them.
Display
On / Measure
Add / Subtract
Area / Volume /
Pythagoras
Clear / Off
Measuring
reference / Unit
Memory
Display
Insert batteries
Battery
Units
Area /
Volume
Addition /
Subtraction
Measuring
reference
Main line
Pythagoras
Memory
Info
i
To ensure
reliable use, do
not use zinccarbon batteries.
Change batteries
when battery
symbol is
flashing.
PREXISO P80 788508
3
EN
Operations
Switching ON/OFF Clear Message Codes
ON
Device is turned
OFF.
2 sec
i
If no key is
pressed for
180 sec, the
device
switches off
automatically.
Undo last action.
If the message InFo appears with a number, ob-
serve the instructions in "Message Codes" section.
Example:
Adjusting measuring reference
Distance is measured from the
front of the device.
1
Distance is measured from the rear of
the device (standard setting).
2
Multifunctional endpiece Unit setting
i
The orientation of the
endpiece is
automatically
detected and
the zero point
is adjusted
accordingly.
2 sec
0.000 m
0‘00‘‘ 1/16
0 in 1/16
Switch between the
following units:
