Prestigio T200C, T210C Service Manual

TabletNote Computer
T200C/T210C

T200V/T210V
Service Manual

Preface

Preface

I

Preface

Preface

Notice

The company reserves the right to revise this publication or to change its contents without notice. Information contained
herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven­dor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are
they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.

This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or
reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publica­tion, except for copies kept by the user for backup purposes.

Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of
their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement
of that product or its manufacturer.

Version 1.0
November 2003

Trademarks

Intel® and Pentium® are registered trademarks of Intel Corporation.
Windows® is a registered trademark of Microsoft Corporation.

Other brand and product names are trademarks and/or registered trademarks of their respective companies.

II

About this Manual

This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and
inspection of personal computers.

It is organized to allow you to look up basic information for servicing and/or upgrading components of the computer.

The following information is included:

Chapter 1, Introduction, provides general information about the location of system elements and their specifications.
Chapter 2, Disassembly, provides step-by-step instructions for disassembling parts and subsystems and how to upgrade
elements of the system.
Appendix A, Part Lists
Appendix B, T2X0C Schematic Diagrams
Appendix C, T2X0V Schematic Diagrams

Preface

Preface

III

Preface

Related Documents

You may also need to consult the following manual for additional information:

User’s Manual on CD
This describes the computer’s features and the procedures for operating the computer and its ROM-based setup program.
It also describes the installation and operation of the utility programs provided with the computer.

Preface

IV

Contents

Preface

Introduction ..............................................1-1

Overview .........................................................................................1-1

Model Differences ...........................................................................1-2

System Specifications T200C/T210C ............................................ 1-3

System Specifications T200D/T210D ............................................1-5

System Specifications T200V/T210V ............................................1-7

System Specifications T200H/T210H ............................................1-9

External Locator - Top View with LCD Open ..............................1-11

Rotating the LCD Swivel Screen ..................................................1-12

External Location - Front & Rear Views ......................................1-14

External Locator - Left & Right Views .........................................1-15

External Locator - Bottom View ...................................................1-16

T2X0C/T2X0D Mainboard Overview - Top ................................1-17

T2X0C/T2X0D Mainboard Overview - Bottom ...........................1-18

T2X0C/T2X0D Mainboard Overview - Top ................................1-19

T2X0C/T2X0D Mainboard Overview - Bottom ...........................1-20

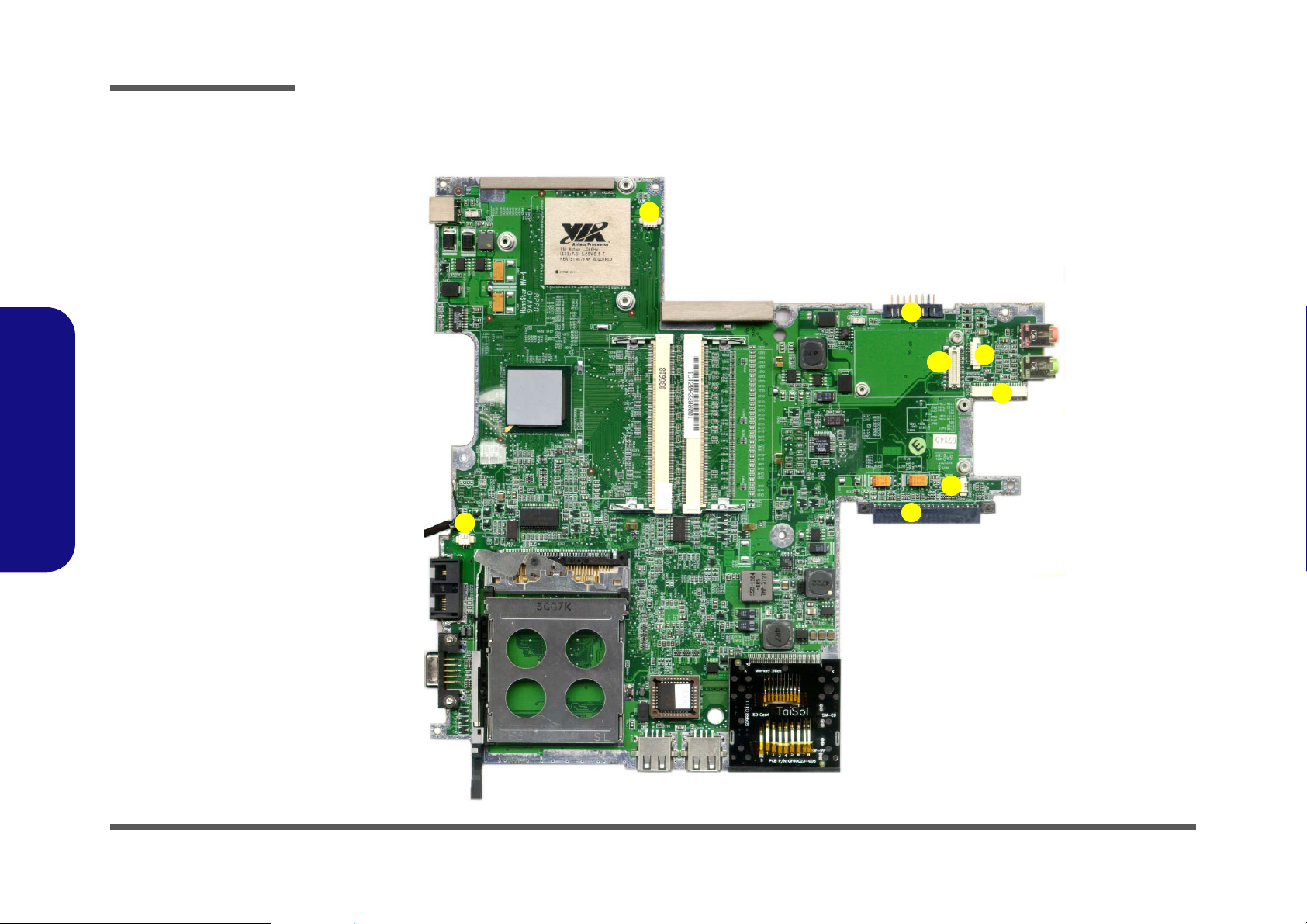

T2X0V/T2X0H Mainboard Overview - Top ................................1-21

T2X0V/T2X0H Mainboard Overview - Bottom ...........................1-22

T2X0V/T2X0H Mainboard Overview - Top ................................1-23

T2X0V/T2X0H Mainboard Overview - Bottom ...........................1-24

Disassembly ...............................................2-1

Overview .........................................................................................2-1

Disassembly Steps ...........................................................................2-4

Removing the Battery ......................................................................2-5

Removing the Hard Disk .................................................................2-6

Removing the System Memory (RAM) ..........................................2-7

Removing the Intel WLAN Module (T2X0C/T2X0D Only) ..........2-8

Removing the Processor (T2X0C/T2X0D Only) ............................2-9

Part Lists ..................................................A-1

Part List Illustration Location ........................................................ A-1

Top (T200C) .................................................................................. A-2

Bottom (T200C) ............................................................................. A-3

14.1" LCD (T200C) ....................................................................... A-4

Hard Disk Drive (T200C) .............................................................. A-5

Top (T210C) .................................................................................. A-6

Bottom (T210C) ............................................................................. A-7

14.1" LCD (T210C) ....................................................................... A-8

Hard Disk Drive (T210C) .............................................................. A-9

Top (T200V) ................................................................................ A-10

Bottom (T200V) .......................................................................... A-11

14.1" LCD (T200V) ..................................................................... A-12

Hard Disk Drive (T200V) ............................................................ A-13

Top (T210V) ................................................................................ A-14

Bottom (T210V) .......................................................................... A-15

14.1" LCD (T210V) ..................................................................... A-16

Hard Disk Drive (T210V) ............................................................ A-17

T200C/T210C Schematic Diagrams ......B-1

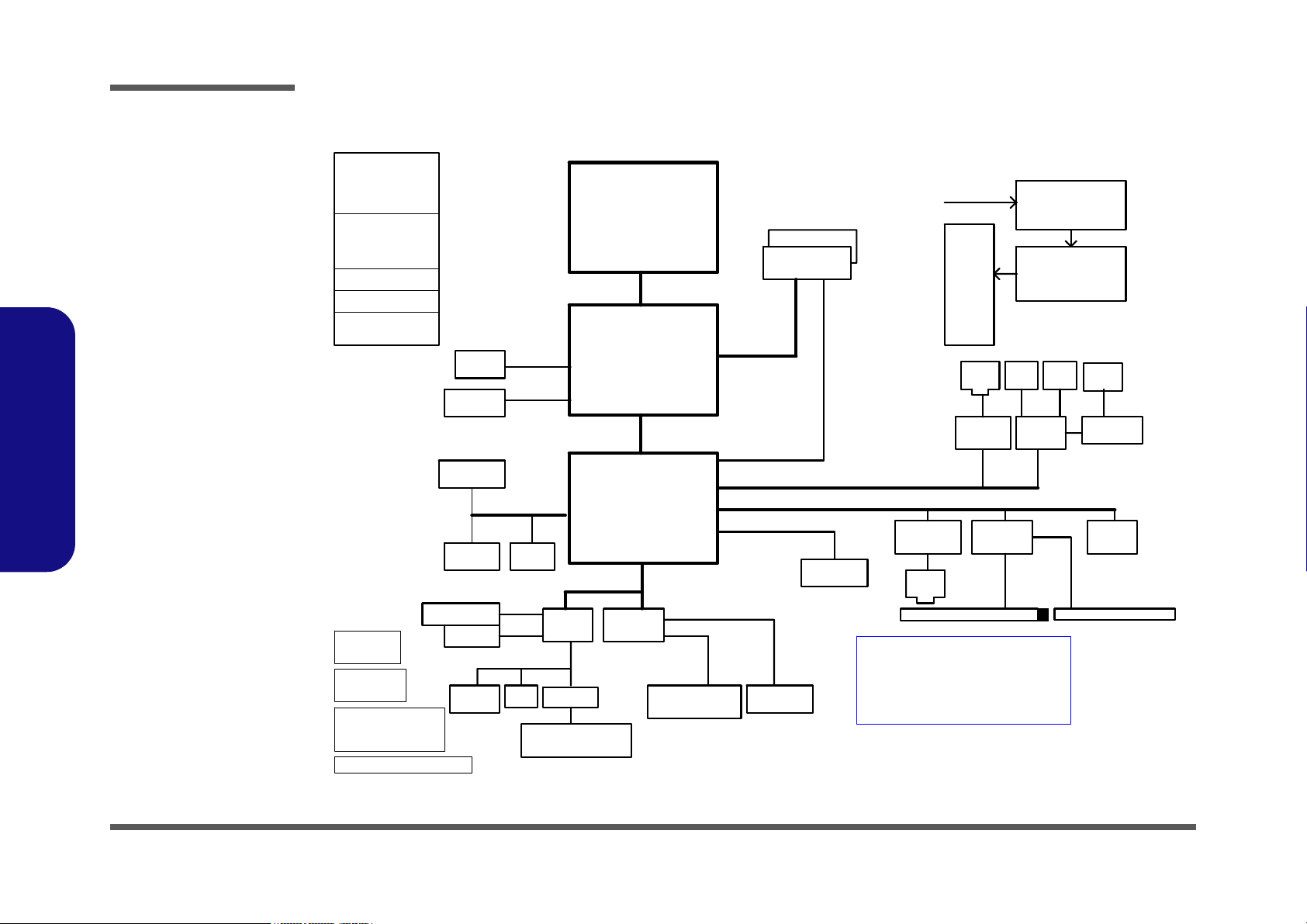

System Block Diagram ...................................................................B-2

Pentium-M-1 ...................................................................................B-3

Pentium-M-2 ...................................................................................B-4

855GM-1 .........................................................................................B-5

855GM-2 .........................................................................................B-6

855GM-3 .........................................................................................B-7

DDR SODIMM ..............................................................................B-8

DDR Termination ...........................................................................B-9

LVDS, CRT ..................................................................................B-10

Preface

V

Preface

Clock Generator ...........................................................................B-11

ICH4-1 .......................................................................................... B-12

ICH4-2 .......................................................................................... B-13

ICH4-3, HDD ............................................................................... B-14

USB2.0 Port ................................................................................. B-15

MDC, Mini PCI ............................................................................B-16

LAN RTL8100BL ........................................................................ B-17

PCMCIA ENE CB710 ................................................................ B-18

PCM Socket, 4 IN 1 Socket ........................................................ B-19

SIO, BIOS ....................................................................................B-20

Touch Panel ..................................................................................B-21

Hitachi H8S .................................................................................. B-22

LED B’d, HOT KEY B’d, FAN, K/B .......................................... B-23

CODEC, AMP .............................................................................. B-24

+3VS, +5VS ................................................................................. B-25

+2.5V, +1.25V, 1.5V .................................................................... B-26

Preface

V_CORE/ +VCCP/ +1.2VS ......................................................... B-27

5V, 3.3V, +1.2, 1.5V .................................................................... B-28

Charger ......................................................................................... B-29

Hot Key ........................................................................................ B-30

Inverter ......................................................................................... B-31

LCD LED Board ..........................................................................B-32

LVDS Transmitter, Panel I/F ....................................................... C-10

Clock (W311 + W256) ................................................................ C-11

VT2835 (1 of 3) ........................................................................... C-12

VT2835 (2 of 3) ........................................................................... C-13

VT2835 (3 of 3) ........................................................................... C-14

All USB 2.0 Port .......................................................................... C-15

HDD, MDC, BT, Indicator, WLAN ............................................ C-16

LAN PHY VT6103 ...................................................................... C-17

PCMCIA ENE CB710 ................................................................. C-18

PCM Socket, 4 In 1 Socket .......................................................... C-19

SIO, BIOS, FIR ............................................................................ C-20

H8S / 2104LPC ............................................................................ C-21

Fan, CRT, Inverter, DC, Power_GD ........................................... C-22

Audio Codec VT1616 .................................................................. C-23

Touch Panel Controller ................................................................ C-24

System Power 1 ........................................................................... C-25

System Power 2 ........................................................................... C-26

System Power 3 ........................................................................... C-27

CPU VCORE ............................................................................... C-28

Charger ........................................................................................ C-29

T200V/T210V Schematic Diagrams ..... C-1

System Block Diagram ...................................................................C-2

VIA C3 (1 of 2) .............................................................................. C-3

VIA C3 (2 of 2) .............................................................................. C-4

VT8623 (1 of 3) ..............................................................................C-5

VT8623 (2 of 3) ..............................................................................C-6

VT8623 (3 of 3) ..............................................................................C-7

DDR SO-DIMM .............................................................................C-8

DDR Termination ...........................................................................C-9

VI

1: Introduction

Overview

This manual covers the information you need to service or upgrade the T200C/T210C/T200D/T210D/T200V/T210V/
T200H/T210H TabletNote computer. Information about operating the computer (e.g. getting started, and the Setup util­ity) is in the User’s Manual. Information about drivers (e.g. VGA & audio) is also found in User’s Manual. That manual
is shipped with the computer.

Operating systems (e.g. DOS, Windows 9x, Windows NT 4.0, Windows 2000, Windows XP, OS/2 Warp, UNIX, etc.) have
their own manuals as do application software (e.g. word processing and database programs). If you have questions about
those programs, you should consult those manuals.

The T200C/T210C/T200D/T210D/T200V/T210V/T200H/T210H TabletNote computer is designed to be upgradeable.
See “Disassembly” on page 2 - 1 for a detailed description of the upgrade procedures for each specific component.
Please note the warning and safety information indicated by the “” symbol.

The balance of this chapter reviews the computer’s technical specifications and features.

Introduction

1.Introduction

Overview 1 - 1

Introduction

Model Differences

The differences between the model types are indicated in the table and pictures below.

Specifications

1.Introduction

Table 1 - 1

Model

Specifications

Figure 1 - 1

Design Differences

Feature/Model

Processor Type Intel Pentium® M Intel Pentium® M VIA Antaur VIA Antaur

Touch Panel
Functionality
Supported

T200C
T210C

Yes No Yes No

T200D
T210D

T200V

T210V

T200H
T210H

Designs

T200 Series T210 Series

1 - 2 Model Differences

System Specifications T200C/T210C

Feature Specification T200C & T210C

Processor Types Intel Pentium® M Processor (478-pin) Micro-FCPGA

Package

Core Logic Intel® 855 GM + Intel 82801DBM (ICH4-M)

Security Security (Kensington® Type) Lock Slot BIOS Password

(µ0.13) 0.13 Micron Process Technology, 1MB On-Die L2
Cache & 400MHz Front Side Bus - 1.3/ 1.4/ 1.5/ 1.6/ 1.7
GHz

Introduction

Table 1 - 2

T200C/T210C

System

Specifications

Memory Two 200 Pin DDR SODIMM Sockets

Supporting DDR 266 MHz Modules

BIOS ACPI 4MB Flash ROM Insyde BIOS

LCD Flat Panel TFT - 14.1" XGA LCD with Built-in Touch Panel and Stylus Pen

Supporting 1024 * 768 dot resolution
LCD Swivel Hinge (allows conversion between Notebook and Tablet Modes)

Display Intel Chipset 855GM Integrated Graphics

Shared Video Memory Architecture Supporting up to 32MB (Default Setting 32MB)

Storage Easy Changeable 2.5" 9.5 mm (h) IDE HDD

Supporting Ultra DMA 66/100

Audio Integrated Direct Sound Audio Compliant with AC’97 2.2

2 Built-In Speakers

Keyboard,
Pointing Device &
Buttons

Indicators 7 LED Indicators (Power/Suspend, Battery, HDD, Caps Lock, Scroll Lock, Num Lock, Wireless LAN)

Winkey Keyboard
Built-In TouchPad

Supporting 256/512MB DDR RAM Modules
Expandable up to 1024 MB

Built-in 4-in-1 Card Reader for the following formats:

SD (Secure Digital)
MMC (Multi Media Card)
MS (Memory Stick)
SM (Smart Media Card)

4 Hardware Buttons:

“Q” for screen rotation/power
Ta b
Escape
Scroll Up/Scroll Down/Enter

1.Introduction

System Specifications T200C/T210C 1 - 3

Introduction

Feature Specification T200C & T210C

1.Introduction

Interface &
Communication

Power
Management

Power Full Range AC adapter

Environmental
Spec

Physical
Dimensions &
Weight

Optional PC Camera (factory option)

Two USB 2.0/1.1 Ports
One Type-II PCMCIA 3.3V/5V Socket
One Stereo Headphone-Out Jack
One Monaural Microphone-In Jack
One RJ-11 (V.90 K56flex™) Jack for Fax/Modem
MDC Modem Module Supporting Wake On Ring

Supports ACPI v1.0b
Supports Hibernate Mode
Supports Standby Mode
Supports Battery Low Sleep

AC Input 100~240V, 50~60Hz
DC Output 20V, 3.25A, 65W

Tem per atu re

Operating: 5
Non-Operating: -20°C ~ 60°C

313 (w) x 265 (d) x 26.5/29.5(h) mm 2.3 Kg Without Battery

Smart Lithium-Ion Battery Pack)

Standard - 1800mAH x 6 cells (40W)
Optional - 1800mAH x 8 cells (53W)

Handwriting Recognition Utility
Car Adapter
MDC Module (factory option)
Intel Pro 2100 (802.11b) Mini PCI Wireless LAN Module

°C ~ 35°C

One RJ-45 Jack for 100M (Max) Fast Ethernet
Intel Pro 2100 (802.11b) Mini PCI Wireless LAN Module
One External (VGA) Monitor Port
One DC-in Jack
One Infrared FIR, IrDA 1.1 Transceiver
One Type II PCMCIA 3.3V/5V Socket Supporting
CardBus

Supports Resume From Modem Ring
Supports Resume From LAN
Close Cover Switch

One Primary Smart Lithium-Ion (1800mAH x 6 cells)
Battery Pack with Gas Gauge

Relative Humidity

Operating: 20% ~ 80%
Non-Operating: 10% ~ 90%

External FDD with USB Interface
External Slim Optical Drive with One of the Following
Options:

CD-ROM
DVD-ROM
CD-RW
Combo
DVD-RW
DVD+RW

1 - 4 System Specifications T200C/T210C

System Specifications T200D/T210D

Feature Specification T200D & T210D

Processor Types Intel Pentium® M Processor (478-pin) Micro-FCPGA

Package

Core Logic Intel® 855 GM + Intel 82801DBM (ICH4-M)

Security Security (Kensington® Type) Lock Slot BIOS Password

(µ0.13) 0.13 Micron Process Technology, 1MB On-Die L2
Cache & 400MHz Front Side Bus - 1.3/ 1.4/ 1.5/ 1.6/ 1.7
GHz

Introduction

Table 1 - 3

T200D/T210D

System

Specifications

Memory Two 200 Pin DDR SODIMM Sockets

Supporting DDR 266 MHz Modules

BIOS ACPI 4MB Flash ROM Insyde BIOS

LCD Flat Panel TFT - 14.1" XGA LCD

Supporting 1024 * 768 dot resolution
LCD Swivel Hinge (allows conversion between Notebook and Tablet Modes)

Display Intel Chipset 855GM Integrated Graphics

Shared Video Memory Architecture Supporting up to 32MB (Default Setting 32MB)

Storage Easy Changeable 2.5" 9.5 mm (h) IDE HDD

Supporting Ultra DMA 66/100

Audio Integrated Direct Sound Audio Compliant with AC’97 2.2

2 Built-In Speakers

Keyboard,
Pointing Device &
Buttons

Indicators 7 LED Indicators (Power/Suspend, Battery, HDD, Caps Lock, Scroll Lock, Num Lock, Wireless LAN)

Winkey Keyboard
Built-In TouchPad

Supporting 256/512MB DDR RAM Modules
Expandable up to 1024 MB

Built-in 4-in-1 Card Reader for the following formats:

SD (Secure Digital)
MMC (Multi Media Card)
MS (Memory Stick)
SM (Smart Media Card)

4 Hardware Buttons:

“Q” for screen rotation/power
Ta b
Escape
Scroll Up/Scroll Down/Enter

1.Introduction

System Specifications T200D/T210D 1 - 5

Introduction

Feature Specification T200D & T210D

1.Introduction

Interface &
Communication

Power
Management

Power Full Range AC adapter

Environmental
Spec

Physical
Dimensions &
Weight

Optional PC Camera (factory option)

Two USB 2.0/1.1 Ports
One Type-II PCMCIA 3.3V/5V Socket
One Stereo Headphone-Out Jack
One Monaural Microphone-In Jack
One RJ-11 (V.90 K56flex™) Jack for Fax/Modem
MDC Modem Module Supporting Wake On Ring

Supports ACPI v1.0b
Supports Hibernate Mode
Supports Standby Mode
Supports Battery Low Sleep

AC Input 100~240V, 50~60Hz
DC Output 20V, 3.25A, 65W

Tem per atu re

Operating: 5
Non-Operating: -20°C ~ 60°C

313 (w) x 265 (d) x 26.5/29.5(h) mm 2.3 Kg Without Battery

Smart Lithium-Ion Battery Pack)

Standard - 1800mAH x 6 cells (40W)
Optional - 1800mAH x 8 cells (53W)

Handwriting Recognition Utility
Car Adapter
MDC Module (factory option)
Intel Pro 2100 (802.11b) Mini PCI Wireless LAN Module

°C ~ 35°C

One RJ-45 Jack for 100M (Max) Fast Ethernet
Intel Pro 2100 (802.11b) Mini PCI Wireless LAN Module
One External (VGA) Monitor Port
One DC-in Jack
One Infrared FIR, IrDA 1.1 Transceiver
One Type II PCMCIA 3.3V/5V Socket Supporting
CardBus

Supports Resume From Modem Ring
Supports Resume From LAN
Close Cover Switch

One Primary Smart Lithium-Ion (1800mAH x 6 cells)
Battery Pack with Gas Gauge

Relative Humidity

Operating: 20% ~ 80%
Non-Operating: 10% ~ 90%

External FDD with USB Interface
External Slim Optical Drive with One of the Following
Options:

CD-ROM
DVD-ROM
CD-RW
Combo
DVD-RW
DVD+RW

1 - 6 System Specifications T200D/T210D

System Specifications T200V/T210V

Feature Specification T200V & T210V

Processor Types VIA Antaur 1.0 GHz

Core Logic CLE266CE

Security Security (Kensington® Type) Lock Slot BIOS Password

Introduction

Table 1 - 4

T200V/T210V

System

Specifications

Memory Two 200 Pin DDR SODIMM Sockets

Supporting DDR 266 MHz Modules

BIOS ACPI 4MB Flash ROM Insyde BIOS

LCD Flat Panel TFT - 14.1" XGA LCD with Built-in Touch Panel and Stylus Pen

Supporting 1024 * 768 dot resolution
LCD Swivel Hinge (allows conversion between Notebook and Tablet Modes)

Storage Easy Changeable 2.5" 9.5 mm (h) IDE HDD

Supporting ATA-33/66/100

Audio AC’97 2.1 Compliant

2 Built-In Speakers

Keyboard,
Pointing Device &
Buttons

Indicators 7 LED Indicators (Power/Suspend, Battery, HDD, Caps Lock, Scroll Lock, Num Lock, Wireless LAN)

Interface &
Communication

Winkey Keyboard
Built-In TouchPad

Two USB 2.0/1.1 Ports
One Type-II PCMCIA 3.3V/5V Socket
One Stereo Headphone-Out Jack
One Monaural Microphone-In Jack
One RJ-11 (V.90 K56flex™) Jack for Fax/Modem
MDC Modem Module Supporting Wake On Ring

Supporting 256/512MB DDR RAM Modules
Expandable up to 1024 MB

Built-in 4-in-1 Card Reader for the following formats:

SD (Secure Digital)
MMC (Multi Media Card)
MS (Memory Stick)
SM (Smart Media Card)

4 Hardware Buttons:

“Q” for screen rotation/power
Ta b
Escape
Scroll Up/Scroll Down/Enter

One RJ-45 Jack for 100M (Max) Fast Ethernet
One External (VGA) Monitor Port
One DC-in Jack
One Infrared FIR, IrDA 1.1 Transceiver
One Type II PCMCIA 3.3V/5V Socket Supporting
CardBus

1.Introduction

System Specifications T200V/T210V 1 - 7

Introduction

Feature Specification T200V & T210V

1.Introduction

Power
Management

Power Full Range AC adapter

Environmental
Spec

Physical
Dimensions &
Weight

Optional PC Camera (factory option)

Supports ACPI v1.0b
Supports Hibernate Mode
Supports Standby Mode
Supports Battery Low Sleep

AC Input 100~240V, 50~60Hz
DC Output 20V, 2.5A, 50W

Tem per atu re

Operating: 5
Non-Operating: -20°C ~ 60°C

313 (w) x 265 (d) x 26.5/29.5(h) mm Min 2.2 Kg Without Battery Pack

Smart Lithium-Ion Battery Pack)

Standard - 1800mAH x 6 cells
Optional - 1800mAH x 8 cells

Handwriting Recognition Utility
Car Adapter
MDC Module (factory option)

802.11b Wireless LAN Module with USB Interface

°C ~ 35°C

Supports Resume From Modem Ring
Supports Resume From LAN
Close Cover Switch

One Primary Smart Lithium-Ion (1800mAH x 6 cells)
Battery Pack with Gas Gauge

Relative Humidity

Operating: 20% ~ 80%
Non-Operating: 10% ~ 90%

External FDD with USB Interface
External Slim Optical Drive with One of the Following
Options:

CD-ROM
DVD-ROM
CD-RW
Combo

1 - 8 System Specifications T200V/T210V

System Specifications T200H/T210H

Feature Specification T200H & T210H

Processor Types VIA Antaur 1.0 GHz

Core Logic CLE266CE

Security Security (Kensington® Type) Lock Slot BIOS Password

Introduction

Table 1 - 5

T200H/T210H

System

Specifications

Memory Two 200 Pin DDR SODIMM Sockets

Supporting DDR 266 MHz Modules

BIOS ACPI 4MB Flash ROM Insyde BIOS

LCD Flat Panel TFT - 14.1" XGA LCD

Supporting 1024 * 768 dot resolution
LCD Swivel Hinge (allows conversion between Notebook and Tablet Modes)

Storage Easy Changeable 2.5" 9.5 mm (h) IDE HDD

Supporting ATA-33/66/100

Audio AC’97 2.1 Compliant

2 Built-In Speakers

Keyboard,
Pointing Device &
Buttons

Indicators 7 LED Indicators (Power/Suspend, Battery, HDD, Caps Lock, Scroll Lock, Num Lock, Wireless LAN)

Interface &
Communication

Winkey Keyboard
Built-In TouchPad

Two USB 2.0/1.1 Ports
One Type-II PCMCIA 3.3V/5V Socket
One Stereo Headphone-Out Jack
One Monaural Microphone-In Jack
One RJ-11 (V.90 K56flex™) Jack for Fax/Modem
MDC Modem Module Supporting Wake On Ring

Supporting 256/512MB DDR RAM Modules
Expandable up to 1024 MB

Built-in 4-in-1 Card Reader for the following formats:

SD (Secure Digital)
MMC (Multi Media Card)
MS (Memory Stick)
SM (Smart Media Card)

4 Hardware Buttons:

“Q” for screen rotation/power
Ta b
Escape
Scroll Up/Scroll Down/Enter

One RJ-45 Jack for 100M (Max) Fast Ethernet
One External (VGA) Monitor Port
One DC-in Jack
One Infrared FIR, IrDA 1.1 Transceiver
One Type II PCMCIA 3.3V/5V Socket Supporting
CardBus

1.Introduction

System Specifications T200H/T210H 1 - 9

Introduction

Feature Specification T200H & T210H

1.Introduction

Power
Management

Power Full Range AC adapter

Environmental
Spec

Physical
Dimensions &
Weight

Optional PC Camera (factory option)

Supports ACPI v1.0b
Supports Hibernate Mode
Supports Standby Mode
Supports Battery Low Sleep

AC Input 100~240V, 50~60Hz
DC Output 20V, 2.5A, 50W

Tem per atu re

Operating: 5
Non-Operating: -20°C ~ 60°C

313 (w) x 265 (d) x 26.5/29.5(h) mm Min 2.2 Kg Without Battery Pack

Smart Lithium-Ion Battery Pack)

Standard - 1800mAH x 6 cells
Optional - 1800mAH x 8 cells

Handwriting Recognition Utility
Car Adapter
MDC Module (factory option)

802.11b Wireless LAN Module with USB Interface

°C ~ 35°C

Supports Resume From Modem Ring
Supports Resume From LAN
Close Cover Switch

One Primary Smart Lithium-Ion (1800mAH x 6 cells)
Battery Pack with Gas Gauge

Relative Humidity

Operating: 20% ~ 80%
Non-Operating: 10% ~ 90%

External FDD with USB Interface
External Slim Optical Drive with One of the Following
Options:

CD-ROM
DVD-ROM
CD-RW
Combo

1 - 10 System Specifications T200H/T210H

External Locator - Top View with LCD Open

1

2

T200C/T200V T210C/T210V
T200D/T200H T210D/T210H

3

6

8

5

4

7

8

6

6

3

8

Introduction

Figure 1 - 2

1

2

5

4

7

8

6

Top View with LCD

Panel Open

1. Built-In PC Camera
(Optional)

2. LCD Swivel Screen

3. LED Power
Indicators

4. Cover Sensors

5. LCD Swivel Hinge

6. LCD Side Hinges

7. Power Button

8. Speakers

9. Keyboard

10. TouchPad and
Buttons

11. Built-In Microphone

1.Introduction

11

10

9

11

9

10

External Locator - Top View with LCD Open 1 - 11

Introduction

Figure 1 - 3

Rotating the LCD

Swivel Screen

Rotating the LCD Swivel Screen

1.Introduction



Lid Button

It is recommended
that the lid (left LCD
cover sensor) power
button to should be
set to “Do nothing” in
the Power Options
control panel.

This will prevent acci­dentally triggering a
power saving mode
when you rotate the
LCD swivel screen.

4 5

3

1

1. Unlock the LCD side hinges & by moving them in the direction of the arrows.

2. Carefully rotate the LCD fully in the direction indicated by the arrow , then lock the side hinges & .

3. Move latches & in and to the left (if they are not already in this position), then push the LCD down to lock it in position.

4 5

2

1 2

3 1 2

1 - 12 Rotating the LCD Swivel Screen

Introduction



Touch Panel Warning

Users should be very careful not to press too hard with the stylus pen when using it as the input device. Only the approved stylus pen
provided should be used as the input device. Users should avoid sliding the stylus pen (or any object) in the area around the edge of the
screen (between the LCD and the frame) when writing on the screen,



Touch Panel Input

Device

Do not use any sharp
or pointed objects as
anl input device e.g.
the end of a pen or
pencil. Only use the
provided stylus pen
(PDA type) as an input
device.

1.Introduction

Figure 1 - 4

Touch Panel

Warning

Do Not Slide the Stylus Pen (or any object)

Around the Edge of the LCD Screen

Rotating the LCD Swivel Screen 1 - 13

Introduction

1.Introduction

Figure 1 - 5

Front View

1. LCD Latches

2. Microphone-In Jack

3. Headphone-Out
Jack

4. Infrared
Transceiver

5. Scroll/Enter Wheel

6. LED Status
Indicators

7. 3 * Hot-Key Buttons
(Esc, Tab, & “Q”
Rotate)

Figure 1 - 6

Rear View

8. External Monitor
(CRT) Port

9. RJ-45 LAN Jack

10. RJ-11 Phone Jack

11. DC-In Jack

12. Vent

External Location - Front & Rear Views

1 1

4

8 9

2 765

3

10 11

12

1 - 14 External Location - Front & Rear Views

Introduction

External Locator - Left & Right Views

1

2 3

4 5

Figure 1 - 7

Left View

1. Security Lock Slot

2. Vent

3. Stylus Pen Holder

Figure 1 - 8

Right View

1.Introduction

4. 4-in-1 Flash Card

6

Reader

5. 2 * USB 2.0 Ports

6. PC Card Slot

External Locator - Left & Right Views 1 - 15

Introduction

1.Introduction

Figure 1 - 9

Bottom View

1. Stylus Pen Holder

2. Battery

3. Intel WLAN
Module Cover

4. Modem &
Wireless LAN
Module Cover

5. Hard Disk Cover

6. RAM Cover

7. CPU Cover

8. Fan Intake

External Locator - Bottom View

6

T20XC/T2X0D Series

5

3

6

T20XV/T2X0H Series

5

4

7

8

1



2

1

7

8

2

Wireless Device

Operation Aboard

Aircraft

The use of any porta­ble electronic trans­mission devices
aboard aircraft is usu­ally prohibited.

Make sure the module
is OFF if you are using
the computer aboard
aircraft. When the
computer ‘Boots Up’
the module will be
ON.

To toggle power to the
WLAN module use
the key combination

Fn + F11.

1 - 16 External Locator - Bottom View

1

Introduction

T2X0C/T2X0D Mainboard Overview - Top

Key Parts

6

Figure 1 - 10

T2X0C/T2X0D

Mainboard

Overview - Top

Key Parts

1. Intel ICH4 421
BGA

2. CardBus ENE
CB710

3. LAN Controller
RTL8100BL

4. Hitachi H8

5. NS 87393

6. Clock Generator

1.Introduction

1

2

3

5

4

T2X0C/T2X0D Mainboard Overview - Top 1 - 17

Introduction

1.Introduction

Figure 1 - 11

T2X0C/T2X0D

Mainboard

Overview - Bottom

Key Parts

1. CPU Socket (no
CPU installed)

2. Memory Sockets

3. WLAN Module
Socket

4. PCMCIA Socket

5. Intel 855GM(E)
732 Micro
FCBGA

6. Flash RAM BIOS

7. 4-in-1 Card
Reader Module

8. CODEC
ALC201A

9. AMP APA2020A

T2X0C/T2X0D Mainboard Overview - Bottom

Key Parts

1

5

2

8

9

3

1 - 18 T2X0C/T2X0D Mainboard Overview - Bottom

6

4

7

Introduction

T2X0C/T2X0D Mainboard Overview - Top

Cable Connectors

4

3

Figure 1 - 12

T2X0C/T2X0D

Mainboard Top

1

5

2

6

7

Cable Connectors

1. Speakers (CN4/
CN5)

2. Keyboard (CN10)

3. Buttons (CN12)

4. Microphone
(CN13)

5. LED Board (CN3)

6. Inverter (CN6)

7. LCD (CN9)

1.Introduction

1

T2X0C/T2X0D Mainboard Overview - Top 1 - 19

Introduction

1.Introduction

Figure 1 - 13

T2X0C/T2X0D

Mainboard Bottom

Cable Connectors

1. Hard Disk
(CN25)

2. CMOS Battery
(CN31)

3. Hot_Key
Board(CN27)

4. CPU Fan (CN18)

5. Battery (CN24)

T2X0C/T2X0D Mainboard Overview - Bottom

Cable Connectors

4

5

3

2

1

1

1 - 20 T2X0C/T2X0D Mainboard Overview - Bottom

Introduction

T2X0V/T2X0H Mainboard Overview - Top

Key Parts

Figure 1 - 14

T2X0V/T2X0H

Mainboard

Overview - Top

Key Parts

1. South Bridge
VT-8235

2. Super I/O
VT1211

3. PCMCIA ENE
CB710/BGA

4. LAN/PHY
VT6103

5. Micro-P H8/2140

6. LVDS VT1631
Transmitter,
Panel I/F

6

1.Introduction

5

1

3

2

4

T2X0V/T2X0H Mainboard Overview - Top 1 - 21

Introduction

1.Introduction

Figure 1 - 15

T2X0V/T2X0H

Mainboard

Overview - Bottom

Key Parts

1. VIA-C3
Processor
(surface
mounted)

2. Memory Sockets

3. PCMCIA Module
Slot

4. North Bridge
VT-8623

5. Flash ROM
BIOS

6. 4-in-1 Card
Reader Module
Socket

7. CODEC VT1616

8. Clock Generator
W311

T2X0V/T2X0H Mainboard Overview - Bottom

Key Parts

1

4

2

8

3

7

1 - 22 T2X0V/T2X0H Mainboard Overview - Bottom

6

5

Introduction

T2X0V/T2X0H Mainboard Overview - Top

Cable Connectors

7

6

Figure 1 - 16

T2X0V/T2X0H

Mainboard Top

Cable Connectors

1

3

4

2

5

1. Speakers (CN4/
CN5)

2. Inverter Board
(CN3)

3. LED Board (CN6)

4. Keyboard (CN10)

5. LCD (CN9)

6. TouchPad(CN12)

7. Microphone
(CN13)

1.Introduction

1

T2X0V/T2X0H Mainboard Overview - Top 1 - 23

Introduction

1.Introduction

Figure 1 - 17

T2X0V/T2X0H

Mainboard Bottom

Cable Connectors

1. Hot-Key Board
(CN27)

2. Wireless
LAN(CN26)

3. Modem (CN23)

4. CMOS
Battery(CN31)

5. Hard Disk (CN25)

6. Battery (CN24)

7. CPU Fan (CN18)

8. Modem Cable
(CN15)

T2X0V/T2X0H Mainboard Overview - Bottom

Cable Connectors

7

8

6

2

3

1

4

5

1 - 24 T2X0V/T2X0H Mainboard Overview - Bottom

2: Disassembly

Overview

This chapter provides step-by-step instructions for disassembling parts and subsystems. When it comes to reassembly,
reverse the procedures (unless otherwise indicated).

We suggest you completely review any procedure before you take the computer apart.

Disassembly

Procedures such as upgrading/replacing the RAM, CD device and hard disk are included in the User’s Manual but are
repeated here for your convenience.

To make the disassembly process easier each section may have a box in the page margin. Information contained under
the figure # will give a synopsis of the sequence of procedures involved in the disassembly procedure. A box with a 
lists the relevant parts you will have after the disassembly process is complete. Note: The parts listed will be for the dis­assembly procedure listed ONLY, and not any previous disassembly step(s) required. Refer to the part list for the previ­ous disassembly procedure. The amount of screws you should be left with will be listed here also.

A box with a  will provide any possible helpful information. A box with a  contains warnings.

An example of these types of boxes are shown in the sidebar.

Model Differences

This Service Manual covers the disassembly procedures for both the T20X0C/D and T2X0V/H series Tabletnote com­puters. The model types differ very slightly in appearance (when viewed from the bottom), however the disassembly pro­cedures are identical with the exception of the Wireless LAN and modem modules. The pictures used throughout the
disassembly procedures are of the T200C model.

2.Disassembly



Information and

Component Parts



Warning

Overview 2 - 1

Disassembly

2.Disassembly

NOTE: All disassembly procedures assume that the system is turned OFF, and disconnected from any power supply,
and that all peripheral cables are disconnected (including telephone lines and network cables).

Maintenance Tools

The following tools are recommended when working on the computer:

• M3 Philips-head screwdriver

• M2.5 Philips-head screwdriver (magnetized)

• M2 Philips-head screwdriver

• Small flat-head screwdriver

• Pair of needle-nose pliers

• Anti-static wrist-strap

Connections

Connections within the computer are one of four types:

Locking collar sockets for ribbon connectors To release these connectors, use a small flat-head screwdriver to gently pry the

locking collar away from its base. When replacing the connection, make sure
the connector is oriented in the same way. The pin1 side is usually not indicat­ed.

2 - 2 Overview

Pressure sockets for multi-wire connectors To release this connector type, grasp it at its head and gently rock it from side

to side as you pull it out. Do not pull on the wires themselves. When replacing
the connection, do not try to force it. The socket only fits one way.

Pressure sockets for ribbon connectors To release these connectors, use a small pair of needle-nose pliers to gently lift

the connector away from its socket. When replacing the connection, make sure
the connector is oriented in the same way. The pin1 side is usually not indicat­ed.

Board-to-board or multi-pin sockets To separate the boards, gently rock them from side to side as you pull them

apart. If the connection is very tight, use a small flat-head screwdriver - use
just enough force to start.

Maintenance Precautions

The following precautions are a reminder. To avoid personal injury or damage to the computer while performing a re­moval and/or replacement job, take the following precautions:

1. Don't drop it. Perform your repairs and/or upgrades on a stable surface. If the computer falls, the case and other

components could be damaged.

2. Don't overheat it. Note the proximity of any heating elements. Keep the computer out of direct sunlight.

3. Avoid interference. Note the proximity of any high capacity transformers, electric motors, and other strong mag-

netic fields. These can hinder proper performance and damage components and/or data. You should also monitor
the position of magnetized tools (i.e. screwdrivers).

4. Keep it dry. This is an electrical appliance. If water or any other liquid gets into it, the computer could be badly

damaged.

5. Be careful with power. Avoid accidental shocks, discharges or explosions.

•Before removing or servicing any part from the computer, turn the computer off and detach any power supplies.

•When you want to unplug the power cord or any cable/wire, be sure to disconnect it by the plug head. Do not pull on the wire.

6. Peripherals – Turn off and detach any peripherals.

7. Beware of static discharge. ICs, such as the CPU and main support chips, are vulnerable to static electricity.

Before handling any part in the computer, discharge any static electricity inside the computer. When handling a
printed circuit board, do not use gloves or other materials which allow static electricity buildup. We suggest that
you use an anti-static wrist strap instead.

8. Beware of corrosion. As you perform your job, avoid touching any connector leads. Even the cleanest hands pro-

duce oils which can attract corrosive elements.

9. Keep your work environment clean. Tobacco smoke, dust or other air-born particulate matter is often attracted

to charged surfaces, reducing performance.

10. Keep track of the components. When removing or replacing any part, be careful not to leave small parts, such as

screws, loose inside the computer.

Disassembly



Power Safety

Warning

Before you undertake
any upgrade proce­dures, make sure that
you have turned off
the power, and dis­connected all periph­erals and cables
(including telephone
lines). It is advisable
to also remove your
battery in order to pre­vent accidentally turn­ing the machine on.

2.Disassembly

Cleaning

Do not apply cleaner directly to the computer, use a soft clean cloth.
Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer.

Overview 2 - 3

Disassembly

Disassembly Steps

The following lists the disassembly steps, and on which page to find the related information. PLEASE PERFORM THE
DISASSEMBLY STEPS IN THE ORDER INDICATED.

To remove the battery:

1. Remove the battery page 2 - 5

To remove the hard disk drive:

1. Remove the battery page 2 - 5

2. Remove the hard disk drive page 2 - 6

To remove the system memory (RAM):

1. Remove the battery page 2 - 5

2. Remove the system memory page 2 - 7

To remove the T2X0C/T2X0D WLAN module:

2.Disassembly

2 - 4 Disassembly Steps

1. Remove the battery page 2 - 5

2. Remove the Intel WLAN module page 2 - 8

To remove the T2X0C/T2X0D processor:

1. Remove the battery page 2 - 5

2. Remove the CPU page 2 - 9

Disassembly

Removing the Battery

1. Turn the computer off, and turn it over.

2. Locate the battery bay as highlighted in Figure 2 - 1.

3. Slide the battery lock in the direction of the arrow .

4. Slide the battery lock in the direction of the arrow , and hold it in place.

5. Slide the battery in the direction of the arrow , then lift it up and out of the computer’s battery bay.

a. b.

1

3

2

1
2

3

Figure 2 - 1

Battery Removal

Sequence

a. Move the battery locks

open, then slide the
battery in the direction

of the arrow.
b. Lift the battery up.
c. Remove the battery.

2.Disassembly

c.

4

4. Battery



Removing the Battery 2 - 5

Disassembly

Figure 2 - 2

Hard Disk Removal

Sequence

a. Remove the screw.
b. Slide the hard disk as-

sembly in the direction
of the arrow.

c. Remove the hard disk

assembly.

d. Separate the hard disk

from the case.

2.Disassembly

Removing the Hard Disk

1. Turn the computer off, and turn it over and remove the battery (page 2 - 5).

2. Remove screw from the hard disk cover.

3. Slide the hard disk assembly in the direction of the arrow .

1

2

4. Lift the hard disk assembly out of the computer.

5. Remove screws - from the hard disk case and remove the hard disk .

3 6 7 8

a. b.



HDD System Warning

New HDD’s are blank. Before
you begin make sure:

You have backed up any data
you want to keep from your old
HDD.

You have all the CD-ROMs
and FDDs required to install
your operating system and
programs.

If you have access to the inter­net, download the latest appli­cation and hardware driver
updates for the operating sys­tem you plan to install. Copy
these to a removable medium.

c.

1

2

d.

8

3

4



7. Hard Disk Case

8. Hard Disk

•5 Screws

2 - 6 Removing the Hard Disk

7

6

5

Disassembly

Removing the System Memory (RAM)

1. Turn the computer off, and remove the battery (page 2 - 5).

2. Remove screws - from the memory socket cover , and remove the cover.

3. Gently pull the two release latches on the sides of the memory socket in the direction of the arrows ( & in Fig-

ure 2 - 3).

4. The module will pop-up, and you can remove it.

5. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot.

6. The module’s pin alignment will allow it to only fit one way. Make sure the module is seated as far into the slot as it
will go. DO NOT FORCE the module; it should fit without much pressure.

7. Press the module in and down towards the mainboard until the slot levers click into place to secure the module.

8. Replace the memory socket cover and the 4 screws.

9. Restart the computer to allow the BIOS to register the new memory configuration as it starts up.

a.

1 4 5

8

1

2

43

b. c.

6 7

5

Figure 2 - 3

RAM Removal

Sequence

a. Remove the RAM cov-

er screws.
b. Lift up the RAM cover.
c. Pull the release latches

and allow the module

to pop-up.
d. Remove the RAM

module.

2.Disassembly

d.

8 8

c.

6

7



Contact Warning

Be careful not to touch the metal pins on the mod­ule’s connecting edge. Even the cleanest hands
have oils which can attract particles, and degrade
the module’s performance.

Removing the System Memory (RAM) 2 - 7



5. RAM Cover

8. RAM Module

•4 Screws

Disassembly

Figure 2 - 4

T2X0C/T2X0D Intel

WLAN Module

Removal Sequence

a. Remove the screw.
b. Remove the cover.
c. Release the antenna

cable, and pull the
latches to release the
WLAN module.

d. Remove the module.

2.Disassembly

Removing the Intel WLAN Module (T2X0C/T2X0D Only)

1. Turn the computer off, and remove the battery (page 2 - 5).

2. Remove screw from the WLAN module cover, and remove the cover .

3. Release the antenna cable .

4. Gently pull the two release latches on the sides of the WLAN socket in the direction of the arrows ( & in Fig-

ure 2 - 4).

5. The module will pop-up, and you can remove it.

a. b. c.

1 2

3

6

1

d.

4 5

3

4

5



2. WLAN Cover

6. WLAN Module

•1 Screw

2 - 8 Removing the Intel WLAN Module (T2X0C/T2X0D Only)

2

6

Disassembly

Removing the Processor (T2X0C/T2X0D Only)

You can only upgrade the T2X0C/T2X0D model’s processor (the T2X0V/T2X0H model’s processor is surface mounted
and cannot be removed).

1. Turn the computer off, and remove the battery (page 2 - 5).

2. Remove screws - from the CPU cover, and remove the cover .

3. Remove screws - from the heat sink, and remove the heat sink .

4. Use a small screwdriver to release the lock holding down the CPU by giving it a counter-clockwise turn towards the
open symbol.

5. Remove the CPU .

a. b.

c.

1 5 6
7 9

11

2

5

31

6

4

d.

10

9

7

8

10

Figure 2 - 5

T2X0C/T2X0D

Processor Removal

Sequence

a. Remove the screws

and the CPU cover.

b. Remove the screws

and the heat sink.
c. Unlock the CPU.
d. Remove the CPU.

2.Disassembly



Caution

The heat sink, and
CPU area in general,
contains parts which
are subject to high
temperatures - Please
allow the area time to
cool before removing
these parts.

CPU Locked

CPU Unlocked

11l



6. CPU Cover

10. Heat Sink

11. CPU

•8 Screws

Removing the Processor (T2X0C/T2X0D Only) 2 - 9

Disassembly

2.Disassembly

2-10

Appendix A:Part Lists

This appendix breaks down the computer’s construction into a series of illustrations. The component part numbers are
indicated in the tables opposite the drawings.

Note: This section indicates the manufacturer’s part numbers. Your organization may use a different system, so be sure
to cross-check any relevant documentation.

Note: Some assemblies may have parts in common (especially screws). However, the part lists DO NOT indicate the
total number of duplicated parts used.

Part Lists

Note: Be sure to check any update notices. The parts shown in these illustrations are appropriate for the system at the
time of publication. Over the product life, some parts may be improved or re-configured, resulting in new part numbers.

Part List Illustration Location

The following table indicates where to find the appropriate part list illustration.

Part T200C T210C T200V T210V

Top page A - 2 page A - 6 page A - 10 page A - 14

Bottom page A - 3 page A - 7 page A - 11 page A - 15

14.1" LCD page A - 4 page A - 8 page A - 12 page A - 16

Hard Disk Drive page A - 5 page A - 9 page A - 13 page A - 17

A.Part Lists

Table A- 1

Part Lists

Part List Illustration Location A - 1

Part Lists

Figure A-1

A.Part Lists

Top (T200C)

Top

(T200C)

A - 2 Top (T200C)

鋁箔

Bottom (T200C)

Part Lists

Figure A - 2

Bottom

(T200C)

A.Part Lists

Bottom (T200C) A - 3

Part Lists

Figure A - 3

14.1" LCD

A.Part Lists

14.1" LCD (T200C)

(T200C)

A - 4 14.1" LCD (T200C)

Hard Disk Drive (T200C)

Part Lists

Figure A-4

Hard Disk Drive

(T200C)

A.Part Lists

Hard Disk Drive (T200C) A - 5

Part Lists

Figure A-5

(T210C)

Top (T210C)

Top

A.Part Lists

A - 6 Top (T210C)

鋁箔

Bottom (T210C)

Part Lists

Figure A-6

Bottom

(T210C)

A.Part Lists

Bottom (T210C) A - 7

Part Lists

A.Part Lists

14.1" LCD (T210C)

Figure A-7

14.1" LCD
(T210C)

A - 8 14.1" LCD (T210C)

Hard Disk Drive (T210C)

Part Lists

Figure A-8

Hard Disk Drive

(T210C)

A.Part Lists

Hard Disk Drive (T210C) A - 9

Part Lists

A.Part Lists

Top (T200V)

Figure A-9

Top

(T200V)

A - 10 Top (T200V)

鋁箔

Bottom (T200V)

Part Lists

Figure A-10

Bottom

(T200V)

A.Part Lists

Bottom (T200V) A - 11

Part Lists

14.1" LCD (T200V)

Figure A-11

14.1" LCD
(T200V)

Part Lists

A - 12

Hard Disk Drive (T200V)

Part Lists

Figure A-12

Hard Disk Drive

(T200V)

A.Part Lists

Hard Disk Drive (T200V) A - 13

Part Lists

Figure A-13

(T210V)

Top (T210V)

Top

A.Part Lists

A - 14 Top (T210V)

鋁箔

Bottom (T210V)

Part Lists

Figure A-14

Bottom

(T210V)

A.Part Lists

Bottom (T210V) A - 15

Part Lists

Figure A-15

A.Part Lists

14.1" LCD (T210V)

14.1" LCD
(T210V)

A - 16 14.1" LCD (T210V)

Hard Disk Drive (T210V)

Part Lists

Figure A-16

Hard Disk Drive

(T210V)

A.Part Lists

Hard Disk Drive (T210V) A - 17

Part Lists

Part Lists

A - 18

Appendix B: T200C/T210C Schematic Diagrams

This appendix has circuit diagrams of the T200C/T210C computers PCB’s:

Schematic Diagrams

Diagram - Page Diagram - Page

System Block Diagram - Page B - 2 PCMCIA ENE CB710 - Page B - 18

Pentium-M-1 - Page B - 3 PCM Socket, 4 IN 1 Socket - Page B - 19

Pentium-M-2 - Page B - 4 SIO, BIOS - Page B - 20

855GM-1 - Page B - 5 Touch Panel - Page B - 21

855GM-2 - Page B - 6 Hitachi H8S - Page B - 22

855GM-3 - Page B - 7 LED B’d, HOT KEY B’d, FAN, K/B - Page B - 23

DDR SODIMM - Page B - 8 CODEC, AMP - Page B - 24

DDR Termination - Page B - 9 +3VS, +5VS - Page B - 25

LVDS, CRT - Page B - 10 +2.5V, +1.25V, 1.5V - Page B - 26

Clock Generator - Page B - 11 V_CORE/ +VCCP/ +1.2VS - Page B - 27

ICH4-1 - Page B - 12 5V, 3.3V, +1.2, 1.5V - Page B - 28

ICH4-2 - Page B - 13 Charger - Page B - 29

ICH4-3, HDD - Page B - 14 Hot Key - Page B - 30

USB2.0 Port - Page B - 15 Inverter - Page B - 31

Table B - 1

Schematic Diagram

B. T20XC Schematics

MDC, Mini PCI - Page B - 16 LCD LED Board - Page B - 32

LAN RTL8100BL - Page B - 17

B - 1 (71-T20C0-003)

Schematic Diagrams

Sheet 1 of 30

System Block

Diagram

B. T2X0C Schematics

System Block Diagram

CLOCK GEN.
ICS950810

CPU PSB_CLK(100MHz)
MCH PSB_CLK(100MHz)
ITP PSB_CLK(100MHz)
PCI LAN_CLK(33MHz)
PCI PCM_CLK(33MHz)
LPC SIO_CLK(33MHz)
LPC H8_CLK(33MHz)
MINI PCI_CLK(33MHz)
ICH4_CLK(14.318MHz)
SIO_CLK(14.318MHz)
DREF_CLK(48MHz)
ICH4 USB_CLK(48MHz)
MSH_CLK(66MHz)
ICH_CLK(66MHz)
DREFSS_CLK(66MHz)

CRT

USB2.0

LVDS I/F

USB*2

PORT1,2PORT3

LPC BUS

PANEL

Touch Panel

PORT5

CCD

Intel
Pentium-M

1.3~1.8GHz

HOST BUS

855GM(E)
732Micro­FCBGA

HUB LINK

INTEL
ICH4 421
BGA

128/256/512MB DDR SDRAM

DDR SO-DIMM 1

DDR SO-DIMM 0

DDR I/F

SYSTEM SMBUS

AC'97 LINK

PCI BUS

IDE

33MHz

ATA-100

HDD

LAN
RTL8100BL

RJ-45

AC
100~240V

V_CORE
+VCCP
+VDD3
+VDD5
+1.2VS
+1.25VS
+1.5V
+2.5V
+3V
+5V
+12V

RJ-11

MDC
MODULE

CARDBUS
ENE710

ADAPTER
AC/DC

DC/DC

H/P

MIC

OUT

IN

CODEC
ALC201

SPK
OUT

AMP
APA2020A

MINI PCI
SOCKET

TOUCH PAD

LAN: AD16
CardBus: AD25
MiniPCI: AD19

REQ0#: CardBus
REQ2#: LAN
REQ3#: MiniPCI

INTA#: MiniPCI
INTB#: MiniPCI, CardBus
INTC#: LAN
INTD#: CardBus

SERIRQ: CardBus, Super IO, H8

INT. KBD

TEMP
SENSOR

B - 2 System Block Diagram (71-T20C0-003)

H8/2140

H8 SMBUS

CPU

BATTERY

FAN

CHARGER

NS 87393

SERIAL PORT
ISA

BIOS ROM
MX29F004TQC-90

TOUCH
PANEL

PCMCIA SOCKET*1

Value: Part Number(Description)

0.01U: 07-10324-LF0(0.01U, 50V, X7R, 0603)

0.1U: 07-10494-GF0(0.1U, 50V, Y5V, 0603)

0.1U_X7R: 07-1042D-LF0(0.1U, 16V, X7R, 0603)
1U: 07-1059L-7G0(1U, 10V, Y5V, 0603)
1U_X7R: 08-10521-2I0(1U, 6.3V, X5R, K, 0603)
10U_0805: 08-1069L-2C0(10U, 10V,Y5V,0805)
10U/25V_1210: 08-10692-2D0(10U, 25V, Y5V, 1210)
22U/10V_1206: 08-220PL-2B0(22U, 10V, Y5V, 1206)

CARD READER

4 in 1 SOCKET*1

Pentium-M-1

H_REQ#[4:0][5]

H_A#[31:3][5]

H_ADSTB#0[5]
H_A#[31:3][5]

H_ADSTB#1[5]

R421 56

+VCCP

PM_THRMTRIP#

H_FERR#

H_CPURST#

R81 54.9_1%

H_TDO

R393 *54.9_1%

H_TMS

R80 39

H_TDI

R402 150

H_TCK

R394 27

H_TRST#

R404 680

ITP_DBRESET#

+3VS

C524

0.1U_X7R

+3VS

Layout Note:
Route H_THERMDA and
H_THERMDC on same layer.
10 mil trace on 10 mil spacing.

H_REQ#0
H_REQ#1
H_REQ#2
H_REQ#3
H_REQ#4

H_A#3
H_A#4
H_A#5
H_A#6
H_A#7
H_A#8
H_A#9
H_A#10
H_A#11
H_A#12
H_A#13
H_A#14
H_A#15
H_A#16

H_A#17
H_A#18
H_A#19
H_A#20
H_A#21
H_A#22
H_A#23
H_A#24
H_A#25
H_A#26
H_A#27
H_A#28
H_A#29
H_A#30
H_A#31

PROCHOT#
H_THERMDA
H_THERMDC

PM_THRMTRIP#

R403 680
R79 56

R67 150

R423 *0

R422

H_THERMDA

H_THERMDC

R2
P3

P1

P4
U4
V3
R3
V2

W1

W2

Y4
Y1
U1

AA3

Y3

AA2

U3

AF4
AC4
AC7
AC3
AD3
AE4
AD2
AB4
AC6
AD5
AE2
AD6
AF3
AE1
AF1
AE5

B18
A18

C17

R392

R426

T2

T1

T4

U40A

REQ0#
REQ1#
REQ2#
REQ3#
REQ4#

A3#
A4#
A5#
A6#
A7#
A8#
A9#
A10#
A11#
A12#
A13#
A14#
A15#
A16#
ADSTB#0

A17#
A18#
A19#
A20#
A21#
A22#
A23#
A24#
A25#
A26#
A27#
A28#
A29#
A30#
A31#
ADSTB#1

THERMDA
THERMDC

THERMTRIP#

Pentium-M

+VCCP

+3V

1K

1K

ADDR GROUP0 ADDR GROUP1

THERM

U38

Z0214

2

VCC

C529
2200P

4

DXN

Z0215

10

ADD0

6

ADD1

7

GND1

8

GND2

NE1617DS

A20M#

FERR#

IGNNE#

STPCLK#

LINT0
LINT1

SMI#
INIT#

ADS#
BNR#
BPRI#

DEFER#

DRDY#
DBSY#

BR0#

IERR#

LOCK#

RESET#

RS0#

RS1#

RS2#

TRDY#

HIT#

HITM#

BPM#0
BPM#1
BPM#2

BPM#3
PRDY#
PREQ#

ITP CONTROL

TCK

TDI
TDO
TMS

TRST#

DBR#PROCHOT#

BCLK0

BCLK1
ITPCLK0
ITPCLK1

CLK

THRMTRIP#[21]

STBY#

SMBDATADXP

SMBCLK

ALERT#

N/C1
N/C2
N/C3
N/C4
N/C5

C2
D3
A3
C6
D1
D4
B4
B5

N2
L1
J3
L4
H2
M2

N4
A4

J2

B11
H1
K1
L2
M3

K3
K4

C8
B8
A9
C9
A10
B10
A13
C12
A12
C11
B13
A7B17

B15
B14
A16
A15

15

123

14

11

1
5
9
13
16

H_FERR#

H_IERR#

R66 56

H_CPURST#

H_BPM0_ITP#
H_BPM1_ITP#
H_BPM2_ITP#
H_BPM3_ITP#
H_BPM4_PRDY#
H_BPM5_PREQ#
H_TCK
H_TDI
H_TDO
H_TMS
H_TRST#
ITP_DBRESET#

CLK_CPU_BCLK
CLK_CPU_BCLK#
CLK_ITP_CPU
CLK_ITP_CPU#

+3VH8

C

E

Z0217

THERMAL_SDA1

THERMAL_SCLK1

Z0218
Z0219Z0216
Z0220
Z0221
Z0222

R378
330

Q53
2N3904

+3VS

T280
T281
T282

H_A20M# [11]
H_FERR# [11]
H_IGNNE# [11]
H_STPCLK# [11]
H_INTR [11]
H_NMI [11]
H_SMI# [11]
H_INIT# [11]

H_ADS# [5]
H_BNR# [5]
H_BPRI# [5]
H_DEFER# [5]
H_DRDY# [5]
H_DBSY# [5]

H_BR0# [5]

H_LOCK# [5]

H_RS#0 [5]
H_RS#1 [5]
H_RS#2 [5]
H_TRDY# [5]

H_HIT# [5]
H_HITM# [5]

Z0212

B

C

E

R388

10K

+VCCP

H_CPURST# [5]

T295
T296
T297
T298
T299
T300

CLK_CPU_BCLK [10]
CLK_CPU_BCLK# [10]
CLK_ITP_CPU [10]
CLK_ITP_CPU# [10]

R376

1.3K_1%

Z0213

B

Q56
2N3904

+3VH8

R390

2.2K

R416 *0
R425 *10K

R415

*4.7K

0.5" max, Zo= 55 Ohm

R406 330

+3VS

R389

R391

2.2K
10K

R424

*4.7K

+VCCP

R159
1K_1%

R152
2K_1%

PM_THRMTRIP#

THERMAL_SDA1 [21]

THERMAL_SCLK1 [21]

PM_THRM# [12]

+3VS

H_D#[0:63][5]

H_D#[0:63][5]

C209

1U_X7R

H_DSTBN#0[5]
H_DSTBP#0[5]
H_DINV#0[5]

C206

0.1U_X7R

A19

H_D#0

A25

H_D#1

A22

H_D#2

B21

H_D#3

A24

H_D#4

B26

H_D#5

A21

H_D#6

B20

H_D#7

C20

H_D#8

B24

H_D#9

D24

H_D#10

E24

H_D#11

C26

H_D#12

B23

H_D#13

E23

H_D#14

C25

H_D#15

C23
C22
D25

H23

H_D#16

G25

H_D#17

L23

H_D#18

M26

H_D#19

H24

H_D#20

F25

H_D#21

G24

H_D#22

J23

H_D#23

M23

H_D#24

J25

H_D#25

L26

H_D#26

N24

H_D#27

M25

H_D#28

H26

H_D#29

N25

H_D#30

K25

H_D#31

H_DSTBN#1[5]
H_DSTBP#1[5]
H_DINV#1[5]

C203

0.01U

PM_PSI#[26]

T273
T274
T275

T276

T277
T278
T279

K24
L24
J26

Z0201

AC1

Z0202

G1

Z0203

E26

Z0204

AD26

Z0205

B2

Z0206

C14

Z0207

C3

Z0208

AF7

Z0209

C16

E1

R395
*1K

Close to each clock signal

CLK_CPU_BCLK

R418
*10

Z0223

C517
*10P

CLK_CPU_BCLK#

R417
*10

Z0225

C516
*10P

U40B

D0#
D1#
D2#
D3#
D4#
D5#
D6#
D7#
D8#
D9#
D10#
D11#
D12#
D13#
D14#
D15#

DSTBN0#
DSTBP0#
DINV0#

D16#
D17#
D18#
D19#
D20#
D21#
D22#
D23#
D24#
D25#
D26#
D27#
D28#
D29#
D30#
D31#

DSTBN1#
DSTBP1#
DINV1#

GTLREF3/RSVD
GTLREF2/RSVD
GTLREF1/RSVD
GTLREF0

NC1

RSVD1
RSVD2
RSVD3
RSVD4
PSI#

Pentium-M

Z0224

Z0226

DATA GRP 0 DATA GRP 1

MISC

CLK_ITP_CPU

R420
*10

C519
*10P

CLK_ITP_CPU#

R419
*10

C518
*10P

Y26

H_D#32

D32#

AA24

H_D#33

D33#

T25

H_D#34

D34#

U23

H_D#35

D35#

V23

H_D#36

D36#

R24

H_D#37

D37#

R26

H_D#38

D38#

R23

H_D#39

D39#

AA23

H_D#40

D40#

U26

H_D#41

D41#

V24

H_D#42

D42#

U25

H_D#43

D43#

V26

H_D#44

D44#

Y23

H_D#45

D45#

AA26

H_D#46

D46#

Y25

H_D#47

D47#

DATA GRP 2DATA GRP 3

W25

DSTBN2#

W24

DSTBP2#

T24

DINV2#

AB25

H_D#48

D48#

AC23

H_D#49

D49#

AB24

H_D#50

D50#

AC20

H_D#51

D51#

AC22

H_D#52

D52#

AC25

H_D#53

D53#

AD23

H_D#54

D54#

AE22

H_D#55

D55#

AF23

H_D#56

D56#

AD24

H_D#57

D57#

AF20

H_D#58

D58#

AE21

H_D#59

D59#

AD21

H_D#60

D60#

AF25

H_D#61

D61#

AF22

H_D#62

D62#

AF26

H_D#63

D63#

AE24

DSTBN3#

AE25

DSTBP3#

AD20

DINV3#

P25

COMP0
COMP1
COMP2
COMP3

DPSLP#
DPWR#

PWRGOOD

COMP0

P26

COMP1

AB2

COMP2

AB1

COMP3

B7
C19
E4
A6

SLP#

Z0210

C5

TEST1

Z0211

F23

TEST2

R440
*1K

Layout Note:
COMP0, COMP2:0.5" Max, Zo=27.4Ohm
COMP1, COMP3: 0.5"Max, Zo=55Ohm
Best estimate is 18mil wide trace for outer layers and 14mil
if on internal layer.

COMP0
COMP1
COMP2
COMP3

H_D#[0:63] [5]

H_DSTBN#2 [5]
H_DSTBP#2 [5]
H_DINV#2 [5]

H_D#[0:63] [5]

H_DSTBN#3 [5]
H_DSTBP#3 [5]
H_DINV#3 [5]

+VCCP

H_DPSLP# [4,11]
H_DPWR# [4]

H_CPUSLP# [11]

Layout notice:
H_DPSLP# shoule not T-split

R65
*1K

R174

R173

54.9_1%

27.4_1%

+3VS [4,5,6,7,9,10,11,12,13,14,15,16,18,19,21,22,23,24,26]
+3VH8 [21,22,24,26,28]
+VCCP [3,5,6,12,13,26]
+3V [11,12,13,15,16,17,18,21,24,27]

R78
330

H_PWRGD [11]

R443

54.9_1%

R445

27.4_1%

Schematic Diagrams

Sheet 2 of 31

Pentium-M-1

B. T2X0C Schematics

Pentium-M-1 (71-T20C0-003) B - 3

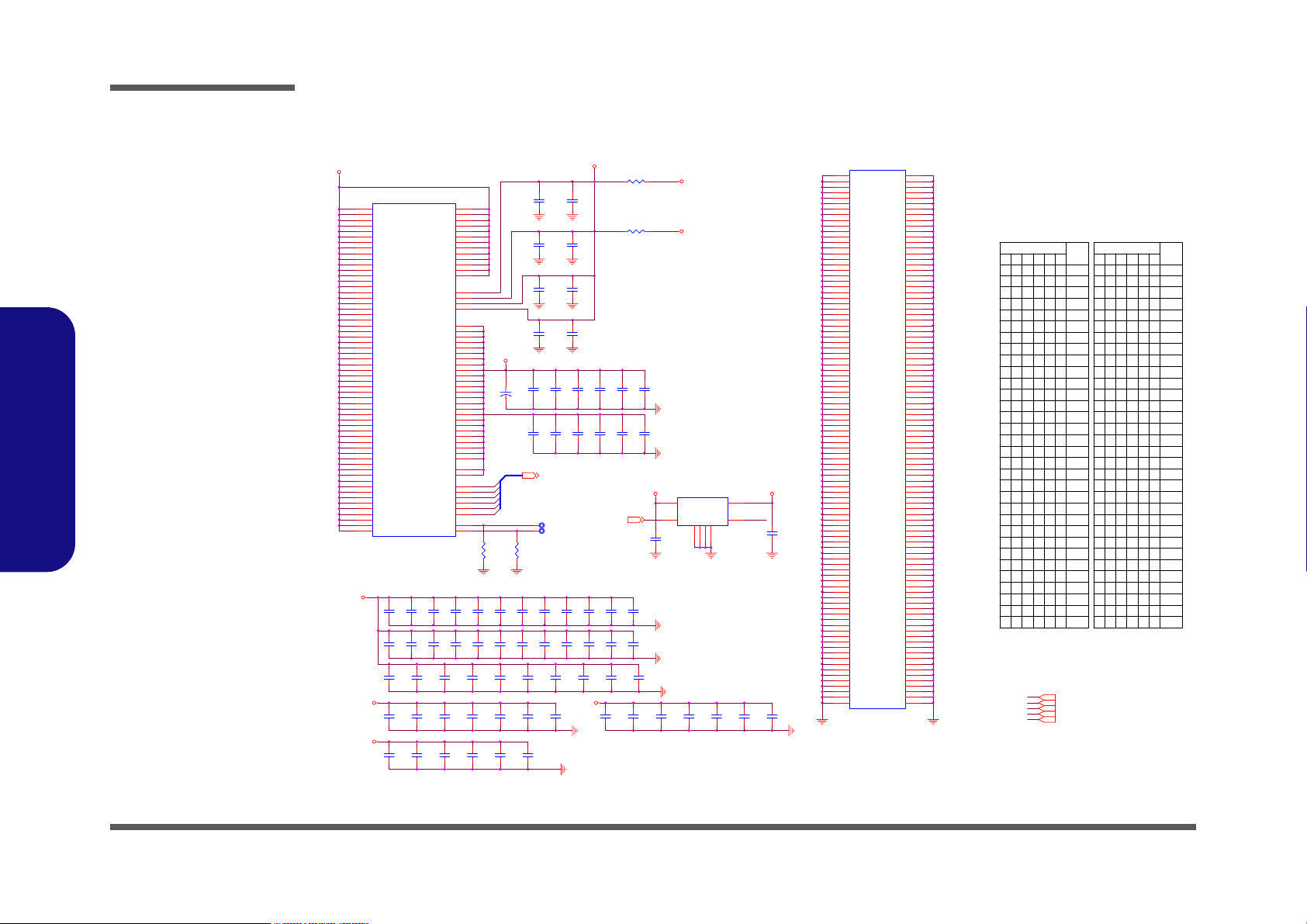

Schematic Diagrams

Sheet 3 of 31

Pentium-M-2

B. T2X0C Schematics

Pentium-M-2

V_CORE

U40C

D6

VCC0

D8

VCC1

D18

VCC2

D20

VCC3

D22

VCC4

E5

VCC5

E7

VCC6

E9

VCC7

E17

VCC8

E19

VCC9

E21

VCC10

F6

VCC11

F8

VCC12

F18

VCC13

F20

POWER

VCC14

F22

VCC15

G5

VCC16

G21

VCC17

H6

VCC18

H22

VCC19

J5

VCC20

J21

VCC21

K22

VCC22

U5

VCC23

V6

VCC24

V22

VCC25

W5

VCC26

W21

VCC27

Y6

VCC28

Y22

VCC29

AA5

VCC30

AA7

VCC31

AA9

VCC32

AA11

VCC33

AA13

VCC34

AA15

VCC35

AA17

VCC36

AA19

VCC37

AA21

VCC38

AB6

VCC39

AB8

VCC40

AB10

VCC41

AB12

VCC42

AB14

VCC43

AB16

VCC44

AB18

VCC45

AB20

VCC46

AB22

VCC47

AC9

VCC48

AC11

VCC49

AC13

VCC50

AC15

VCC51

AC17

VCC52

AC19

VCC53

AD8

VCC54

AD10

VCC55

AD12

VCC56

AD14

VCC57

AD16

VCC58

Pentium-M

V_CORE

C527

C553

1U_X7R

1U_X7R

C183

C537

1U_X7R

1U_X7R

C576

10U_0805

V_CORE V_CORE

C560

10U_0805

V_CORE

C181

10U_0805

AD18

VCC59

AE9

VCC60

AE11

VCC61

AE13

VCC62

AE15

VCC63

AE17

VCC64

AE19

VCC65

AF8

VCC66

AF10

VCC67

AF12

VCC68

AF14

VCC69

AF16

VCC70

AF18

VCC71

F26

VCCA0

B1

VCCA1

N1

VCCA2

AC26

VCCA3

D10

VCCP0

D12

VCCP1

D14

VCCP2

D16

VCCP3

E11

VCCP4

E13

VCCP5

E15

VCCP6

F10

VCCP7

F12

VCCP8

F14

VCCP9

F16

VCCP10

K6

VCCP11

L5

VCCP12

L21

VCCP13

M6

VCCP14

M22

VCCP15

N5

VCCP16

N21

VCCP17

P6

VCCP18

P22

VCCP19

R5

VCCP20

R21

VCCP21

T6

VCCP22

T22

VCCP23

U21

VCCP24

P23

VCCQ0

W4

VCCQ1

E2

VID0

F2

VID1

F3

VID2

G3

VID3

G4

VID4

H4

VID5

AE7

VCCSENSE

AF6

VSSSENSE

PLEASE NEAR CPU

C219

C135

1U_X7R

1U_X7R

C545

C134

1U_X7R

1U_X7R

C215

C574

10U_0805

10U_0805

C556

C587

10U_0805

10U_0805

C180

C159

10U_0805

10U_0805

+VCCP

+VCCP = 1.05V (0.997~1.102V)

H_VID0
H_VID1
H_VID2
H_VID3
H_VID4
H_VID5

TP_VCCSENSE
TP_VSSSENSE

R171

*54.9_1%

C111

1U_X7R

C548

1U_X7R

C179

10U_0805

C569

10U_0805

C143

10U_0805

C124

+

330U/2.5V_D

C585

1U_X7R

C579

1U_X7R

C178

10U_0805

C158

10U_0805

C144

10U_0805

R172

*54.9_1%

C578

1U_X7R

C580

1U_X7R

+1.8VS_PROC

C540

C541

0.01U

10U_0805

C149

C147

10U_0805

0.01U

C80

C81

0.01U

10U_0805

C581

C583

10U_0805

0.01U

PLEASE NEAR CPU

C561

C148

C551

0.1U_X7R

0.1U_X7R

0.1U_X7R

C562

C142

C552

0.1U_X7R

0.1U_X7R

0.1U_X7R

H_VID[5:0] [26]

T271
T272

C584

C218

C140

1U_X7R

1U_X7R

1U_X7R

C112

C549

C550

1U_X7R

1U_X7R

1U_X7R

C588

10U_0805

C150

10U_0805

C575

10U_0805

C536

10U_0805

C577

10U_0805

C571

10U_0805

R461 0_0805

+1.8VS FOR BANIAS CPU
(1.71 ~ 1.89V)

R64 *0_0805

+1.8VS

+1.5VS

+1.5VS FOR DOTHAN CPU

C554

C558

C146

0.1U_X7R

0.1U_X7R

0.1U_X7R

C153

C559

C141

0.1U_X7R

0.1U_X7R

0.1U_X7R

02-37101-320

U21 MIC37101-1.8BM

2 3

IN OUT

C222

1U_X7R

C182

1U_X7R

C102

0.1U_X7R

C568

10U_0805

1

C264

0.1U_X7R

C155

0.1U_X7R

EN

GND

GND

GND

5

C156

0.1U_X7R

SUSB#[12,13,16,24,25,26]

C564

1U_X7R

C544

1U_X7R

C555

10U_0805

C220

0.1U_X7R

U40D

A2

VSS0

A5

VSS1

A8

VSS2

A11

VSS3

A14

VSS4

A17

VSS5

A20

VSS6

A23

VSS7

A26

VSS8

B3

VSS9

B6

VSS10

B9

VSS11

B12

VSS12

B16

VSS13

B19

VSS14

B22

VSS15

B25

VSS16

C1

VSS17

C4

VSS18

C7

VSS19

C10

VSS20

C13

VSS21

C15

VSS22

C18

VSS23

C21

VSS24

C24

VSS25

D2

VSS26

D5

VSS27

D7

VSS28

D9

VSS29

D11

VSS30

D13

VSS31

D15

VSS32

D17

VSS33

D19

VSS34

D21

VSS35

D23

VSS36

D26

VSS37

E3

VSS38

E6

VSS39

E8

VSS40

E10

VSS41

E12

VSS42

E14

VSS43

E16

VSS44

E18

VSS45

E20

VSS46

E22

VSS47

E25

VSS48

F1

VSS49

F4

VSS50

F5

VSS51

F7

VSS52

F9

VSS53

F11

VSS54

F13

VSS55

F15

+1.8VS+2.5V

TZ0301

4

FLG

GND

876

C221

0.1U_X7R

C114

0.1U_X7R

C262

10U_0805

C79

0.1U_X7R

VSS56

F17

VSS57

F19

VSS58

F21

VSS59

F24

VSS60

G2

VSS61

G6

VSS62

G22

VSS63

G23

VSS64

G26

VSS65

H3

VSS66

H5

VSS67

H21

VSS68

H25

VSS69

J1

VSS70

J4

VSS71

J6

VSS72

J22

VSS73

J24

VSS74

K2

VSS75

K5

VSS76

K21

VSS77

K23

VSS78

K26

VSS79

L3

VSS80

L6

VSS81

L22

VSS82

L25

VSS83

M1

VSS84

M4

VSS85

M5

VSS86

M21

VSS87

M24

VSS88

N3

VSS89

N6

VSS90

N22

VSS91

N23

VSS92

N26

VSS93

P2

VSS94

P5

VSS95

Pentium-M

VSS96
VSS97
VSS98

VSS99
VSS100
VSS101
VSS102
VSS103
VSS104
VSS105
VSS106
VSS107
VSS108
VSS109
VSS110
VSS111
VSS112
VSS113
VSS114
VSS115
VSS116
VSS117
VSS118
VSS119
VSS120
VSS121
VSS122
VSS123
VSS124
VSS125
VSS126
VSS127
VSS128
VSS129
VSS130
VSS131
VSS132
VSS133
VSS134
VSS135
VSS136
VSS137
VSS138
VSS139
VSS140
VSS141
VSS142
VSS143
VSS144
VSS145
VSS146
VSS147
VSS148
VSS149
VSS150
VSS151
VSS152
VSS153
VSS154
VSS155
VSS156
VSS157
VSS158
VSS159
VSS160
VSS161
VSS162
VSS163
VSS164
VSS165
VSS166
VSS167
VSS168
VSS169
VSS170
VSS171
VSS172
VSS173
VSS174
VSS175
VSS176
VSS177
VSS178
VSS179
VSS180
VSS181
VSS182
VSS183
VSS184
VSS185
VSS186
VSS187
VSS188
VSS189
VSS190
VSS191

P21
P24
R1
R4
R6
R22
R25
T3
T5
T21
T23
T26
U2
U6
U22
U24
V1
V4
V5
V21
V25
W3
W6
W22
W23
W26
Y2
Y5
Y21
Y24
AA1
AA4
AA6
AA8
AA10
AA12
AA14
AA16
AA18
AA20
AA22
AA25
AB3
AB5
AB7
AB9
AB11
AB13
AB15
AB17
AB19
AB21
AB23
AB26
AC2
AC5
AC8
AC10
AC12
AC14
AC16
AC18
AC21
AC24
AD1
AD4
AD7
AD9
AD11
AD13
AD15
AD17
AD19
AD22
AD25
AE3
AE6
AE8
AE10
AE12
AE14
AE16
AE18
AE20
AE23
AE26
AF2
AF5
AF9
AF11
AF13
AF15
AF17
AF19
AF21
AF24

1.7GHz & 1.468V = 24.5W

1.6GHz & 1.468V = 24.5W

1.5GHz & 1.468V = 24.5W

1.4GHz & 1.468V = 22W

1.3GHz & 1.468V = 22W

1.1GHz & 1.468V = 12W

VID Vcc

000
00

000

000

0

000

1

0

0000

1

000

1

0

0

1

0

0

1

00

11

0

111

0

0

0

1

1

000

11 1

0
0

0
0

1

1

0

1

0

000

0

1

00

11

000

0

0

1

1

00

11

0

000

1

11

0

0

1

0
0

11

0

0

1

1

0

11

0

0

1

0

11

1

0

11

1

1

0

1

1

1

1

0

012345

1.708000

1.692

1

1.676

00

1

1.660

1

1

0000

1.644

1.628

11

1.612

1

0

1.596

11

1.580

000

0

1

1.5641.564

00

1.548

000

1.532

0

1.516

1.500

0

1.484

111

0

1.468

1

1

00

1.452

1

1.436

0

1.420

0

1.404

11

1

1.388

000

1.372

1

1.356

0

1.340

1

11

000

1.324

1.308

0

11

1.292

0

11

1.276

1

1

1.260

000

1.244

1

0

1.228

0

1

1.212

11

V_CORE [26]
+VCCP [2,5,6,12,13,26]
+1.8VS [13]
+1.5VS [4,5,6,11,12,13,24]
+2.5V [4,6,7,13,16,25]

V

VID Vcc

00

1

00

1

00

1
1

00

1

000

1

00

1
1

0

1

1

0

1

1

0

11

1

111

0

1

1

1

0

11 1

0

1

0

1

0

1

1

1

1

0

1

0

1

1

0

11

1

1

1

0

1

000

11
1

1

0

1

11

1

1

1

1

1

11

1
1

11

1

11

1

1

1

1

1

1

000
00

1

0

1

1

1

1
1

0
00

0

0

1

0
111

1

1
0
0

0
0

0

1
1

11

1

1

000

0

0

11
0

1

000

1

0

1
1

1
1

V

012345

1.196

1.180

1
00

1.164

1

1.148

0000

1.132

11

1.116

0

1.100

1.084

11

000

1.068

1

1.052

000

1.036

1.020

0

1.004

0.988

0

0.972

1

0.956

00

0.940

1

0.924

0.908

0
11

0.892

000

0.876

0.860

1
0

0.844

0.828

11

0.812

11

0.796

0

0.780

1

0.764

0.748

0.732

1
0

0.716

0.700

11

B - 4 Pentium-M-2 (71-T20C0-003)

855GM-1

M_DATA[63:0][8]

M_CB[7:0][8]

+2.5V

R455

10K_1%

R457

10K_1%

R449 *0

MCH_SMVSWINGH

M_DATA0
M_DATA1
M_DATA2
M_DATA3
M_DATA4
M_DATA5
M_DATA6
M_DATA7
M_DATA8
M_DATA9
M_DATA10
M_DATA11
M_DATA12
M_DATA13
M_DATA14
M_DATA15
M_DATA16
M_DATA17
M_DATA18
M_DATA19
M_DATA20
M_DATA21
M_DATA22
M_DATA23
M_DATA24
M_DATA25
M_DATA26
M_DATA27
M_DATA28
M_DATA29
M_DATA30
M_DATA31
M_DATA32
M_DATA33
M_DATA34
M_DATA35
M_DATA36
M_DATA37
M_DATA38
M_DATA39
M_DATA40
M_DATA41
M_DATA42
M_DATA43
M_DATA44
M_DATA45
M_DATA46
M_DATA47
M_DATA48
M_DATA49
M_DATA50
M_DATA51
M_DATA52
M_DATA53
M_DATA54
M_DATA55
M_DATA56
M_DATA57
M_DATA58
M_DATA59
M_DATA60
M_DATA61
M_DATA62
M_DATA63
M_CB0
M_CB1
M_CB2
M_CB3
M_CB4
M_CB5
M_CB6
M_CB7

Z0401

+2.5V

C567

0.1U_X7R

R453

150_1%

R447

604_1%_0805

U39E

AF2

SDQ0

AE3

SDQ1

AF4

SDQ2

AH2

SDQ3

AD3

SDQ4

AE2

SDQ5

AG4

SDQ6

AH3

SDQ7

AD6

SDQ8

AG5

SDQ9

AG7

SDQ10

AE8

SDQ11

AF5

SDQ12

AH4

SDQ13

AF7

SDQ14

AH6

SDQ15

AF8

SDQ16

AG8

SDQ17

AH9

SDQ18

AG10

SDQ19

AH7

SDQ20

AD9

SDQ21

AF10

SDQ22

AE11

SDQ23

AH10

SDQ24

AH11

SDQ25

AG13

SDQ26

AF14

SDQ27

AG11

SDQ28

AD12

SDQ29

AF13

SDQ30

AH13

SDQ31

AH16

SDQ32

AG17

SDQ33

AF19

SDQ34

AE20

SDQ35

AD18

SDQ36

AE18

SDQ37

AH18

SDQ38

AG19

SDQ39

AH20

SDQ40

AG20

SDQ41

AF22

SDQ42

AH22

SDQ43

AF20

SDQ44

AH19

SDQ45

AH21

SDQ46

AG22

SDQ47

AE23

SDQ48

AH23

SDQ49

AE24

SDQ50

AH25

SDQ51

AG23

SDQ52

AF23

SDQ53

AF25

SDQ54

AG25

SDQ55

AH26

SDQ56

AE26

SDQ57

AG28

SDQ58

AF28

SDQ59

AG26

SDQ60

AF26

SDQ61

AE27

SDQ62

AD27

SDQ63

AG14

SDQ64

AE14

SDQ65

AE17

SDQ66

AG16

SDQ67

AH14

SDQ68

AE15

SDQ69

AF16

SDQ70

AF17

SDQ71

AJ24

SMVREF

Montara-GMCH

SM_VREF_DIMM [7]

MCH_SMVSWINGL

M_DQS0

AG2

SDQS0

M_DQS1

AH5

SDQS1

AH8

M_DQS2

SDQS2

AE12

M_DQS3

SDQS3

AH17

M_DQS4

SDQS4

AE21

M_DQS5

SDQS5

AH24

M_DQS6

SDQS6

AH27

M_DQS7

SDQS7

AD15

M_DQS8

SDQS8

AC18

SMA_A0

AD14

SMA_A1

AD13

SMA_A2

AD17

SMA_A3

AD11

SMA_A4

AC13

SMA_A5

AD8

SMA_A6

AD7

SMA_A7

AC6

SMA_A8

AC5

SMA_A9

AC19

SMA_A10

AD5

SMA_A11

AB5

SMA_A12

AD16

SMA_B1

AC12

SMA_B2

AF11

SMA_B4

AD10

SMA_B5

AC7

SCKE0

AB7

SCKE1

AC9

SCKE2

AC10

SCKE3

AD23

SCS0#

AD26

SCS1#

AC22

SCS2#

AC25

SCS3#

AD22

SBA0

AD20

SBA1

DDR SYSTEM MEMORY

AC21

SRAS#

AC24

SCAS#

AD25

SWE#

AB2

SCMDCLK0

AA2

SCMDCLK0#

AC26

SCMDCLK1

AB25

SCMDCLK1#

AC3

SCMDCLK2

AD4

SCMDCLK2#

AC2

SCMDCLK3

AD2

SCMDCLK3#

AB23

SCMDCLK4

AB24

SCMDCLK4#

AA3

SCMDCLK5

AB4

SCMDCLK5#

AE5

M_DM0

SDM0

AE6

M_DM1

SDM1

AE9

M_DM2

SDM2

AH12

M_DM3

SDM3

AD19

M_DM4

SDM4

AD21

M_DM5

SDM5

AD24

M_DM6

SDM6

AH28

M_DM7

SDM7

AH15

M_DM8

SDM8

TP_M_RCVO#

AC15

SRCVENOUT#

AC16

SMRCOMP

R448

604_1%_0805

R454

150_1%

AB1

AJ22
AJ19

TP_M_RCVI#

MCH_SMRCOMP

SRCVENIN#

SMVSWINGL

SMVSWINGH

+2.5V

M_AA0
M_AA1
M_AA2
M_AA3
M_AA4
M_AA5
M_AA6
M_AA7
M_AA8
M_AA9
M_AA10
M_AA11
M_AA12

M_AB1
M_AB2
M_AB4
M_AB5

R74 *0

MCH_SMRCOMP

MCH_SMVSWINGL
MCH_SMVSWINGH

C565

C566

0.1U_X7R

0.1U_X7R

+2.5V

R442

60.4_1%

R441

60.4_1%

M_DQS[8:0] [8]

M_AA0 [7,8]
M_AA[2:1] [7,8]

M_AA3 [7,8]

M_AA[5:4] [7,8]

M_AA[12:6] [7,8]

M_AB[2:1] [7,8]

M_AB[5:4] [7,8]
M_CKE0 [7,8]
M_CKE1 [7,8]
M_CKE2 [7,8]
M_CKE3 [7,8]
M_CS0# [7,8]
M_CS1# [7,8]
M_CS2# [7,8]
M_CS3# [7,8]

M_BS0# [7,8]
M_BS1# [7,8]

M_RAS# [7,8]
M_CAS# [7,8]
M_WE# [7,8]

M_CLK_DDR0 [7]
M_CLK_DDR0# [7]
M_CLK_DDR1 [7]
M_CLK_DDR1# [7]
M_CLK_DDR2 [7]
M_CLK_DDR2# [7]
M_CLK_DDR3 [7]
M_CLK_DDR3# [7]
M_CLK_DDR4 [7]
M_CLK_DDR4# [7]
M_CLK_DDR5 [7]
M_CLK_DDR5# [7]
M_DM[8:0] [8]

C138

0.1U_X7R

VCCDVO

R19

1K_1%

DPMS_CLK

R18

*1K_1%

+1.5VS

R409

1K_1%

R408

1K_1%

VCCDVO

VCCDVO

4

RN1 8P4RX2.2K

ADDDETECT[5]
DPMS_CLK[12]

C512

0.1U_X7R

Layout Notice:
10mil wide, 20mil spacing

+2.5V

C115

0.1U_X7R

+2.5V

C309

10U_0805

U39B

Z0402

R3

T129
T127
T130
T128
T193
T194
T195
T196
T197
T198
T199
T200

T201
T202
T204
T206

VCCDVO

C278

10U_0805

T214
T215
T216
T218
T219
T220
T221
T223
T225
T227
T228
T229

T230
T231
T232
T234
T286

R410

*1K

DPMS_CLK

C277

0.1U_X7R

T208

DVOBCINTR#
DVOBCCLKINT

MI2CCLK
MI2CDATA

T240
T241
T242
T243
T244
T245
T246
T287

MCH_GRCOMP

T253
T255
T257
T259
T261
T263
T265
T266
T267
T268
T269
T270

C266

0.1U_X7R

C291

10U_0805

R59 100K

R36 100K
R47 100K

R32 100K

R430 2.2K

R431 2.2K

81
72
653

R636

*100K

AGP_BUSY#[12]

R27 40.2_1%

CLK_MCH66[10]

+2.5V +2.5V +2.5V +2.5V +2.5V +2.5V+2.5V +2.5V +2.5V+2.5V +2.5V +2.5V +2.5V+2.5V +2.5V

C293

0.1U_X7R

+2.5V +2.5V+2.5V +2.5V +2.5V

Z0403
Z0404
Z0405
Z0406
Z0407
Z0408
Z0409
Z0410
Z0411
Z0412
Z0413

Z0414
Z0415
Z0416
Z0417
Z0418
Z0419

Z0420
Z0421
Z0422
Z0423
Z0424
Z0425
Z0426
Z0427
Z0428
Z0429
Z0430
Z0431

Z0432
Z0433
Z0434

Z0435
DVOCBLANK#
DVOCFLDSTL

Z0436

Z0437

Z0438

Z0439

Z0440

Z0441

Z0442

Z0443

Z0444

Z0445

Z0446

Z0447

Z0466

Z0448

Z0449

Z0450

Z0451

Z0452

Z0453

Z0454

Z0455

Z0456

Z0457

Z0458

Z0459

AA5

C256

0.1U_X7R

C272

10U_0805

R5
R6
R4
P6
P5
N5
P2
N2
N3
M1
M5

P3
P4
T6
T5
L2
M2

G2
M3

K5
K1
K3
K2
J6
J5
H2
H1
H3
H4
H6
G3

J3
J2
K6
L5
L3
H5

K7
N6
N7
M6
P7
T7

E5
F5
E3
E2
G5
F4
G6
F6
L7
D5

F1

F7

D1
Y3

F2
F3
B2
B3
C2
C3
C4
D2
D3
D7
L4

Montara-GMCH

DVOBD0
DVOBD1
DVOBD2
DVOBD3
DVOBD4
DVOBD5
DVOBD6
DVOBD7
DVOBD8
DVOBD9
DVOBD10
DVOBD11

DVOBCLK
DVOBCLK#
DVOBHSYNC
DVOBVSYNC
DVOBBLANK#
DVOBFLDSTL

DVOBCINTRB
DVOBCCLKINT

DVOCD0
DVOCD1
DVOCD2
DVOCD3
DVOCD4
DVOCD5
DVOCD6
DVOCD7
DVOCD8
DVOCD9
DVOCD10
DVOCD11

DVOCCLK
DVOCCLK#
DVOCHSYNC
DVOCVSYNC
DVOCBLANK#
DVOCFLDSTL

MI2CCLK
MI2CDATA
MDVICLK
MDVIDATA
MDDCCLK
MDDCDATA

ADDID0
ADDID1
ADDID2
ADDID3
ADDID4
ADDID5
ADDID6
ADDID7
ADDDETECT
DPMS

GVREF

AGPBUSY#

GRCOMP
66IN

RVSD0
RVSD1
RVSD2
RVSD3
RVSD4
RVSD5
RVSD6
RVSD7
RVSD8
RVSD9
RVSD10
RVSD11

C253

0.1U_X7R

C275

10U_0805

DVO

C238

0.1U_X7R

BLUE#

GREEN

GREEN#

HSYNC
VSYNC

DACLVDSCLKSMISCNC

REFSET

DDCACLK

DDCADATA

IYAM0
IYAM1
IYAM2
IYAM3
IYAP0
IYAP1
IYAP2
IYAP3
IYBM0
IYBM1
IYBM2
IYBM3
IYBP0
IYBP1
IYBP2

IYBP3
ICLKAM
ICLKAP
ICLKBM
ICLKBP

DDCPCLK

DDCPDATA

PANELBKLTCTL

PANELBKLTEN
PANELVDDEN

LVREFH

LVREFL

DREFCLK

DREFSSCLK

LCLKCTLA
LCLKCTLB

DPWR#
DPSLP#
RSTIN#

PWROK

EXTTS0

MCHDETECTVSS

C120

0.1U_X7R

C273

10U_0805

BLUE

RED

RED#

LVBG

LIBG

NC0
NC1
NC2
NC3
NC4
NC5
NC6
NC7
NC8

NC9
NC10
NC11

C132

0.1U_X7R

C9
D9
C8
D8
A7
A8
H10
J9

E8

DAC_REFSET

B6
G9

G14
E15
C15
C13

LVDS-A3N

F14
E14
C14
B13

LVDS-A3P

H12

LVDS-B0N

E12

LVDS-B1N

C12

LVDS-B2N

G11

LVDS-B3N

G12

LVDS-B0P

E11

LVDS-B1P

C11

LVDS-B2P

G10

LVDS-B3P

D14
E13
E10

LVDS-CLKBN

F10

LVDS-CLKBP

Z0460

B4

Z0461

C5

Z0462

G8
F8
A5

D12

TP_LVDS_REFH

F12

TP_LVDS_REFL

B12

LVDS_LVBG

Z0463

A10

B7
B17
H9
C6

AA22
Y23
AD28

J11

D6
AJ1

B1
AH1
A2
AJ2
A28
AJ28
A29
B29
AH29
AJ29
AA9
AJ4

C298

0.1U_X7R

Z0464
Z0465

TP_MCH_NC0
TP_MCH_NC1
TP_MCH_NC2
TP_MCH_NC3
TP_MCH_NC4
TP_MCH_NC5
TP_MCH_NC6
TP_MCH_NC7
TP_MCH_NC8
TP_MCH_NC9
TP_MCH_NC10
TP_MCH_NC11

C817 *33P

DAC_BLUE [9]

DAC_GREEN [9]

DAC_RED [9]

DAC_HSYNC [9]
DAC_VSYNC [9]

R25 137_1%

DAC_DDCACLK [9]
DAC_DDCADATA [9]

LVDS-A0N [9]
LVDS-A1N [9]
LVDS-A2N [9]

T222

LVDS-A0P [9]
LVDS-A1P [9]

LVDS-A2P [9]

T217
T203
T205
T207
T209
T210
T211
T212
T213

LVDS-CLKAN [9]

LVDS-CLKAP [9]

T224
T226

R8 2.2K
R6 2.2K

T233

BLON# [9]

ENAVDD [9]

T235
T237

T239

R7 1.5K_1%

DREFCLK [10]

DREFSSCLK [10]

LCLKCTLA [10]

LCLKCTLB [5,10]

H_DPWR# [2]

H_DPSLP# [2,11]

PCIRST# [5,11,13,15,16,17,19,20,21]

PG_VGATE [12,26]

R20 10K_1%
R446 0

T247
T248
T249
T250
T251
T252
T254
T256
T258
T260
T262
T264

C125

C85

C299

0.1U_X7R

0.1U_X7R

0.1U_X7R

+3VS [2,5,6,7,9,10,11,12,13,14,15,16,18,19,21,22,23,24,26]
+1.5VS [3,5,6,11,12,13,24]
+2.5V [3,6,7,13,16,25]

C818 *33P

C819 *33P

+3VS

C261

0.1U_X7R

Schematic Diagrams

Sheet 4 of 31

855GM-1

B. T2X0C Schematics

+3VS

C257

C217

0.1U_X7R

0.1U_X7R

855GM-1 (71-T20C0-003) B - 5

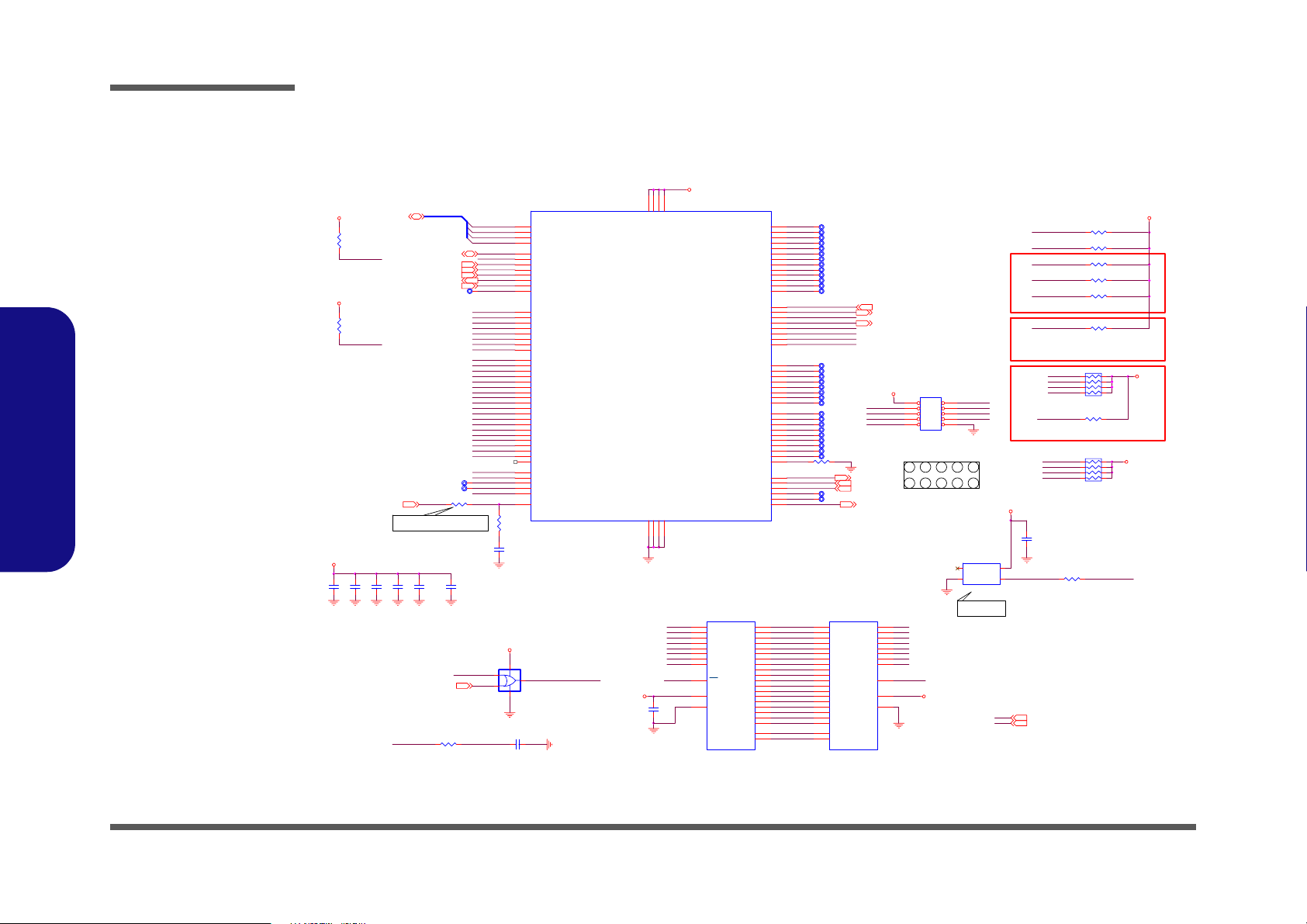

Schematic Diagrams

Sheet 5 of 31

855GM-2

B. T2X0C Schematics

855GM-2

H_A#[31:3][2]

External Thermal Sensor Header

Layout Notice:
10mil wide, 20mil spacing

R379 27.4_1%

MCH_HYRCOMP

MCH_HXRCOMP

R11 27.4_1%

Layout note: MCH_HXSWING
and MCH_HYSWING should be
10mil traces and 20mil spacing

+VCCP+VCCP

R412

R13

301_1%

301_1%

R411

R362

150_1%

150_1%

MCH_HCCVREF
MCH_HAVREF

C46

C49

1U_X7R

0.1U_X7R

+VCCP +VCCP +VCCP +1.2VS

R413

MCH_HDVREF MCH_HCCVREF MCH_HAVREF MCH_PSWING

49.9_1%

R414

100_1%

C538

0.1U_X7R

R427 27.4_1%

+1.2VS

For 855GME, 37.4_1% PU to +1.35VS

C513

0.1U_X7R

C539

1U_X7R

R429

49.9_1%

R428

100_1%

H_REQ#[4:0][2]

CLK_MCH_BCLK#[10]
CLK_MCH_BCLK[10]

MCH_HYSWING

MCH_HXSWING

C10

0.1U_X7R

C532

0.1U_X7R

HUB_PD[10:0][11]

HUB_PSTRB[11]

HUB_PSTRB#[11]

H_ADSTB#0[2]
H_ADSTB#1[2]

H_DSTBN#0[2]
H_DSTBN#1[2]
H_DSTBN#2[2]
H_DSTBN#3[2]
H_DSTBP#0[2]
H_DSTBP#1[2]
H_DSTBP#2[2]
H_DSTBP#3[2]
H_DINV#0[2]
H_DINV#1[2]
H_DINV#2[2]
H_DINV#3[2]

H_CPURST#[2]

H_A#3
H_A#4
H_A#5
H_A#6
H_A#7 H_D#4
H_A#8 H_D#5
H_A#9
H_A#10
H_A#11
H_A#12
H_A#13
H_A#14
H_A#15
H_A#16
H_A#17
H_A#18
H_A#19
H_A#20
H_A#21
H_A#22
H_A#23
H_A#24
H_A#25
H_A#26
H_A#27
H_A#28
H_A#29
H_A#30
H_A#31

H_REQ#0
H_REQ#1
H_REQ#2
H_REQ#3
H_REQ#4

MCH_HYRCOMP

MCH_HXRCOMP

MCH_HDVREF

HUB_PD0

C531

HUB_PD1
HUB_PD2

1U_X7R

HUB_PD3
HUB_PD4
HUB_PD5
HUB_PD6
HUB_PD7
HUB_PD8
HUB_PD9
HUB_PD10

HUB_HLZCOMP
MCH_PSWING
MCH_HLVREF

C60

C75

0.1U_X7R

0.1U_X7R

R438

49.9_1%

R439

100_1%

U39A

P23

HA3#

T25

HA4#

T28

HA5#

R27

HA6#

U23

HA7#

U24

HA8#

R24

HA9#

U28

HA10#

V28

HA11#

U27

HA12#

T27

HA13#

V27

HA14#

U25

HA15#

V26

HA16#

Y24

HA17#

V25

HA18#

V23

HA19#

W25

HA20#

Y25

HA21#

AA27

HA22#

W24

HA23#

W23

HA24#

W27

HA25#

Y27

HA26#

AA28

HA27#

W28

HA28#

AB27

HA29#

Y26

HA30#

AB28

HA31#

R28

HREQ0#

P25

HREQ1#

R23

HREQ2#

R25

HREQ3#

T23

HREQ4#

T26

HADSTB0#

AA26

HADSTB1#

AD29

HCLKN

AE29

HCLKP

H28

HYRCOMP

K28

HYSWING

B20

HXRCOMP

B18

HXSWING

J28

HDSTBN0#

C27

HDSTBN1#

E22

HDSTBN2#

D18

HDSTBN3#

K27

HDSTBP0#

D26

HDSTBP1#

E21

HDSTBP2#

E18

HDSTBP3#

J25

DINV0#

E25

DINV1#

B25

DINV2#

G19

DINV3#

F15

CPURST#

K21

HDVREF0

J21

HDVREF1

J17

HDVREF2

Y28

HCCVREF

Y22

HAVREF

U7

HI_0

U4

HI_1

U3

HI_2

V3

HI_3

W2

HI_4

W6

HI_5

V6

HI_6

W7

HI_7

T3

HI_8

V5

HI_9

V4

HI_10

W3

PSTRBS

V2

PSTRBF

T2

HLZCOMP

U2

PSWING

W1

HLVREF

PIN A1=TZ0611
PIN AA22=TZ0612

R433

49.9_1%

For 855GME, 68.1_1% PU to +1.35VS

R432

100_1%

HOST

HUB I/F

HD0#
HD1#
HD2#
HD3#
HD4#
HD5#
HD6#
HD7#
HD8#

HD9#
HD10#
HD11#
HD12#
HD13#
HD14#
HD15#
HD16#
HD17#
HD18#
HD19#
HD20#
HD21#
HD22#
HD23#
HD24#
HD25#
HD26#
HD27#
HD28#
HD29#
HD30#
HD31#
HD32#
HD33#
HD34#
HD35#
HD36#
HD37#
HD38#
HD39#
HD40#
HD41#
HD42#
HD43#
HD44#
HD45#
HD46#
HD47#
HD48#
HD49#
HD50#
HD51#
HD52#
HD53#
HD54#
HD55#
HD56#
HD57#
HD58#
HD59#
HD60#
HD61#
HD62#
HD63#

ADS#

HTRDY#

DRDY#

DEFER#

HITM#

HIT#
HLOCK#
BREQ0#

BNR#
BPRI#

DBSY#

RS0#
RS1#
RS2#

Montara-GMCH

K22

H_D#0

H27

H_D#1

K25

H_D#2

L24

H_D#3

J27
G28
L27

H_D#6

L23

H_D#7

L25

H_D#8

J24

H_D#9

H25

H_D#10

K23

H_D#11

G27

H_D#12

K26

H_D#13

J23

H_D#14

H26

H_D#15

F25

H_D#16

F26

H_D#17

B27

H_D#18

H23

H_D#19

E27

H_D#20

G25

H_D#21

F28

H_D#22

D27

H_D#23

H_D#24

G24
C28

H_D#25

B26

H_D#26

G22

H_D#27

C26

H_D#28

E26

H_D#29

G23

H_D#30

B28

H_D#31

B21

H_D#32

G21

H_D#33

C24

H_D#34

C23

H_D#35

D22

H_D#36

C25

H_D#37

E24

H_D#38

D24

H_D#39

G20

H_D#40

E23

H_D#41

B22

H_D#42

B23

H_D#43

F23

H_D#44

F21

H_D#45

C20

H_D#46

C21

H_D#47

G18

H_D#48

E19

H_D#49

E20

H_D#50

G17

H_D#51

D20

H_D#52

F19

H_D#53

C19

H_D#54

C17

H_D#55

F17

H_D#56

B19

H_D#57

G16

H_D#58

E16

H_D#59

C16

H_D#60

E17

H_D#61

D16

H_D#62

C18

H_D#63

L28
M25
N24
M28
N28
N27
P27
M23
N25
P28
M26
N23
P26
M27

H_D#[63:0] [2]

R56

PSB Voltage Select

R57

R58

R59

R60

H_ADS# [2]
H_TRDY# [2]
H_DRDY# [2]
H_DEFER# [2]
H_HITM# [2]
H_HIT# [2]
H_LOCK# [2]
H_BR0# [2]
H_BNR# [2]
H_BPRI# [2]
H_DBSY# [2]
H_RS#0 [2]
H_RS#1 [2]
H_RS#2 [2]

System Memory

GMCH Strapping Options

FUNCTION Board Default Optional Override

DVO Strap

CLOCK

Configuration

Straps

LCLKCTLB[4,10]

ADDDETECT[4]

Z0501

T186

Z0502

T11

Z0503

T12

TZ0501
TZ0502
TZ0503
TZ0504
TZ0505

PCIRST#[4,11,13,15,16,17,19,20,21]

MCH_HLVREF

Z0504

R92
10K

+1.2VS

No JMP for 1.2VS

No JMP for DVO

U6

3

1A1

VCC

4

1A2

7

1A3

1B1

8

1A4

1B2

11

1A5

1B3
1B4

14

2A1

1B5

17

2A2

18

2A3

2B1

21

2A4

2B2

22

2A5

2B3
2B4
2B5

1

1OE#

13

2OE#

GND

SN74CBTD3384

C543

*470P

R435

Z0505

243_1%

For 855GME, 287_1% PU to +1.35VS

R437

*56.2_1%

R436*0R434

100_1%

Z0506

C542

*0.01U

NO JMP

NO JMP

NO JMP

+5VS

C133

0.1U_X7R

24

STRAP_J_CTLB

2

STRAP_J_PAR

5

STRAP_J_ST0

6

STRAP_J_ST1

9

STRAP_J_ST2

10

TZ0506

15

TZ0507

16

TZ0508

19

TZ0509

20

TZ0510

23

12

+VCCP [2,3,6,12,13,26]
+3VS [2,4,6,7,9,10,11,12,13,14,15,16,18,19,21,22,23,24,26]
+1.2VS [6,26]
+1.5VS [3,4,6,11,12,13,24]
+5VS [9,11,13,14,15,19,20,21,22,23,24,26]

1.05V

RESVERED

+3VS

R105

R104

R103

*1K

*1K

*1K

+1.5VS

R107

R106

*1K

*1K

B - 6 855GM-2 (71-T20C0-003)

855GM-3

U39C

C1

VSS0

G1

VSS1

L1

VSS2

U1

VSS3

AA1

VSS4

AE1

VSS5

R2

VSS6

AG3

VSS7

AJ3

VSS8

D4

VSS9

G4

VSS10

K4

VSS11

N4

VSS12

T4

VSS13

W4

VSS14

AA4

VSS15

AC4

VSS16

AE4

VSS17

B5

VSS18

U5

VSS19

Y5

VSS20

Y6

VSS21

AG6

VSS22

C7

VSS23

E7

VSS24

G7

VSS25

J7

VSS26

M7

VSS27

R7

VSS28

AA7

VSS29

AE7

VSS30

AJ7

VSS31

H8

VSS32

K8

VSS33

P8

VSS34

T8

VSS35

V8

VSS36

Y8

VSS37

AC8

VSS38

E9

VSS39

L9

VSS40

N9

VSS41

R9

VSS42

U9

VSS43

W9

VSS44

AB9

VSS45

AG9

VSS46

C10

VSS47

J10

VSS48

AA10

VSS49

AE10

VSS50

D11

VSS51

F11

VSS52

H11

VSS53

AB11

VSS54

AC11

VSS55

AJ11

VSS56

J12

VSS57

AA12

VSS58

AG12

VSS59

A13

VSS60

D13

VSS61

F13

VSS62

H13

VSS63

N13

VSS64

R13

VSS65

U13

VSS66

AB13

VSS67

AE13

VSS68

J14

VSS69

P14

VSS70

T14

VSS71

AA14

VSS72

AC14

VSS73

D15

VSS74

H15

VSS75

N15

VSS76

R15

VSS77

U15

VSS78

AB15

VSS79

AG15

VSS80

F16

VSS81

J16

VSS82

VSS179

VSS180

VSS181

Montara-GMCH

AJ26

E28L6T9

VSS178

D28

VSS177

C22

VSS

VSS174

VSS176

AJ20

AJ18

VSS172

VSS173

AJ12

AJ10

VSS170

VSS171

AA29

W29

VSS100
VSS101
VSS102
VSS103
VSS105
VSS106
VSS107
VSS108
VSS109
VSS110
VSS111
VSS112
VSS113
VSS114
VSS115
VSS116
VSS117
VSS118
VSS119
VSS120
VSS121
VSS122
VSS123
VSS124
VSS125
VSS126
VSS127
VSS128
VSS129
VSS130
VSS131
VSS132
VSS133
VSS134
VSS135
VSS136
VSS137
VSS138
VSS139
VSS140
VSS141
VSS142
VSS143
VSS144
VSS145
VSS146
VSS147
VSS148
VSS149
VSS150
VSS151
VSS152
VSS153
VSS154
VSS155
VSS156
VSS157
VSS158
VSS159
VSS160
VSS161
VSS162
VSS163
VSS164
VSS165
VSS166
VSS167
VSS168VSS83

VSS169

VSS84
VSS85
VSS86
VSS87
VSS88
VSS89
VSS90
VSS91
VSS92
VSS93
VSS94
VSS95
VSS96
VSS97
VSS98
VSS99

T16
AA16
AE16
A17
D17
H17
N17
R17
U17
AB17
AC17
F18
J18
AA18
AG18
A19
D19
H19
AB19
AE19
F20
J20
AA20
AC20
A21
D21
H21
M21
P21
T21
V21
Y21
AA21
AB21
AG21
B24
F22
J22
L22
N22
R22
U22
W22
AE22
A23
D23
AA23
AC23
AJ23
F24
H24
K24
M24
P24
T24
V24
AA24
AG24
A25
D25
AA25
AE25
G26
J26
L26
N26
R26
U26
W26
AB26
A27
F27
AC27
AG27
AJ27
AC28
AE28
C29
E29
G29
J29
L29
N29
U29P16

For 855GME, +1.2VS -> +1.35VS

+1.2VS

+1.5VS

+2.5V

C66

C71

0.1U_X7R

0.1U_X7R

+1.2VS

+1.2VS

L67
HCB1608K-121T25

L68
HCB1608K-121T25

L4 HCB1608K-121T25

Layout note:
Route VSSADAC trace
to CAP.(no via at GMCH)

L5 HCB1608K-121T25

Layout note:
Route VSSALVDS trace
to CAP.(no via at GMCH)

L43 HCB1608K-121T25

L46 HCB1608K-121T25

+

C525

47U/6.3V_D

C72

C65

0.1U_X7R

0.1U_X7R

C63

10U_0805

L45 0

L49 0

L3 HCB1608K-121T25

L44 HCB1608K-121T25

VCCDVO

C44

10U_0805

C523

22U/10V_1206

R367 0

+3VS

+

C461

47U/6.3V_D

+

+

+

C76

150U/6.3V_D

+

C16

*220U/4V_D

C29

0.1U_X7R

+

C59

0.1U_X7R

C47

0.1U_X7R

+V1.2S_GMCH_AHPLL

C490

0.1U_X7R

+V1.2S_GMCH_AGPLL

C534

0.1U_X7R

+V1.2S_GMCH_DPLLA

C15

220U/4V_D

C488

220U/4V_D

VCCDVO

C33

0.1U_X7R

+V1.5S_GMCH_ADAC

C475

0.1U_X7R

+V1.5S_GMCH_ALVDS

C476

0.1U_X7R

+V1.5S_GMCH_DLVDS

C54

22U/10V_1206

C32

0.1U_X7R

+V3.3S_GMCH_GPIO

C480

10U_0805

+

C533

C104

150U/6.3V_D

150U/6.3V_D

C62

0.1U_X7R

C26

0.1U_X7R

+V1.2S_GMCH_DPLLB

C11

0.1U_X7R

C50

0.1U_X7R

C12

0.01U

C28

0.01U

C25

0.1U_X7R

C27

0.1U_X7R

C482

0.1U_X7R

J15
P13

T13
N14
R14
U14

P15

T15

AA15

N16
R16
U16

P17

T17

AA17
AA19

W21

H14

Y1

W5

U6
U8

W8

D29

Y2

B16

N1

M4

H7

M8
N8
R8

M9

A11

B11

G13

B14

J13

B15

B10
D10

A12

U39D

VCC0
VCC1
VCC2
VCC3
VCC4
VCC5
VCC6
VCC7
VCC8
VCC9
VCC10
VCC11
VCC12
VCC13
VCC14
VCC15
VCC16
VCC17

V1

VCCHL0
VCCHL1
VCCHL2
VCCHL3
VCCHL4
VCCHL5

V7

VCCHL6

V9

VCCHL7

VCCAHPLL
VCCAGPLL

A6

VCCADPLLA
VCCADPLLB

E1

VCCDVO_0

J1

VCCDVO_1
VCCDVO_2

E4

VCCDVO_3

J4

VCCDVO_4
VCCDVO_5

E6

VCCDVO_6
VCCDVO_7

J8

VCCDVO_8

L8

VCCDVO_9
VCCDVO_10
VCCDVO_11
VCCDVO_12

K9

VCCDVO_13
VCCDVO_14

P9

VCCDVO_15

A9

VCCADAC0

B9

VCCADAC1

B8

VSSADAC

VCCALVDS
VSSALVDS

VCCDLVDS0
VCCDLVDS1
VCCDLVDS2
VCCDLVDS3

F9

VCCTXLVDS0
VCCTXLVDS1
VCCTXLVDS2
VCCTXLVDS3

A3

VCCGPIO_0

A4

VCCGPIO_1

Montara-GMCH

POWER

VCCSM10
VCCSM11
VCCSM12
VCCSM13
VCCSM14
VCCSM15
VCCSM16
VCCSM17
VCCSM18
VCCSM19
VCCSM20
VCCSM21
VCCSM22
VCCSM23
VCCSM24
VCCSM25
VCCSM26
VCCSM27
VCCSM28
VCCSM29
VCCSM30
VCCSM31
VCCSM32
VCCSM33
VCCSM34
VCCSM35
VCCSM36

VCCQSM0
VCCQSM1

VCCASM0
VCCASM1

VTTLF0
VTTLF1
VTTLF2
VTTLF3
VTTLF4
VTTLF5
VTTLF6
VTTLF7
VTTLF8

VTTLF9
VTTLF10
VTTLF11
VTTLF12
VTTLF13
VTTLF14
VTTLF15
VTTLF16
VTTLF17
VTTLF18
VTTLF19
VTTLF20

VTTHF0
VTTHF1
VTTHF2
VTTHF3
VTTHF4

VCCSM0
VCCSM1
VCCSM2
VCCSM3
VCCSM4
VCCSM5
VCCSM6
VCCSM7
VCCSM8
VCCSM9

G15
H16
H18
J19
H20
L21
N21
R21
U21
H22
M22
P22
T22
V22
Y29
K29
F29
AB29
A26
A20
A18

A22
A24
H29
M29
V29

AC1
AG1
AB3
AF3
Y4
AJ5
AA6
AB6
AF6
Y7
AA8
AB8
Y9
AF9
AJ9
AB10
AA11
AB12
AF12
AA13
AJ13
AB14
AF15
AB16
AJ17
AB18
AF18
AB20
AF21
AJ21
AB22
AF24
AJ25
AF27
AC29
AF29
AG29

AJ6
AJ8

AD1
AF1

MCH_PWR_VTTHF0
MCH_PWR_VTTHF1
MCH_PWR_VTTHF2
MCH_PWR_VTTHF3
MCH_PWR_VTTHF4

C116

0.1U_X7R

C92

0.1U_X7R

+

C184

150U/6.3V_D

+V2.5_GMCH_QSM

+V2.5_GMCH_ASM+V2.5_GMCH_TXLVDS

+

C547

220U/4V_D

C53

0.1U_X7R

C83

0.1U_X7R

C127

0.1U_X7R

+

C284

150U/6.3V_D

C572

0.1U_X7R

C118

0.1U_X7R

C61

10U_0805

C38

0.1U_X7R

C24 0.1U_X7R
C23 0.1U_X7R
C500 0.1U_X7R
C520 0.1U_X7R
C530 0.1U_X7R

C57

C37

0.1U_X7R

0.1U_X7R

C22

C58

0.1U_X7R

0.1U_X7R

Plsce these caps on the top side

C78

C139

0.1U_X7R

0.1U_X7R

C82

C136

0.1U_X7R

0.1U_X7R

C94

0.1U_X7R

L50 HCB1608K-121T25

C162

4.7U_0805

R456 1

Z0601

L22 HCB1608K-121T25

+

C121

150U/6.3V_D

+VCCP

C77

0.1U_X7R

C137

0.1U_X7R

Schematic Diagrams

Sheet 6 of 31

855GM-3

B. T2X0C Schematics

+2.5V

+2.5V

+1.2VS

+3VS [2,4,5,7,9,10,11,12,13,14,15,16,18,19,21,22,23,24,26]
+VCCP [2,3,5,12,13,26]
+1.2VS [5,26]
+2.5V [3,4,7,13,16,25]
+1.5VS [3,4,5,11,12,13,24]

855GM-3 (71-T20C0-003) B - 7

Schematic Diagrams

Sheet 7 of 31

DDR SODIMM

B. T2X0C Schematics

DDR SODIMM

M_AA0

M_AA0[4,8]

M_AB1

M_AA3[4,8]

M_BS0#[4,8]
M_BS1#[4,8]

R183

75_1%

R181

75_1%

M_RAS#[4,8]

M_WE#[4,8]

M_CAS#[4,8]

M_CS2#[4,8]
M_CS3#[4,8]

M_CKE2[4,8]
M_CKE3[4,8]

M_AB2

M_AA3
M_AB4
M_AB5
M_AA6
M_AA7
M_AA8
M_AA9
M_AA10
M_AA11
M_AA12

SM_VREF_DIMM

C240

0.1U_X7R

C281

1U

M_DM_R_0
M_DM_R_1
M_DM_R_2
M_DM_R_3
M_DM_R_4
M_DM_R_5
M_DM_R_6
M_DM_R_7
M_DM_R_8

M_DQS_R0
M_DQS_R1
M_DQS_R2
M_DQS_R3
M_DQS_R4
M_DQS_R5

M_DQS_R7
M_DQS_R8

SMB_ICHDATA

M_CB_R0
M_CB_R1
M_CB_R2
M_CB_R3

M_CB_R5
M_CB_R6
M_CB_R7

M_AB[2:1][4,8]

M_AB[5:4][4,8]

M_AA[12:6][4,8]

M_DM_R_[8:0][8]

M_DQS_R[8:0][8]

M_CLK_DDR3[4]

M_CLK_DDR3#[4]

M_CLK_DDR4[4]

M_CLK_DDR4#[4]

M_CLK_DDR5[4]

M_CLK_DDR5#[4]

SMB_ICHDATA[10,11]

SMB_ICHCLK[10,11]

M_CB_R[7:0][8]

+3VS

+2.5V

SMB_ICHCLK

C314

0.1U_X7R

C279

0.01U

C311

0.1U_X7R

R190

0

Z0702

112

A0

111

A1

110

A2

109

A3

108

A4

107

A5

106

A6

105

A7

102

A8

101

A9

115

A10/AP

100

A11

99

A12

117

BA0

116

BA1

12

DM0

26

DM1

48

DM2

62

DM3

134

DM4

148

DM5

170

DM6

184

DM7

78

DM8

11

DQS0

25

DQS1

47

DQS2

61

DQS3

133

DQS4

147

DQS5

169

DQS6

183

DQS7

77

DQS8

118

RAS#

119

WE#

120

CAS#

121

S0#

122

S1#

96

CKE0

95

CKE1

35

CK0

37

CK0#

160

CK1

158

CK1#

89

CK2

91

CK2#

193

SDA

195

SCL

71

CB0

73

CB1

79

CB2

83

CB3

72

CB4

74

CB5

80

CB6

84

CB7

1

VREF

2

VREF

197

VDDSPD

199

VDDID

R196
*10K

3

4

91021223334364546575869708182929394113

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

SO-DIMM1 SO-DIMM0

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

3415162728383940515263647576878890103

+5V

52

+

1

-

U22
*TLV2461

VSS

SM_VREF_DIMM

M_DATA_R_[63:0]

CN17

157

167

168

179

180

VDD

VDD

VDD

VDD

VDD

VDD

VSS

VSS

VSS

VSS

VSS

VSS

159

161

162

173

174

C276

0.1U_X7R

C308

0.1U_X7R

DDR_SO-DIMM1_R

191

192

PCB Footprint = SODIMM-DDR_200P_R

VDD

VDD

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8

DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63

DU
DU
DU
DU

DU/RESET#

DU/A13
DU/BA2

SA0
SA1
SA2

VSS

VSS

185

186

C290

0.1U_X7R

C586

0.1U_X7R

114

131

132

143

144

155

156

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

104

125

126

137

138

149

150

+2.5V

C233

0.1U_X7R

C310

0.1U_X7R

+2.5V

5
7
13
17
6
8
14
18
19
23
29
31
20
24
30
32
41
43
49
53
42
44
50
54
55
59
65
67
56
60
66
68
127
129
135
139
128
130
136
140
141
145
151
153
142
146
152
154
163
165
171
175
164
166
172
176
177
181
187
189
178
182
188
190

85
123
124
200
86
97
98

194
196
198

S8

Z0706

SG4

1

C237

0.1U_X7R

C235

0.1U_X7R

M_CKE1
TZ0701
M_CS1#
TZ0702
M_CKE0
M_CS0#
TZ0703

S8

M_DATA_R_[63:0] [8]

M_DATA_R_0
M_DATA_R_1
M_DATA_R_2
M_DATA_R_3
M_DATA_R_4
M_DATA_R_5
M_DATA_R_6
M_DATA_R_7
M_DATA_R_8
M_DATA_R_9
M_DATA_R_10
M_DATA_R_11
M_DATA_R_12
M_DATA_R_13
M_DATA_R_14
M_DATA_R_15
M_DATA_R_16
M_DATA_R_17
M_DATA_R_18
M_DATA_R_19
M_DATA_R_20
M_DATA_R_21
M_DATA_R_22
M_DATA_R_23
M_DATA_R_24
M_DATA_R_25
M_DATA_R_26
M_DATA_R_27
M_DATA_R_28
M_DATA_R_29
M_DATA_R_30
M_DATA_R_31
M_DATA_R_32
M_DATA_R_33
M_DATA_R_34
M_DATA_R_35
M_DATA_R_36
M_DATA_R_37
M_DATA_R_38
M_DATA_R_39
M_DATA_R_40
M_DATA_R_41
M_DATA_R_42
M_DATA_R_43
M_DATA_R_44
M_DATA_R_45
M_DATA_R_46
M_DATA_R_47
M_DATA_R_48
M_DATA_R_49
M_DATA_R_50
M_DATA_R_51
M_DATA_R_52
M_DATA_R_53
M_DATA_R_54
M_DATA_R_55
M_DATA_R_56
M_DATA_R_57
M_DATA_R_58
M_DATA_R_59
M_DATA_R_60
M_DATA_R_61
M_DATA_R_62
M_DATA_R_63

+3VS

R185

10K

SG8

1

S8

C239

0.1U_X7R

C254

0.1U_X7R

SG3

1

C255

0.1U_X7R

C304

0.1U_X7R

+2.5V+2.5V

114

131

132

143

144

155

156

157

167

168

179

180

191

192

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

5

DQ0

7

DQ1

13

DQ2

17

DQ3

6

DQ4

8

DQ5

14

DQ6

18

DQ7

19

DQ8

23

DQ9

29

DQ10

31

DQ11

20

DQ12

24

DQ13

30

DQ14

32

DQ15

41

DQ16

43

DQ17

49

DQ18

53

DQ19

42

DQ20

44

DQ21

50

DQ22

54

DQ23

55

DQ24

59

DQ25

65

DQ26

67

DQ27

56

DQ28

60

DQ29

66

DQ30

68

DQ31

127

DQ32

129

DQ33

135

DQ34

139

DQ35

128

DQ36

130

DQ37

136

DQ38

140

DQ39

141

DQ40

145

DQ41

151

DQ42

153

DQ43

142

DQ44

146

DQ45

152

DQ46

154

DQ47

163

DQ48

165

DQ49

171

DQ50

175

DQ51

164

DQ52

166

DQ53

172

DQ54

176

DQ55

177

DQ56

181

DQ57

187

DQ58

189

DQ59

178

DQ60

182

DQ61

188

DQ62

190

DQ63

TZ0704

85

DU

TZ0705

123

DU

TZ0706

124

DU

TZ0707

200

DU

TZ0708

86

DU/RESET#

TZ0709

97

DU/A13

TZ0710

98

DU/BA2

194

SA0

196

SA1

198

SA2

SG5

SG6

SG7

1

1

S8

C274

0.1U_X7R

C268

0.1U_X7R

S8

1

C236

0.1U_X7R

C305

0.1U_X7R

S8

VSS

VSS

185

186

C270

0.1U_X7R

C307

0.1U_X7R

VSS

VSS

VSS

VSS

VSS

150

159

161

162

173

174

C292

0.1U_X7R

C289

0.1U_X7R

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

104

125

126

137

138

149

C313

C234

0.1U_X7R

0.1U_X7R

C287

C312

0.1U_X7R

0.1U_X7R

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

C306

10U_0805

C296

10U_0805

VDD

VDD

VSS

VSS

C295

10U_0805

C232

10U_0805

VDD

VDD

VSS

VSS

CN21
DDR_SO-DIMM2_S

91021223334364546575869708182929394113

PCB Footprint = SODIMM-DDR_200P

VDD

VDD

VDD

112

A0

111

A1

110

A2

M_AA_FR_3

109

A3

M_AA4

108

A4

M_AA5

107

A5

M_AA_FR_6

106

A6

105

M_AA_FR_7

A7

M_AA_FR_8

102

A8

101

M_AA_FR_9

A9

M_AA_FR_10

115

A10/AP

M_AA_FR_11

100

A11

M_AA_FR_12

99

A12

117

BA0

116

BA1

12

DM0
DM1
DM2
DM3
DM4
DM5
DM6
DM7
DM8

DQS0
DQS1
DQS2
DQS3
DQS4
DQS5
DQS6
DQS7
DQS8

RAS#

WE#

CAS#

S0#
S1#

CKE0
CKE1

CK0

CK0#

CK1

CK1#

CK2

CK2#

SDA

SCL

CB0
CB1
CB2
CB3
CB4
CB5
CB6
CB7

VREF
VREF

VDDSPD

VDDID

VSS

VSS

VSS

3415162728383940515263647576878890103

M_DM_R_0

26

M_DM_R_1
M_DM_R_2

48
62

M_DM_R_3

134

M_DM_R_4
M_DM_R_5

148
170

M_DM_R_6
M_DM_R_7

184
78

M_DM_R_8

M_DQS_R0

11
25

M_DQS_R1

47

M_DQS_R2
M_DQS_R3

61

M_DQS_R4

133

M_DQS_R5

147

M_DQS_R6M_DQS_R6

169

M_DQS_R7

183

M_DQS_R8

77

118
119
120

M_CS0#

121

M_CS1#

122

M_CKE0

96

M_CKE1

95

35
37
160
158
89
91

193
195

71

M_CB_R0

73

M_CB_R1
M_CB_R2

79
83

M_CB_R3

72

M_CB_R4M_CB_R4
M_CB_R5

74

M_CB_R6

80

M_CB_R7

84

1
2
197
199

Z0714Z0701

R184

C271

*10K

0.1U_X7R

+3VS [2,4,5,6,9,10,11,12,13,14,15,16,18,19,21,22,23,24,26]
+2.5V [3,4,6,13,16,25]
+5V [13,14,15,18,21,24,26,27]

M_AA_FR_0
M_AA1
M_AA2

SM_VREF_DIMM

C294

0.1U_X7R

M_AA_FR_0 [8]

M_AA[2:1] [4,8]

M_AA_FR_3 [8]

M_AA[5:4] [4,8]

M_AA_FR_[12:6] [8]

M_BS0_FR# [8]
M_BS1_FR# [8]

M_DM_R_[8:0] [8]

M_DQS_R[8:0] [8]

M_RAS_FR# [8]
M_WE_FR# [8]
M_CAS_FR# [8]

M_CS0# [4,8]
M_CS1# [4,8]

M_CKE0 [4,8]
M_CKE1 [4,8]

M_CLK_DDR0 [4]
M_CLK_DDR0# [4]
M_CLK_DDR1 [4]
M_CLK_DDR1# [4]
M_CLK_DDR2 [4]
M_CLK_DDR2# [4]

SMB_ICHDATA [10,11]
SMB_ICHCLK [10,11]

M_CB_R[7:0] [8]

SM_VREF_DIMM [4]

+3VS

C267

0.1U_X7R

B - 8 DDR SODIMM (71-T20C0-003)

DDR Termination

RN23 8P4RX228 1

M_CB_R3
M_AA12
M_AA9
M_AA7
M_DATA7
M_DATA12
M_DATA13
M_DM1
M_CB7
M_AA11
M_AA8
M_AA6
M_DATA14
M_DATA15
M_DATA20
M_DATA21
M_DATA25
M_DQS3
M_DATA26
M_DATA27
M_DATA4
M_DATA5
M_DM0
M_DATA6
M_DQS2
M_DATA18
M_DATA19
M_DATA24
M_DM2
M_DATA22
M_DATA23
M_DATA28 M_DATA_R_28
M_DATA35
M_DATA40
M_DATA41
M_DQS5
M_DATA29
M_DM3
M_DATA30
M_DATA31
M_DATA42
M_DATA43
M_DATA49
M_DATA48
M_DATA46
M_DATA47
M_DATA52
M_DATA53
M_DATA50

M_DATA56
M_DATA51
M_DM6
M_DATA54
M_DATA55

M_DATA57
M_DQS7
M_DATA58
M_DATA59
M_DATA61
M_DM7
M_DATA62
M_DATA63

M_DATA3 M_DATA_R_3
M_DATA8
M_DATA9
M_DQS1
M_CB0
M_CB1
M_DQS8
M_CB2
M_AA3

M_AA3[4,7] M_AA_FR_3 [7]

M_AA10

M_WE#[4,7] M_WE_FR# [7]

M_CB4
M_CB5
M_DM8 M_DM_R_8
M_CB6
M_DATA39
M_DATA44
M_DATA45
M_DM5

M_AA0

M_AA0[4,7]
M_BS1#[4,7]
M_RAS#[4,7]
M_CAS#[4,7]

M_DATA11

M_DATA17
M_DATA0

M_DQS0
M_DATA2
M_DATA32
M_DATA33

M_DATA34 M_DATA_R_34
M_DATA36 M_DATA_R_36
M_DATA37
M_DM4
M_DATA38

7 2
653

RN47 8P4RX228 1

7 2
653

RN52 8P4RX228 1

7 2
653

RN48 8P4RX228 1

7 2
653

RN17 8P4RX2281

4

RN46 8P4RX228 1

7 2
653

RN18 8P4RX2281

4

RN49 8P4RX228 1

7 2
653

4

RN50 8P4RX228 1

7 2
653

RN13 8P4RX2281

4

RN43 8P4RX228 1

7 2
653

RN12 8P4RX2281

4

RN44 8P4RX228 1

7 2
653

RN11 8P4RX2281

4

RN45 8P4RX228 1

7 2
653

RN20 8P4RX2281

4

RN16 8P4RX2281

4

RN22 8P4RX228 1

7 2
653

RN51 8P4RX228 1

7 2
653

RN42 8P4RX228 1

7 2
653

RN53 8P4RX228 1

7 2
653

RN19 8P4RX2281

4

RN21 8P4RX2281

4

RN15 8P4RX2281

4

RN41 8P4RX228 1

7 2
653

Place these damping resistors close to SO-DIMM

M_CB3
M_AA_FR_12
M_AA_FR_9

4

M_AA_FR_7
M_DATA_R_7
M_DATA_R_12
M_DATA_R_13

4

M_DM_R_1
M_CB_R7
M_AA_FR_11
M_AA_FR_8

4 C629 0.1U_X7R

M_AA_FR_6
M_DATA_R_14
M_DATA_R_15
M_DATA_R_20

4

M_DATA_R_21
M_DATA_R_25

72

M_DQS_R3

653

M_DATA_R_26
M_DATA_R_27
M_DATA_R_4
M_DATA_R_5
M_DM_R_0

4

M_DATA_R_6
M_DQS_R2

72

M_DATA_R_18

653

M_DATA_R_19
M_DATA_R_24
M_DM_R_2
M_DATA_R_22
M_DATA_R_23

4

M_DATA_R_35

72

M_DATA_R_40

653

M_DATA_R_41
M_DQS_R5
M_DATA_R_29
M_DM_R_3
M_DATA_R_30

4

M_DATA_R_31
M_DATA_R_42

72

M_DATA_R_43
M_DATA_R_49

653

M_DATA_R_48
M_DATA_R_46
M_DATA_R_47
M_DATA_R_52

4

M_DATA_R_53
M_DATA_R_50

72

M_DQS_R6M_DQS6

653

M_DATA_R_56
M_DATA_R_51
M_DM_R_6
M_DATA_R_54
M_DATA_R_55

4

M_DATA_R_60M_DATA60
M_DATA_R_57
M_DQS_R7

72
653

M_DATA_R_58
M_DATA_R_59
M_DATA_R_61
M_DM_R_7
M_DATA_R_62
M_DATA_R_63

4

72

M_DATA_R_8
M_DATA_R_9

653

M_DQS_R1
M_CB_R0

72

M_CB_R1

653

M_DQS_R8
M_CB_R2
M_AA_FR_3
M_AA_FR_10

4

M_CB_R4
M_CB_R5

4

M_CB_R6
M_DATA_R_39
M_DATA_R_44
M_DATA_R_45

4

M_DM_R_5
M_AA_FR_0

4

M_DATA_R_10M_DATA10
M_DATA_R_11

72

M_DATA_R_16M_DATA16

653

M_DATA_R_17
M_DATA_R_0
M_DATA_R_1M_DATA1

72

M_DQS_R0

653

M_DATA_R_2
M_DATA_R_32
M_DATA_R_33

72

M_DQS_R4M_DQS4

653

M_DATA_R_37
M_DM_R_4
M_DATA_R_38

4

M_BS0_FR# [7]M_BS0#[4,7]

M_AA_FR_0 [7]
M_BS1_FR# [7]
M_RAS_FR# [7]
M_CAS_FR# [7]

M_CB_R4
M_CB_R5
M_DM_R_8
M_CB_R6
M_AA12
M_AA9
M_AA7
M_AA3

M_AA3[4,7]

M_CB_R7

M_CKE2[4,7]
M_CKE0[4,7]

M_AA11
M_AA6
M_AA8
M_AA0

M_AA0[4,7]

M_BS1#[4,7]

M_RAS#[4,7]
M_CAS#[4,7]
M_CS3#[4,7]
M_CS1#[4,7]

M_AA10

M_BS0#[4,7]

M_WE#[4,7]

M_CS2#[4,7]

M_DATA_R_3
M_DATA_R_8
M_DATA_R_9
M_DQS_R1
M_DATA_R_10
M_DATA_R_11
M_DATA_R_16
M_DATA_R_17

M_DATA_R_25
M_DQS_R3
M_DATA_R_26
M_DATA_R_27
M_CB_R3

M_CKE1[4,7]
M_CKE3[4,7]
M_CS0#[4,7]

M_DATA_R_7
M_DATA_R_12
M_DATA_R_13
M_DM_R_1
M_DATA_R_0
M_DATA_R_1
M_DQS_R0
M_DATA_R_2

M_DATA_R_14
M_DATA_R_15
M_DATA_R_20
M_DATA_R_21
M_DM_R_2
M_DATA_R_22
M_DATA_R_23
M_DATA_R_28

M_DATA_R_4
M_DATA_R_5
M_DM_R_0
M_DATA_R_6
M_DQS_R2
M_DATA_R_18
M_DATA_R_19
M_DATA_R_24

VTT_MEM RESISTORS

M_DM_R_[8:0]

M_DATA[63:0]

M_DATA_R_[63:0]

M_CB[7:0]

M_CB_R[7:0]

M_DM_R_[8:0] [7]

M_DATA[63:0] [4]

M_DATA_R_[63:0] [7]

M_CB[7:0] [4]

M_CB_R[7:0] [7]

RN33 8P4RX56

81
72

653
4
8 1
7 2
653

4

RN61 8P4RX56
RN24 8P4RX56

8 1
7 2
653

4

81

72

653
4

RN32 8P4RX56
RN30 8P4RX56

81

72

653
4
8 1
7 2
653

4

RN62 8P4RX56

8 1
7 2
653

4
8 1
7 2
653

4

RN56 8P4RX56
RN58 8P4RX56

8 1
7 2
653

4
8 1
7 2
653

4

RN60 8P4RX56
RN37 8P4RX56

81

72

653
4
8 1
7 2
653

4

RN54 8P4RX56
RN36 8P4RX56

81

72

653
4

81

72

653
4

RN35 8P4RX56

RN38 8P4RX56

81

72

653
4
8 1
7 2
653

4

RN57 8P4RX56

M_AA[12:6]

M_AA_FR_[12:6]

M_DM_R_[8:0]

M_DM[8:0]

M_DQS[8:0]

M_DQS_R[8:0]

M_AA2[4,7]
M_AA4[4,7]
M_AA5[4,7]
M_AA1[4,7]
M_AB1[4,7]
M_AB4[4,7]
M_AB2[4,7]
M_AB5[4,7]

M_AA[12:6] [4,7]

M_AA_FR_[12:6] [7]

M_DM_R_[8:0] [7]

M_DM[8:0] [4]

M_DQS[8:0] [4]

M_DQS_R[8:0] [7]

+1.25VS [25]

M_AA2
M_AA4
M_AA5
M_AA1
M_AB1
M_AB4
M_AB2
M_AB5

M_DATA_R_29
M_DM_R_3
M_DATA_R_30
M_DATA_R_31
M_CB_R0
M_CB_R1
M_DQS_R8
M_CB_R2

M_DATA_R_36
M_DATA_R_37
M_DM_R_4
M_DATA_R_38
M_DATA_R_32
M_DATA_R_33
M_DQS_R4
M_DATA_R_34

M_DATA_R_39
M_DATA_R_44
M_DATA_R_45
M_DM_R_5
M_DATA_R_35
M_DATA_R_40
M_DATA_R_41
M_DQS_R5

M_DATA_R_46
M_DATA_R_47
M_DATA_R_52
M_DATA_R_53
M_DATA_R_42
M_DATA_R_43
M_DATA_R_48
M_DATA_R_49

M_DM_R_6
M_DATA_R_54
M_DATA_R_55
M_DATA_R_60
M_DQS_R6
M_DATA_R_50
M_DATA_R_51
M_DATA_R_56

M_DATA_R_61
M_DM_R_7
M_DATA_R_62
M_DATA_R_63
M_DATA_R_57
M_DQS_R7
M_DATA_R_58
M_DATA_R_59

RN10 8P4RX56

8 1
7 2
653

4

4

653
72

81

RN31 8P4RX56
RN34 8P4RX56

81

72

653

4
8 1
7 2
653

4

RN59 8P4RX56
RN29 8P4RX56

81

72

653

4
8 1
7 2
653

4

RN63 8P4RX56
RN28 8P4RX56

81

72

653

4
8 1
7 2
653

4

RN64 8P4RX56
RN27 8P4RX56

81

72

653

4
8 1
7 2
653

4

RN65 8P4RX56
RN26 8P4RX56

81

72

653

4
8 1
7 2
653

4

RN66 8P4RX56
RN25 8P4RX56

81

72

653

4
8 1
7 2
653

4

RN67 8P4RX56

Schematic Diagrams

Sheet 8 of 31

DDR Termination

B. T2X0C Schematics

+1.25VS+1.25VS

NOTE: Place these decoupling
capacitors close to VTT_MEM
termination resistors. (one
decoupling capacitor for each
two R-packs)

R549 *10_2512

C639 0.1U_X7R

C635 0.1U_X7R

C644 0.1U_X7R

C269 0.1U_X7R

C327 0.1U_X7R

C630 0.1U_X7R

C642 0.1U_X7R

C320 0.1U_X7R

C638 0.1U_X7R

C645 0.1U_X7R

C636 0.1U_X7R

C643 0.1U_X7RRN55 8P4RX56

C319 0.1U_X7R

C637 0.1U_X7R

C646 0.1U_X7R

C628 0.1U_X7R

C325 0.1U_X7R

C641 0.1U_X7R

C322 0.1U_X7R

C328 0.1U_X7R

C286 0.1U_X7R

C626 0.1U_X7R

C337 0.1U_X7R

C335 0.1U_X7R

C333 0.1U_X7R

C340 0.1U_X7R

Place these
decoupling
capacitors on
VTT_MEM trace

+1.25VS

+1.25VS

C339 0.1U_X7R

C342 0.1U_X7R

C326 0.1U_X7R

C632 0.1U_X7R

C345 0.1U_X7R

C321 0.1U_X7R

C634 0.1U_X7R

C343 0.1U_X7R

C338 0.1U_X7R

C344 0.1U_X7R

C324 0.1U_X7RRN14 8P4RX2281

C631 0.1U_X7R

C341 0.1U_X7R

C331 0.1U_X7R

C318 0.1U_X7R

C640 0.1U_X7R

C323 0.1U_X7R

C633 0.1U_X7R

C329 0.1U_X7R

C625 0.1U_X7R

C627 0.1U_X7R

C336 0.1U_X7R

C334 0.1U_X7R

C332 0.1U_X7R

C330 0.1U_X7R

DDR Termination (71-T20C0-003) B - 9

Schematic Diagrams

Sheet 9 of 31

LVDS, CRT

B. T2X0C Schematics

LVDS, CRT

DAC_RED[4]

DAC_GREEN[4]

DAC_BLUE[4]

R350

75_1%

12

12

C163

C573

10U_0805

CN9

LCD_CON

PCB Footprint = 20143-020EM

0.1U

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20

SW4

5
6
7
8

HDS404-2E

C173

C174

10P

10P

+3VS

3

4

8 1

7 265

4

43

3
2

ON

1

12

DAC_RED
DAC_GREEN
DAC_BLUE

R351

75_1%

C172

10P

RN68

8P4RX4.7K

R349

75_1%

12

C164

10U_0805

C171

10P

LCDID2 [12]
LCDID1 [12]
LCDID0 [12]

+5VS +5VS+5VS

C

LCDVCC

C170

10P

SWBKON[12]

C

A

AC

AC

D4
BAV99

C470

22P

C169

10P

C199 0.1U

A

D3
BAV99

C471

22P

C

AC

C168

10P

A

D5
BAV99

C469

22P

+3V_ALWAYS

LP1 FCA3216K4-121T03

1

8

2

7

3

6

4 5

LVDS-CLKAP [4]
LVDS-CLKAN [4]

LVDS-A2P [4]
LVDS-A2N [4]

LVDS-A1P [4]
LVDS-A1N [4]

LVDS-A0P [4]
LVDS-A0N [4]

C167

10P

BLON#[4]

R5 *0

U9A

14

1 2

7

74LVC14

+5VS

C186

10U_0805

R348 4.7K

+5VS

+5VS

4

4

R342 4.7K

D S

Z0907

1253

Z0908

1253

Z0909

D S

LCDVCC

R109

1K

C43 0.1U

C42 *0.1U

C35 *0.1U

Z0906

Q3
2N7002

R346 4.7K

U49
74AHC1G125

R344 4.7K

U50
74AHC1G125

Q6
2N7002

CN6

INVERTER_CON

PCB Footprint = 85204-0600

+5VS

+5VS

C187

10U_0805

Z0913

Z0914
Z0915
Z0916

AC

D68

+5VS

AC

D2

CN1
VGA DSUB

PCB Footprint = 7523S-15G2

FGRN
FBLU

C9

22P

R469 1K

R460

1M

R618 0

LID_SW#[21,22]

ICHPWROK[12,13,23]

1

2

3

4

5

6

7

8

Z0918

17

Z0917

9

10

11

12

13

14

15

16

Z0910

3 4

2

1

D1 IMN10

Z0901

C

B

E

2N3904

D53

SCS751V

AC

D3P

++--

+

-

FRED

C8

C7

22P

22P

ENAVDD[4]

R352 0

Z0919

SCS751V

MID1
HS
VS
MID3

+12V +12V

Z0911

Q61

5

6

C798

0.1U

C467

1000P

C468

C465

220P

220P

R459

47K

DS

G

+

C56

R334

10U/25V_1210

10K

R335

82K

R458

47K

Q59
2N7002

BRIGHTNESS[21]

Z0912

LP6

1
2
3
4 5

FCA3216K4-121T03

C466

1000P

+3VS

C582

0.1U

INVERTER CONNECTOR

VIN+3VS

L18

1 2

HCB2012K-500T40

C45

0.1U

BLON

SCS751V

R645 4.7K

Z0920

8
7
6

Q19

RSS090N03

8
7
6
5

FCM1608K-121T06

L12

1 2

L10 FCM1608K-121T061 2
L17

1 2

Z0902
Z0903
Z0904
Z0905

R646 4.7K

3
2
1

4

HCB2012K-500T40

VIN [22,24,25,26,27,28]
+3VS [2,4,5,6,7,10,11,12,13,14,15,16,18,19,21,22,23,24,26]
+5VS [5,11,13,14,15,19,20,21,22,23,24,26]
+12V [14,18,24,27]

+3VS

G

G

1
2
3
4
5
6

R347

4.7K

DAC_DDCADATA [4]

+3VS

R345

*4.7K

DAC_HSYNC [4]

+3VS

R343

*4.7K

DAC_VSYNC [4]

+3VS

R341

4.7K

DAC_DDCACLK [4]

B - 10 LVDS, CRT (71-T20C0-003)

Clock Generator

FREQUENCY SETUP TABLE

(FS1) (FS0)

+3VS

L35
HCB3216K-800T30

+

C348

47U/6.3V_D

(FS2)

0

0

0

0

1 66.66

0

1

1

0

1

0
1

1
1

1 66MHz_IN
0

Mid
Mid

0
100

Mid

1

C346

C369

4.7U_0805

0.1U

R248 *10K

+3VS

R247 0 C669

CLKEN#[26]

DREFSSCLK[4]

DREFSSCLK

0
1
0
1
0
1
0

0
1

1Mid

C676

0.1U

C372

1U

R260 33

CPU13V66

(MHz) (MHz)

(MHz)

66.66

66.66

100

66.66

200

66.66

133

66.66

66.66
100

66.66

66.66

200

66.66

133

+3VS

C661

0.1U

C373

0.1U

SS_CLK_IN

L38 HCB2012K-121T30

C675

0.1U

*0

+3VS

Z1036

66MHz OUT
(MHz)

66.66

66.66

66.66

66.66
66MHz_IN
66MHz_IN
66MHz_IN

PM_STPCPU#[12,26]

1

2

3

4

R261

10K

C673

0.1U

SUSA#[12,22]

PCI_STP#[12]

SMB_ICHCLK[7,11]

SMB_ICHDATA[7,11]

U29

CLKIN

VDD

GND

CLKOUT

*ICS91718

PCI

33.33

33.33

33.33

33.33
66MHz_IN/2
66MHz_IN/2
66MHz_IN/2
66MHz_IN/2

C367

10U_0805

C688

1000P

+3VS

+3VS

R5351KR532

IREF=2.32mA

PD#

SCLK

SDATA

REF_OUT

C371

0.1U

C672

C662

1000P

1000P

R547 *1K
R544 *1K
R552 *1K
R553 0
R531 0
R534 0

SMB_ICHCLK
SMB_ICHDATA

R548 2.7K

1K

SUSA#

8

SSC_SCLK

7

SSC_SDATA

6

Z1037

5

L33 HCB2012K-121T30

+3VS

L32 HCB2012K-121T30

+3VS

C370

0.1U

Z1001

VDD48

Z1002

C674

1000P

VDDCPU

Z1003

Z1004
Z1005
Z1006

Z1007
Z1008
Z1009

IREF

R545

475_1%

R542 *0
R543 0
R541 *0
R540 0
R229 *10K

VDD48

C351

10U_0805

VDDCPU

C347

10U_0805

U28

26

VDDA

37

VDD48

1

VDDREF

8

VDDPCI

14

VDDPCI

19

VDD3V66

32

VDD3V66

46

VDDCPU

50

VDDCPU

28

VTT_PWRGD#

25

PD#

34

PCI_STOP#

53

CPU_STOP#

30

SCLK

29 39

SDATA 48MHz_USB

54

FS0

55

FS1

40

FS2

42

IREF

4

GND

9

GND

15

GND

20

GND

27

GND

31

GND

36

GND

41

GND

47

GND

ICS950810

MULTSEL0/REF0

3V66_5/66MHz_IN

VCH_CLK/3V66_1

3V66_2/66MHz_OUT0
3V66_3/66MHz_OUT1
3V66_4/66MHz_OUT2

LCLKCTLA [4]
SMB_ICHCLK [7,11]
LCLKCTLB [4,5]
SMB_ICHDATA [7,11]

+3VS

CPUCLKT0

CPUCLKC0

CPUCLKT1

CPUCLKC1

CPUCLKT2

CPUCLKC2

PCICLK0
PCICLK1
PCICLK2
PCICLK3
PCICLK4
PCICLK5
PCICLK6

PCICLK_F0
PCICLK_F1
PCICLK_F2

48MHz_DOT

3V66_0

REF

X1

X2

Schematic Diagrams

Sheet 10 of 31

Clock Generator

C663

0.1U

C664

0.1U

CLOSE TO ICS950810/TSSOP

B. T2X0C Schematics

R522

52
51

49
48

45
44

10
11
12
13
16
17
18

5
6
7

43
56

38

24

33
35

21
22
23

2

3

Z1010
Z1011

Z1012
Z1013

Z1014
Z1015

Z1016
Z1017
Z1018
Z1019
Z1020
Z1021
Z1022

F0
Z1023
F2

Z1024
Z1025

Z1026
Z1027

Z1028

Z1029
Z1030

Z1031
Z1032
Z1033

Z1034

Z1035

R212 33
R213 33

R214 33
R215 33

R216 33
R217 33

R253 33
R254 33
R255 33
R256 33
R257 33

T116
T119

R554 33

R546 *33R246

R533 10K
R211 33
R210 33
R218 33
R219 10

T120

T117

R220 33

R258 33
R259 33

T118

R249 1M

12

Y5 14.318MHz

C368

10P

CLK_ICHPCI [11]

T121

INT_APICCLK [11]

+3VS

AS SHORT AS POSSIBLE

R521 *0

SS_CLK_IN

PLACE CRYSTAL
WITHIN 500 MILS OF
CK408

C355

10P

49.9_1%

R523

49.9_1%

10P

DREFSSCLK

C670

10P

R524

49.9_1%

R526

R525

49.9_1%

C687

10P

C656

10P

+3VS [2,4,5,6,7,9,11,12,13,14,15,16,18,19,21,22,23,24,26]

R527

49.9_1%

49.9_1%

CLK_ITP_CPU [2]
CLK_ITP_CPU# [2]

CLK_MCH_BCLK [5]
CLK_MCH_BCLK# [5]

CLK_CPU_BCLK [2]
CLK_CPU_BCLK# [2]

PCLK_LAN [16]
PCLK_PCM [17]
PCLK_SIO [19]
PCLK_H8 [21]

C685

C686

10P

10P

C657

10P

C682

10P

PCLK_MINIPCI [15]

C683

C684

10P

10P

CLK_ICH14 [12]
CLK_SIO14 [19]
CLK_ICH48 [12]

C654

10P

DREFCLK [4]

CLK_ICH66 [11]
CLK_MCH66 [4]

C655

10P

C681

10P

Clock Generator (71-T20C0-003) B - 11

Schematic Diagrams

Sheet 11 of 31

ICH4-1

B. T2X0C Schematics

ICH4-1

LAN: AD16
CardBus: AD25
MiniPCI: AD19

REQ0#: CardBus
REQ2#: LAN
REQ3#: MiniPCI

INTA#: MiniPCI
INTB#: MiniPCI, CardBus
INTC#: LAN
INTD#: CardBus

+3VS

R517

*10K

(10K)

INT_APICCLK
INT_APICD0
INT_APICD1

+VCCRTC

R470

U24A

Z1103

Z1101

C300

0.1U

4

ICH4-M PART A

H5

PCI_AD0

J3

PCI_AD1

H3

PCI_AD2

K1

PCI_AD3

G5

PCI_AD4

J4

PCI_AD5

H4

PCI_AD6

J5

PCI_AD7

K2

PCI_AD8

G2

PCI_AD9

L1

PCI_AD10

G4

PCI_AD11

L2

PCI_AD12

H2

PCI_AD13

L3

PCI_AD14

F5

PCI_AD15

F4

PCI_AD16

N1

PCI_AD17

E5

PCI_AD18

N2

PCI_AD19

E3

PCI_AD20

N3

PCI_AD21

E4

PCI_AD22

M5

PCI_AD23

E2

PCI_AD24

P1

PCI_AD25

E1

PCI_AD26

P2

PCI_AD27

D3

PCI_AD28

R1

PCI_AD29

D2

PCI_AD30

P4

PCI_AD31

J2

PCI_C/BE0#

K4

PCI_C/BE1#

M4

PCI_C/BE2#

N4

PCI_C/BE3#

C1

PCI_GNT0#

E6

PCI_GNT1#

A7

PCI_GNT2#

B7

PCI_GNT3#

D6

PCI_GNT4#

B1

PCI_REQ0#

A2

PCI_REQ1#

B3

PCI_REQ2#

C7

PCI_REQ3#

B6

PCI_REQ4#

P5

PCI_CLK

M3

PCI_DEVSEL#

F1

PCI_FRAME#

B5

PCI_GPIO0/REQA#

A6

PCI_GPIO1/REQB_L/REQ5#

E8

PCI_GPIO16/GNTA#

C5

PCI_GPIO17/GNTB_L/GNT5#

L5

PCI_IRDY#

G1

PCI_PAR

L4

PCI_PERR#

M2

PCI_LOCK#

W2

PCI_PME#

U5

PCI_RST#

K5

PCI_SERR#

F3

PCI_STOP#

F2

PCI_TRDY#

ICH4-M

+3V

53

1

2

U23

*74AHC1G08

PCI I/F

System Manamement I/F

CPU I/F

HUB I/F

INTERRUPT I/F

EEPROM

LAN I/F

This bus Swith prevents
leakage of the SMBus into
devices powered on the
switched rall.

SMB_CLK

SMB_ICHCLK[7,10]

SM_INTRUDER#

SMB_ALERT#/GPIO11

CPU_A20GATE

CPU_PWRGOOD

CPU_STPCLK#

INT_PIRQE#/GPIO2

INT_PIRQF#/GPIO3
INT_PIRQG#/GPIO4
INT_PIRQH#/GPIO5

LAN_RSTSYNC

R245

0

SMLINK0
SMLINK1

SMB_CLK

SMB_DATA

CPU_A20M#

CPU_DPSLP#

CPU_FERR#

CPU_IGNNE#

CPU_INIT#
CPU_INTR

CPU_NMI

CPU_RCIN#

CPU_SLP#

CPU_SMI#

HUB_PD0
HUB_PD1
HUB_PD2
HUB_PD3
HUB_PD4
HUB_PD5
HUB_PD6
HUB_PD7
HUB_PD8

HUB_PD9
HUB_PD10
HUB_PD11

HUB_CLK

HUB_PSTRB#

HUB_PSTRB

HUB_RCOMP

HUB_VREF

HUB_VSWING

INT_APICCLK

INT_APICD0
INT_APICD1
INT_PIRQA#
INT_PIRQB#
INT_PIRQC#
INT_PIRQD#

INT_IRQ14
INT_IRQ15

INT_SERIRQ

EEP_CS

EEP_DIN

EEP_DOUT

EEP_SHCLK

LAN_RXD0
LAN_RXD1
LAN_RXD2

LAN_TXD0

LAN_TXD1

LAN_TXD2

LAN_JCLK

LAN_RST#

Z1118

R250

*100

PCI_AD[31:0][15,16,17]

PCI_C/BE0#[15,16,17]
PCI_C/BE1#[15,16,17]
PCI_C/BE2#[15,16,17]
PCI_C/BE3#[15,16,17]

PCI_GNT0#[17]

PCI_GNT2#[16]
PCI_GNT3#[15]

PCI_REQ0#[17]

PCI_REQ2#[16]
PCI_REQ3#[15]

CLK_ICHPCI[10]

PCI_DEVSEL#[15,16,17]

PCI_FRAME#[15,16,17]

AC_IN#[21,24]

FLASH#[19]

PCI_IRDY#[15,16,17]

PCI_PAR[15,16,17]

PCI_PERR#[15,16,17]

PCI_PME#[15,16,17]

PCI_SERR#[15,16,17]
PCI_STOP#[15,16,17]
PCI_TRDY#[15,16,17]

+3V

PCIRST#[4,5,13,15,16,17,19,20,21]

PCI_AD0
PCI_AD1
PCI_AD2
PCI_AD3
PCI_AD4
PCI_AD5
PCI_AD6
PCI_AD7
PCI_AD8
PCI_AD9
PCI_AD10
PCI_AD11
PCI_AD12
PCI_AD13
PCI_AD14
PCI_AD15
PCI_AD16
PCI_AD17
PCI_AD18
PCI_AD19
PCI_AD20
PCI_AD21
PCI_AD22
PCI_AD23
PCI_AD24
PCI_AD25
PCI_AD26
PCI_AD27
PCI_AD28
PCI_AD29
PCI_AD30
PCI_AD31

PCI_GNT0#
PCI_GNT1#

T294

T166

PCI_REQ0#
PCI_REQ1#
PCI_REQ2#
PCI_REQ3# GPIO2
PCI_REQ4#

PCI_DEVSEL#
PCI_FRAME#

GPIO1
FLASH#
Z1102
PCI_IRDY#
PCI_PAR
PCI_PERR#
PCI_LOCK#

PCI_SERR#
PCI_STOP#
PCI_TRDY#

R191 10K

PCIRST#

R499 0

Z1117

R192 *0

R504

R511

R198

10K

0

10K

Z1104

W6
AC3
AB1
AC4
AB4
AA5

SMBALT#

Y22
AB23
U23
AA21

FERR#

W21
V22
AB22
V21
Y23
U22
U21
W23
V23

L19

HUB_PD0

L20

HUB_PD1

M19

HUB_PD2

M21

HUB_PD3

P19

HUB_PD4

R19

HUB_PD5

T20

HUB_PD6

R20

HUB_PD7

P23

HUB_PD8

L22

HUB_PD9

N22

HUB_PD10

K21

HUB_PD11

T21

N20
P21
R23

HUB_RCOMP_ICH

M23

HUB_VREF_ICH

R22

HUB_VSWING_ICH

J19

INT_APICCLK

H19

INT_APICD0

K20

INT_APICD1

D5

INT_PIRQA#

C2

INT_PIRQB#

B4

INT_PIRQC#

A3

INT_PIRQD#

C8
D7

IDE_PATADET

C3

GPIO4

GPIO5

C4
AC13

INT_IRQ14

AA19

INT_IRQ15

J22

INT_SERIRQ

Z1105

D10

Z1106

D11
A8

Z1107

C12

Z1108

A10

Z1109

A9

Z1110

A11

Z1111

B10

Z1112

C10

Z1113

A12

Z1114

C11

Z1115

B11

Z1116

Y5

U30

1

OE1#

2

1A

3

1B

4 5

GND 2A

*74CBT3306

100K

R471 10K

R163 56

T167
T168

EEP_DOUT

T169

T109
T113
T107
T110
T115
T114
T112
T111

R478
10K

8

VCC

7

OE2#

6

2B

SMB_CLK
SMB_DATA

HUB_PD[10:0] [5]

R199 56

CLK_ICH66 [10]

HUB_PSTRB# [5]
HUB_PSTRB [5]

INT_APICCLK [10]

INT_PIRQA# [15]
INT_PIRQB# [15,17]
INT_PIRQC# [16]
INT_PIRQD# [17]

INT_IRQ14 [13]

INT_SERIRQ [17,19,21]

R238 *1K

+5VS

Z1119

R227

*100

SMB_CLK

SMB_DATA

C356

*0.1U

+3V_ALWAYS

H_A20GATE [21]
H_A20M# [2]
H_DPSLP# [2,4]
H_FERR# [2]
H_IGNNE# [2]
H_INIT# [2]
H_INTR [2]
H_NMI [2]
H_PWRGD [2]
H_RCIN# [21]
H_CPUSLP# [2]
H_SMI# [2]
H_STPCLK# [2]

+3V_ALWAYS

R244 2.2K

R472 2.2K

+1.5VS

R505

48.7_1%

HUB_VREF and HUB_VSWING
circuits for internal
testing need 10 mil traces
w/ 20 mil spacing

C620

0.01U

PRST#[15,16,17]

+1.5VS

R512

487_1%

C615

R514

0.1U
150_1%

HUB INTERFACE VSWING VOLTAGE

HUB INTERFACE LAYOUT: Route singnals
with 4/8 trace/space routing .Singals
must match +/-0.1" of HUB_STB/STB#
SIGNALS

SERIRQ: CardBus, Super IO, H8

-SOE => Auto Reboot Select

0 - Enable
1 - Disable (Default)

SPEAK => CPU FREQ STRAPPING
0 - Enable
1 - Disable

-ROMCS => LPC ROM Select

SMB_ICHDATA [7,10]

R228

0

SMB_DATA

R188 10K

Q30

BSS138

+1.5VS

C612

C610

0.01U

0.1U

+3VS [2,4,5,6,7,9,10,12,13,14,15,16,18,19,21,22,23,24,26]
+VCCRTC [12,13]
+3V_ALWAYS [9,12,13,21]
+1.5VS [3,4,5,6,12,13,24]
+3V [2,12,13,15,16,17,18,21,24,27]
+5VS [5,9,13,14,15,19,20,21,22,23,24,26]

D S

R501

130_1%

R503

150_1%

PCIRST#

G

INT_SERIRQ

GPIO2

GPIO5

GPIO1

FLASH#

PCI_PAR

PCI_FRAME#
PCI_IRDY#
PCI_TRDY#
PCI_STOP#
PCI_SERR#
PCI_DEVSEL#
PCI_PERR#
PCI_LOCK#
PCI_REQ0#
PCI_REQ1#
PCI_REQ2#
PCI_REQ3#
PCI_REQ4#
INT_IRQ14
INT_IRQ15
INT_PIRQA#
INT_PIRQB#
INT_PIRQC#
INT_PIRQD#
IDE_PATADET
GPIO4

+3V

PRSTEN [12]

R204 8.2K

R537 8.2K

R515 8.2K

R240 10K

R539 *1K

R201 *100

R202 8.2K
R508 8.2K
R203 8.2K
R205 8.2K
R510 8.2K
R195 8.2K
R506 8.2K
R193 8.2K
R225 8.2K
R226 8.2K
R242 8.2K
R538 8.2K
R239 8.2K
R483 8.2K
R164 8.2K
R513 8.2K
R207 8.2K
R518 8.2K
R520 8.2K
R536 *8.2K
R208 8.2K

R241

10K

+3VS

(100)

+3VS

B - 12 ICH4-1 (71-T20C0-003)

ICH4-2

R462 *0

SUSA#

R155 0

SUSA#[10,22]

SUSB#[3,13,16,24,25,26]

+3V

D26

A C

1N4148

R153 22K

U9B

14

3 4

7

C212

1U

+3V_ALWAYS

+3VS

+VDD5 +VCCRTC

RTC_VBIAS

+3VS

+3V

74LVC14

R497 10K

R475 10K

R206 *1K

R236 *10K

R585

Z1256 Z1257

750_1%

R586

C769 0.047U R588 1K

R156 10K

R147 10K

R168 10K

0.1U_X7R

R587

2K_1%

Z1252

C208

R146 *0

560

Z1259

SUSA#

SUSB#

SUSC#

C213

0.1U_X7R

4

4

+3V_ALWAYS

SLP_S5#

PM_CLKRUN#

ICH_SPKR

AC_SDATOUT

+3V

53

+3V

53

U9C

14

5 6

7

74LVC14

D63

A C

1N4148

D64

A C

SCS751V

1

2

U15

74AHC1G08

U12

74AHC1G08

1

2

SLP_S1#_D

ICH_SUSB#

PM_RSMRST#

ICH_SUSB#

Z1260

C770
1U

+3V_ALWAYS
+3V_ALWAYS

+3V_ALWAYS

R169 10K

R463 68

R494 10K

+3V_ALWAYS

PM_RSMRST#

R140
*0

Z1255Z1254Z1253

+3V

R224 15K

R231 15K

R209 15K

R230 15K

R232 10K

R233 10K
R235 10K
R234 10K

Within 500mil

21

J11

RTC CLEAR

CN31

1

1

2

2

CMOS BATTERY

PCB Footprint = 53398-0290RA

SUS_CLK

G

SLP_S5#[21]

+3VS

AC_SDATOUT[15,23]

+1.5VS

DS

AGP_BUSY#[4]

R167 10K
R166 10K
R476 10K

DELAY_PG_VGATE

AC_SYNC[15,23]

R158

*1K

Q24
*BSS138

PM_CLKRUN#[15,19,21]

PM_DPRSLPVR[26]

PWR_BTN#[21]
ICHPWROK[9,13,23]

PM_RSMRST#[21]

SUSC#[21]

PM_STPCPU#[10,26]

PCI_STP#[10]

PM_THRM#[2]

ICH4_BITCLK[23]

AC_RST#[15,23]
AC_SDATAIN0[23]
AC_SDATAIN1[15]

T108

LPC_AD0[19,21]

LPC_AD1[19,21]

LPC_AD2[19,21]

LPC_AD3[19,21]

LPC_DRQ#0[19]

LPC_FRAME#[19,21]

USB_PP1[14]

USB_PP2[14]

USB_PP3[22]

USB_PP5[20]

USB_PN1[14]

USB_PN2[14]

USB_PN3[22]

USB_PN5[20]

USB_OC1#[14]
USB_OC2#[14]

R519

22.6_1%

LCDID0[9]
LCDID1[9]
LCDID2[9]

SWBKON[9]

R620 1K

R621 1K

R622 1K

T98

T102
T94

R237 33

T103
T106
T101
T165

T289

VIDBIT0

VIDBIT1

VIDBIT2

DPMS_CLK [4]

AGP_BUSY#
PM_SYSRST#
Z1201
Z1202

PM_CLKRUN#

ICHPWROK

PM_RI#

PM_RSMRST#

Z1203
ICH_SUSB#
SUSC#
SLP_S5#

SUS_CLK
Z1205

Z1208
AC_SDATOUT

T96

Z1214
Z1216
Z1215

Z1271

R2
Y3

AB2

T3
AC2
V20
AA1
AB6

Y1
AA6
W18

Y4

Y2
AA2
W19
Y21
AA4
AB3

V1

Z1206

J21

Z1207

Y20
V19

B8
C13
D13
A13
B13

D9

Z1209

C9

T2

R4

T4
U2
U3

Z1210

U4

T5

Z1211

C20
A21
C18
A19

Z1269

C16
A17

Z1212

D20
B21
D18
B19

Z1270

D16
B17

Z1213

B15
C14
A15
B14
A14
D14

A23
B23

J20

VIDBIT0

G22

VIDBIT1

F20

VIDBIT2

Z1220

G20

Z1221

F21

Z1222

H20

Z1223

F23
H22
G23
H21

Z1268

F22
E23

R625 *10K

R626 *10K

R627 *10K

PG_VGATE[4,26]

U24B

PM_AGPBUSY#/GPIO6
PM_SYSRST#
PM_BATLOW#
PM_C3_STAT#/GPIO21
PM_CLKRUN#/GPIO24
PM_DPRSLPVR
PM_PWRBTN#
PM_PWROK
PM_RI#
PM_RSMRST#
PM_SLP_S1#/GPIO19
PM_SLP_S3#
PM_SLP_S4#
PM_SLP_S5#
PM_STPCPU#/GPIO20
PM_STPPCI#/GPIO18
PM_SUS_CLK
PM_SUS_STAT#/LPCPD#
PM_THRM#

PM_GMUXSEL/GPIO23
PM_CPUPERF#/GPIO22
PM_VGATE/VRMPWRGD

AC_BITCLK
AC_RST#
AC_SDATAIN0
AC_SDATAIN1
AC_SDATAIN2
AC_SDATAOUT
AC_SYNC

LPC_AD0
LPC_AD1
LPC_AD2
LPC_AD3
LPC_DRQ0#
LPC_DRQ1#
LPC_FRAME#

USB_PP0
USB_PP1
USB_PP2
USB_PP3
USB_PP4
USB_PP5
USB_PN0#
USB_PN1#
USB_PN2#
USB_PN3#
USB_PN4#
USB_PN5#

USB_OC0#
USB_OC1#
USB_OC2#
USB_OC3#
USB_OC4#
USB_OC5#

USB_RBIAS
USB_RBIAS#

GPIO32
GPIO33
GPIO34
GPIO35
GPIO36
GPIO37
GPIO38
GPIO39
GPIO40
GPIO41
GPIO42
GPIO43

+3VS

B

ICH4-M PART B

Power Management

IST

AC'97 I/F

LPC I/F

USB I/F

GPIO

+3V

R175

100K

E

C

Q25

2N3906(SOT23)

Unmaxed
GPIO

IDE I/F

Clocks

Misc

C224

1U

IDE_PDCS1#
IDE_PDCS3#
IDE_SDCS1#
IDE_SDCS3#

IDE_PDD10
IDE_PDD11
IDE_PDD12
IDE_PDD13
IDE_PDD14
IDE_PDD15

IDE_SDD10
IDE_SDD11
IDE_SDD12
IDE_SDD13
IDE_SDD14
IDE_SDD15

IDE_PDDACK#
IDE_SDDACK#

IDE_PDDREQ
IDE_SDDREQ

IDE_PDIOR#
IDE_SDIOR#
IDE_PDIOW#
IDE_SDIOW#

IDE_PIORDY
IDE_SIORDY

CLK_RTCX1
CLK_RTCX2

CLK_VBIAS

THRMTRIP#

R486

1K_1%

Z1264

Z1265

R487

2K_1%

GPIO_7

GPIO_8
GPIO_12
GPIO_13
GPIO_25
GPIO_27
GPIO_28

IDE_PDA0
IDE_PDA1
IDE_PDA2
IDE_SDA0
IDE_SDA1
IDE_SDA2

IDE_PDD0
IDE_PDD1
IDE_PDD2
IDE_PDD3
IDE_PDD4
IDE_PDD5
IDE_PDD6
IDE_PDD7
IDE_PDD8
IDE_PDD9

IDE_SDD0
IDE_SDD1
IDE_SDD2
IDE_SDD3
IDE_SDD4
IDE_SDD5
IDE_SDD6
IDE_SDD7
IDE_SDD8
IDE_SDD9

CLK_14

CLK_48

RTCRST#

1

3

SPKR

ICH4-M

+

-

Schematic Diagrams

Sheet 12 of 31

ICH4-2

+3V

+3V +3V

R197

R3

Z1217

V4

Z1218

V5

Z1219

W3
V2

BT_DETECH
Z1227

W1

R189 0

Z1266

W4

Y13
AB14

Z1228

AB21

Z1229

AC22

AA13
AB13
W13

Z1230

AA20

Z1231

AC20

Z1232

AC21

AB11

IDE_PDD0

AC11

IDE_PDD1

Y10

IDE_PDD2

AA10

IDE_PDD3

AA7

IDE_PDD4

AB8

IDE_PDD5

Y8

IDE_PDD6

AA8

IDE_PDD7

AB9

IDE_PDD8

Y9

IDE_PDD9

AC9

IDE_PDD10

W9

IDE_PDD11

AB10

IDE_PDD12

W10

IDE_PDD13

W11

IDE_PDD14

Y11

IDE_PDD15

Z1233

W17

Z1234

AB17

Z1235

W16

Z1236

AC16

Z1237

W15

Z1238

AB15

Z1239

W14

Z1240

AA14
Y14

Z1241
Z1242

AC15

Z1243

AA15

Z1244

Y15

Z1245

AB16

Z1246

Y16

Z1247

AA17

Z1248

Y17

Y12

Z1249

AB19

IDE_PDDREQ

AA11

IDE_SDDREQ

AB18
AC12

Z1250

Y18
W12

Z1267

AA18

IDE_PIORDY

AB12

IDE_SIORDY

AC19

CLK_ICH14

J23

CLK_ICH48

F19

RTC_RST#

W7

CLK_32X1

AC7

CLK_32X2

AC6

RTC_VBIAS

Y6

ICH_SPKR

H23

Z1251

W20

R180 4.7K

+3V

C591

0.1U

52

VCCGND

DELAY_PG_VGATE

4

O

U19

LVM331

LPC_PME# [19,21]

PRSTEN

T89
T90

T39
T16
T92

T99
T37
T95
T13
T93
T15
T97
T91
T146
T147
T148
T149
T150
T151
T152
T153

IDE_PDDACK# [13]

T154

IDE_PDDREQ [13]

T155

IDE_PDIOR# [13]

T156

IDE_PDIOW# [13]

T14

IDE_PIORDY [13]

T160

10K

IDE_PDCS1# [13]
IDE_PDCS3# [13]

IDE_PDA0 [13]
IDE_PDA1 [13]
IDE_PDA2 [13]

IDE_PDD[15:0] [13]

CLK_ICH14 [10]
CLK_ICH48 [10]

ICH_SPKR [23]

+VCCP

+3VS

R488

10K

C592

0.1U

R194

R200

10K

10K

PRSTEN [11]

R474 *10K

R473

10K

CLK_ICH14

CLK_ICH48

+VCCP [2,3,5,6,13,26]
+1.5VS [3,4,5,6,11,13,24]
+VCCRTC [11,13]
+3V_ALWAYS [9,11,13,21]
+3VH8 [2,21,22,24,26,28]
+3V [2,11,13,15,16,17,18,21,24,27]
+3VS [2,4,5,6,7,9,10,11,13,14,15,16,18,19,21,22,23,24,26]
+VDD5 [13,24,25,26,27,28]

D40

A C

SCS751V
D41

A C

SCS751V
D39

A C

SCS751V

+3V

+3VS

R482 4.7K

R485 4.7K

R484 *5.6K

R481 *5.6K

R479 100K

R477 100K

R170 10M

R162 10M

32.768KHZ/12.5pF/20ppm

C228

15P

RTC_RST#

21

J3

Z1261

R480

1K

R507 *R

R516 *R

R498
*10K

+3V

(5.6K)

(5.6K)

Y3

3 2

R165 15K

C226

1U

Z1262

Z1263

T288

IDE_PIORDY

IDE_SIORDY

IDE_SDDREQ

IDE_PDDREQ

ICHPWROK

PM_RSMRST#

RTC_VBIAS

CLK_32X1

CLK_32X2

14

TZ1202TZ1201

RC Delay
18~25ms

C614 *C

C647 *C

SMI# [21]

SCI# [21]

SWI# [21]

C227

15P

+VCCRTC

B. T2X0C Schematics

ICH4-2 (71-T20C0-003) B - 13

Schematic Diagrams

Sheet 13 of 31

ICH4-3, HDD

B. T2X0C Schematics

ICH4-3, HDD

+5VS

AC

D66

+3VS

SCS751V

Z1315

AC

D57

R509

SCS751V

1K

VCC5REF

C6241UC648

0.1U_X7R

+3V

+3V_ALWAYS

+5V_ALWAYS

AC

D58

R528

SCS751V

1K

+5VA

C621

C651

0.1U_X7R

1U

L66 0

+5V

L53 *0

+VDD5 +5V_ALWAYS

PCIRST#[4,5,11,15,16,17,19,20,21]

L55 HCB1608K-121T25

+1.5V

L56 HCB1608K-121T25

+1.5VS

HDD

R591 33

R590
10K

IDE_PDDREQ[12]

IDE_PDIOW#[12]
IDE_PDIOR#[12]
IDE_PIORDY[12]

IDE_PDDACK#[12]

INT_IRQ14[11]

IDE_PDA1[12]
IDE_PDA0[12]

IDE_PDCS1#[12] IDE_PDCS3# [12]

HDD_LED[22]

C761

0.1U

+1.5V_ALWAYS

67.5mA

C618

10U_0805

C666

22U/10V_1206

C649

C671

0.1U_X7R

22U/10V_1206

L31 HCB1608K-121T25

L54 HCB1608K-121T25

+1.5VS

L52 HCB1608K-121T25

+VCCP

IDE_PDD[0:15]

Z1306
IDE_PDD7
IDE_PDD6
IDE_PDD5
IDE_PDD4
IDE_PDD3
IDE_PDD2
IDE_PDD1
IDE_PDD0

R582

4.7K

C760

C759

0.1U

0.1U

11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43

C303

10U_0805

1
3
5
7
9

C606

0.1U_X7R

15.5mA

C622

0.1U_X7R

9.2mA

C650

0.1U_X7R

1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43

45

99mA

GND

46

C764

0.1U

C617

C598

0.1U_X7R

0.1U_X7R

C623

Z1301

0.1U_X7R

Z1302

C667

4.7U_0805

10uA

Z1303

C609

C605

0.1U_X7R

0.1U_X7R

Z1304

C659

C660

0.1U_X7R

0.01U

Z1305

C608

C594

0.1U_X7R

0.1U_X7R

IDE_PDD[0:15] [12]

CN25

2

2

IDE_PDD8

4

4

IDE_PDD9

6

6

IDE_PDD10

8

8

IDE_PDD11

10

10

IDE_PDD12

12

12

IDE_PDD13

14

14

IDE_PDD14

16

16

IDE_PDD15

18

18

Z1307

20

20

22

22

24

24

26

26

Z1308

28

28

30

30

Z1309

32

32

P66CBLID

34

34

36

36

38

38

40

40

42

42

Z1310

44

44

GND

HDD_CON

PCB Footprint = HDD-22MGX

C765

1U

VCC5REF

10uA

+5VA

+VDD5

2.5mA

C763

10U_0805

C665

*0.1U_X7R

T124

T123

T132

E12
E13
E20
F14
G18

R6

T6

U6

F6
F7

E9
F9

E7
V6

E15

L23
M14
P18

T22

C22

P14
U18

AA23

C668

*2.2U_0805

470R584

+

C766

*150U/6.3V_D

U24C

VCCSUS1.5_0
VCCSUS1.5_1
VCCSUS1.5_2
VCCSUS1.5_3
VCCSUS1.5_4
VCCSUS1.5_5
VCCSUS1.5_6
VCCSUS1.5_7

VCCLAN1.5_0
VCCLAN1.5_1

VCCLAN3.3_0
VCCLAN3.3_1

VCC5REF1
VCC5REF2

VCC5REFSUS1

VCCHI_0
VCCHI_1
VCCHI_2
VCCHI_3

VCCPLL

VCC_CPU_IO_0
VCC_CPU_IO_1
VCC_CPU_IO_2

ICH4-M

R583

10K

+5VS

A5

VCC3.3_0

B2

VCC3.3_1
VCC3.3_2
VCC3.3_3
VCC3.3_4
VCC3.3_5
VCC3.3_6
VCC3.3_7
VCC3.3_8

ICH-4

U27

1

*CM2830SIM25

PCB Footprint = SOT23-5

IDE_PDA2 [12]

VCC3.3_9
VCC3.3_10
VCC3.3_11
VCC3.3_12

POWER

VCC3.3_13
VCC3.3_14
VCC3.3_15

VCC1.5_0

VCC1.5_1

VCC1.5_2

VCC1.5_3

VCC1.5_4

VCC1.5_5

VCC1.5_6

VCC1.5_7

VCCRTC

VCCSUS3.3_0
VCCSUS3.3_1
VCCSUS3.3_2
VCCSUS3.3_3
VCCSUS3.3_4
VCCSUS3.3_5
VCCSUS3.3_6
VCCSUS3.3_7
VCCSUS3.3_8
VCCSUS3.3_9

R609 0_0805 R610 0_0805

+3V +1.5V

32

OI

G

NC

NC

4

5

+1.8VS

+

H6

C225

H18
J1

22U/10V_1206

J18
K6
M10
P6
P12
U1
V10
V16
V18
AC8
AC17

K10
K12

+

K18
K22
P10
T18
U19
V14

AB5

E11
F10
F15
F16
F18
K14
V7
V8
V9
F17

C354

2.2U_0805

R467 1K R154

+3V_ALWAYS

+1.5VS

+

C353

0.1U_X7R

C297

150U/6.3V_D

C604

22U/10V_1206

+VDD3

Z1311

C229

0.1U_X7R

2SC4672

R128 20K

+

C593

C613

C597

C601

22U/10V_1206

0.1U_X7R

0.1U_X7R

550mA

+

C611

C315

0.1U_X7R

22U/10V_1206

+VCCRTC

C802

10U_0805

168mA

C596

C616

0.1U_X7R

0.1U_X7R

U26

C652

C658

*2.2U_0805

*0.1U_X7R

+2.5V

+3V

R468

53

1K

1

Z1312

2

C

B

E

Q60

R129

180K

+VCCP [2,3,5,6,12,26]
+1.5V [24,27]
+1.5VS [3,4,5,6,11,12,24]
+VCCRTC [11,12]
+VDD3 [25,27]
+3V_ALWAYS [9,11,12,21]
+3V [2,11,12,15,16,17,18,21,24,27]
+3VS [2,4,5,6,7,9,10,11,12,14,15,16,18,19,21,22,23,24,26]
+VDD5 [12,24,25,26,27,28]
+5VS [5,9,11,14,15,19,20,21,22,23,24,26]

0.1U_X7R

0.1U_X7R

+1.5VS

C602

0.1U_X7R

+3V_ALWAYS

C619

0.1U_X7R

23

OI

G

*CM2830AAIM23

PCB Footprint = M-SOT23

1

U14

4

74AHC1G04

1K

+5VS

C607

SUSB#[3,12,16,24,25,26]

528mA

C600

0.1U_X7R

Z1313

Z1314

C198

0.1U

ICHPWROK

0.1U_X7R

+1.5V_ALWAYS

C317

2.2U_0805

3

4

5

C653

U11

MR#

RST-IN

VCC

+3VS

C316

0.1U_X7R

MAX6306

R465 0

R466 *0

AA12
AA16
AA22

AB20

AC10
AC14
AC18
AC23

RESET#

U24D

A1

VSS0

A4

VSS1

A16

VSS2

A18

VSS3

A20

VSS4

A22

VSS5

AA3

VSS6

AA9

VSS7
VSS8
VSS9
VSS10

AB7

VSS11
VSS12

AC1

VSS13

AC5

VSS14
VSS15

ICH-4

VSS16
VSS17
VSS18

B9

VSS19

B12

VSS20

B16
B18
B20
B22

C6
C15
C17
C19
C21
C23

D1

D4

D8
D12
D15
D17
D19
D21
D22
D23

E10
E14
E16
E17
E18
E19
E21
E22

G3

G6

GND

VSS

VSS21
VSS22
VSS23
VSS24
VSS25
VSS26
VSS27
VSS28
VSS29
VSS30
VSS31
VSS32
VSS33
VSS34
VSS35
VSS36
VSS37
VSS38
VSS39
VSS40
VSS41
VSS42
VSS43
VSS44
VSS45
VSS46
VSS47
VSS48

F8

VSS49
VSS50
VSS51

ICH4-M

+3VS

R464
10K

ICHPWROK

1

2

VR_ON [26]

G19

VSS52

G21

VSS53

H1

VSS54

J6

VSS55

K3

VSS56

K11

VSS57

K13

VSS58

K19

VSS59

K23

VSS60

L10

VSS61

L11

VSS62

L12

VSS63

L13

VSS64

L14

VSS65

L21

VSS66

M1

VSS67

M11

VSS68

M12

VSS69

M13

VSS70

M20

VSS71

M22

VSS72

N5

VSS73

N10

VSS74

N11

VSS75

N12

VSS76

N13

VSS77

N14

VSS78

N19

VSS79

N21

VSS80

N23

VSS81

P3

VSS82

P11

VSS83

P13

VSS84

P20

VSS85

P22

VSS86

R5

VSS87

R18

VSS88

R21

VSS89

T1

VSS90

T19

VSS91

T23

VSS92

U20

VSS93

V3

VSS94

V15

VSS95

V17

VSS96

W5

VSS97

W8

VSS98

W22

VSS99

Y7

VSS100

Y19

VSS101

ICHPWROK [9,12,23]

B - 14 ICH4-3, HDD (71-T20C0-003)

USB2.0 Port

+5VS

+3VS

R137

R136

R157

10K

10K

10K

USB_OC1#[12]

USB_OC2#[12]

CCD_EN[21]

Z1401

+12V

R640 *1K

+5V

D67

*FUJ2E 3A

A C

J16

Z1402

1 2

OPEN_10mil

POWER SWITCH

U16

1 8

ENA OUTA

2

4 5

02-15261-920

FLAGA

ENB OUTB

NS-LM3526H

M-SO8

7

IN

63

GNDFLAGB

IC Power trace >= 60mil

12

C230

USB Power trace >= 30mil

0.1U

12

C248

10U_0805

12

12

C259

0.1U

USB CCD POWER ENABLE

R637 0_0805

Q80
*2N3904

DS

G

Q81
*AO3409

Z1410

C

B

E

C801

*0.1U_X7R

C800

10U_0805

R638

*100K

+5VS +CCD5VS

R639 *100K

Z1411

C249

10U_0805

12

VCCUSB1

VCCUSB2

C260

0.1U

VCCUSB1

VCCUSB2

Schematic Diagrams

Sheet 14 of 31

USB2.0 Port

R632 *560K

+5VS

VCCUSB2

R633 *470K

F3 *1.1A

1 2

U51

4

VIN

5

VOUT

*RT9701CBL

F4 *1.1A

U52

4

VIN

5

VOUT

1

VOUT

2

GND

3

VIN

USB_PN1[12]

USB_PP1[12]

R634 *560K

R635 *470K

1 2

VOUT

GND

VIN

*RT9701CBL

USB_PN2[12]

USB_PP2[12]

+5VS

VCCUSB2

1

2

3

L29 0_1206

VCCUSB1

CLOSE TO DEVICE

L34 0_1206

+5VS

CLOSE TO DEVICE

SMA

4

1

LP4 PLW3216S161SQ2

SMA

4

1

LP5 PLW3216S161SQ2

+

C258

0.1U

3

2

+

C352

0.1U

3

2

C263

220U/6.3V_D

Z1403

Z1404

C357

150U/6.3V_D

Z1407

Z1408

60mil

60mil

R623

0(1206)

Z1405

Z1409

1

2

3

4

1

2

3

4

CN19

VCC

5

S

DATA-

6

S

DATA+

7

S

GND

8

S

USB1_CON

PCB Footprint = USB-04RS1

CN20

VCC

5

S

DATA-

6

S

DATA+

7

S

GND

8

S

USB2_CON

PCB Footprint = USB-04RS1

B. T2X0C Schematics

USB_OC1#[12]

+5VS

VCCUSB1

USB_OC2#[12]

Please place close to CN3

+3VS [2,4,5,6,7,9,10,11,12,13,15,16,18,19,21,22,23,24,26]
+5VS [5,9,11,13,15,19,20,21,22,23,24,26]
+CCD5VS [22]

USB2.0 Port (71-T20C0-003) B - 15

Schematic Diagrams

Sheet 15 of 31 MDC, Mini PCI

MDC, Mini PCI

+3VS

Z1501

T77

Z1502

T78

Z1503

T79

Z1504

T81

Z1505

C797
10U_0805

T82

C599

C595

0.1U

0.1U

+3V

AC_SDATOUT[12,23]

AC_RST#[12,23]

MDC

CN23

1

MONO_OUT

3

GND

5

AUXR

7

AUXL

9

CDGND

11

CD_R

13

CD_L

15

GND

17

3.3V

19

GND

21

3.3V

23

SDATA_O

25

RESET#

27

GND

29 30

MCLK BCLK

MDC_CON_30Pin

PCB Footprint = MDC_CON_BD

AUDIO_PD

MONO_PHONE

P_DN

SYNC
SDATA_INB
SDATA_INA

R_D

GND

VCC
R_D
R_D

VCC

GND

GND

Z1506

Z1556

Z1507
Z1557
Z1558
Z1508
Z1509

Z1510

Z1511

C603

*10P

R493 10K

T80

R496 0

T83

R495 *10K

R502 22

T84

R500

4.7K

MODEM_SPK [23]

T301

T302
T303

+3VS

AC_SYNC [12,23]
AC_SDATAIN1 [12]

MDC_BITCLK [23]

2
4
6
8
10
12
14
16
18
20
22
24
26
28

B. T2X0C Schematics

WLAN_DET#[21]

PCLK_MINIPCI

R331

*R

Z1556

C455

*C

PCI_AD[31:0][11,16,17]

Z1513

T85

Z1514

T87

Z1515

T174

Z1516

T164

Z1517

T176

Z1518

T171

WLAN_EN[21]

R332 0

INT_PIRQB#[11,17]

R330 0

PCLK_MINIPCI[10]

PCI_C/BE3#[11,16,17]

PCI_C/BE2#[11,16,17]

PCI_IRDY#[11,16,17]

PM_CLKRUN#[12,19,21]

PCI_SERR#[11,16,17]

PCI_PERR#[11,16,17]

PCI_C/BE1#[11,16,17]

+5VS

T177

Z1519
Z1520

T178

+3VS

Z1521

T170

Z1557

PCLK_MINIPCI

PCI_AD31
PCI_AD29

PCI_AD27
PCI_AD25

Z1522

T175

PCI_AD23

PCI_AD21
PCI_AD19

PCI_AD17

PCI_AD14

PCI_AD12
PCI_AD10

PCI_AD8
PCI_AD7

PCI_AD5
Z1523
PCI_AD3

PCI_AD1

Z1524

T181

Z1525

T184

Z1526

T185

Z1527

T179

Z1528

T182

Z1529

T163

Z1530

T183

Z1531

T180

Z1532

T173

Z1533 Z1555

T172

+5V

PCI_AD[31:0]

CN35

1 2

TIP RING

KEY

3

8PMJ-3

5

8PMJ-6

7

8PMJ-7

9

8PMJ-8

11

LED_WLAN_LINK

13

HW_RadioXMIT_OFF#

15

CHSGND

17

INTB#

19

3.3V

21

RSVD

23

GND

25

CLK

27

GND

29

REQ#

31

3.3V

33

AD31

35

AD29

37

GND

39

AD27

41

AD25

43

Channel_Data11b_activity

45

C/BE3#

47

AD23

49

GND

51

AD21

53

AD19

55

GND

57

AD17

59

C/BE2#

61

IRDY#

63

3.3V

65

CLKRUN#

67

SERR#

69

GND

71

PERR#

73

C/BE1#

75

AD14

77

GND

79

AD12

81

AD10

83

GND

85

AD8

87

AD7

89

3.3V

91

AD5

93

RSVD

95

AD3

97

5V

99

AD1

101

GND

103

AC_SYNC

105

AC_SDATA_IN

107

AC_BIT_CLK

109

AC_CODEC_ID1#

111

MOD_AUDIO_MON

113

AUDIO_GND

115

SYS_AUDIO_OUT

117

SYS_AUDIO_OUT GND

119

AUDIO_GND

121

RSVD

123 124

VCC5VA 3.3VAUX

MINI_PCI

PCB Footprint = 5301-4-219

TYPE III MINI PCI

8PMJ-1
8PMJ-2
8PMJ-4
8PMJ-5

LED_WLAN_ACT

WALN_Radio_State#

3.3VAUX

Channel_Clk

IDSEL

FRAME#

TRDY#

STOP#

DEVSEL#

C/BE0#

RSVD_WIP
RSVD_WIP

M66EN

AC_SDATA_OUT

AC_CODEC_ID0#

AC_RESET#

SYS_AUDIO_IN

SYS_AUDIO_IN GND

AUDIO_GND

MPCIACT#

KEY

RSVD

INTA#
RSVD

RST#

GNT#

PME#

AD30

AD28
AD26
AD24

AD22
AD20

AD18
AD16

AD15
AD13
AD11

RSVD

5V

3.3V

GND

3.3V

GND

PAR

GND

3.3V

GND

GND

AD9

3.3V
AD6
AD4
AD2
AD0

GND

GND

Z1534

T86

Z1535

4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
62
64
66
68
70
72
74
76
78
80
82
84
86
88
90
92
94
96
98
100
102
104
106
108
110
112
114
116
118
120
122

Z1536
Z1537
Z1538

Z1539
Z1540

Z1541

Z1542

Z1543
PCI_AD30

PCI_AD28
PCI_AD26
PCI_AD24
Z1544

PCI_AD22
PCI_AD20

PCI_AD18
PCI_AD16

PCI_AD15
PCI_AD13
PCI_AD11

PCI_AD9

PCI_AD6
PCI_AD4
PCI_AD2
PCI_AD0
Z1545
Z1546

Z1547
Z1548
Z1549
Z1550
Z1551

Z1552
Z1553
Z1554

T88
T143
T157
T141

WLAN_ACTIVE [22]

T162
T140

+5VS

INT_PIRQA# [11]

T158

R328 10

+3V

R329 *10

+3VS

PCI_GNT3# [11]PCI_REQ3#[11]

PCI_PME# [11,16,17]

T144

R327 100

PCI_PAR [11,16,17]

PCI_FRAME# [11,16,17]

PCI_TRDY# [11,16,17]

PCI_STOP# [11,16,17]

PCI_DEVSEL# [11,16,17]

PCI_C/BE0# [11,16,17]

T145
T138

T133
T134
T137
T136
T135

T142
T159
T139
T161

+3V

PRST# [11,16,17]
PCIRST# [4,5,11,13,16,17,19,20,21]

PCI_AD19

H14

2
3

1

4
5 6

MTH315D111

H12

2
3

1

4
5 6

MTHT355B394D111

H4

H5

C354D158

C354D158

M8

M3

M-MARK1

M-MARK1

9

2

8

3

7

4
5 6

9
8
7

H6
C354D158

M4
M-MARK1

H1

1

MTH315D111

H11

2
3

1

4
5 6

MTH394D248

H8
C237D100

M9
M-MARK1

H7

9

2

8

3

7

4
5 6

MTH315D111

9
8
7

H10
C197D197H3C355B394D111

M5
M-MARK1

H2

2
3

1

4
5 6

MTH315D111

H9
C355B315D248

M7
M-MARK1

9
8
7

M2
M-MARK1

9
8

1

7

M10
M-MARK1

+3V [2,11,12,13,16,17,18,21,24,27]
+3VS [2,4,5,6,7,9,10,11,12,13,14,16,18,19,21,22,23,24,26]
+5V [7,13,14,18,21,24,26,27]
+5VS [5,9,11,13,14,19,20,21,22,23,24,26]

H13

2
3

1

4
5 6

MTH315D111

M1
M-MARK1

9
8
7

M6
M-MARK1

B - 16 MDC, Mini PCI (71-T20C0-003)

LAN RTL8100BL

PCI_AD16

PCI_AD[31:0][11,15,17]

PCI_C/BE0#[11,15,17]
PCI_C/BE1#[11,15,17]
PCI_C/BE2#[11,15,17]
PCI_C/BE3#[11,15,17]

PCLK_LAN[10]

R123 100

INT_PIRQC#[11]

PCI_PAR[11,15,17]
PCI_REQ2#[11]
PCI_GNT2#[11]

PCI_IRDY#[11,15,17]
PCI_TRDY#[11,15,17]
PCI_STOP#[11,15,17]

PCI_PERR#[11,15,17]
PCI_SERR#[11,15,17]

PCI_FRAME#[11,15,17]

PCI_DEVSEL#[11,15,17]

C93

10U_0805

+3V

C152

C194

C166

0.1U

0.1U

PCI_AD0
PCI_AD1
PCI_AD2
PCI_AD3
PCI_AD4
PCI_AD5
PCI_AD6
PCI_AD7
PCI_AD8
PCI_AD9
PCI_AD10
PCI_AD11
PCI_AD12
PCI_AD13
PCI_AD14
PCI_AD15
PCI_AD16
PCI_AD17
PCI_AD18
PCI_AD19
PCI_AD20
PCI_AD21
PCI_AD22
PCI_AD23
PCI_AD24
PCI_AD25
PCI_AD26
PCI_AD27
PCI_AD28
PCI_AD29
PCI_AD30
PCI_AD31

PCLK_LAN

Z1601

LANRST#

0.1U

45
44
42
41
38
37
36
33
30
29
28
27
26
25
24
23
10

9
8
5
4
3
1

100

95
94
93
92
91
89
87
86

32
21
11
98

83

99

82

81

20
85
84
13
14
17
18
19
12
15

Z1602

AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
AD8
AD9
AD10
AD11
AD12
AD13
AD14
AD15
AD16
AD17
AD18
AD19
AD20
AD21
AD22
AD23
AD24
AD25
AD26
AD27
AD28
AD29
AD30
AD31

C/BE0#
C/BE1#
C/BE2#
C/BE3#

CLK

IDSEL

RST#

INTA#

PAR
REQ#
GNT#
IRDY#
TRDY#
STOP#
PERR#
SERR#
FRAME#
DEVSEL#

PCLK_LAN

R98

*R

C128

*C

C95

0.1U

C151

1000P

622343990

VDD

VDD

VDD

VDD

PCI

Interface

C98

0.1U

VDD

VDD

21631435662667388

TZ1607

589775

70

59

76

AVDD

AVDD

AVDD

AVDD25

POWER

ATTACHMENT

EEPROM

Management

GND

GND

GND

GND

GND

GND

GND

TZ1608

69

AVDD25/NC

GND

C100

0.1U

51

AVDD25/NC

UNIT

LED

Power

GND

GND

96

VDD25

TZ1609

73540

VDD25

ISOLATE#

RTL8100BL

Schematic Diagrams

Sheet 16 of 31

+A2.5V_LAN+A3V_LAN

C99

0.1U

C101

0.1U

TZ1610

TZ1611

U7

VDD25/NC

VDD25/NC

VDD25/NC

72

TXD+

71

TXD-

68

RXIN+

67

RXIN-

80

LED0

79

LED1

77

LED2

52

NC

53

NC

54

NC

78

NC

49

EECS

48

EESK

47

EEDI

46

EEDO

50

AUX

55

VCTRL

63

RTT3

65

RTSET

57

PME#

64

LWAKE

74

61

X1

60

X2

+2.5V

C160

C105

0.1U

1000P

Place close to RTL8100BL

Z1603

R69

49.9_1%

TXD-

RXIN+
RXIN-

Z1604

T68

Z1605

T69

Z1606

T70

Z1607

T71

Z1608

T72

Z1609

T73

Z1610

T74

EECS
EESK
EEDI
EEDO

Z1611

R77 5.6K

LAN_VCRTL

Z1612

T75

Z1613

Z1614

Z1633

R608 0

Z1615

Z1616

Y1

12

25MHz

C97

27P

C84

10U_0805

R70

49.9_1%

TXD+

40mil=>

R71

R72

49.9_1%

49.9_1%

Z1629

C74

0.1U

Place close to LF-H80P

U3

1
2
3
4 5

T293

C96

27P

8

CS

VCC

7

SK

NC

6

DI

NC

DO GND

93C46

+3V

Place close to RTL8100BL
Keep away from TX+/-, RX+/-

R58 5.6K_1%

PCI_PME# [11,15,17]

T76

R68 *1K

R73

15K

C73

0.1U

=8mil

TZ1603
TZ1604

=8mil

C48

0.1U

+3V

TZ1601
TZ1602

C64

0.1U

+3VS

SUSB# [3,12,13,24,25,26]

U1

7

TD+

4 12

NC NC

5

NC

1

RD+

2

RD-

Z1630

3 14

RD_CT RX_CT

Z1631

6

TD_CT

NS681680

C52

*0.1U

MODEM

PCB Footprint = 85204-0200

CN15

Z1617

L1 BK2125HS121_0805

1

Z1618

L2 BK2125HS121_0805

2

10

TX+

Z1622

98

TX-TD-

TZ1605
TZ1606 RX+

13

NC

Z1623

16

RX+

Z1624

15

RX-

Z1625
Z1626

11

TX_CT

R1775R12

C14

1000P/2KV_1210

R97 *0

PCIRST#[4,5,11,13,15,17,19,20,21]

R93 0

PRST#[11,15,17]

MODEM_CON

LP3 PLW3216S161SQ2

21

34

LP2 PLW3216S161SQ2

21

34

R975R10

75

Z1632

+2.5V +A2.5V_LAN

+3V +A3V_LAN

LANRST#

C18

75

33P

L21 HCB2012K-121T30

C196

10U_0805

Z1619

9

TIP

Z1620

10

RING

TX+Z1621

1

TD+

2

TX-

TD-

3

RO+

RX-

6

RO-

Z1627

4

NC

5

NC

Z1628

7

NC

8

NC

C19

33P

PCB Footprint = PJS-28CF3

C17

C20

33P

33P

L23 HCB2012K-121T30

C195

C193

10U_0805

0.1U

+2.5V [3,4,6,7,13,25]
+3V [2,11,12,13,15,17,18,21,24,27]
+3VS [2,4,5,6,7,9,10,11,12,13,14,15,18,19,21,22,23,24,26]

CN2

shield
shield
shield
shield

RJ-45

11
12
13
14

LAN RTL8100BL

B. T2X0C Schematics

LAN RTL8100BL (71-T20C0-003) B - 17

Schematic Diagrams

Sheet 17 of 31

PCMCIA ENE CB710

B. T2X0C Schematics

PCMCIA ENE CB710

R94 *0

PCIRST#[4,5,11,13,15,16,19,20,21]

R91 0

PRST#[11,15,16]

A_CAD[31:0][18]

+3V

R75
*47K

R87 0

Z1701

PCI_AD0
PCI_AD1
PCI_AD2
PCI_AD3
PCI_AD4
PCI_AD5
PCI_AD6
PCI_AD7
PCI_AD8
PCI_AD9
PCI_AD10
PCI_AD11
PCI_AD12
PCI_AD13
PCI_AD14
PCI_AD15
PCI_AD16
PCI_AD17
PCI_AD18
PCI_AD19
PCI_AD20
PCI_AD21
PCI_AD22
PCI_AD23
PCI_AD24
PCI_AD25
PCI_AD26
PCI_AD27
PCI_AD28
PCI_AD29
PCI_AD30
PCI_AD31

R101 100

CB_RST#

A11

C8

A15

C6

H5
G1
G3
H6

G5

G6

C12

F10
E10
F11
E13
C11
B11
A12
B12
E12
A13

R119

47K

CB_RST#

PCI_C/BE0#[11,15,16]
PCI_C/BE1#[11,15,16]
PCI_C/BE2#[11,15,16]
PCI_C/BE3#[11,15,16]

PCI_PAR[11,15,16]

PCI_AD[31..0][11,15,16]

PCI_REQ0#[11]
PCI_GNT0#[11]

PCI_AD25

PCI_FRAME#[11,15,16]

PCI_IRDY#[11,15,16]

PCI_DEVSEL#[11,15,16]

PCI_TRDY#[11,15,16]
PCI_STOP#[11,15,16]
PCI_PERR#[11,15,16]
PCI_SERR#[11,15,16]
PCLK_PCM[10]

PCMSPK[23]

PCI_PME#[11,15,16]

INT_SERIRQ[11,19,21]

A_CAD[31:0]

GRST#

E2

C/BE0#

A5

C/BE1#
C/BE2#
C/BE3#
PAR

AD0
AD1
AD2
AD3

F1

AD4
AD5

F2

AD6

E1

AD7
AD8

F5

AD9

E3

AD10
AD11

A4

AD12

E6

AD13

B5

AD14

F6

AD15

B8

AD16

A8

AD17

E9

AD18

F9

AD19

B9

AD20

A9

AD21
AD22
AD23
AD24
AD25
AD26
AD27
AD28
AD29
AD30
AD31

B13

Z1702

CB_RST#

A_CAD7

A_CAD9

A_CAD6

A_CAD11

A_CAD3

A_CAD2

A_CAD8

A_CAD5

A_CAD4

A_CAD1/A_D4

A_CAD2/A_D11

DEVSEL#

TRDY#

A_CAD3/A_D5

STOP#

A_CAD4/A_D12

PERR#

A_CAD5/A_D6

SERR#

A_CAD10

A_CAD7/A_D7

A_CAD9/A_A10

A_CAD6/A_D13

A_CAD8/A_D15

A_CAD10/A_CE2#

PCLK

PRST#

A14

G15

R122

*0

A_CAD1

A_CAD0

H2J1H1J3J2K1J6K3K5L1L2L6M1L5M3M2M6W4U5R6V5U6V6W6V7W7R8

A_CAD0/A_D3

FRAME#

GNT#

REQ#

IDSEL

IRDY#

C7

F8

C13

C10A7B7A6B6F7A10

R88
*0

Z1703

C117

*10P

A_CCD2#[18]
A_CCD1#[18]

A_CVS2[18]
A_CVS1[18]

A_CRST#[18]

A_CCLKRUN#[18]

A_CCLK[18]

A_CPAR[18]
A_CCBE3#[18]
A_CCBE2#[18]
A_CCBE1#[18]
A_CCBE0#[18]

A_CAD18

A_CAD24

A_CAD25

A_CAD20

A_CAD15

A_CAD16

A_CAD17

A_CAD19

A_CAD13

A_CAD12

A_CAD11/A_OE#

A_CAD12/A_A11

A_CAD21

A_CAD22

A_CAD14

A_CAD14/A_A9

A_CAD18/A_A7

A_CAD20/A_A6

A_CAD21/A_A5

A_CAD16/A_A17

A_CAD17/A_A24

A_CAD19/A_A25

A_CAD13/A_IORD#

A_CAD15/A_IOWR#

A_CAD31

A_CAD26

A_CAD30

A_CAD29

A_CAD23

A_CAD28

A_CAD27

W10

V10

U10

R10

W11K6N1T1P8

A_CAD22/A_A4

A_CAD23/A_A3

A_CAD24/A_A2

A_CAD25/A_A1

A_CAD26/A_A0

A_CAD27/A_D0

A_CAD28/A_D8

A_CAD29/A_D1

A_CAD30/A_D9

A_CAD31/A_D10

A_CCBE1#/A_A8

A_CCBE0#/A_CE1#

A_CCBE2#/A_A12

A_CCBE3#/A_REG#

U9

W5

H3

R9R1R3

P3V8P5P1R7W8N5V9R2

U8

N3

P7

P6

A_CCLK/A_A16

A_CPAR/A_A13

A_CVS1/A_VS1#

A_CVS2/A_VS2#

A_CRST#/A_RESET

A_CCLKRUN#/A_WP/A_IOIS16#

A_CIRDY#/A_A15

A_CGNT#/A_WE#

A_CCD1#/A_CD1#

A_CCD2#/A_CD2#

A_CFRAME#/A_A23

A_CREQ#/A_INPACK#

ENE CB710(BGA)

PCI-to-CardBus/MS/SM/MMC/SD/SC

SPKROUT

SUSPEND#

C14

D19

CSUS#

R121

47K

+3V

PME#

IRQSER

G2J5P2P9R13

G14

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

GND

GND

GND

C69

0.1U

GND

GND

GND

GND

GND

GND

GND

GND

GND

D1F3U7

P17

K18

C192

0.1U

L3E7C5

F12

B10

E8

E18

+3V

C122

C145

0.1U

0.1U

VCCA

VCC

VCC_SC

W12

G19

CARD_PWREN#[18]

C119

0.1U

VCC_SD

B14

E11C9M17

M5

N14

V15

Z1704

T60

AVCC+3V

CARDVCC

MS_BS[18]
MS_SDIO[18]
MS_INS#[18]

MS_CLK[18]

CARD_LED#[18]

C70

C189

10U_0805

C67

10U_0805

0.1U

MS_CLKIN

MS_SDIO

MS_BS

MS_SCLK

MS_INS#

MS_LED#

MS_PWREN#

R11

P11

U12

V12

R12

P12

W13

MS_CLKIN

R450

47K

C157

10U_0805

A_CDEVSEL#/A_A21

V13

A_CTRDY#/A_A22

SD_WP

U13

A_CGNT# [18]
A_CREQ# [18]
A_CFRAME# [18]
A_CIRDY# [18]
A_CDEVSEL# [18]
A_CTRDY# [18]
A_CSTOP# [18]
A_CPERR# [18]
A_CSERR# [18]
A_CBLOCK# [18]
A_CINT# [18]
A_CSTSCHG [18]

A_CAUDIO [18]
A_CD2 [18]
A_CD14 [18]
A_A18 [18]

W9

N6

P10K2N2

V14

A_CBLOCK#/A_A19

SD_CLKIN

U14

A_CINT#/A_READY/A_IREQ#

SD_DAT1

A_CSTSCHG/A_BVD1/A_STSCHG#

SD_CLK

SD_DAT0

P14

W15

R14

SD_CLKIN

SD_CMD

A_CAUDIO/A_BVD2/A_SPKR#

SD_DAT3

U15

W16

SD_DAT2

V11

Z1705

T61

A_CRSV/A_D2

GPIO11

A_CSTOP#/A_A20

A_CPERR#/A_A14

A_CSERR#/A_WAIT#

SD_CD#

SD_LED#

SD_PWREN#

W14

P13

A_CRSV/A_A18

A_CRSV/A_D14

SM_PWR3EN#
SM_PWR5EN#

SC_PWR5EN#
SC_PWR3EN#

GPIO9

GPIO10

GPIO8

GPIO7

N17

U11

H14

H15

G18

Z1706

Z1707

Z1708

Z1709

Z1710

T63

T62

T66

T65

T64

SD_DAT2 [18]
SD_DAT3 [18]
SD_CMD [18]
SD_CLK [18]
SD_DAT0 [18]
SD_DAT1 [18]

CARD_LED# [18]
CARD_PWREN# [18]
SD_CD# [18]
SD_WP [18]

GPIO6

G17

Z1711

T67

MFUNC6
MFUNC5
MFUNC4
MFUNC3
MFUNC2
MFUNC1
MFUNC0

VCCD1#
VCCD0#

SM_LED#

SM_WPD#

SM_R/B#
SM_WE#
SM_WP#

SM_CD#

SC_OC#

SC_LED#
SC_DET#

SC_RST#

GPIO5

U4

VPPD2
VPPD1
VPPD0

SM_CE#
SM_CLE
SM_RE#
SM_ALE

SM_LVD

SM_D0
SM_D7
SM_D1
SM_D6
SM_D2
SM_D5
SM_D3
SM_D4

SC_C8
SC_C4

SC_CLK

SC_IO

CB710

B15

Z1712
Z1713

F13
E14

Z1714
Z1715

C15
A16

Z1729
Z1728

E17
F15

Z1730

F14
E19

Z1716

F17
F18
F19

H17
H18
H19

Z1717

J15
J14
J17
J18
J19
K14
K15
K17
K19
L14
L15
L17
L18
L19
M19
M18
M15
N19

Z1718

R132 47K

N18

M14

Z1719
Z1720

R130 47K

P19
N15
P18

Z1723

R19

Z1724

R18

Z1725

P15

Z1726

R17

Z1727

T19

RN6
8P4RX10K

7

8

R529 *0
R120 *10K
R530 *0

VCCD1# [18]
VCCD0# [18]

T53

VPPD1 [18]
VPPD0 [18]

CARD_LED# [18]
SM_WPD# [18]
CARD_PWREN# [18]

T54

SM_CE# [18]
SM_CLE [18]
SM_RE# [18]
SM_ALE [18]
SM_R/B# [18]
SM_WE# [18]
SM_WP# [18]
SM_LVD [18]
SM_D0 [18]
SM_D7 [18]
SM_D1 [18]
SM_D6 [18]
SM_D2 [18]
SM_D5 [18]
SM_D3 [18]
SM_D4 [18]
SM_CD# [18]

Z1721
Z1722

T55
T56

T57
T58
T59

AVCC [18]
CARDVCC [18]
+3V [2,11,12,13,15,16,18,21,24,27]

3456
2
1

R451

47K

+3V

SD_CLKIN

7
8

RN8
8P4RX47K

+3V

INT_PIRQD# [11]

INT_PIRQB# [11,15]

3456
2
1

B - 18 PCMCIA ENE CB710 (71-T20C0-003)

PCM Socket, 4 IN 1 Socket

A_CAD[31:0][17]

A_CAD31

66

CAD31/D10

A_CAD30

65

CAD30/D9

A_CAD29

31

CAD29/D1

A_CAD28

64

CAD28/D8

A_CAD27

30

CAD27/D0

A_CAD26

29

CAD26/A0

A_CAD25

28

CAD25/A1

A_CAD24

27

CAD24/A2

A_CAD23

26

CAD23/A3

A_CAD22

25

CAD22/A4

A_CAD21

24

CAD21/A5

A_CAD20

23

CAD20/A6

A_CAD19

56

CAD19/A25

A_CAD18

22

CAD18/A7

A_CAD17

55

CAD17/A24

A_CAD16

46

CAD16/A17

A_CAD15

45

CAD15/IOWR#

A_CAD14

11

CAD14/A9

A_CAD13

44

CAD13/IORD#

A_CAD12

10

CAD12/A11

A_CAD11

9

CAD11/OE#

A_CAD10

42

CAD10/CE2#

A_CAD9

8

CAD9/A10

A_CAD8

41

CAD8/D15

A_CAD7

6

CAD7/D7

A_CAD6

39

CAD6/D13

A_CAD5

5

CAD5/D6

A_CAD4

38

CAD4/D12

A_CAD3

4

CAD3/D5

A_CAD2

37

CAD2/D11

A_CAD1

3

CAD1/D4

A_CAD0

2

CAD0/D3

A_CD2[17]

A_CD14[17]

A_A18[17]

32

RFU/D2

40

RFU/D14

47

RFU/A18

GND1

GND2

GND3

GND4

6970717273

PCB Footprint = IC11SA-68PLR-127SF-EJL

SD/MS/SM Power

+3V

+12V

R143

R135

8.2K

8.2K

Z1805

Q20
2N3904

Z1806

G

C202

0.1U

R452 *330

C

CARD_PWREN#[17]

CARD_LED#[17]

B

D56 *LED

E

AC

GND5

GND6

74

+3VS

DS

CCBE0#/CE1#

CCBE2#/A12

CCBE3#/REG#

CCLKRUN#/IOIS16#

CRST#/RESET

CGNT#/WE#

CREQ#/INPACK#

CFRAME#/A23

CIRDY#/A15

CTRDY#/A22

CDEVSEL#/A21

CSTOP#/A20

CPERR#/A14

CSERR#/WAIT#

CINT#/IREQ#

CBLOCK#/A19

CAUDIO/SPKR#

CSTSCHG/STSCHG#

CCD1#/CD1#
CCD2#/CD2#

Q21
2N7002

CARDVCC

C200

0.1U

CARDVCC

CN16

CCBE1#/A8

CPAR/A13

CCLK/A16

CVS1/VS1#
CVS2/VS2#

PCMCIA

7
12
21
61
13

Z1801

19
33

A_CRST#

58

15
60
54
20
53
50
49
14
59
16
48
62
63

43
57
36
67

51

VCC

17

VCC

52

VPP

18

VPP

1

GND

34

GND

35

GND

68

GND

C103

0.1U

MS_CLK[17]

SD_CLK[17]

A_CCBE0# [17]
A_CCBE1# [17]
A_CCBE2# [17]
A_CCBE3# [17]
A_CPAR [17]

A_CCLKRUN# [17]
A_CRST# [17]

A_CGNT# [17]
A_CREQ# [17]
A_CFRAME# [17]
A_CIRDY# [17]
A_CTRDY# [17]
A_CDEVSEL# [17]
A_CSTOP# [17]
A_CPERR# [17]
A_CSERR# [17]
A_CINT# [17]
A_CBLOCK# [17]
A_CAUDIO [17]
A_CSTSCHG [17]

A_CVS1 [17]
A_CVS2 [17]
A_CCD1# [17]
A_CCD2# [17]

C90

0.1U

R112 22

Close to cardbus socket

C113

C109

0.1U

0.1U

R113

0

Z1807

C190

10P

Close to MS socket

R115 22

R114

0

Z1808

C191

10P

Close to SD socket

Schematic Diagrams

+5V

R56 22

R57

0

Z1802

C68

10P

AVCC

AVPP

C107

0.1U

MS_CLK2S

SD_CLK2S

A_CCLK [17]

SD_WP
MS_INS#
A_CAD11
A_CRST#

SM_WPD#
SM_R/B#
SM_CD#
SD_CD#

SD_DAT3
SM_WE#
SM_RE#
SM_CE#

SD_CMD
SD_DAT1
SD_DAT2
SD_DAT0

SM_LVD
MS_BS
MS_SDIO
MS_CLK2S

1
2
3
4 5

RN3

8P4RX47K

R118 8.2K
R117 8.2K
R116 8.2K
R99 47K

8
7

1
2
3
4 5

1
2
3
4 5

VCCD0#[17]
VCCD1#[17]

+3V

T52

8

+3VS

7
6

AVCC

+3VS

1

CARDVCC

2

RN7

3456

8P4RX47K

8
7

RN4

6

8P4RX47K

RN5

8

8P4RX47K

7
6

R444

R100

*47K

*47K

Z1803

+12V +5V

U5

1

VCCD0#

2
3
4
5
6
7
8 9

SHDN#

VCCD1#

VPPD0

3.3V

VPPD1

3.3V
5V
5V
GND
OC# 12V

AVCC
AVCC
AVCC
AVPP

ENE_CP-2211(C1)

C110

C176

C177

0.1U

0.1U

10U_0805

SD_CD#[17]

SD_WP[17]
SD_DAT1[17]
SD_DAT0[17]

SD_CMD[17]
SD_DAT3[17]
SD_DAT2[17]

CARDVCC

SM_CD#[17]

SM_D4[17]
SM_D3[17]
SM_D5[17]
SM_D2[17]
SM_D6[17]
SM_D1[17]
SM_D7[17]
SM_D0[17]

SM_LVD[17]
SM_WP#[17]
SM_WE#[17]
SM_R/B#[17]

SM_ALE[17]

SM_RE#[17]

SM_CLE[17]

SM_CE#[17]

SM_WPD#[17]

CARDVCC

MS_BS[17]

MS_SDIO[17]

MS_INS#[17]

+3V

Z1804

16
15
14
13
12

AVCC+5V

11
10

AVPP
+12V

+3V

C165

C175

10U_0805

0.1U

SD_CD#
SD_WP
SD_DAT1
SD_DAT0
SD_CLK2S
SD_CMD
SD_DAT3
SD_DAT2

SM_CD#

SM_LVD

SM_WE#
SM_R/B#

SM_RE#

SM_CE#
SM_WPD#

MS_BS
MS_SDIO

MS_INS#

MS_CLK2S

4IN1 Socket
(SD/MMC/MS/SM)

R76

10K

VPPD0 [17]
VPPD1 [17]

CN22

1
2
3
4
5
6
7
8
9

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37

CARD-READER

PCB Footprint = SK0211TP635A

Sheet 18 of 31

PCM Socket, 4 IN 1

Socket

B. T2X0C Schematics

CLOSE TO CARD SOCKET

CARDVCC

C358

C389

C385

0.1U

0.1U

0.1U

+12V [9,14,24,27]
AVCC [17]
CARDVCC [17]
+3V [2,11,12,13,15,16,17,21,24,27]

C361

C386

0.1U

10U_0805

+3VS [2,4,5,6,7,9,10,11,12,13,14,15,16,19,21,22,23,24,26]
+5V [7,13,14,15,21,24,26,27]

PCM Socket, 4 IN 1 Socket (71-T20C0-003) B - 19

Schematic Diagrams

Sheet 19 of 31

SIO, BIOS

B. T2X0C Schematics

SIO, BIOS

+3VS

LPC_AD[3:0][12,21]

R281

10K

SIO_LPCPD#

+3VS

R275

*10K

SIO_SMI#

Very close to U23 Super IO

+3VS

C349

C363

C383

C364

0.1U

0.1U

C350

0.1U

0.1U

4.7U_0805

PCLK_SIO

LPC_AD[3:0]

PM_CLKRUN#[12,15,21]

PCLK_SIO[10]

PCIRST#[4,5,11,13,15,16,17,20,21]

INT_SERIRQ[11,17,21]

LPC_DRQ#0[12]

LPC_FRAME#[12,21]

R277 0

FLASH#[11]

T29

T291
T292

C365

4.7U_0805

MEMW#

LPC_AD0
LPC_AD1
LPC_AD2
LPC_AD3

PM_CLKRUN#
SIO_LPCPD#

PCLK_SIO

LPC_DRQ#0

SIO_SMI#

SD0
SD1
SD2
SD3
SD4
SD5
SD6
SD7

SA0
SA1
SA2
SA3
SA4
SA5
SA6
SA7
SA8
SA9
SA10
SA11
SA12
SA13
SA14
SA15
SA16
SA17
SA18

MEMW#
MEMR#
IOR#
IOW#
BIOSCS#

SIO_CLKIN

Z1938

15
16
17
18

6
7
8

9
10
11
12
19

3

2

1

100

99
98
97
96

95
94
93
92
91
90
87
86
85
84
83
82
81
80
79
78
77
76
75
74

4

5
71
73
72

20

R276
*R

Z1903

C384

*C

+5VS

53

1

4

2

U32
74AHC1G32

C382 *CR274 *R

LAD0
LAD1
LAD2
LAD3

CLKRUN#/GPIO36
LPCPD#
LCLK
LRESET#
SERIRQ
LDRQ#
LFRAME#
SMI#/GPIO35

XD0/GPIO00/JOYABTN1
XD1/GPIO01/JOYBBTN1
XD2/GPIO02/JOYAY
XD3/GPIO03/JOYBY
XD4/GPIO04/JOYBX
XD5/GPIO05/JOYAX
XD6/GPIO06/JOYBBTN0
XD7/GPIO07/JOYABTN0

XA0/GPIO20
XA1/GPIO21
XA2/GPIO22
XA3/GPIO23
XA4/GPIO24/XSTB0#
XA5/XSTB1#/XCNF2
XA6/GPIO26/PRIQA/XSTB2#
XA7/GPIO27/PIRQB
XA8/GPIO30/PIRQC
XA9/GPIO31/MTR1#/PIRQD
XA10/GPIO32/XIORD#/MDRX
XA11/GPIO33/XIOWR#/MDTX
XA12/GPIO10/JOYABTN1/RI2#
XA13/GPIO11/JOYBBTN1/DTR2#_BOUT2
XA14/GPIO12/JOYAY/CTS2#
XA15/GPIO13/JOYBY/SOUT2
XA16/GPIO14/JOYBX/RTS2#
XA17/GPIO15/JOYAX/SIN2
XA18/GPIO16/JOYBBTN0/DSR2#
XA19/DCD2#/JOYABTN0/GPIO17

XWR#/XCNF1
XRD#/GPIO34/WDO#
XIORD#/GPIO37/IRSL2/DR1#
XIOWR#/XCS1#/MTR1#/DRATE0
XCS0#/DR1#/XDRY/GPIO25

CLKIN

ROMWRITE#

143963

VDD

VSS

133864

VDD

VSS

C360

0.1U

88

VDD

VDD

VSS

VSS

89

SD0
SD1
SD2
SD3
SD4
SD5
SD6
SD7

ROMWRITE#

+3VS

DENSEL/AFD#_DSTRB#

U43

21

OD0

22

OD1

23

OD2

25

OD3

26

OD4

27

OD5

28

OD6

29

OD7

7

WE

8

VCC

24

GND

*AT49F040

U31

MTR0#

SETP#
WDATA#
WGATE#

HDSEL#

INDEX#

TRK0#

RDATA#

DSKCHG#

DENSEL

XCNF0/SOUT1

DSR1#

TEST/RTS1#

CTS1#

BADDR/DTR1#_BOUT1

DCD1#

INDEX#/PD0

TRK0#/PD1

WP#/PD2

RDATA#/PD3

DSKCHG#/PD4

MSEN0/PD5

DRATE0/PD6

MSEN1/PD7

WGATE#/SLCT

WDATA#/PE

MTR1#/BUSY_WAIT#

DR1#/ACK#

STEP#/SLIN#_ASTRB#

DIR#/INIT#

HDSEL#/ERR#

STB#_WRITE#

XRDY/PNF

IRRX1

IRRX2_IRSL0

DRATE0/IRSL2

PWUREQ#/IRSL3

PC87393

ROM

A18
A17
A16
A15
A14
A13
A12
A11
A10

A9
A8
A7
A6
A5

TSOP

A4
A3
A2

32 PIN

A1
A0

CE#
OE#

DR0#

IRSL1

Z1904

30
31
29

DIR#

28
27
26
22
32
25
24

WP#

23
21
33

57

SIN1

59
56
58
60
61
62

RI1#

55

52
50
48
46
45
44
43
42

36
37
40
41
47
49
51
53
54
35

70

IRTX

69
68
67
34
66

9
6
10
11
5
4
12
1
31
2
3
13
14
15
16
17
18
19
20

30

BIOSCS#

32

MEMR#

T17

Z1905

T18

Z1906

T19

Z1907

T20

Z1908

T21

Z1909

T22

Z1910

T23

Z1911

T24

Z1912

T25

Z1913

T26

Z1914

T27

Z1915

T28

Z1916

T30

SIN1
SOUT1
DSR1#
RTS1#
CTS1#
DTR1#
RING1#
DCD1#

Z1917

T31

Z1918

T32

Z1919

T33

Z1920

T34

Z1921

T35

Z1922

T36

Z1923

T38

Z1924

T40

Z1925

T41

Z1926

T42

Z1927

T43

Z1928

T44

Z1929

T45

Z1930

T46

Z1931

T47

Z1932

T48

Z1933

T49

Z1934

R262 10K

Z1935

T50

Z1936

T51

SA18

1

30

SA17

2

SA16

3

SA15

29

SA14

28

SA13

4

SA12

25

SA11

23

SA10

26

SA9

27

SA8

5

SA7

6

SA6

7

SA5

8

SA4

9

SA3

10

SA2

11

SA1

12

SA0

22
24

IRTX [22]
IRRX [22]
IRMODE [22]

LPC_PME# [12,21]CLK_SIO14[10]

U42

A18
A17
A16
A15
A14
A13
A12

PLCC

A11
A10
A9
A8
A7
A6
A5
A4
A3
A2
A1
A0

32 PIN

CE#
OE#

MX29F004TQC-90

PLCCTSSOP 4M 4M

SIN1 [20]
SOUT1 [20]

RTS1# [20]

RTS1#
SIN1
DCD1#
DTR1#

OD0
OD1
OD2
OD3
OD4
OD5
OD6
OD7

PGM

VCC

GND

+3VS

PCB Footprint = SPUFZ-10B

PIN2

PIN1

SD0

13

SD1

14
15

SD2

17

SD3

18

SD4

19

SD5

20

SD6

21

SD7

31

ROMWRITE#

32

16

CN34

12
34
56
78
910

COM PORT

TOP VIEW

+5VS+5VS

RING1#
SOUT1
CTS1#
DSR1#

PIN10

PIN9

X1

1

CNT

2

GND

*48MHZ-OSC

22-48R00-1BA

Close to U23

VCC

OUT

MEMR#

R272 10K

BIOSCS#

R221 10K

SOUT1

R223 10K

SCNF0

MEMW#

R269 *10K

SCNF1

SA5

R251 *10K

SCNF2

XBUS RESET CONFIGURATION

DTR1#

R222 10K

BASE ADDRESS CONFIGURATION
DTR1# PULL-UP : 4E
DTR1# PULL-DOWN: 2E (DEFAULT)

LPC_AD0

8 1

LPC_AD1

7 2

LPC_AD2

653

LPC_AD3

RN39

8P4RX4.7K

LPC_DRQ#0

R282 4.7K

Close to PC87393

RING1#

8 1

CTS1#

7 2

DSR1#

653

DCD1#

RN69

8P4RX10K

+3VS

C375

0.1U

4

CLK_SIO48 SIO_CLKIN

3

R263 *33

+3VS [2,4,5,6,7,9,10,11,12,13,14,15,16,18,21,22,23,24,26]
+5VS [5,9,11,13,14,15,20,21,22,23,24,26]

+3VS

+3VS

4

+3VS

4

B - 20 SIO, BIOS (71-T20C0-003)

Touch Panel

TPR[22]
TPL[22]
TPU[22]
TPD[22]

TPR

TPL

TPU

TPD

AC

AC

AC

AC

R145 1K

R144 1K

R177 1K

R176 1K

C

+5VS

D19
BAV99

A

C

+5VS

D18
BAV99

A

C

+5VS

D30

A

BAV99

C

+5VS

D29

A

BAV99

Z2015

R489 8.2K

C211 4700P

Z2016

R490 8.2K

C210 4700P

Z2017

R491 8.2K

C251 4700P C244 680P

Z2018

R492 8.2K

C250 4700P

R124 20K

TPVCC

Q28
DTA114EUA

E

C

Q27
DTC114EUA

C

E

TPG

C246 680P

TPGTPGTPGTPG

C245 680P

C243 680P

Z2010

B

B

TPVCC

Q18

E

DTA114EUA

C

TPVCC

Q22
DTA114EUA

E

C

Q23
DTC114EUA

C

E

TPG

TPG

Schematic Diagrams

Sheet 20 of 31

Touch Panel

B

U20A

Z2001

Z2002

Z2003

Z2004

Z2005

Z2006

Z2007
Z2008
Z2009

C280

10P

42

32

31

30

29

15

3
4
5
6

64
63
14

2

20
21

Z2024

Fujitsu-V032

QFP64

PSW0*

PSW1*

PSW2

PSW3*

PSW4

PINT*
EMSR0
EMSR1
EMSR2
EMSR3

OS0
OS1
CSEL
S/P*

MOD0
MOD1

X0

22

PnPINT0
PnPINT1

EROMCK
EROMSO

EROMSI

EROMCS

RXINT*

PnPCEL

Y4

8MHz

FSX-7M

RST*

RXD

UCKI

UCKO

VCC

VSS1

VSS2

AVCC

AVR

AVSS

Z2019

C282

10P

Z2026

TPG

EEPROMCLK
EEPROMDO
EEPROMDI
EEPROMCS

Z2020
Z2021

TPVCC

R182 220

R179 220
R187 220

C283

0.1U

RTS1# [19]

EEPROMCLK
EEPROMDO
EEPROMDI
EEPROMCS

PCIRST# [4,5,11,13,15,16,17,19,21]

SOUT1 [19]
SIN1 [19]

12

C242

10U_0805

TPG TPGTPG

C285 0.1U
C301 0.1U
C231 0.1U
C247 0.1U

TPG

U25

4

SK#

5

DI

6

DO

3

CS

S-29390AFJA

L30 0_0805

12

C288

10U_0805

VCC
TEST

NC

GND

M-L0805

2

+5VS

8

TZ2001

1
7

+5VS

C302

0.1U

L27 0_0805

TPG

TZ2002
TZ2003
TZ2004
TZ2005
TZ2006
TZ2007
TZ2008
TZ2009
TZ2010
TZ2011
TZ2012
TZ2013
TZ2014
TZ2015

1
7
8

9
10
25
26
27
28
33
34
35
36
37

U20B
Fujitsu-V032

QFP64

NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC

TZ2016

38

NC

TZ2017

39

NC

TZ2018

40

NC

TZ2019

41

NC

TZ2020

43

NC

TZ2021

44

NC

TZ2022

45

NC

TZ2023

46

NC

TZ2024

47

NC

TZ2025

48

NC

TZ2026

60

NC

TZ2027

61

NC

TZ2028

62

NC

B. T2X0C Schematics

18
17

54
53
52
50

19

16
55
57

TXD

51

58
59

56
49

24

11
12

13

X1

23

Z2025

1432

B

B

+5VS

C265

0.1U

TPG TPG

TPG

Reserved

USB_PN5[12]
USB_PP5[12]

L37 *HCB1608K-121T25
L36 *HCB1608K-121T25

+5VS

C359

*0.1U

Z2022
Z2023

PCB Footprint = 85204-0400

CN30

1

1

2

2

3

3

4

4

*USB5_CON

+5VS [5,9,11,13,14,15,19,21,22,23,24,26]

Touch Panel (71-T20C0-003) B - 21

Schematic Diagrams

Sheet 21 of 31

Hitachi H8S

B. T2X0C Schematics

Hitachi H8S

+3VH8

BOOT_FLASH#

EXT_GPI[22]

HEARTBEAT

SCLK0[28]

+3VH8

R96 10K

BRIGHTNESS[9]

CCD_EN[14]

H8_RESET#[22]

SLP_S5#[12]

PM_RSMRST#[12]

H_RCIN#[11]

LEDCLK[22]

LEDDATA[22]

PS2MS_CLK
PS2MS_DAT
PS2KB_CLK
PS2KB_DAT

SDA0[28]

BAT0_V[28]

BAT0_M[28]

I_CHG[28]

PLACE NEAR H8

PCB Footprint = 85204-0600L

PM_CLKRUN#[12,15,19]

LPC_FRAME#[12,19]

INT_SERIRQ[11,17,19]

+3VH8

+5VH8

+3VH8

SMI#[12]
SCI#[12]

R644 0

LPC_AD0[12,19]
LPC_AD1[12,19]
LPC_AD2[12,19]
LPC_AD3[12,19]

PCIRST#[4,5,11,13,15,16,17,19,20]

PCLK_H8[10]

H8_RESET#

R95 10K
R89 47K

R624 *0
R612 10K
R613 10K
R108 10K
R111 0
R151 10K

PCLK_H8

CN8

1

A

2

B

3

C

4

D

5

E

6

F

*PS2_CON

C188 0.1U

R142 10K

R110 10K

R125 10K
R126 *0

R55

47K

PCLK_H8

T131

C126

0.1U

HIRQ12

H8_PME#
H/W_GA20

H8LPCPD#
TXD1
RXD1

R102

*10

Z2111

C154

*10P

Z2110
Z2125
Z2108
Z2109
Z2127

Z2102

Z2103
Z2104

Z2105
Z2106
Z2107

0.1U

Z2101

+3VS

R138

10K

A C

H8_PME#

D21 SCS751V

+3V

R141

10K

H8_BEEP [23]

+VDD3 [13,25,27]
+3VH8 [2,22,24,26,28]
+3V [2,11,12,13,15,16,17,18,24,27]
+3VS [2,4,5,6,7,9,10,11,12,13,14,15,16,18,19,22,23,24,26]
+5VH8
+5VS [5,9,11,13,14,15,19,20,22,23,24,26]

+3VH8

L25

HCB2012K-121T30

C205

C204

10U_0805

59

9

VCL

VCC

5

MD0

6

MD1

14

P50/TXD0

13

P51/RXD0

12

P52/SCK0

16

P97/SDA0

38

P70/AN0

39

P71/AN1

40

P72/AN2

41

P73/AN3

42

P74/AN4

43

P75/AN5

44

P76/AN6

45

P77/AN7

52

P43/HIRQ11

53

P44/HIRQ1

54

P45/HIRQ12

93

P80/PME

94

P81/CS2

95

P82/CLKRUN#

96

P83/LPCPD#

97

P84/IRQ3#

98

P85/IRQ4#

82

P30/LAD0

83

P31/LAD1

84

P32/LAD2

85

P33/LAD3

86

P34/LFRAME

87

P35/LRESET

88

P36/LCLK

89

P37/SERIRQ

1

RESET#

100

RESET_OUT

7

NMI

8

STBY#

91

PB0/LSMI

90

PB1/LSCI

81

PB2/CS3

80

PB3/CS4

69

PB4/WUE4

68

PB5/WUE5

58

PB6/WUE6

57

PB7/WUE7

L39 FCM1608K-221T061 2

+5VS

TP_DATA

TP_CLK

10K

R292

10K

R291

VSS

VSS

VSS

VSS

D69 SCS751V

Z2128

40mil40mil

Z2112

C161

C185

0.1U

0.1U

36

37

AVCC

AVREF

PA2/PS2AC
PA3/PS2AD
PA4/PS3BC
PA5/PS2BD
PA6/PS2CC
PA7/PS2CD

AVSS

4692717015

AC

C410

0.1U

20mil

C129

0.1U

U8

4

H8S/2140LPC

VCCB

26

P60

27

P61

28

P62

29

P63

32

P64

33

P65

34

P66

35

P67

79

P10

78

P11

77

P12

76

P13

75

P14

74

P15

73

P16

72

P17

67

P20

66

P21

65

P22

64

P23

63

P24

62

P25

61

P26

60

P27

25

P90/IRQ2

24

P91/IRQ1

23

P92/IRQ0

22

P93/IOR

19

P94/IOW

18

P95/CS1

17

P96/EXCL

49

P40/TMCIO

50

P41/TMO0

55

P46/PWX0

56

P47/PWX1

51

P42/SDA1

99

P86/SCK1

48

PA0

47

PA1

31
30
21
20
11
10

2

XTAL

3

EXTAL

CN12

Z2117

1

1

2

2

3

3

4

4

T/P_CON

PCB Footprint = 85204-0400

+5VH8

P92

Z2124

H8BEEP

Z2114

P80IN

TP_CLK
TP_DATA
PS2MS_CLK
PS2MS_DAT
PS2KB_CLK
PS2KB_DAT

Z2115

Z2116

PWR_SW#

R86 0_0805

C123

4.7U_0805

+3VH8

RI_WKUP#
PWR_SW#
SUSC#
WEB0#
WEB1#
WEB2#
P80_CLK

P80_DAT

Z2126
WLAN_DET#

R611 10K

R150 10K

R82

10M

R83
10K

R84 *100K

P80_DAT [22]
KB-CTL1 [22]
KB-CTL2 [22]
KB-CTL3 [22]

WLAN_DET# [15]
WLAN_EN [15]

DD_ON [24,27]
KB-SCAN0 [22]
KB-SCAN1 [22]
KB-SCAN2 [22]
KB-SCAN3 [22]
KB-SCAN4 [22]
KB-SCAN5 [22]
KB-SCAN6 [22]
KB-SCAN7 [22]

SWI# [12]
AC_IN# [11,24]

FAN_ON [22]
THERMAL_SDA1 [2]
THERMAL_SCLK1 [2]

FAN_FAST [22]

R63 10K
R62 10K
R60 10K
R61 10K

Y2

10MHz

12

C130

22P

+5V

FANDET [22]

SUSC# [12]

R85 10K

D14 SCS751V

THRMTRIP# [2]

+3VH8

12

C91

22P

+5VH8

P80IN

R127 10K

AC

+5VH8

+5VH8

*0

R139

10K

WLAN_DET#
RI_WKUP#
HIRQ12
HIRQ12

+3VH8

+5VS

L240L26

LID_SW# [9,22]
PWR_SW# [24]
PWR_BTN# [12]

PIN10

PIN2

Z2123
P80_DAT
P80_CLK

+3VH8

R641 10K
R642 10K
R647 *10K
R643 10K

+3VH8

+3VH8

PWM594_ON [28]

R134
10K

PIN9

TOP VIEW

PIN1

CN32

12
34
56
78
910

H8_DEBUG

PCB Footprint = SPUFZ-10B

R51

10K

+3VS

E C

Q17
2N3904

R49

10K

Z2119

U9D

74LVC14

R52

+3VS+3VH8

1K

Z2118

B

U2
AAT3510IGV-2.93-C-C-T1

3

MR#

5

VCC

2

GND

+3V_ALWAYS

14

98

7

+3VH8

+3VH8

C131

0.1U

P80_CLK
WEB2#
WEB1#
WEB0#

R50

10K

H_A20GATEH/W_GA20

BOOT_FLASH#

RESET#

R90

10K

RXD1

TXD1
BOOT_FLASH#
H8_RESET#

+3VH8

RN2

81
72
653

4

8P4RX10K

Z2120

1

HEARTBEAT

4

WDI

H8BEEP

Z2121

Z2122

R133 1M

C201

2200P

H_A20GATE [11]

+3VH8

Q14

G

2N7002

S D

D13 *SCS751V

+3V

53

1

4

2

U13

74AHC1G08

LPC_PME#[12,19]

R45

150K

H8_RESET#

C36

0.1U

AC

B - 22 Hitachi H8S (71-T20C0-003)

LED B’d, HOT KEY B’d, FAN, K/B

HOT KEY B'd

USRDEF_SW#[24]

Z2202

2 3

T9

PCB Footprint = DT001-P12AA_IA

Z2203

T1

PCB Footprint = DT001-P12AA_IA

LED B'd

LEDDATA[21]

LEDCLK[21]

H8_RESET#[21]

FAN

FAN_ON[21]

SUSA#[10,12]

SW2
COVER_SW

1

2 3

SW1
LID_SW

1

1

A

2

B

8

CLK

9

CLR

D32

SCS751V

+3VH8

147

VCCGND

JAG_SW1#
JAG_SW2#
JAG_SW3#
TAB_SW#
ESC_SW#

U48

QA

QB
QC
QD

QE

QF
QG
QH

74AHC164

AC

COVER_SW#

R267 10K

C381

0.01U

R4 10K

C6

0.01U

C776

0.1U

SCROLL_LED

3

NUM_LED

4

CAP_LED

5

PWR_SUS_LED

6

BAT_CHARG_LED

10

BAT_FULL_LED

11

WLAN_ON_LED

12

ACIN_LED

13

R178 10K

Z2208

NDS352

Q29

G

4
3
2

1
15
14
13
12

+3VH8

LID_SW# [9,21]

+5VS

12

L28

HCB2012K-500T40

Z2209

D S

C252

10U_0805

U34

D0
D1
D2
D3
D4
D5

74HC151

+3VH8

16

VCC

5

Y

6

W

7

G

11

AD7D6

10

B

9

C

8

GND

USB_PN3[12]
USB_PP3[12]

FAN_FAST[21]

+3VH8

Z2201

EXT_GPI [21]

T122

P80_DAT
KB-CTL1
KB-CTL2

C379

0.1U

TPR[20]
TPL[20]
TPU[20]
TPD[20]

L16 HCB1608K-121T25
L15 HCB1608K-121T25

R160

Z2210

1K

L8 0_0805
L7 0_0805
L6 0_0805
L9 0_0805

+CCD5VS

C39

10U_0805

+5VS

12

Z2211

G

Q26

NDS352

Z2230

D S

A C

FANDET[21]

ACIN_LED
PWR_SUS_LED
BAT_CHARG_LED
BAT_FULL_LED

+3VH8

Z2206
Z2207

C499

0.1U

L51

HCB2012K-500T40

R161

10 _1%_0805

D34

SCS751V

JAG_SW1#
JAG_SW2#
JAG_SW3#
TAB_SW#

ESC_SW#

C391

C380

0.01U

0.01U

Z2231
Z2232
Z2233
Z2234

C498

C40

PCB Footprint = 87213-16

0.1U

0.1U

CN18

Z2212

1
2
3

CPU-FAN_CON

PCB Footprint = 53398-0390LA

C403

0.01U

CN3

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

LED Board

C404

0.01U

+3VH8

1

8

RN40

2

7

8P4RX10K

3

6

4 5

R266 10K

C405

0.01U

WLAN_ACTIVE[15]

WLAN_ON_LED

Keyboard

P80_DAT

P80_DAT[21]

KB-CTL1

KB-CTL1[21]

KB-CTL2

KB-CTL2[21]

KB-SCAN0[21]
KB-SCAN1[21]
KB-SCAN2[21]
KB-SCAN3[21]

+3VH8 [2,21,24,26,28]
+3V [2,11,12,13,15,16,17,18,21,24,27]
+3VS [2,4,5,6,7,9,10,11,12,13,14,15,16,18,19,21,23,24,26]
+5VS [5,9,11,13,14,15,19,20,21,23,24,26]
VIN [9,24,25,26,27,28]
+CCD5VS [14]

R596 *0

R595 0

KB-SCAN0
KB-SCAN1
KB-SCAN2
KB-SCAN3

+3VH8

Z2229

1
2
3

6
4
5

74LVC138

1
2
3

6
4
5

74LVC138

RP1

1
2
3
4
5

10P8RX10K

+3VS

U18

A
B
C

G1
G2A
G2B

U10

A
B
C

G1
G2A
G2B

L62

HCB1608K-121T25

PWR_SW2[24]

+3VH8

168

Y0
Y1

VCCGND

Y2
Y3
Y4
Y5
Y6
Y7

+3VH8

168

Y0
Y1

VCCGND

Y2
Y3
Y4
Y5
Y6
Y7

U41 74AHC1G14

5

VCC

4

OUT

10
9
8
7
6

HDD_LED[13]

C197

0.1U

15
14
13
12
11
10
9
7

C216

0.1U

15
14
13
12
11
10
9
7

IRTX[19]

IRRX[19]

IRMODE[19]

Z2215
Z2216
Z2217
Z2218

Z2223
Z2224
Z2225
Z2226
Z2227
Z2228

GND

+3VH8

KB-SCAN7
KB-SCAN6
KB-SCAN5
KB-SCAN4

C788

0.1U

T187

PWR_SW2

VIN

6 mils

Z2213

D27 1SS355

Z2214

D28 1SS355

D31 1SS355

D33 1SS355

D35 1SS355

D38 1SS355

Z2219

D37 1SS355

Z2220

D36 1SS355

Z2221

D15 1SS355

Z2222

D16 1SS355

D17 1SS355

D20 1SS355

D22 1SS355

D25 1SS355

D24 1SS355

D23 1SS355

1

IN

2

IN

3

SCROLL_LED
NUM_LED
CAP_LED

JAG_SW1#
JAG_SW2#
JAG_SW3#
TAB_SW#
ESC_SW#

WLAN_LED

AC

AC

AC

AC

AC

AC

AC

AC

AC

AC

AC

AC

AC

AC

AC

AC

KB-CTL3

KB-SCAN7 [21]
KB-SCAN6 [21]
KB-SCAN5 [21]
KB-SCAN4 [21]

Z2204

Z2205

SCAN0

SCAN1

SCAN2

SCAN3

SCAN4

SCAN5

SCAN6

SCAN7

SCAN8

SCAN9

SCAN10

SCAN11

SCAN12

SCAN13

SCAN14

SCAN15

CN27

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

HOT KEY Board

PCB Footprint = 87213-20

KB-SCAN7
KB-SCAN6
KB-SCAN5
KB-SCAN4
KB-SCAN3
KB-SCAN2
KB-SCAN1
KB-SCAN0
SCAN15
SCAN14
SCAN13
SCAN12
SCAN11
SCAN10
SCAN9
SCAN8
SCAN7
SCAN6
SCAN5
SCAN4
SCAN3
SCAN2
SCAN1
SCAN0

PCB Footprint = 85201-24

KB-CTL3 [21]

CP1 180PX4

KB-SCAN7
KB-SCAN6
KB-SCAN5
KB-SCAN4

CP2 180PX4

KB-SCAN3
KB-SCAN2
KB-SCAN1
KB-SCAN0

1
2
3
4

1
2
3
4

CN10

24
23
22
21
20
19
18
17
16
15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

INT-K/B_CON

8
7
6
5

8
7
6
5

Schematic Diagrams

Sheet 22 of 31

LED B’d, HOT KEY

B’d, FAN, K/B

B. T2X0C Schematics

LED B’d, HOT KEY B’d, FAN, K/B (71-T20C0-003) B - 23

Schematic Diagrams

Sheet 23 of 31

CODEC, AMP

B. T2X0C Schematics

CODEC, AMP

PLEASE PLACE CLOSE THE
POWER INPUT PINS

+3VS

C701

0.1U

AC_SDATOUT[12,15]

AC_SDATAIN0[12]

AC_SYNC[12,15]

R285 10K

C396 0.1U

C397 0.1U

C395 0.1U

C787

100U/10V_D

C777

4.7U_0805

AC_RST#[12,15]

+

C773

4.7U_0805

C704

0.1U

C703 22P

24.576MHz

C702 22P

AUDG

R628 0

C784
5P

Y6

C699

0.1U

BEEP

C398

*3300P

MUTE_OUT

C778

0.1U

C705

10U_0805

BEEP

MODEM_SPK[15]

ICH_SPKR[12]

H8_BEEP[21]

PCMSPK[17]

LINE_OUT_L

INT_L+ INT_R+

AUD_VDD

EAPD_MUTE

44

454647

48

U44

1

+3VS

AUD_VDD

12

AC_BITCLK

R564 22

Z2305

R286

10K

R629
*1K

AUDG

R598
33K

AUDG AUDG

C775

4.7U_0805

0.1U

AUDG

DVdd1

9

DVdd2

25

AVdd1

38

AVdd2

4

DVss1

7

DVss2

26

AUDG

AVss1

42

AVss2

Z2302

2

XTL_IN

Z2303

3

XTL_OUT

5

SDATA_OUT

6

BIT_CLK

Z2304

8

SDATA_IN

10

SYNC

11

RESET#

ALC201

C700 1U

C698 1U

Z2349

C711 0.1U

C715 0.1U

C407 0.1U

C399

C409 0.1U

*0.1U

AUDG

U47

Z2333

4

L_LINE IN

Z2334

5

L_HP IN

C780

0.22U

3

L_OUT+

10

L_OUT-

Z2335

6 19

L_BYPASS R_BYPASS

8

SHUTDOWN

9

MUTE OUT

7

VDD

18

VDD

C781

1

GND/HS

12

GND/HS

13

GND/HS

24

GND/HS

APA2020A

AGND:25,26,27,28,29,30,31,32,33

ID0#

EAPD

XTLSEL

SPDIFO

ALC201/ALC202

PC_BEEP

PHONE

AUX_L

AUX_R

VIDEO_L

VIDEO_R

CD_L

CD_GND_REF

CD_R

1213141516171819202122

Z2307

Z2306

Z2310

Z2309

Z2308

Z2311

Z2313

Z2312

Z2348

Z2314

TEST1/GPIO1

MIC1

MIC2

Z2315

C795 1U

R_LINE IN

R_HP IN

R_OUT+

R_OUT-

SE/BTL#

HP/LINE#

MUTE IN

R571 10K

Z2301

43

CAP1/CAP3
VRDA/CAP2
VRAD/CAP1

JD/SDIN1/GPIO0

V_REFOUT

LINE_OUT_R

LINE_OUT_L

LINE_IN_R

MONO_OUT

HP_OUT_L NC/HP_OUT_C

HP_OUT_R

39 40

41

37

Z2317

Z2316

21

20

22

15

14
16

11

2

NC

17

NC

23

NC

AUDG

34

NC/CAP4

Z2319

33

Z2320

32

Z2321

31

Z2322

30

AFILT2

Z2323

29

AFILT1

V_REFOUT

28

Z2324

27

VREF

Z2325 LINE_OUT_R

36

Z2326

35

Z2327

24

Z2328

23

LINE_IN_L

Z2318

C724 0.1U

C727 0.1U

C733 *0.1U

C726 0.1U

MIC1

C723 0.1U

C721 0.1U

C719 0.1U

Z2336

Z2337

C783

R600

0.22U

33K

Z2338

Z2339

R5931KR594

10K

AUD_VDD

Z2340

T7

Z2341

T8

Z2342

T125

C749 0.1U

C748 0.1U

C735 0.1U

C732 0.1U

AUDGAUDG

R599 20KR597 20K

C785
5P

AUDG

C779

4.7U_0805

C747 1U

C746 1U

C745 1U

C744 1000P

C743 1000P

C742 10U_0805

LINE_OUT_L

AUDG

C786

100U/10V_D

+

A C

C771
*0.1U

MUTE_IN

D65

*SCS751V

DS

C772 *0.1U

C782 *0.1U

C750 *0.1U

C755 *0.1U

C718 *0.1U

LINE_OUT_R

R_OUT+L_OUT+

INT_R-INT_L-

EAPD_MUTEMUTE_IN

Q77

2N7002

G

AUDG

AUDG

HP_SEL

ICHPWROK [9,12,13]

L40

+5VS

HCB3216K-800T30

L41

HCB3216K-800T30

CN4

Z2329

L19 SJ-160808-100A-N2

1

1

Z2330

L20 SJ-160808-100A-N2

2

2

L-SPK_CON

PCB Footprint = 85204-0200

MIC_IN

CN13

INT_MIC

1

1

2

2

INT-MIC_CON

PCB Footprint = 85204-0200

INT MICROPHONE

LINE_OUT

R_OUT+

L_OUT+

C792
270p

AUDG AUDG

AUD_VDD

PLEASE PLACE CLOSE CODEC &
AMP THE POWER INPUT PINS

C412

10U_0805

INT_L+
INT_L-

C418

10U_0805

C420

0.1U

AUDG

CN5

1

1

2

2

R-SPK_CON

PCB Footprint = 85204-0200

C415

C414

0.1U

0.1U

Z2331

L14 SJ-160808-100A-N2

Z2332

L13 SJ-160808-100A-N2

C423

C419

0.1U

0.1U

INT_R+
INT_R-

INT R-SPEAKERINT L-SPEAKER

MDC_BITCLK[15]

ICH4_BITCLK[12]

R284 22

R288 22

2.5V NET

V_REFOUT

R607 2.2K

R605 0

MIC1

C793
*220P

AUDG

R604
1K

AUDG

HP_SEL

L63

HCB1608K-121T25

L64

HCB1608K-121T25

C791

R603

270p

1K

AC_BITCLK

C394

*10P

AUD_VDD

C774

10U_0805
R592
*2.2K

Z2343 Z2344

HCB1608K-121T25
R606
*2.2K

AUDG

C790

C794

270p

270p

+3VS [2,4,5,6,7,9,10,11,12,13,14,15,16,18,19,21,22,24,26]
+5VS [5,9,11,13,14,15,19,20,21,22,24,26]

INT_MIC

AUDG

L65

R602 100KR601 1K

Z2345
Z2346

Z2347

C789

0.1U

5
4
3
6
2
1

PCB Footprint = 2SJ-S82014D3

CN29

5
4
3
6
2
1

HP_CON

GREEN

PCB Footprint = 2SJ-S82014D3

CN28

L

MIC_CON

PINK

AUD_VDD

L

R

R

B - 24 CODEC, AMP (71-T20C0-003)

+3VS, +5VS

+VDD5

C241

10U_0805

U17

1

VIN

VO

2

GND

3 4

SD BP

SI9183-3.3

+3V +3VS

+3VH8

5

Z2401 Z2409

C214

C223

0.1U

10U_0805

C207

10U_0805

SUSB#[3,12,13,16,25,26]

+3VH8

53

U33

1

R271
33

Z2411

4

SUSB

2

74AHC1G14

R565
330K

+12V

R283
1K

Z2410

Q69
2N3904

Q33

RSS090N03

8
7
6
5

B

Schematic Diagrams

Sheet 24 of 31

+3VS, +5VS

3
2
1

R270

C697

0.1U_X7R

C388

10U_0805

100K

4

C

E

VIN

R31 100K

POWER_SW

PCB Footprint = DTSGMW-66

PWR_SW2[22]

G

PWSEN

+3VH8

+5V +5VS

Q31

RSS090N03

8
7

3

D7 1SS355

VA

Z2402

D8 1SS355

DS

G

C816

Q10

0.1U

AO3409

R34 1K

Z2403

PWSEN

1234

R33 100K

R30

Z2405

100K

5

SW3

D11
SCS751V

A C

R44
100K

Z2406

+3VH8

R46

100K

Q16
2N7002

S D

R48
100K

PWR_SW# [21]

Z2404

Q9

G

2N7002

S D

C492

0.1U

+3VH8

R37
10K

Q15

G

2N7002

S D

C51

0.1U

VIN1

CA

CA

R21 0

VA

Q13
2N7002

G

DD_ONH

S D

USRDEF_SW# [22]

DD_ON[21,27]

Z2407

DD_ON

+VDD5

R23

330

B

R35

*10K

12

R563

100K

Z2408

C

Q12
DTD114EK

E

Q34

DTA114EUA

G

DD_ONH

B

Z2416

S D

CE

Q67
2N7002

A C

A C

D9
SCS751V

D10
SCS751V

12

R24 0

R280

1K

12

Z2417

AC_IN# [11,21]

+VDD5

12

R278

R279

10K

0

DD_ON#

Q68
2N7002

G

S D

DD_ON# [25,27]

+12V

R555
1K

+12V

R556
1K

6
5

2

Q63
2N3904

Q62
2N3904

B

Q65

RSS090N03

8
7
6
5

B

1

C678

4

Z2412

C362

C

0.1U_X7R

E

3
2
1

4

Z2414

C677

C

0.1U_X7R

E

10U_0805

C366

10U_0805

R550

100K

R252

100K

R243
330K

Z2413

+1.5V +1.5VS

R551
330K

Z2415

VA [28]
VIN1 [25,26,27]
VIN [9,22,25,26,27,28]
+1.5VS [3,4,5,6,11,12,13]
+1.5V [13,27]
+5VS [5,9,11,13,14,15,19,20,21,22,23,26]
+5V [7,13,14,15,18,21,26,27]
+VDD5 [12,13,25,26,27,28]
+3VH8 [2,21,22,26,28]
+3VS [2,4,5,6,7,9,10,11,12,13,14,15,16,18,19,21,22,23,26]
+3V [2,11,12,13,15,16,17,18,21,27]

B. T2X0C Schematics

+3VS, +5VS (71-T20C0-003) B - 25

Schematic Diagrams

Sheet 25 of 31

+2.5V, +1.25V, 1.5V

B. T2X0C Schematics

+2.5V, +1.25V, 1.5V

C690

+2.5V

J8

1 2

OPEN_7A

220U/4V_D

C696

12

+

47U/6.3V_D

12

+

2

1

C679

0.1U_X7R

C680

0.01U

7A

12

2

C438

R307

100P

12

12

R322
10K_1%

Z2522

R321

9.76K_1%

1

64.9K_1%

12

R314

16.2K_1%

R320 0

2

C454

1000P

1

SUSB#[3,12,13,16,24,26]

DD_ON#[24,27]

2

1

+VDD5

VIN

L58

1 2

4.7uH_BCRH124

R323 100K

R326 100K

DD_ON#

Q75B
FDS6982S

Z2512

Q47
2N7002

R312 10K

VDDP

R309 *0

VL

R310 0

+VDD5

+1.25VREF

DS

J17

OPEN_10mil

R311

10K

G

1 2

1

C752
10U/25V_1210

2

Q46
2N7002

DS

J12

OPEN_10mil

2

C751
10U/25V_1210

1

C446 1U

1 2

R318 20K

Q45
2N7002

Z2501

2

C757

0.1U

1

5

6

4

Q75A
FDS6982S

3
7

8

2

1

Z2508

G

DS

G

1 2

+VDD3

Z2511

C437

R313

*0.1U

*10K

1 2

R308 10

AC

D44

SR140

U35

27

PGOOD1

6

12

Z2502

Z2503

Z2504

Z2505

Z2506

Z2507

Z2509

DH1

3

VDDP1

4

ILIM1

5

LX1

2

DL1

7

BST1

26

SC1486

FBK1

8

REFIN

10

REFOUT

24

VOUT1

22

EN/PSV1

AGND2

AGND1

14

28

1 2

0

2

C441

*C

1

12

C445

0.1U

2

C452

*1U

1

Z2510

R325

C453 1U

C439 1U

PGOOD2

PGND1

1

VCCA1

VCCA2

TON1

TON2

DH2

BST2

ILIM2

LX2

DL2

FBK2

VDDP2

PGND2

SC1486ITSTR

15

12

12

Z2513

13

25

11

23

9

20

21

18

19

16

12

17

C436 0.1U

C444 0.1U

C450 0.1U

C829 0.1U

C830 0.1U

Z2514

Z2515

Z2516

Z2517

Z2518

Z2519

Z2520

Z2521

VDDP

1

2

C442

1U

AC

D45

SR140

C443 0.1U

1 2

R316 18K_1%

C440 1000P

12

C451 1000P

12

R315 910K_1%

R324 750K_1%

12

VIN1

2

C756

0.1U

1

5

6

Q74A

4

AO4900

L57

1 2

3

2.5UH

7

8

Q74B

2

AO4900

1

2

1

C741

C754

10U/25V_1210

10U/25V_1210

1

2

C691

C689

10U/25V_1210

*330U/2.5V_D

2

2

12

+

1

1

C693
10U/25V_1210

VL [27]
VIN1 [24,26,27]
VIN [9,22,24,26,27,28]
+1.25VS [8]
+5V [7,13,14,15,18,21,24,26,27]
+VDD5 [12,13,24,26,27,28]
+VDD3 [13,27]
+2.5V [3,4,6,7,13,16]

3A

12

C695
330U/2.5V_D

J9

1 2

+1.25VS

OPEN_3A

+

B - 26 +2.5V, +1.25V, 1.5V (71-T20C0-003)

V_CORE/ +VCCP/ +1.2VS

+5V

R339

R337

10

10K

Z2601

SGND1

C497 0.1U

C5 0.1U

C484 0.1U

C825 0.1U

J13

*OPEN_10mil

VR_ON[13]

INTVCC

VOS-

S1+

S1-

12

+5VS+VDD5

VR_ON

R42 1M

R43 *0 R40 0

R39 0 R38 *0

C464

100P

R360 787K_1%

R333

1

SGND1

R336 13.3K_1%

G

Q55

2N7002

R396 *100K

R41
*1M

SGND2

C41

0.01U

+3VH8

SGND1

R375

100K

Z2632

DS

SGND1

PM_DPRSLPVR[12]

PM_PSI#[2]

PM_STPCPU#[10,12]

13.3K_1%

R365 10

R368 10

R373 56.2K_1%

R374 1.3M_1%

R382 12.7K_1%

R381 499K_1%

DS

Q54

G

2N7002

J14

*OPEN_10mil

1 2

C34 680P

C502

0.01U

C503

0.01U

R361

Z2608

R372

2.32K_1%

SGND1

SGND1

Z2659

R398 20K_1%

R28 15K

R401 15K

R399 20K_1%

SGND2

R338 2.2K

C460 1U

Z2604

Z2605

Z2606

SGND1

Z2607

C481
1000P

Z2609

LTC3734EUH

Z2610

Z2611

Z2612

Z2613

C495

100P

R29 1M

C485 100P

C501 *180P

R397 10K_1%

Z2638

Z2639

C506

1000P

1

VOA+

2

VOA-

3

OAOUT

4

STP_CPUB

5

SGND

6

SENSE+

7

SENSE-

8

RDPRSLP

R377

Z2658

C489

3300P

SGND1

C31 100P

C30 *33P

C504 1000P

C505 *33P

Z2602

Z2603

32

U36

PSIB

FREQSET

RDPSLP

RUN/SS

9101112131415

1M

Z2640

C491

100P

SGND1

Z2624

C493

R400

6.34K_1%

SVCC

DPRSLPVR

ITH

RBOOT

R380

2.2K

C496

470P

1000P

T

R370 0

R371 *0

VFB

VID0

Z2625

Z2626

Z2627

Z2628

Z2629

Z2630

Z2631

Z2633

Z2634

Z2635

Z2636

MCH_PG

Z2615

25262728293031

BOOST

24

Z2616

PGOOD

TG

MCH_PG

Z2617

23

SW

Z2618

22

PVCC

Z2619

21

BG

20

PGND

19

VID5

18

VID4

17

VID3

VID1

VID2

N/C

16

Z2614

T

R386 10

R384 10

T

28

30

31

1

2

3

4

5

6

8

9

11

12 13

Z2637

R385 10

R387 10

Z2643Z2642

32

29

RUN/SS1

NC

NC

SENSE1+

SENSE1-

VOSENSE1

PLLFLTR

PLLIN

FCB

ITH1

SGND

ITH2

VOSENSE2

SENSE2-

SENSE2+ RUN/SS2

NC

NC

10

16

Z2656

Z2657

T

T

RUN_SS

SUSB# [3,12,13,16,24,25]

Z2641

LTC3728LX

BOOST1

EXTVCC

INTVCC

BOOST2

+5VS

AC

C473

0.22U/16V_10%

H_VID5
H_VID4
H_VID3
H_VID2
H_VID1
H_VID0

SGND1

U37

PGOOD

TG1

SW1

VIN

BG1

PGND

BG23.3VOUT

SW2

TG2

Schematic Diagrams

+3VS

C2
10U/25V_1210

C522

0.01U

VR_ON

J1

1 2

OPEN_4A

C3
10U/25V_1210

R358 0

C508
330U/2.5V_D

Q48
2N3904

+VCCP

C511 0.1U

C477 0.1U

C478 0.1U

C826 0.1U

C827 0.1U

C828 0.1U

SGND2

V_CORE

VIN

C570

C557

C546

0.1U_X7R

0.1U_X7R

0.1U_X7R

C458

0.1U_X7R

VOS+

25A

1 2

C510

C509

C521

330U/2.5V_D

330U/2.5V_D

0.1U_X7R

VOS-

CLKEN# [10]

PG_VGATE [4,12]

(For 855GME, +1.2VS -> +1.35VS)

RUN_SS

R26
100K

DS

Z2650

Q52

G

2N7002

DS

J15

*OPEN_10mil

1 2

B

C507
330U/2.5V_D

R359 0

R354

1.91K_1%

C

E

SGND1

+3VH8

G

Q8
2N7002

R16
*10K

R398 : 14K FOR GME Solution

V_CORE [3]
VIN [9,22,24,25,27,28]
+5V [7,13,14,15,18,21,24,27]
+5VS [5,9,11,13,14,15,19,20,21,22,23,24]
+1.2VS [5,6]
+VCCP [2,3,5,6,12,13]
+3VS [2,4,5,6,7,9,10,11,12,13,14,15,16,18,19,21,22,23,24]
+3VH8 [2,21,22,24,28]

J7

OPEN_25A

C535

0.1U_X7R

C526

0.1U_X7R

C589
*330U/2.5V_D

C563

0.1U_X7R

C590

*330U/2.5V_D

C528

0.1U_X7R

V_CORE

R340

*10K

VCORE_PWGD

D52

SR140

R616 0

R383

1

C474

C483

4.7U_0805

1U

R617 0

H_VID[5:0] [3]

JP1

21

JUMP

C799 *0.1U

Z2644

R15 10K
R14 0

T

Z2645

Z2646

27

26

C21 0.1U

25

Z2647

24

Z2648

23

Z2649

22

Z2660

R22 0

21

C472

C479

20

4.7U_0805

1U

19

187

Z2651

17

15

C486

14

0.1U

RUN_SS

C487

0.1U

SGND2

CPU_VCORE

62738

5

IRF7811AV

4

1

Z2661

+5V

62738

5

62738

5

Q11

Q49

IRF7822

IRF7822

4

1

1

+3VS

SGND1

MCH_PG

3

4

Q57A

AO4900

2

5

6

VIN1

C13

0.1U

5

6

4

8

3

Q58B

Q58A

AO4900

AO4900

SCS751V

+5VS

D55

SCS751V

4

Z2662

+3VS

D6

AC

R364 10

AC

Z2652

Z2653

Z2654

Z2655

Q1

Z2620

R366

249K_1%

R369

80.6K_1%

7

1

1

7

D54

DAN202U

8

62738

5

4

62738

5

4

Q50

B

A1

A2C

L47

1 2

4.7UH

Q57B

AO4900

2

1 2C494 1000P

SGND2

C815

C456

C457

C814

10U/25V_1210

10U/25V_1210

10U/25V_1210

10U/25V_1210

Q2

1

IRF7811AV

R407

L11 0.5UH

1 2

1m_2512

S1+

Q7

D12

IRF7822

SK54A

1

A C

R363

1M

Z2621

G

C

E

2N3904

R353 *0

S1-

+3VS +3VS

R355

2K_1%

DS

Q51

R356

2N7002

4.12K_1%

R357 43.2K_1%

Z2622 Z2623

C463

SGND1

1U

SGND1

+VCCP & +1.2VS

1.2V

+1.2VS

C88

330U/2.5V_D

C515

3A

3.8A

C86

330U/2.5V_D

1 2

C108

C87

0.1U_X7R

0.01U

VIN

C514

10U/25V_1210

1.05V

C106

0.1U_X7R

J2

OPEN_3A

C89

0.01U

R54

10m_1206

C55

10U/25V_1210

0.1U

R53

L48

4.7UH
10m_1206

JP2

21

JUMP

Sheet 26 of 31

V_CORE/ VCCP/

+1.2VS

B. T2X0C Schematics

V_CORE/ +VCCP/ +1.2VS (71-T20C0-003) B - 27

Schematic Diagrams

Sheet 27 of 31

5V, 3.3V, +1.2V, 1.5V

B. T2X0C Schematics

5V, 3.3V, +1.2, 1.5V

C421

C734

10U/25V_1210

10U/25V_1210

C431

R301

*100P

60.4K_1%

R300

19.1K_1%

FCB:0V for continuous mode

Open for burst mode

5V for constant mode

C717

R574

10U/25V_1210

100K

C692
10U/25V_1210

R298

10m_2512

VL

+3V

R560
100K

5A

J6

1 2

+VDD3

OPEN_5A

C426

C728

+

+

220U/4V_D

*220U/4V_D

+VDD3 +3V

+12V

R268

100K

DD_ON#

DD_ON#[24,25]

+VDD5 +5V

+12V

R561

100K

DD_ON#

Z2730

Z2731

8

5

G

8

5

G

Q36
RSS090N03

4

DS

Q35
RSS090N03

4

DS

C712

0.1U_X7R

Q32
2N7002

Q70
2N7002

376
2
1

376
2
1

C374

0.1U_X7R

C694

0.1U_X7R

C716

0.01U

Z2706

C424

0.1U

L60

4.7UH

R579 0

C425

0.01U

R581 *15K

R580

C736

*0

*0.01U

PLLFLTR:0V for 220KHZ

J19

12

OPEN_10mil

C387

C706

0.1U

0.01U

VIN

6

4A

8

VL

2A

5

Q43A
AO4900

4

3

Q43B

7

AO4900

2

1

Z2708

R568 *0

+VDD5

R302 0

5V for 640KHZ

C392

10U_0805

C408

0.1U

Z2706

Z2707

C737

*1000P

C738

33P

R303

*0

VIN1

AC

D42
SR140

LTC3728LX

Z2701

24

Z2702

26

Z2703

25

Z2704

22

Z2705

30

C729

1000P

31

1

3

Z2709

5

7

Z2710

21

Z2711

4

Z2712

2

6

Package:
TO252AB

Q66

3 2

VIN VOUT

ADJ

AP1084

1

U45

BOOST1

TG1

SW1

BG1

SENSE1+

SENSE1-

VOSENSE1

PLLIN

ITH1

3.3VOUT

EXTVCC

FCB

PLLFLTR

SGND

R569 0

Z2728

R570

0

V+

23

VIN

INTVCC

BOOST2

SENSE2+

SENSE2-

VOSENSE2

PGOOD

RUN/SS1

RUN/SS2

J18

12

OPEN_10mil

Q39
DTA114EUA

Z2736

R566

10m_2512

R295

105K_1%

R577

19.6K_1%

0.1A

A C

C730

D61

10U/25V_1210

11FS2

DD_ON[21,24]

5A

C416

2200P

B

Z2735

Q41

DTC114EUA

C

B

E

C406

47U/6.3V_D

+

C708

C707

0.1U

0.01U

DD_ON#

VIN

VL

C411
10U_0805

C713

0.1U

TG2

SW2

BG2

ITH2

NC
NC
NC
NC

PGND

Z2729

R264

510_1%

R265

118_1%

C401

0.1U

2A

5

C400

0.1U

R572 1M

R290 1M

C720

0.1U

AO4900

C376

10U_0805

Q42B

4

2

V+

C429 0.1U

C714 0.1U

C432 0.1U

C823 0.1U

C824 0.1U

6

Q42A
AO4900

3

4A

7

8

1

1 2

D43

A C

20

Z2713

17

SR140

Z2714

14

Z2715

15

Z2716

18

Z2717

12

C722

1000P

11

Z2720

9

C430

R29915K

100P

Z2722

Z2721

8

27

C739

33P

10
16
29
32

Z2723

28

Z2724

13

C725

19

0.1U

3A

C377

C378

0.01U

0.1U_X7R

J4

OPEN_3A

C427

+

10U/25V_1210

Z2719

L59 1:2.2

4 3

+1.5V

C428

+

10U/25V_1210

21

Q72 2SC4672

Z2734

CE

R567 1K

Q64
2SD1782K

+VDD5

+5V

R631
*22

Z2718

DS

Q79

G

*2N7002

Z2732

B

Z2726

C

B

E

Z2727

ZD1

A C

Z2733

EC

0.1A

R558

11.5K_1%

R559

1.2K_1%_0805

R557
10K_1%

5.1V

+3V [2,11,12,13,15,16,17,18,21,24]
+VDD3 [13,25]
VIN1 [24,25,26]
VIN [9,22,24,25,26,28]
VL [25]
+VDD5 [12,13,24,25,26,28]
+5V [7,13,14,15,18,21,24,26]
+1.5V [13,24]
+12V [9,14,18,24]

R562 0

C709

10U/25V_1210

J10

Z2725

1 2

+12V

OPEN

B - 28 5V, 3.3V, +1.2, 1.5V (71-T20C0-003)

Charger

VA

C413

0.1U

PWM594_ON[21]

C402

10U/25V_1210

C417

10U/25V_1210

Schematic Diagrams

Sheet 28 of 31

Q37
SI4835

8

62
5731

4

R293

C710

2K_0805

*10U/25V_1210

Q38

C

2SD1782K

Z2801

B

E

D59

1N4148

DS

Q73

G

2N7002

PIN4

PIN1

PIN3

BOTTOM VIEW

PIN2

Z2802

AC

(0~3V--->0A~3A)

C434

0.1U

L61

Z2803 Z2804

1 2

47uH_BCRH124

CA

D60

SM340B

R305

40.2K_1%

R306
10K_1%

Z2809

C740

0.1U

U46B
LM358

C435

10U/25V_1210

7

C753

10U/25V_1210

VA

84

5

+

6

-

R304 49.9K_1%

C433 *0.01U

VB

+VDD5

R576

C758

*10U/25V_1210

Z2806

R573 0

Q40

*AO3401

E C

R296
*100K

Z2812

G

*10K

R294

49.9K_1%

B

Z2810

R578
*10K

Z2811

DS

Q71
*2N7002

R317

100m_2512

2.5A2.5A

R575
1K_1%

C731

*C

R289

VBB

30K_1%

Z2807

Z2805

C422

*0.01U

R297
1K_1%

R287

6.8K_1%

D62

SM340B

CA

U46A
LM358

1

SCLK0[21]

SDA0[21]I_CHG[21]

BAT0_M[21]

C393

1U

VA

84

+

-

BAT0_V [21]

VB

F2
7A

Z2808

C762

0.1U

3

2

R614

2.2K

C449

C448

33P

33P

C767

C768

0.1U

0.1U

+3VH8

D46

1SS327D_0805

D48

1SS327D_0805

D47

1SS327D_0805

A C

D49

1SS327D_0805

A C

R319
10K

D50

1SS327D_0805

A C

CN24

1
2
3
4
5
6
7

BAT_CON

PCB Footprint = TBTC-007

R615

2.2K

A C

C447

33P

A C

Charger

B. T2X0C Schematics

CN14

VA+

1
2
3
4
5

POWER_JACK

PCB Footprint = 2DC-S126-B01

D51

SM1040D1(TO-252)

C804

C803

0.1U

0.1U

VB

Q44

AO4407

Q76
AO4407

A1A2C

R3
10K_0805

5
6 2
7 3
8

8
7 3
6 2
5

VIN

C805

C807

C806

C1

0.1U

0.1U

0.1U

4
1

1
4

C809

C810

C808

0.1U

0.1U

C811

C820

C821

0.1U

0.1U

0.1U

C822

0.1U

0.1U

0.1U

VA [24]
+3VH8 [2,21,22,24,26]
+VDD5 [12,13,24,25,26,27]
VIN [9,22,24,25,26,27]

R1
10K_0805

VA

R2
10K_0805

Z2813

C459

0.1U

L42

EMI CHOKE

4 1

23

C4

0.1U

F1

7A

C812

C813

C462

0.1U

0.1U

0.1U

Z2814

Charger (71-T20C0-003) B - 29

Schematic Diagrams

Sheet 29 of 31

Hot Key

B. T2X0C Schematics

Hot Key

KHDD_LED#

KSCROLL_LED

KNUM_LED

KCAP_LED

KWLAN_LED

KH5

KH1

C276D111

C197D87

KR9 1K

KR5 1K

KR7 1K

KR1 1K

KH3
C197D87

KD4

HDD LED

KH4
C237D111

AC

Z2902

Z2911

Z2912

Z2913

KR3 220

Z2901

Z2903 Z2904

C

B

E

KQ3

MMBT3904

KGND

Z2905

C

B

E

KQ1

MMBT3904

KGND

Z2907

C

B

E

KQ2

MMBT3904

KGND

Z2909

C

B

E

KQ4

MMBT3904

KGND

KH7

KH6

C48D48

C48D48

KD1

AC

SCROLL LED

KD3

AC

NUM LED

KD2

AC

CAP LED

KD5

AC KR10 220

WLAN LED

KH2
C48D48

Z2906

Z2908

Z2910

KR8 220

KR4 220

KR6 220

K+3VS

KIRTX
KIRRX
KIRMODE
KSCROLL_LED
KNUM_LED
KCAP_LED
KJAG_SW1#
KJAG_SW2#
KJAG_SW3#
KTAB_SW#
KESC_SW#
KHDD_LED#
KWLAN_LED

KPWR_SW2
KVIN

20 mils

KCN1

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

INDICATOR CON.

K+3VS

KJAG_SW1#

KJAG_SW2#

KJAG_SW3#

KC1

*10u_0805

KGND

KSW1

910

7

E

1

EE

1

2

2

5

DIP

T

6

C

3

3

4

4

8

E

JAG DIAL

KGND

KGND

TFDU6102F:3.3 ohms 0.5W
HSDL-3603:4.7 ohm 0.5W

KC3

KC2

0.1u

10u_0805

30 mils

KC4

KC5

*10u_0805

0.01u

KGND

K+3VS

TFDU6102F:0 ohm
HSDL-3603:Open

KGND

KGND

KSW4

1

2

SW 2P

3 4

KGND

KSW3

1

2

SW 2P

3 4

KGNDKGND

KSW2

1

2

SW 2P

3 4

KGND

KTAB_SW#

KESC_SW#

KPWR_SW2

KVIN

IR Transceiver

TFDU6102F:10 ohms 0.125W
HSDL-3603:0 ohm 0.125W

K+3VS

Z2914

Z2915

KIRTX
KIRRX

KIRMODE

KR12

10_1206

10 mils
10 mils

10 mils

Z2916

50 mils

KGND

KU1

6

VCC

1

IREDA

2

IREDC

3

TXD

4

RXD

5

SD/MODE

7

MODE/NC

8

GND

TFDU6102F/HSDL-3603

KR11

3.3_2010

50 mils

KC6

0.1u

KR13 0

B - 30 Hot Key (71-T20C0-003)

KGNDKGNDKGNDKGNDKGND

Inverter

Schematic Diagrams

Sheet 30 of 31

Inverter

VAGND

VCN2

INV

Z3011

Z3012

VR9

100K

VISFB

VC3

1.5nF/X7R

VC2 1uF25V

1 2

1 2

VC5

Z3001

0.1nF25V

1 2

1 2

Z3002

20

FT

ISFB

VLSB

AGND

COMP

MP1015

DBRT

ABRTILBOSENDRV

12356

Z3013

Z3014

Z3015

VC32 0.1uF(0805)

1 2

VC19 1uF(0805)

VAGND

1 2

VC20 0.01nF

1 2

VAGND

1 2

Z3016

1 2

VGND

VC4

1uF/25V(0805)

1 2

VC6 0.47uF25V(0805)

VC7

10nF/X7R

1 2

Z3005

Z3004

Z3003

111213141516171819

BtR

REF

OutR

BATT0

PGnd_R

VU1

BtL

PGnd_L

BATT1

OutL

10

947

8

VC12

VC13 0.1uF(0805)

Z3019

0.01u

1 2

VR20

VC16 1uF(0805)

4.3K1%(0805)

1 2

1 2

VGND

VR22 100K

1 2

1uF/X7R/1206/16V

VAGND

VN1

VR8

300K

VVREF

1 2

VVREF

VR26

2K

1 2

VC33

Z3017 VComp

12

B

VH4
C111D111

VGND

E

VQ9

C

2N3906

IN

VBRIGHTNESS
VEN_ON

VJ1

1 2

CLOSE

VH5
C111D111

220P - 680P

VAGND

VH6
C197D111

VR27

Z3018VN1

12

20K

1
2
3
4
5
6

VGND

VH2

VH1
C197D111

VGND

C197D111

VH3
C197D111

VF1

1 2

VComp

1A

VR11

VR12

121K/1%

0

1 2

1 2

VR18 10K1 2

VR19 01 2

12

12

VC18

VC17

10uF/25V(1206)

10uF/25V(1206)

VGND

VR10

1K(0805)

VC8

1 2

AC

VD1
ZD36V

Z3006

VD2
ZD36V

A C

12

Z3007

Z3008

VT1

2 7
1

3 9
4 6

23:1900

Z3009
Z3010

8

0.1uF/X7R

VT6

VC11
82nF

VC10

12

VR14

2K/1%

1 2

VC30 10PF/3KV

12

12

VR15 300K

VC31 10nF

12

VN1

1 2

VC14

12

VC15

3300PF50V

1000P50V

1 2

VAGND

VCN1

123

HV

123

4

4

12

VR17

147/1%

B. T2X0C Schematics

Inverter (71-T20C0-003) B - 31

Schematic Diagrams

Sheet 31 of 31

LCD LED Board

B. T2X0C Schematics

LCD LED Board

WR12 1K

Z3101

MMBT3904

Z3102

MMBT3904

WR10 1K WR4 220

Z3103

MMBT3904

WR9 1K

Z3104

MMBT3904

WCN2

1
2
3
4
5
6
7
8
9
10
11
12

TO M/B CON.

W+3VH8

WSUS_ON

WACIN

WBAT_FULL

WBAT_LOW

WTPR
WTPL
WTPU
WTPD

WACIN
WSUS_ON
WBAT_LOW
WBAT_FULL

WGND

WQ4

WQ3

WQ1

COMPONENT SIDE

Z3105

C

B

E

WGND

Z3106

CWR11 1K

B

E

WGND

Z3107

C

B

E

WGND

Z3108

C

B

E

WGND

WD1

C1
C2

LED-OG

WD4

C1
C2

LED-OG

SOLDER SIDE

COMPONENT SIDE

WD2

C1
C2

LED-OG

WD3

C1
C2WQ2

LED-OG

SOLDER SIDE

WR3 220

Z3109

A1

G

Z3110

A2

O

WR6 220
WR2 220

Z3111

A1

G

Z3112

A2

O

WR5 220

WR1 220

Z3113

A1

G

Z3114

A2

O

WR7 220

Z3115

A1

G

Z3116

A2

O

WR8 220

W+3VH8

W+3VH8

SIGNAL BAT FULL

BAT_FULL

BAT_LOW

COLOR

SIGNAL

SUS_ON

ACIN

COLOR GREEN

COMPONENT SIDE

D3

D2D4D1

PCB

BAT
CHARGING

LO

HI

ORANGE GREEN

POWER ON

HI

LO LO

YU

XL XR

YD

WH7
C197D111

ACIN

LO

HI

ORANGE

WH4
C197D111

HI

LO

0.5Sec-HI

2.0Sec-LO

WTPU
WTPL
WTPD
WTPR

WH6
C197D111

STR

FLASH
GREEN

WH2
C197D111

BAT FAIL

HI

HI

GREEN/
ORANGE

1
2
3
4

WGNDWGNDWGNDWGND

0.5Sec-HI

2.0Sec-LO

1234

YUXLYDXR

WCN1

TP CON.

85202-04L

WH1
C111D111

BAT LOW

LO

FLASH
ORANGE

WH5
C111D111

SOLDER SIDE

B - 32 LCD LED Board (71-T20C0-003)

Appendix C: T200V/T210V Schematic Diagrams

This appendix has circuit diagrams of the T200V/T210V computers PCB’s:

Schematic Diagrams

Diagram - Page Diagram - Page

System Block Diagram - Page C - 2 HDD, MDC, BT, Indicator, WLAN - Page C - 16

VIA C3 (1 of 2) - Page C - 3 LAN PHY VT6103 - Page C - 17

VIA C3 (2 of 2) - Page C - 4 PCMCIA ENE CB710 - Page C - 18

VT8623 (1 of 3) - Page C - 5 PCM Socket, 4 In 1 Socket - Page C - 19

VT8623 (2 of 3) - Page C - 6 SIO, BIOS, FIR - Page C - 20

VT8623 (3 of 3) - Page C - 7 H8S / 2104LPC - Page C - 21

DDR SO-DIMM - Page C - 8 Fan, CRT, Inverter, DC, Power_GD - Page C - 22

DDR Termination - Page C - 9 Audio Codec VT1616 - Page C - 23

LVDS Transmitter, Panel I/F - Page C - 10 Touch Panel Controller - Page C - 24

Clock (W311 + W256) - Page C - 11 System Power 1 - Page C - 25

VT2835 (1 of 3) - Page C - 12 System Power 2 - Page C - 26

VT2835 (2 of 3) - Page C - 13 System Power 3 - Page C - 27

VT2835 (3 of 3) - Page C - 14 CPU VCORE - Page C - 28

All USB 2.0 Port - Page C - 15 Charger - Page C - 29

Table C - 1

Schematic Diagram

C. T20XV Schematics

C - 1 (71-T2000-004)

Schematic Diagrams

Sheet 1 of 29

System Block

Diagram

System Block Diagram

CLOCK GEN. W311

CPUCLK
HCLK_NB
PCLK_SB
PCLK_CB
PCLK_H8
PCLK_SIO
PCLK_MINIPCI
SB_OSC
VCLK
USBCLK
GCLK_NB
GUICLK
LPCSIO
APICCLK
APICCLK_SB

PANEL

CLOCK BUF. W311

DDR

CRT

LVDS

LVDS I/F

1631

VIA-C3
Processor

North Bridge
VT-8623

128/256/512MB DDR SDRAM

DDR SO-DIMM 1

DDR SO-DIMM 0

DDR I/F

AC 100~240V

+VCORE(+1.25V)
+VCCP(+1.5V)
+5VH8
+3VH8
VTT_MEM(+1.25V)
+2.5V
+3V
+5V
+12V
+2.5VS
+3VS
+5VS

RJ-11

ADAPTER
AC/DC

DC/DC

MIC
IN

INT
SPK

H/P
OUT

C. T2X0V Schematics

C - 2 (71-T2000-004)

TOUCH PAD

INT. KBD

WireLess
LAN

DIGITAL
CAMERA

CPU
FAN

USB2.0

MICRO-P
H8/2140

THERMAL
SENSOR

USB*2

LPC BUS

H8 SMBUS

BATTERY

CHARGER

V-LINK

South Bridge
VT-8235

Super I/O
VT1211

FIR
TFDU6102E

SERIAL PORT
ISA

BIOS ROM
A29040AL

SYSTEM SMBUS

AC'97 I/F

TOUCH
PANEL

33MHz

ATA-100

PCI BUS

MACII I/F

IDE

H.D.D.

MDC
MODULE

LAN/PHY
VT6103

RJ-45

PCMCIA SOCKET*1

ENE
710/BGA

CODEC
VT1616

AMP
TPS0202

CARD READER

4 in 1 SOCKET*1

VIA C3 (1 of 2)

VIA C3 PROCESSOR

HA[31:3][3,4]

ADS#[3,4]
DRDY#[3,4]
DBSY#[3,4]

HTRDY#[3,4]
HREQ0#[3,4]
HREQ1#[3,4]
HREQ2#[3,4]
HREQ3#[3,4]
HREQ4#[3,4]

BREQ0#[3,4]
BREQ1#[3]

BPRI#[3,4]
BNR#[3,4]

HLOCK#[3,4]

HIT#[3,4]

HITM#[3,4]

DEFER#[3,4]

RS0#[3,4]

RS1#[3,4]

RS2#[3,4]

CPURST#[3,4]

For LongHaul stability issue

HA3
HA4
HA5
HA6
HA7
HA8
HA9
HA10
HA11
HA12
HA13
HA14
HA15
HA16
HA17
HA18
HA19
HA20
HA21
HA22
HA23
HA24
HA25
HA26
HA27
HA28
HA29
HA30
HA31

C259

33p

Schematic Diagrams

Sheet 2 of 29

HD[63:0]

HD0

HD1

HD2

HD3

HD5

HD4

HD7

HD6

HD14

HD15

HD12

HD13

HD8

HD9

HD11

HD10

R3N1H3F2P1M2N2D3M3J1K1G3K2F1H2P2C4L3J2B1E3A3B9A2D1C5B4

A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31

ADS
DRDY
DBSY
TRDY
REQ[0]
REQ[1]
REQ[2]
REQ[3]
REQ[4]
BREQ
BREQ[1]
BPRI
BNR
LOCK
HIT
HITM
DEFER
RS[0]
RS[1]
RS[2]
RESET

GND
GND
GND
GND
GND
GND
GND
GND
GND

GND

GND

D15

D14

GND

GND

GND

D11

D10D7D6

D0D1D2D3D4D5D6D7D8

GND

AD6
AD9
AD5
AD7

AF10

AE8
AF6
AE3
AE9

AD4

AF5

AE10

AF4
AE6
AA2

U2

AB3

Y3

AC1

AB1

Y2
W3

AC3

T2
V1

AF2

U1

V2

AA1

AE20
AF18
AD19
AE16
AE13
AD11
AE12
AE14
AE11
AD20

AD1

AD12

AF9
AF14
AE17
AD16
AF13
AE18
AD15
AE19

T3

B22

B5
B2

C14

C3
D25
D22
D19
D18

D9

D10

D11

D12

D13

D14

VIA C3 EBGA 376

000
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

E25

E19

E14E4E2

GND

F25

F23

G24

G23G1H26H5H4

J25J4J3

HD24

HD23

HD29

HD21

HD27

HD19

HD16

HD18

HD17

D15

D16

D17

D18

0
0
0
0
0
0
0
1
11
11
111
11
11 1
111
1111
0
0
0
0
0
0
0
0
1
11
11
111
11
11 1
111
1111

GND

GND

GND

GND

L26

L23L1M4

HD28

HD26

HD31

HD25

HD20

HD22

HD30

HD32

HD34

HD33

B12B7C7C2A6A5C6C8B6

D19

D20

D21

D22

D23

D24

D25

D26

D27

D28

D29

D30

D31

D32

D33

BR0BR1BR2BR3BR4 RATIO

9.0X

00

0

0

3.0X

1
0

1
11
0

0

0

0

0

0

0

0

0

0

0

0

0

0
0

1
0

1
11

0

0
0

0

0

0
0

0

0

0
0

0

GND

GND

GND

GND

GND

GND

P24

P23

P22R1T26T4U4

4.0X

10.0X

5.5X

3.5X

4.5X

9.5X

5.0X

7.0X

8.0X

6.0X

12.0X

7.5X

8.5X

6.5X

11.0X

12.0X

13.5X

11.5X

12.5X

10.5X

13.0X

15.0X

16.0X

14.0X

15.5X

14.5X

GND

GND

GND

GND

GND

GND

V24

V23

0
0
1
11
11
111
0
0
0
0

0
0
0
0
1
11
11
111
0
0
0
0

GND

GND

GND

N25N5N4N3P25

HD36

HD37

HD35

B10

A10A9C11

D34

D35

D36

GND

GND

GND

W23

W22W5W4W1Y26Y4AB25

HD38

D37

D38

GND

GND

HD50

HD58

HD57

HD56

HD42

HD43

HD41

HD40

HD44

HD39

C15

A14

B13B8C12

D39

D40

D41

D42

D43

GND

GND

GND

GND

GND

AB23

AB13

HD53

HD45

HD47

HD46

HD48

HD49

B11

B20

B15

B18

A13

A22

D44

D45

D46

D47

D48

D49

GND

GND

GND

GND

GND

GND

AB8

AB2

AC21

AC20

AC17

AC16

HD59

HD54

HD55

HD52

HD51

B14

B17

A21

D50

D51

D52

GND

GND

GND

AC13

AC12

AC8

HD62

HD63

HD61

HD60

B19

A18

A23

C19

B21

A17

C23

B24

C22

C16

D53

D54

D55

D56

GND

GND

GND

GND

AC7

AC5

AD24

AD17

U33A

D57

D58

D59

D60

D61

D62

D63

PWRGOOD

THERMDP
THERMDN

NCHCTRL

RTTCTRL

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

AD3

AE26

GND

AE25

AE5

AE2

AE1

AF26

AF23

AF19

AF15

AF11

BCLK

BSEL0

BSEL1

VID[0]
VID[1]
VID[2]
VID[3]
VID[4]

PICD0
PICD1

PICCLK

DVIDEN

FERR

IGNNE

STPCLK

FLUSH

PREQ

VREF0
VREF1
VREF2
VREF3
VREF4
VREF5
VREF6
VREF7

GND

AF7

AF1

HD[63:0] [3,4]

R97 *22 C220 *10p

M23

BSEL0#

AF24
AF17

BSEL1#

AF22
AF21
AE21
AC24
AC26
AB24
AA24
AB26

BR0

R26

BR0

BR1

P26

BR1

BR2

N26

BR2

BR3

M26

BR3

BR4

E26

BR4

VCORE_PLL1

T23

PLL1

VCORE_PLL2

R23

PLL2

APICD0

K23

APICD1

M24

APICCLK

C20

NCHCTRL

K24

RTTCTRL

J23

DVIDEN

C26

CPU_FERR#

T24

CPU_IGNNE#

Y25

CPU_A20M#

W24

A20M

CPU_INTR

H25

INTR

CPU_NMI

H24

NMI

CPU_SMI#

AA25

SMI

CPU_STPCLK#

Y24

CPU_SLP#

AD21

SLP

U25

CPU_INIT#

AA26

INIT

P_REQ#

U26

CPUVREF

D23
D16
G4
L4
R4
AA4
AC9
AC15

Y1

GND

A26

GND

A20

GND

A16

GND

A12

GND

A8

GND

A1

GND

B26

GND

B25

GND

GND

VIA-C3

08-10621-2B0

C240

10u_1206_X5R

R115 14_1%
R91 110_1%
R316 *0

C198

0.1u_X7R

C224

0.1u_X7R

Use 0603 Packages and
distribute within 500
mils of CPUVREF inputs
(1 cap for every 1 input)

C186

0.1u_X7R

C272

0.1u_X7R

CPUCLK [10]

PWRGD_CPU [21]

DTD+ [3]
DTD- [3]
CPUVID0 [27]
CPUVID1 [27]
CPUVID2 [27]
CPUVID3 [27]
CPUVID4 [27]

C239

22u_1206_X5R

APICD0 [3,13]
APICD1 [3,13]
APICCLK [10]

+VCCP

CPU_FERR# [3,13]
CPU_IGNNE# [3,13]
CPU_A20M# [3,13]
CPU_INTR [3,13]
CPU_NMI [3,13]
CPU_SMI# [3,13]
CPU_STPCLK# [3,13]
CPU_SLP# [3,13]
FLUSH# [3]
CPU_INIT# [3,13]
P_REQ# [3]

C209

C183

0.1u_X7R

0.1u_X7R

C268

C277

0.1u_X7R

0.1u_X7R

L36

LQG21N4R7K10

C236

0.1u_X7R

+VCCP

R128
75_1%

R120
150_1%

VCORE

VIA C3 (1 of 2)

Sheet 3 of 29

C. T2X0V Schematics

C544 *56p C203 0.1u_X7R

CPU_SMI#

C545 *56p

CPU_STPCLK#

C550 *56p

CPU_SLP#

C546 *56p

CPU_INIT#

C519 *56p

CPU_INTR

C537 *56p

CPU_FERR#

C265 *56p

CPU_IGNNE#

C539 *56p

CPU_A20M#

CPU VTT Decoupling Caps X 10 Pcs

+VCCP

C178 0.1u_X7R

C249 0.1u_X7R

C255 0.1u_X7R

C151 0.1u_X7R

C146 0.1u_X7R

C205 0.1u_X7R

C305 0.1u_X7R

C244 0.1u_X7R

C72 0.1u_X7R

R367 1K

R366 *1K

R136 1K

R139 *1K

+VCCP

BSEL0#

BSEL1#

CPU PSB default setting 133MHz

BSEL1# : BSEL0# = 1 : 1 --> 133MHz

BSEL1# : BSEL0# = 0 : 0 --> 66MHz

BSEL1# : BSEL0# = 1 : 0 --> 100MHz

R108 *0

BR0

R340 0

BR1

R99 *0

BR2

R334 *0

BR3

R318 0

BR4

CPU Default setting 1GHz (133X7.5)

BR4:BR3:BR2:BR1:BR0
0 : 1 : 1 : 0 : 1

CPU setting 1.2GHz (133X9.0)

BR4:BR3:BR2:BR1:BR0
0 : 0 : 0 : 0 : 0

+VCCP [3,4,27]
VCORE [3,27]

( 1.5V )
( 1.25V )

(71-T2000-004) C - 3

Schematic Diagrams

Sheet 4 of 29

VIA C3 (2 of 2)

C. T2X0V Schematics

VIA C3 (2 of 2)

GTL+ PULL-UP RES NETWORK

The CLE266 add a feature for NB internal GTL pull-up,
the internal pull-up strength is stronger than previous NB,
so if enable the internal GTL pull-up,
can remove the CPU GTL pull-up R-PACK except CPURST#

HA11
HA8
HA4
HA6
HA7
HA14

BNR#[2,4]

HREQ1#[2,4]

HA10
HA12
HA15
HA5
HA13
HA16
HA3
HA9
HA25
HA19
HA21
HA28
HA31
HA22
HA17
HA23
HA27
HA30
HA24
HA20

HA29
HA26
HA18

HREQ4#[2,4]
HREQ2#[2,4]
HREQ0#[2,4]

BPRI#[2,4]
DEFER#[2,4]
HREQ3#[2,4]
HLOCK#[2,4]

RS1#[2,4]

HTRDY#[2,4]

RS0#[2,4]
RS2#[2,4]

HITM#[2,4]

DRDY#[2,4]

DBSY#[2,4]

HIT#[2,4]

BREQ0#[2,4]

ADS#[2,4]

CPURST#[2,4]

BREQ1#[2]

CPU_SLP#[2,13]

CPU_SMI#[2,13]

CPU_STPCLK#[2,13]

CPU_IGNNE#[2,13]

FLUSH#[2]

CPU_A20M#[2,13]

CPU_NMI[2,13]

CPU_INTR[2,13]

CPU_INIT#[2,13]

CPU_FERR#[2,13]

APICD0[2,13]

APICD1[2,13]

P_REQ#[2]

HA[31:3][2,4]

HD[63:0][2,4]

2
3
4
6
7
8
9

2
3
4
6
7
8
9

2
3
4
6
7
8
9

2
3
4
6
7
8
9

2
3
4
6
7
8
9

2
3
4
6
7
8
9

R135 56

R117 56

R137 56

2
3
4
6
7
8
9

R121 150_1%

R343 150_1%

R333 150_1%

R95 150_1%

R111 *330

+VCCP

51
10

RP14
10P8RX56

51
10

RP15
10P8RX56

51
10

RP11
10P8RX56

51
10

RP9
10P8RX56

51
10

RP13
10P8RX56

51
10

RP12
10P8RX56

+VCCP

51
10

RP10
10P8RX150

C78

0.1u_X7R

NOTE:CLOSE TO CPU
CMOS I/O TERMINATION

C155

0.1u_X7R

HD58
HD50

2

HD53

3

HD46

4

HD60

6

HD61

7

HD56

8

HD62

9

HD63
HD40

2

HD52

3

HD57

4

HD54

6

HD55

7

HD59

8

HD48

9

HD44
HD39

2

HD51

3

HD41

4

HD47

6

HD49

7

HD42

8

HD27

9

HD22
HD43

2

HD28

3

HD34

4

HD45

6

HD38

7

HD37

8

HD36

9

HD25
HD32

2

HD21

3

HD23

4

HD35

6

HD29

7

HD31

8

HD33

9

HD24
HD7

2

HD3

3

HD20

4

HD26

6

HD19

7

HD30

8

HD16

9

HD2
HD8

2

HD9

3

HD12

4

HD13

6

HD11

7

HD14

8

HD18

9

HD4
HD1

2

HD6

3

HD0

4

HD10

6

HD17

7

HD5

8

HD15

9

CLOSE TO ADM1032

VTT Decoupling Cap. for GTL+ Pull-up R-PAK

+VCCP

51
10

RP1
10P8RX56

51
10

RP2
10P8RX56

51
10

RP3
10P8RX56

51
10

RP4
10P8RX56

RP5
10P8RX56

RP6
10P8RX56

RP7
10P8RX56

RP8
10P8RX56

+3V

+VCCP

+3V +3VH8

R541
0

C315

2200p

R521
*10K

R160
*47K

G

51
10

51
10

51
10

51
10

DTD+[2]

DTD-[2]

+5VS

A25
AF3

AF8
AF12
AF16
AF20

AE4

AE7
AE22
AE24

AD2

AD10
AD14
AD18
AD26

AC2

AC4

AC6

AC10
AC11
AC14
AC18
AC19
AC23
AC25

AB4
AB14
AB19
AA23

E9

E18

J5

J22

V5
V22
AB9

AB18

C21
C18
C13
C10
E24
G25

G2

P3

T25

U3
AA3

AD22
AD13

AD8

AE15

V26
W26

C311

0.1u_X7R

U13

1

VDD

SCLK

2

D+

SDATA

3

D-

ALERT

4 5

THERM

GND

ADM1032

DS

Q59

*100K

*2N7002

VCORE
VCORE
VCORE
VCORE
VCORE
VCORE
VCORE
VCORE
VCORE
VCORE
VCORE
VCORE
VCORE
VCORE
VCORE
VCORE
VCORE
VCORE
VCORE
VCORE
VCORE
VCORE
VCORE
VCORE
VCORE
VCORE
VCORE
VCORE
VCORE

VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT

8
7
6

U33B

A24

VCORE

A19

VCORE

A15

VCORE

A11

VCORE

A7

VCORE

A4

VCORE

B23

VCORE

B16

VCORE

B3

VCORE

C25

VCORE

C17

VCORE

C9

VCORE

C1

VCORE

D24

VCORE

D21

VCORE

D20

VCORE

D17

VCORE

D13

VCORE

D12

VCORE

D9

VCORE

D8

VCORE

D5

VCORE

D4

VCORE

D2

VCORE

E23

VCORE

E13

VCORE

E8

VCORE

E1

VCORE

F24

VCORE

F4

VCORE

F3

VCORE

H23

VCORE

H22

VCORE

H1

VCORE

J26

VCORE

J24

VCORE

K26

VCORE

K25

VCORE

K4

VCORE

K3

VCORE

L2

VCORE

M1

VCORE

N24

VCORE

N22

VCORE

P5

VCORE

P4

VCORE

R25

VCORE

R2

VCORE

T1

VCORE

U24

VCORE

U23

VCORE

V4

VCORE

V3

VCORE

W25

VCORE

W2

VCORE

Y23

VCORE

VIA-C3

R152

R153

R154

10K

4.7K

4.7K

H8_SMBCK [20,28]
H8_SMBDT [20,28]
SMBALT# [20]

PWRBTN# [12]

Q58

GDSR522

*2N7002

VCOREVCORE

VCORE VCORE VCORE

(Place every decouping capacitor for each R-pack.)

+VCCP

C309 0.1u_X7R

C245 0.1u_X7R C310 0.1u_X7R

C193 0.1u_X7R

C261 0.1u_X7R

C70 0.1u_X7R

C68 0.1u_X7R C284 0.1u_X7R

C226 0.1u_X7R

C280 0.1u_X7R

C278 0.1u_X7R

+VCCP

C273 0.1u_X7R

C225 0.1u_X7R

C142 0.1u_X7R

C69 0.1u_X7R

C286 0.1u_X7R

C283 0.1u_X7R

C308 0.1u_X7R

CPU VCORE Decoupling Cap.

CPU VCORE Decoupling Caps: 10uF x 7, 1uF x 32, 0.1uF x 10

C207 1u_X7R

C235 1u_X7R

C231 1u_X7R

C218 1u_X7R

C293 1u_X7R

C204 1u_X7R

C294 1u_X7R

C295 1u_X7R

C123 1u_X7R

C125 1u_X7R

C166 1u_X7R

C128 1u_X7R

C262 1u_X7R

C242 1u_X7R

C221 1u_X7R

C258 1u_X7R

C215 1u_X7R

C243 1u_X7R

C179 1u_X7R

C281 1u_X7R

C163 1u_X7R

C292 1u_X7R

C289 1u_X7R

C122 1u_X7R

C124 1u_X7R

C126 1u_X7R

C127 1u_X7R

C247 1u_X7R

C282 1u_X7R

C129 1u_X7R

C260 1u_X7R

C228 1u_X7R

+VCCP [2,4,27]
VCORE [2,27]
+3VH8 [14,15,20,21,24,25,28]
+3V [9,13,15,16,17,18,21,24,25,26,27]
+5VS [12,14,15,19,20,21,22,23,24,26]

C206 10u_0805

C241 10u_0805

C233 10u_0805

C191 10u_0805

C192 10u_0805

C266 10u_0805

C267 10u_0805

C184 0.1u_X7R

C264 0.1u_X7R

C180 0.1u_X7R

C271 0.1u_X7R

C270 0.1u_X7R

C269 0.1u_X7R

C290 0.1u_X7R

C182 0.1u_X7R

C181 0.1u_X7R

C185 0.1u_X7R

C - 4 (71-T2000-004)

VT8623 (1 of 3)

CLE266

HA[31:3][2,3]

BPRI#[2,3]

BREQ0#[2,3]

ADS#[2,3]

HREQ0#[2,3]
HREQ1#[2,3]
HREQ2#[2,3]
HREQ3#[2,3]
HREQ4#[2,3]

HIT#[2,3]

HITM#[2,3]

HTRDY#[2,3]

DBSY#[2,3]

DRDY#[2,3]

RS0#[2,3]
RS1#[2,3]
RS2#[2,3]

DEFER#[2,3]

BNR#[2,3]

HLOCK#[2,3]

+VCCP

R60 75_1%

R45
150_1%

Place close to NB ballout

C59

1u_X7R

GTLVREF

C60

1000p

C58

1000p

Schematic Diagrams

Sheet 5 of 29

VT8623 (1 of 3)

+VCCP

G18

G19

H20

J20

J22

K20

K22

L20

M20

N20

P20

E16

E17

E22

F22

G14

G15

G16

G17

VTT

HA3
HA4
HA5
HA6
HA7
HA8
HA9
HA10
HA11
HA12
HA13
HA14
HA15
HA16
HA17
HA18
HA19
HA20
HA21
HA22
HA23
HA24
HA25
HA26
HA27
HA28
HA29
HA30
HA31

VTT

P26

A3

R25

A4

N23

A5

P23

A6

T24

A7

R24

A8

P24

A9

M26

A10

R26

A11

N24

A12

N26

A13

R23

A14

M23

A15

N25

A16

K26

A17

H23

A18

K24

A19

K23

A20

M25

A21

K25

A22

L23

A23

J24

A24

L26

A25

H22

A26

J25

A27

M24

A28

J23

A29

J26

A30

L24

A31

T26

BPRI

AA26

BREQ0

AA25

ADS

U24

HREQ0

T23

HREQ1

U26

HREQ2

V24

HREQ3

T25

HREQ4

W23

HIT

V23

HITM

W25

HTRDY

W24

DBSY

Y26

DRDY

W26

RS0

V26

RS1

Y25

RS2

U23

DEFER

R22

BNR

V25

HLOCK

E20

GTLVREF

T22

GTLVREF

GND

GND

GND

B13

B16

B19

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

GND

GND

GND

GND

GND

GND

GND

GND

GND

B22

B25E6E10

E11

E14

E15

E18

E21

R20

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

GND

GND

GND

GND

GND

GND

GND

GND

GND

E25

G13

H25K5L11

L12

L13

L14

L15

J5

AVDD1

T20

VTT

VTT

GND

GND

L16

AA24

U20

U22

V22

VTT

VTT

VTT

GND

GND

GND

L22

L25

M11

M12

U31A

HD0

H26

HD0

G23

HD1

HD1

HD2

E23

HD2

C26

HD3

HD3

HD4

G24

HD4

AVDDHCLK

CPURST

AGNDHCLK

GND

GND

GND

GND

GND

Y24

M13

M14

M15

M16

AGND1

HD5
HD6
HD7
HD8

HD9
HD10
HD11
HD12
HD13
HD14
HD15
HD16
HD17
HD18
HD19
HD20
HD21
HD22
HD23
HD24
HD25
HD26
HD27
HD28
HD29
HD30
HD31
HD32
HD33
HD34
HD35
HD36
HD37
HD38
HD39
HD40
HD41
HD42
HD43
HD44
HD45
HD46
HD47
HD48
HD49
HD50
HD51
HD52
HD53
HD54
HD55
HD56
HD57
HD58
HD59
HD60
HD61
HD62
HD63

HCLK

VT8623

G22
G25
C25
F23
E24
F26
D26
F24
D24
D25
G26
B26
F25
E26
B23
D23
A26
B21
A25
B24
C23
A24
D19
C21
D21
C24
C22
A22
A23
A21
D22
A20
B20
C20
A19
B17
C18
D18
D20
E19
C19
C15
A17
D17
B18
D13
A18
C16
D14
A15
B15
A14
A16
E13
D16
C14
B14
D15
C17

Y23

H24

C832

0.1u_X7R

HD5
HD6
HD7
HD8
HD9
HD10
HD11
HD12
HD13
HD14
HD15
HD16
HD17
HD18
HD19
HD20
HD21
HD22
HD23
HD24
HD25
HD26
HD27
HD28
HD29
HD30
HD31
HD32
HD33
HD34
HD35
HD36
HD37
HD38
HD39
HD40
HD41
HD42
HD43
HD44
HD45
HD46
HD47
HD48
HD49
HD50
HD51
HD52
HD53
HD54
HD55
HD56
HD57
HD58
HD59
HD60
HD61
HD62
HD63

C833

0.1u_X7R

C834

0.1u_X7R

HD[63:0] [2,3]

HCLK_NB [10]

CPURST# [2,3]

+2.5VS

L28
HCB1608K-121T25

AVDD1

AGND1

NB Decoupling capacitors

(CPU Interface: 0.1u x 5, 1000p x2)

+VCCP +VCCP

C147

1000p

C148

0.1u_X7R

0.1u_X7RC75

0.1u_X7RC74

0.1u_X7RC85

0.1u_X7RC89

0.1u_X7RC71

C831

1u_X7R

L20
0_0805

C. T2X0V Schematics

1000pC81

1000pC114

+2.5VS [5,6,9,10,11,12,13,24,26]
+VCCP [2,3,27]

(71-T2000-004) C - 5

Schematic Diagrams

Sheet 6 of 29

VT8623 (2 of 3)

VT8623 (2 of 3)

C. T2X0V Schematics

CLE266

R88 *22 *10pC202

DCLKI

(Place near their respective balls of NB)

AVDD2 +2.5VS +2.5V

AB24

W11

W12

W13

U31B

MD_0

MD_[63:0][8]

C830

0.1u_X7R

AA23

C835

0.1u_X7R

AC26
AD24
AF25
AB26
AB25
AE26
AF26
AE24
AF24
AD21
AD20
AE23
AF23
AE21
AF21
AE20
AD19
AD18
AF17
AF20
AF19
AE17
AD17
AD16
AE15
AF14
AF13
AF16
AF15
AE14
AD13
AC12
AE12
AF10

AF9
AF12
AD12

AD9

AE9

AC9

AE8

AC7

AF6

AD8

AF8

AE6

AE5

AF5

AF4

AF1

AD3

AD4

AC4

AF2

AE1

AD1

AB3

AA2

AD2

AC1

AA3

AA1

AB10
AC10

Y1

VT8623

C836

0.1u_X7R

MD0
MD1
MD2
MD3
MD4
MD5
MD6
MD7
MD8
MD9
MD10
MD11
MD12
MD13
MD14
MD15
MD16
MD17
MD18
MD19
MD20
MD21
MD22
MD23
MD24
MD25
MD26
MD27
MD28
MD29
MD30
MD31
MD32
MD33
MD34
MD35
MD36
MD37
MD38
MD39
MD40
MD41
MD42
MD43
MD44
MD45
MD46
MD47
MD48
MD49
MD50
MD51
MD52
MD53
MD54
MD55
MD56
MD57
MD58
MD59
MD60
MD61
MD62
MD63

NC
NC

AGND2

VDD

VDD

AVMCLK

AGNDMCK

AC24

MD_1
MD_2
MD_3
MD_4
MD_5
MD_6
MD_7
MD_8
MD_9
MD_10
MD_11
MD_12
MD_13
MD_14
MD_15
MD_16
MD_17
MD_18
MD_19
MD_20
MD_21
MD_22
MD_23
MD_24
MD_25
MD_26
MD_27
MD_28
MD_29
MD_30
MD_31
MD_32
MD_33
MD_34
MD_35
MD_36
MD_37
MD_38
MD_39
MD_40
MD_41
MD_42
MD_43
MD_44
MD_45
MD_46
MD_47
MD_48
MD_49
MD_50
MD_51
MD_52
MD_53
MD_54
MD_55
MD_56
MD_57
MD_58
MD_59
MD_60
MD_61
MD_62
MD_63

T19
T20

T8

T19U8U19

V8

V19

W18

W19

W8W9W10

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

AB18

AB19

AB21

AB22

AB9

W14

W15

W16

W17

VDD

VDD

VDD

VDD

VDD

VCCM

VCCM

VCCM

VCCM

GND

GND

GND

GND

GND

GND

GND

GND

GND

R11

R12

R13

R14

R15

R16

T11

T12

T13

T14

AB8

VCCM

GND

P25

AA5

VCCM

GND

P22

VCCM

GND

Y13

Y17

Y18

Y19

Y14

Y15

Y16

VCCM

VCCM

VCCM

VCCM

VCCM

VCCM

GND

GND

GND

GND

GND

GND

P11

P12

P13

P14

P15

P16

VCCM

GND

V20W7W20Y5Y8Y9Y10

Y11

Y12

VCCM

GND

U7

V7

VCCM

VCCM

VCCM

VCCM

VCCM

VCCM

VCCM

VCCM

GND

N22P2P5

VCCM

VCCM

AD10

MAA0

MA0

AD11

MAA1

MA1

MAA2

AC11

MA2

MAA3

AB13

MA3

MAA4

AC13

MA4

MAA5

AC14

MA5

MAA6

AD14

MA6

MAA7

AB16

MA7

MAA8

AC16

MA8

MAA9

AB17

MA9

MAA10

AC6

MA10

MAA11

AB6

MA11

MAA12

AD6

MA12

MAA13

AC17

MA13

MAA14

AC19

MA14

CKE0

AC20

CKE0

CKE1

AC22

CKE1

CKE2

AC21

CKE2

CKE3

AD23

CKE3

AA4

CS0

Y3

CS1

AC3

CS2

W4

CS3

AD25

DQM0

AD22

DQM1

AF18

DQM2

AC15

DQM3

AE11

DQM4

AF7

DQM5

AF3

DQM6

AB2

DQM7

AD26

DQS0

AF22

DQS1

AE18

DQS2

AD15

DQS3

AF11

DQS4

AD7

DQS5

AE3

DQS6

AB1

DQS7

AD5

SRAS

AB4

SCAS

AB5

SWE

DCKO_

R85 22

MVREF_NB

AB23

DCLKO

AC23

DCLKIN

AB7

MVREF0

AB20

MVREF1

GND

GND

GND

GND

GND

GND

GND

GND

M22N5N11

N12

N13

N15

N16

N14

MAA[14:0] [7,8]

CKE[3:0] [7]

CS0# [7,8]
CS1# [7,8]
CS2# [7,8]
CS3# [7,8]

DQM_0# [8]
DQM_1# [8]
DQM_2# [8]
DQM_3# [8]
DQM_4# [8]
DQM_5# [8]
DQM_6# [8]
DQM_7# [8]

DQS_0# [8]
DQS_1# [8]
DQS_2# [8]
DQS_3# [8]
DQS_4# [8]
DQS_5# [8]
DQS_6# [8]
DQS_7# [8]

SRASA# [7,8]
SCASA# [7,8]
SWEA# [7,8]

DCLKO [10]
DCLKI [10]

+2.5V

AVDD2

AGND2

NB Decoupling capacitors

(Memory Interface: 1u x 2, 0.1u x 12, 1000p x 6)

+2.5V

Place close to NB ballout

R78
1K_1%

R87
1K_1%

+2.5VS

L27
HCB1608K-121T25

C167

1000p

0.1u_X7RC156

0.1u_X7RC157

0.1u_X7RC160

0.1u_X7RC159

0.1u_X7RC164

0.1u_X7RC165

0.1u_X7RC133

0.1u_X7RC134

0.1u_X7RC137

0.1u_X7RC136

0.1u_X7RC138

C152

1u_X7R

MVREF_NB

C201

0.1u_X7R

C786

0.1u_X7R

+2.5V

C200

1000p

L29
0_0805

C158 1000p

C150 1000p

C154 1000p

C120 1000p

C135 1000p0.1u_X7RC140

C149 1000p

C187 1u_X7R

C188 1u_X7R

C199

1000p

C - 6 (71-T2000-004)

+2.5V [6,7,13,21,24,26]
+2.5VS [4,6,9,10,11,12,13,24,26]

VT8623 (3 of 3)

CLE266

G9

E5F5G8

U31C

W5

+2.5V

+2.5VS

VLAD0[13]
VLAD1[13]
VLAD2[13]
VLAD3[13]
VLAD4[13]
VLAD5[13]
VLAD6[13]
VLAD7[13]

VBE0[13]

UPCMD[13]

UPSTB[13]

UPSTB#[13]

DNCMD[13]

DNSTB[13]

DNSTB#[13]

PWROK_NB#[12]

RESET_CHIP#[11]

SUSST#[12]

T164
T169
T179
T163
T167
T162
T178
T161
T177
T172
T166
T171
T176
T174
T1
T175
T170

T184
T173
T165
T181
T183
T185
T186
T168
T187

For VT8233: Connect NB to SB LPAR and do not need Pull-up.
For VT8235: Do not connect the LPAR to SB,

leave the NB LPAR for float,
and pull-up the SB LPAR to +2.5V.

+2.5VS

L10
HCB2012K-121T30_0805

VCCDAC

VCCDAC VCCRGB

C40

1000p

GNDVGA GNDVGA

LCOMPP
LVREF_NB
LPAR

C39

1u_X7R

P7
R7

T7
U5
V5

P1
P3
U1
R4
V3
R1
V1
V2

R5
V4

T4
U3

T5

T2

T1

T3
R2
R3

W1
W3
W2

B2
A2
B3
A3
C4
B4
A4
C5
B5
A5
C6
D6
C2
C3
D5
A1
B1

E3
D4
D3
D2
D1
E2
E1
E4
F4

VSUS2.5

VCCVL
VCCVL
VCCVL
VCCVL
VCCVL

VAD0
VAD1
VAD2
VAD3
VAD4
VAD5
VAD6
VAD7

VBE
LCOMP
LVREF
LPAR

UPCMD
UPSTB
UPSTB

DNCMD
DNSTB
DNSTB

PWROK
RESETX
SUSSTAT

TVD0/DVID0
TVD1/DVID1
TVD2/DVID2
TVD3/DVID3
TVD4/DVID4
TVD5/DVID5
TVD6/DVID6
TVD7/DVID7
TVD8/DVID8
TVD9/DVID9
TVD10/DVID10
TVD11/DVID11
TVCLK/DVICLK
TVCLKR
TVBLK/DVIDE
TVVS/DVIVS
TVHS/DVIHS

CAPCLK
CAPD0
CAPD1
CAPD2
CAPD3
CAPD4
CAPD5
CAPD6
CAPD7

C828

0.1u_X7R

VCC3

VCC3

VCC3

GND

GND

GND

GND

T15

T16U2U4

U25

+3VS

G10

G11

G12H7J7K7L5L7M5M7N7H8H9

VCC3

VCC3

VCC3

VCC3

VCC3

VCC3

VCC3

VCC3

GND

GND

GND

GND

GND

GND

GND

GND

W22Y2Y4

Y22

AA22

AB11

AB12

AB14

VCCRGB

VCC3

GND

VCC3

VCC3

VCC3

GND

GND

GND

AC5

AB15

AC2

+2.5VS

H10

H11

H12

H14

H13

VDD

VDD

VDD

VDD

VDD

VDD

GND

GND

GND

GND

GND

GND

GND

AC8

AC18

AC25

AE2

AE4

AE7

AE10

AE13

L6
HCB2012K-121T30_0805

C20

C19

1u_X7R

1000p

Schematic Diagrams

Sheet 7 of 29

+2.5VS +2.5VS+2.5VS

L7
HCB2012K-121T30_0805

PLLVDD2PLLVDD1 PLLVDD3

C36

0.1u_X7R

NB Strapping Setting

R32 1K

R33 *4.7K

RN20 8P4RX4.7K

R327 4.7K R38 4.7K

LPAR
LCOMPP
DFTIN
BISTIN
GSTANDBY
RGB_RSET

0:DVI/CAPTURE
1:PANEL I/F

1

8

2

7

3

6

4 5

GCLK_NB

GUICLK

R62 4.7K
R70 71.5_1%
R18 4.7K
R17 4.7K
R27 4.7K
R26 160_1%

VPD17

VPD8
VPD9
VPD10
VPD11

VPD12

L8
HCB2012K-121T30_0805

C37

0.1u_X7R

+3VS

R39 *1K

R40 4.7K

+3VS

R41 *1K

R42 4.7K

VPD13,14,15,16 : Panel Tape

+3VS

R43 *1K

R44 4.7K

+3VS

R31 1K

R30 *4.7K

STPAGP

R19 4.7K

NB Decoupling

+2.5VS +2.5VS

+3VS +3VS

0.1u_X7RC106

0.1u_X7RC139

0.1u_X7RC91 0.1u_X7RC86

0.1u_X7RC77

0.1u_X7RC108

0.1u_X7RC61

0.1u_X7RC63

0.1u_X7RC54

0.1u_X7RC92

0.1u_X7RC93 1u_X7RC95

VPD13

VPD14

VPD15

VPD16

VPD22

GFX CLK SELECTCLK SELECT

*5pC110R57 *22

*5pC28R34 *22

+3VS

0.1u_X7RC107

0.1u_X7RC116

1u_X7RC21

1u_X7RC73

1u_X7RC76

0.1u_X7RC62

0.1u_X7RC49

1u_X7RC55

1u_X7RC94

L8

L19M8M19N8N19P8P19R8R19

VDD

VDD

VDD

VDD

GNDDAC

GNDRGB

D11

B11

L13
0

VDD

VDD

VDD

PLLGNDA2

PLLGNDA1

C12

A12

GSUSPEND

VCCDAC VCCRGB

VDD

VDD

VDD

VDD

VDD

PLLGNDA3

A13

4

C13L2D12

C11

D10

B12

VCCDAC

VCCRGB

PLLVDD2

PLLVDD1

HSYNC
VSYNC

SPCLK2

STPAGP
AGPBUSY
DISPCLKI

DISPCLKO

SPCLK1

FPBKLP

ENAVDD
ENAVEE

GSTANDBY

GSUSPEND

FPDVS/CAPVS

FPDHS/CAPHS

FPDCLK/DVICLK

DVIDET

FPDE/CAPD8

FPD0/CAPD9
FPD1/CAPD10
FPD2/CAPD11

FPD3/CAPCLK1

FPD4CAPD12
FPD5/CAPD13
FPD6/CAPD14
FPD7/CAPD15

FPD8/DVIVS

FPD9/DVIHS
FPD10/DVIDE
FPD11/DVID0
FPD12/DVID1
FPD13/DVID2
FPD14/DVID3
FPD15/DVID4
FPD16/DVID5
FPD17/DVID6
FPD18/DVID7
FPD19/DVID8
FPD20/DVID9

FPD21/DVID10
FPD22/DVID11
FPD23/DVIDET

VT8623

+3VS

53

1

2

U2
74AHC1G14

PLLVDD3

GPIO0
GPIO1
GPIO2
GPIO3

GCLK

DFTIN

BISTIN

RSET

SPD2

SPD1

INTA

AR
AG

AB

XIN

PLLVDD1
PLLVDD2
PLLVDD3

C10
B10
A10
A11

A9
B9

A8
C9

C8
B8
H4
J4
E9
D9
D7
E7
D8
E8
P4

A6
B7

E12

B6

H5
G4
G5

A7
C7

F3
F2
J3
C1
F1
G3
G2
G1
H3
H2
H1
J2
J1
K3
K2
K1
K4
L4
L3

L1
M4
M2
M1
M3
N3
N1
N2
N4

SUSA# [12,20]

RGB_RSET

>= 10 mils

STPAGP

DDCCLK
DDCDAT

T4

T5

DFTIN
BISTIN

GSTANDBY
GSUSPEND

T180

T188
T189

VPD2
VPD3
VPD4
VPD5
VPD6
VPD7
VPD8
VPD9
VPD10
VPD11
VPD12
VPD13
VPD14
VPD15
VPD16
VPD17
VPD18
VPD19
VPD20
VPD21
VPD22
VPD23

AR [21]
AG [21]
AB [21]

CHSYNC [21]
CVSYNC [21]

DDCCLK2 [9]
DDCDAT2 [9]

AGPBUSY# [13]

DDCCLK [21]
DDCDAT [21]

GCLK_NB [10]

GUICLK [10]

VGA_INTR# [11]

BLEN [21]
ENVDD [9]
ENVEE [21]

LVSYNC [9]
LHSYNC [9]
CLKINP [9]

DE [9]
VPD[23:2] [9]

GNDVGA

+2.5V [5,7,13,21,24,26]
+2.5VS [4,5,9,10,11,12,13,24,26]
+3VS [9,10,11,12,13,14,15,18,19,21,22,24,26,27]

+2.5VS

R89
3K_1%

LVREF_NB

R83

1.69K_1%

R559 *0

R25
0

R560 *0

7/1

0.1u_X7RC823

0.1u_X7RC824

0.1u_X7RC825

0.1u_X7RC826

0.1u_X7RC827 0.1u_X7RC82

0.1u_X7RC26

0.1u_X7RC27

For LVREF_NB :
Due to CLE266 is VLINK 4x so
LVREF_NB should be 0.9V whenever
SB is 8233 or 8235.

C196

0.1u_X7R

L9
HCB2012K-121T30_0805

C38

0.1u_X7R

DISPCLKI [15]

DISPCLKO [15]

+3VS

+2.5VS

H15

H16

H17

H19

J19K8K19

J8

H18

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

GND

GND

GND

GND

GND

AE22

AE25

AE16

AE19

GNDVGA

C829

0.1u_X7R

VT8623 (3 of 3)

C. T2X0V Schematics

(71-T2000-004) C - 7

Schematic Diagrams

Sheet 8 of 29

DDR SO-DIMM

C. T2X0V Schematics

DDR SO-DIMM

C841

C842

0.1u_X7R

+2.5V

R538
*220

C

R

D49
*CM431LBCM233

A

+2.5V +2.5V

C843

0.1u_X7R

0.1u_X7R

MAA[14:0][5,8] MAA[14:0] [5,8]

DQM0#[8]
DQM1#[8]
DQM2#[8]
DQM3#[8]
DQM4#[8]
DQM5#[8]
DQM6#[8]
DQM7#[8]

DQS0#[8]
DQS1#[8]
DQS2#[8]
DQS3#[8]
DQS4#[8]
DQS5#[8]
DQS6#[8]
DQS7#[8]

SRASA#[5,8]

SWEA#[5,8]

SCASA#[5,8]

CS0#[5,8]
CS1#[5,8]

CKE0[5]
CKE1[5]

DCLK0[10]

DCLK0#[10]

DCLK1[10]

DCLK1#[10]

DCLK2[10]

DCLK2#[10]

SMBDT[10,12]
SMBCK[10,12]

MVREF_DIM1

+2.5V

+1.25V_REF

R539
*0

R151
75_1%

+2.5V +2.5V

C844

+2.5V +2.5V

0.1u_X7R
CN17

T310

T78
T79
T80
T75
T86
T92
T88
T89

R146

75_1%

DDR_SO-DIMM1_R

MAA0
MAA1
MAA2
MAA3
MAA4
MAA5
MAA6
MAA7
MAA8
MAA9
MAA10
MAA13
MAA14

MAA11
MAA12

C318

0.1u_X7R

CLOSE TO
SO-DIMM1_R

C314

0.1u_X7R

91021223334364546575869708182929394113

VDD

VDD

112

A0

111

A1

110

A2

109

A3

108

A4

107

A5

106

A6

105

A7

102

A8

101

A9

115

A10/AP

100

A11

99

A12

117

BA0

116

BA1

12

DM0

26

DM1

48

DM2

62

DM3

134

DM4

148

DM5

170

DM6

184

DM7

78

DM8

11

DQS0

25

DQS1

47

DQS2

61

DQS3

133

DQS4

147

DQS5

169

DQS6

183

DQS7

77

DQS8

118

RAS#

119

WE#

120

CAS#

121

S0#

122

S1#

96

CKE0

95

CKE1

35

CK0

37

CK0#

160

CK1

158

CK1#

89

CK2

91

CK2#

193

SDA

195

SCL

71

CB0

73

CB1

79

CB2

83

CB3

72

CB4

74

CB5

80

CB6

84

CB7

1

VREF

2

VREF

197

VDDSPD

199

VDDID

VSS

VSS

R155

*10K

3415162728383940515263647576878890103

+1.25V_REF+1.25V_REF

MVREF_DIM1

C316

7/1 7/1

1u_X7R

C846

C847

C848

0.1u_X7R

DQM0# [8]
DQM1# [8]
DQM2# [8]
DQM3# [8]
DQM4# [8]
DQM5# [8]
DQM6# [8]
DQM7# [8]

DQS0# [8]
DQS1# [8]
DQS2# [8]
DQS3# [8]
DQS4# [8]
DQS5# [8]
DQS6# [8]
DQS7# [8]

SRASA# [5,8]
SWEA# [5,8]
SCASA# [5,8]

CS2# [5,8]
CS3# [5,8]

CKE2 [5]
CKE3 [5]

DCLK3 [10]
DCLK3# [10]
DCLK4 [10]
DCLK4# [10]
DCLK5 [10]
DCLK5# [10]

SMBDT [10,12]
SMBCK [10,12]

C849

0.1u_X7R

VDD

VSS

VDD

VSS

VDD

VDD

A10/AP

VDDSPD

VDDID

VSS

VSS

CN21

91021223334364546575869708182929394113

DDR_SO-DIMM2_S

VDD

112

A0

111

A1

110

A2

109

A3

108

A4

107

A5

106

A6

105

A7

102

A8

101

A9

115
100

A11

99

A12

117

BA0

116

BA1

12

DM0

26

DM1

48

DM2

62

DM3

134

DM4

148

DM5

170

DM6

184

DM7

78

DM8

11

DQS0

25

DQS1

47

DQS2

61

DQS3

133

DQS4

147

DQS5

169

DQS6

183

DQS7

77

DQS8

118

RAS#

119

WE#

120

CAS#

121

S0#

122

S1#

96

CKE0

95

CKE1

35

CK0

37

CK0#

160

CK1

158

CK1#

89

CK2

91

CK2#

193

SDA

195

SCL

71

CB0

73

CB1

79

CB2

83

CB3

72

CB4

74

CB5

80

CB6

84

CB7

1

VREF

2

VREF

197
199

VSS

3415162728383940515263647576878890103

C845

0.1u_X7R

0.1u_X7R

MAA0
MAA1
MAA2
MAA3
MAA4
MAA5
MAA6
MAA7
MAA8
MAA9
MAA10
MAA13
MAA14

MAA11
MAA12

T73

T112
T107
T101
T102
T124
T127
T117
T114

MVREF_DIM2

R169

*10K

+2.5V [5,6,13,21,24,26]

0.1u_X7R

+2.5V

C330

0.1u_X7RSG1

MD[63:0]

114

131

132

143

144

155

156

157

167

168

179

180

191

192

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

DDRAM DDRAM

DU/RESET#

DU/A13
DU/BA2

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

138

149

150

159

161

162

173

174

185

186

+2.5V

C332

1u_X7R

+2.5V

R540
*0

R171
75_1%

R167

75_1%

104

125

126

137

CLOSE TO
SO-DIMM2

MVREF_DIM2

C329

0.1u_X7R

DDRST#

VDD

5

DQ0

7

DQ1

13

DQ2

17

DQ3

6

DQ4

8

DQ5

14

DQ6

18

DQ7

19

DQ8

23

DQ9

29

DQ10

31

DQ11

20

DQ12

24

DQ13

30

DQ14

32

DQ15

41

DQ16

43

DQ17

49

DQ18

53

DQ19

42

DQ20

44

DQ21

50

DQ22

54

DQ23

55

DQ24

59

DQ25

65

DQ26

67

DQ27

56

DQ28

60

DQ29

66

DQ30

68

DQ31

127

DQ32

129

DQ33

135

DQ34

139

DQ35

128

DQ36

130

DQ37

136

DQ38

140

DQ39

141

DQ40

145

DQ41

151

DQ42

153

DQ43

142

DQ44

146

DQ45

152

DQ46

154

DQ47

163

DQ48

165

DQ49

171

DQ50

175

DQ51

164

DQ52

166

DQ53

172

DQ54

176

DQ55

177

DQ56

181

DQ57

187

DQ58

189

DQ59

178

DQ60

182

DQ61

188

DQ62

190

DQ63

85

DU

123

DU

124

DU

200

DU

86
97
98

194

SA0

196

SA1

198

SA2

VSS

SG4

1

S8

S8

C603

0.1u_X7R

C574

0.1u_X7R

SG8

1

C604

0.1u_X7R

C575

0.1u_X7R

SG3

S8

MD[63:0] [8]
DDRST# [21]

MD0
MD1
MD2
MD3
MD4
MD5
MD6
MD7
MD8
MD9
MD10
MD11
MD12
MD13
MD14
MD15
MD16
MD17
MD18
MD19
MD20
MD21
MD22
MD23
MD24
MD25
MD26
MD27
MD28
MD29
MD30
MD31
MD32
MD33
MD34
MD35
MD36
MD37
MD38
MD39
MD40
MD41
MD42
MD43
MD44
MD45
MD46
MD47
MD48
MD49
MD50
MD51
MD52
MD53
MD54
MD55
MD56
MD57
MD58
MD59
MD60
MD61
MD62
MD63

T81
T82 T99
T94
T90

DDRST#

R183 10K

+2.5V

SG5

SG6

1

1

1

S8

S8

C605

C606

0.1u_X7R

0.1u_X7R

C577

C576

0.1u_X7R

0.1u_X7R

114

131

132

143

144

155

156

157

167

168

179

180

191

192

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

5

DQ0

7

DQ1

13

DQ2

17

DQ3

6

DQ4

8

DQ5

14

DQ6

18

DQ7

19

DQ8

23

DQ9

29

DQ10

31

DQ11

20

DQ12

24

DQ13

30

DQ14

32

DQ15

41

DQ16

43

DQ17

49

DQ18

53

DQ19

42

DQ20

44

DQ21

50

DQ22

54

DQ23

55

DQ24

59

DQ25

65

DQ26

67

DQ27

56

DQ28

60

DQ29

66

DQ30

68

DQ31

127

DQ32

129

DQ33

135

DQ34

139

DQ35

128

DQ36

130

DQ37

136

DQ38

140

DQ39

141

DQ40

145

DQ41

151

DQ42

153

DQ43

142

DQ44

146

DQ45

152

DQ46

154

DQ47

163

DQ48

165

DQ49

171

DQ50

175

DQ51

164

DQ52

166

DQ53

172

DQ54

176

DQ55

177

DQ56

181

DQ57

187

DQ58

189

DQ59

178

DQ60

182

DQ61

188

DQ62

190

DQ63

1

S8

SG2

1

C607

0.1u_X7R

C578

0.1u_X7R

85

DU

123

DU

124

DU

200

DU

86

DU/RESET#

97

DU/A13

98

DU/BA2

194

Z0804

SA0

196

SA1

198

SA2

1

C608

0.1u_X7R

C579

0.1u_X7R

C609

0.1u_X7R

C580

0.1u_X7R

VSS

186

SG7

S8

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

138

149

150

159

161

162

173

174

185

C610

C611

0.1u_X7R

0.1u_X7R

C613

C581

0.1u_X7R

0.1u_X7R

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

104

125

126

137

C612

C614

0.1u_X7R

0.1u_X7R

C583

C582

0.1u_X7R

0.1u_X7R

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

C602

0.1u_X7R

C584

0.1u_X7R

T103

T131
T122

S8

C - 8 (71-T2000-004)
