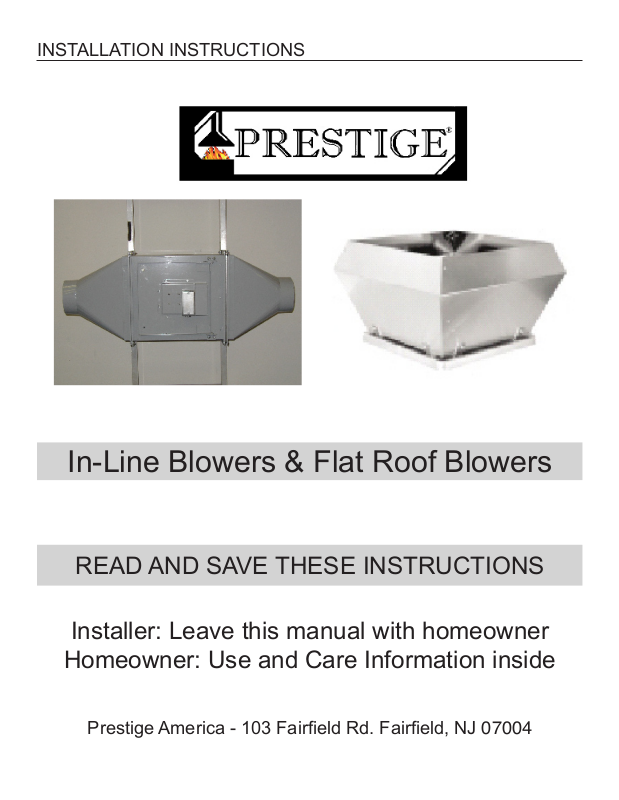

Page 1
INSTALLATION INSTRUCTIONS
In-Line Blowers & Flat Roof Blowers
READ AND SAVE THESE INSTRUCTIONS
Installer: Leave this manual with homeowner
Homeowner: Use and Care Information inside
Prestige America - 103 Faireld Rd. Faireld, NJ 07004
Page 2
INLINE BLOWER
Open service access door and check that the fan’s impeller is moving freely before making electrical
connection. The fan is designed for mounting at any angle, but the unit should be mounted so that
the hinged blower access panel is exposed for any potential maintenance.Select an easily accessible
location in the planned duct run. Keep in mind that for
optimum performance the blower should be located
after all turns and as close as possible to exterior
wall so that a straight run is afforded for discharge
to the outside. For long duct runs and applications
where the blower cannot be at the end of the duct
run, use of a larger duct is recommended. Transitions allow the fan to be installed to a round duct. For
sealing the transitions to the blower housing, attach
the rubber strips provided with unit prior to installa-
tion. Removal of transitions allows for installation to
square/rectangular ducting. The housing should be
hung using metal strapping or xed mounting brackets (not supplied). The housing should be insulated
from the structure by rubber padding (not supplied)
to eliminate any potential vibration. Unit requires a 15
amp dedicated circuit at 115 volts. (ELECTRICAL CONNECTIONS SHOULD ONLY BE MADE BY
A LICENCES ELECTRICIAN) The electrical connection is completed by feeding the wires from the
switched 120-volt source (hood or accessory switch) to the electrical junction box located on the top
of the service access door using proper strain release and grommets to prevent chang. Connect
the Live (Black) Wire to the Live (Black) Wire on a switched 120-volt AC Source. Connect the Neutral
(White) wire to the Neutral (White) wire of the 120-volt AC Source (as seen on Diagram A on following
page.) Unit should be tested to ensure that the hook up is correct and the unit is functioning properly
before nalizing installation.
*Note - Optional Wall Switch (model # UIBWSK) is available for all
Prestige Ventilation.
(See your salesperson for more information.)
- 1 -
Page 3
FLAT ROOF BLOWER INSTALLATION INSTRUCTIONS
Neutral (White)
Live (Black)
Diagram A
Black must go
to 120-volt AC
Source.
Black (Live)
Blue (Neutral)
Determine the shortest route for the duct to exit through the at roof. Have a qualied roofer build a
square curb on the at roof. Normal height for the curb should be approximately 8” so that no water
can run over the curb. Have the roofer ash and waterproof the curb into the at roof housing. The
horizontal dimension of the curb after the ashing work should be 1/2” smaller than the bottom frame
of the blower housing. After the curb is built, cut a circle into the roof deck, 1/2” larger than the diameter of the duct to be used. Drill a 1/2” hole for the electrical conduit. Have a licensed electrician pull
the electrical wires from the hood through the hole in the roof deck. Remove the weatherproof cover
and bring the wires into the electrical junction box. Connect the BLACK wire to BLACK wire on the
blower, WHITE to BLUE on blower. Connect duct work to the starter collar of the blower and bolt the
fan onto the curb. Check that impeller is turning freely, close weatherproof cover of the at roof fan.
Switch on power and check blower.
- 2 -
Page 4
WARRANTY INFORMATION
Prestige Remote Blowers are warranteed to be free from defects in materials and workmanship,
under normal household use for a period of :
ONE (1) YEAR
Prestige will warranty all parts and related labor to replace them, during the one (1) year warranty
period. This applies to the actual parts and normal labor and excludes all other costs, removal and
re-installation. Items NOT covered in the warranty include: light bulbs, items fabricated to customer
design, consequential damage, removal & reinstallation, abnormal travel outside the service area, including but not limited to: remote area transport, ferries, or excessive mileage. If any of these situations
apply, the customer will be responsible for payment in full of said exclusion.
The main motor is warranteed for a period of :
FIVE (5) YEARS
Prestige will replace any motor that fails within the
ve (5) year warranty, free of charge, on product when
it is located within the United States. This applies
only to the motor itself and excludes all other costs,
including labor, removal and re-installation.
This warranty does not apply to damage resulting from commercial use, abuse, accident,
natural disasters or electrical surge to the unit.
Prestige will not be responsible for consequential damages.
PRESTIGE PRODUCTS DIVISION
Signature Marketing Group Ltd.
103 Faireld Rd.
Faireld, NJ 07004
1-800-358-8886
