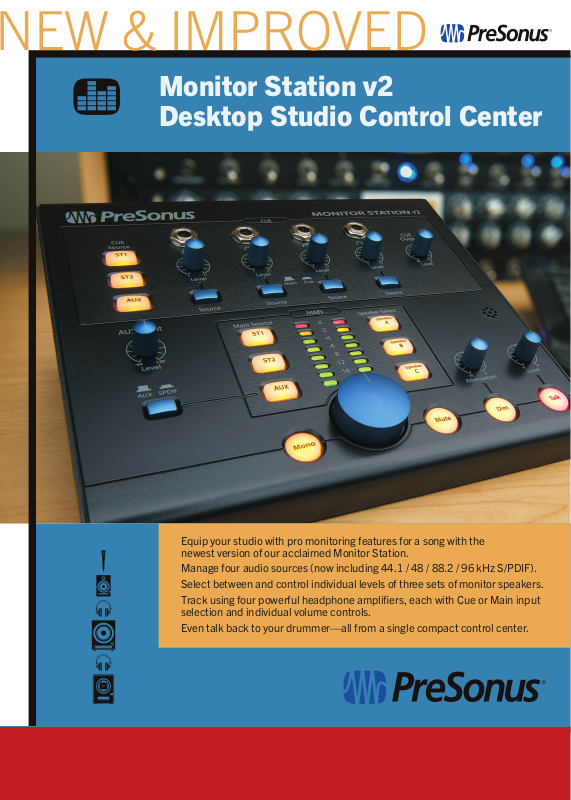

Page 1
Monitor Station v2
Desktop Studio Control Center
Equip your studio with pro monitoring features for a song with the
newest version of our acclaimed Monitor Station.
Manage four audio sources (now including 44.1 / 48 / 88.2 / 96 kHz S/PDIF).
Select between and control individual levels of three sets of monitor speakers.
Track using four powerful headphone amplifiers, each with Cue or Main input
selection and individual volume controls.
Even talk back to your drummer—all from a single compact control center.
Page 2
Monitor Station v2 Desktop Studio Control Center
Cue input source
selector
AUX input
control
AUX/SPDIF
Source selector
Phones outputs
Main input
source selector
Mono button
Main/Cue source
selectors for each
headphone output
8-segment
meter
Main Level control
Variable Speaker
Level controls
Level adjust knob
for each headphone output
Speaker
Select
Mute button
Dim button with
variable level
Cue level control¼" TRS stereo
Talkback mic with
level control and
Talk button
Inputs
■
2 stereo pairs of ¼" TRS inputs
■
1 stereo pair of RCA Aux inputs
■
1 stereo 1/8" phone input (summed
with RCA Aux inputs)
■
1 stereo S/PDIF coaxial (RCA) digital
input (44.1 / 48 / 88.2 / 96 kHz)
Outputs
■
3 stereo pairs of ¼" TRS speaker
outputs with level controls
■
1 stereo pair of ¼" TRS Main outputs
■
1 stereo pair of ¼" TRS Cue outputs
■
4 ¼" TRS screaming-loud stereo head-
phone outputs
Controls
■
Large Main level control
■
3 individual Main Source
(ST1, ST2, Aux) select switches
■
3 individual Speaker Select switches
■
Cue section with Source select (ST1,
ST2, Aux) and output-level control
■
Individual headphone-level and
source-select switches (Main /Cue)
■
Aux-S/PDIF Select switch
■
Aux Input level control
■
Main Mute, Mono, and Dim switches
with variable Dim attenuation
Plus…
■
8-segment color LED input meters with
selectable reference level
■
Built-in electret-condenser talkback
microphone with input-gain control and
Talkback button
■
External 18 VDC power supply
Computer Interface
Mixer
Smartphone
CD player
Subwoofer CMonitors BMonitors AHeadphonesHard Disc Recorder
