InstructionSheet
IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information
and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,
and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and
during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by
qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.
Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in
compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by
the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from
product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or
the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.
WARNING - This product contains chemicals known to the State of California to cause cancer, birth defects and/or other
reproductive harm. Thoroughly wash hands after installing, handling, cleaning, or otherwise touching this product.

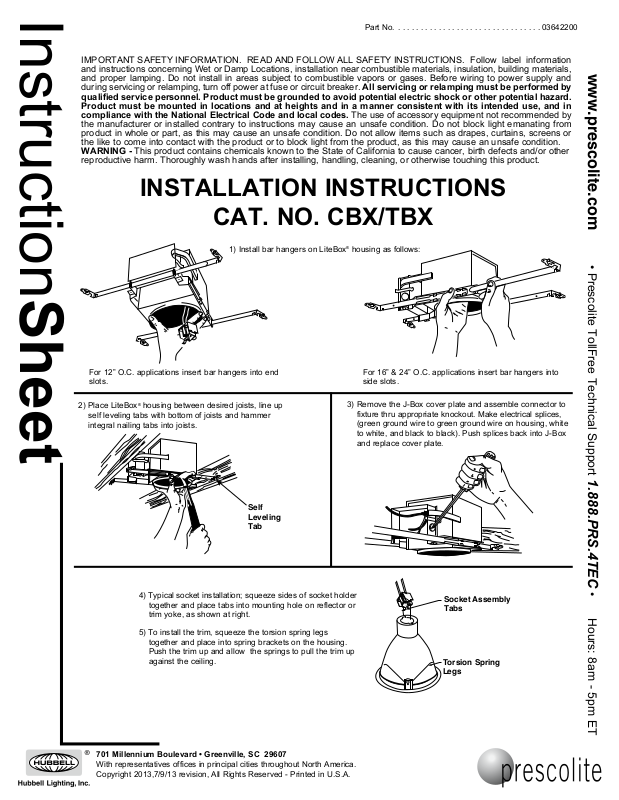

INSTALLATION INSTRUCTIONS
Part No. ................................03642200
www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET
CAT. NO. CBX/TBX

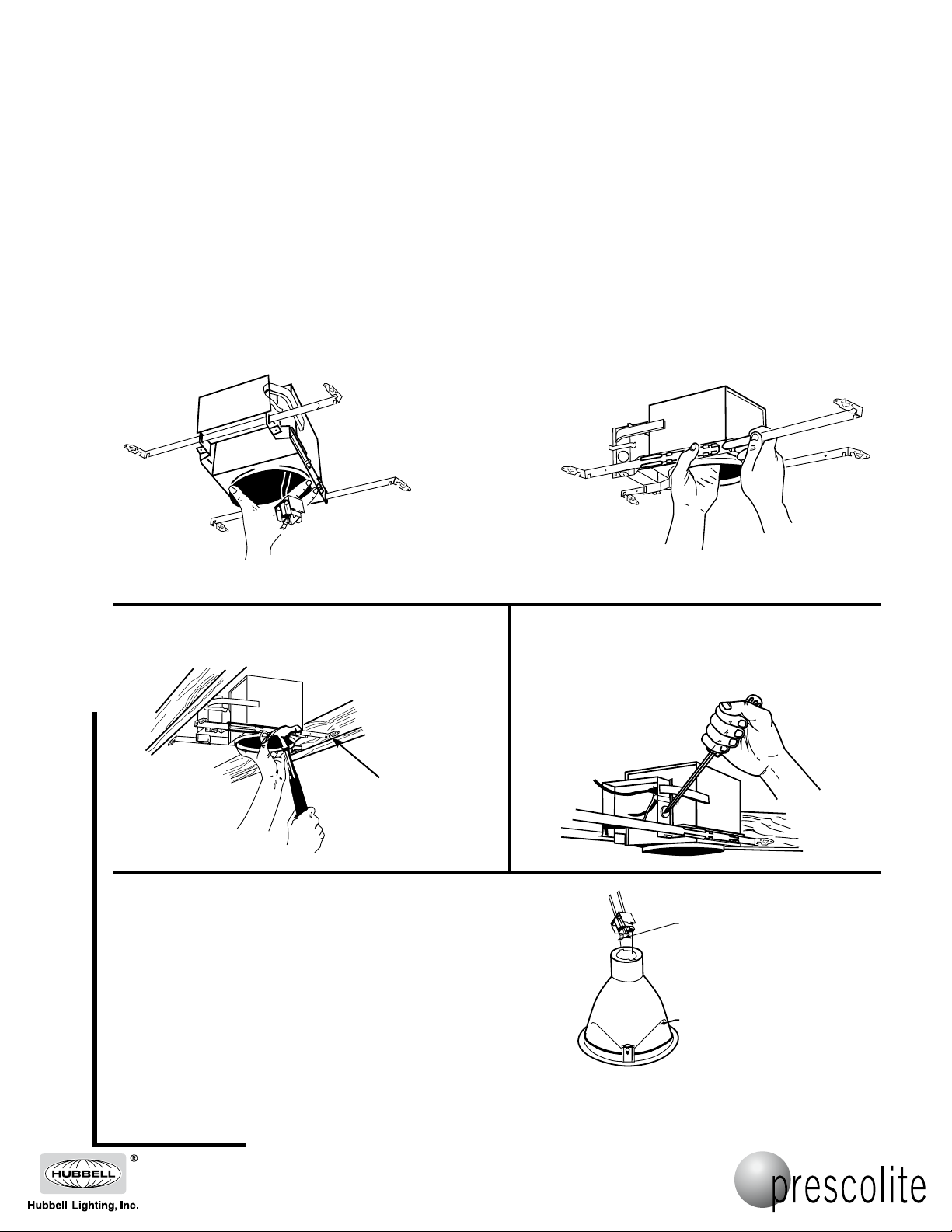

1) Install bar hangers on LiteBox® housing as follows:
For 12” O.C. applications insert bar hangers into end
slots.
®
2) Place LiteBox
self leveling tabs with bottom of joists and hammer
integral nailing tabs into joists.
housing between desired joists, line up
Self
Leveling
Tab
4) Typical socket installation; squeeze sides of socket holder
together and place tabs into mounting hole on reflector or
trim yoke, as shown at right.
5) To install the trim, squeeze the torsion spring legs
together and place into spring brackets on the housing.
Push the trim up and allow the springs to pull the trim up
against the ceiling.
For 16” & 24” O.C. applications insert bar hangers into
side slots.
3) Remove the J-Box cover plate and assemble connector to
fixture thru appropriate knockout. Make electrical splices,
(green ground wire to green ground wire on housing, white
to white, and black to black). Push splices back into J-Box
and replace cover plate.
Socket Assembly
Tabs
Torsion Spring
Legs
701 Millennium Boulevard • Greenville, SC 29607
With representatives offices in principal cities throughout North America.
Copyright 2013,7/9/13 revision, All Rights Reserved - Printed in U.S.A.
