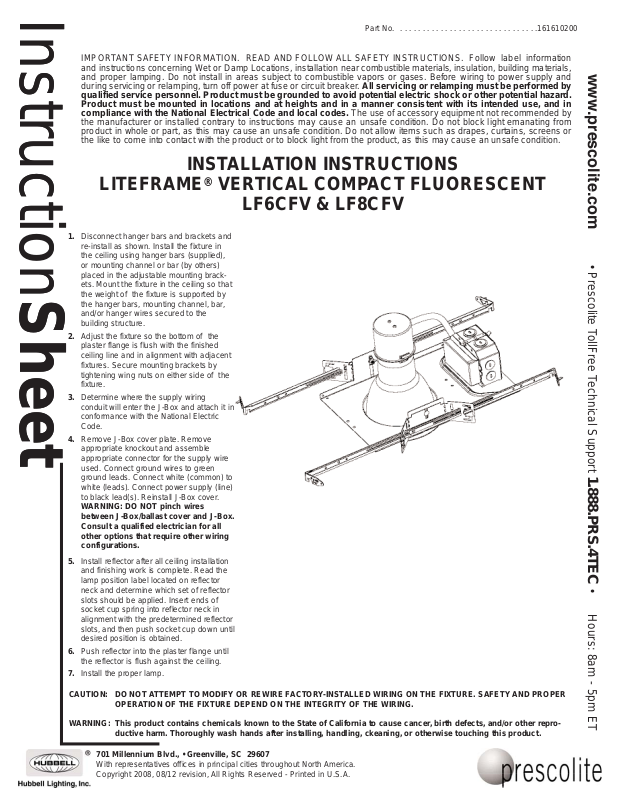

INSTALLATION INSTRUCTIONS
LITEFRAME
®
VERTICAL COMPACT FLUORESCENT
LF6CFV & LF8CFV

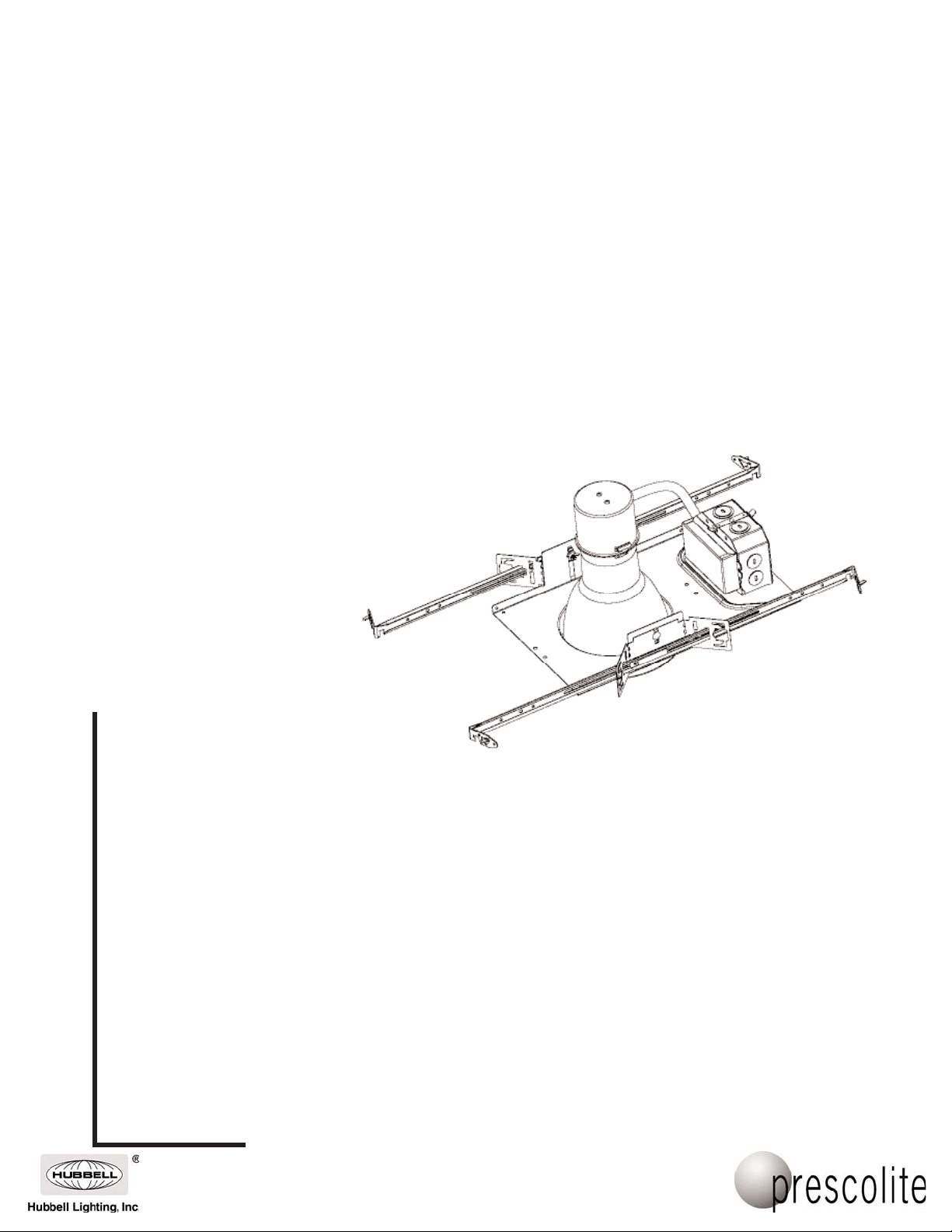

1. Disconnect hanger bars and brackets and
re-install as shown. Install the fixture in
the ceiling using hanger bars (supplied),
or mounting channel or bar (by others)
placed in the adjustable mounting brackets. Mount the fixture in the ceiling so that
the weight of the fixture is supported by
the hanger bars, mounting channel, bar,
and/or hanger wires secured to the
building structure.
2. Adjust the fixture so the bottom of the
plaster flange is flush with the finished
ceiling line and in alignment with adjacent
fixtures. Secure mounting brackets by
tightening wing nuts on either side of the
fixture.
3. Determine where the supply wiring
conduit will enter the J-Box and attach it in
conformance with the National Electric
Code.
4. Remove J-Box cover plate. Remove
appropriate knockout and assemble
appropriate connector for the supply wire
used. Connect ground wires to green
ground leads. Connect white (common) to
white (leads). Connect power supply (line)
to black lead(s). Reinstall J-Box cover.
WARNING: DO NOT pinch wires
between J-Box/ballast cover and J-Box.
Consult a qualified electrician for all
other options that require other wiring
configurations.
5. Install reflector after all ceiling installation
and finishing work is complete. Read the
lamp position label located on reflector
neck and determine which set of reflector
slots should be applied. Insert ends of
socket cup spring into reflector neck in
alignment with the predetermined reflector
slots, and then push socket cup down until
desired position is obtained.
6. Push reflector into the plaster flange until
the reflector is flush against the ceiling.
7. Install the proper lamp.
IMPORTANT SAFETYINFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information
and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,
and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and
during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by
qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.
Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in
compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by
the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from
product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or
the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.
CAUTION: DO NOT ATTEMPT TO MODIFY OR REWIRE FACTORY-INSTALLED WIRING ON THE FIXTURE. SAFETYAND PROPER
OPERATION OF THE FIXTURE DEPEND ON THE INTEGRITY OF THE WIRING.
WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, and/or other repro-
ductive harm. Thoroughly wash hands after installing, handling, ckeaning, or otherwise touching this product.
