Page 1
InstructionSheet
InstructionSheet
Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .05069500
IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information
and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,
and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and
during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by
qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.
Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in
compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by
the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from
product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or
the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.

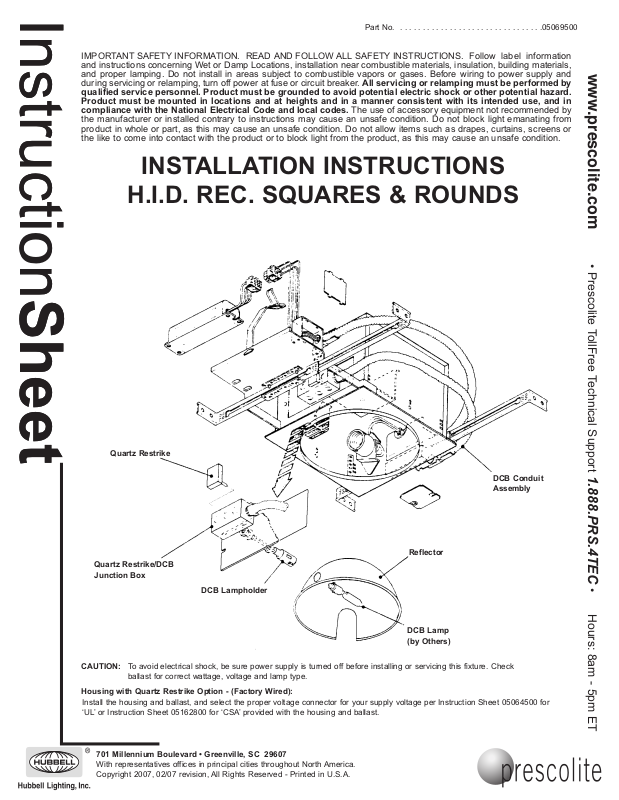

INSTALLATION INSTRUCTIONS
H.I.D. REC. SQUARES & ROUNDS
www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET

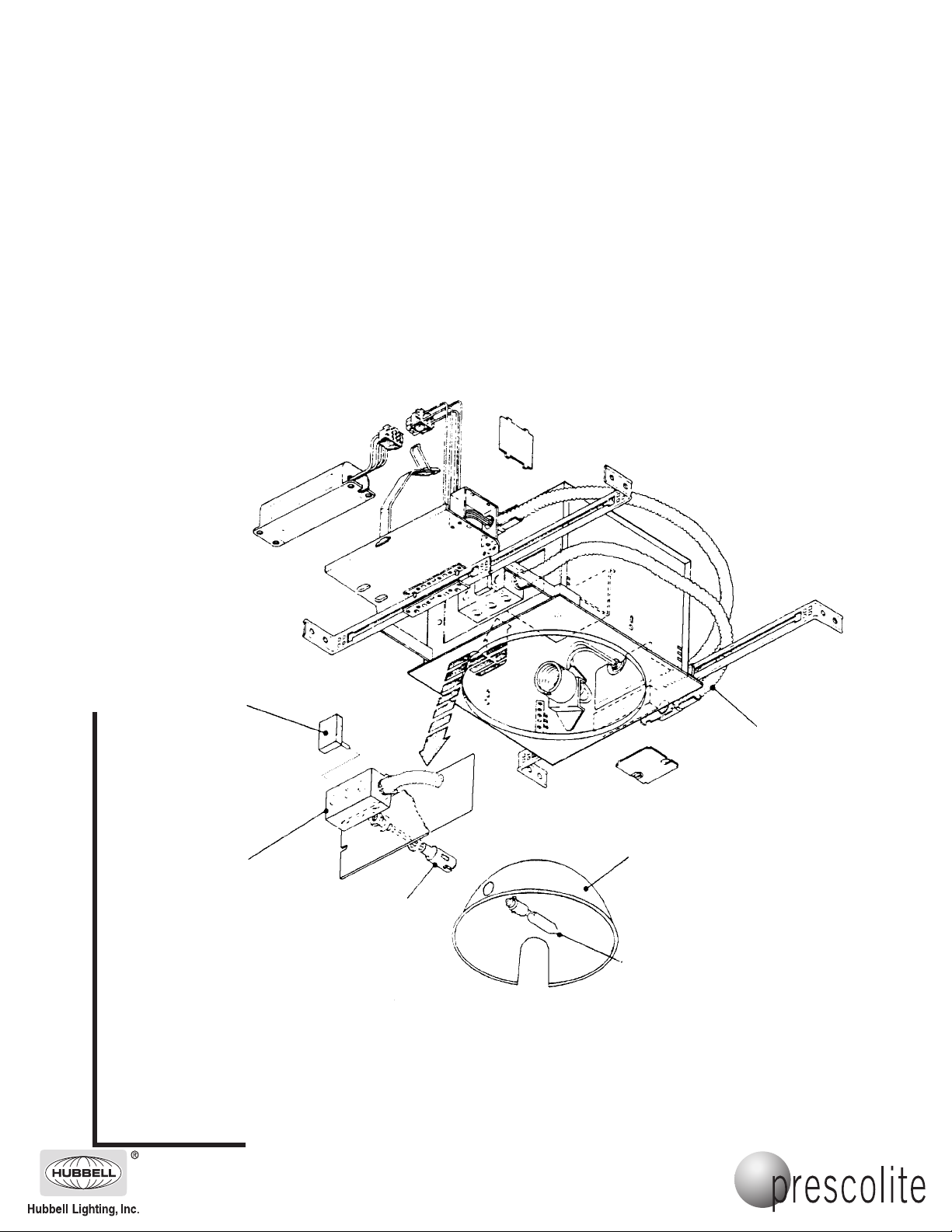

Quartz Restrike
DCB Conduit
Assembly
Reflector
Quartz Restrike/DCB
Junction Box
DCB Lampholder
DCB Lamp
(by Others)
CAUTION: To avoid electrical shock, be sure power supply is turned off before installing or servicing this fixture. Check
Housing with Quartz Restrike Option - (Factory W
Install the housing and ballast, and select the proper voltage connector for your supply voltage per Instruction Sheet 05064500 for
‘UL’ or Instruction Sheet 05162800 for ‘CSA’ provided with the housing and ballast.
ballast for correct wattage, voltage and lamp type.
ired):
701 Millennium Boulevard • Greenville, SC 29607
With representatives of
Copyright 2007, 02/07 revision, All Rights Reserved - Printed in U.S.A.
fices in principal cities throughout North
America.
Page 2
InstructionSheet
Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .05069500
Housings with DCB Option:
1. Follow instructions outlined above for installing the housing, ballast, voltage selection, and housing reflector types, A-Line or ellip-
soidal
nlike the housings with Quartz Restrike the DCB housings are supplied with the leads from the emergency lamp socket unwired.
2.U
3. Remove the J-Box Cover(s) and locate the two leads from the emergency lamp socket. Splice these two leads to a separate emer-
gency circuit. Replace J-Box Cover(s).
CAUTION: Separate DCB circuit is 120V supply only.
4. Install correct quartz lamp per table below.
AUXILIARY LAMP WATTAGE TABLE FOR QUARTZ RESTRIKE
Maximum W
Wattage of
H.I.D. Lamp Enclosed Fixtures Open Fixtures 120V Supply 208/240/277V Supply
35W - 100W 100W T4 Quartz 100W T4 Quartz 400W 100W
150W - 175W
250W - 400W 150W T4 Quartz 250W T4 Quartz 400W 300W
100W T4 Quartz 150W T4 Quartz 400W 150W
attage for Integral Lamp Maximum Wattage for Remote Lamp
www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET
AUXILIARY LAMP WATTAGE TABLE FOR DCB
Wattage of Maximum Wattage for Integral Lamp
Standard
Fixture Lamp Enclosed Fixtures Open Fixtures
thru 100W 100W T4 Quartz 100W T4 Quartz
150W - 200W 100W T4 Quartz 150W T4 Quartz
250W - 400W 150W T4 Quartz 250W T4 Quartz
701 Millennium Boulevard • Greenville, SC 29607
With representatives of
Copyright 2007, 02/07 revision, All Rights Reserved - Printed in U.S.A.
fices in principal cities throughout North
America.
