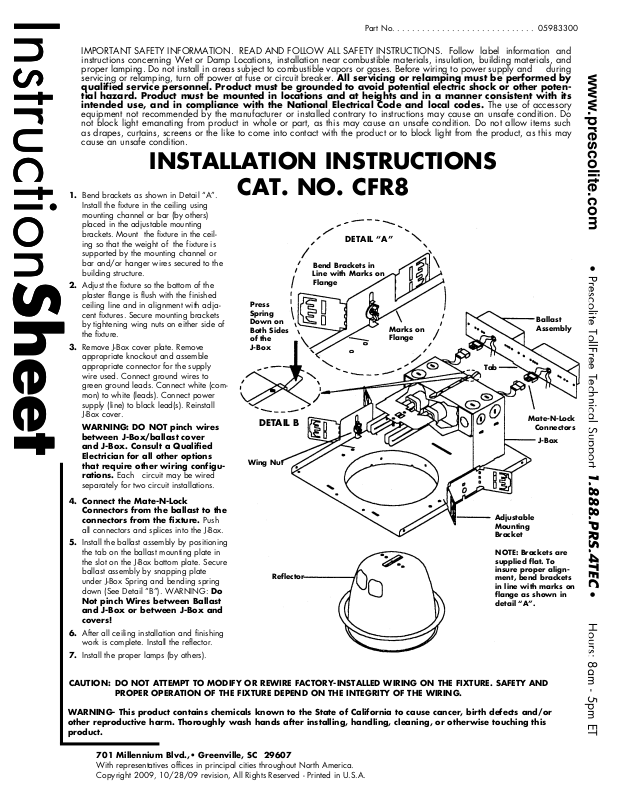

InstructionSheet

IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials, and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by

qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard. Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in compliance with the National Electrical Code and local codes. The use of accessory

equipment not recommended by the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.

INSTALLATION INSTRUCTIONS

Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05983300

www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET

1. Bend brackets as shown in Detail “A”.

Install the fixture in the ceiling using mounting channel or bar (by others) placed in the adjustable mounting brackets. Mount the fixture in the ceiling so that the weight of the fixture is supported by the mounting channel or bar and/or hanger wires secured to the building structure.

2. Adjust the fixture so the bottom of the

plaster flange is flush with the finished ceiling line and in alignment with adjacent fixtures. Secure mounting brackets by tightening wing nuts on either side of the fixture.

3. Remove J-Box cover plate. Remove

appropriate knockout and assemble appropriate connector for the supply wire used. Connect ground wires to green ground leads. Connect white (common) to white (leads). Connect power supply (line) to black lead(s). Reinstall J-Box cover.

WARNING: DO NOT pinch wires

between J-Box/ballast cover and J-Box. Consult a Qualified Electrician for all other options that require other wiring configurations. Each circuit may be wired

separately for two circuit installations.

4. Connect the Mate-N-Lock Connectors from the ballast to the connectors from the fixture. Push

all connectors and splices into the J-Box.

5. Install the ballast assembly by positioning the tab on the ballast mounting plate in the slot on the J-Box bottom plate. Secure ballast assembly by snapping plate under J-Box Spring and bending spring down (See Detail “B”). WARNING: Do

Not pinch Wires between Ballast and J-Box or between J-Box and covers!

6. After all ceiling installation and finishing

work is complete. Install the reflector.

7. Install the proper lamps (by others).

CAT. NO. CFR8

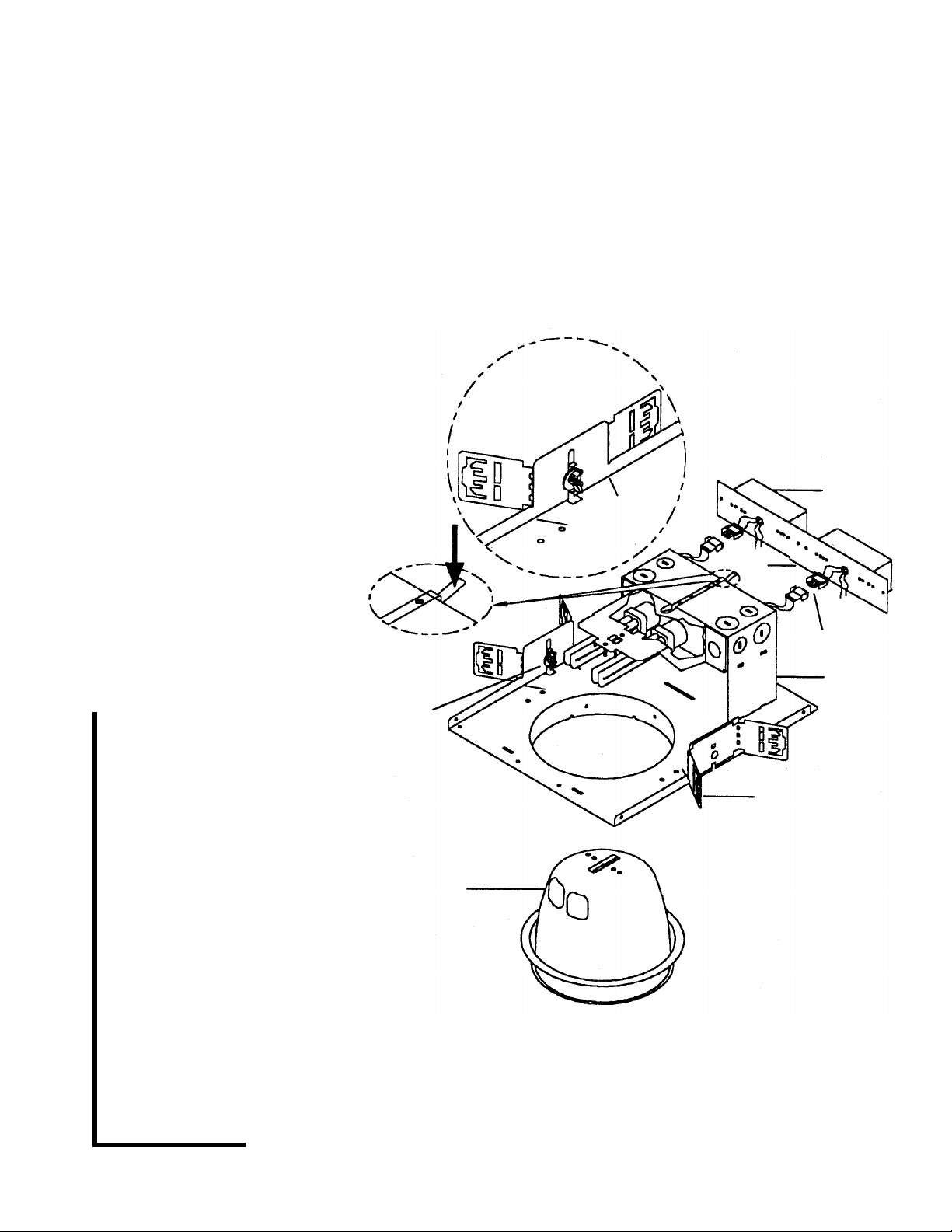

DETAIL “A”

Bend Brackets in Line with Marks on Flange

Press Spring Down on Both Sides

of the

J-Box

DETAIL B

Wing Nut

Reflector

Marks on Flange

Ballast Assembly

Tab

Mate-N-Lock

Connectors

J-Box

Adjustable Mounting Bracket

NOTE: Brackets are supplied flat. To insure proper alignment, bend brackets in line with marks on flange as shown in detail “A”.

CAUTION: DO NOT ATTEMPT TO MODIFY OR REWIRE FACTORY-INSTALLED WIRING ON THE FIXTURE. SAFETY AND

WARNING- This product contains chemicals known to the State of California to cause cancer, birth defects and/or other reproductive harm. Thoroughly wash hands after installing, handling, cleaning, or otherwise touching this product.

PROPER OPERATION OF THE FIXTURE DEPEND ON THE INTEGRITY OF THE WIRING.

701 Millennium Blvd.,• Greenville, SC 29607
