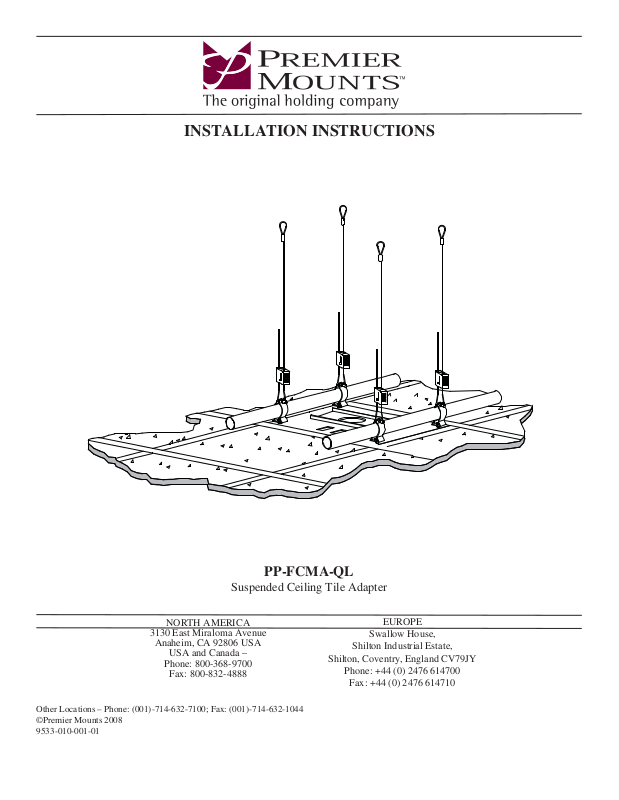

Premier Mounts PP-FCMA-QL User Manual

INSTALLATION INSTRUCTIONS

PP-FCMA-QL

Suspended Ceiling Tile Adapter

NORTH AMERICA

3130 East Miraloma Avenue

Anaheim, CA 92806 USA

USA and Canada –

Phone: [phone]

Fax: [phone]

Other Locations – Phone: [phone]; Fax: [phone]
©Premier Mounts 2008
9533-010-001-01

EUROPE

Swallow House,

Shilton Industrial Estate,

Shilton, Coventry, England CV79JY

Phone: [phone]

Fax: [phone]

PP-FCMA-QL

Table of Contents

Warning Statements 2
Parts List 3
Installation Tools 3
Ceiling Tile Removal 4

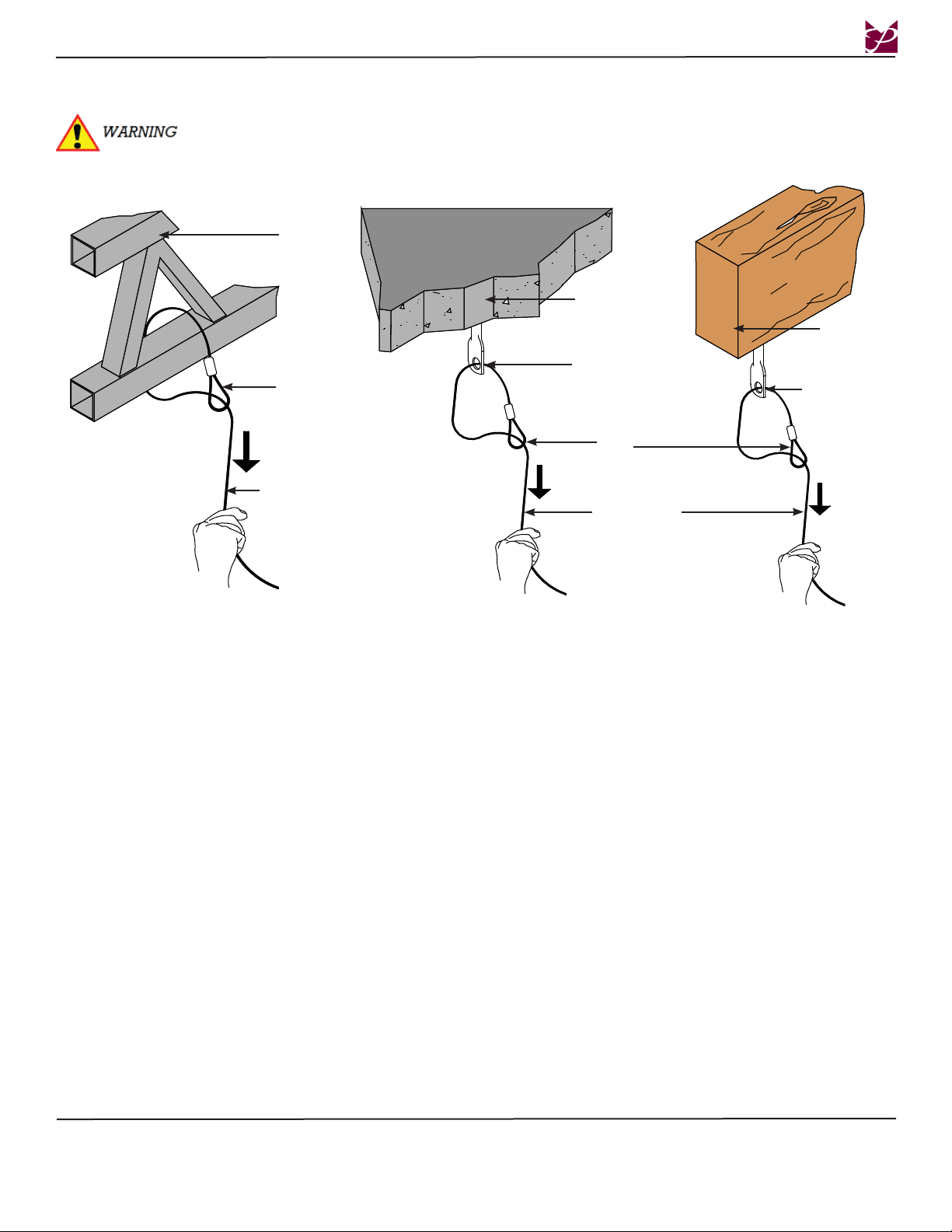

Ceiling Anchoring 5

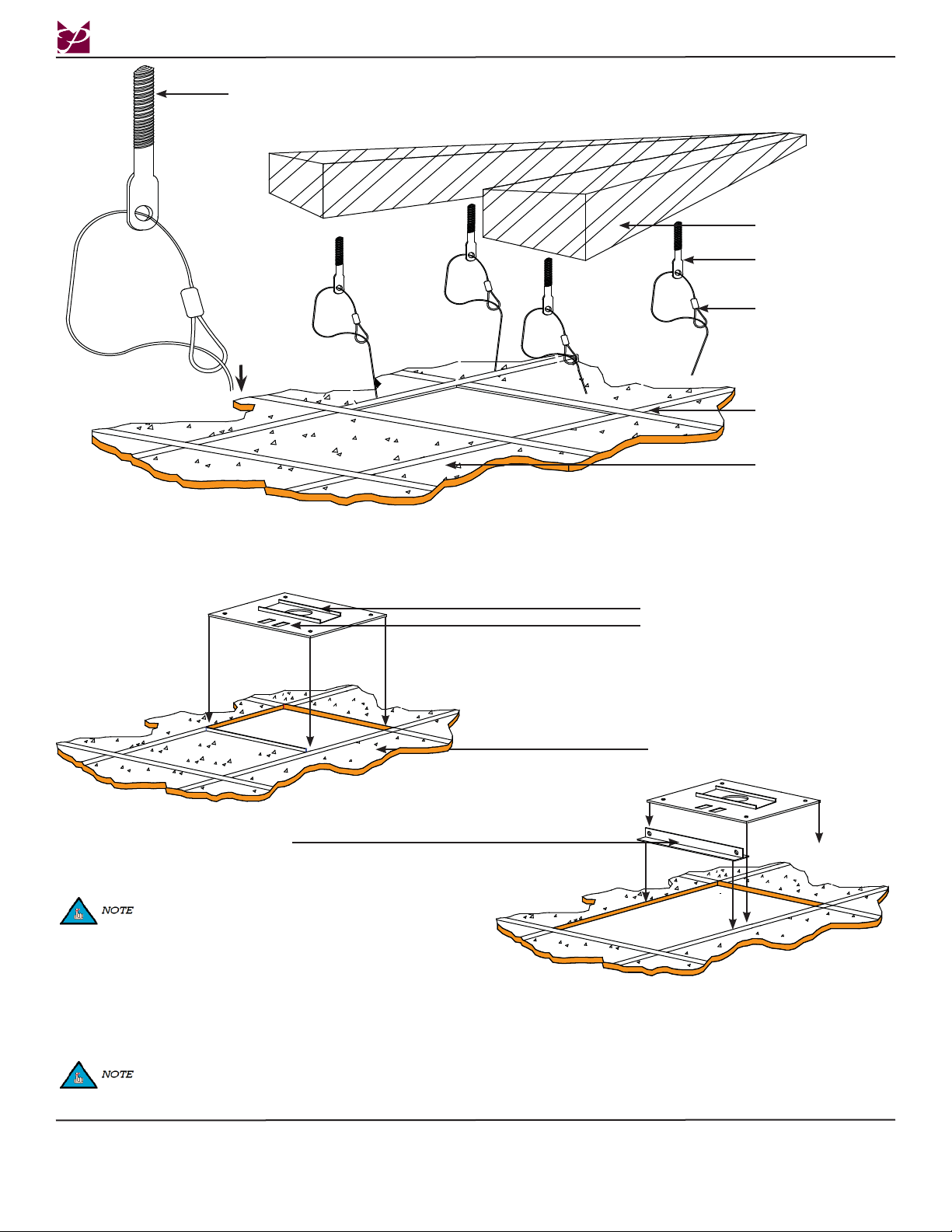

PP-FCMA-QL Installation 6

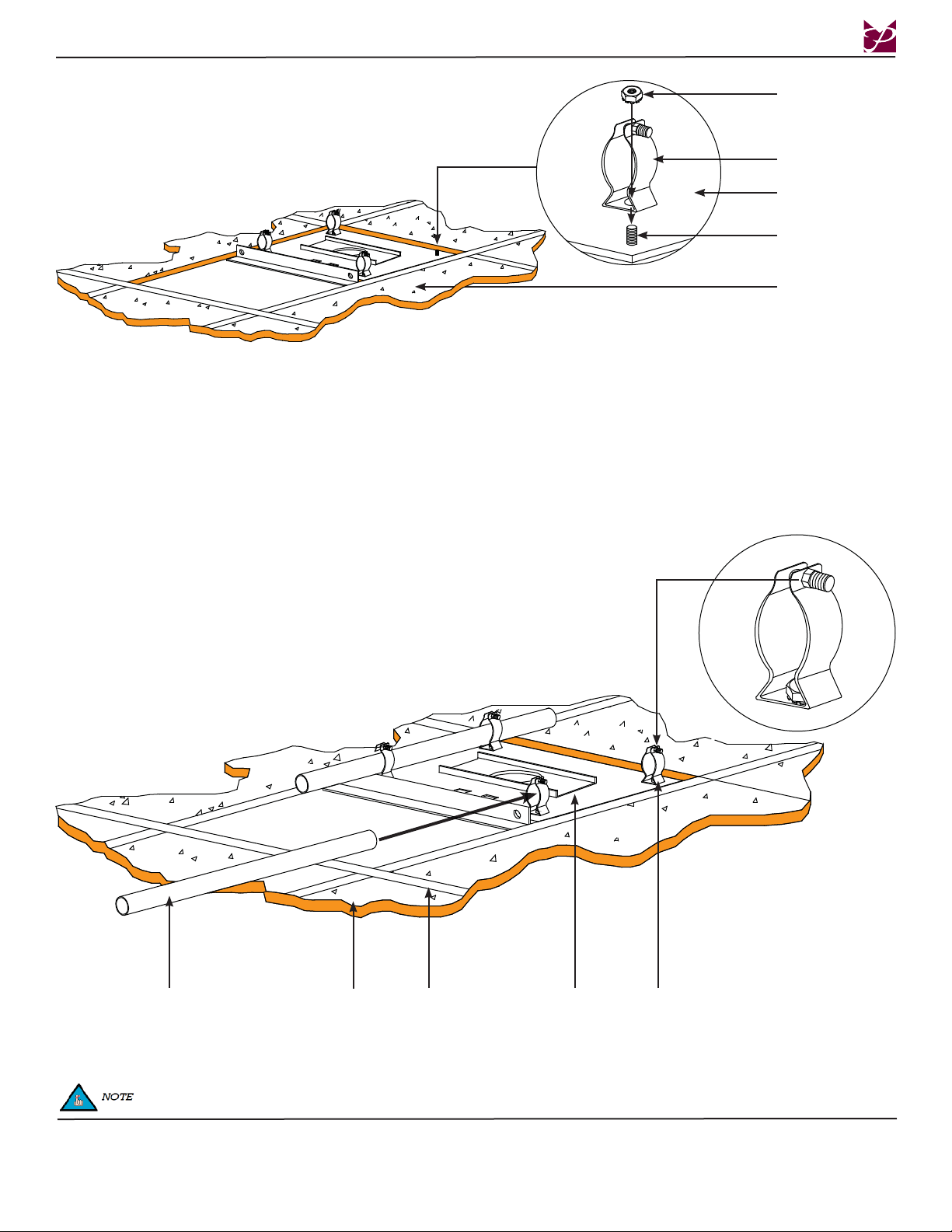

Attaching Pipe Clamps 7
Attaching EMT Conduit Pipe (Optional) 7

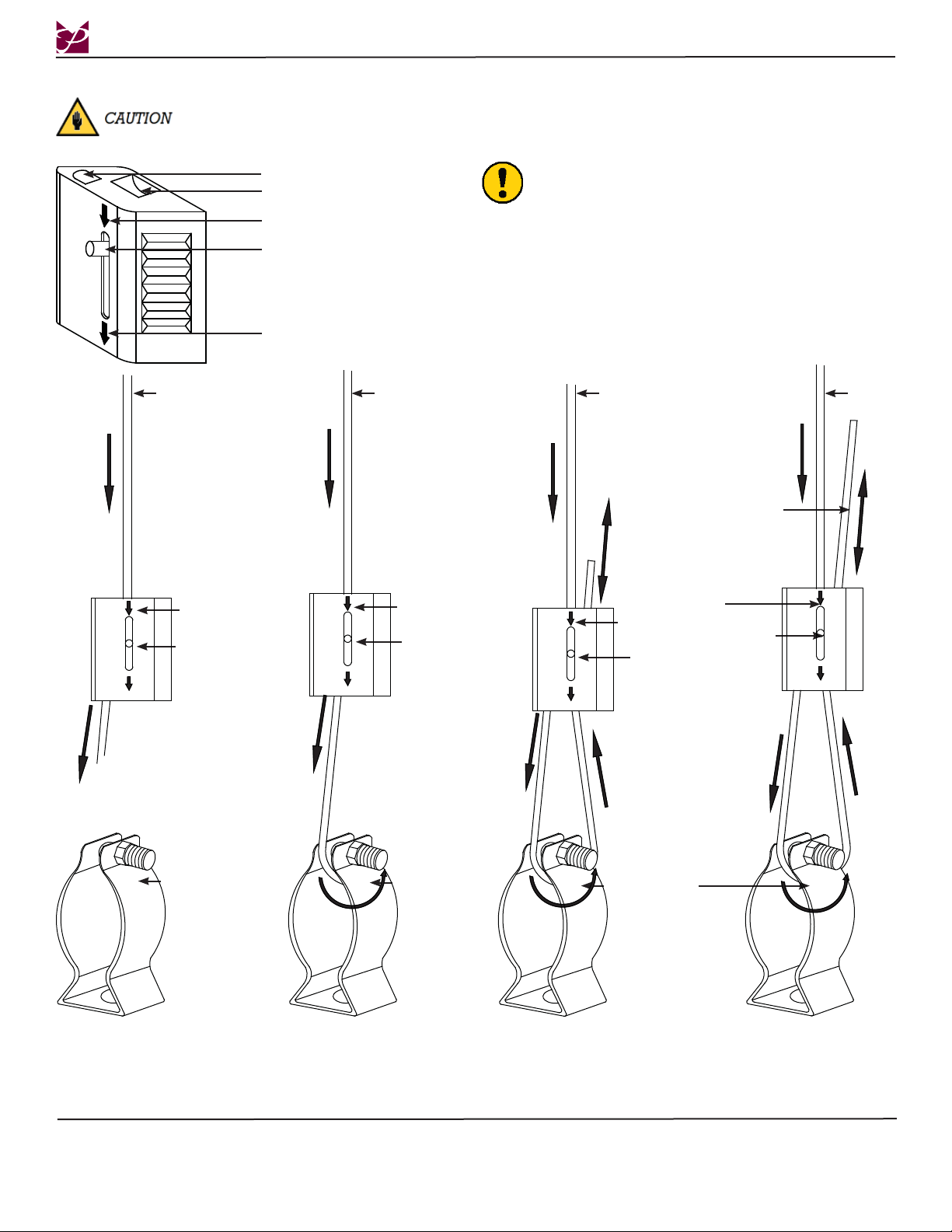

Quick Lock Installation 8
Electrical Box Installation 10

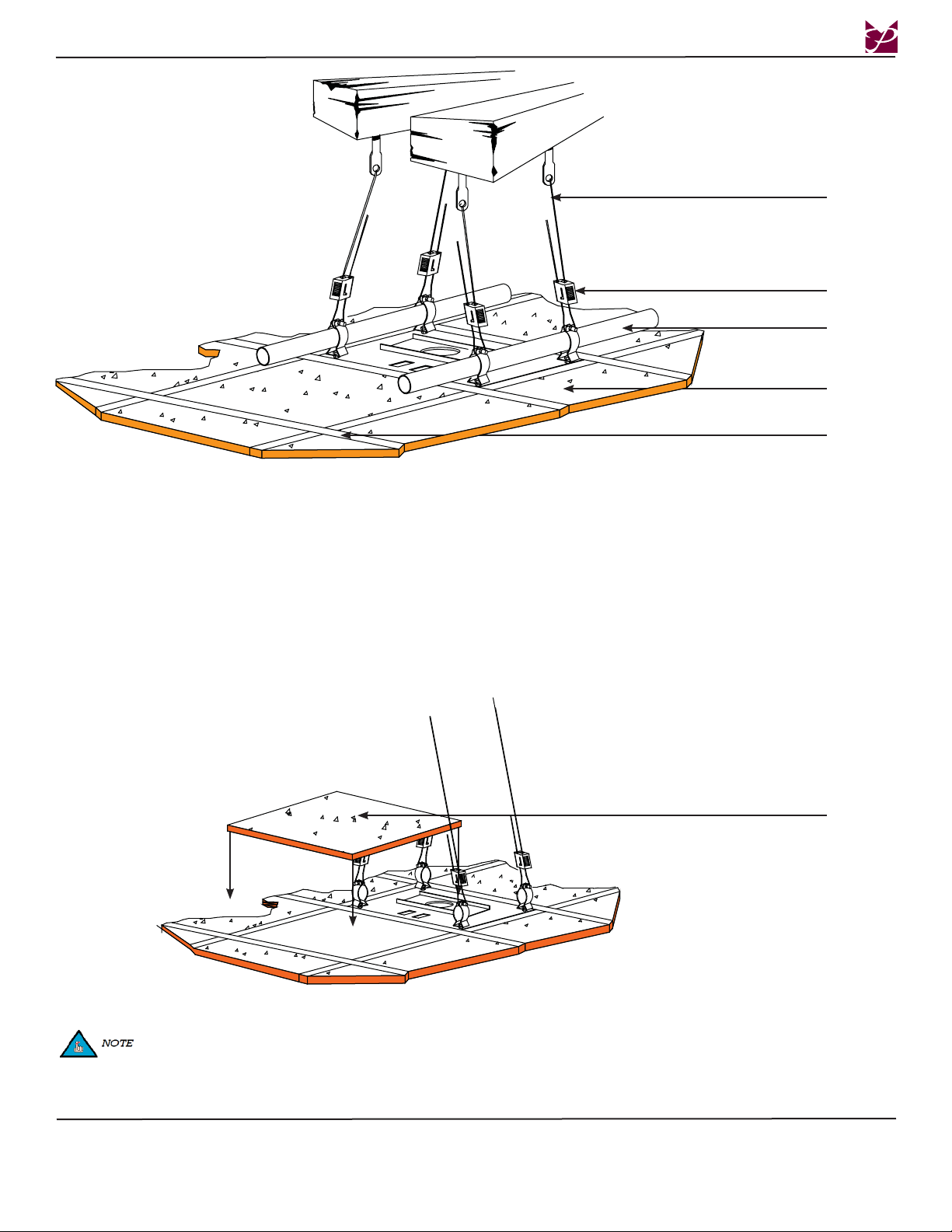

PP-FCMA-QL Adjustments 10
Securing the Pipe to the PP-FCMA-QL 11
Technical Specifi cations 11
Warranty 12

Warning Statements

PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS SHOULD BE READ AND COMPLETELY
UNDERSTOOD. THE INSTALLATION INSTRUCTIONS MUST BE READ TO PREVENT PERSONAL INJURY AND PROPERTY DAMAGE. KEEP
THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE REFERENCE.

PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR PURPOSES
OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY UNAUTHORIZED ATTACHMENTS OR MODIFICATIONS,
AND IS NOT RESPONSIBLE FOR ANY DAMAGES, CLAIMS, DEMANDS, SUITS, ACTIONS OR CAUSES OF ACTION OF WHATEVER KIND
RESULTING FROM, ARISING OUT OF OR IN ANY MANNER RELATING TO ANY SUCH USE, ATTACHMENTS OR MODIFICATIONS.

THE SURFACE MUST BE CAPABLE OF SUPPORTING 250LBS. IF NOT, THE SURFACE STRUCTURE MUST BE REINFORCED. DO NOT
HAND OR ATTACH MORE THAN 50LBS. TO THIS PRODUCT. PROPER INSTALLATION PROCEDURE BY A QUALIFIED SERVICE
TECHNICIAN, AS OUTLINED IN THE INSTALLATION INSTRUCTIONS, MUST BE ADHERED TO. FAILURE TO DO SO COULD RESULT IN
SERIOUS PERSONAL INJURY, OR EVEN DEATH.

SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE ASSEMBLY OF THIS PRODUCT. USE PROPER SAFETY GEAR AND
TOOLS FOR THE ASSEMBLY PROCEDURE TO PREVENT PERSONAL INJURY.

At least two qualified people should perform the assembly procedure. Injury and/or damage can result from dropping or mishandling the product.

If mounting to studs, make sure that the mounting screws are anchored into the center of the studs. Use of an edge-to-edge stud finder is recommended.

Be aware of the mounting environment. If drilling and/or cutting into the mounting surface, always make sure that there are no electrical wires in the surface.
Cutting/drilling into an electrical line may cause serious injury.

This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal injury.

Do not install near sources of high heat. Do not install on a structure that is prone to vibration, movement or chance of impact

Contact Premier Mounts with any questions
[phone]

[e-mail]

Page 2 Installation Instructions

PP-FCMA-QL

Parts List

This ceiling adapter is shipped with all proper installation hardware and components. Make sure that none of these parts
are missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please stop the
installation and contact Premier Mounts (800-368-9700).

PP-FCMA-QL(Qty 1)

¼” x 3” Eye Lag Screws (Qty 4)

M8 Flat Washers (Qty 4) M8 x 20mm Phillips Head Screws (Qty 4) M5 x 16mm Phillips Head Screw

Braided Cable (Qty 4 Strands)

Pipe Clamp (Qty 4)

Quick Locks (Qty 4)

1/4-20 KEP Nut (Qty 4)

(Qty 1)

EMT Conduit Pipe (Optional - Qty 2)

Commercially Available

¼” x 3” Concrete Anchors (Qty 4)

Rubber Caps (Qty 4) 24” T-Bar Frame (Qty 1)

Commercially Available

Installation Tools

Phillips Head Screwdriver Wire Cutters Ladder

Installation Instructions Page 3

Ceiling Tile Removal

Read all cautions and warnings before continuing.

Observe the room and the ceiling; find the proper location for the PP-FCMA-QL placement and lightly mark
the bottom of the tile.

PP-FCMA-QL

Step 1. Carefully remove the 24” x 24” or, depending on your ceiling configuration, the 24” x 48” suspended ceiling tiles.

Page 4 Installation Instructions
