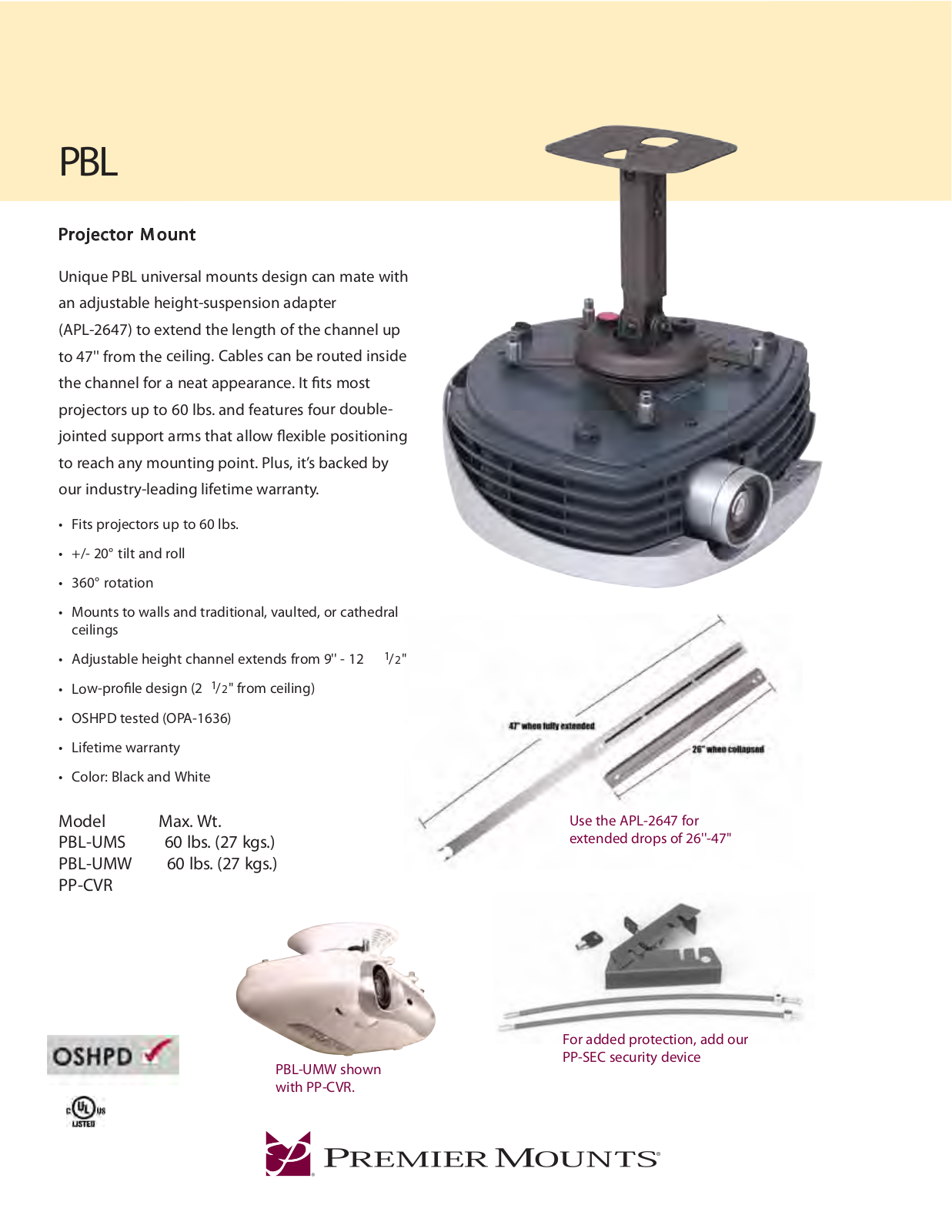

PBL
For added protection, add our
PP-SEC security device
Use the APL-2647 for
extended drops of 26''-47"
P
r
o
j
e
c
t
o
r
M
o
u
n
t
Unique PBL universal mounts design can mate with
an adjustable height-suspension adapter
(APL-2647) to extend the length of the channel up
to 47'' from the ceiling. Cables can be routed inside
the channel for a neat appearance. It ts most
projectors up to 60 lbs. and features four double-
jointed support arms that allow exible positioning
to reach any mounting point. Plus, it’s backed by
our industry-leading lifetime warranty.
• Fits projectors up to 60 lbs.
• +/- 20° tilt and roll
• 360° rotation
• Mounts to walls and traditional, vaulted, or cathedral
ceilings
• Adjustable height channel extends from 9'' - 12
1
/
2
"
• Low-prole design (2
1
/
2
" from ceiling)
• OSHPD tested (OPA-1636)
• Lifetime warranty
• Color: Black and White
PBL-UMW shown
with PP-CVR.
Model Max. Wt.
PBL-UMS 60 lbs. (27 kgs.)
PBL-UMW 60 lbs. (27 kgs.)
PP-CVR
800.368.9700
I
www.mounts.com

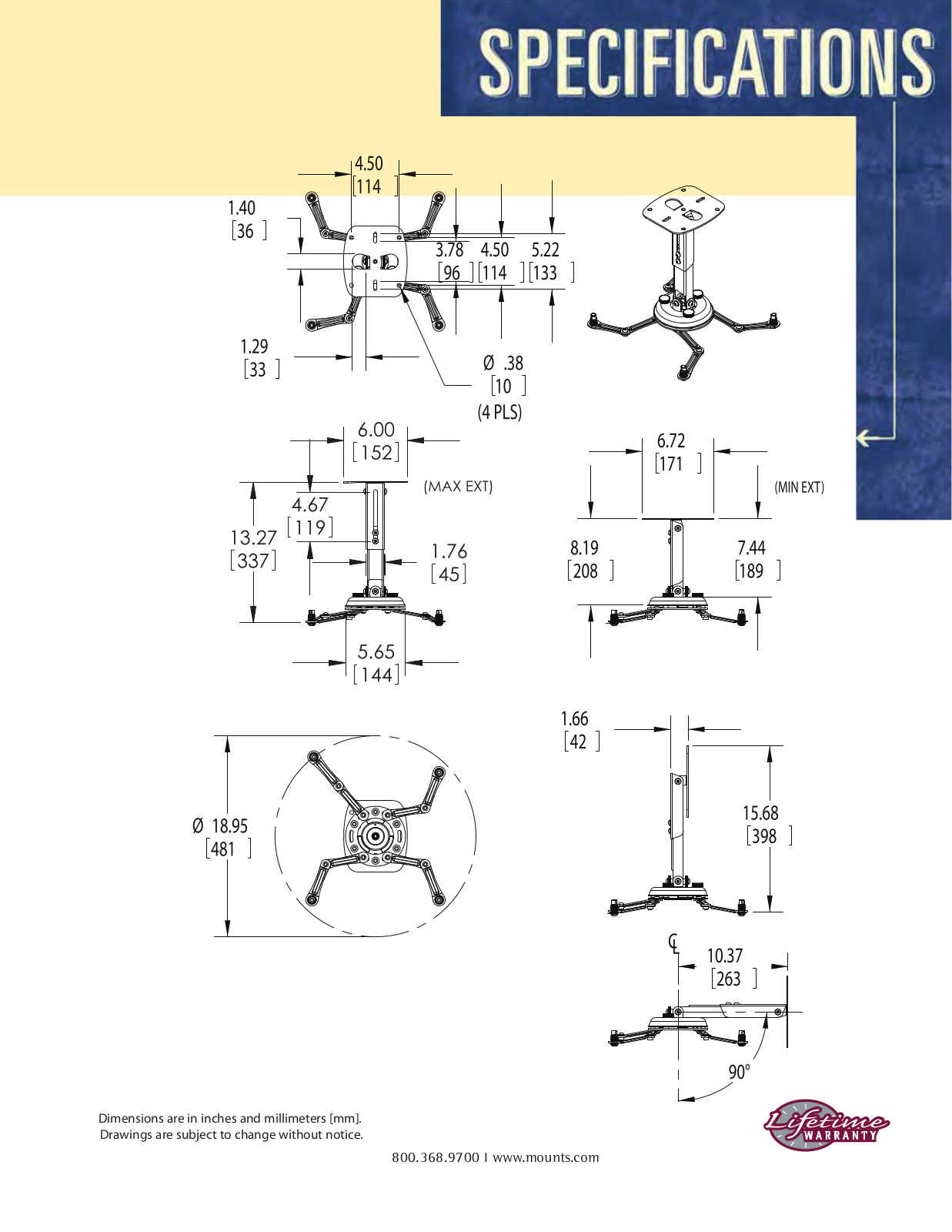

Dimensions are in inches and millimeters [mm].
Drawings are subject to change without notice.
