Premier W30, WC36 Users Guide

Premier Heavy Duty 30" Wood
Paper Trimmer - W30

Instruction Manual

Heavy-Duty Paper Trimmers

Key Features and Benefits

• Heavy-duty 3/4” thick wood base

• Fully-hardened self-sharpening steel blades cut up
to 20 sheets

• Accurately cuts paper, matte board, cardboard, film,
tissue, and textiles

• Permanent 1/2” grid and dual rulers for proper paper alignment

• Patented automatic blade latch locks with every cutting motion

• Finger guard helps protect the entire blade length

• Torsion spring counterbalances blade arm

• Non-skid feet

Model Numbers

W30 – 30” cutting length
WC36 – 36” cutting length MADE IN USA

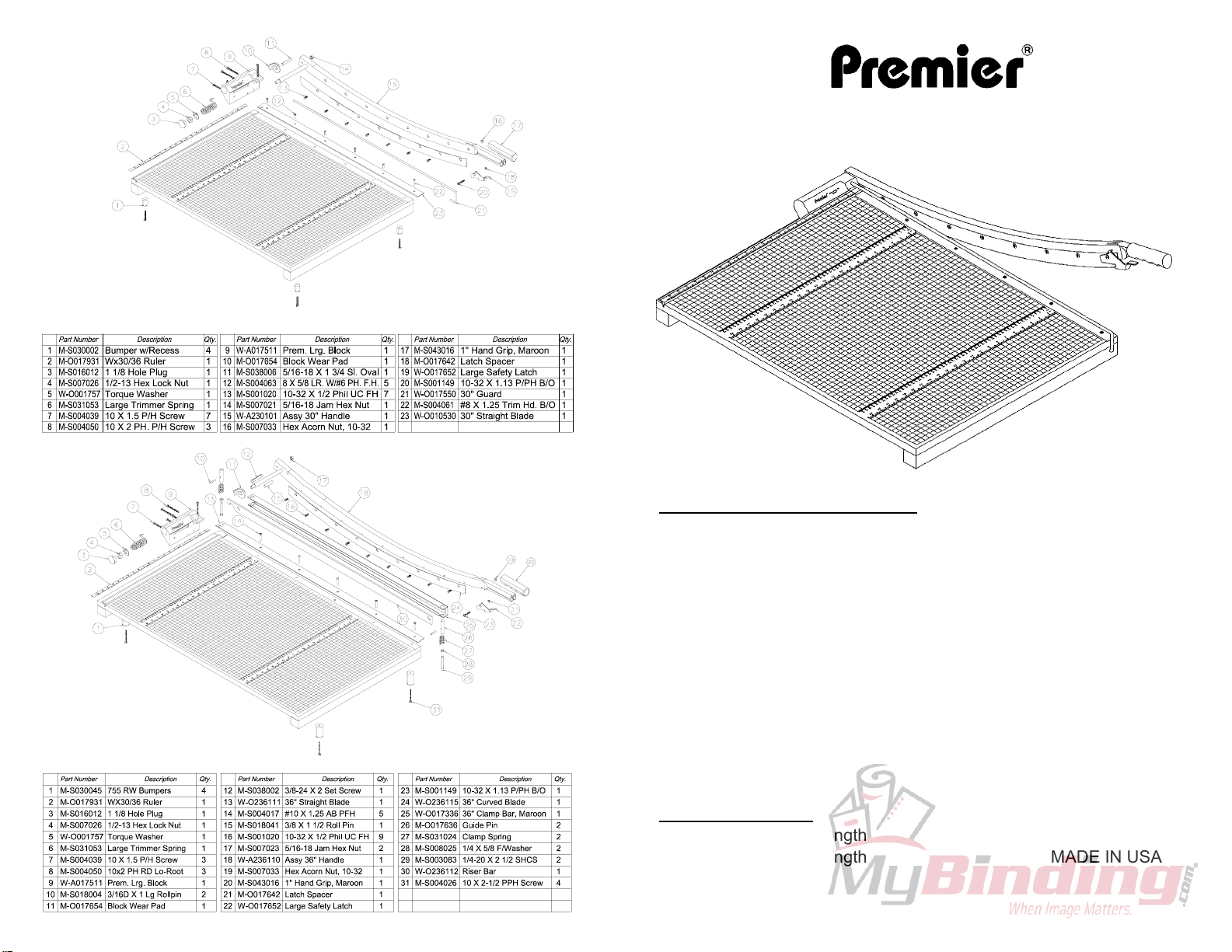

WC36 PARTS LIST

W30 PARTS LIST

Key Components

A – Hand Grip/Blade Arm/Blade Latch Assembly
B – Wood Base
C – Alignment Rulers
D – Finger Guard

(note model WC36 has a automatic clamp in place

of the finger guard)

E – Paper Guide Ruler

Assembly Instructions

None – your trimmer is ready for use right out of the box

Automatic Safety Latch

The patented automatic blade latch is a key safety feature of this
trimmer. It will lock with every complete cutting stroke, helping to
eliminate forgetfulness. Remember to always push the blade arm
down completely when you are finished cutting, to ensure that the
latch activates. Never remove the latch for any reason.

Operating Instructions

1. Place the trimmer on a flat, stable surface

2. Release the blade latch, which is located on the hand grip (A)

3. Lift the blade arm (A) up into cutting position

4. Using the rulers or the 1/2” grid, align the paper to the proper

position, pushing it up against the paper guide ruler (E).

CAUTION:

Keep hands and fingers behind the finger guard (D)

at all times, away from the cutting blades

5. While holding the paper down with your left hand (to make sure

it stays in place), pull down the blade arm (A) to cut.
Model WC36 has a clamp that will automatically activate to
assist in holding the paper in place.

6. Always make sure that the blade arm is completely down and

locked when not in use.

Safety Information

• Always ensure that the blade arm is fully pushed down, and that

the blade latch is engaged, when not in use

• Never operate the trimmer without the finger guard in place

• Always keep clothing, jewelry, watches, and hair away from

the cutting blade

• Keep out of the reach of children

• Do not carry the trimmer by the hand grip or the blade arm

For Best Cutting Performance

Use Trim-Ease Blade Lubricant for a smoother cut and to help
preserve the life of the cutting blade. To order, send $4.00 per stick
and a self-addressed, stamped envelope to the address below.

Customer Service

Telephone: [phone]
Fax: [phone]

Email: [e-mail]
Internet: www.martinyale.com

Address: Martin Yale Industries, Inc.

251 Wedcor Avenue
Wabash, IN 46992

Visit www.martinyale.com for more information on trimmers and
other office products.

A

E

C

D

AUTOMATIC BLADE

SAFETY LATCH

Literature Part No. M-S027088 Rev.2 10/5/07

B
