C534. C534i Self Powered Elliptical Fitness Crosstrainerl

C534, C534i Elliptical Fitness Crosstrainer

Warning: This service manualisfor use by Precor trained service providers only.

Ifyou are nota PrecorTrained Servicer, you must not attemptto serviceany Precor Product;

Call your dealer for service.

This document contains information required to perform the majority of troubleshooting, and replacement procedures required to repair and maintain this product.

This document contains general product information, software diagnostic procedures (when available), preventative maintenance procedures, inspection and adjustment procedures, troubleshooting procedures, replacement procedures and electrical block and wiring diagrams.

To move directly to a procedure. click the appropriate procedure in the bookmark section to the left of this page. You may "drag" the separator bar between this page and the bookmark section to change the size of the page being viewed.

Unauthorized Reproduction and Distribution Prohibited

Law

Page 1

Page 2

C534, C534i Self Powered Elliptical Fitness Crosstrainer

• Section One - Things

You

Should Know

Right, Left, Front, and Back Conventions

this manual, right, left, front, and back are from the perspective of a user standing on the EFX,

facing the display enclosure.

General System Information

• The generator performs three functionsinthe EFX. First, by controlling the amount of electrical load applied to the generator, the user's pedalling resistance is controlled. Second, the generator is used to charge the EFX's internal battery. Lastly, one of the generators three phase output windings is monitored to determine when the unit is

use and when it is idle. This system also determines the stride rate by determining the operating speed (output frequency) of the monitored generator winding.

Warning and Caution Statements and General Safety Guidelines

Warning statements indicate a particularly dangerous activity. Warning statements you will find in this manual include:

•

• Ifthe EFX has been in recent use, the load resistors and load resistor mounting bracket may

be extremely hot.

• Because this is a self powered unit, it will either be necessary to either equip the unit with the optional external power supply or have an assistant pedal on the unit while voltage measurements are being taken. Because of the danger of working on the unit while it

motion using the optional external power supply

strongly recommended.

• When the unit is used, stairarms are in motion, the generator will operate and produce potentially hazardous voltages even when the battery

disconnected.

• To remove power from the EFX, the optional external power supply (when equipped) must be disconnected from the wall outlet and the red (positive) lead must be disconnected from the battery. Always ensure that the EFX external power supply is unplugged from the wall outlet and the red (positive) lead is removed from the battery when you inspect or adjust the EFX,

when you isolate, remove, or replace an EFX component.

• Removing the covers exposes high voltage components and potentially dangerous machinery. Exercise extreme caution when you perform maintenance procedures with the cover(s) removed.

•

During service operations you will be very close to moving machinery and voltage bearing components. When you perform maintenance procedures with the covers removed, remove

jewelry (especially from ears and neck), tie up long hair, remove neck ties, and do not wear loose clothing.

Page 2

Page 3

•

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

Exercise caution when touching any wire or electrical component during EFX operation.

• A pinching hazard exists when the unitisoperated by turning the crankarms by hand. It is possible to seriously pinch a finger between the crankarm and stairarm. The stairarms should be removed before operating the crankarms by hand.

Caution statements are intended to prevent damage to the EFX as a resultofthe current activity. Caution statements included in this manual are listed below:

• When it is necessary to lift or move the EFX, ensure that the EFX has adequate support and that you use proper lifting techniques.

Safety guidelines you should know and follow include:

• Read the owner's manual and follow all operating instructions.

• Operate the EFX on a solid, level surface.

• Visually check the EFX before beginning service or maintenance operations. If it is not

completely assembled or is damaged in any way, exercise extreme caution while operating and checking the EFX.

•

When operating the EFX, do not wear loose clothing. Do not wear shoes with heels or leather soles. Check the soles of your shoes and remove any embedded stones. Tie long hair back.

•

• Do not rock the unit. Do not stand or climb on the handlebars, display enclosure,orcover.

• Do not set anything on the handlebars, display enclosure,orcover. Never place liquids on

any partofthe EFX, while performing service.

• To prevent electrical shock, keep all electrical components away from water and other

liquids.

• Do not use accessory attachments that are not recommended by the manufacturer-such

attachments might cause injuries.

Page 3

Page 4

C534, C534i Self Powered Elliptical Fitness Crosstrainer

• General Information

For the latest exploded view, part number and part pricing information, visit the Precor dealer website at "www.precor.comlconnection.

Tools Required

•

Multimeter Anti-static kit 4"

- 6" gearpuller Precor part number 20030-108 belt gauge US and metric end wrench set US and metric socket wrench set

Torque wrench, 200 in.llbs. Torque wrench, 200 ft./Ibs

Allen wrench set Screwdriver set 7/16" allen key, socket wrench mounted Straight edge

Page 4

Page 5

•

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

Section Two - Preventive Maintenance

Preventive maintenance measures are either scheduled or unscheduled. Scheduled preventive maintenance activities are included here so that you are aware of preventive measures performed on a regular basis.

Regular Preventive Maintenance (Owner)

Cleanliness of the EFX and its operating environment will keep maintenance problems and service calls to a minimum. Precor recommends that you perform the following preventive maintenance schedule.

After Each Use

• Unplug the optional external power supply (when equipped) from the AC outlet.

• Wipe down the covers, handlebars, stairarm wheels and stairarm ramps with a damp cloth.

Daily Maintenance

Clean the EFX's frame, covers, stairarms, stairarm ramps and stairarm wheels using water or a 30:1

solution of Simple Green® and water. Wipe the surface of the electronic console with a

damp sponge or soft cloth. Dry with a clean towel. A 30:1 solution of Simple Green® and water

is the only cleaning solution that has been tested and approved for use on the C534 ramps. Use of any other cleaner, may cause degradation of the ramp anodizing and void the ramp warranty. The use of an acid (citric) based cleaner will cause ramp anodizing damage and

not authorized

by Precor.

Weekly Maintenance

• Vacuum underneath the EFX, following these steps:

1.Unplug the optional external power supply (when equipped) from the AC outlet.

Place the EFX on its side.

Note:

Place a drop cloth under the EFX to protect the flooring and to ensure that the EFX handrail is not scratched or damaged.

Vacuum the rug or damp mop the floor.

Make sure that the floorisdry before returning the EFX to an upright position.

Page 5

Page 6

C534, C534i Self Powered Elliptical Fitness Crosstrainer

• Quarterly Maintenance

1. Remove the rear covers.

Check the step up and input belt alignment and tension asinProcedure 5.3.

Replace the rear cover.

On-Site Preventive Maintenance (Service Technician)

When you are called to service a EFX, perform these preventive maintenance activities:

• Perform the software diagnostics. Check LED and keypad function. Record the odometer reading.

• Check speed sensor function

(is

the stride rate displayed when the unit isinoperation?). If

not, see Procedure 6.3 (C534) or Procedure 6.4 (C534i).

• Visually inspect the drive belts for cracks, fraying or excessive wear.

• When furnished, inspect the optional power supply cords. If a power supply cord(s)

damaged, install a new power supply.

•

Visually examine all wires and check connectors and wire connections. Secure connections and replace wiring as necessary.

Page 6

Page 7

•

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

Procedure

3.1

- Software Access Codes

The C534 and C534i use the standard access codes to provide access to the various software features.

using the standardized access codes the keys are hypothetically numbered left to

right with key

on the far left and key #7 on the far right. The standard access codes use all

sequential key presses. The allowable delay between key presses is short. If too much time

is taken between key presses the access procedure will be aborted. If the access is aborted, it will be necessary to start over from the beginning. See Diagram 3.1. The C534 display does not utilize key positions

#2 and #3, however, they must be counted to correctly locate keys #4

through

#6. On the display, key

is the RESET key and key #4 is the QUICK START key.

Standard

Access

Codes

•

Diagnostics Odometer Club Settings

Diagram

3.1

- C534 Display Panel

Keys RESET

,5,1

,7,6,5,7,6,1 Keys RESET,6,5 Keys RESET,5,6,5,1 ,5,6,5

Page?

Page 8

C534. C534i Self Powered Elliptical Fitness Crosstrainer

• Procedure 3.2 - Accessing the Diagnostic Program

The EFX diagnostic software cycles through the following tests:

• Display Test

• Keyboard Test

• Heart Rate Test

• Battery Test

•

RPM

Test

• Brake Test

Procedure

Start pedalling and continue to pedal as you perform step

With the PRECOR banner scrolling, press keys RESET,5,1,7,6,5,7,6,1., sequentially. The message HARDWARE VALIDATION will be displayed for a few seconds. The message DISPLAY TEST will be displayed followed by every LED on the display being

illuminated. Check each LED segment to ensure that all of the segments are illuminated.

Press the ENTER key to advance to the keyboard test. The message KEYBOARD TEST will be displayed followed by a graphical representation of

each key position on the display housing. As each key

the display is pressed the key

representation is turned "off', indicating that the key

functioning. Check each keyinthis manner, including the numeric keyboard. Press and hold the ENTER key for 2 seconds to advance to the heart rate test.

The message HEART RATE TEST will be displayed followed by the unfiltered (U), filtered

(F) and polar (P) heart rate readings if the heart rate option

installedinthe C534 and a

chest strap transmitter or a test transmitter is being used. If the heart rate option

not

installed

the C534, the message NO HEART RATE RECEIVER will be displayed instead

of the heart rate readings. Press the ENTER key to advance to the brake test.

The message BATTERY TEST will be displayed followed by the battery voltage. Press the

ENTER key to advance to the RPM test.

The message RPM TEST will be displayed followed by the pulse (power bit) reading and the

RPM

reading. Press the ENTER key to advance to the brake test.

The message BRAKE TEST will be displayed followed the resistance level and brake level

readings. This test allows you to test the brake (resistance) at each resistance level. Press

the ENTER key to exit the diagnostics program.

•

Page 8

Page 9

•

C534. C534i Self Powered Elliptical Fitness Crosstrainerl

Procedure 3.3 - Displaying the Odometer

Procedure

1. Start pedalling and continue to pedal as you perform step 2.

2. With the PRECOR banner scrolling, press keys RESET,6,5, sequentially.

The message INFORMATION DISPLAY will be displayed for a few seconds.

The message ODOMETER will be displayed followed by the total number of strides accumulated. The total number of strides can be converted to miles by dividing by

2241

to kilometers by dividing by 1392.5. Press the ENTER key to advance to total strides.

The message TOTAL STRIDES will be displayed followed by the total number of strides

logged on the EFX. Press the ENTER key to advance to hour meter.

The message HOUR METER will be displayed followed by the total number of hours that the C534 has beeninuse. Press the ENTER key to advance to software version.

The message SOFTWARE VERSION will be displayed followed by the software versions of the upperand lower PCA's. For example, UPPER 1.01 LOWER 1.01. Press the ENTER key to advance to error log.

The message ERROR LOG will be displayed followed by the error in log position1.Each log entry shows the log position, the stride count when the error occurred and the hour meter when the error occurred. For example; 1 ER21 123456 STR 45678 HRS. The error log can record up to ten error conditions. The error code in position one will be the most recent error and the error in position ten will be the oldest error. If more than ten errors have been logged. only the ten most recent will be displayed. When a new error is logged. each existing error

pushed down one position and the error in position 10, if any,islost. Use the

and£.

keys to move through the log. Pressing and holding the QUICK START key for

four seconds will clear the log. Press the ENTER key to exit the odometer program.

Page 9

Page 10

C534, C534i Self Powered Elliptical Fitness Crosstrainer

• Procedure 3.4 - Club Settings

Start pedalling and continue to pedal as you perform step

With the PRECOR banner scrolling, press keys RESET,5,6,5,1 ,5,6,5, sequentially.

The message SET CLUB PARAMETERS will be displayed for a few seconds.

The message SELECT LANGUAGE will be displayed followed by the currently selected

language. Use

the"

and...

keys to select the language preference. Press the ENTER

key to advance to units of measurement.

The message SELECT UNITS will be displayed followed by the currently selected unit of

measurement. Use

the"

and

...

keys to select either U.S. Standard

METRIC

measurements. Press the ENTER key to advance to maximum workout time.

•

The message SET MAX WORKOUT TIME will be displayed followed by the currently selected maximum workout time. Use

the"

and

...

keys to select the maximum workout

time. The maximum workout time may be set between 1 and 240 minutes or no limit. Press

ENTER to advance to maximum pause time.

The message SET MAX PAUSE TIME will be displayed followed by the currently selected maximum pause time. Use

the..

and

...

keys to select the maximum pause time. The

maximum pause time

the that will elapse after the pause key has been pressed until the

unit resets. The maximum pause time may be set between 1 and 120 seconds. Press

ENTER to exit the club settings program.

Page 10

Page 11

•

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

Procedure 3.5 - Documenting Software Problems

When a problem is found with either the software or upperor lower PCA's, record the information

listed below. If you isolated the problem to either the PROM, upper PCA, or lower PCA, include

the information you recorded with the malfunctioning PROM or PCA when you ship it to Precor.

When a problem occurs, record the following information:

• Model and serial number

• Software version number

Note:

Look at the PROM mounted on the upper PCA. A label on the PROM indicates the software version number.

• User and program number running when the problem occurred

•

• A description of: a What happened or failed to happen. b The action taken by the user just before the problem occurred.

c Problem-related information (such as how far into the program the problem occurred,

the work level being used when the problem occurred, etc.).

• The frequency of occurrence.

•

Page

Page 12

C534, C534i Self Powered Elliptical Fitness Crosstrainer

• Section Four - Checking EFX Operation

This section provides you with a quick method of checking EFX operation. Check the operation of the EFX at the end of most maintenance procedures.

Procedure

Start striding on the EFX or plug the optional external power supply (when available) into the EFX and the AC outlet.

When the PRECOR banner scrolling, press QUICK START.

Select Resistance Level 1 and press ENTER.

Operate the EFX for

4-5

minutes. As you operate the EFX, concentrate on the operating

sounds made by the unit.

on the alert for unusual rubbing, hitting, grinding, or squeaking

noises.

•

If the EFX makes unusual noises or the electronic display does not change appropriately, troubleshoot per Section

Press the RESISTANCE A key until you reach Resistance Level 10. Operate the EFX for

another

2-3

minutes.

If the EFX resistance does not change or the operation of the EFX feels inconsistent

compared with Resistance Level

troubleshoot per Section

Press the RESISTANCE A key until you reach Resistance Level 20. Operate the EFX for

another

2-3

minutes.

If the resistance of the EFX does not change or the EFX operation feels inconsistent with Resistance Levels 1 and 10, troubleshoot per Section

10. Check the LED's mounted on the upper PCA and the function keys displayed on the electronic console by performing Procedure 3.2.

Page 12

Page 13

•

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

Procedure

5.1

- Measuring the Resistance

a Generator

(C534, only)

Caution

Remove power from the EFX before you measure generator resistance.

Procedure

1. Remove the rear cover and disconnect the red battery lead from terminal M6ofthe lower PCA.

WARNING Before continuing with this procedure, review the Warning and Caution statements listed in Section One, Things You Should Know.

2. Set the ohmmeter to a range that will conveniently read up to

Remove the three generatoroutput leads from the lower PCA, brown from terminal M3, blue from terminal M4 and violet from terminal M5.

4. With an ohmmeter, read between the brown and blue leads, blue and violet leads and the brown and violet leads removed in step

Each of the three readings should be between

Q and 27

If any of the readings are significantly highorsignificantly low, replace the

generator.

Diagram

5.1

Lower

peA

Lift

Connector

•

Reconnect the generator leads to the lower PCA as follows: violet to M5, blue to M4 and brown to M3.

Reconnect the red battery lead to terminal M6 of the lower PCA.

Page 13

Page 14

C534, C534i Self Powered Elliptical Fitness Crosstrainer

• Procedure 5.2 - Measuring the Resistance

a Generator

(C534i, only)

Caution

Remove power from the EFX before you measure magnet resistance.

Procedure

1. Remove the rear cover and disconnect the red battery lead from terminal M6 of the lower PCA.

WARNING

Before continuing with this procedure, review the Warning and Caution statements listed in Section One, Things You Should Know.

Set the ohmmeter to a range that will conveniently read up to 50 .0.

•

Remove the six phase generator connector from the lower PCA, refer to Diagram 5.2, below.

With an ohmmeter, read between terminals 1 & 2, terminals 1 & 3, terminals 1 &5,terminals

and terminals 1 &7 on the six phase generator connector (J1). Each of the six

readings should be between 36

nand

39 .0.

If any of the readings are significantly high or significantly low, remove the intermediate cable from the generator and perform the same measurements as in step 4 on the generator connector. If the reading are now correct check and or replace the intermediate cable.refer to Diagram 5.4. If the readings are still incorrect, remove the six phase generator.

•

Six

Phase

Generator

Prom

Battery

Adapter

Page 14

Page 15

•

C534. C534i Self Powered Elliptical Fitness Crosstrainerl

Replace the generator per Procedure 7.17. Reconnect the intermediate cable removed

step 5 to the replacement generator and the lower PCA.

Reconnect the

red

battery lead to terminal

of the lower PCA.

Page 15

Page 16

C534, C534i Self Powered Elliptical Fitness Crosstrainer

• Procedure 5.3 - Inspecting and Adjusting Belt Tension

Procedure

1. Remove the rear cover and disconnect the red battery lead from terminal M6 of the lower PCA. If you are only inspecting the generator belt tension, skip to step 7.

WARNING

Before continuing with this procedure, review the Warning and Caution statements listed in Section One, Things You Should Know.

WARNING

If the EFX has beeninrecent use, the load resistors and mounting bracket may be extremely

hot.

2. Remove the three screws that fasten the load resistor assembly and shield to the frame upright. Rotate the load resistor assembly 180 degrees and set it on the top of the frame upright.

•

Place a 20030-108 or equivalent belt gauge on the input belt as shown in Diagram 5.3.

Diagram 5.3 - Input Belt Tension Measurement

Step Up Adjustment

Pulley Belt Gauge

Bolt-l--------~

The belt gauge should read 100 Ibs. If the belt tensionissignificantly high or low the belt

tension may be adjusted using the adjustment bolts shown in Diagram 5.2. To adjust the belt tension first straighten the locking tabs on both bolts. When adjusting the tension, turn

Page 16

Page 17

•

C534, C534i Self Powered Elliptical Rtness Crosstrainerl

both bolts equal amounts. When the adjustment is complete the step up pulley shaft must remain perpendicular to the frame and drive belt. Turning the adjustment bolts clockwise will increase belt tension, turning the adjustment bolts counter-clockwise will decrease belt tension.

Changing the tension of the input drive belt will also affect the tension of the generator belt. If the input belt tension has been changed, continue with step 7.

Place a 20030-108

equivalent belt gauge on the generator belt as shown in Diagram 5.4.

•

Diagram 5.4 - Generator Belt Tension Measurement

Adjustment

Nut

Jam

Nut

The belt gauge should read 60 Ibs. If the generator belt tension is significantly high or low, it may be adjusted using the adjustment bolt shown

Diagram 5.3. First loosen, but do not

remove the four generator mounting bolts and the jam nut. Hold the adjustment bolt head with one wrench and turn the adjustment nut to change the belt tension. When the tension is correct, tighten the jam nut. Tighten and torque the four generator mounting bolts to 150 inch pounds.

Page 17

Page 18

•

C534. C534i Self Powered Elliptical Fitness Crosstrainer

If either the input pUlley belt or the generator belt is being replaced with a new belt, the belt tension should be set 20 Ibs. higher than the previous readings. Therefore a new input pulley belt should be tensioned to 120 Ibs. and a new generator belt should be tensioned to 80 Ibs. Over time and use the belts will "relax" and the tensions will be as stated in steps 4 and

Reconnect the red battery lead to terminal M6 of the lower

peA.

Page 18

Page 19

•

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

Procedure

6.1

- Troubleshooting the Lower and Upper Interconnect Cable

Typical symptoms associated with a defective interconnect cableiseither an error 30 or no power to the upper PCA. This procedure requires that you have a known good upper interconnect cable, lower interconnect cable and mid-point connector.

If you are troubleshooting an error 30,31 or 32 continue with step3,otherwise see Procedure 6.3 (C534) or Procedure 6.4 (C534i).

Pry the end cap out of the front of the frame base tube (See Diagram 6.1).

Carefully withdraw both cables and mid-point connector.

•

Diagram

6.1-Interconnect

Cables and

Mid-Point

Connector

Lower

Intercon

nect:--iPt----:--=~'-'-----r--_I~./

Cable

End Cap

-:'--'-f--~

Upper Interconnect

Cable

•

Disconnect both cables from the mid-point connector and replace the mid-point connector with a known good mid-point connector. If the mid-point connector does not correct the problem, replace the original mid-point connector and continue with step

Page 19

Page 20

•

C534, C534i Self Powered Elliptical Fitness Crosstrainer

Remove the rear cover. Disconnect the lower interconnect cable from the lower PCA and the mid-point connector. Substitute a known good interconnect cable from the lower PCA to the mid-point connector. It

not necessary to route the test interconnect cable through the

frame tube, for convenience route it externally.

If the lower interconnect cable corrects the problem, replace the cable per Procedure 7.3. If the lower interconnect cable does not correct the problem, re-connect the original lower interconnect cable to the lower PCA and mid-point connector and continue with step

7. Remove the upper display housing per Procedure 7.1, steps 1 to 4. Disconnect the upper interconnect cable from the mid-point connector. Substitute a known good interconnect cable from the upper PCA to the mid-point connector. It

not necessary to route the test

interconnect cable through the frame tube, for convenience route it externally.

If the upper interconnect cable corrects the problem, replace the cable per Procedure 7.3. If the upper interconnect cable does not correct the problem, re-connect the original upper interconnect cable to the mid-point connector and continue with step

Replace the upper PCA per Procedure 7.1, steps 9 to 11.

10. If you have performed all of the procedures above and have been unable to correct the problem, call Precor customer service.

Page 20

Page 21

•

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

Procedure 6.2 - Troubleshooting the Keypad and Upper

peA

If the function keys on the electronic console are unresponsive, the problem

may

be either the

upper PCA

keypad.

The

keys on this unit are touch sensitive keys. It is necessary to use the

keypad diagnostics to troubleshoot the key functions.

WARNING Before continuing with this procedure, review the Warning and Caution statements listed in Section One.

•

Attach the anti-static wrist strap to your arm, then connect the ground leadofthe wrist strap to the units frame.

If the EFX powers up and functions normally until a particular key(s) is pressed, skip to step

12.

If a Error 5 "key depressed" message is immediately displayed when the EFX is powered up, continue with the next step.

This condition

may

be caused by either the keypadorupper

PCA.

Remove the five screws that fasten the display housing front panel to the display housing backing plate. These screws are located on the rear of the display housing backing plate.

Lift the display housing front panel off of the display housing backing plate. Remove the keypad connector from the upper PCA. See Diagram 6.2.

•

Diagram 6.2 - Upper

peA

& Keypad

Connector--

UpperPCA

Keypad

Connector

Keypad

Page

Page 22

C534, C534i Self Powered Elliptical Fitness Crosstrainer

•

Set the on/off switch in the "on" position.

If a Error 5 "key depressed" messageisimmediately displayed when the EFX is powered up, replace the upper PCA.

If a Error 5 "key depressed" messageisnot displayed when the EFXispowered up, replace the display housing front panel. The display housing front panel is equipped with the keypad.

10. If you have performed all of the procedures above and have been unable to correct the

problem, call Precor customer service.

11. Access the diagnostics program per procedure 3.2. If the key(s) necessary to access the diagnostic program is not functioning, skip to step 14.

12. Test the keypad per Procedure 3.2, step

13. If all of the keys test good, the problem may be user error or a key function that is normally

disabled during a particular user program.

•

14. If one or more keys do not function correctly, either the keypad (display housing) or upper

PCA could be defective. Replace the display and repeat step 12. If the display housing did not correct the problem, re-install the original display housing and replace the upper PCA.

15. If you have performed all of the procedures above and have been unable to correct the

problem, call Precor customer service.

Page 22

Page 23

•

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

Procedure 6.3 - Upper Display does not Illuminate (C534,

only)

1. Because thisisself powered unit, the display will not illuminate until it is used or the option external power supply

equipped. If the optional external power supply is equipped, the

display should be constantly illuminated. If the optional external power supply

not equipped, the unit must be used at a stride rate of 40 strides per minute or higher for the display to illuminate.

2. If the optional external power supply is not equipped, skip to step 5.

Disconnect the optional external power supply from the EFX and measure between the inner and outer sleeves of the power supply's output jack with a DC voltmeter. You should measure approximately 18 VDC.

If the voltage measured in step 3 was significantly low, replace the optional external power

supply. If the voltage measured

step 3 was 0 Vdc, disconnect external power supply from its AC outlet and measure the voltage at the AC outlet. If the AC outlet voltageisnormal replace the optional external power supply. If the AC outlet voltage

significantly low or 0

Vdc, the AC system must be inspected by an electrician .

Troubleshoot the generator per Procedure 6.5 (C534) or Procedure 6.6 (C534i).

If the generator was found to be good, the problem will be in either the lower PCA, upper PCA orthe upper to lower PCA interconnect cables.

Warning

Because this is a self powered unit, it will either be necessary to either equip the unit with the optional external power supply or have an assistant pedal on the unit while voltage measurements are being taken. Because ofthe danger of working on the unit while it

isinmotion

using the optional external power supply is strongly recommended.

Remove the rear cover and disconnect the interconnect cable from the J2 connector of the lower PCA.

The following voltage reading must be taken while the unit isinmotion. Extreme care must be taken to keep meter leads, hands, etc. clear of all moving parts. Using a DC voltmeter, measure the voltage between pins 1 and 8 of the J2 connector or between TP20 and TP6. See Diagram 6.3. The voltage measured should be approximately 8.5 Vdc. If the voltage

significantly low, replace the lower PCA.

Reconnect the interconnect cable to the J2 connector of the lower PCA and repeat the

voltage measurementinstep8.The voltage measured should be approximately 8.5 Vdc. If the voltage

significantly low, the problem is in the upper PCA or the upper to lower PCA

interconnect cables.

Page 23

Page 24

C534, C534i Self Powered Elliptical Fitness Crosstrainer

• Diagram 6.3 - Partial ViewofLower

peA

~.....;....-J2

Connector

10. Troubleshoot the upper to lower PCA interconnect cables per Procedure 6.1.

11. If the upper to lower interconnect cables are found to be good, replace the upper PCA.

12. If you have performed all of the above tests and are unable to resolve the problem, contact Precor customer support.

•

Page 24

Page 25

•

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

Procedure 6.4 - Upper Display does not Illuminate (C534i,

only)

1. Because this is self powered unit, the display will not illuminate until itisused orthe optional external power supply

equipped. If the optional external power supply is equipped, the display should be constantly illuminated. If the optional external power supply is not equipped, the unit must be used at a stride rate of 20 strides per minute or higher for the display to illuminate.

If the optional external power supply is not equipped, skip to step

Disconnect the optional external power supply from the EFX and measure between the inner and outer sleeves of the power supply's output jack with a DC voltmeter. You should measure approximately

VDC.

If the voltage measuredinstep 3 was significantly low, replace the optional external power supply. If the voltage measured

step 3 was 0 Vdc, disconnect external power supply from its AC outlet and measure the voltage at the AC outlet. If the AC outlet voltage is normal replace the optional external power supply. If the AC outlet voltage

significantly low or 0

Vdc, the AC system must be inspected by an electrician.

Troubleshoot the generator per Procedure 6.5 (C524) or procedure 6.6(C524i).

If the generator was found to be good, the problem will be in either the lower PCA, upper PCA or the upper to lower PCA interconnect cables.

Warning

in motion

using the optional external power supply is strongly recommended.

Remove the rear cover and disconnect the interconnect cable from the J2 connector of the lower PCA.

The following voltage reading must be taken while the unit isinmotion. Extreme care must

be taken to keep meter leads, hands, etc. clear of all moving parts. Using a DC voltmeter, measure the voltage between TP13 (+5D) and TP4 (DGND). Refer to Diagram 6.5. The voltage measured should be approximately 5 Vdc. If the voltage is significantly low, replace the lower PCA. Additionally, the

DS1

LED should illuminate.

Reconnect the interconnect cable to the J2 connector of the lower PCA and repeat the voltage measurement in step8.The voltage measured should be approximately 5 Vdc. If the voltageissignificantly low, the problem is in the upper PCA or the upper to lower PCA interconnect cables.

Page 25

Page 26

• Diagram 6.4 • Partial ViewofLower

peA

C534, C534i Self Powered Elliptical Fitness Crosstrainer

DGND, TP14

PROM

+5D,TP13

DS1

LED

J2 Connector

•

10. Troubleshoot the upper to lower

PCA

interconnect cables per Procedure 6.1.

11. If the upper to lower interconnect cables are found to be good, replace the upper PCA.

12. If you have performed all of the above tests and are unable to resolve the problem, contact Precor customer support.

Page 26

Page 27

•

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

Procedure 6.5 - Troubleshooting the Generator (C534, only)

The generator performs three functionsinthe EFX. First, by controlling the amount of electrical load applied to the generator, the user's pedalling resistanceiscontrolled. Second, the generator is

used to charge the EFX's internal battery. Lastly, one of the generators three phase output

windings is monitored to determine when the unit

isinuse and when it is idle. This system also determines the stride rate by determining the operating speed (output frequency) of the monitored generator winding.

Warning

Because thisisa self powered unit, it will either be necessary to either equip the unit with the optional external power supply or have an assistant pedal on the unit while voltage measurements are being taken. Because of the danger of working on the unit while

itisin

motion

using the optional external power supply

strongly recommended.

Perform the generator resistance test per Procedure

5.1

(C534) or Procedure 5.2 (C534i). If any of the resistance measurements are significantly high or significantly low, replace the generator.

The following voltage reading must be taken while the unit isinmotion. Extreme care must be taken to keep meter leads, hands, etc. clear of all moving parts. Using an AC voltmeter, measure the voltage between M3 and M4, M4 and M5, M3 and M5 on the lower PCA. All three AC voltage readings will vary depending on the unit's stride rate at the time the measurement

taken. At a stride rate of 100 strides per minute, all three voltage readings

will be approximately 100 VAC.

If any of the three readingsinstep 2 are significantly low, replace the generator.

If you have performed all of the above tests and are unable to resolve the problem, contact Precor customer support.

Page 27

Page 28

C534, C534i Self Powered Elliptical Fitness Crosstrainer

• Procedure 6.6 - Troubleshooting the Generator (C534i, only)

The generator performs three functions in the EFX. First, by controlling the amountofelectrical

load applied to the generator, the user's pedalling resistance is controlled. Second, the generator

is used to charge the EFX's internal battery. Lastly, one

the generators six phase output windings is monitored to determine when the unit is in use and when it is idle. This system also determines the stride rate by determining the operating speed (output frequency)

the

monitored generator winding.

Warning

Because this is a self powered unit, it will either be necessary to either equip the unit with the

optional external power supply

have an assistant pedal on the unit while voltage

measurements are being taken. Because

the dangerofworking on the unit while it is in motion

using the optional external power supply is strongly recommended.

Perform the generator resistance test per Procedure

5.1

(C524)orProcedure 5.2 (C524i). If

any

the resistance measurements are significantly highorsignificantly low, replace the

generator.

•

2. The following voltage reading must be taken while the unit is in motion. Extreme care must

be taken to keep meter leads, hands, etc. clear

all moving parts. UsinganAC

voltmeter,

measure the voltage between 1 & 3, 2 & 3, 5 & 7 and 6 & 7 on

J1ofthe lower PCA. All AC voltage readings will vary depending on the unit's stride rate at the time the measurement is taken. At a stride rate

100 strides per minute, all three voltage readings will be

approximately 100

VAC

-110 VAC.

3. If any

the six readings in step 2 are significantly low, replace the generator.

If you have performed all of the above tests and are unable to resolve the problem, contact Precor customer support.

Page 28

Page 29

•

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

Procedure

7.1

- Replacing the Display Enclosure

Upper

peA

Anti-static kits (part number 20024-101) can be ordered from Precor. The keyboard is part of the display housing front panel. If the keyboard

not functioning

properly, replace the display housing front panel.

Removing the Display Housing Front Panel

1. Remove the rear cover and disconnect the red battery lead from terminal M6 of the lower PCA.

WARNING

Before continuing with this procedure, review the Warning and Caution statements listed in Section One, Things You Should Know.

Attach the anti-static wrist strap to your arm, then connect the ground lead of the wrist strap to the units frame.

Remove the four screws that secure the display housing front panel to the display backing plate .

Disconnect the upper interconnect cable from the upper PCA (connector J5).

Removing and Replacing the Upper

peA

Carefully disconnect the keyboard cable from the upper PCA (connector J2).

Remove the four screws that secure the upper PCA to the display housing front panel.

Note:

Package the upper PCA and/or display in an anti-static bag and document the problem

described in Procedure 3.6, Documenting Software Problems.

Page 29

Page 30

C534, C534i Self Powered Elliptical Fitness Crosstrainer

• Diagram

7.1

- Display

Housing

Front

Panel, Rear

View

Connector--

:l----

Upper

PCA

Keypad

Connector

Keypad

Position the upper PCA at its mounting location on the display housing front panel (refer to Diagram 7.1). Replace and tighten the upper PCA mounting screws.

Reconnect the keyboard cable to the upper PCA.

Reconnect the upper interconnect cable to the upper PCA.

10.

Remove the ground lead of the wrist strap from the EFX frame, then remove the wrist strap

from your arm.

11. Position the display enclosureonthe display plate. Replace and tighten the display mounting screws.

12. Replace the red battery lead removed

step 1 and check unit operation as described

Section Four.

•

Page 30

Page 31

•

C534.

C534i

Self

Powered

Elliptical Fitness

Crosstrainert

Procedure 7.2 - Replacing the Lower PCA (C534, only)

Removing the Lower PCA

1. Remove the rear cover and disconnect the red battery lead from terminal M6ofthe lower PCA.

WARNING

Before continuing with this procedure, review the Warning and Caution statements listed in Section One, Things You Should Know.

Remove the rear cover per Procedure 7.20.

Attach the wrist strap to your arm, then connect the ground leadofthe wrist strap to the EFX frame.

Disconnect allofthe cables and wiring from the lower PCA.

Remove the four screws that secure the lower PCA to the drive unit upright, see Diagram

7.2.

Diagram 7.2 - Lower PCA

~RT:~~----:-----:------:--~~""---'

Page

Page 32

C534. C534i Self Powered Elliptical Fitness Crosstrainer

e Replacing the Lower

peA

Position the replacement lower PCA at its mounting position and fasten the lower PCA with the four screws removed in step 5.

7. Reconnect the lower PCA cables and wiring as follows. Connect the interconnect cable to connector J2. The 2 conductor cable (red and black wires) from the input power jack to the J4 connector. The 3 conductor cable from the generator as follows: brown to

AC1

, blue to AC2 and violet to AC3. Connect the green/yellow frame ground wire to M8. From the battery, connect the red wire to M6 and the black wire to M7 of the lower PCA. Connect the

two leads from the load resistors to

and M2, the polarity of the load leads is not critical,

either lead may be connected to either the

or M2 terminal.

Remove the ground lead of the wrist strap from the EFX frame, then remove the wrist strap

from your arm.

Re-install the rear cover, then check the operationofthe EFX as described in Section Four.

•

Page 32

Page 33

C534. C534i Self Powered Elliptical Fitness Crosstrainerl

• Procedure 7.3 - Replacing the Lower PCA (C534i, only)

Removing the Lower PCA

1. Remove the rear cover and disconnect the red battery lead from terminal M6ofthe lower PCA.

WARNING

Before continuing with this procedure, review the Waming and Caution statements listed in Section One, Things You Should Know.

2. Remove the rear cover per Procedure 7.20.

Attach the wrist strap to your arm, then connect the ground leadofthe wrist strap to the EFX frame.

4. Disconnect the all

cables and wiring from the lower PCA.

•

Remove the four screws that secure the lower PCA to the drive unit upright, refer to Diagram 7.3.

Diagram 7.3 - Lower PCA

Page 33

Page 34

C534, C534i Self Powered Elliptical Fitness Crosstrainer

• Replacing the Lower

peA

Position the replacement lower PCA at its mounting position and fasten the lower PCA with

the four screws removed in step

Reconnect the lower PCA cables and wiring as follows. Connect the interconnect cable to connector J2. The 2 conductor cable (red and black wires) from the input power jack to the J4 connector. The 6 conductor cable from the generator as to connector J1. From the battery, connect the red wire to M6 and the black wire to M7 of the lower PCA. Connect the two leads from the load resistors to

and M2, the polarity of the load leads is not critical,

either lead may be connected to either the

or M2 terminal.

Remove the ground lead of the wrist strap from the EFX frame, then remove the wrist strap from your arm.

Re-install the rear cover, then check the operation of the EFX as described in Section Four.

•

Page 34

Page 35

•

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

Procedure 7.4 - Replacing a

Lower

Upper

Interconnect

Cable

Procedure

Note: Before you install a new interconnect cable, ensure that the interconnect cable

defective. Refer to Procedure 6.1.

1. Remove the rear cover and disconnect the red battery lead from terminal M6 of the lower PCA.

Pry the end cap out the front of the frame base tube with a thin bladed screwdriver (See Diagram 7.4).

Carefully withdraw both cables and mid-point connector.

•

Diagram 7.4

-Interconnect

Cables and Mid-Point

Connector

- ,.

Lower

Interconnect,.......,~-~'-:::~--:-...".....'--~

Cable

Upper

Interconnect

Cable

•

If you are replacing the upper interconnect cable skip to step9.If you are replacing the lower interconnect cable continue with step

Remove the left and right rear cover sections. Remove the two screws that fasten the lower PCA mounting bracket

the frame. Rotate the lower PCA mounting bracket to expose the

interconnect cable. Disconnect the interconnect cable from the lower PCA.

Page 35

Page 36

•

C534. C534i Self Powered Elliptical Fitness Crosstrainer

Securely tape one end of the replacement lower interconnect cable to the lower PCA end of the existing lower interconnect cable. Carefully draw the existing lower interconnect cable out ofthe front of the frame as you carefully feed the replacement cable into the access hole near the lower PCA.

When the replacement interconnect cable emerges from the front of the frame, separate the interconnect cables and discard the defective interconnect cable. Connect the replacement interconnect cable to the lower PCA and mid-point connector. Rotate the lower PCA bracket into it's mounting position and fasten it with the screws removed in step 5.

Replace the right and left rear cover sections and front frame end cap. Thoroughly, test the unit per Section

Remove the display housing per Procedure 7.1, steps 2 to 4. Set the display housing aside. Disconnect the interconnect cable from the upper PCA. See Diagram 7.4. Remove the four screws that fasten the display housing backplate to the main column. Remove the display housing backplate.

10. Securely tape one end of the replacement lower interconnect cable to the upper PCA end of the existing upper interconnect cable. Carefully draw the existing upper interconnect cable out of the front of the frame as you carefully feed the replacement cable into the main column.

11. When the replacement interconnect cable emerges from the front of the frame, separate the

interconnect cables and discard the defective interconnect cable. Connect the replacement interconnect cable to the mid-point connector.

12. Feed the interconnect cable through the access hole

the display housing backplate and

fasten the display housing backplate to the main column with the screws removedinstep

13. Connect the upper interconnect cable to the upper PCA and fasten the display housing to the display housing backplate with the screws removed in step

14. Replace the red battery lead removedinstep 1 and check unit operation as described in

Section Four.

Page 36

Page 37

•

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

Procedure 7.5 - Replacing a Crankarm Assembly

Removing a Crankarm Assembly

WARNING

Before continuing with this procedure, review the Warning and Caution statements listed in Section One, Things You Should Know.

1. It is only necessary to remove the right or left side of the rear cover to access the crankarm being replaced. Remove the necessary side(s) of the rear cover.

2. Remove the stairarm assembly as described

Procedure 7.12, steps 2 to 4.

Note: Notice the position of the two crank arms. When the crankarms are replaced, they must be positioned so that they are 180 degrees opposing.

Remove the 14 mm. bolt that secures the crankarm to the input pulley shaft. It will be necessary, use a Pitman arm puller or 4" to

6" gear puller to remove the crankarm. Do not

use a hammer or mallet to remove the crankarm.

If you are removing both crank arm assemblies, repeat Steps 3 and 4 for the second crankarm assembly.

•

Diagram 7.5 - Crankarm

Stairarm

mm. Bolt

Page 37

Page 38

C534, C534i Self Powered Elliptical Fitness Crosstrainer

• Replacing a Crank Arm Assembly

Clean the crankarm mounting bolt threads and the input pulley shaft threads with an alcohol swab. Allow them to dry and apply blue loctite to the crankarm mounting bolt threads.

Position the crankarm on the input pulley shaft. Thread and hand tighten the 14

mm.

bolt

into the input pulley shaft. Torque the nut to 300 in/lbs.

Replace the stairarm assembly as describedinProcedure 7.12, steps11to 12.

If you are replacing both crankarm assemblies, repeat steps 6 and 7 for the second

crankarm assembly.

Set the unit at it's highest resistance setting and use the EFX for a minimum of 3 minutes. Strideina forward direction for half of the time andina backward direction for half of the time. Set the on/off switchinthe

"off

position and re-torque both of the 14 mm. crankarm

mounting bolts

300in/lbs

10.

Replace the rear cover.

•

Page 38

Page 39

•

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

Procedure 7.6 - Replacing the Input Pulley Belt

WARNING

Before continuing with this procedure, review the Warning and Caution statements listed

Section One, Things You Should Know.

Remove the input pulley assembly per Procedure 7.8 steps 4 to

Remove the stairarm assemblies as describedinProcedure 7.12, steps 2 to

Remove the crankarm assemblies as describedinProcedure 7.5, steps 2 to

Slide the stepuppulley assembly with both the generator and input pulley belts out of the drive unit.

Remove the left and right tension bolts, locking tabs and brackets from the step up pulley assembly. Remove the generator belt from the generator's pulley.

Remove the rear cover and disconnect the

red

battery lead from terminal

of the lower

PCA.

Remove the input pulley belt. Set the replacement input pulley belt

it's mounting position

on the step up pulley assembly. Set the step up pulley assembly with the generator and input belt at its mounting position

the drive unit. Replace the tensioning bolts, locking tabs and brackets removedinstep

Thread, but do not tighten, the left and right tension bolts into the step up pulley shaft.

•

Place the other end of the generator beltonthe generator's pulley.

10. Place the other end of the input pulley belt

the input pulley assembly and mount the input

assembly per Procedure 7.8, steps 8 to 12.

11. Replace the crankarm assemblies per Procedure 7.5, steps 6

t01

12. Replace the stairarm assemblies per Procedure 7.12, steps,11to 12.

13. Tension both belts per Procedure 5.3. Note the differences between tensioning a new belt and a existing (used) belt.

14. Replace the red battery lead removed

step 1 and check unit operation as described

Section Four.

•

Page 39

Page 40

C534, C534i Self Powered Elliptical Fitness Crosstrainer

• Procedure 7.7 - Replacing the Generator Pulley Belt

WARNING

Before continuing with this procedure, review the Warning and Caution statements listed

Section One, Things You Should Know.

Remove the rear cover and disconnect the

red

battery lead from terminal M6 of the lower

PCA.

Remove the stairarm assembliesasdescribedinProcedure 7.12, steps 2 to

Remove the crankarm assembliesasdescribedinProcedure 7.5, steps 2to5.

Remove the input pulley assembly per Procedure 7.8, steps 4 to

Remove the left and right tension bolts, locking tabs and brackets from the step up pulley

assembly.

•

Remove the three generator mounting screws showninDiagram 7.21.

Remove the two bearing clamp screws showninDiagram 7.22. Remove the bearing clamp.

Lift the generator and remove its drive belt.

Slide the step up pulley assembly with both the generator and input belts out of the drive

unit.

10. Remove and discard the generator belt. Set the replacement generator belt

it's mounting

positiononthe step up pulley assembly.

11.

Set the step up pUlley assembly with the generator and input belt at its mounting position

the drive unit. Replace the tensioning bolts, locking tabs and brackets removedinstep

Thread, but do not tighten, the left and right tension bolts into the step up pulley shaft.

12.

Lift the generator and place the drive belt around the generator's pulley.

13. Replace and tighten the three generator mounting screws removed

step6.Set the bearing clampinits mounting position, replace and tighten the two bearing clamp mounting screws removed

step

14.

Mount the input assembly per Procedure 7.8, steps 8to12.

15.

Replace the crankarm assemblies per Procedure 7.5, steps 6 to 10.

16.

Replace the stairarm assemblies per Procedure 7.12, steps,11to 12.

Page 40

Page 41

•

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

17. Tension both belts per Procedure 5.3. Note the differences between tensioning a new belt and a existing (used) belt.

18. Replace the red battery lead removed

step 1 and check unit operation as described in

Section Four.

Page

Page 42

C534, C534i Self Powered Elliptical Fitness Crosstrainer

• Procedure 7.8 - Replacing the Input Pulley Assembly

WARNING

Before continuing with this procedure, review the Warning and Caution statements listed

Section One, Things You Should Know.

1. Remove the rear cover and disconnect the

red

battery lead from terminal M6 of the lower

PCA.

Remove the stairarm assemblies as describedinProcedure 7.12, steps 2 to 4.

Remove the crankarm assemblies as described in Procedure 7.5, steps 2 to

Remove the input pulley assembly mounting nuts(2per pillow block bearing).

Remove tension from the input pulley belt as described in step

Diagram 7.6

-Input

Pulley Assembly

Straighten the locking tabs and turn the left and right tension bolts counterclockwise until tension

removed from the both belts. (See Diagram 5.3)

•

Input Pulley

Belt

Pillow Block

Bearing

Input

Pulley

Mounting

Nut

•

Page 42

Page 43

•

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

7. Remove the input pulley assembly. Slide input pulley belt off of the input pulley assembly.

Hold the replacement input pulley assembly at it's mounting position and slide the input belt over and past the pillow block bearing and onto the input pulley assembly.

Replace the bolts in one of the pillow block bearings and torque both nuts to 500 inch pounds. Using a mallet or dead blow hammer, tap the other pillow block bearing until the edge of the pillow block bearing is parallel with the edge of the frame upright. Replace the nuts in the other pillow block bearing and torque to 500 in pounds.

10. Replace the crankarms per Procedure 7.5, steps 6 to 10. The crankarms must be parallel to the frame uprights. See Diagram 7.6. If necessary loosen the four drive unit mounting bolts, align the drive unit and torque the drive unit mounting bolts to 500 inch pounds.

11. Tension both belts per Procedure 5.3. Note the differences between tensioning a new belt and a existing (used) belt.

12. Replace the red battery lead removed in step 1 and check unit operation as described

Section Four.

Page 43

Page 44

C534, C534i Self Powered Elliptical Fitness Crosstrainer

• Procedure 7.9 - Replacing the Step-Up Pulley Assembly

WARNING

Before continuing with this procedure, review the Warning and Caution statements listed

Section One, Things You Should Know.

1. Remove the rear cover and disconnect the

red

battery lead from terminal M6 of the lower

PCA.

Remove the stairarm assembliesasdescribedinProcedure 7.12, steps 2 to

Remove the crankarm assemblies as describedinProcedure 7.5, steps 2to5.

Remove tension from the input pulley and generator belts as described below:

Straighten the locking tabs and turn the left and right tension bolts counterclockwise until tensionisremoved from both belts. (See Diagram 5.3)

•

Remove both tension bolts and slide the input belt off of the step up pulley assembly.

Place the input belt and stepupbeltinplace on the replacement step up pulley. Set other

end of the generator belt on the generator pulley.

Replace the tension bolts and associated hardware removedinstep 5b.

Tension both belts per Procedure 5.3. Note the differences between tensioning a new belt and a existing (used) belt.

Replace the crankarms per Procedure 7.5, steps 6 to 10.

Replace the red battery lead removedinstep 1 and check unit operation as described

Section Four.

Page 44

Page 45

•

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

Procedure 7.10 - Replacing a Wheel

Assembly

Warning:

Care must be taken when workisbeing performed in the area of the stairarms. Pinch points exist between the stairarm and ramp and between the stairarm and crankarm, when the rear covers are removed.

Procedure

WARNING Before continuing with this procedure, review the Warning and Caution statements listed in Section One, Things You Should Know.

Remove the screws from the wheel axle. If when removing the second wheel axle screw, the axle rotates and the screw does not unthread, insert a 5/32" allen wrench into the end of the axle from which the screw has been removed. The allen wrench will hold the axle while you remove the remaining screw. Remove the wheel assembly from the stairarm.

Diagram 7.7- Wheel

Assembly

•

Axle

Screw--

Wheel

Axle

Screw--

Stairarm

•

2. Set the replacement wheel in the stairarm and insert and hand tighten the wheel axle screws. Torque the wheel axle screws to 80 in/lbs.

Note: The wheel axle screws are equipped with a "Ioctite patch". If the wheel axle screws have been inserted and removed more than two times, red loctite should be used on the wheel axle screws when the are re-installed.

Page 45

Page 46

C534, C534i Self Powered Elliptical Fitness Crosstrainer

• Procedure

7.11

- Replacing a Stairarm Pedal

Loosen and remove the two bolts that fasten the stairarm pedal onto the stairarm.

Remove the stairarm pedal from the stairarm.

Set the replacement stairarm pedal at it's mounting positiononthe stairarm.

Install and hand tighten the stairarm pedal mounting hardware removedinstep1.Torque

the stairarm pedal mounting bolts to

in/lbs.

•

Page 46

Page 47

•

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

Procedure 7.12 - Replacing a Stairarm

Warning: Care must be taken when work

being performedinthe area of the stairarms. Pinch points exist between the stairarm and ramp and between the stairarm and crankarm, when the rear covers are removed.

1. Procedure

Set the on/off switchinthe "off' position, then unplug the power cord from the wall outlet.

Loosen and remove the two bolts that fasten the stairarm pedal onto the stairarm.

Remove the stairarm pedal from the stairarm.

Remove three bolts, washers and single nut that fasten the stairarm connector to the stairarm. See Diagram 7.8.

Diagram 7.8 - Stairarm Connector Mounting

Secondary Link

Remove the left and/or right cover sections per Procedure 7.20.

Page 47

Page 48

•

C534, C534i Self Powered Elliptical Fitness Crosstrainer

Remove the mounting bolt and nut that fastens the stairarm pivot block to the stairarm. (See Diagram 7.12).

Slide the stairarm off of the stairarm pivot block.

Set the stairarm pedal at it's mounting position on the replacement stairarm.

Install and hand tighten the stairarm pedal mounting hardware removedinstep2.Torque the stairarm pedal mounting bolts to 60 in/lbs.

10. Remove and replace the wheel per procedure 7.10

11.

Slide the replacement stairarm assembly onto the stairarm pivot block. Install and hand tighten the stairarm pivot block mounting hardware. Torque the stairarm pivot block mounting hardware to 15 ft.llbs.

12.

Set the replacement stairarm connector at it's mounting position and slide the secondary link onto the stairarm connector. Replace, but do not tighten the hardware removed

step

Torque the two bottom boltsto50 in.llbs. Torque the horizontal bolt to11fUbs.

13. Replace the left and/or right cover sections per Procedure 7.20.

Page 48

Page 49

•

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

Procedure 7.13 - Replacing a Ramp Assembly

Procedure.

Remove the three bolts that fasten each pivot arm connector to the stairarm. See Diagram

7.6.

Rotate both stairarms to the rear of the unit.

Remove the screws that fasten the ramp end cap to the ramp assembly. Slide the ramp end cap out of the ramp assembly and rotate the ramp assembly toward the rear of the unit.

Remove four rear ramp mounting bolts (2 each side). See Diagram 7.9.

Diagram 7.9 - Rear Ramp

Mounting

•

Ramp

Bracket-

Ramp

Mounting

Bolt

•

Remove the two mounting bolts from the front bottom of the ramp assembly. These bolts

fasten the ramp to its front support.

Page 49

Page 50

C534, C534i Self Powered Elliptical Fitness Crosstrainer

• Diagram 7.10 - Front Ramp Mounting

Ramp End Cap

Mounting Bolt

Remove the ramp from the EFX.

Slide the ramp end cap into the ramp assembly. Fasten the ramp end cap with the screws

removedinstep

Set the ramp assembly at it's mounting position. Hand start the rear mounting bolts and the two front bottom mounting bolts. Torque the rear mounting bolts to 120 inch pounds. Torque the two front bottom mounting bolts to 100 inch pounds.

•

Rotate both stairarms forward onto the ramp assembly.

10.

Set the pivot arm connectors at their mounting positions on the stairarms. Replace and

torque the six pivot arm connector bolts to 135 inch pounds.

•

Page 50

Page 51

•

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

Procedure 7.14 - Replacing a Handlebar

1. Remove the three screws that fasten the handlebar to the upper pivot arm.

Diagram

7.11

- Handlebar Mounting

Upper Pivot

~---,--'-

Handlebar

------t.

Lower Bolt

---ir.o~---~

1-----

Mounting Bolt

•

Remove the three bolts that fastens the handlebar to the upper pivot arm and remove the handlebar.

Set the replacement handlebar at its mounting position and hand start the three handlebar mounting bolts removedinstep2.Torque the bolts to 156 inch pounds.

Replace the bolt that fastens the handlebar to the lower pivot arm and torque the bolt to 156 inch pounds.

Page

Page 52

C534, C534i Self Powered Elliptical Fitness Crosstrainer

• Procedure 7.15 - Replacing a Stairarm Connector (C534, only)

WARNING

Before continuing with this procedure, review the Warning and Caution statements listed

Section One, Things You Should Know.

1. Remove the three bolts that fasten the stairarm connector to the stairarm. See Diagram

7.12.

2. Remove the retaining ring that fastens the lower pivot arm to the stairarm connector.

•

Diagram 7.12 - Pivot Arm Connector

Remove the stairarm connector. Remove the wave washer from the pivot arm connector.

Place the wave washer from step 3 on the replacement stairarm connector. Slide the

stairarm connector into the lower pivot arm and replace the retaining ring.

Hand start the three bolts that fasten the stairarm connector to the stairarm. Torque the

three stairarm connector bolts to 125 inch pounds.

Page 52

Page 53

•

C534. C534i Self Powered Elliptical Fitness Crosstrainerl

Procedure 7.16 - Replacing a Lower Pivot Arm (C534, only)

WARNING

Before continuing with this procedure, review the Warning and Caution statements listed

Section One, Things You Should Know.

1. Remove the retaining ring that fastens the lower pivot arm to the stairarm connector. See Diagram 7.13.

Remove the bolt that fastens the lower pivot arm to the handlebar arm.

Diagram 7.13 - Pivot Arms

Stairarm

Connector

Remove the lower pivot arm.

Slide the lower pivot arm onto the pivot arm connector. Replace the retaining ring removed in

step

Align the lower pivot arm with the handlebar and replace the bolt removed in step2.Torque the bolts to 156 inch pounds.

Page 53

Page 54

•

C534, C534i Self Powered Elliptical Fitness Crosstrainer

Procedure 7.17 - Replacing the Handlebar to Stairarm Link

(C534i, only)

Procedure

Set the on/off switch in the off position. Remove the A.C. line cord from the A.C. outlet and from the power entry module.

Remove the end caps from the rear and the front inside of the handlebar to stairarm link. See Diagram 7.14.

•

Diagram 7.14 - Handlebar to Stairarm Link)

Front, Inside

Rear

•

Remove the mounting bolt washer and spacer from the front inside and rear of the

handlebar to stairarm link. Remove and discard the handlebar to stairarm link.

Slide one of the spacers, removedinstep 3 into the front of the replacement handlebar to stairarm link. Set the replacement handlebar to stairarm link at its mounting position to the handlebar. Hand start, but do not tighten the mounting bolt with washer.

5. Slide one of the spacers, removed

step 3 into the rear of the replacement handlebar to stairarm link. Set the replacement handlebar to stairarm link at its mounting position to the stairarm. Hand start, but do not tighten the mounting bolt with washer.

Page 54

Page 55

•

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

Torque the both the front and rear handlebartostairarm link mounting bolts to 156 inch pounds.

Set the on/off switchinthe on position and test the EFX per Section Four

Page 55

Page 56

C534, C534i Self Powered Elliptical Fitness Crosstrainer

• Procedure 7.18 - Replacing

Upper Pivot Arm

WARNING

Before continuing with this procedure, review the Warning and Caution statements listed in Section One, Things You Should Know.

Remove the handlebar per Procedure 7.14.

Remove the bearing shaft from the upper end of the upper pivot arm. The bearing shaft will be very tight, a long handled socket wrench with a 7/16" hex key will be necessary for removal. See Diagram 7.15.

Diagram 7.15 - Upper Pivot Arm

•

1----

Bearing Shaft

Remove the upper pivot arm from the unit.

4. Set the upper end of the upper pivot arm

it's mounting position and carefully thread the

bearing shaft into the frame. Care must be taken to avoid cross-threading the bearing shaft.

Torque the bearing shaft to 150 foot pounds (1800 inch pounds).

Replace the handlebar per Procedure 7.14.

Page 56

Page 57

•

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

Procedure 7.19 - Replacing a Main Column

1. Procedure

•

Remove the rear cover and disconnect the red battery lead from terminal M6 of the lower PCA.

Attach the anti-static wrist strap to your arm, then connect the ground lead of the wrist strap to the EFX frame.

Remove the four screws that secure the display housing front panel to the display backing plate.

Disconnect the heart rate cable (connector J1) and upper interconnect cable (connector J5) from the upper PCA. Remove the display housing front panel.

Remove the four screws that fasten the display backplate to the upper main column. Remove the display housing backplate.

Pry the end cap out the front of the frame base tube with a thin bladed screwdriver (See Diagram 7.4).

Carefully withdraw both cables and mid-point connector. Disconnect the upper interconnect cable from the mid-point connector. Carefully draw the upper interconnect cable out of the upper end of the main column. Set the cable aside to be re-installed later.

•

Remove the two screws that fasten the cover near the middleofthe main column. Remove the cover.

Diagram 7.16 - Main Column

Lower

Mounting Bolt

Cover

Screw

Page 57

Page 58

•

C534, C534i Self Powered Elliptical Fitness Crosstrainer

Unthread the right hand upper pivot from the main column with a 7/16" allen wrench. A 7/16" hex key bit that fits your torque wrench will be required in step 16. Rotate the handlebar with upper pivot forward until it rests on the floor.

10. Repeat the procedure

step 9 with the left hand upper pivot and handlebar.

11. Remove the left and right frame tube per Procedure 7.27, steps 1-4.

12. Remove the two bolts and washers that fasten the bottom of the main column to the frame base. Remove the main column.

13. Feed the upper interconnect cable into the replacement main column so that an end of the cable protrudes from both ends of the main column.

14. Set the main column at it's mounting location with the lower end

the upper interconnect

cable in the access hole

the frame base. Replace bolts and washers removed in step 12

and torque them to 240 in.llbs.

Rotate the right hand handlebar with upper pivot into it's mounting position. Thread the upper pivot into the main column and torque it to 100 ft.llbs.

Replace the left and right frame tubes per Procedure 7.27, steps 5-7.

Replace the cover with the hardware removed in step

Repeat the procedure in step 16 with the left hand handlebar and upper pivot.

Connect the lower end of the upper interconnect cable to the mid-point connector. Careful push the mid-point connector and cables into the frame tube. Replace the end cap.

Feed the upper end of the upper interconnect cable through access hole in the display housing backplate. Set the display housing backplate at it's mounting position and fasten it with the screws removed in step 5.

15.

16.

17.

•

18.

19.

20.

21. Connectthe upper interconnect cable to the J5 connector on the upper PCA. Set the display housing front panel at it's mounting location and fasten it with the hardware removed in step

22. Replace the red battery lead removedinstep 1 and check unit operation as described in Section Four.

•

Page 58

Page 59

•

C534. C534i Self Powered Elliptical Fitness Crosstrainerl

Procedure 7.20 - Replace the Rear Cover

The rear coverisa four piece cover; front, top, left and right sections. If the front cover

section

being removed, the frame cover must also be removed (See Diagram 7.17).

2. If you are removing either the right or left cover section, it

only necessary to remove the

four screws that fasten the cover section.

Diagram 7.17 - Frame Cover

Frame Cover

\..- \..-

Mounting

Screw

If you are replacing either the front ortop cover section, you must first remove the left and right cover sections and then remove the cover section being replaced.

If you are removing the top cover (See Diagram 7.18), remove the two phillip screws that fasten the top cover section to the frame upright. Remove three screws that fasten the top cover section to the rear cover support. Remove two screws that fasten the top cover section to the front cover section.

5. If you are removing the front cover section, the right, left and top cover sections must be removed first. Remove the four screws that fasten the frame cover to the frame (See Diagram 7.14). Remove two phillips screws that fasten the bottom of the front cover section

to the frame. Lift the rear portion of the frame cover and carefully remove the front cover section. If it is necessary to remove the frame cover, lift the rear of the frame cover, slide the frame cover out of the ramp and remove the frame cover.

Page 59

Page 60

C534, C534i Self Powered Elliptical Fitness Crosstrainer

Mounting

Screw

Frame Upright

Top Cover

Section

Front Cover

Section

• Diagram 7.18 - Top Cover Section (with right & left cover sections removed)

•

If all four cover sections have been removed, first replace the frame cover and front cover section, then the top cover section and then the left and right cover sections as described below.

Slide the tongue of the frame cover into the ramp. Lift the rear of the frame cover and fit the front cover against the frame cover. Slide the front and frame covers into place as a unit. Replace and tighten the four phillips screws that fasten the frame cover to the frame. Replace and tighten the two phlliips screws that fasten the front cover section to the frame.

Set the top cover sectioninit's mounting position, replace and tighten the two phillips screws that fasten the top cover section to the frame upright. See Diagram 7.17. Replace and tighten the three screws that fasten the top cover section to the rear cover support.

Replace and tighten the two screws that fasten the top cover section to the front cover section.

Set the left cover sectioninit's mounting position, replace and tighten the four screws that

fasten the left cover section to the front cover section, top cover section and rear cover support.

10. Set the right cover section

it's mounting position, replace and tighten the four screws that

fasten the right cover section to the front cover section, top cover section and rear cover support.

•

Page 60

Page 61

•

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

Procedure 7.21 - Replacing a Load Resistor

Warning

When the EFX is operated the load resistors get very hot. Be sure to allow the load resistors enough time to cool before continuing with this procedure.

1. Remove the rear cover and disconnect the red battery lead from terminal M6 of the lower PCA.

Remove the three screws that fasten the load resistor assembly and shield to the frame upright. Rotate the load resistor assembly 180 degrees and set it on the top of the frame upright. See Diagram 7.19.

Diagram 7.19 - Load Resistor Assembly

Load Resistor

~=-..:.----

Load Resistor Clip

Mounting Bracket

Remove the screws that fasten the load resistor wiring from both terminals of the resistors.

Remove the screw that fastens one of the load resistor clips to the mounting bracket. Remove the resistor(s) being replaced.

Slide the replacement resistor into its mounting position so that its terminals contact the terminals

the other load resistor. Slide the load resistor clip, removed in step 4 into the opposite end of both resistors and fasten the load resistor clip to the mounting bracket with the screw removed in step

Reconnect the load resistor wiring removed in step 3. When compete the resistors should be connected to each other with a load resistor wire connected to each terminal of the resistors.

Rotate the load resistor assembly back into its mounting position with the shield between

the load resistor and the frame upright. Fasten the load resistor assembly and shield to the

Page

Page 62

C534. C534i Self Powered Elliptical Fitness Crosstrainer

• frame upright with the screws removedinstep

Route the load resistor wires into the slots at the top of the frame upright. This will keep the wires away from all moving parts, such

the stairarms.

Reconnect the red battery lead removedinstep 1 and replace the cover.

10.

Check the operation of the EFX as describedinSection Four.

•

Page 62

Page 63

•

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

Procedure 7.22 - Replacing a Generator (C534, only)

WARNING

When the unit is used, stairarms are in motion or the generator is rotated by any means, the generator will produce potentially hazardous voltages even when the battery

disconnected.

1. Remove the rear cover and disconnect the red battery lead from terminal M6 of the lower PCA.

Disconnect the generator output cable from the lower PCA. terminals AC1, AC2 and AC3.

Diagram 7.20 - Generator Mounting

•

Adjustment Bolt

Mounting Bolt

•

Remove the four mounting bolts that fasten the generator to the frame. remove the

generator belt from the generator. Remove the generator adjustment bolt from the generator. See Diagram 7.20.

Mount the adjustment boltinthe replacement generator with a nut on each side of the generator bracket.

7. Set the generator in its mounting position and hand start the four mounting bolts removed

in step 5 so that the bolts are as far in as possible while still allowing the generator to slide on its mounting slots. Using the rearward nut on the adjustment bolt tension the generator belt to 60 pounds, refer to Procedure 5.3. See Diagram 7.20.

Page 63

Page 64

•

C534, C534i Self Powered Elliptical Fitness Crosstrainer

When the generator belt tension is correct, torque the four generator mounting bolts to 150 inch pounds. Securely tighten the forward nut on the adjustment bolt.

Reconnect the red battery lead removedinstep 1 and replace the rear cover.

10. Check the operation

the EFX as describedinSection Four.

Page 64

Page 65

•

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

Procedure

7.23 - Replacing a

Generator

(C534i,

only)

WARNING

When the unitisused, stairarms areinmotion or the generatorisrotated by any means, the generator will produce potentially hazardous voltages even when the batteryisdisconnected.

Remove the rear cover and disconnect the

red

battery lead from terminal M6 of the lower

peA.

Remove the three generator mounting screws showninDiagram 7.21.

Remove the two bearing clamp screws showninDiagram 7.22. Remove the bearing clamp.

Lift the generator and remove its drive belt.

Loosen all four generator mounting nuts. Loosen the locking nut on the generator's adjustment bolt and thread the adjustment bolt into tabtoremove tension from the generator's drive belt. Remove the drive belt from the generators pulley.

Remove the four generator mounting nuts. Disconnect the generator's cable connector from the intermediate cable and remove the generator from the EFX.

Remove the adjustment bolt and it's locking nut from the generator's mounting base.

Thread the adjustment bolt and locking nut into the tab on the replacement generator.

Diagram

7.21

- Generator

Mounting

Locking

Nut

Adjustment

Bolt

Mounting

Bolt

Generator

Mounting Screw

•

Set the replacement generator at its mounting position. Remove the three generator mounting screws, the two bearing clamp screws and the bearing clamp. Lift the generator and place the drive belt around the generator's pulley.

Page 65

Page 66

C534, C534i Self Powered Elliptical Fitness Crosstrainer

• Diagram 7.22 - Generator Bearing Clamp

Bearing

Clamp-

Bearing Clamp

Mounting Screw

10. Replace and tighten the three generator mounting screws removed in step9.Set the bearing clamp in its mounting position, replace and tighten the two bearing clamp mounting

screws removed

step

•

11. Hand start, but do not tighten the four mounting nuts removed in step 6. The generator must be able to move in order to adjust the belt tension.

12. Adjust the generator drive belt tension per Procedure 5.3.

13. Reconnect the red battery lead removed in step 1 and replace the rear cover.

14. Check the operation of the EFX as described in Section Four.

Page 66

Page 67

•

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

Procedure 7.24 - Replacing a Battery (C534, only)

Remove the rear cover

2. Disconnect the red battery lead from terminal M6 of the lower PCA and the black battery lead from M7 of the lower PCA. See Diagram 7.23.

Diagram

7.23·

Lower

peA,

Battery Assembly (with battery wires disconnected)

•

Battery-,;.-------

Mounting

Screw

Battery Bracket

•

3. Disconnect the J3 andJ4connectors from the lower PCA.

While supporting the lower PCA and battery assembly remove the four screws that fasten the battery bracket to the frame upright.

5. Swing the lower PCA and battery assembly away from the frame upright and slide the battery out of the battery bracket.

Remove the red and black wires form the battery and connect them to the replacement battery as follows: the red wire to the positive

(+) battery terminal and the black wire to the

negative

(-)

terminal. Note: There is a red dot next to the positive terminalofthe battery.

See Diagram 7.19.

Page 67

Page 68

C534.

C534i

Self

Powered

Elliptical Fitness Crosstrainer

• Diagram 7.24 -

Battery

Wiring

Red Wire

Red Dot

Positive

Terminal

•

Slide the replacement battery into the battery bracket with the battery terminals nearest to the open end

the battery bracket.

Fasten the lower PCA and battery assembly to the frame upright with the screws removed in

step 4.

Reconnect the J3 and J4 connectors to the lower PCA.

10. Reconnect the black battery lead to terminal M7ofthe lower PCA. Reconnect the red battery lead to terminal M6

the lower PCA.

11. Replace the rear cover.

12. Check the operation

the EFX as describedinSection Four.

Page

Page 69

•

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

Procedure 7.25 - Replacing a Battery (C534i, only)

Remove the entire rear cover, including the front section of the cover.

2. Disconnect the red battery lead from terminal M6 of the lower PCA and the black battery lead from

of the lower PCA of the lower PCA. Refer to Diagram 7.25.

•

Diagram 7.25 -

Lower

PCA, Battery

Assembly

Terminal

Battery

Bracket

Terminal

Connector

Mounting

Screws

•

Disconnect theJ1(generator cable), J2 (data cable), J3 (lift cable), J4 (power adapter),

and M2 load cables from the lower PCA.

Use an antistatic wrist connect to a grounding point when performing steps 5, 6,

and 12.

Remove the four screws fastening the lower PCA to the battery bracket and remove the

lower PCA and place it on a static safe surface. Carefully remove the red and black wires from the battery. Ensure that the battery terminals

have not been bent upward and then place a piece of electrical tape over both battery

terminals. The battery is going to be slid out ofthe battery bracket and the battery terminals can not be allowed to touch the upper metallic surface of the battery bracket.

Page 69

Page 70

C534, C534i Self Powered Elliptical Fitness Crosstrainer

Side

:n===i--------i--

Bracket

Front Retaining

Bracket

Mounting

Nut

• Diagram 7.26 -

Battery

Bracket,

Front

Retaining

Bracket

•

7. Remove the nut fastens the front battery retaining bracket. Refer to Diagram 7.26. Carefully, slide the battery outofthe battery bracket.

Remove the red and black wires from the replacement battery. Place a pieceofelectrical tape over eachofthe battery terminals. Ensure that the side bracket is correctly in place in the slots in the battery bracket and carefully slide the battery into the bracket.

Replace the front retaining bracket and fasten it with its mounting nut.

10. Remove the electrical tape from the battery terminals and reconnect the battery wires as follows: the red wire to the positive (+) battery terminal and the black wire to the negative (-) terminal.

Note:

There is a red dot nextto the positive terminalofthe battery.

11. Set the lower PCA in its mounting position and fasten it with the screws removed in step

12. Reconnect the lower PCA wiring as follows: power adapter cable to J4, generator cable to J1, data cable to J2, lift cable to J3, load wires to terminals

and M2 (either wire may be

connected to either the

M1orM2 terminal).

13. Replace the rear cover. Check the operationofthe EFX as described in Section Four.

•

Page 70

Page 71

•

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

Procedure 7.26 - Replacing a Power Input Jack Assembly

1. Remove the rear cover and disconnect the red battery lead from terminal M6ofthe lower PCA.

2. Disconnect theJ4connector from the lower PCA. See Diagram 7.2 (C534) or Diagram 7.3 (C534i).

Diagram 7.26 - Power

Input

Jack

Mounting

Reconnect the red battery lead, removed in step1,to the positive (+) terminalofthe battery.

Remove the power input jack mounting plate with the power input jack assembly from the

unit.

Remove the screws that fasten the power input jack mounting plate to the rear cover

support. See Diagram 7.26.

Input

Jack

:-------;-

Mounting Screw

Mounting

Nut

Input

Jack

Mounting Plate

Remove the nut that fastens the power input jack to the power input jack mounting plate. Remove the power input jack from the power input jack mounting plate.

Fasten the replacement power input jack to the power input mounting with the mounting nut

provided with the power input jack.

Feed the power input jack wiring through the hole in the rear cover support and mount the

power input jack mounting plate with the screws removed in step 3.

Route the power input jackwiring to the lower PCA. Connect the plug on the power input

jack wiring to theJ4connector on the lower PCA.

•

10. Replace the rear cover.

11. Check the operationofthe EFX as describedinSection Four.

Page

Page 72

C534, C534i Self Powered Elliptical Fitness Crosstrainer

• Procedure 7.27 - Replacing a Frame Tube

Procedure

1. Remove the two screws that fasten the cover near the middle of the main column. Remove the cover.

Remove the four bolts and washers that fasten the lower end of the frame tube to the frame

base.

Diagram 7.27 - Frame Tube

Mounting

•

Upper

Mounting

BOlt~

Lower

Mounting

Bolt

•

Remove the four bolts and washers that fasten the upper end of the frame tube to the main

column. Remove the frame tube.

Set the replacement frame tube at it's mounting position and hand start the bolts with washers at the upper end of the frame tube. Hand start the bolts with washers at the lower end of the frame tube. Torque the upperfront two bolts to 300 in.llbs., the upper rear bolts to 240 in./Ibs. and the lower four bolts to 300 in./Ibs. See Diagram 7.27.

5. Set the cover in it's mounting and fasten it with the two screws removed in step

Thoroughly test the EFX per Section Four.

Page 72

Page 73

•

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

Procedure 7.28 - Replacing a Ramp Support

Warning: Care must be taken when work

being performedinthe area of the stairarms. Pinch points exist between the stairarm and ramp and between the stairarm and crankarm, when the rear covers are removed.

Procedure

Remove the front, top, left and right rear cover sections per Procedure 7.20.

Remove three bolts, washers and single nut that fasten the right stairarm connector to the right stairarm. Remove three bolts, washers and single nut that fasten the left stairarm connector to the left stairarm.

Rotate both stairarms to the rear, so that they are resting on the floor to the rear of the EFX.

Diagram 7.28 - Ramp Support Mounting

Ramp

Mounting-

Bolts

Ramp Support

----=-----....,:

Lower Mounting -

Remove the screw that fastens the ramp end cap to the ramp. Remove the ramp end cap.

Remove the four bolts that fasten the ramp to the rear ramp bracket.

Page 73

Page 74

C534, C534i Self Powered Elliptical Fitness Crosstrainer

•

Remove two bolts, four washers and two nuts that fasten the ramp to the front ramp support.

Remove the ramp from the EFX.

10.

11.

12.

13.

14.

15.

•

Remove the two bolts at the lower end of the ramp support, remove the ramp support.

Set the replacement ramp support at its mounting position, fasten it to the frame base with the bolts removed in step 8. Torque the bolts to 20 ft./Ib.

Set the replacement ramp in it's mounting position, replace the bolts washers and nuts removed in step

Do tighten the bolts at this time.

Replace the four bolts and washers removed

step 4 that fasten the ramp to the rear ramp

bracket.

Torque the four bolts between the ramp and rear ramp bracket to 12 ft.llbs. Torque the two

bolts between the ramp and the front ramp support to 20 ft./Ibs.

Replace the ramp end cap with the screw removed in step

Rotate both stairarms forward so that they are resting on the ramp.

Set the replacement right stairarm connector at its mounting position and slide the secondary link onto the right stairarm connector. Replace, but do not tighten the hardware removed

step2.Torque the two bottom bolts to 50 in.llbs. Torque the horizontal bolt to

11 ft.lbs. Set the replacement left stairarm connector at its mounting position and slide the secondary link onto the left stairarm connector. Replace, but do not tighten the hardware removed

step2.Torque the two bottom bolts to 50 in.llbs. Torque the horizontal bolt to

11 ft.lbs.

16. Replace the rear cover per Procedure 7.20.

17. Thoroughly, test the EFX per Section Four.

•

Page 74

Page 75

•

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

Procedure 7.29 - Replacing a Ramp Mounting Bracket

Warning: Care must be taken when work is being performed

the area of the stairarms. Pinch

points exist between the stairarm and ramp and between the stairarm and crankarm,

when the rear covers are removed.

Procedure

Remove the front, top, left and right rear cover sections per Procedure 7.20.

Remove three bolts, washers and single nut that fasten the right stairarm connector to the right stairarm. Remove three bolts, washers and single nut that fasten the left stairarm

connector to the left stairarm.

Rotate both stairarms to the rear, so that they are resting on the floor to the rear of the EFX.

Diagram 7.29 - Ramp Mounting Bracket

Ramp Bracket

Ramp

Mounting Bolt

•

Remove the screw that fastens the ramp end cap to the ramp. Remove the ramp end cap.

Remove the four bolts that fasten the ramp to the rear ramp bracket.

Remove two bolts, four washers and two nuts that fasten the ramp to the front ramp support.

Page 75

Page 76

C534, C534i Self Powered Elliptical Fitness Crosstrainer

• 7. Remove the ramp from the EFX.

8. Remove the two bolts, wave washers and shims that fasten the ramp mounting bracket to the frame. Remove the ramp mounting bracket.

Set the replacement ramp mounting bracket at its mounting position. Fasten the ramp mounting bracket with the hardware removed

step8,slide the wave washer onto the bolt

and then the shim. Torque the bolts to 25 ft.Jlbs.

10.

11.

12.

13.

14.

15.

Set the replacement rampinits mounting position, replace the bolts washers and nuts

removed in step

Do tighten the bolts at this time.

Replace the four bolts and washers removed in step 5 that fasten the ramp to the rear ramp

bracket.

Torque the four bolts between the ramp and rear ramp bracket to 12 ft.llbs. Torque the two

bolts between the ramp and the front ramp support to 20 ft.Jlbs. Replace the ramp end cap with the screw removed in step

Rotate both stairarms forward so that they are resting on the ramp.

Set the replacement right stairarm connector at its mounting position and slide the secondary link onto the right stairarm connector. Replace, but do not tighten the hardware

removed

step 2. Torque the two bottom bolts to 50 in.Jlbs. Torque the horizontal bolt to

11 ft.lbs. Set the replacement left stairarm connector at its mounting position and slide the secondary link onto the left stairarm connector. Replace, but do not tighten the hardware

removed

step2.Torque the two bottom bolts to 50 in.llbs. Torque the horizontal bolt to

11 ft.lbs.

16. Replace the front, top, left and right cover sections per Procedure 7.20.

17. Thoroughly, test the EFX per Section Four.

•

Page 76

Page 77

•

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

Procedure 7.30 - Replacing a Stairarm Pivot Block

Warning: Care must be taken when work

being performed in the area of the stairarms. Pinch points exist between the stairarm and ramp and between the stairarm and crankarm, when the rear covers are removed.

Procedure

WARNING

Before continuing with this procedure, review the Warning and Caution statements listed in Section One, Things You Should Know.

Remove the left and/or right cover sections as described in Procedure 7.20.

Remove the mounting bolt and nut that fastens the stairarm pivot block to the stairarm. (See Diagram 7.30)

Slide the stairarm off of the stairarm pivot block.

Remove the stairarm pivot block retaining ring from the crankarm pin. Slide the stairarm pivot block off of the crankarm pin.

the stairarm pivot blockisbeing replaced because of excessive wear, check the condition of the crank arm pin, it may be necessary to replace the crankarm.

Diagram 7.30 - Stairarm Mounting

.....-_--~-------

•

Mounting

Bolt-~--I.,

Stairarm-

Crankarm-

Retaining Ring

,\,--+--

Pivot Block

Page 77

Page 78

•

C534, C534i Self Powered Elliptical Fitness Crosstrainer

Slide the stairarm pivot block onto the crankarm pin and replace the retaining ring removed

step

Slide the stairarm onto the stairarm pivot block. Install and hand tighten the stairarm pivot block mounting hardware. Torque the stairarm pivot block mounting bolt to 15 ft.llbs.

Replace the left and/or right cover sections per Procedure 7.18.

Page 78

Page 79

•

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

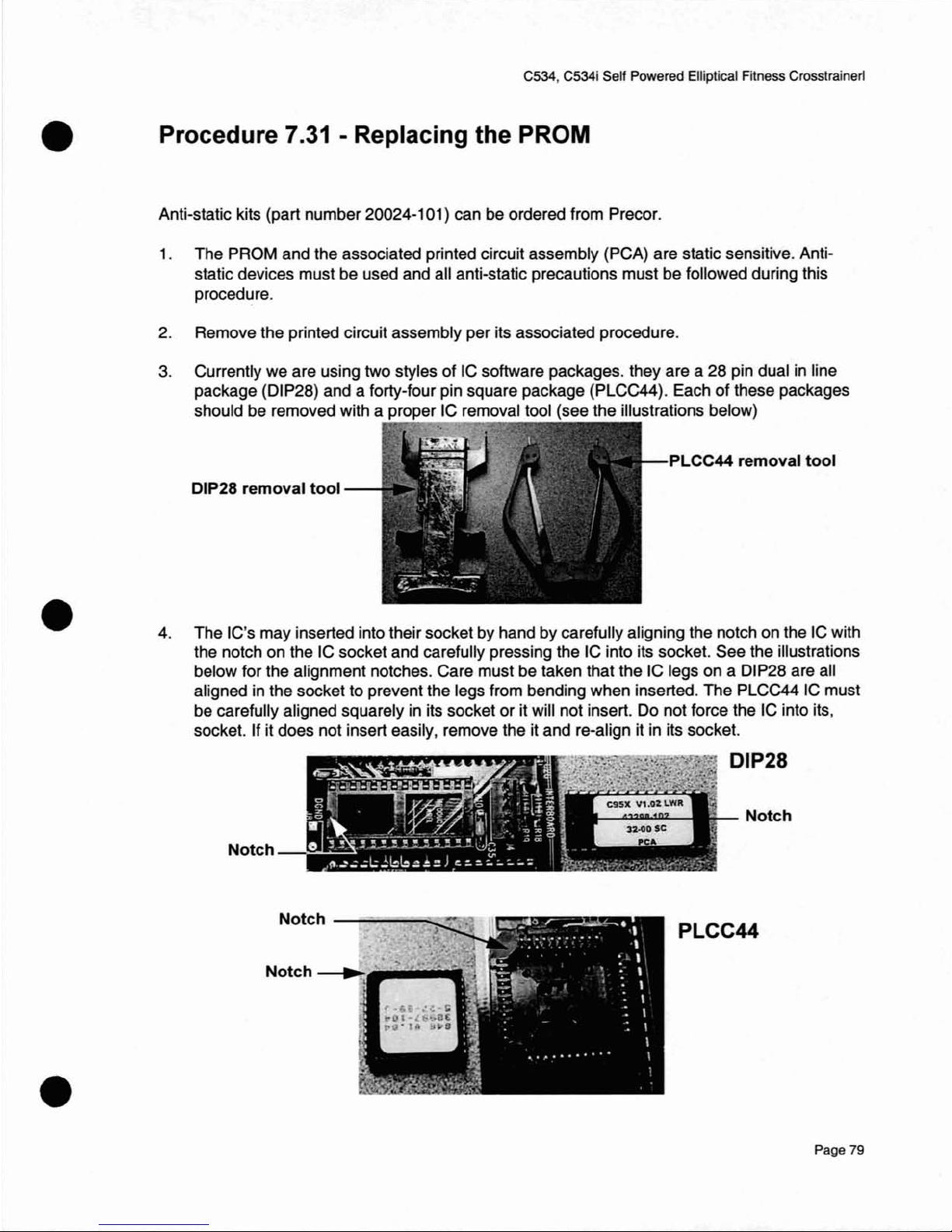

Procedure 7.31 - Replacing the PROM

Anti-static kits (part number 20024-101) can be ordered from Precor.

The PROM and the associated printed circuit assembly (PCA) are static sensitive. Anti-

static devices must be used and all anti-static precautions must be followed during this procedure.

2. Remove the printed circuit assembly per its associated procedure.

Currently we are using two styles of IC software packages. they are a 28 pin dualinline package (0IP28) and a forty-four pin square package (PLCC44). Each of these packages

should be removed with a proper IC removal tool (see the illustrations below)

PLCC44 removal

tool

DIP28 removal

tool

The IC's may inserted into their socket by hand by carefully aligning the notch on the IC with the notch on the IC socket and carefully pressing the IC into its socket. See the illustrations below for the alignment notches. Care must be taken that the IC legs on a01P28 are all aligned

the socket to prevent the legs from bending when inserted. The PLCC44 IC must be carefully aligned squarely in its socket or it will not insert. Do not force the IC into its, socket. If it does not insert easily, remove the it and re-align it in its socket.

•

Notch

-~~---~

DIP28

Notch

PLCC44

Page 79

Page 80

C534, C534i Self Powered Elliptical Fitness Crosstrainer

• Wiring Diagram

8.1

- C534 SelfPowered (C534, only)

•

Keypad

Upper PCA

Heart Rate

PCA

J4-1

•

Input

Power

Jack

J4-2

Battery

Lower

PCA

Generator

20 Ohm, 300W

Load Resistor

...

•

Page 80

Page 81

•

• •

U'I

"'tJ

()

:::;;

U'I

ii)

::::J

:::n

()

!!t

rator

C534 Self Powered EFX

UPCA

Keypad

Microprocessor System

on;

..:

Heart Rate

peA

IMid-Point Connector

LPCA

It>

1:l

J2.2.5.e

J2·',",7

~2.e

n-3

8.5VDC

P()W(l(

rBK

lol7

Supply

II~lol'

200tvn

20 Otvn

~',>

300W

- .

<::

J4·2 M3

¥*

DS1

.14-1

Green

(5V)

12Vdc

PREC<m

III

Page 82

C534, C534i Self Powered Elliptical Fitness Crosstrainer

• Wiri!1g

Di_agram

8.3 - C534i

Self

Powered

•

Keypad

UpperPCA

Heart

Rate PCA

J4-1

Input

Power

J4-2

Input

Power

Jack

I I

J1-1

J1-2

Lower

J1--3

100-

PCA

Generator

J1-5

J1-6

I--

J1-7

20 OHM, 300W

Load

Resistor

- -

•

Page 82

Page 83

•

PREC<m

()

(f)

(I)

:::;;

(I)

til

"§:

:::!1

(I)

en en

()

en en

""'"

"'tJ

(;J

C534i

Self

Powered

EFX

UPCA

Keypad

.I~

u';j;:IWJ!oSor

5ys~m

If:

Heart

Ra1e

"-l

peA

''''~r'.;·nI C,:'"""d·;r

J~·1

.11

.1·1

'l!

..,

LPCA

tI l"

..0

:le.«I

Jl·1.."

.uu

,p.,

,..,

~'5

tl·,..,..,.".."..,t'f'~·Il~

.il-

II.S,/OC

I.U

Power

oil

...

S'JPp!y

II~\"

~;~h"!

>~J<Jt>T

'I::.

3:~;;

0;:.

Jt'l

.....

_---

•

1.4

.1.'

>sf\~'~~

.....

~r~~

\l)Vj

J'.~

\[V

J~'"

','l)

,11.:1

)1·'

12Vdc

power~'-

Input~

Jack

III

(I)

(Xl

to)

Precor C354, C354i Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
