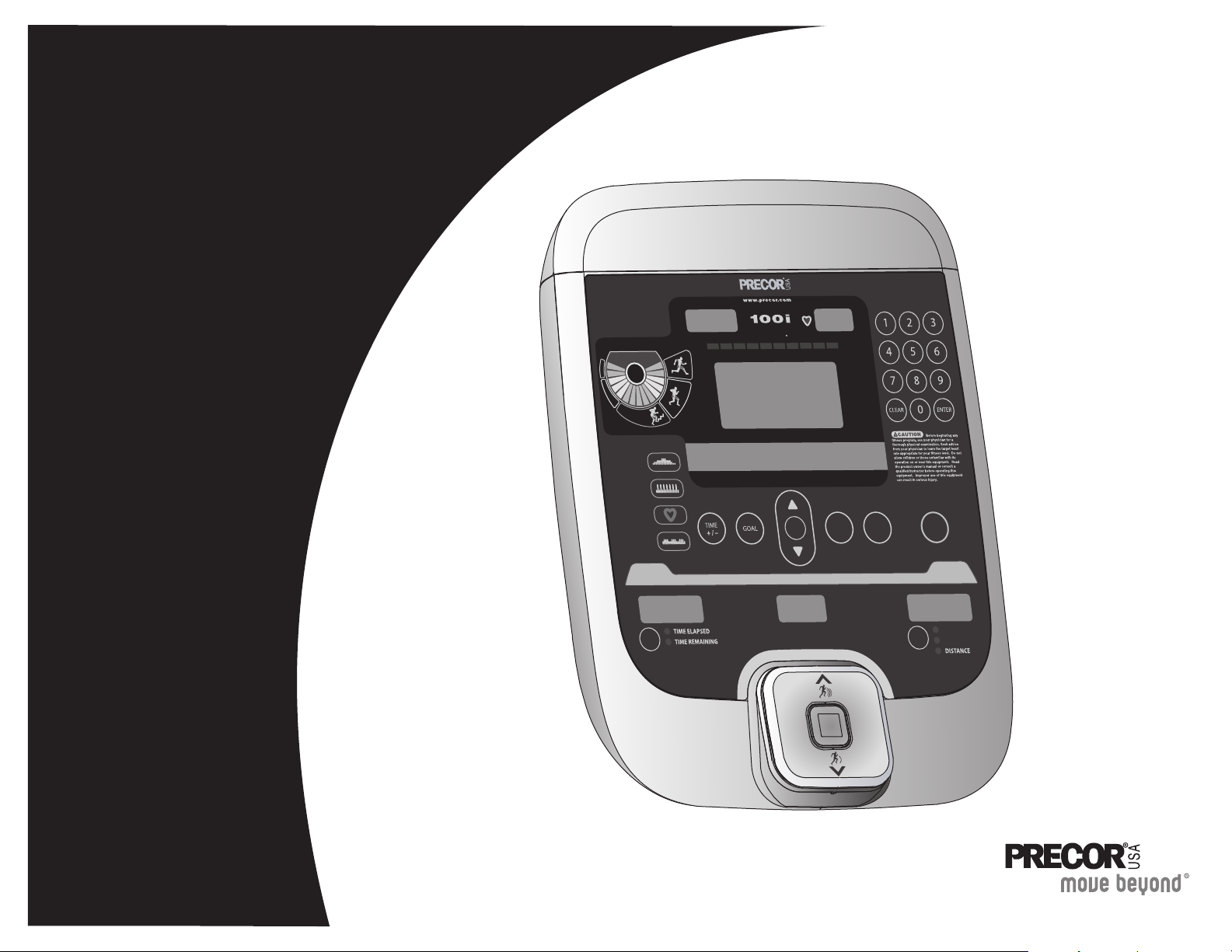

Product Owner's Manual

100i

Commercial Adaptive Motion Trainer

Important Safety Instructions

When using Precor equipment, always take basic precautions,
including the following:

y

Read all instructions before using the equipment. These
instructions are written to educate patrons and other users in
the proper use of the equipment.

y

Other sections in this manual provide more details of safety
features. Be sure to read these sections and observe all safety
notices.

y

Before beginning any fitness program, make sure all users see a
physician for a complete physical examination.

Il est conseillé de subir un examen médical complet avant
d’entreprendre tout programme d’exercise. Si vous avez des
étourdissements ou des faiblesses, arrêtez les exercices
immédiatement.

DANGER

WARNING

y

Do not allow children or people unfamiliar with its operation on
or near the equipment. Do not leave children unsupervised
around the equipment.

Before cleaning it, always unplug the
equipment from its power source to reduce
the risk of electric shock. Before cleaning
self-powered equipment, disconnect the
optional power adapter.

To reduce the risk of burns, fire, electric shock,
or injury, take the following precautions:

y

Never leave the equipment unattended when it is plugged in.
Unplug the equipment from the power source when it is not in
use, before cleaning it, and before providing authorized service.

Note: The optional power adapter is considered an electrical
power source for self-powered equipment.

y

Keep all electrical components away from liquids to prevent
shock.

y

Assemble and operate the equipment on a solid, level surface.
Locate the equipment a few feet from walls or furniture.

y

Maintain the equipment in good working condition. Refer to
Maintenance.

y

If you plan to move the equipment, obtain help and use proper
lifting techniques. For more information, refer to Moving the
Equipment.

y

Use the equipment only for its intended purpose as described in
this manual. Do not use accessory attachments that are not
recommended by the manufacturer, as such attachments may
cause injuries.

y

Never operate the equipment if it is damaged, not working
properly, when it has been dropped, or has been immersed in
water. Return the equipment to a service center for examination
and repair.

y

Keep the power cord or optional power adapter and plug away
from heated surfaces.

Product Owner's Manual: Important Safety Instructions 1

y

Do not operate the equipment where aerosol (spray) products
are being used or where oxygen is being administered.

y

Do not use outdoors.

y

Do not attempt to service the equipment yourself except to
follow the maintenance instructions found in this manual.

y

Never drop or insert objects into any opening. Keep hands away
from moving parts.

y

Do not set anything on the stationary handrails or handlebars,
display console, or covers. Place liquids, magazines, and books
in the appropriate receptacles.

Hazardous Materials and Proper Disposal

The self-powered equipment has an internal battery which contains
materials that are considered hazardous to the environment. Proper
disposal of the battery is required by federal law.

If you plan to dispose of your equipment, contact Precor
Commercial Products Customer Support for information regarding
battery removal. Refer to Obtaining Service.

Product Recycling and Disposal

Safety Approval

When identified with the ETL-c logo, the equipment has been
tested and conforms to the requirements of
CAN/CSA-E-335-1/3-04, EN 60335-1: 2002 Safety of Household
and Similar Electrical Appliances. This equipment is a Class S/B or
C certified machine according to applicable EN957 standards.

Educating Users

Take time to educate users on the safety instructions found in both
the User’s Reference Manual and Product Owner’s Manual.
Explain to your club or facility patrons that they should:

y

Hold onto a stationary handrail or handlebar while stepping onto
the equipment or when getting comfortably seated on the cycle.

y

Face the display at all times.

y

Hold on to a stationary handrail or handlebar with one hand
whenever reaching with the other hand to touch the display
keys.

This equipment must be recycled or discarded according to
applicable local and national regulations.

Product labels, in accordance with European Directive
2002/96/EC concerning waste electrical and electronic equipment
(WEEE), determine the framework for the return and recycling of
used equipment as applicable throughout the European Union. The
WEEE label indicates that the product is not to be thrown away,
but rather reclaimed upon end of life per this Directive.

In accordance with the European WEEE Directive, electrical and
electronic equipment (EEE) is to be collected separately and to be
reused, recycled, or recovered at end of life. Users of EEE with the
WEEE label per Annex IV of the WEEE Directive must not dispose
of end of life EEE as unsorted municipal waste, but use the
collection framework available to customers for the return,
recycling, and recovery of WEEE. Customer participation is
important to minimize any potential effects of EEE on the
environment and human health due to the potential presence of
hazardous substances in EEE. For proper collection and treatment,
refer to Obtaining Service.

Product Owner's Manual: Important Safety Instructions 2

Radio Frequency Interference (RFI)

Federal Communications Commission, Part 15

This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a commercial installation. The equipment
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the owner’s manual
instructions, may cause harmful interference to radio
communications.

WARNING

Industry Canada

This Class A digital apparatus complies with Canadian ICES-003.

Per FCC rules, changes or modifications not
expressly approved by Precor could void the
user’s authority to operate the equipment.

European Applications

This product is compliant to:

y

2004/108/EC Electromagnetic Compatibility Directive.

y

2006/95/EC Low Voltage Directive.

y

2002/95/EC Restriction of Hazardous Substances Directive.

This product conforms to the requirements of the European
Council Directive 89/336/EEC, 2004/108/EC Electromagnetic
Compatibility and has been tested to the following standards:

y

EN55022, Limits & Methods of Measurement of Radio
Interference, Information Technology Equipment.

y

EN55024, Immunity of Information Technology Equipment.

This product also conforms to the requirements of the European
Council Directive 73/23/EEC, 2006/95/EC Low Voltage Directive
and has been tested to the following standard:

y

IEC 335-1, EN60335-1 Safety of Household and similar
Electrical Appliances.

Cet appareil numérique de la classe A est conforme à la norme
NMB-003 du Canada.

ATTENTION: Haute Tension
Débranchez avant de réparer

Product Owner's Manual: Important Safety Instructions 3

Obtaining Service

Model #: _______ Base Serial #: _______________________

You should not attempt to service the equipment except for
maintenance tasks described in this manual. For information about
product operation or service, see the Precor web site at
www.precor.com. Should you need more information regarding
customer support numbers or a list of Precor authorized service
centers, visit the Precor web site at www.precor.com/corp/contact.

For future reference, write the model, serial number, and date of
purchase for all your equipment in the space provided. The serial
number is printed on a label located near the power cord
connection (treadmills) or receptacle (self-powered equipment).

Display Serial #: _______________________

Date purchased: _______________________

Model #: _______ Base Serial #: _______________________

Display Serial #: _______________________

Date purchased: _______________________

Model #: _______ Base Serial #: _______________________

Display Serial #: _______________________

Date purchased: _______________________

Model #: _______ Base Serial #: _______________________

Display Serial #: _______________________

Date purchased: _______________________

Product Owner's Manual: Important Safety Instructions 4

Table of Contents

Important Safety Instructions............................................1

Safety Approval .............................................................................. 2

Educating Users.............................................................................2

Hazardous Materials and Proper Disposal............................... 2

Product Recycling and Disposal ................................................2

Radio Frequency Interference (RFI)........................................... 3

European Applications.................................................................. 3

Obtaining Service ..........................................................................4

AMT Safety Features............................................................6

Self-Powered Features........................................................7

Informational Displays Prior to Shutdown.................................7

Symptoms of a Low Battery.........................................................8

Using the Optional Power Adapter............................................ 8

The Optional Power Adapter Kit................................................. 9

Replacing the Battery.................................................................... 9

Club Features.......................................................................10

Club Programming Tips..............................................................10

Accessing Club Programming Mode and

Changing the Settings................................................................11

Choosing a Language.................................................................13

Selecting a U.S. Standard or Metric Display......................... 13

Setting an Exercise Session Time Limit..................................13

Setting a Pause Time Limit........................................................14

Setting a Cool-Down Time Limit ..............................................14

Informational Displays................................................................. 15

User ID Entry with CSAFE Equipment....................................18

Maintenance.........................................................................19

Daily Inspection............................................................................ 19

Daily Cleaning............................................................................... 19

Moving the Equipment................................................................19

Storing the Chest Strap .............................................................20

Long-Term Storage .....................................................................20

Precor Commercial Equipment

Limited Warranty.................................................................21

Product Owner's Manual: Table of Contents 5

AMT Safety Features

Before allowing users on Precor equipment, review the safety
instructions found at the beginning of this manual. You should also
teach your patrons how to safely use the equipment. Explain to your
patrons that they should:

y

Stand on the rear pedestal and grasp an arm or a stationary
handlebar for stability when preparing to step on or off the
equipment.

y

Hold on to a stationary handlebar with one hand whenever
reaching with the other hand to touch the display keys.

y

Stay clear of the foot plates and rear pedestal when someone is
using the equipment.

Product Owner's Manual: AMT Safety Features 6

Self-Powered Features

On self-powered equipment, the battery initializes and displays the
Precor banner when a user starts exercising. A minimum rate of
motion must be maintained for the banner to appear, as shown in
the following table. When a person meets the requirements, the
power that is generated allows the equipment to function properly.

Table 1. Minimum requirements for operation

Equipment Rate of Motion

AMT 56 strides per minute (SPM)

EFX 40 strides per minute (SPM)

Climber 30 steps per minute

Cycle 20 revolutions per minute (RPM)

Informational displays appear when the battery is low or when the
rate of motion drops below the minimum requirements. The display
explains what to do to retain power. If the messages are ignored,
the equipment begins shutdown procedures to maintain the charge
of the battery. Refer to Informational Displays Prior to Shutdown.

Informational Displays Prior to Shutdown

The equipment saves its battery charge by moving into a shutdown
mode. If the user does not maintain the minimum rate of motion, a
30-second shutdown process begins.

Dots appear in the display and all key presses are ignored. If no
movement is detected or the rate of motion remains below the
minimum, the dots steadily disappear as the countdown continues.

Note: The user can resume exercising if he or she begins before
the countdown period elapses.

Important: If the equipment is connected to a CSAFE master
device, a slightly different scenario occurs. When ten seconds
remain before the equipment shuts off, the exercise session ends.

RESETTING

disconnects from the CSAFE master device. All key presses are
ignored.

appears in the display while the equipment

An optional power adapter can be purchased and provides
sustained power to the equipment. If you plan to change the club
settings, the power adapter is highly recommended. To purchase
the optional power adapter, check with your dealer. Refer to

Obtaining Service.

Product Owner's Manual: Self-Powered Features 7

Symptoms of a Low Battery

Using the Optional Power Adapter

If no one has used the equipment for an extended period of time,
the battery may need recharging.

Symptoms of a low battery include:

y y A flickering or erratic display

User and program information is lost once the user stops
exercising. No workout summary or notification of pending
shutdown occurs.

Important: To maintain a constant power source, use the optional
power adapter.

After connecting the power adapter to the equipment, plug the
opposite end into the appropriate power source 120 V or 240 V.

CAUTION: When the optional power adapter is in use, make sure
that the power supply cord does not create a safety hazard. Keep
it out of the way of traffic and moving parts. If the power supply
cord or power conversion module is damaged, it must be
replaced.

The display functions differently when the power adapter is
connected. Because the power adapter provides a constant source
of power, a user can pause for brief periods without initiating
shutdown procedures. When the pause time limit expires and the
user has not resumed exercising, the display returns to the Precor
banner. Refer to Setting a Pause Time Limit. To learn how to install
the power adapter, refer to The Optional Power Adapter Kit.

Product Owner's Manual: Self-Powered Features 8

The Optional Power Adapter Kit

Replacing the Battery

If you purchase the optional power adapter, you must also
purchase the internal cable kit. The kit supplies the cable, bracket,
and fasteners that connect the power adapter to the lower
electronics board.

CAUTION: The internal cable kit must be installed by authorized
service personnel. Do not attempt installation on your own as
you could void the Precor Limited Warranty. For more
information, refer to Obtaining Service.

Once the internal cable kit is installed, you can plug the optional
power adapter into the equipment. Plug the opposite end into the
appropriate power source for your equipment 120 V or 240 V.
Review the safety instructions found at the beginning of this manual
before using the power adapter.

The equipment’s battery is built to last for a long time. However, if
you feel that the battery may need replacing, check with an
authorized service technician. Refer to Obtaining Service.

CAUTION: The battery stored inside the equipment contains
hazardous materials and must be disposed of according to
Hazardous Waste Regulations. Refer to Hazardous Materials
and Proper Disposal.

Product Owner's Manual: Self-Powered Features 9

Club Features

These next few pages explain how to customize the equipment for
your club or facility and view useful product information. All these
features remain hidden to the patrons and can only be accessed
using special key presses. Read this section if you want to:

y

Change the display to a different language

y

Change the display to show U.S. standard or metric
measurements

y

Set the maximum exercise and pause times

y

Set a cool-down time limit

y

View the odometer

y

Display the number of hours the equipment has been in use

y

View the software versions and part numbers

y

Display the serial number

y

Check the program usage and error logs

Note: To review the club programming prompts and factory
default settings that can be changed through club programming
mode, refer to the following table.

Club Programming Tips

y

Always start at the Precor banner.

y

Electrical power must be supplied. For self-powered equipment,
a constant power source is available if you use the optional
power adapter, otherwise you will have to maintain the minimum
rate of motion. Refer to Self-Powered Features. If you plan to
program self-powered equipment, purchasing the optional
power adapter is highly recommended.

Note: If you do not use the optional power adapter during club
programming mode, and the rate of motion falls below the
minimum requirements, no warning is given when the equipment
moves into its 30-second shutdown procedure.

y

The club programming mode is accessed by pressing the
RESET key at the Precor banner. The remaining key presses
must occur quickly and without pause.

Note: Keys that can be used interchangeably in club
programming mode are OK and ENTER.

y

The changes made in club programming mode become the
default settings whenever the display resets to the Precor
banner.

Product Owner's Manual: Club Features 10

Table 2. Club custom features and settings

Accessing Club Programming Mode

Club Programming
Prompt

SELECT
LANGUAGE

SELECT UNITS

SET MAX
WORKOUT TIME

SET MAX
PAUSE TIME

SET COOL
DOWN TIME

Note: If a user changes the language or unit of measure during an exercise
session, the display resets to the club preferences when a user’s workout ends.

Factory
Default
Setting

English

U.S.

60 minutes

120 seconds

5 minutes

Changes you can make

Several languages affect the display
prompts. Choose one.

Two standard units of measure affect
the display prompts. Choose between
U.S. or Metric.

Exercise session time limits range from
1 to 240 minutes. NO LIMIT is
accessible beyond 240 minutes.

Pause time limits range from 1 to 120
seconds (2 minutes). Restrictions exist
for self-powered units.

Cool-down time limits range from 0 to 5
minutes.

and Changing the Settings

Read the Club Programming Tips to identify useful information
about customizing your Precor equipment.

To access the available menus and change the program settings,
perform the following steps:

1. At the Precor banner, press the following keys in sequence
without pausing between selections:

RESET, 5, 6, 5, 1, 5, 6, 5

The club programming prompts appear sequentially and in a
menu format. The following table describes which keys to use in
club programming mode.

Product Owner's Manual: Club Features 11

Table 3. Club Programming Mode keys

Use the following flowchart to navigate through the menu settings.

Key Description Function

▲

or ▼

Navigational arrow
keys

OK OK key

Moves you through the programs and
selections.

Lets you choose or accept the
displayed selection.

CLEAR

Number keypad
CLEAR key

RESET RESET key

Returns to the previous menu level
without saving any changes.

Exits Club Programming Mode and
returns to the Precor banner.

Note: The number keypad is disabled once you enter club
programming mode.

PRECOR

RESET, 5, 6, 5, 1, 5, 6, 5

DIAGS – SET CLUB PARAMETERS

SELECT LANGUAGE

▼

SELECT UNITS

▼

SET MAX WORKOUT TIME

▼

SET MAX PAUSE TIME

▼

SET COOL DOWN TIME [ 5 MIN.]

OK

OK

OK

OK

OK

OK

OK

OK

OK

[ ENGLISH]

[ U.S.]

[ 60 MIN]

[ 120 SEC.]

Product Owner's Manual: Club Features 12

Choosing a Language

Setting an Exercise Session Time Limit

The equipment can display user prompts, text, and user entries in
several different languages. When the equipment is shipped from
the factory, it is set to display English.

Note: Programming prompts are not affected by language
selection. The prompts in this section continue to appear in
English.

1.

At the

SELECT LANGUAGE

prompt, press OK. Use the

navigational arrow keys to choose a language.

2.

When you are ready, press OK to accept the displayed setting
and move to the next feature. For other options, refer to the table
in Accessing Club Programming Mode and Changing the
Settings.

Selecting a U.S. Standard or Metric Display

The equipment can display measurements in either Metric or U.S.
Standard. The default factory setting is to display U.S. Standard. To
change this setting, perform the following steps:

1.

At the
arrow keys to select a unit of measure (US or

2.

When you are ready, press OK to accept the displayed setting
and move to the next feature. For other options, refer to the table
in Accessing Club Programming Mode and Changing the
Settings.

SELECT UNITS

prompt, press OK. Use the navigational

METRIC

).

You can limit how long a user can exercise on the equipment. For
example, if you set the time limit to 20 minutes, users can only enter
a session time between 1 and 20 minutes.

Note: The automatic cool-down period is appended to the end of
any time-based program, so adjust the time limit accordingly.

You can also let a user exercise indefinitely by selecting

NO LIMIT

However, you will need to instruct users that once they select a
program, they must press the TIME +/- key. A workout time blinks
in the display. They need to use the Number Keypad to type in 240,
press the up arrow key to display

NO LIMIT

, and then press OK.

The exercise session times available are between 1 and 240
minutes.

1.

At the

SET MAX WORKOUT TIME

prompt, press OK. Use the

navigational arrow keys to change the displayed time limit.

Note: When you press and hold a navigational arrow key, the
number increments by five, for example, 1, 5, 10, 15, 20. When
you tap an arrow key, the number increments by one.

2.

When you are ready, press OK to accept the displayed setting
and move to the next feature. For other options, refer to the table
in Accessing Club Programming Mode and Changing the
Settings.

.

Product Owner's Manual: Club Features 13

Setting a Pause Time Limit

Setting a Cool-Down Time Limit

You can limit how long a user can pause while exercising on the
equipment by entering a time between 1 and 120 seconds (two
minutes). For example, if you set a pause time limit of 60 seconds,
the display automatically resets to the Precor banner if no
movement is detected and no key press occurs for one minute.

Important: The optional power adapter must be connected on
self-powered equipment to establish a definitive pause time limit. If
the optional power adapter is not attached and the rate of motion
drops below the minimum requirements, the equipment begins its
30-second shutdown, effectively eliminating pause mode. Refer to
the table in Self-Powered Features.

1.

At the

SET MAX PAUSE TIME

prompt, press OK. Use the
navigational arrow keys to change the time limit. Choose
between 1 and 120 seconds (two minutes).

2.

When you are ready, press OK to accept the displayed setting
and move to the next feature. For other options, refer to the table
in Accessing Club Programming Mode and Changing the
Settings.

You can limit how long a user cools down after exercising on the
equipment by entering a time between 0 and 5 minutes.

Important: It is highly recommended that you set the cool-down
period at or above three minutes. It takes time for a user’s heart
rate to return to a resting state after vigorous exercise. An effective
cool-down period also reduces the amount of lactic acid in muscle
tissue.

1.

At the

SET COOL DOWN TIME

prompt, press OK. Use the
navigational arrow keys to display the available time limits.
Choose between 0 and 5 minutes. The default setting is 5
minutes.

2.

When you are ready, press OK to accept the displayed setting
and move to the next feature. For other options, refer to the table
in Accessing Club Programming Mode and Changing the

Settings.

Product Owner's Manual: Club Features 14

Informational Displays

The equipment provides information about its use (odometer and hour meter), as well as software versions and part numbers, serial number,
usage log, and error log. In general, you would only access this information if directed to do so by Precor Customer Support.

To navigate through the informational displays, use the following flowchart. Descriptions for these displays are shown in the following table.

Note: The CLEAR key is located on the Number Keypad and the RESET key is located on the Navigational Keypad.

PRECOR

RESET, 6, 5

DIAGS INFORMATIONAL DISPLAY

ODOMETER

CLEAR

HOUR METER

CLEAR

UPPER BOOT SW PART NUMBER

UPPER BASE SW PART NUMBER

OK

###

OK

###

CLEAR

CLEAR

OK

#####-###

OK

#####-###

LOWER BASE SW PART NUMBER

CLEAR

METRICS BOARD SW PART NUMBER

CLEAR

STRIDE DIAL SW PART NUMBER

CLEAR

SERIAL NUMBER

CLEAR

USAGE LOG

CLEAR

ERROR LOG

CLEAR

CLEAR

OK

OK

SERIAL NUMBER NONE

OK

PROGRAM

#

ERRORS

OK

ERROR

OK

#####-###

OK

#####-###

OK

#####-###

HOLD TO

CLEAR ERRORS

QUICKSTART

Product Owner's Manual: Club Features 15

Table 4. Informational Displays

Product Display Description

All

All

All

All

All

534i, 532i,
AMT

AMT

All

All

All

ODOMETER

HOUR METER

U-BOOT SW

U-BASE SW

LOWER SW

METRICS BOARD SW
PART NUMBER

STRIDE DIAL SW PART
NUMBER

SER. NUMBER

USAGE LOG

ERROR LOG

The odometer value correlates to the type of Precor product and the standard of units, U.S. or Metric, selected in the
club programs.

Treadmill shows the number of cumulative miles or kilometers logged to date.
EFX or AMT shows the number of total strides logged to date.
Cycle shows the number of total revolutions logged to date.
Climber indicates the number of floors climbed.

The number of hours that the equipment has been in use. The equipment tracks the elapsed minutes, but the value that
appears is truncated to the nearest full hour.

Upper board application software part number and version.
Note: Some displays show

Upper base application software version.
Note: Some displays show

Lower application software version.
Note: Some displays show

Metrics board software part number and version.

Stride dial software part number.

The serial number is helpful when you contact Customer Support. You can also find the serial number located on a label
on the front hood (treadmills) or optional power receptacle (self-powered equipment) if one does not appear in the
display.

Note: Some displays show

The software logs the number of times each program has been used and displays the associated cumulative minutes.
The usage log is helpful in determining user preferences in program selection.

The error log displays any error codes that may have been detected by the software. Copy the error code information to
paper so you can provide it to Customer Support, if needed. Be sure to copy it exactly as shown. Refer to Error Log.

UPPER BOOT SW PART NUMBER

UPPER BASE SW PART NUMBER

LOWER BASE SW PART NUMBER

SERIAL NUMBER

.

.

.

.

Product Owner's Manual: Club Features 16

Error Log

Erasing the Error Log

Quick access to the informational display is available if error
messages have appeared on the display and have been recorded
in the error log. This feature is usually reserved for service
personnel. At the Precor banner, press and hold RESET for 4
seconds. If

DIAGS - INFORMATION DISPLAY

or

ERROR LOG

appears, press OK.

If no errors are logged,

STOP KEY

or

STUCK KEY

appears.

When you release the key, the Precor banner returns.

When you no longer need the error log information, you may erase
all entries in the error log by pressing the QUICKSTART key while
any error description is scrolling across the display. Continue to
maintain light pressure on the key until the message,

CLEAR ERRORS

released,

NO ERRORS

, scrolls off the display. When the key is

appears on the display, which indicates the

HOLD TO

error log has been deleted.

Important: You cannot retrieve the error log once you have deleted
it. You may want to resolve any issues you are experiencing with
the equipment before erasing the error log.

When you are ready, press RESET to return to the Precor banner.

Product Owner's Manual: Club Features 17

User ID Entry with CSAFE Equipment

The equipment is fully compatible with CSAFE protocols. When the
equipment is connected to a CSAFE master device, the user is
prompted to press ENTER and begin an identification process.

The user ID is displayed as five zeros and indicates the starting
point. The following table describes key functions while in CSAFE
mode.

Table 5. CSAFE access keys

Keypad Description

A message appears on the display and indicates when the user ID
is accepted by the CSAFE master device. Once program selection
is complete, the user can begin exercising.

To review information about CSAFE specifications, visit the web
site at: www.fitlinxx.com/csafe

If you have questions or need technical support, refer to Obtaining
Service.

Number keypad

CLEAR or
BACK

ENTER or OK Submits the user ID.

RESET or
PAUSE/RESET

Use the number keys to enter a user ID. The number
that is pressed appears on the right. As the user
continues, the numbers fill in the display from right to
left. When all five numbers are in place, the user must
press ENTER or OK to submit the user ID.

Erases individual numbers in the user ID from right to
left.

Note: User ID entry is bypassed when the user enters
five zeros. No workout statistics are recorded.

Resets the display to the banner.

Product Owner's Manual: Club Features 18

Maintenance

It is important to perform the minor maintenance tasks described
below. Failure to maintain the equipment as described in this
section could void the Precor Limited Warranty.

DANGER

To reduce the risk of electrical shock, always
unplug the equipment from its power source (an
optional power adapter in the case of
self-powered equipment) before cleaning it or
performing any maintenance tasks.

Daily Cleaning

Precor recommends the equipment be cleaned before and after
each exercise session. Use mild soap and water to dampen a
clean, soft cloth and wipe all exposed surfaces. This helps remove
dust and dirt.

CAUTION: Do not use any acidic cleaners. Doing so will weaken
the paint or powder coatings and void the Precor Limited
Warranty. Never pour water or spray liquids on any part of the
equipment. Allow the equipment to dry completely before using.

Daily Inspection

Look and listen for slipping belts, loose fasteners, unusual noises,
worn or frayed power cords, and any other indications that the
equipment may be in need of service. If you notice any of these,
obtain service.

Important: If you determine that the equipment needs service,
disconnect any power connections and move the equipment away
from the exercising area. Place an OUT OF SERVICE sign on it
and make sure all patrons and users know that they must not use
the equipment.

To order parts or to contact a Precor authorized service provider in
your area, refer to Obtaining Service.

Frequently vacuum the floor underneath the equipment to prevent
the accumulation of dust and dirt, which can affect the smooth
operation of the equipment. Use a soft nylon scrub brush to clean
the running belt on treadmills or the grooves on equipment with
foot pedals.

Moving the Equipment

It is important, if you plan to move the equipment, that you obtain
adult help and use proper lifting technique. The equipment is very
heavy. Take advantage of the roller wheels on the equipment when
moving it to a new location. Do not grasp any plastic parts while
lifting or moving the equipment. The plastic parts are not
structurally linked to the equipment and will break.

Product Owner's Manual: Maintenance 19

Storing the Chest Strap

Long-Term Storage

If you purchased the optional heart rate chest strap, store it in a
place where it remains free of dust and dirt (for example, in a closet
or drawer). Be sure to protect the chest strap from extremes in
temperature. Do not store it in a place that may be exposed to
temperatures below 32° F (0° C).

To clean the chest strap, use a sponge or soft cloth dampened in
mild soap and water. Dry the surface thoroughly with a clean towel.

When the equipment is not in use for any length of time, make sure
it is turned Off (treadmill only) and the power cord or optional
power adapter (self-powered equipment) is unplugged from its
power source and is positioned so that it will not become damaged
or interfere with people or other equipment.

Product Owner's Manual: Maintenance 20

Precor Commercial Equipment Limited Warranty

PLEASE READ THESE WARRANTY TERMS AND CONDITIONS CAREFULLY
BEFORE USING YOUR PRECOR INCORPORATED PRODUCT. BY USING
THE EQUIPMENT, YOU ARE CONSENTING TO BE BOUND BY THE
FOLLOWING WARRANTY TERMS AND CONDITIONS.

Limited Warranty.

Precor Incorporated warrants all new Precor products to be free from defects in
materials and manufacture for the warranty periods set forth below. The warranty
periods commence on the invoice date of the original purchase. This warranty
applies only against defects discovered within the warranty period and extends
only to the original purchaser of the product. Parts repaired or replaced under
the terms of this warranty will be warranted for the remainder of the original
warranty period only. To claim under this warranty, the buyer must notify Precor
or your authorized Precor dealer within 30 days after the date of discovery of any
nonconformity and make the affected product available for inspection by Precor
or its service representative. Precor’s obligations under this warranty are limited
as set forth below.

Warranty Periods and Coverage.

Commercial Cardiovascular Products, also known as C-Series Products,
(excluding StretchTrainer, Strength Products).

 Seven years frame, five years display face assembly, three years motor

controller, one year durable wear parts, two years parts, one year labor.

 For treadmills, five years drive motor.
 For self-powered ellipticals and bikes, one year battery.
 For InSite, one year parts and labor.
 Labor coverage for options as defined below.

StretchTrainer

Five years frame, two years parts, 90 days upholstery, no labor.

Strength Products (S3.45 and S3.25 only)

Ten years frame; three years bearings, guide rods, cams, pulleys; one year belts,
cables, hand grips, miscellaneous parts; 90 days upholstery; no labor.

Options / Accessories / Battery-powered or Self-Operated Devices

Many options or accessories have components that are connected internally or
mounted inside the electronic console. The following guidelines determine the
warranty for these components. If the internal components are installed by the
factory or by an authorized dealer as part of the original sale and delivery, they
have a warranty that is identical to the warranty of the equipment in which they
are connected or mounted. If the internal components are not installed by the
factory or by an authorized dealer as part of the original sale and delivery, they
have a 90 days parts and labor limited warranty. All components that are not
internally connected have a 90 days parts only limited warranty. Satisfactory
proof of purchase is required in all cases.

Conditions and Restrictions.

This warranty is valid only in accordance with the conditions set forth below:

1. The warranty applies to the Precor product only while
a. it remains in the possession of the original purchaser and proof of

purchase is demonstrated,

b. it has not been subjected to accident, misuse, abuse, improper service,

or non-Precor modification.

c. claims are made within the warranty period.

2. Certain products are warranted for standard commercial use only (defined
as use in non-fee paying clubs or facilities and less than 6 hours daily use.
Unapproved use voids the warranty. Current standard commercial products
include C936i, C932i, EFX524i, EFX534i.).

3. This warranty does not cover damage or equipment failure caused by
electrical wiring not in compliance with electrical codes or Precor owner’s
manual specifications, or failure to provide reasonable and necessary
maintenance as outlined in the owner’s manual.

4. Except in Canada, Precor does not pay labor outside the United States.

5. Warranties outside the United States and Canada may vary. Please contact
your local Dealer for details.

Product Owner's Manual: Precor Commercial Equipment Limited Warranty 21

This Limited Warranty shall not apply to:

1. Software (PROM) version upgrades.

2. Normal wear and tear, consumables and cosmetic items, including, but not
limited to the following: grips, seats, and labels.

3. Repairs performed on Precor equipment missing a serial number or with a
serial tag that has been altered or defaced.

4. Service calls to correct installation of the equipment or instruct owners on
how to use the equipment.

5. Pickup and delivery involved with repairs.

6. Any labor costs incurred beyond the applicable labor warranty period.

Disclaimer and Release.

The warranties provided herein are the exclusive warranties given by Precor and
supersede any prior, contrary or additional representations, whether oral or
written. ANY IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE THAT
APPLY TO ANY PARTS DESCRIBED ABOVE ARE LIMITED IN DURATION TO
THE PERIODS OF EXPRESS WARRANTIES GIVEN ABOVE FOR THOSE
SAME PARTS. PRECOR HEREBY DISCLAIMS AND EXCLUDES THOSE
WARRANTIES THEREAFTER. Some States do not allow limitations on how long
an implied warranty lasts, so the above limitation may not apply to you. PRECOR
ALSO HEREBY DISCLAIMS AND EXCLUDES ALL OTHER OBLIGATIONS
OR LIABILITIES, EXPRESS OR IMPLIED, ARISING BY LAW OR OTHERWISE,
WITH RESPECT TO ANY NONCONFORMANCE OR DEFECT IN ANY
PRODUCT, INCLUDING BUT NOT LIMITED TO: (A) ANY OBLIGATION,
LIABILITY, RIGHT, CLAIM OR REMEDY IN TORT, WHETHER OR NOT
ARISING FROM THE NEGLIGENCE OF PRECOR OR ITS SUPPLIERS
(WHETHER ACTIVE, PASSIVE OR IMPUTED); AND (B) ANY OBLIGATION,
LIABILITY, RIGHT, CLAIM OR REMEDY FOR LOSS OF OR DAMAGE TO ANY
EQUIPMENT. This disclaimer and release shall apply even if the express
warranty set forth above fails of its essential purpose.

Exclusive Remedies.

For any product described above that fails to conform to its warranty, Precor will
provide, at their option, one of the following: (1) repair; (2) replacement; or
(3) refund of the purchase price. Precor Limited Warranty service may be
obtained by contacting the authorized dealer from whom you purchased the item.
Precor compensates Servicers for warranty trips within their normal service area
to repair commercial equipment at the customer’s location. You may be charged
a trip charge outside the service area. THESE SHALL BE THE SOLE AND
EXCLUSIVE REMEDIES OF THE BUYER FOR ANY BREACH OF WARRANTY.

EXCLUSION OF CONSEQUENTIAL AND INCIDENTAL
DAMAGES.

PRECOR AND/OR ITS SUPPLIERS SHALL HAVE NO OBLIGATION OR
LIABILITY, WHETHER ARISING IN CONTRACT (INCLUDING WARRANTY),
TORT (INCLUDING ACTIVE, PASSIVE, OR IMPUTED NEGLIGENCE AND
STRICT LIABILITY), OR OTHERWISE, FOR DAMAGE TO THE EQUIPMENT,
PROPERTY DAMAGE, LOSS OF USE, REVENUE OR PROFIT, COST OF
CAPITAL, COST OF SUBSTITUTE EQUIPMENT, ADDITIONAL COSTS
INCURRED BY BUYER (BY WAY OF CORRECTION OR OTHERWISE) OR
ANY OTHER INCIDENTAL, SPECIAL, INDIRECT, OR CONSEQUENTIAL
DAMAGES, WHETHER RESULTING FROM NONDELIVERY OR FROM THE
USE, MISUSE OR INABILITY TO USE THE PRODUCT. This exclusion applies
even if the above warranty fails of its essential purposes and regardless of
whether such damages are sought for breach of warranty, breach of contract,
negligence, or strict liability in tort or under any other legal theory. Some states
do not allow the exclusion or limitation of incidental or consequential damages,
so the above limitation may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights,
which vary from state to state.

Complete this portion and keep for your records.

Purchased From: _______________________________________
(Dealer or store name)

Phone Number: _______________________________________
(Dealer or store telephone number)

Product/Model: : _______________________________________
(For example: EFX534i or C966i)

Serial Number: : _______________________________________
(The serial number is found on the shipping container.)

Effective 27 March, 2006

P/N 36286-112

Product Owner's Manual: Precor Commercial Equipment Limited Warranty 22

Thank You and Welcome to Precor

STAMP

HERE

Precor Incorporated

20031 142nd Avenue NE

PO Box 7202

Woodinville, WA 98072-4002

Fold along dotted line and tape closed before mailing.

If you have questions or need additional information, contact

your local dealer or call Precor Commercial Products Customer

Support at 888-665-4404.

To allow us to serve you better, please take a

few moments to complete and return your warranty registration.

YOU MAY ALSO REGISTER ONLINE AT

www.precor.com/warranty

We are confident that you will be pleased with your purchase and

that your new Precor equipment will help satisfy your customers’

fitness needs, while helping you meet your business goals.

PLACE

COMM.

❑ Internet ❑ News report or product review ❑ Club/fitness magazine advertisement

❑ Trade/consumer magazine article ❑ Other ________________________________________________________

What factors MOST influenced your decision to purchase this product (choose up to three):

❑ Precor reputation ❑ Prior product experience ❑ Design/appearance ❑ Value for the price

❑ Special product features ❑ Warranty ❑ Service ❑ Rebate or sale price

How did you FIRST become aware of this product (choose only one):

❑ Authorized Precor dealer ❑ Precor sales representative ❑ Trade show/conference

Which best describes this purchase (check all that apply):

❑ First Precor product ❑ Replaces a Precor product of the same type

❑ Replaces same type of product – different brand ❑ Enhancement to equipment already owned

TELL US ABOUT YOUR PURCHASE

What other Precor equipment do you currently offer (check all that apply):

❑ EFX ❑ Cycle ❑ StretchTrainer

❑ Treadmill ❑ Stair Climber ❑ Strength Machine ❑ Other ______________________________

❑ Treadmills ❑ Ellipticals ❑ Cycles ❑ Stair Climbers ❑ Rowing Machines ❑ Other _____________

What other brands of cardio equipment do you currently offer (check all that apply):

❑ Life Fitness ❑ Tru e ❑ Cybex ❑ StarTrac ❑ Other ______________________________

What percentage of floor space do you allocate for cardio equipment?

❑ 0% to 20% ❑ 20% to 40% ❑ 40% to 60% ❑ 60% to 80% ❑ 80% to 100%

What type of equipment makes up your cardio offering (check all that apply)?

How many members do you have?

❑ Less than 100 ❑ 100 – 500 ❑ 500 – 1000 ❑ 1000 – 2000 ❑ 2001 +

❑ Mr.

❑ Mrs.

❑ Ms.

Add additional sheets of paper or register online at www.precor.com/warranty

TELL US ABOUT YOUR FACILITY

The serial number is located on the shipping box and on the product.

Product Serial Number(s):

Month

Date of Purchase:

TELL US ABOUT YOUR NEW PRECOR PRODUCTS

TM

Your Business Email Address

Area Code

Facility Telephone Number

State

Contact Person — First Name

Name of Facility

❑ #: ______ Treadmill ❑ #: ______ Stair Climber

❑ #: ______ Cycle ❑ #:______ Strength Station

❑ #: ______ StretchTrainer

Day

Year

Please indicate the type and number of products purchased:

❑ #: ______ Elliptical Fitness CrossTrainer (EFX

Purchased from (Dealer name):

P/N 45622-101 Effective 30 June 2002

Zip CodeCity

Last Name

Apt./SuiteFacility Address

Please detach and mail in the warranty registration within ten days of purchase.

TM

®

)

Precor, C, CrossRamp, EFX, M, Move Beyond, and SmartRate are registered trademarks of Precor Incorporated.
AMT, Adaptiv e Mo t i o n Tr aine r, Crosstr a i n e r, Qui ck S t ar t , and StretchTrainer are trademarks of Precor Incorporated.
Copyright 2008 Precor Incorporated.
Specifications subject to change without notice.

www.precor.com

Precor Incorporated
20031 142nd Ave NE
P.O . B ox 720 2
Woodinville, WA USA 98072-4002
1-800-347-4404

NOTICE:

Precor is widely recognized for its innovative, award winning designs of exercise equipment. Precor aggressively
seeks U.S. and foreign patents for both the mechanical construction and the visual aspects of its product design.
Any party contemplating the use of Precor’s product designs is hereby forewarned that Precor considers the
unauthorized appropriation of its proprietary rights to be a very serious matter. Precor will vigorously pursue all
unauthorized appropriation of its proprietary rights.

100i POM 49735-104, en

Warranty # 36286-112, en

Registration Card# 45622-101, en

03 March 2008

User's Reference Manual

100i

Commercial Adaptive Motion Trainer

Important Safety Instructions

When using Precor equipment, always take basic precautions,
including the following:

y

Read all instructions before using the equipment. These
instructions are written for your safety and to protect the
equipment.

y

Other sections in this manual provide more details of safety
features. Be sure to read these sections and observe all safety
notices.

y

Take time to discuss proper safety and exercise equipment
etiquette with the fitness facility manager.

y

Before beginning any fitness program, see your physician for a
complete physical examination.

Il est conseillé de subir un examen médical complet avant
d’entreprendre tout programme d’exercise. Si vous avez des
étourdissements ou des faiblesses, arrêtez les exercices
immédiatement.

y

Do not overexert yourself or work to exhaustion. If you feel any
pain or abnormal symptoms, stop your workout immediately and
consult your physician.

y

Do not allow children or people unfamiliar with its operation on
or near the equipment. Do not leave children unsupervised
around the equipment.

y

Wear proper exercise clothing and shoes for your workout and
avoid loose clothing. Do not wear shoes with heels or leather
soles. Check the soles of your shoes and remove any dirt and
embedded stones. Tie long hair back.

y

For safety, hold onto a stationary handrail or handlebar while
using the equipment.

y

Keep your body and head facing forward. Never attempt to turn
around on the equipment.

y

Do not rock the equipment. Do not stand on the handrail(s),
display console, or covers.

y

Use care when getting on or off the equipment. Stand on the
rear pedestal and then place one foot in the lower foot plate.
Grasp an arm or a stationary handlebar for stability while you
step into the other foot plate.

y

The rear pedestal provides an elevated platform for stepping on
and off the equipment. It also indicates the buffer zone that
people must stay clear of when someone is using the
equipment.

y

Never place your hands or feet in the path of the foot plates
because injury may occur to you or damage may occur to the
equipment.

Obtaining Service

The fitness facility manager can help you with most questions
regarding the equipment. For additional information about product
operation or exercise routines, refer to the Precor web site at
www.precor.com.

User's Reference Manual: Important Safety Instructions 1

Table of Contents

Important Safety Instructions............................................1

Obtaining Service ..........................................................................1

AMT Features.........................................................................3

Adaptive Motion.............................................................................. 3

Moving Handlebars Support the Total Body Workout..........3

Using the Stationary Handrails....................................................3

Self-Powered Features .................................................................4

Heart Rate Features .............................................................5

Important Use and Safety Information....................................... 5

Wearing a Chest Strap................................................................. 7

Using the Touch-Sensitive Grips................................................ 8

Using SmartRate ............................................................................ 8

Exercise to Your Target Heart Rate .........................................10

Heart Rate Analysis .....................................................................10

Troubleshooting Heart Rate.......................................................11

Display Console...................................................................12

More Information about the Upper Display ............................14

Stride Length Display..................................................................15

More Information about the Center Display ...........................15

More Information about the Lower Display ...................>.........16

Keypads..........................................................................................17

Workout Options.................................................................21

Choosing QUICKSTART ........................................................... 22

Selecting a Program....................................................................23

Storing Workout Statistics ........................................................24

Setting Display Preferences Before Exercising.................... 25

Cooling Down After a Workout................................................ 26

Pausing During a Workout or the Cool-Down Period.........26

Ending a Workout........................................................................ 27

Programs...............................................................................28

Choosing a Program...................................................................28

Program Tips.................................................................................28

Manual Program........................................................................... 29

Interval Program ...........................................................................29

Heart Rate Program .................................................................... 30

Fat Burner Program.....................................................................31

Exercise Session .................................................................32

Changing Programs in Mid-session ........................................32

Changing the Workout Time.....................................................33

Adjusting Program Goals...........................................................33

Changing Your Workout Display Options ............................. 34

Changing the Units of Measure................................................36

Selecting a Language................................................................. 36

User's Reference Manual: Table of Contents 2

AMT Features

The AMT is equipped with certain items that, when used properly,
help sustain an enjoyable workout. These items include:

y

Adaptive Motion™

y

Moving handlebars for a total body workout

y

Using the Stationary Handrails

y

Self-powered features

Moving Handlebars Support the Total Body Workout

The handlebars provide an upper-body workout which helps
increase cardiovascular fitness. By adding the total body movement
to your cross training workout, you are actually increasing your
work effort and enhancing your overall fitness level.

Important: Before exercising, review the safety instructions found
at the beginning of this manual.

Adaptive Motion

The technology behind the Adaptive Motion, low-impact, cardio
trainer adapts to your movements and lets you shift from short
strides to long strides, walking and running, or move in to deep
lunges.

Using the Stationary Handrails

To maintain your balance, always grasp a stationary handrail when
you step on or off the equipment and when you use the keypads.

To learn more about the touch-sensitive grips, refer to Heart Rate

Features.

User's Reference Manual: AMT Features 3

Self-Powered Features

The equipment does not require an electrical power connection. It
has an internal battery that is recharged every time you exercise for
a reasonable period of time. Meeting the minimum requirements for
operation causes the Precor banner to appear. You can press
QUICKSTART or select a program to begin exercising. For more
information, refer to Workout Options.

If you do not meet the minimum requirements for operation, a
30-second shutdown process begins. Dots appear in the display
and all key presses are ignored. If no movement is detected, the
dots steadily disappear as the countdown continues.

If you wish to resume exercising, you need to do so before the dots
disappear from the display.

User's Reference Manual: AMT Features 4

Heart Rate Features

CALORIES

HEART RATE

Important Use and Safety Information

SmartRate

WARMUP FATBURN CARDIO PEAK HIGH

Heart rate and SmartRate® features are available when you wear
the chest strap or grasp both touch-sensitive grips. When a
heartbeat is detected, the HEART RATE display shows your heart
rate and, if your age has been entered, the SmartRate LED blinks
and indicates your target zone.

Read the following before using the heart rate or SmartRate
features.

y

Consult your physician before engaging in any vigorous
exercise. Do not use the heart rate programs until authorized by
your physician.

y

Know your heart rate and your physician-recommended heart
rate target zone. Individual heart rates vary according to several
physiological factors and may not correspond directly with the
following figure.

y

Always face forward on the equipment and use the stationary
handrail or handlebars for balance.

y

On self-powered equipment, maintain a comfortable rate of
motion above the minimum requirements. Check with the facility
manager to determine the requirements to maintain power.

User's Reference Manual: Heart Rate Features 5

Heart Rate Target Zones

200

190

180

170

160

150

140

130

120

Yo ur Heart Rate

110

100

90

80

70

20 25 30 35 40 45 50 55 60 65 70 75

Figure 1: Heart rate target zones

Recommended Cardiovascular Zone

Recommended Weight Loss Zone

Yo ur Age

High

Peak

Cardio

Fat Burn

Warmup

y

After you put on the chest strap, face the display console for a
minimum of 15 seconds. This allows the receiver in the console
to recognize the signal from the chest strap.

y

If Hr blinks in the HEART RATE display, it is detecting a signal,
but has not yet determined your heart rate. Make sure the chest
strap is positioned properly around your chest and against your
skin.

y

If you prefer to use the touch-sensitive grips, grasp both and
wait five to ten seconds. Make sure both hands are moist (not
dry).

y

When a signal is detected, a number flashes in the
HEART RATE display and indicates your heart rate.

y

The calculation used for the heart rate target zone is:

(220 minus your age) multiplied by a percent.

For example:
Warmup range: (220 minus your age) multiplied by 55%
Peak range: (220 minus your age) multiplied by 85%

User's Reference Manual: Heart Rate Features 6

Wearing a Chest Strap

During a workout, the heart rate features appear on the display
when you wear a chest strap. To receive an accurate reading, the
chest strap needs to be in direct contact with your skin.

1. Carefully dampen the back of the strap with tap water Refer to

the following figure.

Note: Do not use deionized water. It does not have the proper
minerals and salts to conduct electrical impulses.

Figure 2: Moisten chest strap

3.

Make sure that the chest strap is right side up, lies horizontally
across your chest, and is centered in the middle of your chest.
Refer to the following figure.

Figure 4: Fasten chest strap

After you put on the chest strap, face the display console for a few
seconds. This allows the receiver in the console to recognize the
signal from the chest strap.

2. Adjust the strap and fasten it around your chest. The strap

should feel snug, not restrictive. Refer to the following figure.

Figure 3: Adjust chest strap

User's Reference Manual: Heart Rate Features 7

Using the Touch-Sensitive Grips

Using SmartRate

While exercising, you must grasp both touch-sensitive grips for a
minimum of five to ten seconds to transmit your heart rate to the
display. Refer to the following figure.

Figure 5: Touch-sensitive grips

Usually, the concentration of salts in a person’s perspiration
provides enough conductivity to transmit a signal to the receiver
inside the display console. However, some people, because of
body chemistry or erratic heart beats, cannot use the
touch-sensitive grips. A chest strap may provide better results.

The SmartRate feature helps you monitor and maintain your heart
rate in the target zone best suited to your specific needs. When a
heart rate signal is detected, a single LED blinks and indicates the
zone that your heart rate is in.

Important: To use the SmartRate feature, you must enter your age
during program selection. Refer to Selecting a Program.

The following table shows the percents used in calculating the
heart rate target zones. While your heart rate remains within these
zones, the corresponding light blinks and provides a visual cue.

CAUTION: Your heart rate should never exceed 85% of your
maximum aerobic heart rate or go above PEAK. If it does,
immediately reduce the intensity of your workout to return your
heart rate to your physician-recommended target zone.

Important: While exercising, do not wear a chest strap and grasp
the touch-sensitive grips at the same time. Using both features may
cause erratic heart rate readings.

User's Reference Manual: Heart Rate Features 8

Table 1. Heart rate target zones and SmartRate LEDs

Heart Rate Zone
Percent

Below 50 First Orange WARMUP

50 to 54 Second Orange WARMUP

55 to 59 Third Green FAT BURN

60 to 64 Fourth Green FAT BURN

65 to 69 Fifth Green FAT BURN

70 to 74 Sixth Green CARDIO

75 to 79 Seventh Green CARDIO

80 to 84 Eighth Green CARDIO

85 to 87 Ninth Orange PEAK

Above 87 Tenth Orange HIGH

LED Lit LED Blinking Zone Label

The SmartRate indicator lights do not blink when:

y y You do not wear or improperly position the chest strap. Or, you

fail to grasp both touch-sensitive grips for five to ten seconds.

You do not enter your age during an exercise session.

For example, pressing QUICKSTART at the Precor banner
causes the Manual Program to begin. Your age has not been
entered and is considered a null value. Your heart rate will
appear in the HEART RATE display when you hold onto the
touch-sensitive grips or wear a chest strap, but none of the
SmartRate LEDs blink because the appropriate calculations
have not been made.

Note: You can remedy this situation by choosing a program
using one of the PROGRAMS keys and entering your time,
weight, and age.

User's Reference Manual: Heart Rate Features 9

Exercise to Your Target Heart Rate

Heart Rate Analysis

A dedicated window displays your heart rate while you exercise. To
view your heart rate (beats per minute) on the display, either wear a
chest strap or grasp both touch-sensitive grips.

The Precor web site (www.precor.com) has several suggestions for
workouts with varying levels of intensity. It provides many workout
details that include the appropriate target heart rate.

The equipment includes one or more heart rate programs that let
you exercise based on a specified target heart rate. As you
exercise, the programs monitor your heart rate and automatically
maintain it within a few beats per minute of your selected target. To
use these programs, press the PROGRAMS HEART RATE key.
For more information, refer to –Programs.

Every time you complete a program using the chest strap or
touch-sensitive grips, the display provides a heart rate analysis after
the workout summary. Refer to Ending a Workout.

Your average heart rate appears followed by the maximum heart
rate achieved during your workout. A third display appears, if you
entered your age, and indicates the amount of time your heart rate
remained between the target zones shown.

The heart rate analysis is based on how often your heart rate signal
is received while exercising. If you use the chest strap, the average
heart rate will be more accurate than if you occasionally grasp the
touch-sensitive grips.

User's Reference Manual: Heart Rate Features 10

Troubleshooting Heart Rate

The following table may help you understand and troubleshoot
erratic heart rate readings.

Important: A heart rate can only be detected when the Precor
heart rate receiver is properly installed in the display. A user must
wear the chest strap or grasp both touch-sensitive grips.

Table 2. Erratic heart rate readings

What
appears
on the
display

Nothing

HR or Hr

Cause What to do

The heart rate receiver is
not installed or it has
been disconnected.

A signal is being
detected through the
chest strap or the
touch-sensitive grips, but
a valid heart rate is not
yet established.

Call Customer Support. Refer to
Obtaining Service.

Be sure that the chest strap is
moist, centered, and in direct
contact with your skin. If you are
using the touch-sensitive grips,
continue to grasp both of them.
Wait a few moments for your
heart rate to appear.

Note: To conduct electrical impulses from a user’s heart, both
touch-sensitive grips must be grasped firmly for five to ten seconds.
Usually, the concentration of salts in a person’s perspiration
provides enough conductivity to transmit a signal to the receiver in
the display console. However, because of body chemistry or erratic
heartbeats, some people cannot use the touch-sensitive grips. A
chest strap may provide better results.

User's Reference Manual: Heart Rate Features 11

Display Console

STRIDE LENGTH

MANUAL

INTERVAL

HEART RATE

FAT BURNER

PROGRAMS

CALORIES

SmartRate

WARMUP FATBURN CARDIO PEAK HIGH

OK RESET

HEART RATE

METRICS

RESISTANCE

UNITS/

LANG.

2007 Precor Incorporated, en

CAL / MIN

STRIDES / MIN

QUICK
START

User's Reference Manual: Display Console 12

CALORIES display: The estimated cumulative number of

calories being burned appears.

QUICKSTART: Press QUICKSTART to begin your workout
immediately.

Upper display: Initially shows the Precor banner. It changes
to the program profile when you select a program or press

HEART RATE display: If a heart rate is detected, this area
displays your heart rate.

QUICKSTART. A blinking column in the profile indicates
your position.

SmartRate display: A blinking LED lights when you choose
a program and enter your age during the setup prompts.

STRIDE LENGTH display: A lighted pendulum swings
according to your stride length. The pendulum swings to the
left as you move your left leg and to the right as you stride
forward with your right leg. The icons indicate which muscle
groups are affected.

Number keys: When you begin a program, you can use the
number keys to answer the setup prompts, such as your
weight and age. During an exercise session, use the number
keys to update information. If the entertainment option is
attached, the number keys act as TV channel controls.

Center display and the PROGRAMS keypad: When you
press a PROGRAMS key, the program profile appears in the
upper display and the program name appears in the center
display. During your session, additional information appears

Navigational keys: These keys let you display or change
exercise information and end your session. For more
information, refer to Navigational Keypad.

in the center display depending on program and user
selections.

Lower display: While you exercise, three sets of numbers
show information about your session. For more information,

Selection keys: Press the key to move through the
information in each column, so you can choose what you
want to display during your session. Indicator lights appear
next to the item that is displayed.

refer to Lower Display Keypad and the Selection Keys.

RESISTANCE keys: Use these keys to adjust the
resistance.

User's Reference Manual: Display Console 13

More Information about the Upper Display

the RESISTANCE setting affects the column height as shown in
the following figure. The profile raises or lowers according to which
RESISTANCE key is pressed.

STRIDE LENGTH

CALORIES

SmartRate

WARMUP FATBURN CARDIO PEAK HIGH

HEART RATE

The upper display includes the CALORIES, HEART RATE,
SmartRate, and a program profile display. The following
descriptions explain what appears in the displays.

CALORIES—indicates the estimated cumulative number of calories
being burned.

HEART RATE—displays your heart rate when you wear a chest
strap or grasp both touch-sensitive grips. Refer to Heart Rate
Features.

Column height

Resistance settings

Figure 6: Column height in the program profile

19 – 20

17 – 18

15 – 16

13 – 14

11 – 12

9 – 10

7 – 8

5 – 6

3 – 4

1 – 2

SmartRate—displays your heart rate as a blinking segment which
indicates the zone your heart rate is in when you enter your age and
wear a chest strap or grasp both touch-sensitive grips. Use this
display as a visual aid to keep your heart rate in your preferred
zone. Refer to Using SmartRate.

Program profile—appears during your exercise session. A blinking
segment in the profile indicates your position. In most programs,

User's Reference Manual: Display Console 14

Stride Length Display

More Information about the Center

STRIDE LENGTH

The STRIDE LENGTH display presents a visual representation of
the length of your stride. The lighted pendulum swings to the right
as you stride forward with your right leg and swings to the left as
your left leg moves forward.

The icons indicate which muscle groups are affected by the length
of your stride. To view the actual measurement (inches or
centimeters) of the length of your stride, choose STRIDE LENGTH
through the METRICS key. Refer to Changing Your Workout
Display Options.

As you lengthen your stride, the lighted pendulum should
consistently reach the same level on the right as on the left.
This indicates that you are expending the same amount of energy
and affecting the same muscle groups with your right leg as with
your left.

Display

CALORIES

STRIDE LENGTH

WARMUP FATBURN CARDIO PEAK HIGH

SmartRate

The center display presents the program name when you select a
program. During an exercise session, the center display becomes a
message bar showing additional information depending on user
selections and program interludes. For more information about the
selections that can appear in this display, refer to Exercise Session.

HEART RATE

User's Reference Manual: Display Console 15

More Information about the

TIME ELAPSED and TIME REMAINING

Lower Display

CAL / MIN

STRIDES / MIN

RESISTANCE

The lower display provides information about your workout session.
Pressing the keys beneath each window affects what appears in
the displays. Each display provides information about your workout
statistics and is described in the list below.

Note: If you choose to rest a book or magazine on the display, you
can still view these workout statistics.

TIME ELAPSED—displays time in minutes and seconds and
indicates the amount of time you have been exercising.
When you exceed 60 minutes during a single session, the
display converts to hours and minutes.

Note: The fitness facility can place limits on workout time.

TIME REMAINING—shows the amount of time remaining in

a workout. If the selected time is less than 60 minutes, the
display shows time in minutes and seconds. If you select a
time greater than 60 minutes, the display reflects hours and
minutes until the countdown reaches 60 minutes, at which
time the display reverts to minutes and seconds.

RESISTANCE

RESISTANCE—displays the resistance you feel against your
stride. The RESISTANCE keys let you set a resistance level
between 1 and 20.

User's Reference Manual: Display Console 16

CALORIES/MIN, STRIDES/MIN, and
DISTANCE

CAL/MIN—displays the approximate number of calories
burned per minute.

STRIDES/MIN—displays the number of strides you
complete in a minute up to a maximum value of 510 strides
per minute. A stride is an exaggerated walking movement. If
you start in a position with one foot plate forward, a stride is
completed when you move the rear foot plate all the way
forward while the other foot plate moves to the rear. Two
strides create one complete revolution of the flywheel. So,
the value that appears on the display is always an even
number between 56 and 510.

DISTANCE—shows linear distance in either miles or
kilometers.

Keypads

Use the keypads to enter your exercise session selections and
display preferences.

Distinct keypads exist on the display and are discussed in this
section:

y

Lower Display keypad and the selection keys

y

Navigational keypad in the center of the display

y

PROGRAMS keypad

y

Number keypad with the ENTER and CLEAR keys

Lower Display Keypad and the Selection Keys

RESISTANCE

QUICK
START

CAL / MIN

STRIDES / MIN

User's Reference Manual: Display Console 17

Left selection key: Every time you press this key, the

display reflects either the amount of time elapsed since you

Navigational Keypad

began your exercise session or it shows the time remaining.
An LED lights and indicates which information is being
displayed.

UNITS/

LANG.

RESISTANCE: Press and hold a RESISTANCE key to
increase or decrease the force applied against your stride

OK RESET

METRICS

from 1 to 20.

QUICKSTART: Press QUICKSTART to start your exercise
session immediately using the Manual Program. Refer to
Choosing QUICKSTART.

The navigational keypad provides several ways to change your
Right selection key: Every time you press this key, the
display reflects the calories per minute, the strides per
minute, or the distance travelled since you began your

exercise session and to display various workout statistics. The OK

key, which allows you to confirm display selections, is also part of

the navigational keypad.
exercise session. An LED lights and indicates which
information is being displayed.

TIME +/-: You can change the workout time, while you are
exercising, by pressing the TIME +/- key. A blinking number
appears in the display. You can change the number using
the navigational arrow keys or enter a different time using
the number keys. Refer to Changing Your Workout Display
Options.

GOAL: Press the GOAL key to change the goal setting from
time, distance, or calories when using the Manual, Interval,
or Heart Rate Programs. Refer to Adjusting Program Goals.

Note: You cannot change the goal during the warm up
phase of the Heart Rate Program.

OK: Use the OK key to confirm responses to specific
prompts.

User's Reference Manual: Display Console 18

Up and Down Arrows: These keys present the available

selections and affect what appears on the display.
Throughout this manual they are referred to as the
navigational arrow keys.

METRICS: The METRICS key provides menu selections that
let you customize the display with specific workout statistics
after you are already engaged in exercising. Refer to
Changing Your Workout Display Options.

UNITS/LANG.: You can change the units of measure or
select one of several different languages by pressing this
key. The display reflects your selections after you press the
OK key. For more information, refer to Changing the Units of
Measure or Selecting a Language.

RESET: Press this key to end the workout session and view
your workout summary. An exception to this rule exists if you
have entered the 30-second shutdown period. When you
press RESET, the display returns to the Precor banner.
Refer to Pausing During a Workout or the Cool-Down
Period or Self-Powered Features.

PROGRAMS Keypad

PROGRAMS

MANUAL

INTERVAL

HEART RATE

FAT BURNER

The PROGRAMS keypad provides access to all the exercise

programs. Press the center of the key to view the top level program

in its menu. Pressing the key again displays the next program in the

menu, if one is available, as shown in the following table. For a

description of each program, refer to Programs.

Note: Use the OK key to confirm your selection. For more

information, refer to Workout Options.

User's Reference Manual: Display Console 19

Table 3. Available programs

PROGRAMS key Program Menu

MANUAL

INTERVAL

HEART RATE*

FAT BURNER

* Use of a chest strap or the touch-sensitive grips is required.

MANUAL
INTERVAL
BASIC HRC*
FAT BURNER

Number Keypad

123

The CLEAR and ENTER keys provide the following functions:

CLEAR: Use the CLEAR key to remove the last number being

displayed.

ENTER: Use the ENTER key to accept the number being displayed.

456

789

ENTERCLEAR

0

The number keypad has several functions depending on what is
connected to the equipment.

Connection Description

Computer
(CSAFE
compatible)

Entertainment
Option

If a computer is attached to the CSAFE
connection on the equipment, the number keypad
lets you enter your user ID and answer other setup
prompts.

If an entertainment option is connected to the
display, the number keypad acts as a remote
control which you use to select the available
channels. You can also enter number values in
answer to exercise session prompts.

Note: The OK and ENTER keys are usually interchangeable and

provide the same function when no peripheral devices are attached

to the equipment. However, when answering prompts that originate

from a CSAFE device or computer connection, use the ENTER key.

Nothing

Whether or not peripheral devices are attached to
the equipment, the keypad lets you enter number
values in answer to exercise session prompts. You
need to press ENTER or OK to confirm the
selection.

User's Reference Manual: Display Console 20

Workout Options

CAUTION: Before beginning any fitness program, see your
physician for a complete physical examination. Know your
physician-recommended heart rate target zone.

1.

Stand on the rear pedestal and face the display.

2.

Place one foot in the lower foot plate and grasp an arm or a
stationary handlebar for stability while you step into the other
foot plate.

3.

When you are comfortably situated, begin climbing.

CAUTION: Hold on to a handrail to balance yourself.

4.

Select one of the following options:

Option... Steps...

To start exercising
immediately

To select a program

To enter a user ID

• • Use the QUICKSTART key.

Refer to Choosing
QUICKSTART.

• • Press a PROGRAMS key.

Refer to Selecting a Program.

• • Use the ENTER key.

Refer to Storing Workout
Statistics.

To set display preferences
in units of measure or
language

• • Use the UNITS/LANG. key.

Refer to Setting Display
Preferences Before Exercising.

Note: The QUICKSTART key is disabled when you press a
PROGRAMS key. You need to confirm each exercise session
selection (program, time, weight, and age) using the OK key.

User's Reference Manual: Workout Options 21

QUICK
START

Choosing QUICKSTART

1. While the Precor banner scrolls, press QUICKSTART to begin
the Manual Program.

QUICKSTART applies the following defaults:

Prompts Default Value

Program Manual

Time Fitness Facility setting

3.

Maintain a comfortable and consistent stride rate while
exercising.

Note: To use the SmartRate feature, you need to specify your
age and wear a chest strap or grasp both touch-sensitive grips.
In this case, press MANUAL and then press OK. Follow the
prompts to enter your weight and age. You can use the
navigational arrow keys or the number keypad to change the
blinking prompts. Press OK to confirm the entries.

Weight 150 lb (68 kg)

Age 0

2.

Use the RESISTANCE keys to change the resistance.

User's Reference Manual: Workout Options 22

Selecting a Program

PROGRAMS

MANUAL

INTERVAL

HEART RATE

FAT BURNER

1.

While the Precor banner scrolls, press one of the PROGRAMS
keys, and then press OK.

2.

A time prompt blinks in the display. Use the navigational arrow
keys or the number keys to adjust the minutes (1–240), and
then press OK. (Or, press CLEAR to return to the default time
limit).

3.

Enter your weight (1–999), and then your age (1–99) when
prompted.

Note: To change a value (program, time, weight, or age) that
you have already entered, press RESET to return to the Precor
banner. Select a program and re-enter the appropriate values.

4.

Maintain a comfortable and consistent stride rate while
exercising.

Note: The fitness facility can set limits for workout, pause, and
cool-down times. So, selecting an unlimited workout time may
not be allowed. Check with your fitness facility manager.

To access the

NO LIMIT

option at the time prompt, use the
number keypad and type in 240, then press the up arrow key.
When

NO LIMIT

appears, press OK.

If you choose this option, the automatic cool-down period is
eliminated. You will need to incorporate a cool-down period by
accessing the Manual Program.

User's Reference Manual: Workout Options 23

Storing Workout Statistics

Many fitness facilities connect Precor equipment to a computer so
you can easily retrieve your workout statistics and determine how
well you are meeting your fitness goals. If you are interested in
maintaining workout statistic information, ask the manager to create
a user account and a user ID for you. A user ID entry is required to
store your statistics.

Note: If the display is blank, you will need to maintain the minimum
rate of motion to supply power. If the Precor banner appears, the
equipment is not connected to a computer. Refer to Selecting a
Program or Choosing QUICKSTART.

If the equipment is connected to a computer, the following
appears:

3.

When your user ID is shown, press ENTER.

A message appears and indicates when the user ID is accepted
by the computer.

4.

To begin your exercise session, select a program. Refer to
Selecting a Program.

Note: To bypass the user ID entry, press ENTER while all five
zeros appear in the user ID field. The statistics generated during
your exercise session will not be added to your file.

CHOOSE QUICKSTART, ENTER, OR A PROGRAM TO BEGIN

To save the statistics generated during your exercise session, take
the following steps:

1.

Press ENTER.

2.

Use the number keypad to specify your 5-digit user ID. If you
make a mistake, press the CLEAR key and reenter the correct
number.

User's Reference Manual: Workout Options 24

L

Setting Display Preferences Before Exercising

While the Precor banner scrolls, you have the opportunity to set
units of measure and language display preferences.

Once you set your display preferences, you have a 5-second
window to select a program. If you do not select a program from
the PROGRAMS menu or press QUICKSTART within the
5-second window, the preferences return to the fitness facility
settings.

1.

As the Precor banner scrolls, press UNITS/LANG. Continue
pressing the key to view the two menu options:

LANGUAGE

2.

When you are ready, press OK to select the displayed menu

.

option.

3.

Use the navigational arrow keys to display each menu option or
preference. Press OK to select it.

UNITS

and

4.

Follow the prompts on the display and return to the Precor
banner.

Menu Option Preferences Effect

UNITS U.S. or METRIC

ANGUAGE ENGLISH, DEUTSCH,

ESPANOL, FRANCAIS,
NEDERLANDS,
PORTUGUES, RUCCKIJJ,

and ITALIANO.

Determines which
units of measure
appear on the
display.

Causes the display
messages and
prompts to appear
in the chosen
language.

Note: The selections that you make prior to a workout reset to
the fitness facility’s default settings once your program or the
pause time limit ends.

User's Reference Manual: Workout Options 25

Cooling Down After a Workout

Pausing During a Workout or the

Incorporate a cool-down period into your workout to help lower
your heart rate and minimize muscle stiffness or soreness.

When you complete a program with a time limit or specified goal,
you automatically enter a cool-down period. The settings change to
help reduce the intensity of your workout.

Note: You cannot switch to a different program, goal, or workout
time during the cool-down period. Any pressure on the
PROGRAMS keys is ignored.

A workout summary appears at the end of the cool-down period.
Refer to Ending a Workout.

A cool-down period will not be appended to your exercise session
if the following occurs:

y

The fitness facility allows an unlimited time goal. A user must
enter a time goal of

NO LIMIT

to access this option. Refer to

Selecting a Program.

y

The fitness facility sets a cool-down time of zero, which
eliminates the cool-down phase.

Cool-Down Period

If your rate of motion drops below minimum requirements while
exercising or during the cool-down period, a 30-second shutdown
is initiated. You cannot pause for a longer period of time or change
to a different program unless the fitness facility has the optional
power adapter attached to the equipment.

When the optional power adapter is attached, you can pause for a
set time, usually two minutes. If you do not resume exercising
during that time, the display returns to the banner.

1.

To pause, slow to a stop.

2.

To exit pause mode, resume exercising.

Note: In pause mode, you have the ability to change your program
selection or display options if the optional power adapter is
attached. Refer to Changing Programs in Mid-session and
Changing Your Workout Display Options.

y

You exit a program before completing it.

If you specify an unlimited time or the fitness facility removed the
cool-down phase, remember to incorporate a cool-down period at
the end of your exercise session.

User's Reference Manual: Workout Options 26

Ending a Workout

CAUTION: Hold on to a stationary handrail when you near the
end of your exercise session.

1.

To view your workout summary, maintain the minimum rate of
motion when you complete the cool-down period. Refer to
Self-Powered Features.

The workout summary appears and shows your cumulative
statistics including warm-up and cool-down periods. You can
review your statistics as long as you maintain power with the
minimum rate of motion.

2.

End your session by pressing the RESET key to return to the
Precor banner.

3.

Slow your movement to a stop.

4.

Hold on to a stationary handrail as you step off the equipment.

Note: If the optional power adapter is attached, you do not have to
continue the minimum rate of motion to view your workout
statistics. When you complete the cool-down period, the workout
summary appears. When you are ready, press RESET to return to
the Precor banner.

If you hold on to the touch-sensitive grips or wear a chest strap
while exercising, a heart rate analysis appears during the workout
summary. Refer to Heart Rate Analysis.

User's Reference Manual: Workout Options 27

Programs

This section describes the programs available on the equipment.
Use this section as a reference tool to better understand each
program’s purpose.

Choosing a Program

Choosing a program depends on your goals. If you are a beginner
or returning to regular exercise, you can start a cardio-conditioning
program to slowly return your body to a comfortable level of
exercise. If you have been exercising and feel that you have an
intermediate or advanced fitness level, you probably have
established goals. The Precor web site (www.precor.com) can give
you many ideas about fitness routines and advice from the experts.

Several of the exercise choices on the equipment are
preprogrammed with recommended settings. However, you have
the option to override the suggested settings, with some
exceptions. If changes are not allowed, a message scrolls across
the display explaining your options.

If your level of exertion becomes too great, reduce your level of
intensity by overriding each upcoming segment in the program
profile. When you complete a program that contains a time limit or
goal period, an automatic cool-down period begins.

Program Tips

y

Begin at the Precor banner and choose a program by pressing a
PROGRAMS key or QUICKSTART. Refer to Workout Options.

y

While exercising, you need to sustain your exercise motion.
Stopping any movement causes the equipment to shut down to
conserve battery power.

y

A blinking column indicates your position as you progress
through a program.

y

Prior to choosing a program, you may press the UNITS/LANG.
key to access units of measure or language settings. After
pressing OK to confirm new settings, you must select a program
within five seconds for the changes to become effective. Refer
to Setting Display Preferences Before Exercising.

y

To use the SmartRate feature, you need to specify your age and
wear a chest strap or hold on to the touch-sensitive grips. For
more information, refer to Changing Your Workout Display
Options.

y

In some programs, an unlimited time setting may be an available
option. Refer to Selecting a Program.

y

The fitness facility can set limits on workout, pause, and
cool-down times and customize other aspects of your exercise
session. Check with your manager to learn if any limits are in
place that might affect your program selections.

User's Reference Manual: Programs 28

Manual Program

The Manual Program profile, available by pressing the MANUAL
key, begins as a flat line. You control resistance settings using the
RESISTANCE keys. The program profile reflects any changes. The
blinking column indicates your position in the program.

A cool-down period occurs automatically when you end your
workout. An exception to the cool-down period exists if the fitness
facility allows it. Refer to Cooling Down After a Workout for more
information.

Note: To change the workout time, press the TIME +/- key. Refer to
Changing the Workout Time. To change to a distance or calorie
goal, press the GOAL key. Refer to Changing Your Workout
Display Options.

Interval Program

The Interval Program, available by pressing the INTERVAL key, is
among the best for conditioning your cardiovascular system. The
program raises and lowers your level of exertion repeatedly for the
specified period of time.

The program lets you choose the rest and work intervals according
to your training regimen.

While exercising, you can vary your stride rate and the resistance.
To change the preset resistance settings, use the RESISTANCE
keys. The settings are repeated throughout the remainder of the
program. The display lets you know when the resistance is about to
change and it indicates the levels of the next interval.

The initial settings for resistance are:

Rest interval resistance: 1

Work interval resistance: 4

If you prefer to set a calorie or distance goal, use the GOAL key.
Refer to Changing Your Workout Display Options.

User's Reference Manual: Programs 29

Heart Rate Program

The Basic HRC Program, available by pressing the HEART RATE
key, lets you set a target for your heart rate. The program adjusts
the resistance to maintain your heart rate within two beats per
minute of the target heart rate while you exercise. To use this
program, you must enter your age and wear a chest strap so your
heart rate can be monitored throughout the session.

Important: Consult your physician to determine the appropriate
target heart rate for your age and fitness level. If your physician
recommends a different target heart rate than the one that appears
on the display, use the navigational arrow keys to change the
target heart rate once you finish the warm-up period. Do not
exercise over the recommended range.

Heart Rate Program Tips

The Basic HRC Program enhances your overall cardiovascular
fitness levels to help you achieve your weight loss and fitness
goals. Read through the following tips before selecting the Basic
HRC Program. These tips provide general information regarding
how the program functions. For more information and exercise
suggestions, refer to the Precor web site at www.precor.com.

Important: Maintain a rate of motion above the minimum
requirements. Refer to Self-Powered Features. Automatic
adjustments to the resistance cannot take place if you drop below
the minimum requirements for operation.

y

The program provides a 3-minute warm-up period. During this
time, you may change the resistance, but you cannot change the
goal setting.

Note: When your target heart rate is achieved or the 3-minute
period elapses, the warm-up period ends and the program
begins at which point, you may change to a distance or calorie
goal.

y

The program automatically adjusts the resistance to keep your
heart rate at the selected target. After the warm-up period,
pressing the RESISTANCE keys no longer affects the
resistance levels. Check the SmartRate display to see if you are
maintaining your preferred zone. Check the HEART RATE
display to determine your actual heart rate. For information
about understanding your target heart rate, refer to Heart Rate
Features.

y

You can change the target heart rate, but doing so affects how
well your target heart rate remains in the preferred zone. It takes
time to readjust the resistance so that your heart rate remains on
target.

User's Reference Manual: Programs 30

y

The workout time is set to the fitness facility limit. To adjust the
time, press the TIME +/- key and use the navigational arrow keys
followed by OK to change the workout time.

y

If you wish to quit the Basic HRC Program, you can make a
mid-session transfer to another program, but you cannot return
or transfer mid-session to the Basic HRC Program.

y

A cool-down period is automatically added to the end of the
program.

If you are having difficulty with the heart rate features, talk to your
fitness facility manager.

Fat Burner Program

The Fat Burner Program, available by pressing the FAT BURNER
key, is a fairly intense 28-minute program designed to burn fat and
increase your cardiovascular conditioning. Review the program
profile on the display to determine the ascent and descent levels of
the program.

Anytime during a workout, you can override the settings by
pressing the RESISTANCE keys. The changes raise or lower the
columns on the remaining portion of the program profile.

User's Reference Manual: Programs 31

Exercise Session

This section describes how to access the following attributes
through the use of the navigational keypad. Any display selections
set during the course of your exercise session are reset to the
fitness facility settings when you end your session and return to the
Precor banner.

While exercising, you can:

y

change the program you are using

y

change the workout time

y

choose between time-, distance-, or calorie-based goals

y

display more workout statistics

y

choose between U.S. standard and Metric units of measure

y

display messages and prompts in a different language

Note: Prior to selecting a program, you can select preferences for
language and units of measure. Refer to Setting Display
Preferences Before Exercising.

Changing Programs in Mid-session

You can change programs in the middle of a session by selecting a
new program from the PROGRAMS key menu. All accumulated
workout statistics are transferred to the new program as you
continue exercising.

Certain programs are not available for mid-session transfers due to
set goals and program preferences. If this occurs, a message
scrolls across the display.

Note: You cannot select a different program if your rate of motion
drops below the minimum requirements and the equipment begins
its 30-second shutdown. Refer to Pausing During a Workout or the
Cool-Down Period.

When you enter a navigational key menu such as UNITS/LANG. or
TIME +/-, you have 30 seconds to make your selection. If no
selection is made during those 30 seconds, the display
automatically returns to the program session.

Important: Do not press the RESET key, during those 30 seconds,
in an attempt to return to your program because you will
inadvertently exit your program. A workout summary appears when
you exit the program.

User's Reference Manual: Exercise Session 32

Changing the Workout Time

Adjusting Program Goals

To change the duration of your program, take the following steps:

1.

Press TIME +/-.

2.

A workout time blinks in the display. Use the navigational arrow
keys or the number keys to adjust the time.

3.

Press OK.

A message scrolls across the display indicating that the new
workout time has been accepted.

The fitness facility can limit the duration of exercise sessions and
certain programs have fixed time goals which do not allow
adjustments. If your attempt to change the workout time is not
accepted, display messages scroll and indicate the reasons.

To designate a distance, calories, or time goal while exercising take
the following steps:

1.

Press GOAL. Continue pressing the key to scroll through the
available options:

2.

When you are ready, press OK to select the displayed goal.

Selection Description

TIME

DISTANCE

CALORIES

3.

A blinking number appears indicating that the system is ready

TIME, DISTANCE

A time-based goal is the setting for all programs. If you
want to exercise for a set time, select this goal.

A distance-based goal lets you select a set distance
between 1 and 50 miles or kilometers (km).

A calories-based goal lets you exercise until you reach
a set calorie amount between 1 and 1000.

or

CALORIES

.

for adjustments to the goal. Use the number keys or navigational
arrow keys to change the setting.

4.

When you are ready, press OK. If the program you are using
allows changes to goal settings, a prompt scrolls across the
display indicating that your selection has been accepted. The
TIME REMAINING display changes according to the goal being
set.

User's Reference Manual: Exercise Session 33

Changing Your Workout Display Options

During an exercise session, the display becomes a message bar. It
can show additional workout statistics depending on user
selections accessed through the METRICS menu.

To display more workout statistics or choose one among them, take
the following steps:

1.

Press METRICS.

2.

Scroll through all the available workout statistic displays by
continually pressing the METRICS key. The following table
describes which displays are available.

3.

When you are ready, press OK to select a displayed metric or
display the entire menu consecutively, by selecting

Note: To remove a scrolling statistic from the message bar, you
need to reenter the METRICS menu and select a different
workout statistic display or select the

OFF

option.

SHOW ALL

.

User's Reference Manual: Exercise Session 34

Table 4. Workout statistics using OPTIONS or METRICS key

Equipment Menu Description

All

All

All

AMT, climber

Treadmills

All

All

All

All

All

All

AMT

Climber, treadmills

Treadmills

All

All

% COMPLETE
TIME IN ZONE
SEGMENT TIME

REMAINING
AVERAGE SPEED
AVERAGE SPEED

CALS/MIN
CALS/HR
WATTS
METS

TARGET HR
AVG HEART RATE

STRIDE LENGTH
ELEVATION GAIN

PACE

SHOW ALL
OFF

Shows how much of the program goal you have completed.

Displays the total time that your heart rate is within the range of 55% to 84% of your target heart rate.

Indicates the amount of time, in minutes and seconds, that remain in the highlighted column of the profile before the
next column begins blinking.

Displays the average strides per minute.

Displays the average miles or kilometers per hour. The number that appears is determined by dividing the total
distance traveled by the elapsed time.

Displays the approximate number of calories burned per minute.

Displays the approximate number of calories burned per hour.

Shows your current energy expenditure level.

Shows the metabolic units associated with your current energy expenditure level, derived from the calories per
minute value and adjusted for your weight.

Shows the current target heart rate setting.

Displays your average heart rate. The number is based on systematic sampling taken while you are exercising. A
chest strap will give you a more accurate heart rate average than if you occasionally use the touch-sensitive grips. If
no heart rate reading occurred during your exercise session, an analysis will not appear in the workout summary.

Shows the current length of your stride in inches or centimeters.

Presents the cumulative steps (climber) or incline (treadmills) converted into elevation gained over the course of the
program.

Displays your target speed in minutes and seconds per mile (or kilometer). For example, the number
indicates that your pace (speed at which you are moving) is 4 minutes and 23 seconds per mile.

Presents all the workout statistics in this menu in consecutive order.

Stops scrolling the workout statistics, found in this table, across the message bar.

4:23

User's Reference Manual: Exercise Session 35

Changing the Units of Measure

Selecting a Language

Display measurements can appear in either Metric or U.S.
Standard. To change this setting, perform the following steps:

1.

Press UNITS/LANG. The word

2.

Press OK.
one of two options:

3.

Toggle between the two options by pressing the down arrow

UNITS

scrolls across the display and is replaced by

U.S.

or

UNITS

METRIC

appears on the display.

.

key on the navigational keypad.

4.

When you are ready, press OK to select the displayed unit of
measure. A message scrolls across the display indicating that
the unit of measure has changed.

You can choose to display text messages in several different
languages. To select a different language before or during an
exercise session, take the following steps:

1.

Press UNITS/LANG. Press the key a second time and

LANGUAGE

appears and scrolls across the display.

Note: When you press the UNITS/LANG. key a third time, you
exit the menu and return to the Precor banner. The center
display appears blank. To reenter the menu, press
UNITS/LANG. again.

2.

While

LANGUAGE

scrolls across the display, press OK to

select it.

3.

Scroll through the available language options by continually
pressing the down key on the navigational keypad.

4.

When you are ready, press OK to select the displayed
language. A message scrolls across the display indicating that
the language has been changed.

User's Reference Manual: Exercise Session 36

100i Commercial Adaptive Motion Trainer

Product Specifications

Length 74 in (199 cm)
Width 28 in (72 cm)
Height 69 in (176 cm)
Weight 445 lb (202 kg)
Shipping weight 520 lb (236 kg)
Power Self-powered
Frame Powder-coated steel
Regulatory Approvals FCC, ETL, CE, EN957

Product Features

CSAFE Compatible
Entertainment Option Available
Heart Rate Telemetry
QuickStart
SmartRate

TM

®

Touch Heart Rate

Programs

Manual
Interval
Heart Rate

Basic HRC*

Fat Burner

Electronic Readouts

% Complete Resistance
Average Heart Rate* Segment Time Remaining
Average Speed SmartRate*
Calories Stride Length
Calories Per Minute Strides Per Minute
Calories Per Hour Target Heart Rate
Distance Time
Heart Rate* Time Elapsed
Heart Rate Analysis* Time in Zone*
Language Time Remaining
Maximum Heart Rate* Units
METS Watts
Profile Workout Summary

✳ Use of a chest strap or the touch-sensitive handlebar grips is required.

Precor Incorporated
20031 142nd Ave NE
P.O. B ox 720 2
Woodinville, WA USA 98072-4002

Precor, C, CrossRamp, EFX, M, Move Beyond, and SmartRate are registered trademarks of Precor Incorporated.
AMT, Adaptive Motion Trainer, Crosstrainer, QuickStart, and StretchTrainer are trademarks of Precor Incorporated.
Copyright 2008 Precor Incorporated.
Specifications subject to change without notice.

www.precor.com

NOTICE:

Precor is widely recognized for its innovative, award winning designs of exercise equipment. Precor aggressively seeks
U.S. and foreign patents for both the mechanical construction and the visual aspects of its product design. Any
party contemplating the use of Precor’s product designs is hereby forewarned that Precor considers the unauthorized
appropriation of its proprietary rights to be a very serious matter. Precor will vigorously pursue all unauthorized
appropriation of its proprietary rights.

100i URM 49737-104, en

03 March 2008

100i

Assembly Guide

Commercial Adaptive Motion Trainer

Thank you for choosing Precor. For proper installation, please read this guide
thoroughly and follow the assembly instructions. If you do not assemble the
AMT according to these guidelines, you could void the Precor Limited
Warr ant y.

Obtaining Service

You should not attempt to service the AMT except for maintenance tasks as
described in the Product Owner’s Manual. If any items are missing, contact
your dealer. Should you need more information regarding customer support
numbers or a list of Precor authorized service centers, visit the Precor web site
at www.precor.com/corp/contact.

Unpacking the Equipment

Ask for help from two or more people to unpack and assemble the AMT.

Required Tools

• Wire tie cutter

• Phillips-head screwdriver

• SAE Standard socket set

Installation Requirements

Follow these installation requirements when assembling the unit:

• Assemble the unit near the location where you plan to use it.

• Provide ample space around the unit.
Open space around the unit allows for easier access.

• Set up the AMT on a solid, flat surface.
A smooth, flat surface under the unit helps keep it level. A level unit has
fewer malfunctions.

• Open the box and assemble the components in the sequence

presented in this guide.

• Insert all fasteners with your fingers.
Use your fingers to properly align and thread the fasteners. This helps
alleviate cross-threading. Do not fully wrench tighten fasteners until
instructed to do so.

Important: When wrench tightening, the head of the fastener should be
flush with the product. If it is not, cross-threading has occurred. Do not
attempt to rework the assembly as more damage to the equipment will
occur. Contact Customer Support. Refer to Obtaining Service.

• If you plan to move the unit, obtain help. Do not grasp any plastic parts
while lifting or moving the unit. The plastic parts are not capable of
supporting the weight of the unit and they may break.

• Rubber mallet

Cardio Theater PVS
Assembly Instructions

If the Cardio Theater Personal Viewing System (PVS) accompanies this Precor
unit, review the PVS assembly instructions found in the Cardio Theater box.
Alleviate additional assembly or disassembly steps by combining the two
assemblies as needed.

100i Commercial AMT Assembly Guide 1

Hardware Kit

Fasteners Qty.

(A) Locknut (⁵⁄₁₆-inch) 8

(B) Hex head screw (1¾-inch) 4

(C) Flat washer (⁵⁄₁₆-inch) 8

2 — Plastic boot (D)

2 — End caps (E)

100i Commercial AMT Assembly Guide 2

Assembly Steps

Remove the two side fasteners that hold the front frame
tube to the shipping pallet. Cut the tie wraps that secure
the rear base.

CAUTION: Ask for an assistant to help you roll the
AMT off its pallet. Also, do not install the handlebars
at this time. The handlebars provide an alternative
handhold and, during assembly, may cause injury
due to increased foot plate movement.

Lift the rear base and roll the AMT forward while your
assistant stabilizes the front and guides it off the pallet.
Move the AMT to the location where you plan to use it.

Insert the end caps (E) into the front frame tube. Align
the end caps and, if necessary, use a rubber mallet to
secure them in place.

100i Commercial AMT Assembly Guide 3

Important: Temporarily cover the pivot arm holes on the
front covers with packing material so fasteners or tools do
not inadvertently fall inside.

Use a Phillips-head screwdriver to remove the four screws
that secure the back console plate to the display console.
Set the fasteners and cover aside.

Hold the display console above its mounting bracket on
the AMT. Feed the lower board cable through the hole and
out the base of the display console bracket.

Connect the heart rate cable to the 4-prong receptacle on
the electronics board.

Important: Make sure to move the lower board and heart
rate cables out of the way as you place the display
console onto its mounting bracket.

Lower
board
cable

Heart rate cable

100i Commercial AMT Assembly Guide 4

Display console
bracket

Mounting bracket

Pivot arm hole

Connect the lower board (RJ45) cable to its receptacle.

Thread four locknuts (A) onto the bolts to secure the
display console onto its bracket. Wrench tighten using a
½-inch socket wrench.

Slide a plastic boot (D) onto each handlebar. As you face
the display, note which handlebar mounts on the right and
on the left pivot arm stubs. Attach the handlebars using
four 1¾-inch hex head screws (B), eight washers (C),
four locknuts (A). Wrench tighten.

Note: When the handlebars are mounted correctly, each
bends slightly outward.

Cover the fasteners with a plastic boot. Rotate the plastic
boot so its tab aligns with the cutout. Apply downward
pressure to secure the plastic boots in place.

100i Commercial AMT Assembly Guide 5

Level the AMT.

Levelers

Rear pedestal

Before allowing users on the AMT, make sure it does not wobble from
side to side.

To remove any side-to-side movement, take the following steps:

1. Ask your assistant to tip the unit forward to expose the three
levelers on the rear base.

2. Rotate the levelers to raise or lower the unit.

Important: If the unit is placed on a slightly uneven surface,
rotating the levelers can help, but will not compensate for extremely
uneven surfaces.

3. When you are finished adjusting the AMT, ask your assistant to
gently lower the unit to the floor.

Install the rear pedestal over the rear crosspiece.

Important: The rear pedestal lays flat on the floor. It provides a
mounting platform for stepping onto the AMT and also indicates the
buffer zone that patrons must stay clear of when someone is using
the AMT.

100i Commercial AMT Assembly Guide 6

Verify that the heart rate display is operational.

1. Stand on the rear pedestal and face the display.

2. Place one foot in the lower foot plate and grasp an arm or a
stationary handlebar for stability while you step into the other foot
plate.

3. When you are comfortably situated, begin climbing.

4. Grasp both touch-sensitive handlebar grips.

5. Look at the HEART RATE display. After a few seconds, a number
appears indicating your heart rate.

Note: If a number does not appear in the HEART RATE display, check
the 4-prong heart rate cable to make sure it is properly connected.

Replace the back console plate onto the display console using the four
screws removed in step 4. Secure the fasteners with a Phillips-head
screwdriver.

100i Commercial AMT Assembly Guide 7

Notes:

100i Commercial AMT Assembly Guide 8

Precor Incorporated
20031 142nd Avenue NE
P.O. B ox 720 2
Woodinville, WA USA 98072-4002

©2008 Precor Incorporated

www.precor.com

100i AG 49736-106, en

28 March 2008
