Precision Medical Conserving Flowmeter User Manual

U S E R M A N U A L
Models: 19MFA Series
(19MFA1001 Shown)
SAVE THESE INSTRUCTIONS
CAUTION
Federal (USA) law restricts this device to sale by or on the order of a physician.
300 Held Drive Tel: (+001) 610-262-6090 Northampton, PA 18067 USA Fax: (+001) 610-262-6080 ISO 13485 Certified www.precisionmedical.com
RECEIVING / INSPECTION
Remove the Precision Medical, Inc. EasyPulseFlow from the packaging and inspect for damage. If there is any damage, DO NOT USE and contact your Provider.
INTENDED USE
The EasyPulseFlow flowmeter is intended for use by physicians, respiratory therapists, and other hospital personnel to administer selected doses of medical oxygen to patients suffering from hypoxia due to various etiologies and disease processes. The device delivers via nasal cannula a F directly to 100% gas source. It is intended to be used as a device to provide continuous flow oxygen therapy or as an oxygen saving device that delivers pulsed volumes for oxygen therapy while reducing the drying of the patient airways.
IO
of 100% oxygen at all settings when connected
2
READ ALL INSTRUCTIONS BEFORE USING
This manual instructs a user to install and operate the EasyPulseFlow. This is provided for your safety and to prevent damage to the EasyPulseFlow. If you do not understand this manual, DO NOT USE the EasyPulseFlow and contact your Provider.
DANGER
This product is not intended as a life-sustaining or life-supporting device.
EXPLANATION OF ABBREVIATIONS
FIO
2
DISS Diameter Indexed Safety System psi Pounds Per Square Inch l/min Liters Per Minute b/min Breathes Per Minute bar Barometric Pressure
Fractional Concentration of Inspired Oxygen
1
SAFETY INFORMATION - WARNINGS AND CAUTIONS
0473
DANGER
WARNING
CAUTION
CAUTION
Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
Used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result in property damage.
CONSULT ACCOMPANYING DOCUMENTS
Symbol for “USE NO OIL
Symbol indicates the device complies with the requirements of Directive 93/42/EEC.
(On CE marked Devices ONLY)
WARNING
• ALWAYS confirm prescribed dose before administering to patient and monitor on a frequent basis.
Always follow ANSI and CGA standards for Medical Gas Products and Oxygen Handling (G-4).
NO OXYGEN is delivered when the pointer is between settings.
2
WARNING
The EasyPulseFlow is not to be used in the Pulse mode by patients who breathe through their mouths.
• DO NOT use oils, greases, organic lubricants or any combustible materials on or near this product. Wash and dry hands properly prior to usage.
• DO NOT use a humidifier when administering Oxygen therapy on pulse settings.
• DO NOT use pulse settings while patient is sleeping unless continuous pulse oximetry is utilized.
• DO NOT smoke in an area where oxygen is being administered.
The EasyPulseFlow is designed to operate with a single lumen, adult cannula with a maximum length of 7 foot (2.1 m).
Flowmeter must meet specified inlet pressure range, see “SPECIFICATIONS”.
To use Pulse, Flow Control Knob must be set to 5 l/min or
greater.
CAUTION
Only personnel instructed and trained in its use should operate the EasyPulseFlow.
The EasyPulseFlow contains magnetic, ferrous material that may affect the results of an MRI.
• DO NOT autoclave.
• DO NOT gas sterilize with EtO (Ethylene Oxide).
• DO NOT clean with aromatic hydrocarbons.
Avoid dropping the EasyPulseFlow or placing it in a position where it could fall and become damaged.
The EasyPulseFlow may not be able to detect all respiratory efforts of the patient. (Shallow breathers may not be able to trigger the EasyPulseFlow.
Operating the conditions may affect its accuracy and performance.
EasyPulseFlow
)
outside its range of operating
3
PRINCIPLES OF OPERATION
The Precision Medical, Inc. devices, a traditional Thorpe tube flowmeter and a pulse oxygen conserver. The
EasyPulseFlow is
systems at specified Inlet Pressure. It consists of a back pressure compensated Thorpe tube flowmeter, a conserving module, and a selector dial to choose between Continuous Flow mode or Pulse mode. In the Continuous Flow mode the flowmeter operates similar to a traditional Thorpe tube flowmeter: the flow is determined by setting the flow control knob to the prescribed flow. In this mode it is capable of delivering metered flows from 0 to 15 l/min and up to 24 l/min at flush flow. In the Pulse mode the device operates as an oxygen conserver. Settings of 1 through 5 are available and supply a similar continuous flow
. The conserving module controls the pulse size and timing to the patient. It supplies a pulse of oxygen at the beginning of each breath. This reduces the oxygen demand on the system and limits the drying of the airways. The oxygen is supplied to the patient through the nasal cannula.
EasyPulseFlow
is a combination of two (2)
designed to be used with low pressure oxygen
FIO2 to the patient as
SPECIFICATIONS
Inlet Pressure Range: 19MFA: 50 psi (3.4 bar)
19MFA AU:
19MFA CI: 5 bar (72.5 psi)
Pulse Settings: 1, 2, 3, 4 and 5
(similar F
Continuous Flow Range: 0-15 l/min metered
(20-24 l/min max flush flow)
Pulse Accuracy: Within ±15% of the nominal bolus
value (at each breath rate)
Continuous Flow Accuracy:
±0.25 l/min from 0.5 l/min up to 5 l/min ±0.5 l/min from 5 l/min up to 15 l/min
Savings Ratio: Up to 5.7:1 Trigger Method: Negative inspiratory effort from patient
inhalation
4
4 bar (58.0 psi)
IO
to continuous flow value)
2
Breathing Frequency: Up to 35 b/min Cannula Requirement: Maximum 7 foot (2.1 m) long standard
adult single lumen nasal cannula.
The effect on accuracy of flow due to variations in ambient temperature
is standard accuracy +7.3% @ 32°F (0°C) and -3.0% @ 104°F (+40°C) .
The 19MFA flowmeter models are calibrated at specified inlet pressures
as stated on Flowtube, 70°F (21°C), standard atmospheric pressure.
Operating Conditions:
Temperature: 35°F to 105°F (1.7°C to 40.6°C)
Altitude: Sea level to 10,000 ft (0 to 3,048 m)
Storage Conditions:
Temperature: -40°F to 140°F (-40°C to 60°C)
Maximum Humidity: 95% Noncondensing

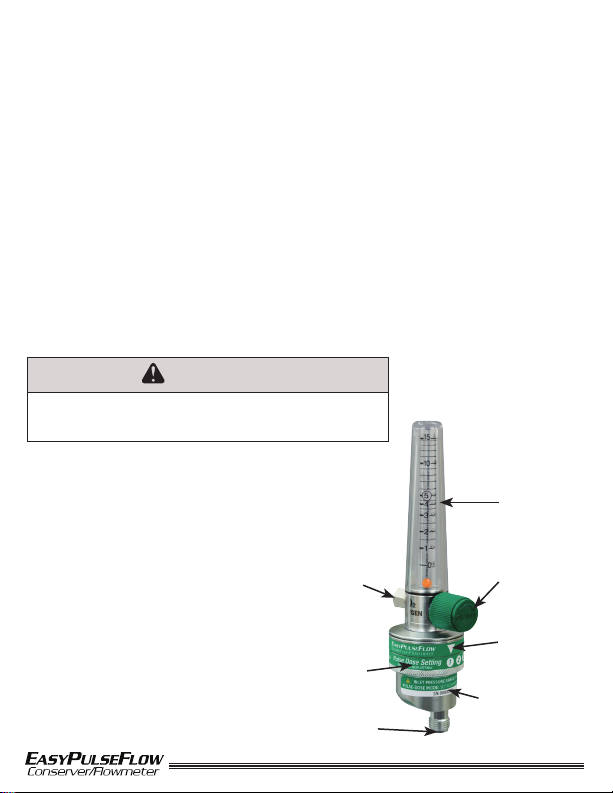

COMPONENT DESCRIPTION
CAUTION
Missing or illegible labels must be replaced, contact Precision Medical, Inc.
Thorpe
Tube
Oxygen
Inlet
Selector Dial / Settings Label
Oxygen
Outlet
5
Flow Control
Knob
Indicator
Pointer / Label
Product Serial #
/ Warning Label
OPERATING INSTRUCTIONS
WARNING
Read this User Manual before installing or operating the EasyPulseFlow.
CAUTION
Inspect the EasyPulseFlow for visual damage before use, DO NOT USE if damaged.
CAUTION
• DO NOT use pediatric, low flow nasal cannulas or oxygen masks with the EasyPulseFlow.
• DO NOT block the cannula connection or kink cannula tubing when the Conserver is in use, this may damage the EasyPulseFlow.

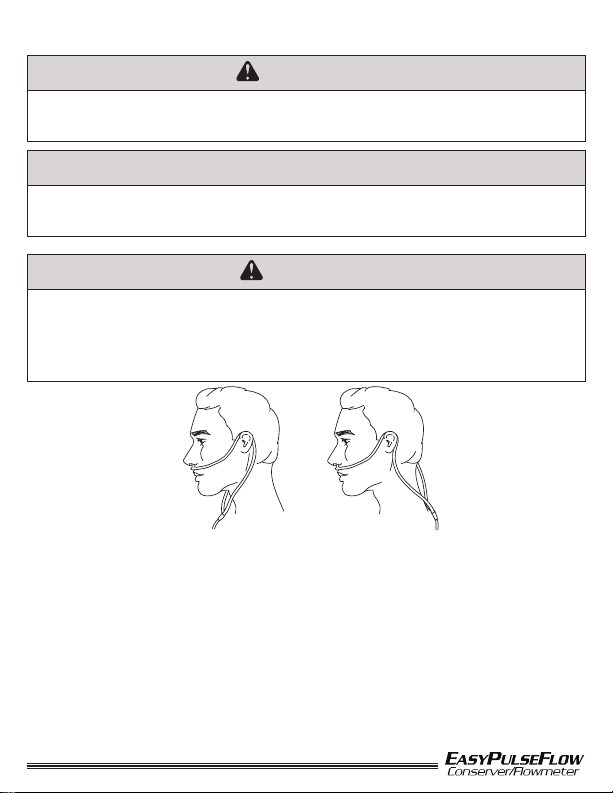

OR
1. Verify order/need for oxygen administration. Connect flowmeter to oxygen gas source,
2.
3. Turn Selector Dial to align indicator pointer with Continuous Flow setting.
4.
Turn Flow Control Knob to obtain appropriate flow rate. A. To increase, turn knob counterclockwise B. To decrease, turn knob clockwise C.
Set flow by aligning center of Float Ball with indicator lines on flow tube.
D. To obtain maximum flush flow, turn knob fully counterclockwise.
as stated on Flowtube
.
6
NOTE: Flush flow is any flow above the last calibrated line on
the Thorpe Flow Tube with an unrestricted flow, as per “SPECIFICATIONS”.
5. Connect oxygen administration equipment via DISS connector on bottom of flowmeter.
6. Assess effectiveness of oxygen therapy to the patient with pulse oximetry or arterial blood gas.
7. If patient is stabilized on nasal cannula at 5 l/min, switch to
pulse-dose mode as follows:
A. Remove any type of humidity bottle. B. Turn Flow Control Knob to obtain a continuous flow of 5 l/min or
greater.
C. Select pulse setting from 1 to 5, by turning the Selector Dial to
align Indicator Pointer with pulse setting.
NOTE: DO NOT adjust Flow control knob on flowmeter.
i. Choose pulse setting equal to continuous flow setting
(e.g. if patient is on 4 l/min continuous flow choose a pulse
setting of 4).
ii. If patient is on a ½ liter increment choose the next closest
higher pulse setting (e.g. if patient is on 2½ l/min place patient on pulse setting of 3).
iii. Instruct patient that oxygen will only flow during the first part
of inspiration. Assess patient/conserver interaction to assure pulsing is occurring.
iv.
D. Re-assess patient’s oxygenation status via pulse oximetry or
arterial blood gas.
8. Amount of oxygen may be weaned either by decreasing the continuous flow rate on the Thorpe tube flowmeter if patient is on continuous flow or by decreasing the pulse of oxygen if on pulse mode. (If patient is on pulse mode, oxygen may only be decreased in
increments of one (1)).
9. To turn off flowmeter, turn the Flow Control Knob fully clockwise.
NOTE: If nasal cannula is disconnected while on pulse oxygen
therapy. (The device should not pulse oxygen into the atmosphere.) Limit of three (3) pulses per minute .
7
MAINTENANCE / CLEANING
1. Disconnect all connections before cleaning.
As needed:
2. Clean exterior surfaces of the EasyPulseFlow with a cloth dampened with mild detergent and water.
3. Wipe dry with a clean cloth.
4. Store the EasyPulseFlow in a clean area free of grease, oil, and other sources of contamination.
CAUTION
• DO NOT use cleaning solutions.
• DO NOT immerse the EasyPulseFlow in any kind of liquid.
• DO NOT attempt to repair the EasyPulseFlow.
All repairs must be performed by Precision Medical, Inc. or Authorized Representative.
RETURNS
Returned products require a Returned Goods Authorization (RGA) number, contact Precision Medical, Inc. All returns must be packaged in sealed containers to prevent damage. Precision Medical, Inc. will not be responsible for goods damaged in transit. Refer to Precision Medical, Inc. Return Policy available on the Internet, www.precisionmedical.com.
Manuals available on our Website; www.precisionmedical.com
DISPOSAL INSTRUCTIONS
This device and its packaging contain no hazardous materials. No special precautions need to be taken when disposing the device and/ or its packaging.
Please Recycle
8
TROUBLESHOOTING
If the
EasyPulseFlow
Guide below. If problem cannot be solved, consult your Provider.
Problem Probable Cause Remedy
No flow/ pulse
Conserver not sensing breath
Patient de­saturated in pulse mode
fails to function, consult the Troubleshooting
• Flowmeter not securely
attached to oxygen outlet
• Thorpe tube flowmeter
not turned ON
• Selector Dial set
between settings
• Selector Dial set
between settings
Cannula disconnected
• Nasal cannula kinked
• Humidity bottle in line
• Cannula greater than
7 ft long
• High flow cannula not
being used
• Flowmeter set below 5 l/min in pulse mode
• Device not sensing
patient breath
• Securely attach
flowmeter to oxygen outlet
• Turn ON the Thorpe
tube flowmeter using Flow Control Knob
• Position Selector Dial
at correct setting
• Position Selector Dial
at correct setting
• Connect cannula
• Replace cannula
• Remove humidity
bottle
• ONLY use a 7 ft or
less cannula
• Replace cannula with
a high flow cannula
Increase flow 5 l/min
• Change to continuous
flow therapy
9
LIMITED WARRANTY
AND LIMITATION OF LIABILITY
Precision Medical, Inc. warrants that the EasyPulseFlow (the Product) will be free of defects in workmanship and/or material for the following periods:
Two (2) years from date of shipment. Should any failure to conform to this warranty appear within the applicable
period, Precision Medical, Inc. shall, upon written notification thereof and substantiation that the goods have been stored, installed, maintained and
operated in accordance with Precision Medical, Inc.’s instructions and standard
industry practice, and that no modifications, substitutions, or alterations have been made to the goods, correct such defect by suitable repair or replacement at its own expense.
ORAL STATEMENTS DO NOT CONSTITUTE WARRANTIES. The representative of Precision Medical, Inc. or any retailers are not authorized
to make oral warranties about the merchandise described in this contract, and any such statements shall not be relied upon and are not part of the contract for sale. Thus, this writing is a final, complete and exclusive statement of the terms of that contract.
THIS WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR OTHER WARRANTY OF QUALITY, WHETHER EXPRESS OR IMPLIED.
Precision Medical, Inc. shall not under any circumstances be liable for special, incidental or consequential damages including but not limited to lost profits, lost sales, or injury to person or property. Correction of non-conformities as provided above shall constitute fulfillment of all liabilities of Precision Medical, Inc. whether based on contract, negligence, strict tort or otherwise. Precision Medical, Inc. reserves the right to discontinue manufacture of any product or change product materials, designs, or specifications without notice.
Precision Medical, Inc. reserves the right to correct clerical or typographical errors without penalty.
10
DECLARATION OF CONFORMITY
0473
Precision Medical, Inc
Northampton PA 18067, USA
Emergo Europe (European Office) Molenstraat 15
2513 BH, The Hague The Netherlands Phone: +31 (0) 70.345.8570 Fax: +31 (0) 70.346.7299
Classification: IIa Classification criteria:
We hereby declare that an examination of the under mentioned production quality assurance system has been carried out following the requirements of the UK national legislation to which the undersigned is subjected, transposing Annex II, 3 of the Directive 93/42/EEC on medical devices.
We certify that the production quality system conforms with the relevant provisions of the aforementioned legislation, and the result entitles the organization to use the CE 0473 marking on those products listed above.
Applied Standards: EN 980, EN 1041, EN ISO 14971, EN ISO 15001,
300 Held Drive
19MFA Series EasyPulseFlow
Clause 3.2 Rule 11 of Annex IX of MDD
EN ISO 15002, EN ISO 18779, ISO 13485
Notified Body: AMTAC Certification Services Limited Address: Davy Avenue Knowlhill Milton Keynes MK5 8NL, UK
Certification Registration No’s:
Date of Expiry: 26 July 2017
Devices already manufactured: S/N traceability Device History Records Validity of DOC: 26 July 2012 to Date of Expiry
Manufacture Representative: Position: Quality Systems/ISO Representative Date of Issue: 26 July 2012
Visit us at www.precisionmedical.com
1126 CE
Quality Manager
Tell us how we are doing!
506340 Rev2 072712 Printed in USA
