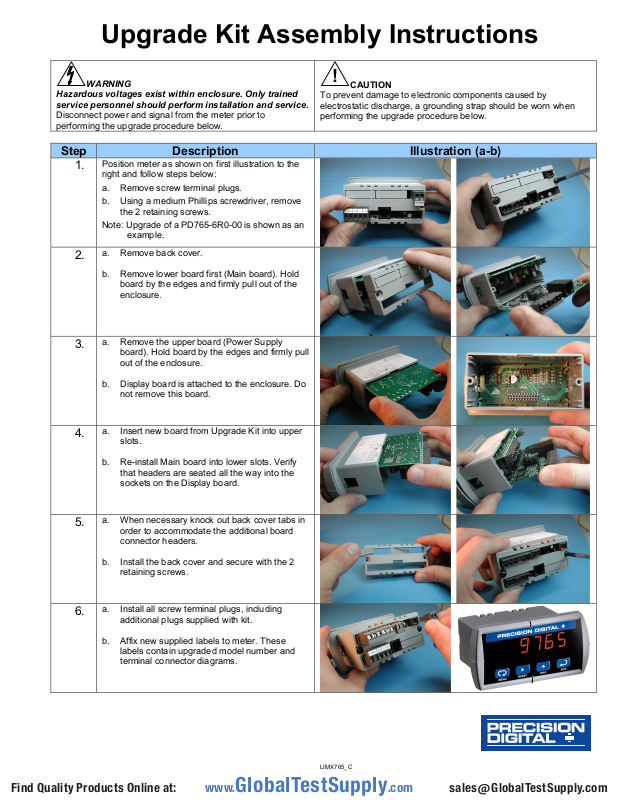

Upgrade Kit Assembly Instructions
WARNING Hazardous voltages exist within enclosure. Only trained service personnel should perform installation and service.
Disconnect power and signal from the meter prior to performing the upgrade procedure below.
CAUTION
To prevent damage to electronic components caused by electrostatic discharge, a grounding strap should be worn when performing the upgrade procedure below.

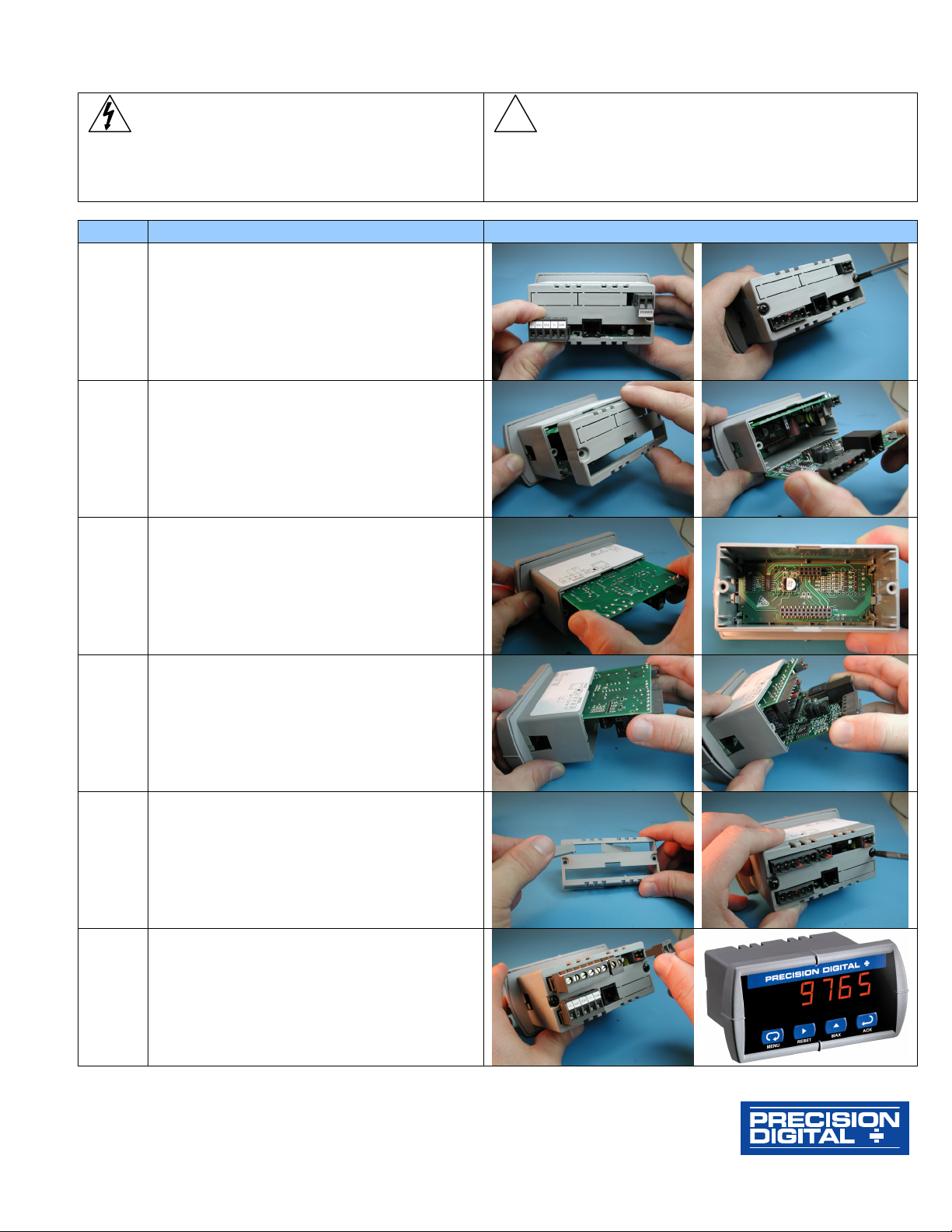

Step Description Illustration (a-b)
Position meter as shown on first illustration to the
1.
right and follow steps below:
a. Remove screw terminal plugs.
b. Using a medium Phillips screwdriver, remove
the 2 retaining screws.
Note: Upgrade of a PD765-6R0-00 is shown as an
example.
a. Remove back cover.
2.
b. Remove lower board first (Main board). Hold
board by the edges and firmly pull out of the enclosure.
a. Remove the upper board (Power Supply
3.
board). Hold board by the edges and firmly pull out of the enclosure.
b. Display board is attached to the enclosure. Do
not remove this board.
a. Insert new board from Upgrade Kit into upper
4.
5.
6.
slots.
b. Re-install Main board into lower slots. Verify
that headers are seated all the way into the sockets on the Display board.
a. When necessary knock out back cover tabs in
order to accommodate the additional board connector headers.
b. Install the back cover and secure with the 2
retaining screws.
a. Install all screw terminal plugs, including
additional plugs supplied with kit.
b. Affix new supplied labels to meter. These
labels contain upgraded model number and terminal connector diagrams.
LIMX765_C 10/15
