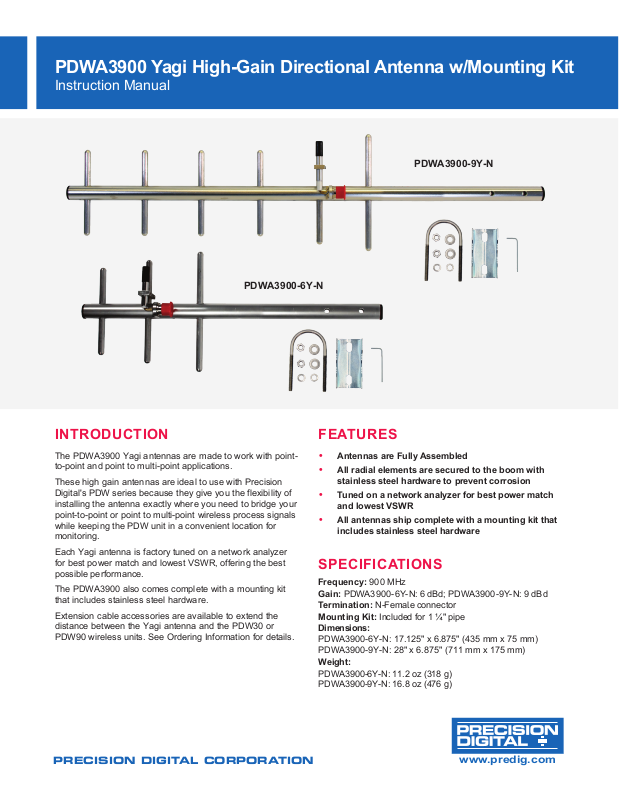

PDWA3900 Yagi High-Gain Directional Antenna w/Mounting Kit
Instruction Manual
PDWA3900-9Y-N
PDWA3900-6Y-N
INTRODUCTION
The PDWA3900 Yagi antennas are made to work with pointto-point and point to multi-point applications.
These high gain antennas are ideal to use with Precision
Digital's PDW series because they give you the flexibility of
installing the antenna exactly where you need to bridge your
point-to-point or point to multi-point wireless process signals
while keeping the PDW unit in a convenient location for
monitoring.
Each Yagi antenna is factory tuned on a network analyzer
for best power match and lowest VSWR, offering the best
possible performance.
The PDWA3900 also comes complete with a mounting kit
that includes stainless steel hardware.
Extension cable accessories are available to extend the
distance between the Yagi antenna and the PDW30 or
PDW90 wireless units. See Ordering Information for details.
FEATURES
• Antennas are Fully Assembled
• All radial elements are secured to the boom with
stainless steel hardware to prevent corrosion
• Tuned on a network analyzer for best power match
and lowest VSWR
• All antennas ship complete with a mounting kit that
includes stainless steel hardware
SPECIFICATIONS
Frequency: 900 MHz
Gain: PDWA3900-6Y-N: 6 dBd; PDWA3900-9Y-N: 9 dBd
Termination: N-Female connector
Mounting Kit: Included for 1 ¼" pipe
Dimensions:
PDWA3900-6Y-N: 17.125" x 6.875" (435 mm x 75 mm)
PDWA3900-9Y-N: 28" x 6.875" (711 mm x 175 mm)
Weight:
PDWA3900-6Y-N: 11.2 oz (318 g)
PDWA3900-9Y-N: 16.8 oz (476 g)
PRECISION DIGITAL CORPORATION
www.predig.com
Page 2
PDWA3900 Yagi High-Gain Directional Antenna w/Mounting Kit Instruction Manual

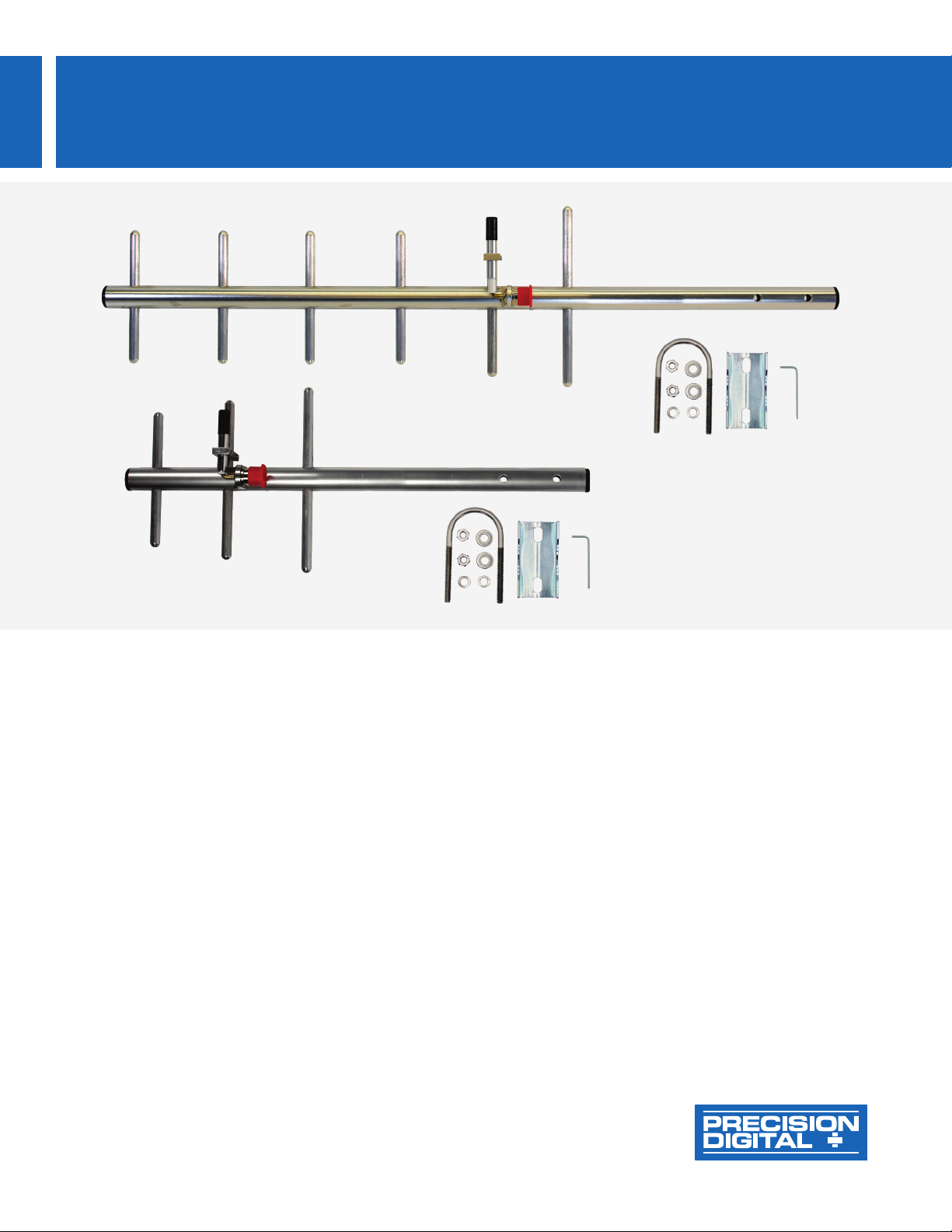

MOUNTING
U-Bolt
Mast
Tighten to 6-8 ft/ lbs
Locking Washers
CONNECTING YAGI ANTENNA TO PDW30 OR PDW90 UNIT
Cable
Gland*
PDW30 Enclosure
with Cover Off
Antenna
Coupler*
Cable Gland*
PDWA3120-N or
PDWA3140-N
Extension Cable
Bracket
Yagi Antenna
Flat Washers
Hex Nuts
N Connector*
PDWM-2RY
Relays Option Module
* Included with the
PDWA3120-N or
PDWA3140-N
Extension Cable
● Do not use excessive force when attaching coupler to PDW30 wireless module.
PDW30
Wireless Module
Fitting
2
PDW30 Unit
Coax Seal Tape*
Yagi Antenna
www.predig.com
Page 3
PDWA3900 Yagi High-Gain Directional Antenna w/Mounting Kit Instruction Manual

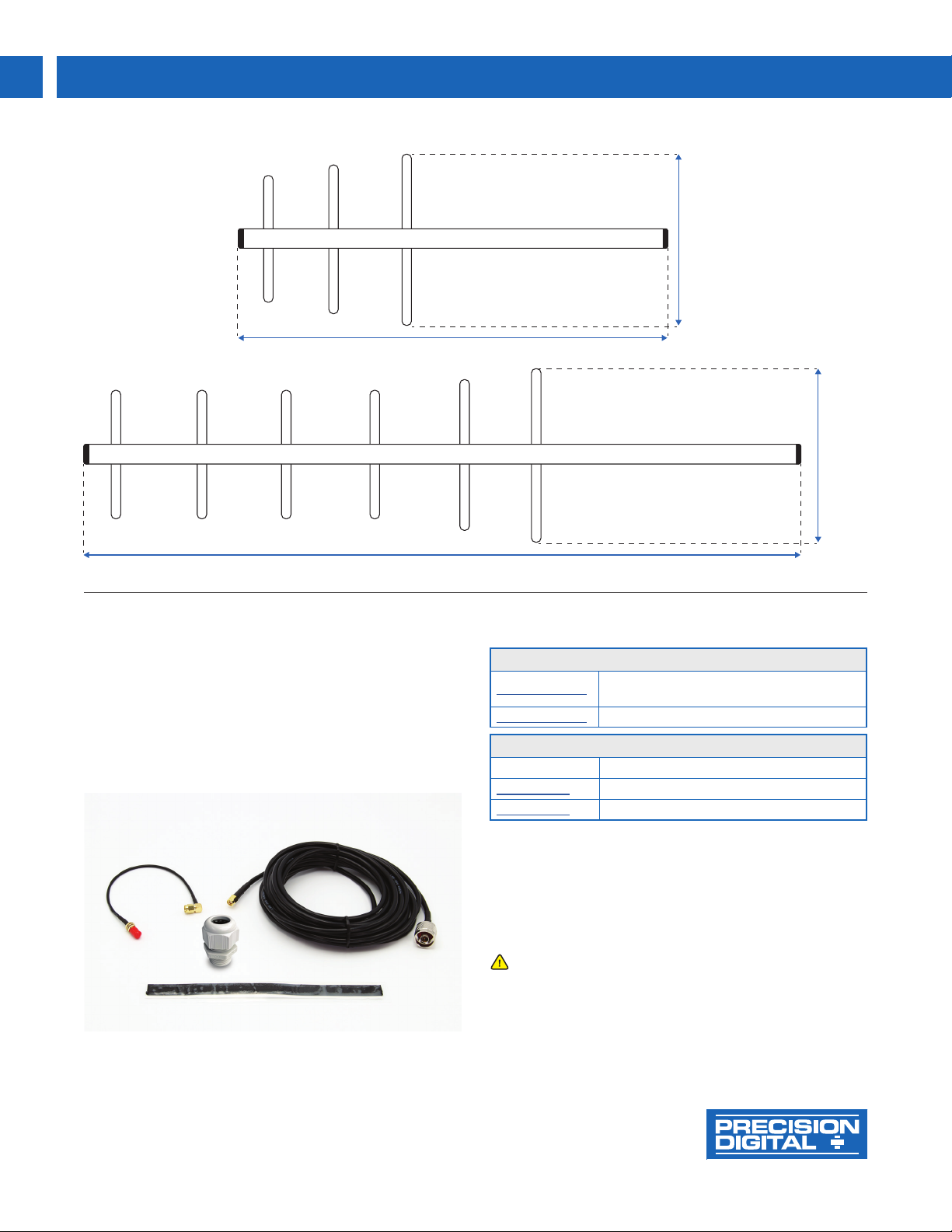

DIMENSIONS
PDWA3900-6Y-N
6.875"
(175 mm)
17.125" (435 mm)
PDWA3900-9Y-N
6.875"
(175 mm)
28" (711 mm)
EXTENSION CABLE ACCESSORY
The PDWA3120-N and PDWA3140-N are 20-foot and
40-foot extension cables used to extend the distance
between the Yagi antenna and the PDW30 or PDW90
wireless units.
The extension cable also comes with an antenna coupler to
connect the PDW wireless device to the antenna extension
cable, coax seal tape, and a 3/4" NPT cable gland.
PDWA3120-N or PDWA3140-N
Extension Cable
Antenna Coupler
Cable Gland
Coax Seal Tape
ORDERING INFORMATION
PDWA3900 Antenna Models
PDWA3900-6Y-N Remote 6 dB Yagi High-Gain Directional Antenna
PDWA3900-9Y-N Remote 9 dB Yagi High-Gain Directional Antenna
Accessories
Model Description
PDWA3120-N 20-Foot RP-SMA F to N Male Extension Cable
PDWA3140-N 40-Foot RP-SMA F to N Male Extension Cable
Note: Extension cables include the following parts:
(1) Extension Cable
(1) Antenna Coupler
(1) 8" Length of Coax Seal Tape
(1) 3/4" NPT Cable Gland
WARNING
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Disclaimer
The infor matio n contained in this document is subject to change with out notic e. Precis ion
Digital Corporation makes no representations or warranties with respect to the contents
hereof, and specically disclaims any implied warranties of merchantability or tness for
a particular purpose.
©2023 Precision Digital Corporation. All rights reserved.
LIMWA3900_A 04/23
PRECISION DIGITAL CORPORATION
233 South Street • Hopkinton MA 01748 USA • Tel (800) 343-1001
www.predig.com
