Page 1

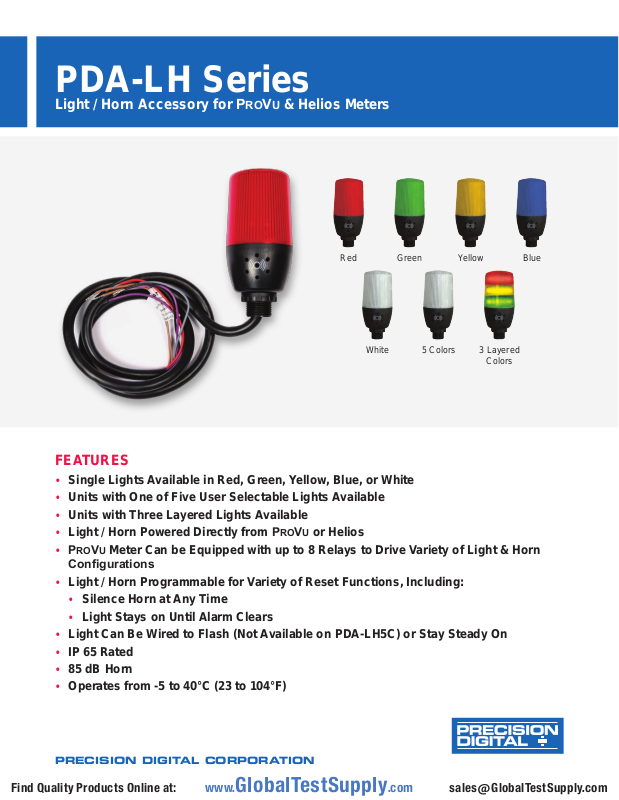

FEATURES

• Single Lights Available in Red, Green, Yellow, Blue, or White

• Units with One of Five User Selectable Lights Available

• Units with Three Layered Lights Available

• Light / Horn Powered Directly from ProVu or Helios

• ProVu Meter Can be Equipped with up to 8 Relays to Drive Variety of Light & Horn

Congurations

• Light / Horn Programmable for Variety of Reset Functions, Including:

• Silence Horn at Any Time

• Light Stays on Until Alarm Clears

• Light Can Be Wired to Flash (Not Available on PDA-LH5C) or Stay Steady On

• IP 65 Rated

• 85 dB Horn

• Operates from -5 to 40°C (23 to 104°F)

PRECISION DIGITAL CORPORATION

PDA-LH Series

Light / Horn Accessory for ProVu & Helios Meters

5 Colors 3 Layered

Colors

White

Red Green Yellow Blue

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 2

PDA-LH Series Light / Horn Accessory for ProVu & Helios Meters

M22 x 1.5

PDA-LHR PDA-LHG PDA-LHY PDA-LHB PDA-LHW PDA-LH5C PDA-LH3LC-RYG

Single color Single color Single color Single color Single color 5 colors 3 layered colors

R G Y B W

Flashing or

steady on

light

Flashing or

steady on

light

Flashing or

steady on

light

Flashing or

steady on

light

OVERVIEW

Precision D igital of fers thre e differ ent light conf iguratio ns in its line of Light / Ho rn devices. The f irst option is a facto ry ordered Light / H o r n w it h a c o lo r of ei th er r ed, gr ee n, yell ow, blue, or white. The sec ond optio n is a Light / Hor n the user determines th e light colo r (red, green, yellow, blue or white) by connectin g the appropriate wire. The third option is a Light / Horn w ith red, yellow, and green layer s the user ca n turn on indepe ndently. The light on the Light / Ho rn can be wired to fla sh (not available on PDA- LH5C) or stay steady on and the hor n is rate d at 8 5 dB. T he li ght an d ho r n c an b e controlle d independently of each othe r via separate relays on the Precisi on Digita l meter; and sinc e the meter's r elays can be reset in a var iety of ways, there are several ways the Light / Hor n can operate. For inst ance, the ho rn can be programmed t o silence at any time via th e Reset Button or F3 front panel but ton (on off automatically when the alarm clears.

ProVu models), and light to turn

Flashing or

steady on

light

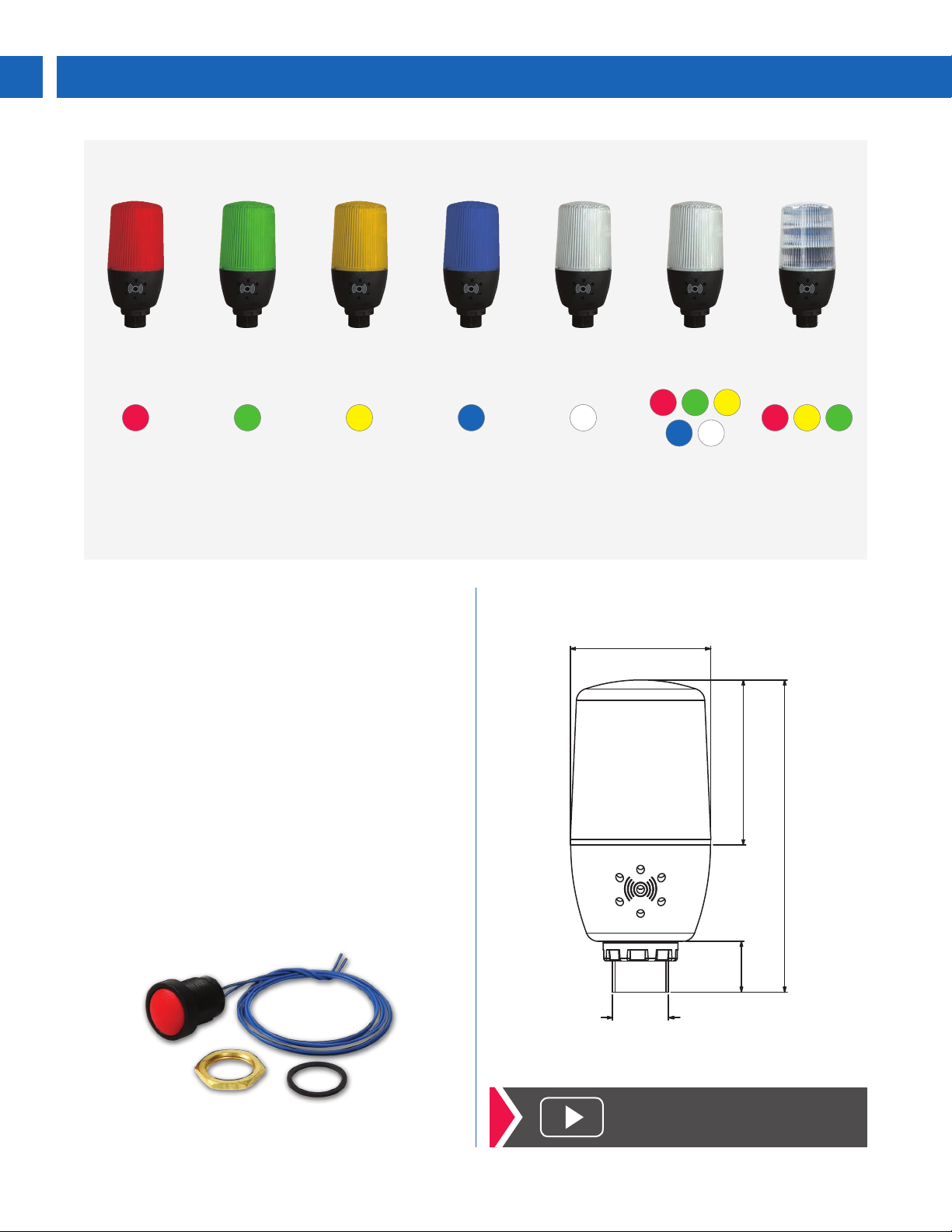

DIMENSIONS

Ø 2.2

(55)

R G Y

B W

Steady on

light

(65)

R Y G

Flashing or

steady on

light

Units: Inches (mm)

2.6

4.8

(122)

PDA-BUTTON1R RESET BUTTON

0.8

(20)

Click here to watch the

Use the PDA-BUTTON1R reset button to silence the horn or turn off the light (9 labels provided).

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Light / Horn Video

Page 3

PDA-LH Series Light / Horn Accessory for ProVu & Helios Meters

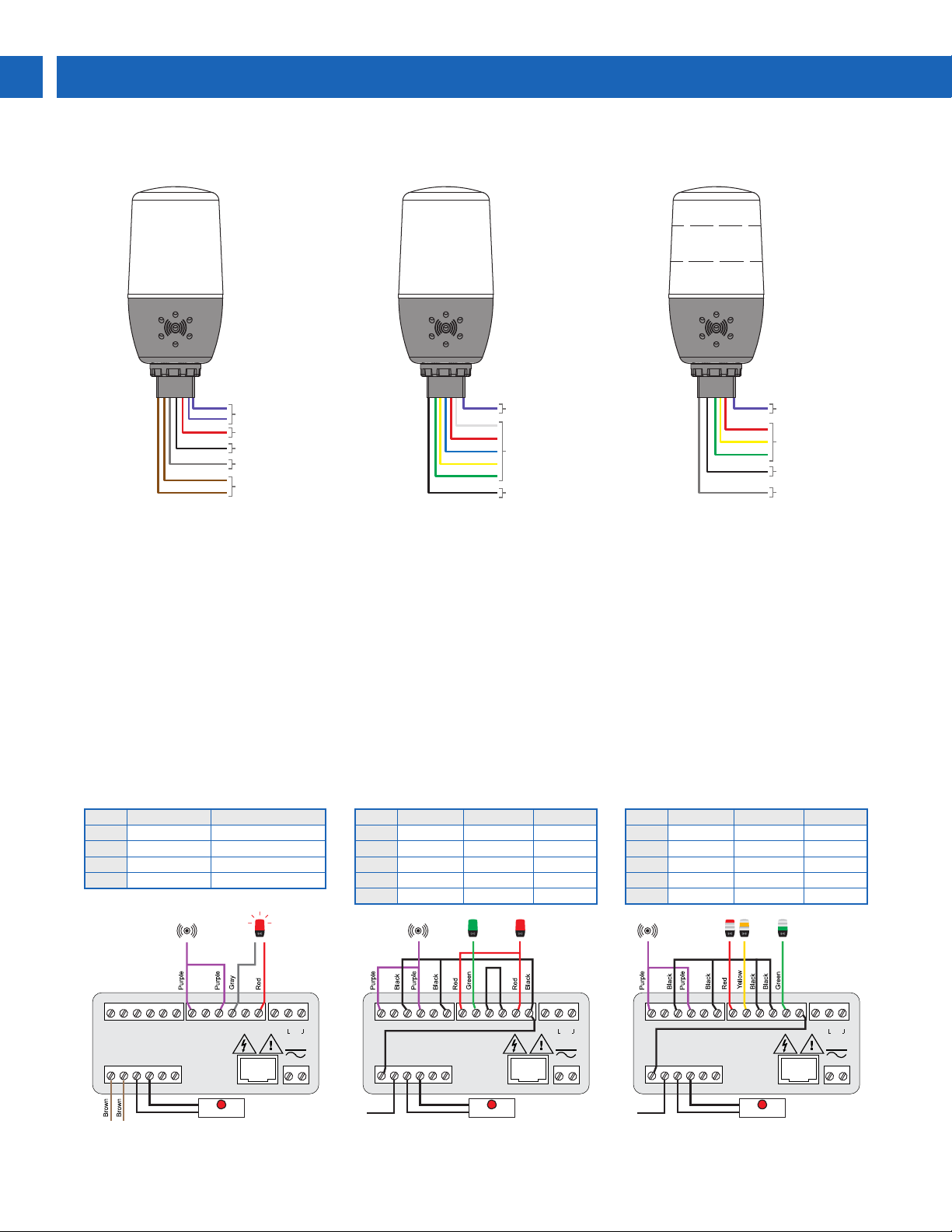

CONNECTIONS

PURPLE

Horn

PURPLE

BROWN

RED

BLACK

GRAY

Red LED Steady On Flashing

Power

PDA-LH Models

Connections shown for a red light model. For other PDA-LH models, the red wire is the color of the light. Connect the red and black wires for a Steady On light and red and gray wires for Flashing light.

APPLICATIONS

A typical way to use the PDA-LH is to program the meter so the horn can be silenced via the Reset Button at any time and the light to reset automatically after alarm clears:

Relay Connected to Default Reset Mode

1 Flashing Light(1) Auto reset 2 Horn Silence with Reset Button 3 User Device As user desires 4 User Device As user desires

1. Light can b e wired to  ash or stay steady on.

PURPLE

Horn

User Selectable LED

Minus Supply

BLACK

BLUE

YELLOW

GREEN

WHITE

RED

PDA-LH5C

Connect the LED color to the plus supply and the black wire to the minus supply to turn the LED on. Be aware of limitations for applications requiring different color lights for different alarm conditions.

The PDA-LH5C shows one of ve

possible colors at a time. A typical application might use the green light to indicate everything is OK and the red light to indicate high and low alarms:

Relay Purpose Light/Horn Action

1 Low alarm Red light Auto 2 All OK Green light Auto 2 High alarm Red light Auto 3 Low alarm Horn Latch 4 High alarm Horn Latch

PURPLE

RED

YELLOW

GREEN

BLACK

GRAY

Horn

Layered LEDs

Minus Supply

Flashing

PDA-LH3LC-RYG

Connect the LED color to the plus supply for a Steady On light and LED color and gray wires to the plus supply for Flashing light. The black wire should be connected to the minus supply.

Indicate everything is OK with the green light, a High warning with the yellow light, and a High alarm with the red light. The Horn would also sound at both High warning and High alarms and can be manually reset at any time.

Relay Purpose Light/Horn Action

1 All OK Green light Auto 2 Warning Yellow light Auto 2 High alarm Red light Auto 3 Warning Horn Latch 4 High alarm Horn Latch

RELAY4 RELAY3

4 36 5 2 1

C NONO NC NC C

SIGNAL

P- COMP+ V+ mA+

3 41 2 5

RELAY2 RELAY1

Reset Button

4 36 5 2 1

C NONO NC NC C

1 2 3 4 5 6 7 8

M-LINK

MA OUT

3 2

POWER

RI- I+

24 V

RELAY4 RELAY3

4 36 5 2 1

C NONO NC NC C

SIGNAL

P- COMP+ V+ mA+

3 41 2 5

To Black Wire on Light Cable

RELAY2 RELAY1

Reset Button

4 36 5 2 1

C NONO NC NC C

1 2 3 4 5 6 7 8

M-LINK

MA OUT

3 2

POWER

1 2 3 4 5 6 7 8

M-LINK

MA OUT

3 2

POWER

RI- I+

24 V

RI- I+

24 V

RELAY4 RELAY3

4 36 5 2 1

C NONO NC NC C

SIGNAL

P- COMP+ V+ mA+

3 41 2 5

To Black Wire on Light Cable

RELAY2 RELAY1

Reset Button

4 36 5 2 1

C NONO NC NC C

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 4

PDA-LH Series Light / Horn Accessory for ProVu & Helios Meters

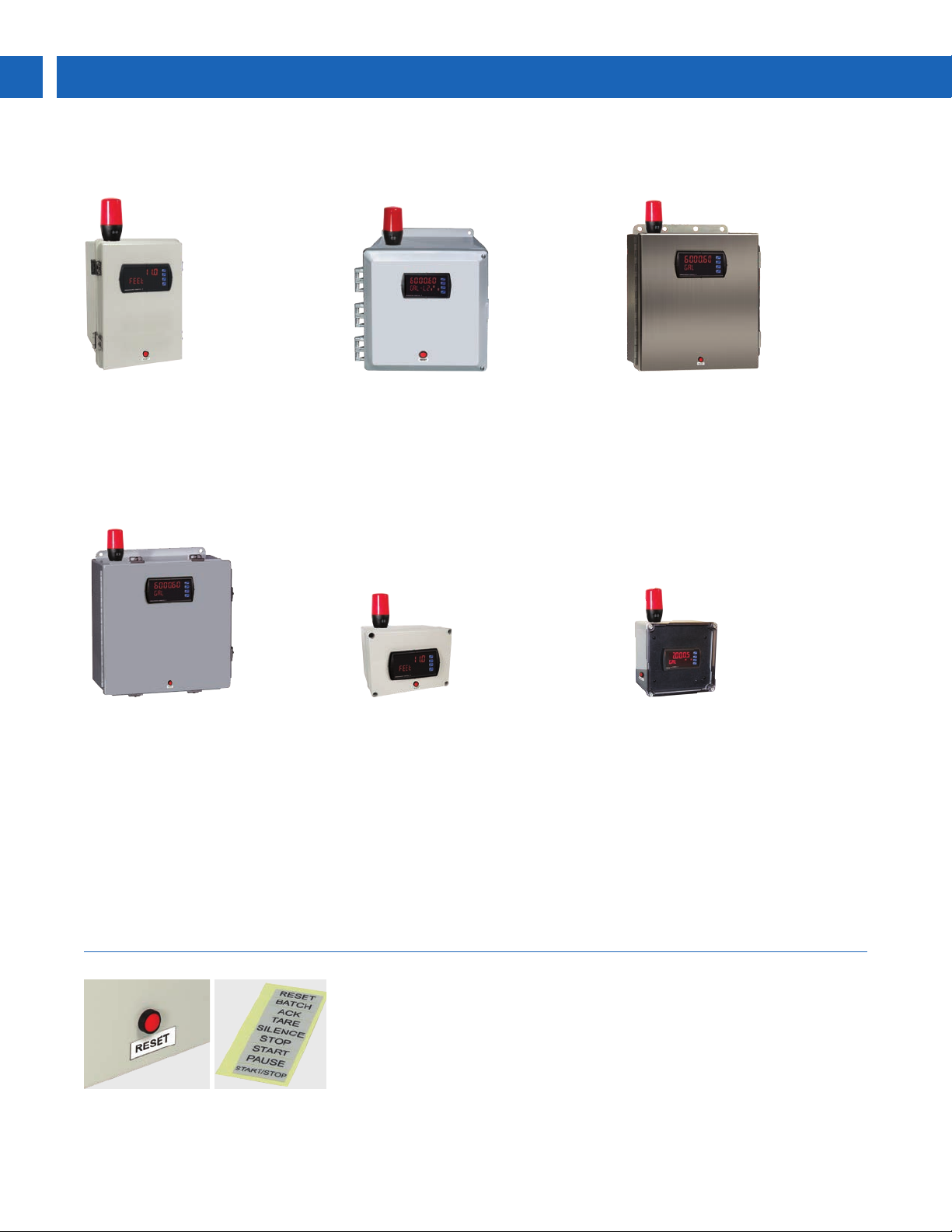

AVAILABLE FOR THESE ENCLOSURES

PDA2300 Economical Plastic NEMA 4X Enclosures

The PDA-LH Series is available on all PDA2300 Series Enclosures.

PDA2700 Steel NEMA 4 Enclosures

The PDA-LH Series is available on all PDA2700 Series Enclosures.

PDA2500 Rugged Plastic NEMA 4X Enclosures

The PDA-LH Series is available on all PDA2500 Series Enclosures.

PDA2800 Smallest Footprint Plastic NEMA 4X Enclosures

The PDA-LH Series is available on all PDA2800 Series Enclosures except PDA2801 and PDA2812.

PDA2600 Stainless Steel NEMA 4X Enclosures

The PDA-LH Series is available on all PDA2600 Series Enclosures.

PDA3400 Internally Mounted Plastic NEMA 4X Enclosures

The PDA-LH Series is available on all PDA3400 Series Enclosures except the PDA3411, PDA3412, PDA3414.

Enclosures shown with a ProVu Meter and MOD-LHRB1 Red Light / Horn and Reset Button. Meter, Enclosure, and MOD-LHRB1 are Sold Separately. Assembly Required.

RESET BUTTON LABELS

The Light / Horn accessory comes with 9 pre-printed message labels the user can

afx under the red button: RESET, BATCH, ACK, TARE, SILENCE, STOP, START,

PAUSE, START/STOP

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 5

PDA-LH Series Light / Horn Accessory for ProVu & Helios Meters

PRECISION DIGITAL CORPORATION

SPECIFICATIONS

Light Colors:

PDA-LHR: Red PDA-LHG: Green PDA-LHY: Yellow PDA-LHB: Blue PDA-LHW: White PDA-LH5C: User selectable: red, green, yellow, blue, white PDA-LH3LC-RYG: 1 layer each of red, yellow, green (consult factory for other colors available). Light Action: Can be wired to flash (not available on PDA-LH5C) or stay steady on

Horn: 85 dB Rating: IP 65 Light / Horn Independence: Light and horn can be

controlled via separate relays.

Power Requirement: 900mW or 40mA @ 24 V Transmitter Power Supply: The

internal transmitter power supply is downgraded from 200 mA when it powers the Light / Horn. To determine the total downgrade, add the currents for the light(s) being used and the horn if used. If more power is needed, then consider the PDA1024-01.

PDA-LH and PDA-LH5C Models:

Color Downgraded by Color Downgraded by Red 17 mA Blue 15 mA Green 15 mA White 42 mA Yellow 23 mA Horn 20 mA

Example: 17 mA (Red Light) + 20 mA (Horn) = 37 mA total current downgrade from the 200 mA supply. Left over current = 163 mA

PDA-LH3LC-RYG:

Downgraded by each color that is turned on and the horn

Color Downgraded by Color Downgraded by Red 34 mA Yellow 33 mA Green 29 mA Horn 38 mA

Example: 33 mA (Yellow Light) + 38 mA (Horn) = 71 mA total current downgrade from the 200 mA supply. Left over current = 139 mA

Reset / Silence Button: NEMA 4X; may be wired to F4

erminal on ProVu. F3 front panel button can also be used

t to reset relays.

Reset Button Labels: The Light / Horn accessory comes with 9 pre-printed message labels the user can affix under the red button: RESET, BATCH, ACK, TARE, SILENCE, STOP, START, PAUSE, START/STOP

Light / Horn Mounting Connection: M22 Hole Sizes: Light / Horn: 0.875" (22 mm) Cable Length: 3.28 feet (1 meter) Operating Temperature Range: -5 to 40°C (23 to 104°F)

WARNING

Cancer and Reproductive Harm

ProVu's or Helios's

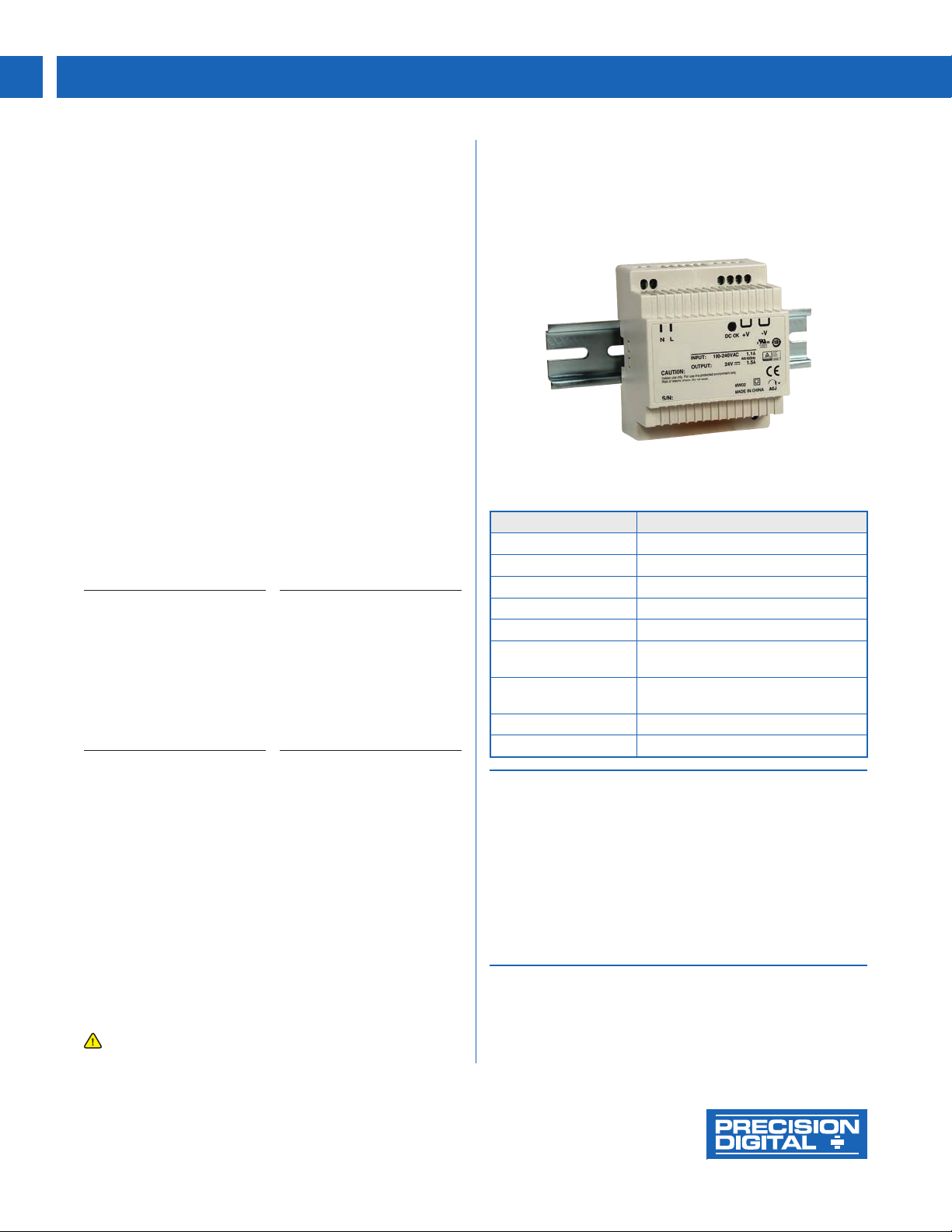

OPTIONAL 24 VDC POWER SUPPLY

PDA1024-01: DIN rail mounted 24 VDC, 1.5 A power supply.

Output Voltage: 21.6 ~ 26.4 VDC; ±10% 1.5A rated current. Dimensions: 3.07" x 3.66" x 2.20"

(78 mm x 93 mm x 56 mm) (W x H x D)

ORDERING INFORMATION

Model Description

PDA-LHR Red Light / Horn PDA-LHG Green Light / Horn PDA-LHY Yellow Light / Horn PDA-LHB Blue Light / Horn PDA-LHW White Light / Horn

PDA-LH5C

PDA-LH3LC-RYG PDA-BUTTON1R Reset Button

PDA1024-01 24 VDC Power Supply for DIN Rail

Your Local Distributor is:

Disclaimer

The information contained in this document is subject to change without notice. Precision Digital Corporation makes no representations or warranties with respect to the contents

hereof, and specically disclaims any implied warranties of merchantabilit y or tness for

Light / Horn with User Choice of Red, Green, Yellow, Blue or White Light

Light / Horn with Red, Yellow, Green Light Layers

LIMLH_A 03/19
