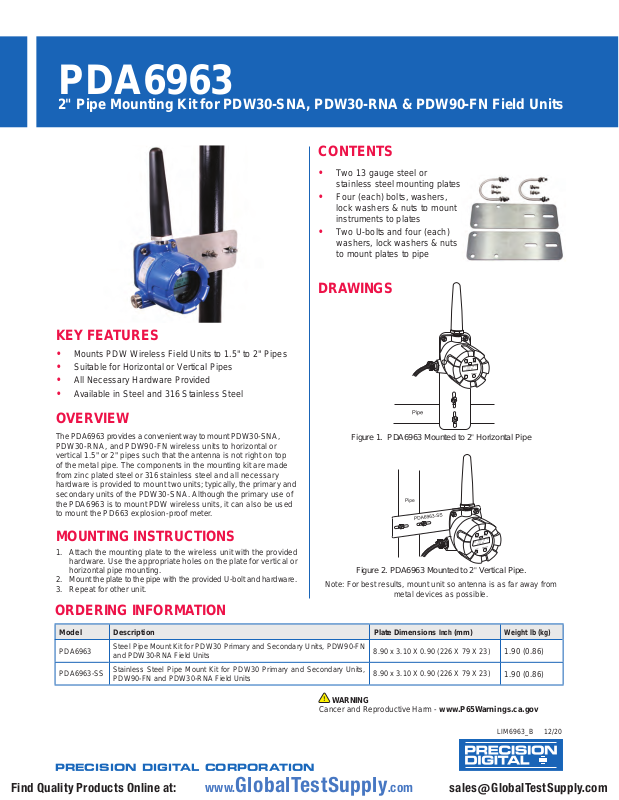

PDA6963
2" Pipe Mounting Kit for PDW30-SNA, PDW30-RNA & PDW90-FN Field Units
CONTENTS
• Two 13 gauge steel or
stainless steel mounting plates
• Four (each) bolts, washers,
lock washers & nuts to mount
instruments to plates
• Two U-bolts and four (each)
washers, lock washers & nuts
to mount plates to pipe
DRA WINGS
KEY FEATURES
• Mounts PDW Wireless Field Units to 1.5" to 2" Pipes
• Suitable for Horizontal or Vertical Pipes
• All Necessary Hardware Provided
• Available in Steel and 316 Stainless Steel
OVERVIEW
The PDA6963 provides a convenient way to mount PDW30-SNA,
PDW30-RNA, and PDW90-FN wireless units to horizontal or
vertical 1.5" or 2" pipes such that the antenna is not right on top
of the metal pipe. The components in the mounting kit are made
from zinc plated steel or 316 stainless steel and all necessary
hardware is provided to mount two units; typically, the primary and
secondary units of the PDW30-SNA. Although the primary use of
the PDA6963 is to mount PDW wireless units, it can also be used
to mount the PD663 explosion-proof meter.
Figure 1. PDA6963 Mounted to 2" Horizontal Pipe
MOUNTING INSTRUCTIONS
1. Attach the mounting plate to the wireless unit with the provided
hardware. Use the appropriate holes on the plate for vertical or
horizontal pipe mounting.
2. Mount the plate to the pipe with the provided U-bolt and hardware.
3. Repeat for other unit.
Note: For best results, mount unit so antenna is as far away from
Figure 2. PDA6963 Mounted to 2" Vertical Pipe.
metal devices as possible.
ORDERING INFORMATION
Model Description Plate Dimensions Inch (mm)
PDA6963
PDA6963-SS
Steel Pipe Mount Kit for PDW30 Primary and Secondary Units, PDW90-FN
and PDW30-RNA Field Units
Stainless Steel Pipe Mount Kit for PDW30 Primary and Secondary Units,
PDW90-FN and PDW30-RNA Field Units
W ARNING
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
8.90 x 3.10 X 0.90 (226 X 79 X 23)
8.90 x 3.10 X 0.90 (226 X 79 X 23)
Weight lb (kg)
1.90 (0.86)
1.90 (0.86)
LIM6963_B 12/20
