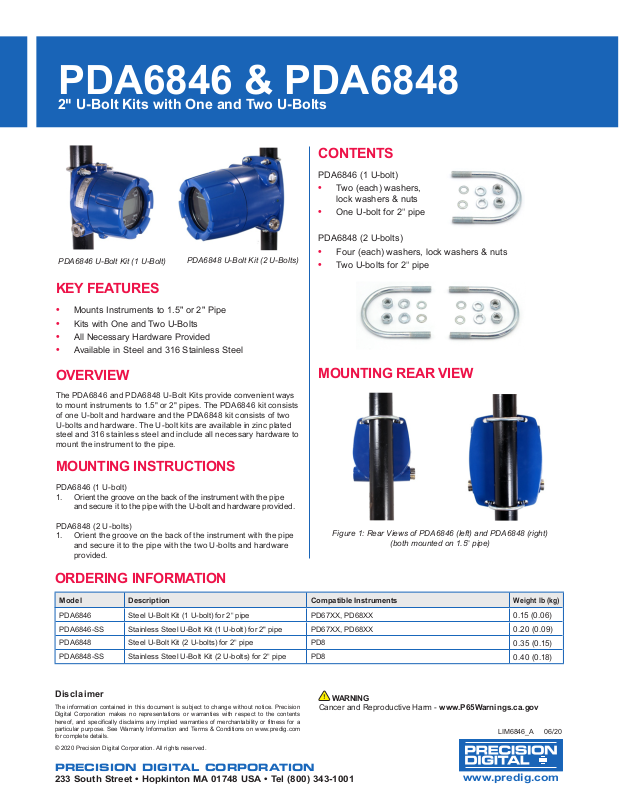

PDA6846 & PDA6848
2" U-Bolt Kits with One and Two U-Bolts
CONTENTS
PDA6846 (1 U-bolt)
• Two (each) washers,
lock washers & nuts
• One U-bolt for 2" pipe
PDA6848 (2 U-bolts)
PDA6846 U-Bolt Kit (1 U-Bolt)
PDA6848 U-Bolt Kit (2 U-Bolts)
KEY FEATURES
• Mounts Instruments to 1.5" or 2" Pipe
• Kits with One and Two U-Bolts
• All Necessary Hardware Provided
• Available in Steel and 316 Stainless Steel
• Four (each) washers, lock washers & nuts
• Two U-bolts for 2" pipe
OVERVIEW
The PDA6846 and PDA6848 U- Bolt Kits provide convenient ways
to mount instruments to 1.5" or 2" pipes. The PDA6846 kit consists
of one U-bolt and hardware and the PDA6848 kit consists of two
U-bolts and hardware. The U-bolt kits are available in zinc plated
steel and 316 stainless steel and include all necessar y hardware to
mount the instrument to the pipe.
MOUNTING REAR VIEW
MOUNTING INSTRUCTIONS
PDA6846 (1 U-bolt)
1. Orient the groove on the back of the instrument with the pipe
and secure it to the pipe with the U-bolt and hardware provided.
PDA6848 (2 U-bolts)
1. Orient the groove on the back of the instrument with the pipe
and secure it to the pipe with the two U-bolts and hardware
provided.
Figure 1: Rear Views of PDA6846 (left) and PDA6848 (right)
ORDERING INFORMATION
Model Description Compatible Instruments
PDA6846 Steel U-Bolt Kit (1 U-bolt) for 2" pipe PD67XX, PD68XX
PDA6846-SS Stainless Steel U-Bolt Kit (1 U-bolt) for 2" pipe PD67XX, PD68XX
PDA6848 Steel U-Bolt Kit (2 U-bolts) for 2" pipe PD8
PDA6848-SS Stainless Steel U-Bolt Kit (2 U-bolts) for 2" pipe PD8
(both mounted on 1.5" pipe)
Weight lb (kg)
0.15 (0.06)
0.20 (0.09)
0.35 (0.15)
0.40 (0.18)
Disclaimer
The information contained in this document is subject to change without notice. Precision
Digital Corporation makes no representations or warranties with respect to the contents
hereof, and specifically disclaims any implied warranties of merchantability or fitness for a
particular purpose. See Warranty Information and Terms & Conditions on www.predig.com
for complete details.
© 2020 Precision Digital Corporation. All rights reserved.
WARNING
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
PRECISION DIGITAL CORPORATION
233 South Street • Hopkinton MA 01748 USA • Tel (800) 343-1001
LIM6846_A 06/20
