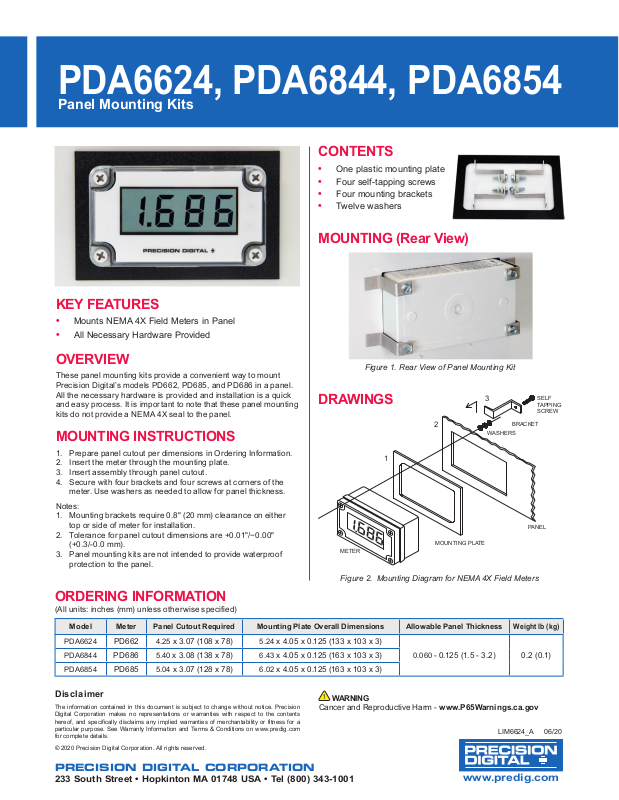

PDA6624, PDA6844, PDA6854
02817,1*3/$7(
3$1(/
0(7(5
%5$&.(7
:$6+(56
6(/)
7$33,1*
6&5(:
Panel Mounting Kits
CONTENTS
• One plastic mounting plate
• Four self-tapping screws
• Four mounting brackets
• Twelve washers
MOUNTING (Rear View)
KEY FEATURES
• Mounts NEMA 4X Field Meters in Panel
• All Necessary Hardware Provided
OVERVIEW
These panel mounting kits provide a convenient way to mount
Precision Digital’s models PD662, PD685, and PD686 in a panel.
All the necessar y hardware is provided and installation is a quick
and easy process. It is important to note that these panel mounting
kits do not provide a NEMA 4X seal to the panel.
DRAWINGS
Figure 1. Rear View of Panel Mounting Kit
MOUNTING INSTRUCTIONS
1. Prepare panel cutout per dimensions in Ordering Information.
2. Insert the meter through the mounting plate.
3. Insert assembly through panel cutout.
4. Secure with four brackets and four screws at corners of the
meter. Use washers as needed to allow for panel thickness.
Notes:
1. Mounting brackets require 0.8" (20 mm) clearance on either
top or side of meter for installation.
2. Tolerance for panel cutout dimensions are +0.01"/−0.00 "
(+0.3/-0.0 mm).
3. Panel mounting kits are not intended to provide waterproof
protection to the panel.
Figure 2. Mounting Diagram for NEMA 4X Field Meters
ORDERING INFORMATION
(All units: inches (mm) unless otherwise specified)
Model Meter Panel Cutout Required Mounting Plate Overall Dimensions Allowable Panel Thickness
PDA6624
PDA6844
PDA6854
PD662 4.25 x 3.07 (108 x 78) 5.24 x 4.05 x 0.125 (133 x 103 x 3)
PD686 5.40 x 3.08 (138 x 78) 6.43 x 4.05 x 0.125 (163 x 103 x 3)
PD685 5.04 x 3.07 (128 x 78) 6.02 x 4.05 x 0.125 (163 x 103 x 3)
0.060 - 0.125 (1.5 - 3.2) 0.2 (0.1)
Weight lb (kg)
Disclaimer
The information contained in this document is subject to change without notice. Precision
Digital Corporation makes no representations or warranties with respect to the contents
hereof, and specifically disclaims any implied warranties of merchantability or fitness for a
particular purpose. See Warranty Information and Terms & Conditions on www.predig.com
for complete details.
© 2020 Precision Digital Corporation. All rights reserved.
PRECISION DIGITAL CORPORATION
233 South Street • Hopkinton MA 01748 USA • Tel (800) 343-1001
WARNING
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
LIM6624_A 06/20
