MOUNTING KITS FOR PRECISION DIGITAL METERS
PDA6545 2" PIPE MOUNTING KIT
PD655 Example
Shown Here
Mounting Plate
Hole Pattern
PDA6845 2" PIPE MOUNTING KIT
Mounting Plate
Hole Pattern
Holes Meter Type
1 PD655
2 PDA2407, PDA2408
3 PDA2811-PDA2812
4 PDA3407-PDA3414
Parts Supplied:
1. One mounting plate
2. Two 2" U-bolt kits
3. Four #6 - 32 x ¾" screws
4. Four #6 - 32 hex nuts
5. Four #6 - 32 lockwashers
HolES METEr TyPE
1 PDA2801
2 PD675, PD686
3 PD685
4 PD662
5 PD663
ORDERING INFORMATION
Model Description
PDA6545 2" Pipe Mounting Kit Zinc Plated Steel 3.0 (1.4)
PDA6545-SS 2" Pipe Mounting Kit Stainless Steel 3.0 (1.4)
PDA6845 2" Pipe Mounting Kit Zinc Plated Steel 1.1 (0.5)
PDA6845-SS 2" Pipe Mounting Kit Stainless Steel 1.1 (0.5)
Precision Digital corPoration
Weight
lb (kg)
Parts Supplied:
1. One mounting plate
2. One 2" U-bolt kit
3. Two ¼ - 20 x 1" screws
4. Two ¼ - 20 hex nuts
5. Two ¼” lockwashers
6. Two #6 - 32 x ¾" screws
7. Two #6 - 32 hex nuts
8. Two #6 lockwashers
www.predig.com
Page 2
MOUNTING KITS FOR PRECISION DIGITAL METERS
1
2
MOUNTING PLATE
PANEL
METER
BRACKET
WASHERS
SELF
TAPPING
SCREW
3
BRACKET
METER BASE
PANEL
METER COVER
DECORATIVE BEZEL
0.250″(6.4)
DIA. TYP.
3.23″(82)
14.30″(363)
15.32″(389)
4.97″(126)

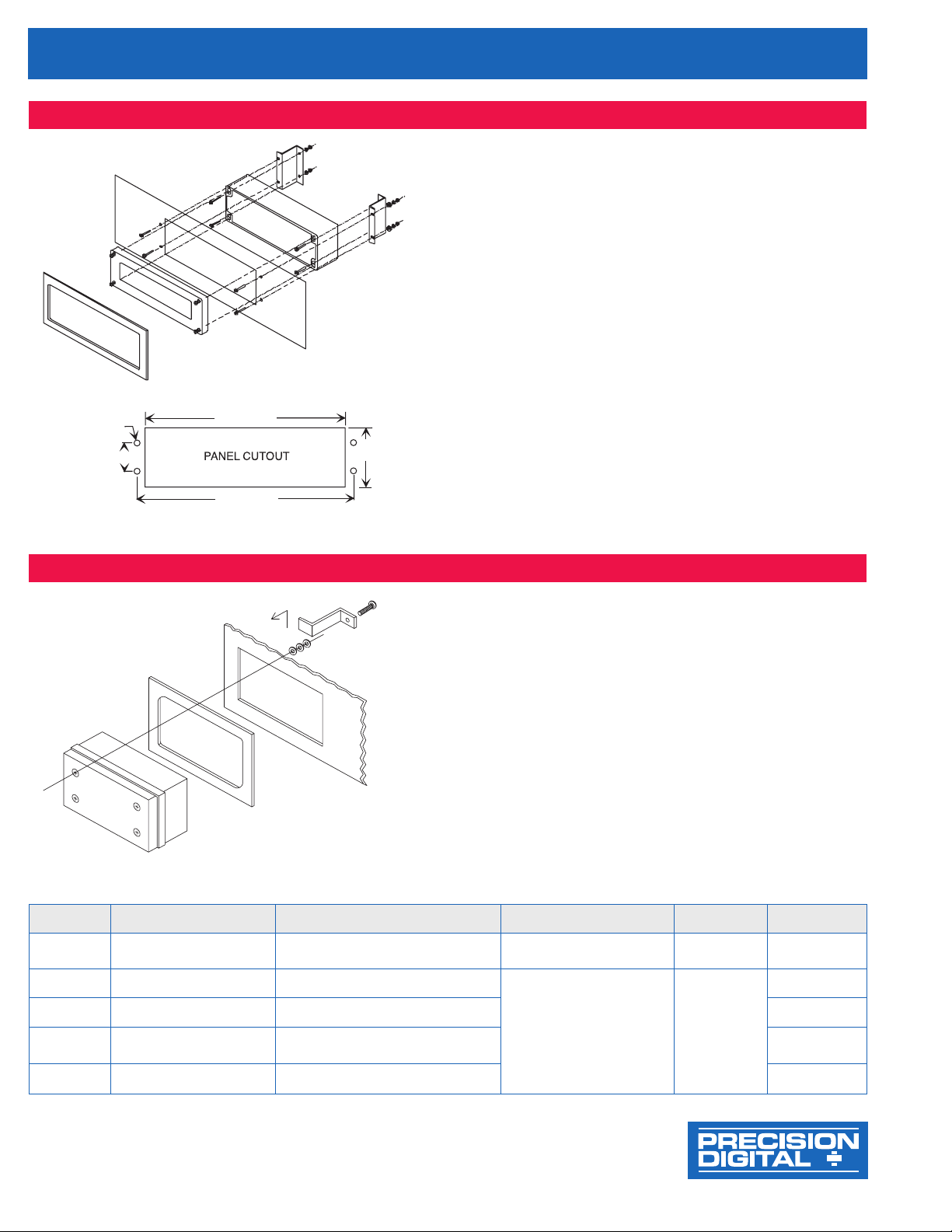

PDA6504 PANEL MOUNTING KIT FOR PD650
Instructions:
1. Drill four holes in panel and make panel cutout as shown. Tolerance
for all dimensions is ±0.01 (0.25)
2. Secure the two side mounting brackets to the meter base using the
supplied hardware.
3. Mount this assembly to the rear of the panel using supplied hardware.
4. Secure the meter cover to the base.
5. Attach decorative bezel to the panel.
Notes:
1. Allowable panel thickness: 0.06 - 0.25 (1.5 - 6.4). Longer bracket
screws may be used for panel thickness up to 0.5 (12.7).
2. Mounting space required: 7 x 17.5 x 4
Meter cover extends 0.8 (20) - X from the surface of the panel,
where X equals the thickness of the panel.
3. This panel mounting kit is not intended to provide waterproof
protection to the panel.
4. All dimensions are in inches and millimeters (mm).
Parts Supplied:
1. Two angle brackets
2. One self-adhesive decorative bezel
3. Eight #12-24 x ¾" screws
4. Eight #12 lockwashers
5. Eight #12-24 hex nuts
6. Four #12 flat washers
(178 x 445 x 102)
(H x W x D).
PDA6554, PDA6624, PDA6844, & PD6854 PANEL MOUNTING KITS
Instructions:
1. Insert the meter through the mounting plate.
2. Mount assembly on panel.
3. Secure with 4 brackets and 4 screws at corners of the meter.
Use washers as needed to allow for panel thickness.
Notes:
1. Mounting brackets require 0.8 (20) clearance on either top or
side of meter for installation.
2. Toleranceforpanelcutoutdimensionsare+0.01/−0.00(+0.3/-0.0).
3. Panel mounting kits are not intended to provide waterproof
protection to the panel.
4. All dimensions are in inches and millimeters (mm).
Parts Supplied:
1. One mounting plate (ABS plastic)
2. Four self tapping screws
3. Four mounting brackets
4. Twelve washers
ORDERING INFORMATION
Model Panel Cutout required Mounting Plate overall Dimensions Allowable Panel Thickness Weight lb (kg) Meter Type
PDA6504 14.30" x 4.97" (363 x 126) 16.28" x 6.98" x 0.25" (414 x 177 x 6) 0.060" – 0.25" (1.5 – 6.4) 1.6 (0.7) PD650
PDA6554 6.62" x 5.43" (168 x 138) 7.57" x 6.40" x 0.125" (192 x 163 x 3)
PDA6624 4.25” x 3.07” (108 x 78) 5.24” x 4.05” x 0.125” (133 x 103 x 3) PD662
PDA6844 5.45" x 3.08" (138 x 78) 6.43" x 4.05" x 0.125" (163 x 103 x 3)
PDA6854 5.04” x 3.07” (128 x 78) 6.02” 4.05” x 0.125” (153 x 103 x 3) PD685
Precision Digital corPoration
233 South Street • Hopkinton MA 01748 USA • Tel (800) 343-1001 • Fax (508) 655-8990
0.060" – 0.125" (1.5 – 3.2) 0.2 (0.1)
www.predig.com
PD655
PD675, PD686,
PD697
