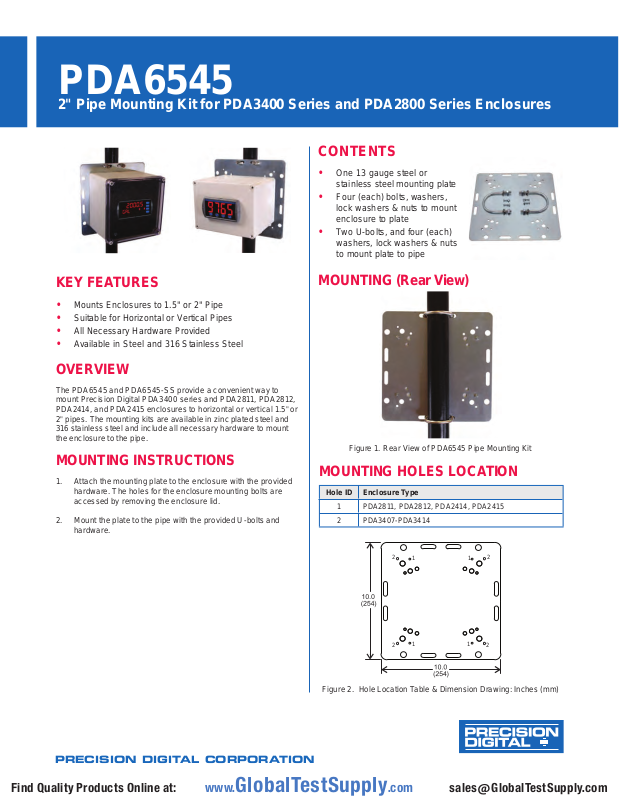

PDA6545
2" Pipe Mounting Kit for PDA3400 Series and PDA2800 Series Enclosures
CONTENTS
• One 13 gauge steel or
stainless steel mounting plate
• Four (each) bolts, washers,
lock washers & nuts to mount
enclosure to plate
• Two U-bolts, and four (each)
washers, lock washers & nuts
to mount plate to pipe
KEY FEATURES
• Mounts Enclosures to 1.5" or 2" Pipe
• Suitable for Horizontal or Vertical Pipes
• All Necessary Hardware Provided
• Available in Steel and 316 Stainless Steel
OVERVIEW
The PDA6545 and PDA6545-SS provide a convenient way to
mount Precision Digital PDA3400 series and PDA2811, PDA2812,
PDA2414, and PDA2415 enclosures to horizontal or vertical 1.5" or
2" pipes. The mounting kits are available in zinc plated steel and
316 stainless steel and include all necessary hardware to mount
the enclosure to the pipe.
MOUNTING INSTRUCTIONS
1. Attach the mounting plate to the enclosure with the provided
hardware. The holes for the enclosure mounting bolts are
accessed by removing the enclosure lid.
2. Mount the plate to the pipe with the provided U-bolts and
hardware.
MOUNTING (Rear View)
Figure 1. Rear View of PDA6545 Pipe Mounting Kit
MOUNTING HOLES LOCATION
Hole ID Enclosure Type
1 PDA2811, PDA2812, PDA2414, PDA2415
2 PDA3407-PDA3414
2
11
2
11
Figure 2. Hole Location Table & Dimension Drawing: Inches (mm)
PRECISION DIGITAL CORPORATION
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
22
Page 2
PDA6545 2" Pipe Mounting Kit
DRA WINGS
Mounting Plate
9765

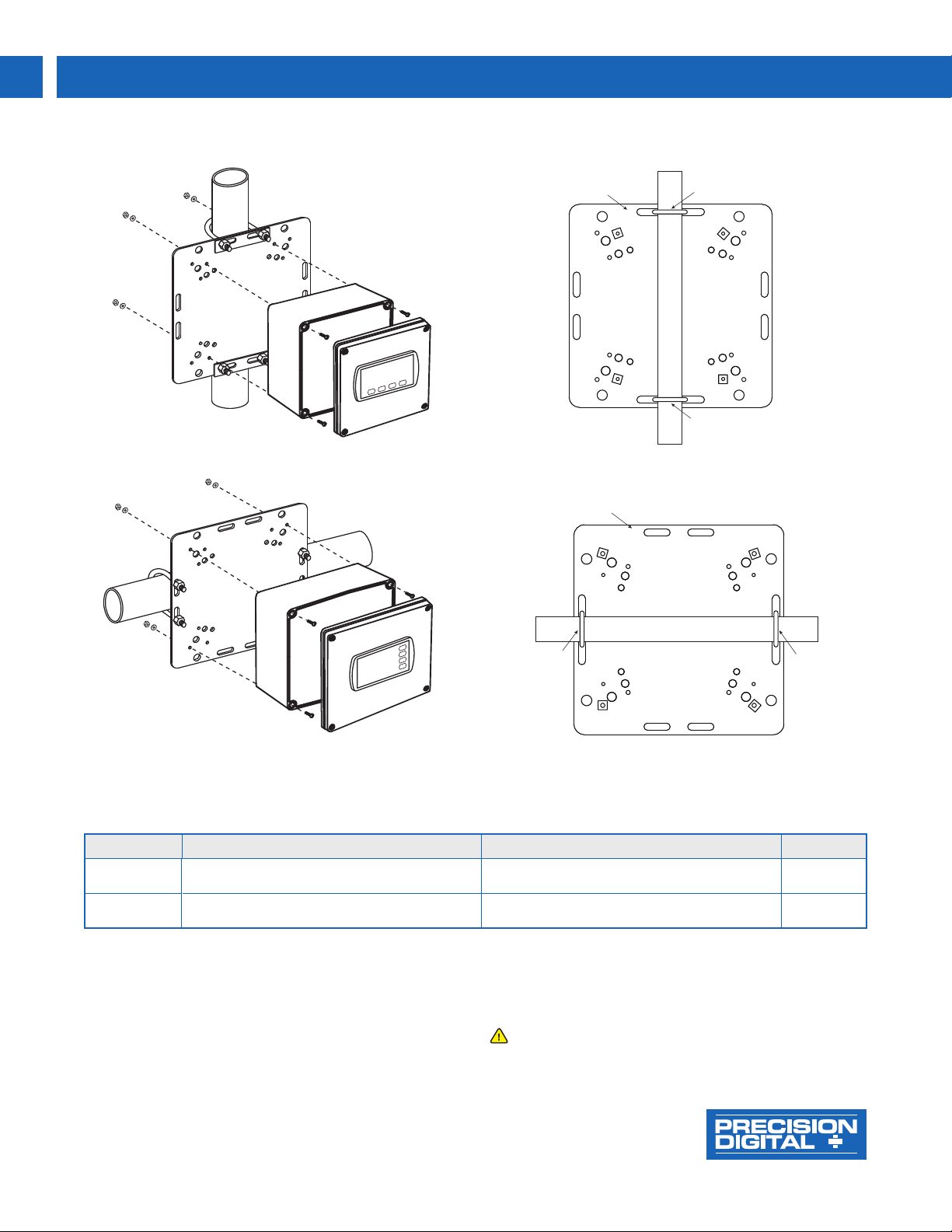

Figure 3. PDA6845 Mounted to Vertical 2" Pipe
Mounting Plate
U-Bolt
Pipe
U-Bolt
Pipe
2000.5
gal
Note: Other products mount in similar fashion.
Figure 4. PDA6845 Mounted to Horizontal 2" Pipe
ORDERING INFORMATION
Model Description Plate Dimensions Inch (mm)
PDA6545
PDA6545-SS
The PDA6545 may be used to mount the following products to 1.5" or 2" pipes:
1.PDA2811, PDA2812, PDA2814, PDA2815 Enclosures
2. PDA3400 Series Enclosures
Disclaimer
© 2020 Precision Digital Corporation. All rights reserved.
Steel Pipe Mount Kit for PDA3400 Series and PDA2811,
PDA2812, PDA2814, PDA2815 Enclosures
Stainless Steel Pipe Mount Kit for PDA3400 Series and
PDA2811, PDA2812, PDA2814, PDA2815 Enclosures
10.00 x 10.00 X 0.90 (254 X 254 X 23)
10.00 x 10.00 X 0.90 (254 X 254 X 23)
W ARNING
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
U-BoltU-Bolt
Weight lb (kg)
2.60 (1.18)
2.90 (1.31)
LIM6545_A 06/20
