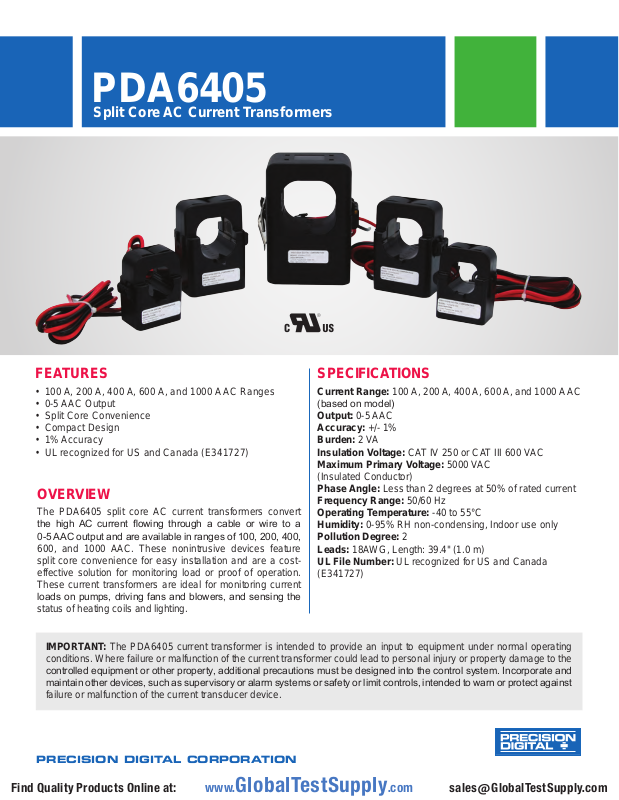

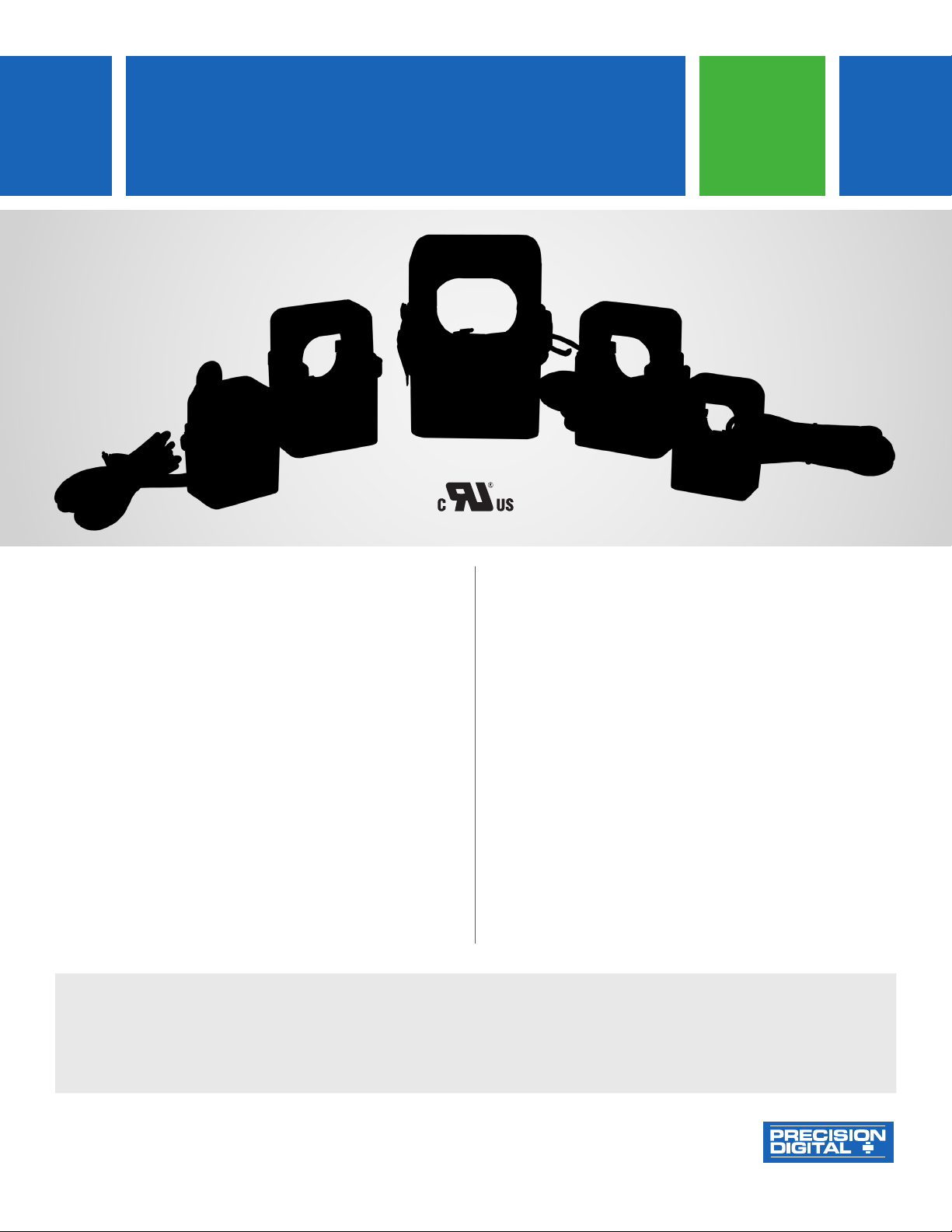

Page 1
PDA6405
Split Core AC Current Transformers
PRECISION DIGITAL CORPORATION
FEATURES
• 100 A, 200 A, 400 A, 600 A, and 1000 A AC Ranges
• 0-5 AAC Output
• Split Core Convenience
• Compact Design
• 1% Accuracy
• UL recognized for US and Canada (E341727)
OVERVIEW
The PDA6405 split core AC current transformers convert
the high AC current owing through a cable or wire to a
0-5 AAC output and are available in ranges of 100, 200, 400,
600, and 1000 AAC. These nonintrusive devices feature
split core convenience for easy installation and are a costeffective solution for monitoring load or proof of operation.
These current transformers are ideal for monitoring current
loads on pumps, driving fans and blowers, and sensing the
status of heating coils and lighting.
IMPORTANT: The PDA6405 current transformer is intended to provide an input to equipment under normal operating
conditions. Where failure or malfunction of the current transformer could lead to personal injury or property damage to the
controlled equipment or other property, additional precautions must be designed into the control system. Incorporate and
maintain other devices, such as supervisory or alarm systems or safety or limit controls, intended to warn or protect against
failure or malfunction of the current transducer device.
SPECIFICATIONS
Current Range: 100 A, 200 A, 400 A, 600 A, and 1000 A AC
(based on model)
Output: 0-5 AAC
Accuracy: +/- 1%
Burden: 2 VA
Insulation V oltage: CAT IV 250 or CAT III 600 VAC
Maximum Primary V oltage: 5000 VAC
(Insulated Conductor)
Phase Angle: Less than 2 degrees at 50% of rated current
Frequency Range: 50/60 Hz
Operating T emperature: -40 to 55°C
Humidity: 0-95% RH non-condensing, Indoor use only
Pollution Degree: 2
Leads: 18AWG, Length: 39.4" (1.0 m)
UL File Number: UL recognized for US and Canada
(E341727)
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 2
PDA6405 Split Core AC Current Transformers
PRECISION DIGITAL CORPORATION
DIMENSIONS
Model Input Overall Dimensions Opening Dimensions Weight
PDA6405-100 100 A 2.6" x 1.8" x 1.4" (65 mm x 46 mm x 35 mm) 0.9" X 0.9" (24 mm X 24 mm) 8 oz (227 g)
PDA6405-200 200 A 2.6" x 1.8" x 1.4" (65 mm x 46 mm x 35 mm) 0.9" X 0.9" (24 mm X 24 mm) 8 oz (227 g)
PDA6405-400 400 A 3.3" x 2.2" x 1.6" (85 mm x 57 mm x 41 mm) 1.4" X 1.4" (36 mm X 36 mm) 13.6 oz (385 g)
PDA6405-600 600 A 3.3" x 2.2" x 1.6" (85 mm x 57 mm x 41 mm) 1.4" X 1.4" (36 mm X 36 mm ) 15.2 oz (430 g)
PDA6405-1000 1000 A 4.7" x 3.1" x 2.4" (120 mm x 80 mm x 60 mm) 2.0" X 2.0" (50 mm X 50 mm) 2.2 lb (1 kg)
INSTALLATION
WARNING: Risk of Electrical Shock.
Disconnect the power supply before making
!
electrical connections. Contact with components
carrying hazardous voltage can cause electric
shock and may result in severe personal injury
or death.
WIRING
1. Disconnect the conductor cable from the power source.
2. Snap the split core around the power conductor cable
and close the core until the core snaps shut.
3. Wire the output leads to desired device per Figure 2
4. Reconnect the power conductor cable. See Figure 3 for
a wiring example.
If the measured current is too low to be detected or it is higher
than the maximum current rating of the transformer, use the
following methods to increase or decrease the current:

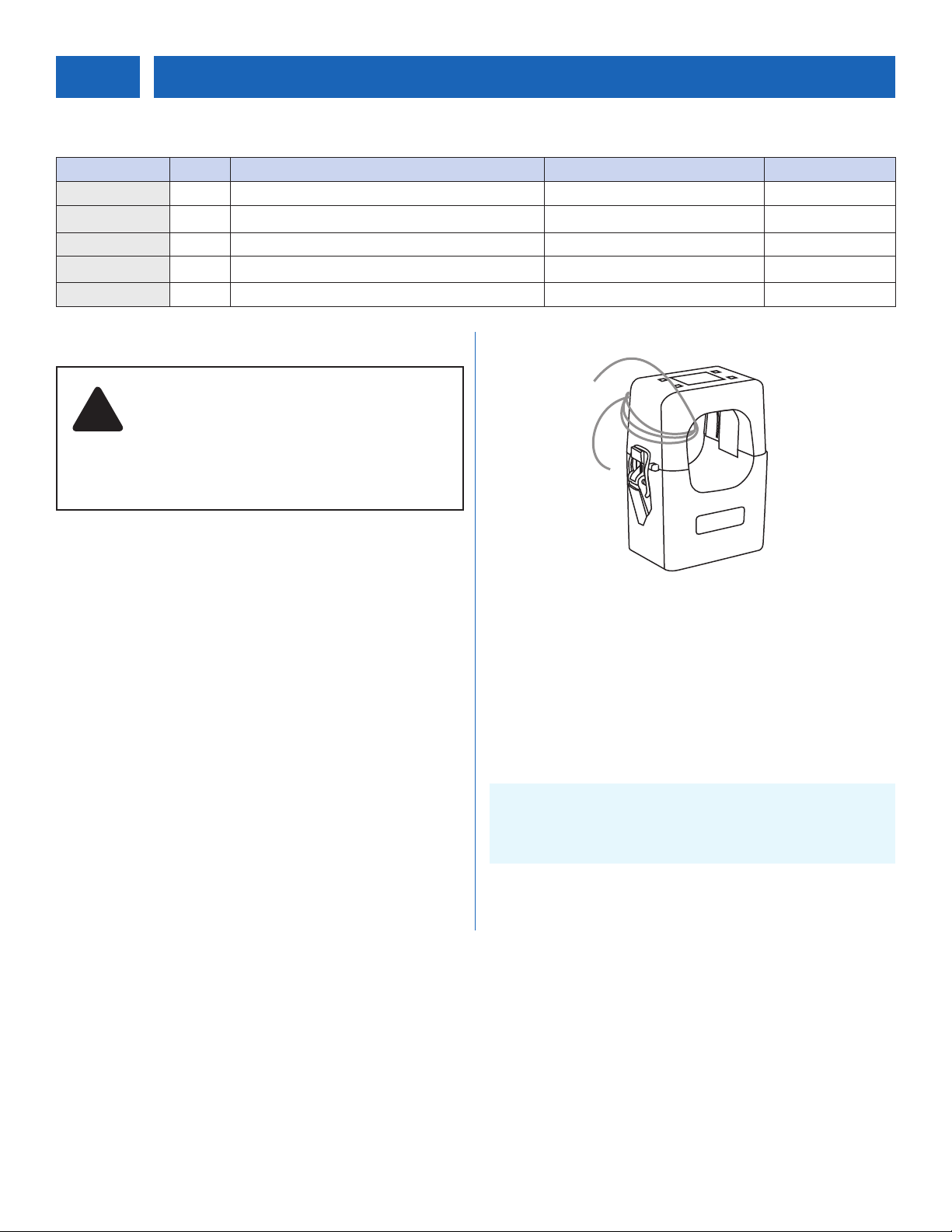

Figure 1: PDA6405 Current Transformer Shown with Four Turns
The controller must be scaled to account for the extra turns. If
four turns pass through the transducer as shown in gure 1,
the normal controller reading must be divided by 4.
IMPORTANT: Failure to derate the current capacity could
result in damage to the current transformer when using
multiple turns to increase the measured current. Use the
following formula to determine the new maximum current:
If the measured current is too low to be detected use the
following method to increase the current:
Wrap the conductor (wire) through the sensing hole and
around the current transformer body to produce multiple turns
to increase the measured current. The measured current is
equal to the actual current multiplied by the number of turns.
See Figure 1.
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Example: If the maximum current rating of the CT is
100 A and the number of turns used is 4, then:
Maximum Line Current: 100 A / 4 = 25 A
The new maximum current is equal to the current transformer
current rating divided by the number of turns.
2
Page 3
PRECISION DIGITAL CORPORATION
PDA6405 Split Core AC Current Transformers
CONNECTIONS
PD6400 High Voltage & Current Meter
0-5 AAC
75 AAC Motor
AC
Power
PDA6405-100
Current Transformer
Figure 2: Measuring Current with PDA6405-100 Current Transformer
and PD6400 digital panel meter.
DIGITAL METERS FOR AC CURRENT
Precision Digital offers digital meters that will accept the 0-5
Amp AC output from its PDA6405 line of current transformers.
These meters feature a dual line display that can show the
current on the upper display and the units on the lower
display. They can also be equipped with relays for alarm and
control purposes and a 4-20 mA output signal. All AC current
meters feature:
• (1) 0-300 V and (1) 0-5 A Inputs
• Multiplication for Apparent Power Calculation
• UL Listed
• 4 Relays & 4-20 mA Output
• Free Programming Software
PD6400 ProVu 1/8 DIN Panel Meter
TO CURRENT
TRANSFORMER
Figure 3: PD6400 Connections from PDA6405 Current Transformer
with AC Switch Selected.
ORDERING INFORMATION
Model Description
PDA6405-100 100 AAC Current T ransformer
with 0-5 AAC Output
PDA6405-200 200 AAC Current T ransformer
with 0-5 AAC Output
PDA6405-400 400 AAC Current T ransformer
with 0-5 AAC Output
PDA6405-600 600 AAC Current T ransformer
with 0-5 AAC Output
PDA6405-1000 1000 AAC Current T ransformer
with 0-5 AAC Output
• NEMA 4X Front Panel
• 0.6" (15 mm) Digits
PD2-6400 Helios Large Display Meter
• NEMA 4X Field Enclosure
• 1.8" (46 mm) Digits
LIM6405_A 02/19
