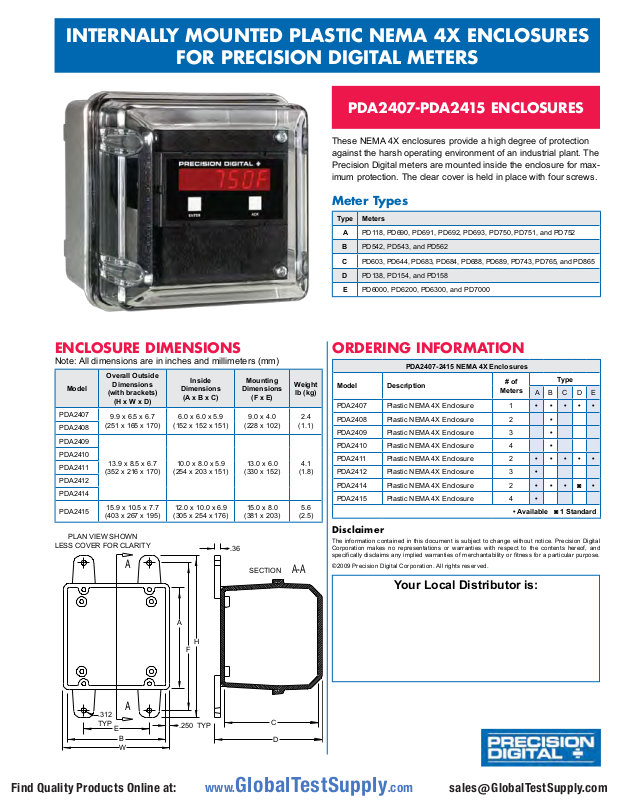

INTERNALLY MOUNTED PLASTIC NEMA 4X ENCLOSURES
Typ e Meters
A PD118, PD690, PD691, PD692, PD693, PD750, PD751, and PD752
B PD542, PD543, and PD562
C PD603, PD644, PD683, PD684, PD688, PD689, PD743, PD765, and PD865
D PD138, PD154, and PD158
E PD6000, PD6200, PD6300, and PD7000
These NEMA 4X enclosures provide a high degree of protection
against the harsh operating environment of an industrial plant. The
Precision Digital meters are mounted inside the enclosure for maximum protection. The clear cover is held in place with four screws.
PDA2407-PDA2415 ENCLOSURES
ORDERING INFORMATION
PDA2407-2415 NEMA 4X Enclosures
Model Description
# of
Meters
Type
A B C D E
PDA2407 Plastic NEMA 4X Enclosure 1 • • • • •
PDA2408 Plastic NEMA 4X Enclosure 2 •
PDA2409 Plastic NEMA 4X Enclosure 3 •
PDA2410 Plastic NEMA 4X Enclosure 4 •
PDA2411 Plastic NEMA 4X Enclosure 2 • • • • •
PDA2412 Plastic NEMA 4X Enclosure 3 •
PDA2414 Plastic NEMA 4X Enclosure 2 • • • ◙ •
PDA2415 Plastic NEMA 4X Enclosure 4 •
• Available ◙ 1 Standard
Meter Types
A-A
A
A

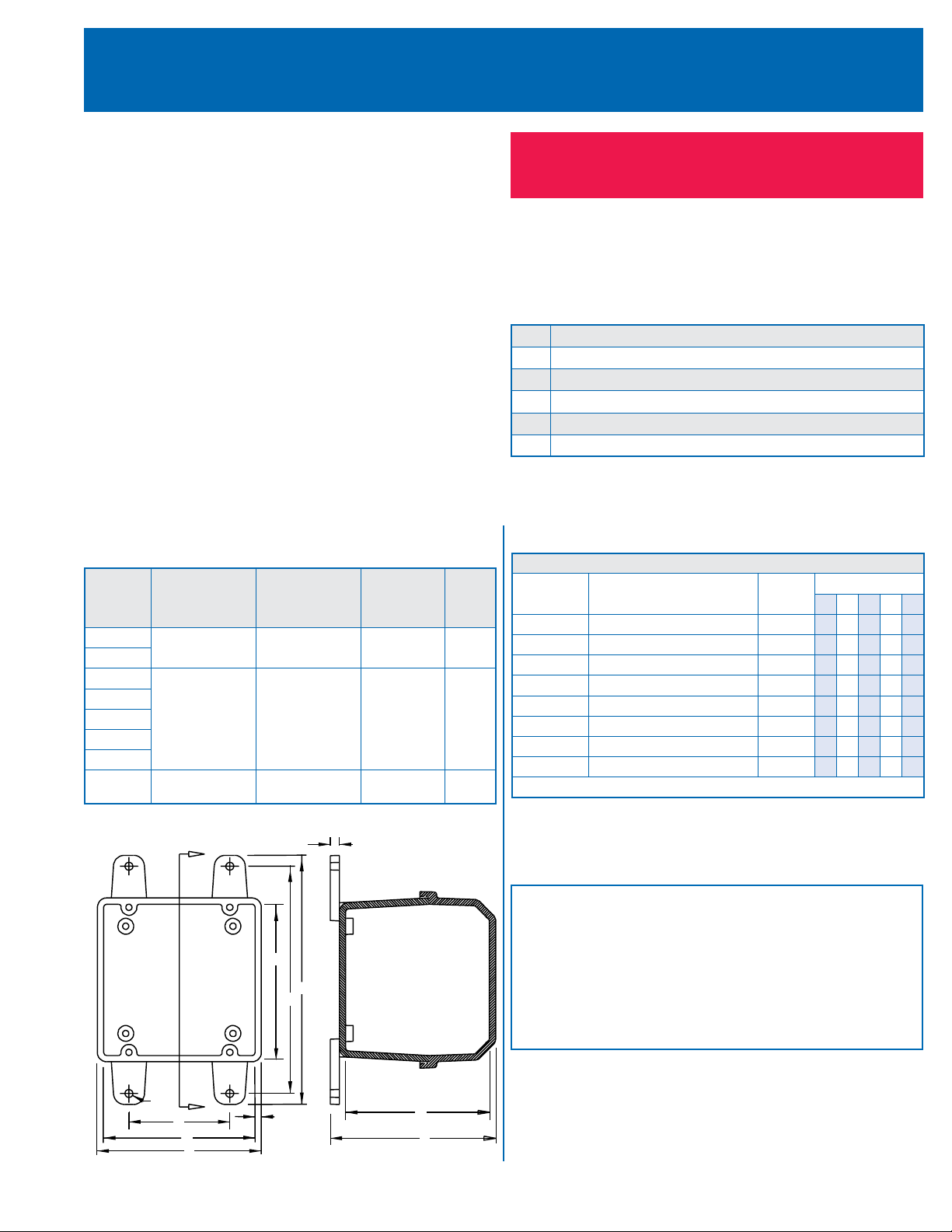

PLAN VIEW SHOWN
LESS COVER FOR CLARITY
SECTION
.36
.312
TYP
TYP
.250
E
B
W
C
D
A
F
H
Model
Overall Outside
Dimensions
(with brackets)
(H x W x D)
Inside
Dimensions
(A x B x C)
Mounting
Dimensions
(F x E)
Weight
lb (kg)
PDA2407
9.9 x 6.5 x 6.7
(251 x 165 x 170)
6.0 x 6.0 x 5.9
(152 x 152 x 151)
9.0 x 4.0
(228 x 102)
2.4
(1.1)
PDA2408
PDA2409
13.9 x 8.5 x 6.7
(352 x 216 x 170)
10.0 x 8.0 x 5.9
(254 x 203 x 151)
13.0 x 6.0
(330 x 152)
4.1
(1.8)
PDA2410
PDA2411
PDA2412
PDA2414
PDA2415
15.9 x 10.5 x 7.7
(403 x 267 x 195)
12.0 x 10.0 x 6.9
(305 x 254 x 176)
15.0 x 8.0
(381 x 203)
5.6
(2.5)
Disclaimer
The inform ation contained in this document is subj ect to c hange without notice. Precision Digital
Corporation makes no representati ons or warranties with respect to the contents hereof, and
specically disclai ms any implied warranties of merchantabilit y or tness for a part icular pur pose.
©200 9 Precis ion Digit al Corporation. A ll right s reser ved.
Your Local Distributor is:
FOR PRECISION DIGITAL METERS
ENCLOSURE DIMENSIONS
Note: All dimensions are in inches and millimeters (mm)
Precision Digital corPoration
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 2
INTERNALLY MOUNTED PLASTIC NEMA 4X ENCLOSURES
PDA2407
PDA2412
PDA2414
PDA2415
PDA2408 PDA2409 PDA2410
PDA2411
LOW OIL
PRESSURE
LOW OIL
TEMPERATURE
HIGH GAS
PRESSURE
LOW GAS
PRESSURE
ACKNOWLEDGE
POWER
FOR PRECISION DIGITAL METERS

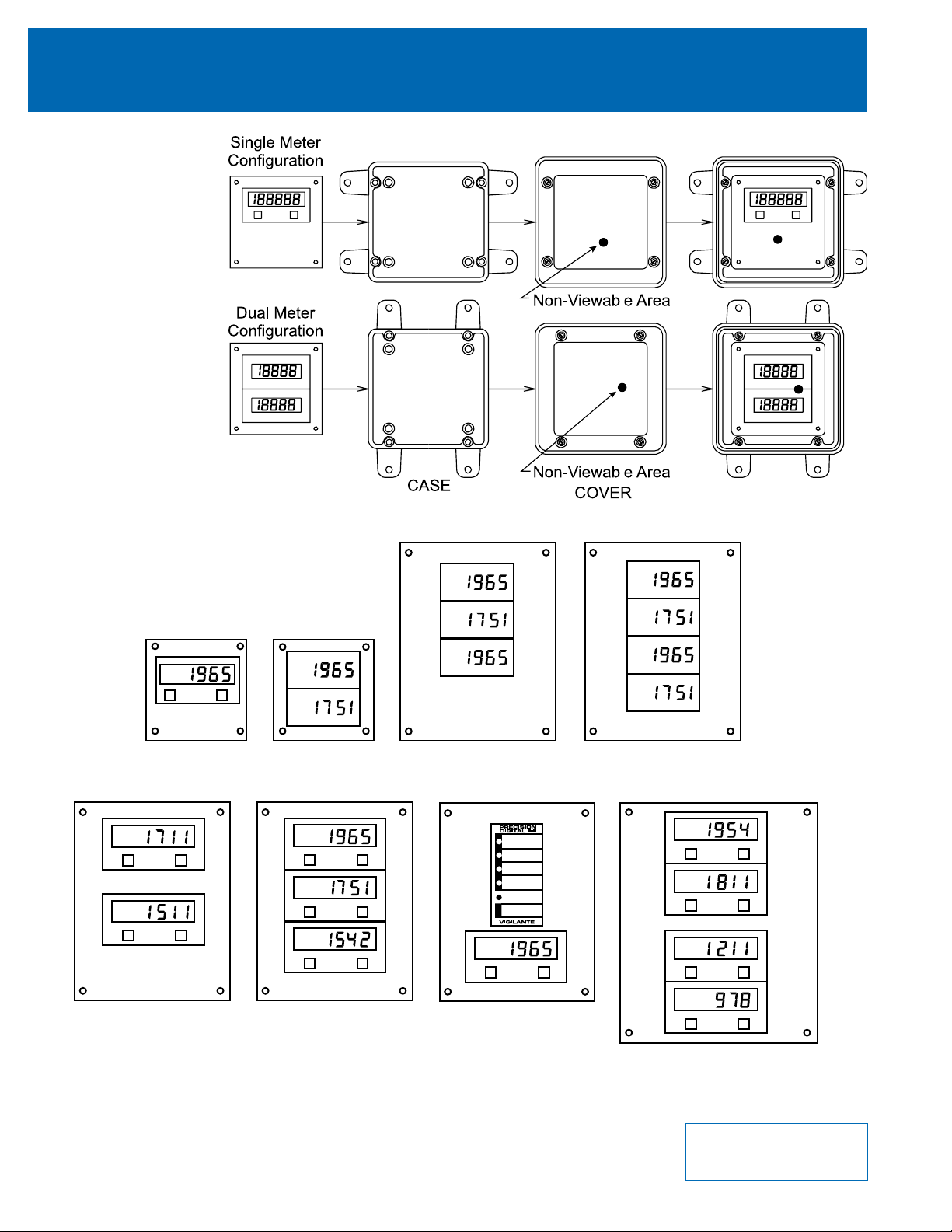

NOTES:
Prior to drilling the hole for 1.
the conduit, align the display
for best viewing through
clear cover as shown.
Position the meter(s) such 2.
that the nonviewable area
does not obstruct the
displays.
Prior to drilling the hole 3.
for the conduit, consider
the following: The dual
meter conguration
may be used for a single
meter in the event that an
additional meter is installed
in the future. This will
eliminate the need to
re-position the case or
conduit hole.
