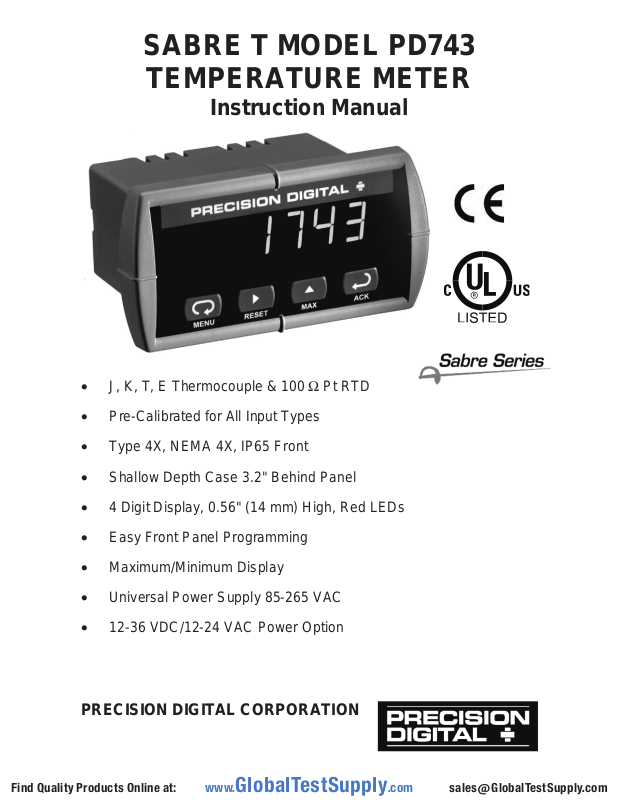

SABRE T MODEL PD743
TEMPERATURE METER
Instruction Manual
• J, K, T, E Thermocouple & 100 Ω Pt RTD
• Pre-Calibrated for All Input Types
• Type 4X, NEMA 4X, IP65 Front
• Shallow Depth Case 3.2" Behind Panel
• 4 Digit Display, 0.56" (14 mm) High, Red LEDs
• Easy Front Panel Programming
Maximum/Minimum Display
•
• Universal Power Supply 85-265 VAC
• 12-36 VDC/12-24 VAC Power Option
PRECISION DIGITAL CORPORATION
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 2
Sabre T Model PD743 Temperature Meter Instruction Manual
Disclaimer
The information contained in this document is subject to change
without notice. Precision Digital makes no representations or warranties with respect to the contents hereof, and specifically disclaims
any implied warranties of merchantability or fitness for a par ticular
purpose.
© 2010-2016 Precision Digital Corporation. All rights reserv ed.
INTRODUCTION

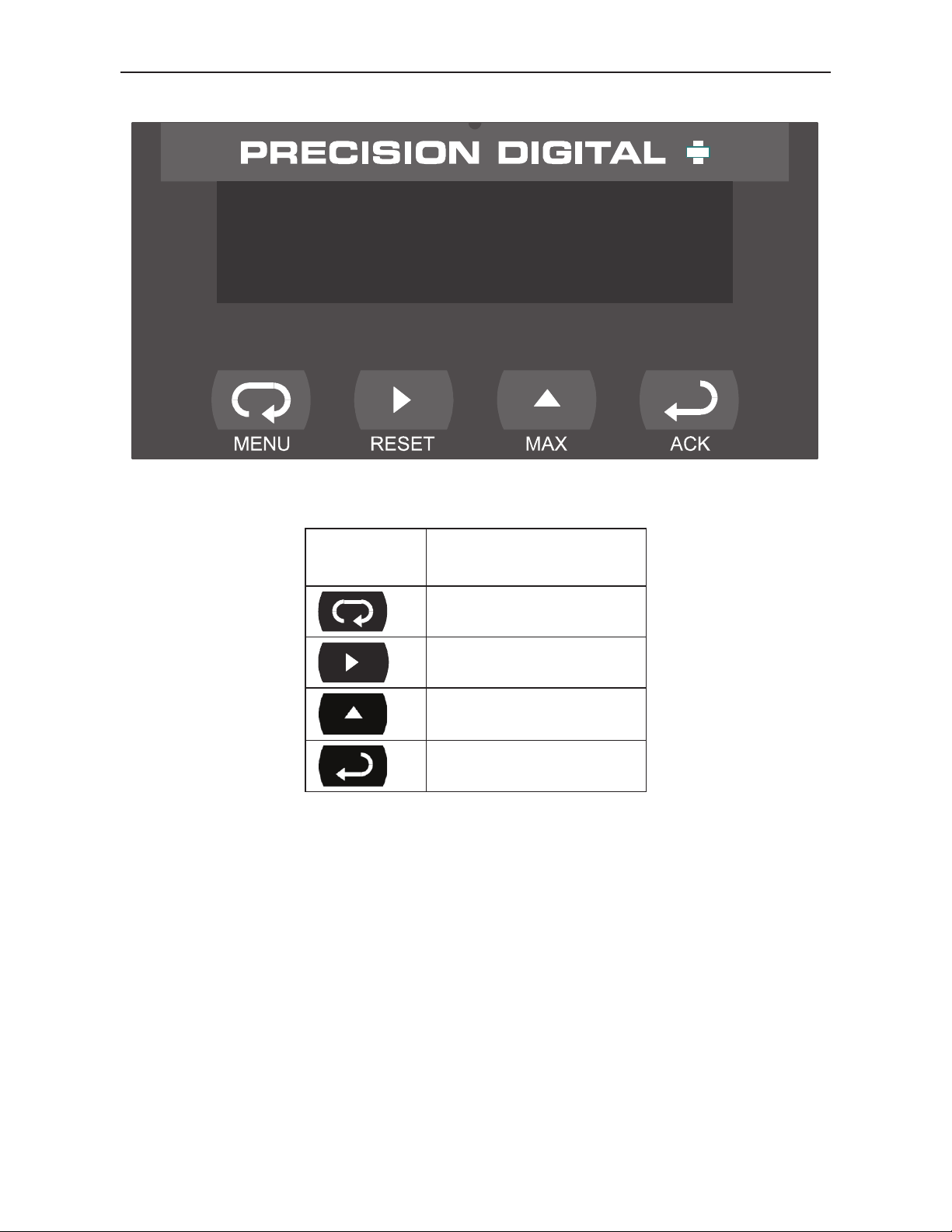

The Sabre T model PD743 is an easy-to-use te mperature meter. It accepts
type J, K, T, E thermocouple and 100 Ω platinum RTD sensors. The four
front panel buttons make the setup and programming an easy task.
ORDERING INFORMATION
85-265 VAC*
12-36 VDC*
Description
Model
PD743-6R0-0 PD743-7R0-0 Temperature Meter
*All models may be powered from AC or DC, see Specifications for details.
Model
NEMA 4 & NEMA 4X Enclosures
Model # of
Description Mounting
Meters
PDA2500 1 - 6 Plastic NEMA 4X Enclosure Through Door
PDA2600 1 - 6 Stainless Steel NEMA 4X Enclosure Through Door
PDA2700 1 - 6 Steel NEMA 4 Enclosure Through Door
PDA2801 1 Plastic NEMA 4X Enclosure Through Cover
2

Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 3
Sabre T Model PD743 Temperature Meter Instruction Manual
setu
prog
pass
Table of Contents
INTR
UCTION ------------------------------------------------------------ 2
OD
ORDERING INFORMATION --------------------------------------------- 2
SPECIFICATIONS ---------------------------------------------------------- 5
General ------------------------------------------------------------------------------- 5
Temperature Inputs -------------------------------------------------------------- 6
COMPLIANCE INFORMATION ----------------------------------------- 7
Safety --------------------------------------------------------------------------------- 7
Electromagnetic Compatibility ----------------------------------------------- 7
SAFETY INFORMATION ------------------------------------------------- 8
INSTALLATION ------------------------------------------------------------- 9
Unpacking --------------------------------------------------------------------------- 9
Panel Mounting -------------------------------------------------------------------- 9
Connections ---------------------------------------------------------------------- 10
Connector Labeling ---------------------------------------------------------- 10
Power Connections ---------------------------------------------------------- 10
Signal Connections ---------------------------------------------------------- 11
SETUP AND PROGRAMMING ---------------------------------------- 14
Front Panel Buttons and Status LED Indicators --------------------- 15
Display Functions and Messages ----------------------------------------- 16
Main Menu ------------------------------------------------------------------------ 17
Setting Numeric Values ------------------------------------------------------ 18
Setting Up the Meter (
Setting the Input Signal (inpt) -------------------------------------------- 19
Setting the Temperature Scale (F C) ---------------------------------- 20
Programming the Meter (
Recalibrating Temperature Inputs (Cal) -------------------------------- 21
Setting Up the Password (
Locking the Meter ------------------------------------------------------------ 24
Unlocking the Meter ---------------------------------------------------------- 24
) ------------------------------------------------- 18
) --------------------------------------------- 21
) ------------------------------------------- 24
OPERATION ---------------------------------------------------------------- 26
Front Panel Buttons Operation -------------------------------------------- 26
Maximum/Minimum Readings ---------------------------------------------- 27
MOUNTING DIMENSIONS ---------------------------------------------- 28
TROUBLESHOOTING ---------------------------------------------------- 29
3
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 4
Sabre T Model PD743 Temperature Meter Instruction Manual
Troubleshooting Tips --------------------------------------------------------- 29
QUICK USER INTERFACE REFERENCE GUIDE ---------------- 30
EU DECLARATION OF CONFORMITY ----------------------------- 31
Table of Figures
Figure 1. Panel Cutout and Mounting ................................................. 9
Figure 2. Connector Labeling ............................................................ 10
Figure 3. Power Connections ............................................................ 10
Figure 4. Thermocouple Input Connections .................................... 11
Figure 5. Three-Wire RTD Input Connections .................................. 12
Figure 6. Two-Wi re RTD Input Connections ..................................... 12
Figure 7. Four-Wire RTD Input Connections .................................... 13
Figure 8. Meter Dimensions - Side View ........................................... 28
Figure 9. Case Dimensions - Top View ............................................. 28
4
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 5
Sabre T Model PD743 Temperature Meter Instruction Manual
SPECIFICATIONS
Except where noted all specifications apply to operation at +25°C.
General
DISPLAY 0.56" (14 mm) high, red LED
Four digits, automatic lead zero blanking.
DISPLAY
UPDATE RATE
OVERRANGE
UNDERRANGE
PROGRAMMING
METHODS
RECALIBRATION All ranges are calibrated at the factory. Recalibration is
MAX/MIN
DISPLAY
PASSWORD Programmable password restricts modification of
NON-VOLATILE
MEMORY
POWER
OPTIONS
RTD: 5/second
Thermocouple: 2.5/second
Display flashes
Display flashes
Four front panel buttons
recommended at least every 12 months.
Max/min readings reached by the process are stored until
reset by the user or until power to the meter is turned off.
programmed settings.
All programmed settings are stored in non-volatile memory
for a minimum of ten years if power is lost.
85-265 VAC, 50/60 Hz; 90-265 VDC, 8 W max
or 12-36 VDC, 12-24 VAC, 6 W max
9999
-1999
FUSE Required fuse: UL Recognized, 5 A max, slow blow
Up to 6 meters may share one 5 A fuse
NORMAL MODE
REJECTION
ISOLATION 4 kV input-to-power line
OVERVOLTAGE
CATEGORY
ENVIRONMENTAL Operating temperature range: 0 to 65°C
CONNECTIONS Removable screw terminal blocks accept 12 to 22 AWG
ENCLOSURE 1/8 DIN, high impact plastic, UL 94V-0, color: gray
MOUNTING 1/8 DIN panel cutout required. Two panel mounting
64 dB at 50/60 Hz
Installation Overvoltage Category II:
Local level with smaller transient overvoltages than Installation Overvoltage Category III.
Storage temperature range: -40 to 85°C
Relative humidity: 0 to 90% non-condensing
wire, RJ11 for factory use only.
bracket assemblies provided
5
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 6
Sabre T Model PD743 Temperature Meter Instruction Manual
TIGHTENING
TORQUE
OVERALL
DIMENSIONS
WEIGHT 8.5 oz (241 g)
WARRANTY 1 year parts & labor
EXTENDED
WARRANTY
Screw terminal connectors: 5 lb-in (0.56 Nm)
2.45" x 4.68" x 3.79" (62 mm x 119 mm x 96 mm)
(H x W x D)
1 or 2 years, refer to the Price List for details.
Temperature Inputs
INPUTS Field selectable: Type J, K, T, or E thermocouples;
100 Ω platinum RTD (0.00385 or 0.00392 curve)
RESOLUTION
ACCURACY
Input Type Range Accuracy
1° for all thermocouples and RTD inputs
1° or 0.1° for Type T thermocouple
Type J
Type K
Type T
Type T
0.1° Res
Type E
100 Ω RTD
COLD
JUNCTION
REFERENCE
TEMPERATURE
DRIFT
-58° to 1382° F
-50° to 750°C
-58° to 2300° F
-50° to 1260°C
-292° to 700° F
-180° to 371°C
-199.9° to 700.0° F
-180.0° to 371.0°C
-58° to 1700° F
-50° to 927°C
-328° to 1382°
-200° to 750°C
Automatic, fixed, no user calibration needed
±2°C maximum
0 to 65°C ambient temperature
F
±2°F
±1°C
±2°F
±1°C
±2°F
±1°C
±1.8°F
±1.0°C
±2°F
±1°C
±1°F
±1°C
INPUT
IMPEDANCE
Find Quality Products Online at: [email protected]
Greater than 100 kΩ
6
www.GlobalTestSupply.com
Page 7
Sabre T Model PD743 Temperature Meter Instruction Manual
COMPLIANCE INFORMATION
Safety
UL LISTED USA and Canada
UL 508 Industrial Control Equipment
UL FILE NUMBER E160849
FRONT PANEL UL Type 4X, NEMA 4X, IP65; panel gasket provided
LOW VOLTAGE
DIRECTIVE
EN 61010-1:2010
Safety requirements for measurement, control, and
laboratory use
Electromagnetic Compatibility
EMISSIONS
Radiated
Emissions
AC Mains Conducted Emissions
IMMUNITY
RFI - Amplitude
Modulated
EN 55011:2009+A1:2010
Group 1 Class A ISM emissions requirements
Class A
Class A
EN 61326-1:2013
Measurement, control, and laboratory equipment
EN 61000-6-2:2005
EMC heavy industrial generic immunity standard
80 -1000 MHz 10 V/m 80% AM (1 kHz)
1.4 - 2.0 GHz 3 V/m 80% AM (1 kHz)
2.0 - 2.7 GHz 1 V/m 80% AM (1 kHz)
Electrical Fast
Transients
Electrostatic
Discharge
RFI - Conducted
AC Surge
Surge
Power-Frequency
Magnetic Field
Voltage Dips
Voltage
Interruptions
±2kV AC mains, ±1kV other
±4kV contact, ±8kV air
10V, 0.15-80 MHz, 1kHz 80% AM
±2kV Common, ±1kV Differential
1KV (CM)
30 A/m 70%V for 0.5 period
40%V for 5 & 50 periods
70%V for 25 periods
<5%V for 250 periods
7
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 8
Sabre T Model PD743 Temperature Meter Instruction Manual
Note:
Testing was conducted on PD743 meters installed through the covers of grounded metal enclosures with cable shields grounded at
the point of entry representing installations designed to optimize
EMC performance.
Declaration of Conformity available at www.predig.com
SAFETY INFORMATION
!
CAUTION: Read complete
instructions prior to installation and operation of the
meter.
WARNING
Hazardous voltag
should be performed only by trained service personnel.
es exist within enclosure. Installation and service
WARNING: Risk of
electric shock.
8
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 9
Sabre T Model PD743 Temperature Meter Instruction Manual
INSTALLATION
There is no need to remove the meter from its case to complete the installation, wiring, and setup of the meter.
Unpacking
Remove the meter from box. Inspect the packaging and contents for damage. Report damages, if any, to the carrier.
If any part is missing or the meter malfunctions, please contact
your supplier or the factory for assistance.
Panel Mounting
• Prepare a standard 1/8 DIN panel cutout – 3.622" x 1.772" (92 mm
x 45 mm). Refer to Mounting Dimensions, page 28 for more details.
• Clearance: allow at least 4" (102 mm) behind the panel for wiring.
• Panel thickness: 0.04" - 0.25" (1.0 mm - 6.4 mm).
Recommended minimum panel thickness to maintain Type 4X
rating: 0.06" (1.5 mm) steel panel, 0.16" (4.1 mm) plastic panel.
• Remove the two mounting brackets provided with the meter (back-off
the two screws so that there is ¼" (6.4 mm) or less through the
bracket. Slide the bracket toward the front of the case and remove).
• Insert meter into the panel cutout.
• Install mounting brackets and tighten the screws against the panel.
To achieve a proper seal, tighten the mounting bracket screws
evenly until meter is snug to the panel along its short side. DO NOT
OVER TIGHTEN, as the rear of the panel may be damaged.
1.772"
B
(45mm)
A
3.622" (92mm)
Square Corners to 0.060"
(1.5mm) Max Radius
Panel Cutout
to DIN 43700
Tolerances:
A: +0.032 (+0.8mm)
-0.000 (-0.0mm)
B: +0.024 (+0.6mm)
-0.000 (-0.0mm)
Gasket
Panel
Mounting
Bracket
Removable
Connectors
Mounting
Screw
Figure 1. Panel Cutout and Mounting
9
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 10
Sabre T Model PD743 Temperature Meter Instruction Manual
Connections
All connections are made to removable screw terminal connectors
located at the rear of the meter.
Use copper wire with 60°C or 60/75°C insulat ion
for all line voltage connections. Observe all safety
regulations. Electrical wiring should be performed
in accordance with all applicable natio nal, state,
and local codes to prevent damage to the meter
and ensure personnel safety.
Connector Labeling
The connectors label, affixed to the meter, shows the locat ion of the
connectors. It also identifies the location of the RTD/TC selector switch.
POWER
21
-
RTD
TC
EXC T+XX COM
3412 5
SIGNAL
RTD TC
SWITCH
Factory
Use
Only
+
DW1912
Figure 2. Connector Labeling
Power Connections
Power connections are made to a two-terminal co nne ctor labeled
POWER on Figure 2. The me ter w ill ope rate reg ardle ss of DC polari ty
connection. The + and - symbols are only a sug ges ted w iring con ven tion.
POWER CONNE CTOR
12
+-
AC or DC
POWER
Required External Fuse:
5 A max, Slow Blow
Figure 3. Power Connections
10
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 11
Sabre T Model PD743 Temperature Meter Instruction Manual
Signal Connections
Signal connections are made to a five-terminal connector la beled
SIGNAL on Figure 2. The COM (common) terminal is the return for all
types of input signals.
Thermocouple and RTD Connections
The following figures show examples for thermocouple and RTD connections.
The RTD/TC selector switch must be set to the proper position for the
meter to accept the selected temperature input.
The input type is selected using the Setup menu.
The selected thermocouple input must correspond to thermocouple sen-
sor and wire type used.
SIGNAL CONNECTOR
COMXXT+EXC
21 354
Factory
RTD TC
Use Only
+
-
TC
Switch
Position
Figure 4. Thermocouple Input Connections
X = No connection
11
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 12
Sabre T Model PD743 Temperature Meter Instruction Manual
SIGNAL CONNE CTOR
XT+
EXC
21 354
COMX
Factory
RTD TC
Use Only
Switch
RTD
Position
Sensor
Figure 5. Three-Wire RTD Input Connections
The meter accepts two, three, or four-wire RTDs. The three-wire RTD
connection has built-in lead wire compensation.
SIGNAL CONNECTOR
COMXXT+EXC
21 354
RTD TC
Factory
Use Only
Switch
RTD
Position
Sensor
Figure 6. Two-Wi re RTD Input Connections
12
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 13
Sabre T Model PD743 Temperature Meter Instruction Manual
SIGNAL CONNECTOR
COMXXT+EXC
21 354
Factory
RTD TC
Use Only
RTD
Sensor
NC
Switch
Position
Figure 7. Four-Wire RTD Input Connections
The four-wire RTD connection is similar to the three-wire. One of the
leads of a four-wire RTD is not connected, and may be clipped off.
The three-wire connection provides sufficient lead wire compensation to
provide accurate readings even with long leads.
13
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 14
Sabre T Model PD743 Temperature Meter Instruction Manual
SETUP AND PROGRAMMING
• There is no need to recalibrate the meter
when first received from the factory.
• The meter is factory calibrated prior to ship-
ment, for all input types, in degrees Fahrenheit. The calibration equipment is certified to
NIST standards.
Overview
There are no jumpers involved in the setup process of the meter. T he
RTD/TC selector switch, located bet ween the SIGNAL and RJ11 connectors, must be set accordingly for the meter to accept RTD or thermocouple inputs, Figure 2.
Setup and programming is done through the front panel buttons.
After power and signal connections have been completed and ver ified,
apply power to the meter.
For
Quick User Interface Reference Guide
go to page 30
14
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 15
Sabre T Model PD743 Temperature Meter Instruction Manual
Front Panel Buttons and Status LED Indicators
1743
Button
Symbol
• Press the Menu button to enter or exit the Programming Mode at
any time.
• Press the Right arrow button to move to the next digit during digit
programming.
• Press the Up arrow button to scroll through the menus, decimal
point, or to increment the value of a digit.
Description
Menu
Right arrow/Reset
Up arrow/Max
Enter/Ack
• Press the Enter/Ack button to access a menu or to accept a setting.
15
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 16
Sabre T Model PD743 Temperature Meter Instruction Manual
Display Functions and Messages
The meter displays various functions and messages during setup/programming and operation. The following table shows the displayed functions and messages with their action/setting description.
Display Parameter Action/Setting
setu
inpt
rtd
a385
A392
tC
0 J
1 k
2 T
3 t.0
4 E
f C
°F
°C
prog
Setup
Input
RTD
Alpha 385
Alpha 392
TC
0 J
1 K
2 T
3 T.0
4 E
°
F or °C
°
F
°
C
Program
Enter Setup menu
Enter Input menu
Set meter for RTD input
Set α = 0.00385 European curve 100Ω RTD
Set α = 0.00392 American curve 100Ω RTD
Set meter for TC input
Type J
Type K
Type T
Type T, 0.1° resolution
Type E
Set temperature scale
Set meter to Fahrenheit
Set meter to Celsius
Enter the Program menu
pass
9999
-1999
open
Cal
inp1
dis1
inp2
dis2
err
unlC
loCd
Calibrate
Input 1
Display 1
Input 2
Display 2
Error
Password
Unlocked
Locked
Flashing dis-
play
Enter the Calibrate menu
Calibrate input 1 signal
Program display 1 value
Calibrate input 2 signal
Program display 2 value
Error, calibration not successful, check signal
Enter the Password menu
Program password to lock meter
Enter password to unlock meter
Overrange condition
Underrange condition
Open TC or RTD sensor
16
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 17
Sabre T Model PD743 Temperature Meter Instruction Manual
1743 setu prog pass
Main Menu
The main menu consists of the following functions: Setup, Program, and
Password.
• Press Menu button to enter Programming Mode then press Up ar-
row button to scroll main menu.
Run
Mode
• Press Menu, at any time, to exit and return to Run Mode. Changes
made to settings prior to pressing Enter/Ack are not saved.
• Changes to the settings are saved to memory only after pressing
Enter/Ack.
• The display moves to the next menu every time a setting is ac-
cepted by pressing Enter/Ack.
17
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 18
Sabre T Model PD743 Temperature Meter Instruction Manual
setu
0012 0022 0032
setu inpt F C
Setting Numeric Values
The numeric values are set using the Right and Up arrow buttons.
Press Right arrow to select next digit and Up arrow to increment digit
value.
The digit being changed is displayed brighter than the rest.
Press the Enter/Ack button, at any time, to accept a setting or Menu
button to exit without saving changes.
Increment Digit
Value
Next
Setting
Select Next Digit Accept Setting
Setting Up the Meter (
The Setup menu is used to select:
1. Input signal the meter will accept
2. Units (°F or °C) for temperature inputs
Press the Enter/Ack button to access any menu or press Up arrow button to scroll through choices. Press the Menu button to exit at any time.
)
18
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 19
Sabre T Model PD743 Temperature Meter Instruction Manual
inpt
A385
A392
rtd tC
a385
a392
0 j
1 k
2 t
3 t.0
4 e
inpt
Setting the Input Signal (
Enter the Input menu to set up the meter to display thermocouple (tC)
or RTD (
rtd) inputs.
)
Press Enter/Ack to
Make Selections
Press Up Arrow to
Scroll Through Choices
J
K
Press Menu to
Exit at any Ti me
If RTD is selected, the display shows
cient to match the RTD sensor, either 0.00385 (European curve) or
0.00392 (American curve).
If TC is selected, scroll through the thermocouple types and select the
type matching the TC sensor.
The input signal must be connected to the appropriate input terminals
and the RTD/TC selector switch must be set accordingly, see Figure 4
on page 11.
For thermocouple inputs, allow at
least 30 minutes warm-up time for
meter to reach specified accuracy.
T
T.1
E
or
. Select the coeffi-
19
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 20
Sabre T Model PD743 Temperature Meter Instruction Manual
F C
f C
o
f
o
C
Setting the Temperature Scale (
The meter can be set to display temperature in degrees Fahrenheit or
Celsius.
Press
Press
Previous
Up arrow to change selection.
Enter/Ack to accept.
)
Next
20
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 21
Sabre T Model PD743 Temperature Meter Instruction Manual
prog
Cal
prog Cal inp1
inp1 dis1 0032
inp2
Cal
Programming the Meter (
It is very important to read the following information, before proceeding
to program the meter:
•
There is no need to recalibrate the meter when first received from
the factory.
• The meter is factory calibrated prior to shipment, for all input
types, in degrees Fahrenheit. The calibration equipment is c ertified
to NIST standards.
The
Program menu contains the Calibrate menu.
)
Recalibrating Temperature Inputs (
)
Remember, the meter is calibrated at the factory prior to shipment. Recalibration is recommended at least every twelve months.
The
Calibration (CAL) menu is used to recalibrate the thermocouple and
RTD inputs.
See Scaling the Meter for Button
Functions Description
Display
Flashes
Accepting
Input
Allow at least 30 minutes warm-up time be-
fore performing recalibration procedure to
ensure specified accuracy.
Set Display 1
Value
Calibrate
Input 2
21
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 22
Sabre T Model PD743 Temperature Meter Instruction Manual
Err
Error Message (
)
An error message indicates that the calibration process was not successful.
After the error message is displayed, the meter reverts to input 1, allowing the appropriate input signals to be applied.
The error message might be caused by any of the following conditions:
1. Input signal is not connected to the proper terminals or it is connected backwards.
2. Wrong signal selection in
Setup menu.
3. Minimum input span requirements not maintained.
4. Input 1 signal inadvertently applied to calibrate input 2.
Minimum Input Span
The minimum input span is the minimum difference between input 1 and input 2 signals required to complete the calibration of the meter.
Input range Input 1 & input 2 span
TC
RTD
°F (56°C)
100
°F (28°C)
50
22
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 23
Sabre T Model PD743 Temperature Meter Instruction Manual
Recommended Calibration Points
To recalibrate the meter, it is recommended to use the Fahrenheit scale;
this will give a greater degree of accuracy to the calibration. T he scale
can be changed to the Celsius scale after calibration is completed. The
meter will display temperature accurately in any scale. The follo wing table shows the recommended low and high calibration points for all
types.
Type of input
Type J T/C
Type K T/C
Type T T/C
Type T T/C
Type E T/C
100 Ω RTD
(0.00385)
100 Ω RTD
(0.00392)
Input 1
(Low)
32°F 1182°F 600°F
32°F 1893°F 960°F
32°F 693°F 360°F
32.0°F 693.0°F 360.0°F
32°F 1652°F 840°F
32°F
100Ω
32°F
100Ω
Input 2
(High)
1148°F
320.12Ω
1127°F
320.89Ω
Check
(Middle)
590°F
215.61Ω
580°F
215.87Ω
Recalibration Procedure for Temperature Inputs
1. Connect signal to the meter using the appropriate wire (e.g.
type J thermocouple wire to recalibrate type J input), see page
11.
2. Set up the meter to accept the selected input (e.g. type J T/C),
see page 19.
3. Set up the meter to display temperature in degrees Fahrenheit,
see page 20.
4. Apply signal corresponding to input 1 (e.g. 32°F) and program
display 1 to read 32.
5. Apply signal corresponding to input 2 (e.g. 1182°F for type J)
and program display 2 accordingly.
6. After the meter accepts input 2, the display flashes the message
CJr, indicating that the meter is sensing the cold junction
reference. This completes the recalibration proced ure for the
selected input.
23
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 24
Sabre T Model PD743 Temperature Meter Instruction Manual
pass
pass unlC 0000
loCd
pass loCd 0000
unlC
Setting Up the Password (
The Password menu is used to program a four-digit password to prevent unauthorized changes to the programmed parameter settings.
)
Locking the Meter
Enter the Password menu and program a four-digit password.
For instructions on how to program numeric values see
Values
, page 18.
Run Mode
Program
Password
Setting Numeric
Record the password for future reference. If appropriate, it may be recorded in the space provided.
Model:
Serial Number:
Password: __ __ __ __
Unlocking the Meter
If the meter is password protected, the correct password must be entered in order to make changes to the parameter settings.
Run Mode
Enter
Password
24
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 25
Sabre T Model PD743 Temperature Meter Instruction Manual
Entering the correct four-digit number sets the password to 0000, disabling the protection.
Changes to the programmed parameter settings are allowed onl y with
the password set to 0000.
If the password entered is incorrect, the meter displays
LoCd (Locked)
for about two seconds, then it returns to Run Mode. To try again, press
Enter/Ack while the Locked message is displayed.
Forgot the Password?
The password may be disabled by the following
procedure:
1. Note display reading prior to pressing the Menu
button. Ignore decimal point and sign.
2. Access the Password menu, add 2 to the noted
reading and enter that number as the password
(e.g. display reading = -1.23, password = 0125).
25
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 26
Sabre T Model PD743 Temperature Meter Instruction Manual
OPERATION
The temperature inputs are displayed according to the input type and
temperature units (°F or °C) selected. Type T thermocouples can be displayed with either 1° or 0.1° resolution.
Front Panel Buttons Operation
Button
Symbol
Description
Press to enter or exit Programming Mode,
view settings,
or exit Max/Min readings
Press to reset Max/Min readings
Press to display Max/Min readin
gs
alternately
Press to display Max/Min reading
indefinitely while displaying Max/Min
26
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 27
Sabre T Model PD743 Temperature Meter Instruction Manual
958 Hi lo
1743 740
Maximum/Minimum Readings
The main function of the front panel buttons during operation is to display the maximum and minimum readings reache d by the process.
Actual
Reading
Press Up to Display and
Toggle Max/Min
Press Enter to Hold Max/Min
Press Right to Reset Max/Min
Press Menu to Exit Max/Min
1. Press
last reset/power-up.
2. Press
the last reset/power-up.
3. Press
continue to track new Max/Min readings.
4. If
out after ten seconds and the meter will return to display the actual
reading.
5. Press
being displayed. Max/ Min display readings are reset to actual
reading.
Up arrow/Max button to display maximum read ing since the
Up arrow/Max again to display the minimum reading since
Enter/Ack to hold Max/Min display reading, the met er will
Enter/Ack is not pressed, the Max/Min display reading will time
Right arrow/Reset button to reset Max/ Min while reading is
27
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 28
Sabre T Model PD743 Temperature Meter Instruction Manual
MOUNTING DIMENSIONS
1.76"
(45mm)
2.45"
(62mm)
0.59"
(15mm)
3.2"
(81mm)
Figure 8. Meter Dimensions - Side View
Figure 9. Case Dimensions - Top View
28
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 29
Sabre T Model PD743 Temperature Meter Instruction Manual
TROUBLESHOOTING
The rugged design and the user-friendly interface of the meter should
make it unusual for the installer or operator to refer to this section of the
manual.
Troubleshooting Tips
Symptom Check/Action
No display at all
Not able to change setup or pro-
gramming, LoCd is displayed
Meter displays error message dur-
ing calibration (err)
Meter displays
• open
• 9999
• -1999
• Displays negative number,
not responding to RTD.
Display alternates between
1. Hi and a number
2. Lo and a number
Inaccurate temperature reading
If the display locks up or the meter
does not respond at all
Other symptoms not described
above
Check power at power connector
Meter is locked, enter correct four-digit
password to unlock
Check:
1. Signal connections
2. Input selected in Setup menu
3. Minimum input span requirements
Check:
1. Input selected in Setup menu
2. TC/RTD Switch position
3. Corresponding signal at Signal
connector
Press Menu to exit Max/Min
display readings.
Check:
1. Temperature units (°F or °C)
2. TC type or RTD curve selected
3. Type of TC wire used
4. Calibration
Cycle the power to restart the
microprocessor.
Call Technical Support for
assistance.
29
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 30
Sabre T Model PD743 Temperature Meter Instruction Manual
QUICK USER INTERFACE REFERENCE GUIDE
Run Mode
Setup
Program
Password
Locked Unlocked
Calibrate
Display
Max/Min
Input
RTD
TC
A385
A392
Type J
Type K
Type T
Type T.0
Type E
F or C
F
C
To Program
30
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 31
EU DECLARATION OF CONFORMITY
Issued in accordance with ISO/IEC 17050-1:2004.
We,
Precision Digital Corporation
233 South Street
Hopkinton, MA 01748 USA
as the manufacturer, declare under our sole responsibility that the product(s),
Model PD743 Sabre Temperature Meter
to which this declaration relates, is in conformity with the European Union Directives shown
below:
2014/35/EU Low Voltage Directive
2014/30/EU EMC Directive
2011/65/EU RoHS Directive
This conformity is based on compliance wit h the application of harmonized or applicable
technical standards and, when applicable or required, a European Union notified body
certification.
Standards:
EN 55011:1998
EN 61000-6-2:2001
EN 61010-1:1995
EN 61326:2006
The standards EN 55011:1998, EN 61000-6-2:2001, EN 61010-1:1995, and EN
61326:2006 are no longer harmonized. The requirements of these standards have been
checked against the harmonized standards EN 55011:2009+A1:2010, EN 61000-62:2005, EN 61010-1:2010, and EN 61326:2013 and t here were no major technical
changes affecting the latest technical knowledge for the products listed above.
Product Markings:
Signed for and on behalf of Precision Digital Corporation:
Name: Jeffrey Peters
Company: Precision Digital Corporation
Titl
e: President
Date: 04/20/2016
Document No: DoC PD743 {042016}
