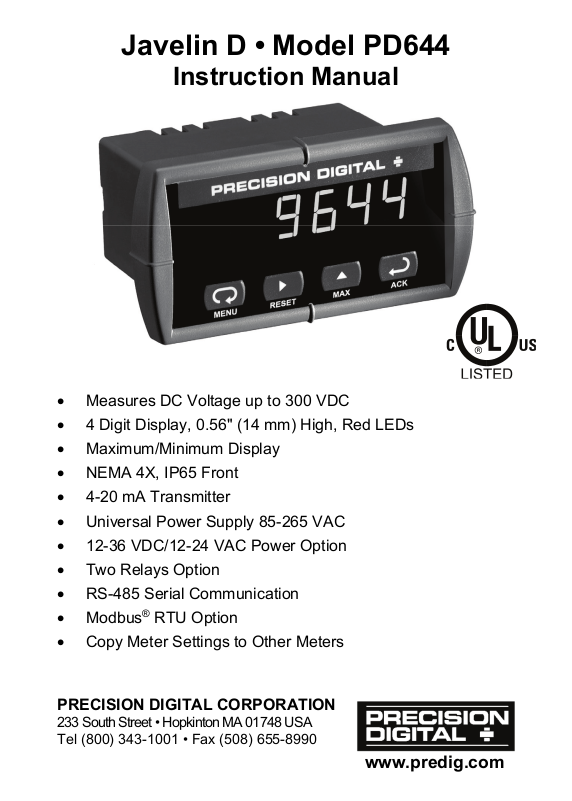

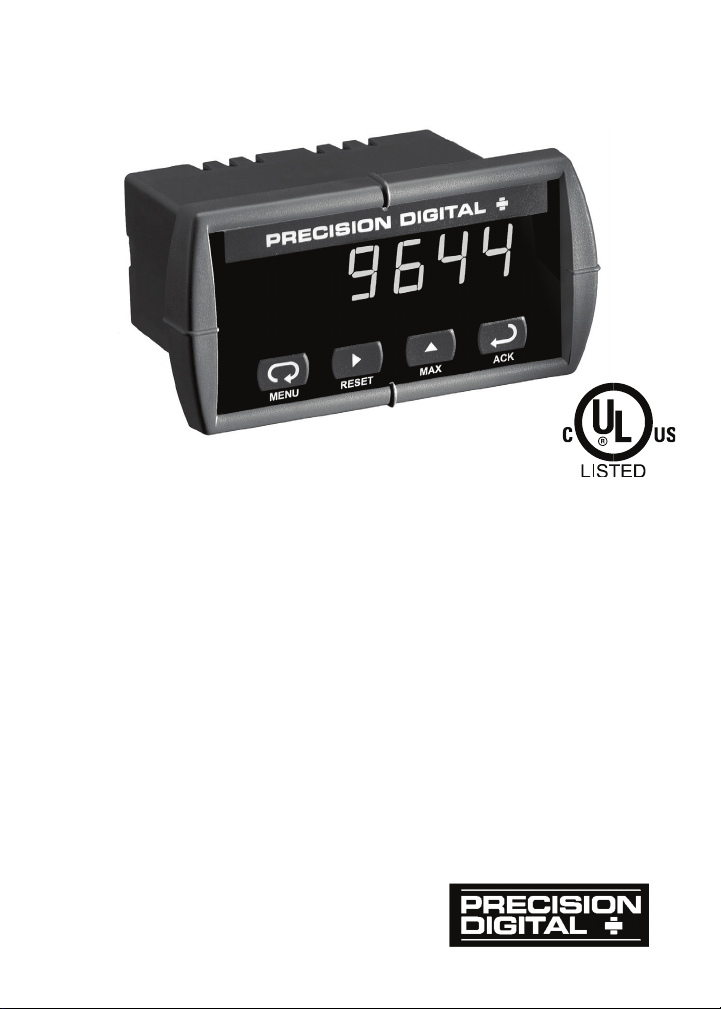

Javelin D • Model PD644

Instruction Manual

• Measures DC Voltage up to 300 VDC

• 4 Digit Display, 0.56" (14 mm) High, Red LEDs

• Maximum/Minimum Display

• NEMA 4X, IP65 Front

• 4-20 mA Transmitter

• Universal Power Supply 85-265 VAC

• 12-36 VDC/12-24 VAC Power Option

• Two Relays Option

• RS-485 Serial Communication

• Modbus

• Copy Meter Settings to Other Meters

RTU Option

PRECISION DIGITAL CORPORATION

233 South Street • Hopkinton MA 01748 USA Tel (800) 343-1001 • Fax (508) 655-8990

www.predig.com

Page 2

Javelin D • Model PD644 Voltmeter Instruction Manual

Disclaimer

The information contained in this document is subject to change without notice. Precision Digital Corporation makes no representations or warranties with respect to the contents hereof, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.

Registered Trademarks

Modbus® is a registered trademark of Schneider Automation Inc. All other trademarks mentioned in this document are the property of their respective owners.

Visit our Web Site

www.predig.com

Page 3

Javelin D ● Model PD644 Voltmeter Instruction Manual

INTRODUCTION

The Javelin D is an easy to use digital voltmeter with built-in 4-20 mA isolated transmitter and RS-485 serial communication capability. The four front panel buttons provide quick and simple setup and programming.

The optional Form C relays can be used for alarm indication or process control applications.

The Modbus Digital Voltmeter to operate as a Modbus

RTU serial communication upgrade enables the Javelin D

slave in RS-485 multi-point

data acquisition systems.

ORDERING INFORMATION

85-265 VAC Model

PD644-6R3-14 24 VDC Transmitter Supply

PD644-6R5-14 2 Relays, 24 VDC Supply

PD644-7R3-04 None

PD644-7R5-04 2 Relays

All models may be powered from AC or DC. See Specifications for details.

Accessories

Model Description

PDN-MODBUS Modbus® RTU upgrade

PDA7485-I RS-232 to RS-422/485 Isolated Converter

PDA7485-N RS-232 to RS-422/485 Non-Isolated Converter

PDA8485-I USB to RS-422/485 Isolated Converter

PDA8485-N USB to RS-422/485 Non-Isolated Converter PDX6901 Suppressor (snubber): 0.01 µF/470 , 250 VAC

12-36 VDC Model

Options Installed

Plastic, steel, and stainless steel NEMA 4 and cast aluminum explosionproof enclosures are available to house up to ten meters.

Visit our web site for details on all accessories.

Page 4

Javelin D ● Model PD644 Voltmeter Instruction Manual

Table of Contents

INTRODUCTION ------------------------------------------------------------ 3 ORDERING INFORMATION--------------------------------------------- 3 SAFETY INFORMATION ------------------------------------------------- 6 SPECIFICATIONS---------------------------------------------------------- 7

General-------------------------------------------------------------------------------7 Voltage Measurement Input--------------------------------------------------- 8 Safety Compliance --------------------------------------------------------------- 8 Relays Option---------------------------------------------------------------------- 9 Isolated 4-20 mA Transmitter Output ------------------------------------ 10 Serial Communications------------------------------------------------------- 10

INSTALLATION ------------------------------------------------------------11

Unpacking------------------------------------------------------------------------- 11 Panel Mounting------------------------------------------------------------------ 11 Connections---------------------------------------------------------------------- 12

Connector Labeling ---------------------------------------------------------- 12 Power Connections ---------------------------------------------------------- 12 DC Voltage Measurement Connections -------------------------------- 13 Serial Communication ------------------------------------------------------- 14 Relay Output Connections ------------------------------------------------- 14 Switching Inductive Loads-------------------------------------------------- 15 4-20 mA Output Signal Connections ------------------------------------ 16

SETUP AND PROGRAMMING ----------------------------------------17

Front Panel Buttons and Status LED Indicators --------------------- 18 Display Functions and Messages----------------------------------------- 19 Main Menu ------------------------------------------------------------------------ 21 Setting Numeric Values ------------------------------------------------------ 22 Setting Up the Meter (setu) ------------------------------------------------- 22

Setting the Relay Operation (rely) -------------------------------------- 23 Relay and Alarm Operation ------------------------------------------------ 26 Scaling the 4-20 mA Analog Output (Aout) ---------------------------- 32 Analog Output when Display is Out of Range------------------------- 32

Programming the Meter (prog)--------------------------------------------- 33

Scaling the Meter (scal)---------------------------------------------------- 34 Calibrating the Meter (Cal)------------------------------------------------- 34 Recalibrating Process Inputs (ICal)------------------------------------- 35

Page 5

Javelin D ● Model PD644 Voltmeter Instruction Manual

Setting Up the Password (pass) ------------------------------------------- 35

Locking the Meter ------------------------------------------------------------ 35 Unlocking the Meter---------------------------------------------------------- 36

Advanced Features Menu---------------------------------------------------- 37

Advanced Features Menu & Display Messages ---------------------- 38 Noise Filter (fltr)------------------------------------------------------------ 39 Noise Filter Bypass (byps) ------------------------------------------------- 39 Serial Communications (serl) -------------------------------------------- 40 Select Menu (SElc) ---------------------------------------------------------- 40 Display Intensity (inty) ----------------------------------------------------- 41 Meter Copy Function (Copy) ----------------------------------------------- 42 Internal Calibration (ICal)-------------------------------------------------- 44

OPERATION ----------------------------------------------------------------46

Front Panel Buttons Operation -------------------------------------------- 46 Maximum and Minimum Readings---------------------------------------- 47

MOUNTING DIMENSIONS----------------------------------------------48 TROUBLESHOOTING----------------------------------------------------49

Diagnostics Menu (diag)----------------------------------------------------- 49

Determining Software Version -------------------------------------------- 49 Factory Defaults & User Settings----------------------------------------- 50

Reset Meter to Factory Defaults ------------------------------------------- 52 Troubleshooting Tips --------------------------------------------------------- 53

USER INTERFACE QUICK REFERENCE GUIDE----------------54

Page 6

Javelin D ● Model PD644 Voltmeter Instruction Manual

Table of Figures

Figure 1. Panel Cutout and Mounting............................................... 11

Figure 2. Power Connections ............................................................12

Figure 3. DC Voltage Signal Connections........................................13

Figure 4. RS-485 Data Bus Connections .......................................... 14

Figure 5. Relay Output Connections ................................................14

Figure 6. AC and DC Loads Protection.............................................15

Figure 7. Low Voltage DC Loads Protection ....................................15

Figure 8. 4-20 mA Transmitter Powered by Meter ........................... 16

Figure 9. 4-20 mA Transmitter Powered Externally.........................16

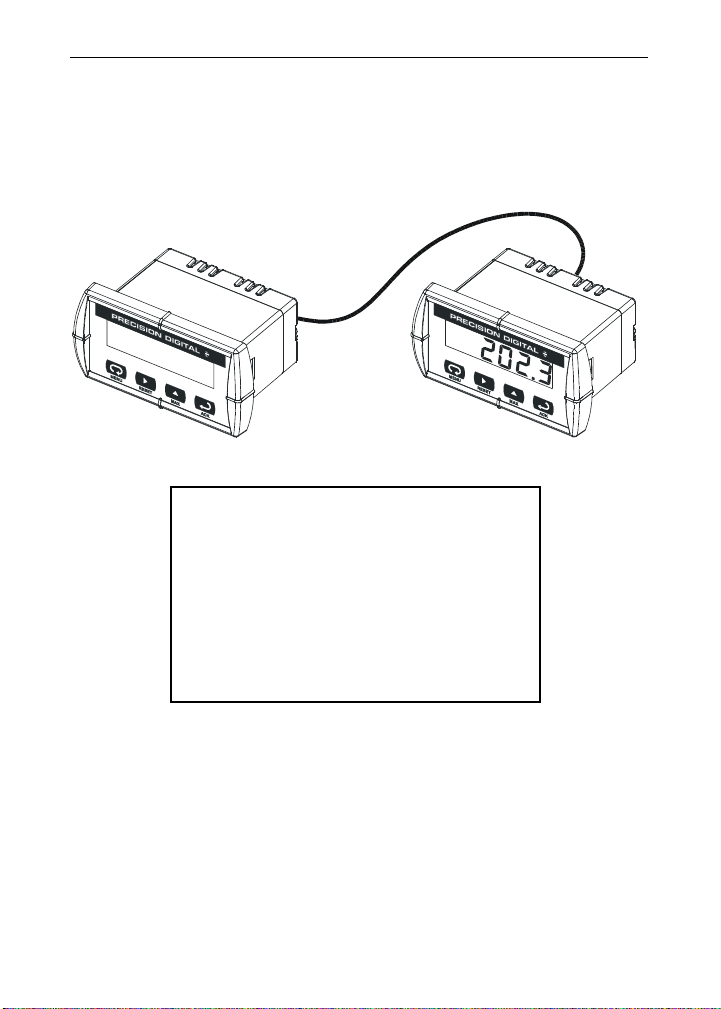

Figure 10. Meter Copy Connection ................................................... 42

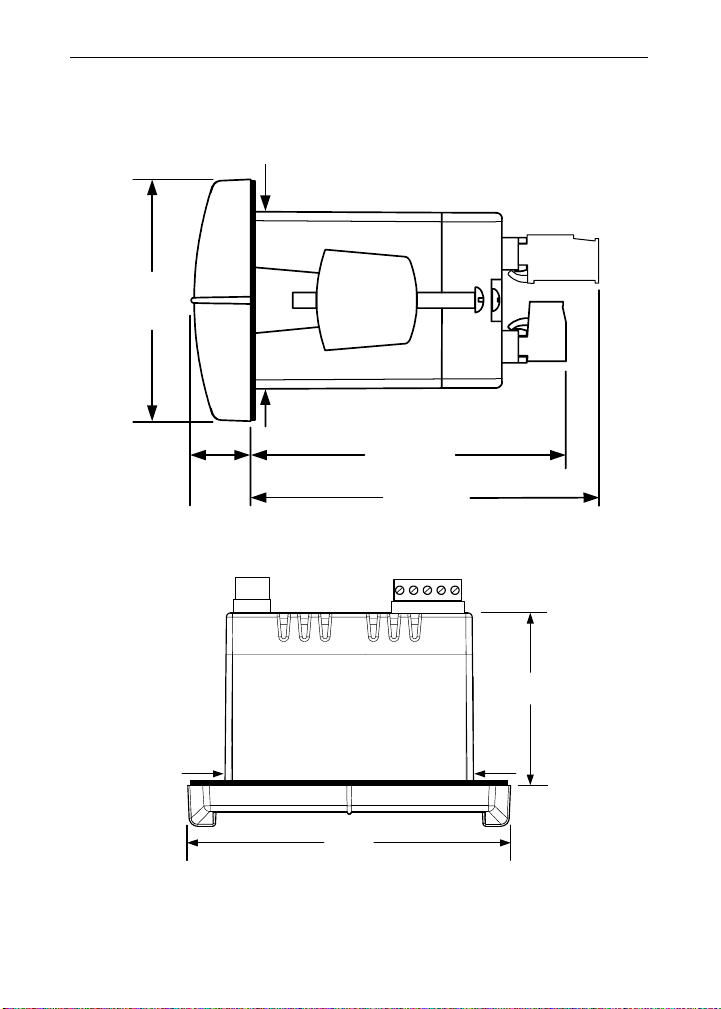

Figure 11. Meter Dimensions – Side View........................................48

Figure 12. Case Dimensions - Top View........................................... 48

SAFETY INFORMATION

CAUTION: Read complete

instructions prior to installation and operation of the meter.

WARNING: Risk of electric shock.

WARNING Hazardous voltages exist within enclosure. Installation and service should be performed only by trained service personnel.

Page 7

Javelin D ● Model PD644 Voltmeter Instruction Manual

SPECIFICATIONS

Except where noted all specifications apply to operation at 77°F (25°C).

General

DISPLAY 0.56" (14 mm) high, red LED

DISPLAY INTENSITY Eight intensity levels

DISPLAY UPDATE RATE

OVERRANGE

UNDERRANGE

PROGRAMMING METHODS

NOISE FILTER Programmable from 2 to 199 (0 will disable filter)

RECALIBRATION All ranges are calibrated at the factory. Recalibration is

MAX/MIN DISPLAY

PASSWORD Programmable password restricts modification of

NON-VOLATILE MEMORY

POWER OPTIONS AC: 85-265 VAC, 50/60 Hz

FUSE Required fuse: UL Recognized, 5 A maximum, slow blow

ISOLATED POWER SUPPLY OPTION

NORMAL MODE REJECTION

ISOLATION 4 kV from mains

Four digits (-1999 to 9999), automatic lead zero blanking.

Minimum of five times per second

Display flashes

9999

-1999

Four front panel buttons, RS-485 interface, or cloning using Copy function

recommended at least every 12 months.

Maximum and minimum measured voltages stored until reset by the user or until power to the meter is turned off.

programmed settings.

All programmed settings are stored in non-volatile memory for a minimum of ten years without power.

Model Watts

DC: 90-265 VDC Optional: 12-36 VDC, 12-24 VAC See table for power consumption (*X: number depends on option)

PD644-6RX-14* 20

PD644-7RX-04 6

Up to 6 meters can share one 5 A fuse

24 VDC ± 10% @ 200 mA

64 dB at 50/60 Hz

500 V from transmitter to other secondary circuits 500 V from 24 VDC supply to other secondary circuits

Page 8

Javelin D • Model PD644 Voltmeter Instruction Manual

ENVIRONMENTAL Operating temperature range: 32 to 150°F (0 to 65°C)

Storage temperature range: -40 to 185°F (-40 to 85°C) Relative humidity: 0 to 90%, non-condensing

CONNECTIONS Removable screw terminal blocks accept 12 to 26 AWG

ENCLOSURE 1/8 DIN, high impact plastic,

MOUNTING 1/8 DIN panel cutout required. Two panel mounting

TIGHTENING TORQUE

OVERALL DIMENSIONS

WEIGHT 9 oz (255 g) (Including options)

WARRANTY 3 years parts and labor

EXTENDED WARRANTY

UL 94V-0, color: gray

bracket assemblies provided.

Screw terminal connectors: 5 lb-in (0.56 Nm)

2.45" x 4.68" x 4.19" (62 mm x 119 mm x 106 mm) (H x W x D)

1 or 2 years, refer to Price List for details

Voltage Measurement Input

INPUT 0 to 300 VDC

ACCURACY ±0.05% of full scale ±1 count

TEMPERATURE DRIFT

DECIMAL POINT Up to three decimal places: d.ddd, dd.dd, ddd.d, or dddd

INPUT IMPEDANCE

CALIBRATION RANGE

50 PPM/°C from 0 to 65°C ambient

Greater than 1 MΩ

n Error message will appear if input 1 and input 2

signals are too close together. Minimum Span: 10 VDC

Safety Compliance

UL LISTED USA and Canada

UL 508 Industrial Control Equipment

UL FILE NUMBER E160849

FRONT PANEL UL Type 4X, NEMA 4X, IP65; panel gasket provided

Page 9

Javelin D ● Model PD644 Voltmeter Instruction Manual

Relays Option

RATING 2 SPDT (form C); rated 3 A @ 30 VDC or 3 A @ 250 VAC

resistive load; 1/14 HP @ 125/250 VAC for inductive loads

ELECTRICAL NOISE SUPPRESSION

A suppressor (snubber) should be connected to each relay contact switching inductive loads, to prevent disruption to the microprocessor’s operation. Recommended suppressor value: 0.01 µF/470 Ω, 250 VAC (Order PDC model number PDX6901).

DEADBAND 0-100% of full scale, user selectable

HIGH OR LOW

User may program any alarm for high or low trip point.

ALARM

RELAY OPERATION

Automatic (non-latching) Latching Alternation control

Modbus

control

RELAY RESET User selectable via front panel buttons or serial

communication

Automatic reset only (non-latching)

Automatic plus manual reset at any time (non-latching)

Manual reset only at any time (latching)

Manual reset only after alarm condition has cleared (latching)

Automatic reset: Relays will automatically reset when the input passes the reset point.

Manual reset: Front panel ACK button. Pressing ACK resets all manually resettable relays.

TIME DELAY 0 to 199 seconds, on and off delays

Programmable and independent for each relay

FAIL-SAFE OPERATION

AUTO INITIALIZATION

Programmable Independent for each relay

When power is applied to the meter, relays will reflect the state of the input to the meter.

Fail-safe operation: relay coil is energized in non-alarm condition. In case of power failure, relay will go to alarm state.

Page 10

Javelin D ● Model PD644 Voltmeter Instruction Manual

Isolated 4-20 mA Transmitter Output

OUTPUT RANGE 1.00 to 23.00 mA typical

CALIBRATION Factory calibrated for 4-20 mA

SCALING RANGE 0.00 to 23.99 mA for any display range,

see output range above

ACCURACY ± 0.1% F.S. ± 0.004 mA

TEMPERATURE DRIFT

ISOLATED

50 PPM/°C from 0 to 65°C ambient

Note: Analog output drift is separate from input drift.

24 VDC ± 10% @ 20 mA

TRANSMITTER POWER SUPPLY

EXTERNAL LOOP

35 VDC maximum

POWER SUPPLY

OUTPUT LOOP RESISTANCE

Power supply Minimum Maximum

24 VDC

35 VDC (external)

10 Ω 700 Ω

100 Ω 1200 Ω

Serial Communications

METER ADDRESS

PDC protocol: 0 - 99

Modbus

protocol: 1 - 247

BAUD RATE 300 – 19,200 bps

TRANSMIT

Programmable between 0 and 199 ms

TIME DELAY

DATA 8 bit (1 start bit, 1 stop bit)

PARITY None, even, or odd

BYTE-TO-BYTE

(Modbus

only; PDC protocol does not use parity)

0.01 – 2.54 sec (Modbus® only)

TIMEOUT

TURN AROUND

Less than 2 ms (fixed)

DELAY

Request or download copies of the Precision Digital Serial Communication Protocol and Modbus

communications with Precision Digital products.

Page 11

Javelin D ● Model PD644 Voltmeter Instruction Manual

INSTALLATION

There is no need to remove the meter from its case to complete the installation, wiring, and setup of the meter.

Unpacking

Remove the meter from box. Inspect the packaging and contents for damage. Report damages, if any, to the carrier.

If any part is missing or the meter malfunctions, please contact your supplier or the factory for assistance.

Panel Mounting

• Prepare a standard 1/8 DIN panel cutout – 3.622" x 1.772" (92 mm

x 45 mm). Refer to Mounting Dimensions, page 48 for more details.

• Clearance: allow at least 4" (102 mm) behind the panel for wiring.

• Panel thickness: 0.04" - 0.25" (1.0 mm - 6.4 mm).

Recommended minimum panel thickness to maintain Type 4X rating: 0.06" (1.5 mm) steel panel, 0.16" (4.1 mm) plastic panel.

• Remove the two mounting brackets provided with the meter (back-off

the two screws so that there is ¼" (6.4 mm) or less through the bracket. Slide the bracket toward the front of the case and remove).

• Insert meter into the panel cutout.

• Install mounting brackets and tighten the screws against the panel.

To achieve a proper seal, tighten the mounting bracket screws evenly until meter is snug to the panel along its short side. DO NOT OVER TIGHTEN, as the rear of the panel may be damaged.

1.772"

(45mm)

3.622" (92mm)

Square Corners to 0.060"

(1.5mm) Max Radius

Panel Cutout to DIN 43700

Gasket

Panel

Removable Connectors

Tolerances: A: +0.032 (+0.8mm)

-0.000 (-0.0mm) B: +0.024 (+0.6mm)

-0.000 (-0.0mm)

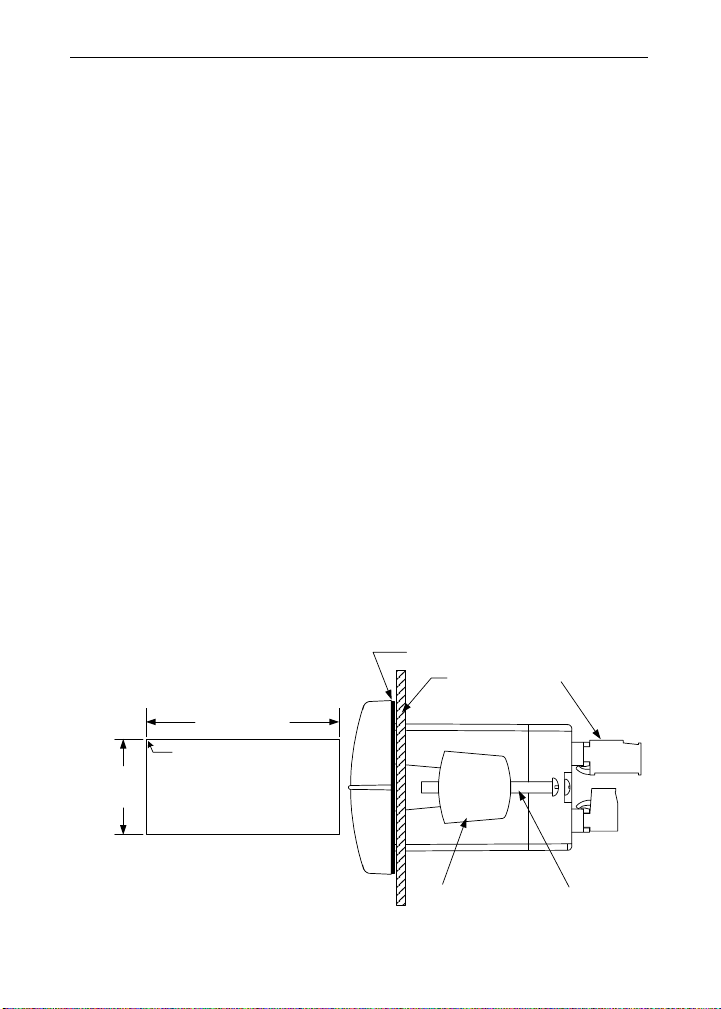

Figure 1. Panel Cutout and Mounting

Mounting

Bracket

Mounting

Screw

Page 12

Javelin D ● Model PD644 Voltmeter Instruction Manual

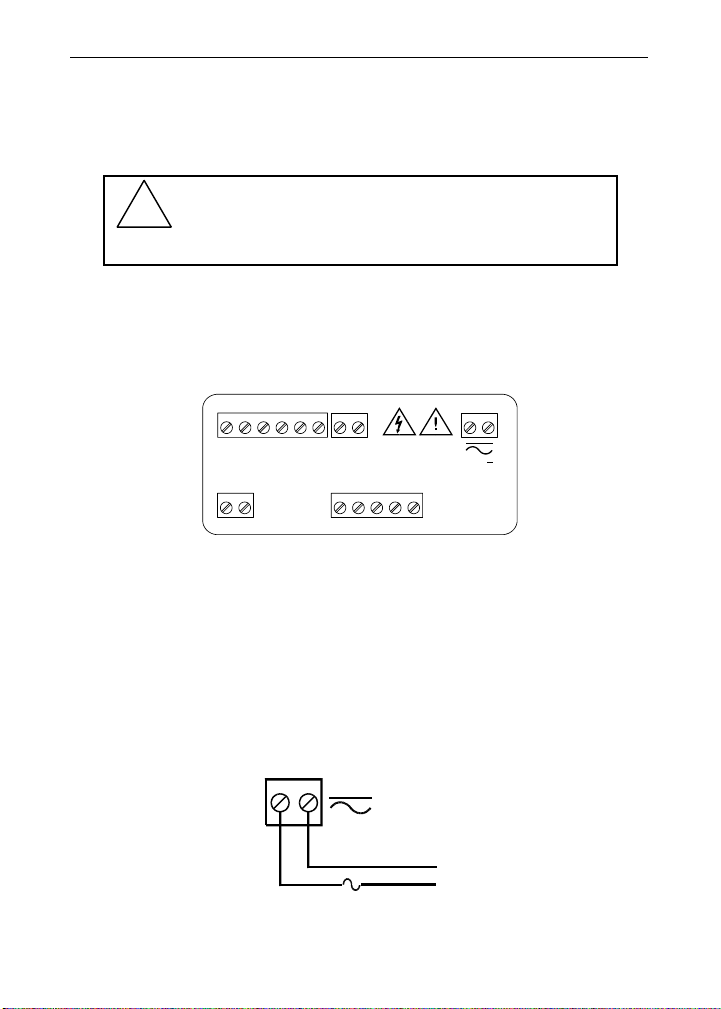

Connections

All connections are made to removable screw terminal connectors located at the rear of the meter. You must use copper wire with 60°C or 60/75°C insulation.

Observe all safety regulations. Electrical wiring should be performed in accordance with all appli-

cable national, state, and local codes to prevent damage to the meter and ensure personnel safety.

Connector Labeling

The label on each meter shows the location of all connectors for the particular model. As an example Figure 2 illustrates the connector layout for meters equipped with relays and 4-20 mA transmitter. Other models have different connector arrangements.

RELAY2 RELAY1

4365 21

COM

NO NC

V+ V-

SIGNAL mA OUT

24V OUT

NC COM

P+ P-

D+ D-

I-I

3412 5

RS-485

Figure 2. Connector Labeling

Power Connections

Power connections are made to a two position screw terminal connector labeled POWER. The meter will operate regardless of DC polarity connection. The + and - symbols are only a suggested wiring convention. The screw terminal power connector is specially keyed to prevent insertion into the wrong receptacle on the meter. The installer must not re- move nor alter the positions of any of the keying inserts.

WER CONNECT

POWER

AC or D

POWER

UL Recognized External Fuse

5 A Max, 250 V Slow Blow

Figure 3. Power Connections

Page 13

Javelin D ● Model PD644 Voltmeter Instruction Manual

SIG

DC Voltage Measurement Connections

Figure 4 shows how to connect the DC voltage to be measured. The voltage on terminal V- must be at ground potential. Be sure to observe the correct polarity.

The reversal of polarity can result in damage to the meter and associated data communications

equipment and can expose personnel to electrical shock hazards.

Figure 4. DC Voltage Signal Connections

NAL

CONNECTOR

V-V+

0-300 VDC

Page 14

Javelin D ● Model PD644 Voltmeter Instruction Manual

Shield

COMNONONCNC

Serial Communication

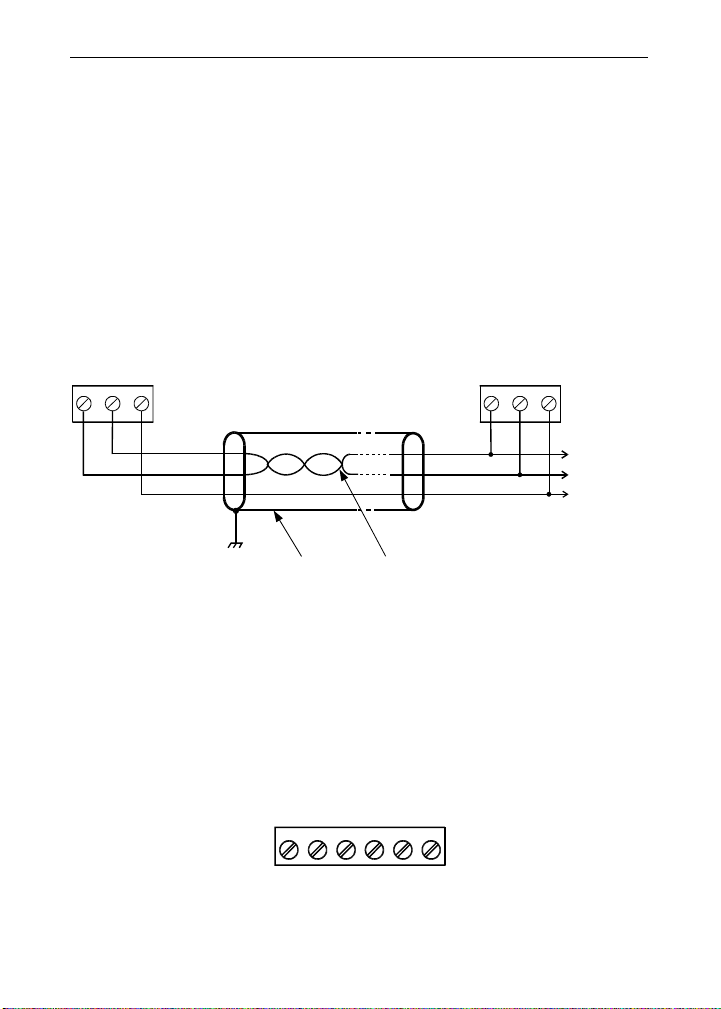

The PD644 can be connected directly to an RS-485 data bus of up to 32 nodes. For systems consisting of more than 32 nodes RS-485 repeaters are necessary. Serial communication wiring connections to the PD644 are made via the three position screw terminal connector labeled RS-485. Please refer to standard EIA-485 for complete specifications for balanced digital multi-point communications. The use of shielded twisted pair cable is recommended to protect the data signals from electrical interference. For long wire runs it is good practice to terminate the bus at both ends with a resistor connected between D+ and D- that matches the characteristic impedance of the cable. A typical value for termination resistors is 120 .

RS-485

CONNECTOR

132

GD-D+

RS-485

CONNECTOR

132

GD-D+

Data

Data Common

Data+

Data

Data Common

To other meter or RS-485 devices

Twisted -Pair

Figure 5. RS-485 Data Bus Connections

For non-multiplexed serial communications with RS-232 data communications equipment such as a personal computer, an RS-232 to RS-485 converter such as the Precision Digital PDA7485 is required. If using a PDA7485, connect the PD644 according to the PDA7485 wiring diagram for a two wire RS-485 application.

Relay Output Connections

Relay connections are made to a six-terminal connector labeled RELAY1 RELAY2.

Figure 6. Relay Output Connections

RELAY2RELAY

4365 2 1

Page 15

Javelin D • Model PD644 Voltmeter Instruction Manual

Switching Inductive Loads

The use of suppressors (snubbers) is strongly recommended when switching inductive loads to prevent disrupting the microprocessor’s operation. The suppressors also prolong the life of the relay contacts. Suppression can be obtained with resistor-capacitor (RC) networks assembled by the user or purchased as complete assemblies. Refer to the following circuits for RC network assembly and installation:

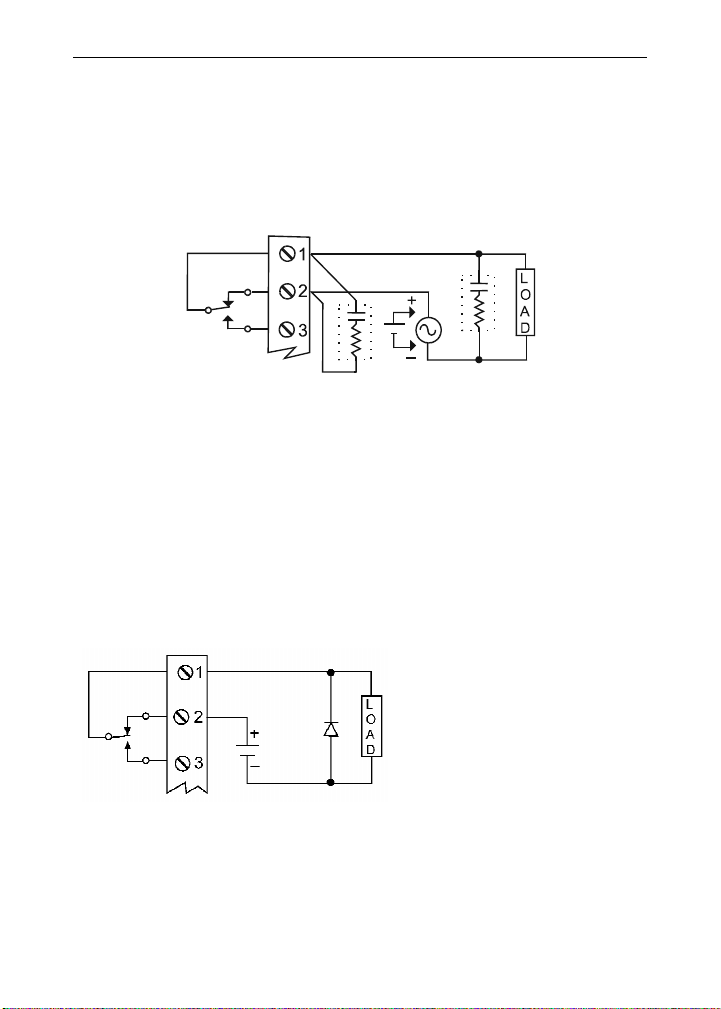

Figure 1. AC and DC Loads Protection

Choose R and C as follows:

R: 0.5 to 1  for each volt across the contacts C: 0.5 to 1 µF for each amp through closed contacts

Notes:

1. Inductive relay rating is 1/14 HP (50 W) at 115/230 VAC

2. Use capacitors rated for 250 VAC.

3. RC networks may affect load release time of solenoid loads. Check to confirm proper operation.

4. Install the RC network at the meter's relay screw terminals. An RC network may also be installed across the load. Experiment for best results.

Use a diode with a reverse breakdown voltage two to three times the circuit voltage and forward current at least as large as the load current.

Figure 2. Low Voltage DC Loads Protection

RC Networks Available from Precision Digital

RC networks are available from Precision Digital and should be applied to each relay contact switching an inductive load. Part number: PDX6901.

Relays are de-rated to 1/14th HP (50 watts) with an inductive load.

Note:

15

Page 16

Javelin D ● Model PD644 Voltmeter Instruction Manual

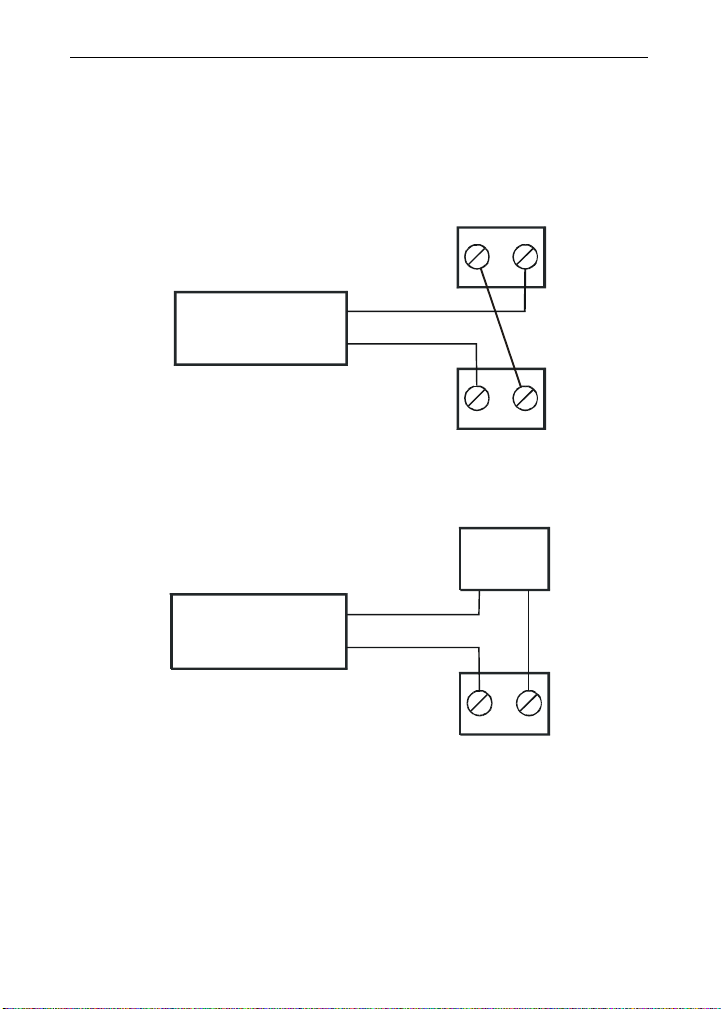

4-20 mA Output Signal Connections

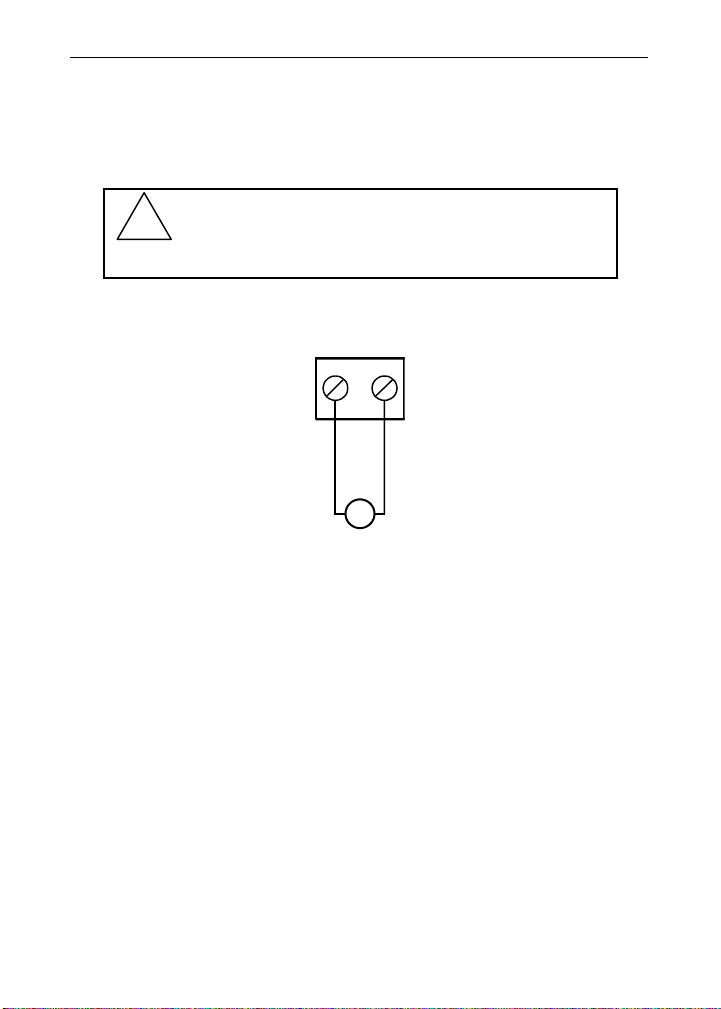

Connections for the 4-20 mA transmitter are made to the screw terminal connector labeled mA OUT. The 4-20 mA transmitter may be powered from an internal power supply (optional) available at the screw terminal connector labeled 24V OUT or from an external power supply.

24V OUT

P+

P-

Remote Display,

Chart Recorder,

etc.

I-

I+

mA OUT

Figure 9. 4-20 mA Transmitter Powered by Meter

External

Power

Supply

Remote Display,

Chart Recorder,

etc.

I-

I+

mA OUT

Figure 10. 4-20 mA Transmitter Powered Externally

Page 17

Javelin D ● Model PD644 Voltmeter Instruction Manual

SETUP AND PROGRAMMING

• There is no need to recalibrate the meter

when first received from the factory.

• The meter is factory calibrated prior to ship- ment. The calibration equipment used at the factory is certified to NIST standards.

Overview

All setup and programming functions are done with the front panel buttons. There are no jumpers involved in the setup process of the meter.

After power and signal connections have been completed and verified, apply power to the meter.

For

User Interface Quick Reference Guide

go to page 54

Page 18

Javelin D ● Model PD644 Voltmeter Instruction Manual

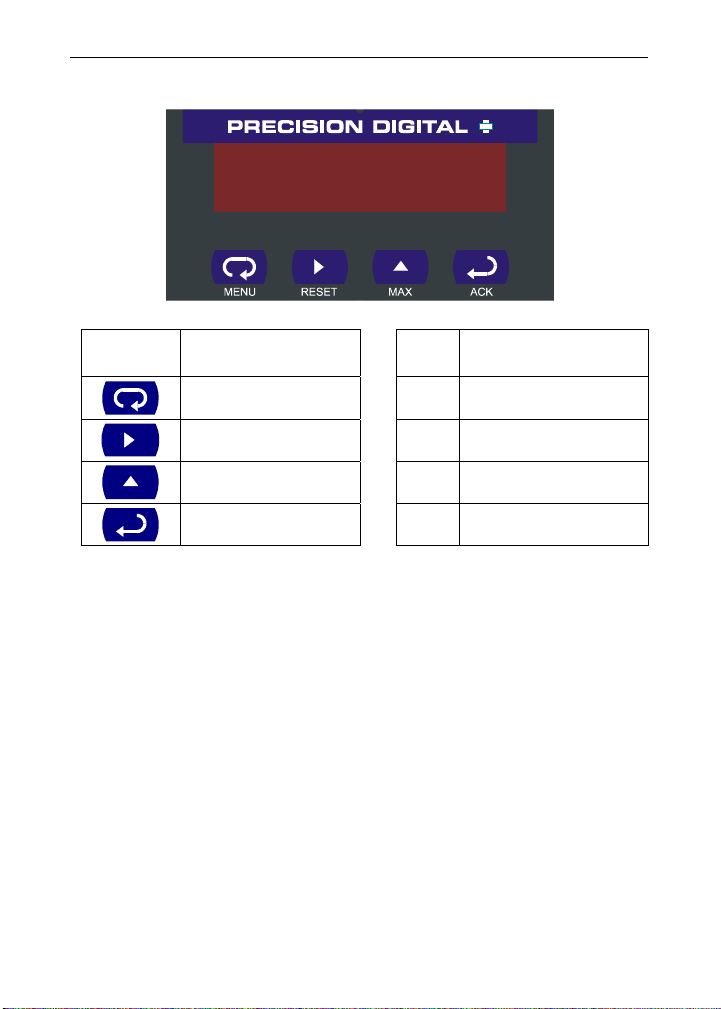

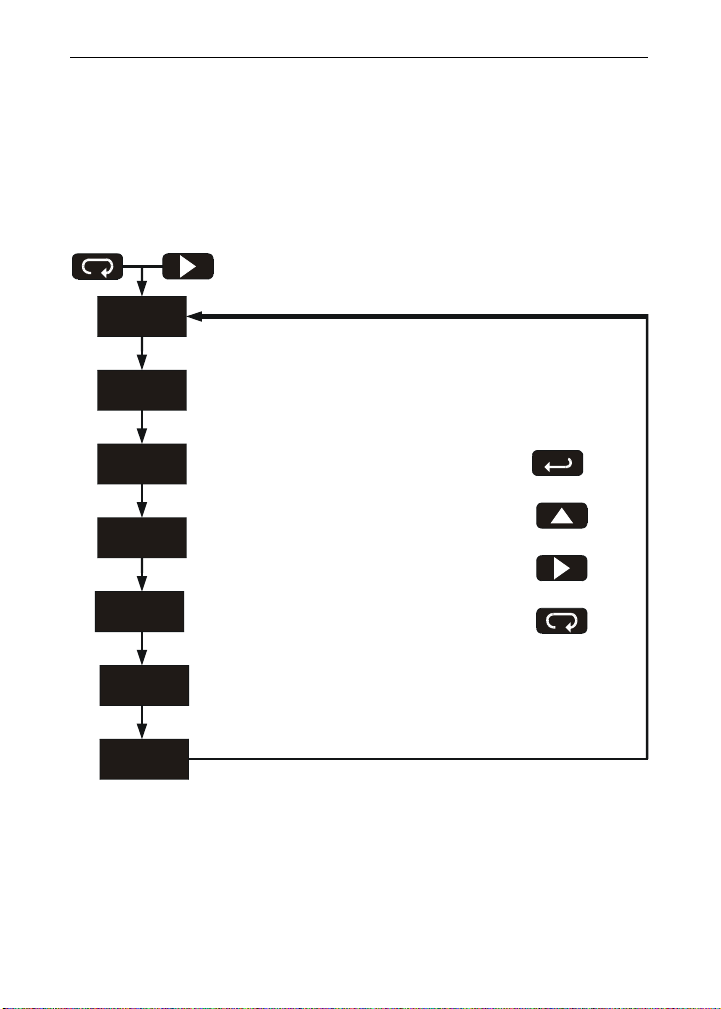

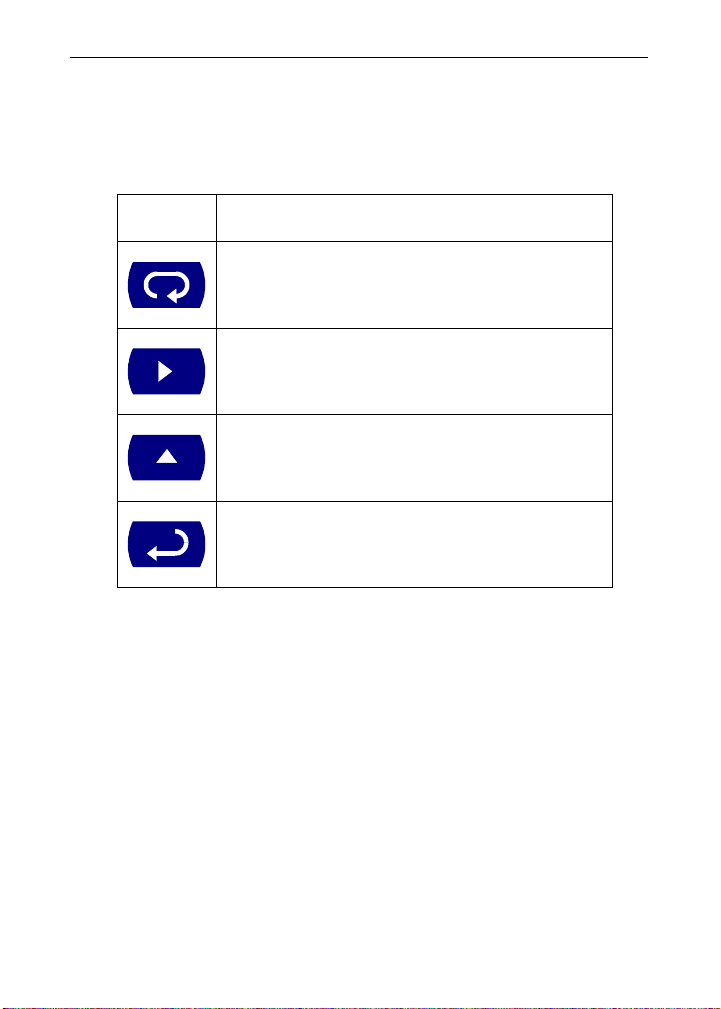

Front Panel Buttons and Status LED Indicators

237.7

1 2 S R

Button

Symbol

• Press the Menu button to enter or exit the Programming Mode at

any time.

• Press the Right arrow button to move to the next digit during digit

programming.

• Press the Up arrow button to scroll through the menus, decimal

point, or to increment the value of a digit.

• Press the Enter/Ack button to access a menu or to accept a setting.

• Press and hold the Right arrow and the Menu buttons, for three

seconds, to access the Advanced features of the meter (Tip: press and hold Right arrow first then press Menu).

Description LED Status

Right arrow/Reset

Up arrow/Max

Enter/Ack

1 Alarm 1

2 Alarm 2

S Set point indicator

R Reset point indicator

Page 19

Javelin D ● Model PD644 Voltmeter Instruction Manual

Display Functions and Messages

The meter displays various functions and messages during setup/programming and operation. The following table shows the displayed functions and messages with their action or setting description.

Display Parameter Action/Setting

setu

dec.p

RELY

RLY1

Act1

Auto

LtCH

L-CL

Altr

oFF

Set1

rSt1

RLY2

Act2

Set2

RSt2

FLSF

FLS1

FLS2

DLAY

DLY1

Setup

Decimal point Set decimal point for process inputs

Relay

Relay1

Action1

Automatic

Auto-manual

Latching

Latching-cleared

Alternate

Off

Set1

Reset1

Relay2

Action2

Set2

Reset2

Fail-safe

Fail-safe1

Fail-safe2

Delay

Delay1

Enter Setup menu

Enter the Relay menu

Relay 1 setup

Set relay 1 action (automatic, latching, etc.)

Set relay for automatic reset

Set relay for automatic + manual reset any time

Set relay for latching operation

Set relay for latching operation with manual reset only after alarm condition has cleared

Set relays for alternation control

Disable relay and front panel status LEDs Disable relay’s fail-safe operation

Program set point 1

Program reset point 1

Setup relay 2

Set relay 2 action (automatic, latching, etc.)

Program set point 2

Program reset point 2

Enter Fail-safe menu

Set relay 1 fail-safe operation

Enable fail-safe operation

Set relay 2 fail-safe operation

Enter Time Delay menu

Enter relay 1 time delay setup

Page 20

Javelin D ● Model PD644 Voltmeter Instruction Manual

Display Parameter Action/Setting

On1

OFF1

DLY2

On2

OFF2

Aout

out1

out2

prog

Cal

scal

inp1

dis1

inp2

dis2

err

pass

unlC

loCd

9999

-1999

On1

Off1

Delay2

On2

Off2

Analog output

Output 1

Output 2

Program

Calibrate

Scale

Input 1

Display 1

Input 2

Display 2

Error

Password

Unlocked

Locked

Flashing display

Set relay 1 On time delay

Set relay 1 Off time delay

Enter relay 2 time delay setup

Set relay 2 On time delay

Set relay 2 Off time delay

Enter the Analog output menu

Program output 1 value (e.g. 4 mA)

Program output 2 value (e.g. 20 mA)

Enter the Program menu

Enter the Calibrate menu

Enter the Scale menu

Calibrate input 1 signal or program input 1 value

Program display 1 value

Calibrate input 2 signal or program input 2 value

Program display 2 value

Error, calibration not successful, check signal

Enter the Password menu

Program password to lock meter

Enter password to unlock meter

Overrange condition Underrange condition

Page 21

Javelin D ● Model PD644 Voltmeter Instruction Manual

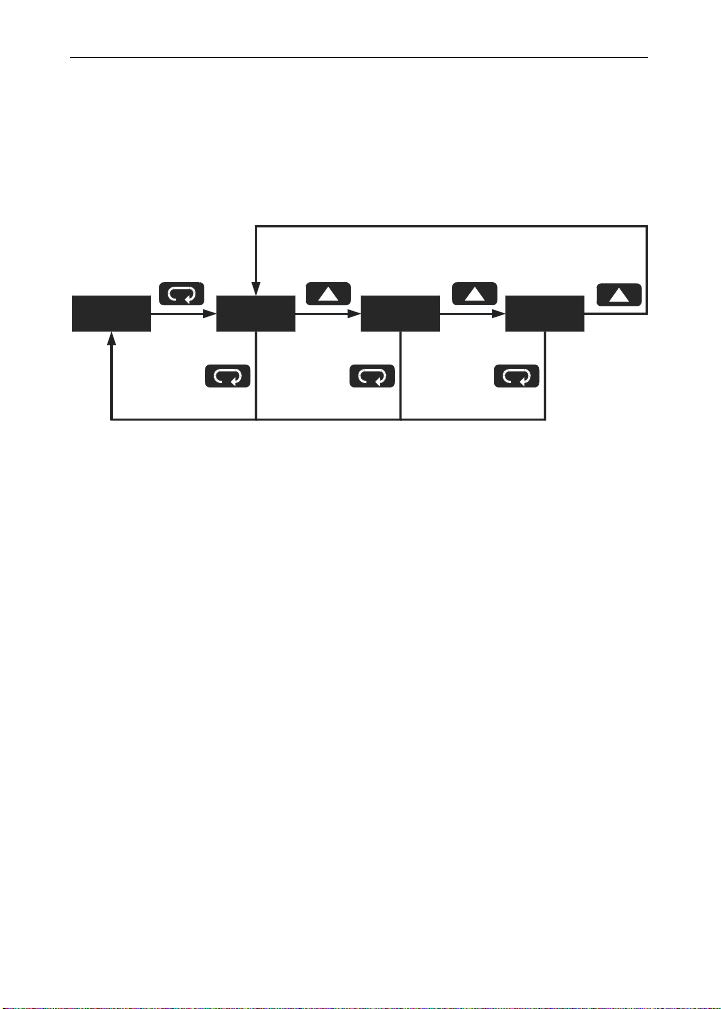

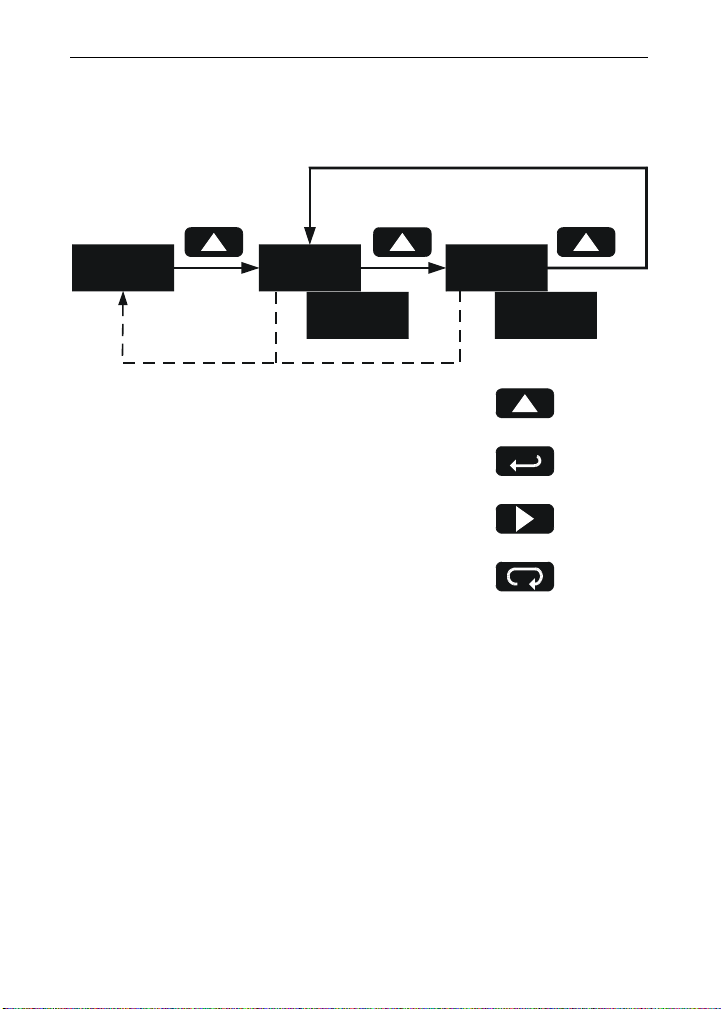

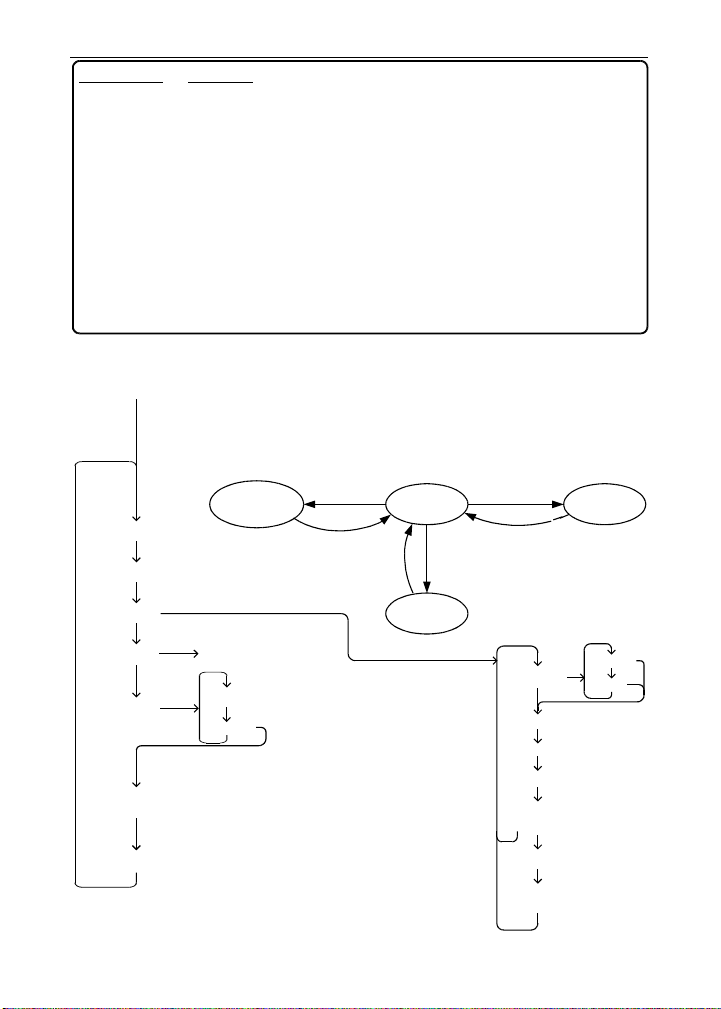

Main Menu

The main menu consists of the most commonly used functions: Setup, Program, and Password.

• Press Menu button to enter Programming Mode then press Up

arrow button to scroll main menu.

Run

Mode

237.7 setu prog pass

• Press Menu, at any time, to exit and return to Run Mode. Changes made to settings prior to pressing Enter/Ack are not saved.

• Changes to the settings are saved to memory only after pressing Enter/Ack.

• The display moves to the next menu every time a setting is accepted by pressing Enter/Ack.

Page 22

Javelin D ● Model PD644 Voltmeter Instruction Manual

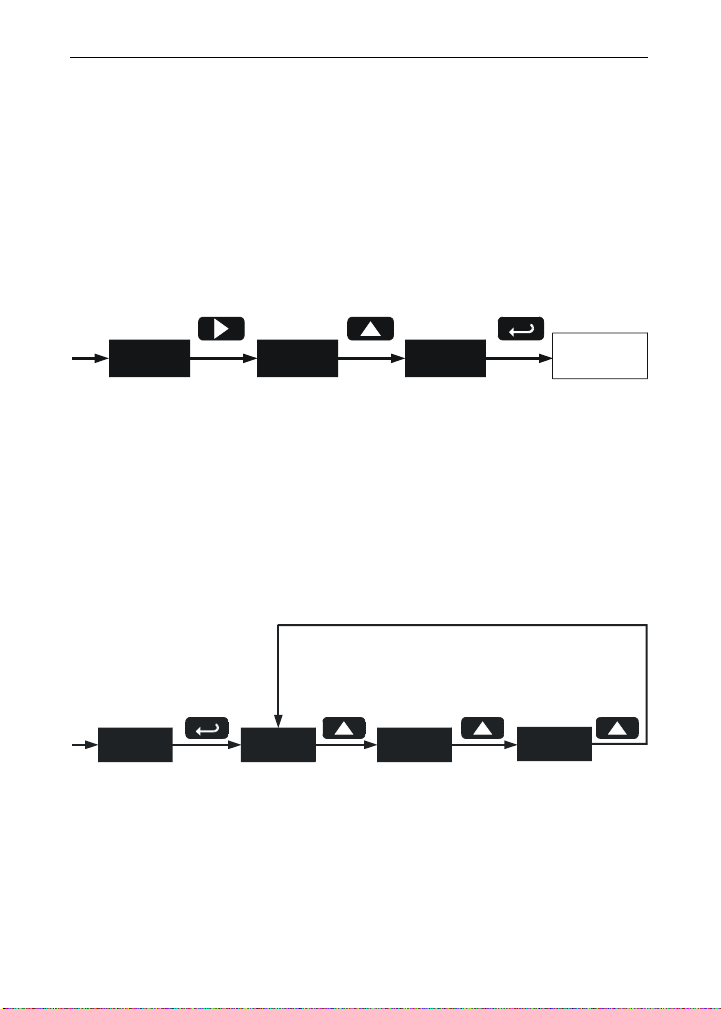

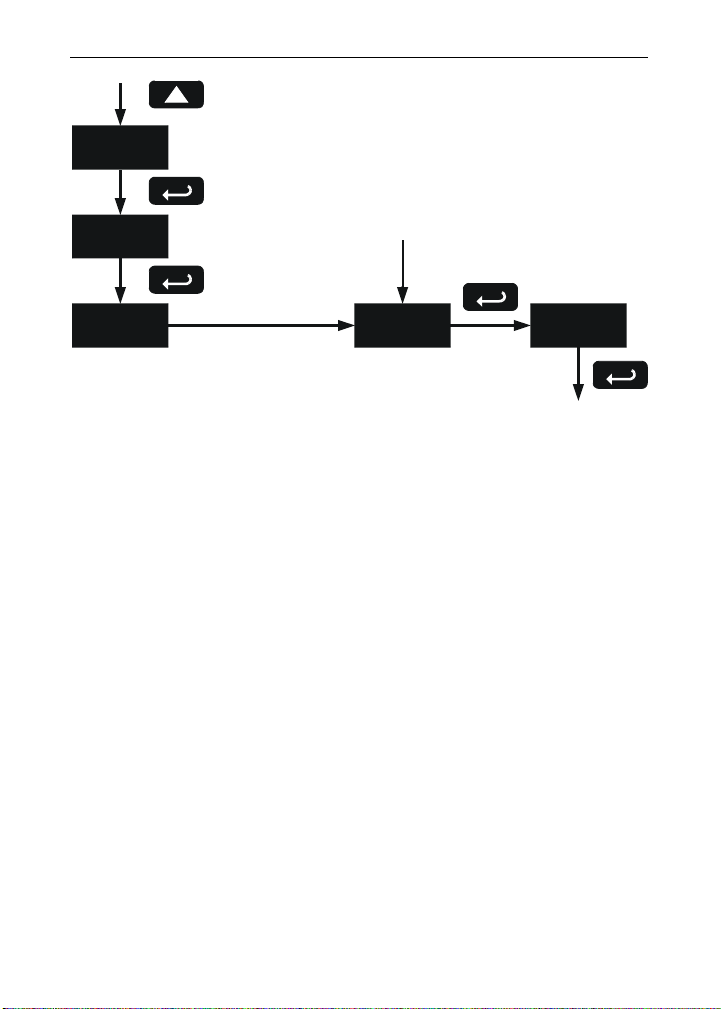

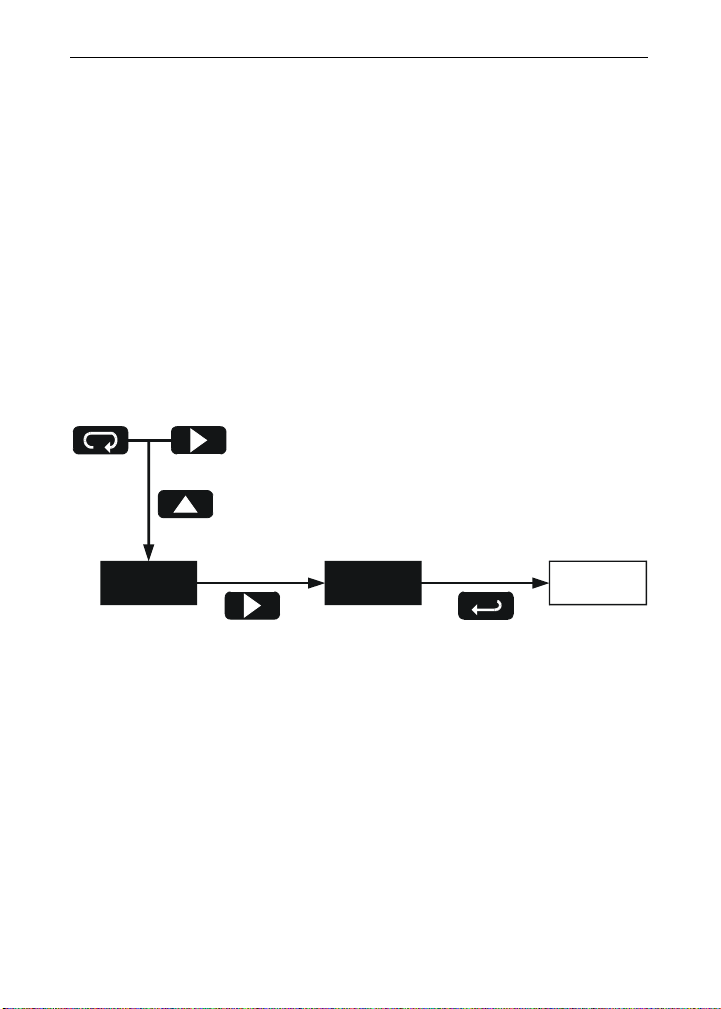

Setting Numeric Values

The numeric values are set using the Right and Up arrow buttons. Press Right arrow to select next digit and Up arrow to increment digit value.

The digit being changed is displayed brighter than the rest. Press the Enter/Ack button, at any time, to accept a setting or Menu

button to exit without saving changes.

ncrement Digit

Val ue

0400 0400 0500

Select Next Digit Accept Settin

Setting

Setting Up the Meter (setu)

The Setup menu is used to select:

1. Relay operation

2. 4-20 mA analog output setup

Press the Enter/Ack button to access any menu or press Up arrow button to scroll through choices. Press the Menu button to exit at any time.

setu dec.P

rely

Relay menu is always available even if relays

option is not installed. Visual alarm indication is available through front panel LEDs and MeterView

ftware.

Aout

Page 23

Javelin D ● Model PD644 Voltmeter Instruction Manual

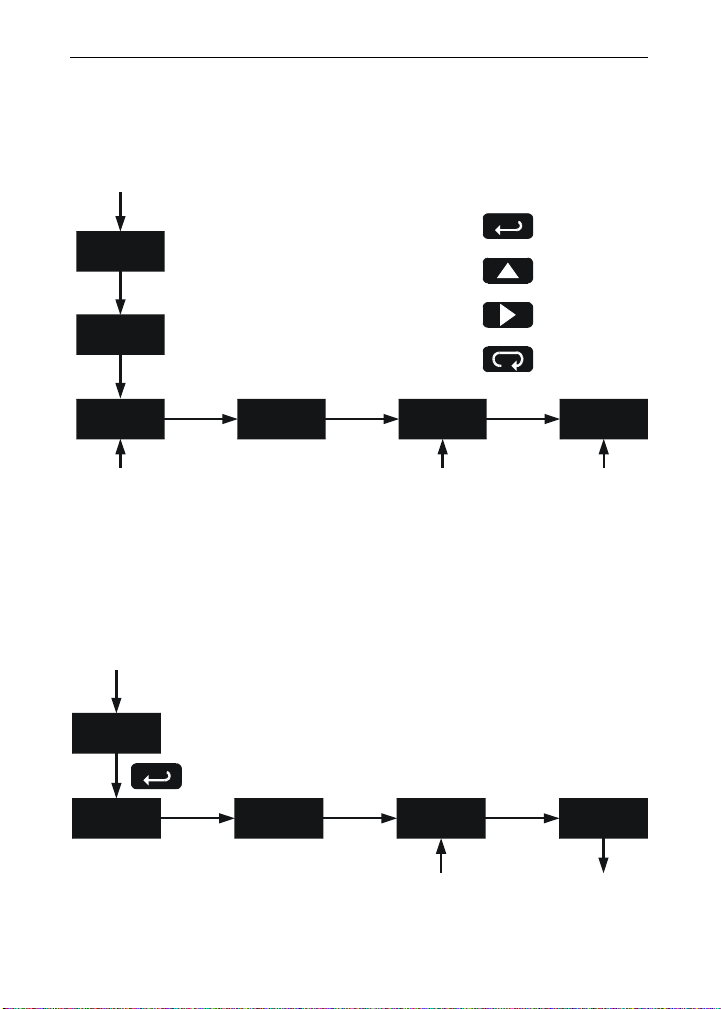

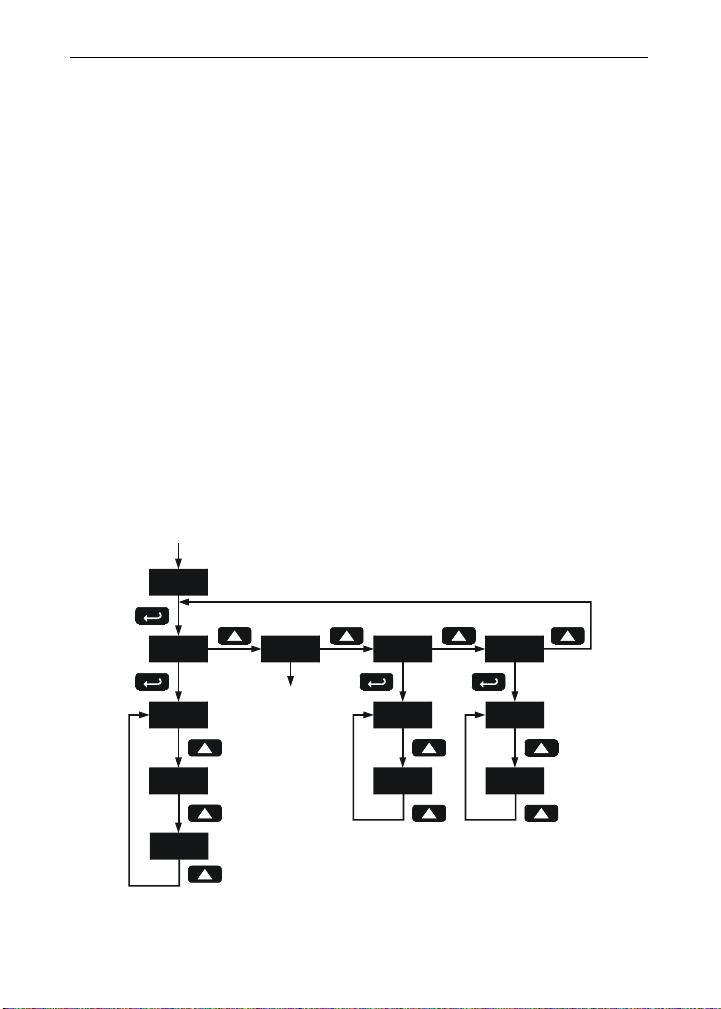

Setting the Relay Operation (rely)

This menu allows you to set up the operation of the relays:

1. Relay action a. Automatic reset only (non-latching) b. Automatic plus manual reset at any time (non-latching) c. Latching (manual reset only) d. Latching with Clear (manual reset only after alarm condi-

tion has cleared) e. Alternation control (automatic reset only) f. Off (relay and status LED disabled)

2. Set point

3. Reset point

4. Fail-safe operation a. On (enabled) b. Off (disabled)

5. Time delay a. On delay (0-199 seconds) b. Off delay (0-199 seconds)

From Setup

rELY

rLY1 rLY2

Same

Act1

Functions as

Relay 1

SEt1

rSt1

Press Press

FLSF

FLS1

FLS2

Enter/Ack

button to access any menu

button to exit at any time

dLAY

dLy1

dLY2

Page 24

Javelin D ● Model PD644 Voltmeter Instruction Manual

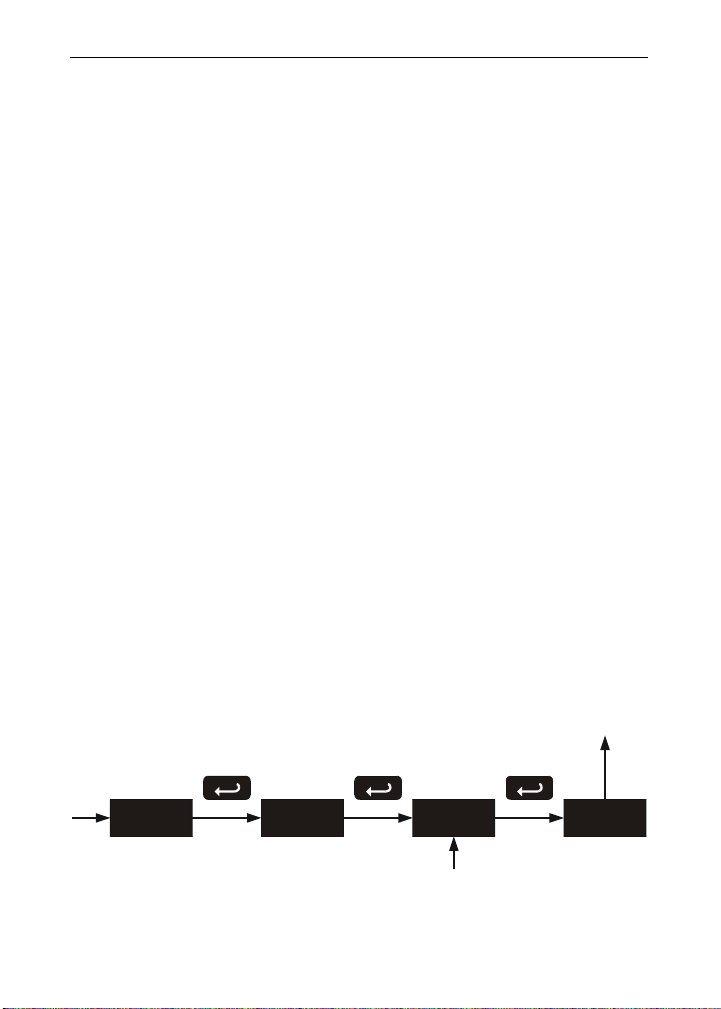

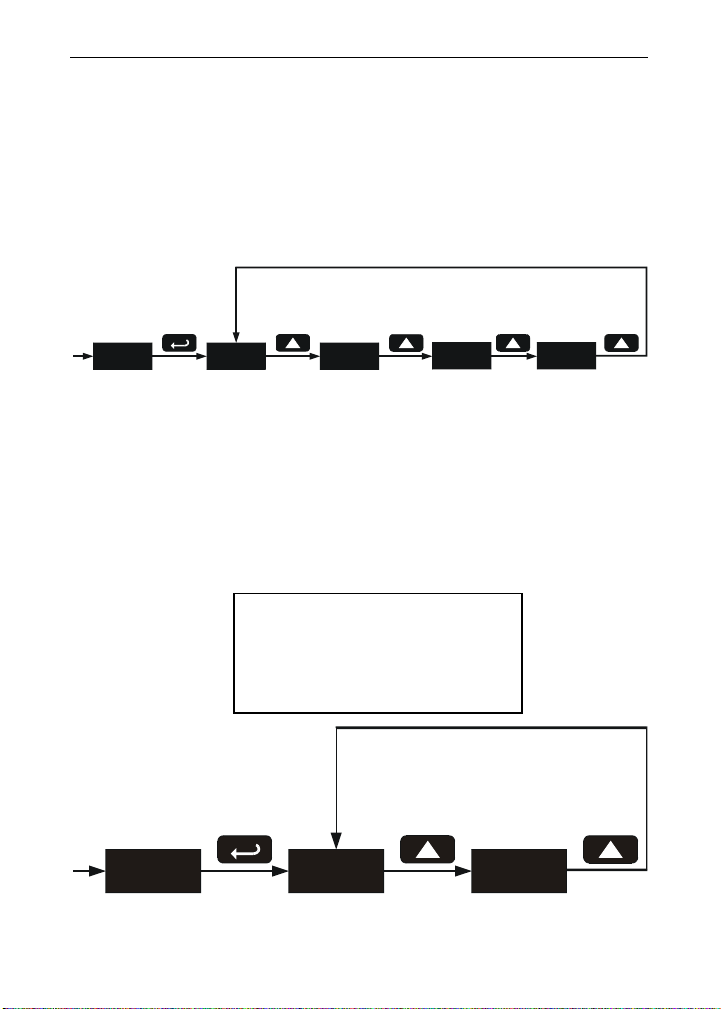

Setting the Relay Action

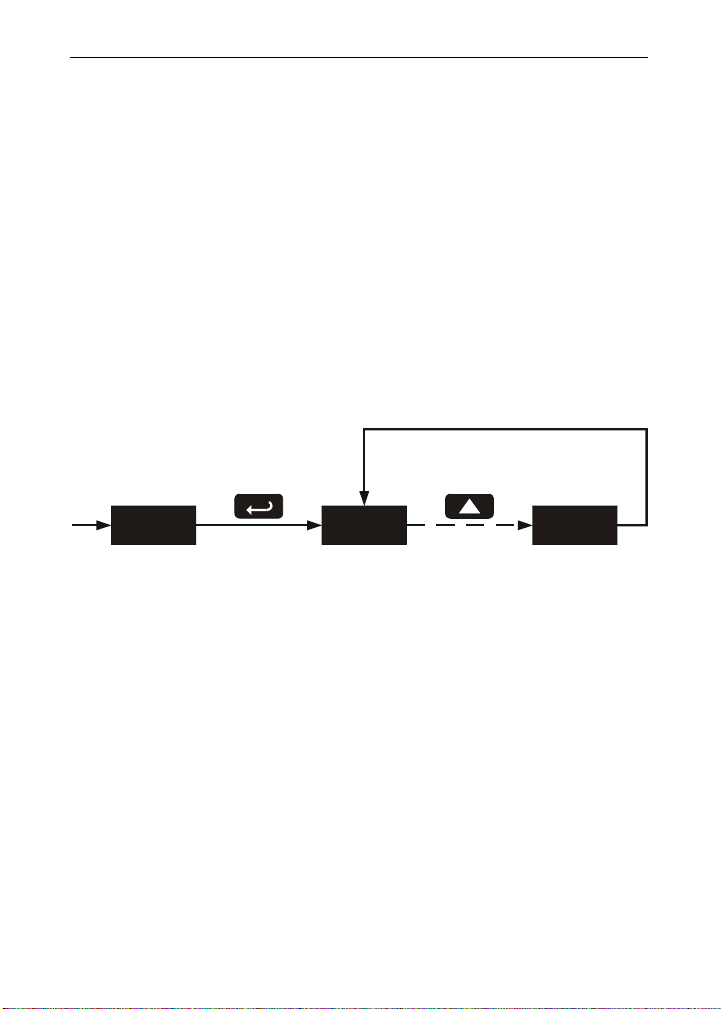

The relay Action menu allows the user to set up the operation of the relays. The relays may be set up for any of the following modes of operation:

1. Automatic reset (non-latching)

2. Automatic plus manual reset at any time (non-latching)

3. Latching (manual reset only, at any time)

4. Latching with Clear (manual reset only after alarm condition has cleared)

5. Alternation control (automatic reset only)

6. Off (relay and status LED disabled)

The following illustration shows relay 1 action setup; relay 2 is set up in a similar fashion.

From Relay

Press Press

Enter/Ack Menu

button to accept setting

button to exit at any time

Act1

Auto A-m

LtCH

L-CL

ALtroFF

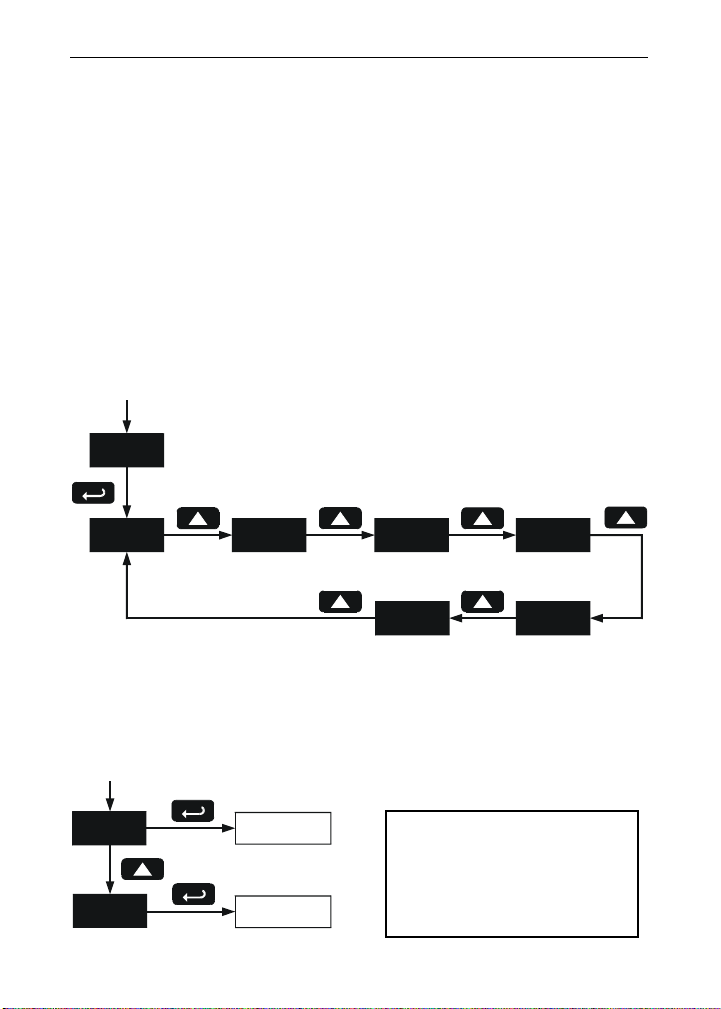

Programming Set and Reset Points

High alarm indication: program set point above reset point. Low alarm indication: program set point below reset point. The deadband is determined by the difference between set and reset

points. Minimum deadband is one display count. If set and reset points are programmed the same, relay will reset one count below set point.

SEt1

rSt1

Program Set

Point

Program Reset

Point

Quick Set Points

Press Up arrow and Menu at the same time to access set/reset points quickly.

Page 25

Javelin D ● Model PD644 Voltmeter Instruction Manual

The fail-safe operation is set independently for each relay. Select on to enable or select off to disable fail-safe operation.

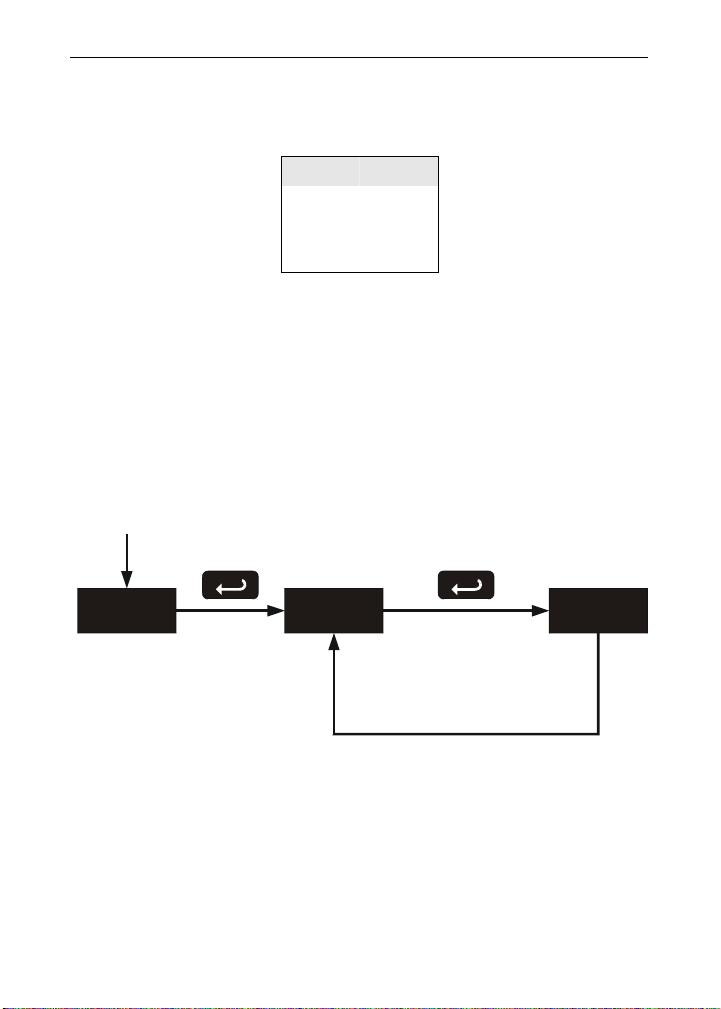

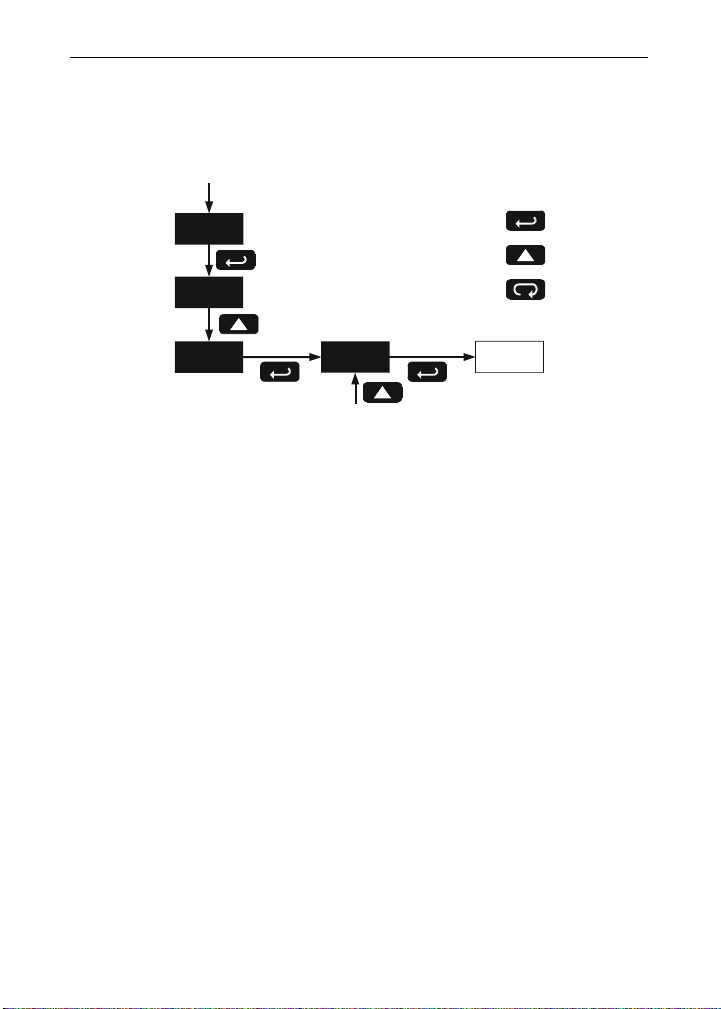

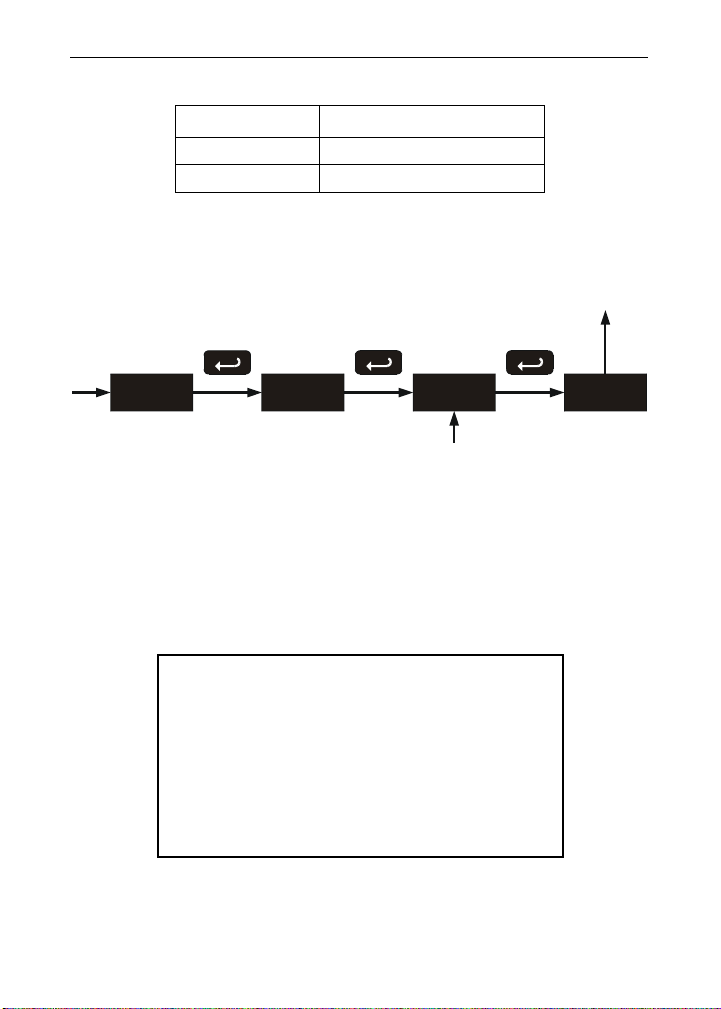

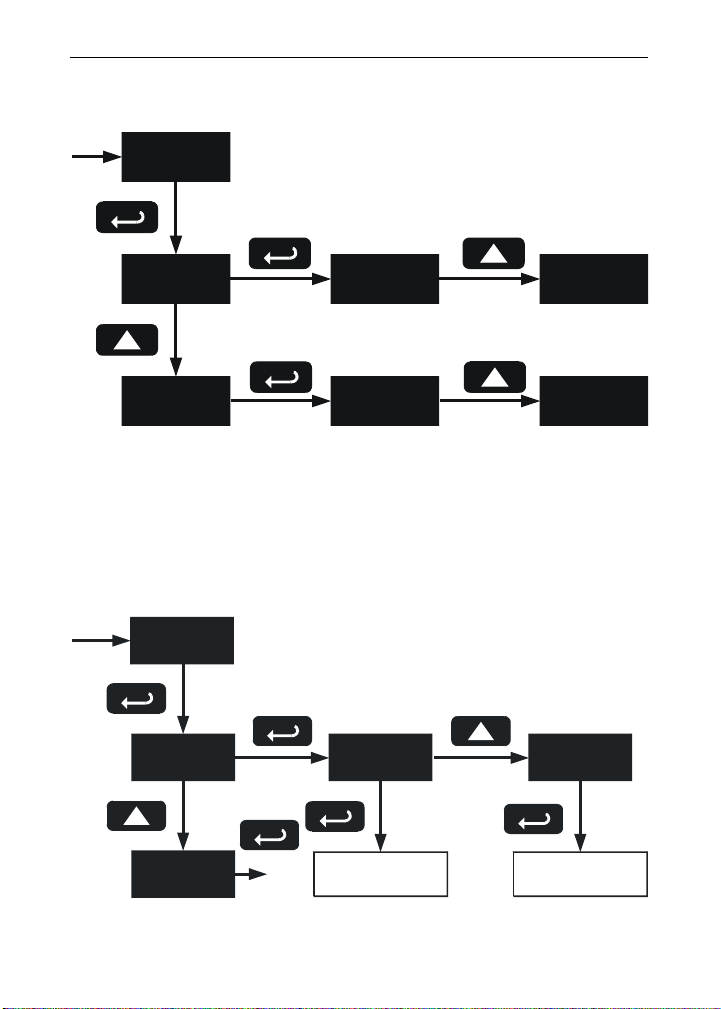

Setting Fail-Safe Operation

Press

FLSF

Press

Enter/Ack Menu

button to accept setting

button to exit at any time

FLS1

FLS2

Programming Time Delay

The On and Off time delays may be programmed for each relay between 0 and 199 seconds. The relays will transfer only after the condition has been maintained for the corresponding time delay.

The On time delay is associated with the set point. The Off time delay is associated with the reset point.

on oFF

dLAY

dLy1

dLY2

Program

Relay 2

Times

On1 OFF1

Program On

Time Delay

Program Off

Time Delay

Page 26

Javelin D ● Model PD644 Voltmeter Instruction Manual

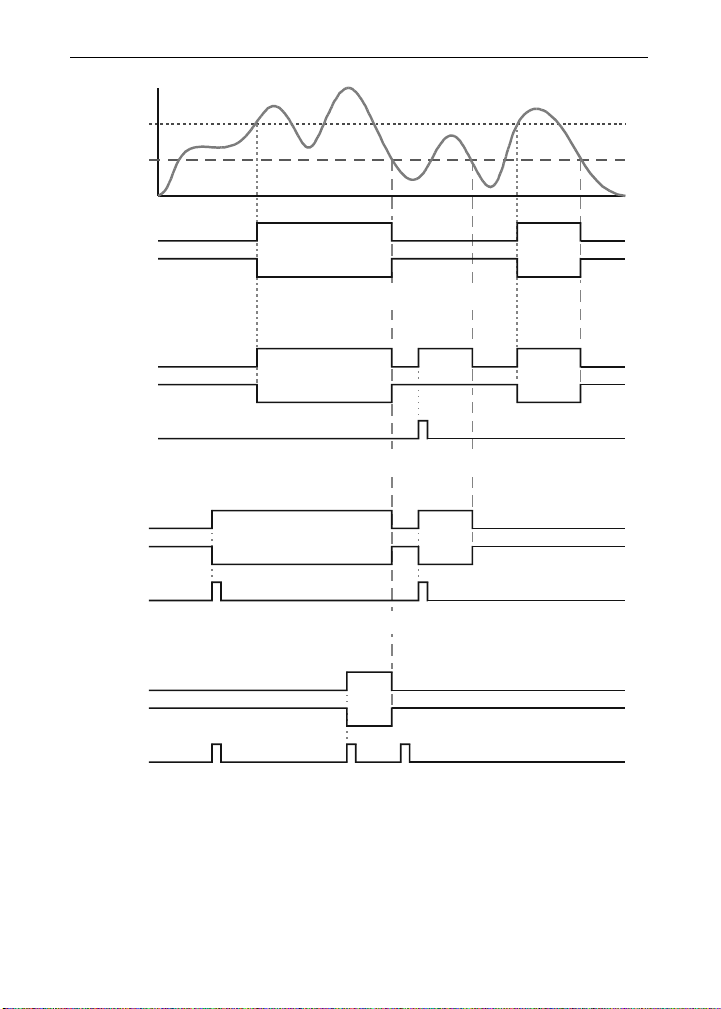

Relay and Alarm Operation

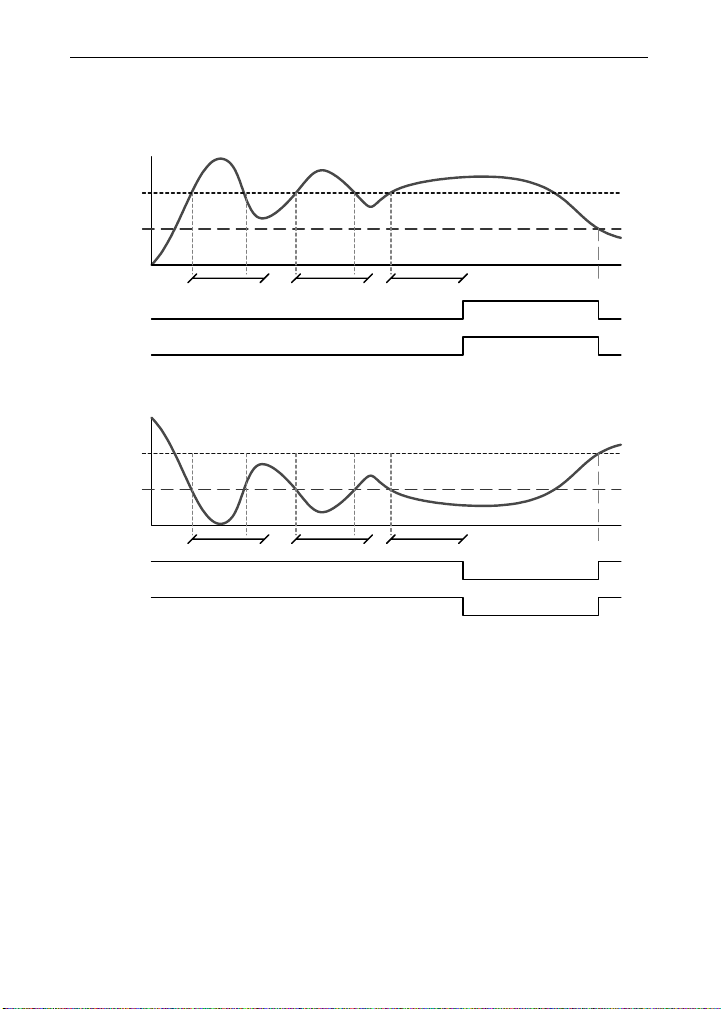

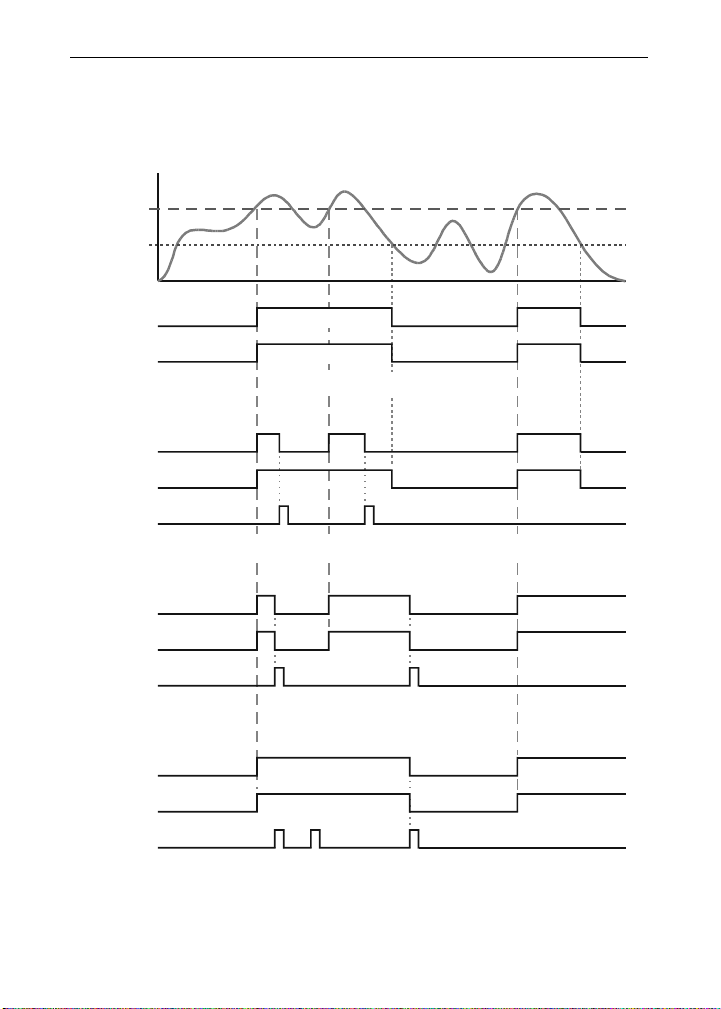

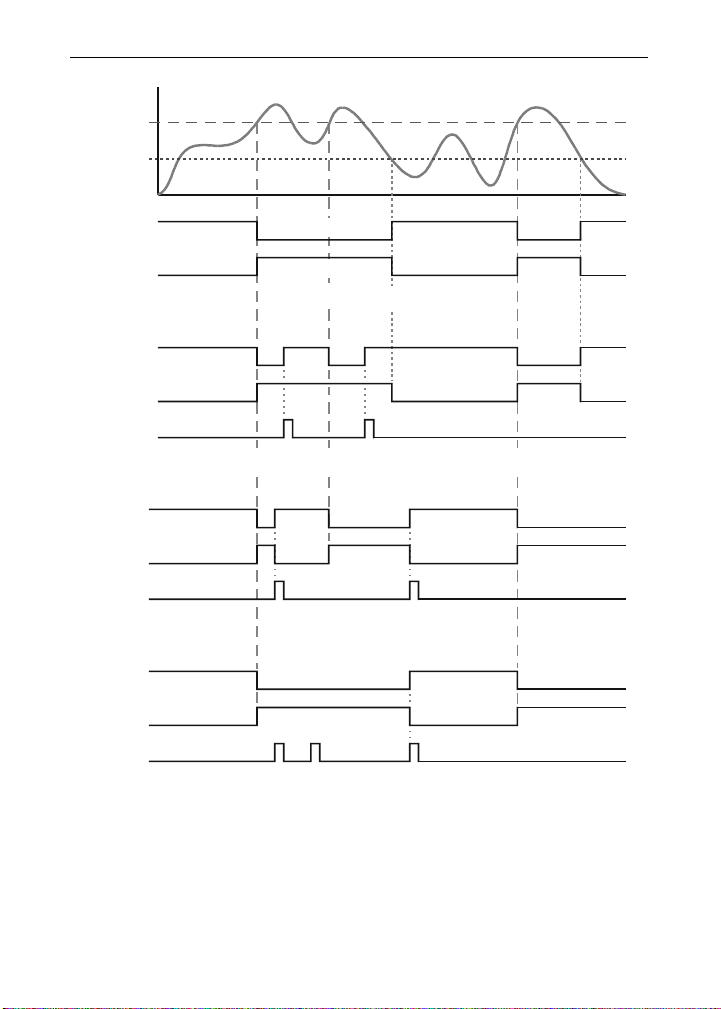

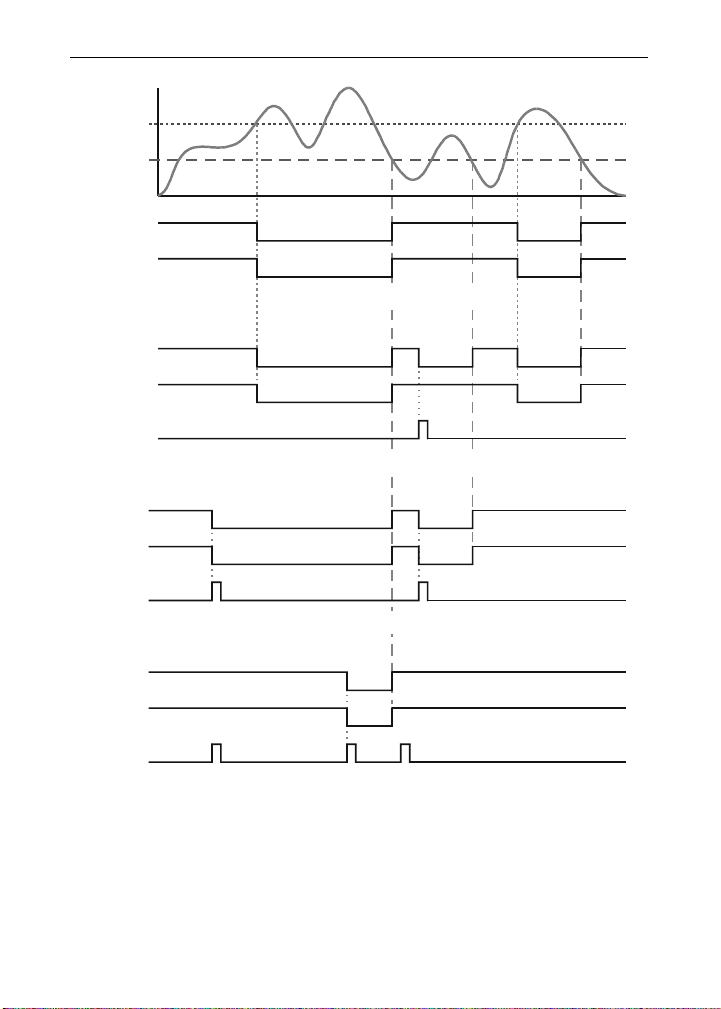

The following graphs illustrate the operation of the relays, status LEDs, and ACK button.

High Alarm Operation (Set > Reset)

Input

Set

Reset

Relay

LED

de-energized

off

energized

Automatic (non-latching)

Relay

LED

ACK

pressed

utomatic or Manual (non-latching)

Relay

LED

ACK

pressed

Manual (latching)

Relay

LED

ACK

pressed

Manual only after passing below Reset (latching with clear)

For Manual reset mode, ACK can be pressed anytime to turn "off" relay. For relay to turn back "on", signal must go below set point, and then go above it.

Page 27

Javelin D ● Model PD644 Voltmeter Instruction Manual

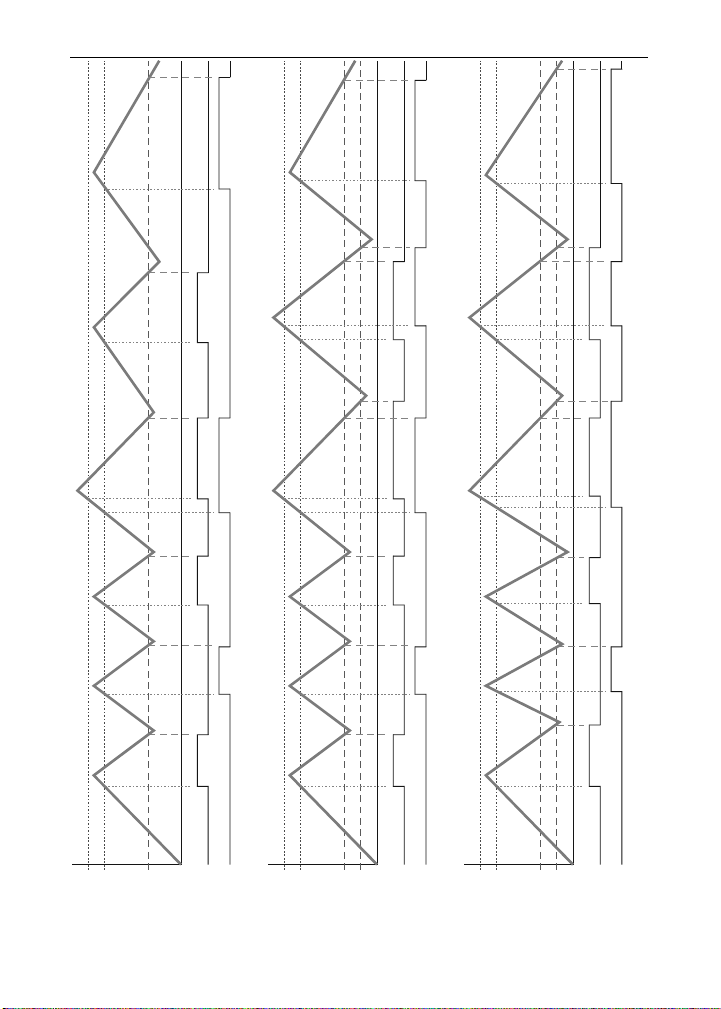

Low Alarm Operation (Set < Reset)

Input

Reset

Set

Relay

LED

energized

de-energized

off

Automatic (non-latching)

Relay

LED

ACK

pressed

Automatic or Manual (non-latching)

Relay

LED

ACK

pressed

Manual (latching)

Relay

LED

ACK

pressed

Manual only after passing above Reset (latching with clear)

For Manual reset mode, ACK can be pressed anytime to turn "off" relay. For relay to turn back "on", signal must go above set point, and then go below it.

Page 28

Javelin D ● Model PD644 Voltmeter Instruction Manual

High Alarm with Fail-Safe Operation (Set > Reset)

Input

Set

Reset

Relay

LED

energized

off

de-energized

Automatic (non-latching)

Relay

LED

ACK

pressed

Automatic or Manual (non-latching)

Relay

LED

ACK

pressed

Manual (latching)

Relay

LED

ACK

pressed

Manual only after passing below Reset (latching with clear)

Fail-safe operation: relay coil is energized in non-alarm condition. In

case of power failure, relay will go to alarm state.

Page 29

Javelin D ● Model PD644 Voltmeter Instruction Manual

Low Alarm with Fail-Safe Operation (Set < Reset)

Input

Reset

Set

Relay

LED

de-energized

energized

off

Automatic (non-latching)

Relay

LED

ACK

pressed

Automatic or Manual (non-latching)

Relay

LED

ACK

pressed

Manual (latching)

Relay

LED

ACK

pressed

Manual only after passing above Reset (latching with clear)

Fail-safe operation: relay coil is energized in non-alarm condition. In

case of power failure, relay will go to alarm state.

Page 30

Javelin D ● Model PD644 Voltmeter Instruction Manual

Time Delay Operation

The following graphs show the operation of the time delay function.

Input

Set

Reset

<Tdelay <Tdelay >=Tdelay

Relay

LED

On Time Delay

Input

Set

Reset

<Tdelay <Tdelay >=Tdelay

Relay

LED

Off Time Delay

If the signal crosses the set point, the On time delay timer starts and the relay trips when the time delay has elapsed. If the signal drops below the set point (high alarm) before the time delay has elapsed, the On time delay timer resets and the relay does not change state. The same principle applies to the Off time delay.

*The LED is not affected by Time Delay when “Automatic or Manual” reset mode is selected. Rather the LED follows the set and reset points.

Page 31

Javelin D ● Model PD644 Voltmeter Instruction Manual

LEDs indicate the relay status

Alternation Control Operation

Input

Relay2 Set

Relay1 Set

Input

Relay1 Reset

de-energized energized

Output 1

Relay2 Reset

de-energized energized

Output 1

Relay1 &

Relay2 Reset

Output 2

Relay1 Set

Relay2 Set

Input

de-energized energized

Output 2

Relay1 Set

Relay2 Set

Relay2 Reset

Relay1 Reset

Output 1

Output 2

Page 32

Javelin D ● Model PD644 Voltmeter Instruction Manual

Scaling the 4-20 mA Analog Output (Aout)

The 4-20 mA analog output can be scaled to provide a 4-20 mA signal for any display range selected.

No equipment is needed to scale the analog output, simply program the display values to the corresponding mA output signal.

The Analog Output menu is used to program:

1. 4-20 mA output based on display values

2. Sensor break value in mA

Aout

Press Enter to Accept Setting

scal

Press Up to Set Digit Value

Press Right to Select Next Digit

dis1

Press Menu to Exit at any Time

0000

Set Display 1

Value

Analog Output when Display is Out of Range

The analog output reflects the display out of range conditions as follows:

Input Condition Display Analog Output

Underrange Flashing -1999 3.00 mA

Overrange Flashing 9999 21.00 mA

out1 04.00

Set Output 1

Value

dis2

Scale

ut 2

Out

Page 33

Javelin D ● Model PD644 Voltmeter Instruction Manual

Programming the Meter (prog)

It is very important to read the following information, before proceeding to program the meter:

• There is no need to recalibrate the meter when first received from

the factory.

• The meter is factory calibrated prior to shipment. The calibration equipment used at the factory is certified to NIST standards.

• Simply connect the power and signal to the proper terminals, and turn the power on. No calibration needed! (when the meter is first received from the factory).

The Program menu contains the Calibrate and the Scale menus. The input may be calibrated or scaled to any display within the range of

the meter.

prog ScAl

Additional parameters, not needed for most applications, are programmed with the Advanced features menu, see Advanced Features Menu, page 37.

CAL

Page 34

Javelin D ● Model PD644 Voltmeter Instruction Manual

Scaling the Meter (scal)

The 0 to 300 VDC input can be scaled to display convenient engineering units.

A signal source is not needed to scale the meter; simply program the inputs and corresponding display values.

Press Enter to Accept Setting

scal

Press Up to Set Digit Value

Press Right to Select Next Digit

inp1

Press Menu to Exit at any Time

000.0

Set Input 1

Value

Calibrating the Meter (Cal)

The meter can be calibrated to display in convenient engineering units by applying the appropriate input signal and following the calibration procedure.

The use of a calibrated signal source is strongly recommended to calibrate the meter.

dis1

See Scaling the Meter for Button

Functions Description

000.0

Set Display 1

Value

inp2

Scale

Input 2

Cal

inp1 dis1 04.00

Display

Flashes

During

Sampling

Set Display 1

Value

inp2

Calibrate

Input 2

Page 35

Javelin D ● Model PD644 Voltmeter Instruction Manual

An error message indicates that the calibration or scaling process was not successful.

After the error message is displayed, the meter reverts to input 1, allowing acceptable input voltages to be applied or valid data to be entered.

The error message might be caused by any of the following conditions:

1. Input signal is not connected to the proper terminals or it is con-

2. Input span was less than 10 VDC.

3. Same input signal used for both calibration points.

Error Message (Err)

nected backwards.

Recalibrating Process Inputs (ICal)

The Internal Calibration (ICAL) menu, located in the Advanced features menu, is used to recalibrate the voltage input so that the Scaling feature has accurate reference points. Recalibration is recommended at least every twelve months if using the scaling feature.

Refer to Internal Calibration (ICal), page 44 for instructions.

Setting Up the Password (pass)

The Password menu is used to program a four-digit password to prevent unauthorized changes to the programmed parameter settings.

Locking the Meter

Enter the Password menu and program a four-digit password.

For instructions on how to program numeric values see Setting Numeric Values, page 22.

Run Mode

pass unlC 0000

Program

Password

loCd

Page 36

Javelin D ● Model PD644 Voltmeter Instruction Manual

Record the password for future reference. If appropriate, it may be recorded in the space provided.

Model:

Serial Number:

Password: __ __ __ __

Unlocking the Meter

If the meter is password protected, the correct password must be entered in order to make changes to the parameter settings.

Run Mode

pass loCd 0000

unlC

Enter

Password

Entering the correct four-digit number sets the password to 0000, disabling the protection.

Changes to the programmed parameter settings are allowed only with the password set to 0000.

If the password entered is incorrect, the meter displays LoCd (Locked) for three seconds, then allows you to try again.

Forgot the Password?

The password may be disabled by the following procedure:

1. Note display reading prior to pressing the Menu button. Ignore decimal point and sign.

2. Access the Password menu, add 2 to the noted

reading and enter that number as the password (e.g. display reading = -1.23, password = 0125).

Page 37

Javelin D ● Model PD644 Voltmeter Instruction Manual

Advanced Features Menu

To simplify the setup process, functions not needed for most applications are located in the Advanced features menu.

Press and hold the Right arrow and the Menu buttons, for three seconds, to access the Advanced features of the meter (Tip: press and hold Right arrow first then press Menu).

Press for Three Seconds

fltr

byps

serl

Enter/Ack

Menu or to Accept Setting Press Upto Scroll Menu and

to Increment Digit Value

to Access

Press

Copy

Press

Right

to Select Next Digit

SELc

I CAL

diag

Press

to Exit at any Time

Page 38

Javelin D ● Model PD644 Voltmeter Instruction Manual

Advanced Features Menu & Display Messages

Display Parameter Action/Setting

fltr

byps

serl

prot

PDC

mbs

addr

baud

trdE

prty

tbyt

Copy

send

done

Selc

out

Inty

Aout

rEly

diag

led

Cfg

ICal

RELY

GoFF

Aout

Filter

Bypass

Serial

Protocol

PDC

Modbus® Select Modbus® protocol

Address

Baud rate

Transmit delay

Parity

Byte-to-byte

Copy

Send

Done

Select

Output

Intensity

Analog output

Relay

Diagnostics

LED

CFG

Initial calibration

Relays

Gain/offset

Analog output

Set noise filter value

Set filter bypass value

Set serial communication parameters

Enter the Protocol menu

Select PDC protocol

Set meter address

Select baud rate

Set transmit delay for serial communication

Select none, even, or odd (Modbus

Program byte-to-byte timeout (silent time – Modbus

Enter copy function

Send meter settings to another meter

Copy function completed

Enter the Select menu (output, intensity)

Set meter for either relay or analog output

(factory set only – corresponding option installed)

Select display intensity

Set meter for analog output option

Set meter for relay option

Display parameter settings

Test display

Display meter configuration

Enter initial calibration

Display relay settings

Display gain and offset

Display analog output settings

only)

Page 39

Javelin D ● Model PD644 Voltmeter Instruction Manual

Display Parameter Action/Setting

SErL

Info

Serial

Information

Display serial communication settings

Display software version and serial number information

Noise Filter (fltr)

Most applications do not require changing this parameter. It is intended to help attain a steady display with an unsteady (noisy) input signal.

The field selectable noise filter averages any minor or quick changes in the input signal and displays the reading with greater stability.

Increasing the filter value will help stabilize the display, however this will slow down the display response to changes in the input signal.

The filter level may be set anywhere from 2 to 199. Setting filter value to zero disables filter function, and bypass setting

becomes irrelevant.

Noise Filter Bypass (byps)

The meter can be programmed to filter small input changes, but allow larger input changes to be displayed immediately, by setting the bypass value accordingly.

If the input signal goes beyond the bypass value, it will be displayed immediately with no averaging done on it.

The noise filter bypass value may be set anywhere from 0.2 to 99.9. It corresponds to percentage of full scale.

Increasing the bypass value may slow down the display response to changes in the input signal.

Page 40

Javelin D ● Model PD644 Voltmeter Instruction Manual

Serial Communications (serl)

The meter is equipped with serial communications capability as a standard feature using PDC Serial Communication Protocol. The Modbus RTU Protocol is optional and may be purchased at any time.

To communicate with a computer or other data communications equipment which lacks an RS-485 interface, an RS-232 to RS-485 adapter such as the Precision Digital PDA7485 is required. Please refer to Or- dering Information on page 3 for details.

Serl Prot

Addr

bAud trde

When using more than one meter in a multi-drop mode, each meter must be provided with its own unique address. The address may be programmed from 00 to 99 for PDC protocol and from 1 to 247 for Modbus

protocol. The transmit delay may be set between 0 and

199 ms.

Select Menu (SElc)

The Select menu is used to select the display intensity. Selection of analog output is a factory setting depending on the option installed.

• Output options are installed and set up at the factory.

• Changing the output selection will cause erroneous operation.

seLc

The selection menu is for factory use only.

Output

Do not change the selection!

out intY

Page 41

Javelin D ● Model PD644 Voltmeter Instruction Manual

Display Intensity (inty)

The Display Intensity function provides a selection from eight brightness levels to accommodate a wide variety of ambient lighting conditions.

vance

Features

SELc

out

inty

Press Enter to Accept Setting

Press Up to Select Value

Press Menu to Exit at any Time

int3

Select Display Intensit

Level

Page 42

Javelin D ● Model PD644 Voltmeter Instruction Manual

Meter Copy Function (Copy)

The Copy function is used to copy (or clone) all the settings from one meter to other meters requiring exactly the same setup and programming (alarms, filter, bypass, etc.). The copy function must not be engaged while more that two meters are connected together.

Cable Assembly

Master Clon

Figure 11. Meter Copy Connection

Copy Function Requirements

To copy settings from one meter to another, both meters must have:

1. Same software version

2. Same baud rate setting

3. PDC protocol selected

See Determining Software Version,

page 49 for instructions.

Page 43

Javelin D ● Model PD644 Voltmeter Instruction Manual

Meter Copying Instructions

1. Connect the RS-485 terminals of the two meters according to this table.

Master Clone

D+ D+

D- D-

G G

2. Power up both meters. Leave the Clone meter in Run Mode.

3. Enter the Advanced features menu of the Master meter, see Advanced Features Menu, page 37.

4. Scroll to Copy function using Up arrow button then press Enter/Ack.

5. The meter displays the message Send. Press Enter/Ack, the display flashes while sending data. The message done is displayed when copying is completed.

Advanced

Features

Display

Flashes While

Sending

Copy send

Press

to Exit and

Return to Run Mode

6. The Clone meter displays the memory block numbers in hexadecimal sequence then the message done when copying is completed. The Clone meter then initializes and returns to Run Mode using the same settings as the Master.

7. If meter to be cloned does not respond to the data being sent, refer to Copy Function Requirements above.

8. If desired, move the connector to the next Clone meter and press Enter/Ack to repeat the process.

done

Page 44

Javelin D ● Model PD644 Voltmeter Instruction Manual

Internal Calibration (ICal)

• There is no need to recalibrate the meter

when first received from the factory.

• The meter is factory calibrated prior to shipment. The calibration equipment used at the factory is certified to NIST standards.

• Allow the meter to warm up for at least 15 minutes before performing the internal calibration procedure.

The internal calibration allows the user to scale the meter without applying a signal. The use of calibrated signal sources is necessary to perform the internal calibration of the meter. Check calibration of the meter at least every 12 months.

The Internal calibration menu is part of the Advanced features menu.

1. Press and hold the Right arrow and the Menu buttons, for three

seconds, to access the Advanced features of the meter (Tip: press and hold Right arrow first then press Menu).

2. Press the Up arrow button to scroll to the Internal calibration menu and press Enter/Ack.

3. The meter displays voltage (volt). Press Enter/Ack to start the calibration process.

4. The meter displays VLow (u lo) prompt. Apply the lower voltage input signal and press Enter/Ack. The display flashes for a moment while meter is sampling the input.

5. After the display stops flashing, a number is displayed with the leftmost digit brighter than the rest. The bright digit is the active digit that can be changed by pressing the Up arrow button. Press the Right arrow button to move to the next digit.

6. Set the display value to correspond to the input voltage being applied.

7. The display moves to the high input calibration (u Hi). Apply the higher voltage input signal and press Enter/Ack.

8. Set the display for the high input calibration in the same way as it was set for the low input calibration.

Page 45

Javelin D ● Model PD644 Voltmeter Instruction Manual

I Cal

Set Display Value

Volt

for Low Input

ulo 000.0

Display

uHi

Flashes

During

Sampling

Calibrate

High Input

Notes:

• Low and high input signals can be anywhere between 0 and

300 VDC.

• Observe minimum input span requirement of 10 VDC between

input 1 and input 2.

• The inputs must not be negative, even slightly.

Error Message (Err)

An error message indicates that the calibration process was not successful.

After the error message is displayed, the meter reverts to input 1, allowing acceptable input voltages to be applied.

The error message might be caused by any of the following conditions:

1. Input signal is not connected to the proper terminals or it is connected backwards.

2. Input span was less than 10 VDC.

3. Same input signal used for both calibration points.

Page 46

Javelin D ● Model PD644 Voltmeter Instruction Manual

OPERATION

The meter is capable of accepting positive DC voltage signals and displaying these signals in engineering units from -1999 to 9999.

Front Panel Buttons Operation

Button Symbol

Description

Press to enter or exit Programming Mode, view settings, or exit Max/Min display

If displaying Max or Min reading, press to reset Max or Min reading

Press to display Max reading

If displaying Max reading, press to display Min reading

Press to acknowledge relays

If displaying Max or Min reading, press to override Max/Min display timeout

Page 47

Javelin D ● Model PD644 Voltmeter Instruction Manual

Maximum and Minimum Readings

The main function of the front panel buttons during operation is to display the maximum and minimum readings.

Actual

Reading

237.3 Hi lo

246.8 229.1

10 Sec Timeout

Press to Display and to

Toggle Between Max & Min

Press to Hold Max/Min

Enter

Press to Reset Max/Min

Right

Press to Exit Max/Min

1. Press Up arrow/Max button to display maximum reading since the last reset/power-up.

2. Press Up arrow/Max again to display the minimum reading since the last reset/power-up.

3. Press Enter/Ack to hold Max/Min display reading, the meter will continue to track new Max/Min readings.

4. If Enter/Ack is not pressed, the Max/Min display reading will time out after ten seconds and the meter will return to displaying the actual reading.

5. Press Right arrow/Reset button to reset Max/Min while reading is being displayed. Max/Min display readings are reset to actual reading.

Page 48

Javelin D ● Model PD644 Voltmeter Instruction Manual

MOUNTING DIMENSIONS

1.76"

(45mm)

2.45"

(62mm)

0.59"

(15mm)

3.2"

(81mm)

3.6"

(91mm)

Figure 12. Meter Dimensions – Side View

3.61"

(92mm)

4.68"

(119mm)

Figure 13. Case Dimensions - Top View

2.50"

(64mm)

Page 49

Javelin D ● Model PD644 Voltmeter Instruction Manual

TROUBLESHOOTING

The rugged design and the user-friendly interface of the meter make it unusual for the installer or operator to need to refer to this section.

If the meter is not working as expected, refer to the Diagnostics menu and the recommendations below.

Diagnostics Menu (diag)

The Diagnostics menu is located in the Advanced features menu, to access Diagnostics menu see Advanced Features Menu, page 37.

It provides an easy way to view the programmed parameter settings for troubleshooting purposes. Press the Enter/Ack button to view the settings and the Menu button to exit at any time.

For a description of the diagnostics messages see Advanced Features Menu & Display Messages, page 38.

Determining Software Version

To determine the software version of a meter:

1. Go to the Diagnostics menu (diAG) and press Enter/Ack but-

ton.

2. Press Up arrow/Max button and scroll to Information menu

(Info).

3. Press Enter/Ack to access the software number (SFT), version

(UER), and serial number (Sn) information. Write down the information as it is displayed. Continue pressing Enter/Ack until all the information is displayed.

Page 50

Javelin D ● Model PD644 Voltmeter Instruction Manual

Factory Defaults & User Settings

The following table shows the factory setting for most of the programmable parameters on the meter. Next to the factory setting, the user should record the setting for the particular application.

PD644-________ S/N: _______________ Date: _________

Model:

Parameter

Programming

Input 1

Display 1

Input 2

Display 2

Decimal point

Relay 1

Action 1

Set 1

Reset 1

Relay 2

Action 2

Set 2

Reset 2

Fail-safe

Fail-safe 1

Fail-safe 2

Time delay

On delay 1

Off delay 1

On delay 2

Off delay 2

Display Default Setting User Setting

prog

InP1

Dis1

InP2

Dis2 ddd.d

Rly1

Act1

Set1

RSt1

Rly2

Act2

Set2

RSt2

flsf

Fls1

Fls2

dlay

On1

Off1

On2

Off2

Scale

000.0 VDC

000.0

200.0 VDC

200.0

1 decimal place

Automatic

70.0

60.0

Automatic

100.0

90.0

Off

0 sec

Page 51

Javelin D ● Model PD644 Voltmeter Instruction Manual

Parameter

Output

Display 1

Output 1

Display 2

Output 2

Password

Advanced Features

Filter

Bypass

Serial settings

Protocol

Address

Baud rate

Trans delay

Output option

Display intensity

Modbus®

Address

Parity

Byte-to-byte timeout*

* The byte-to-byte timeout setting might be updated automatically depending on the baud rate selected and the previous timeout setting. The minimum timeout allowed is saved to memory if a lower value is entered (e.g. If user enters 0.00 with a baud rate of 300, 0.06 is saved).

Display Default Setting User Setting

Aout ScAL

DiS1

out1

Dis2

out2

pass

fltr

byps

serl

pdC

addr

baud

trde

inty

addr

prty

tbyt

0.0

4.00 mA

200.0

20.00 mA

0000 (unlocked)

0.2

PDC protocol

2400

10 ms

Factory set only

Level 2

247

Even

0.01 sec

Page 52

Javelin D ● Model PD644 Voltmeter Instruction Manual

or 5 Seconds

Reset Meter to Factory Defaults

When the parameters have been changed in a way that is difficult to determine what’s happening, it might be better to start the setup process from the factory defaults.

Instructions to load factory defaults:

1. Enter the Advanced features menu. See Advanced Features Menu, page 37.

2. Press Up arrow to go to Diagnostics menu

3. Press and hold Right arrow/Reset for five seconds, press Enter/Ack when display flashes reset. Note: If Enter/Ack is not pressed within three seconds, display returns to Diagnostics menu.

4. The meter goes through an initialization sequence (same as on power-up), and loads the factory default settings.

Press and Hold for 3 Seconds

Flashing Display

diag

rset

Meter Re-

Initializes

Press and Hold f

Page 53

Javelin D ● Model PD644 Voltmeter Instruction Manual

Troubleshooting Tips

Symptom Check/Action

No display at all

Not able to change setup or programming, LoCd is displayed

Meter displays error message during calibration (err)

Meter displays

• 9999

• -1999

Display alternates between

1. Hi and a number

2. Lo and a number

Display response is too slow

If the display locks up or the meter does not respond at all

Relay operation is reversed

Relay and status LED do not respond to signal

Meter not communicating with other devices

Meter flashes err2 at power on.

Other symptoms not described above

Check power at power connector.

Meter is locked, enter correct four-digit password to unlock.

Check:

1. Signal connections

2. Input selected in Setup menu

3. Minimum input span requirements Voltage at Signal connector out of range.

Press Menu to exit Max/Min display readings.

Check filter and bypass values.

Cycle the power to restart the microprocessor.

Check:

1. Fail-safe in Setup menu

2. Wiring of relay contacts Check:

1. Relay action in Setup menu

2. Set and reset points Check:

1. Serial converter and wiring

2. Serial protocol selected

3. Meter address and baud rate Hardware failure. Contact Technical Support to arrange for repair. Call Contact Technical Support for assistance.

Page 54

Javelin D ● Model PD644 Voltmeter Instruction Manual

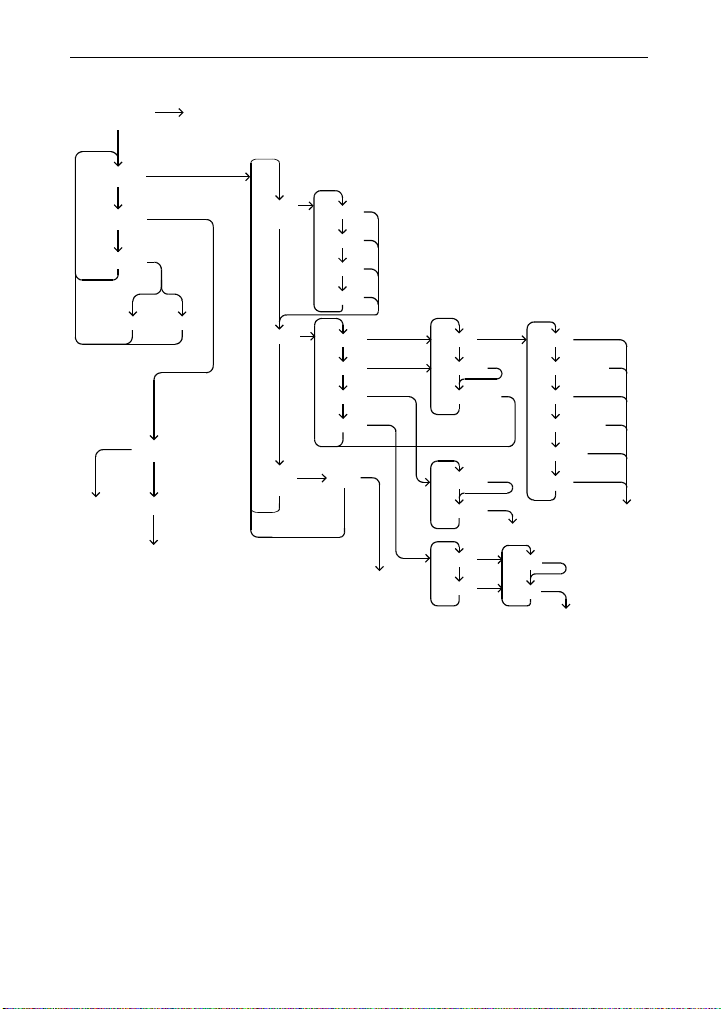

USER INTERFACE QUICK REFERENCE GUIDE

Scale

Calibrate

Display

Max/Min

Decimal

Point

Relays

nalog

Output

dddd

d . ddd

dd . dd

ddd . d

Relay 1

Relay 2

Failsafe

Delays

Scale

Scale Analog

Action

Set Point

Reset Point

Failsafe 1

Failsafe 2

Delay 1

Delay 2

To Delays

uto

uto & Manual

Latch

Latch w/Clear

lternate

Off

To An alo g Ou tput

Set Poin

Run Mode

Setup

Program

Password

Locked Unlocked

Scale Input

Calibrate Input

Page 55

Javelin D ● Model PD644 Voltmeter Instruction Manual

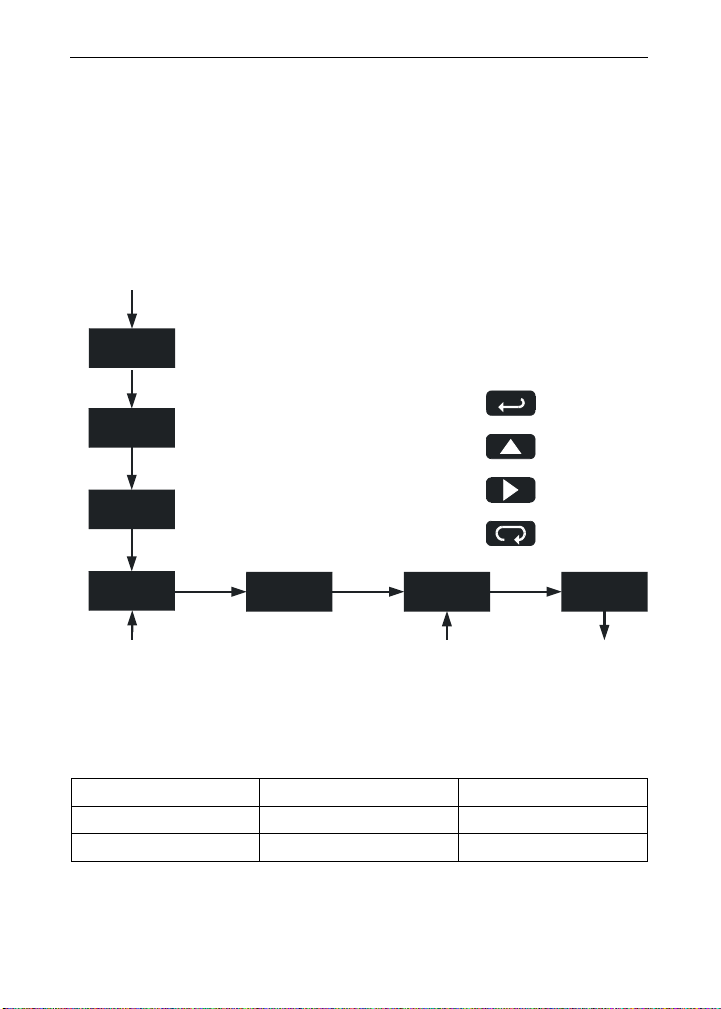

Pushbutton Function Menu

Go to Programming Mode or leave Programming, Advanced Features, and Max/Min Modes.

Right

Arrow Move to next digit.

Arrow Move to next selection or increment digit.

Enter/Ack

Right

Arrow &

Accept selection/value and move to next selection.

held for 3 seconds enters Advanced Features

Max/Min Mode

While in Run Mode, pressing toggles between Max & Min displays, and current value. Press

Enter/Ack

will disable the 10 second timeout and continuously display Max or Min.

Arrow will initiate Max/Min Mode.

Right

or wait 10 seconds to return to Run Mode. Pressing

Arrow resets the Max/Min to the

Arrow

Press & hold

Right

arrow and

for 3 seconds to access

Advanced Features Menu

Filter

Bypass

Serial

Copy Send

Select

Initial

Calibrate

Diagnostics

Output

Intensity

Advanced

Features

When the meter is locked programmable settings can only be displayed and the Copy function is unavailable.

Operational Modes

Arrow &

Right

for 3

seconds

Run

Program

Arrow

Protocol

ddress

Baud

TX Delay

Modbus ? No Yes

Parity

Byte-To-Byte

Timeout

Max &

Min

Modbus

PDC

Page 56

Javelin D • Model PD644 Voltmeter Instruction Manual

How to Contact Precision Digital

• For Technical Support please

Call: (800) 610-5239 or (508) 655-7300

Fax: (508) 655-8990

Email: [email protected]

• For Sales Support or to place an order please

Call: (800) 343-1001 or (508) 655-7300

Fax: (508) 655-8990

Email: [email protected]

• For the latest version of this manual please visit

www.predig.com

10/15

LIM644_E

SFT028 Ver 1.0
