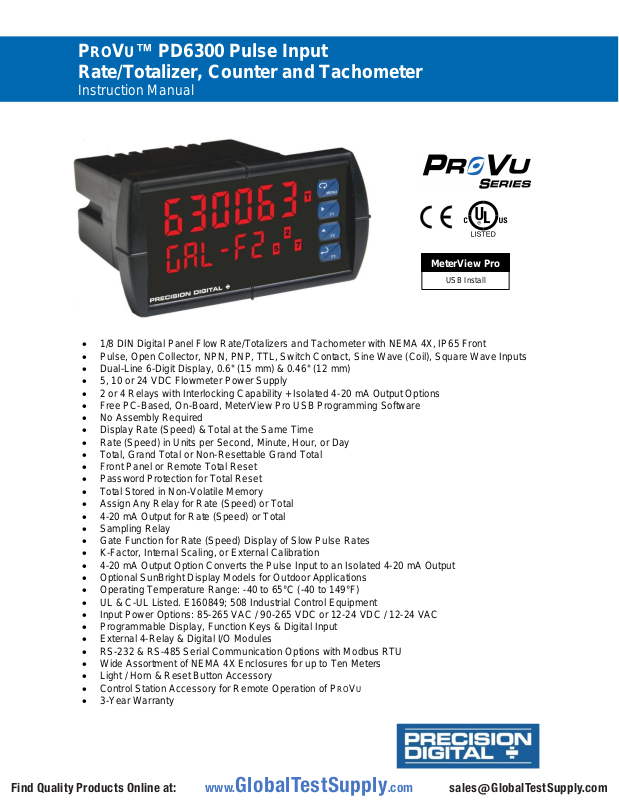

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter and Tachometer

Instruction Manual

• 1/8 DIN Digital Panel Flow Rate/Totalizers and Tachometer with NEMA 4X, IP65 Front

MeterView Pro

USB Install

• Pulse, Open Collector, NPN, PNP, TTL, Switch Contact, Sine Wave (Coil), Square Wave Inputs

• Dual-Line 6-Digit Display, 0.6" (15 mm) & 0.46" (12 mm)

• 5, 10 or 24 VDC Flowmeter Power Supply

• 2 or 4 Relays with Interlocking Capability + Isolated 4-20 mA Output Options

• Free PC-Based, On-Board, MeterView Pro USB Programming Software

• No Assembly Required

• Display Rate (Speed) & Total at the Same Time

• Rate (Speed) in Units per Second, Minute, Hour, or Day

• Total, Grand Total or Non-Resettable Grand Total

• Front Panel or Remote Total Reset

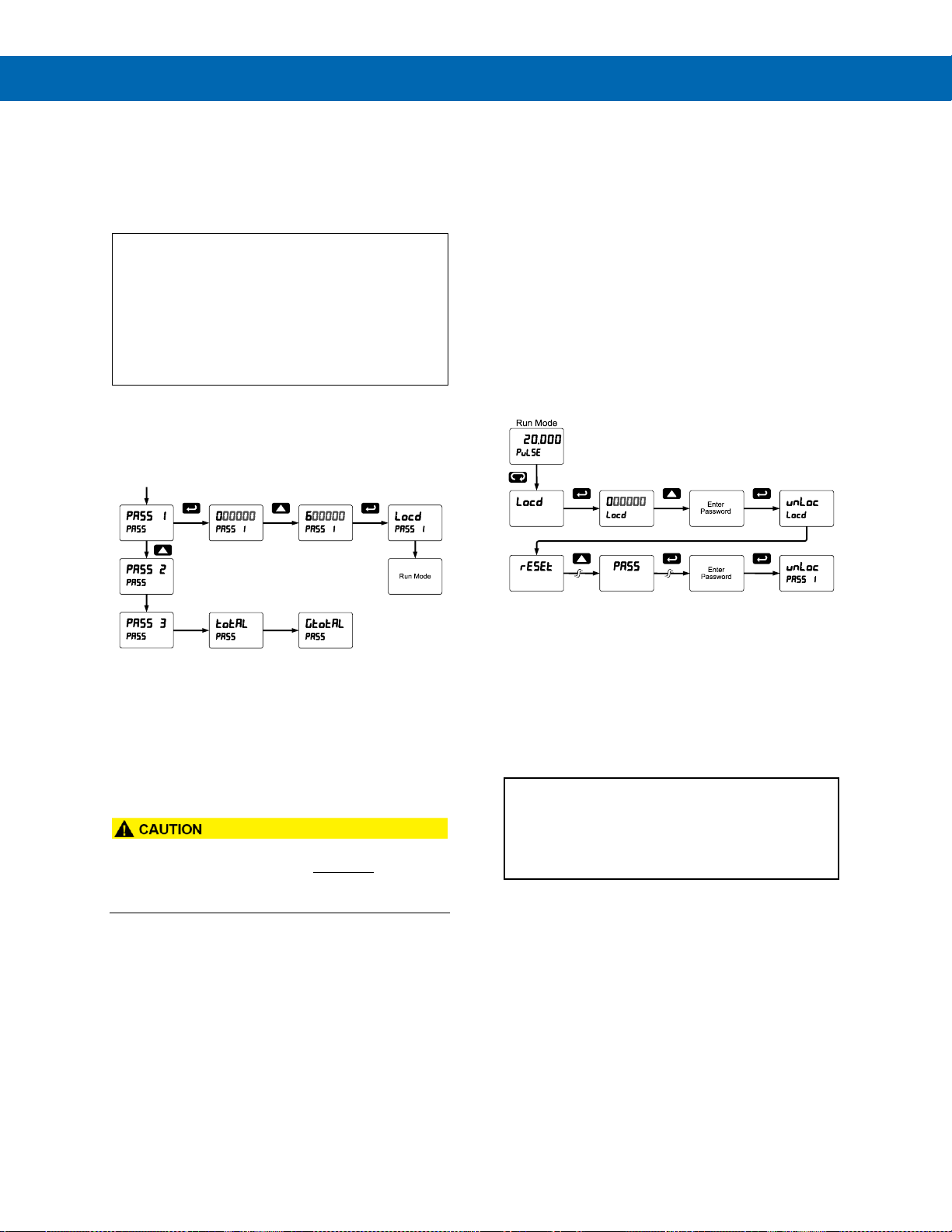

• Password Protection for Total Reset

• Total Stored in Non-Volatile Memory

• Assign Any Relay for Rate (Speed) or Total

• 4-20 mA Output for Rate (Speed) or Total

• Sampling Relay

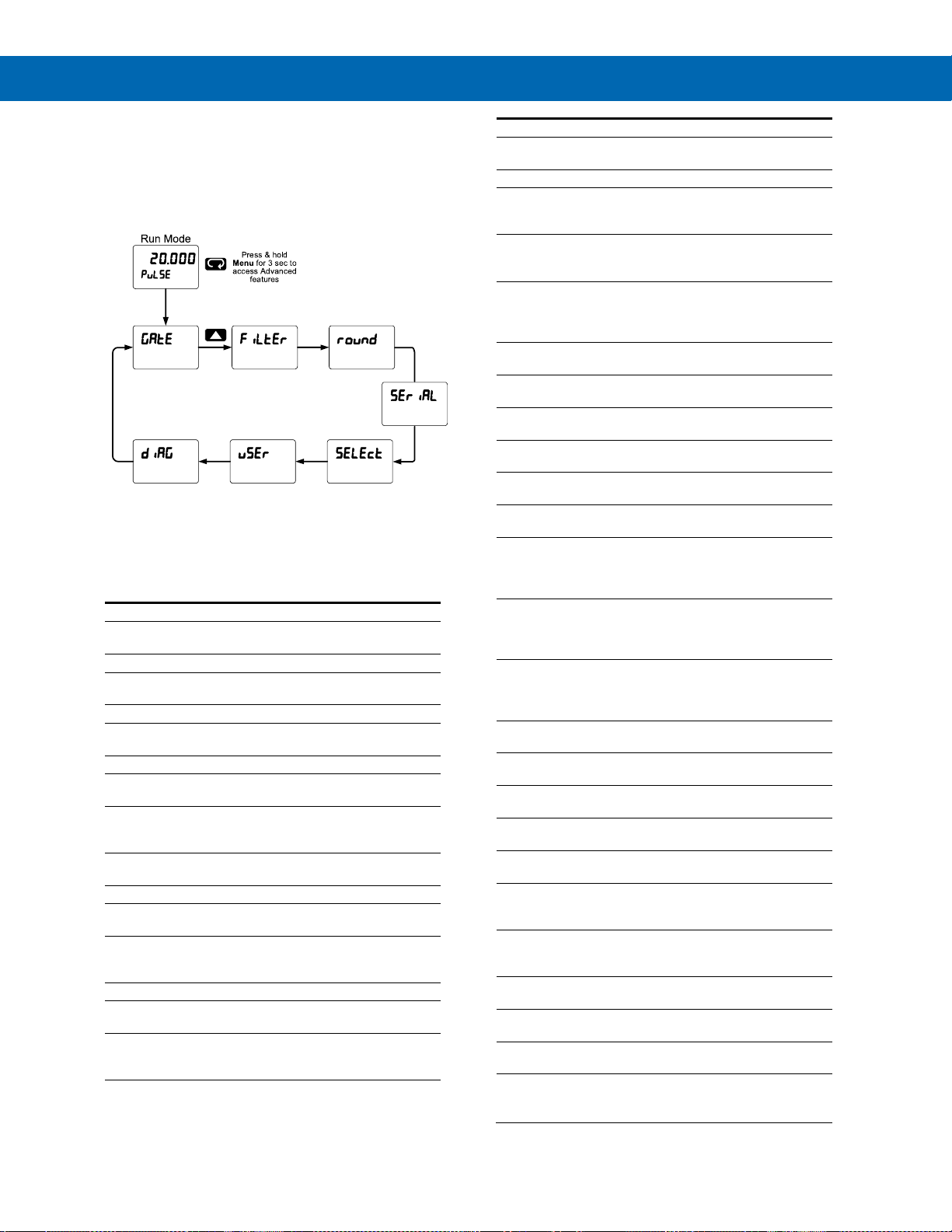

• Gate Function for Rate (Speed) Display of Slow Pulse Rates

• K-Factor, Internal Scaling, or External Calibration

• 4-20 mA Output Option Converts the Pulse Input to an Isolated 4-20 mA Output

• Optional SunBright Display Models for Outdoor Applications

• Operating Temperature Range: -40 to 65°C (-40 to 149°F)

• UL & C-UL Listed. E160849; 508 Industrial Control Equipment

• Input Power Options: 85-265 VAC / 90-265 VDC or 12-24 VDC / 12-24 VAC

• Programmable Display, Function Keys & Digital Input

• External 4-Relay & Digital I/O Modules

• RS-232 & RS-485 Serial Communication Options with Modbus RTU

• Wide Assortment of NEMA 4X Enclosures for up to Ten Meters

• Light / Horn & Reset Button Accessory

• Control Station Accessory for Remote Operation of PROVU

• 3-Year Warranty

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 2

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Disclaimer

The information contained in this document is subject to change without notice. Precision Digital makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.

• Read complete instructions prior to installation and operation of the meter.

• Risk of electric shock or personal injury.

• This product is not recommended for life support

applications or applications where malfunctioning could result in personal injury or property loss. Anyone using this product for such applications does so at his/her own risk. Precision Digital Corporation shall not be held liable for damages resulting from such improper use.

WARNING

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Limited Warranty

Precision Digital Corporation warrants this product against defects in material or workmanship for the specified period under

“Specifications” from the date of shipment from

the factory. Precision Digital’s liability under this limited warranty shall not exceed the purchase value, repair, or replacement of the defective unit.

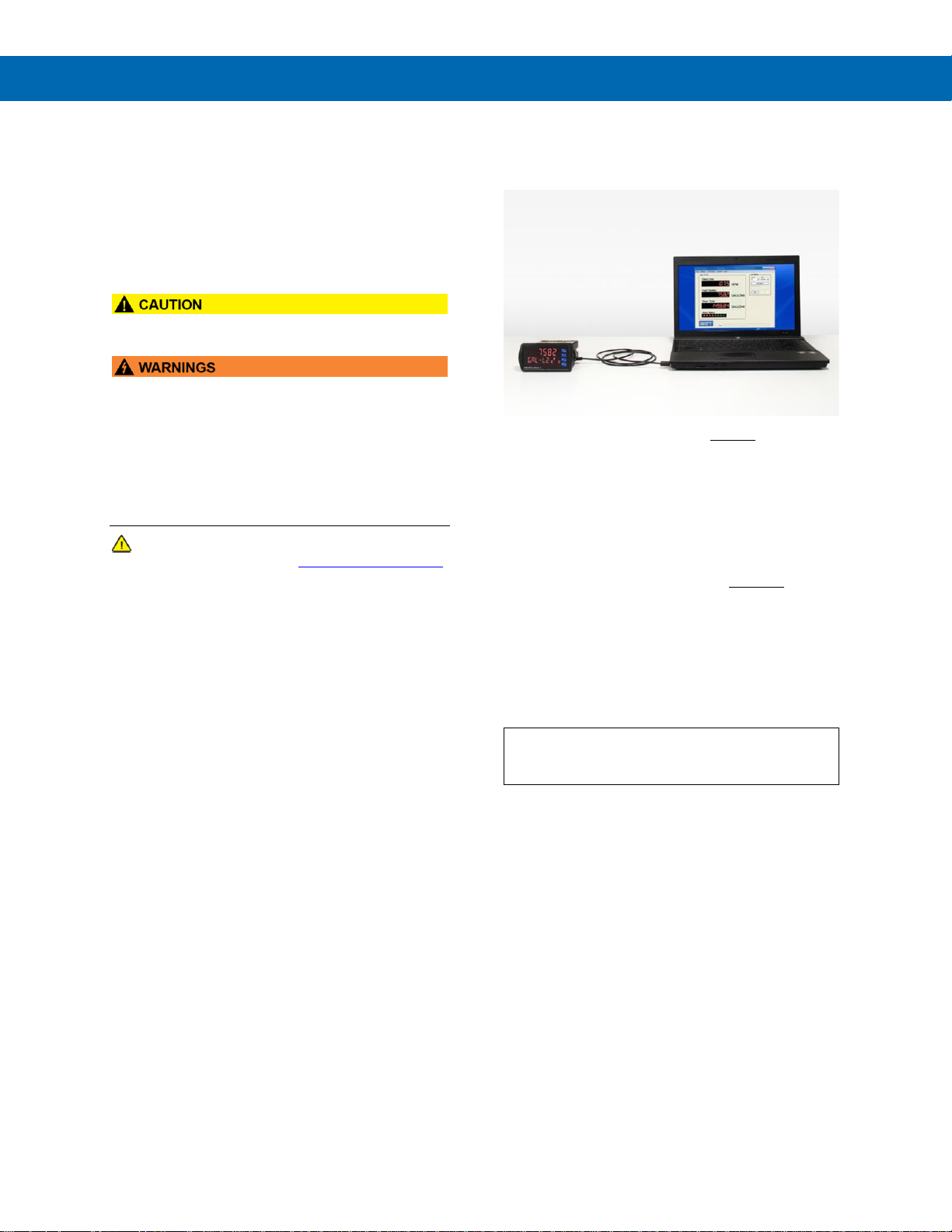

FREE MeterView Pro Programming Software

The meter can be powered from the Micro USB connection. When using the Micro USB connection, DO NOT apply AC or DC power to the meter.

The easiest and quickest way to program your PROVU meter is to use the FREE MeterView Pro programming software. This software is loaded into the meter and connects and installs directly to your PC with a USB cable. We recommend that the first thing you do after taking the meter out of the box is connect the PROVU to your PC with the provided USB cable – do not use a different cable. DO NOT apply AC or DC power to the meter while your PC is connected to the meter as it will disrupt the USB

connection. You don’t even have to apply an input

signal. MeterView Pro programming software is intuitive, and

most customers can get their meter programmed as they like without even looking in the manual.

Registered Trademarks

All trademarks mentioned in this document are the property of their respective owners.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

In addition to programming, the software may be used for:

• Monitoring

• Datalogging using your PC

• Generating and saving programming files for

later use

Once your meter is programmed the way you want it, you can wire it up for your application per the instructions in this manual and install it. If you find that you need to make adjustments to the programming after the meter is installed, you can use the front panel buttons and the instructions in this manual to do so.

Page 3

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Table of Contents

Introduction .......................................................................................................... 6

Ordering Information ........................................................................................... 6

Specifications....................................................................................................... 7

General ............................................................................................................. 7

Pulse Input ....................................................................................................... 8

Rate/Totalizer ................................................................................................... 8

Relays ............................................................................................................... 9

Isolated 4-20 mA Transmitter Output ............................................................ 9

USB Connection ............................................................................................ 10

On-Board Digital Input (F4) ........................................................................... 10

Modbus® RTU Serial Communications ........................................................ 10

MeterView Pro ................................................................................................ 10

Compliance Information .................................................................................... 11

Safety .............................................................................................................. 11

Electromagnetic Compatibility ..................................................................... 11

Safety Information ............................................................................................. 11

Installation .......................................................................................................... 11

Unpacking ...................................................................................................... 11

Panel Mounting Instructions ........................................................................ 12

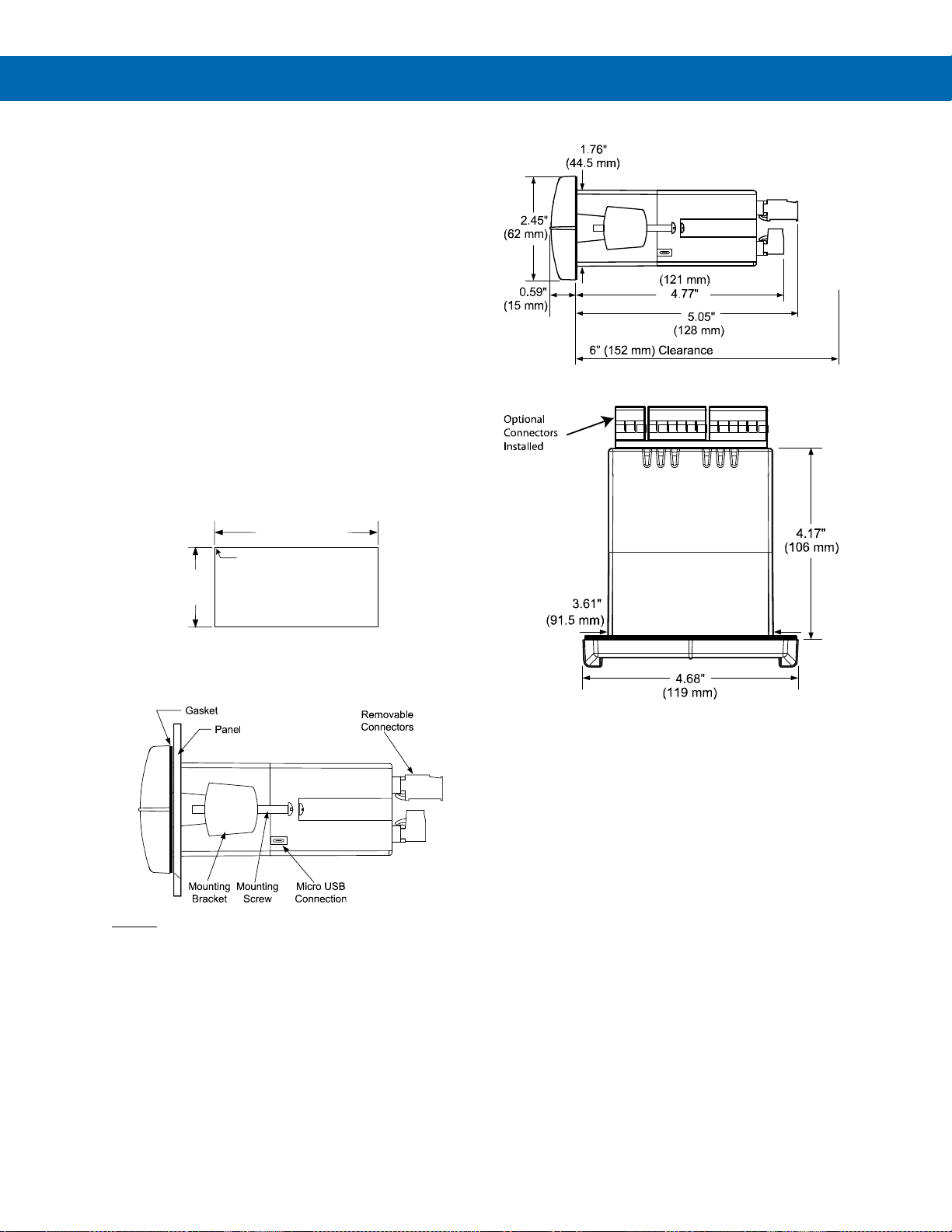

Mounting Dimensions .................................................................................. 12

Installation Overview ..................................................................................... 13

MeterView Pro Software ................................................................................ 13

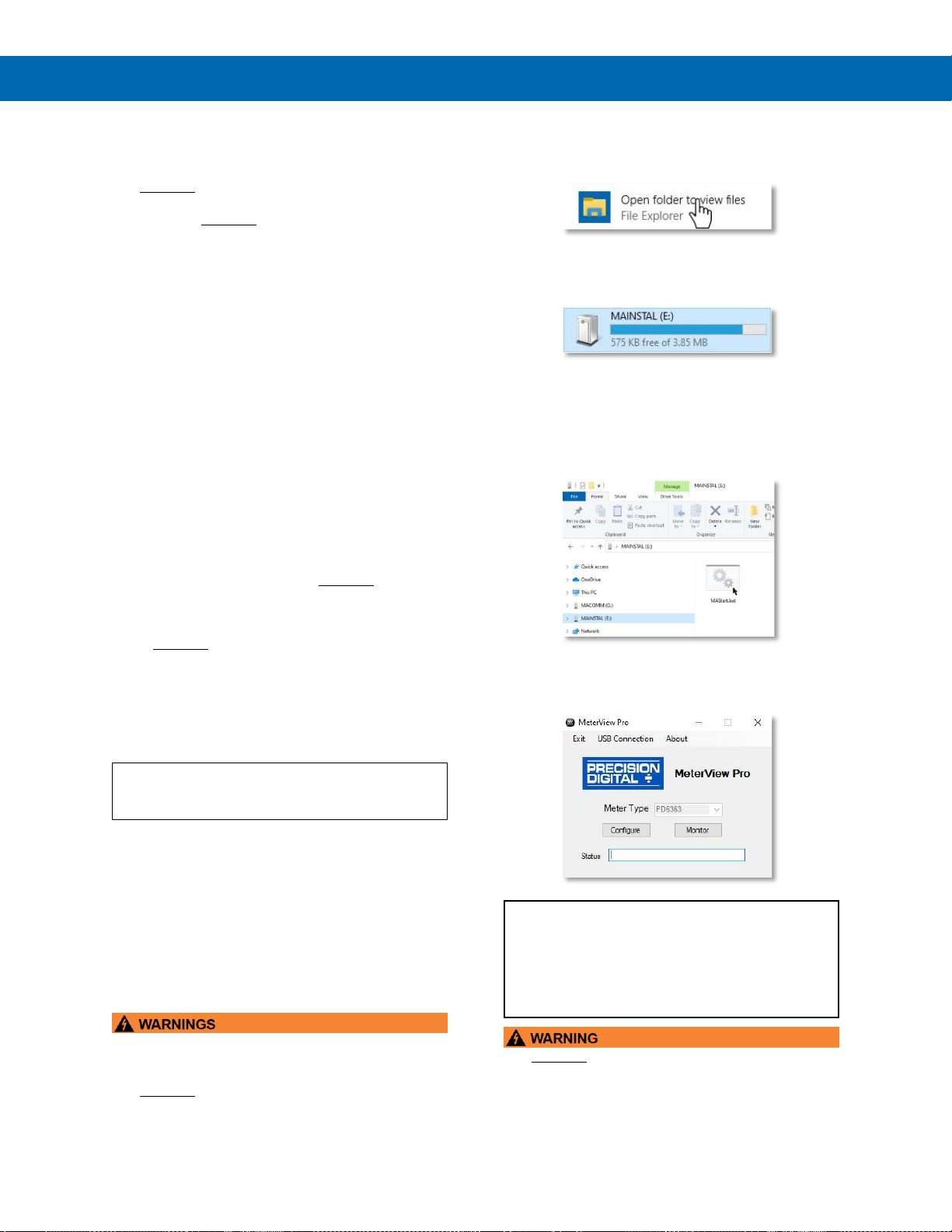

MeterView Pro Installation........................................................................... 13

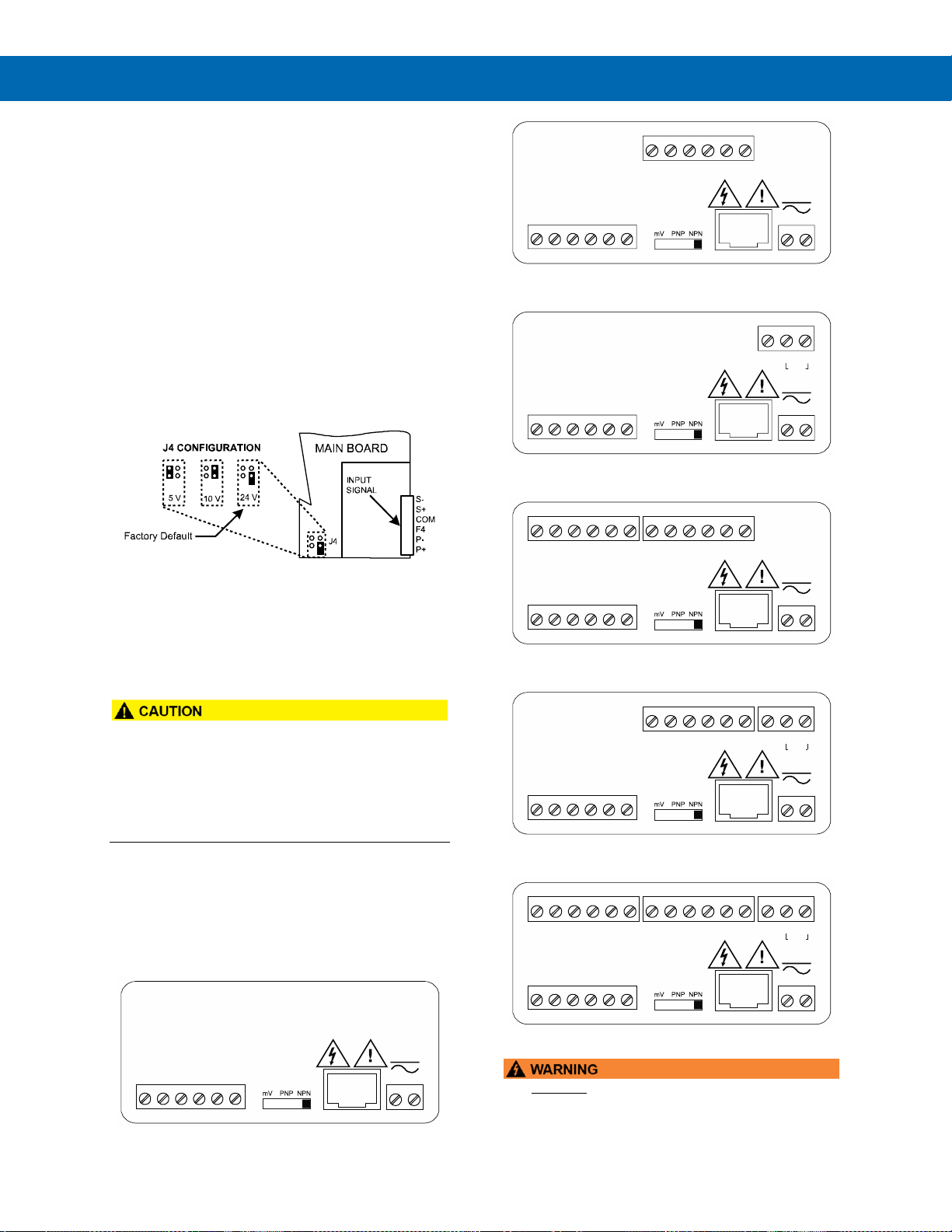

Flowmeter Supply Voltage Selection (P+, P-) ............................................. 14

Connections ................................................................................................... 14

Connectors Labeling ................................................................................... 14

Power Connections ..................................................................................... 15

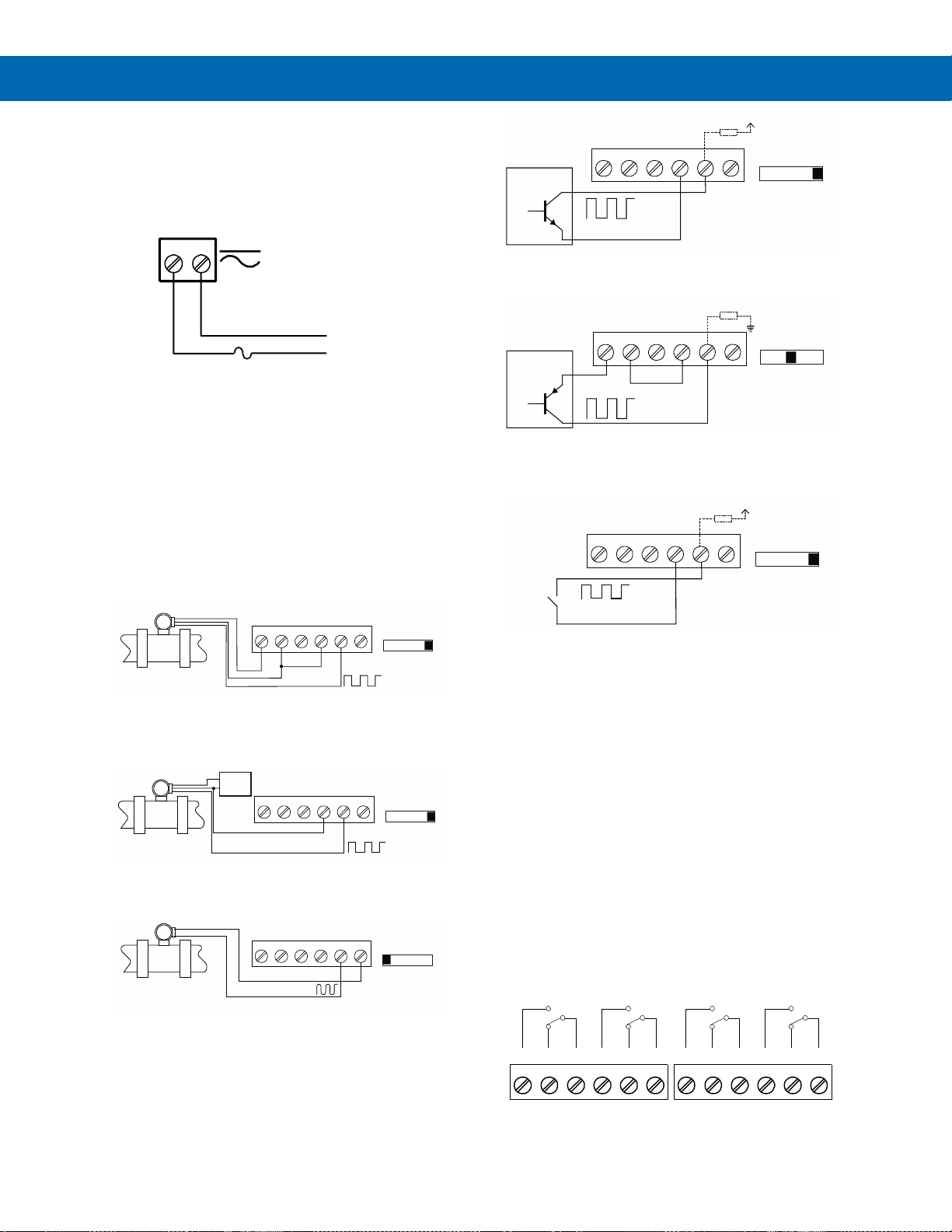

Signal Connections ..................................................................................... 15

Modbus RTU Serial Communications ......................................................... 15

Relay Connections ...................................................................................... 15

Switching Inductive Loads ........................................................................... 16

F4 Digital Input Connections ....................................................................... 16

4-20 mA Output Connections ...................................................................... 16

Analog Output Power Supply ...................................................................... 16

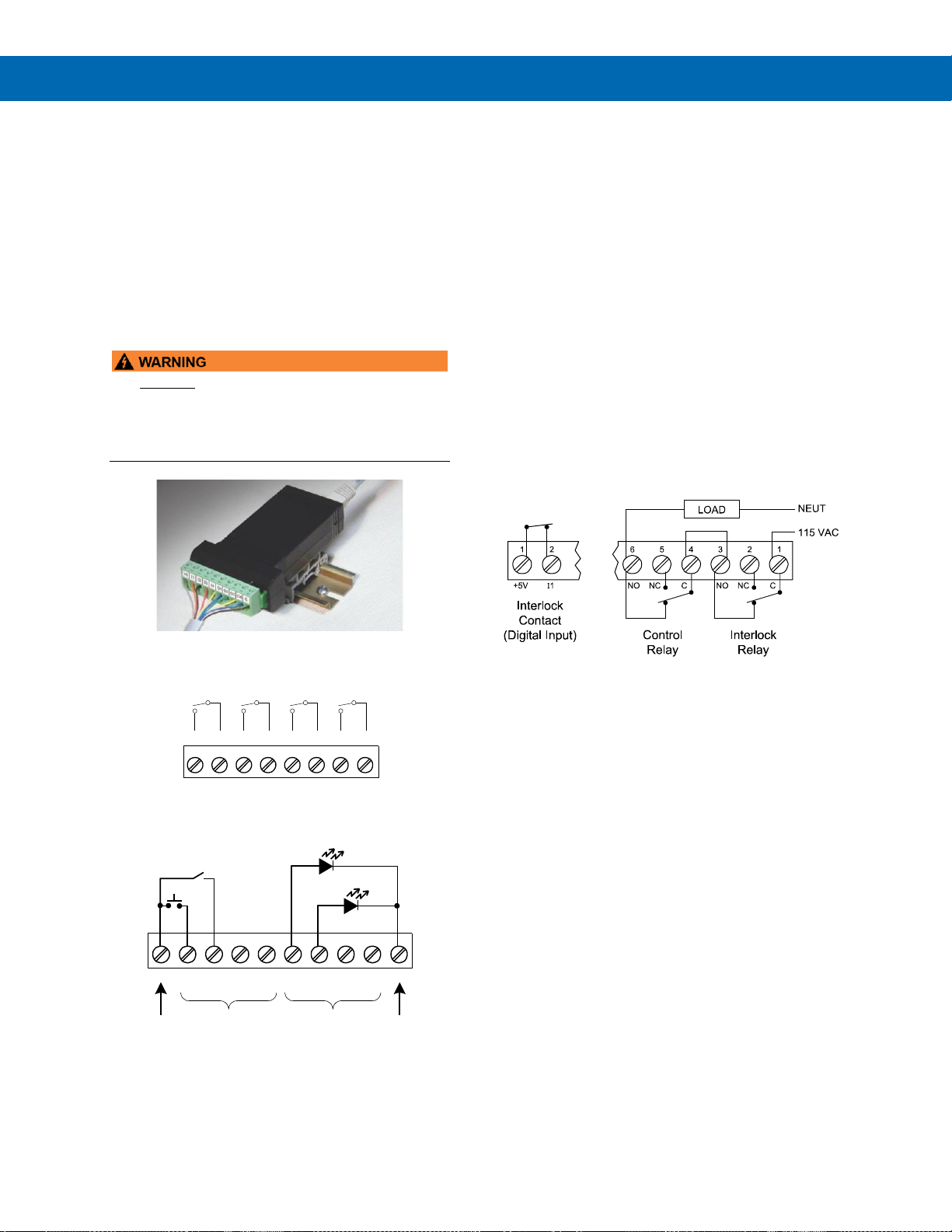

External Relay & Digital I/O Connections .................................................... 17

Interlock Relay Feature ............................................................................... 17

Setup and Programming ................................................................................... 18

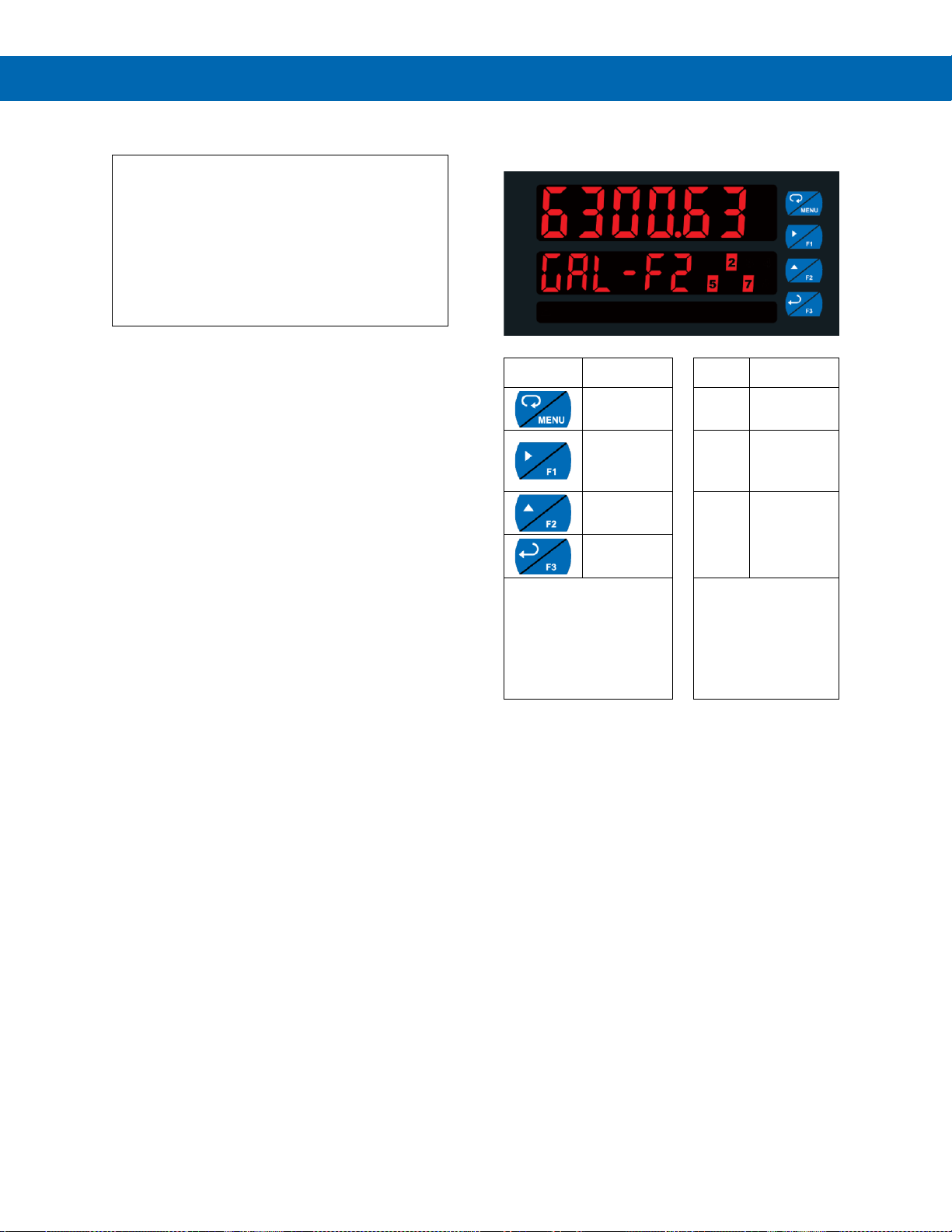

Front Panel Buttons and Status LED Indicators ........................................ 18

Display Functions and Messages ................................................................ 19

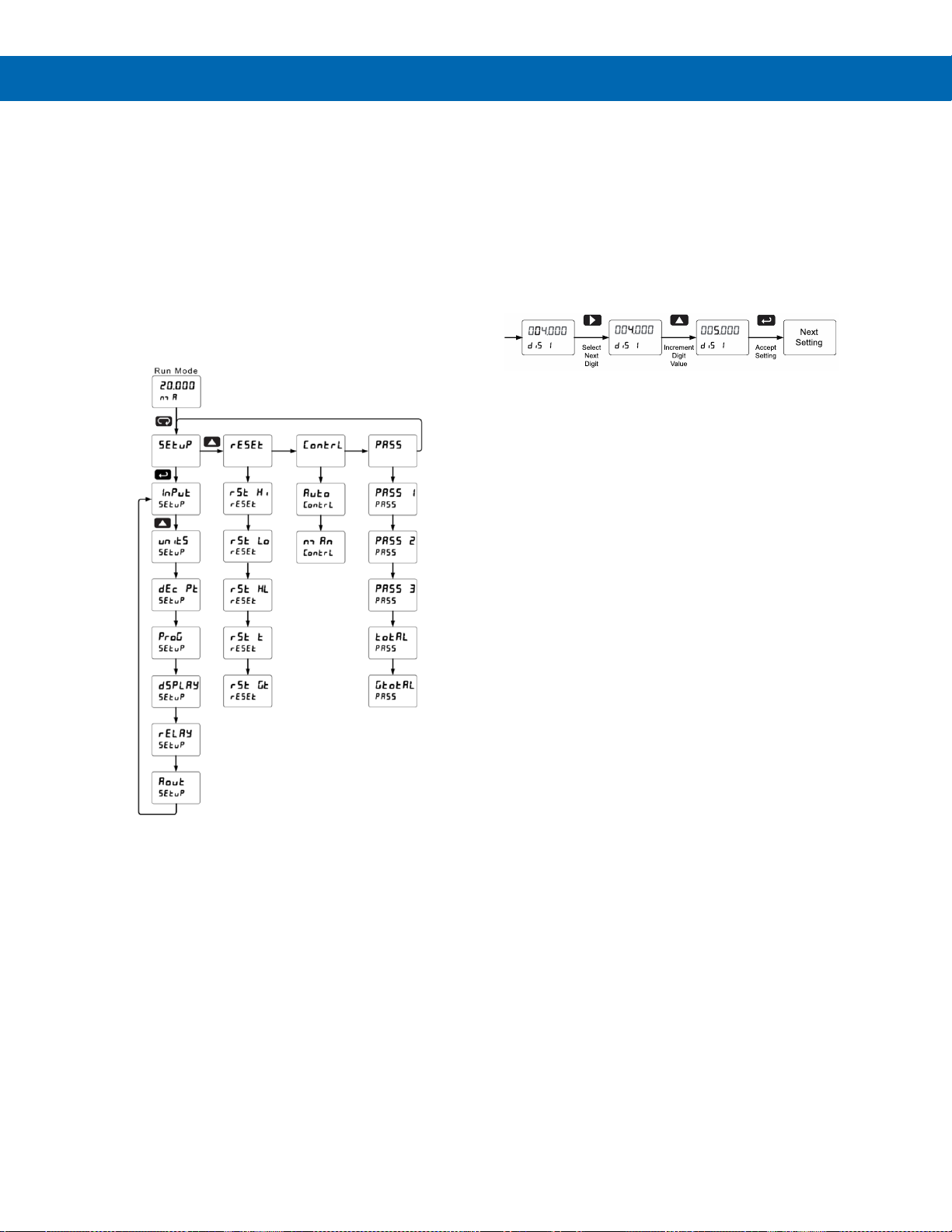

Main Menu ...................................................................................................... 21

Setting Numeric Values ................................................................................ 21

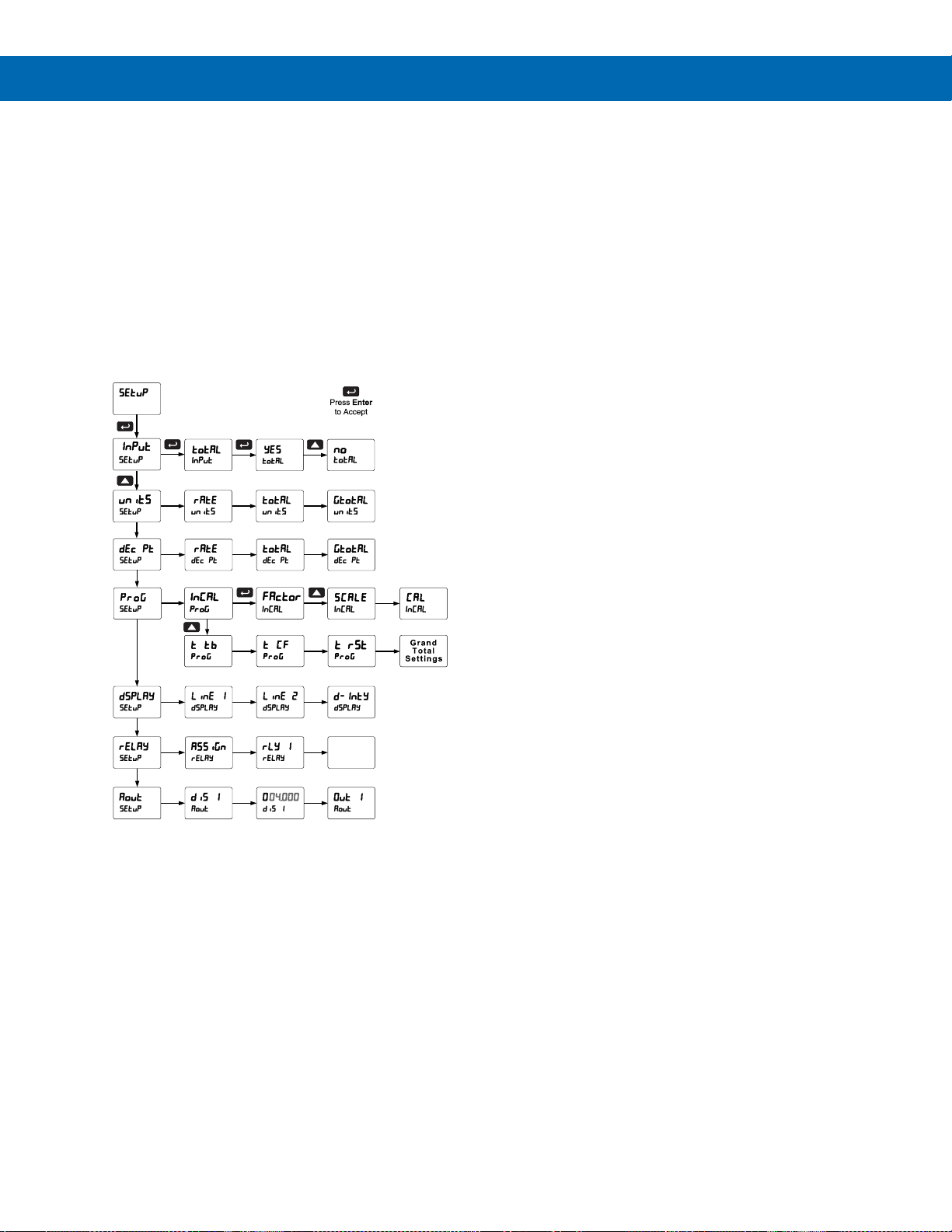

Setting Up the Rate/Totalizer Meter (setup) ................................................ 22

Setting the Input Signal (Input) .................................................................. 22

Setting the Totalizer Features (total) ........................................................ 22

Setting the Display Units or Custom Tags (units) ..................................... 23

Setting the Decimal Point (dEc pt)............................................................. 23

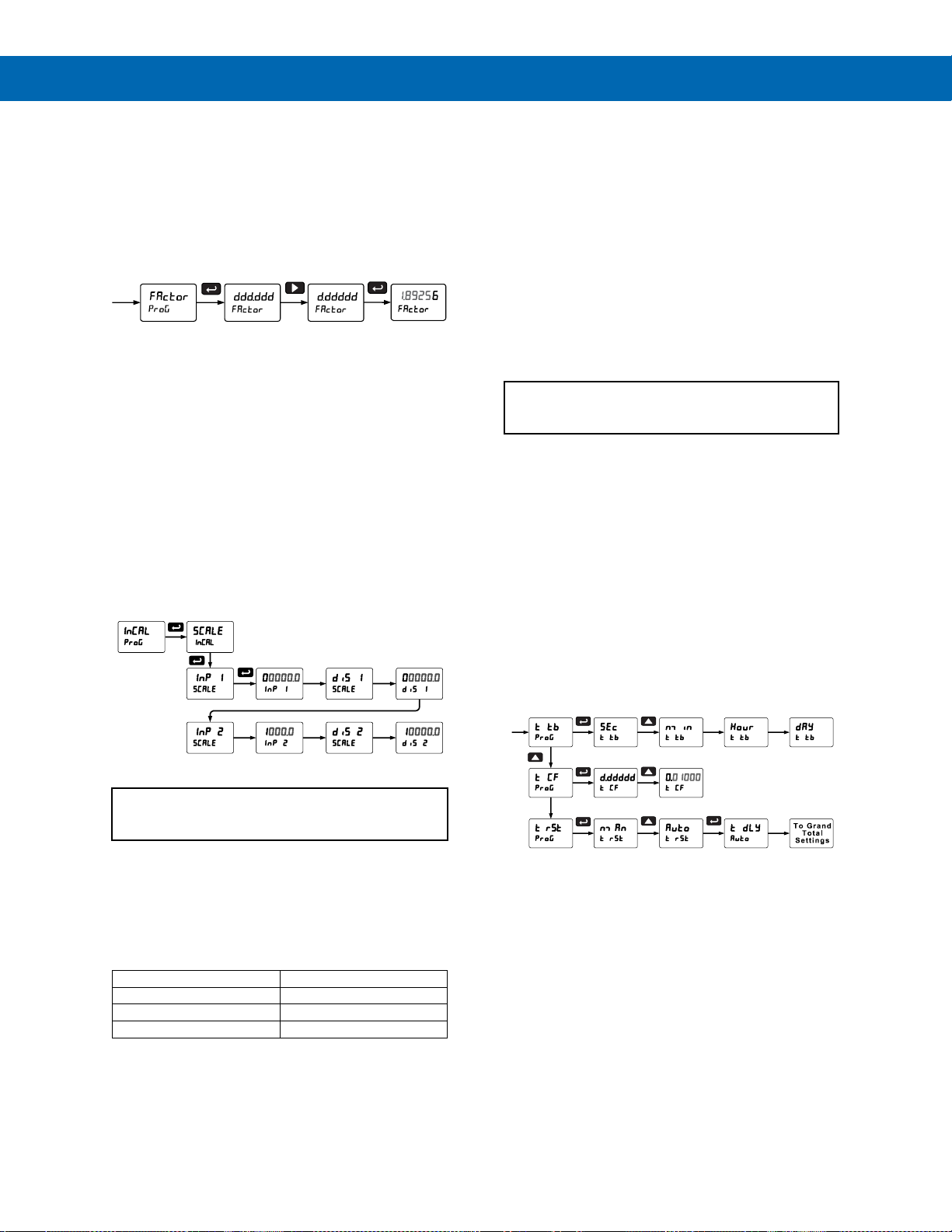

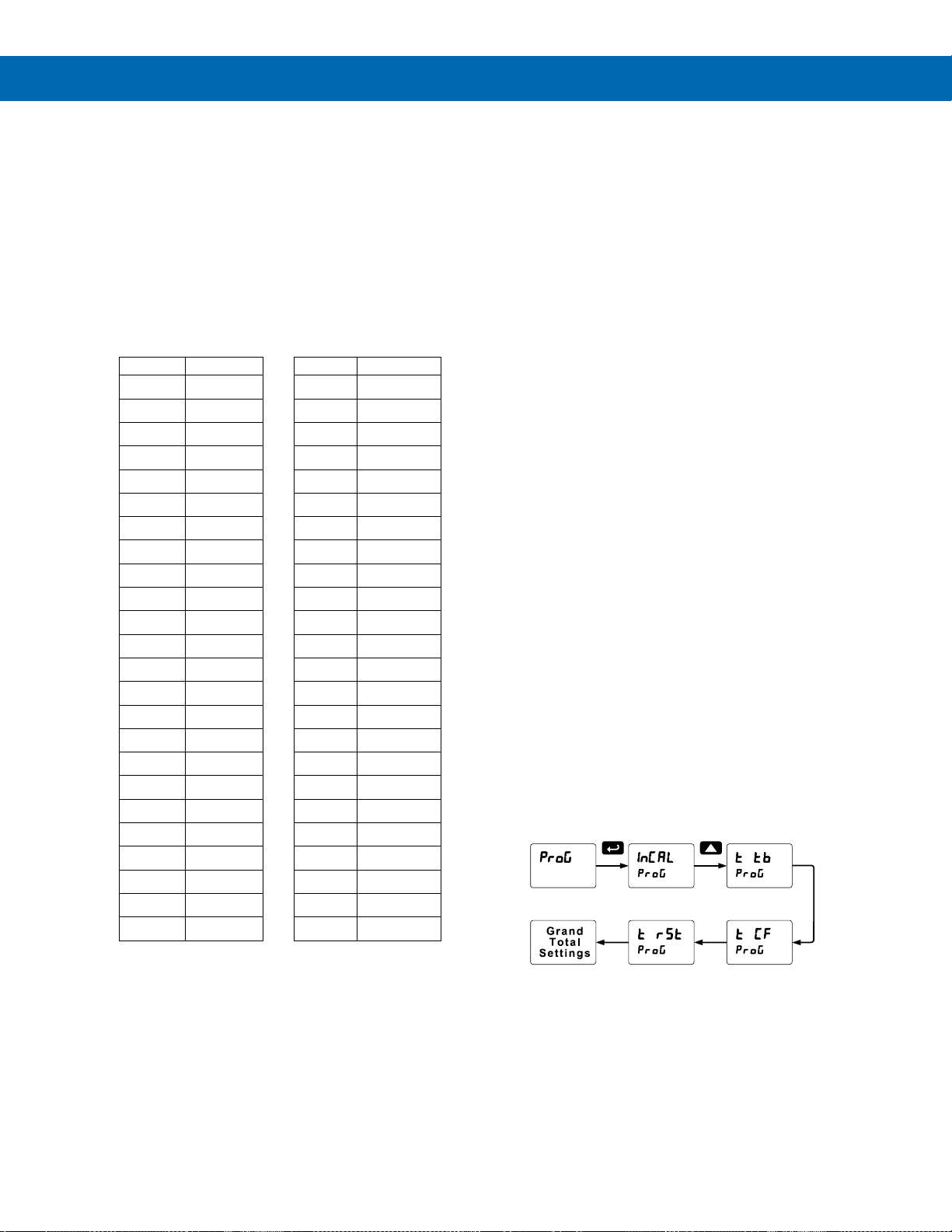

Programming the Rate/Totalizer (prog) ...................................................... 23

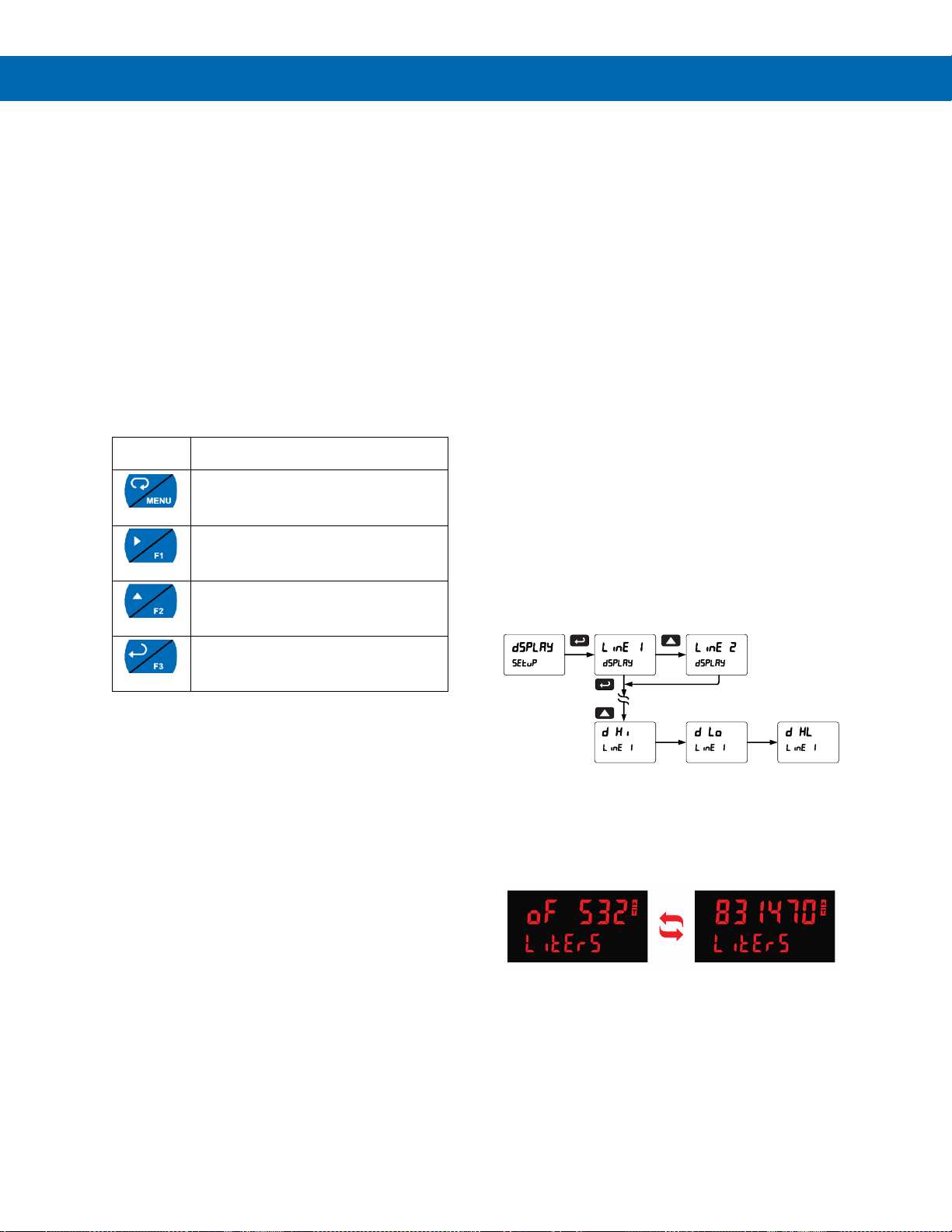

Setting the Display Parameter & Intensity (dsplay) ................................... 26

Display Intensity (d-Inty) ........................................................................... 26

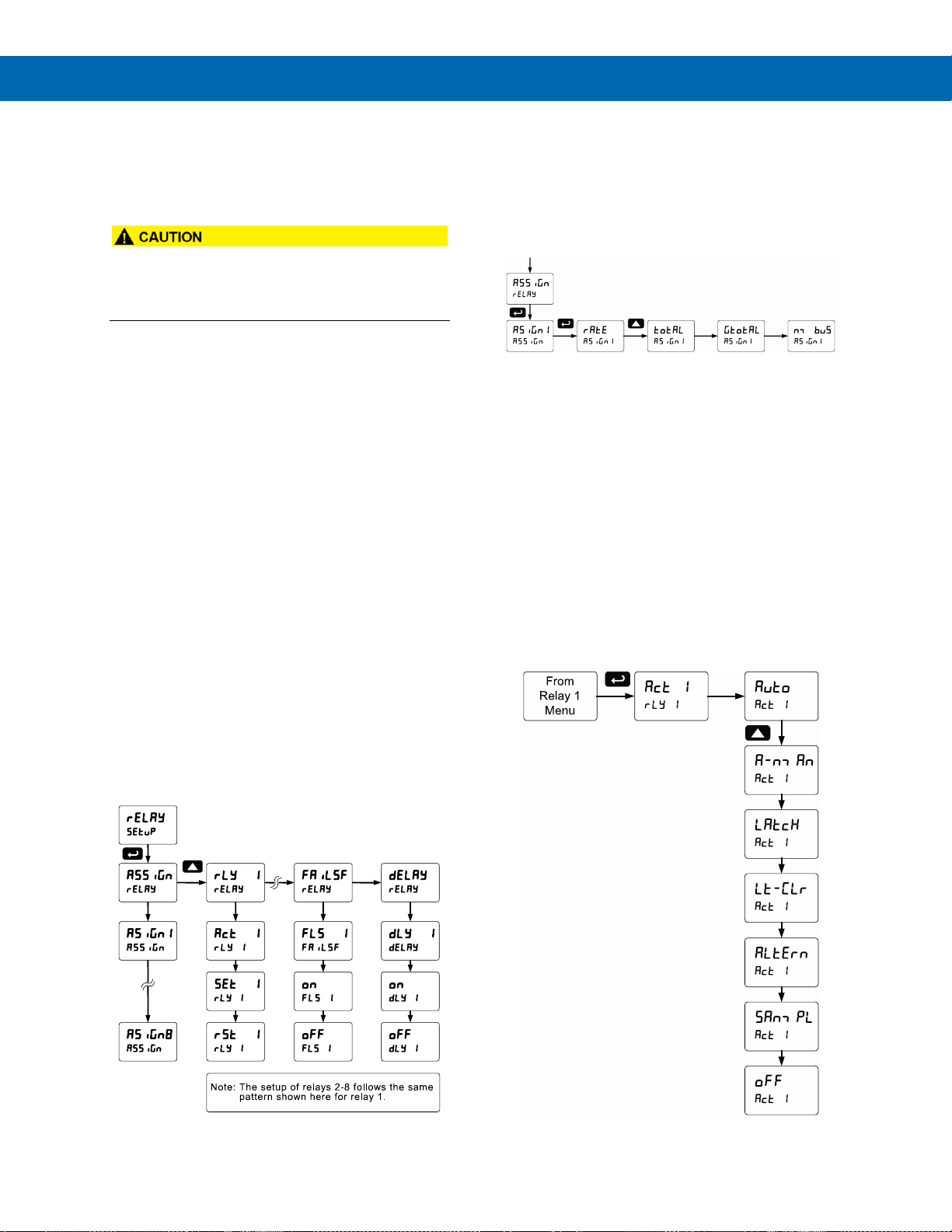

Setting the Relay Operation (relay) ............................................................ 27

Relay Assignment (Assign) ........................................................................ 27

Setting the Relay Action .............................................................................. 27

Programming Set and Reset Points ............................................................ 28

Setting Fail-Safe Operation ......................................................................... 28

Programming Time Delay............................................................................ 28

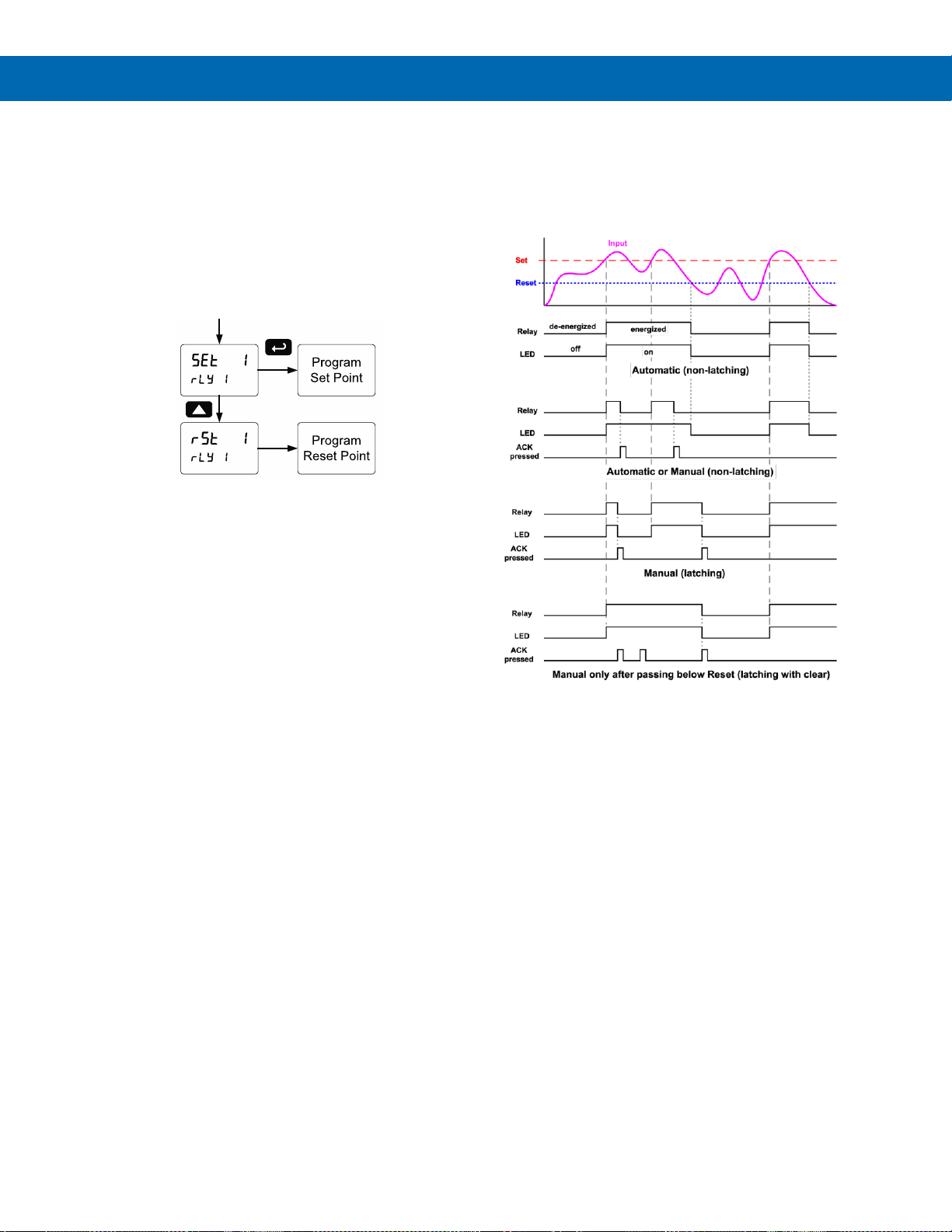

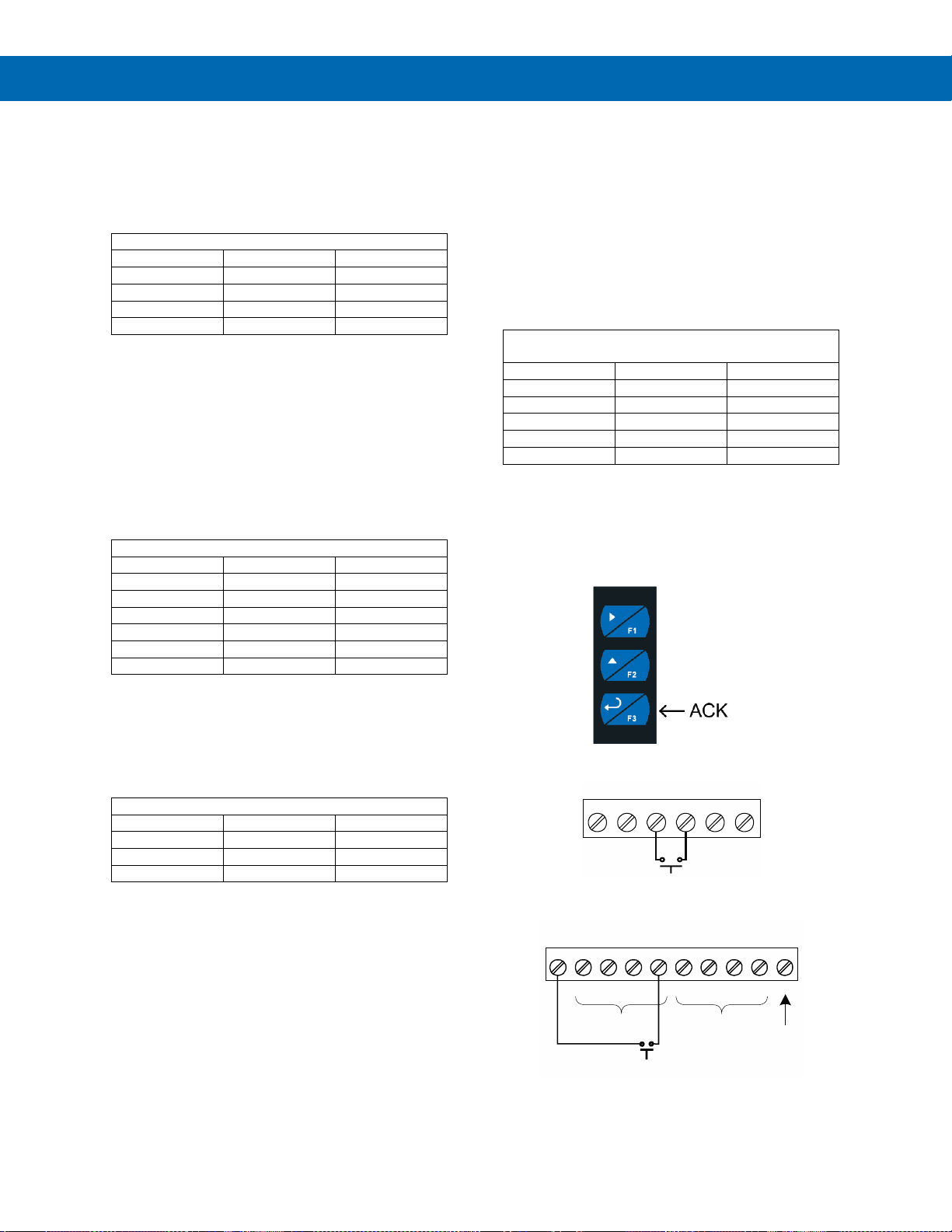

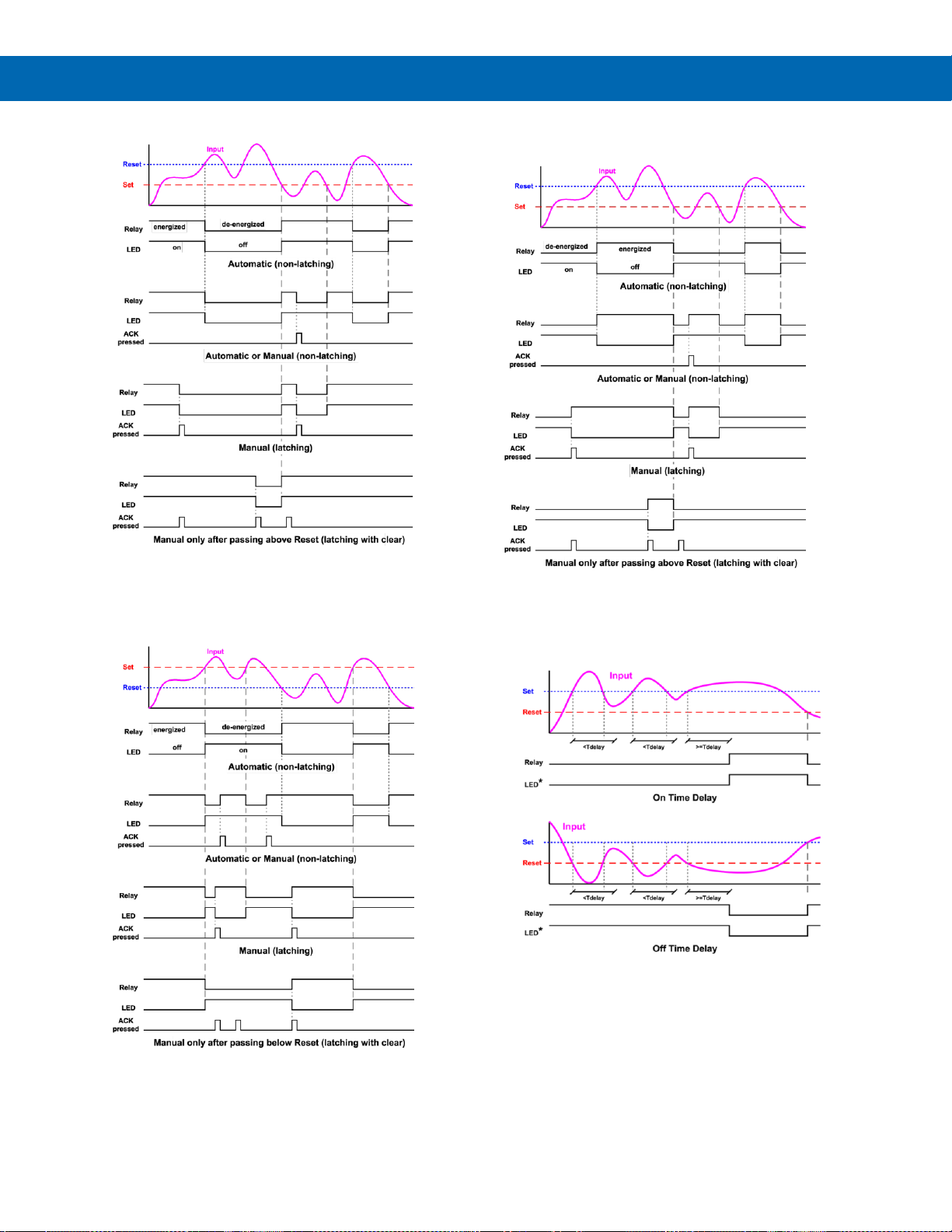

Relay and Alarm Operation Diagrams ......................................................... 28

High Alarm Operation (Set > Reset) .............................................................. 28

Low Alarm Operation (Set < Reset) ............................................................ 29

High Alarm with Fail-Safe Operation (Set > Reset) ..................................... 29

Low Alarm with Fail-Safe Operation (Set < Reset) ..................................... 29

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 4

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Time Delay Operation ................................................................................. 29

Relay Operation Details ................................................................................ 30

Overview ..................................................................................................... 30

Relays Auto Initialization ............................................................................. 30

Fail-Safe Operation ..................................................................................... 30

Front Panel LEDs ........................................................................................ 30

Latching and Non-Latching Relay Operation .............................................. 30

Non-Latching Relay (Auto) ......................................................................... 31

Non-Latching Relay with Manual Reset (A-nman) ....................................... 31

Latching Relay (LatcH) ............................................................................... 31

Latching Relay with Clear (Lt-Clr) ............................................................ 31

Acknowledging Relays ................................................................................ 31

Setting Up the Interlock Relay (Force On) Feature ..................................... 32

Scaling the 4-20 mA Analog Output (Aout) ................................................. 32

Reset Menu (reset) ....................................................................................... 32

Manual Control Menu (Contrl) ..................................................................... 32

Setting Up the Password (pass) ................................................................... 33

Protecting or Locking the Meter .................................................................. 33

Total Reset Password & Non-Resettable Total ........................................... 33

Making Changes to a Password Protected Meter ....................................... 33

Disabling Password Protection.................................................................... 33

Advanced Features Menu ............................................................................. 34

Advanced Features Menu & Display Messages.......................................... 34

Rounding Feature (round) .......................................................................... 35

Modbus RTU Serial Communications (serial) .......................................... 36

Select Menu (SElEct) ................................................................................. 36

Input Signal Conditioning (Functn) ............................................................. 36

Multi-Point Linearization (Linear)............................................................... 36

Low-Flow Cutoff (CutofF) ........................................................................... 36

Analog Output Programming (AoutPr) ....................................................... 37

Programmable Function Keys User Menu (user) ....................................... 38

Meter Operation ................................................................................................. 39

Front Panel Buttons Operation .................................................................... 39

Function Keys Operation .............................................................................. 39

F4 Operation .................................................................................................. 39

Maximum/Minimum Readings ...................................................................... 39

Totalizer Overflow Displays Total to 9 Digits .............................................. 39

Troubleshooting................................................................................................. 40

Diagnostics Menu (diag) .............................................................................. 40

Determining Software Version..................................................................... 40

Reset Meter to Factory Defaults ................................................................... 40

Factory Defaults & User Settings ................................................................ 40

Troubleshooting Tips .................................................................................... 42

EU Declaration of Conformity ........................................................................... 43

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 5

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Table of Figures

Figure 1: 1/8 DIN Panel Cutout and Mounting ................................................. 12

Figure 2: Meter Dimensions - Side View .......................................................... 12

Figure 3: Meter Dimensions - Top View ........................................................... 12

Figure 4: Flowmeter Supply Voltage Selection ............................................... 14

Figure 5. PD6300-##0 Connectors Label ......................................................... 14

Figure 6. PD6300-##2 Connectors Label ......................................................... 14

Figure 7. PD6300-##3 Connectors Label ......................................................... 14

Figure 8. PD6300-##4 Connectors Label ......................................................... 14

Figure 9. PD6300-##5 Connectors Label ......................................................... 14

Figure 10. PD6300-##7 Connectors Label ....................................................... 14

Figure 11: Power Connections ......................................................................... 15

Figure 12: Flowmeter Powered by Internal Power Supply ............................. 15

Figure 13: Flowmeter Powered by External Supply ....................................... 15

Figure 14: Self-Powered Magnetic Pickup Coil Flowmeter ............................ 15

Figure 15: NPN open Collector Input ............................................................... 15

Figure 16: PNP Sensor Powered by Internal Supply ...................................... 15

Figure 17: Switch Input Connections............................................................... 15

Figure 18: Relay Connections .......................................................................... 15

Figure 19: AC and DC Loads Protection.......................................................... 16

Figure 20: Low Voltage DC Loads Protection ................................................. 16

Figure 21. F4 Digital Input Connections .......................................................... 16

Figure 22: 4-20 mA Output Connections ......................................................... 16

Figure 23. Analog Output Supply Powering Other Devices........................... 16

Figure 24. Expansion Module & DIN Rail Mounting Kit .................................. 17

Figure 25. External Relays Module Connections ............................................ 17

Figure 26. Digital I/O Module Connections ...................................................... 17

Figure 27: Interlock Connections ..................................................................... 17

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 6

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Introduction

85-265 VAC Model

12-24 VDC Model

Options Installed

PD6300-6R0

PD6300-7R0

No options

PD6300-6R2

PD6300-7R2

2 relays

PD6300-6R3

PD6300-7R3

4-20 mA output

PD6300-6R4

PD6300-7R4

4 relays

PD6300-6R5

PD6300-7R5

2 relays & 4-20 mA output

PD6300-6R7

PD6300-7R7

4 relays & 4-20 mA output

85-265 VAC Model

12-24 VDC Model

Options Installed

PD6300-6H0

PD6300-7H0

No options

PD6300-6H2

PD6300-7H2

2 relays

PD6300-6H3

PD6300-7H3

4-20 mA output

PD6300-6H4

PD6300-7H4

4 relays

PD6300-6H5

PD6300-7H5

2 relays & 4-20 mA output

PD6300-6H7

PD6300-7H7

4 relays & 4-20 mA output

Model

Description

PDA1002

DIN rail mounting kit for two devices

PDA1004

4 SPST (Form A) relays module

PDA1044

4 digital inputs & 4 digital outputs module

PDA1232

RS-232 serial adapter

PDA1485

RS-485 serial adapter

PDA7485-I

RS-232 to RS-485 isolated converter

PDA8008

USB Adapter

PDA8232-N

USB to RS-232 non-isolated converter

PDA8485-I

USB to RS-485 isolated converter

PDA-LH

Light / horn accessory

MOD-LH

Light / horn / enclosure modification

PDA2360

Plastic control stations series

PD659

Signal isolators, splitters, & conditioners

PD9501

Multi-function calibrator

PDX6901

Snubber: 0.01 μF/470 Ω, 250 VAC

Series

Meters

Material

PDA2300

1-10

Plastic NEMA 4X

PDA2500

1-6

Plastic NEMA 4X

PDA2600

1-6

Stainless Steel NEMA 4X

PDA2700

1-6

Painted Steel NEMA 4

PDA2800

1-2

Plastic NEMA 4X

PDA3400

1-3

Plastic NEMA 4X

Model

Options Installed

PD1102

2 relays

PD1103

4-20 mA output

PD1104

4 relays

PD1105

2 relays & 4-20 mA output

PD1107

4 relays & 4-20 mA output

The PROVU PD6300 is a multipurpose, easy to use pulse input flow rate/totalizer tachometer ideal for flow rate, speed, total, and control applications. Its superluminous LED digits make it easily readable in smoke, dust, fog, and, with the optional SunBright display, even direct sunlight. It accepts pulse (40 mVp-p to 8 Vp-p), square wave (0-5 V, 0-12 V, or 0-24 V), open collector, NPN, PNP, TTL or switch contact signals. Three of the front panel buttons can be custom-programmed for specific operation.

The basic model includes an isolated power supply with field selectable power of 5, 10, or 24 VDC that can be used to power the flowmeter, speed sensor or other devices. An additional isolated 24 VDC power supply is included with the 4-20 mA output option. A digital input is standard.

A fully loaded PD6300 pulse rate/totalizer tachometer has the following: four SPDT relays, 4-20 mA output, a power supply for the flowmeter / speed sensor and one for the 4-20 mA output. The PD6300 capabilities may be enhanced by adding the following external expansion modules: four SPST relays (creating an eight-relay rate/totalizer), two digital I/O modules with four inputs and four outputs each, and RS-232, RS-485, and USB communication adapters.

Ordering Information

Standard Models

SunBright Display Models

Accessories

Enclosures

Replacement Option Cards

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 7

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Specifications

Display

Line 1: 0.6" (15 mm) high, red LEDs Line 2: 0.46" (12 mm) high, red LEDs 6 digits: each (-99999 to 999999), with lead zero blanking.

Display Intensity

Eight user selectable intensity levels. Default value is six.

Display Update Rate

Rate: 10/sec to 1/100 sec (it is a function of Low Gate setting)

Total: 10/second (fixed)

Overrange

Display flashes 999999

Display Assignment

Display lines 1 & 2 may be assigned to rate, total, grand total, alternate rate & total, max/min, units (line 2 only), set points, Modbus input, & more.

Programming Methods

Four front panel buttons, digital inputs, PC and MeterView Pro software, or Modbus registers.

Recalibration

All ranges are calibrated at the factory to read frequency in Hz. No recalibration required.

Max/Min Display

Max/min readings reached by the process are stored until reset by the user or until power to the meter is cycled.

Rounding

Select 1, 2, 5, 10, 20, 50, or 100 (e.g. rounding = 10, value = 123.45,

display = 123.50).

Password

Three programmable passwords restrict modification of programmed settings and two prevent resetting the totals. Pass 1: Allows use of function keys and digital inputs Pass 2: Allows use of function keys, digital inputs and editing set/reset points Pass 3: Restricts all programming, function keys, and digital inputs. Total: Prevents resetting the total manually Gtotal: Prevents resetting the grand total manually

Non-Volatile Memory

All programmed settings are stored in non-volatile memory for a minimum of ten years if power is lost.

Power Options

85-265 VAC 50/60 Hz; 90-265 VDC, 20 W max; 12-24 VDC, 12-24 VAC, 15 W max. Powered over USB for configuration only.

Fuse

Required external fuse: UL Recognized, 5 A max, slow blow; up to 6 meters may share one 5 A fuse

Isolation

4 kV input/output-to-power line 500 V input-to-output or output-to-P+ supply

Overvoltage Category

Installation Overvoltage Category II: Local level with smaller transient overvoltages than Installation Overvoltage Category III.

Environmental

Operating temperature range:

-40 to 65°C (-40 to 149°F)

Storage temperature range:

-40 to 85°C (-40 to 185°F)

Relative humidity:

0 to 90% non-condensing

Connections

Removable screw terminal blocks accept 12 to 22 AWG wire, RJ45 for external relays, digital I/O, and serial communication adapters.

Enclosure

1/8 DIN, high impact plastic, UL 94V-0, color: black

Front Panel

NEMA 4X, IP65

Mounting

1/8 DIN panel cutout required:

3.622" x 1.772" (92 mm x 45 mm) Two panel mounting bracket assemblies are provided.

Tightening Torque

Screw terminal connectors: 5 lb-in (0.56 Nm)

Overall Dimensions

4.68" x 2.45" x 5.64" (119 mm x 62 mm x 143 mm) (W x H x D)

Weight

9.5 oz (269 g)

Warranty

Except where noted all specifications apply to operation at +25°C.

General

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 8

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Pulse Input

Inputs

Field selectable: Pulse or square wave 0-5 V, 0-12 V, or 0-24 V @ 30 kHz; TTL; open collector 4.7 k pull-up to 5 V @ 30 kHz; NPN or PNP transistor, switch contact 4.7 k pull-up to 5 V @ 40 Hz; Modbus PV (Slave)

Isolated Flowmeter Power Supply

Terminals P+ & P-: 24 VDC 10%. All models selectable for 24, 10, or 5 VDC

supply (internal jumper J4). 85-265 VAC models rated @ 200 mA max, 12-24 VDC powered models rated @ 100 mA max. 5 & 10 VDC supply rated @ 50 mA max.

Refer to Flowmeter Supply Voltage Selection (P+, P-) on page 14 for details.

When the Light / Horn is powered by the transmitter power supply, see MOD-LH Light / Horn's transmitter power supply specification in MOD-LH manual for additional details. Light / Horn power not available for 5 or 10 VDC supplies.

Low Voltage Mag Pickup (Isolated)

Sensitivity: 40 mVp-p to 8Vp-p

Minimum Input Frequency

0.001 Hz Minimum frequency is dependent on high gate setting.

Maximum Input Frequency

30,000 Hz (10,000 for low voltage mag pickup)

Input Impedance

Pulse input: Greater than 300 k @ 1 kHz. Open collector/switch input: 4.7 k pull-up to 5 V.

Accuracy

±0.03% of calibrated span ±1 count

Temperature Drift

Rate display is not affected by changes in temperature.

Multi-Point Linearization

2 to 32 points

Low-Flow Cutoff

0.0 to 999,999.9 (0 disables cutoff function). Point below at which display always shows zero.

Decimal Point

Up to five decimal places or none: d.ddddd, d.dddd, d.ddd, d.dd, d.d, or dddddd

Calibration

May be calibrated using K-factor, internal calibration, or by applying an external calibration signal.

K-Factor

Field programmable K-factor converts input pulses to rate in engineering units. May be programmed from 0.00001 to 999,999 pulses/unit.

Calibration Range

Input 1 signal may be set anywhere in the range of the meter; input 2 signal may be set anywhere above or below input 1 setting.

Minimum input span between any two inputs is 0.10 Hz.

An error message will appear if the input 1 and input 2 signals are too close together.

Filter

Programmable contact de-bounce filter: 40 to 999 Hz maximum input frequency allowed with low speed filter.

Time Base

Second, minute, hour, or day

Gate

Low gate: 0.1-99.9 seconds High gate: 2.0-999.9 seconds

Rate/Totalizer

Display Assignment

Display lines 1 & 2 may be assigned to rate, total, grand total, alternate rate/total, alternate rate/grand total, set points, alternate rate/units, alternate total/units, alternate grand total/units, display Hi, display Lo, display Hi/Lo, display Modbus, display units (line 2) and display off (line 2).

Rate Display Indication

-99999 to 999999, lead zero blanking. “R” LED illuminates while displaying rate or frequency.

Total Display & Total Overflow

0 to 999,999; automatic lead zero blanking.

“T” LED is illuminated while displaying total

or grand total. Up to 999,999,999 with total-overflow

feature. “oF” is displayed to the left of total overflow and ▲ LED is illuminated.

Alternating Display

Either display may be programmed to alternate between rate and total or rate and grand total every 10 seconds.

Total Decimal Point

Up to five decimal places or none: d.ddddd, d.dddd, d.ddd, d.dd, d.d, or dddddd Total decimal point is independent of rate decimal point.

Totalizer

Calculates total based on rate and field programmable multiplier to display total in engineering units. Time base must be selected according to the time units in which the rate is displayed.

Totalizer Rollover

Totalizer rolls over when display exceeds 999,999,999. Relay status reflects display.

Total Overflow Override

Program total reset for automatic with 0.1 second delay and set point 1 for 999,999

Totalizer Presets

Up to eight, user selectable under setup menu. Any set point can be assigned to total and may be programmed anywhere in the range of the meter for total alarm indication.

Programmable Delay On Release

0.1 and 999.9 seconds; applied to the first relay assigned to total or grand total. If the meter is programmed to reset total to zero automatically when the preset is reached, then a delay will occur before the total is reset.

Total Reset

Via front panel button, external contact closure on digital inputs, automatically via user selectable preset value and time delay, or through serial communications.

Total Reset Password

Total and grand total passwords may be entered to prevent resetting the total or grand total from the front panel.

NonResettable Total

The grand total can be programmed as a non-resettable total by entering the password “050873”.

• Once the Grand Total has been programmed as

“non-resettable” the feature CANNOT be disabled.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 9

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Relays

Rating

2 or 4 SPDT (Form C) internal and/or 4 SPST (Form A) external; rated 3 A @ 30 VDC and 125/250 VAC resistive load; 1/14 HP (≈ 50 W) @ 125/250 VAC for inductive loads

Noise Suppression

Noise suppression is recommended for each relay contact switching inductive loads. See Switching Inductive Loads on page 16 for details.

Relay Assignment

Relays may be assigned to rate, total, or grand total.

Deadband

0-100% of span, user programmable

High Or Low Alarm

User may program any alarm for high or low trip point. Unused alarm LEDs and relays may be disabled (turn off).

Relay Operation

• Automatic (non-latching) and/or manual reset

• Latching (requires manual acknowledge) with or without clear

• Pump alternation control (2-8 relays)

• Sampling (based on set point and time)

• Off (disable unused relays and enable

Interlock feature)

• Manual on/off control mode

Relay Reset

User selectable via front panel button, F4 terminal at back of meter, external contact closure on digital inputs, automatically via user selectable preset value and time delay, or through serial communications.

Time Delay

0 to 999.9 seconds, on & off relay time delays Programmable and independent for each relay.

Fail-Safe Operation

Programmable and independent for each relay.

Note: Relay coil is energized in non-alarm

condition. In case of power failure, relay will go to alarm state.

Auto Initialization

When power is applied to the meter, relays will reflect the state of the input to the meter.

Additional Relays

An external module, model PDA1004, is available to add 4 SPST 3 A relays to the meter.

Isolated 4-20 mA Transmitter Output

Output Source

Rate/process, total, grand total, max, min, set points 1-8, Modbus input or manual control mode

Scaling Range

1.000 to 23.000 mA for any display range.

Calibration

Factory calibrated:

0.0 to 1000.0 = 4-20 mA output

Analog Out Programming

23.000 mA maximum for all parameters:

Overrange, underrange, max, min, and break

Accuracy

±0.1% FS ±0.004 mA

Temperature Drift

0.4 µA/C max from 0 to 65C ambient,

0.8 µA/C max from -40 to 0C ambient

Note: Analog output drift is separate from input drift.

Isolated Transmitter Power Supply

Terminals I+ & R: 24 VDC  10%. May be used to power the 4-20 mA output or other devices.

All models rated @ 40 mA max.

External Loop Power Supply

35 VDC maximum

Output Loop Resistance

Power supply

Minimum

Maximum

24 VDC

10 

700 

35 VDC (external)

100 

1200 

Additional 4-20 mA Outputs

The PD659-1MA-2MA can split the optional 4-20 mA output into two isolated 4-20 mA outputs

0-10 VDC Output

The PD659-1MA-1V can convert the optional 4-20 mA output to a 0-10 VDC output

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 10

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

USB Connection

Function

Programming only

Compatibility

USB 2.0 Standard, Compliant

Connector Type

Micro-B receptacle

Cable

USB A Male to Micro-B Cable

Driver

Microsoft® Windows® XP/Vista/7/8/10

Power

USB port provides power to the meter.

DO NOT apply AC or DC power to the meter while the USB port is in use.

Function

Reset total, remote operation of front-panel buttons, acknowledge/reset relays, reset max/min values. See Function Keys & Digital I/O Available Settings on page 38 for a complete list of capabilities.

Contacts

3.3 VDC on contact. Connect normally

open contacts across F4 to COM

Logic Levels

Logic High: 3 to 5 VDC Logic Low: 0 to 1.25 VDC

Additional I/O

Up to 2 external modules, model PDA1044 with 4 digital inputs and 4 digital outputs each can be added.

Slave Id

1 – 247 (Meter address)

Baud Rate

300 - 19,200 bps

Transmit Time Delay

Programmable between 0 and 199 ms

Data

8 bit (1 start bit, 1 or 2 stop bits)

Parity

Even, Odd, or None with 1 or 2 stop bits

Byte-To-Byte Timeout

0.01 – 2.54 second

Turn Around Delay

Less than 2 ms (fixed)

Availability

System Requirements

Microsoft® Windows® XP/Vista/7/8/10

Communications

USB 2.0 (for programming only) (Standard USB A to Micro USB B)

RS-232 adapter, RS-485 adapter and RS-485 to USB converter (programming, monitoring, and data logging)

Configuration

Configure meters one at a time

Power

USB port provides power to the meter.

DO NOT apply AC or DC power to the meter while the USB port is in use.

On-Board Digital Input (F4)

Modbus® RTU Serial Communications

MeterView Pro

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 11

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Compliance Information

Safety

UL & c-UL Listed

USA & Canada UL 508 Industrial Control Equipment

UL File Number

E160849

Front Panel

UL Type 4X, NEMA 4X, IP65; panel gasket provided

Low Voltage Directive

EN 61010-1:2010 Safety requirements for measurement, control, and laboratory use

Electromagnetic Compatibility

Emissions

EN 55022:2010 Class A ITE emissions requirements

Radiated Emissions

Class A

AC Mains Conducted Emissions

Class A

Immunity

EN 61326-1:2013 Measurement, control, and laboratory equipment EN 61000-6-2:2005 EMC heavy industrial generic immunity standard

RFI - Amplitude Modulated

80 -1000 MHz 10 V/m 80% AM (1 kHz)

1.4 - 2.0 GHz 3 V/m 80% AM (1 kHz)

2.0 - 2.7 GHz 1 V/m 80% AM (1 kHz)

Electrical Fast Transients

±2kV AC mains, ±1kV other

Electrostatic Discharge

±4kV contact, ±8kV air

RFI Conducted

10V, 0.15-80 MHz, 1kHz 80% AM

AC Surge

±2kV Common, ±1kV Differential

Surge

1KV (CM)

PowerFrequency Magnetic Field

30 A/m 70%V for 0.5 period

Voltage Dips

40%V for 5 & 50 periods 70%V for 25 periods

Voltage Interruptions

<5%V for 250 periods

Note:

Testing was conducted on meters installed through the covers of grounded metal enclosures with cable shields grounded at the point of entry representing installations designed to optimize EMC performance.

Safety Information

• Read complete instructions prior to installation and operation of the meter.

• Risk of electric shock or personal injury.

• Hazardous voltages exist within enclosure.

Installation and service should be performed only by trained service personnel.

Installation

There is no need to remove the meter from its case to complete the installation, wiring, and setup of the meter for most applications. Instructions are provided for changing the Flowmeter power supply to output 5 or 10 VDC instead of 24 VDC. See Figure 4: Flowmeter Supply Voltage Selection on page 14.

Unpacking

Remove the meter from box. Inspect the packaging and contents for damage. Report damages, if any, to the carrier.

If any part is missing or the meter malfunctions, please contact your supplier or the factory for assistance.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 12

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Panel Mounting Instructions

3.622" (92 mm)

1.772"

(45mm)

Panel Cutout

to DIN 43700

Square Corners to 0.060"

(1.5mm) Max Radius

Tolerances:

A: +0.032 (+0.8mm)

-0.000 (-0.0mm)

B: +0.024 (+0.6mm)

-0.000 (-0.0mm)

• Prepare a standard 1/8 DIN panel cutout –

3.622" x 1.772" (92 mm x 45 mm). Refer to

Figure 1: 1/8 DIN Panel Cutout and Mounting

below for more details.

• Clearance: allow at least 6.0" (152 mm) behind the panel for wiring.

• Panel thickness: 0.04" - 0.25" (1.0 mm - 6.4 mm). Recommended minimum panel thickness to maintain Type 4X rating: 0.06" (1.5 mm) steel panel, 0.16" (4.1 mm) plastic panel.

• Remove the two mounting brackets provided with the meter (back-off the two screws so that there is ¼" (6.4 mm) or less through the bracket. Slide the bracket toward the front of the case and remove).

• Insert meter into the panel cutout.

• Install mounting brackets and tighten the screws

against the panel. To achieve a proper seal, tighten the mounting bracket screws evenly until meter is snug to the panel along its short side. DO NOT OVER TIGHTEN, as the rear of the panel may be damaged.

Mounting Dimensions

Figure 2: Meter Dimensions - Side View

DO NOT apply AC or DC power to the meter when using the Micro USB connection.

Figure 1: 1/8 DIN Panel Cutout and Mounting

Figure 3: Meter Dimensions - Top View

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 13

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Installation Overview

Note: If you decide to update your MeterView Pro

software, once the installation has completed, you will be asked if you want to update the setup files located on the meter itself. This way, you will always have the most current version on the meter for future installs.

We recommend the following sequence for getting the meter into service:

1. DO NOT apply AC or DC power to the meter.

2. Connect the meter to the PC with the USB cable provided. DO NOT use a different USB cable.

3. If MeterView Pro (MVPro) is already installed in your computer, then the program will launch automatically in most systems. If the program does not start automatically, double-click on the MVPro icon.

4. If MVPro is not installed, follow the instructions provided below.

5. Use MVPro to configure the meter for your application.

6. Disconnect the USB cable from the meter.

7. Apply power and signal and check operation of the meter.

8. Install the meter and put into service.

9. Make any programming adjustments using the front panel buttons.

MeterView Pro Software

The easiest and quickest way to program your PROVU meter is to use the FREE MeterView Pro programming software. This software is loaded into the meter and connects and installs directly to your PC with the USB cable provided. DO NOT use a different USB cable. We recommend that the first thing you do after taking the meter out of the box is connect the PROVU to your PC with the provided USB cable. DO NOT apply AC or DC power to the meter while your PC is connected to the meter as it will disrupt the USB connection. It is not necessary to apply an input signal.

MeterView Pro programming software is intuitive, and most customers can get their meter programmed as they like without even looking in the manual.

2. Once the driver is installed, an AutoPlay dialog should appear for the drive

“MAINSTAL.” Click “Open folder to view files.”

If the computer does not display an AutoPlay

dialog for the drive “MAINSTAL,” you should

open My Computer and double-click on the drive labeled “MAINSTAL.”

3. Double-click on the file named “MAStart.” The program will open a few windows and install two programs on your computer. Simply follow the on-screen instructions until you see one of the dialogs below. If you

receive a “User Account Control” warning, click “Yes.”

4. If there is an update available, click the

“Update” button to install the new version. Otherwise, click “Configure” to begin

programming your meter.

MeterView Pro Installation

1. Connect one end of the provided USB cable

to the meter and the other end to the computer. The computer will automatically install the driver software it needs to talk to the meter. Follow the on-screen instructions and allow sufficient time for the process to complete. This can take a few minutes. If the process is interrupted, then it could leave the system in an unstable condition.

• Only one meter may be connected at a time. Attaching multiple meters will cause a conflict with the meter software.

• DO NOT apply AC or DC power to the meter when using the Micro USB connection.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

• DO NOT unplug the meter while the new installation files are being written to it. The meter will display uwrite during the process and you will receive an on-screen notification once the process is complete.

Page 14

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Flowmeter Supply Voltage Selection (P+, P-)

All meters, including models equipped with the 12-24 VDC power option, are shipped from the factory configured to provide 24 VDC power for the flowmeter or sensor.

If the flowmeter requires 5 or 10 VDC excitation, the internal jumper J4 must be configured accordingly.

To access the voltage selection jumper:

1. Remove all the connectors.

2. Unscrew the back cover.

3. Slide the back cover about 1 inch.

4. Configure the J4 jumper, located behind the input signal connector, for the desired excitation voltage as shown.

Figure 4: Flowmeter Supply Voltage Selection

Connections

All connections are made to removable screw terminal connectors located at the rear of the meter.

• Use copper wire with 60°C or 60/75°C insulation for all line voltage connections. Observe all safety regulations. Electrical wiring should be performed in accordance with all applicable national, state, and local codes to prevent damage to the meter and ensure personnel safety.

Connectors Labeling

The connectors’ label, affixed to the meter, shows the location of all connectors available with requested configuration.

Note: ## on the following figures refers to power and display options. (Example: PD6300-6H5)

Figure 5. PD6300-##0 Connectors Label

Figure 6. PD6300-##2 Connectors Label

Figure 7. PD6300-##3 Connectors Label

Figure 8. PD6300-##4 Connectors Label

Figure 9. PD6300-##5 Connectors Label

Figure 10. PD6300-##7 Connectors Label

• DO NOT connect any equipment other than

Precision Digital’s expansion modules, cables, or

meters to the RJ45 M LINK connector. Otherwise damage will occur to the equipment and the meter.

POWER

SIGNAL

M-LINK

123 4 5 6 7 8

SWITCH

P- COMP+ S+ S-

3412 5F46

POWER

SIGNAL

M-LINK

CNONO NC NC C

RELAY2 RELAY1

4365 21

123 4 5 6 7 8

SWITCH

P- COMP+ S+ S-

3412 5

I- I+

MA OUT

POWER

SIGNAL

M-LINK

123 4 5 6 7 8

24 V

SWITCH

P- COMP+ S+ S-

3412 5

POWER

SIGNAL

M-LINK

CNONO NC NC C

RELAY4 RELAY3

4365 2 1

CNONO NC NC C

RELAY2 RELAY1

4365 21

123 4 5 6 7 8

SWITCH

P- COMP+ S+ S-

3412 5F46

I- I+

MA OUT

POWER

SIGNAL

M-LINK

CNONO NC NC C

RELAY2 RELAY1

4365 21

123 4 5 6 7 8

24 V

SWITCH

P- COMP+ S+ S-

3412 5F46

I- I+

MA OUT

POWER

SIGNAL

M-LINK

CNONO NC NC C

RELAY4 RELAY3

4365 2 1

CNONO NC NC C

RELAY2 RELAY1

4365 21

123 4 5 6 7 8

24 V

SWITCH

P- COMP+ S+ S-

3412 5F46

www.GlobalTestSupply.com

Find Quality Products Online at: [email protected]

Page 15

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Power Connections

Power connections are made to a two-terminal connector labeled POWER. The meter will operate regardless of DC polarity connection. The + and symbols are only a suggested wiring convention.

Figure 11: Power Connections

Signal Connections

Signal connections are made to a six-terminal connector labeled SIGNAL. The COM (common) terminal is the return for the input signals.

The following figures show examples of signal connections.

Setup and programming is performed through the front panel buttons.

Figure 12: Flowmeter Powered by Internal Power

Supply

Figure 13: Flowmeter Powered by External Supply

Figure 14: Self-Powered Magnetic Pickup Coil

Flowmeter

Figure 15: NPN open Collector Input

Figure 16: PNP Sensor Powered by Internal

Supply

Figure 17: Switch Input Connections

Modbus RTU Serial Communications

Serial communications connection is made to an RJ45 connector labeled M-LINK. For interfacing to the PROVU, use the PDA1232 for RS-232 or the PDA1485 for RS-485. The same port is used for interfacing with all expansion modules (e.g. external relays, digital I/O).

Relay Connections

Relay connections are made to two six-terminal connectors labeled RELAY1 – RELAY4. Each relay’s C terminal is common only to the normally open (NO) and normally closed (NC) contacts of the corresponding relay. The relays’ C terminals should not be confused with the COM (common) terminal of the INPUT SIGNAL connector.

Figure 18: Relay Connections

AC or DC

POWER

Required External Fuse:

5 A max, 250 V Slow Blow

POWER

Flowmeter

(Pulse Output)

P- COMP+ S+ S-

3412 5

mV PNP NPN

SWITCH

INPUT SIGNAL

External

Power Supply

Flowmeter

(Pulse Output)

P- COMP+ S+ S-

3412 5

INPUT SIGNAL

mV PNP NPN

SWITCH

Flowmeter

(Magnetic

Pickup Coil)

P- COMP+ S+ S-

3412 5

INPUT SIGNAL

mV PNP NPN

SWITCH

NPN

SENSOR

4.7 k-ohm

Internal pull-up

+5 V

P- COMP+ S+ S-

3412 5

INPUT SIGNAL

mV PNP NPN

SWITCH

PNP

SENSOR

4.7 k-ohm

Internal pull-down

P- COMP+ S+ S-

3412 5

INPUT SIGNAL

mV PNP NPN

SWITCH

INPUT

4.7 k-ohm

Internal pull-up

+5 V

P- COMP+ S+ S-

3412 5

INPUT SIGNAL

mV PNP NPN

SWITCH

C NONO NC NC C

RELAY4 RELAY3

4 36 5 2 1

C NONO NC NC C

RELAY2 RELAY1

4 36 5 2 1

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 16

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Switching Inductive Loads

The use of snubbers to suppress electrical noise is strongly recommended when switching inductive

loads to prevent disrupting the microprocessor’s

operation. The snubbers also prolong the life of the relay contacts. Suppression can be obtained with resistor-capacitor (RC) networks assembled by the user or purchased as complete assemblies. Refer to the following circuits for RC network assembly and installation:

Figure 19: AC and DC Loads Protection

Choose R and C as follows: R: 0.5 to 1  for each volt across the contacts C: 0.5 to 1 µF for each amp through closed contacts

Notes:

1. Use capacitors rated for 250 VAC.

2. RC networks may affect load release time of solenoid loads. Check to confirm proper operation.

3. Install the RC network at the meter's relay screw terminals. An RC network may also be installed across the load. Experiment for best results.

Use a diode with a reverse breakdown voltage two to three

times the circuit voltage and forward current at least as large

as the load current.

Figure 20: Low Voltage DC Loads Protection

RC Networks (Snubbers) Available from Precision Digital

RC networks are available from Precision Digital and should be applied to each relay contact switching an inductive load. Part number: PDX6901.

Note: Relays are de-rated to 1/14th HP (50 watts) with an inductive load.

F4 Digital Input Connections

A digital input, F4, is standard on the meter. This digital input should be connected with a normally open contact across F4 and COM, or with an active low signal applied to F4. It can be used to reset the total, for remote operation of front-panel buttons, to acknowledge/reset relays, or to reset max/min values. See Function Keys & Digital I/O Available Settings on page 38 for a complete list of capabilities.

Figure 21. F4 Digital Input Connections

4-20 mA Output Connections

Connections for the 4-20 mA flowmeter output are made to the connector terminals labeled mA OUT. The 4-20 mA output may be powered internally or from an external power supply.

Figure 22: 4-20 mA Output Connections

Analog Output Power Supply

The internal 24 VDC power supply powering the analog output may be used to power other devices, if the analog output is not used. The I+ terminal is the +24 V and the R terminal is the return.

Figure 23. Analog Output Supply Powering Other

Devices

C R

P- COMP+ S+ S-

3412 5

4-20 mA Input

Remote Display, PLC,

Chart Recorder, Etc.

RI- I+ 132

RELAY1

mA OUT

24 V

12-35 VDC

Power

Supply

4-20 mA

Input Meter

RI- I+

132

RELAY1

321

24 V

mA OUT

Internal Power Supply

and Analog Output

321

Active Output Loop Passive Output Loop

RI- I+

132

24 VDC

Powered

Device

24 V

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 17

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

External Relay & Digital I/O Connections

The relay and digital I/O expansion modules PDA1004 & PDA1044 are connected to the meter using the CAT5 cable provided with each module. The two RJ45 connectors on the expansion modules are identical and interchangeable; they are used to connect additional modules to the system.

Note: The jumper located between the RJ45

connectors of the PDA1044 must be removed on the second digital I/O module in order for the system to recognize it as module #2.

• DO NOT connect or disconnect the expansion modules with the power on! More detailed instructions are provided with each optional expansion module.

Figure 24. Expansion Module & DIN Rail Mounting

Kit

Figure 25. External Relays Module Connections

Figure 26. Digital I/O Module Connections

Interlock Relay Feature

As the name implies, the interlock relay feature reassigns one, or more, alarm/control relays for use as interlock relay(s). Interlock contact(s) are wired to digital input(s) and activate the interlock relay. This feature is enabled by configuring the relay, and the corresponding digital input(s), see Setting Up the Interlock Relay (Force On) Feature on page 32.

In the example below, an Interlock Contact switch is connected to a digital input, which will be used to force on (energize) the Interlock Relay. The Interlock Relay and the Control Relay are connected in series with the load.

• When the Interlock Contact is closed (safe), the Interlock Relay energizes, allowing power to flow to the Control Relay; the corresponding front panel LED is on.

• When the Interlock Contact is open, the corresponding front panel LED flashes (locked out), the Interlock Relay is de-energized, preventing power from flowing to the Control Relay and the load.

Figure 27: Interlock Connections

1 2

RLY5 RLY6 RLY7 RLY8

3 4 5 6 7 8

NO C NO C NO C NO C

1 2 3 4 5 6

+5 I1 I2 I3 I4 O1

7 8

O2 O3

9 10

O4 G

DI 1-4 DO 1-4

5 VDC GND

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 18

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Setup and Programming

The meter may either be scaled (SCALE) without applying an input, calibrated (Cal) by applying an input, or you may use the K-Factor menu to match the rate/totalizer with a flowmeter’s k-factor (pulse/unit of measure). The meter comes factory calibrated to NIST standards, so for initial setup, it is recommended to use the K-Factor method or (SCALE) function.

Overview

There is one switch, located to the right of the input connector, which must be configured according to the input level and type. Jumper J4 located inside the meter, behind the input signal connector, is used to select the excitation voltage (24 V*, 10 V or 5 V) which is supplied to the P+ and P- wiring terminals.

Setup and programming is done using MeterView Pro or through the front panel buttons.

After power and input signal connections have been completed and verified, apply power to the meter.

*Default setting

Front Panel Buttons and Status LED Indicators

Button

Symbol

Description

LED

Status

Menu 1-8

Alarm 1-8 indicator

Right arrow/F1

1-8

Flashing: Relay in manual control mode

Up arrow/F2

1-8

Flashing: Relay interlock switch open

Enter/F3

Note: F4 is a digital input. Alarms

5-8 are enabled when relay expansion module is installed.

Note: LEDs for relays in

manual mode flash

with the “M” LED every 10 seconds. “M”

flashing by itself indicates Aout – manual control is used.

• Press the Menu button to enter or exit the Programming Mode at any time.

• Press the Right arrow button to move to the next digit during digit or decimal point programming.

• Press or hold the Up arrow button to scroll through the menus, decimal point, or press or hold to increment the value of a digit.

• Press the Enter button to access a menu or to accept a setting.

• Press and hold the Menu button for three seconds to access the advanced features of the meter.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 19

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Display Functions and Messages

The meter displays various functions and messages during setup, programming, and operation. The following table shows the main menu functions and messages in the order they appear in the menu.

Display Functions & Messages

Display

Parameter

Action/Setting Description

setup

Setup

Enter Setup menu

Input

Enter Input selection menu

Total

Enable or disable totalizer features

unitS

Units

Select the display units/tags

rate

Rate

Select the display units for rate

total

Total

Select the display units for total

Gtotal

Grand Total

Select the display units for grand total

Dec pt

Decimal point

Set decimal point for rate, total, grand total

prog

Program

Enter the Program menu

InCAL

Input Calibration

Enter the Input Calibration menu

factor

K-factor Scaling

Programs unit to convert input pulse to rate in engineering units

sCalE

Scale

Enter the Scale menu

Cal

Calibrate

Enter the Calibrate menu

Inp 1

Input 1

Calibrate input 1 signal or program input 1 value

Dis 1

Display 1

Program display 1 value

Inp 2

Input 2

Calibrate input 2 signal or program input 2 value (up to 32 points)

Dis 2

Display 2

Program display 2 value (up to 32 points)

Error

Error, calibration not successful, check signal or programmed value

T tb

Total time base

Program total time base

T CF

Total conversion factor

Program total conversion factor

T rst

Total reset

Program total reset mode: auto or manual

GT tb

Grand total time base

Program grand total time base

Display Functions & Messages

Display

Parameter

Action/Setting Description

GT CF

Grand total conversion factor

Program grand total conversion factor

GT rst

Grand total reset

Program grand total reset mode: auto or manual

Auto

Automatic

Press Enter to set automatic total reset

T dly

Time delay

Program time delay for total auto reset

nmAn

Manual

Press Enter to reset total manually

dsplay

Display

Enter the Display menu

Line 1

Press Enter to assign the Upper display parameter (default: PV or rate)

Line 2

Press Enter to assign the lower display parameter (default: total)

d-Inty

Display intensity

Set display intensity level from 1 to 8

RELaY

Relay

Enter the Relay menu

Assign

Assignment

Assign relays to rate, total, grand total, or Modbus

Asign1

Assign 1

Relay 1 assignment

rATE

Rate

Assign relay to rate

totAL

Total

Assign relay to total

G total

Grand total

Assign relay to grand total

RLY 1

Relay 1

Relay 1 setup

Act 1

Action 1

Set relay 1 action

Auto

Automatic

Set relay for automatic reset

A-nman

Automanual

Set relay for automatic & manual reset any time

LatcH

Latching

Set relay for latching operation (relays assigned to rate)

Lt-CLr

Latchingcleared

Set relay for latching operation with manual reset only after alarm condition has cleared (relays assigned to rate)

Altern

Alternate

Set relay for alternation control (relays assigned to rate)

Sanmpl

Sampling

Set relay for sampling operation

OFF

Off

Disable relay and front panel status LED (Select Off to enable Interlock feature)

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 20

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Display Functions & Messages

Display

Parameter

Action/Setting Description

Set 1

Program set point 1

RSt 1

Reset 1

Program reset point 1

RLY 2

Relay 2

Relays 2-8 setup

Note: Relays 5-8 are shown, only if expansion relay module is installed.

FaiLSF

Fail-safe

Enter Fail-safe menu

FLS 1

Fail-safe 1

Set relay 1 fail-safe operation

Enable fail-safe operation

off

Fail-safe off

Disable fail-safe operation

DeLAY

Delay

Enter relay Time Delay menu

DLY 1

Delay 1

Enter relay 1 time delay setup

On 1

Set relay 1 On time delay

OFF 1

Off

Set relay 1 Off time delay

Aout

Analog output

Enter the Analog output scaling menu

Dis 1

Display 1

Program display 1 value

Out 1

Output 1

Program output 1 value (e.g. 4.000 mA)

Dis 2

Display 2

Program display 2 value

Out 2

Output 2

Program output 2 value (e.g. 20.000 mA)

reset

Reset

Press Enter to access the Reset menu

Rst Hi

Reset high

Press Enter to reset max display

Rst Lo

Reset low

Press Enter to reset min display

Rst HL

Reset high & low

Press Enter to reset max & min displays

Rst t

Reset total

Press Enter to reset total

Rst Gt

Reset grand total

Press Enter to reset grand total

Contrl

Control

Enter Control menu

Auto

Automatic

Press Enter to set meter for automatic operation

nmAn

Manual

Press Enter to manually control relays or analog output operation

pass

Password

Enter the Password menu

Pass 1*

Password 1*

Set or enter Password 1* (*1, 2, or 3)

Display Functions & Messages

Display

Parameter

Action/Setting Description

Total

Total password

Set or enter password for manual reset

Gtotal

Grand total password

Set or enter password for manual reset

nonrst

Nonresettable

Non-resettable grand total

set after entering “050873”

for Gtotal password

unloc

Unlocked

Program password to lock meter

locd

Locked

Enter password to unlock meter

999999

Flashing display

Overrange condition

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 21

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Main Menu

The main menu consists of the most commonly used functions: Reset, Control, Setup, and Password.

• Press Menu button to enter Programming Mode then press the Up arrow button to scroll through the main menu.

• Press Menu, at any time, to exit and return to Run Mode. Changes made to settings prior to pressing Enter are not saved.

• Changes to the settings are saved to memory only after pressing Enter.

• The display moves to the next menu every time a setting is accepted by pressing Enter.

Setting Numeric Values

The numeric values are set using the Right and Up arrow buttons. Press Right arrow to select next digit and Up arrow to increment digit value. The digit being changed is displayed brighter than the rest. Press and hold Up to auto-increment the display value. If negative numbers are allowed, the first digit position will include a negative symbol (-) after the 9.

Press the Enter button, at any time, to accept a setting or Menu button to exit without saving changes.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 22

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Setting Up the Rate/Totalizer Meter (setup)

The Setup menu is used to select:

1. Enable or disable totalizer features

2. Units for Rate, Total, and Grand Total

3. Decimal point position

4. Input Calibration

5. Display parameter and intensity

6. Relay operation

7. 4-20 mA analog output scaling

Press the Enter button to access any menu or press Up arrow button to scroll through choices. Press the Menu button to exit at any time.

Setting the Input Signal (Input)

There is a switch, located to the right of the input connector, which must be configured according to the input level and type. Jumper J4 located inside the meter, behind the input signal connector, is used to select the excitation voltage (24 V [Default setting], 10 V or 5 V) which is supplied to the P+ and P- wiring terminals.

Enter the Input menu to enable or disable the totalizer features.

Setting the Totalizer Features (total)

Enable or disable the totalizer features by selecting

“Yes” or “no” after the input type has been set up. If

the totalizer features are disabled, most totalizer features and functions are hidden from the menus.

Note: The totalizer continues working in the background.

Relays 2-8

Fail-Safe

Delay

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 23

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Setting the Display Units or Custom Tags (units)

Use this menu to enter the unit or custom tag that will be displayed if:

1. Alternating rate, total, or grand total and

units is selected in the units menu, or

2. d unit is selected as the line 2 parameter.

See the Setting the Display Parameter & Intensity (dsplay) flow chart on page 26 to access the display menu to show the unit or tag on line 2. The engineering units or custom legends can be set using the following 7-segment character set:

Display

Character

Display

Character

n m

u u C

z Z g

[

]

[

Degree(<)

Space

Notes: Degree symbol represented by (<) if programming with

MeterView Pro. The letters “m” and “w” use two 7-segment LEDs each;

when selected the characters to the right are shifted one position.

Press and hold up arrow to auto-scroll the characters in the display.

Setting the Decimal Point (dEc pt)

The decimal point may be set with up to five decimal places or with no decimal point at all. The rate, total, and grand total decimal points are independent.

The decimal point selection should be made prior to scaling, calibrating or programming the meter. Pressing the right arrow moves the decimal point one place to the right until no decimal point is displayed, then it moves to the leftmost position.

Pressing the up arrow moves the decimal point to the left.

Programming the Rate/Totalizer (prog)

The Program menu contains the following menus:

1. K-Factor calibration

2. Scale without a signal source

3. Calibrate with a calibrated signal source

4. Total time base & conversion factor

5. Grand total time base & conversion factor

6. Total reset mode for total & grand total

Note: The Scale, Calibrate, and K-Factor functions are exclusive of each other. The meter uses the last function programmed. Only one of these methods can be employed at a time. The Scale and Calibrate functions can use up to 32 points (default is 2). The number of points should be set in the Advanced menu prior to scaling and calibration of the meter. See Multi-Point Linearization (Linear) menu on page 36 for details.

The pulse inputs may be calibrated or scaled to any display value within the range of the meter.

Additional parameters, not needed for most applications, are programmed in the Advanced Features menu. See Advanced Features Menu on page 34.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 24

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

K-Factor Calibration (Factor)

The meter may be calibrated using the K-Factor function. Most flowmeter manufacturers provide this information with the device. Enter the K-Factor (Factor) menu and select the decimal point with highest resolution possible and program the k-factor value (i.e. pulses/gal). The meter will automatically calculate the flow rate using the k-factor and the time base selected.

Multi-Point Calibration & Scaling

The meter is set up at the factory for 2-point linear calibration. The number of points for multi-point calibration/scaling is set up in the Advanced Features menu. Up to 32 linearization points may be selected.

See Multi-Point Linearization (Linear) menu on page 36 for details.

Scaling the Meter (SCALE)

The pulse inputs can be scaled to display the process variable in engineering units.

A signal source is not needed to scale the meter; simply program the inputs and corresponding display values.

For instructions on how to program numeric values see Setting Numeric Values on page 21.

Note: The display values (DiS 1 and DiS 2) need

to be in units of measure per second.

For example: If the rate at 1000 Hz is 13.2 gal/min, this must be converted to gal/sec. In this scenario, the numbers input into the SCALE menu would be as follows:

InP 1

0.0

DiS 1

0.000

InP 2

1000.0

DiS 2

0.220

Set the time base to minutes (see Time Base, Total Conversion Factor & Total Reset on page 24) and the meter will display 13.2 gal/min at 1000 Hz

Error Message (Error)

An error message indicates that the calibration or scaling process was not successful. After the error message is displayed, the meter reverts to input 2 during calibration or scaling, allowing the appropriate input signal to be applied or programmed.

The error message might be caused by any of the following conditions:

1. Input signal is not connected to the proper terminals or it is connected backwards*.

2. Minimum input span requirements not maintained.

3. Input 1 signal inadvertently applied to calibrate input 2*.

*Not relevant when scaling the meter.

For instructions on how to program numeric values see Setting Numeric Values on page 21.

Minimum Input Span

The minimum allowed input span is 0.10 Hz, which is the minimum difference between input 1 and input 2 signals required to complete the calibration or scaling of the meter.

Time Base, Total Conversion Factor & Total Reset

The time base, total conversion factor, and total reset menus are located in the Program menu.

The total and grand total have their own independent settings. This means that one can be displaying the value in gallons while the other displays in million gallons, liters, m3, etc.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 25

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Time Base

The time base is the amount of time over which the rate parameter should accrue. For example, if the rate was ten and the time base was in minutes, then the total would increase by ten every one minute.

Total & Grand Total Conversion Factor

The total & grand total conversion factor is the amount by which the rate is multiplied before it is added to the total or grand total. For Example, if the rate was ten per second and the total conversion factor was 100, the total would increase by 1000 every second. This is useful, for instance, if you want to show rate in gallons and total in thousands of gallons.

Total & Grand Total Reset

The totals can be programmed for automatic or manual reset. In the automatic reset mode, a programmable time delay is available to reset the total or grand total after the assigned preset is reached. The totals can also be reset via the front panel button, via a switch across the on-board F4 terminal, the PDA1044 digital I/O expansion module, or via a Modbus command.

Non-Resettable Totalizer

The total and grand total can be password-protected to prevent unauthorized resets. The grand total can be programmed as a non-resettable total, see Total Reset Password & Non-Resettable Total on page 33 for details.

Calibrating the Meter with External Source (Cal)

To scale the meter without a signal source, refer to

K-Factor Calibration on page 23 or Scaling the Meter on page 24.

The meter can be calibrated to display the process variable in engineering units by applying the appropriate input signal and following the calibration procedure.

The use of a calibrated signal source is strongly recommended to calibrate the meter.

Note: The display values (DiS 1 and DiS 2) need to be in units of measure per second.

There is no need to warm up the meter before

performing the calibration procedure.

he displ a y flashes

while sensing

the inputs

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 26

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Setting the Display Parameter & Intensity (dsplay)

Display line 1 (line 1) can be programmed to display:

1. Rate value

2. Total or grand total

3. Relay set points

4. Max & min values

5. Modbus input

6. Display rate and units

7. Rate and total

8. Rate and grand total

9. Total and units

10. Grand total and units

Display line 2 (Line 2) can be programmed to display:

1. Rate value

2. Total or grand total

3. Relay set points

4. Max & min values

5. Engineering units or custom legends

6. Modbus input

7. Off (no display)

8. Display rate and units

9. Rate and total

10. Rate and grand total

11. Total and units

12. Grand total and units

After setting up the input and the display, press the Menu button to exit programming and skip the rest of the setup menu. Press the Menu button again and the Up arrow to reach the Program menu and complete the scaling or calibration of the meter.

Display Flow Rate, Total or Grand Total

Line 1 can be programmed to display flow rate, total, or grand total, and line 2 can be programmed to display flow rate, total, grand total, engineering units, custom legends, or be turned off. Both lines can also display relay set points, or max and min values.

Display Toggling Between Reading & Units

The PD6300 can be programmed so that line 1 and line 2 toggle between the reading and their engineering units. For instance, line 1 displays flow rate, line 2 displays total, and the display toggles to show their units.

Display Intensity (d-Inty)

The meter has eight display intensity levels to give the best performance under various lighting conditions. Select intensity 8 for outdoor applications. The default intensity is 6.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 27

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Setting the Relay Operation (relay)

This menu is used to set up the operation of the relays.

• During setup, the relays do not follow the input and they will remain in the state found prior to entering the Relay menu.

1. Relay assignment

a. Rate for low and high alarm b. Total c. Grand total d. Modbus input

2. Relay action

a. Automatic reset only (non-latching) b. Automatic + manual reset at any time

(non-latching) c. Latching (manual reset only) d. Latching with Clear (manual reset only

after alarm condition has cleared) e. Alternation control (automatic reset only) f. Sampling (the relay is activated for a

user-specified time) g. Off (relay state controlled by Interlock

feature)

3. Set and reset points

4. Fail-safe operation a. On (enabled) b. Off (disabled)

5. Time delay a. On delay (0-999.9 seconds) b. Off delay (0-999.9 seconds)

Relay Assignment (Assign)

The relays can be assigned to any of the following parameters:

1. Rate for low or high alarm indication

2. Total for alarm indication

3. Grand total for alarm indication

4. Modbus input

Setting the Relay Action

Operation of the relays is programmed in the Action menu. The relays may be set up for any of the following modes of operation:

1. Automatic reset (non-latching)

2. Automatic + manual reset at any time (non-latching)

3. Latching (manual reset only, at any time)

4. Latching with Clear (manual reset only after alarm condition has cleared)

5. Alternation control (automatic reset only)

6. Sampling (the relay is activated for a userspecified time)

7. Off (relay state controlled by Interlock feature)

The following graphic shows relay 1 action setup; relay 2-8 are set up in a similar fashion.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 28

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Programming Set and Reset Points

High alarm indication: program set point above reset point.

Low alarm indication: program set point below reset point.

The deadband is determined by the difference between set and reset points. Minimum deadband is one display count. If the set and reset points are programmed with the same value, the relay will reset one count below the set point.

Note: Changes are not saved until the reset point has been accepted.

Setting Fail-Safe Operation

In fail-safe mode of operation, the relay coil is energized when the process variable is within safe limits and the relay coil is de-energized when the alarm condition exists. The fail-safe operation is set independently for each relay. Select on to enable or select off to disable fail-safe operation.

Programming Time Delay

The On and Off time delays may be programmed for each relay between 0 and 999.9 seconds. The relays will transfer only after the condition has been maintained for the corresponding time delay.

The On time delay is associated with the set point. The Off time delay is associated with the reset point.

Relay and Alarm Operation Diagrams

The following graphs illustrate the operation of the relays, status LEDs, and ACK button.

High Alarm Operation (Set > Reset)

For Manual reset mode, ACK can be pressed anytime to turn "off" relay. To detect a new alarm condition, the signal must go below the set point, and then go above it.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 29

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Low Alarm Operation (Set < Reset)

For Manual reset mode, ACK can be pressed anytime to turn "off" relay. For relay to turn back “on”, signal must go above set point and then go below it.

High Alarm with Fail-Safe Operation (Set > Reset)

Note: Relay coil is energized in non-alarm condition. In case of power failure, relay will go to alarm state.

Low Alarm with Fail-Safe Operation (Set < Reset)

Note: Relay coil is energized in non-alarm condition. In case of power failure, relay will go to alarm state.

Time Delay Operation

The following graphs show the operation of the time delay function.

When the signal crosses the set point, the On time delay timer starts and the relay trips when the time delay has elapsed. If the signal drops below the set point (high alarm) before the time delay has elapsed, the On time delay timer resets and the relay does not change state. The same principle applies to the Off time delay.

Note: If “Automatic or Manual (A-nmAn)” reset mode is

selected, the LED follows the reset point and not the relay state when the relay is acknowledged.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 30

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Relay Operation Details

Overview

The relay capabilities of the meter expand its usefulness beyond simple indication to provide users with alarm and control functions. These capabilities include front panel alarm status LEDs as well as either 2 or 4 optional internal relays and/or 4 external relays expansion module. Typical applications include high or low flow alarms and basic batch control. There are four basic ways the relays can be used:

1. High or Low Alarms with Latching or NonLatching Relays

2. Simple On/Off Control with 100% Adjustable Deadband

3. Sampling (Based on Time)

4. Alternation Control for up to 8 Relays

Relays Auto Initialization

When power is applied to the meter, the front panel LEDs and alarm relays will reflect the state of the input to the meter. The following table indicates how the alarm LEDs and relays will react on power-up based on the set and reset points:

Alarm #

HI or LO

Alarm

Set

Point

Reset

Point

Power-

Reading

Relay &

LED

1000

500

499

Off

700

900

499

On 3 LO

250

400

499

Off

450

200

499

Fail-Safe Operation

The following table indicates how the relays behave based on the fail-safe selection for each relay:

Fail-Safe Selection

Non-Alarm State

Alarm State

Power Failure

Off

Open

Closed

Open

Relays go to nonalarm state

Closed

Open

Closed

Relays go to alarm state

Note: NO = Normally Open, NC = Normally Closed. This refers to the condition of the relay contacts when the power to the meter is off.

Front Panel LEDs

The LEDs on the front panel provide status indication for the following:

LED

Status

LED

Status

Alarm 1

Alarm 5

Alarm 2

Alarm 6

Alarm 3

Alarm 7

Alarm 4

Alarm 8

The meter is supplied with four alarm points that include front panel LEDs to indicate alarm conditions. This standard feature is particularly useful for alarm applications that require visual-only indication. The LEDs are controlled by the set and reset points programmed by the user. When the display reaches a set point for a high or low alarm, the corresponding alarm LED will turn on. When the display returns to the reset point the LED will go off. The front panel LEDs respond differently for latching and non-latching relays.

For non-latching relays, the LED is always off during normal condition and always on during alarm condition, regardless of the state of the relay (e.g. Relay acknowledged after alarm condition).

For latching relays, the alarm LEDs reflects the status of the relays, regardless of the alarm condition. The following tables illustrate how the alarm LEDs function in relation to the relays and the acknowledge button (Default: F3 key assigned to ACK):

Latching and Non-Latching Relay Operation

The relays can be set up for latching (manual reset) or non-latching (automatic reset) operation.

Relay terminology for following tables

Terminology

Relay Condition

Alarm (Tripped)

Off

Normal (Reset)

Ack

Acknowledged

The On and Off terminology does not refer to the status of the relay’s coil, which depends on the failsafe mode selected.

• In latching relay mode, if Fail-Safe is off, latched relays will reset (unlatch) when power is cycled.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 31

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Non-Latching Relay (Auto)

In this application, the meter is set up for automatic reset (non-latching relay). Acknowledging the alarm while it is still present has no effect on either the LED or the relay. When the alarm finally goes away, the relay automatically resets and the LED also goes off.

Non-Latching Relay with Manual Reset (A-nman)

In this application, the meter is set up for automatic and manual reset at any time (non-latching relay). The LED and the relay automatically reset when the meter returns to the normal condition.

In addition, the relay can be manually reset while the alarm condition still exists, but the LED will stay on until the meter returns to the normal condition.

Latching Relay (LatcH)

In this application, the meter is set up for manual reset at any time. Acknowledging the alarm even if the alarm condition is still present resets the relay and turns off the LED.

Latching Relay with Clear (Lt-Clr)

In this application, the meter is set up for manual reset only after the signal passes the reset point (alarm condition has cleared). Acknowledging the alarm while it is still present has no effect on either the LED or the relay. When the alarm is acknowledged after it returns to the normal state, the LED and the relay go off. Notice that the LED remains on, even after the meter returns to the normal condition. This is because, for latching relays, the alarm LED reflects the status of the relay, regardless of the alarm condition.

Acknowledging Relays

There are three ways to acknowledge relays programmed for manual reset:

1. Via the programmable front panel function keys F1-F3 (Example: F3 assigned to ACK).

2. Remotely via a normally open pushbutton wired to the F4 terminal at the rear of the instrument.

3. One of the digital inputs and the +5 V terminals on the digital I/O expansion module.

When the ACK button or the assigned digital input is closed, all relays programmed for manual reset are acknowledged.

P- COMP+ S+ S-

3412 5

I1 I2 I3 I4

O1 O2 O3 O4 G

DO 1-4

GND

ACK

Digital I/O Module

1 2345 6 78910

DI 1-4

Automatic reset only

Condition

LED

Relay

Normal

Off

Alarm

Ack (No effect)

Normal

Off

Automatic + manual reset at any time

Condition

LED

Relay

Normal

Off

Alarm

Normal

Off

Next Alarm

Ack

Off

Normal

Off

Manual reset any time

Condition

LED

Relay

Normal

Off

Alarm

Ack

Off

Manual reset only after alarm condition has

cleared

Condition

LED

Relay

Normal

Off

Alarm

Ack (No effect)

Normal

Ack

Off

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 32

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Setting Up the Interlock Relay (Force On) Feature

Relays 1-4 can be set up as interlock relays. To set up the relays for the interlock feature:

1. Access the Setup – Relay – Action menu and set the action to off.

2. In the Advanced features – User menu program

any of the digital inputs to Force On any of the internal relays (1-4).

3. Connect a switch or dry contact between the +5V

terminal and the corresponding digital input (dI-1 to dI-4) terminal.

Interlock Relay Operation Example

Relays 1 & 2 are configured to energize (their front panel LEDs are steady on) when SW1 & SW2 switches (above) are closed. If the contacts to these digital inputs are opened, the corresponding front panel LEDs flash indicating this condition. The processes being controlled by the interlock relay will stop, and will re-start only after the interlock relay is re-activated by the digital inputs (switches).

Note: If multiple digital inputs are assigned to the same relay, then the corresponding logic is (AND) – i.e. both switches must be closed to activate the relay.

Scaling the 4-20 mA Analog Output (Aout)

The 4-20 mA analog output can be scaled to provide a 4-20 mA signal for any display range selected.

No equipment is needed to scale the analog output; simply program the display values to the corresponding mA output signal.

The Analog Output menu is used to program the 4-20 mA output based on display values.

For instructions on how to program numeric values see Setting Numeric Values on page 21.

Reset Menu (reset)

The Reset menu is used to reset the totals, maximum or minimum reading (peak or valley) reached by the process; both may be reset at the same time by selecting “reset high & low” (rst HL).

Manual Control Menu (Contrl)

The Manual Control menu is used to control the 4-20 mA analog output and the relays manually, ignoring the input. Each relay and analog output can be programmed independently for manual control. Selecting automatic control sets all relays and the analog output for automatic operation.

1 2 3 4 5 6

+5 I1 I2 I3 I4 O1

7 8

O2 O3

9 10

O4 G

DI 1-4 DO 1-4

5 VDC GND

SW2

SW1

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 33

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Setting Up the Password (pass)

The Password menu is used for programming three levels of security to prevent unauthorized changes to the programmed parameter settings and to program the non-resettable totalizer.

Pass 1: Allows use of function keys and digital inputs Pass 2: Allows use of function keys, digital inputs and editing set/reset points Pass 3: Restricts all programming, function keys, and digital inputs. Total: Prevents resetting the total manually

Gtotal: Prevents resetting the grand total manually

Protecting or Locking the Meter

Enter the Password menu and program a six-digit password.

For instructions on how to program numeric values see Setting Numeric Values on page 21.

Total Reset Password & NonResettable Total

The total and the grand total can be passwordprotected to prevent unauthorized total resets.

The grand total can be programmed as a nonresettable total by entering the password “050873”.

• Once the Grand Total has been programmed as

“non-resettable” the feature CANNOT be disabled.

Making Changes to a Password Protected Meter

If the meter is password protected, the meter will display the message Locd (Locked) when the Menu button is pressed. Press the Enter button while the message is being displayed and enter the correct password to gain access the menu. After exiting the programming mode, the meter returns to its password protected condition.

Disabling Password Protection

To disable the password protection, access the Password menu and enter the correct password twice, as shown below. The meter is now unprotected until a new password is entered.

If the correct six-digit password is entered, the meter displays the message unLoc (unlocked) and the protection is disabled until a new password is programmed.

If the password entered is incorrect, the meter displays the message Locd (Locked) for about two seconds, and then it returns to Run Mode. To try again, press Enter while the Locked message is displayed.

Did you forget the password?

The password may be disabled by entering a master password once. If you are authorized to make changes, enter the master password 508655 to unlock the meter.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 34

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Advanced Features Menu

To simplify the setup process, functions not needed for most applications are located in the Advanced Features menu.

Press and hold the Menu button for three seconds to access the advanced features of the meter.

Advanced Features Menu & Display Messages

The following table shows the functions and messages of the Advanced Features menu in the order they appear in the menu.

Display

Parameter

Action/Setting

Gate

Enter Gate function menu

Lo G

Low gate

Program Low gate value

Hi G

High gate

Program High gate value

filter

Filter

Enter the Filter menu

Lo Spd

Low speed

Set the contact debounce filter value

Hi Spd

High speed

Select high speed filter

Round

Set the rounding value for display variables

seriAl

Serial

Set serial communication parameters

SlaV Id

Slave ID

Set slave ID or meter address

baud

Baud rate

Select baud rate

Tr dLY

Transmit delay

Set transmit delay for serial communication

Parity

Select parity: Even, Odd, or None with 1 or 2 stop bits

t-byt

Time byte

Set byte-to-byte timeout

SelEct

Select

Enter the Select menu (function, cutoff, out)

Functn

Input signal conditioning

Select linear only, other functions are not applicable to pulse input

Linear

Set meter for linear function and select number of linearization points

Display

Parameter

Action/Setting

No PtS

Number of points

Set meter for 2 to 32point linearization

CutofF

Cutoff

Set low-flow cutoff

Count

Set the totals to count up or down from a set value

Tot C

Total count

Set the total to count up to or down from the programmed total value

Gtot C

Grand total count

Set the grand total to count up or down from from the programmed grand total value

AoutPr

Analog output programming

Program analog output parameters

Source

Select source for the 4-20 mA output

O-rang

Overrange

Program mA output for display overrange

u-rang

Underrange

Program mA output for display underrange

nmAx

Maximum

Program maximum mA output allowed

nmin

Minimum

Program minimum mA output allowed

Calib

Calibrate

Calibrate 4-20 mA output (internal reference source used for scaling the output)

4 nmA

4 mA output

Enter mA output value read by milliamp meter with at least 0.001 mA resolution

20 nmA

20 mA output

Enter mA output value read by milliamp meter with at least 0.001 mA resolution

user

User I/O

Assign function keys and digital I/O

F1 function key

Assign F1 function key

F2 function key

Assign F2 function key

F3 function key

Assign F3 function key

F4 function

Assign F4 function (digital input)

dI I

Digital input 1

Assign digital input 1 – 8, if expansion modules are connected

dO 1

Digital output 1

Assign digital output 1 – 8, if expansion modules are connected

Diag

Diagnostics

Display parameter settings

LED t

LED test

Test all LEDs (press menu to exit test)

Info

Information

Display software number and version

Erase

Erase MeterView Pro software stored in meter’s memory

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 35

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Gate Function (Gate)

The gate function is used for displaying slow pulse rates. Using the programmable gate, the meter is able to display pulse rates as slow as 1 pulse every 999.9 seconds (0.001 Hz). The gate function can also be used to obtain a steady display reading with a fluctuating input signal.

The gate function (Gate) is the first option in the Advanced Features menu. There are two settings for the Gate, low gate (Lo G) and high gate (Hi G).

Low Gate (Lo G)

For most applications, low gate setting should be left at 1.0 second. Increase low gate setting to obtain a steadier rate display. The rate display will update in accordance with the low gate setting, for example if low gate is set at 10.0, the display will update every 10 seconds; changes in rate between updates will not be reflected until next display update.

High Gate (Hi G)

Set the high gate value to correspond to the highest expected pulse period (lowest pulse rate). For instance, if the meter must display a rate when there is 1 pulse coming into the meter every 10 seconds, set the high gate to 11.0 seconds. When the signal is removed from the meter, the display will show the last reading for 11 seconds; then it will read zero.

Gate Settings

Slow Pulse Rate

Low Gate* (sec)

High Gate (sec)

Min Freq** (Hz)

1.0

2.0

0.5000

1.0

10.0

0.1000

1.0

20.0

0.0500

1.0

100.0

0.0100

1.0

200.0

0.0050

1.0

400.0

0.0025

1.0

800.0

0.0012

1.0

999.9

0.0010

*The low gate setting corresponds to the display update rate and is used to stabilize the display reading with a fluctuating signal.

**The minimum frequency is dependent on high gate setting.

Contact De-Bounce Filter (FiLter)

The filter function (FiLter) can be used for applications where the meter is set up to count pulses generated by switch contacts. The filter value can be set anywhere between 2 and 50, the higher the value, the greater the filtering.

The filter function (Filter) is the second option in the Advanced Features menu. There are two settings, Hi SPd (high speed) and Lo SPd (low speed), press ENTER when Lo SPd is displayed to enable the filter function. Program the filter value, so that there are no extra counts when a contact closure is completed.

Filter Settings

Contact De-Bounce Filter

Filter Setting

Speed Setting

Max Freq (Hz)

Lo SPd

999

Lo SPd

499

Lo SPd

249

Lo SPd

124

Lo SPd

N/A

Hi SPd

30,000

Rounding Feature (round)

The rounding feature is used to give the user a steadier display with fluctuating signals. Rounding is used in addition to the filter function.

Rounding causes the display to round to the nearest value according to the rounding selected. This setting affects the last two digits, regardless of decimal point position.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 36

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Modbus RTU Serial Communications (serial)

The meter is equipped with serial communications capability as a standard feature using Modbus RTU Serial Communication Protocol.

The meter may be connected to a PC for initial configuration via the on-board micro USB connection. For ongoing digital communications with a computer or other data terminal equipment, an RS-232, or RS-485 option is required; see Ordering Information on page 6 for details.

• DO NOT connect any equipment other than

Precision Digital’s expansion modules, cables, or

meters to the RJ45 M LINK connector. Otherwise damage will occur to the equipment and the meter.

Select Menu (SElEct)

The Select menu is used to select the input signal conditioner applied to the input (linear), low-flow cutoff, and analog output programming. The multipoint linearization is part of the linear function selection.

Input Signal Conditioning (Functn)

The Function menu is used to select the input signal conditioner applied to the input: linear, where the multi-point linearization is part of the linear function selection.

Meters are set up at the factory for linear function with 2-point linearization. The linear function provides a display that is linear with respect to the input signal.

When using more than one meter in a multi-drop mode, each meter must be provided with its own unique address. The meter address (Slave ID) may be programmed between 1 and 247. The transmit delay may be set between 0 and 199 ms. The parity can be set to even, odd, or none with 1 or 2 stop

bits.

Multi-Point Linearization (Linear)

Meters are set up at the factory for linear function with 2-point linearization. Up to 32 linearization points can be selected under the linear function. The multi-point linearization can be used to linearize the display for non-linear signals.

Low-Flow Cutoff (CutofF)

The low-flow cutoff feature allows the meter to be programmed so that the often-unsteady output from a differential pressure flowmeter, at low flow rates, always displays zero on the meter.

The cutoff value may be programmed from 0 to

999999. The meter will display zero below the cutoff value. Programming the cutoff value to zero disables the cutoff feature.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 37

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Analog Output Programming (AoutPr)

The Analog Output Programming menu is used to program the behavior of the 4-20 mA output. The following parameters and functions are programmed in this menu:

1. Source: Source for generating the 4-20 mA

output (e.g. PV)

2. Overrange: Analog output value with display in

overrange condition

3. Underrange: Analog output value with display in

underrange condition

4. Max: Maximum analog output value allowed

regardless of input

5. Min: Minimum analog output value allowed

regardless of input

6. Calibrate: Calibrate the internal 4-20 mA source

reference used to scale the 4-20 mA output

Analog Output Source

The source for generating the 4-20 mA output may be assigned to the rate/process variable, total, grand total, maximum or minimum value reached by the rate/process, one of the set points, or the Modbus PV input.

Analog Output Calibration

To perform the analog output calibration, it’s recommended to use a milliamp meter with a resolution of at least 0.1 µA to measure the output current. The values saved internally during this procedure are used for scaling the 4-20 mA output in the Setup menu.

Analog Output Calibration Procedure

1. Wire the PD6300 4-20 mA output to a current loop that includes a power supply (internal or external 12 to 24 VDC), and the mA input on the digital meter. See Figure 22: 4-20 mA Output Connections on page 16 for details.

2. Turn on all devices. Allow for a 15 to 30 minute warm-up.

3. Go to the Advanced Features menu, and navigate to the Analog Output Programming (AoutPr)/Calibration (Calib) menu and press Enter.

4. The display will show 4 nmA. The PD6300 mA output should now be close to 4 mA. Press Enter and the display will show 04.000. Enter the actual value read by the digital mA meter and press Enter.

5. The display will show 20 nmA. The PD6300 mA output should now be close to 20 mA. Press Enter and the display will show 20.000. Enter the actual value read by the digital mA meter and press Enter.

6. The meter will now calculate the calibration factors and store them.

7. Press Menu to exit and return to Run mode.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 38

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Programmable Function Keys User Menu (user)

The User menu allows the user to assign the front panel function keys F1, F2, and F3, the digital input F4 (a digital input located on the input signal connector), and up to eight additional digital inputs to access most of the menus or to activate certain functions immediately (e.g. reset total, reset grand total, reset max & min, hold relay states, etc.). This allows the meter to be greatly customized for use in specialized applications.

Up to eight digital outputs can be assigned to a number of actions and functions executed by the meter (i.e. reset total, reset grand total, alarms, relay acknowledgement, reset or display max, min). The digital outputs can be used to trigger external alarms or lights to indicate these specific events.

Function Keys & Digital I/O Available Settings

Refer to the following table for descriptions of each available function key or digital I/O setting.

Function Keys & Digital I/O Available Settings

Display

Description

relay

Directly access the relay menu

Set 1*

Directly access the set point menu for relay 1 (*through 8)

Rly d

Disable all relays until a button assigned to

enable relays (Rly E) is pressed

Rly E

Enable all relays to function as they have been programmed

O Hold

Hold current relay states and analog output as they are until a button assigned to

enable relays (Rly E) is pressed

d Hold

Hold the current display value, relay states, and analog output momentarily while the function key or digital input is active. The process value will continue to be calculated in the background.

Ln1 Hi

Display maximum display value on line 1

Ln1 Lo

Display minimum display value on line 1

Ln1 HL

Display maximum & minimum display values on line 1

Ln2 Hi

Display maximum display value on line 2

Ln2 Lo

Display minimum display value on line 2

Ln2 HL

Display maximum & minimum display values on line 2

Ln2 gt

Display the grand total on line 2

F On 1*

Force relay 1 (*through 4) into the on state. This function is used in conjunction with a digital input expansion module to achieve interlock functionality. See Setting Up the

Interlock Relay (Force On) Feature on page 32 for details about interlock relays.

Contrl

Directly access the control menu

Function Keys & Digital I/O Available Settings

Display

Description

disabl

Disable the selected function key or digital I/O

AcH

Acknowledge all active relays that are in a manual operation mode such as auto-manual or latching

Reset

Directly access the reset menu

Rst t

Reset the total

Rst gt

Reset the grand total

Rst Hi

Reset the stored maximum display value

Rst Lo

Reset the stored minimum display value

Rst HL

Reset the stored maximum & minimum display values

Dsplay

Directly access the display menu

Line 1

Directly access the display line 1 menu

Line 2

Directly access the display line 2 menu

nmenu

Mimic the menu button functionality (digital inputs only)

rigHt

Mimic the right arrow/F1 button functionality (digital inputs only)

Mimic the up arrow/F2 button functionality (digital inputs only)

Enter

Mimic the enter/F3 button functionality (digital inputs only)

Alnm 1*

Provide indication when alarm 1 (*through

8) has been triggered (digital outputs only)

*If installed

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 39

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Meter Operation

The meter accepts pulses (e.g. ±40mV to ±8V), square wave (0-5, 0-12V, or 0-24V), open collector NPN, PNP, TTL, or switch contact signals and displays these signals in engineering units from 99999 to 999999.

The dual-line display can be customized by the user to operate in such a way as to satisfy a specific application. Typically, line 1 is used for the process variable; while line 2 is used for engineering units, custom legend, total, grand total, or set point indication.

The meter can be set up to display the pulse input on line 1 and the Modbus input on line 2. The relays and analog output can be programmed to operate from the Modbus PV input.

Front Panel Buttons Operation

Button Symbol

Description

Press to enter or exit Programming Mode, view settings, or exit max/min readings

Press to reset max/min readings or other parameter/function assigned through the User menu

Press to display max/min readings or other parameter/function assigned through the User menu

Press to acknowledge relays or other parameters/function assigned through the User menu

Function Keys Operation

During operation, the programmable function keys operate according to the way they have been programmed in the Advanced Features – User menu. See Programmable Function Keys User Menu (user) on page 38 for details.

The previous table shows the factory default settings for F1, F2, and F3.

F4 Operation

A digital input, F4, is standard on the meter. This digital input is programmed identically to function keys F1, F2, and F3. The input is triggered with a contact closure to COM, or with an active low signal. During operation, F4 operates according to the way it has been programmed in the Advanced Features – User menu. See Programmable Function Keys User Menu (user) on page 38 for details.

Maximum/Minimum Readings

The max & min readings (peak & valley) reached by the process can be displayed either continuously or momentarily:

1. Display briefly by assigning to the F1-F3 function keys, F4 (digital input) or to the digital inputs in the User menu.

2. Display continuously by assigning either display to max/min through the Display menu.

Any of the F1-F3 function keys (buttons), F4 (digital input), and the digital inputs can be programmed to reset the max & min readings. The meters are set at the factory to display the max reading by pressing the Up arrow/F2 button and to use the Right arrow/F1 button to access the Reset menu.

To display max reading using function key with factory defaults:

1. Press Up arrow/F2 button to display maximum reading since the last reset/power-up.

2. To reset max/min press Right arrow/F1 button to access the Reset menu. The max & min displays are reset to actual values.

3. Press Menu to exit max/min display reading.

To display max/min readings continuously:

Assign either display to Max (d Hi), Min (d Lo), or toggle between Max and Min (d HL) every 10 seconds.

Totalizer Overflow Displays Total to 9 Digits

These flow rate/totalizers can display up to nine digits of total flow with the total overflow feature.

In the diagrams above, the flow totalizer is displaying 532,831,470 by toggling between a display of “oF 532” and “831470”. Notice the T with arrow ▲ symbol is lit up indicating the display is in overflow mode.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 40

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Troubleshooting

The rugged design and the user-friendly interface of the meter should make it unusual for the installer or operator to refer to this section of the manual. However, due to the many features and functions of

the meter, it’s possible that the setup of the meter

does not agree with what an operator expects to see. If the meter is not working as expected, refer to the

Diagnostics menu and recommendations below.

Diagnostics Menu (diag)

The Diagnostics menu is located in the Advanced Features menu, to access Diagnostics menu see Advanced Features Menu on page 34.

This menu allows the user to test the functionality of

all the meter LEDs, check the meter’s software and

version information, and erase the MeterView Pro software installation files from the meter. Press the Enter button to view the settings and the Menu button to exit at any time.

For a description of the diagnostic messages, see Advanced Features Menu & Display Messages on page 34.

Determining Software Version

To determine the software version of a meter:

1. Go to the Diagnostics menu (diAG) and press Enter button.

2. Press Up arrow button and scroll to Information menu (Info).

3. Press Enter to access the software number (SFT) and version (UER) information. Write down the information as it is displayed. Continue pressing Enter until all the information is displayed.

4. The meter returns to Run Mode after displaying all the settings.

Reset Meter to Factory Defaults

When the parameters have been changed in a way

that is difficult to determine what’s happening, it might

be better to start the setup process from the factory defaults.

Instructions to load factory defaults:

1. Enter the Advanced Features menu. See Advanced Features Menu on page 34.

2. Press Up arrow to go to Diagnostics (diAG) menu

3. Press and hold Right arrow for three seconds, press Enter when display flashes reset. Note: If Enter is not pressed within three seconds, the display returns to the Diagnostics menu.

4. The meter goes through an initialization sequence (similar as on power-up) and loads the factory default settings.

Factory Defaults & User Settings

The following table shows the factory setting for most of the programmable parameters on the meter.

Factory Defaults & User Settings

Parameter

Display

Default Setting

Input type

Input

Pulse

Total

yes

Total enabled

Units

units

Rate / total / gr. total pulse / pulse / pulse

Filter

filter

Hi Spd

K-factor

Factor

1.000

Function

Functn

Linear

Number of points

No Pts

Input 1

InP 1

00000.0

Display 1

Dis 1

00000.0

Input 2

InP 2

10000.0

Display 2

Dis 2

10000.0

Decimal point

Ddddd.d

1 place

Cutoff value

CutofF

0.000 (disabled)

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 41

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Factory Defaults & User Settings

Parameter

Display

Default Setting

Display assignment

dSPLAY

Display line 1

Line 1

Rate/Process

Display line 2

Line 2

Total value

Display intensity

d-Inty

Total time base

T tb

Second

Total conversion factor

T CF

1.000

Total reset

T rst

Manual

Grand total time base

GT tb

Second

Grand total conversion factor

gT CF

1.000

Grand total reset

gT rst

Manual

Relay 1 assignment

Asign1

Total

Relay 2 assignment

Asign2

Total

Relay 3 assignment

Asign3

Rate

Relay 4 assignment

Asign4

Rate

Relay 1 action

Act 1

Automatic

Relay 1 set point

Set 1

100.0

Relay 1 reset point

RSt 1

000.0

Relay 2 action

Act 2

Automatic

Relay 2 set point

Set 2

200.0

Relay 2 reset point

RSt 2

000.0

Relay 3 action

Act 3

Automatic

Relay 3 set point

Set 3

300.0

Relay 3 reset point

RSt 3

250.0

Relay 4 action

Act 4

Automatic

Relay 4 set point

Set 4

400.0

Relay 4 reset point

RSt 4

350.0

Fail-safe relay 1

Fls 1

Off

Fail-safe relay 2

Fls 2

Off

Fail-safe relay 3

Fls 3

Off

Fail-safe relay 4

Fls 4

Off

On delay relay 1

On 1

0.0 sec

Off delay relay 1

Off 1

0.0 sec

On delay relay 2

On 2

0.0 sec

Off delay relay 2

Off 2

0.0 sec

Factory Defaults & User Settings

Parameter

Display

Default Setting

On delay relay 3

On 3

0.0 sec

Off delay relay 3

Off 3

0.0 sec

On delay relay 4

On 4

0.0 sec

Off delay relay 4

Off 4

0.0 sec

Display 1 analog out

Dis 1

0.0

Output 1 value

Out 1

4.000 mA

Display 2 analog out

Dis 2

1000.0 Output 2 value

Out 2

20.000 mA

Source analog output

Source

Rate/process Overrange output

O-rang

21.000 mA

Underrange output

u-rang

3.000 mA

Maximum output

mAx

23.000 mA

Minimum output

min

1.000 mA

Slave ID (Address)

Slave Id

247

Baud rate

baud

9600

Transmit delay

Tr dly

50 ms

Parity

Even

Byte-to-byte timeout

t-byt

010 (0.1 sec) F1 function key

Reset max & min

F2 function key

Line 1: Max (Hi)

F3 function key

Acknowledge relays

F4 function

Acknowledge relays

Digital input 1

dI 1

Digital input 2

dI 2

Right arrow

Digital input 3

dI 3

Up arrow

Digital input 4

dI 4

Enter

Digital output 1

dO 1

Alarm 1

Digital output 2

dO 2

Alarm 2

Digital output 3

dO 3

Alarm 3

Digital output 4

dO 4

Alarm 4

Password 1

Pass 1

000000 (unlocked)

Password 2

Pass 2

000000 (unlocked)

Password 3

Pass 3

000000 (unlocked)

Total password

Total

000000 (unlocked)

Grand total password

Gtotal

000000 (unlocked)

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 42

PROVU™ PD6300 Pulse Input Rate/Totalizer, Counter & Tachometer

Instruction Manual

Troubleshooting Tips

This meter is a highly sophisticated instrument with an extensive list of features and capabilities. If the front panel buttons are used to program the meter, it may be a difficult task to keep everything straight. That is why we strongly recommend the use of the free MeterView Pro software for all programming activities. A cable is provided with the meter for programming with MeterView Pro software.

If you have programmed the meter with the front panel buttons and it is not working as intended, try re-programming the meter using MeterView Pro software.

Symptom

Check/Action

No display at all

Check power at power connector

Not able to change setup or programming, Locd is displayed

Meter is password-protected, enter correct six-digit password to unlock

Meter does not respond to input change

If a Low-Flow Cutoff Value has been programmed, the meter will display zero below that point, regardless of the input – which can appear like the meter is not responding to an input change. Check to make sure the problem is not being caused by an undesired low-flow cutoff value.

Meter displays error message during calibration (Error)

Check:

1. Signal connections

2. Minimum input span requirements

Meter displays

999999

-99999

Check:

1. Input selected in Setup menu

2. Corresponding signal at Signal connector

Display is unstable

Check:

1. Input signal stability and value

2. Display scaling vs. input signal

3. Filter and gate values

Display response is too slow

Check filter and gate values

Display reading is not accurate

Check:

Scaling or calibration

Display does not respond to input changes, reading a fixed number

Check:

Display assignment, it might be displaying max, min, or set point.

Display alternates between

1. Hi and a number

2. Lo and a number

Press Menu to exit max/min display readings.

Relay operation is reversed

Check:

1. Fail-safe in Setup menu

2. Wiring of relay contacts

Relay and status LED do not respond to signal

Check:

1. Relay action in Setup menu

2. Set and reset points

Flashing relay status LEDs

Relays in manual control mode or relay interlock switches opened.

Meter not communicating with application programs

Check:

1. Serial adapter and cable

2. Serial settings

3. Meter Slave ID and baud rate

If the display locks up or the meter does not respond at all

Cycle the power to reboot the microprocessor.

Other symptoms not described above

Call Technical Support for assistance.

Note: Certain sequences of events can cause unexpected results. To solve these issues, it is best to start fresh from factory defaults and use the manual as a step by step programming guide, rather than a random approach to programming. To reset the meter to factory defaults, see Reset Meter to Factory Defaults on page 40. In addition, for best results, we recommend using the free MeterView Pro software for all programming needs.
