PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
PRECISION DIGITAL CORPORATION
233 South Street • Hopkinton MA 01748 USA
Tel (800) 343-1001 • Fax (508) 655-8990
www.predig.com
• 1/8 DIN Digital Panel Flow Rate/Totalizers with NEMA 4X, IP65 Front
• Dual Analog Inputs with Math Functions
• 0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V Inputs
• Rate, Total, and Grand Total for Each Input Channel
• Dual-Line 6-Digit Display, 0.6" (15 mm) & 0.46" (12 mm)
• Isolated 24 VDC @ 200 mA Transmitter Power Supply
• 2 or 4 Relays + Isolated 4-20 mA Output Options
• Free PC-Based, On-Board, MeterView Pro USB Programming Software
• No Assembly Required
• Display Open Channel Flow with Programmable Exponent Feature
• 32-Point Linearization & Square Root Extraction
• Optional SunBright Display Models for Outdoor Applications
• Operating Temperature Range: -40 to 65°C (-40 to 149°F)
• UL & C-UL Listed. E160849; 508 Industrial Control Equipment
• Input Power Options: 85-265 VAC / 90-265 VDC or 12-24 VDC / 12-24 VAC
• Programmable Display, Function Keys & Digital Input
• External 4-Relay, Dual Analog Output, & Digital I/O Expansion Modules
• RS-232 & RS-485 Serial Communication Options with Modbus RTU
• Password Protection
• Wide Assortment of NEMA 4X Enclosures for up to Ten Meters

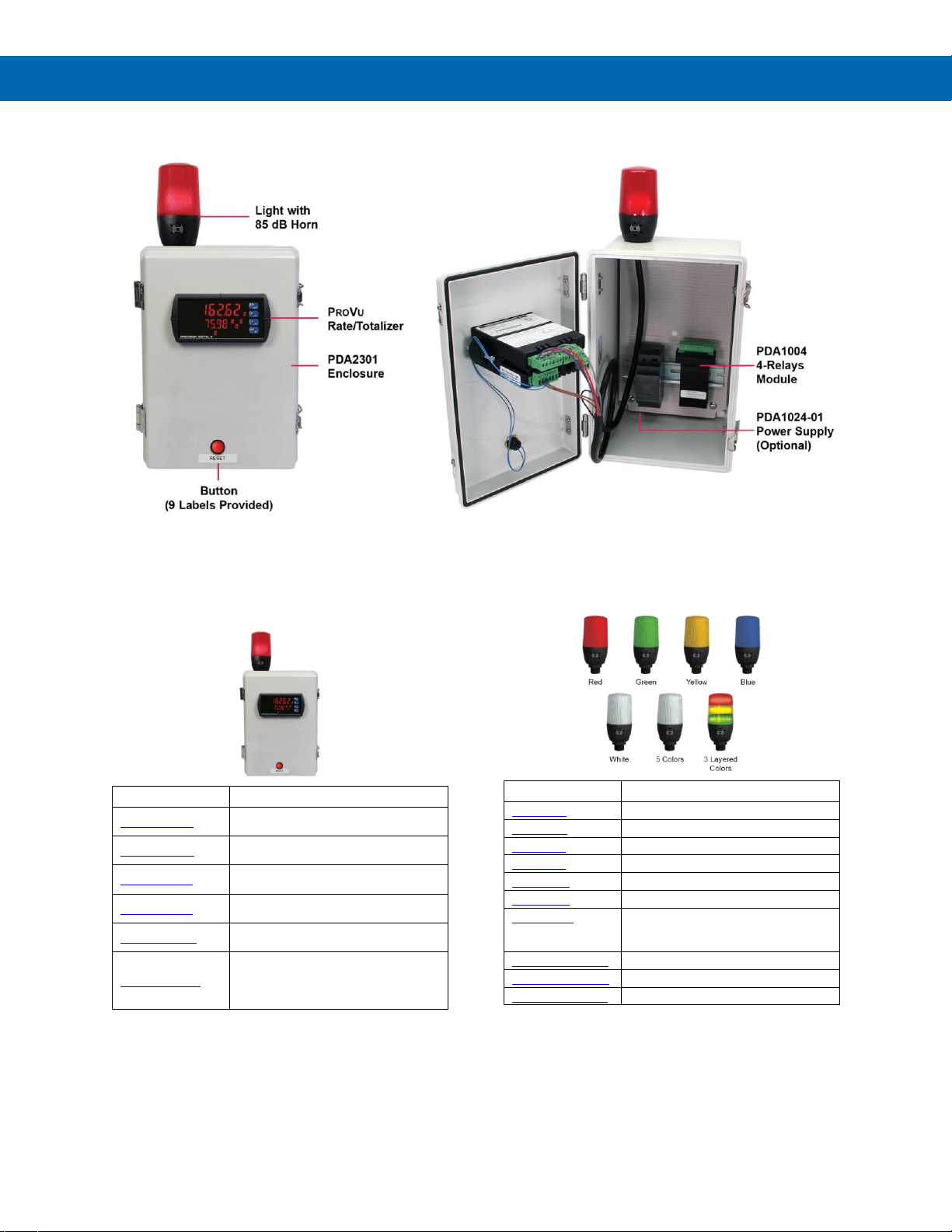

• Light / Horn & Button Accessory
• Control Station Accessory for Remote Operation
• 3-Year Warranty
MeterView Pro
USB Install
Page 2
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
2
Disclaimer
The information contained in this document is
subject to change without notice. Precision Digital
makes no representations or warranties with
respect to the contents hereof and specifically
disclaims any implied warranties of
merchantability or fitness for a particular purpose.
See Warranty Information and Terms &
Conditions on www.predig.com for complete
details.
• Read complete instructions prior to installation
and operation of the meter.
• Risk of electric shock or personal injury.
• This product is not recommended for life support
applications or applications where malfunctioning
could result in personal injury or property loss.
Anyone using this product for such applications
does so at his/her own risk. Precision Digital
Corporation shall not be held liable for damages
resulting from such improper use.
WARNING
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Limited Warranty
Precision Digital Corporation warrants this
product against defects in material or
workmanship for the specified period under
“Specifications” from the date of shipment from
the factory. Precision Digital’s liability under this
limited warranty shall not exceed the purchase
value, repair, or replacement of the defective unit.
See Warranty Information and Terms &
Conditions on www.predig.com for complete
details.
Registered Trademarks
All trademarks mentioned in this document are
the property of their respective owners.
© 2022 Precision Digital Corporation.
All rights reserved.

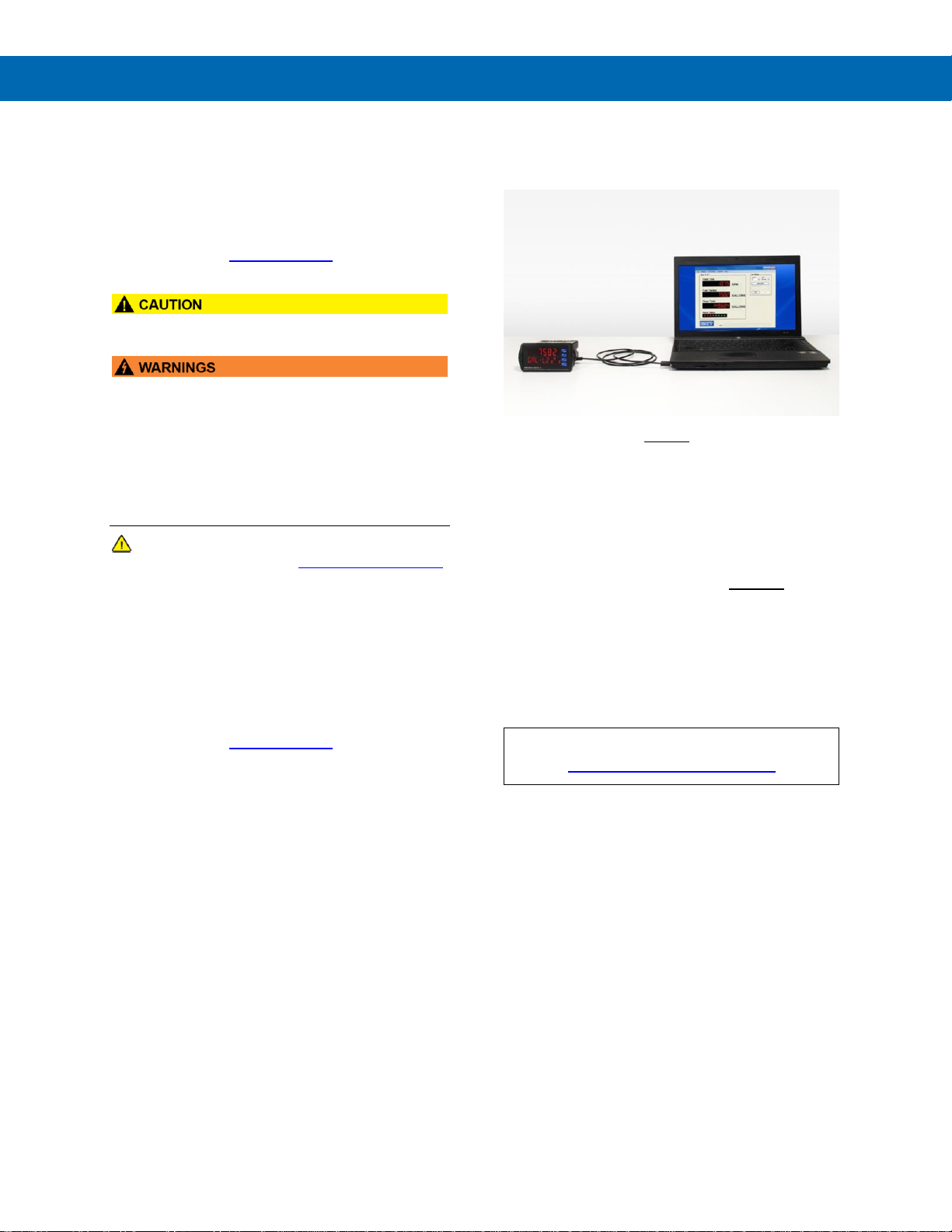

FREE MeterView Pro
Programming Software
The meter can be powered from the USB connection. When
using the USB connection, DO NOT apply AC or DC power to
the meter.
The easiest and quickest way to program your PROVU
meter is to use the FREE MeterView Pro
programming software. This software is loaded into
the meter and connects and installs directly to your
PC with a USB cable. We recommend that the first
thing you do after taking the meter out of the box is
connect the PROVU to your PC with the provided USB
cable – do not use a different cable. DO NOT apply
AC or DC power to the meter while your PC is
connected to the meter as it will disrupt the USB
connection. You don’t even have to apply an input
signal.
MeterView Pro programming software is intuitive, and
most customers can get their meter programmed as
they like without even looking in the manual.
Watch MeterView Pro Software Video at
www.predig.com/meterviewpro
In addition to programming, the software may be used
for:
• Monitoring
• Datalogging using your PC
• Generating and saving programming files for
later use
Once your meter is programmed the way you want it,
you can wire it up for your application per the
instructions in this manual and install it. If you find that
you need to make adjustments to the programming
after the meter is installed, you can use the front
panel buttons and the instructions in this manual to do
so.
Page 3
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
3
Table of Contents
Introduction .......................................................................................................... 6
Ordering Information ........................................................................................... 6
Specifications..................................................................................................... 10
General ........................................................................................................... 10
Dual Process Input ........................................................................................ 11
Dual Rate/Totalizer ........................................................................................ 12
Relays ............................................................................................................. 12
Isolated 4-20 mA Transmitter Output .......................................................... 13
USB Connection ............................................................................................ 13
On-Board Digital Input (F4) ........................................................................... 13
Modbus® RTU Serial Communications ........................................................ 13
MeterView Pro Software ................................................................................ 13
Compliance Information .................................................................................... 14
Safety .............................................................................................................. 14
Electromagnetic Compatibility ..................................................................... 14
EU Declaration of Conformity ........................................................................... 14
Safety Information ............................................................................................. 14
Installation .......................................................................................................... 14
Unpacking ...................................................................................................... 14
Panel Mounting Instructions ........................................................................ 15
Mounting Dimensions .................................................................................. 15
Installation Overview ..................................................................................... 16
MeterView Pro Software ................................................................................ 16
MeterView Pro Installation........................................................................... 16
Transmitter Supply Voltage Selection (P+, P-) ................................................ 17
Connections ................................................................................................... 17
Connectors Labeling ................................................................................... 17
Power Connections ..................................................................................... 18
Signal Connections ..................................................................................... 18
Modbus RTU Serial Communications ......................................................... 18
Relay Connections ...................................................................................... 18
Switching Inductive Loads ........................................................................... 19
F4 Digital Input Connections ....................................................................... 19
4-20 mA Output Connections ...................................................................... 19
Analog Output Transmitter Power Supply ................................................... 19
External Relay, Analog Output, & Digital I/O Connections .......................... 20
Remote Operation of Meter ......................................................................... 20
Interlock Relay Feature ............................................................................... 20
Setup and Programming ................................................................................... 21
Overview ......................................................................................................... 21
Front Panel Buttons and Status LED Indicators ........................................ 21
Display Functions & Messages .................................................................... 22
Main Menu ...................................................................................................... 25
Setting Numeric Values ................................................................................ 25
Setting Up the Meter (setup) ........................................................................ 26
Setting the Input Signal (Input) .................................................................. 27
Setting the Totalizer Features (total) ........................................................ 27
Setting the Rate, Total, & Grand Total Units/Tags (units)......................... 27
Setting the Decimal Point (dEc pt)............................................................. 28
Programming the Rate/Totalizer (prog) ...................................................... 28
Setting the Display Parameters & Intensity (dsplay).................................. 31
Display Intensity (d-Inty) ........................................................................... 31
Setting the Relay Operation (relay) ........................................................... 32
Relay and Alarm Operation Diagrams ......................................................... 34
High Alarm Operation (Set > Reset)................................................................ 34
Low Alarm Operation (Set < Reset) ............................................................ 34
High Alarm with Fail-Safe Operation (Set > Reset) ..................................... 34
Low Alarm with Fail-Safe Operation (Set < Reset) ..................................... 34
Page 4
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
4
Time Delay Operation .................................................................................... 35
Total Relay Sampling Operation ................................................................. 35
Pump Alternation Control Operation ........................................................... 36
Relay Sampling Operation .......................................................................... 36
Relay Operation Details ................................................................................ 37
Overview ..................................................................................................... 37
Relays Auto Initialization ............................................................................. 37
Fail-Safe Operation ..................................................................................... 37
Front Panel LEDs ........................................................................................ 37
Latching and Non-Latching Relay Operation .............................................. 37
Non-Latching Relay (Auto) ......................................................................... 38
Non-Latching Relay with Manual Reset (A-nman) ....................................... 38
Latching Relay (LatcH) ............................................................................... 38
Latching Relay with Clear (Lt-Clr) ............................................................ 38
Acknowledging Relays ................................................................................ 38
Pump Alternation Control Applications (Altern) ........................................ 39
Setting Up the Interlock Relay (Force On) Feature ..................................... 39
Scaling the 4-20 mA Analog Output (Aout) ................................................. 40
Reset Menu (reset) ....................................................................................... 40
Manual Control Menu (Contrl) ..................................................................... 40
Setting Up the Password (pass) ................................................................... 41
Protecting or Locking the Meter Functions .................................................. 41
Total Reset Password & Non-Resettable Total ........................................... 41
Making Changes to a Password Protected Meter ....................................... 41
Disabling Password Protection.................................................................... 41
Advanced Features Menu ............................................................................. 42
Advanced Features Menu & Display Messages.......................................... 42
Noise Filter (filter) ................................................................................... 44
Noise Filter Bypass (bypass) ...................................................................... 44
Rounding Feature (round) .......................................................................... 44
Modbus RTU Serial Communications (serial) .......................................... 44
Select Menu (SElect) ................................................................................. 45
Input Signal Conditioning (Functn) ............................................................. 45
Square Root Linearization (Square) ........................................................... 45
Programmable Exponent Linearization (Prog E) ........................................ 45
Multi-Point Linearization (Linear)............................................................... 46
Math Function (nmath) ................................................................................ 46
Math Constants (Const) .............................................................................. 46
Low-Flow Cutoff (CutofF) ........................................................................... 46
Totalizer Count Up/Down (Count) ............................................................... 47
Analog Output Programming (AoutPr) ....................................................... 48
Programmable Function Keys User Menu (user) ....................................... 49
Internal Calibration (ICAL) ........................................................................... 51
Meter Operation ................................................................................................. 52
Front Panel Buttons Operation .................................................................... 52
Function Keys Operation .............................................................................. 52
F4 Operation .................................................................................................. 52
Maximum/Minimum Readings ...................................................................... 52
Troubleshooting................................................................................................. 53
Diagnostics Menu (diag) .............................................................................. 53
Testing the Display LEDs ............................................................................ 53
Determining Software Version..................................................................... 53
Reset Meter to Factory Defaults ................................................................... 53
Factory Defaults & User Settings ................................................................ 54
Troubleshooting Tips .................................................................................... 56
Page 5
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
5
Table of Figures
Figure 1. 1/8 DIN Panel Cutout Dimensions .................................................... 15
Figure 2. Panel Mounting Details ..................................................................... 15
Figure 3. Meter Dimensions - Side View .......................................................... 15
Figure 4. Meter Dimensions - Top View ........................................................... 15
Figure 5. Transmitter Supply Voltage Selection ............................................. 17
Figure 6. PD6262-##0 Connectors Label ......................................................... 17
Figure 7. PD6262-##2 Connectors Label ......................................................... 17
Figure 8. PD6262-##3 Connectors Label ......................................................... 17
Figure 9. PD6262-##4 Connectors Label ......................................................... 17
Figure 10. PD6262-##5 Connectors Label ....................................................... 17
Figure 11. PD6262-##7 Connectors Label ....................................................... 17
Figure 12. Power Connections ......................................................................... 18
Figure 13. Transmitters Powered by Internal Supply ..................................... 18
Figure 14. Transmitters Powered by Ext. Supply or Self-Powered ............... 18
Figure 15. Voltage Input Connections ............................................................. 18
Figure 16. Relay Connections........................................................................... 18
Figure 17. AC and DC Loads Protection .......................................................... 19
Figure 18. Low Voltage DC Loads Protection ................................................. 19
Figure 19. F4 Digital Input Connections .......................................................... 19
Figure 20. 4-20 mA Output Connections ......................................................... 19
Figure 21. Analog Output Supply Powering Other Devices........................... 19
Figure 22. Expansion Module & DIN Rail Mounting Kit .................................. 20
Figure 23. External Relays Module Connections ............................................ 20
Figure 24. Digital I/O Module Connections ...................................................... 20
Figure 25. Dual 4-20 mA Output Module Connections ....................................... 20
Figure 26. Meter to Control Station Connections ........................................... 20
Figure 27. Interlock Connections ..................................................................... 20
Page 6
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
6
Introduction
The PROVU PD6262 is a multipurpose, easy to use
digital dual analog input rate/totalizer ideal for flow
rate, total, and flow control applications. Its
superluminous LED digits make it easily readable in
smoke, dust, fog, and, with the optional SunBright
display, even direct sunlight.
It accepts two current or voltage signals (e.g.
4-20 mA, 0-10 V). Various math functions may be
applied to the rate, total, or grand totals of the two
channels; including addition, difference, average,
minimum, maximum, draw, ratio and more. This is in
addition to the input signal conditioners; linear, square
root, or programmable exponent.
The displays, relays, and the analog output may be
assigned to the rate, total, or grand total of input
channels A or B; or math result channel C. Three of
the front panel buttons can be custom-programmed
for a specific operation.
The basic model includes an isolated 24 VDC
transmitter power supply that can be used to power
the input transmitters or other devices. An additional
isolated 24 VDC power supply is included with the
4-20 mA output option. A digital input is standard.
A fully loaded PD6262 meter has the following: four
SPDT relays, 4-20 mA output, and two 24 VDC power
supplies. The PD6262 capabilities may be enhanced
by adding the following external expansion modules:
four SPST relays –creating an eight-relay dual-input
process meter, two digital I/O modules with four inputs
and four outputs each, serial communication adapters
for use with MeterView Pro or Modbus RTU, and a dual
isolated 4-20 mA output expansion module.
Ordering Information
Standard Models
85-265 VAC
Model
12-24 VDC
Model
Options Installed
PD6262-6R0
PD6262-7R0
No options
PD6262-6R2
PD6262-7R2
2 relays
PD6262-6R3
PD6262-7R3
4-20 mA output
PD6262-6R4
PD6262-7R4
4 relays
PD6262-6R5
PD6262-7R5
2 relays & 4-20 mA output
PD6262-6R7
PD6262-7R7
4 relays & 4-20 mA output
SunBright Display Models
85-265 VAC
Model
12-24 VDC
Model
Options Installed
PD6262-6H0
PD6262-7H0
No options
PD6262-6H2
PD6262-7H2
2 relays
PD6262-6H3
PD6262-7H3
4-20 mA output
PD6262-6H4
PD6262-7H4
4 relays
PD6262-6H5
PD6262-7H5
2 relays & 4-20 mA output
PD6262-6H7
PD6262-7H7
4 relays & 4-20 mA output
Accessories
Model
Description
PDA1002
DIN rail mounting kit for two devices
PDA1004
4 SPST (Form A) relays module
PDA1011
Dual isolated analog output
PDA1044
4 digital inputs & 4 digital outputs module
PDA1232
RS-232 serial adapter
PDA1485
RS-485 serial adapter
PDA7485-I
RS-232 to RS-485 isolated converter
PDA8008
USB Adapter
PDA8232-N
USB to RS-232 non-isolated converter
PDA8485-I
USB to RS-485 isolated converter
PDA-LH
Light / horn accessory
MOD-LH
Light / horn / enclosure modification
PDA2360
Plastic control stations series
PD659
Signal isolators, splitters, & conditioners
PD9501
Multi-function calibrator
PD9502
Low-cost signal generator
PDX6901
Snubber: 0.01 μF/470 Ω, 250 VAC
Enclosures
Series
Meters
Material
PDA2300
1-10
Plastic NEMA 4X
PDA2500
1-6
Plastic NEMA 4X
PDA2600
1-6
Stainless Steel NEMA 4X
PDA2700
1-6
Painted Steel NEMA 4
PDA2800
1-2
Plastic NEMA 4X
PDA3400
1-3
Plastic NEMA 4X
Need help selecting the right enclosure?
Go to www.predig.com/esu
Replacement Option Cards
Model
Options Installed
PD1102
2 relays
PD1103
4-20 mA output
PD1104
4 relays
PD1105
2 relays & 4-20 mA output
PD1107
4 relays & 4-20 mA output
Page 7
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
7
Light / Horn Accessories
PROVU Meter Shown in a PDA2301 Enclosure with MOD-LHRB1 Red Light / Horn and Button.
Meter & Enclosure Sold Separately. Assembly Required.
MOD-LH
Model
Description
MOD-LHRB1
Red Light / Horn and Button with
Holes Drilled in Enclosure
(1)
MOD-LHGB1
Green Light / Horn and Button with
Holes Drilled in Enclosure
(1)
MOD-LHYB1
Yellow Light / Horn and Button with
Holes Drilled in Enclosure
(1)
MOD-LHBB1
Blue Light / Horn and Button with
Holes Drilled in Enclosure
(1)
MOD-LHWB1
White Light / Horn and Button with
Holes Drilled in Enclosure
(1)
MOD-LH5CB1
Light / Horn with User Choice of
Red, Green, Yellow, Blue or White
Light, Button, and Holes Drilled in
Enclosure
(1)
Note:
1. This MOD supplies the Light / Horn and Button. The enclosure
comes pre-drilled with holes for Light / Horn and Button and the
user performs the installation and wiring. Meter and enclosure are
sold separately. The Light / Horn hole is in the back left corner of
the enclosure and the Button is centered on the cover of the
enclosure below the meter about an inch off the bottom of the
cover except on the PDA3400 series where it is mounted on the
side of the enclosure.
PDA-LH & PDA-BUTTON
Model
Description
PDA-LHR
Red Light / Horn
PDA-LHG
Green Light / Horn
PDA-LHY
Yellow Light / Horn
PDA-LHB
Blue Light / Horn
PDA-LHW
White Light / Horn
PDA-LHW
White Light / Horn
PDA-LH5C
Light / Horn with User Choice of
Red, Green, Yellow, Blue or White
Light
PDA-BUTTON1R
Red Button
PDA-BUTTON1G
Green Button
PDA-BUTTON1B
Blue Button
Page 8
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
8

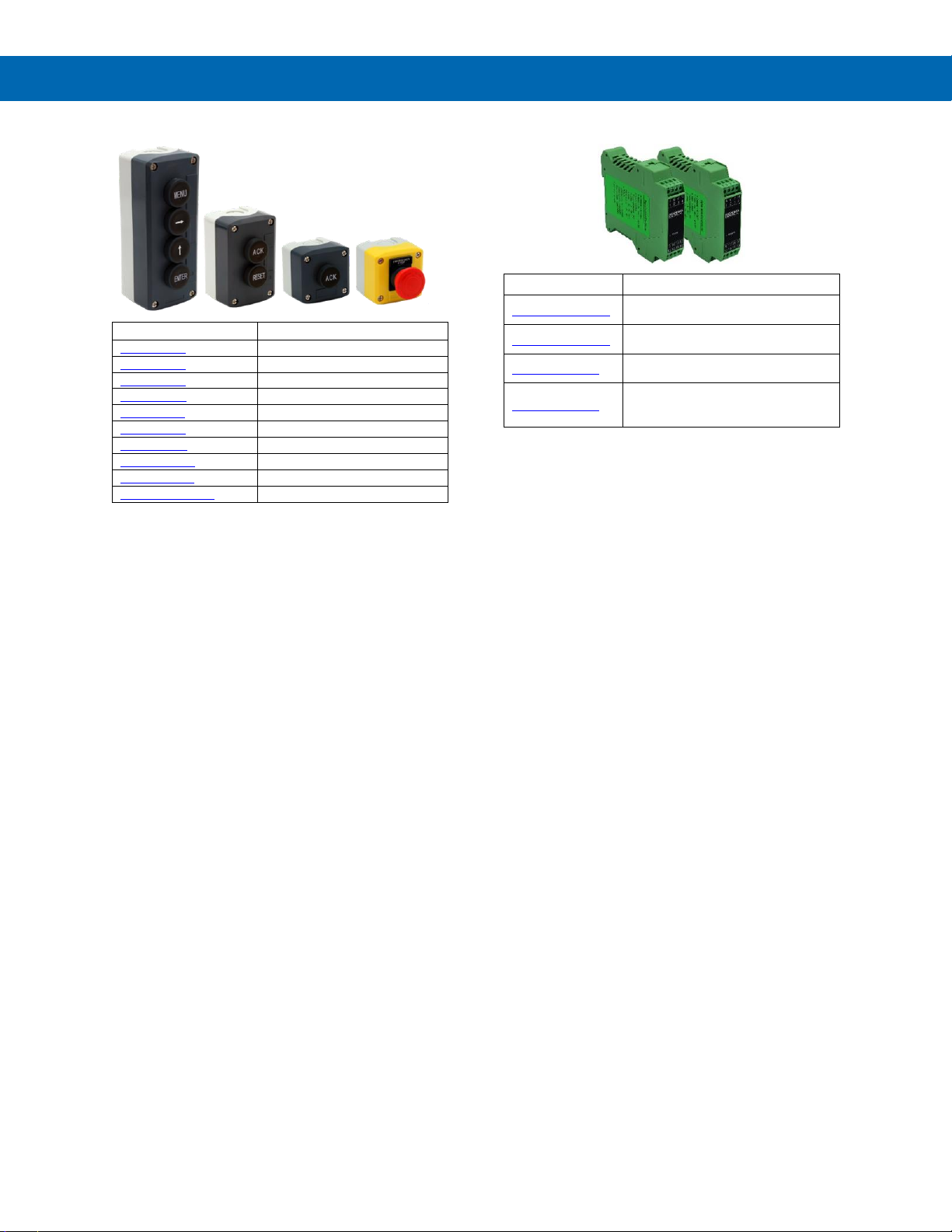

PDA2360 Control Stations
Model
Description
PDA2360-E
Emergency button
PDA2361-A
Ack button
PDA2361-B
Blank button
PDA2361-R
Reset button
PDA2361-T
Tare button
PDA2361-S
Stop button
PDA2361-Q
Silence button
PDA2362-AR
Ack and Reset buttons
PDA2362-BB
Two blank buttons
PDA2364-MRUE
Menu, right, up, enter buttons
Note: Control stations with one button may be connected directly to the
meter via the F4 terminal. A PDA1044 (4) digital inputs & (4) digital
outputs module is required to operate the control stations of more than
one button. See Remote Operation of Meter on page 20 for details.
Signal Splitter & Conditioner Accessories
Model
Description
PD659-1MA-1MA
Signal Isolator with One 4-20 mA
Input and One 4-20 mA Output
PD659-1MA-2MA
Signal Splitter with One 4-20 mA
Input and Two 4-20 mA Outputs
PD659-1V-1MA
Signal Conditioner with One 0-10
VDC Input and One 4-20 mA Output
PD659-1MA-1V
Signal Conditioner with One
4-20 mA Input and One 0-10 VDC
Output
Page 9
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
9
Helpful Videos
Precision Digital's PROVU Series is a powerful line of
1/8 DIN meters that boasts advanced functionality for
various applications. The following videos might be of
interest.
PROVU Series Overview
Learn about all the meters in the PROVU Series.
https://www.predig.com/videos/E4gmQrAeT8o
PROVU Multi-Pump Alternation
Learn how to use the PROVU as a pump controller.
https://www.predig.com/videos/PumpControl
PROVU Function Keys Tutorial
Learn how the PROVU’s function keys increase the
utility of the PROVU.
https://www.predig.com/videos/WMBYKlavW-Q
Connect a PROVU to a PC Using
MeterView Pro
Learn how easy it is to use MeterView Pro software.
https://www.predig.com/videos/PC_Connect
Connect a 2-Wire 4-20 mA Transmitter to
a PROVU
Learn how to connect your transmitter to a PROVU.
https://www.predig.com/videos/420_mA_Connections
MeterView Pro USB Programming
Software
Learn how easy it is to program a PROVU PD6000
process meter.
https://www.predig.com/videos/MVPro_SW
Page 10
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
10
Specifications
Except where noted all specifications apply to
operation at +25°C.
General
Display
Line 1: 0.60" (15 mm) high, red LEDs
Line 2: 0.46" (12 mm) high, red LEDs
6 digits each (-99999 to 999999), with lead
zero blanking
Display
Intensity
Eight user selectable intensity levels.
Default value is six.
Display
Update Rate
5/second (200 ms)

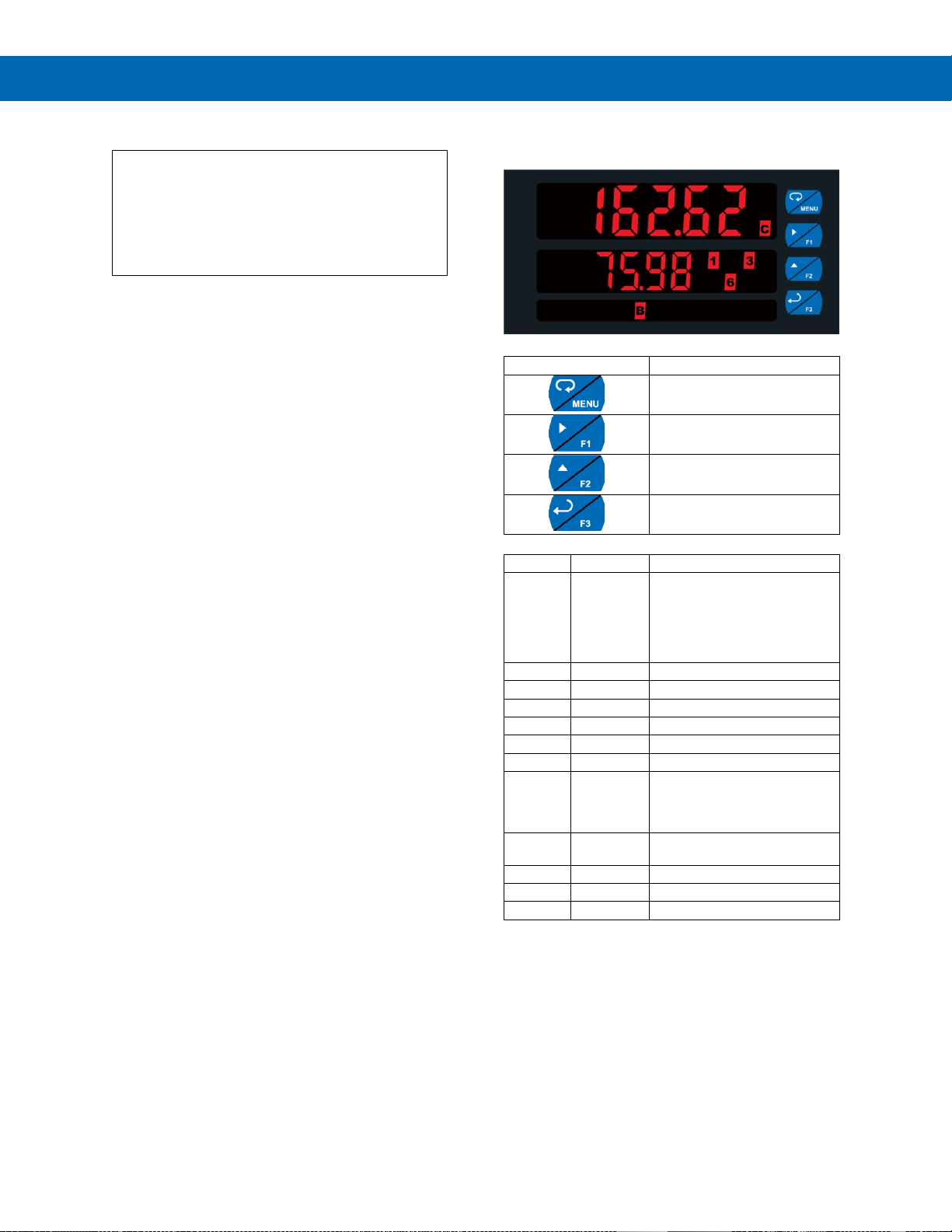

LED Status
Indicators
See Front Panel Buttons and Status LED
Indicators on page 21 for details.
Overrange
Display flashes 999999
Underrange
Display flashes -99999
Display
Assignment

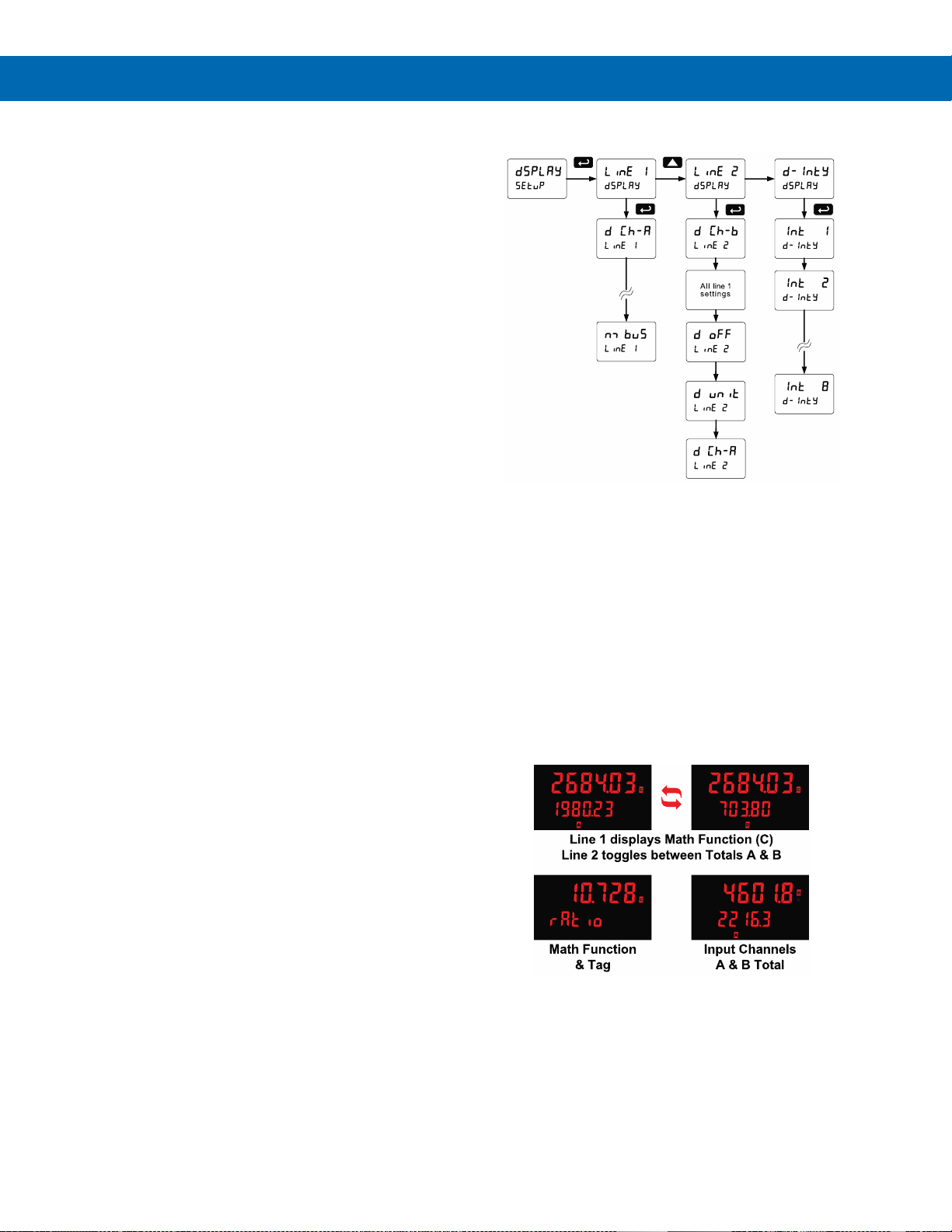

Display lines 1 & 2 may be assigned to
show:
• One or more rate channels: Channel A
(Ch-A), B (Ch-B), or C (Ch-C)
• Toggle between rate channels: Ch-A &
Ch-B, Ch-A & Ch-C, Ch-B & Ch-C, and
Ch-A, Ch-B, & Ch-C
• Total or grand total: Ch-A or Ch-B
• Rate and total or grand total:
Ch-A, Ch-B
• Relay set points
• Max and/or min values:
Ch-A, Ch-B, or Ch-C
• Toggle between any rate channel &
units
• Total and units: Ch-A or Ch-B
• Toggle between totals:
Ch-A & Ch-B; Ch-A, Ch-B, and sum of
Ch-A and Ch-B
• Modbus input
Line 2 may also be set to show engineering
units or be off, with no display.
Programming
Methods
Four front panel buttons, digital inputs, PC
and MeterView Pro software, or Modbus
registers.
Noise Filter
Programmable from 2 to 199
(0 will disable filter)
Filter Bypass
Programmable from 0.1 to 99.9% of
calibrated span
Recalibration
All ranges are calibrated at the factory.
Recalibration is recommended at least every
12 months.
Max/Min
Display
Max/min readings reached by the process
are stored until reset by the user or until
power to the meter is turned off.
Rounding
Select 1, 2, 5, 10, 20, 50, or 100
(e.g. rounding = 10, value = 123.45,
display = 123.50).
Password
Three programmable passwords restrict
modification of programmed settings and
two prevent resetting the totals.
Pass 1: Allows use of function keys and
digital inputs
Pass 2: Allows use of function keys, digital
inputs and editing set/reset points
Pass 3: Restricts all programming, function
keys, and digital inputs.
Total: Prevents resetting the total manually
Gtotal: Prevents resetting the grand total
manually
Non-Volatile
Memory
All programmed settings are stored in nonvolatile memory for a minimum of ten years.
Power
Options
85-265 VAC 50/60 Hz; 90-265 VDC, 20 W max;
12-24 VDC, 12-24 VAC, 15 W max.
Powered over USB for configuration only.
Fuse
Required external fuse: UL Recognized, 5 A
max, slow blow; up to 6 meters may share
one 5 A fuse
Normal Mode
Rejection
Greater than 60 dB at 50/60 Hz
Isolation
4 kV input/output-to-power line
500 V input-to-output or output-to-P+ supply
Overvoltage
Category
Installation Overvoltage Category II:
Local level with smaller transient
overvoltages than Installation Overvoltage
Category III.
Environmental
Operating temperature range:
-40 to 65°C (-40 to 149°F)
Storage temperature range:
-40 to 85°C (-40 to 185°F)
Relative humidity:
0 to 90% non-condensing
Connections
Removable screw terminal blocks accept 12
to 22 AWG wire, RJ45 for external relays,
digital I/O, and serial communication
adapters.
Enclosure
1/8 DIN, high impact plastic, UL 94V-0,
color: black
Front Panel
NEMA 4X, IP65

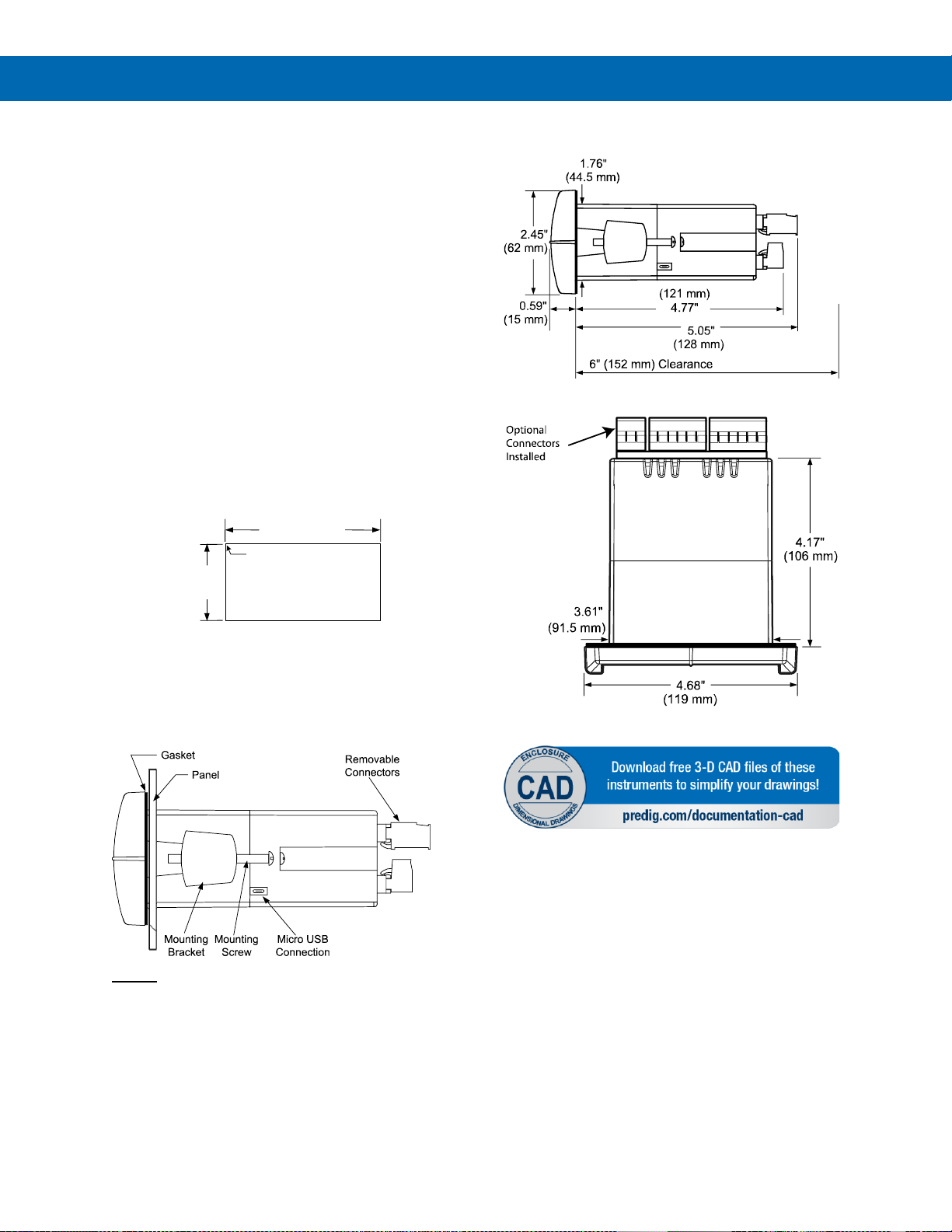

Mounting
1/8 DIN panel cutout required:
3.622" x 1.772" (92 mm x 45 mm)
Two panel mounting bracket assemblies are
provided.
Tightening
Torque
Screw terminal connectors: 5 lb-in (0.56 Nm)
Overall
Dimensions
4.68" x 2.45" x 5.64"
(119 mm x 62 mm x 143 mm)
(W x H x D)
Weight
9.5 oz (269 g)
Warranty
3 years parts & labor. See Warranty
Information and Terms & Conditions on
www.predig.com for complete details.
Page 11
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
11
Dual Process Input
Two Inputs
Two non-isolated inputs, each separately
field selectable:
0-20, 4-20 mA, 10 V (0-5, 1-5, 0-10 V),
Modbus PV (Slave)
Isolated
Transmitter
Power Supply
Terminals P+ & P-: 24 VDC 10%.
All models selectable for 24, 10, or 5 VDC
supply (internal jumper J4). 85-265 VAC
models rated @ 200 mA max, 12-24 VDC
powered models rated @ 100 mA max.
5 & 10 VDC supply rated @ 50 mA max.
Refer to Transmitter Supply Voltage
Selection (P+, P-) on page 17.
When the Light / Horn is powered by the
transmitter power supply, see MOD-LH
Light / Horn's transmitter power supply
specification in MOD-LH manual for
additional details. Light / Horn power not
available for 5 or 10 VDC supplies.
Channels
Channel A, Channel B,
Channel C (Math channel)
Programmable
Constants
Constant P (Adder):
-99.999 to 999.999, default: 0.000
Constant F (Factor):
0.001 to 999.999, default: 1.000
Math
Functions
Name
Function
Setting
Addition
(A+B+P)*F
Sunm
Difference
(A-B+P)*F
diF
Absolute diff.
((Abs(A-B))+P)*F
diFAbS
Average
(((A+B)/2)+P)*F
AVG
Multiplication
((A*B)+P)*F
nmulti
Division
((A/B)+P)*F
diVide
Max of A or B
((AB-Hi)+P)*F
Hi-Ab
Min of A or B
((AB-Lo)+P)*F
Lo-Ab
Draw
((A/B)-1)*F
drAuw
Weighted avg.
((B-A)*F)+A
uw avg
Ratio
(A/B)*F
ratio
Ratio 2
((B-A)/A)+P)*F
ratio2
Concentration
(A/(A+B))*F
Concen
Total Addition
(tA+tB+P)*F
Sunm t
G. Tot. Addition
(GtA+GtB+P)*F
SunmGT
Total
Difference
(tA-tB+P)*F
Dif GT
G. Tot.
Difference
(GtA-GtB+P)*F
Dif GT
Total Ratio
(tA/tB)*F
Tratio
Total Ratio 2
((tB-tA)/tA)*F
t-rat2
Total Percent
(tA/(tA+tB))*100
T PCT
Note: The F constant can be any value from
0.001 to 999.999. If the value is less than 1,
it will have the same effect as a divider. For
example, the average could also be derived
by using (A+B)*F, where F = 0.500.
Sequence of
Operations
for Input
Programming
1. Select Input for A and B
2. Set up the rate, total, and grand total
engineering units for channels A & B,
and units for math channel C
3. Set up rate, total, and grand total
decimal points for channels A & B,
and decimal point for math channel C
4. Program channel A & B rate
parameters
5. Program channel A & B total and reset
parameters
6. Set up display lines 1 and 2
7. Select the transfer function for A & B
(e.g. Linear)
8. Select Math function for Channel C
9. Program constants for Factor (F) and
Adder (P).
10. Program cutoff values for A and B
Accuracy
±0.03% of calibrated span ±1 count,
square root & programmable exponent
accuracy range: 10-100% of calibrated
span
Temperature
Drift
0.005% of calibrated span/C max from
0 to 65C ambient, 0.01% of calibrated
span/C max from -40 to 0C ambient
Input Signal
Conditioning
Linear, square root, or programmable
exponent
Multi-Point
Linearization
2 to 32 points for channel A and B
Programmable
Exponent
User selectable from 1.0001 to 2.9999 for
open channel flow
Low-Flow
Cutoff
0.1 to 999,999 (0 disables cutoff function).
Point below at which the display always
shows zero.
Decimal Point
Up to five decimal places or none:
d.ddddd, d.dddd, d.ddd, d.dd, d.d, or dddddd
Calibration
Range
Input Range
Minimum Span
Input 1 & 2
4-20 mA
0.15 mA
10 V
0.10 V
An error message will appear if the input 1
and input 2 signals are too close together.
Input
Impedance
Voltage ranges: greater than 500 k
Current ranges: 50 - 100 (depending on
resettable fuse impedance)
Input
Overload
Current input protected by resettable fuse,
30 VDC max. Fuse resets automatically
after fault is removed.
HART
Incompatible
The meter will interfere with HART signals
when present on both analog inputs. It is
recommended a single-channel meter be
used to support the use of HART devices in
both analog input loops.
Page 12
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
12
Dual Rate/Totalizer
Rate Display
Indication
-99999 to 999999, lead zero blanking.
Total Display
& Total
Overflow
0 to 999,999; automatic lead zero
blanking.
Up to 999,999,999 with total-overflow
feature. “oF” is displayed to the left of total
overflow and ▲ LED is illuminated.
Total
Decimal Points
Up to five decimal places or none:
d.ddddd, d.dddd, d.ddd, d.dd, d.d, or dddddd
Total decimal point is independent of rate
decimal point. Channel A and B decimal
points programmed independently.
Dual Totalizer
Calculates total for channels A and B
based on rate and field programmable
multiplier to display total in engineering
units. Time base must be selected
according to the time units in which the
rate is displayed. Channel A and B
totalizer parameters programmed
independently.
Totalizer
Rollover
Totalizer rolls over when display exceeds
999,999,999. Relay status reflects
display.
Total
Overflow
Override
Program total A or B total reset for
automatic with 0.1 second delay and set
point 1 for 999,999
Totalizer
Alarm Presets
Up to eight, user selectable under setup
menu. Any set point can be assigned to
channel A or B total or grand total (or C)
and may be programmed anywhere in
the range of the meter for total alarm
indication.
Total Reset
Password
Total and grand total passwords may be
entered to prevent resetting the totals or
grand totals from the front panel.
Total & Grand
Total Reset
Via front panel button, external contact
closure on digital inputs, automatically via
user selectable preset value and time
delay, or through serial communications.
Channel A and B total and grand total
reset parameters programmed
independently.
Programmable
Delay
On Release
0.1 and 999.9 seconds; applied to the
first relay assigned to total or grand total.
If the meter is programmed to reset total
to zero automatically when the preset is
reached, then a delay will occur before
the total is reset.
Non-Resettable
Total
The grand totals can be programmed as
non-resettable totals by entering the
password “050873”. Both channels are
set to non-resettable when this password
is entered.
• Once the Grand Total has been programmed as “nonresettable” the feature CANNOT be disabled.
Relays
Rating
2 or 4 SPDT (Form C) internal and/or
4 SPST (Form A) external; rated 3 A
@ 30 VDC and 125/250 VAC resistive load;
1/14 HP (≈ 50 W) @ 125/250 VAC for
inductive loads
Noise
Suppression
Noise suppression is recommended for each
relay contact switching inductive loads; see
Switching Inductive Loads page on page 19
for details.
Relay
Assignment
Relays may be assigned to channel A or B
rate, total, or grand total; channel C; or
Modbus control.
Deadband
0-100% of span, user programmable
High or Low
Alarm
User may program any alarm for high or low
trip point. Unused alarm LEDs and relays
may be disabled (turn off).
Relay
Operation
• Automatic (non-latching) and/or manual
reset
• Latching (requires manual
acknowledge) with or without clear
• Pump alternation control (2-8 relays)
• Sampling (based on set point and time)
• Off (disable unused relays and enable
Interlock feature)
• Manual on/off control mode
Relay Reset
(Acknowledge)
User selectable via front panel button, F4
terminal at back of meter, external contact
closure on digital inputs, or through serial
communications.
1. Automatic reset only (non-latching),
when the input passes the reset point.
2. Automatic + manual reset at any time
(non-latching)
3. Manual reset only, at any time
(latching)
4. Manual reset only after alarm condition
has cleared (L)
Note: Front panel button, F4 terminal at
back of meter or digital input may be
assigned to acknowledge relays
programmed for manual reset.
Time Delay
0 to 999.9 seconds, on & off relay time
delays. Programmable and independent for
each relay
Fail-Safe
Operation
Programmable and independent for each
relay.
Note: Relay coil is energized in non-alarm
condition. In case of power failure, relay will
go to alarm state.
Auto
Initialization
When power is applied to the meter, relays
will reflect the state of the input to the meter.
Additional
Relays
An external module, model PDA1004, is
available to add 4 SPST 3 A relays to the
meter.
Page 13
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
13
Isolated 4-20 mA Transmitter Output
Output
Source
Input channels A or B, rate, total, or grand
total; channel C; max or min for channel A
or B; highest or lowest max or min of A and
B; set points 1-8; Modbus input; or manual
control mode
Scaling
Range
1.000 to 23.000 mA for any display range
Calibration
Factory calibrated:
4.000 to 20.000 = 4-20 mA output
Analog Out
Programming
23.000 mA maximum for all parameters:
Overrange, underrange, max, min, and
break
Accuracy
± 0.1% of span ± 0.004 mA
Temperature
Drift
0.4 µA/C max from 0 to 65C ambient,
0.8 µA/C max from -40 to 0C ambient
Note: Analog output drift is separate from
input drift.
Isolated
Transmitter
Power Supply
Terminals I+ & R: 24 VDC 10%. May be
used to power the 4-20 mA output or other
devices.
All models rated @ 40 mA max.
External Loop
Power Supply
35 VDC maximum
Output Loop
Resistance
Power supply
Minimum
Maximum
24 VDC
10
700
35 VDC
(external)
100
1200
0-10 VDC
Output
The PD659-1MA-1V can convert the
optional 4-20 mA output to a 0-10 VDC
output
Additional
4-20 mA
Outputs
An external module, model PDA1011, is
available to add two 4-20 mA outputs to the
meter.
USB Connection
Function
Programming only
Compatibility
USB 2.0 Standard, Compliant
Connector Type
Micro-B receptacle
Cable
USB A Male to Micro-B Cable
Driver
Microsoft® Windows® XP/Vista/7/8/10
Power
USB port provides power to the meter.
DO NOT apply AC or DC power to the
meter while the USB port is in use.
On-Board Digital Input (F4)
Function
Remote operation of front-panel buttons,
acknowledge/reset relays, reset totals,
reset max/min values. See
Function Keys & Digital I/O Available
Settings on page 50 for a complete list of
capabilities.
Contacts
3.3 VDC on contact. Connect normally
open contacts across F4 to COM
Logic Levels
Logic High: 3 to 5 VDC
Logic Low: 0 to 1.25 VDC
Additional I/O
Up to 2 external modules, model PDA1044
with 4 digital inputs and 4 digital outputs
each can be added.
Modbus® RTU Serial Communications
Slave Id
1 – 247 (Meter address)
Baud Rate
300 – 19,200 bps
Transmit
Time Delay
Programmable between 0 and 199 ms
Data
8 bit (1 start bit, 1 or 2 stop bits)
Parity
Even, Odd, or None with 1 or 2 stop bits
Byte-To-Byte
Timeout
0.01 – 2.54 second
Turn Around
Delay
Less than 2 ms (fixed)
Note: Refer to the PROVU Modbus Register Tables located
at www.predig.com for details.
MeterView Pro Software
Availability
Download directly from meter or from
www.predig.com/download_software
System
Requirements
Microsoft® Windows® XP/Vista/7/8/10
Communications
USB 2.0 (for programming only)
(Standard USB A to Micro USB B)
RS-232 adapter, RS-485 adapter and
RS-485 to USB converter
(programming, monitoring, and data
logging)
Configuration
Configure meters one at a time
Power
USB port provides power to the meter.
DO NOT apply AC or DC power to the
meter while the USB port is in use.
Page 14
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
14
Compliance Information
Safety
UL & c-UL Listed
USA & Canada
UL 508 Industrial Control Equipment
UL File Number
E160849
Front Panel
UL Type 4X, NEMA 4X, IP65; panel
gasket provided
Low Voltage
Directive
EN 61010-1
Safety requirements for measurement,
control, and laboratory use
Electromagnetic Compatibility
Emissions
EN 55022
Class A ITE emissions requirements
Radiated
Emissions
Class A
AC Mains
Conducted
Emissions
Class A
Immunity
EN 61326-1
Measurement, control, and laboratory
equipment
EN 61000-6-2
EMC heavy industrial generic
immunity standard
RFI - Amplitude
Modulated
80 -1000 MHz 10 V/m 80% AM
(1 kHz)
1.4 - 2.0 GHz 3 V/m 80% AM (1 kHz)
2.0 - 2.7 GHz 1 V/m 80% AM (1 kHz)
Electrical Fast
Transients
±2kV AC mains, ±1kV other
Electrostatic
Discharge
±4kV contact, ±8kV air
RFI Conducted
10V, 0.15-80 MHz, 1kHz 80% AM
AC Surge
±2kV Common, ±1kV Differential
Surge
1KV (CM)
PowerFrequency
Magnetic Field
30 A/m 70%V for 0.5 period
Voltage Dips
40%V for 5 & 50 periods
70%V for 25 periods
Voltage
Interruptions
<5%V for 250 periods
Note:
Testing was conducted on meters installed
through the covers of grounded metal enclosures
with cable shields grounded at the point of entry
representing installations designed to optimize
EMC performance.
EU Declaration of
Conformity
EU Declaration of Conformity is available in the
Documentation CD provided with the product under
the EU DoC menu.
Safety Information
• Read complete instructions prior to installation
and operation of the meter.
• Risk of electric shock or personal injury.
• Hazardous voltages exist within enclosure.
Installation and service should be performed only
by trained service personnel.
Installation
There is no need to remove the meter from its
case to complete the installation, wiring, and
setup of the meter for most applications.
Instructions are provided for changing the
transmitter power supply to output 5 or 10 VDC
instead of 24 VDC. See Figure 5. Transmitter
Supply Voltage Selection on page 17.
Unpacking
Remove the meter from box. Inspect the
packaging and contents for damage. Report
damages, if any, to the carrier.
If any part is missing or the meter malfunctions,
please contact your supplier or the factory for
assistance.
Page 15
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
15
Panel Mounting Instructions
• Prepare a standard 1/8 DIN panel cutout -
3.622" x 1.772" (92 mm x 45 mm). Refer to
Figure 1. 1/8 DIN Panel Cutout Dimensions
below for more details.
• Clearance: allow at least 6.0" (152 mm) behind
the panel for wiring.
• Panel thickness: 0.04" - 0.25" (1.0 mm - 6.4 mm).
Recommended minimum panel thickness to
maintain Type 4X rating: 0.06" (1.5 mm) steel
panel, 0.16" (4.1 mm) plastic panel.
• Remove the two mounting brackets provided with
the meter (back-off the two screws so that there is
¼" (6.4 mm) or less through the bracket. Slide the
bracket toward the front of the case and remove).
• Insert meter into the panel cutout.
• Install mounting brackets and tighten the screws
against the panel. To achieve a proper seal,
tighten the mounting bracket screws evenly until
meter is snug to the panel along its short side.
DO NOT OVER TIGHTEN, as the rear of the
panel may be damaged.
Figure 1. 1/8 DIN Panel Cutout Dimensions
DO NOT apply AC or DC power to the meter when using the
USB connection.
Figure 2. Panel Mounting Details
Mounting Dimensions
Figure 3. Meter Dimensions - Side View
Figure 4. Meter Dimensions - Top View
NO
NC
NC
CNOC
NO
NC
NC
CNOC
+-R
3.622" (92 mm)
1.772"
(45mm)
Panel Cutout
to DIN 43700
Square Corners to 0.060"
(1.5mm) Max Radius
A
B
Tolerances:
A: +0.032 (+0.8mm)
-0.000 (-0.0mm)
B: +0.024 (+0.6mm)
-0.000 (-0.0mm)
Page 16
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
16
Installation Overview
We recommend the following sequence for getting the
meter into service:
1. DO NOT apply AC or DC power to the meter.
2. Connect the meter to the PC with the USB cable
provided. DO NOT use a different USB cable.
3. If MeterView Pro (MVPro) is already installed in
your computer, then the program will launch
automatically in most systems. If the program
does not start automatically, double-click on the
MVPro icon.
4. If MVPro is not installed, follow the instructions
provided below.
5. Use MVPro to configure the meter for your
application.
6. Disconnect the USB cable from the meter.
7. Apply power and signal and check operation of
the meter.
8. Install the meter and put into service.
9. Make any programming adjustments using the
front panel buttons.
MeterView Pro Software
The easiest and quickest way to program your PROVU
meter is to use the FREE MeterView Pro
programming software. This software is loaded into
the meter and connects and installs directly to your
PC with the USB cable provided. DO NOT use a
different USB cable. We recommend that the first
thing you do after taking the meter out of the box is
connect the PROVU to your PC with the provided USB
cable. DO NOT apply AC or DC power to the meter
while your PC is connected to the meter as it will
disrupt the USB connection. It is not necessary to
apply an input signal.
MeterView Pro programming software is intuitive, and
most customers can get their meter programmed as
they like without even looking in the manual.
Watch Meterview Pro Software Video at
www.predig.com/meterviewpro

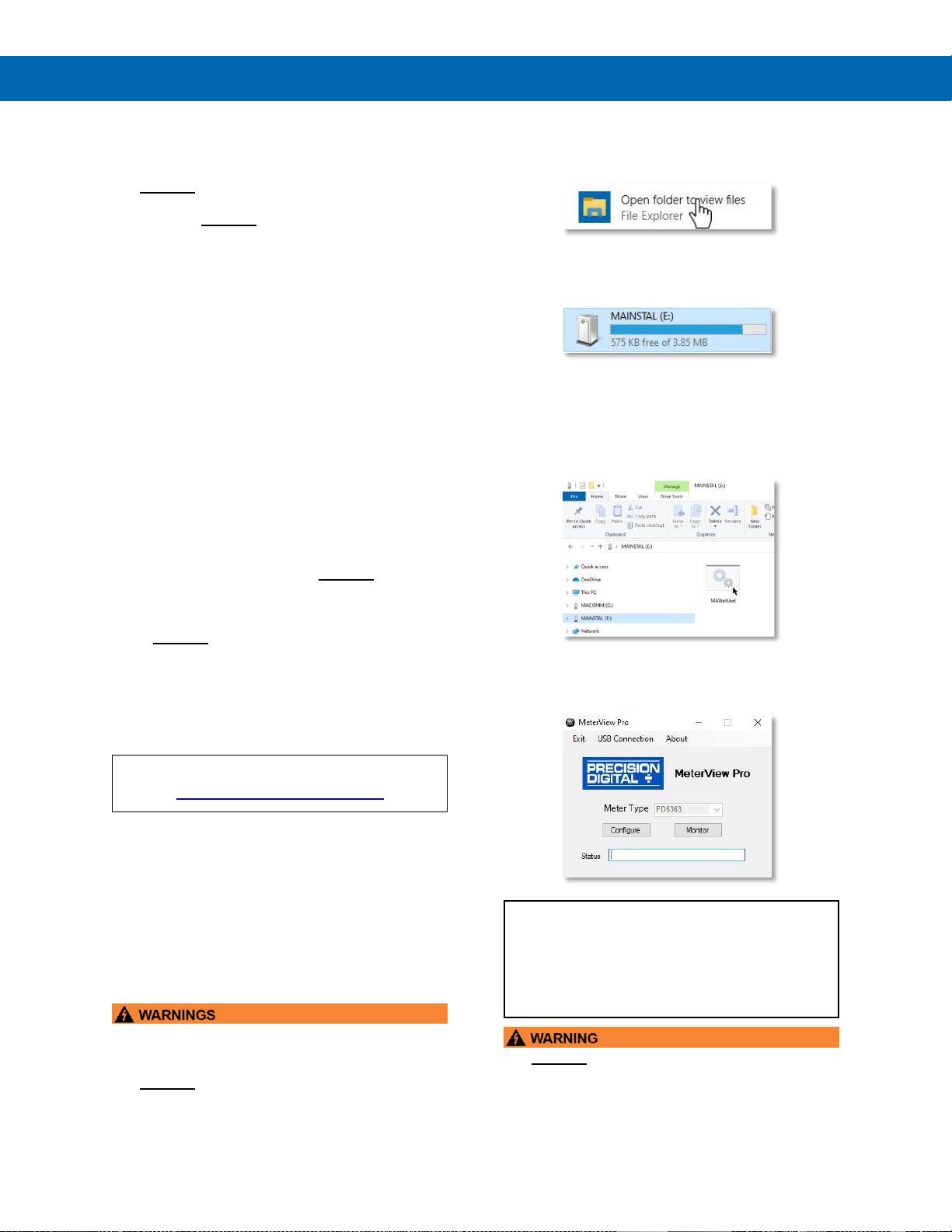

MeterView Pro Installation
1. Connect one end of the provided USB cable
to the meter and the other end to the
computer. The computer will automatically
install the driver software it needs to talk to
the meter. Follow the on-screen instructions
and allow sufficient time for the process to
complete. This can take a few minutes. If the
process is interrupted, then it could leave the
system in an unstable condition.
• Only one meter may be connected at a time.
Attaching multiple meters will cause a conflict
with the meter software.
• DO NOT apply AC or DC power to the meter
when using the USB connection.
2. Once the driver is installed, an AutoPlay
dialog should appear for the drive
“MAINSTAL.” Click “Open folder to view
files.”
If the computer does not display an AutoPlay
dialog for the drive “MAINSTAL,” you should
open My Computer and double-click on the
drive labeled “MAINSTAL.”
3. Double-click on the file named “MAStart.”
The program will open a few windows and
install two programs on your computer.
Simply follow the on-screen instructions until
you see one of the dialogs below. If you
receive a “User Account Control” warning,
click “Yes.”
4. If there is an update available, click the
“Update” button to install the new version.
Otherwise, click “Configure” to begin
programming your meter.
Note: If you decide to update your MeterView Pro
software, once the installation has completed, you
will be asked if you want to update the setup files
located on the meter itself. This way, you will
always have the most current version on the meter
for future installs.
• DO NOT unplug the meter while the new
installation files are being written to it. The meter
will display uwrite during the process and you
will receive an on-screen notification once the
process is complete.
Page 17
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
17
Transmitter Supply Voltage
Selection (P+, P-)
All meters, including models equipped with the
12-24 VDC power option, are shipped from the
factory configured to provide 24 VDC power for
the transmitter or sensor.
If the transmitter requires 5 or 10 VDC excitation,
the internal jumper J4 must be configured
accordingly.
To access the voltage selection jumper:
1. Remove all the wiring connectors.
2. Unscrew the back cover.
3. Slide out the back cover by about 1
inch.
4. Configure the J4 jumper, located behind
the input signal connector, for the
desired excitation voltage as shown.

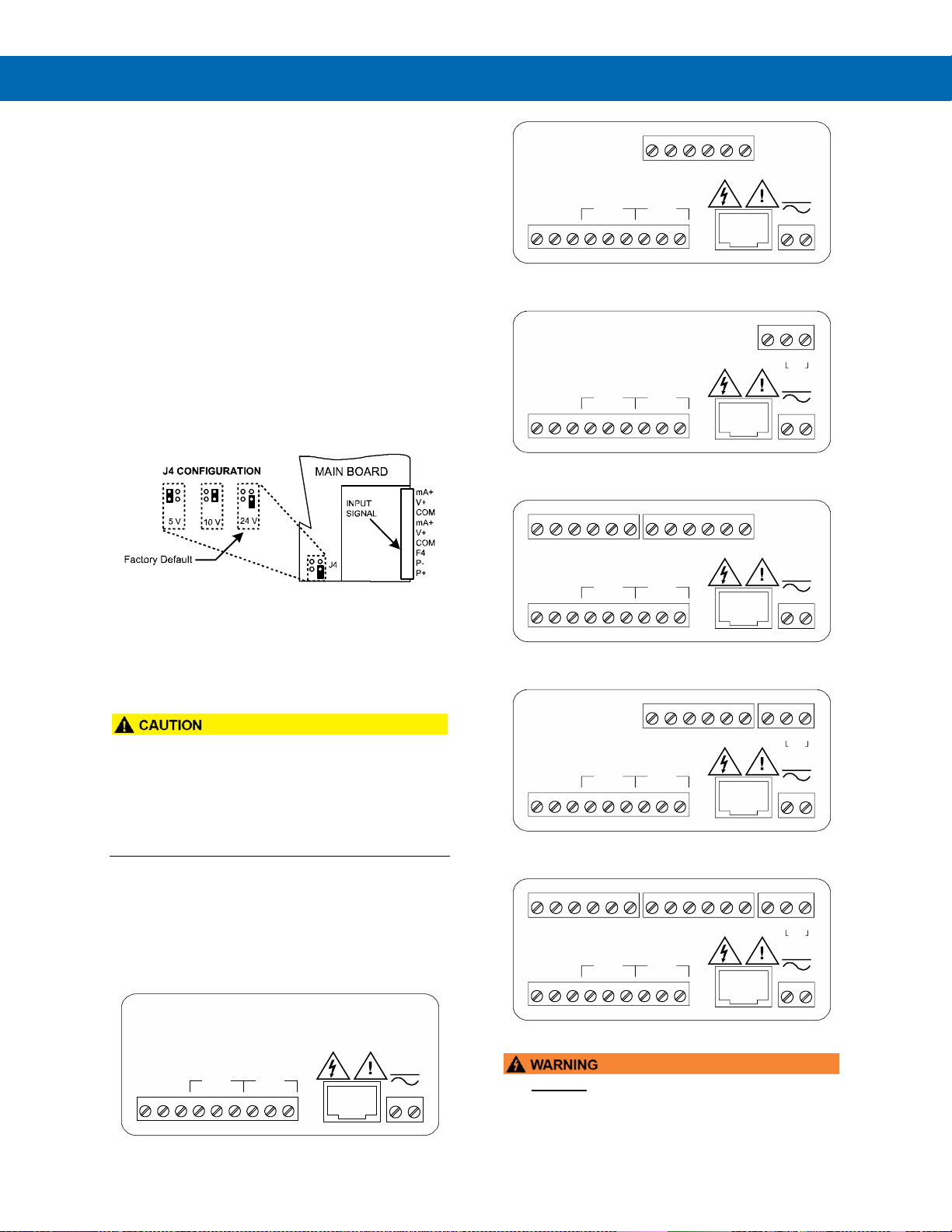

Figure 5. Transmitter Supply Voltage Selection
Connections
All connections are made to removable screw
terminal connectors located at the rear of the
meter.
• Use copper wire with 60°C or 60/75°C insulation
for all line voltage connections. Observe all safety
regulations. Electrical wiring should be performed
in accordance with all applicable national, state,
and local codes to prevent damage to the meter
and ensure personnel safety.
Connectors Labeling
The connectors’ label, affixed to the meter, shows the
location of all connectors available with requested
configuration.
Note: ## on the following figures refers to power and
display options. (Example: PD6262-6H5)
Figure 6. PD6262-##0 Connectors Label
Figure 7. PD6262-##2 Connectors Label
Figure 8. PD6262-##3 Connectors Label
Figure 9. PD6262-##4 Connectors Label
Figure 10. PD6262-##5 Connectors Label
Figure 11. PD6262-##7 Connectors Label
• DO NOT connect any equipment other than
Precision Digital’s expansion modules, cables, or
meters to the RJ45 M LINK connector. Otherwise
damage will occur to the equipment and the
meter.
POWER
+
-
M-LINK
123 4 5 6 7 8
21
SIGNAL
Ch-A
P- F4P+ COM V+
3412 5
mA+ COM V+ mA+
7869
Ch-B
SIGNAL
Ch-A
P- F4P+ COM V+
3412 5
mA+ COM V+ mA+
7869
Ch-B
POWER
+
-
M-LINK
CNONO NC NC C
RELAY2 RELAY1
4365 21
123 4 5 6 7 8
21
SIGNAL
Ch-A
P- F4P+ COM V+
3412 5
mA+ COM V+ mA+
7869
Ch-B
R
I- I+
MA OUT
1
32
POWER
+
-
M-LINK
123 4 5 6 7 8
21
24 V
SIGNAL
Ch-A
P- F4P+ COM V+
3412 5
mA+ COM V+ mA+
7869
Ch-B
POWER
+
-
M-LINK
CNONO NC NC C
RELAY4 RELAY3
4365 2 1
CNONO NC NC C
RELAY2 RELAY1
4365 21
123 4 5 6 7 8
21
SIGNAL
Ch-A
P- F4P+ COM V+
3412 5
mA+ COM V+ mA+
7869
Ch-B
R
I- I+
MA OUT
1
32
POWER
+
-
M-LINK
CNONO NC NC C
RELAY2 RELAY1
4365 21
123 4 5 6 7 8
21
24 V
SIGNAL
Ch-A
P- F4P+ COM V+
3412 5
mA+ COM V+ mA+
7869
Ch-B
R
I- I+
MA OUT
1
32
POWER
+
-
M-LINK
CNONO NC NC C
RELAY4 RELAY3
4365 2 1
CNONO NC NC C
RELAY2 RELAY1
4365 21
123 4 5 6 7 8
21
24 V
Page 18
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
18

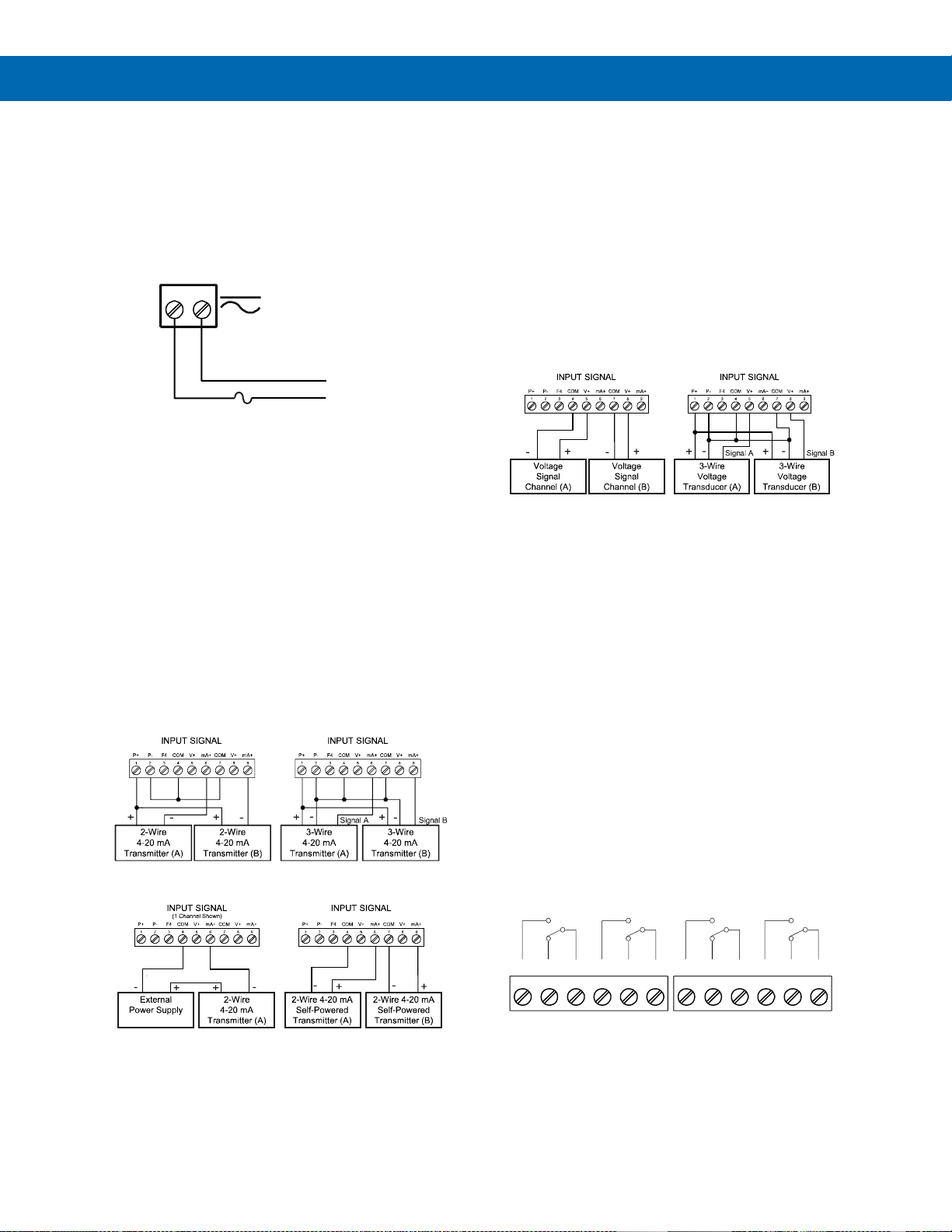

Power Connections
Power connections are made to a two-terminal
connector labeled POWER. The meter will operate
regardless of DC polarity connection. The + and symbols are only a suggested wiring convention. There
are separate models for low voltage and high voltage
power. See Ordering Information on page 6 for
details.
Figure 12. Power Connections
Signal Connections
Signal connections are made to a nine-terminal
connector labeled SIGNAL. The COM (common)
terminals are the return for the 4-20 mA and the 10
V input signals. The two COM terminals connect to
the same common return, and are not isolated.
Current (mA) Connections
The following figures show examples of current
connections.
There are no switches or jumpers to set up for current
inputs. Setup and programming is performed through
the front panel buttons or MeterView Pro software.
Figure 13. Transmitters Powered by Internal
Supply
Figure 14. Transmitters Powered by Ext. Supply or
Self-Powered
The current input is protected against current
overload by a resettable fuse. The display may or
may not show a fault condition depending on the
nature of the overload.
The fuse limits the current to a safe level when it
detects a fault condition, and automatically resets
itself when the fault condition is removed.
Voltage (V) Connections
The following figures show examples of voltage
connections.
There are no switches or jumpers to set up for voltage
inputs. Setup and programming is performed through
the front panel buttons or MeterView Pro software.
Figure 15. Voltage Input Connections
The meter is capable of accepting any voltage from 10 VDC to +10 VDC.
Modbus RTU Serial Communications
Serial communications connection is made to an
RJ45 connector labeled M-LINK. For interfacing to the
PROVU®, use the PDA1232 for RS-232 or the
PDA1485 for RS-485. The same port is used for
interfacing with all expansion modules (e.g. external
relays, additional 4-20 mA outputs, digital I/O).
Relay Connections
Relay connections are made to two six-terminal
connectors labeled RELAY1 – RELAY4. Each relay’s
C terminal is common only to the normally open (NO)
and normally closed (NC) contacts of the
corresponding relay. The relays’ C terminals should
not be confused with the COM (common) terminal of
the INPUT SIGNAL connector.
Figure 16. Relay Connections
AC or DC
POWER
Required External Fuse:
5 A max, 250 V Slow Blow
POWER
+
-
C NONO NC NC C
RELAY4 RELAY3
4 36 5 2 1
C NONO NC NC C
RELAY2 RELAY1
4 36 5 2 1
Page 19
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
19
Switching Inductive Loads
The use of suppressors (snubbers) is strongly
recommended when switching inductive loads to
prevent disrupting the microprocessor’s operation.
The suppressors also prolong the life of the relay
contacts. Suppression can be obtained with resistorcapacitor (RC) networks assembled by the user or
purchased as complete assemblies. Refer to the
following circuits for RC network assembly and
installation:

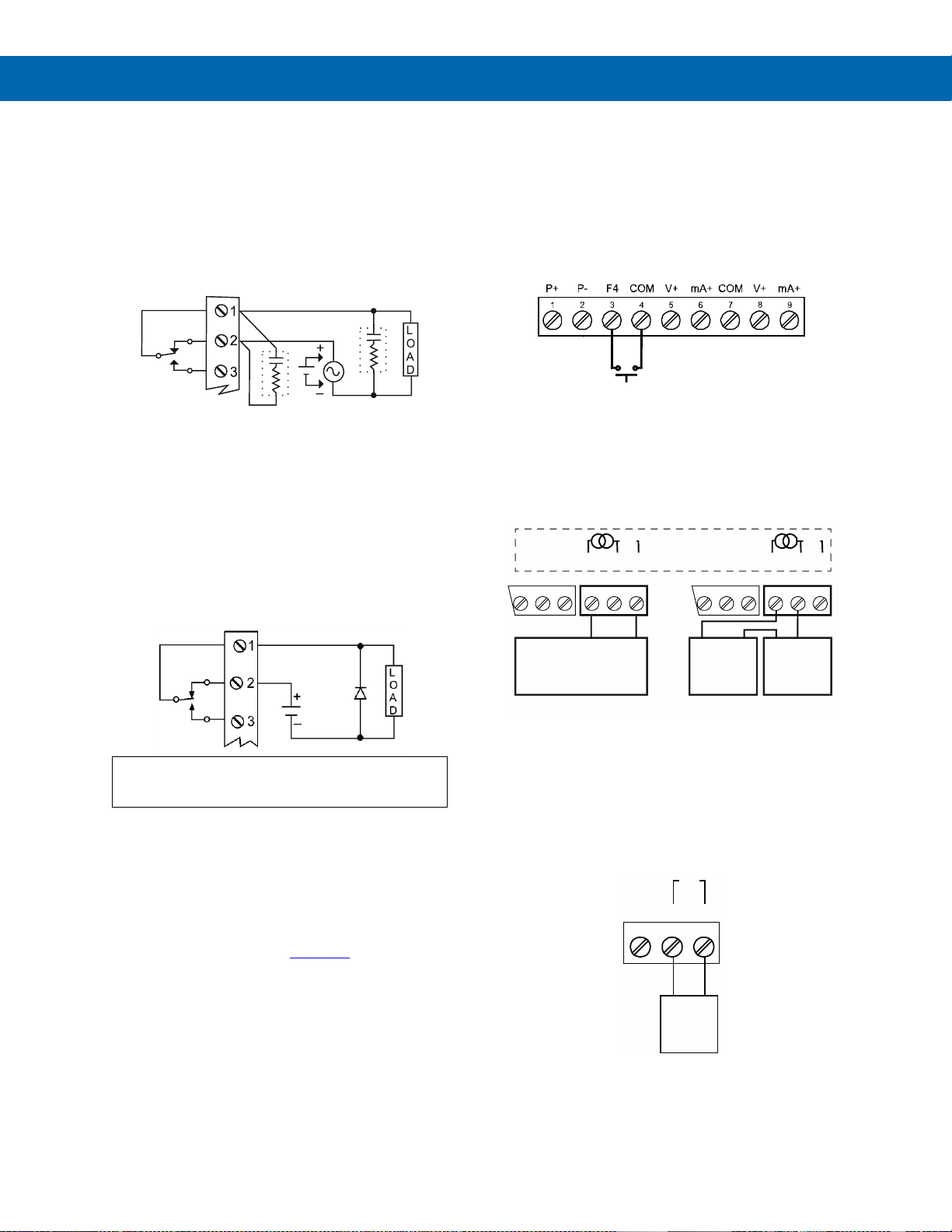

Figure 17. AC and DC Loads Protection
Choose R and C as follows:
R: 0.5 to 1 Ω for each volt across the contacts
C: 0.5 to 1 µF for each amp through closed contacts
Notes:
1. Use capacitors rated for 250 VAC.
2. RC networks may affect load release time of
solenoid loads. Check to confirm proper
operation.
3. Install the RC network at the meter's relay screw
terminals. An RC network may also be installed
across the load. Experiment for best results.
Use a diode with a reverse breakdown voltage two to three
times the circuit voltage and forward current at least as large
as the load current.
Figure 18. Low Voltage DC Loads Protection
RC Networks Available from Precision Digital
RC networks are available from Precision Digital and
should be applied to each relay contact switching an
inductive load. Part number: PDX6901.
Note: Relays are de-rated to 1/14th HP (50 watts)
with an inductive load.
F4 Digital Input Connections
A digital input, F4, is standard on the meter. This
digital input connected with a normally open closure
across F4 and COM, or with an active low signal
applied to F4. It can be used for remote operation of
front-panel buttons, to acknowledge/reset relays,
reset totals, or to reset max/min values. See Function
Keys & Digital I/O Available Settings on page 50 for a
complete list of capabilities.
Figure 19. F4 Digital Input Connections
4-20 mA Output Connections
Connections for the 4-20 mA transmitter output are
made to the connector terminals labeled MA OUT.
The 4-20 mA output may be powered internally or
from an external power supply.
Figure 20. 4-20 mA Output Connections
Analog Output Transmitter Power Supply
The internal 24 VDC power supply powering the
analog output may be used to power other devices, if
the analog output is not used. The I+ terminal is the
+24 V and the R terminal is the return.
Figure 21. Analog Output Supply Powering Other
Devices
C
R
C
R
4-20 mA Input
Remote Display, PLC,
Chart Recorder, Etc.
-
+
RI- I+
132
RELAY1
mA OUT
24 V
12-35 VDC
Power
Supply
+
4-20 mA
Input Meter
-+
RI- I+
132
RELAY1
321
-
24 V
mA OUT
Internal Power Supply
and Analog Output
321
Active Output Loop Passive Output Loop
RI- I+
132
24 VDC
Powered
Device
24 V
+-
Page 20
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
20
External Relay, Analog Output, & Digital I/O Connections
The relay, dual analog output, and digital I/O
expansion modules PDA1004, PDA1011, and
PDA1044 are connected to the meter using a CAT5
cable provided with each module. The two RJ45
connectors on the expansion modules are identical
and interchangeable; they are used to connect
additional modules to the system.
Note: The jumper located between the RJ45
connectors of the PDA1044 must be removed
on the second digital I/O module in order for the
system to recognize it as module #2.
• DO NOT connect or disconnect the expansion
modules with the power on! More detailed
instructions are provided with each optional
expansion module.

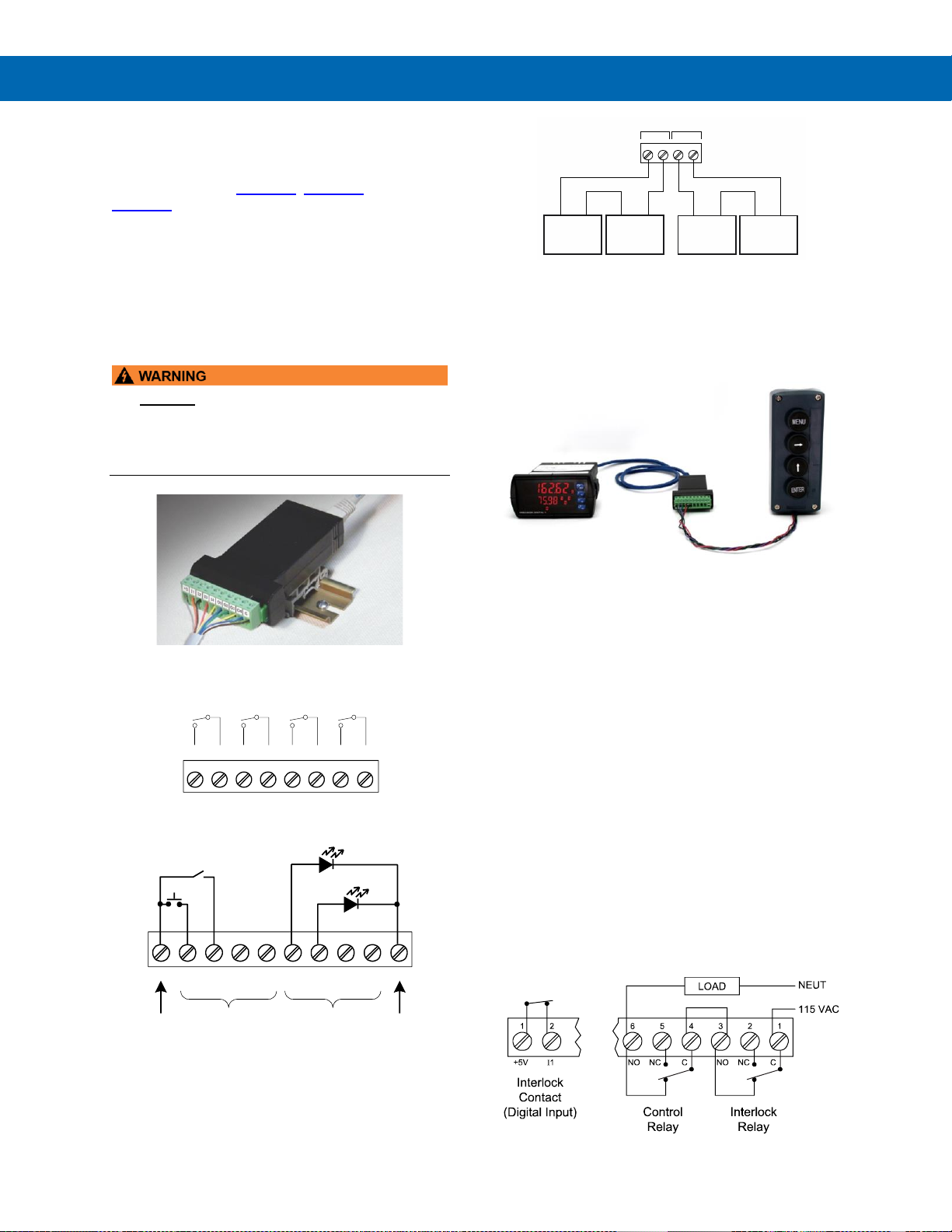

Figure 22. Expansion Module & DIN Rail Mounting
Kit
Figure 23. External Relays Module Connections
Figure 24. Digital I/O Module Connections
Figure 25. Dual 4-20 mA Output Module Connections
Remote Operation of Meter
The meter can be operated via the front panel push
buttons or a remote control station using the
PDA1044 Digital I/O module as illustrated in Figure
26. Meter to Control Station Connection.
Figure 26. Meter to Control Station Connections
Interlock Relay Feature
As the name implies, the interlock relay feature
reassigns one, or more, alarm/control relays for use
as interlock relay(s). Interlock contact(s) are wired to
digital input(s) and activate the interlock relay. This
feature is enabled by configuring the relay, and the
corresponding digital input(s), see Setting Up the
Interlock Relay (Force On) Feature on page 39.
In the example below, an Interlock Contact switch is
connected to a digital input, which will be used to
force on (energize) the Interlock Relay. The Interlock
Relay and the Control Relay are connected in series
with the load.
• When the Interlock Contact is closed (safe), the
Interlock Relay energizes, allowing power to flow
to the Control Relay; the corresponding front
panel LED is on.
• When the Interlock Contact is open, the
corresponding front panel LED flashes (locked
out), the Interlock Relay is de-energized,
preventing power from flowing to the Control
Relay and the load.
Figure 27. Interlock Connections
1 2
RLY5 RLY6 RLY7 RLY8
3 4 5 6 7 8
NO C NO C NO C NO C
1 2 3 4 5 6
+5 I1 I2 I3 I4 O1
7 8
O2 O3
9 10
O4 G
DI 1-4 DO 1-4
5 VDC GND
+
-
-+- +
2314
Out 3Out 2
+
-
+
-
+
-
4-20 mA
Input
Meter 2
4-20 mA
Input
Meter 3
12-35 VDC
Power
Supply 2
12-35 VDC
Power
Supply 3
Page 21
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
21
Setup and Programming
There is no need to recalibrate the meter
when first received from the factory.
The meter is factory calibrated prior to
shipment for milliamps and volts with
calibration equipment that is certified to NIST
standards.
Overview
There are no jumpers to set for the meter input
selection.
Setup and programming is done through the front
panel buttons.
After power and input signal connections have been
completed and verified, apply power to the meter.
Front Panel Buttons and Status LED Indicators
Button Symbol
Description
Menu
Right arrow/F1
Up arrow/F2
Enter/F3
LED
State
Indication
1-8
Steady
Alarm condition based on set
and reset points, independent
of relay status in certain
configurations. (Available on all
meter configurations, including
those without relays installed)
1-8
Flashing
Relay interlock switch open
1-8 & M
Flashing
Relay in manual control mode
R
Steady
Rate
T
Steady
Total T Flashing
Meter in Tare mode
G & T
Steady
Grand Total
▲
Steady
Total overflow (“oF” is
displayed to the left of total
overflow and ▲ LED is
illuminated)
M
Flashing
Analog ouput in manual control
mode
A
Steady
Channel A displayed
B
Steady
Channel B displayed
C
Steady
Channel C displayed
• Press the Menu button to enter or exit the
Programming Mode at any time.
• Press the Right arrow button to move to the next
digit during digit or decimal point programming.
• Press or hold the Up arrow button to scroll
through the menus, decimal point, or to
increment the value of a digit.
• Press the Enter button to access a menu or to
accept a setting.
• Press and hold the Menu button for three
seconds to access the advanced features of the
meter.
Page 22
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
22
Display Functions & Messages
The following table shows the main menu functions
and messages in the order they appear in the menu.
Display
Parameter
Action/Setting
Description
setup
Setup
Enter Setup menu
Input
Input
Enter Input selection
menu
Ch-A*
Input
Set input type for channel
A (*or B)
nmA
4-20 mA
Set meter for 4-20 mA
input
Volt
0-10 VDC
Set meter for 10 VDC
input
total
Total
Enable/disable totalizer
functions
YES
Yes
Enable totalizer functions
No
No
Disable totalizer functions
units
Unit
Select the display
units/tags
Ch-A*
Rate
unit
Set rate unit or tag for
channel A (*or B)
Ch-C
Math
unit
Set unit or tag for math
channel C
Tot-A*
Total
unit
Set total unit or tag for
channel A (*or B)
Gtot-A*
Grand total
unit
Set grand total unit or tag
for channel A (*or B)
Dec pt
Decimal
point
Set decimal point
Ch-A*
Decimal
point
Set decimal point for
channel A (*or B or C)
Rate*
Rate
Set rate decimal point
(*channel A and B only)
Total*
Total
Set total decimal point
(*channel A and B only)
Gtotal*
Grand total
Set grand total decimal
point (*channel A and B
only)
prog
Program
Enter the Program menu
InCAL
Input
calibration
Enter the Input Calibration
menu
SCAL A
Scale A
Enter the Scale menu for
channel A
SCAl B
Scale B
Enter the Scale menu for
channel B
Cal A
Calibrate A
Enter the Calibration
menu for channel A
Cal B
Calibrate B
Enter the Calibration
menu for channel B
Inp 1
Input 1
Calibrate input 1 signal or
program input 1 value
Dis 1
Display 1
Program display 1 value
Display
Parameter
Action/Setting
Description
Inp 2
Input 2
Calibrate input 2 signal or
program input 2 value
(up to 32 points)
Dis 2
Display 2
Program display 2 value
(up to 32 points)
Error
Error
Error, calibration not
successful, check signal or
programmed value
tsetup
Total setup
Enter the Total Setup
menu
Ch-A*
Channel A
Setup the total for channel
A (*or B)
tbase
Time base
Program total time base
T Cf
Total
conversion
factor
Program total conversion
factor
Gt CF
Grand total
conversion
factor
Program grand total
conversion factor
treset
Total reset
Program total reset mode:
auto or manual
Ch-A*
Channel A
Set total reset modes for
channel A (*or B)
T rst
Total reset
Program total reset mode:
auto or manual
Gt rst
Grand total
reset
Program grand total reset
mode: auto or manual
T dly
Time delay
Program automatic reset
time delay
dsplay
Display
Enter the Display menu
Line 1
Line 1
Assign the upper display
parameter
Line 2
Line 2
Assign the lower display
parameter
D Ch-A
Display
Ch-A
Assign display to
channel A
D Ch-B
Display
Ch-B
Assign display to
channel B
D Ch-C
Display
Ch-C
Assign display to
channel C (math)
D Ab
Display AB
Alternate display of
channel A & B
D AC
Display AC
Alternate display of
channel A & C
D BC
Display BC
Alternate display of
channel B & C
D AbC
Display
ABC
Alternate display of
channel A, B, & C
D t-a
Display
total A
Assign display to
channel A total
D t-b
Display
total B
Assign display to
channel B total
D gt-a
Display
grand total
A
Assign display to channel
A grand total
Page 23
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
23
Display
Parameter
Action/Setting
Description
D gt-b
Display
grand total
B
Assign display to channel
B grand total
D rt-a
Display rate
and total A
Alternate display of
channel A rate and total
D rt-b
Display rate
and total B
Alternate display of
channel B rate and total
Drgt-a
Display rate
and grand
total A
Alternate display of
channel A rate and grand
total
Drgt-b
Display rate
and grand
total B
Alternate display of
channel B rate and grand
total
D set1*
Display
Set 1*
Displays relay 1
(*through 8) set point.
D Hi-A
Display
high A
Display high value of
channel A
D Lo-A
Display
low A
Display low value of
channel A
D HL-A
Display
high/low A
Alternate between
high/low value of
channel A
D Hi-B
Display
high B
Display high value of
channel B
D Lo-B
Display
low B
Display low value of
channel B
D HL-B
Display
High/low B
Alternate between
high/low value of
channel B
D Hi-C
Display
high C
Display high value of
channel C
D Lo-C
Display
low C
Display low value of
channel C
D HL-C
Display
High/low C
Alternate between
high/low value of
channel C
D a-u
Display A
and
units/tags
Alternate display of
channel A and the unit/tag
D B-u
Display B
and
units/tags
Alternate display of
channel B and the unit/tag
D C-u
Display C
and
units/tags
Alternate display of
channel C and the unit/tag
D ta-u
Display total
A and total
units A
Alternate display of
channel A total and total
units
D tb-u
Display total
B and total
units B
Alternate display of
channel B total and total
units
D tab
Display total
A and B
Alternate display of
channel A total and
channel B total
Display
Parameter
Action/Setting
Description
D TAbC
Display total
A, B, and
math
channel C
Alternate display of
channel A total, channel B
total, and math result
channel C
nm bus
Display
Modbus
Display Modbus input
register
D off
Display off
Display blank line 2
D unit
Display unit
Display line 1 channel
units
d-Inty
Display
intensity
Set display intensity level
from 1 to 8
RELaY
Relay
Enter the Relay menu
Assign
Assignment
Assign relays to channels
or Modbus
Asign1*
Assign 1
Relay 1 (*through 8)
assignment
Ch-A*
Channel A*
Assign relay to channel A
(*or B or C)
Rate*
Rate
Assign relay to rate
(*channel A and B only)
Total*
Total
Assign relay to total
(*channel A and B only)
Gtotal*
Grand total
Assign relay to grand total
(*channel A and B only)
nm bus
Modbus
Assign relay to
Modbus register
RLY 1*
Relay 1
Relay 1 (*through 8) setup
Act 1
Action 1
Set relay 1 action
Auto
Automatic
Set relay for automatic
reset
Set 1
Set 1
Enter relay 1 set point
RST 1
Reset 1
Enter relay 1 reset point
A-nman
Automanual
Set relay for auto or
manual reset any time
LatCH
Latching
Set relay for latching
operation
Lt-CLr
Latchingcleared
Set relay for latching
operation with manual
reset only after alarm
condition has cleared
Altern
Alternate
Set relay for pump
alternation control
SAnmpl
Sample
Set relay for sample time
trigger control
Off
Off
Turn relay off
FaiLSF
Fail-safe
Enter Fail-safe menu
FLS 1*
Fail-safe 1
Set relay 1 (*through 8)
fail-safe operation
on
On
Enable fail-safe operation
off
Off
Disable fail-safe operation
DeLAY
Delay
Enter relay Time Delay
menu
Page 24
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
24
Display
Parameter
Action/Setting
Description
DLY 1*
Delay 1
Enter relay 1 (*through 8)
time delay setup
On 1
On 1
Set relay 1 On time delay
OFF 1
Off 1
Set relay 1 Off time delay
break
Loop break
Set relay condition if loop
break detected
Break1*
Break 1
Set relay 1 (*through 8)
break condition
ignore
Ignore
Ignore loop break
condition
(Processed as a low
signal condition)
On
On
Relay goes to alarm
condition when loop break
detected
Off
Off
Relay goes to non-alarm
condition when loop break
detected
Aout
Analog
output
Enter the Analog output
scaling menu
Aout 1*
Aout
Channel
Analog Output source
channel (*1-3)
Dis 1
Display 1
Program display 1 value
Out 1
Output 1
Program output 1 value
(e.g. 4.000 mA)
Dis 2
Display 2
Program display 2 value
Out 2
Output 2
Program output 2 value
(e.g. 20.000 mA)
reset
Reset
Press Enter to access the
Reset menu
Rst Hi
Reset high
Press Enter to reset max
display
Rst Lo
Reset low
Press Enter to reset min
display
Rst HL
Reset
high & low
Press Enter to reset max
& min displays
Tot a
Reset
total A
Press Enter to reset
channel A total
Tot b
Reset
total B
Press Enter to reset
channel B total
Gtot a
Reset grand
total A
Press Enter to reset
channel A grand total
Gtot b
Reset grand
total B
Press Enter to reset
channel B grand total
Tot ab
Reset totals
A and B
Press Enter to reset
channels A and B totals
Gt ab
Reset
grand totals
A and B
Press Enter to reset
channels A and B grand
totals
Contrl
Manual
Control
Enter Manual Control
menu
Auto
Automatic
Press Enter to set meter
for automatic operation
Display
Parameter
Action/Setting
Description
nmAn
Manual
Press Enter to manually
control relays or analog
output operation
pass
Password
Enter the Password menu
Pass 1
Password 1
Set or enter Password 1
Unlock
Unlocked
Program password to lock
meter
Locd
Locked
Enter password to unlock
meter
Pass 2
Password 2
Set or enter Password 2
Pass 3
Password 3
Set or enter Password 3
Total
Total reset
password
Set or enter a total reset
password
Gtotal
Grand total
password
Set or enter a grand total
reset password
999999
-99999
Flashing
Over/under range
condition
Page 25
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
25

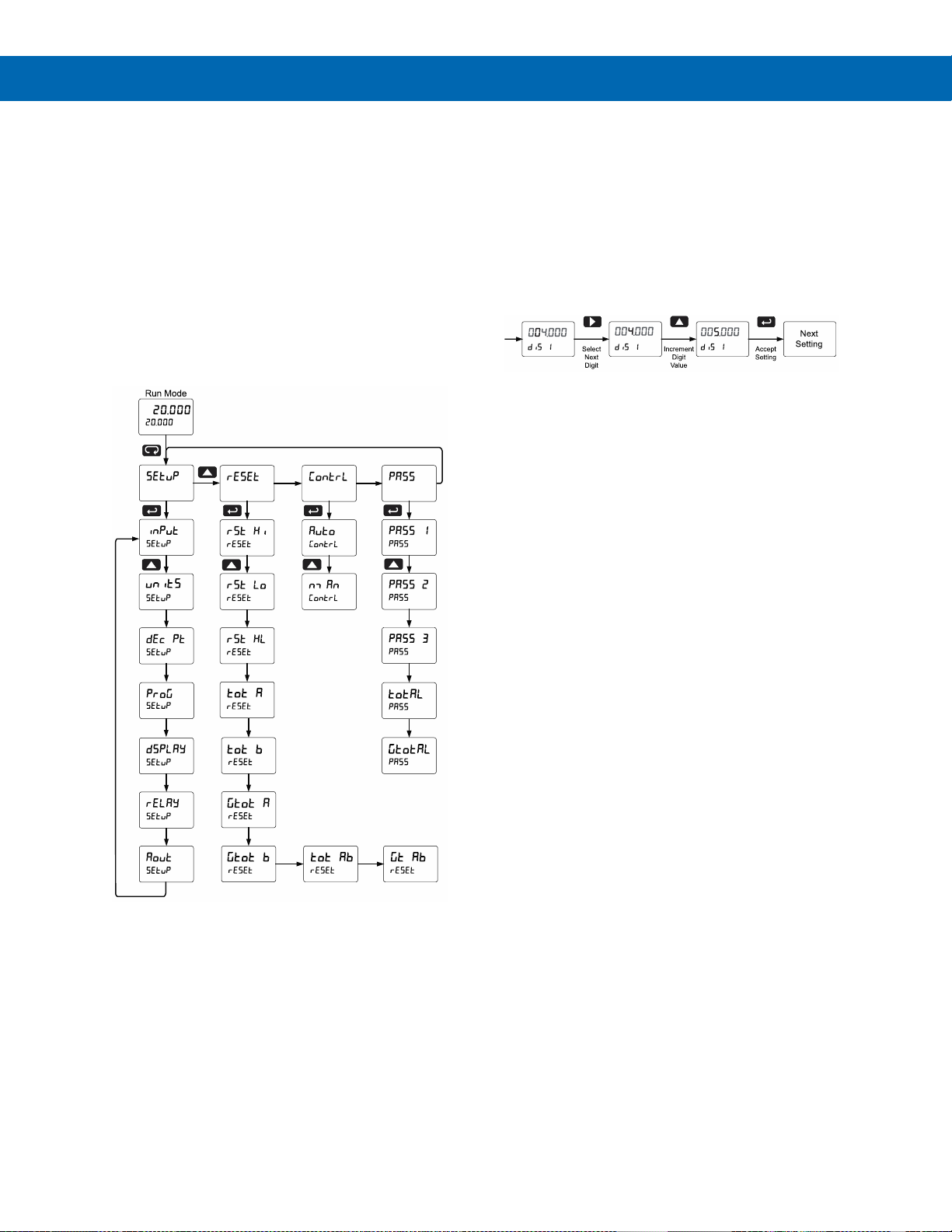

Main Menu
The main menu consists of the most commonly used
functions: Reset, Manual Control, Setup, and
Password.
• Press Menu button to enter Programming Mode
then press the Up arrow button to scroll main
menu.
• Press Menu, at any time, to exit and return to
Run Mode. Changes made to settings prior to
pressing Enter are not saved.
• Changes to the settings are saved to memory
only after pressing Enter.
• The display moves to the next menu every time a
setting is accepted by pressing Enter.
Setting Numeric Values
The numeric values are set using the Right and Up
arrow buttons. Press Right arrow to select next digit
and Up arrow to increment digit value. The digit being
changed is displayed brighter than the rest.
Press and hold up arrow to auto-increment the display
value. If negative numbers are allowed, the first digit
position will include a negative symbol (-) after the 9.
Press the Enter button, at any time, to accept a
setting or Menu button to exit without saving changes.
Page 26
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
26

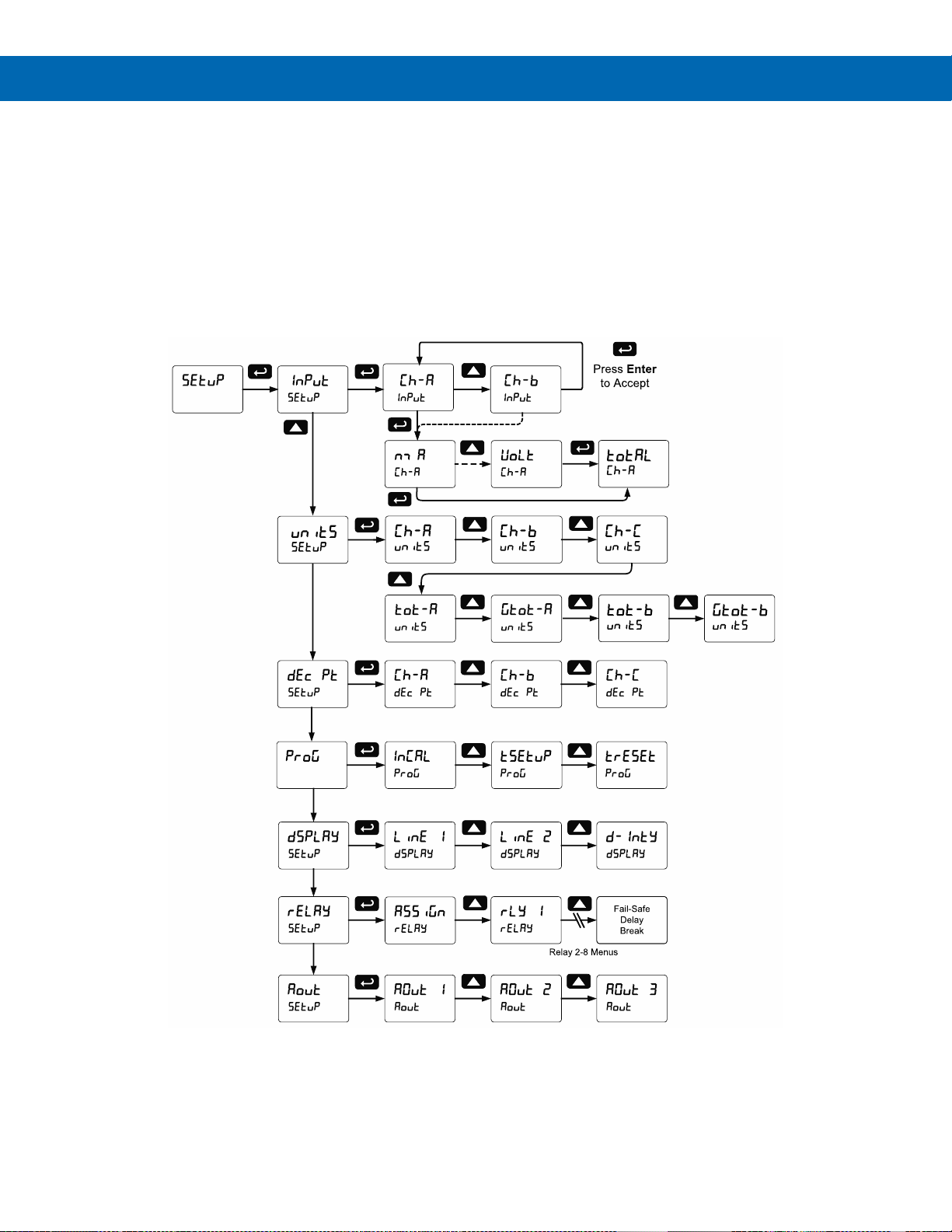

Setting Up the Meter (setup)
The Setup menu is used to select:
1. Input signal the meter will accept for channel A and channel B
2. Units for A & B rate, total & grand total, and C
3. Decimal positions for A & B rate, total, and grand total, and C
4. Program the meter using the scale, calibrate, & total functions
5. Display parameters and intensity
6. Relay assignments and operation
7. 4-20 mA analog output scaling
Press the Menu button to exit at any time.
Page 27
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
27

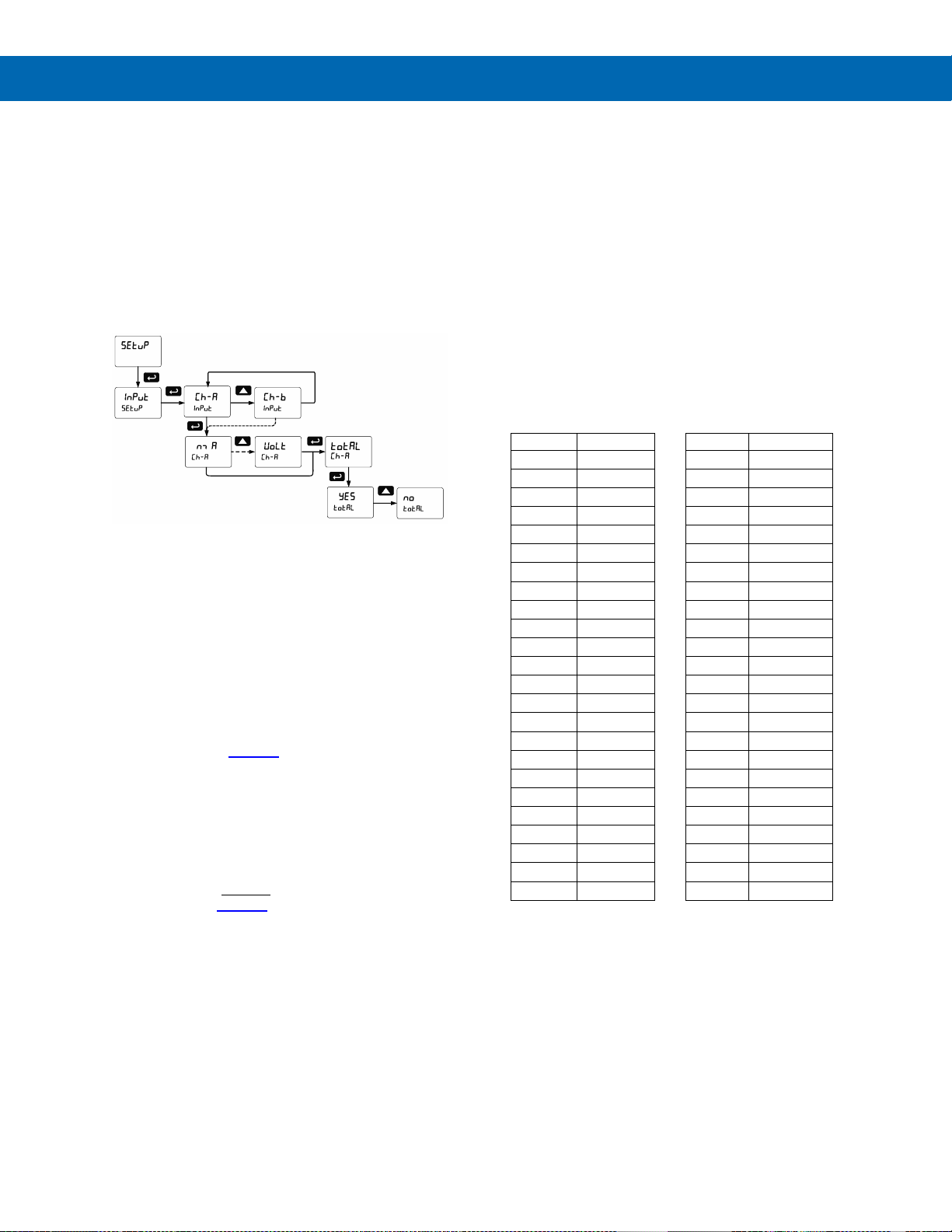

Setting the Input Signal (Input)
Enter the Input menu to set up the meter to display
current (nmA) or voltage (Volt) inputs for channel A
and channel B.
The current input is capable of accepting any signal
from 0 to 20 mA. Select current input to accept
0-20 mA or 4-20 mA signals.
The voltage input is capable of accepting any signal
from -10 to +10 VDC. Select voltage input to accept
0-5, 1-5, 0-10, or 10 VDC signals.
Channel C is the Math Function calculation, which is
set up in the Advanced Features menu.
Setting the Totalizer Features (total)
To simply not display the total, select alternative
display parameters in the display (dsplay) menu.
Enable or disable the totalizer features by selecting
“Yes” or “no” after the input type has been set up for
each channel. If the totalizer features are disabled, all
the totalizer features and functions are hidden from
the menus. Level and process meter features and
functions are added to the menus.
If disabling the total parameter by selecting no,
please refer to the PD6060 manual for instructions on
setting up the meter parameters.
Notes:
1. The totalizer continues working in the
background.
2. When selecting "no" for Total for a channel, the
meter now functions as a PD6060 Dual-Input
Process Meter for parameters that affect that
channel. We strongly suggest that you download
and use the PD6060 instruction while in this
mode of operation.
Setting the Rate, Total, & Grand Total Units/Tags (units)
Enter the channel A and B rate, total, grand total, and
math channel C units (or custom tags) that will be
displayed if alternating units is selected in the units
menu, or d unit is selected as the lower display
parameter.
See the Setting the Display Parameters & Intensity
(dsplay) flow chart on page 31 for details on
accessing the Units menu and parameters. Ch-A and
Ch-B set the rate units, tot-A and tot-B the total
units, and Gtot-A and Gtot-B the grand total units.
Ch-C sets the units for the math channel C.
See the Setting the Display Parameters & Intensity
(dsplay) flow chart on page 31 to access the display
menu to show the unit or tag on the lower display.
The engineering units or custom legends can be set
using the following 7-segment character set:
Display
Character
Display
Character
0
0
k K 1
1
l
L
2
2
n m
m
3
3
n n 4
4
O O 5
5
o
o
6
6
p
P
7
7
q q 8
8
r r 9
9
s
S
A
A
t
t
b
b
u u C
C
v V c
c
uw
w
d
d
x
X
e
E
y Y f
F
z Z g
G
-
-
9
g
/
/
H
H
[ ] h
h
] [ I
I
=
=
I
i
!
Degree(<)
j
J
Space
Notes:
1. Degree symbol represented by (<) if programming
with MeterView Pro.
2. The letters “m” and “w” use two 7-segment LEDs
each; when selected the characters to the right are
shifted one position.
3. Press and hold up arrow to auto-scroll the
characters in the display.
Page 28
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
28

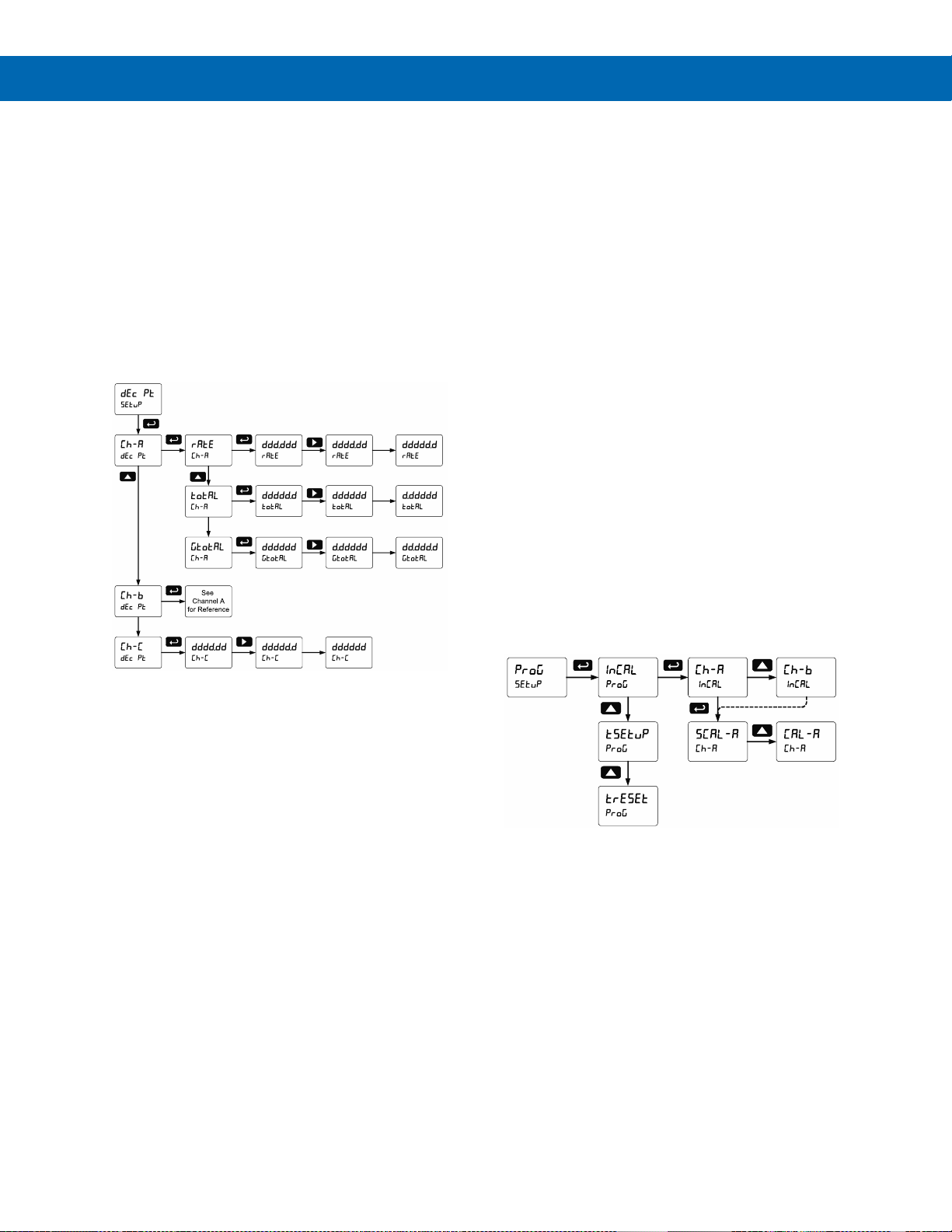

Setting the Decimal Point (dEc pt)
The decimal point for any channel, rate, total, or
grand total, may be set with up to five decimal places
or with no decimal point at all.
Pressing the Right arrow moves the decimal point one
place to the right until no decimal point is displayed,
and then it moves to the leftmost position. Pressing
the Up arrow moves the decimal point one place to
the left.
There are seven decimal points to set up for three
channels: Ch-A rate, total, and grand total; Ch-B rate,
total, and grand total; and Ch-C.
After the decimal points are set up, the meter moves
to the Program menu.
Programming the Rate/Totalizer (prog)
The meter may either be scaled (SCALE) without
applying an input or calibrated (Cal) by applying an
input. The meter comes factory calibrated to NIST
standards, so for initial setup, it is recommended to
use the (SCALE) function.
The Program menu contains the following menus:
1. Scale channel A and B without a signal
source
2. Calibrate channel A and B with a calibrated
signal source
3. Channel A and B total time base &
conversion factors
4. Channel A and B grand total time base &
conversion factors
5. Channel A and B reset modes for total &
grand total
Note: The Scale and Calibrate functions are
exclusive of each other. The meter uses the last
function programmed. Only one of these methods
can be employed at a time. The Scale and Calibrate
functions can use up to 32 points (default is 2). The
number of points should be set in the Advanced
menu prior to scaling and calibration of the meter.
See Multi-Point Linearization (Linear) menu on page
46 for details.
The process inputs may be calibrated or scaled to any
display value within the range of the meter.
Additional parameters, not needed for most
applications, are found in the Advanced Features
menu; see Advanced Features Menu on page 42.
Page 29
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
29
Input Calibration Method (InCAL)
There are two methods of calibrating (or scaling) the
display for each input channel to show the correct
engineering units.
• Use the Scale menu to enter the scaling without a
signal source.
• Use the Calibrate menu to apply a signal from a
signal source.
Note: The Scale and Calibrate functions are exclusive
of each other. The meter uses the last function
programmed. Only one of these methods can be
employed at a time. The Scale and Calibrate
functions can use up to 32 points (default is 2). The
number of points should be set in the Advanced menu
prior to scaling and calibration of the meter.
See Multi-Point Linearization (Linear) menu on page
46 for details.

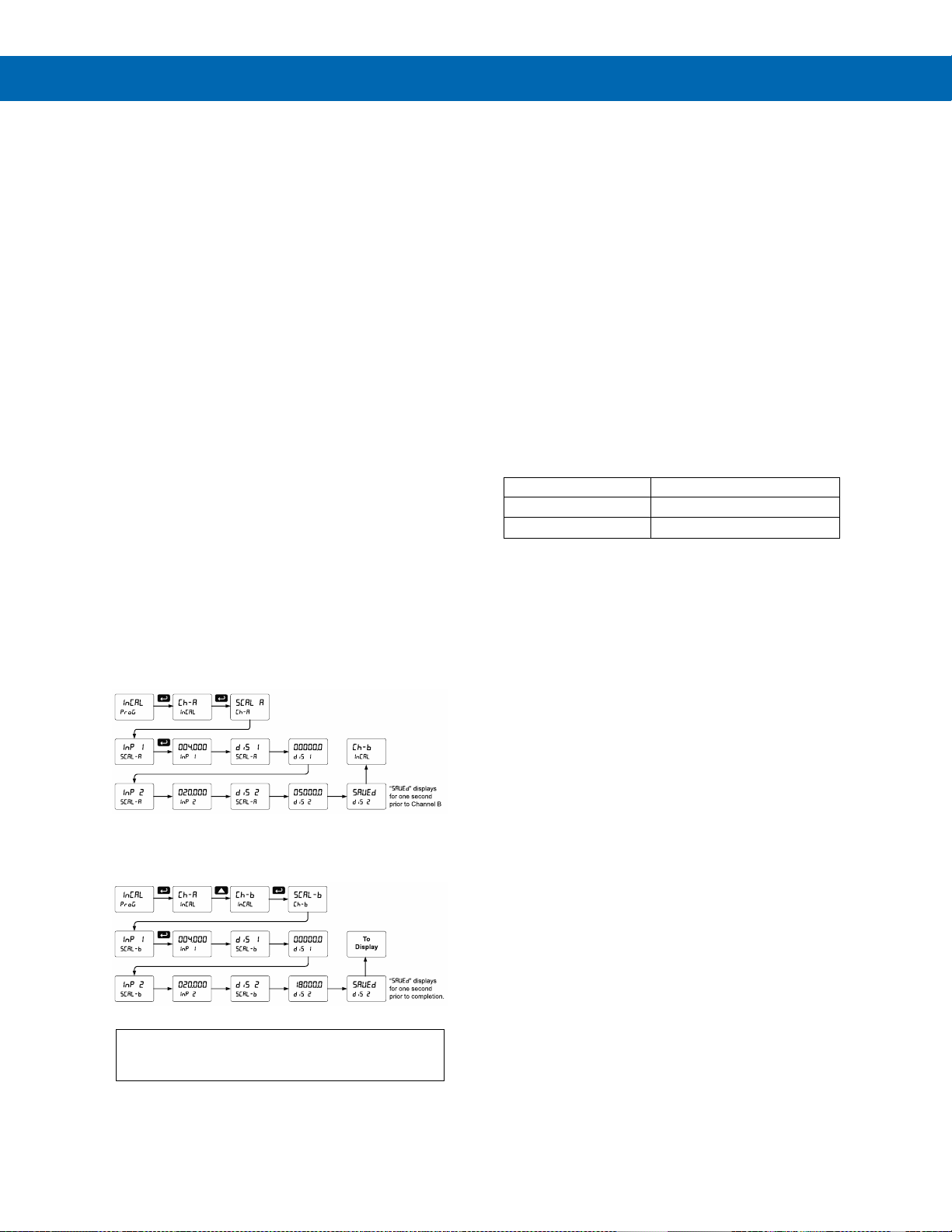

Scaling the Meter without a Signal Source (SCAL-A, SCAL-B)
The process inputs (4-20 mA, 10 VDC) can be
scaled to display the process variables in engineering
units. A signal source is not needed to scale the
meter; simply program the inputs and corresponding
display values.
From the INCAL menu, select channel A or B,
followed by SCal-A or SCal-B, and then set the input
signal value and display value for each of the scaling
points (default is two).
Scaling the Meter for Channel A (SCal-A)
Scaling the Meter for Channel B (SCal-B)
For instructions on how to program numeric
values see Setting Numeric Values, page 25.
Error Message (Error)
An error message indicates that the calibration or
scaling process was not successful.
After the error message is displayed, the meter
reverts to input 2 during calibration or scaling and to
input 1 during internal calibration, allowing the
appropriate input signal to be applied or programmed.
The error message might be caused by any of the
following conditions:
1. Input signal is not connected to the proper
terminals or it is connected backwards.
2. Wrong signal selection in Setup menu.
3. Minimum input span requirements not
maintained.
4. Input 1 signal inadvertently applied to calibrate
input 2.
Minimum Input Span
The minimum input span is the minimum difference
between input 1 and input 2 signals required to complete
the calibration or scaling of the meter.
Input Range
Input 1 & Input 2 Span
4-20 mA
0.15 mA
10 VDC
0.10 VDC
Page 30
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
30
Calibrating the Meter with External Source
Note: To scale the meter without a signal source,
refer to Scaling the Meter without a Signal Source
(
SCAL-A, SCAL-B
) on page 29.
The meter can be calibrated to display the process
variables in engineering units by applying the
appropriate input signal and following the calibration
procedure.
The use of a calibrated signal source is strongly
recommended to calibrate the meter.
Warm up the meter for at least 15 minutes before
performing calibration to ensure specified
accuracy.

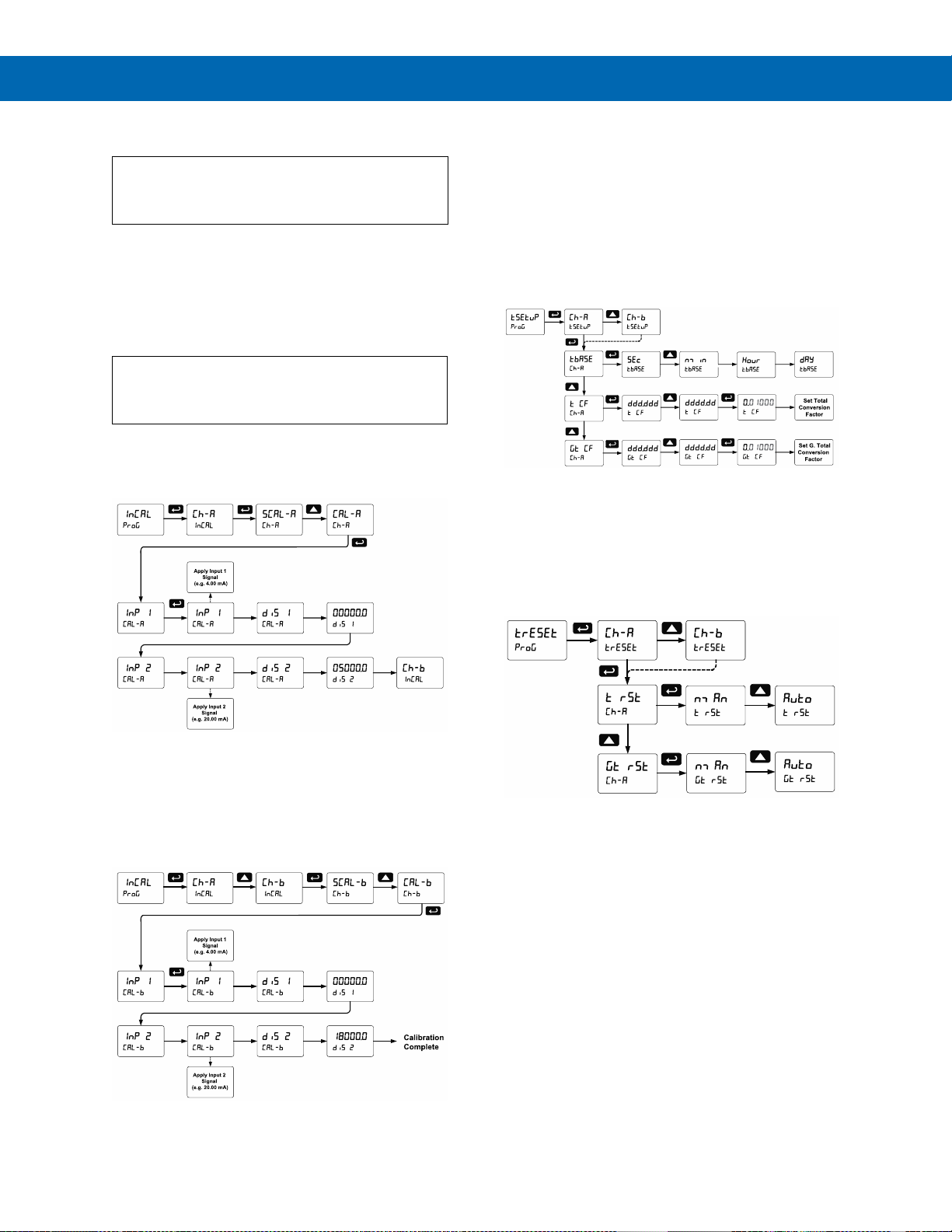

Calibrating the Meter for Channel
A (CAL-A)
Note: Inputs for the above example are:
Input 1: 4.00 mA; Display 1: 0.0 Gallons
Input 2: 20.00 mA; Display 2: 5000.0 Gallons
Calibrating the Meter for Channel
B (CAL-B)
Note: Inputs for the above example are:
Input 1: 4.00 mA; Display 1: 0.0 Gallons
Input 2: 20.00 mA; Display 2: 18000.0 Gallons
Total & Grand Total Setup (tsetup)
The time base and total conversion factor, and grand
total conversion factor for input channels A and B are
located in the Totalizer Setup menu.
The time base is based on the rate of flow. Total &
grand total conversion factors for channel A and B are
programmed independently. The total and grand total
have their own independent settings. This means that
one can be displaying the value in gallons while the
other displays in million gallons, liters, m3, etc.
Total & Grand Total Reset
Total reset menus are located in the Program menu.
The totals can be programmed for manual or
automatic reset. In the automatic reset mode, a
programmable time delay is available to reset the total
or grand total after the assigned preset is reached.
Password Protected and NonResettable Total
The total and grand total can be password-protected
to prevent unauthorized resets. The grand total can
be programmed as a non-resettable total, see Total
Reset Password & Non-Resettable Total on page 41
for details.
Page 31
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
31
Setting the Display Parameters & Intensity (dsplay)
Display line 1 (line 1) can be programmed to
display:
1. Ch-A rate (D Ch-A)
2. Ch-B rate (D Ch-B)
3. Ch-C math channel (D Ch-C)
4. Toggle Ch-A & Ch-B rate (D AB)
5. Toggle Ch-A rate and Ch-C (D AC)
6. Toggle Ch-B rate and Ch-C (D BC)
7. Toggle Ch-A & Ch-B rate, and Ch-C (D ABC)
8. Ch-A total (D T-A)
9. Ch-B total (D T-B)
10. Ch-A grand total (D GT-A)
11. Ch-B grand total (D GT-B)
12. Toggle Ch-A rate and total (D RT-A)
13. Toggle Ch-B rate and total (D RT-B)
14. Toggle Ch-A rate and grand total (DRGT-A)
15. Toggle Ch-B rate and grand total (DRGT-B)s
16. Relay set points (1-8) (DSET 1 to DSET 8)
17. Max, min, and max & min values for
Ch-A, Ch-B, or Ch-C (D Hi-A to d HL-C)
18. Toggle Ch-A rate & units (d A-u)
19. Toggle Ch-B rate & units (d B-u)
20. Toggle Ch-C & units (d C-u)
21. Toggle Ch-A total & units (d TA-u)
22. Toggle Ch-B total & units (d TB-u)
23. Toggle Ch-A total and Ch-B total (d tAb)
24. Toggle Ch-A total, Ch-B total, and the sum of
total A + total B (d tABC)*
25. Modbus input (nm bus)
*Note: The (C = sum of total A + total B) displayed
with the selection (d tABC) is different than the
math channel C calculated under the Math menu
functions. Example: (C = Rate Ch-A + Rate Ch-B).
Display line 2 (Line 2) can be programmed to
display:
1. All options for display line 1
2. Off, with no display (d ofF)
3. Engineering units for any single channel,
total, or grand total
Display Parameter Menu
After setting up the input and display, press the Menu
button to exit programming and skip the rest of the
setup menu.
Customizable Displays
The displays can be set up to read input channels
(A or B), rate, total, or grand total, math function
channel C, toggle between A & B, B & C, A & C, A &
B & C, toggle between channels A, B, or C & units,
the max/min of any of the channels, including the
math channel (C), set points, or the Modbus input.
This allows the display to be setup to display
whatever variables are most valuable to the
application. Here are just a few examples.
Display Intensity (d-Inty)
The meter has eight display intensity levels to give the
best performance under various lighting conditions.
Select intensity 8 for outdoor applications. The default
intensity is 6.
Page 32
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
32

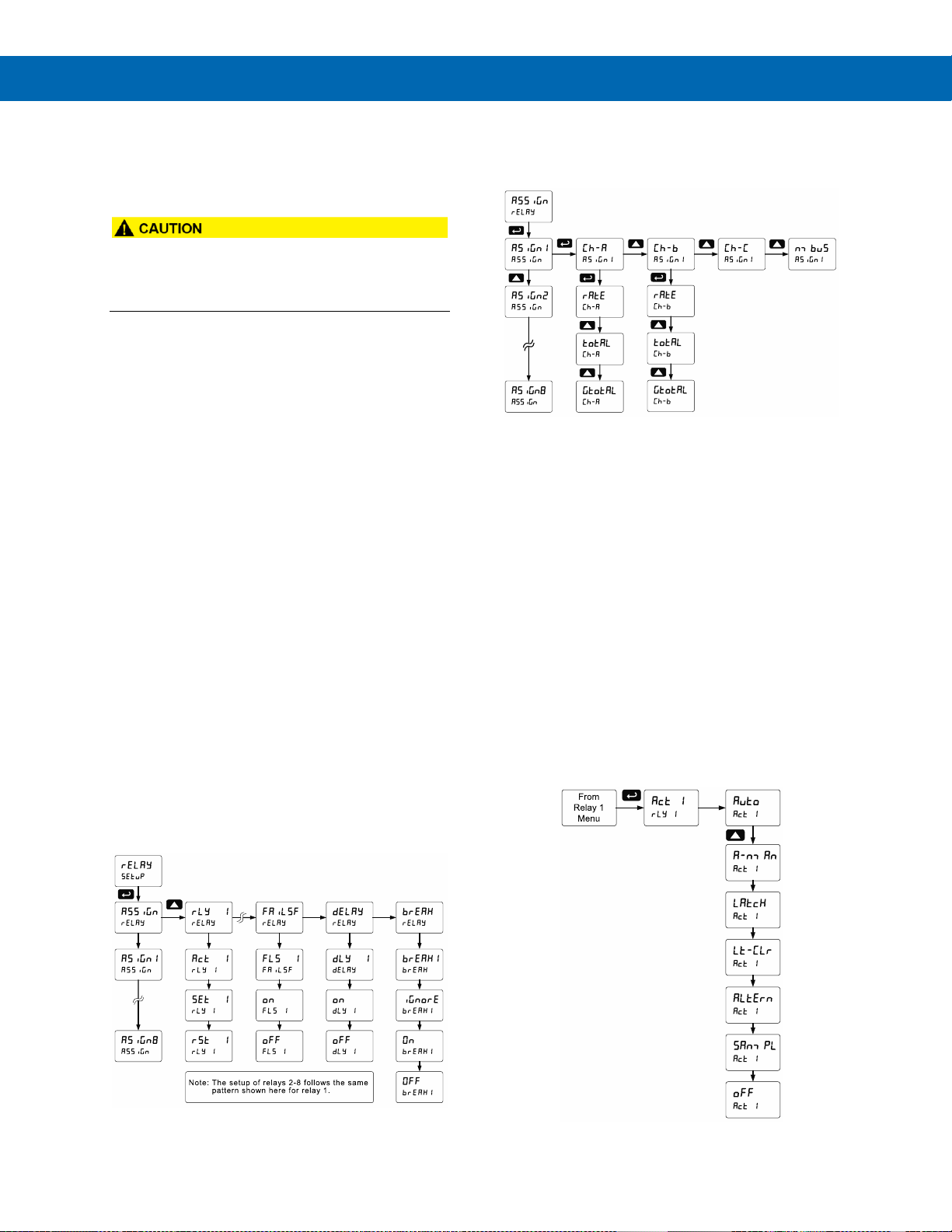

Setting the Relay Operation (relay)
This menu is used to set up the assignment and
operation of the relays.
• During setup, the relays do not follow the input
and they will remain in the state found prior to
entering the Relay menu.
1. Relay assignment
a. Channel A rate, total, or grand total
b. Channel B rate, total, or grand total
c. Channel C (Math channel)
d. Modbus
2. Relay action
a. Automatic reset only (non-latching)
b. Automatic + manual reset at any time
(non-latching)
c. Latching (manual reset only)
d. Latching with Clear (manual reset only
after alarm condition has cleared)
e. Pump alternation control (automatic
reset only)
f. Sampling (the relay is activated for a
user-specified time)
g. Off (relay state controlled by Interlock
feature)
3. Set point
4. Reset point
5. Fail-safe operation
a. On (enabled)
b. Off (disabled)
6. Time delay
a. On delay (0-999.9 seconds)
b. Off delay (0-999.9 seconds)
7. Relay action for loss (break) of 4-20 mA
input (ignore, on, off)
Setting the Relay Assignment (asSign)
Relays may be assigned to Channel A (rate, total, or
grand total), Channel B (rate, total, or grand total),
Channel C (Math channel), or Modbus input.
Setting the Relay Action (Act)
Operation of the relays is programmed in the Action
menu. The relays may be set up for any of the
following modes of operation:
1. Automatic reset (non-latching)
2. Automatic + manual reset at any time (nonlatching)
3. Latching (manual reset only, at any time)
4. Latching with Clear (manual reset only after
alarm condition has cleared)
5. Pump alternation control (automatic reset
only)
6. Sampling (the relay is activated for a userspecified time)
7. Off (relay state controlled by Interlock
feature)
The following graphic shows relay 1 action setup;
relay 2-8 are set up in a similar fashion.
Page 33
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
33
Programming Set and Reset Points
High alarm indication: program set point above reset
point.
Low alarm indication: program set point below reset
point.
The deadband is determined by the difference
between set and reset points. Minimum deadband is
one display count. If the set and reset points are
programmed with the same value, the relay will reset
one count below the set point.
Note: Changes are not saved until the reset point has
been accepted.
Setting Fail-Safe Operation
In fail-safe mode of operation, the relay coil is
energized when the process variable is within safe
limits and the relay coil is de-energized when the
alarm condition exists. The fail-safe operation is set
independently for each relay. Select on to enable or
select off to disable fail-safe operation.
Programming Time Delay
The On and Off time delays may be programmed for
each relay between 0 and 999.9 seconds. The relays
will transfer only after the condition has been
maintained for the corresponding time delay.
The On time delay is associated with the set point.
The Off time delay is associated with the reset point.
Relay Action for Loss of 4-20 mA Input (Loop Break)
The loop break feature is associated with the 4-20 mA
input. Each relay may be programmed to go to one of
the following conditions when the meter detects the
loss of the input signal (i.e. < 0.005 mA):
1. Turn On (Go to alarm condition)
2. Turn Off (Go to non-alarm condition)
3. Ignore (Processed as a low signal condition)
Note: This is not a true loop break condition; if the
signal drops below 0.005 mA, it is interpreted as
a “loop break” condition.

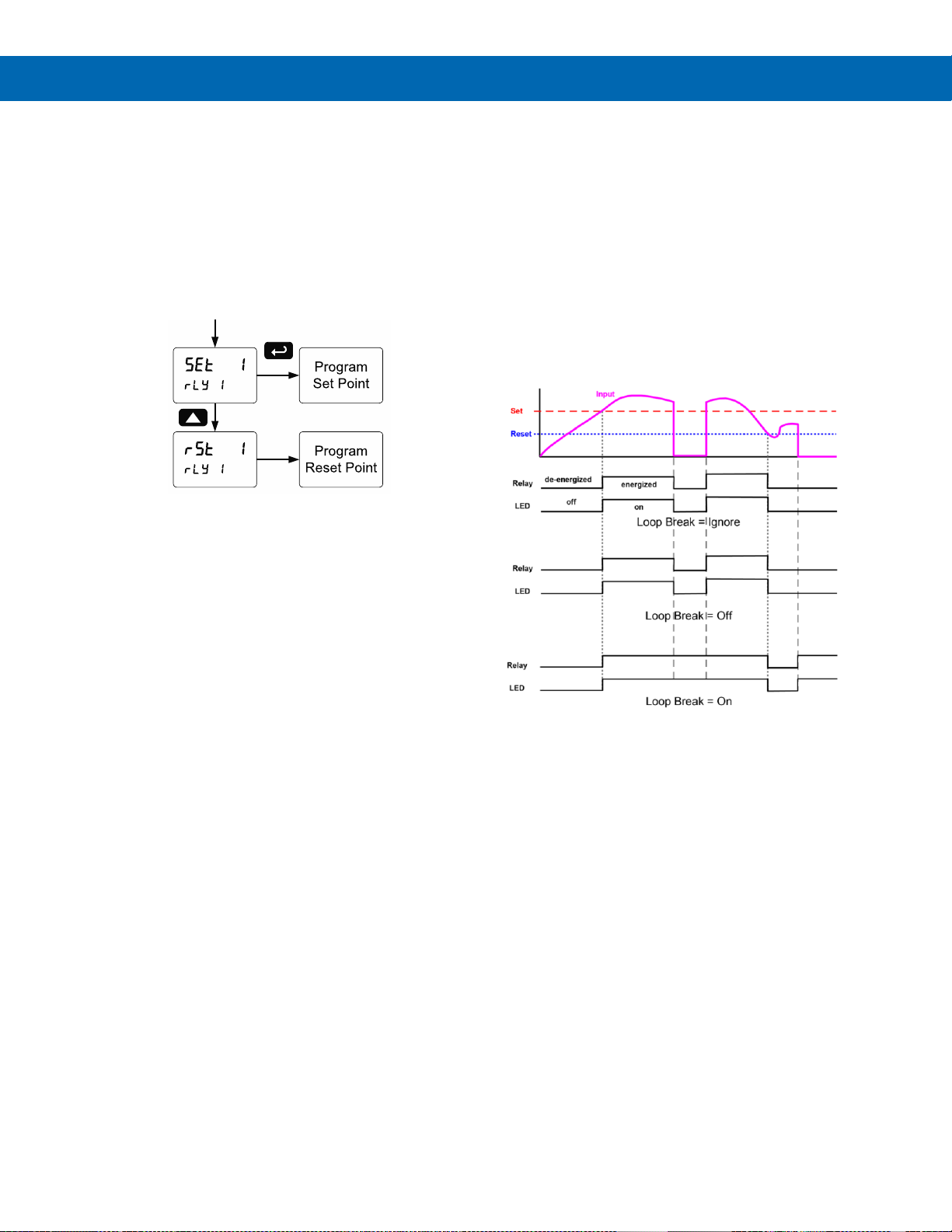

The following graph shows the loop break relay
operation for a high alarm relay.
Page 34
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
34

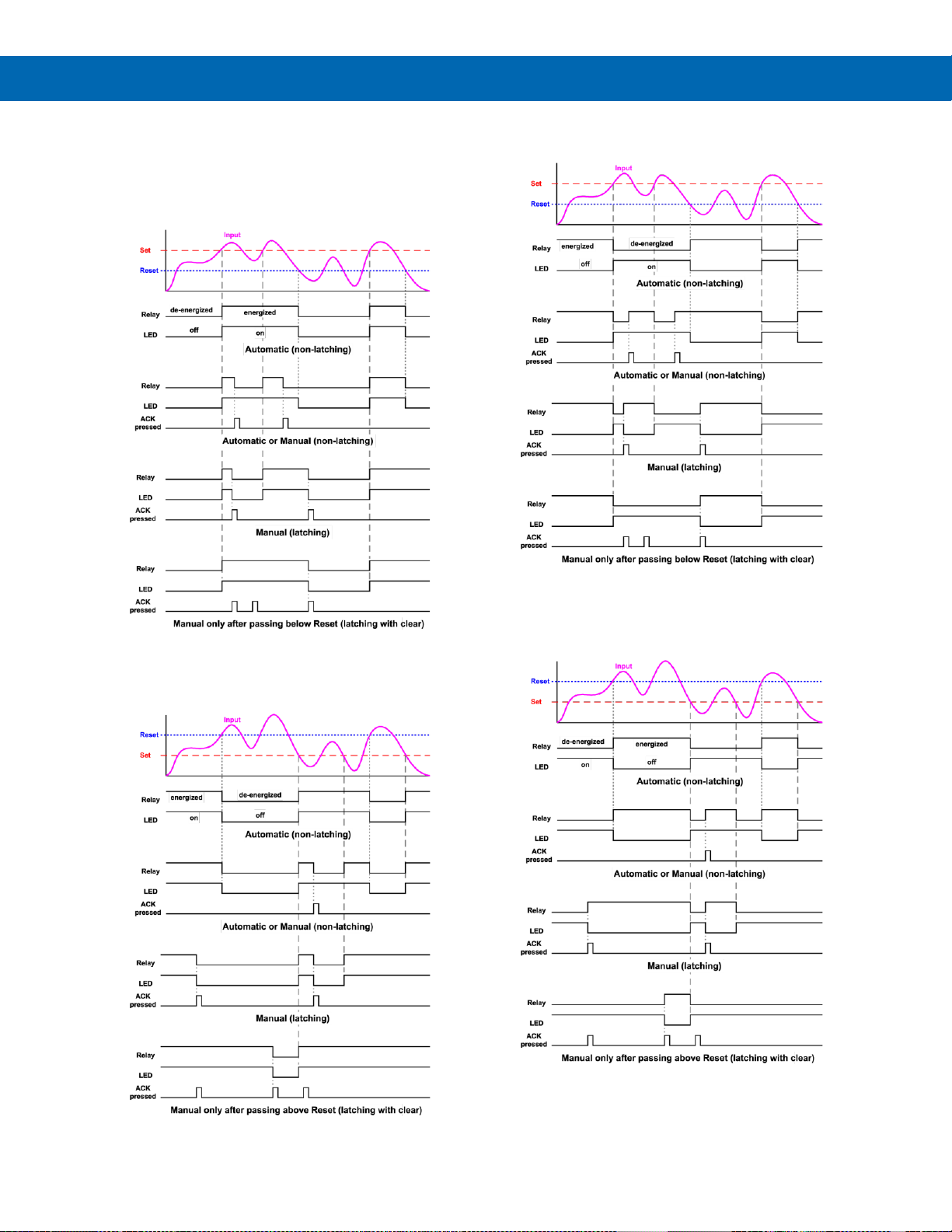

Relay and Alarm Operation Diagrams
The following graphs illustrate the operation of the
relays, status LEDs, and ACK button.
High Alarm Operation (Set > Reset)
For Manual reset mode, ACK can be pressed anytime to turn "off" relay. To
detect a new alarm condition, the signal must go below the set point, and then go
above it.
Low Alarm Operation (Set < Reset)
For Manual reset mode, ACK can be pressed anytime to turn "off" relay. To
detect a new alarm condition, the signal must go below the set point, and then go
above it.
High Alarm with Fail-Safe Operation (Set > Reset)
Note: Relay coil is energized in non-alarm condition. In case of power failure,
relay will go to alarm state.
Low Alarm with Fail-Safe Operation (Set < Reset)
Note: Relay coil is energized in non-alarm condition. In case of power failure,
relay will go to alarm state.
Page 35
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
35

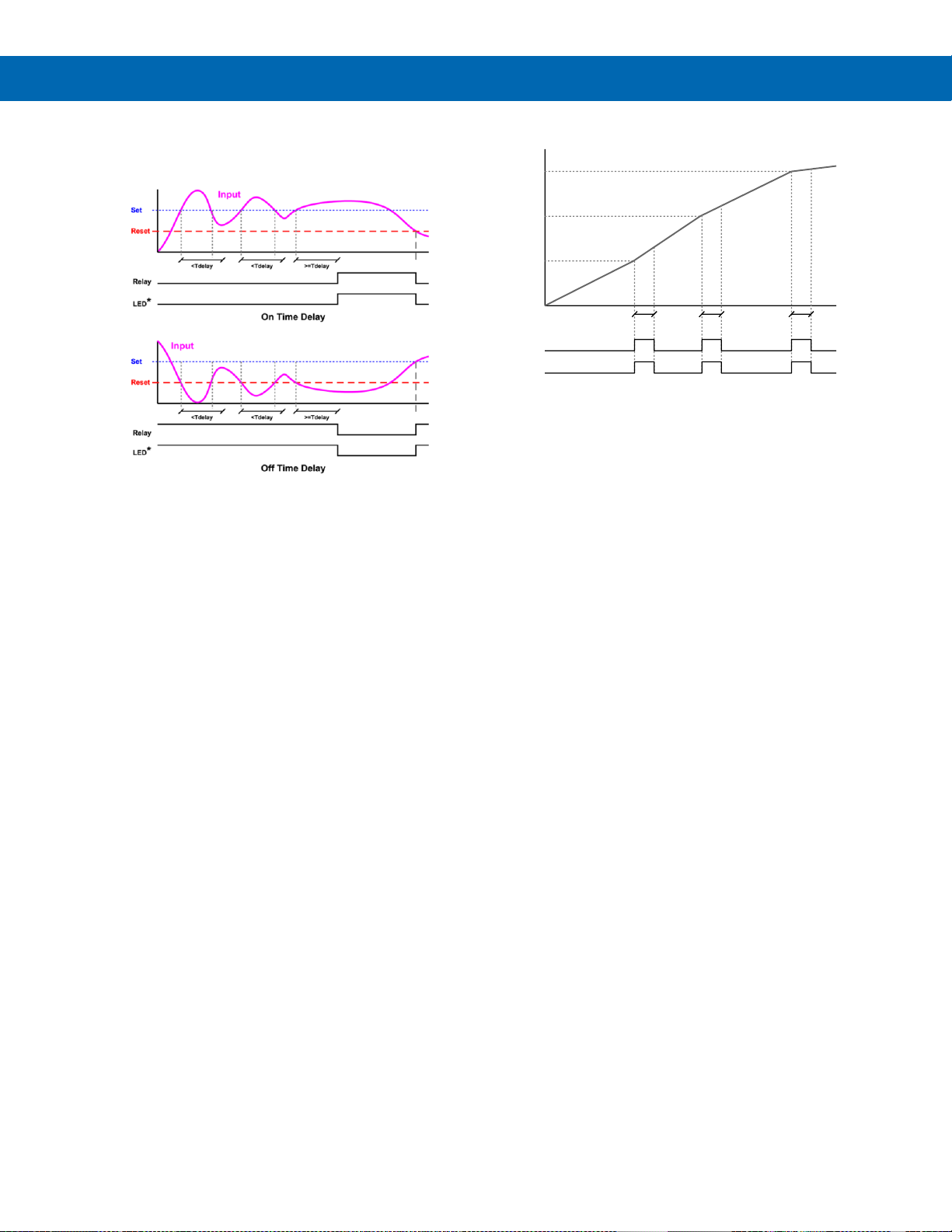

Time Delay Operation
The following graphs show the operation of the time
delay function.
When the signal crosses the set point, the On time
delay timer starts and the relay trips when the time
delay has elapsed. If the signal drops below the set
point (high alarm) before the time delay has elapsed,
the On time delay timer resets and the relay does not
change state. The same principle applies to the Off
time delay.
Note: If “Automatic or Manual (A-nmAn)” reset mode is
selected, the LED follows the reset point and not the
relay state when the relay is acknowledged.
Total Relay Sampling Operation
When the total reaches the preset, the relay trips and
the sample time starts. After the sample time has
elapsed, the relay resets. The cycle repeats every
time the preset value is added to the total.
Preset = 100
100
Relay
LED
Total
200
300
Sample
Time
Sample
Time
Sample
Time
Page 36
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
36

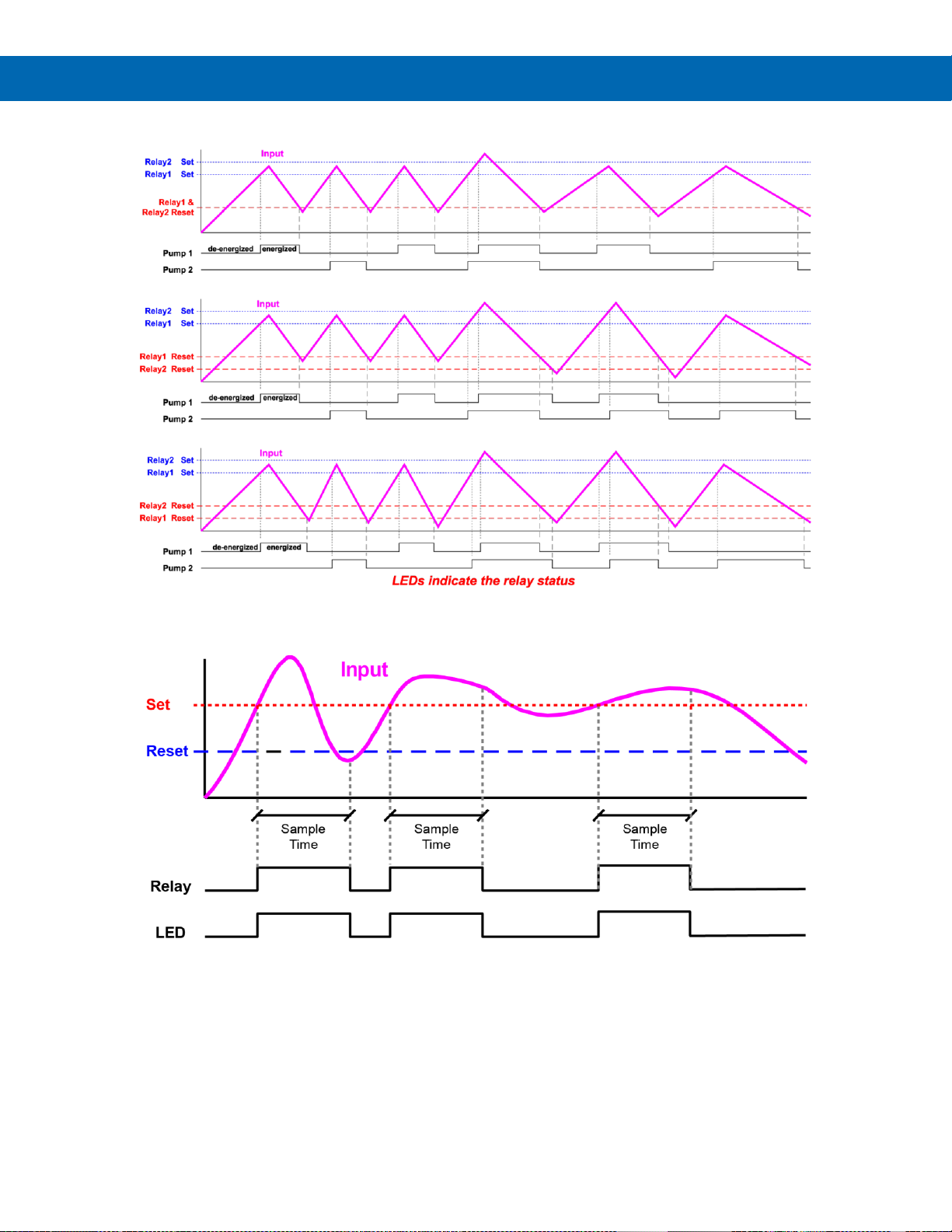

Pump Alternation Control Operation
Relay Sampling Operation
When the signal crosses the set point, the relay trips and the sample time starts. After the sample time has elapsed,
the relay resets. The cycle repeats every time the set point is crossed, going up for high alarms and going down for
low alarms.
The sample time can be programmed between 0.1 and 5999.9 seconds.
Page 37
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
37
Relay Operation Details
Overview
The relay capabilities of the meter expand its
usefulness beyond simple indication to provide users
with alarm and control functions. These capabilities
include front panel alarm status LEDs as well as
either 2 or 4 optional internal relays and/or 4 external
relays expansion module. Typical applications include
high and low temperature, level, pressure or flow
alarms, control applications such as simple on/off
pump control, and pump alternation control for up to 8
pumps. There are four basic ways the relays can be
used:
1. High and Low Alarms with Latching or NonLatching Relays
2. Simple On/Off Control with 100% Adjustable
Deadband
3. Sampling (Based on Time)
4. Pump Alternation Control for up to 8 Pumps
Relays Auto Initialization
When power is applied to the meter, the front panel
LEDs and alarm relays will reflect the state of the
input to the meter. The following table indicates how
the alarm LEDs and relays will react on power-up
based on the set and reset points:
Fail-Safe Operation
The following table indicates how the relays behave
based on the fail-safe selection for each relay:
Fail-Safe
Selection
Non-Alarm State
Alarm State
Power
Failure
NO
NC
NO
NC
Off
Open
Closed
Closed
Open
Relays
go to
nonalarm
state
On
Closed
Open
Open
Closed
Relays
go to
alarm
state
Note: NO = Normally Open, NC = Normally Closed.
This refers to the condition of the relay contacts
when the power to the meter is off.
Front Panel LEDs
The alarm status LEDs on the front panel are
available on all meters, even those without relays
installed, and provide status indication for the
following:
LED
Status
LED
Status
1
Alarm 1
5
Alarm 5
2
Alarm 2
6
Alarm 6
3
Alarm 3
7
Alarm 7
4
Alarm 4
8
Alarm 8
Note: LEDs 5-8 require the external relay module
PDA1004 to be connected.
The meter is supplied with four alarm points that
include front panel LEDs to indicate alarm conditions.
This standard feature is particularly useful for alarm
applications that require visual-only indication. The
LEDs are controlled by the set and reset points
programmed by the user. When the display reaches a
set point for a high or low alarm, the corresponding
alarm LED will turn on. When the display returns to
the reset point the LED will go off. The front panel
LEDs responds differently for latching and nonlatching relays.
For non-latching relays, the LED is always off during
normal condition and always on during alarm
condition, regardless of the state of the relay (e.g.
Relay acknowledged after alarm condition).
For latching relays, the alarm LEDs reflects the status
of the relays, regardless of the alarm condition. The
following tables illustrate how the alarm LEDs function
in relation to the relays and the acknowledge button
(Default: F3 key assigned to ACK).
Latching and Non-Latching Relay Operation
The relays can be set up for latching (manual reset)
or non-latching (automatic reset) operation.
Relay terminology for following tables
Terminology
Relay Condition
On
Alarm (Tripped)
Off
Normal (Reset)
Ack
Acknowledged
The On and Off terminology does not refer to the
status of the relay’s coil, which depends on the failsafe mode selected.
• In latching relay mode, if Fail-Safe is off, latched
relays will reset (unlatch) when power is cycled.
Alarm #
HI or LO
Alarm
Set
Point
Reset
Point
Power-
Up
Reading
Relay &
LED
1
HI
1000
500
499
Off
2
LO
700
900
499
On 3 LO
250
400
499
Off
4
HI
450
200
499
On
Page 38
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
38
Non-Latching Relay (Auto)
In this application, the meter is set up for automatic
reset (non-latching relay). Acknowledging the alarm
while it is still present has no effect on either the LED
or the relay. When the alarm finally goes away, the
relay automatically resets and the LED also goes off.
Non-Latching Relay with Manual Reset (A-nman)
In this application, the meter is set up for automatic
and manual reset at any time (non-latching relay).
The LED and the relay automatically reset when the
meter returns to the normal condition.
In addition, the relay can be manually reset while the
alarm condition still exists, but the LED will stay on
until the meter returns to the normal condition.
Automatic + manual reset at any time
Condition
LED
Relay
Normal
Off
Off
Alarm
On
On
Normal
Off
Off
Next Alarm
On
On
Ack
On
Off
Normal
Off
Off
Latching Relay (LatcH)
In this application, the meter is set up for manual
reset at any time. Acknowledging the alarm even
if the alarm condition is still present resets the
relay and turns off the LED.
Manual reset any time
Condition
LED
Relay
Normal
Off
Off
Alarm
On
On
Ack
Off
Off
Latching Relay with Clear (Lt-Clr)
In this application, the meter is set up for manual
reset only after the signal passes the reset point
(alarm condition has cleared). Acknowledging the
alarm while it is still present has no effect on either
the LED or the relay. When the alarm is
acknowledged after it returns to the normal state, the
LED and the relay go off. Notice that the LED remains
on, even after the meter returns to the normal
condition. This is because, for latching relays, the
alarm LED reflects the status of the relay, regardless
of the alarm condition.
Manual reset only after
alarm condition has cleared
Condition
LED
Relay
Normal
Off
Off
Alarm
On
On
Ack (No effect)
On
On
Normal
On
On
Ack
Off
Off

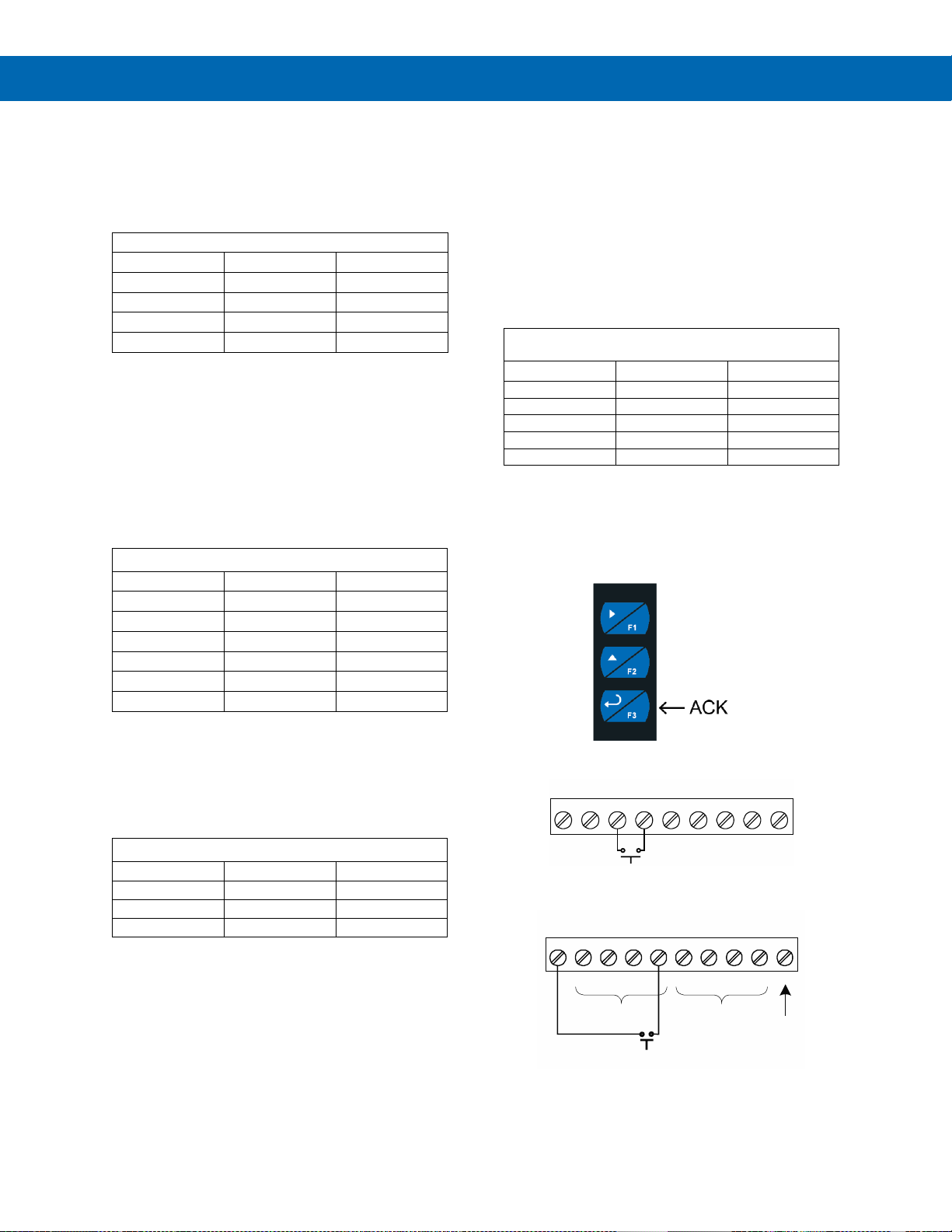

Acknowledging Relays
There are three ways to acknowledge relays
programmed for manual reset:
1. Via the programmable front panel function keys
F1-F3 (Example: F3 assigned to ACK).
2. Remotely via a normally open push button wired
to the F4 terminal at the rear of the instrument.
3. One of the digital inputs and the +5 V terminals
on the digital I/O expansion module.
When the ACK button or the assigned digital input is
closed, all relays programmed for manual reset are
acknowledged.
P- F4P+ COM V+
3412 5
mA+ COM V+ mA+
7869
+5
I1 I2 I3 I4
O1 O2 O3 O4 G
DO 1-4
GND
ACK
Digital I/O Module
1 2345 6 78910
DI 1-4
Automatic reset only
Condition
LED
Relay
Normal
Off
Off
Alarm
On
On
Ack (No effect)
On
On
Normal
Off
Off
Page 39
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
39

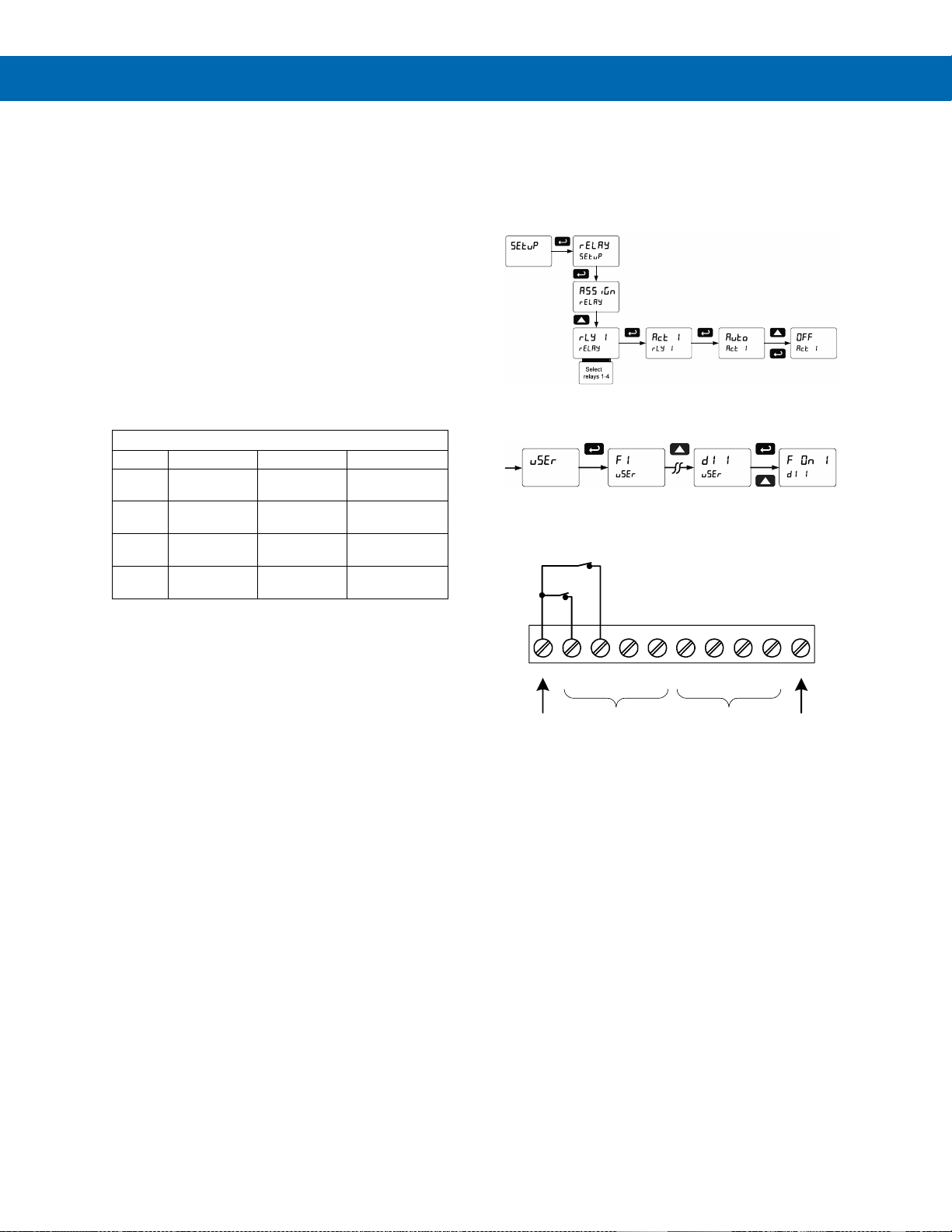

Pump Alternation Control Applications (Altern)
For pump control applications where two or more
similar pumps are used to control the level of a tank
or a well, it is desirable to have all the pumps operate
alternately. This prevents excessive wear and
overheating of one pump over the lack of use of the
other pumps.
Up to 8 relays can be set up to alternate every time
an on/off pump cycle is completed. The set points and
reset points can be programmed, so that the first
pump on is the first pump off.
Application #1: Pump Alternation Using Relays 1 & 2
1. Relays 1 and 2 are set up for pump alternation.
2. Relays 3 and 4 are set up for low and high alarm
indication.
Set and Reset Point Programming
Relay
Set Point
Reset Point
Function
1
30.000
10.000
Controls
pump #1
2
35.000
5.000
Controls
pump #2
3
4.000
9.000
Controls
low alarm
4
40.000
29.000
Controls
high alarm
Pump Alternation Operation
1. Pump #1 turns on when level reaches 30.000,
when level drops below 10.000 pump #1 turns
off.
2. The next time level reaches 30.000, pump #2
turns on, when level drops below 10.000, pump
#2 turns off.
3. If the level doesn’t reach 35.000 pump #1 and
pump #2 will be operating alternately.
4. If pump #1 cannot keep the level below 35.000
pump #2 will turn on at 35.000, then as the level
drops to 10.000 pump #1 turns off, pump #2 is
still running and shuts off below 5.000.
5. Notice that with the set and reset points of pump
#2 outside the range of pump #1, the first pump
on is the first pump to go off. This is true for up to
8 alternating pumps, if setup accordingly.
6. Relay #3 will go into alarm if the level drops
below 4.000 and relay #4 will go into alarm if the
level exceeds 40.000.
7. Adding the 4 external relays expansion module
allows using the 4 SPDT internal relays for pump
alternation and the 4 SPST external relays for
high, high-high, low, and low-low alarm
indication.
Setting Up the Interlock Relay (Force On) Feature
Relays 1-4 can be set up as interlock relays. To set
up the relays for the interlock feature:
1. Access the Setup – Relay – Action menu and set
the action to off.
2. In the Advanced features – User menu program
any of the digital inputs to Force On any of the
internal relays (1-4).
3. Connect a switch or dry contact between the +5V
terminal and the corresponding digital input
(dI-1 to dI-4) terminal.
Interlock Relay Operation Example
Relays 1 & 2 are configured to energize (their front
panel LEDs are steady on) when SW1 & SW2
switches (above) are closed. If the contacts to these
digital inputs are opened, the corresponding front
panel LEDs flash, indicating this condition. The
processes being controlled by the interlock relay will
stop, and will re-start only after the interlock relay is
re-activated by the digital inputs (switches).
Note: If multiple digital inputs are assigned to the
same relay, then the corresponding logic is (AND) –
i.e. both switches must be closed to trip the relay.
1 2 3 4 5 6
+5 I1 I2 I3 I4 O1
7 8
O2 O3
9 10
O4 G
DI 1-4 DO 1-4
5 VDC GND
SW2
SW1
Page 40
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
40

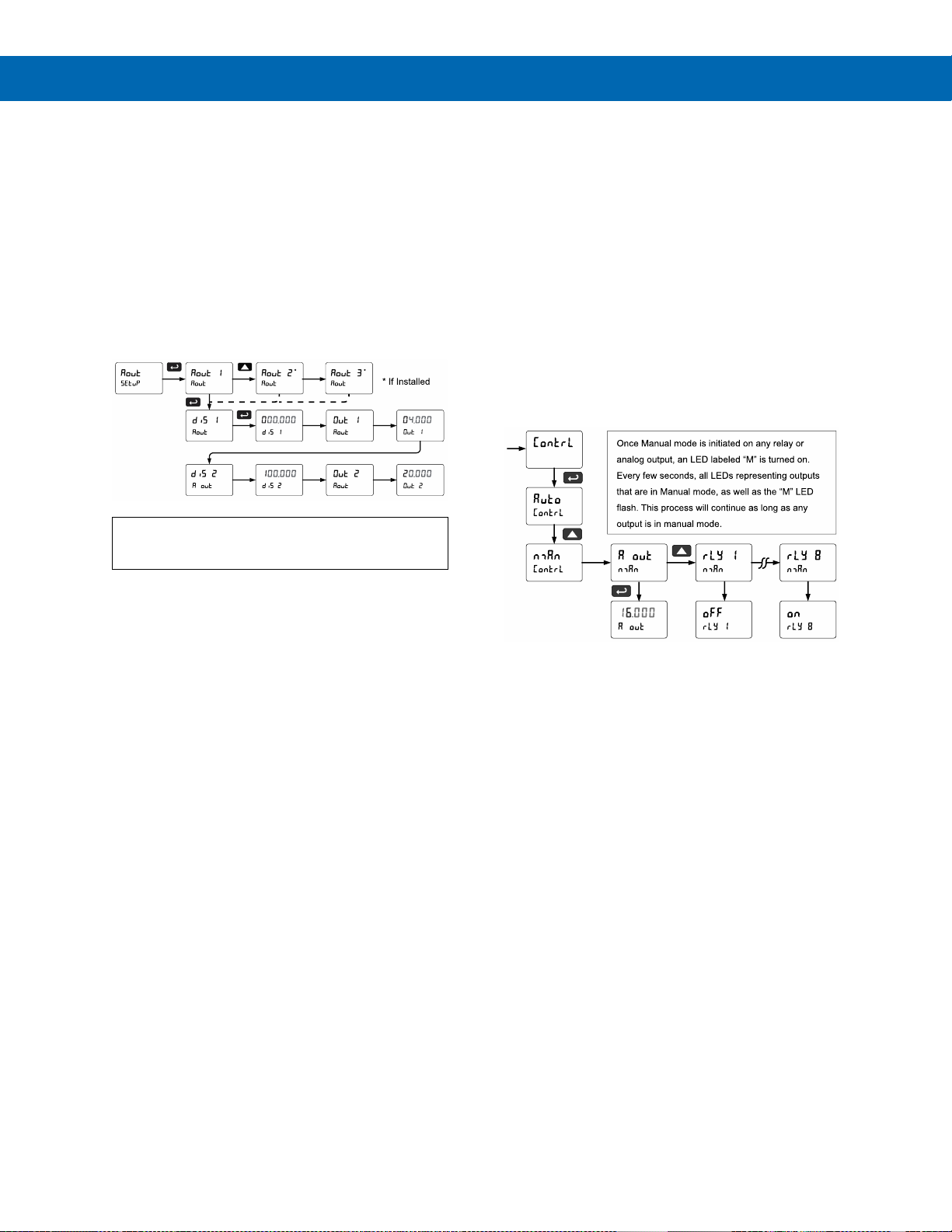

Scaling the 4-20 mA Analog Output (Aout)
The 4-20 mA analog outputs can be scaled to provide
a 4-20 mA signal for any display range selected. To
select the channel and source assignments the
analog outputs are assigned to, see Analog Output
Source on page 48.
No equipment is needed to scale the analog outputs;
simply program the display values to the
corresponding mA output signal.
The Analog Output menu is used to program the
4-20 mA outputs based on display values.
For instructions on how to program numeric values
see Setting Numeric Values, page 25.
Reset Menu (reset)
The Reset menu is used to reset the maximum (peak)
value of Ch-A and Ch-B rate (rst Hi), minimum
(valley) reading of Ch-A and Ch-B rate (rst Lo), both
high and low value of Ch-A and Ch-B rate (rst HL),
Ch-A total (tot A) or Ch-B total (tot B), Ch-A grand
total (Gtot A) or Ch-B grand total (Gtot B), both ChA and Ch-B totals (tot AB), or both Ch-A and Ch-B
grand totals (Gt AB).
Manual Control Menu (Contrl)
The Manual Control menu is used to control the
4-20 mA analog output (Aout 1 only) and the relays
manually, ignoring the input. Each relay and analog
output can be programmed independently for manual
control. Selecting automatic control sets all relays and
analog output for automatic operation.
Page 41
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
41
Setting Up the Password (pass)
The Password menu is used for programming three
levels of security to prevent unauthorized changes to
the programmed parameter settings, to restrict the
ability to reset the totals and grand totals, and to
program the non-resettable totalizer.
Pass 1: Allows use of function keys and digital
inputs
Pass 2: Allows use of function keys, digital inputs
and editing set/reset points
Pass 3: Restricts all programming, function keys,
and digital inputs.
Total: Prevents resetting the total manually
Gtotal: Prevents resetting the grand total manually
Protecting or Locking the Meter Functions
Enter the Password menu and program a six-digit
password.
For instructions on how to program numeric values
see Setting Numeric Values on page 25.
Total Reset Password & NonResettable Total
The total and the grand total can be passwordprotected to prevent unauthorized total resets.
The grand total can be programmed as a non-
resettable total by entering the password “050873”.
• Once the Grand Total has been programmed as
“non-resettable” the feature CANNOT be
disabled.
Making Changes to a Password Protected Meter
If the meter is password protected, the meter will
display the message Locd (Locked) when the Menu
button is pressed. Press the Enter button while the
message is being displayed and enter the correct
password to gain access the menu. After exiting the
programming mode, the meter returns to its password
protected condition.
Disabling Password Protection
To disable the password protection, access the
Password menu and enter the correct password
twice, as shown below. The meter is now unprotected
until a new password is entered.
If the correct six-digit password is entered, the meter
displays the message unLoc (unlocked) and the
protection is disabled until a new password is
programmed.
If the password entered is incorrect, the meter
displays the message Locd (Locked) for about two
seconds, and then it returns to Run Mode. To try
again, press Enter while the Locked message is
displayed.
Did you forget the password?
The password may be disabled by entering a
master password once. If you are authorized to
make changes, enter the master password 508655
to unlock the meter.
Page 42
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
42

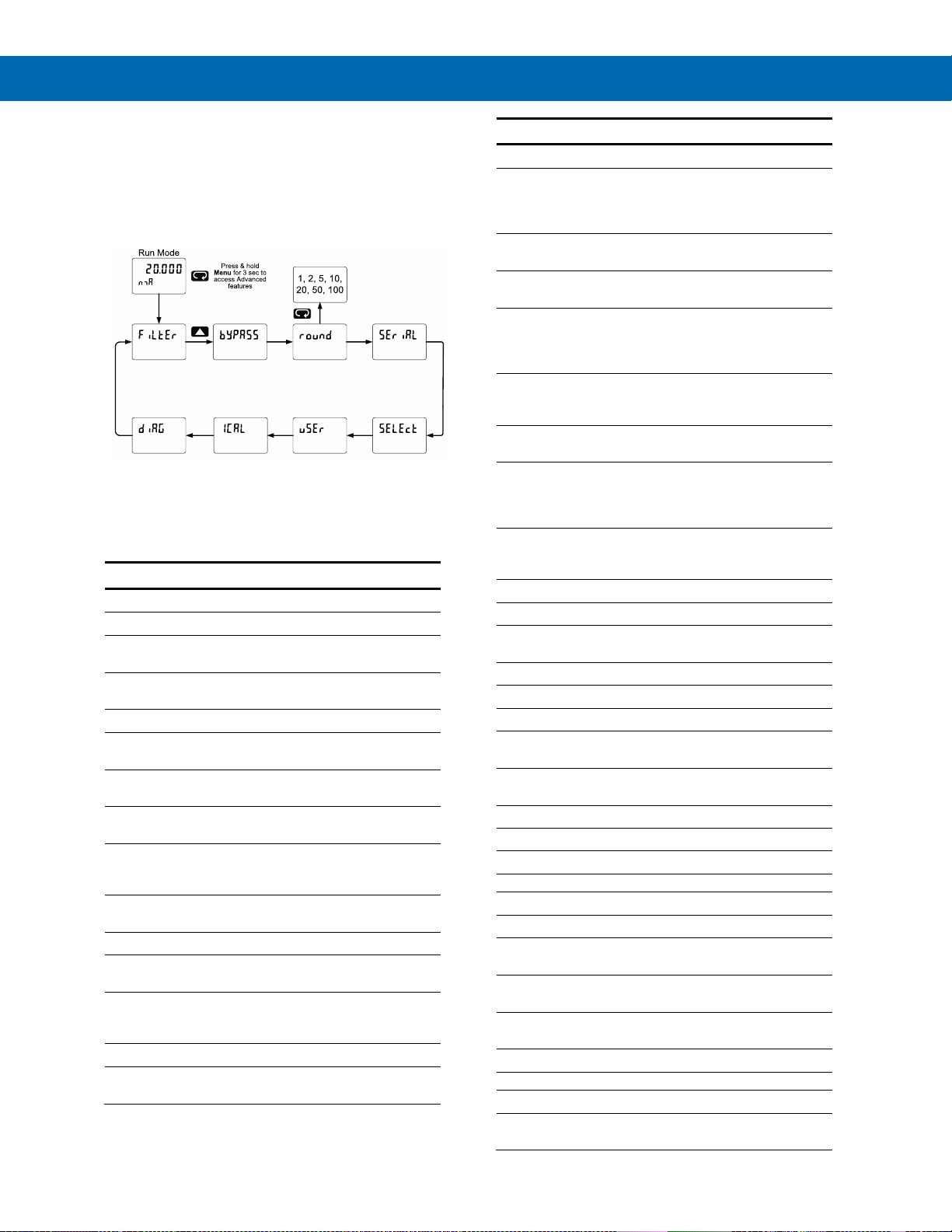

Advanced Features Menu
To simplify the setup process, functions not needed
for most applications are located in the Advanced
Features menu.
Press and hold the Menu button for three seconds to
access the advanced features of the meter.
Advanced Features Menu & Display Messages
The following table shows the functions and
messages of the Advanced Features menu in the
order they appear in the menu.
Advanced Features Menu & Display Messages
Display
Parameter
Action/Setting
filtEr
Filter
Set noise filter value
Ch-A
Channel A
Set filter value for
channel A
Ch-b
Channel B
Set filter value for
channel B
bypASs
Bypass
Set filter bypass value
Ch-A
Channel A
Set filter bypass value
for channel A
Ch-b
Channel B
Set filter bypass value
for channel B
Round
Round
Set the rounding value
for display variables
seriAl
Serial
Set serial
communication
parameters
SlaVId
Slave ID
Set slave ID or meter
address
Baud
Baud rate
Select baud rate
Tr dLY
Transmit delay
Set transmit delay for
serial communication
Parity
Parity
Select parity
Even, Odd, or None
with 1 or 2 stop bits
t-byt
Time byte
Set byte-to-byte timeout
SelEct
Select
Enter the Select menu
(function, cutoff, out)
Advanced Features Menu & Display Messages
Display
Parameter
Action/Setting
Functn
Input signal
conditioning
Select linear, square
root, programmable
exponent, or round
horizontal tank function
Ch-A
Channel A
Select menu for
channel A
Ch-b
Channel B
Select menu for
channel B
Linear
Linear
Set meter for linear
function and select
number of linearization
points
No pts
Number of
points
Set the number of
linearization points
(default: 2)
Square
Square root
Set meter for square
root extraction
Prog E
Programmable
exponent
Set meter for
programmable
exponent and enter
exponent value
nmath
Math
Enter the setup menu
for channel C math
functions
Sunm
Sum
C = (A+B+P)*F
Dif
Difference
C = (A-B+P)*F
difabs
Absolute
difference
C = ((Absolute value of
(A-B))+P)*F
AVg
Average
C = (((A+B)/2)+P)*F
nmulti
Multiplication
C = ((A*B)+P)*F
DiVide
Divide
C = ((A/B)+P)*F
Hi-ab
Max of A or B
C = ((High value of
channel A or B)+P)*F
Lo-ab
Min of A or B
C = ((Low value of
channel A or B)+P)*F
Drauw
Draw
C = ((A/B)-1)*F
uw Avg
Weighted avg.
C = ((B-A)*F)+A
ratio
Ratio
C = (A/B)*F
Ratio2
Ratio 2
C = ((B-A)/A)+P)*F
Concen
Concentration
C = (A/(A+B))*F
Sunm t
Sum total
C = (tA+tB+P)*F
Sunmgt
Sum grand
total
C = (GtA+GtB+P)*F
Dif t
Difference of
total
C = (tA-tB+P)*F
Dif gt
Diff. of grand
total
C = (GtA-GtB+P)*F
Tratio
Total ratio
C = (tA/tB)*F
t-rat2
Total ratio 2
C = ((tB-tA)/tA)*F
T pct
Total percent
C = (tA/(tA+tB))*100
Const
Constant
Enter math equation
constants
Page 43
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
43
Advanced Features Menu & Display Messages
Display
Parameter
Action/Setting
adder
Adder
Addition constant used
in channel C math
calculations (P)
factor
Factor
Multiplication constant
used in channel C math
calculations (F)
CutofF
Cutoff
Set low-flow cutoff
Ch-A
Channel A
Set low-flow cutoff for
Channel A
Ch-b
Channel B
Set low-flow cutoff for
Channel B
Count
Count
Set total count direction
Ch-A
Channel A
Set total count direction
for Channel A
Ch-b
Channel B
Set total count direction
for Channel B
Tot C
Total count
Set direction of total
count
Gtot C
Grand total
count
Set direction of grand
total count
up
Count up
Count up
Douwn
Count down
Count down
C strt
Count start
Enter count down start
value
AoutPr
Analog output
programming
Program analog output
parameters
Aout 1*
Analog output 1
Program analog output
1 (*1-3) parameters
Source
Source
Select source for the
4-20 mA output
break
Loop break
Set analog output value
if input loop break is
detected
Calib
Calibrate
Calibrate 4-20 mA
output (internal
reference source used
for scaling the output)
4 nmA
4 mA output
Enter mA output value
read by milliamp meter
with at least 0.001 mA
resolution
20 nmA
20 mA output
Enter mA output value
read by milliamp meter
with at least 0.001 mA
resolution
O-rang
Overrange
Program mA output for
display overrange
u-rang
Underrange
Program mA output for
display underrange
nmAx
Maximum
Program maximum mA
output allowed
nmin
Minimum
Program minimum mA
output allowed
User
User I/O
Assign function keys
and digital I/O
Advanced Features Menu & Display Messages
Display
Parameter
Action/Setting
F1*
F1* function
key
Assign F1 function key
(*F1/F2/F3)
F4
F4 digital input
Assign F4 function
(digital input)
dI I
Digital input 1
Assign digital input
1 – 8, if expansion
modules are connected
dO 1
Digital output 1
Assign digital output
1 – 8, if expansion
modules are connected
ICal
Internal
calibration
Enter internal
calibration (used for
recalibrating the meter
with a calibrated signal
source)
Ch-A
Channel A
Perform calibration on
channel A
Ch-b
Channel B
Perform calibration on
channel B
C CAL
Current
calibration
Calibrate 4-20 mA
current input (internal
reference source used
for scaling the input)
C lo
Current low
Calibrate low current
input (e.g. 4 mA)
C Hi
Current high
Calibrate high current
input (e.g. 20 mA)
V CAL
Voltage
calibration
Calibrate voltage input
V Lo
Voltage low
Calibrate low voltage
input (e.g. 0 V)
V Hi
Voltage high
Calibrate high voltage
input (e.g. 10 V)
Diag
Diagnostics
Display parameter
settings
LED t
LED test
Test all LEDs
Info
Information
Display software
number and version.
erase
Erase
Erase MeterView Pro
software stored in
meter’s memory
Page 44
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
44

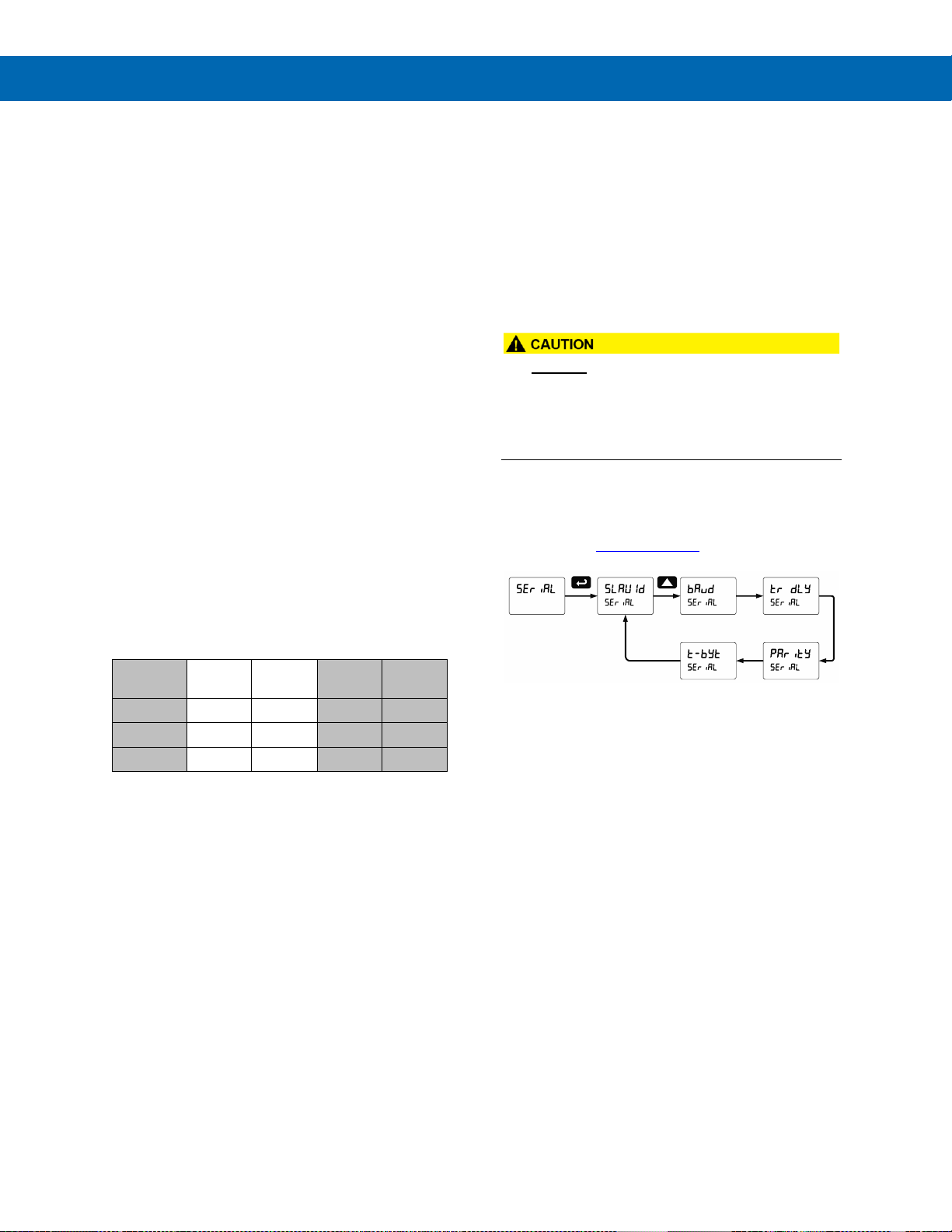

Noise Filter (filter)
The noise filter is available for unusually noisy signals
that cause an unstable process variable display. The
noise filter averages the input signal over a certain
period. The filter level determines the length of time
over which the signal is averaged. The filter level can
be set between 2 and 199. The higher the filter level,
the longer the averaging time and so the longer it
takes the display to settle to its final value. Setting the
filter level to zero disables the filter function.
Noise Filter Bypass (bypass)
The noise filter bypass changes the behavior of the
meter so that small variations in the signal are filtered
out but large abrupt changes in the input signal are
displayed immediately. The bypass value determines
the minimum amount of signal change to be displayed
immediately. All signal changes smaller than the
bypass value are filtered or averaged by the meter.
The noise filter bypass may be set between 0.1 and
99.9% of full scale.
Rounding Feature (round)
The rounding feature is used to give the user a
steadier display with fluctuating signals. Rounding is
used in addition to the filter function.
Rounding causes the display to round to the nearest
value according to the rounding selected. This setting
affects the last two digits, regardless of decimal point
position. See examples below:
Rounding
Selection
Actual
Value
Display
Value
Actual
Value
Display
Value
1
12.022
12.022
12.023
12.023
5
12.022
12.020
12.023
12.025
10
12.024
12.020
12.025
12.030
Modbus RTU Serial Communications (serial)
The meter is equipped with serial communications
capability as a standard feature using Modbus RTU
Serial Communication Protocol.
The meter may be connected to a PC for initial
configuration via the on-board USB connection. For
ongoing digital communications with a computer or
other data terminal equipment, an RS-232, or RS-485
option is required; see Ordering Information on page
6 for details.
• DO NOT connect any equipment other than
Precision Digital’s expansion modules, cables, or
meters to the RJ45 M LINK connector. Otherwise
damage will occur to the equipment and the
meter.
Notes
1. More detailed instructions are provided with each
optional serial communications adapter.
2. Refer to the PROVU Modbus Register Tables
located at www.predig.com for details.
When using more than one meter in a multi-drop
mode, each meter must be provided with its own
unique address. The meter address (Slave ID) may
be programmed between 1 and 247. The transmit
delay may be set between 0 and 199 ms. The parity
can be set to even, odd, or none with 1 or 2 stop bits.
Page 45
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
45

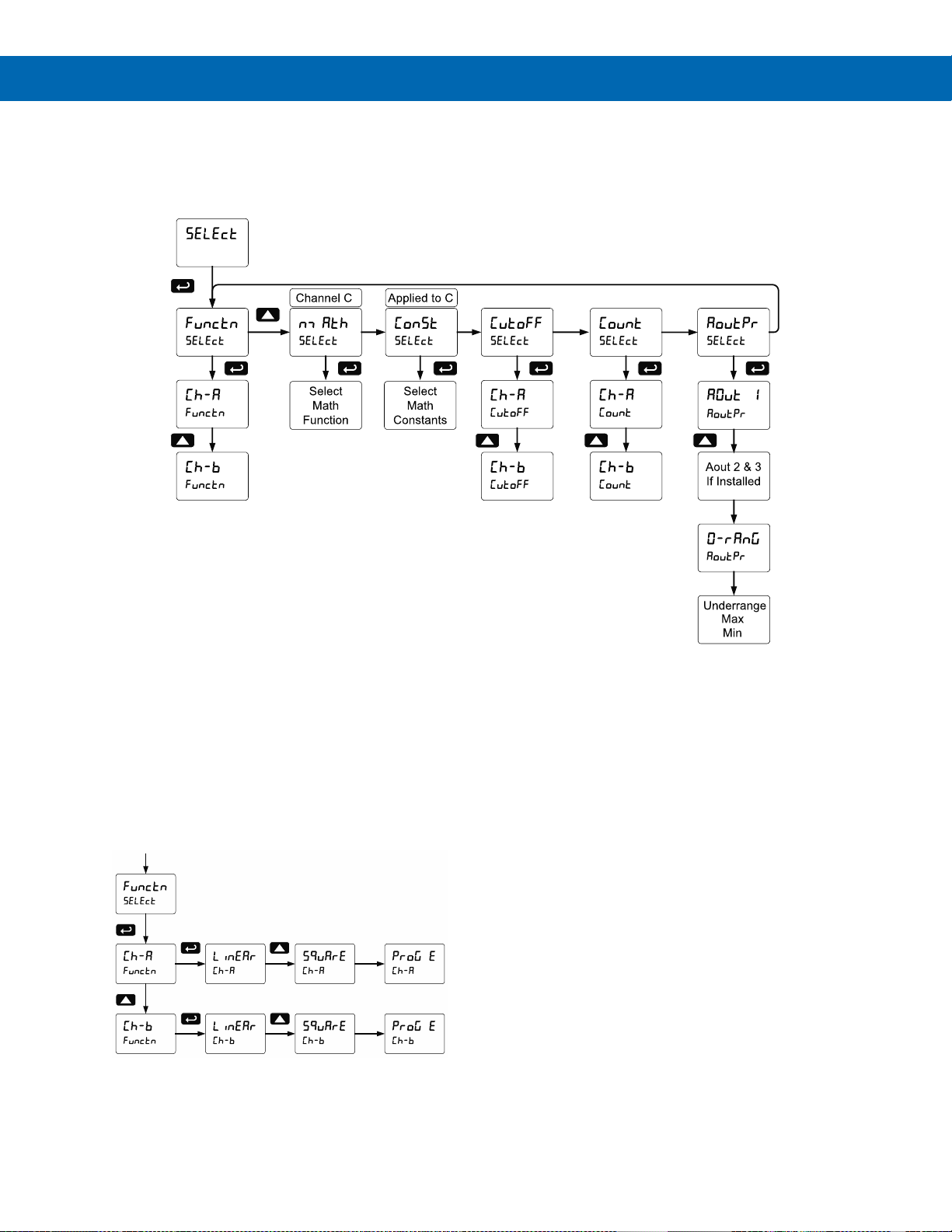

Select Menu (SElect)
The Select menu is used to select the input signal conditioner applied to the inputs (linear, square root, or
programmable exponent), math function for A & B, constants, low-flow cutoff, total count direction (up or down from a
preset amount), and analog output programming. Multi-point linearization is part of the linear function selection.
Input Signal Conditioning (Functn)
The Function menu is used to select the input signal
conditioner applied to the input signal: linear, square
root, or programmable exponent. Multi-point
linearization is part of the linear function selection.
Each input channel input signal conditioner is
programmed independently.
Meters are set up at the factory for linear function with
2-point linearization. The linear function provides a
display that is linear with respect to the input signal.
Square Root Linearization (Square)
The square root function is used to calculate flow
measured with a differential pressure transmitter. The
flow rate is proportional to the square root of the
differential pressure. Scale the meter so that the low
input signal (e.g. 4 mA) is equal to zero flow and the
high input signal (e.g. 20 mA) is equal to the
maximum flow.
Programmable Exponent Linearization (Prog E)
The programmable exponent function is used to
calculate open-channel flow measured with a level
transmitter in weirs and flumes. The flow rate is
proportional to the head height. Scale the meter so
that the low input signal (e.g. 4 mA) is equal to zero
flow and the high input signal (e.g. 20 mA) is equal to
the maximum flow. This method works well for all
weirs and flumes that have a simple exponent in the
flow calculation formula. For weirs and flumes with
complex exponents it is necessary to use a strapping
table and the 32-point linearization of the meter.
Page 46
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
46
Multi-Point Linearization (Linear)
Meters are set up at the factory for linear function with
2-point linearization. Up to 32 linearization points can
be selected for each channel under the linear
function. The multi-point linearization can be used to
linearize the display for non-linear signals such as
those from level transmitters used to measure volume
in odd-shaped tanks or to convert level to flow using
weirs and flumes with complex exponent.
Note: After Scale is displayed continue pressing the
Enter button until the meter completes the scaling of
the input and display values.
Math Function (nmath)
The Math menu is used to select the math function
that will determine the channel C value. These math
functions are a combination of input channels A and
B, and will display when channel C is selected in the
Display menu.
A and B refer to the rate of channel A and B. tA and
tB refer to the totals of channel A and B. GtA and GtB
refer to the grand totals of channel A and B. The
following math functions are available.
Function
Display
Description
Sunm
Sum
C = (A+B+P)*F
Dif
Difference
C = (A-B+P)*F
difabs
Absolute
difference
C = ((Absolute value of
(A-B))+P)*F
AVg
Average
C = (((A+B)/2)+P)*F
nmulti
Multiplication
C = ((A*B)+P)*F
DiVide
Divide
C = ((A/B)+P)*F
Hi-ab
Max of A or B
C = ((High value of
channel A or B)+P)*F
Lo-ab
Min of A or B
C = ((Low value of
channel A or B)+P)*F
Drauw
Draw
C = ((A/B)-1)*F
uw Avg
Weighted avg.
C = ((B-A)*F)+A
ratio
Ratio
C = (A/B)*F
Ratio2
Ratio 2
C = ((B-A)/A)+P*F
Concen
Concentration
C = (A/(A+B))*F
Sunm t
Sum total
C = (tA+tB+P)*F
Sunmgt
Sum grand total
C = (GtA+GtB+P)*F
Dif t
Difference of
total
C = (tA-tB+P)*F
Dif gt
Diff. of grand
total
C = (GtA-GtB+P)*F
Tratio
Total ratio
C = (tA/tB)*F
t-rat2
Total ratio 2
C = ((tB-tA)/tA)*F
T pct
Total percent
C = (tA/(tA+tB))*100
Math Constants (Const)
The Math Constants menu is used to set the
constants used in channel C math. The math
functions include adder constant P, and factor
constant F.
The Adder constant (P) may be set from -99.999 to
999.999.
The Factor constant (F) may be set from 0.001 to
999.999.
The chart on page 46 details the math functions that
may be selected in the Math Function menu.
Low-Flow Cutoff (CutofF)
The low-flow cutoff feature allows the meter to be
programmed so that the often-unsteady output from a
differential pressure transmitter, at low flow rates,
always displays zero on the meter. The low-flow cutoff
for each channel is programmed independently. The
cutoff can be disabled to display negative values.
The cutoff value may be programmed from 0.1 to
999999. The meter will display zero below the cutoff
value. Programming the cutoff value to zero disables
the cutoff feature. The cutoff can be disabled to
display negative values.
Page 47
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
47

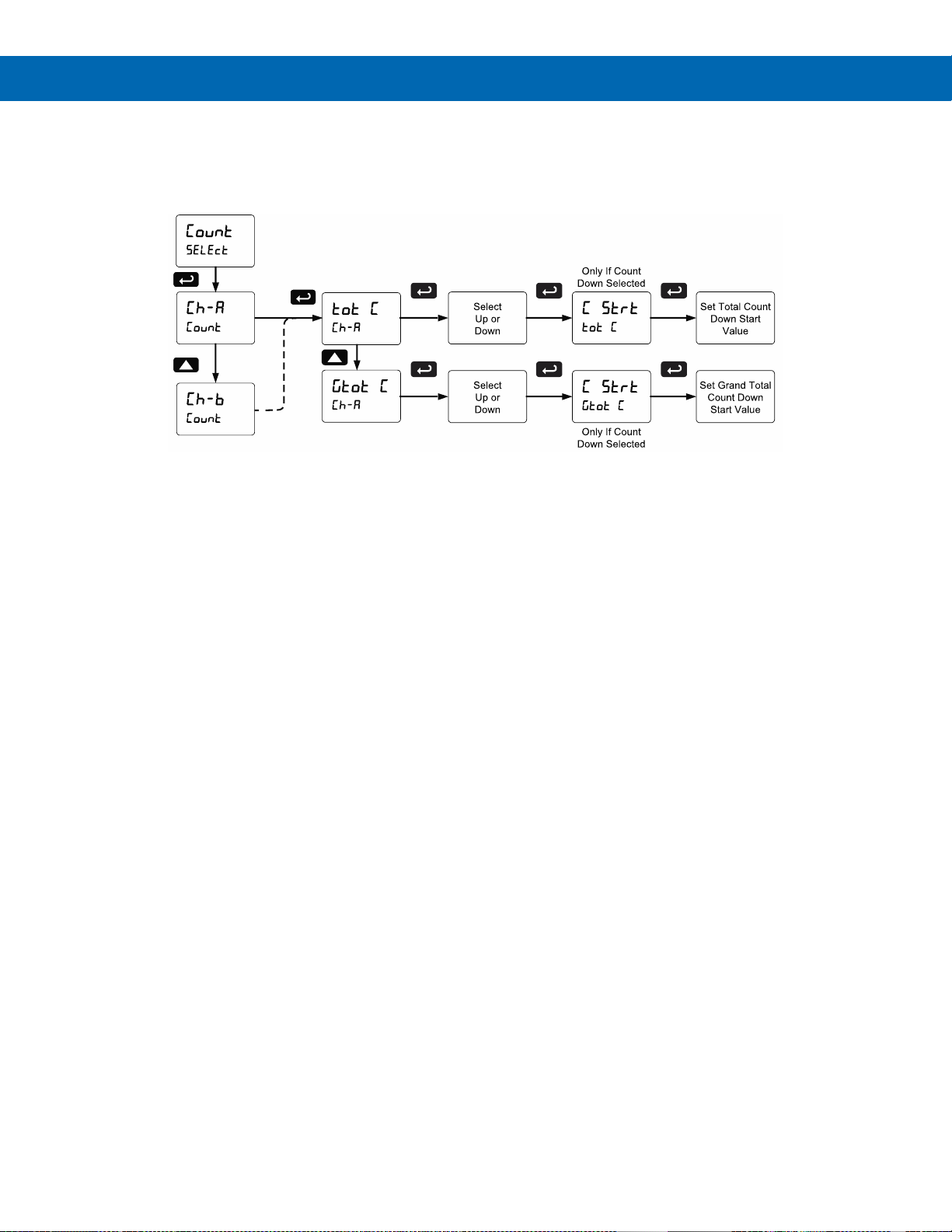

Totalizer Count Up/Down (Count)
The totalizer count up/down menu may be used to program the total and grand total to either count up from 0 when
reset or count down from a programmed value when reset. Total and grand total may have their countdown numbers
programmed individually from 0 to 999999.
Page 48
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
48

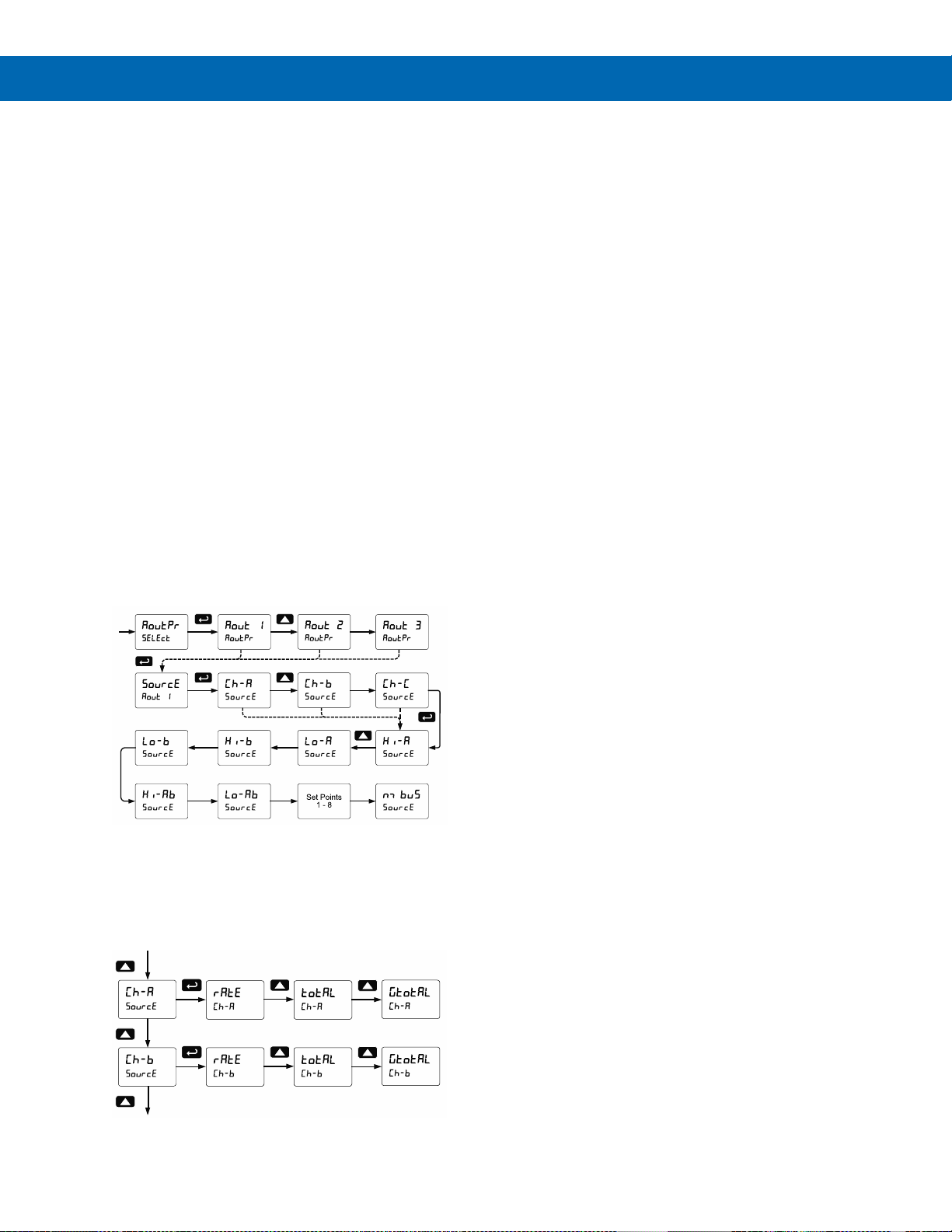

Analog Output Programming (AoutPr)
The Analog Output Programming menu is used to
program the behavior of the 4-20 mA output. The
following parameters and functions are programmed
in this menu:
1. Source: Source for generating the 4-20 mA
output
2. Overrange: Analog output value with display in
overrange condition
3. Underrange: Analog output value with display in
underrange condition
4. Break: Analog output value when loop break is
detected
5. Max: Maximum analog output value allowed
regardless of input
6. Min: Minimum analog output value allowed
regardless of input
Analog Output Source
The analog output source can be based on either of
the input channel rate, total, or grand totals (Ch-A,
Ch-B), the math channel (Ch-C), maximum stored
value of either input channel (Hi-A, Hi-B), minimum
stored value of either input channel (Lo-A, Lo-B),
relay set points, or the Modbus input.
To base an analog output on the rate, total, or grand
total of channels A or B, select the channel in the
Analog Output Source menu. Then select the rate,
total, or grand total as the source reference for the
output, and program the output scale.
Analog Output Value for Loss of 4-20 mA Input (Loop Break)
The AoutPr - Break menu is used to force the analog
output to go to a user-specified mA value if a break
condition is detected in the 4-20 mA input loop.
Selecting Ignore causes the mA output to go to the
minimum value.
Analog Output Calibration
To perform the analog output calibration, it’s
recommended to use a milliamp meter with a
resolution of at least 0.1 µA to measure the output
current. The values saved internally during this
procedure are used for scaling the 4-20 mA output in
the Setup menu.
Analog Output Calibration Procedure
1. Wire the PD6262 4-20 mA output to a current
loop that includes a power supply (internal or
external 12 to 24 VDC), and the mA input on the
digital meter. See Figure 20. 4-20 mA Output
Connections on page 19 for details.
2. Turn on all devices. Allow for a 15 to 30 minute
warm-up.
3. Go to the Advanced Features menu, and
navigate to the Analog Output Programming
(AoutPr) → Calibration (Calib) menu and press
Enter.
4. The display will show 4 nmA. The PD6262 mA
output should now be close to 4 mA. Press Enter
and the display will show 04.000. Enter the actual
value read by the digital mA meter and press
Enter.
5. The display will show 20 nmA. The PD6262 mA
output should now be close to 20 mA. Press
Enter and the display will show 20.000. Enter the
actual value read by the digital mA meter and
press Enter.
6. The meter will now calculate the calibration
factors and store them.
7. Press Menu to exit and return to Run mode.
Page 49
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
49

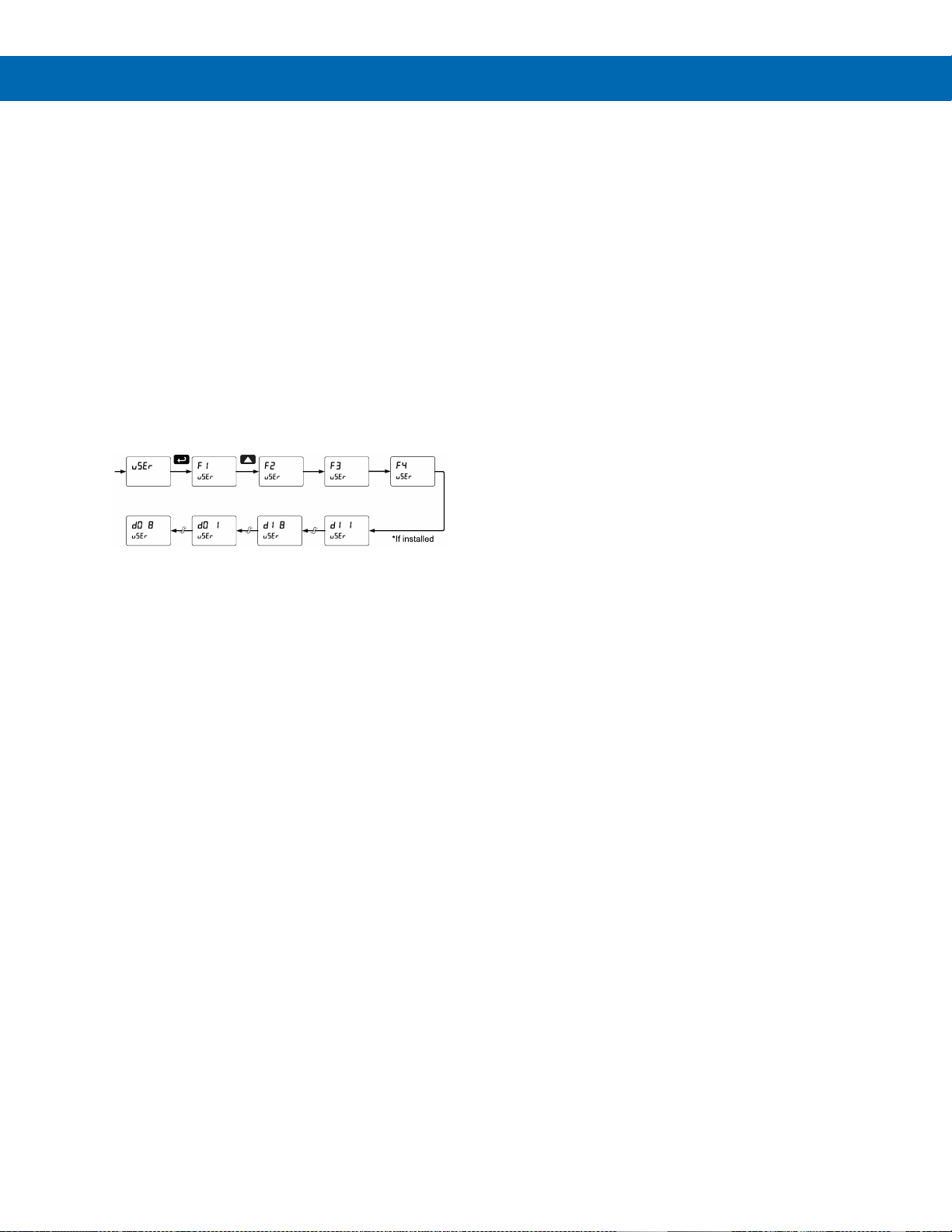

Programmable Function Keys User Menu (user)
The User menu allows the user to assign the front
panel function keys F1, F2, and F3, the digital input
F4 (a digital input located on the input signal
connector), and up to eight additional digital inputs to
access most of the menus or to activate certain
functions immediately (e.g. reset totals, reset max &
min, hold relay states, etc.). This allows the meter to
be greatly customized for use in specialized
applications.
Up to eight digital outputs can be assigned to a
number of actions and functions executed by the
meter (i.e. alarms, relay acknowledgement, reset
totals, reset max, min, or max & min, tare, and reset
tare). The digital outputs can be used to trigger
external alarms or lights to indicate these specific
events.
Page 50
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
50
Function Keys & Digital I/O Available Settings
Refer to the following table for descriptions of each
available function key or digital I/O setting.
Function Keys & Digital I/O Available Settings
Display
Description
Rst Hi
Reset the stored maximum display
values for all channels
Rst Lo
Reset the stored minimum display
values for all channels
Rst HL
Reset the stored maximum &
minimum display values for all
channels
relay
Directly access the relay menu
Set 1*
Directly access the set point menu for
relay 1 (*through 8)
Rly d
Disable all relays until a button
assigned to enable relays (Rly E) is
pressed
Rly E
Enable all relays to function as they
have been programmed
O Hold
Hold current relay states and analog
output as they are until a button
assigned to enable relays (Rly E) is
pressed
d Hold
Hold the current display value, relay
states, and analog output
momentarily while the function key or
digital input is active. The process
value will continue to be calculated in
the background.
D AbC
Scrolls values for A, B & C when
activated. Keeps the last value for 10
seconds and then it returns to its
assignment. Values are displayed on
display line 1 and the corresponding
channel and units on display line 2.
d tot
Scrolls through totals for channels A,
B, and C (which is the sum of A and
B). Values are displayed on display
line 1.
D gtot
Scrolls through grand totals for
channels A, B, and C (which is the
sum of A and B). Values are
displayed on display line 1.
Ln1 Hi
Display maximum channel A display
value on line 1
Ln1 Lo
Display minimum channel A display
value on line 1
Ln1 HL
Display maximum & minimum
channel A display values on line 1
Ln2 Hi
Display maximum channel B display
value on line 2
Ln2 Lo
Display minimum Channel B display
value on line 2
Ln2 HL
Display maximum & minimum
channel B display values on line 2
Function Keys & Digital I/O Available Settings
Display
Description
Ln2 HC
Display minimum channel C display
value on line 2
Ln2 HC
Display maximum & minimum
channel C display values on line 2
LitHLC
Display maximum channel C display
value on line 2
F On 1*
Force relay 1 (*through 4) into the on
state. This function is used in
conjunction with a digital input
expansion module to achieve
interlock functionality. See Setting Up
the Interlock Relay (Force On)
Feature page 39 for details about
interlock relays.
Contrl
Directly access the Manual Control
menu
disabl
Disable the selected function key or
digital I/O
AcH
Acknowledge all active relays that are
in a manual operation mode such as
auto-manual or latching
Reset
Directly access the reset menu
Rst t
Reset totals for all channels
Rst gt
Reset grand totals for all channels
Rst ta
Reset total for channel A
Rst ga
Reset grand total for channel A
Rst tb
Reset total for channel B
Rst gb
Reset grand total for channel B
nmenu
Mimic the menu button functionality
(digital inputs only)
rigHt
Mimic the right arrow/F1 button
functionality (digital inputs only)
up
Mimic the up arrow/F2 button
functionality (digital inputs only)
Enter
Mimic the enter/F3 button
functionality (digital inputs only)
Alnm 1*
Provide indication when alarm 1
(*through 8) has been triggered
(digital outputs only)
Page 51
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
51

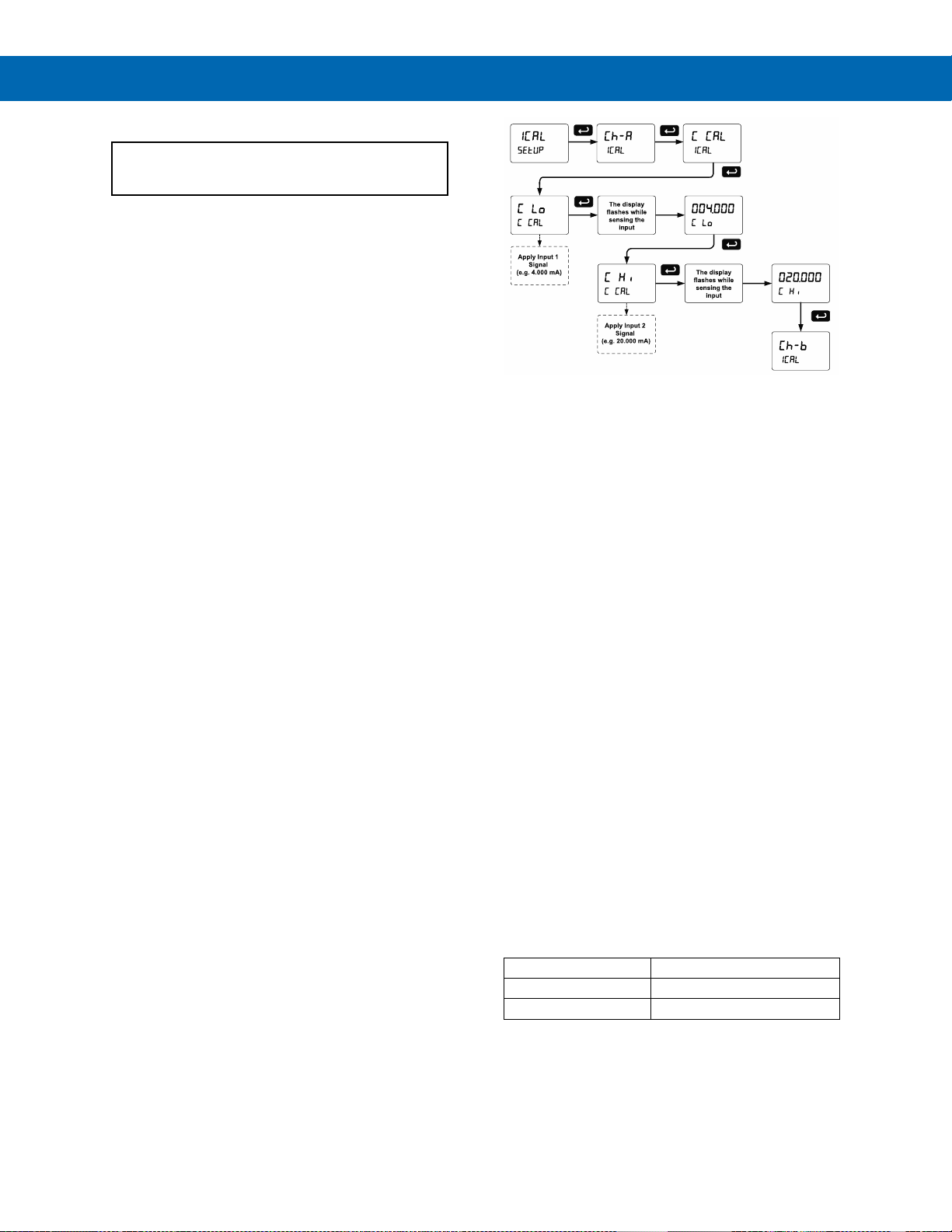

Internal Calibration (ICAL)
The meter is factory calibrated prior to shipment
for milliamps and volts with calibration equipment
that is certified to NIST standards.
The use of calibrated signal sources is necessary to
perform the internal calibration of the meter.
Check calibration of the meter at least every
12 months. Each input and input type must be
recalibrated separately.
Notes:
1. If meter is in operation and it is intended
to accept only one input type (e.g.
4-20 mA), recalibration of other input is
not necessary.
2. Allow the meter to warm up for at least
15 minutes before performing the internal
calibration procedure.
The Internal calibration menu is part of the Advanced
Features menu.
1. Press and hold the Menu button for three
seconds to access the advanced features of the
meter.
2. Press the Up arrow button to scroll to the Internal
calibration menu (ICAL) and press Enter.
3. Select channel A (Ch-A) or channel B (Ch-b) and
press enter.
4. The meter displays either current calibration
(C CAL) or voltage calibration (V CAL), according
to the input setup. Press Enter to start the
calibration process.
Example of Internal Calibration for current
input:
5. The meter displays low input current message
(C lo). Apply the low input signal and press
Enter. The display flashes for a moment while the
meter is accepting the low input signal.
6. After the display stops flashing, a number is
displayed with the leftmost digit brighter than the
rest. The bright digit is the active digit that can be
changed by pressing the Up arrow button. Press
the Right arrow button to move to the next digit.
7. Set the display value to correspond to the input
signal being calibrated, typically 4.000 mA.
8. The display moves to the high input calibration
(C Hi). Apply the high input signal and press
Enter.
9. Set the display for the high input calibration, in
the same way as it was set for the low input
calibration, typically 20.000 mA.
The graphic above shows the calibration of the
current input. The voltage input is calibrated in a
similar way.
Tips:
• Low and high input signals can be any valid
values within the range of the meter.
• Observe minimum input span requirements
between input 1 and input 2.
• Low input should be less than high input
signal.
Error Message (Error)
An error message indicates that the calibration or
scaling process was not successful.
After the error message is displayed, the meter
reverts to input 2 during calibration or scaling and to
input 1 during internal calibration, allowing the
appropriate input signal to be applied or programmed.
The error message might be caused by any of the
following conditions:
1. Input signal is not connected to the proper
terminals, or it is connected backwards.
2. Wrong signal selection in Setup menu.
3. Minimum input span requirements not
maintained.
Minimum Input Span
The minimum input span is the minimum difference
between input 1 and input 2 signals required to complete
the calibration or scaling of the meter.
Input Range
Input 1 & Input 2 Span
4-20 mA
0.15 mA
10 VDC
0.10 VDC
Page 52
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
52
Meter Operation
The meter is capable of accepting two input channels
(A and B) of either current (0-20 mA, 4-20 mA) or
voltage signals (0-5 V, 1-5 V, 0-10 V, 10 V) and
displaying these signals in engineering units from 99999 to 999999 (e.g. a 4-20 mA signal could be
displayed as -50.000 to 50.000). A totalizer can be
programmed to count the scaled engineering units,
interpreting it as count per second, minute, hour, or
day. The scaled rate and total for each channel can
be displayed on the top or bottom displays.
A math function channel (C) is available to perform
operations on channel A and B rates or totals, with
adder and factor constants, and display the results.
Engineering units or tags may be displayed with these
three channels.
The dual-line display can be customized by the user.
Typically, display line 1 is used to display the math
channel C, while line 2 is used to alternate between
displaying input channels A and B rate or total.
Additionally, the meter can be set up to display any
input or math channel on line 1 and a unit or tag on
line 2. The relays and analog output can be
programmed to operate based on any input or math
channel.
Front Panel Buttons Operation
Button
Symbol
Description
Press to enter or exit Programming
Mode, view settings, or exit max/min
readings
Press to reset max/min readings or
other parameter/function assigned
through the User menu
Press to display max/min readings or
other parameter/function assigned
through the User menu
Press to acknowledge relays or other
parameters/function assigned through
the User menu
Function Keys Operation
During operation, the programmable function keys
operate according to the way they have been
programmed in the Advanced Features – User menu.
See Programmable Function Keys User Menu (user)
on page 49 for details.
The table above shows the factory default settings for
F1, F2, and F3.
F4 Operation
A digital input, F4, is standard on the meter. This
digital input is programmed identically to function keys
F1, F2, and F3. The input is triggered with a contact
closure to COM, or with an active low signal. During
operation, F4 operates according to the way is has
been programmed in the Advanced Features – User
menu. See Programmable Function Keys User Menu
(user) on page 49 for details.
Maximum/Minimum Readings
The max & min readings (peak & valley) reached by
the process can be displayed either continuously or
momentary:
1. Display briefly by assigning to the F1-F3
function keys or to the digital inputs in the
User menu.
2. Display continuously by assigning either
display to max/min through the Display
menu.
Any of the F1-F3 function keys (buttons) and the
digital inputs can be programmed to reset the max &
min readings. The meters are set at the factory to
display the max/min reading by pressing the Up
arrow/F2 button and to use the Right arrow/F1 button
to reset the max/min.
To display max and min channel A reading using
function key with factory defaults:
1. Press Up arrow/F2 button to display minimum
reading of channel A since the last reset/powerup. The display will then display the maximum
reading of channel A since the last reset/powerup.
2. To reset max/min press Right arrow/F1 button.
The max & min displays are reset to actual
values.
3. Press Menu to exit max/min display reading.
Page 53
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
53
Troubleshooting
The rugged design and the user-friendly interface of
the meter should make it unusual for the installer or
operator to refer to this section of the manual.
However, due to the many features and functions of
the meter, it’s possible that the setup of the meter
does not agree with what an operator expects to see.
If the meter is not working as expected, refer to the
Diagnostics menu and recommendations below.
Diagnostics Menu (diag)
The Diagnostics menu is located in the Advanced
Features menu. To access the Diagnostics menu, see
Advanced Features Menu on page 42.
This menu allows the user to test the functionality of
all the meter LEDs, check the meter’s software and
version information, and erase the MeterView Pro
software installation files from the meter. Press the
Enter button to view the settings and the Menu button
to exit at any time.
For a description of the diagnostic messages, see
Advanced Features Menu & Display Messages on
page 42.
Testing the Display LEDs
To test all LEDs on the display:
1. Go to the Diagnostics menu (diAG) and
press Enter button.
2. Press Up arrow button and scroll to
LED Test menu (led t)
3. Press the Enter button to activate the LED
Test. The meter will cycle through all digits,
decimal points, and relay indicators to
enable the operator to check that all LEDs
are functioning properly.
4. Press the Enter button again to access the
Information menu (info) or press the Menu
button to return to Run Mode.
Determining Software Version
To determine the software version of a meter:
1. Go to the Diagnostics menu (diAG) and
press Enter button.
2. Press Up arrow button and scroll to
Information menu (Info).
3. Press Enter to access the software number
(SFT) and version (UER) information. Write
down the information as it is displayed.
Continue pressing Enter until all the
information is displayed.
4. The meter returns to Run Mode after
displaying all the settings.
Reset Meter to Factory Defaults
When the parameters have been changed in a way
that is difficult to determine what’s happening, it might
be better to start the setup process from the factory
defaults.

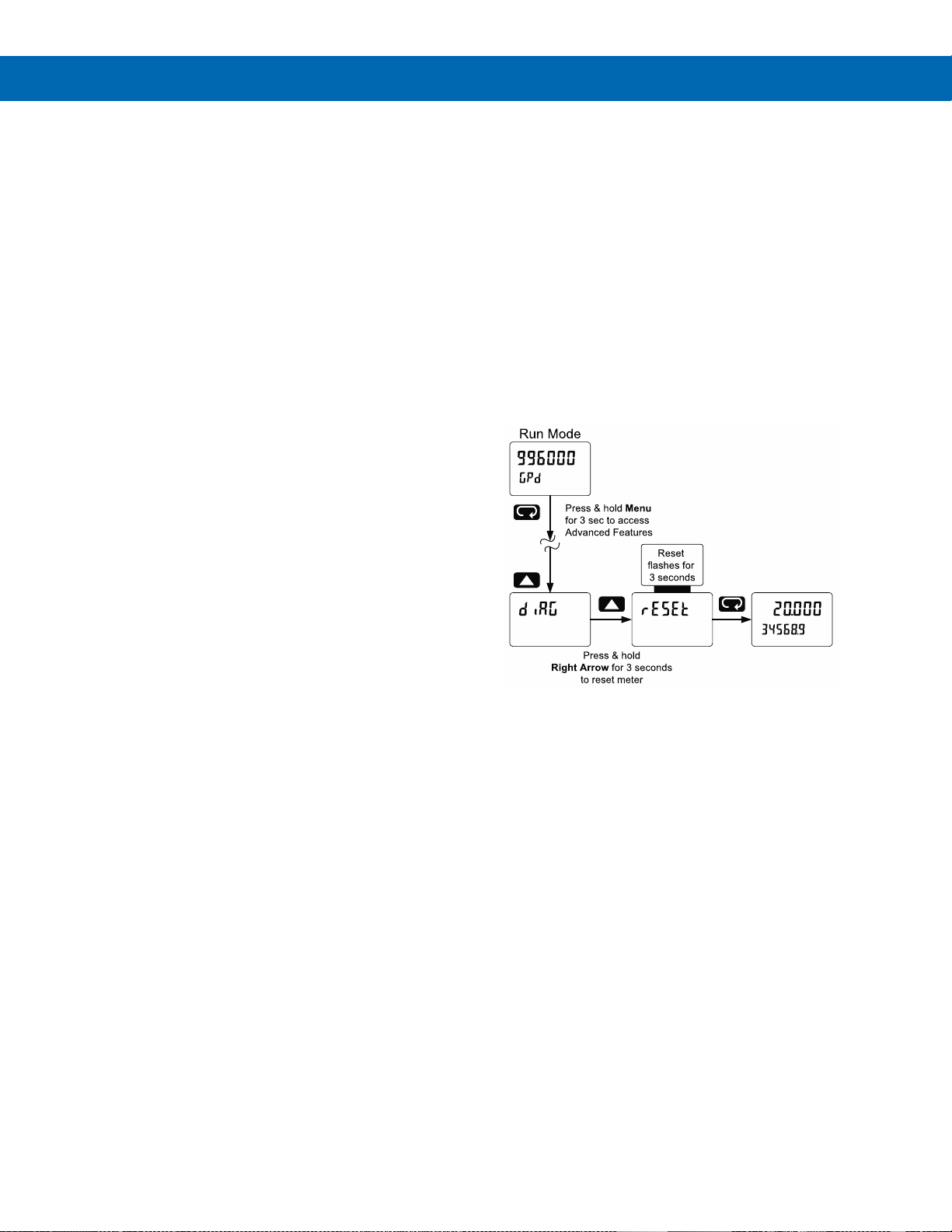

Instructions to load factory defaults:
1. Enter the Advanced Features menu. See
Advanced Features Menu, page 42.
2. Press Up arrow to go to Diagnostics menu
3. Press and hold Right arrow for three seconds,
press Enter when display flashes reset.
Note: If Enter is not pressed within three
seconds, the display returns to Run Mode.
4. The meter goes through an initialization
sequence (similar as on power-up), and loads the
factory default settings.
Page 54
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
54
Factory Defaults & User Settings
The following table shows the factory setting for most
of the programmable parameters on the meter.
Factory Defaults & User Settings
Parameter
Display
Default Setting
Input type
Input
Input type, channel A
Ch-A
4-20 mA
Input type, channel B
Ch-B
4-20 mA
Total, channel A
Ch-A
Yes
Total, channel B
Ch-B
Yes
Units
units
Rate unit, channel A
Ch-A
mA-A
Rate unit, channel B
Ch-B
mA-b
Unit, channel C
Ch-C
mA-C
Total unit, channel A
Tot-A
tot-A
Grand total unit, ch-A
Gtot-A
Gtot-A
Total unit, channel B
Tot-b
tot-b
Grand total unit, ch-B
Gtot-b
Gtot-B
Decimal Point
Dec pt
Rate, channel A
rate
3
Total, channel A
Total
1
Grand total, channel A
gtotal
0
Rate, channel B
rate
3
Total, channel B
Total
1
Grand total, channel B
gtotal
0
Channel C
Ch-C
3
Number of points
No pts
Number of points, ch A
Ch-A
2
Number of points, ch B
Ch-B
2
Scaling, (channel A)
Scal a
Input 1, channel A
InP 1
4.000 mA
Display 1, channel A
Dis 1
4.000
Input 2, channel A
InP 2
20.000 mA
Display 2, channel A
Dis 2
20.000
Scaling (channel B)
Scal b
Input 1, channel B
InP 1
4.000 mA
Display 1, channel B
Dis 1
4.000
Input 2, channel B
InP 2
20.000 mA
Display 2, channel B
Dis 2
20.000
Total setup
Tsetup
Time base, channel A
Tbase
Sec
Total conversion factor,
Ch-A
T CF
1.000
Grand total conversion
factor, Ch-A
Gt CF
1.000
Time base, channel B
Tbase
Sec
Factory Defaults & User Settings
Parameter
Display
Default Setting
Total conversion factor,
Ch-B
T CF
1.000
Grand total conversion
factor, Ch-B
Gt CF
1.000
Total reset
Treset
Total reset, channel A
T rst
Manual
Grand total reset, Ch-A
Gt rst
Manual
Total reset, channel B
T rst
Manual
Grand total reset, Ch-B
Gt rst
Manual
Display assignment
Dsplay
Display line 1
D Ch-A
Channel A
Display line 2
d Ch-B
Channel B
Display intensity
d-Inty
6
Relay
Relay
Relay 1 assignment
Ch-A
Channel A total
Relay 1 action
Act 1
Automatic
Relay 1 set point
Set 1
100.0
Relay 2 assignment
Ch-A
Channel A total
Relay 2 action
Act 2
Automatic
Relay 2 set point
Set 2
200.0
Relay 3 assignment
Ch-A
Channel A rate
Relay 3 action
Act 3
Automatic
Relay 3 set point
Set 3
3.000
Relay 3 reset point
RSt 3
2.500
Relay 4 assignment
Ch-A
Channel A rate
Relay 4 action
Act 4
Automatic
Relay 4 set point
Set 4
4.000
Relay 4 reset point
RSt 4
3.500
Fail-safe relay 1 to 4
Fls 1
Off
On delay relay 1 to 4
On 1
0.0 sec
Off delay relay 1 to 4
Off 1
0.0 sec
Loop break relay 1 to 4
ignore
Ignore
Analog output
Aout
Display 1 analog out
Dis 1
4.000
Output 1 value
Out 1
4.000 mA
Display 2 analog out
Dis 2
20.000
Output 2 value
Out 2
20.000 mA
Source analog output
Source
Channel A
Overrange output
O-rang
21.000 mA
Underrange output
u-rang
3.000 mA
Loop break output
break
3.000 mA
Maximum output
nmAx
23.000 mA
Minimum output
nmin
3.000 mA
Filter
Filter
Page 55
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
55
Factory Defaults & User Settings
Parameter
Display
Default Setting
Filter, channel A
Ch-A
70
Filter, channel B
Ch-B
70
Bypass, channel A
bypass
0.2
Bypass, channel B
bypass
0.2
Round
Round
1
Cutoff
Cutoff
Cutoff value, channel A
Ch-a
0.0 (disabled)
Cutoff value, channel B
Ch-b
0.0 (disabled)
Serial
Serial
Slave ID (Address)
SlaVId
247
Baud rate
baud
9600
Transmit delay
Tr dly
50 ms
Parity
Parity
Even
Byte-to-byte timeout
t-byt
010 (0.1 sec)
Math
nmath
Math, channel C
Sunm
Sum
Adder (constant P)
Adder
0.000
Factor (constant F)
Factor
1.000
User
user
F1 function key
F1
Reset max & min
F2 function key
F2
Line 1 Max & Min
F3 function key
F3
Acknowledge relays
F4 function
(digital input)
F4
Acknowledge relays
Digital input 1
DI 1
Menu
Digital input 2
DI 2
Right arrow
Digital input 3
DI 3
Up arrow
Digital input 4
DI 4
Enter
Digital output 1
DO 1
Alarm 1
Digital output 2
DO 2
Alarm 2
Digital output 3
DO 3
Alarm 3
Digital output 4
DO 4
Alarm 4
Password
pass
Password 1
Pass 1
000000 (unlocked)
Password 2
Pass 2
000000 (unlocked)
Password 3
Pass 3
000000 (unlocked)
Total
Total
000000 (unlocked)
Grand total
gtotal
000000 (unlocked)
Page 56
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
56
Troubleshooting Tips
This meter is a highly sophisticated instrument with an extensive list of features and capabilities. If the front panel
buttons are used to program the meter, it may be a difficult task to keep everything straight. That is why we strongly
recommend the use of the free MeterView Pro software for all programming activities. A USB cable is provided with
the meter for programming with MeterView Pro software.
If you have programmed the meter with the front panel buttons and it is not working as intended, try re-programming
the meter using MeterView Pro software.
Symptom
Check/Action
No display at all
Check power at power connector
Not able to change setup or
programming, Locd is displayed
Meter is password-protected, enter correct six-digit password to unlock
Meter does not respond to input
change
If a Low-Flow Cutoff Value has been programmed, the meter will
display zero below that point, regardless of the input – which can
appear like the meter is not responding to an input change. Check to
make sure the problem is not being caused by an undesired low-flow
cutoff value.
To prevent the display from showing a negative value, set the low-flow
cutoff to a value greater than zero.
Meter displays error message during
calibration (Error)
Check:
1. Signal connections
2. Input selected in Setup menu
3. Minimum input span requirements
Meter displays
1. 999999
2. -99999
Check:
1. Input selected in Setup menu
2. Corresponding signal at Signal connector
Display is unstable
Check:
1. Input signal stability and value
2. Display scaling vs. input signal
3. Filter and bypass values (increase)
Display response is too slow
Check filter and bypass values
Display reading is not accurate
Check:
1. Input signal conditioner selected: Linear, square root, etc.
2. Scaling or calibration
Display does not respond to input
changes, reading a fixed number
Check:
1. Display assignment, it might be displaying max, min, or set point.
Display alternates between
1. Hi and a number
2. Lo and a number
Press Menu to exit max/min display readings.
Relay operation is reversed
Check:
1. Fail-safe in Setup menu
2. Wiring of relay contacts
Relay and status LED do not
respond to signal
Check:
1. Relay action in Setup menu
2. Set and reset points
Flashing relay status LEDs
Relays in manual control mode or relay interlock switches opened.
Meter not communicating with
application programs
Check:
1. Serial adapter and cable
2. Serial settings
3. Meter address and baud rate
If the display locks up or the meter
does not respond at all
Cycle the power to reboot the microprocessor.
Other symptoms not described above
Call Technical Support for assistance.
Note: Certain sequences of events can cause unexpected results. To solve these issues, it is best to start fresh from
factory defaults and use the manual as a step by step programming guide, rather than a random approach to
programming. To reset the meter to factory defaults, see Reset Meter to Factory Defaults on page 53. In addition, for
best results, we recommend using the free MeterView Pro software for all programming needs
Page 57
PROVU™ PD6262 Dual Analog Input Rate/Totalizer
Instruction Manual
PRECISION DIGITAL CORPORATION
233 South Street • Hopkinton MA 01748 USA
Tel (800) 343-10 01 • Fax (508) 655-8990
www.predig.com
LIM6262_H
SFT065 Ver 4.010 & up
02/22
Contact Precision Digital
Technical Support
Call: (800) 610-5239 or (508) 655-7300
Fax: (508) 655-8990
Email: [email protected]
Sales Support
Call: (800) 343-1001 or (508) 655-7300
Fax: (508) 655-8990
Email: [email protected]
Place Orders
Email: [email protected]
For the latest version of this manual please visit
www.predig.com
Loading...
