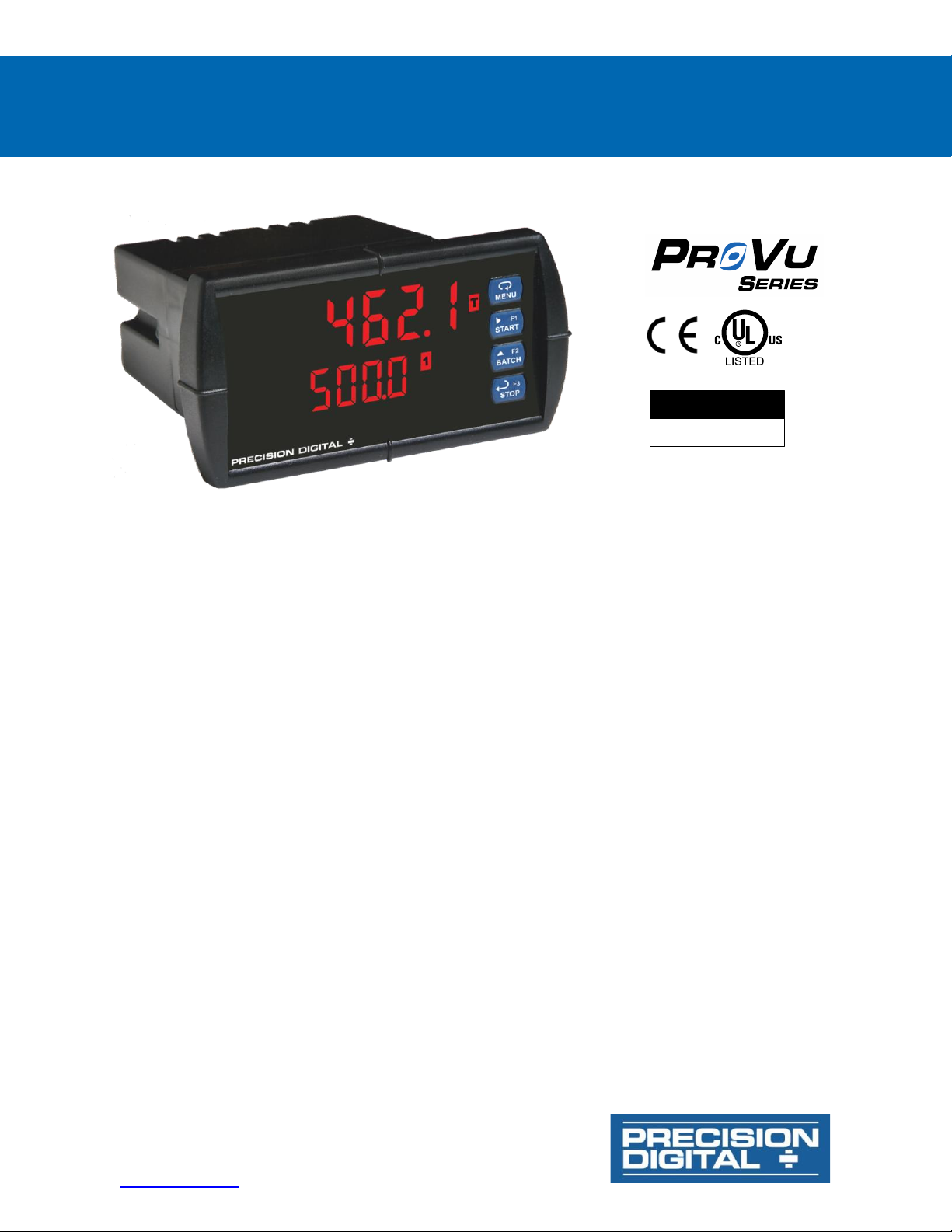

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

PRECISION DIGITAL CORPORATION

233 South Street • Hopkinton MA 01748 USA Tel (800) 343-1001 • Fax (508) 655-8990

www.predig.com

• 1/8 DIN Digital Batch Controllers with NEMA 4X, IP65 Front

• 0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V Inputs with ±0.03% Accuracy

• Dual-Line 6-Digit Display, 0.6" (15 mm) & 0.46" (12 mm)

• Isolated 24 VDC @ 200 mA Transmitter Power Supply

• 2 or 4 Relays with Interlocking Capability + Isolated 4-20 mA Output Options

• Free PC-Based, On-Board, MeterView Pro USB Programming Software

• No Assembly Required

• Start / Pause / Stop, Change Batch with Front Panel Buttons

• Display Batch Total, Rate, Grand Total, Count or Preset

• Single or Multi-Stage Batch Control (Up to 8 Relays)

• Automatic Overrun Correction

• Automatic or Manual Batch Control

• Low or High Flow Alarms while Batching

• 9 Digit Grand Total with Overflow Feature

• Count Up or Down, Independent for Batch & Grand Total

• Optional SunBright Display Models for Outdoor Applications

• Operating Temperature Range: -40 to 65°C (-40 to 149°F)

• UL & C-UL Listed. E160849; 508 Industrial Control Equipment

• Input Power Options: 85-265 VAC / 90-265 VDC or 12-24 VDC / 12-24 VAC

• Programmable Display, Function Keys & Digital Input

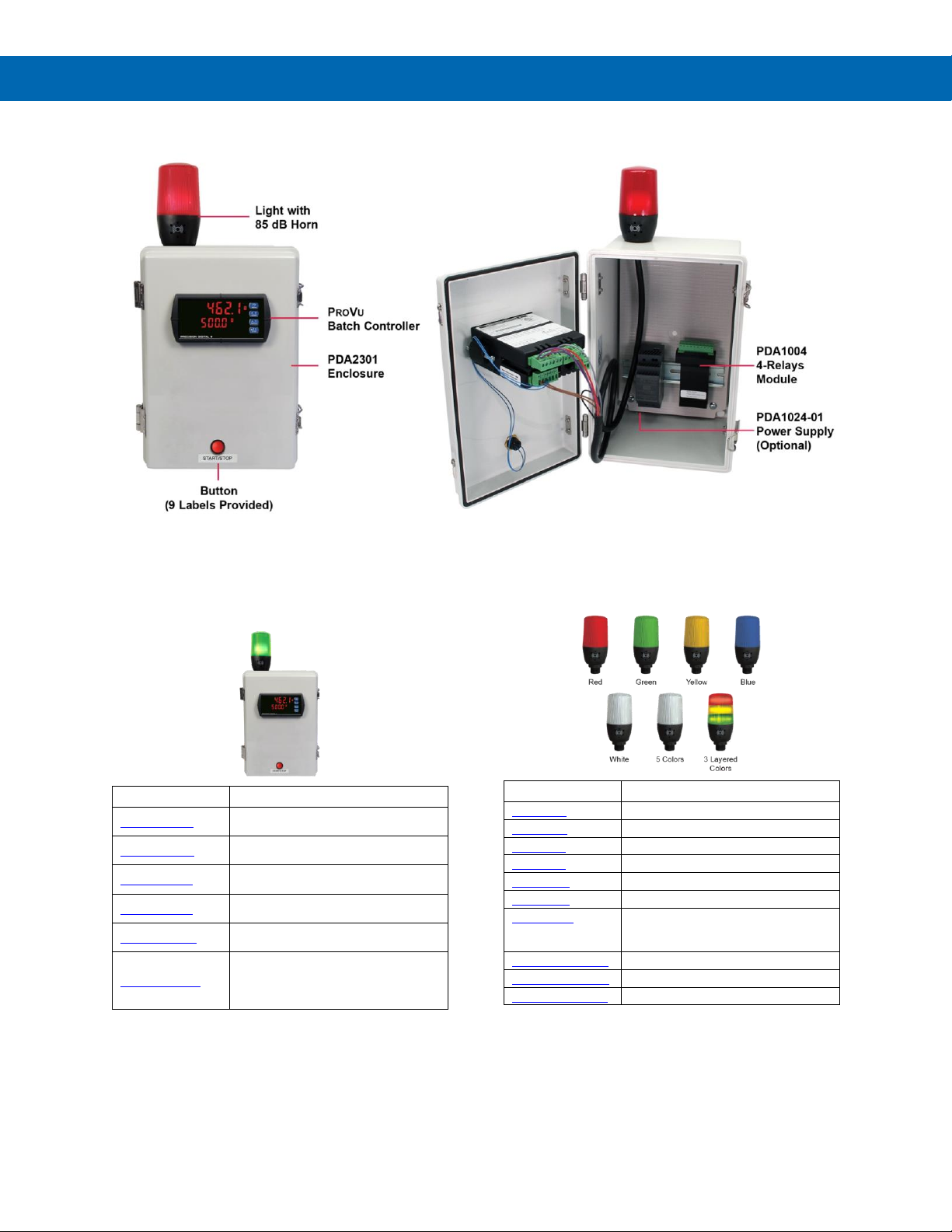

• Wide Assortment of NEMA 4X Enclosures for up to Ten Batch Controllers

• Light / Horn & Button Accessories

• Control Station Accessory for Remote Operation

• 3-Year Warranty

MeterView Pro

USB Install

Page 2

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Disclaimer

The information contained in this document is subject to change without notice. Precision Digital makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose. See Warranty Information and Terms & Conditions on www.predig.com for complete details.

• Read complete instructions prior to installation and operation of the controller.

• Risk of electric shock or personal injury.

• This product is not recommended for life support

applications or applications where malfunctioning could result in personal injury or property loss. Anyone using this product for such applications does so at his/her own risk. Precision Digital Corporation shall not be held liable for damages resulting from such improper use.

WARNING

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Limited Warranty

Precision Digital Corporation warrants this product against defects in material or workmanship for the specified period under

“Specifications” from the date of shipment from the factory. Precision Digital’s liability under this

limited warranty shall not exceed the purchase value, repair, or replacement of the defective unit. See Warranty Information and Terms & Conditions on www.predig.com for complete details.

Registered Trademarks

All trademarks mentioned in this document are the property of their respective owners.

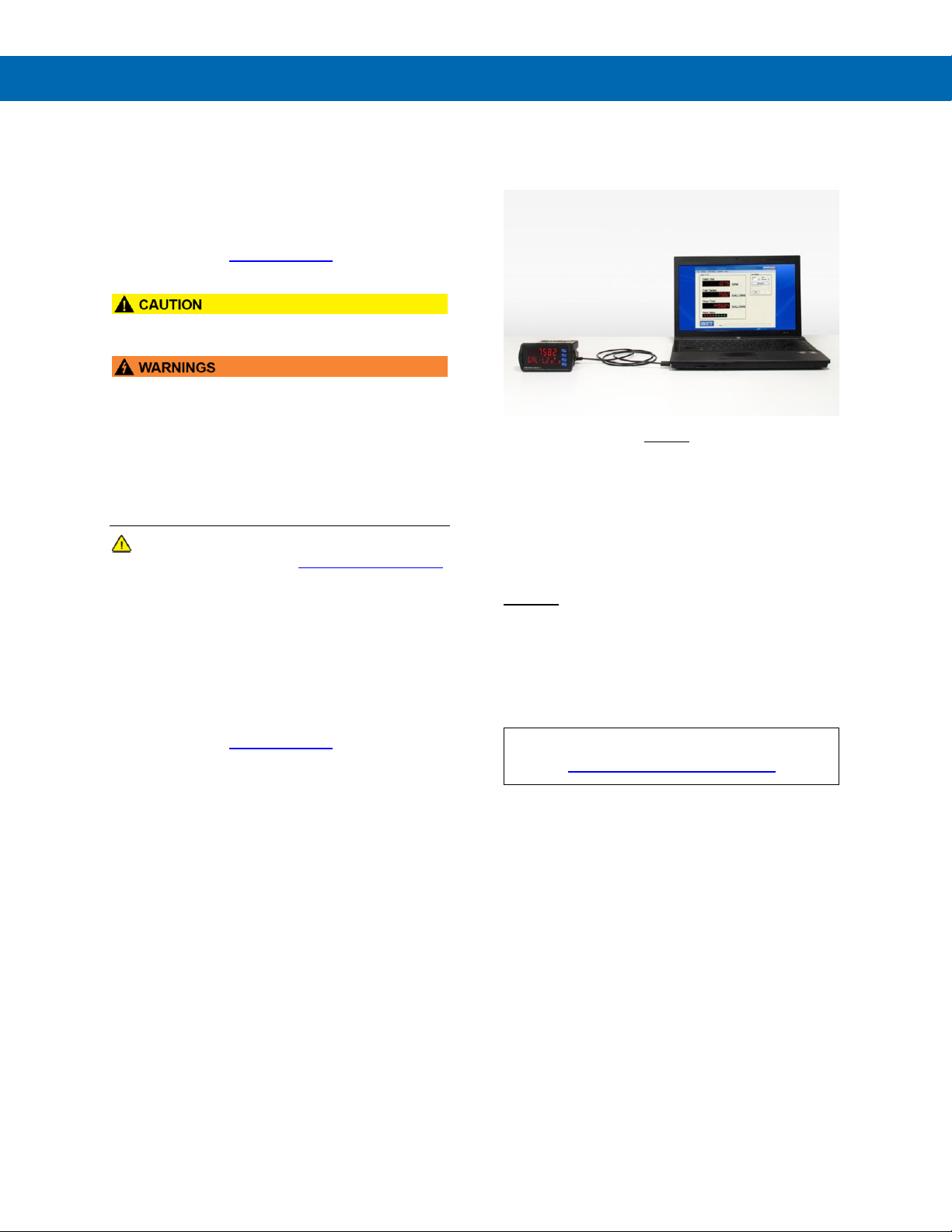

FREE MeterView Pro Programming Software

The controller can be powered from the USB connection. When using the USB connection, DO NOT apply AC or DC power to the controller.

The easiest and quickest way to program your PROVU batch controller is to use the FREE MeterView Pro programming software. This software is loaded into the controller and connects and installs directly to your PC with a USB cable. We recommend that the first thing you do after taking the controller out of the box is connect the PROVU to your PC with the provided USB cable – do not use a different cable. DO NOT apply AC or DC power to the controller while your PC is connected to the controller as it will disrupt

the USB connection. You don’t even have to apply an

input signal. MeterView Pro programming software is intuitive, and

most customers can get their controller programmed as they like without even looking in the manual.

Watch MeterView Pro Software Video at

www.predig.com/meterviewpro

In addition to programming, the software may be used to perform many useful tasks:

• Start, Pause, Stop the batch

• Change preset & pre-close settings

• Reset total & grand total

• Test the relays functionality

• Monitor the batch process

• Datalogging using your PC

• Generate & save program files for later use

Once your controller is programmed the way you want it, you can wire it up for your application per the instructions in this manual and install it. If you find that you need to make adjustments to the programming after the controller is installed, you can use the front panel buttons and the instructions in this manual to do so.

Page 3

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Table of Contents

Introduction .......................................................................................................... 6

Ordering Information ........................................................................................... 6

Specifications..................................................................................................... 10

General ........................................................................................................... 10

Batch Controller Rate/Totalizer Display ...................................................... 11

Process Input ................................................................................................. 12

Relays ............................................................................................................. 12

Isolated 4-20 mA Transmitter Output .......................................................... 13

USB Connection ............................................................................................ 13

On-Board Digital Input (F4) ........................................................................... 13

Modbus® RTU Serial Communications ........................................................ 13

MeterView Pro Software ................................................................................ 13

Compliance Information .................................................................................... 14

Safety .............................................................................................................. 14

Electromagnetic Compatibility ..................................................................... 14

EU Declaration of Conformity ........................................................................... 14

Safety Information ............................................................................................. 14

Installation .......................................................................................................... 14

Unpacking ...................................................................................................... 14

Panel Mounting Instructions ........................................................................ 15

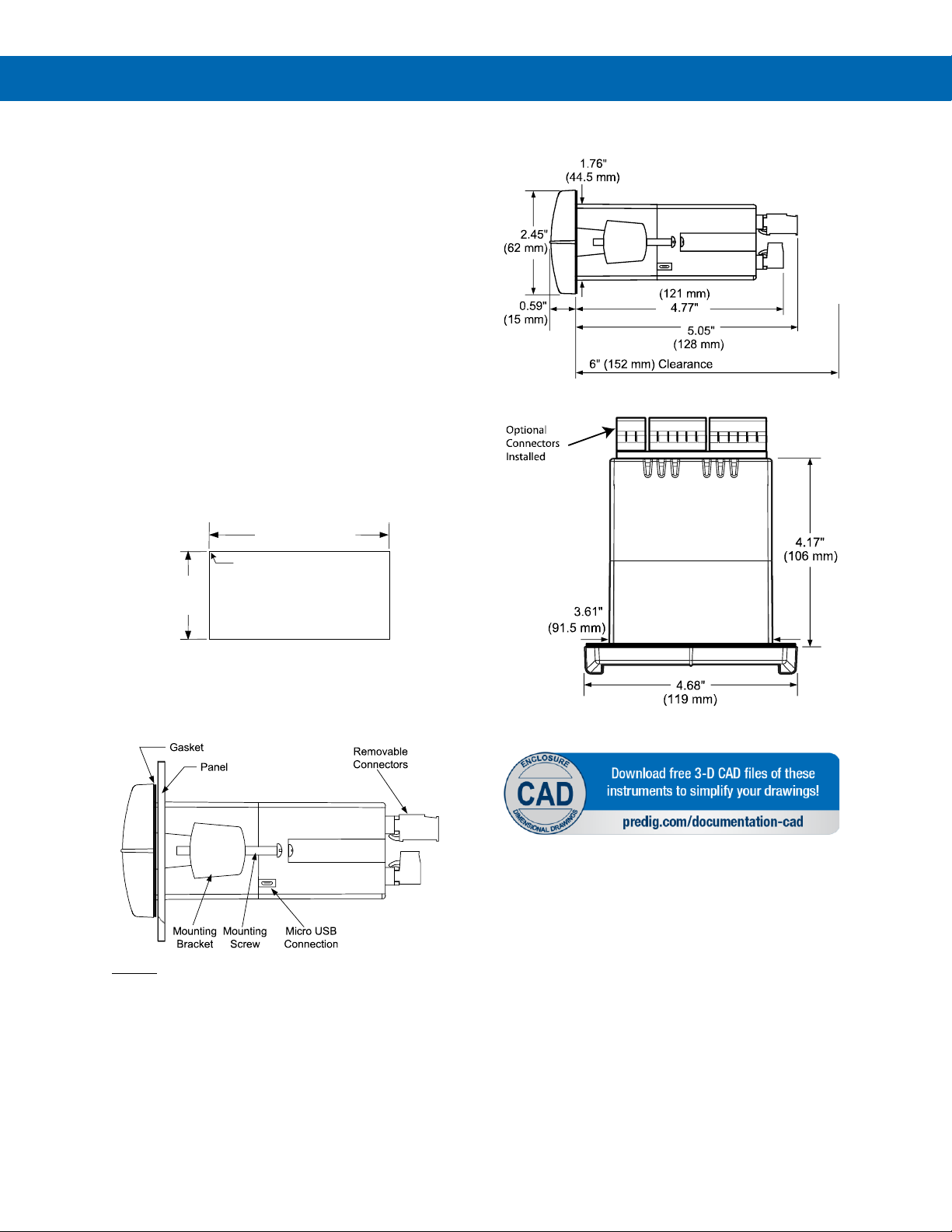

Mounting Dimensions .................................................................................. 15

Installation Overview ..................................................................................... 16

MeterView Pro Software ................................................................................ 16

MeterView Pro Installation........................................................................... 16

Transmitter Supply Voltage Selection (P+, P-) ........................................... 17

Connections ................................................................................................... 17

Connectors Labeling ................................................................................... 17

Power Connections ..................................................................................... 18

Signal Connections ..................................................................................... 18

Modbus RTU Serial Communications ......................................................... 18

Relay Connections ...................................................................................... 18

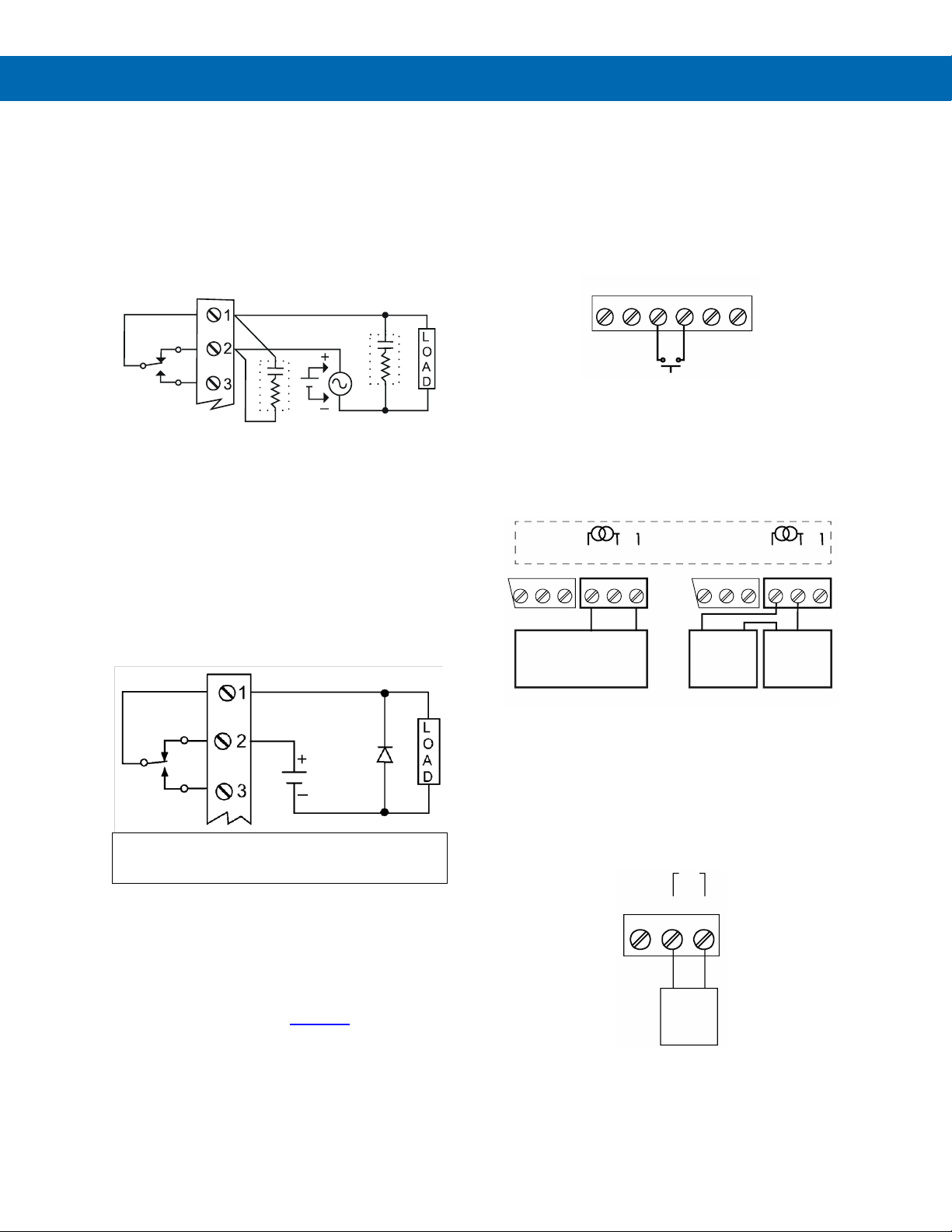

Switching Inductive Loads ........................................................................... 19

F4 Digital Input Connections ....................................................................... 19

4-20 mA Output Connections ...................................................................... 19

Analog Output Transmitter Power Supply ................................................... 19

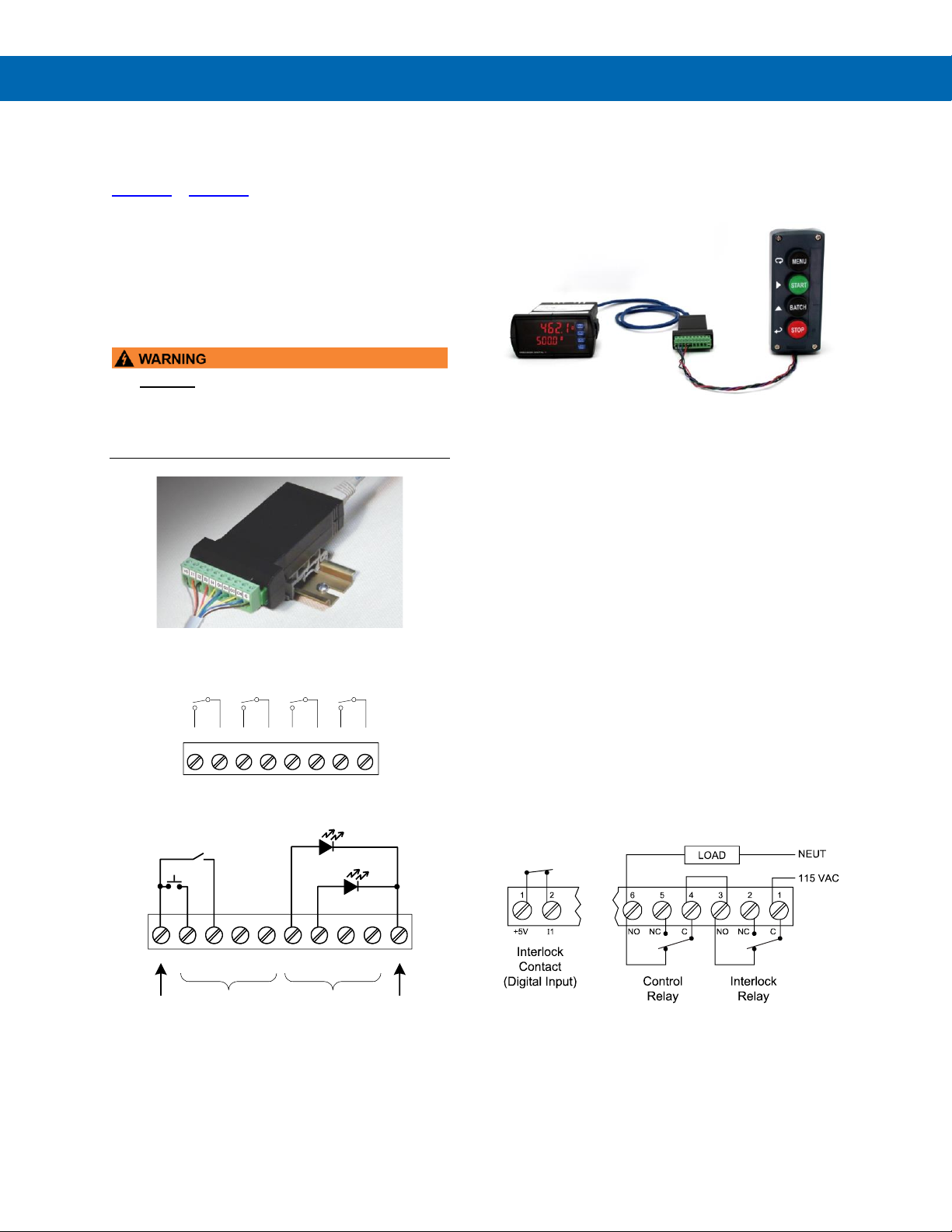

External Relay & Digital I/O Connections .................................................... 20

Remote Batch Control Connections ............................................................ 20

Interlock Relay Feature ............................................................................... 20

Setup & Programming ....................................................................................... 21

Overview ......................................................................................................... 21

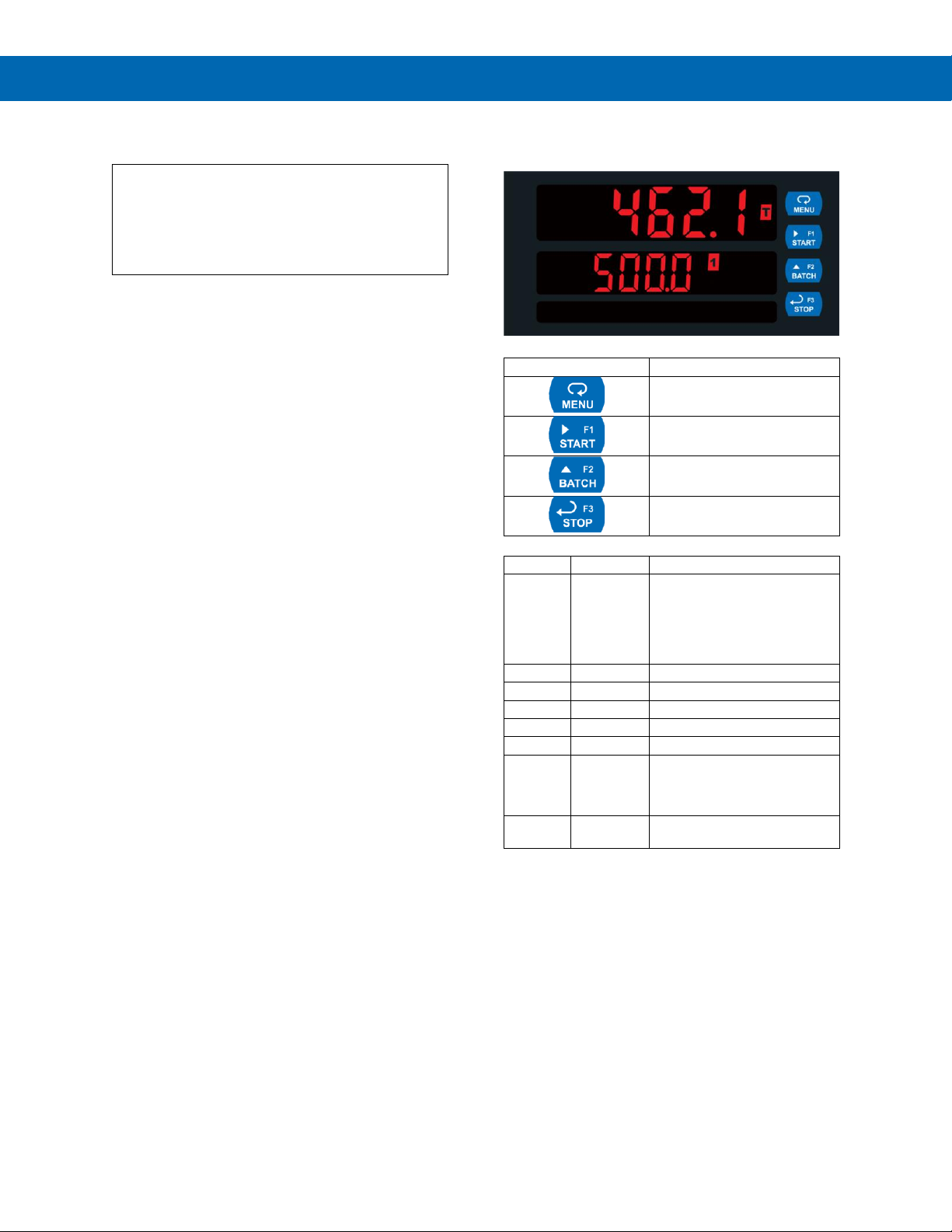

Front Panel Buttons and Status LED Indicators ........................................ 21

Display Functions and Messages ................................................................ 22

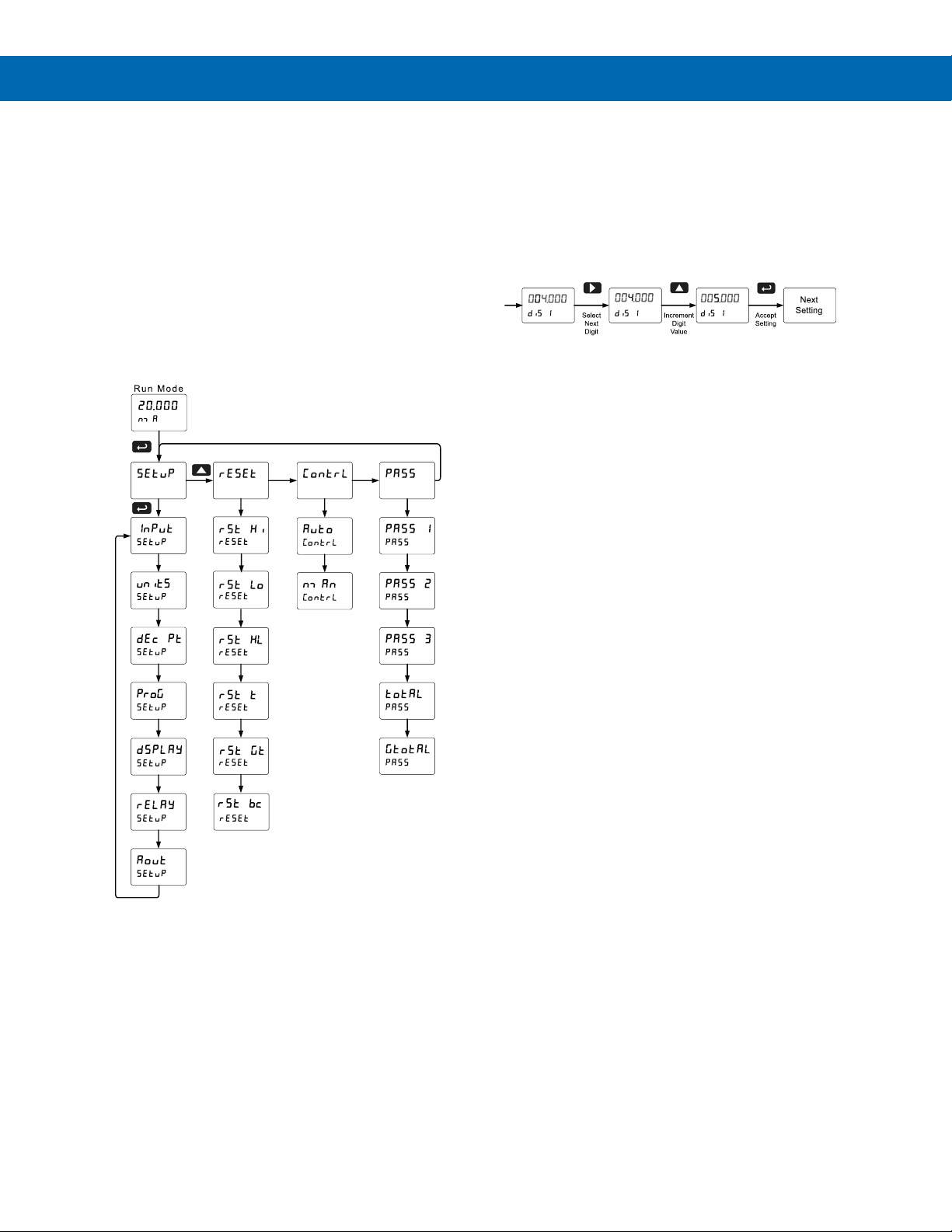

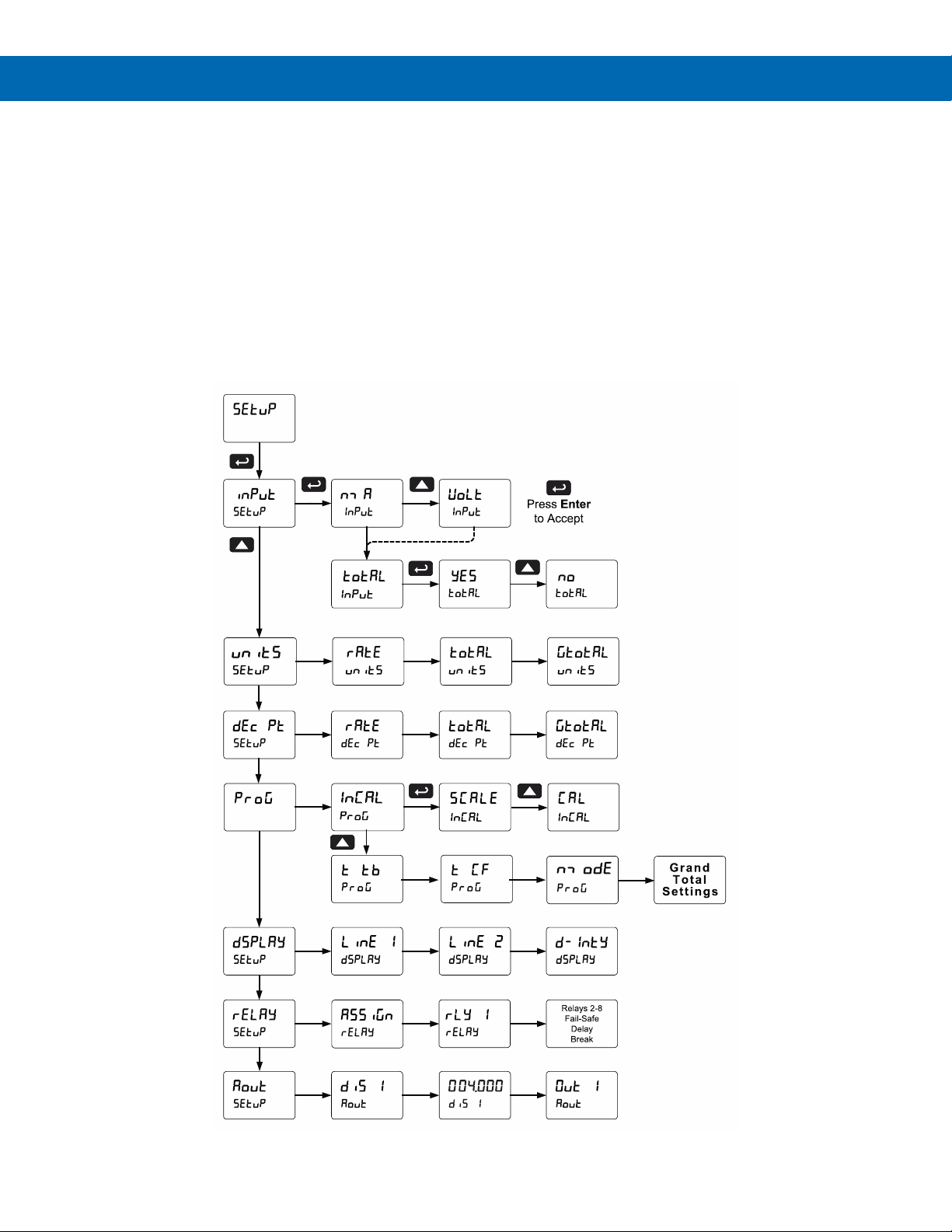

Main Menu ...................................................................................................... 24

Setting Numeric Values ................................................................................ 24

Setting Up the Batch Controller (setup) ...................................................... 25

Setting the Input Signal (Input) .................................................................. 26

Setting the Totalizer & Batch Control Features (total).............................. 26

Setting the Input Units or Custom Tags (units) ......................................... 26

Setting the Decimal Point (dEc pt)............................................................. 27

Programming the Batch Controller (prog)................................................... 27

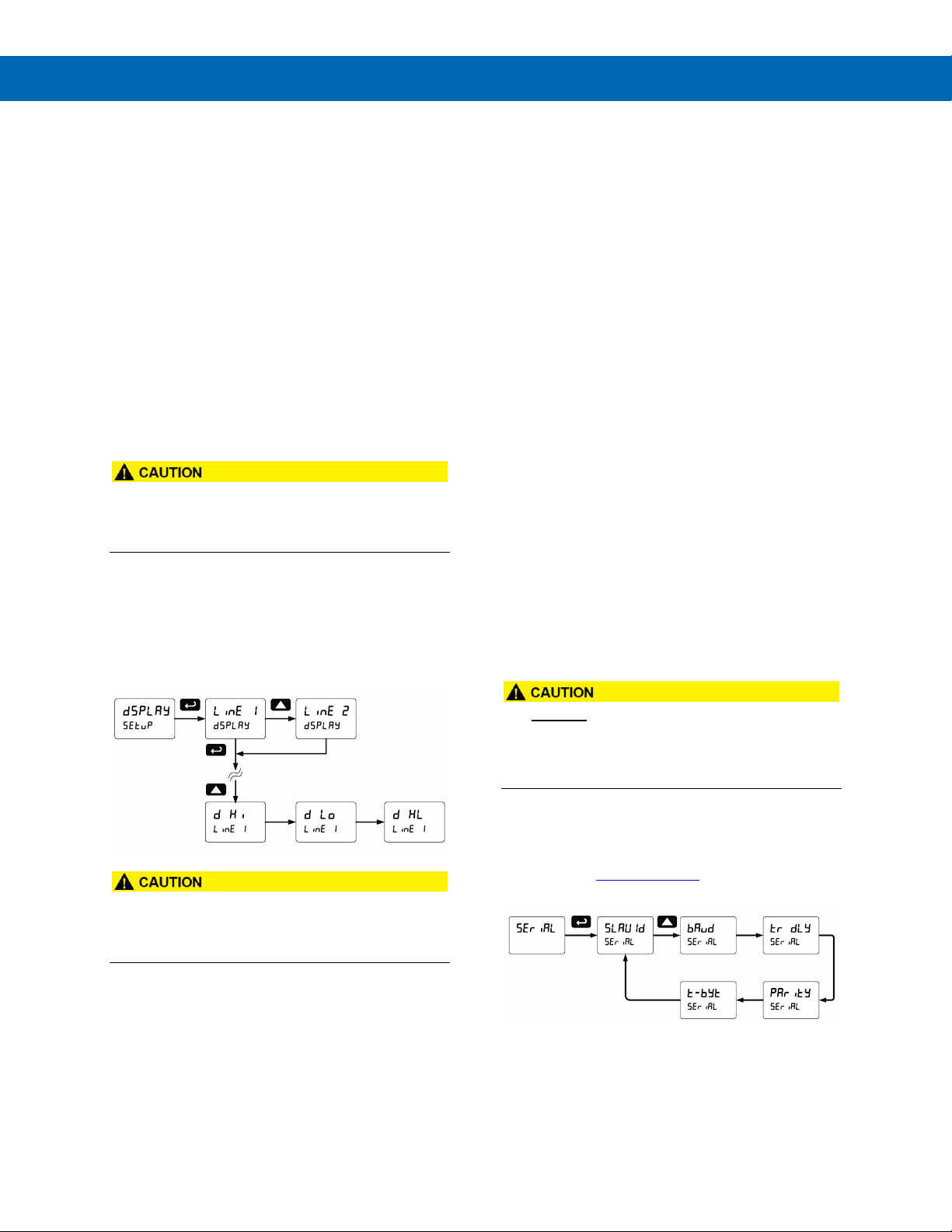

Setting the Display Parameter & Intensity (dsplay) ................................... 30

Display Intensity (d-Inty) ........................................................................... 30

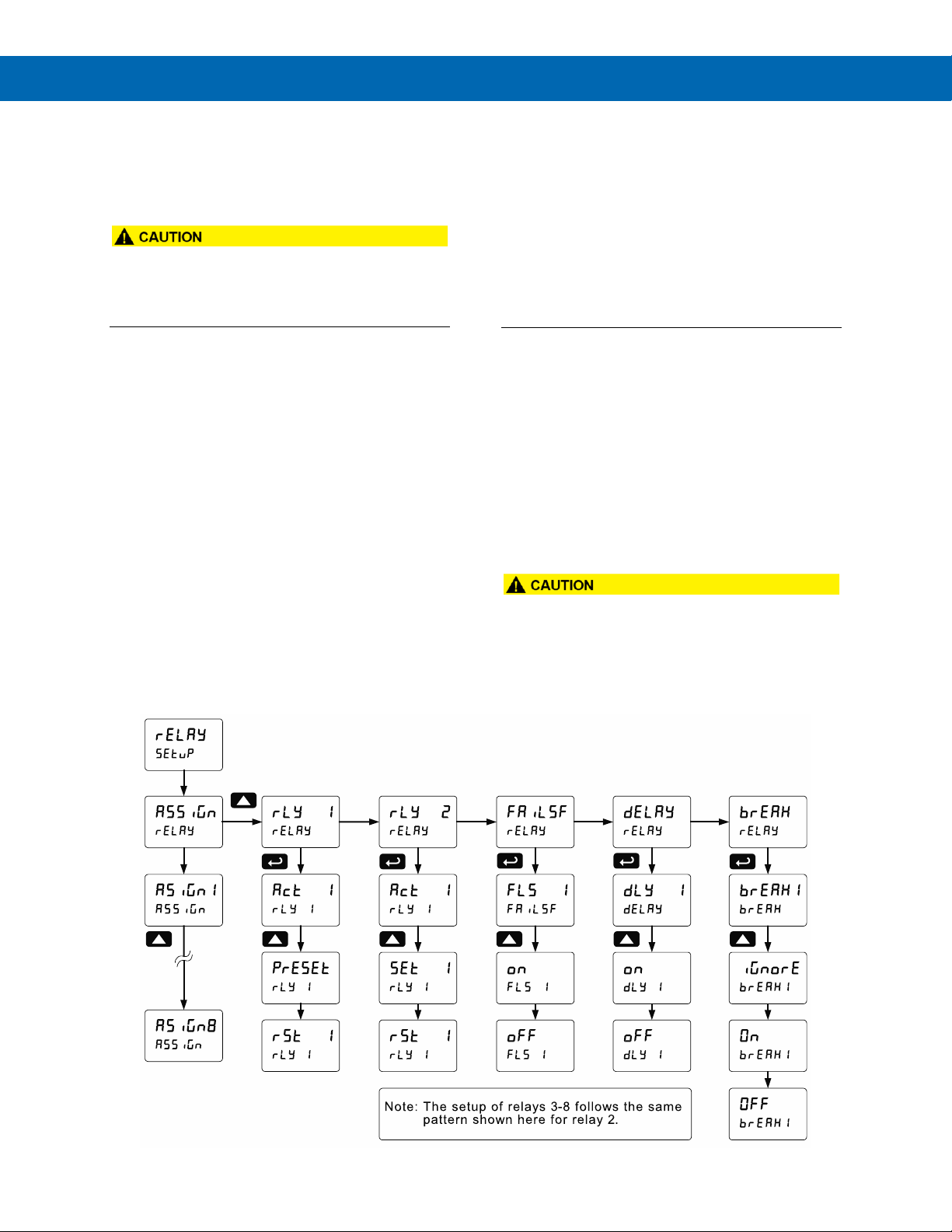

Setting the Relay Operation (relay) ............................................................ 31

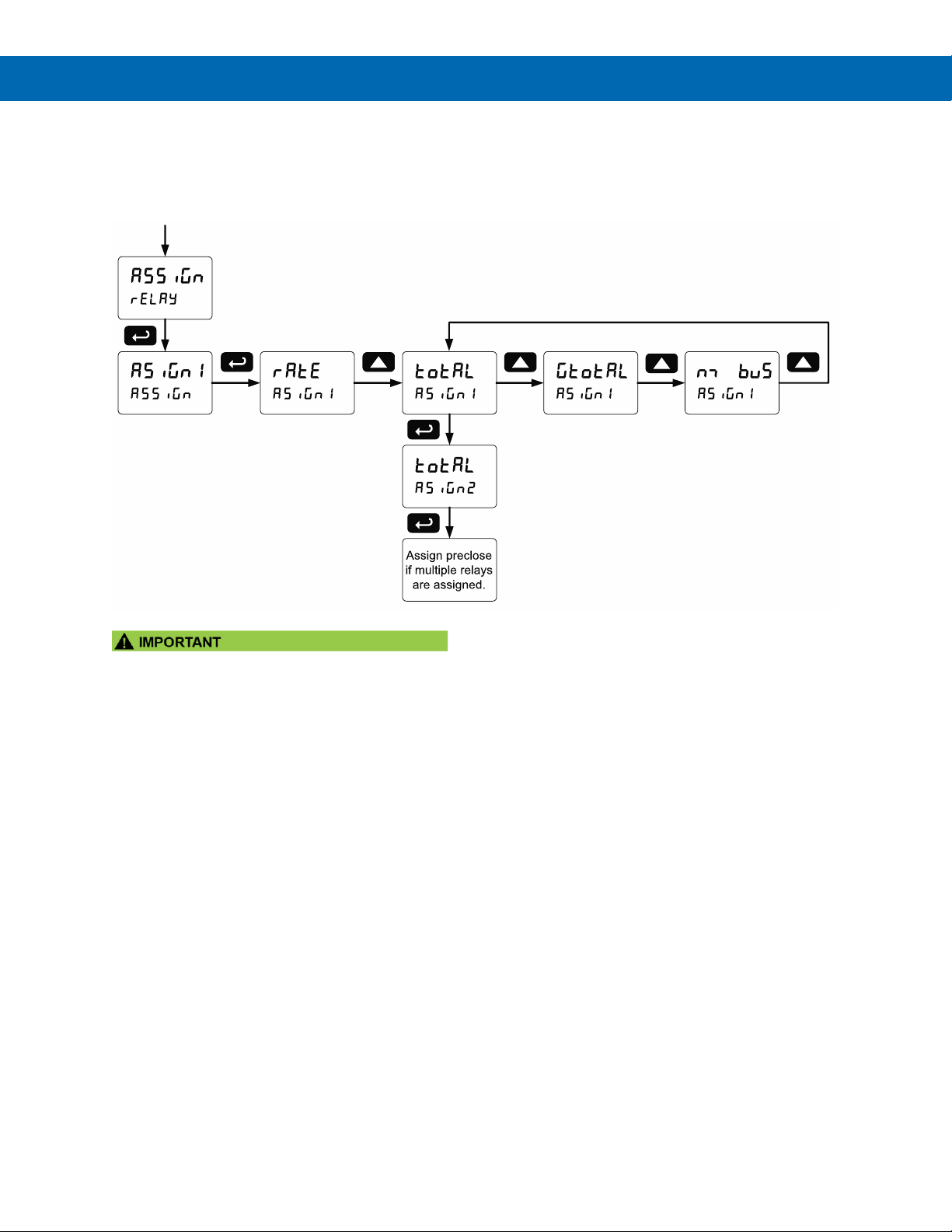

Relay Assignment (Assign) ........................................................................ 32

Setting the Relay Action .............................................................................. 33

Setting Batch Control Relays ...................................................................... 33

Programming Alarm Set and Reset Points.................................................. 33

Setting Fail-Safe Operation ......................................................................... 33

Programming Time Delay............................................................................ 33

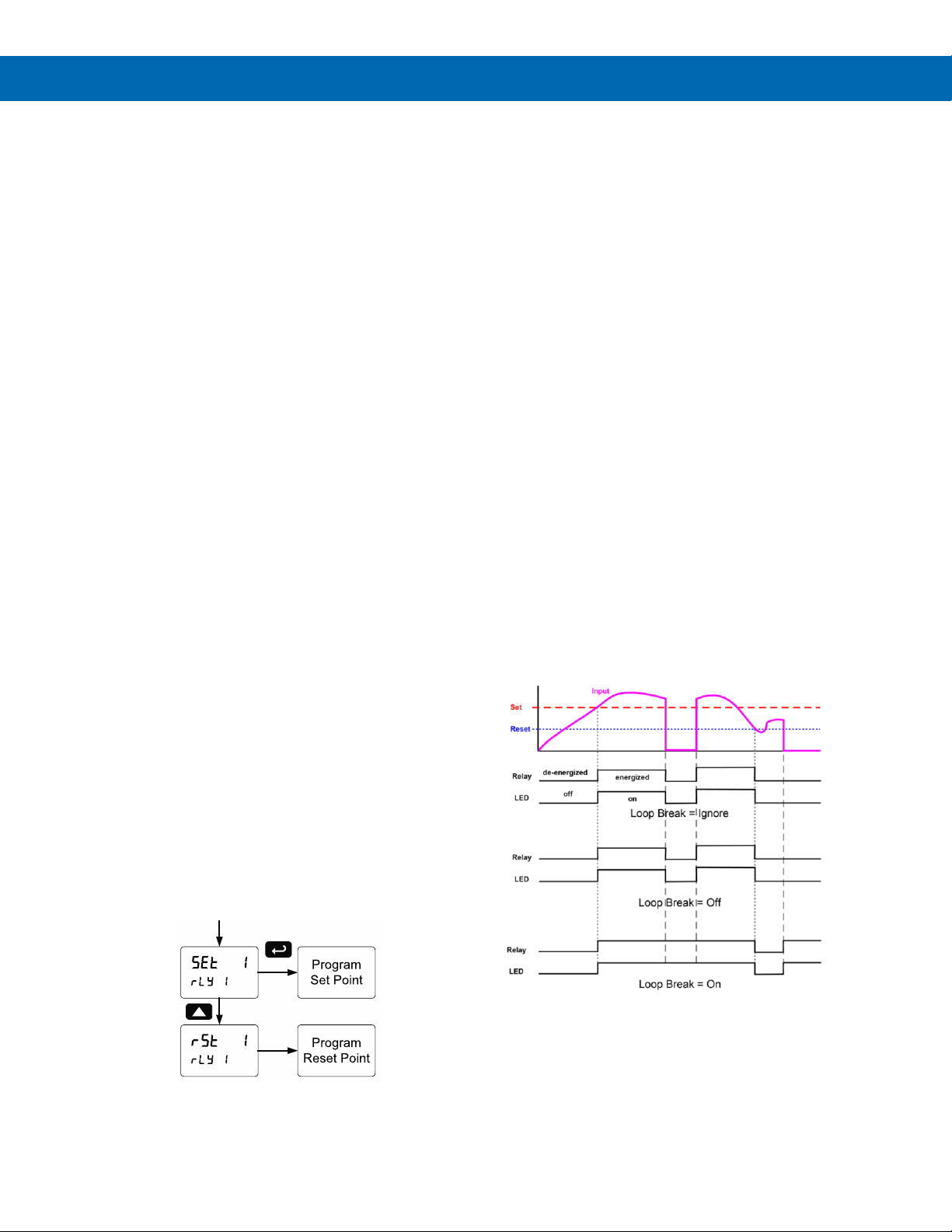

Relay Action for Loss of 4-20 mA Input (Loop Break) ................................. 33

Page 4

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Automatic Batch Control Operation ............................................................. 34

Relay and Alarm Operation Diagrams ......................................................... 35

High Alarm Operation (Set > Reset)................................................................ 35

Low Alarm Operation (Set < Reset) ............................................................ 35

High Alarm with Fail-Safe Operation (Set > Reset) ..................................... 35

Low Alarm with Fail-Safe Operation (Set < Reset) ..................................... 35

Time Delay Operation ................................................................................. 36

Total Relay Sampling Operation ................................................................. 36

Relay Operation Details ................................................................................ 37

Overview ..................................................................................................... 37

Relays Initialization...................................................................................... 37

Fail-Safe Operation ..................................................................................... 37

Front Panel LEDs ........................................................................................ 37

Automatic Reset (Auto)............................................................................... 37

Pump Alternation Control ............................................................................ 37

Sample Relay Operation ............................................................................. 38

Setting Up the Interlock Relay (Force On) Feature ..................................... 38

Scaling the 4-20 mA Analog Output (Aout)................................................. 39

Reset Menu (reset) ....................................................................................... 39

Manual Control Menu (Contrl) ..................................................................... 39

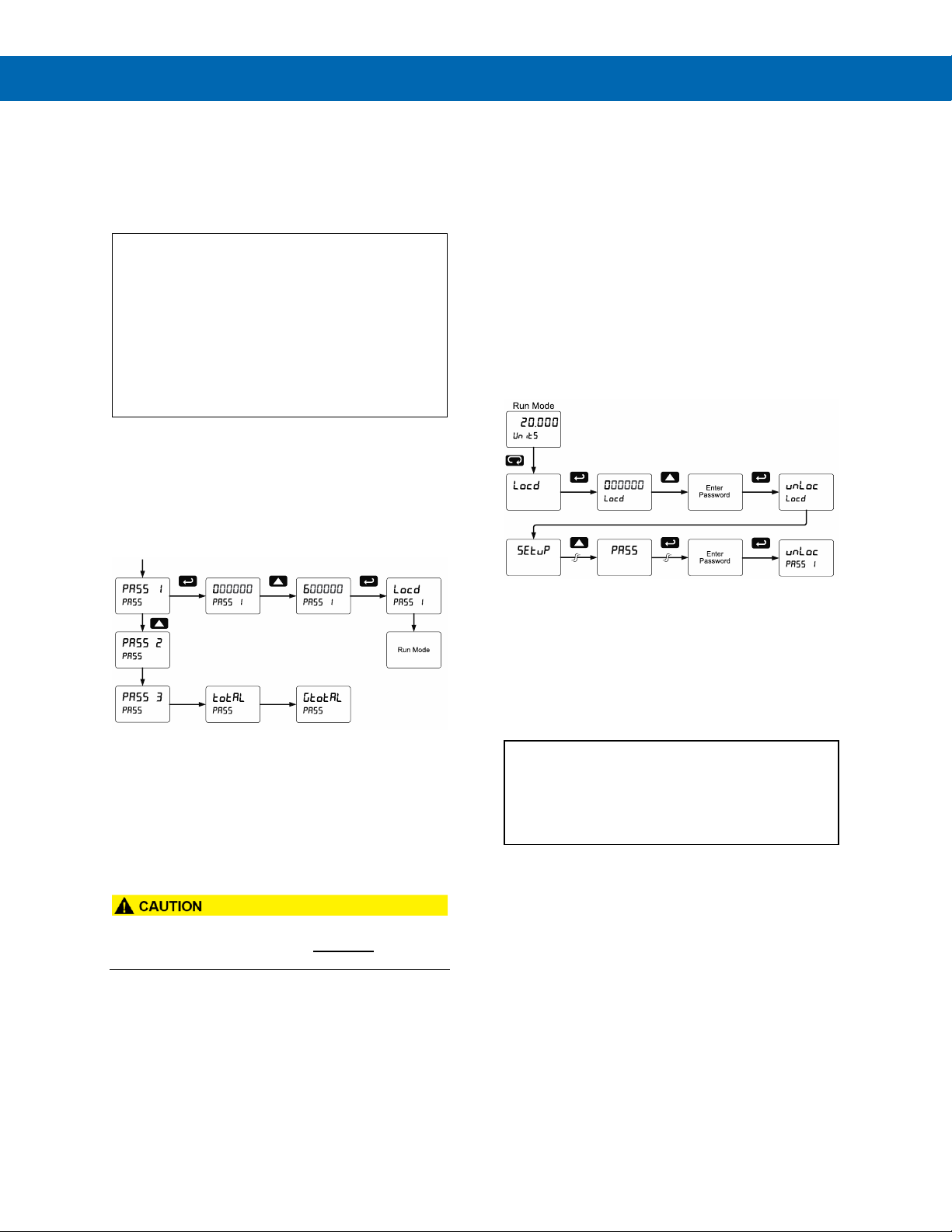

Setting Up the Password (pass) ................................................................... 40

Protecting or Locking the Controller ............................................................ 40

Grand Total Reset Password & Non-Resettable Total ................................ 40

Making Changes to a Password Protected Controller................................. 40

Disabling Password Protection.................................................................... 40

Controller Operation .......................................................................................... 41

Default Batch Control Operation .................................................................. 41

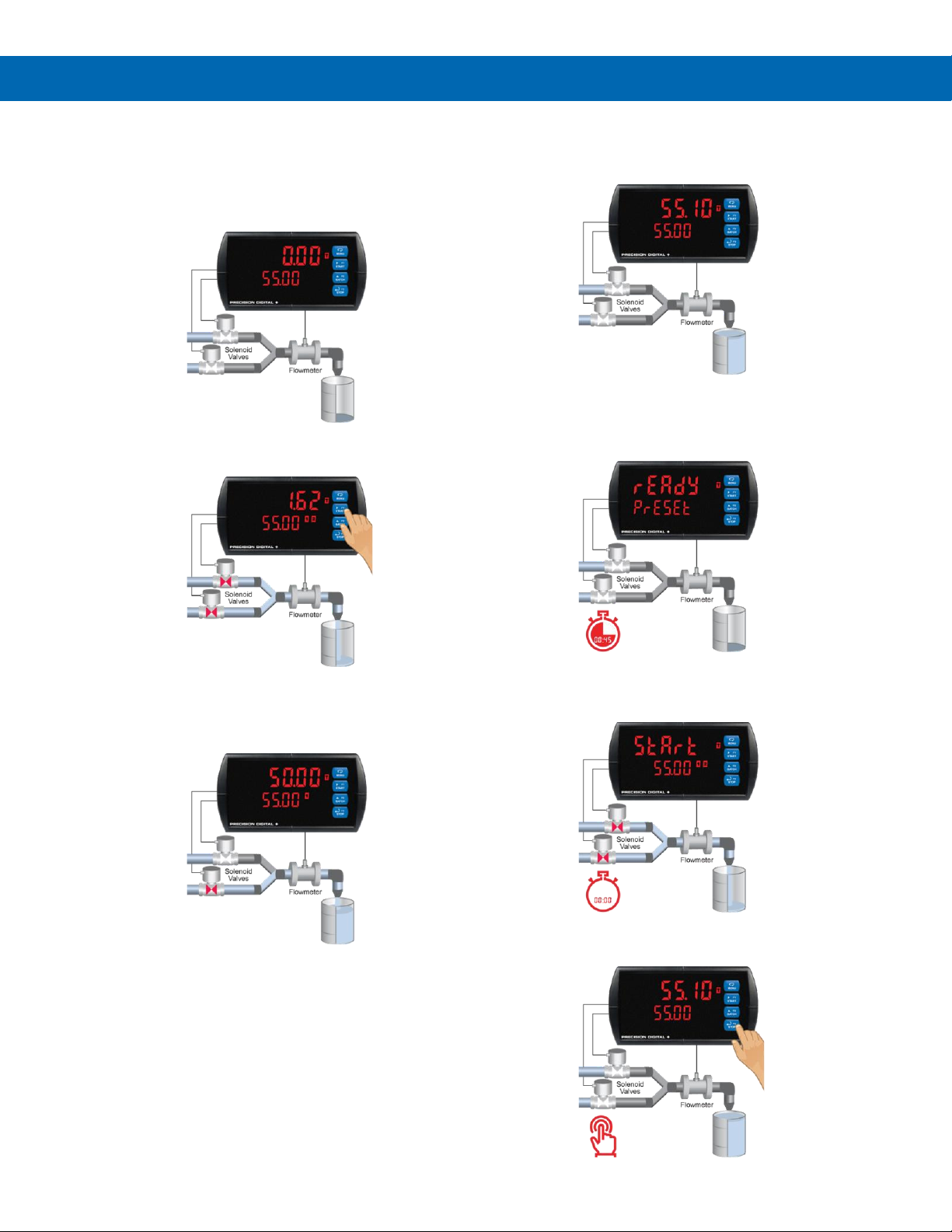

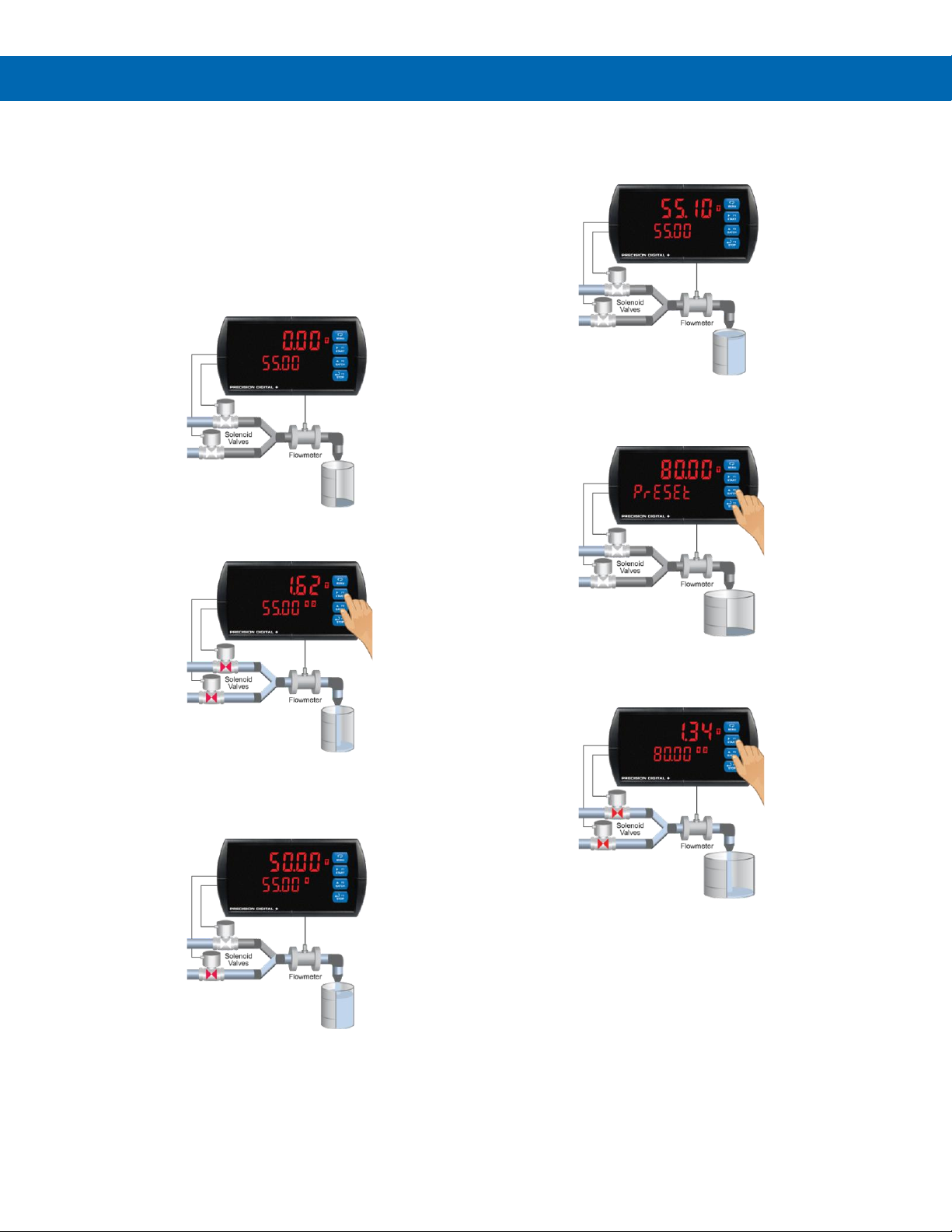

Batch Control Operation Example ............................................................... 41

Manual Batch Control ................................................................................... 42

Manual Batch Control Operation ................................................................. 42

Additional Features ..................................................................................... 43

Automatic Batch Control .............................................................................. 43

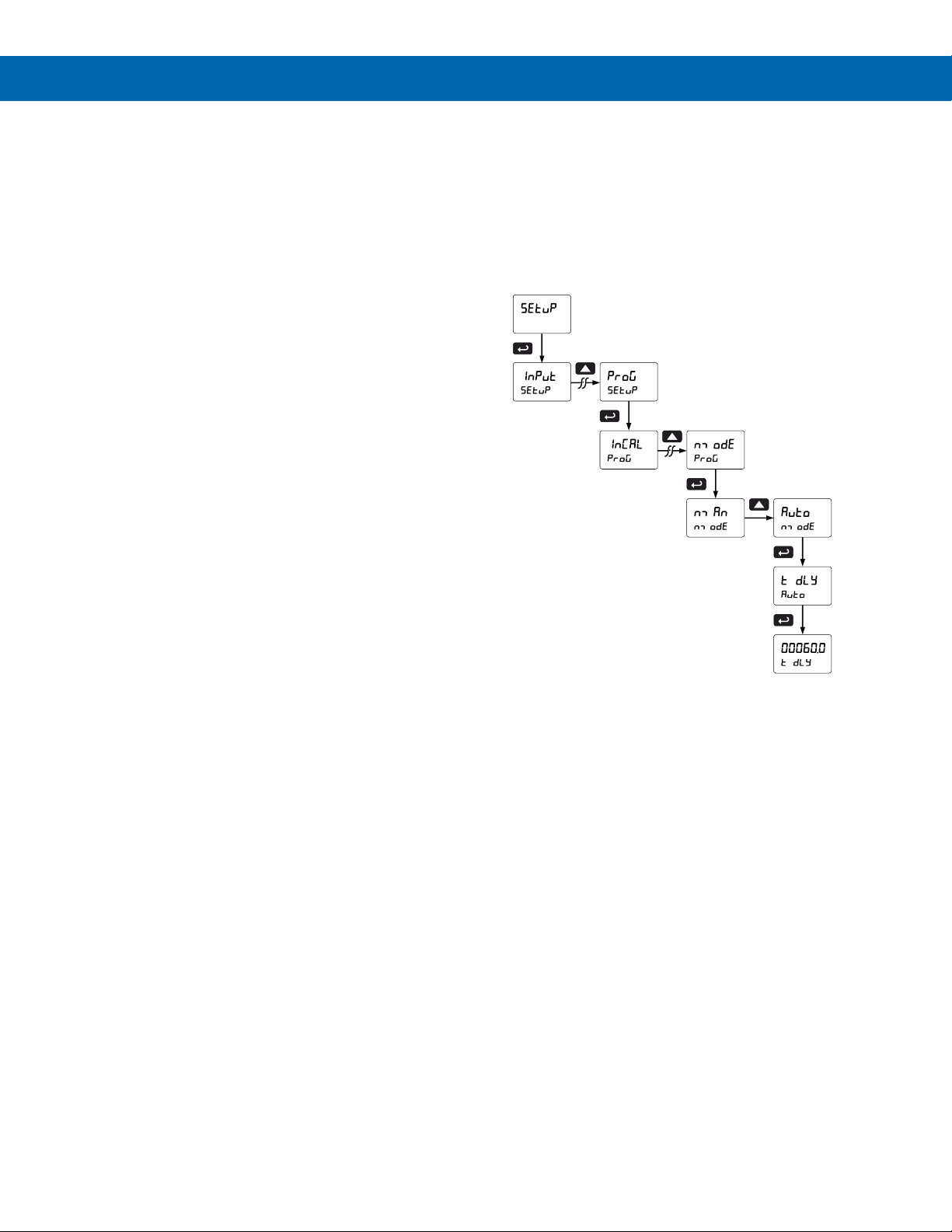

Setup for Automatic Batch Control .............................................................. 43

Automatic Batch Control Operation ............................................................. 44

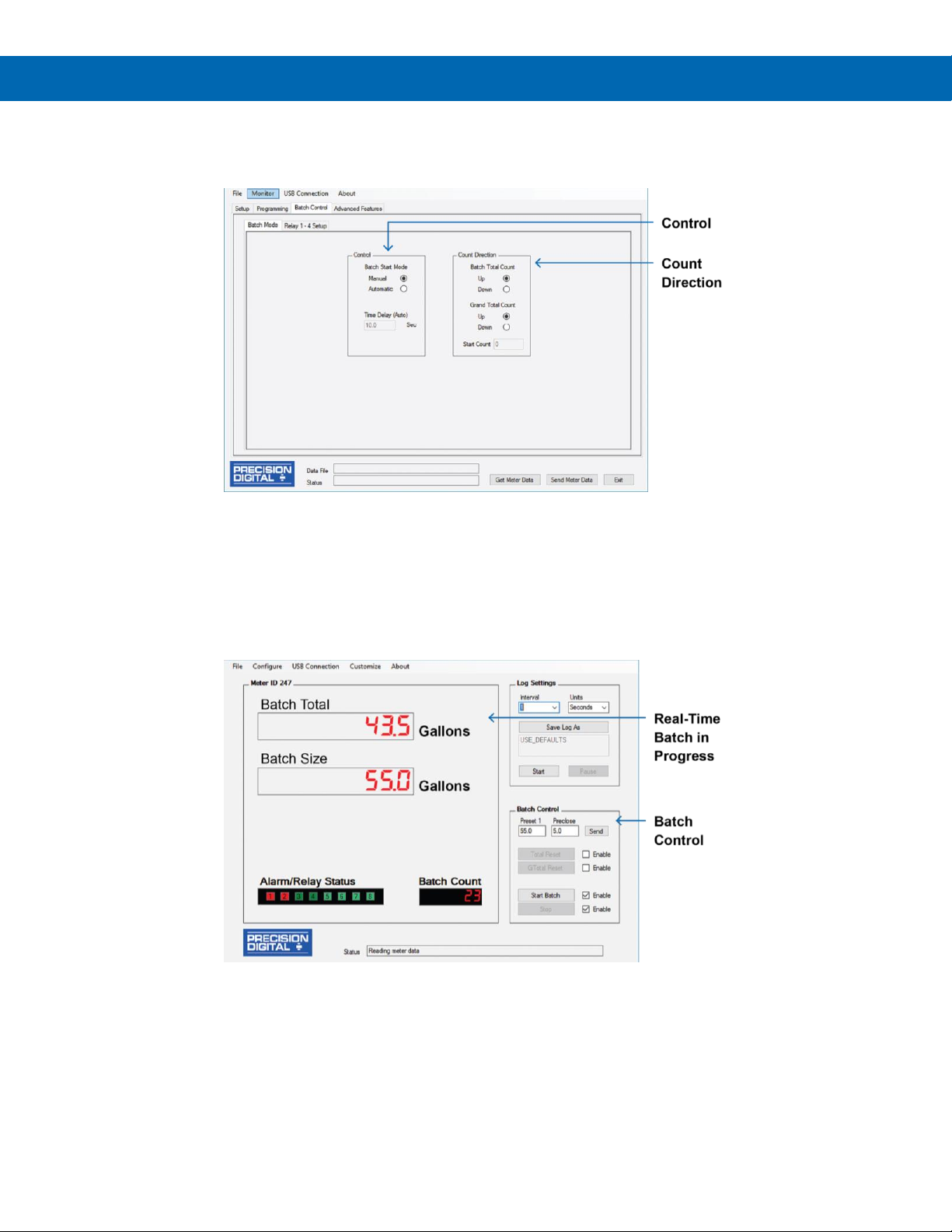

Setup with MeterView Pro ............................................................................. 45

Operate with MeterView Pro ......................................................................... 45

Advanced Setup & Programming ..................................................................... 46

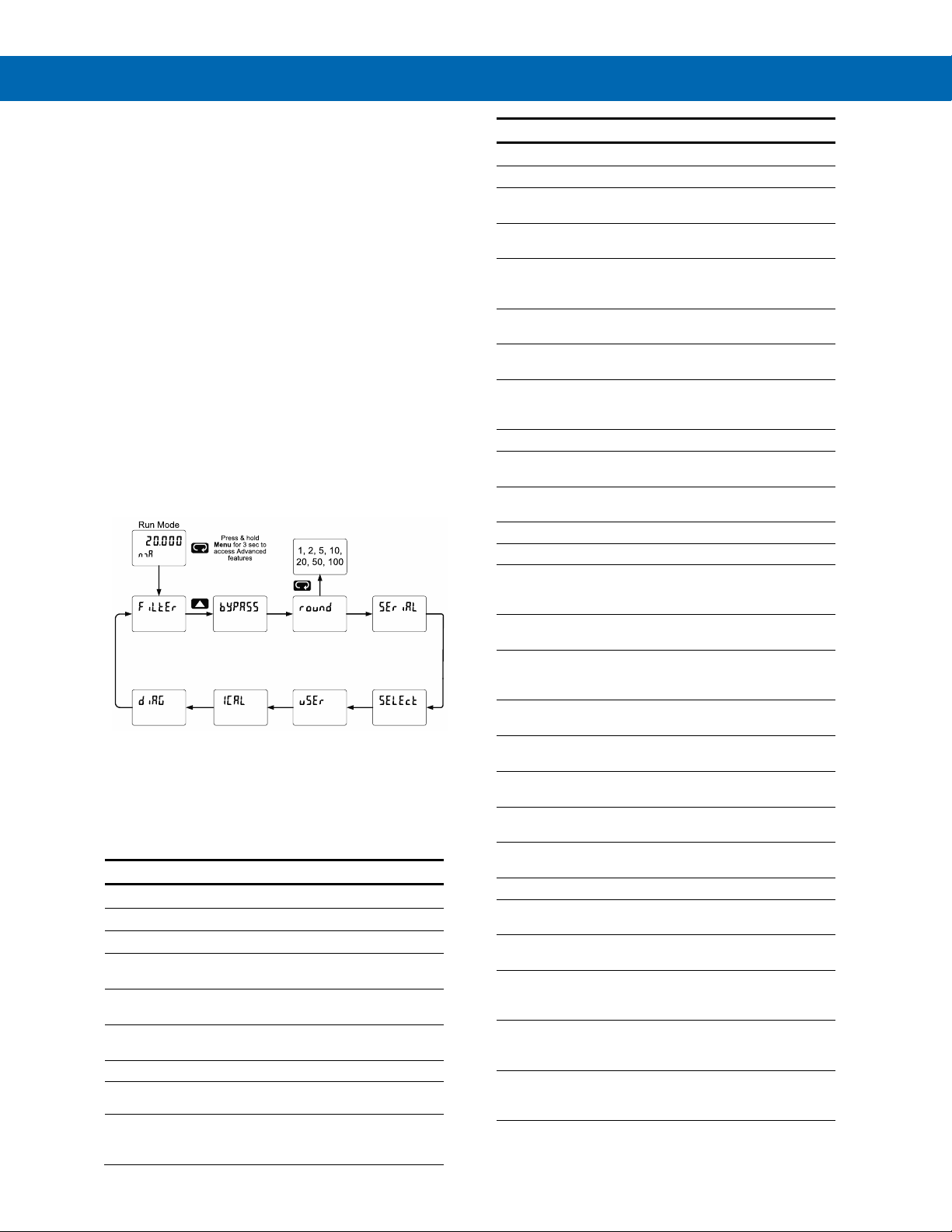

Advanced Features Menu ............................................................................. 46

Advanced Features Menu & Display Messages.......................................... 46

Function Keys Operation ............................................................................. 47

F4 Operation ............................................................................................... 47

Advanced Setup and Calibration ................................................................. 48

Maximum/Minimum Readings ..................................................................... 48

Noise Filter (filter) ................................................................................... 48

Noise Filter Bypass (bypass) ...................................................................... 48

Rounding Feature (round) .......................................................................... 48

Modbus RTU Serial Communications (serial) .......................................... 48

Select Menu (SElEct) ................................................................................. 49

Internal Source Calibration (ICAL) .............................................................. 52

Troubleshooting................................................................................................. 53

Diagnostics Menu (diag) ............................................................................ 53

Testing the Display LEDs ............................................................................ 53

Determining Software Version..................................................................... 53

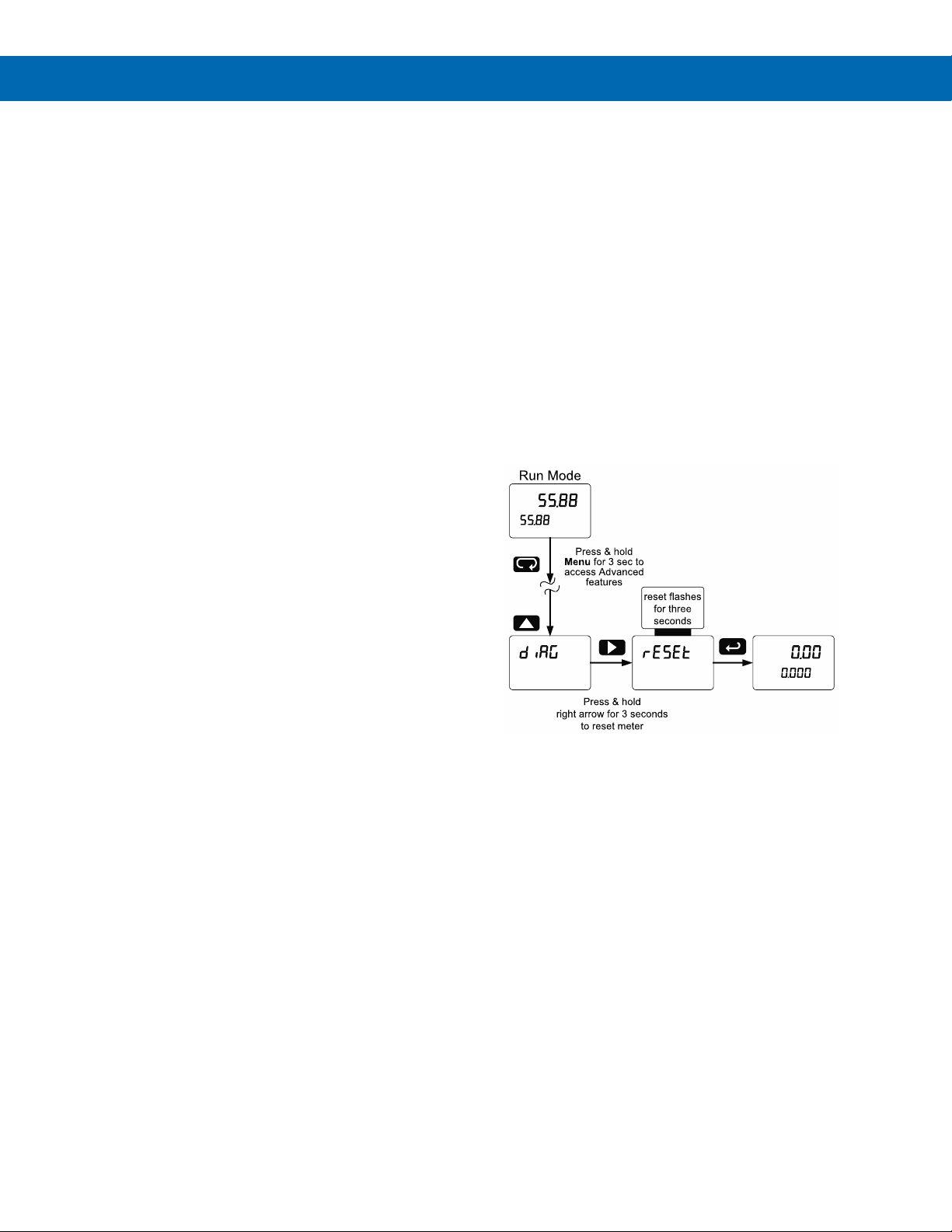

Reset Controller to Factory Defaults ........................................................... 53

Factory Defaults & User Settings ................................................................ 54

Troubleshooting Tips .................................................................................... 56

Page 5

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Table of Figures

Figure 1. 1/8 DIN Panel Cutout and Mounting ................................................. 15

Figure 2. Controller Dimensions - Side View .................................................. 15

Figure 3. Controller Dimensions - Top View ................................................... 15

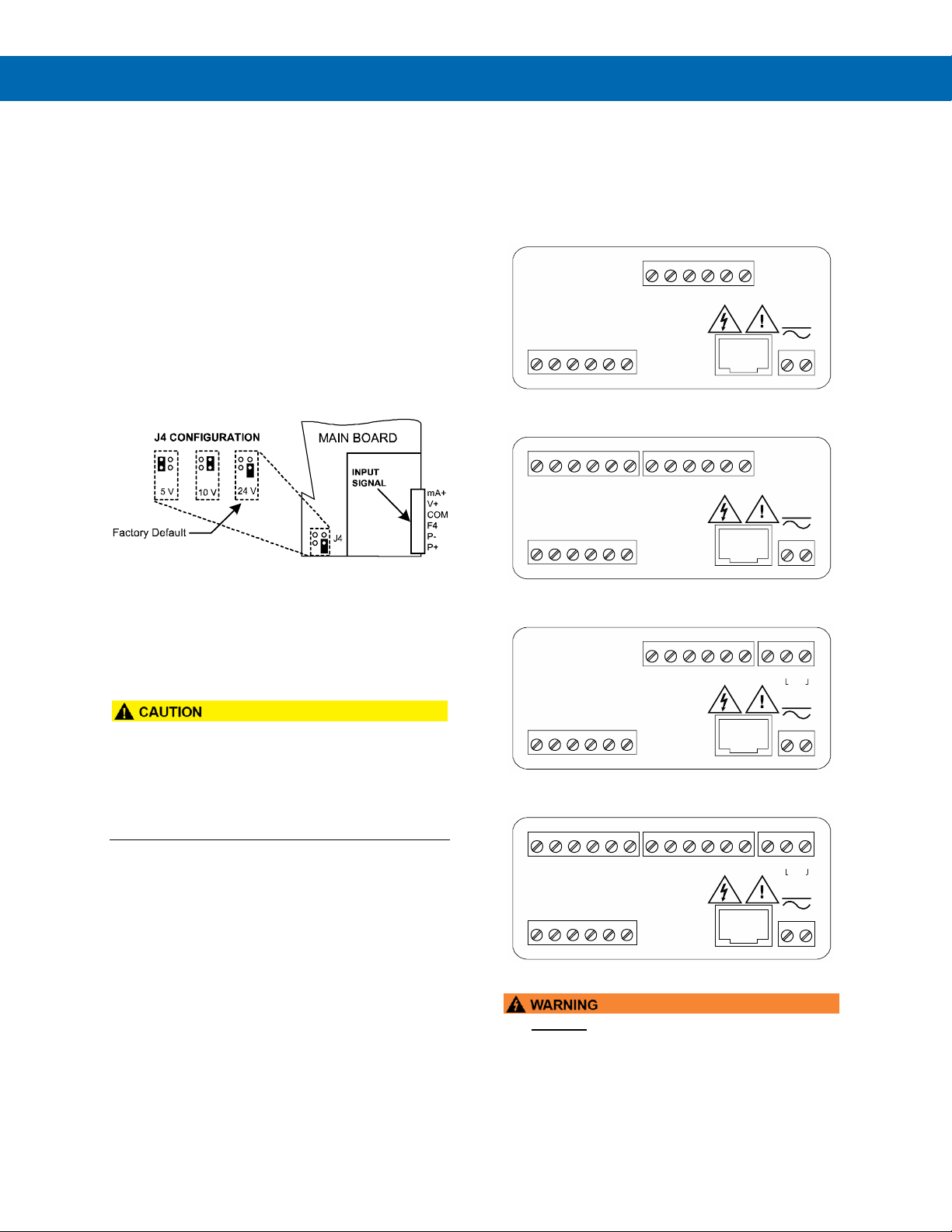

Figure 4. Transmitter Supply Voltage Selection ............................................. 17

Figure 5. PD6210-##2 Connectors Label ......................................................... 17

Figure 6. PD6210-##4 Connectors Label ......................................................... 17

Figure 7. PD6210-##5 Connectors Label ......................................................... 17

Figure 8. PD6210-##7 Connectors Label ......................................................... 17

Figure 9. Power Connections ........................................................................... 18

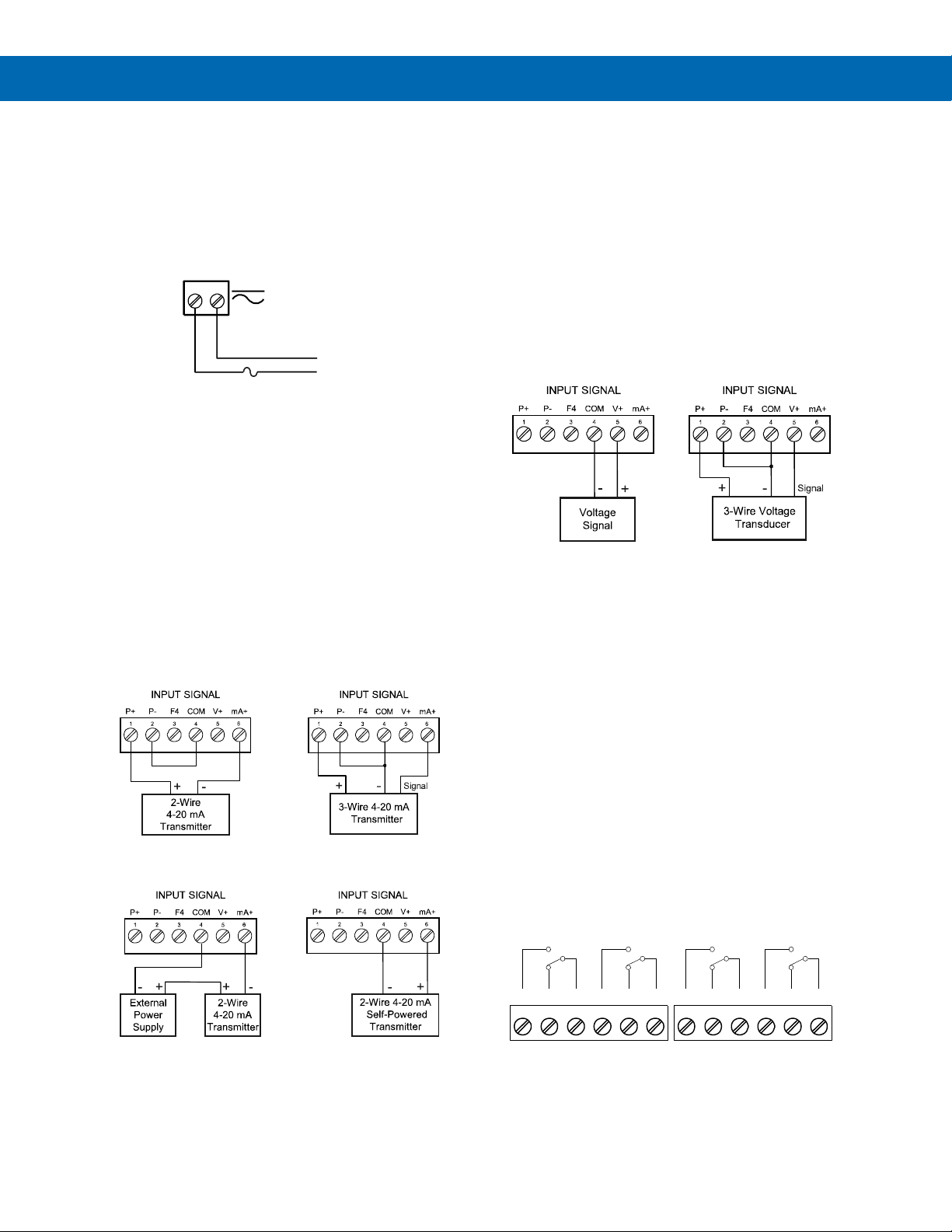

Figure 10. Transmitter Powered by Internal Supply ....................................... 18

Figure 11. Transmitter Powered by Ext. Supply or Self-Powered ................. 18

Figure 12. Voltage Input Connections ............................................................. 18

Figure 13. Relay Connections........................................................................... 18

Figure 14. AC and DC Loads Protection .......................................................... 19

Figure 15. Low Voltage DC Loads Protection ................................................. 19

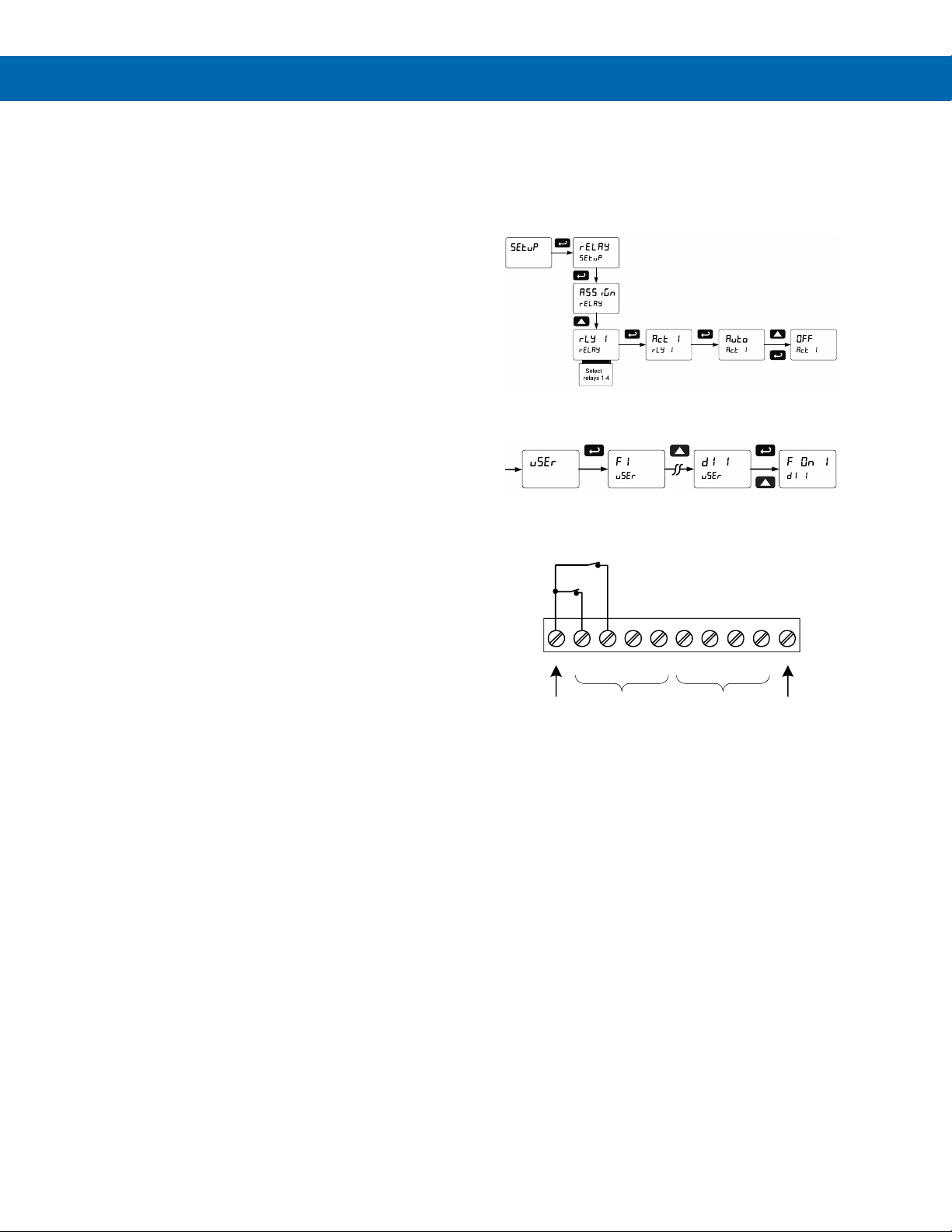

Figure 16. F4 Digital Input Connections .......................................................... 19

Figure 17. 4-20 mA Output Connections ......................................................... 19

Figure 18. Analog Output Supply Powering Other Devices........................... 19

Figure 19. Expansion Module & DIN Rail Mounting Kit .................................. 20

Figure 20. External Relays Module Connections ............................................ 20

Figure 21. Digital I/O Module Connections ...................................................... 20

Figure 22. Controller to Control Station Connection...................................... 20

Figure 23. Interlock Connection ....................................................................... 20

Page 6

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Introduction

The PROVU PD6210 is an easy-to-use batch controller ideal for simplifying independent batch control operations where local control is preferred to expensive and expansive plant operation systems. Its superluminous LED digits make it easily readable in smoke, dust, fog, and, with the optional SunBright display, even direct sunlight.

The controller comes programmed for easy front panel start, pause, stop, and batch size (preset) changes. Display line 2 can be programmed to display rate, grand total, batch count, or preset by cycling the Stop (F3) button. A digital input is standard.

Single and multi-stage batching is possible with up to four on-board relays and four external relays with the external relay module. Each pre-close relay may have a unique pre-close amount when used for multi-stage batching.

Manual start batching is default, but automatic batching with a restart after a programmed time delay from the completion of the last batch, is also possible.

Overrun correction adjusts the closing of the batch control relays to adjust for inaccuracies from batch to batch. This increases accuracy over time as systems wear out. The overrun correction feature is capable of compensating for inaccuracies of up to 1% of the programmed preset value.

At least two SPDT relays are included for use in batch control or rate alarms.

The batch controller also shares all common PROVU Series features, including an isolated 24 VDC transmitter power supply and Modbus RTU Serial communications.

Ordering Information

Standard Models

85-265 VAC Model

12-24 VDC Model

Options Installed

PD6210-6R2

PD6210-7R2

2 relays

PD6210-6R4

PD6210-7R4

4 relays

PD6210-6R5

PD6210-7R5

2 relays & 4-20 mA output

PD6210-6R7

PD6210-7R7

4 relays & 4-20 mA output

SunBright Display Models

85-265 VAC Model

12-24 VDC Model

Options Installed

PD6210-6H2

PD6210-7H2

2 relays

PD6210-6H4

PD6210-7H4

4 relays

PD6210-6H5

PD6210-7H5

2 relays & 4-20 mA output

PD6210-6H7

PD6210-7H7

4 relays & 4-20 mA output

Accessories

Model

Description

PDA1002

DIN rail mounting kit for two devices

PDA1004

4 SPST (Form A) relays module

PDA1044

4 digital inputs & 4 digital outputs module

PDA1232

RS-232 serial adapter

PDA1485

RS-485 serial adapter

PDA7485-I

RS-232 to RS-485 isolated converter

PDA8008

USB Adapter

PDA8232-N

USB to RS-232 non-isolated converter

PDA8485-I

USB to RS-485 isolated converter

PDA-LH

Light / horn accessory

MOD-LH

Light / horn / enclosure modification

PDA2360

Plastic control stations series

PD659

Signal isolators, splitters, & conditioners

PD9501

Multi-function calibrator

PD9502

Low-cost signal generator

PDX6901

Snubber: 0.01 μF/470 Ω, 250 VAC

Enclosures

Series

Meters

Material

PDA2300

1-10

Plastic NEMA 4X

PDA2500

1-6

Plastic NEMA 4X

PDA2600

1-6

Stainless Steel NEMA 4X

PDA2700

1-6

Painted Steel NEMA 4

PDA2800

1-2

Plastic NEMA 4X

PDA3400

1-3

Plastic NEMA 4X

Need help selecting the right enclosure?

Go to www.predig.com/esu

Replacement Option Cards

Model

Options Installed

PD1102

2 relays

PD1103

4-20 mA output

PD1104

4 relays

PD1105

2 relays & 4-20 mA output

PD1107

4 relays & 4-20 mA output

Page 7

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Light / Horn Accessories

PROVU Meter Shown in a PDA2301 Enclosure with MOD-LHRB1 Red Light / Horn and Button. Controller & Enclosure Sold Separately. Assembly Required.

MOD-LH

Model

Description

MOD-LHRB1

Red Light / Horn and Button with Holes Drilled in Enclosure

(1)

MOD-LHGB1

Green Light / Horn and Button with Holes Drilled in Enclosure

(1)

MOD-LHYB1

Yellow Light / Horn and Button with Holes Drilled in Enclosure

(1)

MOD-LHBB1

Blue Light / Horn and Button with Holes Drilled in Enclosure

(1)

MOD-LHWB1

White Light / Horn and Button with Holes Drilled in Enclosure

(1)

MOD-LH5CB1

Light / Horn with User Choice of Red, Green, Yellow, Blue or White Light, Button, and Holes Drilled in Enclosure

(1)

Note:

1. This MOD supplies the Light / Horn and Button. The enclosure comes pre-drilled with holes for Light / Horn and Button and the user performs the installation and wiring. Meter and enclosure are sold separately. The Light / Horn hole is in the back left corner of the enclosure and the Button is centered on the cover of the enclosure below the meter about an inch off the bottom of the cover except on the PDA3400 series where it is mounted on the side of the enclosure.

PDA-LH & PDA-BUTTON

Model

Description

PDA-LHR

Red Light / Horn

PDA-LHG

Green Light / Horn

PDA-LHY

Yellow Light / Horn

PDA-LHB

Blue Light / Horn

PDA-LHW

White Light / Horn

PDA-LHW

White Light / Horn

PDA-LH5C

Light / Horn with User Choice of Red, Green, Yellow, Blue or White Light

PDA-BUTTON1R

Red Button

PDA-BUTTON1G

Green Button

PDA-BUTTON1B

Blue Button

Page 8

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

PDA2364 Control Station

Model

Description

PDA2364-MSBS

Menu, Start, Batch, and Stop Buttons

Note: Note: Control stations with one button may be connected directly to the meter via the F4 terminal. A PDA1044 (4) digital inputs & (4) digital outputs module is required to operate the control stations of more than one button. See Remote Batch Control on page 20 for details.

Signal Splitter & Conditioner Accessories

Model

Description

PD659-1MA-1MA

Signal Isolator with One 4-20 mA Input and One 4-20 mA Output

PD659-1MA-2MA

Signal Splitter with One 4-20 mA Input and Two 4-20 mA Outputs

PD659-1V-1MA

Signal Conditioner with One 0-10 VDC Input and One 4-20 mA Output

PD659-1MA-1V

Signal Conditioner with One 4-20 mA Input and One 0-10 VDC Output

Page 9

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

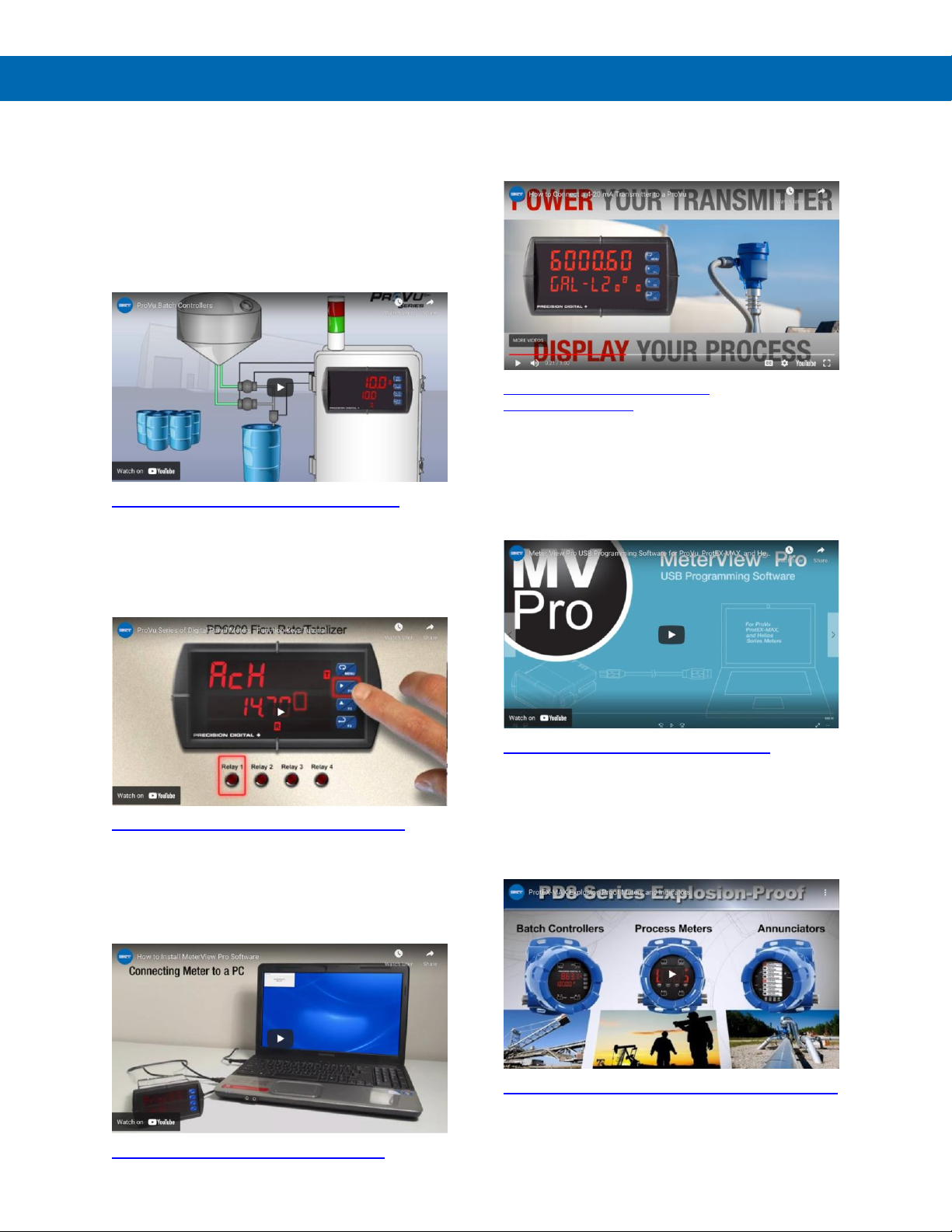

Helpful Videos

Precision Digital's PROVU Series is a powerful line of 1/8 DIN meters that boasts advanced functionality for various applications. The following videos might be of interest.

PROVU Batch Controllers

These provide simple batch control with features like preclose relays and automatic overrun correction.

https://www.predig.com/videos/KN6Y6R0I1OE

PROVU Function Keys Tutorial

Learn how the PROVU’s function keys increase the utility of the PROVU.

https://www.predig.com/videos/WMBYKlavW-Q

Connect a PROVU to a PC Using MeterView Pro

Learn how easy it is to use MeterView Pro software.

https://www.predig.com/videos/PC_Connect

Connect a 2-Wire 4-20 mA Transmitter to a PROVU

Learn how to connect your transmitter to a PROVU.

https://www.predig.com/videos/420_mA_Connections

MeterView Pro USB Programming Software

Learn how easy it is to program a PROVU PD6000 process meter.

https://www.predig.com/videos/MVPro_SW

ProtEX-MAX Explosion-Proof Family

The ProtEX-MAX Series has been designed to offer the functions and features of any ProVu in a great looking explosion-proof housing.

https://www.predig.com/videos/ProtEXMAX_Overview

Page 10

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Specifications

Except where noted all specifications apply to operation at +25°C.

General

Display

Line 1: 0.6" (15 mm) high, red LEDs Line 2: 0.46" (12 mm) high, red LEDs 6 digits: each (-99999 to 999999), with lead zero blanking.

Display Intensity

Eight user selectable intensity levels. Default is six.

Display Update Rate

5/second (200 ms)

LED Status Indicators

See Front Panel Buttons and Status LED Indicators on page 21 for details.

Overrange

Display flashes 999999

Underrange

Display flashes -99999

Default Display Assignment

Line 1 displays batch total. Line 2 displays batch preset, and can be switched to show grand total, or batch count with the STOP key.

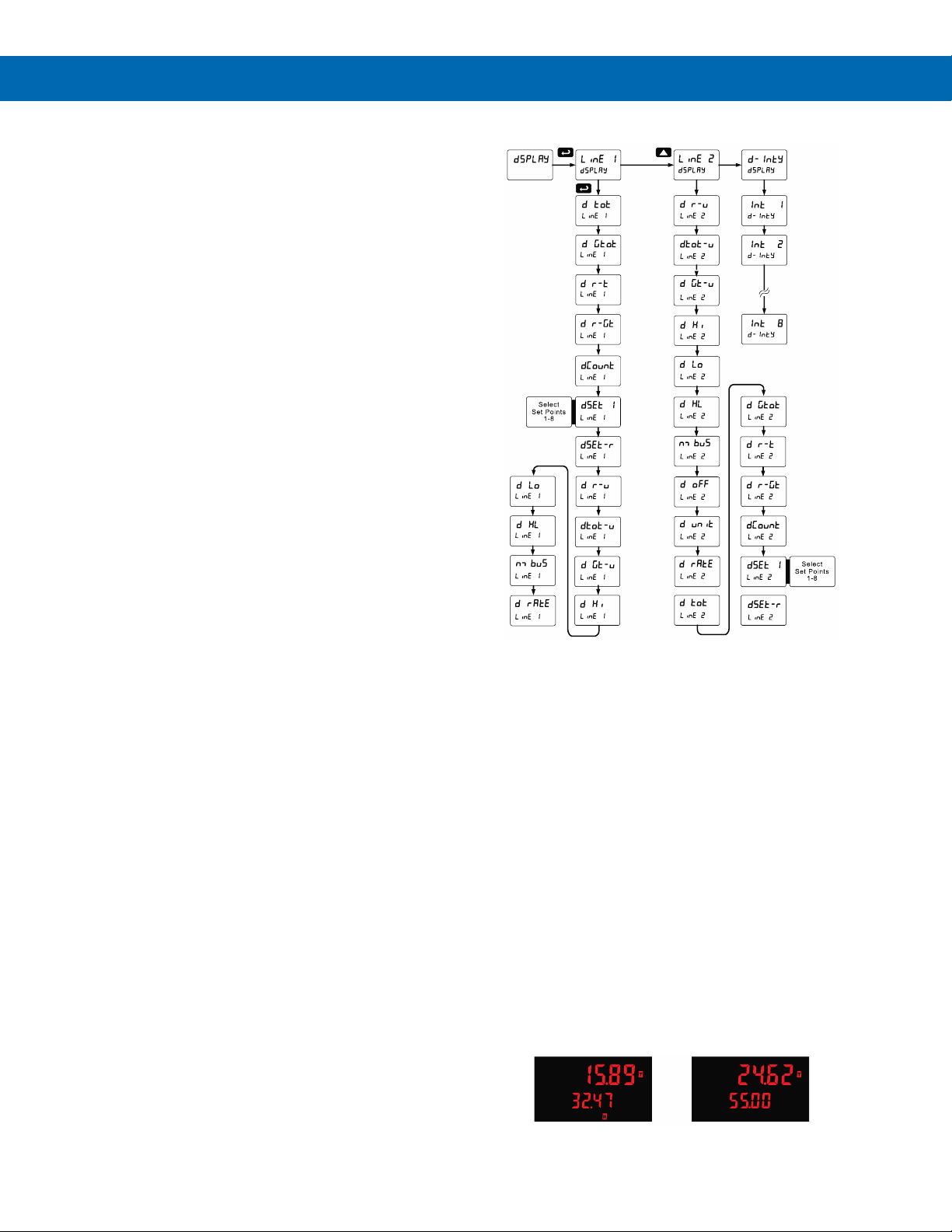

Custom Display Assignment

Display lines 1 and 2 may be assigned to rate, total, grand total, batch count, preset, set points, units (lower display only), alternating R & T, R & GT, preset & rate, max & min, or a Modbus display register. Any rate/total/grand total display may be programmed to alternate with a custom unit or tag.

Alternating Display

Displays alternate every 10 seconds when display is selected, or the batch is paused.

Programming Methods

Four front panel buttons, digital inputs, or PC and MeterView Pro software.

Noise Filter

Programmable from 2 to 199 (0 will disable filter)

Filter Bypass

Programmable from 0.1 to 99.9% of calibrated span

Recalibration

All ranges are calibrated at the factory. Recalibration is recommended at least every 12 months.

Max/Min Display

Max/min readings reached by the process are stored until reset by the user or until power to the controller is cycled.

Rounding

Select 1, 2, 5, 10, 20, 50, or 100 (e.g. rounding = 10, value = 123.45,

display = 123.50).

Password

Three programmable passwords restrict modification of programmed settings and two prevent resetting the totals. Pass 1: Allows use of function keys and digital inputs Pass 2: Allows use of function keys, digital inputs and editing set/reset points Pass 3: Restricts all programming, function keys, and digital inputs. Total Password: Prevents resetting the total manually

Gtotal Password: Prevents resetting the grand total manually

Non-Volatile Memory

All programmed settings are stored in nonvolatile memory for a minimum of ten years if power is lost.

Power Options

85-265 VAC 50/60 Hz; 90-265 VDC, 20 W max; 12-24 VDC, 12-24 VAC, 15 W max. Powered over USB for configuration only.

Fuse

Required external fuse: UL Recognized, 5 A max, slow blow; up to 6 controllers may share one 5 A fuse

Normal Mode Rejection

Greater than 60 dB at 50/60 Hz

Isolation

4 kV input/output-to-power line 500 V input-to-output or output-to-P+ supply

Overvoltage Category

Installation Overvoltage Category II: Local level with smaller transient overvoltages than Installation Overvoltage Category III.

Environmental

Operating temperature range:

-40 to 65°C (-40 to 149°F)

Storage temperature range:

-40 to 85°C (-40 to 185°F)

Relative humidity:

0 to 90% non-condensing

Connections

Removable screw terminal blocks accept 12 to 22 AWG wire, RJ45 for external relays, digital I/O, and serial communication adapters.

Enclosure

1/8 DIN, high impact plastic, UL 94V-0, color: black

Front Panel

NEMA 4X, IP65

Mounting

1/8 DIN panel cutout required:

3.622" x 1.772" (92 mm x 45 mm) Two panel mounting bracket assemblies are provided.

Tightening Torque

Screw terminal connectors: 5 lb-in (0.56 Nm)

Overall Dimensions

4.68" x 2.45" x 5.64" (119 mm x 62 mm x 143 mm) (W x H x D)

Weight

9.5 oz (269 g)

Warranty

3 years parts & labor. See Warranty Information and Terms & Conditions on

www.predig.com for complete details.

Page 11

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Batch Controller Rate/Totalizer Display

Rate Display Indication

-99999 to 999999, lead zero blanking. “R” LED illuminates while displaying rate.

Batch Total & Grand Total Display

0 to 999,999; automatic lead zero blanking. “T” LED is illuminated while displaying batch total. “GT” LEDs are illuminated while displaying grand total. Up to 999,999 for batch total/preset. Up to 999,999,999 with grand total-overflow feature. “oF” is displayed to the left of grand total overflow and ▲ LED is illuminated.

Batch Total Decimal Point

Up to five decimal places or none: d.ddddd, d.dddd, d.ddd, d.dd, d.d, or dddddd Total decimal point is independent of rate decimal point.

Totalizer

Calculates total based on rate and field programmable multiplier to display total in engineering units. Time base must be selected according to the time units in which the rate is displayed.

Time Base

Second, minute, hour, or day

Batch Control Mode

Automatic or manual batch control

Manual Batch

The operator must press the START button every time a new batch is started. Press STOP to pause the batch and either press START to resume or STOP to stop the incomplete batch.

Automatic Batch

Once the START button is pressed, the batches will run automatically until the STOP button is pressed twice. The time delay between batches is entered during the setup.

Batch Time Delay

Programmable up to 999.9 seconds This is the time delay between batches for automatic batch control. Allow sufficient time to put in place an empty container.

Batch Preset

The F2 key is assigned to the preset. The preset value is the total volume to be

batched in each cycle.

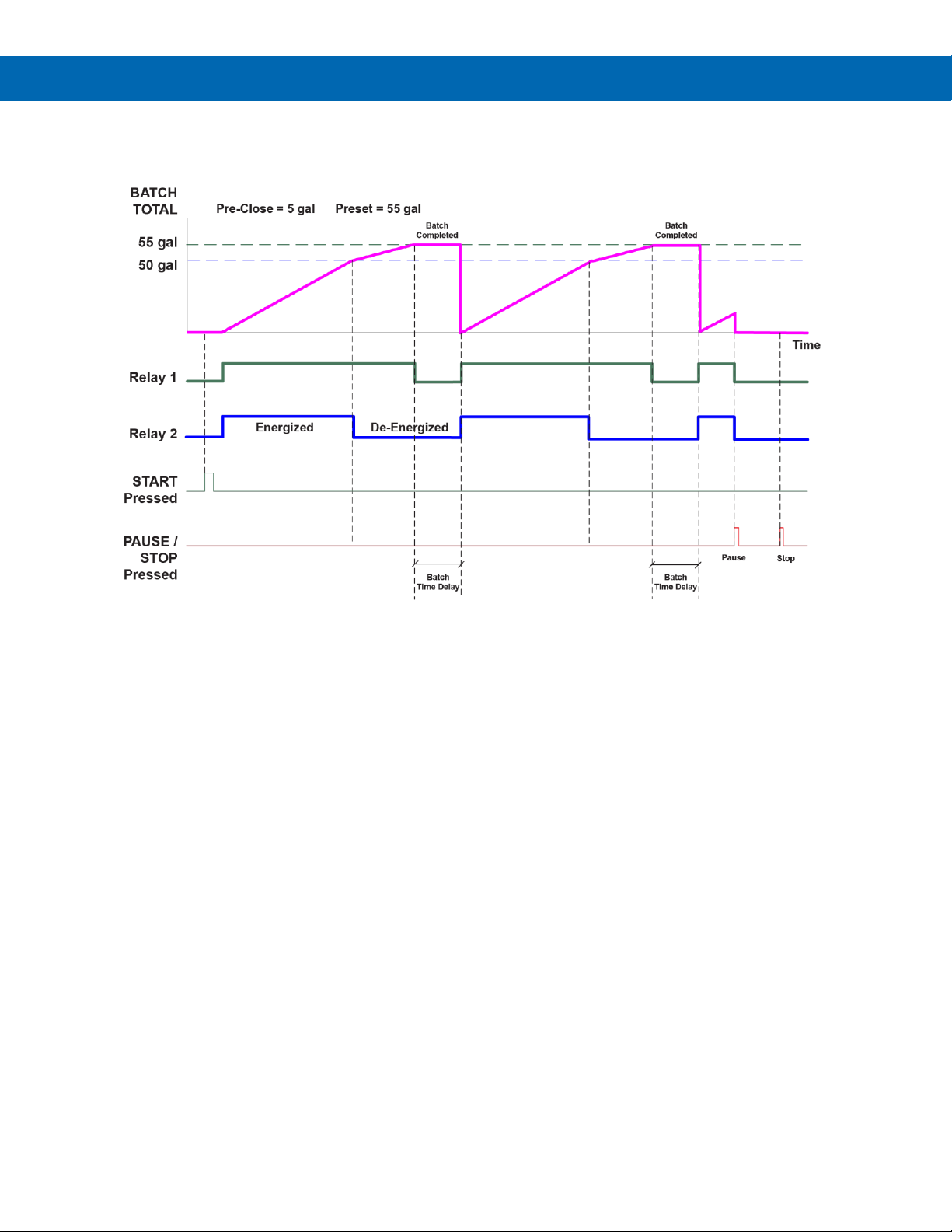

Batch Pre-Close

The pre-close value is equal to the volume amount before reaching the preset value (batch size).

Single or Multi-Stage

Single Stage: Only relay 1 is used Multi-Stage: Two or more relays are used to control the batch with more precision; this is done using multiple presets or using the pre-close feature.

Multiple Presets

Each relay de-energizes at its own preset value.

Start

The F1 key is assigned to START batch. Press START to start a new batch in

manual mode or a set of batches in automatic mode.

Pause / Stop

The F3 key is assigned to PAUSE / STOP. Press F3 once to pause and press it again to stop the batch process.

Automatic Overrun Correction

Adjusts the closing of the batch control relays to compensate for inaccuracies from batch to batch. The overrun correction feature is capable of compensating for inaccuracies of up to 1% of the programmed preset value. To achieve an accurate batch, the flow rate must be slowed down, such that the total most-right digit increments at a rate of less than 10 counts/second. The use of a dualstage batch control is recommended.

Count Up or Count Down

Batch total and grand total can set to count up or count down, independently.

Start / Stop Batch

The F4 digital input is assigned to start & stop the batch, it is located at the rear of the controller. An external push-button can be connected between terminal F4 and COM. Press the button once to start the batch and press it again to stop the batch.

High or Low Flow Alarm

The user may program any alarm for high or low trip point. The alarm detection is active only while the batch is running. Unused alarm LEDs and relays may be disabled (turned off).

Grand Totalizer Rollover

Grand totalizer rolls over when display exceeds 999,999,999. Relay status reflects display.

Grand Total Overflow

The grand total can display up to 999,999,999 using the overflow feature. After the value exceeds 999,999 a 3-digit value with the prefix “oF” toggles every 10 seconds. The overflow feature can be disabled by setting a grand total alarm that automatically resets the grand total when 999,999 is reached.

Grand Total Alarms

Up to seven, user selectable under setup menu. Any set point can be assigned to grand total and may be programmed anywhere in the range of the controller for grand total alarm indication. Relay 1 should always be assigned to batch.

Programmable Delay on Release

0.1 and 999.9 seconds; applied to the first relay assigned to total or grand total. If the controller is programmed to reset total to zero automatically when the preset is reached, then a delay will occur before the total is reset.

Grand Total Reset

Via front panel button, external contact closure on digital inputs, automatically via user selectable preset value and time delay, or through serial communications.

Grand Total Reset Password

Grand total passwords may be entered to prevent resetting the grand total from the front panel.

NonResettable Grand Total

The grand total can be programmed as a non-resettable total by entering the password “050873”.

• Once the Grand Total has been

programmed as “non-resettable” the feature

CANNOT be disabled.

Page 12

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Process Input

Inputs

Field selectable: 0-20, 4-20 mA 10 V (0-5, 1-5, 0-10 V) Modbus PV (Slave)

Isolated Transmitter Power Supply

Terminals P+ & P-: 24 VDC 10%. All models selectable for 24, 10, or 5 VDC

supply (internal jumper J4). 85-265 VAC models rated @ 200 mA max, 12-24 VDC powered models rated @ 100 mA max. 5 & 10 VDC supply rated @ 50 mA max. Refer to Figure 4. Transmitter Supply Voltage Selection on page 17.

When the Light / Horn is powered by the transmitter power supply, see MOD-LH Light / Horn's transmitter power supply specification in MOD-LH manual for additional details. Light / Horn power not available for 5 or 10 VDC supplies.

Accuracy

±0.03% of calibrated span ±1 count, square root & programmable exponent accuracy range: 10-100% of calibrated span

Temperature Drift

0.005% of calibrated span/C max from 0 to 65C ambient, 0.01% of calibrated span/C max from -40 to 0C ambient

Input Signal Conditioning

Linear, square root, or programmable exponent

Multi-Point Linearization

2 to 32 points

Programmable Exponent

User selectable from 1.0001 to 2.9999 for open channel flow

Low-Flow Cutoff

0.1 to 999,999 (0 disables cutoff function). Point below at which the display always shows zero.

Decimal Point

Up to five decimal places or none: d.ddddd, d.dddd, d.ddd, d.dd, d.d, or dddddd

Calibration Range

Input Range

Minimum Span Input 1 & Input 2

4-20 mA

0.15 mA

10 V

0.10 V

An error message will appear if the input 1 and input 2 signals are too close together.

Input Impedance

Voltage ranges: greater than 500 k Current ranges: 50 - 100  (depending on resettable fuse impedance)

Input Overload

Current input protected by resettable fuse, 30 VDC max. Fuse resets automatically after fault is removed.

HART Transparency

The controller does not interfere with existing HART communications; it displays the 4-20 mA primary variable and it allows the HART communications to pass through without interruption. The controller is not affected if a HART communicator is connected to the loop. The controller does not display secondary HART variables.

Relays

Rating

2 or 4 SPDT (Form C) internal and/or 4 SPST (Form A) external; rated 3 A @ 30 VDC and 125/250 VAC resistive load; 1/14 HP (≈ 50 W) @ 125/250 VAC for inductive loads

Noise Suppression

Noise suppression is recommended for each relay contact switching inductive loads; see Switching Inductive Loads on page 19 for details.

Relay Assignment

Relays may be assigned to batch control total, sampling, rate, or grand total alarms.

Pre-Close

0-100% of batch size, individually user programmable for each additional batch control relay beyond the first.

Alarm Deadband

0-100% of span, user programmable

High or Low Flow Alarm

User may program any alarm for high or low trip point. The alarm detection is active only while the batch is running. Unused alarm LEDs and relays may be disabled (turn off).

Relay Operation

• Manual or automatic batch control

• Automatic (non-latching)1 and/or manual

alarm reset (acknowledge)

• Latching (requires manual acknowledge) with or without clear

• Pump alternation control (N/A to batch)

• Sampling (based on set point and time)

• Off (disable unused relays and enable

Interlock feature)

• Manual on/off control mode

Relay Reset (Acknowledge)

User selectable via front panel buttons, F4 terminal at back of controller, external contact closure on digital inputs, automatically via user selectable preset value and time delay, or through serial communications.

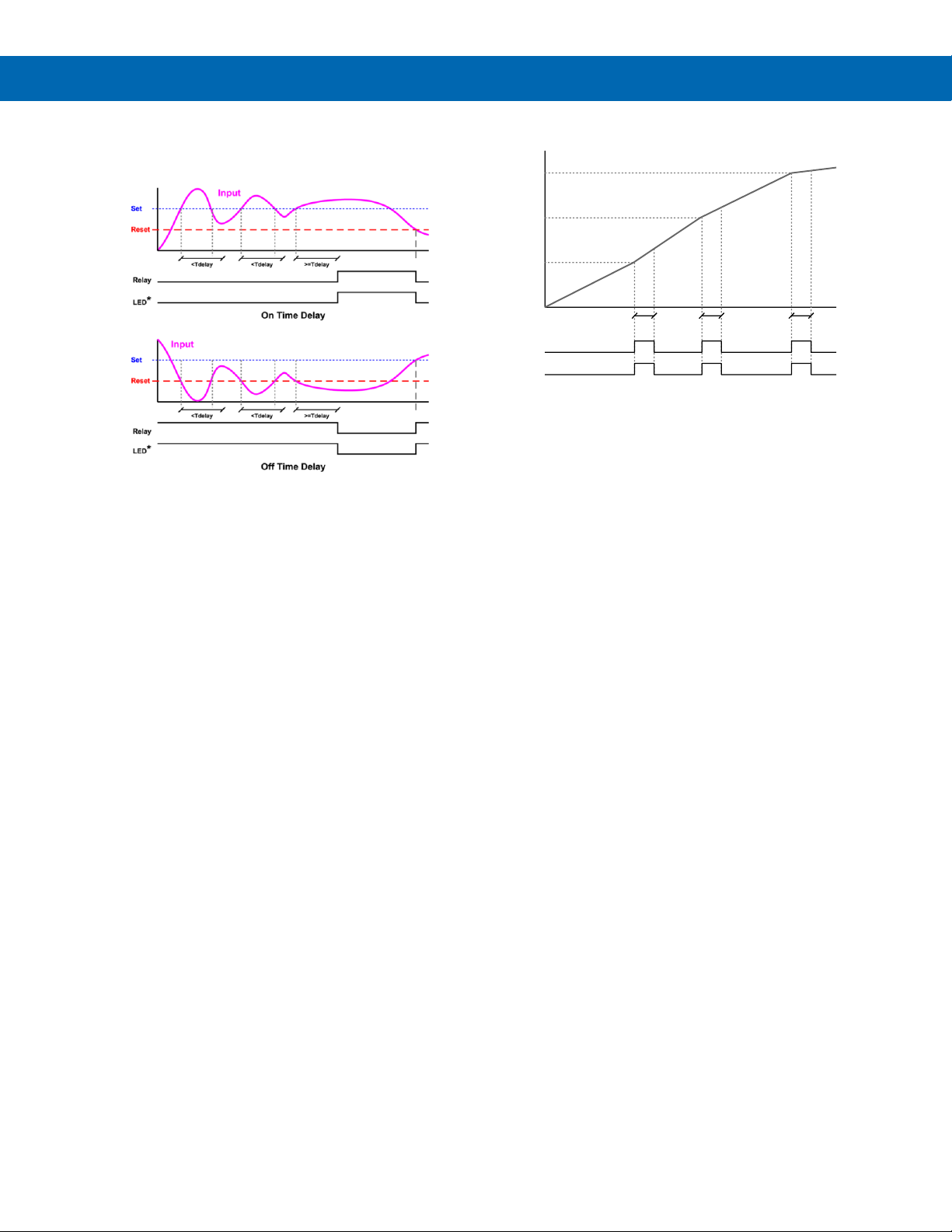

Alarm Time Delay

0 to 999.9 seconds, on & off relay time delays. Programmable and independent for each relay.

Fail-Safe Operation

Programmable and independent for each relay.

Note: Relay coil is energized in non-alarm condition. In case of power failure, relay will go to alarm state.

Alarm Auto Initialization

When power is applied to the controller, relays will reflect the state of the input to the controller.1

Additional Relays

An external module, model PDA1004, is available to add 4 SPST 3 A relays to the controller.

1. Alarms are active only when the batch is running.

Page 13

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Isolated 4-20 mA Transmitter Output

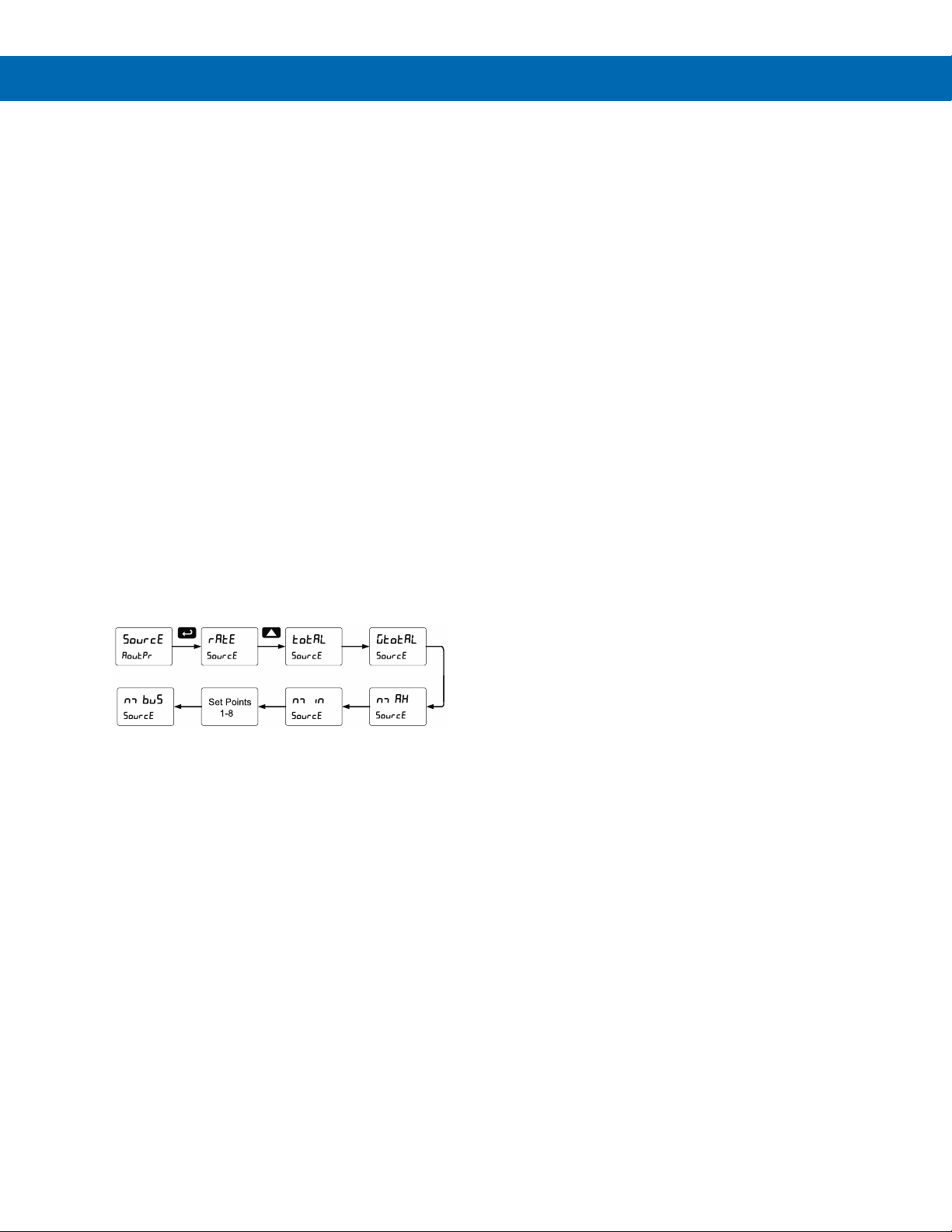

Output Source

Rate/process, total, grand total, max, min, set points 1-8, Modbus register, or manual control mode

Scaling Range

1.000 to 23.000 mA for any display range.

Calibration

Factory calibrated:

4.000 to 20.000 = 4-20 mA output

Analog Out Programming

23.000 mA maximum for all parameters: Overrange, underrange, max, min, and break

Accuracy

± 0.1% FS ± 0.004 mA

Temperature Drift

0.4 µA/C max from 0 to 65C ambient,

0.8 µA/C max from -40 to 0C ambient

Note: Analog output drift is separate from input drift.

Isolated Transmitter Power Supply

Terminals I+ & R: 24 VDC  10%. May be used to power the 4-20 mA output or other devices.

All models rated @ 40 mA max.

External Loop Power Supply

35 VDC maximum

Output Loop Resistance

Power supply

Minimum

Maximum

24 VDC

10 

700 

35 VDC (external)

100 

1200 

Additional 4-20 mA Outputs

The PD659-1MA-2MA can split the optional 4-20 mA output into two isolated 4-20 mA outputs

0-10 VDC Output

The PD659-1MA-1V can convert the optional 4-20 mA output to a 0-10 VDC output

USB Connection

Function

Programming only

Compatibility

USB 2.0 Standard, Compliant

Connector Type

Micro-B receptacle

Cable

USB A Male to Micro-B Cable

Driver

Microsoft® Windows® XP/Vista/7/8/10

Power

USB port provides power to the controller for configuration only.

DO NOT apply AC or DC power to the controller while the USB port is in use.

On-Board Digital Input (F4)

Function

Start/Stop batch, remote operation of frontpanel buttons, acknowledge/reset relays, reset max/min values. See Function Keys & Digital I/O Available Settings on page 51 for a complete list of capabilities.

Contacts

3.3 VDC on contact. Connect normally open contacts across F4 to COM

Logic Levels

Logic High: 3 to 5 VDC Logic Low: 0 to 1.25 VDC

Additional I/O

Up to 2 external modules, model PDA1044 with 4 digital inputs and 4 digital outputs each can be added.

Modbus® RTU Serial Communications

Slave Id

1 – 247 (Controller address)

Baud Rate

300 – 19,200 bps

Transmit Time Delay

Programmable between 0 and 199 ms

Data

8 bit (1 start bit, 1 or 2 stop bits)

Parity

Even, Odd, or None with 1 or 2 stop bits

Byte-To-Byte Timeout

0.01 – 2.54 second

Turn Around Delay

Less than 2 ms (fixed)

Note: Refer to the PROVU Modbus Register Tables located at www.predig.com for details.

MeterView Pro Software

Availability

Download directly from controller or from

www.predig.com/download_software

System Requirements

Microsoft® Windows® XP/Vista/7/8/10

Communications

USB 2.0 (for programming only) (Standard USB A to Micro USB B)

RS-232 adapter, RS-485 adapter and RS-485 to USB converter (programming, monitoring, batch control, and data logging)

Configuration

Configure controllers one at a time

Power

USB port provides power to the controller for configuration only.

DO NOT apply AC or DC power to the controller while the USB port is in use.

Batch Control

Use MeterView Pro to control the batch, change the preset, reset totals, and test the relays.

Data Logging

Use MeterView Pro for data logging of the batch process.

Page 14

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Compliance Information

Safety

UL & c-UL Listed

USA & Canada UL 508 Industrial Control Equipment

UL File Number

E160849

Front Panel

UL Type 4X, NEMA 4X, IP65; panel gasket provided

Low Voltage Directive

EN 61010-1 Safety requirements for measurement, control, and laboratory use

Electromagnetic Compatibility

Emissions

EN 55022 Class A ITE emissions requirements

Radiated Emissions

Class A

AC Mains Conducted Emissions

Class A

Immunity

EN 61326-1 Measurement, control, and laboratory equipment EN 61000-6-2 EMC heavy industrial generic immunity standard

RFI Amplitude Modulated

80 -1000 MHz 10 V/m 80% AM (1 kHz)

1.4 - 2.0 GHz 3 V/m 80% AM (1 kHz)

2.0 - 2.7 GHz 1 V/m 80% AM (1 kHz)

Electrical Fast Transients

±2kV AC mains, ±1kV other

Electrostatic Discharge

±4kV contact, ±8kV air

RFI Conducted

10V, 0.15-80 MHz, 1kHz 80% AM

AC Surge

±2kV Common, ±1kV Differential

Surge

1KV (CM)

PowerFrequency Magnetic Field

30 A/m 70%V for 0.5 period

Voltage Dips

40%V for 5 & 50 periods 70%V for 25 periods

Voltage Interruptions

<5%V for 250 periods

Note:

Testing was conducted on controllers installed through the covers of grounded metal enclosures with cable shields grounded at the point of entry representing installations designed to optimize EMC performance.

EU Declaration of

Conformity

EU Declaration of Conformity is available in the Documentation CD provided with the product under the EU DoC menu.

Safety Information

• Read complete instructions prior to installation and operation of the controller.

• Risk of electric shock or personal injury.

• Hazardous voltages exist within enclosure.

Installation and service should be performed only by trained service personnel.

Installation

There is no need to remove the controller from its case to complete the installation, wiring, and setup of the controller for most applications. Instructions are provided for changing the transmitter power supply to output 5 or 10 VDC instead of 24 VDC. See Figure 4. Transmitter Supply Voltage Selection on page 17.

Unpacking

Remove the controller from box. Inspect the packaging and contents for damage. Report damages, if any, to the carrier.

If any part is missing or the controller malfunctions, please contact your supplier or the factory for assistance.

Page 15

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Panel Mounting Instructions

• Prepare a standard 1/8 DIN panel cutout –

3.622" x 1.772" (92 mm x 45 mm). Refer to Figure 1. 1/8 DIN Panel Cutout and Mounting below for more details.

• Clearance: allow at least 6.0" (152 mm) behind the panel for wiring.

• Panel thickness: 0.04" - 0.25" (1.0 mm - 6.4 mm). Recommended minimum panel thickness to maintain Type 4X rating: 0.06" (1.5 mm) steel panel, 0.16" (4.1 mm) plastic panel.

• Remove the two mounting brackets provided with the controller (back-off the two screws so that there is ¼" (6.4 mm) or less through the bracket. Slide the bracket toward the front of the case and remove).

• Insert controller into the panel cutout.

• Install mounting brackets and tighten the screws

against the panel. To achieve a proper seal, tighten the mounting bracket screws evenly until controller is snug to the panel along its short side. DO NOT OVER TIGHTEN, as the rear of the panel may be damaged.

DO NOT apply AC or DC power to the controller when using the USB connection.

Figure 1. 1/8 DIN Panel Cutout and Mounting

Mounting Dimensions

Figure 2. Controller Dimensions - Side View

Figure 3. Controller Dimensions - Top View

CNOC

+-R

3.622" (92 mm)

1.772"

(45mm)

Panel Cutout

to DIN 43700

Square Corners to 0.060"

(1.5mm) Max Radius

Tolerances:

A: +0.032 (+0.8mm)

-0.000 (-0.0mm)

B: +0.024 (+0.6mm)

-0.000 (-0.0mm)

Page 16

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Installation Overview

We recommend the following sequence for getting the controller into service:

1. DO NOT apply AC or DC power to the controller.

2. Connect the controller to the PC with the USB cable provided. DO NOT use a different USB cable.

3. If MeterView Pro (MVPro) is already installed in your computer, then the program will launch automatically in most systems. If the program does not start automatically, double-click on the MVPro icon.

4. If MVPro is not installed, follow the instructions provided below.

5. Use MVPro to configure the controller for your application.

6. Disconnect the USB cable from the controller.

7. Apply power and signal and check operation of the controller.

8. Install the controller and put into service.

9. Make any programming adjustments using the front panel buttons.

MeterView Pro Software

The easiest and quickest way to program your PROVU controller is to use the FREE MeterView Pro programming software. This software is loaded into the controller and connects and installs directly to your PC with the USB cable provided. DO NOT use a different USB cable. We recommend that the first thing you do after taking the controller out of the box is connect the PROVU to your PC with the provided USB cable. DO NOT apply AC or DC power to the controller while your PC is connected to the controller as it will disrupt the USB connection. It is not necessary to apply an input signal.

MeterView Pro programming software is intuitive, and most customers can get their controller programmed as they like without even looking in the manual.

Watch Meterview Pro Software Video at

www.predig.com/meterviewpro

MeterView Pro Installation

1. Connect one end of the provided USB cable

to the controller and the other end to the computer. The computer will automatically install the driver software it needs to talk to the controller. Follow the on-screen instructions and allow sufficient time for the process to complete. This can take a few minutes. If the process is interrupted, then it could leave the system in an unstable condition.

• Only one controller may be connected at a time. Attaching multiple controllers will cause a conflict with the controller software.

• DO NOT apply AC or DC power to the controller when using the USB connection.

2. Once the driver is installed, an AutoPlay dialog should appear for the drive

“MAINSTAL.” Click “Open folder to view

files.”

If the computer does not display an AutoPlay

dialog for the drive “MAINSTAL,” you should

open My Computer and double-click on the drive labeled “MAINSTAL.”

3. Double-click on the file named “MAStart.” The program will open a few windows and install two programs on your computer. Simply follow the on-screen instructions until you see one of the dialogs below. If you

receive a “User Account Control” warning,

click “Yes.”

4. If there is an update available, click the

“Update” button to install the new version. Otherwise, click “Configure” to begin

programming your controller.

Note: If you decide to update your MeterView Pro software, once the installation has completed, you will be asked if you want to update the setup files located on the controller itself. This way, you will always have the most current version on the controller for future installs.

• DO NOT unplug the controller while the new

installation files are being written to it. The controller will display uwrite during the process and you will receive an on-screen notification once the process is complete.

Page 17

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Transmitter Supply Voltage Selection (P+, P-)

All controllers, including models equipped with the 12-24 VDC power option, are shipped from the factory configured to provide 24 VDC power for the transmitter or sensor.

If the transmitter requires 5 or 10 VDC excitation, the internal jumper J4 must be configured accordingly.

To access the voltage selection jumper:

1. Remove all the connectors.

2. Unscrew the back cover.

3. Slide the back cover about 1 inch.

4. Configure the J4 jumper, located behind the input signal connector, for the desired excitation voltage as shown.

Figure 4. Transmitter Supply Voltage Selection

Connections

All connections are made to removable screw terminal connectors located at the rear of the controller.

• Use copper wire with 60°C or 60/75°C insulation for all line voltage connections. Observe all safety regulations. Electrical wiring should be performed in accordance with all applicable national, state, and local codes to prevent damage to the controller and ensure personnel safety.

Connectors Labeling

The connectors’ label, affixed to the controller, shows the location of all connectors available with requested configuration.

Note: ## on the following figures refers to power and display options. (Example: PD6210-6H5)

Figure 5. PD6210-##2 Connectors Label

Figure 6. PD6210-##4 Connectors Label

Figure 7. PD6210-##5 Connectors Label

Figure 8. PD6210-##7 Connectors Label

• DO NOT connect any equipment other than

Precision Digital’s expansion modules, cables, or

controllers to the RJ45 M LINK connector. Otherwise damage will occur to the equipment and the controller.

POWER

SIGNAL

M-LINK

CNONO NC NC C

RELAY2 RELAY1

4365 21

123 4 5 6 7 8

P- COMP+ V+ mA+

3412 5

POWER

SIGNAL

M-LINK

CNONO NC NC C

RELAY4 RELAY3

4365 2 1

CNONO NC NC C

RELAY2 RELAY1

4365 21

123 4 5 6 7 8

P- COMP+ V+ mA+

3412 5

I- I+

MA OUT

POWER

SIGNAL

M-LINK

CNONO NC NC C

RELAY2 RELAY1

4365 21

123 4 5 6 7 8

24 V

P- COMP+ V+ mA+

3412 5

I- I+

MA OUT

POWER

SIGNAL

M-LINK

CNONO NC NC C

RELAY4 RELAY3

4365 2 1

CNONO NC NC C

RELAY2 RELAY1

4365 21

123 4 5 6 7 8

24 V

P- COMP+ V+ mA+

3412 5F46

Page 18

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Power Connections

Power connections are made to a two-terminal connector labeled POWER. The controller will operate regardless of DC polarity connection. The + and symbols are only a suggested wiring convention. There are separate models for low voltage and high voltage power. See Ordering Information on page 6 for details.

Figure 9. Power Connections

Signal Connections

Signal connections are made to a six-terminal connector labeled SIGNAL. The COM (common) terminal is the return for the 4-20 mA and the 10 V input signals.

Current (mA) Connections

The following figures show examples of current connections.

There are no switches or jumpers to set up for current inputs. Setup and programming is performed through the front panel buttons or MeterView Pro software.

Figure 10. Transmitter Powered by Internal Supply

Figure 11. Transmitter Powered by Ext. Supply or

Self-Powered

The current input is protected against current overload by a resettable fuse. The display may or may not show a fault condition depending on the nature of the overload.

The fuse limits the current to a safe level when it detects a fault condition, and automatically resets itself when the fault condition is removed.

Voltage (V) Connections

The following figures show examples of voltage connections.

There are no switches or jumpers to set up for voltage inputs. Setup and programming is performed through the front panel buttons or MeterView Pro software.

Figure 12. Voltage Input Connections

The controller is capable of accepting any voltage from

-10 VDC to +10 VDC.

Modbus RTU Serial Communications

Serial communications connection is made to an RJ45 connector labeled M-LINK. Use the PDA1232 for RS232 interfacing, or the PDA1485 for RS-485 interfacing. The same port is used for interfacing with all expansion modules (e.g. external relays, digital I/O).

Relay Connections

Relay connections are made to two six-terminal connectors labeled RELAY1 – RELAY4. Each relay’s C terminal is common only to the normally open (NO) and normally closed (NC) contacts of the

corresponding relay. The relays’ C terminals should

not be confused with the COM (common) terminal of the INPUT SIGNAL connector.

Figure 13. Relay Connections

AC or DC

POWER

Required External Fuse:

5 A max, 250 V Slow Blow

POWER

C NONO NC NC C

RELAY4 RELAY3

4 36 5 2 1

C NONO NC NC C

RELAY2 RELAY1

4 36 5 2 1

Page 19

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Switching Inductive Loads

The use of suppressors (snubbers) is strongly recommended when switching inductive loads to

prevent disrupting the microprocessor’s operation.

The suppressors also prolong the life of the relay contacts. Suppression can be obtained with resistorcapacitor (RC) networks assembled by the user or purchased as complete assemblies. Refer to the following circuits for RC network assembly and installation:

Figure 14. AC and DC Loads Protection

Choose R and C as follows: R: 0.5 to 1  for each volt across the contacts

C: 0.5 to 1 µF for each amp through closed contacts

Notes:

1. Use capacitors rated for 250 VAC.

2. RC networks may affect load release time of solenoid loads. Check to confirm proper operation.

3. Install the RC network at the controller's relay screw terminals. An RC network may also be installed across the load. Experiment for best results.

Use a diode with a reverse breakdown voltage two to three times the circuit voltage and forward current at least as large as the load current.

Figure 15. Low Voltage DC Loads Protection

RC Networks Available from Precision Digital

RC networks are available from Precision Digital and should be applied to each relay contact switching an inductive load. Part number: PDX6901.

Note: Relays are de-rated to 1/14th HP (50 watts) with an inductive load.

F4 Digital Input Connections

A digital input, F4, is standard on the controller. This digital input should be connected with a normally open contact across F4 and COM, or with an active low signal applied to F4. It can be used to start/stop the batch, reset the total, acknowledge/reset relays, or to reset max/min values. See Function Keys & Digital I/O Available Settings on page 51 for a complete list of capabilities.

Figure 16. F4 Digital Input Connections

4-20 mA Output Connections

Connections for the 4-20 mA transmitter output are made to the connector terminals labeled MA OUT. The 4-20 mA output may be powered internally or from an external power supply.

Figure 17. 4-20 mA Output Connections

Analog Output Transmitter Power Supply

The internal 24 VDC power supply powering the analog output may be used to power other devices, if the analog output is not used. The I+ terminal is the +24 V and the R terminal is the return.

Figure 18. Analog Output Supply Powering Other

Devices

C R

P- COMP+ V+ mA+

3412 5

4-20 mA Input

Remote Display, PLC,

Chart Recorder, Etc.

RI- I+

132

RELAY1

mA OUT

24 V

12-35 VDC

Power

Supply

4-20 mA

Input Meter

RI- I+

132

RELAY1

321

24 V

mA OUT

Internal Power Supply

and Analog Output

321

Active Output Loop Passive Output Loop

RI- I+

132

24 VDC

Powered

Device

24 V

Page 20

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

External Relay & Digital I/O Connections

The relay and the digital I/O expansion modules

PDA1004 & PDA1044 are connected to the meter

using a CAT5 cable provided with each module. The two RJ45 connectors on the expansion modules are identical and interchangeable; they are used to connect additional modules to the system.

Note: The jumper located between the RJ45

connectors of the PDA1044 must be removed on the second digital I/O module in order for the system to recognize it as module #2.

• DO NOT connect or disconnect the expansion modules with the power on! More detailed instructions are provided with each optional expansion module.

Figure 19. Expansion Module & DIN Rail Mounting

Kit

Figure 20. External Relays Module Connections

Figure 21. Digital I/O Module Connections

Remote Batch Control Connections

The batch controller can be operated via the front panel push buttons or a remote control station using the PDA1044 Digital I/O module as illustrated in Figure 22. Controller to Control Station Connection.

Figure 22. Controller to Control Station

Connection

Interlock Relay Feature

As the name implies, the interlock relay feature reassigns one, or more, alarm/control relays for use as interlock relay(s). Interlock contact(s) are wired to digital input(s) and activate the interlock relay. This feature is enabled by configuring the relay, and the corresponding digital input(s), see Setting Up the Interlock Relay (Force On) Feature on page 38.

In the example below, an Interlock Contact switch is connected to a digital input, which will be used to force on (energize) the Interlock Relay. The Interlock Relay and the Control Relay are connected in series with the load.

• When the Interlock Contact is closed (safe), the Interlock Relay energizes, allowing power to flow to the Control Relay; the corresponding front panel LED is on.

• When the Interlock Contact is open, the corresponding front panel LED flashes (locked out), the Interlock Relay is de-energized, preventing power from flowing to the Control Relay and the load.

Figure 23. Interlock Connection

1 2

RLY5 RLY6 RLY7 RLY8

3 4 5 6 7 8

NO C NO C NO C NO C

1 2 3 4 5 6

+5 I1 I2 I3 I4 O1

7 8

O2 O3

9 10

O4 G

DI 1-4 DO 1-4

5 VDC GND

Page 21

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Setup & Programming

There is no need to recalibrate the controller when first received from the factory.

The controller is factory calibrated prior to shipment for milliamps and volts with calibration equipment that is certified to NIST standards.

Overview

Setup and programming is done using MeterView Pro or through the front panel buttons.

Jumper J4 located inside the controller, behind the input signal connector, is used to select the excitation voltage (24 V [Default Setting], 10 V or 5 V) which is supplied to the P+ and P- wiring terminals.

After power and input signal connections have been completed and verified, apply power to the controller.

Front Panel Buttons and Status LED Indicators

Button Symbol

Description

START (Right arrow/F1)

BATCH (Up arrow/F2)

STOP (Enter/F3)

LED

State

Indication

1-8

Steady

Alarm condition based on set and reset points, independent of relay status in certain configurations. (Available on all meter configurations, including those without relays installed)

1-8

Flashing

Relay interlock switch open

1-8 & M

Flashing

Relay in manual control mode

Steady

Rate

Steady

Total

G & T

Steady

Grand Total

▲

Steady

Total overflow (“oF” is

displayed to the left of total overflow and ▲ LED is illuminated)

Flashing

Analog ouput in manual control mode

Programming

• Press the Menu button to enter or exit the Programming Mode at any time.

• Press the Right arrow button to move to the next digit during digit or decimal point programming.

• Press or hold the Up arrow button to scroll through the menus, decimal point or press or hold to increment the value of a digit.

• Press the Enter button to access a menu or to accept a setting.

• Press and hold the Menu button for three seconds to access the advanced features of the controller.

Page 22

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Display Functions and Messages

The controller displays various functions and messages during setup, programming, and operation. The following table shows the main menu functions and messages in the order they appear in the menu.

Display Functions and Messages

Display

Parameter

Action/Setting Description

setup

Setup

Enter Setup menu

Input

Enter Input selection menu

Volt

0-10 VDC

Set input for 10 VDC input

nmA

4-20 mA

Set input for 4-20 mA input

Total

Enable or disable totalizer features

unitS

Units

Select the display units/tags

rate

Rate

Select the display units for rate

total

Total

Select the display units for total

Gtotal

Grand Total

Select the display units for grand total

Dec pt

Decimal point

Set decimal point for rate, total, grand total

prog

Program

Enter the Program menu

InCAL

Input Calibration

Enter the Input Calibration menu

sCalE

Scale

Enter the Scale menu

Cal

Calibrate

Enter the Calibrate menu

Inp 1

Input 1

Calibrate input 1 signal or program input 1 value

Dis 1

Display 1

Program display 1 value

Inp 2

Input 2

Calibrate input 2 signal or program input 2 value (up to 32 points)

Dis 2

Display 2

Program display 2 value (up to 32 points)

Error

Error, calibration not successful, check signal or programmed value

T tb

Total time base

Enter totalizer time base for seconds, minutes, hours or day.

T Cf

Total conversion factor

Enter the conversion factor decimal point and the conversion factor.

nmode

Batch mode

Automatic or manual batch control

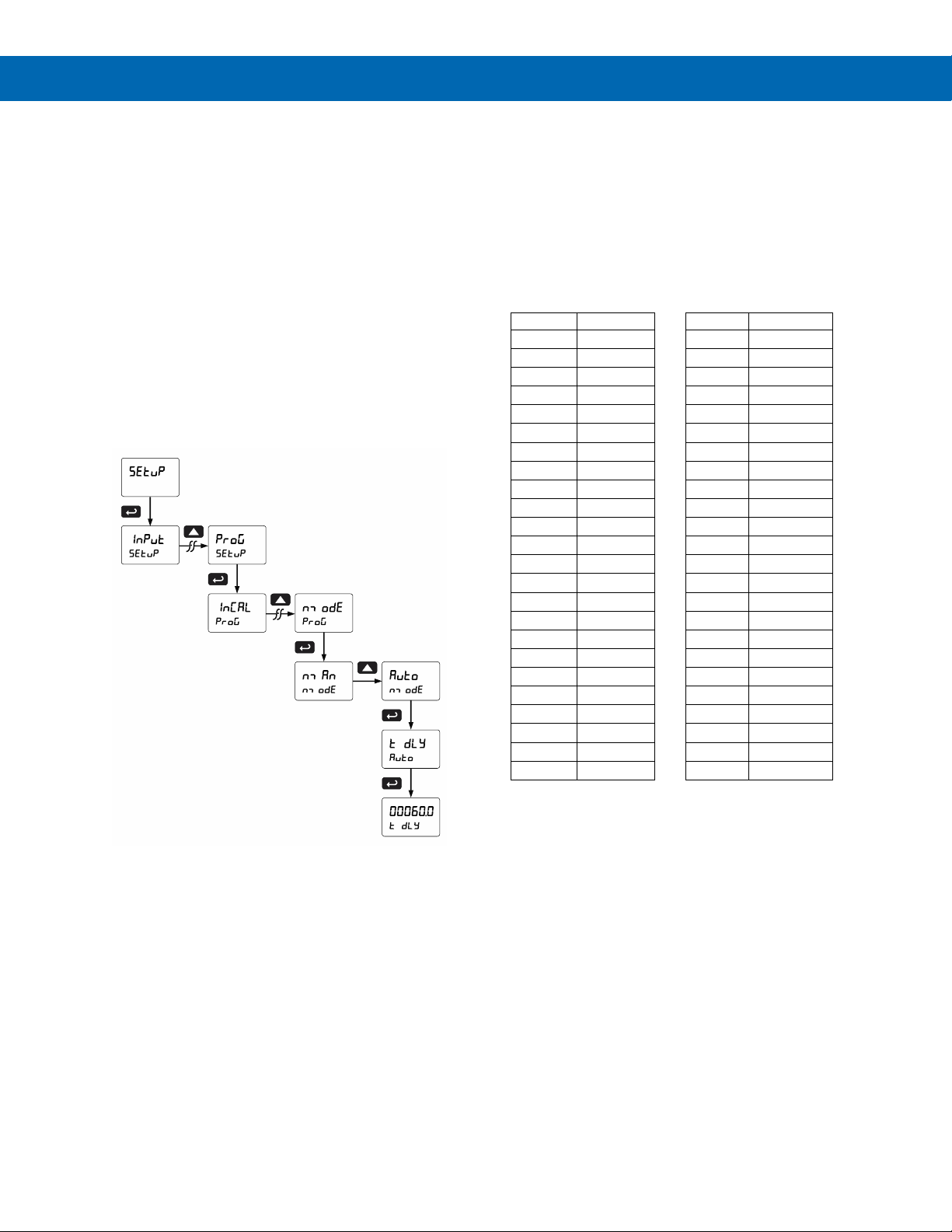

T dly

Time delay

Set time delay for automatic batch restart

GT tb

Grand total time base

Program grand total time base

Display Functions and Messages

Display

Parameter

Action/Setting Description

GT CF

Grand total conversion factor

Program grand total conversion factor

GT rst

Grand total reset

Program grand total reset mode: auto or manual

dsplay

Display

Enter the Display menu

Line 1

Display Line 1

Press Enter to assign the Upper display parameter (default: PV or rate)

Line 2

Display Line 2

Press Enter to assign the Lower display parameter (default: total)

d-Inty

Display intensity

Set display intensity level from 1 to 8

RELaY

Relay

Enter the Relay menu

Assign

Assignment

Assign relays to rate, total (batch control), grand total, or Modbus controlled.

Asign1

Assign 1

Relay 1-2 assignment

TotaL

Total

Assign relay to batch control

Gtotal

Grand total

Assign relay to grand total

nmbus

Modbus

Assign relay to Modbus input

rate

Rate

Assign relay to rate

precls

Batch total relay preclose

For relays beyond the first assigned to total, a preclose amount may be entered.

RLY 1

Relay 1

Relay 1 setup

Act 1

Action 1

Set relay 1 action1

Auto

Automatic

Set relay for automatic reset

A-nman

Automanual1

Set relay for automatic & manual reset any time

(relays assigned to rate)

LatcH

Latching1

Set relay for latching operation (relays assigned to rate) 1

Lt-CLr

Latchingcleared1

Set relay for latching operation with manual reset only after alarm condition has cleared (relays assigned to rate) 1

Altern

Alternate

Not applicable to batch controller

Sanmpl

Sampling

Set relay for sampling operation (rate or GT)

OFF

Off

Disable relay and front panel status LED (Select Off to enable Interlock feature)

Preset

Set batch preset

Set 1

Program set point 1

Page 23

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Display Functions and Messages

Display

Parameter

Action/Setting Description

RSt 1

Reset 1

Program reset point 1

RLY 2

Relay 2

Relays 2-8 setup. Relays 5-8 are shown, only if expansion relay module is installed.

FaiLSF

Fail-safe

Enter Fail-safe menu

FLS 1

Fail-safe 1

Set relay 1 fail-safe operation

Enable fail-safe operation

off

Fail-safe off

Disable fail-safe operation

DeLAY

Delay

Enter relay Time Delay menu

DLY 1

Delay 1

Enter relay 1 time delay setup

On 1

Set relay 1 On time delay

OFF 1

Off

Set relay 1 Off time delay

break

Loop break

Set relay condition if loop break detected (For mA input only)

iGnorE

Ignore

Ignore loop break condition (Processed as a low signal condition)

Relay goes to alarm condition when loop break is detected

OFF

Off

Relay goes to non-alarm condition when loop break is detected

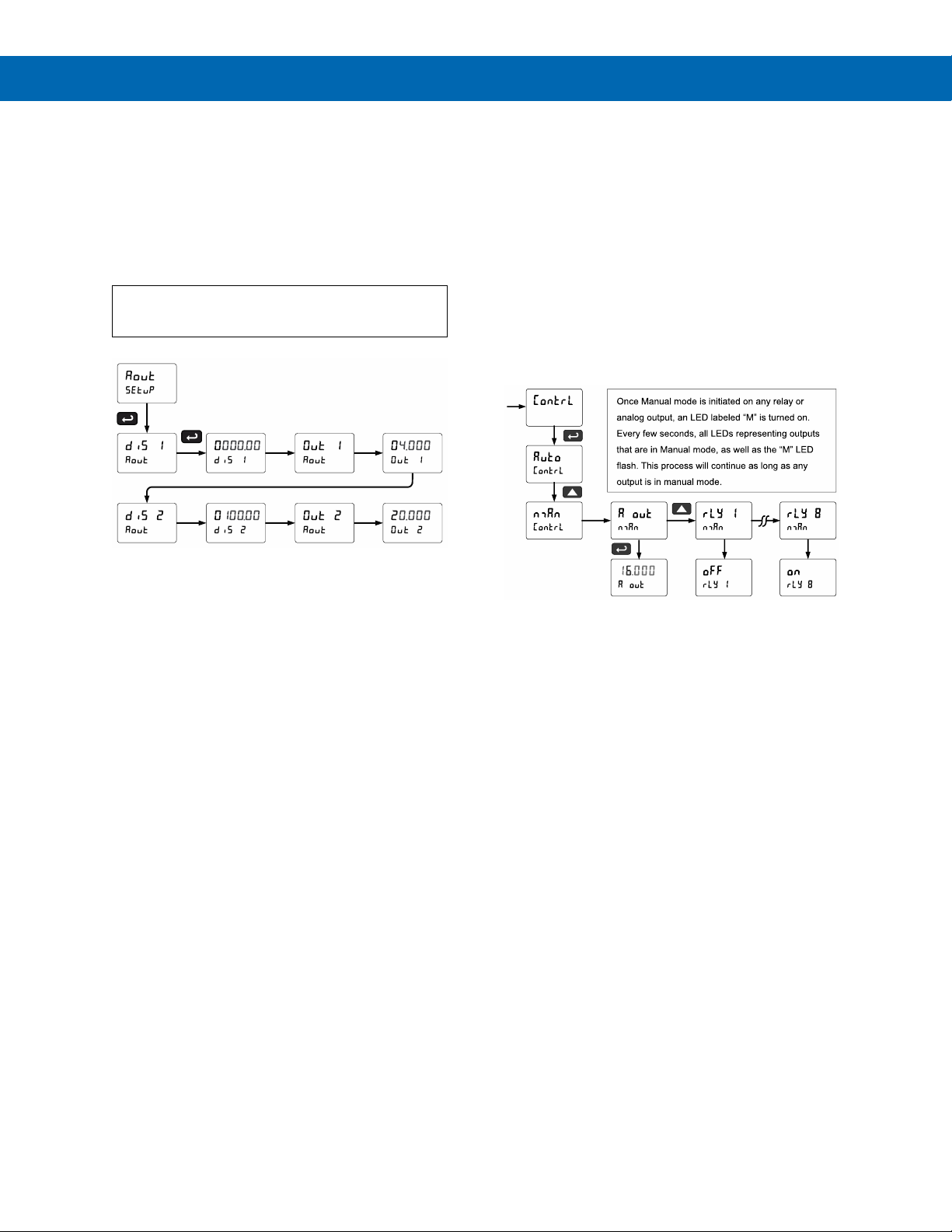

Aout

Analog output

Enter the Analog output scaling menu

Dis 1

Display 1

Program display 1 value

Out 1

Output 1

Program output 1 value (e.g. 4.000 mA)

Dis 2

Display 2

Program display 2 value

Out 2

Output 2

Program output 2 value (e.g. 20.000 mA)

reset

Reset

Press Enter to access the Reset menu

Rst Hi

Reset high

Press Enter to reset max display

Rst Lo

Reset low

Press Enter to reset min display

Rst HL

Reset high & low

Press Enter to reset max & min displays

Rst t

Reset total

Press Enter to reset total

Rst Gt

Reset grand total

Press Enter to reset grand total

Rst bc

Reset batch count

Press Enter to reset batch count

Contrl

Control

Enter Manual Control menu

Display Functions and Messages

Display

Parameter

Action/Setting Description

Auto

Automatic

Press Enter to set controller for automatic operation

nmAn

Manual

Press Enter to manually control relays or analog output operation

`pass

Password

Enter the Password menu

Pass 1

Password 1

Set or enter Password 1

Pass 2

Password 2

Set or enter Password 2

Pass 3

Password 3

Set or enter Password 3

Total

Total password

Set or enter password for manual reset

Gtotal

Grand total password

Set or enter password for manual reset

nonrst

Nonresettable

Non-resettable grand total

set after entering “050873”

for Gtotal password

unloc

Unlocked

Program password to lock controller

locd

Locked

Enter password to unlock controller

999999

-99999

Flashing display

Overrange condition Underrange condition

1. During operation, only the STOP button will function, to

stop/pause the batch. As a result, relay alarms cannot be manually reset.

Page 24

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Main Menu

The main menu consists of the most commonly used functions: Setup, Reset, Control, and Password.

• Press Menu button when a batch is not running to enter Programming Mode then press the Up arrow button to scroll main menu.

• Press Menu, at any time, to exit and return to Run Mode. Changes made to settings prior to pressing Enter are not saved.

• Changes to the settings are saved to memory only after pressing Enter.

• The display moves to the next menu every time a setting is accepted by pressing Enter.

Setting Numeric Values

The numeric values are set using the Right and Up arrow buttons. Press Right arrow to select next digit and Up arrow to increment digit value. The digit being changed is displayed brighter than the rest. Press and hold up arrow to auto-increment the display value.

Press the Enter button, at any time, to accept a setting or Menu button to exit without saving changes.

Page 25

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Setting Up the Batch Controller (setup)

The Setup menu is used to select:

1. Input signal the controller will accept

2. Enable or disable totalizer and batching features

3. Select the display units/tags

4. Decimal point position

5. Program menu for scaling or calibration, totalizer setup, manual or automatic batch mode

6. Display parameter and intensity

7. Relay operation

8. 4-20 mA analog output scaling

Press the Enter button to access any menu or press Up arrow button to scroll through choices. Press the Menu button to exit at any time.

Page 26

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Setting the Input Signal (Input)

Enter the Input menu to set up the controller to accept current (nmA) or voltage (Volt) inputs.

The current input is capable of accepting any signal from 0 to 20 mA. Select current input to accept 0-20 mA or 4-20 mA signals.

The voltage input is capable of accepting any signal from -10 to +10 VDC. Select voltage input to accept 0-5, 1-5, 0-10, or 10 VDC signals.

Setting the Totalizer & Batch Control Features (total)

After the input type is entered, set the total parameter to “Yes” to enable batch control (this is set by default). If the total features are disabled, most batching features and functions are hidden from the menus.

Setting the Input Units or Custom Tags (units)

Enter the input unit or custom tag that will be displayed if alternating rate, total, or grand total and units is selected in the units menu, or d unit is selected as the Lower display parameter. See the Setting the Display Parameter & Intensity (dsplay) flow chart on page 30 to access the display menu to show the unit or tag on the display line 2. The engineering units or custom legends can be set using the following 7-segment character set:

Display

Character

Display

Character

k K 1

n m

n n 4

p P 7

q q 8

t t b

u u C

x X e

y Y f

/ / H

[ ] h

]

[

Degree(<)

Space

Notes:

1. Degree symbol represented by (<) if programming with MeterView Pro.

2. The letters “m” and “w” use two 7-segment LEDs each; when selected the characters to the right are shifted one position.

3. Press and hold up arrow to auto-scroll the characters in the display.

Page 27

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Setting the Decimal Point (dEc pt)

The decimal point may be set with up to five decimal places or with no decimal point at all. The rate, total, and grand total decimal points are independent.

The decimal point selection should be made prior to scaling, calibrating or programming the controller.

Press the Up arrow to move the decimal point one place to the left. Press the Right arrow to move the decimal point one place to the right.

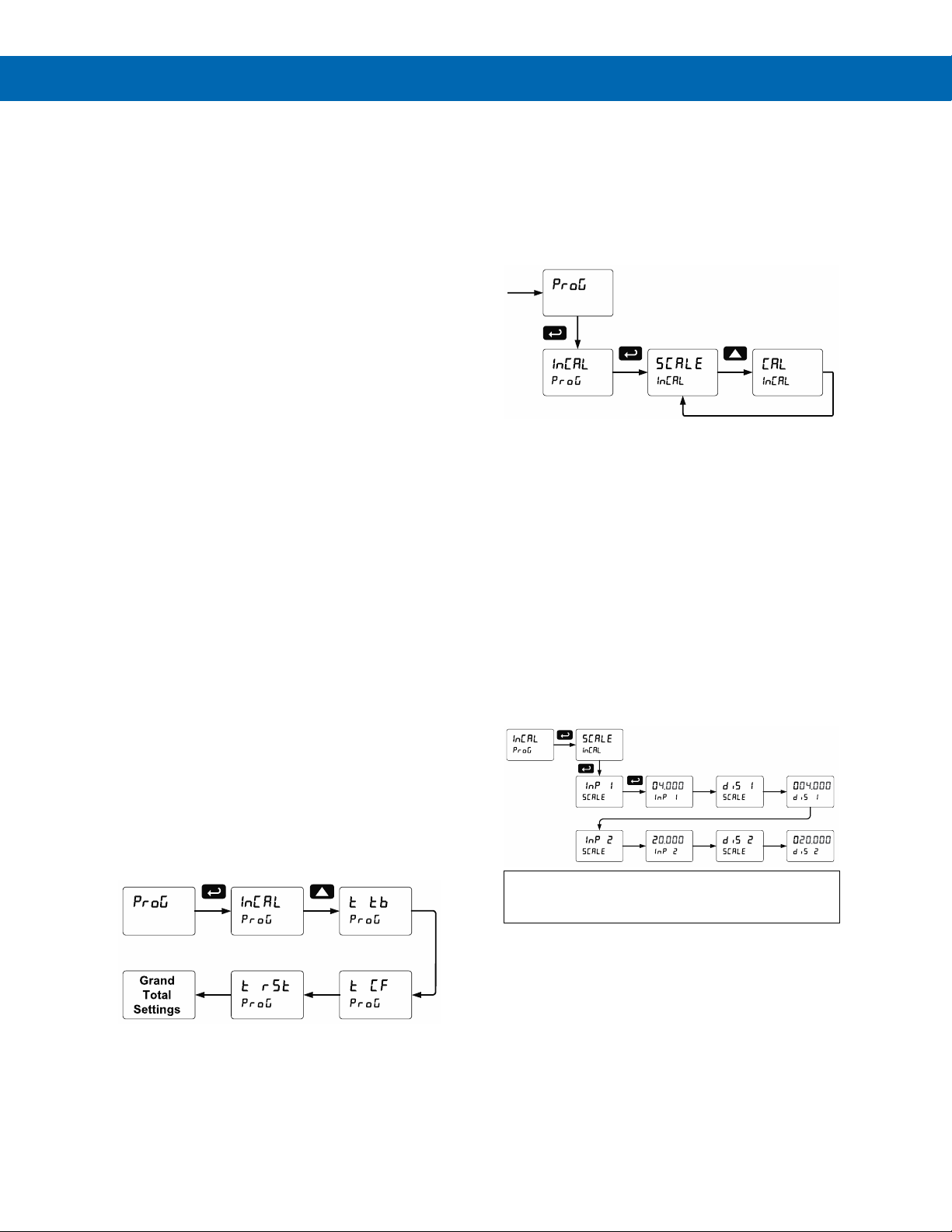

Programming the Batch Controller (prog)

The controller may either be scaled (SCALE) without applying an input or calibrated (Cal) by applying an input. The controller comes factory calibrated to NIST standards, so for initial setup, it is recommended to use the (SCALE) function.

The Program menu contains the following menus:

1. Input Calibration a. Scale without a signal source b. Calibrate with a signal source

2. Total time base & conversion factor

3. Batch mode a. Manual batch control b. Automatic batch control

4. Grand total time base & conversion factor

5. Grand total reset mode a. Manual reset b. Automatic reset with time delay

The process inputs may be calibrated or scaled to any display value within the range of the controller.

Note: The Scale and Calibrate functions are exclusive of each other. The controller uses the last function programmed. Only one of these methods can be employed at a time. The Scale and Calibrate functions can use up to 32 points (default is 2). The number of points should be set in the Advanced menu prior to scaling and calibration of the controller. See Multi-Point Linearization (Linear) menu on page 49 for details.

Additional parameters, not needed for most applications, are programmed in the Advanced Features menu; see Advanced Setup & Programming on page 46.

Input Calibration Method (InCAL)

There are two methods of calibrating (or scaling) the display to show the correct engineering units.

• Use the Scale menu to enter the scaling without a signal source.

• Use the Calibrate menu to apply a signal from a signal source.

Scaling the Controller (SCALE)

The 4-20 mA and the 10 VDC inputs can be scaled to display the process variable in engineering units.

A signal source is not needed to scale the controller; simply program the inputs and corresponding display values.

For instructions on how to program numeric values

see Setting Numeric Values, page 24.

Page 28

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Error Message (Error)

An error message indicates that the calibration or scaling process was not successful.

After the error message is displayed, the controller reverts to input 2 during calibration or scaling and to input 1 during internal calibration, allowing the appropriate input signal to be applied or programmed.

The error message might be caused by any of the following conditions:

1. Input signal is not connected to the proper terminals or it is connected backwards.

2. Wrong signal selection in Setup menu.

3. Minimum input span requirements not maintained.

4. Input 1 signal inadvertently applied to calibrate input 2.

Minimum Input Span

The minimum input span is the minimum difference between input 1 and 2 signals required to complete the calibration or scaling of the controller.

Input range

Input 1 & input 2 span

4-20 mA

0.15 mA

10 VDC

0.10 VDC

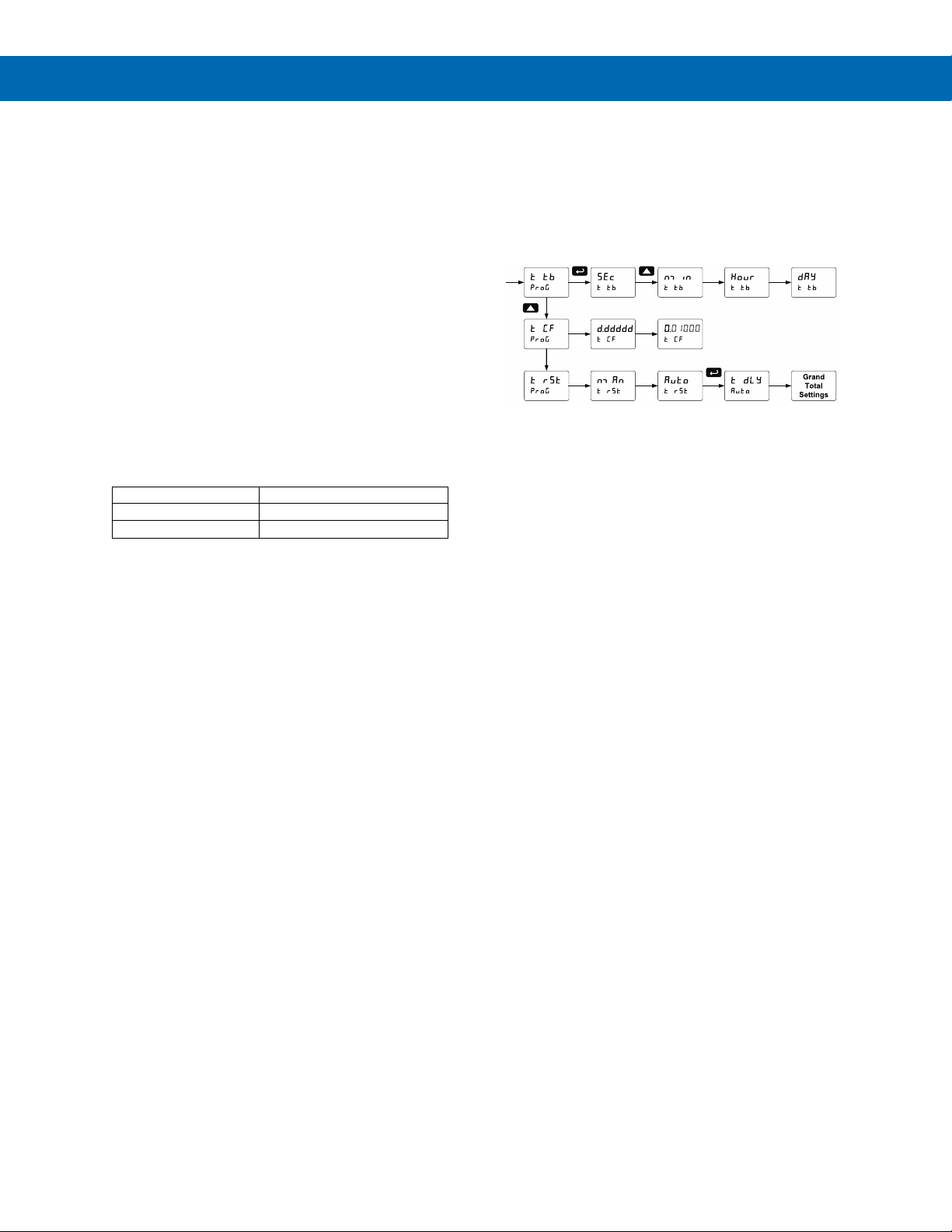

Time Base, Total Conversion Factor & Total Reset

The time base, total conversion factor, and total reset menus are located in the Program menu.

The total and grand total have their own independent settings. This means that one can be displaying the value in gallons while the other displays in million gallons, liters, m3, etc.

Time Base

The time base is the amount of time over which the rate parameter should accrue. For example, if the rate was ten and the time base was in minutes, then the total would increase by ten every one minute.

Total & Grand Total Conversion Factor

The total & grand total conversion factor is the amount by which the rate is multiplied before it is added to the total or grand total.

For Example, if the rate was ten per second and the total conversion factor was 100, the total would increase by 1000 every second. This is useful, for instance, if you want to show rate in gallons and total in thousands of gallons.

Page 29

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Batch Start Mode (nmode)

Manual Batch Control

The batch controller may operate in manual or automatic mode. In manual mode, the controller operates as described in Manual Batch Control on page 42.

Automatic Batch Control

In automatic mode, the controller operates as described in Automatic Batch Control on page 43.

The batch process will start when the operator presses the START button and it will automatically restart after a completed batch. The time delay for the restart may be 0.1 to 999.9 seconds (t dly).

Automatic batch start will only occur after a successful batch. A manually stopped batch will require a manual start to begin a new batch process.

Grand Total Reset

The grand total can be programmed for manual or automatic reset. In the automatic reset mode, a programmable time delay is available to reset the grand total after the assigned preset is reached.

The grand total can also be reset via the front panel button, via a switch across the on-board F4 terminal, the PDA1044 digital I/O expansion module, or via a Modbus command.

Non-Resettable Totalizer

The grand total can be programmed as a nonresettable total, see Grand Total Reset Password & Non-Resettable Total on page 40 for details.

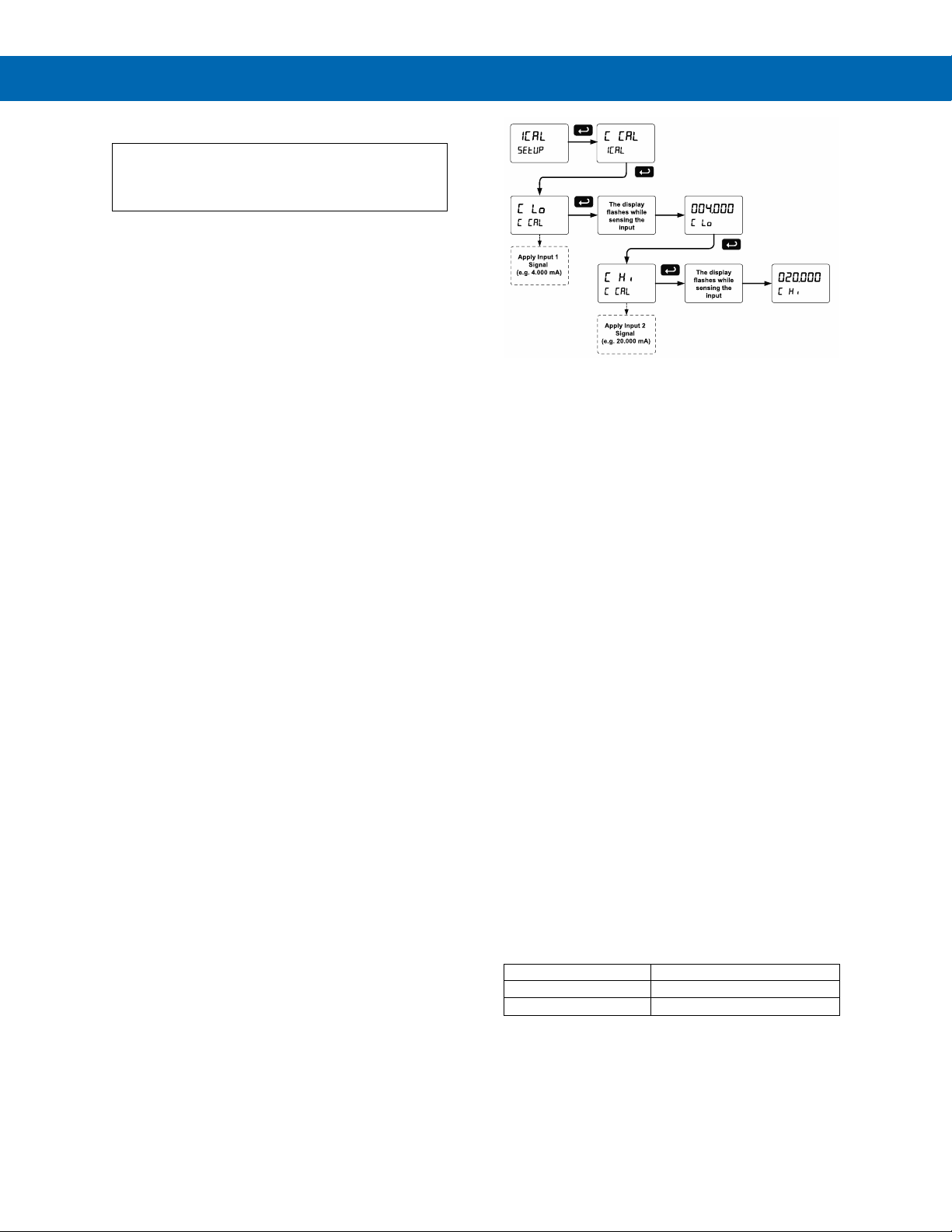

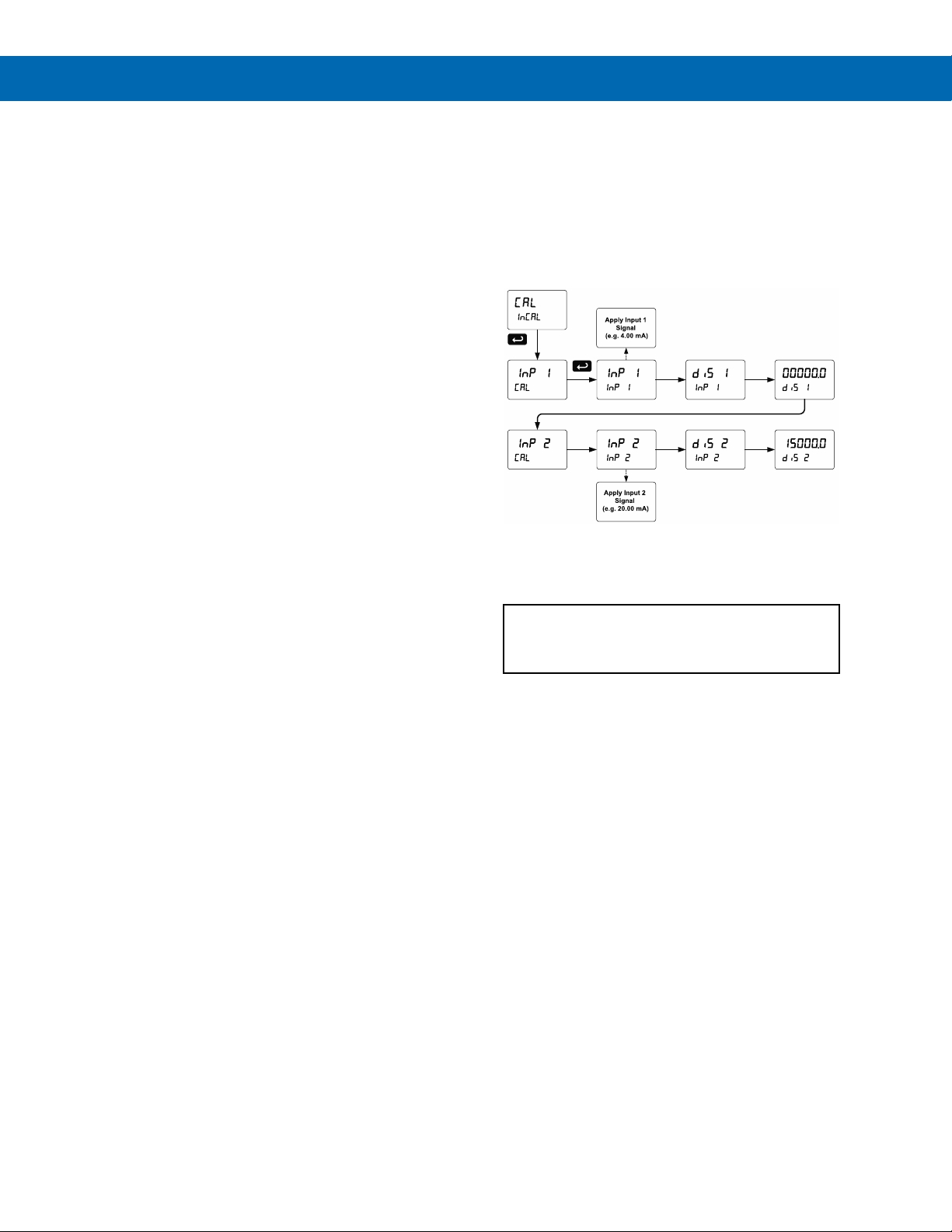

Calibrating the Controller with External Source (Cal)

The controller can be calibrated to display the process variable in engineering units by applying the appropriate input signal and the corresponding display value.

The use of a calibrated signal source is strongly recommended to calibrate the controller.

Note: Inputs for the above example are: Input 1: 4.00 mA; Display 1: 0.0 Gallons Input 2: 20.00 mA; Display 2: 15000.0 Gallons

Warm up the controller for at least 15 minutes

before performing calibration to ensure specified

accuracy.

Page 30

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Setting the Display Parameter & Intensity (dsplay)

Display line 1 (line 1) can be programmed to display:

1. Display total

2. Display grand total

3. Toggle rate and total

4. Toggle rate and grand total

5. Display batch count

6. Relay set points

7. Toggle preset and rate

8. Toggle rate and units

9. Toggle total and units

10. Toggle grand total and units

11. Display max and min values

12. Display Modbus input

13. Display rate value

Display line 2 (line 2) can be programmed to display:

1. Toggle rate and units

2. Toggle total and units

3. Toggle grand total and units

4. Display max and min values

5. Display Modbus input

6. Off (no display)

7. Display rate units

8. Display rate

9. Display total

10. Display grand total

11. Toggle rate and total

12. Toggle rate and grand total

13. Display batch count

14. Relay set points

15. Toggle preset and rate

After setting up the input and the display, press the Menu button to exit programming and skip the rest of the setup menu. Press the Menu button again and the Up arrow to reach the Program menu and complete the scaling or calibration of the controller.

Display Menu

Display Intensity (d-Inty)

The controller has eight display intensity levels to give the best performance under various lighting conditions. Select intensity 8 for outdoor applications. The default intensity setting is 6.

For direct sunlight readability, Sunbright display models are highly recommended. See Ordering Information on page 6 for details.

Display Configurations

The upper and lower displays may be assigned to rate, total, grand total, batch count, preset, set points, units (lower display only), alternating R & T, R & GT, preset & rate, max & min, or a Modbus display register. Any rate/total/grand total display may be programmed to alternate with a custom unit or tag. The default display configuration consists of an upper display of batch total and a lower display of the batch preset.

The display can also be set up, so batch total is on the upper display and rate is on the lower display.

Page 31

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Setting the Relay Operation (relay)

This menu is used to set up the operation of the relays.

• During setup, the relays do not follow the input and they will remain in the state found prior to entering the Relay menu.

1. Relay assignment

a. Rate for low and high alarm b. Total for batch control relays c. Grand total for grand total alarms

2. Relay action

a. Automatic reset only (non-latching) b. Automatic + manual reset when not in a

batch process (non-latching)

c. Latching (manual reset when not in a

batch process only)

d. Latching with Clear (manual reset when

not in a batch process only after alarm condition has cleared)

e. Pump alternation control (Not applicable

to batch control)

f. Sampling (the relay is activated for a

user-specified time and may be assigned to rate or grand total)

g. Off (relay state can be controlled by

Interlock feature)

3. Set and reset points; batch preset

4. Fail-safe operation a. On (enabled) b. Off (disabled)

5. Time delay a. On delay (0-999.9 seconds) b. Off delay (0-999.9 seconds)

6. Relay action for loss (break) of 4-20 mA input

(ignore, on, off)

Note: Fail-safe should not be used for relays assigned to batch control.

• The rate alarms are active only during a batch

process. As a result, rate alarms should not be programmed with manual reset, as they cannot be manually reset during a batch process, the only time they are active.

Page 32

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Relay Assignment (Assign)

The relays can be assigned to any of the following parameters:

1. Rate for low or high alarm indication

2. Total for batch control relays

3. Grand total for alarm indication or sampling

• Relay 1 should always be assigned to “total” for batch control applications.

Page 33

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Setting the Relay Action

Operation of the relays is programmed in the Action menu. The relays are commonly set up for any of the following modes of operation:

1. Always set to Auto for Batch control operation. Also for automatic reset (non-latching) of alarms.

2. Sampling (the relay is activated for a userspecified time)

3. Off (relay state can be controlled by Interlock feature)

In addition, the following relay actions may be programmed. These actions are not appropriate for batch control applications but may be used when the controller is in other applications.

4. Automatic + manual reset when not in a batch process (non-latching)

5. Latching (manual reset only, when not in a batch process)

6. Latching with Clear (manual reset only when not in a batch process after alarm condition has cleared)

7. Pump alternation control (not applicable to batch control)

Setting Batch Control Relays

Operation of batch control relays are programmed in the Assign menu by selecting total as the assignment. Relays set to total beyond the first relay will include a pre-close parameter (precls) option. Selecting yes for precls will enable multistage batching with pre-close, and the valve will close prior to the end of the batch at volume equal to the preset value minus the pre-close amount entered. Selecting no for precls will have the relay perform identically to the first batch control relay set to total.

Programming Alarm Set and Reset Points

High alarm: program set point above reset point. Low alarm: program set point below reset point. The deadband is determined by the difference

between set and reset points. Minimum deadband is one display count. If the set and reset points are programmed with the same value, the relay will reset one count below the set point.

Note: Changes are not saved until the reset point has been accepted.

Setting Fail-Safe Operation

In fail-safe mode of operation, the relay coil is energized when the process variable is within safe limits and the relay coil is de-energized when the alarm condition exists. The fail-safe operation is set independently for each relay. Select on to enable or select off to disable fail-safe operation. Failsafe mode should not be used on batch relays assigned to total.

Programming Time Delay

The On and Off time delays may be programmed for each relay between 0 and 999.9 seconds. The relays will transfer only after the condition has been maintained for the corresponding time delay.

The On time delay is associated with the set point. The Off time delay is associated with the reset point.

Relay Action for Loss of 4-20 mA Input (Loop Break)

The loop break feature is associated with the 4-20 mA input. Rate alarm relays may be programmed to go to one of the following conditions when the controller detects the loss of the input signal (i.e. < 0.005 mA):

1. Turn On (Go to alarm condition)

2. Turn Off (Go to non-alarm condition)

3. Ignore (Process as a low signal condition)

Note: This is not a true loop break condition; if the signal drops below 0.005 mA, it is interpreted as a “loop break” condition.

Page 34

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Automatic Batch Control Operation

The following graph shows automatic batch operation .

When START is pressed, a short delay occurs before the low flow alarm sensing is activated. Each relay can be programmed with additional ON delay to satisfy various conditions and applications.

1. START button is pressed

2. Both relays are energized opening both valves controlling the flow

3. At 50 gallons (pre-close = 5 gal), relay 2 closes the main valve

4. At 55 gallons (preset = 55 gal), relay 1 closes the dribble valve

5. After the Batch Time Delay elapses, a new batch starts automatically without the operator’s intervention.

Page 35

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Relay and Alarm Operation Diagrams

The following graphs illustrate the operation of the relays, status LEDs, and ACK button.

High Alarm Operation (Set > Reset)

For Manual reset mode, ACK can be pressed anytime to turn "off" relay. To detect a new alarm condition, the signal must go below the set point, and then go above it.

Low Alarm Operation (Set < Reset)

For Manual reset mode, ACK can be pressed anytime to turn "off" relay. To detect a new alarm condition, the signal must go below the set point, and then go above it.

High Alarm with Fail-Safe Operation (Set > Reset)

Note: Relay coil is energized in non-alarm condition. In case of power failure, relay will go to alarm state.

Low Alarm with Fail-Safe Operation (Set < Reset)

Note: Relay coil is energized in non-alarm condition. In case of power failure, relay will go to alarm state.

Page 36

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Time Delay Operation

The following graphs show the operation of the time delay function.

When the signal crosses the set point, the On time delay timer starts and the relay trips when the time delay has elapsed. If the signal drops below the set point (high alarm) before the time delay has elapsed, the On time delay timer resets and the relay does not change state. The same principle applies to the Off time delay.

Note: If “Automatic or Manual (A-nmAn)” reset mode is selected, the LED follows the reset point and not the relay state when the relay is acknowledged.

Total Relay Sampling Operation

When the total reaches the preset, the relay trips and the sample time starts. After the sample time has elapsed, the relay resets. The cycle repeats every time the preset value is added to the total.

Preset = 100

100

Relay

LED

Total

200

300

Sample

Time

Sample

Time

Sample

Time

Page 37

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Relay Operation Details

Overview

The relays of the controller can serve three roles, as batch control relays for single or multi-stage batching, as rate, or grand total alarm, or as a sampling relay based on grand total or rate alarm.

These capabilities include front panel alarm status LEDs and 2 or 4 internal relays and/or 4 external relays expansion module.

The relays used for batch control (total) are activated when the batching process starts and deactivate when the batch total is reached. The relays assigned as pre-close are deactivated when the batch reaches the preset value minus the pre-close value.

For an example of batch control operation, see Batch Control Operation Example on page 41.

Typical applications for alarms are low flow and high flow alarms or grand total limit alarms. Note that rate alarms are only activated during a batch process and deactivated when the process is stopped.

The relays can also be set for sampling, where the relay will activate for a specific amount of time after a certain grand total has been reached (e.g. 10 seconds sample relay activation every 100 gallons batched).

There are three basic ways the relays can be used:

1. Batch Control (Total)

2. High and Low Alarms for Rate or Grand Total

3. Sampling (Based on Grand Total and Sample Time)

Relays Initialization

Batch control (total) relays will activate when the start function is enabled, such as when the START button is pressed. Rate alarm relays will enable and initialize to their programmed states when the batch process is started. Grand total alarm relays will initialize to their programmed state at controller power-up.

Fail-Safe Operation

The following table indicates how alarm relays behave based on the fail-safe selection for each relay:

Fail-Safe

Selection

Non-Alarm

State

Alarm State

Power Failure

Off

Open

Closed

Open

Relays in de-energized state

Closed

Open

Closed

Relays in energized state

Note: NO = Normally Open, NC = Normally Closed. This refers to the condition of the relay contacts when the power to the controller is off.

Front Panel LEDs

The alarm status LEDs on the front panel are available on all meters, even those without relays installed, and provide status indication for the following:

LED

Status

LED

Status

Alarm 1

Alarm 5

Alarm 2

Alarm 6

Alarm 3

Alarm 7

Alarm 4

Alarm 8

Note: LEDs 5-8 require the external relay module PDA1004 to be connected.

The controller is supplied with alarm points that include front panel LEDs to indicate alarm conditions. This standard feature is particularly useful for alarm applications that require visual-only indication. The LEDs are controlled by the set and reset points programmed by the user. When the display reaches a set point for a high or low alarm, the corresponding alarm LED will turn on. When the display returns to the reset point the LED will go off. Note that rate alarms are only activated during a batch process and they are deactivated when the process is stopped.

Latching relays, or relays with manual reset, are not recommended when using this controller for batch control, as the manual reset will not be acknowledged during a batch process, when the rate alarms are active. For information on latching and manual reset alarms, see the PD6200 instruction manual.

Automatic Reset (Auto)

In this application, the controller is set up for automatic reset (non-latching relay). Acknowledging the alarm while it is still present has no effect on either the LED or the relay. When the alarm finally goes away, the relay automatically resets, and the LED also goes off.

Pump Alternation Control

Pump alternation control is not recommended when using this controller for batch control, as it is used only in level applications, and not with rate, total, or batching applications. For information on using pump alternation control for level, see the PD6000 instruction manual.

Automatic reset only

Condition

LED

Relay

Normal

Off

Alarm

Ack (No effect)

Normal

Off

Page 38

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Sample Relay Operation

The sampling function allows the operator to set a set

point for a “sampling” relay. This can be done for the

rate, total, or grand total. Each time the relay reaches

the set point, it will close that relay’s contacts for a

programmed period set by the user. A rate sampling relay will activate for the sample time

(sanm t), every time the set point rate is reached. A total sampling relay will activate for the sample time

(sanm t), every time the process has batched the amount programmed for the set point (See the diagrams on page 36 more details). The utility of this function can, of course, be expanded beyond sampling and be used whenever a timed relay output closure is required after the batch total interval reaches a certain set point.

Setting Up the Interlock Relay (Force On) Feature

Relays 1-4 can be set up as interlock relays. To set up the relays for the interlock feature:

1. Access the Setup – Relay – Action menu and set the action to off.

2. In the Advanced features – User menu program

any of the digital inputs to Force On any of the internal relays (1-4).

3. Connect a switch or dry contact between the +5V

terminal and the corresponding digital input (dI-1 to dI-4) terminal.

Interlock Relay Operation Example

Relays 3 & 4 are configured to energize (their front panel LEDs are steady on) when SW1 & SW2 switches (above) are closed. If the contacts to these digital inputs are opened, the corresponding front panel LEDs flash indicating this condition. The processes being controlled by the interlock relay will stop, and will re-start only after the interlock relay is re-activated by the digital inputs (switches).

Note: If multiple digital inputs are assigned to the same relay, then the corresponding logic is (AND) – i.e. both switches must be closed to activate the relay.

1 2 3 4 5 6

+5 I1 I2 I3 I4 O1

7 8

O2 O3

9 10

O4 G

DI 1-4 DO 1-4

5 VDC GND

SW2

SW1

Page 39

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Scaling the 4-20 mA Analog Output (Aout)

The 4-20 mA analog output can be scaled to provide a 4-20 mA signal for any rate display range selected.

No equipment is needed to scale the analog output; simply program the display values to the corresponding mA output signal.

The Analog Output menu is used to program the 4-20 mA output based on rate display values.

For instructions on how to program numeric values, see Setting Numeric Values on page 24.

Reset Menu (reset)

The Reset menu is used to reset the total, grand totals, batch count, maximum, or minimum reading (peak or valley) reached by the process; both maximum and minimum may be reset at the same time by selecting “reset high & low” (rst HL).

Manual Control Menu (Contrl)

The Manual Control menu is used to control the 4-20 mA analog output and the relays manually, ignoring the input. Each relay and analog output can be programmed independently for manual control. Selecting automatic control sets all relays and analog output for automatic operation.

Page 40

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Setting Up the Password (pass)

The Password menu is used for programming three levels of security to prevent unauthorized changes to the programmed parameter settings and to program the non-resettable totalizer.

Pass 1: Allows use of function keys and digital inputs Pass 2: Allows use of function keys, digital inputs and editing set/reset points Pass 3: Restricts all programming, function keys, and digital inputs. Total Password: Prevents resetting the total manually Gtotal Password: Prevents resetting the grand total manually

Protecting or Locking the Controller

Enter the Password menu and program a six-digit password.

For instructions on how to program numeric values see Setting Numeric Values, page 24.

Grand Total Reset Password & Non-Resettable Total

The grand total can be password-protected to prevent unauthorized total resets.

The grand total can be programmed as a nonresettable total by entering the password “050873”.

• Once the Grand Total has been programmed as “non-resettable” the feature CANNOT be disabled.

Making Changes to a Password Protected Controller

If the controller is password protected, the controller will display the message Locd (Locked) when the Menu button is pressed. Press the Enter button while the message is being displayed and enter the correct password to gain access the menu. After exiting the programming mode, the controller returns to its password protected condition.

Disabling Password Protection

To disable the password protection, access the Password menu and enter the correct password twice, as shown below. The controller is now unprotected until a new password is entered.

If the correct six-digit password is entered, the controller displays the message unLoc (unlocked) and the protection is disabled until a new password is programmed.

If the password entered is incorrect, the controller displays the message Locd (Locked) for about two seconds, and then it returns to Run Mode. To try again, press Enter while the Locked message is displayed.

Did you forget the password?

The password may be disabled by entering a master password once. If you are authorized to make changes, enter the master password 508655 to unlock the controller.

Page 41

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Controller Operation

The default configuration displays batch total on Line 1, and a selection of rate, grand total, and batch count, and batch preset on Line 2.

When in pause or stop mode, the display will alternate the numeric value with the run status on Line 1 and the display label for Line 2.

The controller has up to 4 relays on-board (and 4 available with an external expansion module) which are used to either control the batch process in single or multi-stage batch control, or as alarms that will be active when the batch process is running. A 4-20 mA output option is also available for retransmitting the process variable.

Watch Batch Control Video at

www.predig.com/videos/KN6Y6R0I1OE

Default Batch Control Operation

The following describes the operation of the three front panel operating keys as programmed with default settings.

START Button

Press the START button to begin a new batch process. Press the START button to resume a batch that has been stopped.

BATCH Button

Press the Batch button to access the Preset (batch amount) menu. Program the batch with the arrow keys, and confirm with the Enter key.

STOP Button

Press the STOP key once during a batch to pause. Press the STOP key while paused to stop and cancel the batch. Press the STOP key while in stop/ready mode to cycle the lower display parameters: preset, grand total, and batch count (or other parameter assigned to the lower display).

• Only STOP Button Enabled if a Batch is Running. During a batch process, only the

pause/stop functions are operational, other buttons are deactivated.

Batch Control Operation Example

The following example shows how two stage batch control functions with a PD6210. This setup will establish a 55 gallon preset for the batch, with a main valve (high flow) that will close at 50 gallons, and a trickle valve (low or restricted flow) that will close at 55 gallons. After the batch, the preset will be changed to 80 gallons.

Two-Stage Batch Control Setup Using Relays 1 & 2

The following table shows the parameters as they appear within the Setup menu entry relay.

Parameter

Setting

Function

Relay

Assign

Press Enter to enter the relay assignment parameters.

Asign1

total

Assign relay 1 to batch total control.

Asign2

total

Assign relay 2 to batch total control.

Precls Total

Press Enter to access preclose selection for multi-stage control.

Precls

Yes

Yes, to enable a pre-close value for relay 2.

Yes

00005..0

Set the pre-close value to 5 for closing the valve controlling relay 2 five gallons before reaching the preset.

…

Assignment for optional relays 3-8.

Rly 1 relay

Select relay 1 setup.

Act 1 rly 1

Configure activation of relay 1.

Act 1

Auto

Always set to Auto for batch control function.

Rly 1

Preset

Set the preset value for batch control.

Preset

00055.0

Set 55 gallons as the preset.

…

Setup for optional relays 3-8.

The operation of relay 2 has already been assigned for multi-stage control pre-close and will not appear as a selection in the relay menu.

If only one stage batch control was desired, with one relay for control, then one would set the assignment of relay 2, assign2, to off, rate, or grand total.

The following pages show an illustration of how the above settings control the batch operation. The display assignment shown is the default.

Page 42

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Manual Batch Control

The manual batch control feature is used for batch processes where each batch must be started by the operator.

Manual Batch Control Operation

1. Both valves are closed with an empty barrel

in place. The batched total is displayed in the upper display, the preset is selected for the lower display.

2. The START button is pressed. Both valves

open. The barrel begins to fill.

3. When the batch total reaches a value of

50.00 (Preset [55.00] – Pre-close [5.00]) the full-flow valve closes. The fill rate of the tank slows as a result.

4. When the batch is complete, the restrictedflow valve closes. If overrun occurs, then the next batch will adjust for this offset amount to maintain accuracy.

5. After placing a new, empty barrel, a new preset fill amount may be selected with the Batch key, while the process is stopped.

6. The new batch begins when the START button is pressed, so both relays activate and both valves open.

Page 43

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Additional Features

At any time during the batch, the STOP button may be pressed to pause the batch. When paused, pressing the START button will continue the batch, and pressing the STOP button again will cancel the batch.

When in STOP mode, the STOP button may be pressed to cycle through alternative parameters to be displayed on the lower display, including the grand total, batch count, and preset.

The grand total and batch count may be reset in the

reset menu by pressing the MENU button and

entering the reset menu. It may also be reset with digital inputs.

Automatic Batch Control

The automatic batch control feature is used for batch processes where the batch size does not change.

Setup for Automatic Batch Control

The batch controller can be configured to automatically start a new batch after the selected time delay between batches has elapsed.

The time delay allows time for removing the full barrel and putting an empty barrel in place. Once the process starts, the operator does not have to press any buttons; except to pause or stop the batch process.

Page 44

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Automatic Batch Control Operation

1. Both valves are closed with an empty barrel in place. The batched total is displayed in the upper display, the preset is selected for the lower display.

2. The START button is pressed. Both valves open. The barrel begins to fill.

3. When the batch total reaches a value of

50.00 (Preset [55.00] – Pre-close [5.00]) the full-flow valve closes. The fill rate of the tank slows as a result.

4. When the batch is complete, the restrictedflow valve closes. If overrun occurs, then the next batch will adjust for this offset amount to maintain accuracy.

5. After the batch is completed, the operator removes the full barrel and places an empty barrel; the new batch starts automatically after 60 seconds (Time Delay).

6. The new batch begins automatically after 60 seconds, both relays activate and both valves open.

7. At the end of the shift, press STOP twice to stop the batch process.

Page 45

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Setup with MeterView Pro

Use MeterView Pro software to set up the batch controller for manual or automatic batch control, count up or count down operation, and set the batch preset and pre-close values.

Control

Program for automatic or manual batch operation and set time delay if automatic mode.

Count Direction

Program the batch controller to count up or count down and set a starting count value if desired.

Operate with MeterView Pro

Meterview Pro software also shows the Batch Size and Current Batch Total as well as allowing the user to start and stop the batch.

Real-Time Batch in Progress

MeterView Pro software shows all the important batchcontrol information.

Batch Control

MeterView Pro allows the user to set preset 1 and preclose values and start and stop the batch

Page 46

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Advanced Setup &

Programming

In addition to the functions described in Controller Operation on page 41, the following advanced

operation and display features may be programmed. Please note that configuring these features may disable some default batch controller features or it can make running a batch operation impossible. These functions should only be used by users who are sure of their need in their application.

Advanced Features Menu

To simplify the setup process, functions not needed for most applications are located in the Advanced Features menu.

Press and hold the Menu button for three seconds to access the advanced features of the controller. This cannot be done during a batch process as all functions other than STOP are disabled during a batch process, including the Menu button.

Advanced Features Menu & Display Messages

The following table shows the functions and messages of the Advanced Features menu in the order they appear in the menu.

Advanced Features Menu & Display Messages

Display

Parameter

Action/Setting

filter

Filter

Set noise filter value

bypASs

Bypass

Set filter bypass value

Round

Set the rounding value for display variables

seriAl

Serial

Set serial communication parameters

SlaVId

Slave ID

Set slave ID or controller address

baud

Baud rate

Select baud rate

Tr dLY

Transmit delay

Set transmit delay for serial communication

Parity

Select parity Even, Odd, or None with 1 or 2 stop bits

Advanced Features Menu & Display Messages

Display

Parameter

Action/Setting

t-byt

Time byte

Set byte-to-byte timeout

SelEct

Select

Enter the Select menu (function, cutoff, out)

Functn

Input Signal Conditioning

Select linear, square root, or programmable exponent

Linear

Set controller for linear function and select number of linearization points

No PtS

Number of points

Set controller for 2 to 32point linearization

Square

Square root

Set controller for square root extraction

Prog E

Programmab le exponent

Set controller for programmable exponent and enter exponent value

CutofF

Cutoff

Set low-flow cutoff

Count

Set the totals to count up or down from a set value

Tot C

Total count

Set the batch to count up to or down from the preset

Set the total to count up

Douwn

Down

Set the total to count down

Gtot C

Grand total count

Set the grand total to count up or down from a defined value

C strt

Count start

Set the starting grand total value when counting down

AoutPr

Analog output programming

Program analog output parameters

Source

Select source for the 4-20 mA output

O-rang

Overrange

Program mA output for display overrange

u-rang

Underrange

Program mA output for display underrange

Break

Loop Break

Set analog output value if input loop break is detected

Force

Force output

Force analog output value for loop break

Ignore

Ignore loop break condition

nmAx

Maximum

Program maximum mA output allowed

nmin

Minimum

Program minimum mA output allowed

Calib

Calibrate

Calibrate 4-20 mA output (internal reference source used for scaling the output)

4 nmA

4 mA output

Enter mA output value read by milliamp meter with at least 0.001 mA resolution

20 nmA

20 mA output

Enter mA output value read by milliamp meter with at least 0.001 mA resolution

user

User I/O

Assign function keys and digital I/O

Page 47

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Advanced Features Menu & Display Messages

Display

Parameter

Action/Setting

F1 function key

Assign F1 function key

F2 function key

Assign F2 function key

F3 function key

Assign F3 function key

F4 function

Assign F4 function (digital input)

dI I

Digital input 1

Assign digital input 1 – 8, if expansion modules are connected

dO 1

Digital output 1

Assign digital output 1 – 8, if expansion modules are connected

ICal

Internal source calibration

Enter internal source calibration (used for scaling the controller without a signal source)

C CAL

Current calibration

Calibrate 4-20 mA current input (internal reference source used for scaling the input)

C lo

Current low

Calibrate low current input (e.g. 4 mA)

C Hi

Current high

Calibrate high current input (e.g. 20 mA)

V CAL

Voltage calibration

Calibrate voltage input

V Lo

Voltage low

Calibrate low voltage input (e.g. 0 V)

V Hi

Voltage high

Calibrate high voltage input (e.g. 10 V)

Diag

Diagnostics

Display parameter settings

LED t

LED test

Test all LEDs

Info

Information

Display software number and version

erase

Erase

Erase MeterView Pro software stored in controller’s memory

Function Keys Operation

During operation, the programmable function keys operate according to the way they have been programmed in the Advanced Features – User menu. See Programmable Function Keys User Menu (user) on page 51 for details. The following table shows the default setting for each of the function keys.

Function Key/Button

Default Setting

Action

F1/START

Start

Start batch

F2/BATCH

preset

Change preset

F3/STOP

stop

Pause/stop batch

F4/Digital Input

Srtstp

Start/stop batch

F4 Operation

A digital input, F4, is standard on the controller. This digital input is programmed identically to function keys F1, F2, and F3. The input is triggered with a contact closure to COM, or with an active low signal. During operation, F4 operates according to the way is has been programmed in the Advanced Features – User menu. See Programmable Function Keys User Menu (user) on page 51 for details.

• Only STOP Operation Enabled if a Batch is Running. During a batch process, the only

function that can be performed is the pause/stop functions of the STOP button; the default programming of the F3 key. No other functions, including min/max display, manual alarm reset, or total reset, will function while a batch is running.

Page 48

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Advanced Setup and Calibration

Multi-Point Calibration & Scaling

The controller is set up at the factory for 2-point linear calibration. The number of points for multi-point calibration/scaling is set up in the Advanced Features menu. Up to 32 linearization points may be selected. See Multi-Point Linearization (Linear) on page 49 for details.

Maximum/Minimum Readings

The max & min readings (peak & valley) reached by the process can be displayed either continuously or momentary:

1. Display briefly by assigning to the digital inputs in the User menu.

2. Display continuously by assigning either display to max/min through the Display menu.

• Changing the programming of the F1-F3 function keys will disable the default batch operation of these keys, and is not recommended for batch control applications.

Any of the digital inputs can be programmed to reset the max & min readings.

To display max/min readings continuously:

Assign either display to Max (d Hi), Min (d Lo), or toggle between Max and Min (d HL) every 10 seconds.

• Note that changing the default programming of the upper or lower displays may affect viewing the batch total (upper display) or preset (lower display) of the batch process.

Noise Filter (filter)

The noise filter is available for unusually noisy signals that cause an unstable process variable display. The noise filter averages the input signal over a certain period. The filter level determines the length of time over which the signal is averaged. The filter level can be set between 2 and 199. The higher the filter level, the longer the averaging time and so the longer it takes the display to settle to its final value. Setting the filter level to zero disables the filter function.

Noise Filter Bypass (bypass)

The noise filter bypass changes the behavior of the controller so that small variations in the signal are filtered out but large abrupt changes in the input signal are displayed immediately. The bypass value determines the minimum amount of signal change to be displayed immediately. All signal changes smaller than the bypass value are filtered or averaged by the controller. The noise filter bypass may be set between

0.1 and 99.9% of full scale.

Rounding Feature (round)

The rounding feature is used to give the user a steadier display with fluctuating signals. Rounding is used in addition to the filter function.

Rounding causes the display to round to the nearest value according to the rounding selected.

Modbus RTU Serial Communications (serial)

The controller is equipped with serial communications capability as a standard feature using Modbus RTU Serial Communication Protocol.

The controller may be connected to a PC for initial configuration via the on-board USB connection. For ongoing digital communications with a computer or other data terminal equipment, an RS-232 or RS-485 adapter is required; see Ordering Information on page 6 for details.

• DO NOT connect any equipment other than Precision Digital’s expansion modules, cables, or controllers to the RJ45 M LINK connector. Otherwise damage will occur to the equipment and the controller.

Notes

1. More detailed instructions are provided with each optional serial communications adapter.

2. Refer to the PROVU Modbus Register Tables located at www.predig.com for details.

When using more than one controller in a multi-drop mode, each controller must be provided with its own unique address. The controller address (Slave ID) may be programmed between 1 and 247. The transmit delay may be set between 0 and 199 ms. The parity can be set to even, odd, or none with 1 or 2 stop bits.

Page 49

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

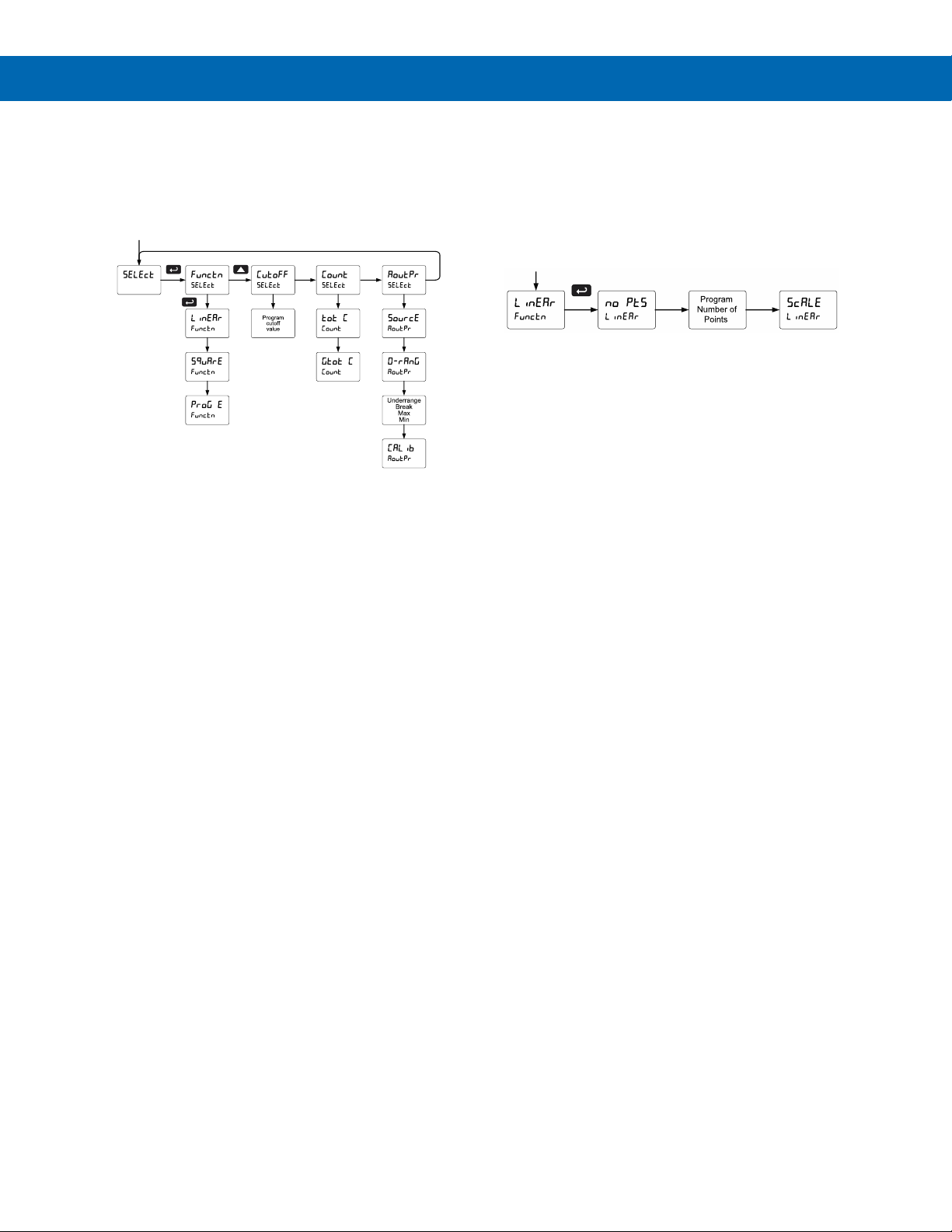

Select Menu (SElEct)

The Select menu is used to select the input signal conditioner applied to the input (linear, square root, or programmable exponent), low-flow cutoff, and analog output programming. The multi-point linearization is part of the linear function selection.

Input Signal Conditioning (Functn)

The Function menu is used to select the input signal conditioner applied to the input: linear, square root, or programmable exponent. The multi-point linearization is part of the linear function selection.

Controllers are set up at the factory for linear function with 2-point linearization. The linear function provides a display that is linear with respect to the input signal.

Square Root Linearization (Square)

The square root function can be used to linearize the signal from a differential pressure transmitter and display flow rate in engineering units.

Programmable Exponent Linearization (Prog E)

The programmable exponent can be used to linearize the signal from level transmitters in open-channel flow applications using weirs and flumes.

Multi-Point Linearization (Linear)

Controllers are set up at the factory for linear function with 2-point linearization. Up to 32 linearization points can be selected under the linear function. The multipoint linearization can be used to linearize the display for non-linear signals such as those from level transmitters used to measure volume in odd-shaped tanks or to convert level to flow using weirs and flumes with complex exponent.

Low-Flow Cutoff (CutofF)

The low-flow cutoff feature allows the controller to be programmed so that the often-unsteady output from a differential pressure transmitter, at low flow rates, always displays zero on the controller. The cutoff can be disabled to display negative values.

The cutoff value may be programmed from 0.1 to

999999. The controller will display zero below the

cutoff value. Programming the cutoff value to zero disables the cutoff feature. The cutoff can be disabled to display negative values.

Total and Grand Total Count Direction (Count)

By default, the batch total and grand total count up during batch processes. Count parameter allows this to change. When set to count down, the batch total will count down from the preset to 0. When set to count down, the grand total will count down from a starting value to zero.

Page 50

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Analog Output Programming (AoutPr)

The Analog Output Programming menu is used to program the behavior of the 4-20 mA output. The following parameters and functions are programmed in this menu:

1. Source: Source for generating the 4-20 mA output (e.g. Rate)

2. Overrange: Analog output value with display in overrange condition

3. Underrange: Analog output value with display in underrange condition

4. Break: Analog output value when loop break is detected

5. Max: Maximum analog output value allowed regardless of input

6. Min: Minimum analog output value allowed regardless of input

7. Calibrate: Calibrate the internal 4-20 mA source reference used to scale the 4-20 mA output

Analog Output Source

The source for generating the 4-20 mA output may be assigned to the rate/process variable, total, grand total, maximum or minimum value reached by the rate/process, one of the set points, or the Modbus PV input.

Analog Output Value for Loss of 4-20 mA Input (Loop Break)

The AoutPr - Break menu is used to force the analog output to go to a user-specified mA value if a break condition is detected in the 4-20 mA input loop. Selecting Ignore causes the mA output to go to the minimum value.

Analog Output Calibration

To perform the analog output calibration, it’s recommended to use a milliamp meter with a resolution of at least 0.1 µA to measure the output current. The values saved internally during this procedure are used for scaling the 4-20 mA output in the Setup menu.

Analog Output Calibration Procedure

1. Wire the PD6210 4-20 mA output to a current loop that includes a power supply (internal or external 12 to 24 VDC), and the mA input on the digital meter. See 4-20 mA Output Connections on page 19 for details.

2. Turn on all devices. Allow for a 15 to 30 minute warm-up.

3. Go to the Advanced Features menu, and navigate to the Analog Output Programming

(AoutPr) → Calibration (Calib) menu and press Enter.

4. The display will show 4 nmA. The PD6210 mA output should now be close to 4 mA. Press Enter and the display will show 04.000. Enter the actual value read by the digital mA meter and press Enter.

5. The display will show 20 nmA. The PD6210 mA output should now be close to 20 mA. Press Enter and the display will show 20.000. Enter the actual value read by the digital mA meter and press Enter.

6. The meter will now calculate the calibration factors and store them.

7. Press Menu to exit and return to Run mode.

Page 51

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Programmable Function Keys User Menu (user)

• Changing the programming of the F1-F3 function keys will disable the default batch operation of these keys, and is not recommended for batch control applications.

The User menu allows the user to assign the front panel function keys F1, F2, and F3, the digital input F4 (a digital input located on the input signal connector), and up to eight additional digital inputs to access most of the menus or to activate certain functions immediately (e.g. reset max & min, hold relay states, etc.). This allows the controller to be greatly customized for use in specialized applications.

Up to eight digital outputs can be assigned to a number of actions and functions executed by the controller (i.e. alarms, relay acknowledgement, reset max, min, or max & min). The digital outputs can be used to trigger external alarms or lights to indicate these specific events.

Function Keys & Digital I/O Available Settings

Refer to the following table for descriptions of each available function key or digital I/O setting.

Display

Description

Start

Starts the batch process

Stop

Stops the batch process

srtstp

Allows the same function key to both start and stop the batch process

Rly d

Disable all relays until a button assigned to enable relays (Rly E) is pressed

Rly E

Enable all relays to function as they have been programmed

O Hold

Hold current relay states and analog output as they are until a button assigned to enable relays (Rly E) is pressed

d Hold

Hold the current display value, relay states, and analog output momentarily while the function key or digital input is active. The process value will continue to be calculated in the background.

Ln1 Hi

Display maximum display value on line 1

Ln1 Lo

Display minimum display value on line 1

Ln1 HL

Display maximum & minimum display values on line 1

Ln2 Hi

Display maximum display value on line 2

Ln2 Lo

Display minimum display value on line 2

Ln2 HL

Display maximum & minimum display values on line 2

Ln2 gt

Display the grand total on line 2

Ln2 bc

Display the batch count on line 2

Display

Description

Contrl

Directly access the manual control menu

disabl

Disable the selected function key or digital I/O

AcH

Acknowledge all active relays that are in a manual operation mode such as automanual or latching

Reset

Directly access the reset menu

Rst t

Reset the total

Rst gt

Reset the grand total

Rst bc

Reset the batch count

Rst Hi

Reset the maximum display value

Rst Lo

Reset the minimum display value

Rst HL

Reset the maximum & minimum display values

relay

Directly access the relay menu

preset

Change the preset value

Set 2*

Directly access the set point menu for relay 2 (*through 8)

nmenu

Mimic the menu button functionality (digital inputs only)

rigHt

Mimic the right arrow/F1 button functionality (digital inputs only)

Mimic the up arrow/F2 button functionality (digital inputs only)

Enter

Mimic the enter/F3 button functionality (digital inputs only)

F On 1*

Force relay 1 (*through 4) into the on state. This function is used in conjunction with a digital input expansion module to achieve interlock functionality. See Setting Up the Interlock Relay (Force On) Feature on page 38 for details about interlock relays.

Alnm 1*

Provide indication when alarm 1 (*through 8) has been triggered (digital outputs only)

Page 52

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Internal Source Calibration (ICAL)

The controller is factory calibrated prior to shipment for milliamps and volts with calibration equipment that is certified to NIST standards.

The use of a calibrated signal source is necessary to calibrate the internal source of the controller. The controller’s internal source is what allows the user to scale the controller without applying a signal.

Check calibration of the controller at least every 12 months. Each input type must be recalibrated separately.

Notes:

1. If controller is in operation and it is intended to accept only one input type (e.g. 4-20 mA), recalibration of other input is not necessary.

2. Allow the controller to warm up for at least 15 minutes before performing the internal source calibration procedure.

The Internal calibration menu is part of the Advanced Features menu.

1. Press and hold the Menu button for three seconds to access the advanced features of the controller.

2. Press the Up arrow button to scroll to the Internal calibration menu (ICAL) and press Enter.

3. The controller displays either current calibration (C CAL) or voltage calibration (v CAL), according to the input setup. Press Enter to start the calibration process.

Example of Internal Calibration for current input:

4. The controller displays low input current message (C lo). Apply the low input signal and press Enter. The display flashes for a moment while the controller is accepting the low input signal.

5. After the display stops flashing, a number is displayed with the leftmost digit brighter than the rest. The bright digit is the active digit that can be changed by pressing the Up arrow button. Press the Right arrow button to move to the next digit.

6. Set the display value to correspond to the input signal being calibrated, typically 4.000 mA.

7. The display moves to the high input calibration (C Hi). Apply the high input signal and press Enter.

8. Set the display for the high input calibration, in the same way as it was set for the low input calibration, typically 20.000 mA.

The graphic above shows the calibration of the current input. The voltage input is calibrated in a similar way.

Tips:

• Low and high input signals can be any valid value within the range of the controller.

• Observe minimum input span requirements between input 1 and input 2.

• Low input should be less than high input signal.

Error Message (Error)

An error message indicates that the calibration or scaling process was not successful.

The error message might be caused by any of the following conditions:

5. Input signal is not connected to the proper terminals or it is connected backwards.

6. Wrong signal selection in Setup menu.

7. Minimum input span requirements not maintained.

8. Input 1 signal inadvertently applied to calibrate input 2.

Minimum Input Span

The minimum input span is the minimum difference between input 1 and 2 signals required to complete the calibration or scaling of the controller.

Input range

Input 1 & input 2 span

4-20 mA

0.15 mA

10 VDC

0.10 VDC

Page 53

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Troubleshooting

Due to the many features and functions of the controller, it’s possible that the setup of the controller does not agree with what an operator expects to see.

If the controller is not working as expected, refer to the Diagnostics menu and recommendations below.

Diagnostics Menu (diag)

The Diagnostics menu is located in the Advanced Features Menu; to access the Diagnostics menu refer

to page 46. This menu allows the user to test the functionality of

all the controller LEDs, check the controller’s software and version information, and erase the MeterView Pro software installation files from the controller. Press the Enter button to view the settings and the Menu button to exit at any time.

For a description of the diagnostic messages, see Advanced Features Menu & Display Messages, page

46.

Testing the Display LEDs

To test all LEDs on the display:

1. Go to the Diagnostics menu (diAG) and press Enter button.

2. Press Up arrow button and scroll to LED Test menu (led t)

3. Press the Enter button to activate the LED Test. The controller will cycle through all digits, decimal points, and relay indicators to enable the operator to check that all LEDs are functioning properly.

4. Press the Enter button again to access the Information menu (info) or press the Menu button to return to Run Mode.

Determining Software Version

To determine the software version of a controller:

1. Go to the Diagnostics menu (diAG) and press Enter button.

2. Press Up arrow button and scroll to Information menu (Info).

3. Press Enter to access the software number (SFT) and version (UER) information. Write down the information as it is displayed. Continue pressing Enter until all the information is displayed.

4. The controller returns to Run Mode after displaying all the settings.

Reset Controller to Factory Defaults

When the parameters have been changed in a way

that is difficult to determine what’s happening, it might

be better to start the setup process from the factory defaults.

Instructions to load factory defaults:

1. Enter the Advanced Features menu. See Advanced Setup & Programming, page 46.

2. Press Up arrow to go to Diagnostics (diag) menu

3. Press and hold Right arrow for three seconds, press Enter when display flashes reset.

Note: If Enter is not pressed within three seconds, the display returns to the Diagnostics menu.

4. The controller goes through an initialization sequence (similar as on power-up) and loads the factory default settings.

Page 54

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Factory Defaults & User Settings

The following table shows the factory setting for the major programmable parameters on the controller.

Factory Defaults & User Settings

Parameter

Display

Default Setting

Input type

Input

4-20 mA

Total

yes

Total enabled

Units

units

Rate / total / G total mA / mA / mA

Rate decimal point

ddd.ddd

3 Places

Total decimal point

ddddd.d

1 Place

Grand Total decimal point

dddddd

0 Places

Function

Functn

Linear

Number of points

No Pts

Programming

prog

Scale

Input 1

InP 1

4.000 mA

Display 1

Dis 1

4.000

Input 2

InP 2

20.000 mA

Display 2

Dis 2

20.000

Display line 1

Line 1

Display batch total

Display line 2

Line 2

Display preset

Display intensity

d-Inty

Total time base

T tb

Second

Total conversion factor

T CF

1.000

Batch mode

nmode

Manual

Grand total time base

GT tb

Second

Grand total conversion factor

T CF

1.000 Grand total reset

T rst

Manual

Relay 1 assignment

Asign1

Total

Relay 2 assignment

Asign2

Total

Relay 2 pre-close

preCls

Relay 3 assignment

Asign3

Rate

Relay 4 assignment

Asign4

Rate

Relay 1 action

Act 1

Automatic

Batch preset

Preset

100.0

Relay 2 action

Act 2

Automatic

Relay 2 set point

Set 2

200.0

Relay 3 action

Act 3

Automatic

Relay 3 set point

Set 3

3.000

Relay 3 reset point

RSt 3

2.500

Relay 4 action

Act 4

Automatic

Factory Defaults & User Settings

Parameter

Display

Default Setting

Relay 4 set point

Set 4

4.000

Relay 4 reset point

RSt 4

3.500

Fail-safe relay 1

Fls 1

Off

Fail-safe relay 2

Fls 2

Off

Fail-safe relay 3

Fls 3

Off

Fail-safe relay 4

Fls 4

Off

On delay relay 1

On 1

0.0 sec

Off delay relay 1

Off 1

0.0 sec

On delay relay 2

On 2

0.0 sec

Off delay relay 2

Off 2

0.0 sec

On delay relay 3

On 3

0.0 sec

Off delay relay 3

Off 3

0.0 sec

On delay relay 4

On 4

0.0 sec

Off delay relay 4

Off 4

0.0 sec

Loop break relay 1

ignore

Ignore

Loop break relay 2

ignore

Ignore

Loop break relay 3

ignore

Ignore

Loop break relay 4

ignore

Ignore

Display 1 analog out

Dis 1

4.000

Output 1 value

Out 1

4.000 mA

Display 2 analog out

Dis 2

20.000 Output 2 value

Out 2

20.000 mA

Source analog output

Source

Rate/process

Overrange output

O-rang

21.000 mA

Underrange output

u-rang

3.000 mA

Loop break output

break

1.000 mA

Filter

filter

Bypass

0.2

Cutoff value

CutofF

0.0 (disabled)

Maximum output

nmAx

23.000 mA

Minimum output

nmin

1.000 mA

Slave ID (Address)

SlaVId

247

Baud rate

baud

9600

Transmit delay

Tr dly

50 ms

Parity

Even

Byte-to-byte timeout

t-byt

010 (0.1 sec)

F1 function key

Start

F2 function key

Preset

Page 55

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Factory Defaults & User Settings

Parameter

Display

Default Setting

F3 function key

Stop

F4 function

Start/Stop

Digital input 1

dI 1

Digital input 2

dI 2

Right arrow

Digital input 3

dI 3

Up arrow

Digital input 4

dI 4

Enter

Digital output 1-4

dO 1

Alarm 1-4

Password 1

Pass 1

000000 (unlocked)

Password 2

Pass 2

000000 (unlocked)

Password 3

Pass 3

000000 (unlocked)

Total password

Total

000000 (unlocked)

Grand total password

Gtotal

000000 (unlocked)

Page 56

PROVU™ PD6210 Analog Input Batch Controller

Instruction Manual

Troubleshooting Tips

This controller is a highly sophisticated instrument with an extensive list of features and capabilities. If the front panel buttons are used to program the controller, it may be a difficult task to keep everything straight. That is why we strongly recommend the use of the free MeterView Pro software for all programming activities. The most recent version of the software is loaded at the factory in the internal controller’s memory. A USB cable is provided for programming the controller using MeterView Pro software.

If you have programmed the controller with the front panel buttons and it is not working as intended, try reprogramming the controller using MeterView Pro software.

Symptom

Check/Action

No display at all

Check power at power connector

Not able to change setup or programming, Locd is displayed

Controller is password-protected, enter correct six-digit password to unlock or Master Password of 508655.

Controller does not respond to input change

If a Low-Flow Cutoff Value has been programmed, the controller will display zero below that point, regardless of the input – which can appear like the controller is not responding to an input change. Check to make sure the problem is not being caused by an undesired low-flow cutoff value. To prevent the display from showing a negative value, set the low-flow cutoff to a value greater than zero.

Controller displays error message during calibration (Error)

Check:

1. Signal connections

2. Input selected in Setup menu

3. Minimum input span requirements

Controller displays

999999

-99999

Check:

1. Input selected in Setup menu

2. Corresponding signal at Signal connector

Display is unstable

Check:

1. Input signal stability and value

2. Display scaling vs. input signal

3. Filter and bypass values (increase)

Display response is too slow

Check filter and bypass values

Display reading is not accurate

1. Input signal conditioner selected: Linear, square root, etc.

2. Scaling or calibration

Display does not respond to input changes, reading a fixed number

Check:

Display assignment, it might be displaying max, min, or set point.

Display alternates between

1. Hi and a number

2. Lo and a number

Press Menu to exit max/min display readings.

Relay operation is reversed

Check:

1. Fail-safe in Setup menu

2. Wiring of relay contacts

Relay and status LED do not respond to signal

Check:

1. Relay action in Setup menu

2. Set and reset points

Flashing relay status LEDs

Relays in manual control mode or relay interlock switches opened.

Controller not communicating with application programs

Check:

1. Serial adapter and cable

2. Serial settings

3. Controller address and baud rate

If the display locks up or the controller does not respond at all

Cycle the power to reboot the microprocessor. Other symptoms not described above

Call Technical Support for assistance.

Note: Certain sequences of events can cause unexpected results. To solve these issues, it is best to start fresh from factory defaults and use the manual as a step by step programming guide, rather than a random approach to programming. To reset the controller to factory defaults, see Reset Controller to Factory Defaults on page 53. In addition, for best results, we recommend using the free MeterView Pro software for all programming needs.
