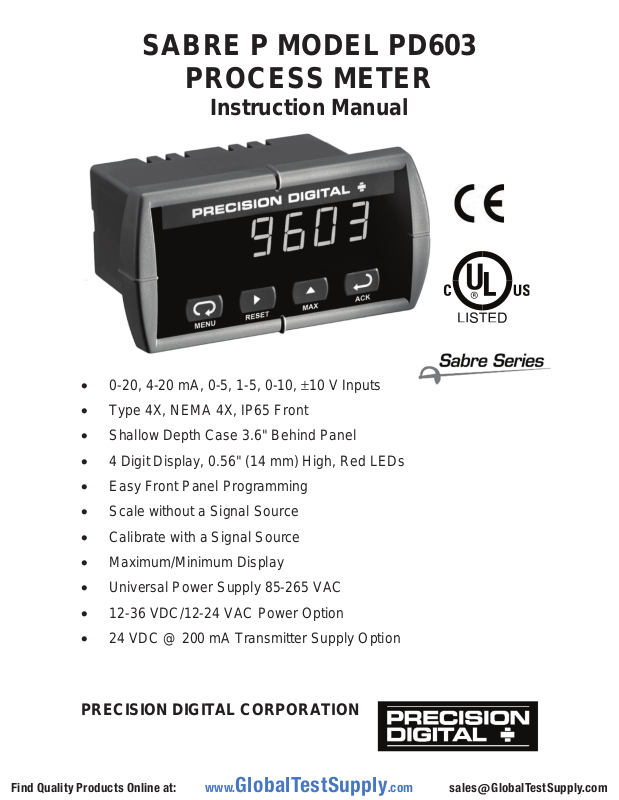

SABRE P MODEL PD603
PROCESS METER
Instruction Manual
• 0-20, 4-20 mA, 0-5, 1-5, 0-10, ±10 V Inputs
• Type 4X, NEMA 4X, IP65 Front
• Shallow Depth Case 3.6" Behind Panel
• 4 Digit Display, 0.56" (14 mm) High, Red LEDs
• Easy Front Panel Programming
• Scale without a Signal Source
• Calibrate with a Signal Source
•
Maximum/Minimum Display
• Universal Power Supply 85-265 VAC
• 12-36 VDC/12-24 VAC Power Option
• 24 VDC @ 200 mA Transmitter Supply Option
PRECISION DIGITAL CORPORATION
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 2
Sabre P Model PD603 Process Meter Instruction Manual
Disclaimer
The information contained in this document is subject to change
without notice. Precision Digital makes no representations or warranties with respect to the contents hereof, and specifically disclaims
any implied warranties of merchantability or fitness for a par ticular
purpose.
© 2010-2016 Precision Digital Corporation. All rights reserv ed.
INTRODUCTION
The Sabre P model PD603 is an easy to use process input meter. It accepts 0-20 mA, 4-20 mA, 0-5, 1-5, or ±10 V input signals. The four front
panel buttons make the setup and programming an eas y task.
The isolated 24 VDC transmitter power (optional) can be used to power
the input transmitter or other devices.
ORDERING INFORMATION
85-265 VAC*
12-36 VDC*
Description
Model
PD603-6R0-0 PD603-7R0-0 Process Meter
PD603-6R0-1
*All models may be powered from AC or DC, see Specifications for details.
Model
Process Meter with
24 V transmitter supply
NEMA 4 & NEMA 4X Enclosures
Model # of
Description Mounting
Meters
PDA2500 1 - 6 Plastic NEMA 4X Enclosure Through Door
PDA2600 1 - 6 Stainless Steel NEMA 4X Enclosure Through Door
PDA2700 1 - 6 Steel NEMA 4 Enclosure Through Door
PDA2801 1 Plastic NEMA 4X Enclosure Through Cover
2
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 3
Sabre P Model PD603 Process Meter Instruction Manual
setu
prog
pass
Table of Contents
INTRODUCTION ------------------------------------------------------------ 2
ORDERING INFORMATION --------------------------------------------- 2
SPECIFICATIONS ---------------------------------------------------------- 5
General ------------------------------------------------------------------------------- 5
Process Input ---------------------------------------------------------------------- 6
COMPLIANCE INFORMA TION ----------------------------------------- 7
Safety --------------------------------------------------------------------------------- 7
Electromagnetic Compatibility ----------------------------------------------- 7
SAFETY INFORMATION ------------------------------------------------- 8
INSTALLATION ------------------------------------------------------------- 9
Unpacking --------------------------------------------------------------------------- 9
Panel Mounting -------------------------------------------------------------------- 9
Connections ---------------------------------------------------------------------- 10
Connector Labeling ---------------------------------------------------------- 10
Power Connections ---------------------------------------------------------- 10
Signal Connections ---------------------------------------------------------- 11
SETUP AND PROGRAMMING ---------------------------------------- 13
Front Panel Buttons and Status LED Indicators --------------------- 14
Display Functions and Messages ----------------------------------------- 15
Main Menu ------------------------------------------------------------------------ 16
Setting Numeric Values ------------------------------------------------------ 17
Setting Up the Meter (
Setting the Input Signal (inpt) -------------------------------------------- 18
Setting the Decimal Point (dec.p) ----------------------------------------- 19
Programming the Meter (
Scaling the Meter (ScAL) ---------------------------------------------------- 21
Calibrating the Meter (Cal) ------------------------------------------------- 23
Setting Up the Password (
Locking the Meter ------------------------------------------------------------ 24
Unlocking the Meter ---------------------------------------------------------- 24
) ------------------------------------------------- 18
) --------------------------------------------- 20
) ------------------------------------------- 24
OPERATION ---------------------------------------------------------------- 26
Front Panel Buttons Operation -------------------------------------------- 26
Maximum/Minimum Readings ---------------------------------------------- 27
MOUNTING DIMENSIONS ---------------------------------------------- 28
TROUBLESHOOTING ---------------------------------------------------- 29
3
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 4
Sabre P Model PD603 Process Meter Instruction Manual
Troubleshooting Tips --------------------------------------------------------- 29

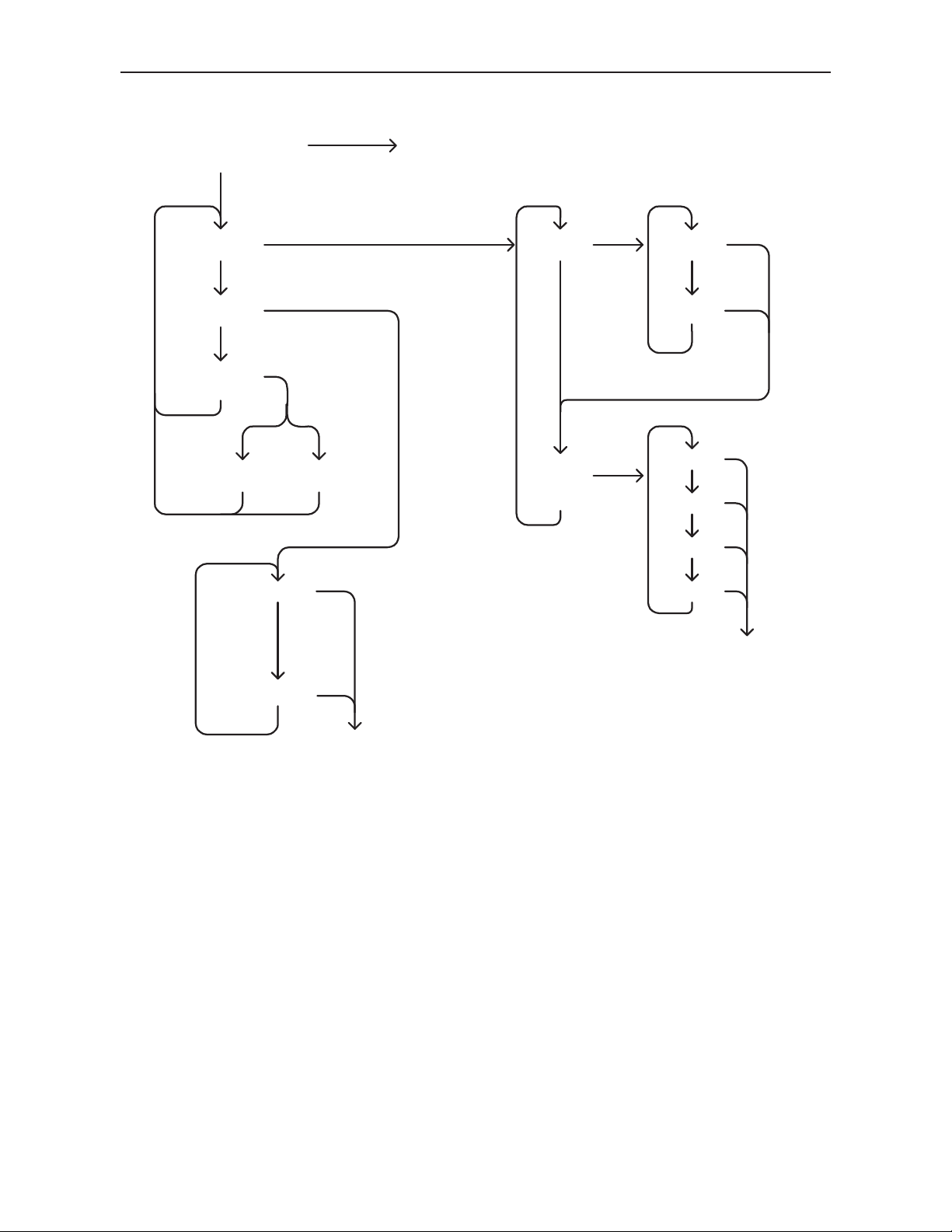

QUICK USER INTERFACE REFERENCE GUIDE ---------------- 30
EU DECLARATION OF CONFORMITY ----------------------------- 31
Table of Figures

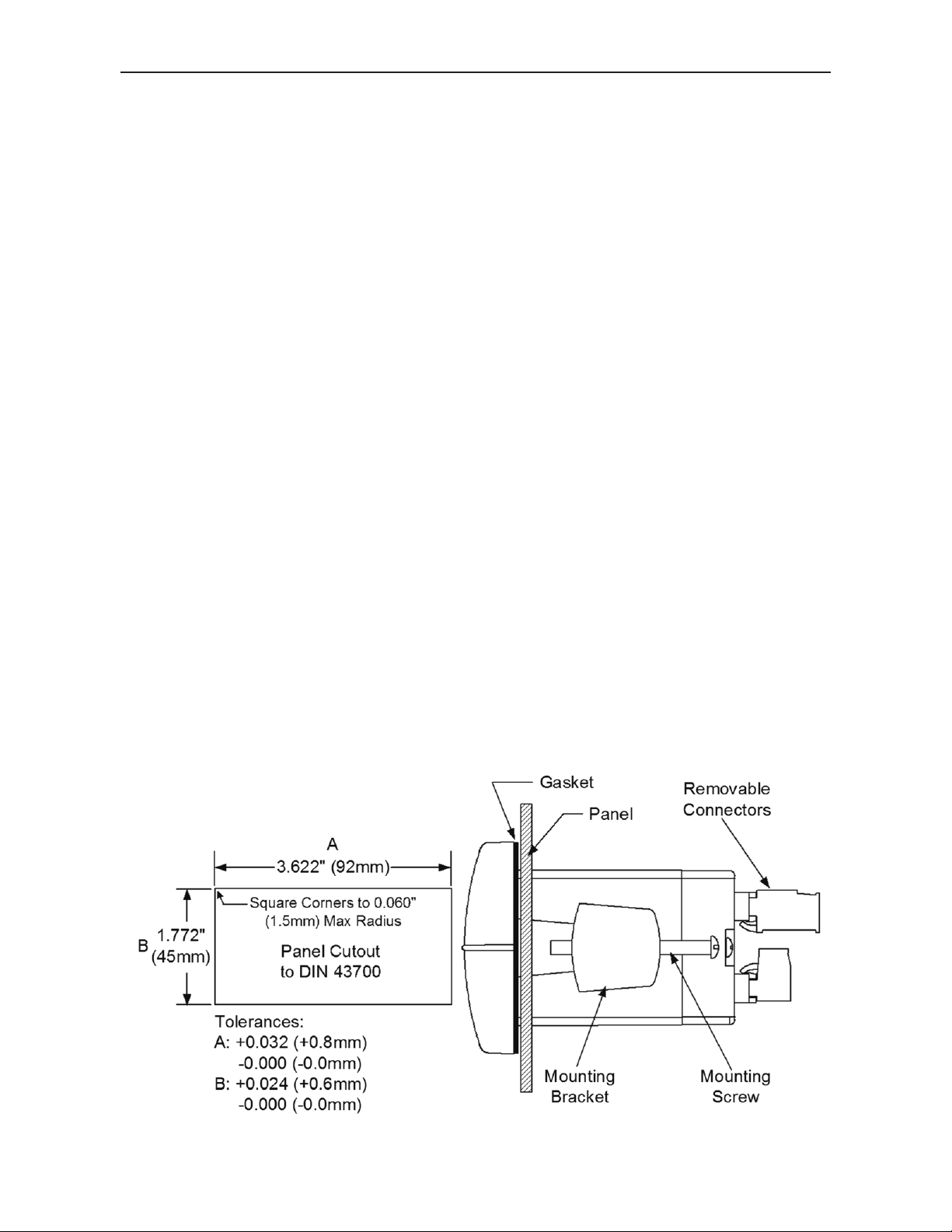

Figure 1. Panel Cutout and Mounting ................................................. 9
Figure 2. Connector Labeling - Meter with 24 V Supply .................. 10
Figure 3. Power Connections ............................................................ 10

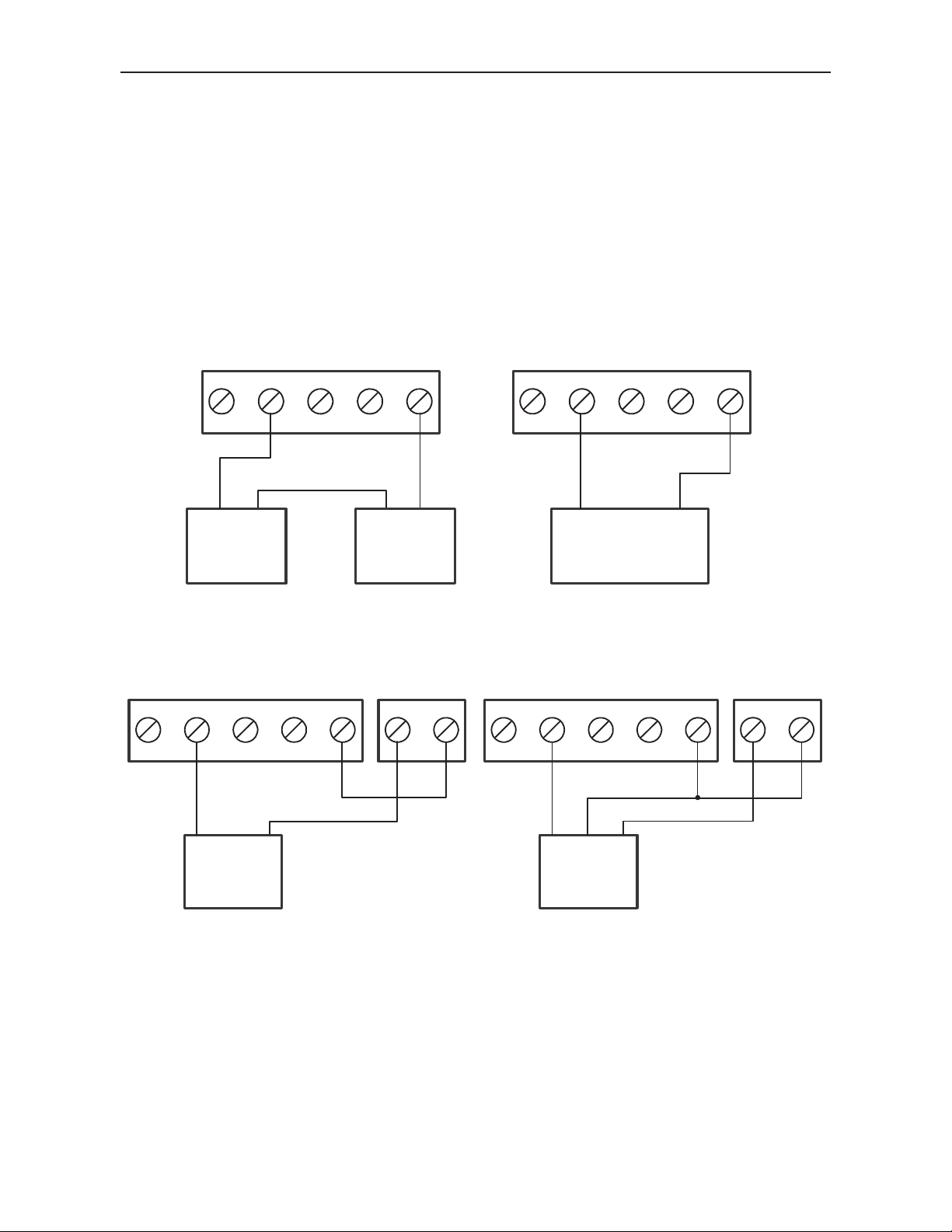

Figure 4. Transmitter Powered by Ext. Supply or Self-Powered .... 11
Figure 5. Transmitters Powered by Internal Supply (Optional) ...... 11
Figure 6. Voltage Input Connections ................................................ 12
Figure 7. Meter Dimensions - Side View ........................................... 28
Figure 8. Case Dimensions - Top View ............................................. 28
4
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 5
Sabre P Model PD603 Process Meter Instruction Manual
SPECIFICATIONS
Except where noted all specifications apply to operation at +25°C.
General
DISPLAY 0.56" (14 mm) high, red LED
Four digits (-1999 to 9999), automatic lead zero blanking.
DISPLAY
UPDATE RATE
OVERRANGE
UNDERRANGE
PROGRAMMING
METHODS
RECALIBRATION All ranges are calibrated at the factory.
MAX/MIN
DISPLAY
PASSWORD Programmable password restricts modification of
NON-VOLATILE
MEMORY
POWER
OPTIONS
5/second
Display flashes
Display flashes
Four front panel buttons
Recalibration is recommended at least every 12 months.
Max/min readings reached by the process are stored until
reset by the user or until power to the meter is turned off.
programmed settings.
All programmed settings are stored in non-volatile memory
for a minimum of ten years if power is lost.
85-265 VAC, 50/60 Hz; 90-265 VDC, 20 W max
or 12-36 VDC, 12-24 VAC, 6 W max
9999
-1999
FUSE Required fuse: UL Recognized, 5 A max, slow blow
Up to 6 meters may share one 5 A fuse
ISOLATED
TRANSMITTER
POWER SUPPLY
NORMAL MODE
REJECTION
ISOLATION 4 kV input-to-power line
OVERVOLTAGE
CATEGORY
ENVIRONMENTAL Operating temperature range: 0 to 65°C
CONNECTIONS Removable screw terminal blocks accept 12 to 22 AWG
P+, P- terminals: 24 VDC ± 10% @ 200 mA max
64 dB at 50/60 Hz
500 V input-to-24 V supply
Installation Overvoltage Category II:
Local level with smaller transient overvoltages than Installation Overvoltage Category III.
Storage temperature range: -40 to 85°C
Relative humidity: 0 to 90% non-condensing
wire, RJ11 for factory use only.
5
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 6
Sabre P Model PD603 Process Meter Instruction Manual
ENCLOSURE 1/8 DIN, high impact plastic, UL 94V-0, color: gray
MOUNTING 1/8 DIN panel cutout required. Two panel mounting
bracket assemblies provided
TIGHTENING
TORQUE
OVERALL
DIMENSIONS
WEIGHT 8.5 oz (241 g)
WARRANTY 1 year parts & labor
EXTENDED
WARRANTY
Screw terminal connectors: 5 lb-in (0.56 Nm)
2.45" x 4.68" x 4.19" (62 mm x 119 mm x 106 mm)
(H x W x D)
1 or 2 years, refer to the Price List for details.
Process Input
INPUTS Field selectable:
0-20, 4-20 mA, 0-5, 1-5, 0-10 V, or ±10 V
ACCURACY ±0.05% FS ±1 count
FUNCTION Linear
TEMPERATURE
DRIFT
DECIMAL POINT Up to three decimal places:
50 PPM/°C from 0 to 65°C ambient
CALIBRATION
RANGE
INPUT
IMPEDANCE
INPUT
OVERLOAD
d.ddd, dd.dd, ddd.d, or dddd
An Error message will appear if input 1 and input 2 signals
are too close together.
Input
Range
4-20 mA 0.40 mA
±10 V
Voltage ranges: greater than 1 MΩ
Current ranges: 50 - 100 Ω
Current input protected by resettable fuse.
Fuse resets automatically after fault is removed.
Minimum Span
Input 1 & Input 2
0.20 V
(depending on resettable fuse impedance)
6
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 7
Sabre P Model PD603 Process Meter Instruction Manual
COMPLIANCE INFORMATION
Safety
UL LISTED USA and Canada
UL 508 Industrial Control Equipment
UL FILE NUMBER E160849
FRONT PANEL UL Type 4X, NEMA 4X, IP65; panel gasket provided
LOW VOLTAGE
DIRECTIVE
EN 61010-1:2010
Safety requirements for measurement, control, and
laboratory use
Electromagnetic Compatibility
EMISSIONS
Radiated
Emissions
AC Mains Conducted Emissions
IMMUNITY
RFI - Amplitude
Modulated
EN 55011:2009+Al:2010
Group 1 Class A ISM emissions requirements
Class A
Class A
EN 61326-1:2013
Measurement, control, and laboratory equipment
EN 61000-6-2:2005
EMC heavy industrial generic immunity standard
80 -1000 MHz 10 V/m 80% AM (1 kHz)
1.4 - 2.0 GHz 3 V/m 80% AM (1 kHz)
2.0 - 2.7 GHz 1 V/m 80% AM (1 kHz)
Electrical Fast
±2kV AC mains, ±1kV other
Transients
Electrostatic
±4kV contact, ±8kV air
Discharge
RFI - Conducted
AC Surge
Surge
Power-Frequency
10V, 0.15-80 MHz, 1kHz 80% AM
±2kV Common, ±1kV Differential
1KV (CM)
30 A/m 70%V for 0.5 period
Magnetic Field
Voltage Dips
Voltage
40%V for 5 & 50 periods
70%V for 25 periods
<5%V for 250 periods
Interruptions
7
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 8
Sabre P Model PD603 Process Meter Instruction Manual
Note:
Testing was conducted on PD603 meters installed through the covers of grounded metal enclosures with cable shields grounded at
the point of entry representing installations designed to optimize
EMC performance.
SAFETY INFORMATION
!
CAUTION: Read complete
instructions prior to installation and operation of the
meter.
WARNING
Hazardous voltages exi
should be performed only by trained service personnel.
st within enclosure. Installation and service
WARNING: Risk of
electric shock.
8
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 9
Sabre P Model PD603 Process Meter Instruction Manual
INSTALLATION
There is no need to remove the meter from its case to complete the installation, wiring, and setup of the meter.
Unpacking
Remove the meter from box. Inspect the packaging and contents for damage. Report damages, if any, to the carrier.
If any part is missing or the meter malfunctions, please contact
your supplier or the factory for assistance.
Panel Mounting
• Prepare a standard 1/8 DIN panel cutout – 3.622" x 1. 772" (92 mm
x 45 mm). Refer to Mounting Dimensions, page 28 for more details.
• Clearance: allow at least 4" (102 mm) behind the panel for wiring.
• Panel thickness: 0.04" - 0.25" (1.0 mm - 6.4 mm).
Recommended minimum panel thickness to maintain Type 4X
rating: 0.06" (1.5 mm) steel panel, 0.16" (4.1 mm) plastic panel.
• Remove the two mounting brackets provided with the meter (back-off
the two screws so that there is ¼" (6.4 mm) or less through the
bracket. Slide the bracket toward the front of the case and remove).
• Insert meter into the panel cutout.
• Install mounting brackets and tighten the screws against the panel.
To achieve a proper seal, tighten the mounting bracket scre ws
evenly until meter is snug to the panel along its short side. DO NOT
OVER TIGHTEN, as the rear of the panel may be damaged.
Figure 1. Panel Cutout and Mounting
9
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 10
Sabre P Model PD603 Process Meter Instruction Manual
Connections
All connections are made to removable screw terminal connectors
located at the rear of the meter.
Use copper wire with 60°C or 60/75°C insulat ion
for all line voltage connections. Observe all safety
regulations. Electrical wiring should be performed
in accordance with all applicable national, state,
and local codes to prevent damage to the meter
and ensure personnel safety.
Connector Labeling
The connectors label, aff ixed to the meter, shows the locati on of the
connectors available with requested configuration.
XXV+ mA+ COM
3412 5
SIGNAL
24V OUT
P+ P-
Factory
Use
Only
POWER
2121
-
+
DW1911
Figure 2. Connector Labeling - Meter with 24 V Supply
Power Connections
Power connections are made to a two-terminal co nnector labeled
POWER on Figure 2. The me te r will ope ra te reg ardle ss of DC pola rity
connection. The + and - symbo ls are only a sug ge sted w iring conve ntion.
POWER CONNECTOR
12
+-
AC or DC
POWER
Required External Fuse:
5 A max, Slow Blow
Figure 3. Power Connections
10
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 11
Sabre P Model PD603 Process Meter Instruction Manual
Signal Connections
Signal connections are made to a five-terminal connector la beled
SIGNAL on Figure 2. The COM (common) terminal is the return for all
types of input signals.
Current and Voltage Connections
The following figures show examples for cu rrent and vol tage connection s.
There are no switches or jumpers to set up for current and voltage inputs.
Setup and programming is performed th rough the fro n t panel buttons .
SIGNAL CONNECTOR
V+ X
X
21 354
COMmA+
-+ +-
2-Wire
4-20 mA
Transmitter
External
Power
Supply
SIGNA L CONNECTO R
mA+
V+ X
X
21 354
2-Wire 4-20 mA
Self-Powered
Transmitter
COM
-+
Figure 4. Transmitter Powered by Ext. Supply or Self-Powered
SIGNAL CONNECTOR
mA+
V+ X
X
21 354
COM
24V OUT
P+ P-
21
SIGNAL CONNECTOR
mA+
V+ X
X
21 354
COM
24V OUT
P+ P-
21
-+
2-Wire
4-20 mA
Transmitter
Signal
+
-
3-Wire
4-20 mA
Transmitter
Figure 5. Transmitters Powered by Internal Supply (Optional)
The current input is protected against current overload by a resettable
fuse. The display may or may not show a fault condition depending on
the nature of the overload.
The fuse limits the current to a safe level when it detects a fault condition, and automatically resets itself when the fault condition is removed.
11
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 12
Sabre P Model PD603 Process Meter Instruction Manual
SIGNAL CONNECTOR
21 354
+-
Voltage
Signal
SIGNAL CONNECTOR
COMmA+V+ XX
V+ XX
mA+
Signal
21 354
+
-
COM
3-Wire
Voltage
Transducer
24V OUT
P+ P-
21
Figure 6. Voltage Input Connections
The meter is capable of accepting any vol tage from -10 VDC to +10 VDC.
12
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 13
Sabre P Model PD603 Process Meter Instruction Manual
SETUP AND PROGRAMMING
• There is no need to recalibrate the meter
when first received from the factory.
• The meter is factory calibrated prior to ship-
ment, for all input types, in milliamps and
volts. The calibration equipment is certified to
NIST standards.
Overview
There are no jumpers involved in the setup process of the meter. The
switch, located between the SIGNAL and the RJ11 connectors is not
used with the PD603 model. Setup and programming is done through
the front panel buttons.
After power and signal connections have been completed and verified,
apply power to the meter.
For
Quick User Interface Reference Guide
go to page 30
13
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 14
Sabre P Model PD603 Process Meter Instruction Manual
Front Panel Buttons and Status LED Indicators
9.603
Button
Symbol
• Press the Menu button to enter or exit the Programming Mode at
any time.
• Press the Right arrow button to move to the next digit during digit
programming.
• Press the Up arrow button to scroll through the menus, decimal
point, or to increment the value of a digit.
Description
Menu
Right arrow/Reset
Up arrow/Max
Enter/Ack
• Press the Enter/Ack button to access a menu or to accept a setting.
14
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 15
Sabre P Model PD603 Process Meter Instruction Manual
Display Functions and Messages
The meter displays various functions and messages during setup/programming and operation. The following table shows the displayed functions and messages with their action/setting description.
Display Parameter Action/Setting
setu
inpt
4-20
0-10
dec.p
prog
scal
Cal
inp1
dis1
inp2
dis2
Setup
Input
4-20 mA
0-10 VDC
Decimal point
Program
Scale
Calibrate
Input 1
Display 1
Input 2
Display 2
Enter Setup menu
Enter Input menu
Set meter for 4-20 mA input
Set meter for ±10 VDC input
Set decimal point for process inputs
Enter the Program menu
Enter the Scale menu
Enter the Calibrate menu
Calibrate input 1 signal or program input 1
value
Program display 1 value
Calibrate input 2 signal or program input 2
value
Program display 2 value
pass
9999
-1999
err
unlC
loCd
Error
Password
Unlocked
Locked
Flashing display
Error, calibration not successful, check signal
Enter the Password menu
Program password to lock meter
Enter password to unlock meter
Overrange condition
Underrange condition
15
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 16
Sabre P Model PD603 Process Meter Instruction Manual

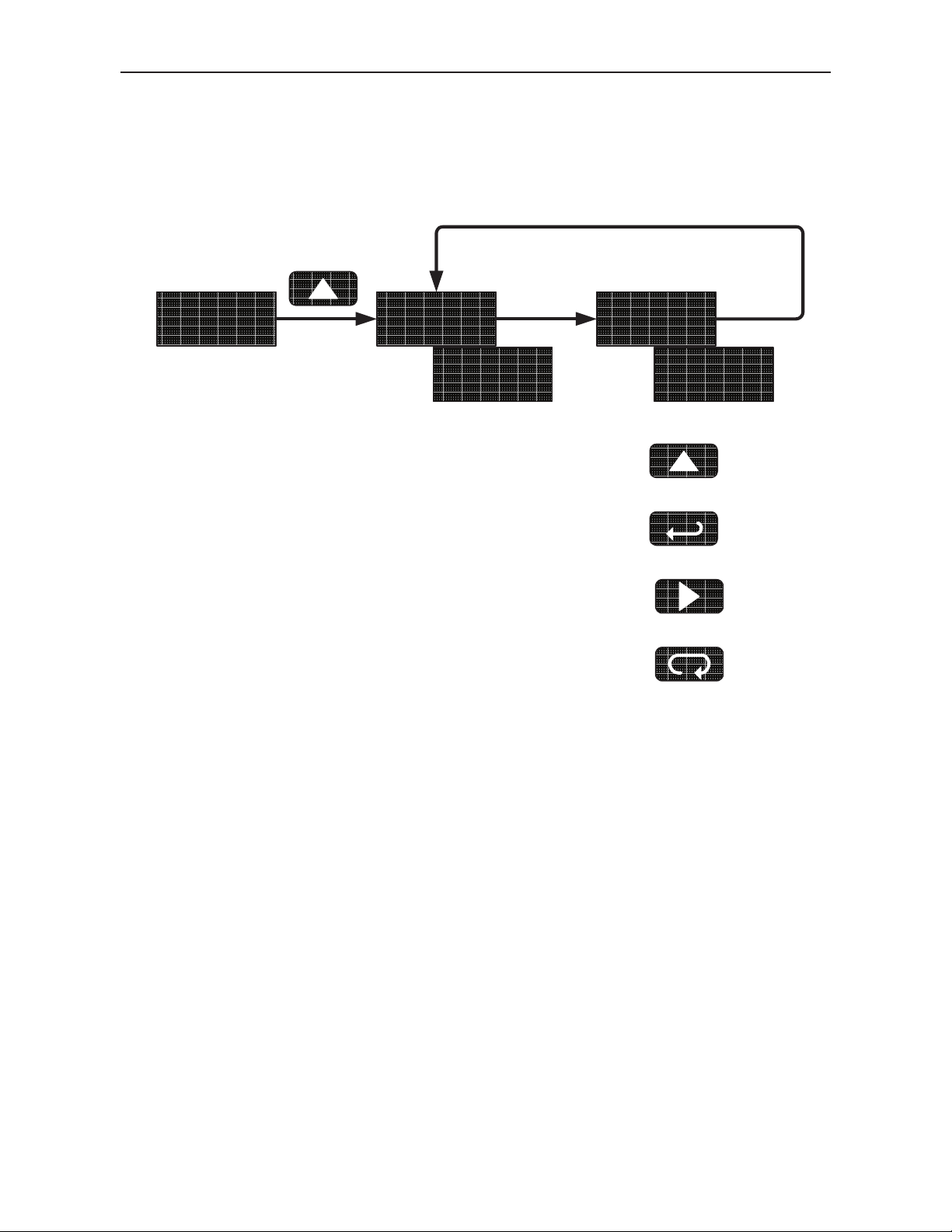

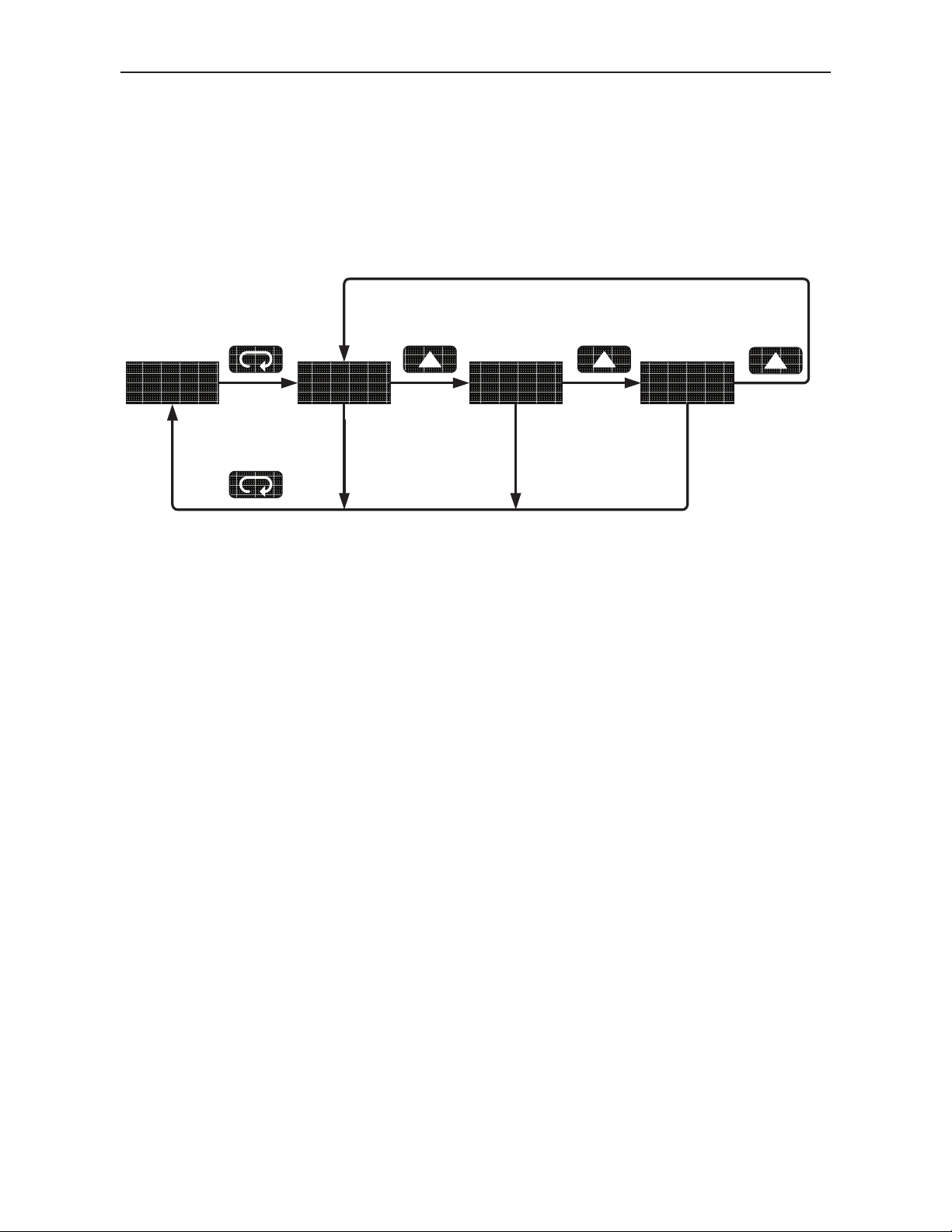

9603 setu prog pass
Main Menu
The main menu consists of the following functions: Setup, Program, and
Password.
• Press Menu button to enter Programming Mode then press Up ar-
row button to scroll main menu.
Run
Mode
• Press Menu, at any time, to exit and return to Run Mode. Changes
made to settings prior to pressing Enter/Ack are not saved.
• Changes to the settings are saved to memory only after pressing
Enter/Ack.
• The display moves to the next menu every time a setting is ac-
cepted by pressing Enter/Ack.
16
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 17
Sabre P Model PD603 Process Meter Instruction Manual
04.00 04.00 05.00

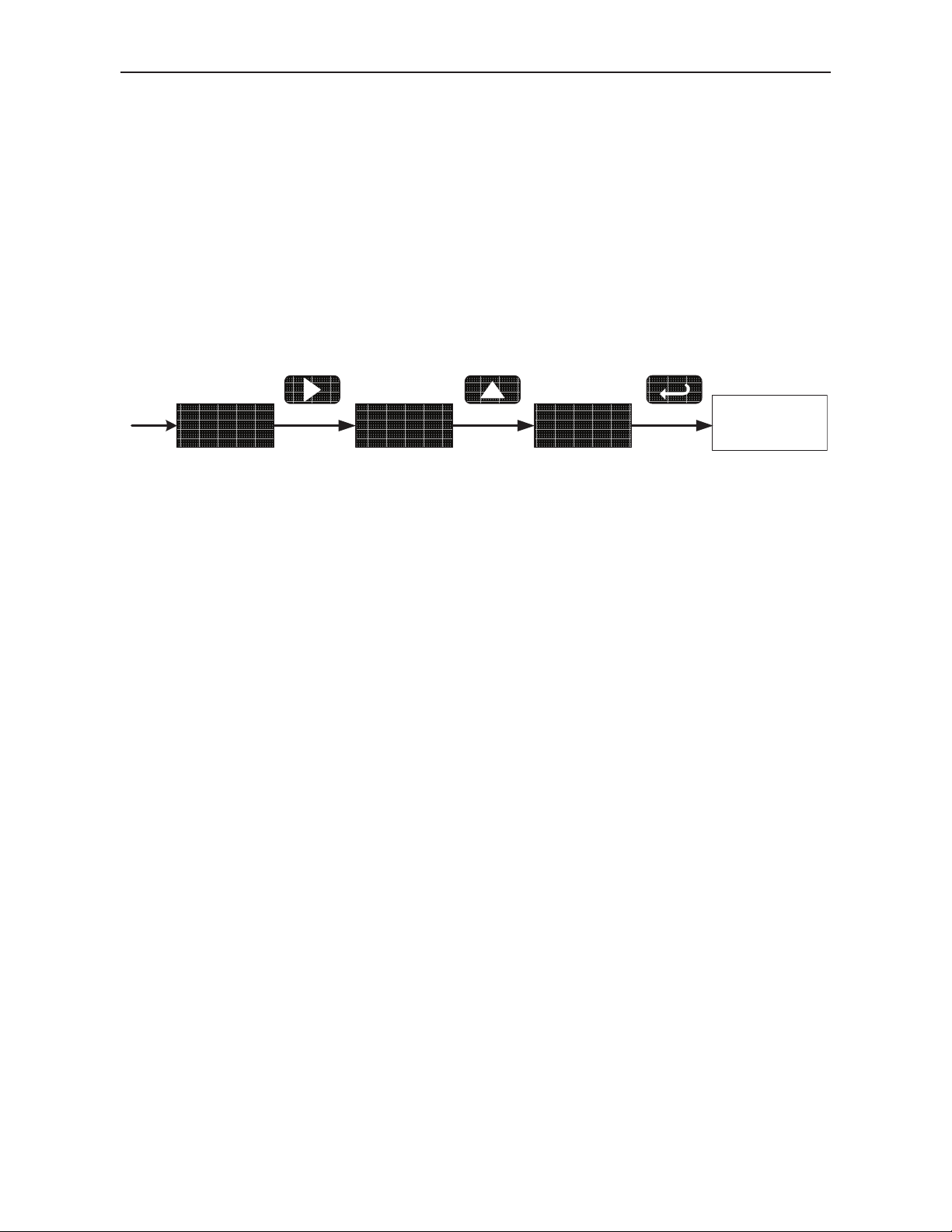

Setting Numeric Values
The numeric values are set using the Right and Up arrow buttons.
Press Right arrow to select next digit and Up arrow to increment digit
value.
The digit being changed is displayed brighter than the rest.
Press the Enter/Ack button, at any time, to accept a setting or Menu
button to exit without saving changes.
Increment Digit
Value
Next
Setting
Select Next Digit Accept Setting
The decimal point is set using the Up arrow button in the Setup-decimal
point menu.
17
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 18
Sabre P Model PD603 Process Meter Instruction Manual
setu
inpt
setu inpt
dec.p
inpt
4-20 0-10

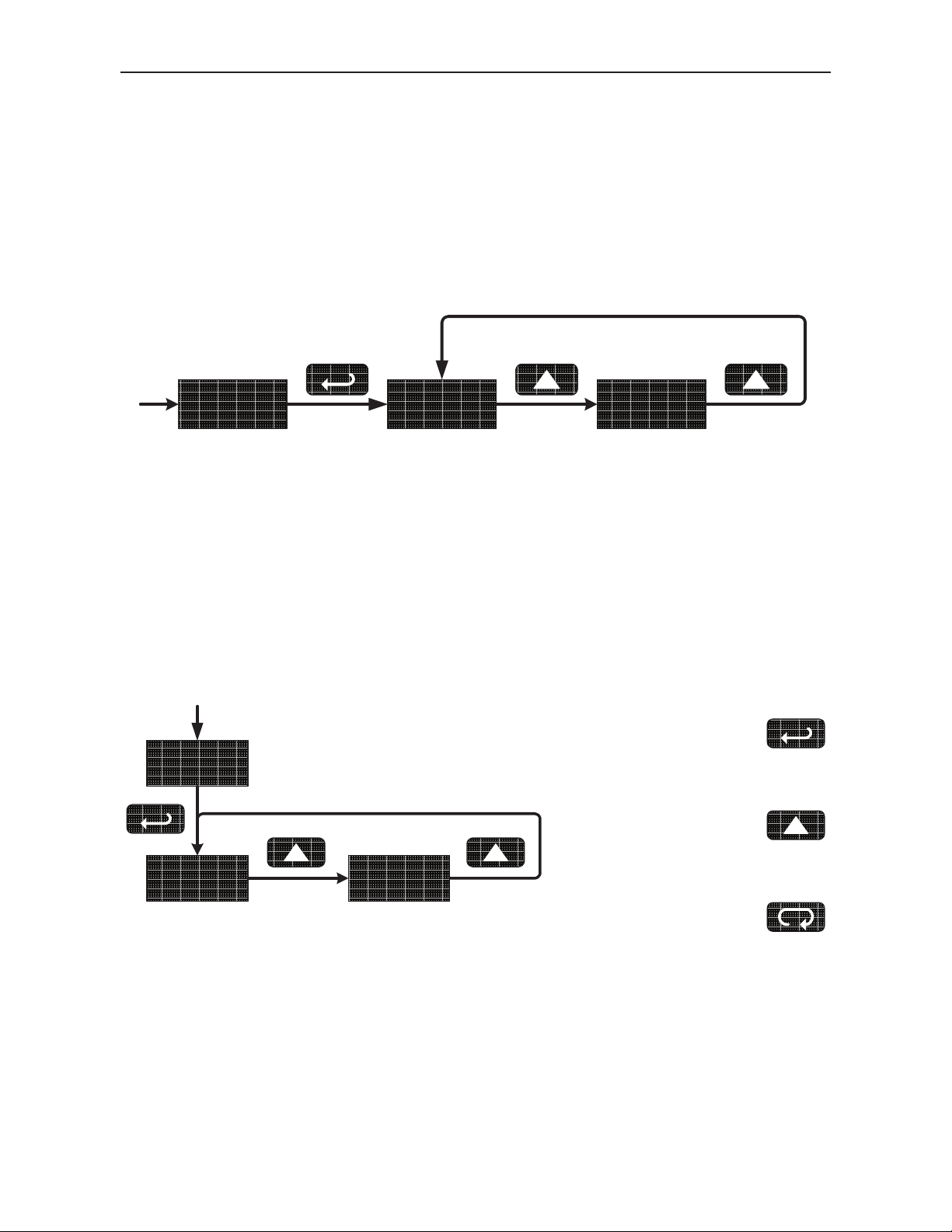

Setting Up the Meter (
The Setup menu is used to select:
1. Input signal the meter will accept
2. Decimal point position
Press the Enter/Ack button to access any menu or press Up arrow button to scroll through choices. Press the Menu button to exit at any time.
Setting the Input Signal (
Enter the Input menu to set up the meter to display current (4-20) or
voltage (0-10) inputs.
)
)
The voltage input is capable of accepting any signal from -10 to +10
VDC. Select voltage input to accept 0-5, 1-5, 0-10, or ±10 VDC signals.
The current input is capable of accepting any signal from -20 to 20 mA.
Select current input to accept 0-20 or 4-20 mA signals.
Press Enter/Ack to
Make Selections
Press Up Arrow
to Scroll Through
Choices
Press Menu to
Exit at any Time
18
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 19
Sabre P Model PD603 Process Meter Instruction Manual
dec.p
dec.p
dddd

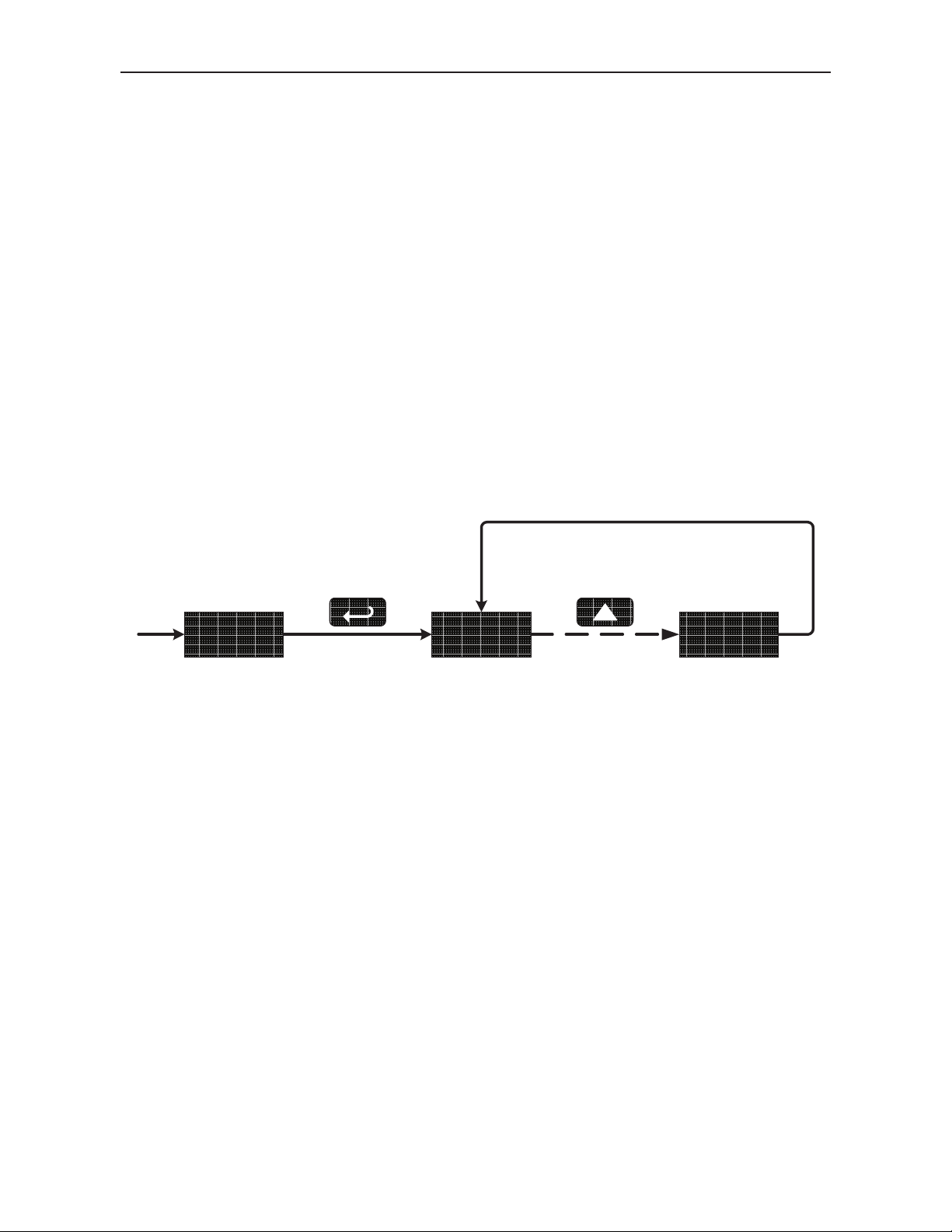

Setting the Decimal Point (
Decimal point may be set with up to three decimal places or with no
decimal point at all.
Pressing the Up arrow moves the decimal point one place to the right
until no decimal point is displayed, then it moves to the leftmost position.
Previous
)
Select Decimal
Point
Next
19
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 20
Sabre P Model PD603 Process Meter Instruction Manual
prog
prog Cal
scal

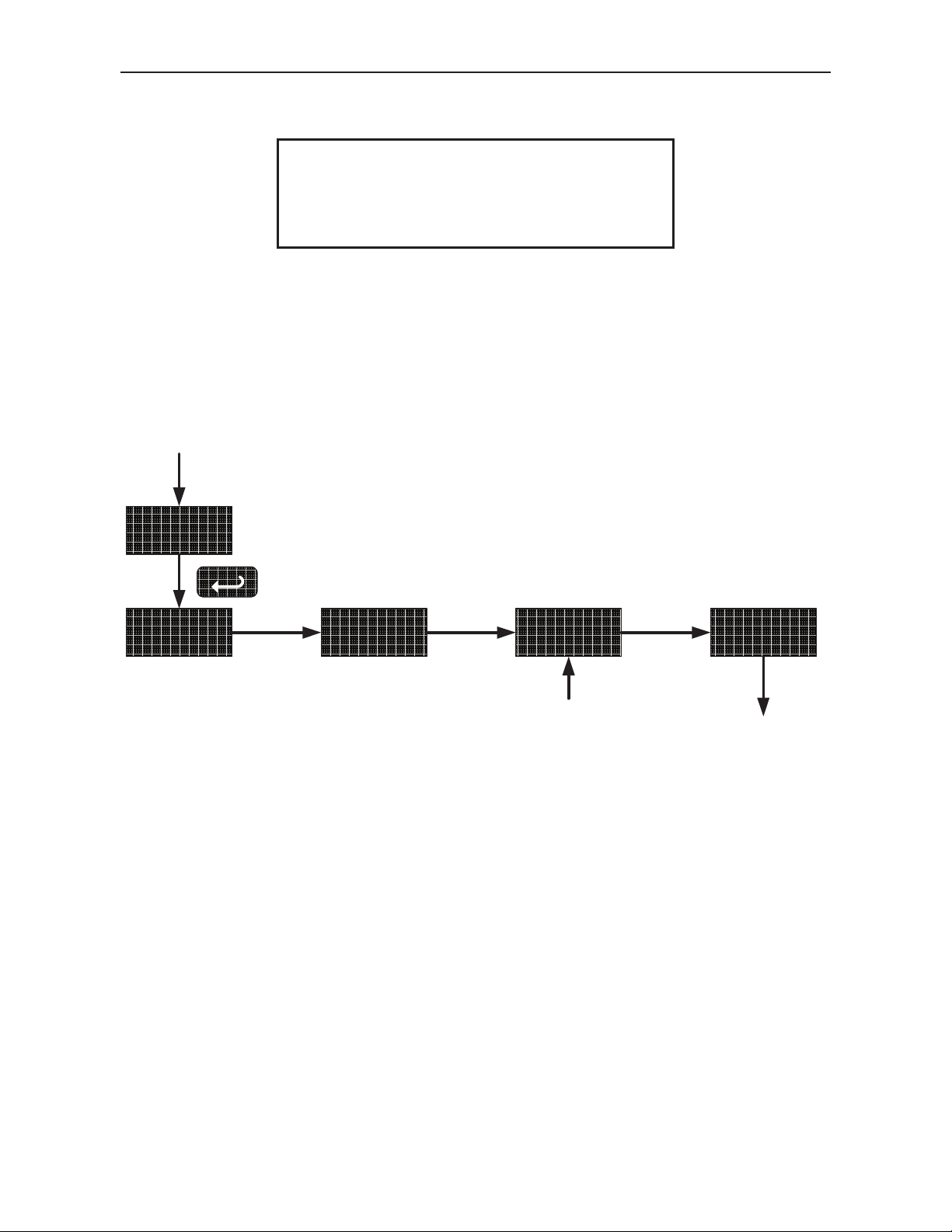

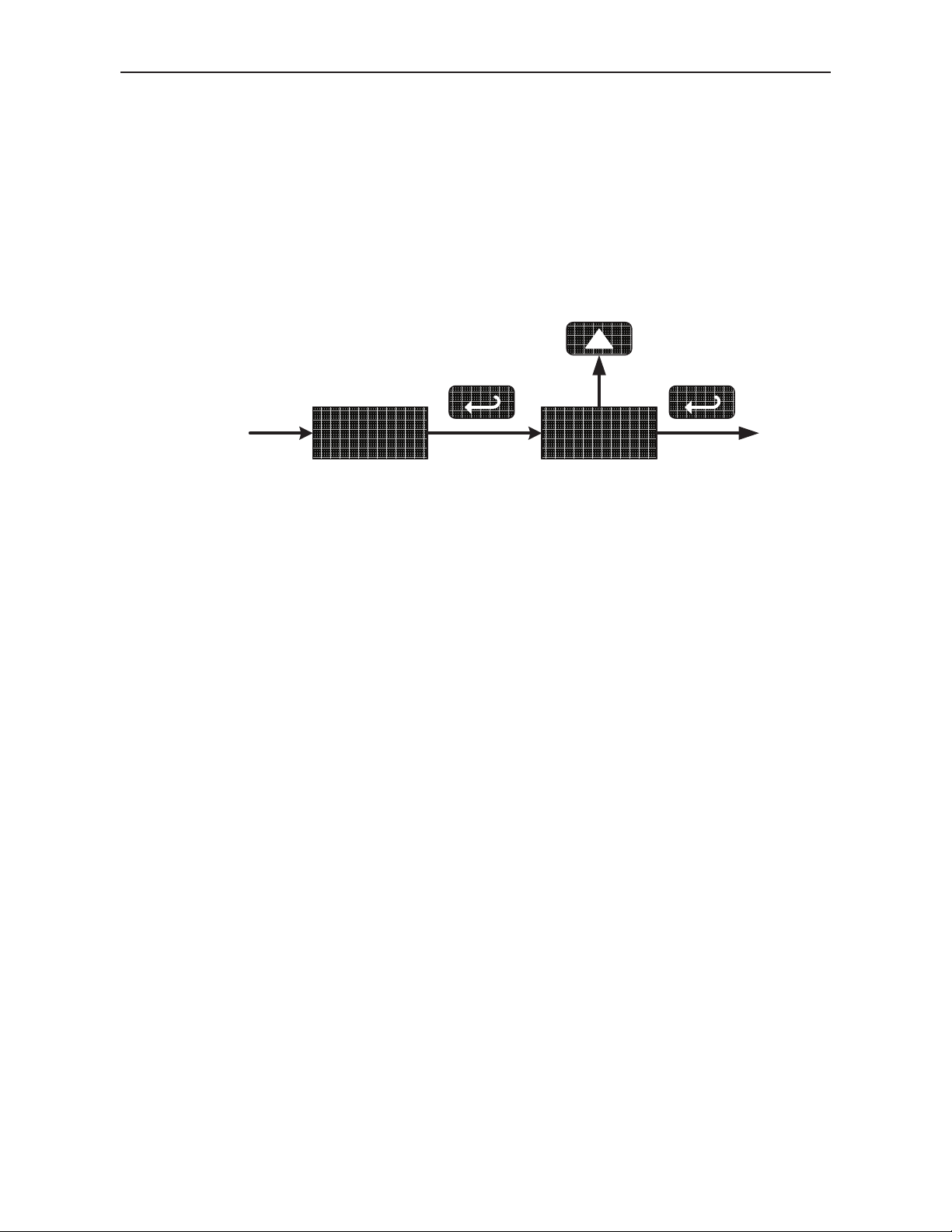

Programming the Meter (
It is very important to read the following information, before proceeding
to program the meter:
• There is no need to recalibrate the meter when first received from
the factory.
• The meter is factory calibrated prior to shipment, for all input
types, in milliamps and volts. The calibration equipment is certified
to NIST standards.
• Use the Scale menu to scale process inputs (e.g. 4-20 mA). A cali-
brated signal source is not needed to scale the meter.
The Program menu contains the Calibrate and the Scale menus.
Process inputs may be calibrated or scaled to any displ ay within the
range of the meter.
)
20
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 21
Sabre P Model PD603 Process Meter Instruction Manual
ScAL
dis1 00.0
inp2
inp1
scal
04.00

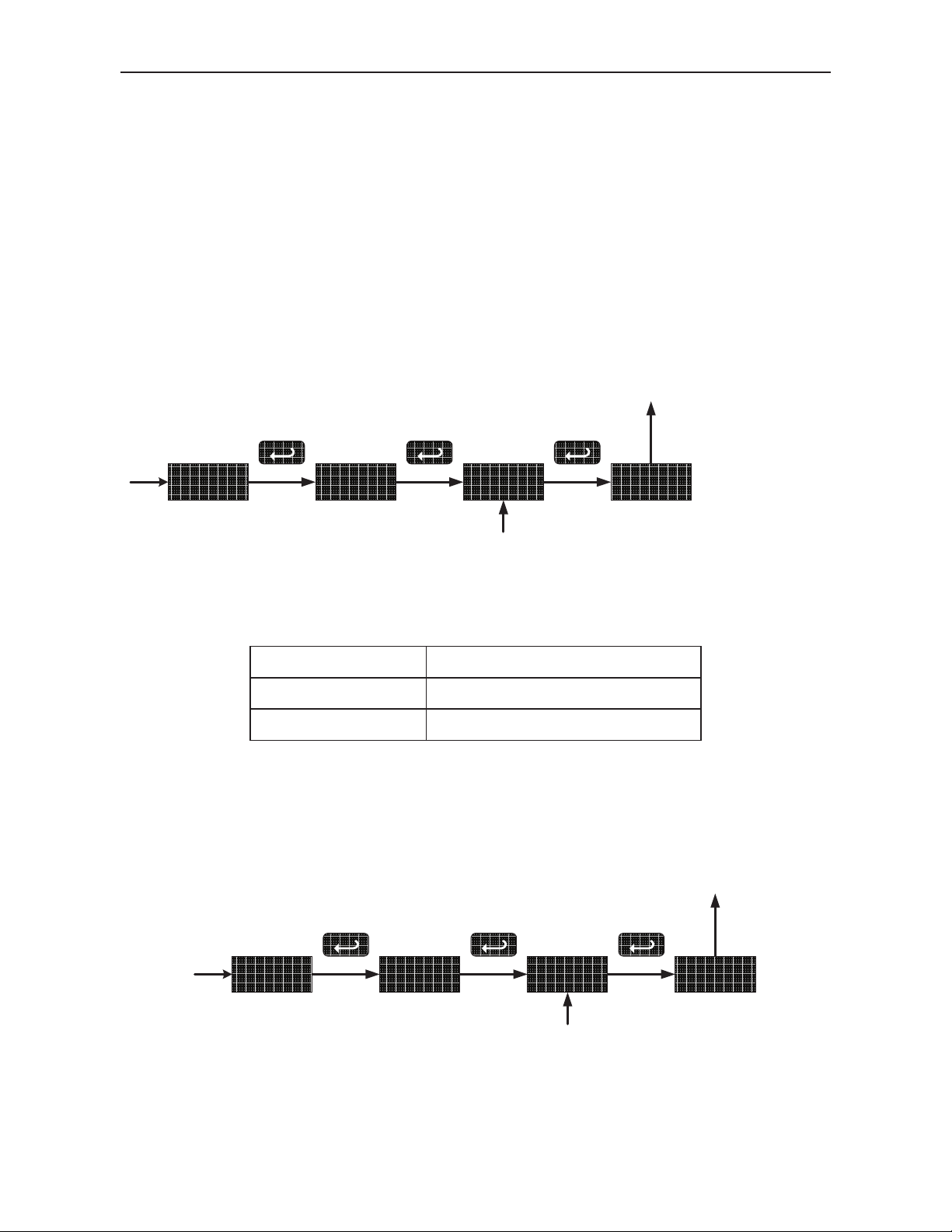

Scaling the Meter (
The process inputs (4-20 mA and ±10 VDC) can be scaled to display
the process in engineering units.
A signal source is not needed to scale the meter; simply program the inputs and corresponding display values.
Press Enter to Accept Setting
)
Press Up to Set Digit Value
Press Right to Select Next Digit
Press Menu to Exit at any Time
Set Input 1
Value
For instructions on how to program
numeric values see Setting Numeric
Values, page 17.
Set Display 1
Value
Scale
Input 2
21
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 22
Sabre P Model PD603 Process Meter Instruction Manual
Err
Error Message (
)
An error message indicates that the calibration or scaling process was
not successful.
After the error message is displayed, the meter reverts to input 1, allowing the appropriate input signals to be applied .
The error message might be caused by any of the following conditions:
1. Input signal is not connected to the proper terminals or it is connected backwards.
2. Wrong signal selection in Setup menu.
3. Minimum input span requirements not maintained.
4. Input 1 signal inadvertently applied to calibrate input 2.
Minimum Input Span
The minimum input span is the minimum difference betw een input 1 and input 2 signals required to complete the calibrati on or scaling of the meter.
Input range Input 1 & input 2 span
4-20 mA 0.40 mA
±10 VDC
0.20 VDC
22
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 23
Sabre P Model PD603 Process Meter Instruction Manual
Cal
inp1 dis1 04.00
inp2
Cal
Calibrating the Meter (
To scale the meter without a signal
source refer to Scaling the Meter
The meter can be calibrated to display the process in engin eering units
by applying the appropriate input signal and following the calibration
procedure.
The use of a calibrated signal source is strongly recommen ded to calibrate the meter.
(ScAL), page 21.
See Scaling the Meter for Button
Functions Description
)
Display
Flashes
Accepting
Input
Set Display 1
Value
Calibrate
Input 2
23
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 24
Sabre P Model PD603 Process Meter Instruction Manual
pass
pass unlC 0000
loCd
pass loCd 0000
unlC
Setting Up the Password (
The Password menu is used to program a four-digit password to prevent unauthorized changes to the programmed parameter s ettings.
)
Locking the Meter
Enter the Password menu and program a four-digit password.
For instructions on how to program numeric values see Setting Numeric
Values, page 17.
Run Mode
Program
Password
Record the password for future reference. If appropriate, it may be recorded in the space provided.
Model:
Serial Number:
Password: __ __ __ __
Unlocking the Meter
If the meter is password protected, the correct password must be entered in order to make changes to the parameter settings.
Run Mode
Enter
Password
24
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 25
Sabre P Model PD603 Process Meter Instruction Manual
Entering the correct four-digit number sets the password to 0000, disabling the protection.
Changes to the programmed parameter settings are allowed only with
the password set to 0000.
If the password entered is incorrect, the meter displays LoCd (Locked)
for about two seconds, then it returns to Run Mode. To try again, press
Enter/Ack while the Locked message is displayed.
Forgot the Password?
The password may be disabled by the following
procedure:
1. Note display reading prior to pressing the Menu
button. Ignore decimal point and sign.
2. Access the Password menu, add 2 to the noted
reading and enter that number as the password
(e.g. display reading = -1.23, password = 0125).
25
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 26
Sabre P Model PD603 Process Meter Instruction Manual
OPERATION
For process inputs, the meter is capable of accepting positive and negative signals and displaying these signals in engine ering units from -1999
to 9999 (e.g. a signal from -10 to +10 VDC could be displayed as -5000
to 5000).
Front Panel Buttons Operation
Button
Symbol
Description
Press to enter or exit Programming Mode,
view settings, or exit Max/Min readings
Press to reset Max/Min readings
Press to display Max/Min readings
alternately
Press to display Max/Min reading
indefinitely while displaying Max/Min
26
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 27
Sabre P Model PD603 Process Meter Instruction Manual
9603 Hi lo
9859 602
Maximum/Minimum Readings
The main function of the front panel buttons during operation is to display the maximum and minimum readings reached by the process.
Actual
Reading
Press Up to Display and
Toggle Max/Min
Press Enter to Hold Max/Min
Press Right to Reset Max/Min
Press Menu to Exit Max/Min
1. Press Up arrow/Max button to display maximum reading since the
last reset/power-up.
2. Press Up arrow/Max again to display the minimum reading since
the last reset/power-up.
3. Press Enter/Ack to hold Max/Min display reading, the meter will
continue to track new Max/Min readings.
4. If Enter/Ack is not pressed, the Max/Min display reading will time
out after ten seconds and the meter will return to display the actual
reading.
5. Press Right arrow/Reset button to reset Max/Min while reading is
being displayed. Max/Min display readings are reset to actual
reading.
27
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 28
Sabre P Model PD603 Process Meter Instruction Manual
MOUNTING DIMENSIONS
1.76"
(45mm)
2.45"
(62mm)
0.59"
(15mm)
3.2"
(81mm)
3.6"
(91mm)
Figure 7. Meter Dimensions - Side View
Figure 8. Case Dimensions - Top View
28
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 29
Sabre P Model PD603 Process Meter Instruction Manual
TROUBLESHOOTING
The rugged design and the user-friendly interface of the meter should
make it unusual for the installer or operator to refer to this section of the
manual.
Troubleshooting Tips
Symptom Check/Action
No display at all
Not able to change setup or pro-
gramming, LoCd is displayed
Meter displays error message dur-
ing calibration (err)
Meter displays
• 9999
• -1999
Display alternates between
1. Hi and a number
2. Lo and a number
If the display locks up or the meter
does not respond at all
Other symptoms not described
above
Check power at power connector
Meter is locked, enter correct four-digit
password to unlock
Check:
1. Signal connections
2. Input selected in Setup menu
3. Minimum input span requirements
Check:
1. Input selected in Setup menu
2. Corresponding signal at Signal
connector
Press Menu to exit Max/Min
display readings.
Cycle the power to restart the
microprocessor.
Call Technical Support for
assistance.
29
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 30
Sabre P Model PD603 Process Meter Instruction Manual
QUICK USER INTERFACE REFERENCE GUIDE
Run Mode
Setup
Program
Password
Locked Unlocked
Display
Max/Min
Input 4-20 mA
0-10 V
dddd
Decimal
Point
d . ddd
dd . dd
Scale
Calibrate
To
Password
ddd . d
To Program
30
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 31
EU DECLARATION OF CONFORMITY
Issued in accordance with ISO/IEC 17050-1:2004.
We,
Precision Digital Corporation
233 South Street
Hopkinton, MA 01748 USA
as the manufacturer, declare under our sole responsibility that the product(s),
Model PD603 Sabre Process Meter
to which this declaration relates, is in conformity with the European Union Directives shown
below:
2014/35/EU Low Voltage Directive
2014/30/EU EMC Directive
2011/65/EU RoHS Directive
This conformity is based on compliance with the application of harmonized or applicable
technical standards and, when applicable or required, a European Union notified body
certification.
Standards:
EN 55011:1998
EN 61000-6-2:2001
EN 61010-1:1995
EN 61326:2006
The standards EN 55011:1998, EN 61000-6-2:2001, EN 61010-1:1995, and EN
61326:2006 are no longer harmonized. The requirements of these standards have been
checked against the harmonized standards EN 55011:2009+A1:2010, EN 61000-62:2005, EN 61010-1:2010, and EN 61326:2013 and there were no major technical
changes affecting the latest technical knowledge for the products listed above.
Product Markings:
Signed for and on behalf of Precision Digital Corporation:
Name: Jeffrey Peters
Company: Precision Digital Corporation
Title: President
Date: 04/20/2016
Document No: DoC PD603 {042016}
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 32
Sabre P Model PD603 Process Meter Instruction Manual
LIM603_E
SFT031 Ver 3.2 & up
04/16
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Loading...
