Page 1
Ether232Plus
User Guide
Software Version: 4.04.00
Document No.: 02-CML000057
Revision Date: 15 MAR 04
Document Revision: 2.0
www.precidia.com
Page 2
Precidia Technologies Inc.
10A Hearst Way
Kanata, Ontario
Canada K2L 2P4
Tel: (613) 592-7557
Fax: (613) 592-0944
Web Site: http://www. precidia.com/
E-mail: [email protected]
The Ether232Plus User Guide also applies to the Ether232.
Both the menu and features in this release may have changed from the previous
release. Please contact [email protected] if you wish to upgrade your software,
obtain a User Guide for an earlier software version, or if you have questions or
comments about using the product or document. For general inquiries, please contact
[email protected].
Disclaimer and Confidentiality Notice
The content of this document is furnished for informational use only, is subject to change without
notice, and should not be construed as a commitment by Precidia Technologies Inc. (Precidia). Precidia
assumes no responsibility or liability for any errors or inaccuracies that may appear in this document.
This document and the information disclosed herein is the confidential property of Precidia. Neither this
document nor the information contained herein shall be used, reproduced or disclosed to others without
Precidia’s written authorization.
Copyright © 2004, Precidia Technologies Inc. All rights reserved.
Published in Canada.
All trademarks and trade names are the properties of their respective owners.
Page 3
Ether232Plus User Guide Table of Contents
Contents
1 Before You Start................................................................................ 1
1.1 Preview................................................................................................. 1
1.2 Functionality and Features ....................................................................... 2
How It Works........................................................................................... 2
Features................................................................................................. 2
1.3 Ether232Plus Layout ............................................................................... 3

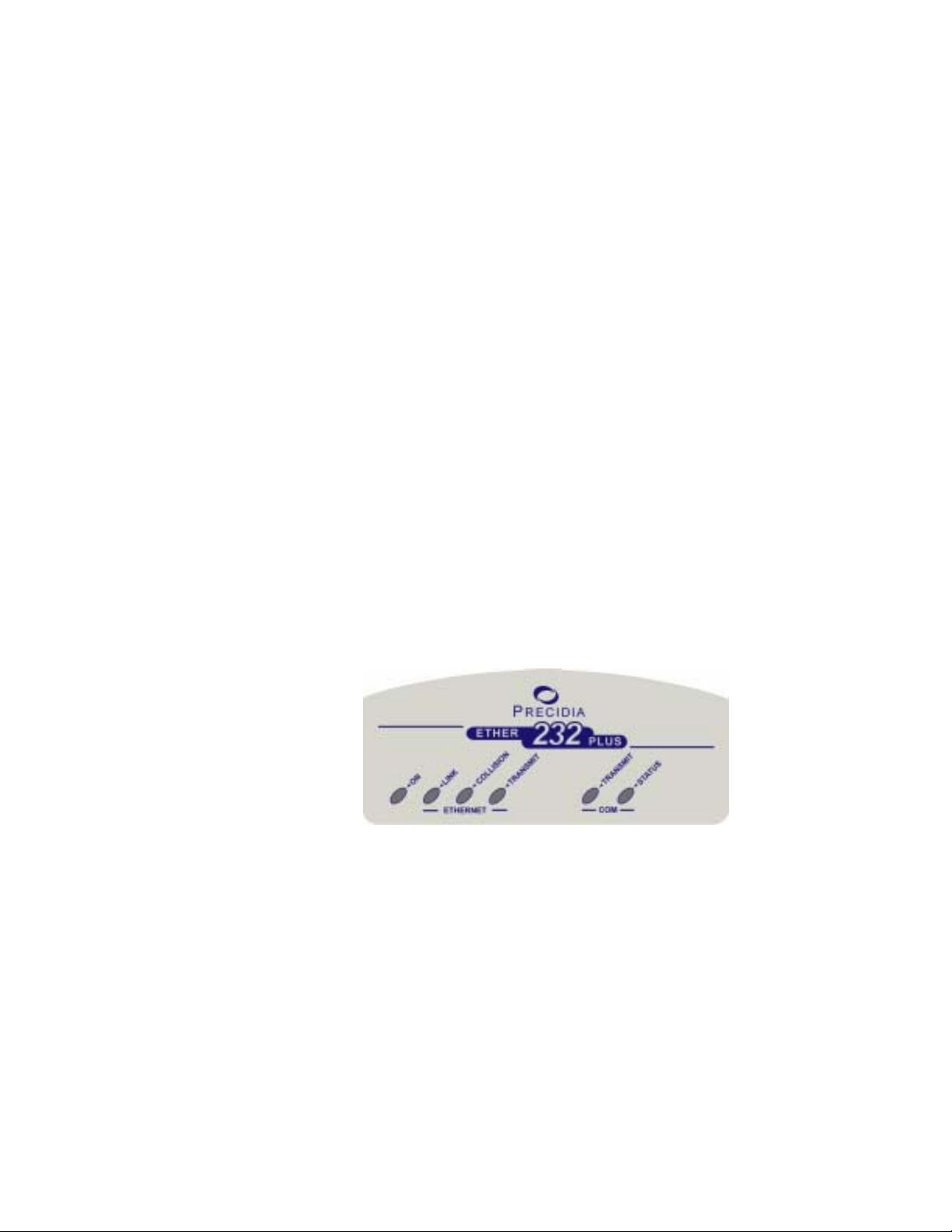

Front Panel ............................................................................................. 3

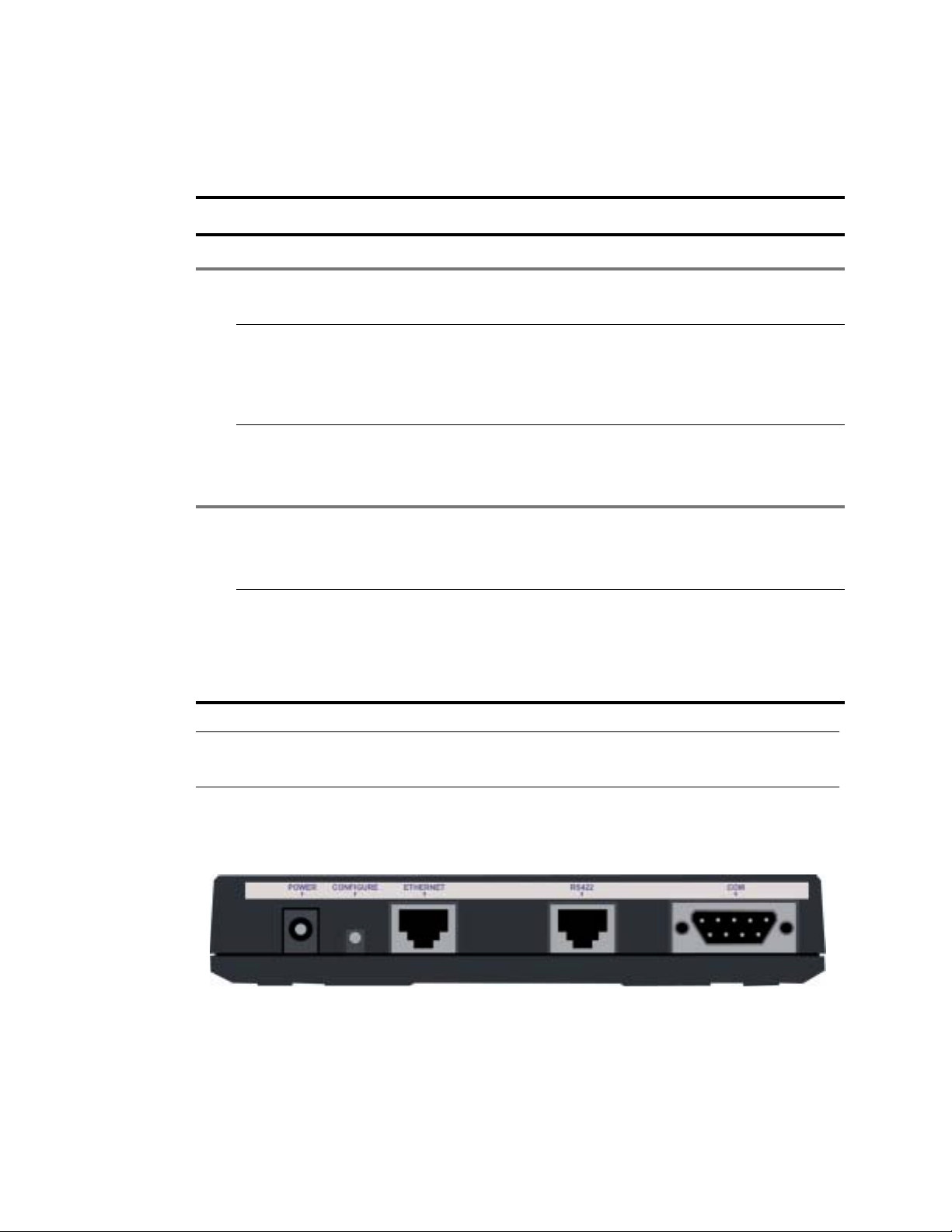

Back Panel .............................................................................................. 4
1.4 Hardware Requirements .......................................................................... 5
Installation and Configuration ...................................................................... 5
Reconfiguration........................................................................................ 6
1.5 Software Requirements ........................................................................... 7
1.6 Configuration Requirements..................................................................... 7
Ethernet Settings...................................................................................... 7
Serial Port Settings ................................................................................... 7
Security Settings ...................................................................................... 7
2 Setting up the Ether232Plus.............................................................. 9
2.1 Installing the Hardware ........................................... ................................ 9
After Configuration.................................................................................... 9
2.2 Setting Up the Terminal..........................................................................10
2.3 Understanding the Configuration Screen ...................................................11
2.4 Timeout During Configuration..................................................................12
2.5 Resetting to Factory (Default) Configuration..............................................13
3 Configuring the Ethernet Settings ................................................... 15
3.1 IP Address............................................................................................16
3.2 Subnet Mask (Static — No DHCP) ............ ........................................... .....17
3.3 Gateway (Static — No DHCP) ..................................................................17
3.4 Additional Gateway................................................................................18
Network Address .....................................................................................18
Network Mask .........................................................................................18
Gateway................................................................................................18
4 Configuring the Serial Port Settings ................................................ 21
4.1 Protocol................................................................................................22
4.2 Port Setting ..........................................................................................25
4.3 Port Mode.............................................................................................27
4.4 Connection Control ................................................................................28
4.5 Terminal Type (Telnet Protocol Only)........................................................29
4.6 Local Port .............................................................................................30
4.7 Remote IP ............................................................................................30
4.8 Remote Port..........................................................................................31
4.9 Fallback IP............................................................................................31
4.10 Fallback Port.........................................................................................32
4.11 Terminators (Terminated Protocol Only) ...................................................33
4.12 Packet Prefix (Transparent Protocol Only) .................................................35
02-CML000057 Precidia Technologies Inc. i
Page 4
Table of Contents Ether232Plus User Guide
4.13 Maximum Inter-Character Delay (Transparent Protocol Only) ...................... 35
4.14 Preferred Packet Size (Transparent Protocol Only) .....................................36
4.15 Initial String (Transparent Protocol Only)..................................................36
5 Configuring the Security Settings .................................................... 37
5.1 Console Password .................................................................................38
Setting the Console Password.....................................................................38
Viewing the Console Password ....................................................................38
Clearing the Console Password....................................................................38
5.2 Remote Password..................................................................................39
Setting the Remote Password .....................................................................39
Viewing the Remote Password ....................................................................39
Clearing the Remote Password....................................................................39
5.3 Web Server..........................................................................................40
5.4 Access Userid .......................................................................................41
5.5 Access Password...................................................................................41
Setting the Access Password ......................................................................41
Viewing the Access Password......................................................................41
Clearing the Access Password.....................................................................42
5.6 SNMP Server ........................................................................................42
5.7 SNMP Settings......................................................................................42
5.8 IPsec Tunnels #1 and #2 .......................................... .............................43
Protocol ................................................................................................44
Secure Address.......................................................................................45
SPI......................................................................................................46
Network Address.....................................................................................46
Network Mask ........................................................................................46
Network Gateway....................................................................................46
Encode/Authenticate Keys .........................................................................47
6 System Settings .............................................................................. 49
6.1 Unit ID Value........................................................................................50
6.2 Web Page Download..............................................................................50
6.3 Firmware Download...............................................................................50
6.4 Display System Status...........................................................................51
6.5 Dump System Log.................................................................................51
6.6 Delete System Log ....................................................................... .........52
6.7 Perform Self Test ..................................................................................52
6.8 Reset Unit............................................................................................53
6.9 SNTP Settings.......................................................................................53
6.10 Disable TCP Keep-Alives................................................................ .........55
7 Accessing System Information ........................................................ 57
7.1 System Status......................................................................................57
Accessing the System Status Page...............................................................57
Understanding the System Status Page.........................................................59
7.2 System Log..........................................................................................61
Understanding the System Log ...................................................................63
7.3 Static Web Page....................................................................................68
Creating Static Web Pages.........................................................................68
Accessing the Static Web Page....................................................................68
ii Precidia Technologies Inc. 02-CML000057
Page 5
Ether232Plus User Guide Table of Contents
Appendix A: Glossary of Terms and Acronyms...................................A-1
Appendix B: Troubleshooting and Support.........................................B-1
Appendix C: Specifications and Warranty .......................................... C-1
Appendix D: Connecting with Telnet..................................................D-1

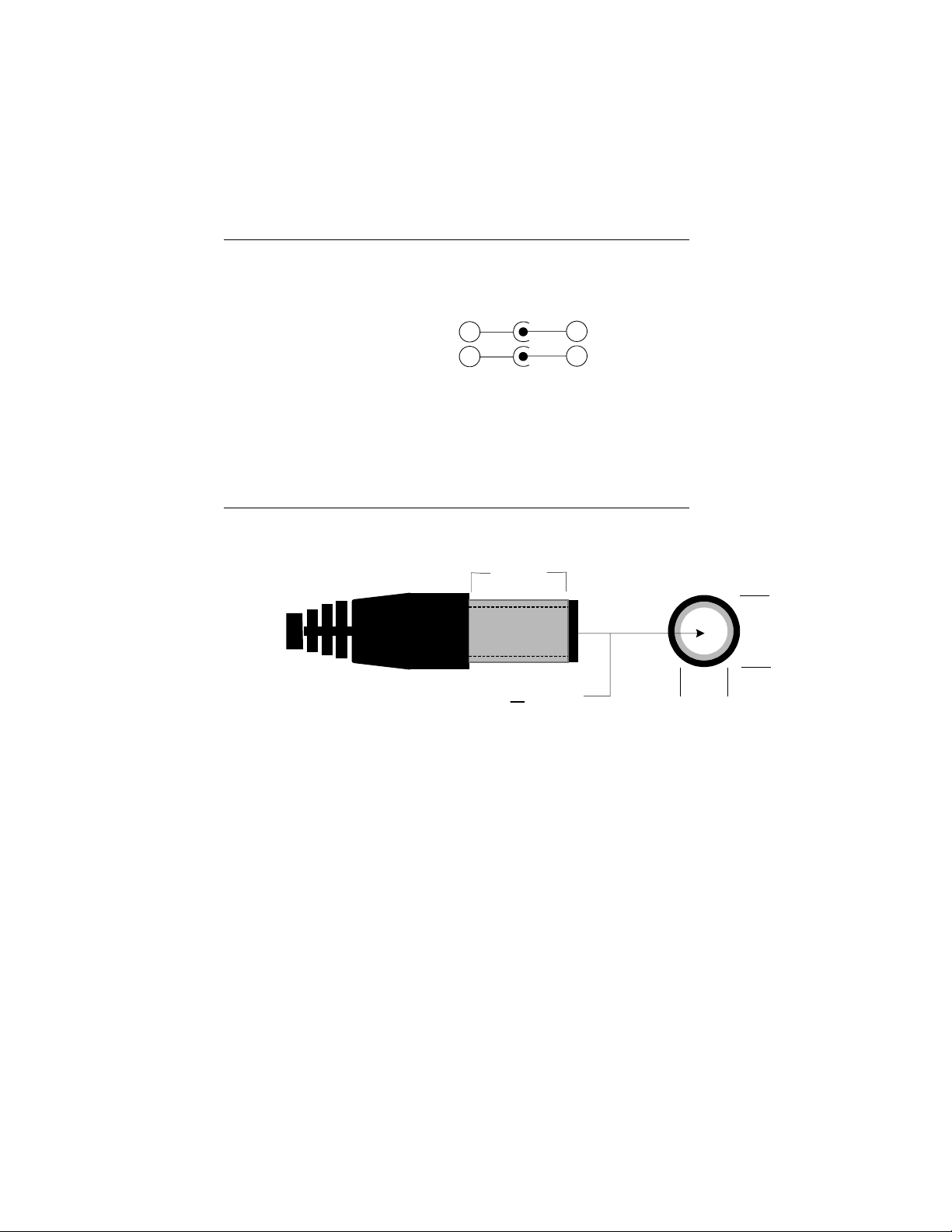

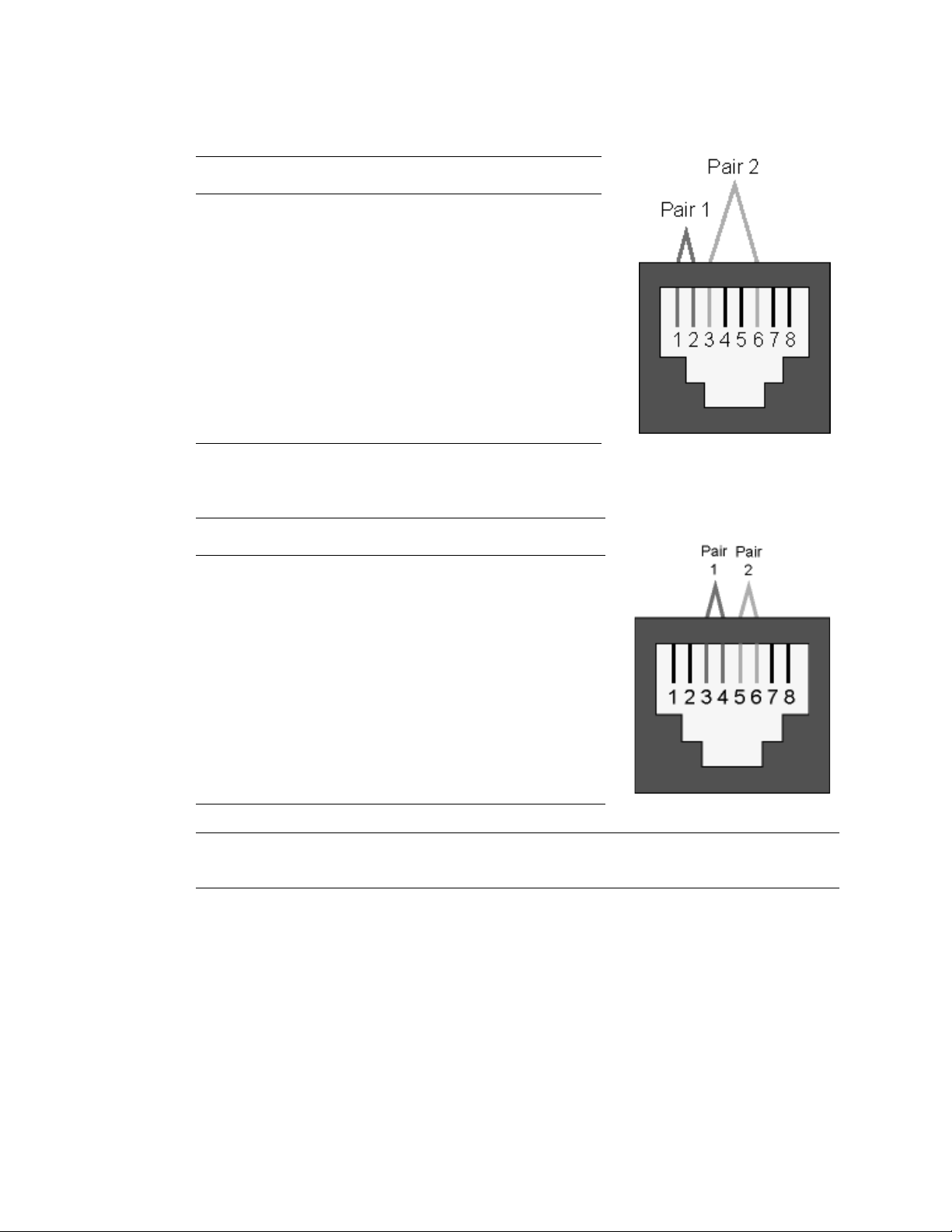

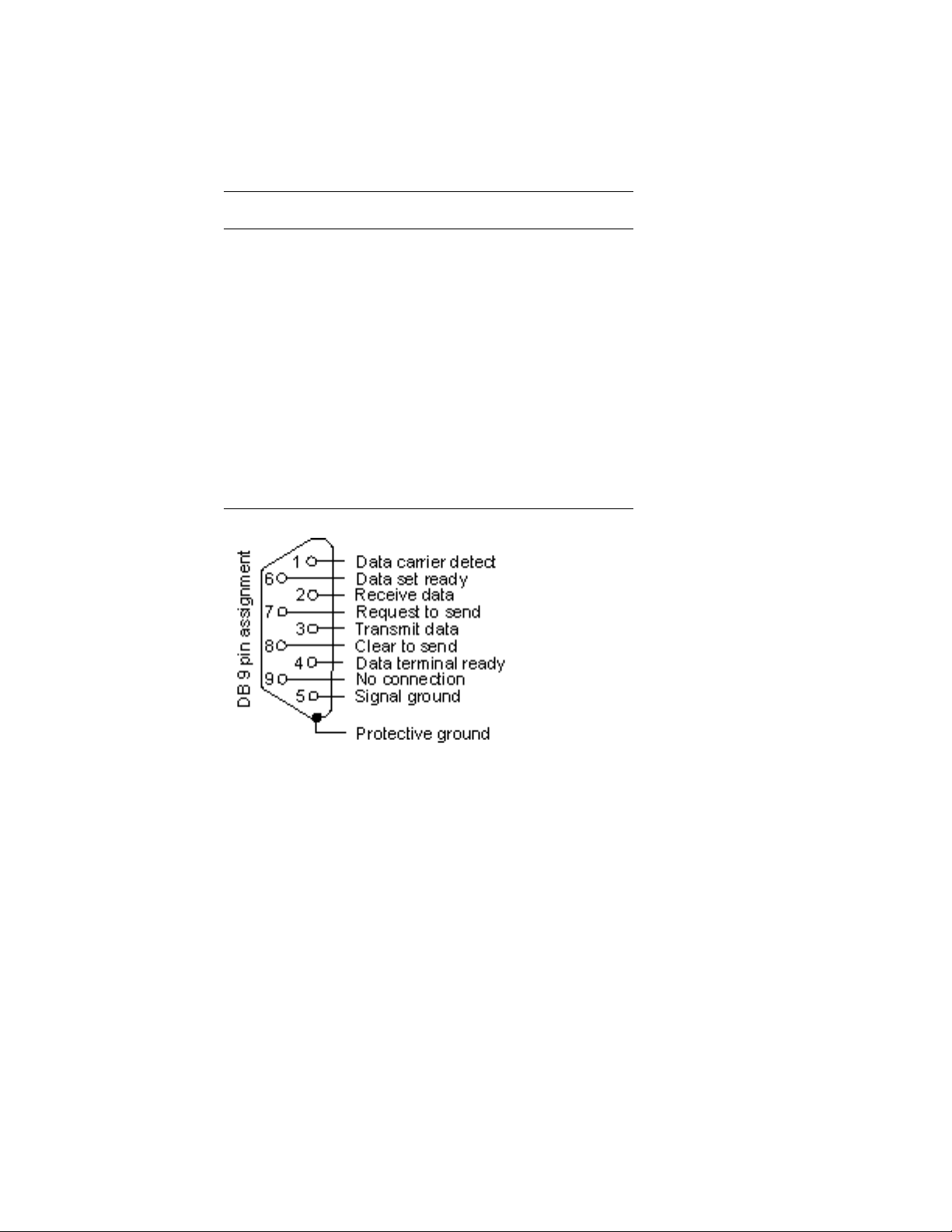

Appendix E: Pinouts and Power Supply ............................................. E-1
02-CML000057 Precidia Technologies Inc. iii
Page 6
Table of Contents Ether232Plus User Guide
iv Precidia Technologies Inc. 02-CML000057
Page 7
1
Before You Start
1.1 Preview
Each section in this Guide is a step in the process of installing and configuring your
Precidia unit:
1 Before You Start
Familiarize yourself with the features and installation requirements of the unit.
2 Setting up the Ether232Plus
Set up the hardware and configure the unit via terminal software.
3 Configuring the Ethernet Settings
Input the IP address, subnet mask, and gateway address for the unit.
4 Configuring the Serial Port Settings
Configure the protocol, speed, connection control, and port information.
5 Configuring the Security Settings
Configure the remote, console, and Web passwords, SNMP, and IPSec.
6 System Setting s
If necessary, have your network administrator configure the advanced settings,
including downloads and system logging options.
7 Accessing System Information
Find out how to access the system information locally or remotely.
Appendices at the back of this guide also provide valuable reference information:
A Glossary of Terms and Acronyms
B Troubleshooting and Support
C Specifications and Warranty
D Connecting with Telnet
E Pinouts and Power Supply
02-CML000057 Precidia Technologies Inc. 1
Page 8
1 Before You Start Ether232Plus User Guide
1.2 Functionality and Features
How It Works
Precidia products connect serial devices and IP networks. A device sends information
to the unit through the serial port. This information is processed according to the
protocol set in the Serial Port Settings, then transferred to the Ethernet side of the unit.
The unit then converts the information to IP compatible format and sends it out the
Ethernet port to the remote server according to the parameters set in the Ethernet
Settings. The process is reversed when information is received from the remote server .

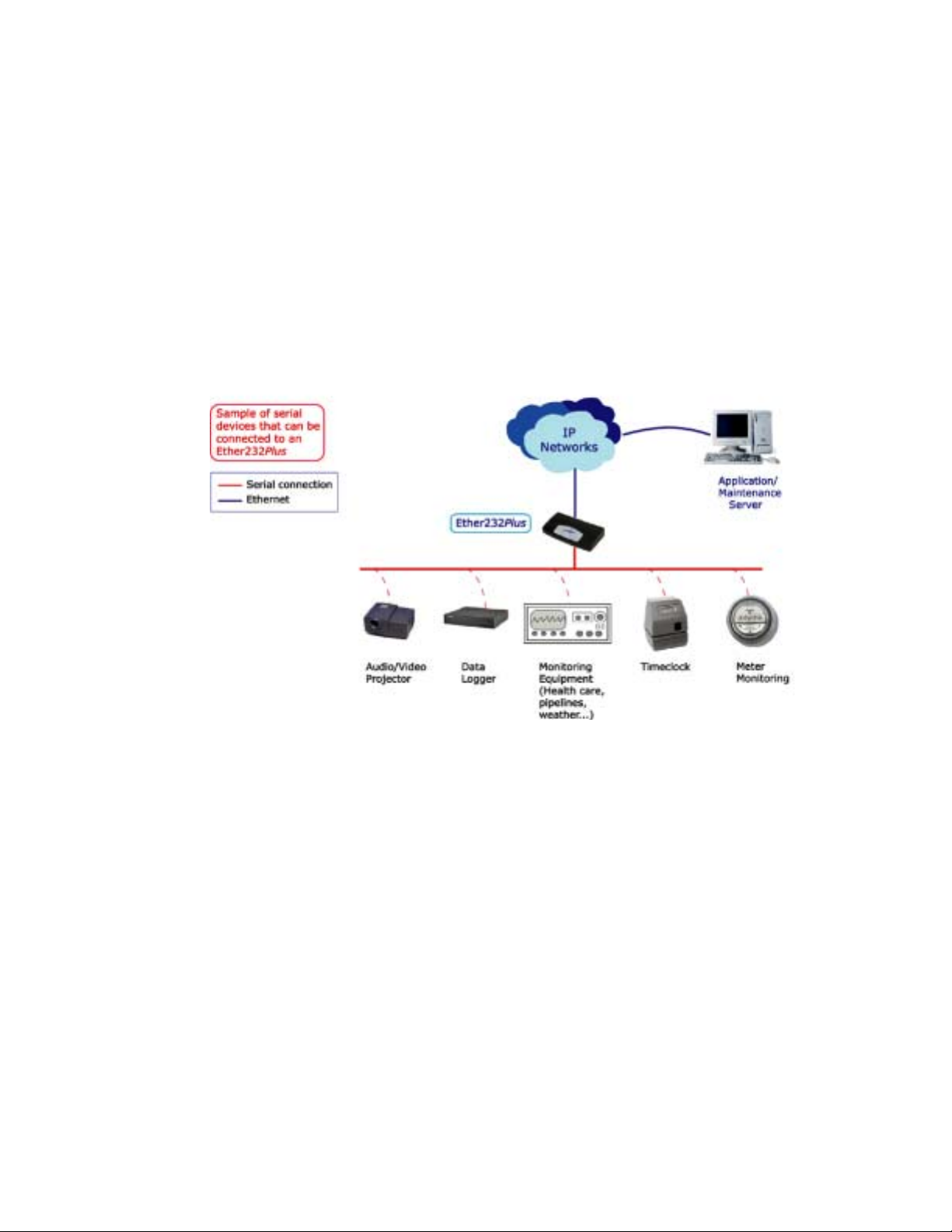

The figure below illustrates an example configuration of the Ether232PPlus in a
network.
Ether232Plus — Network Configuration
Features
The Ether232Plus has many useful features, allowing you to:
• Configure settings locally via the COM port or remotely using telnet
• Display static Web pages using a built-in Web page server
• Display dynamic System Status and System Log pages through the built-in Web
server or the Configuration screen
• Manage information with SNMPv2c (Simple Network Management Protocol)
• Tap remotely into the datastream to monitor data and assist in debugging
• Provide security through passwords and IPsec
• Use a primary and a backup server (automatic switchover on failure)
• Capture statistics and log system information internally
• Upload firmware upgrades using TFTP (Trivial File Transfer Protocol) or via the
local com port
2 Precidia Technologies Inc. 02-CML000057
Page 9
Ether232Plus User Guide 1 Before You Start
• Control and refine connection settings with options that include:
- Automatic connection in tcp(tunnel) and tcp-client modes to establish a
connection to the server as soon as the first data byte is received on the serial
port
- Connection recovery to ensure the session remains active
- COM Port Redirector Software compatibility using the Com Port Control
protocol option
- Modem Connection Control that allows the Precidia unit to appear as a Hayescompatible modem to your serial device
• Connect an RS-422/485 device or an RS-232 device to one of two ports
• Support the following network protocols:
Telnet ARP DHCP
TCP HTTP SNMPv2c
UDP TFTP (download only) IPsec (manually keyed)
ICMP FTP Ethernet, IEEE 802.3
IP SNTP
1.3 Ether232Plus Layout
Front Panel
Table 1.1 describes the function of each indicator lamp.
Ether232Plus Front Panel
02-CML000057 Precidia Technologies Inc. 3
Page 10
1 Before You Start Ether232Plus User Guide
Table 1.1: Front Panel Indicator Lamps
Indicator Lamp Description
ON Illuminates constantly when power is applied to the unit.
LINK Illuminates constantly when the Ethernet port has a valid
connection to a 10BaseT Ethernet network.
COLLISION Illuminates under high traffic loading, when network conges-
tion results in collisions. Collisions are resolved by the Ethernet protocol and do not necessarily indicate data loss. Lamp
flashes to indicate this activity.
TRANSMIT Illuminates when the unit has control of the line and is send-
— ETHERNET —
ing data on the network. Lamp flashes to indicate this activity.
Does not illuminate when receiving data.
TRANSMIT Illuminates when the unit is sending or receiving data out the
COM port. Lamp flashes to indicate this activity.
Illuminates constantly while in configuration mode.
STATUS Off: Unit incorrectly configured or the COM port is disabled.
Slow flash: Correctly configured, in idle mode.
— COM —
Fast flash: Correctly configured, terminal has communicated.
On (solid): Correctly configured, connected.
OTE
N
: See Appendix B, Troubleshooting and Support, for descriptions of how indica-
tor lamps can be used for troubleshooting.
Back Panel
Back Panel of the Ether232Plus
4 Precidia Technologies Inc. 02-CML000057
Page 11
Ether232Plus User Guide 1 Before You Start
Table 1.2: Back Panel Ports
Port Description
POWER Accepts the Precidia-supplied 9V power adapter.
CONFIGURE Press and hold the recessed CONFIGURE button for
several seconds to activate local configuration through
the COM port.
ETHERNET Accepts RJ-45 connector for direct connection to
10BaseT Ethernet network.
OTE
N
: If connecting directly to another Ethernet
device, use a cross-over cable. If connecting to a
100BaseT network, your hub must support automatic
switching to 10BaseT.

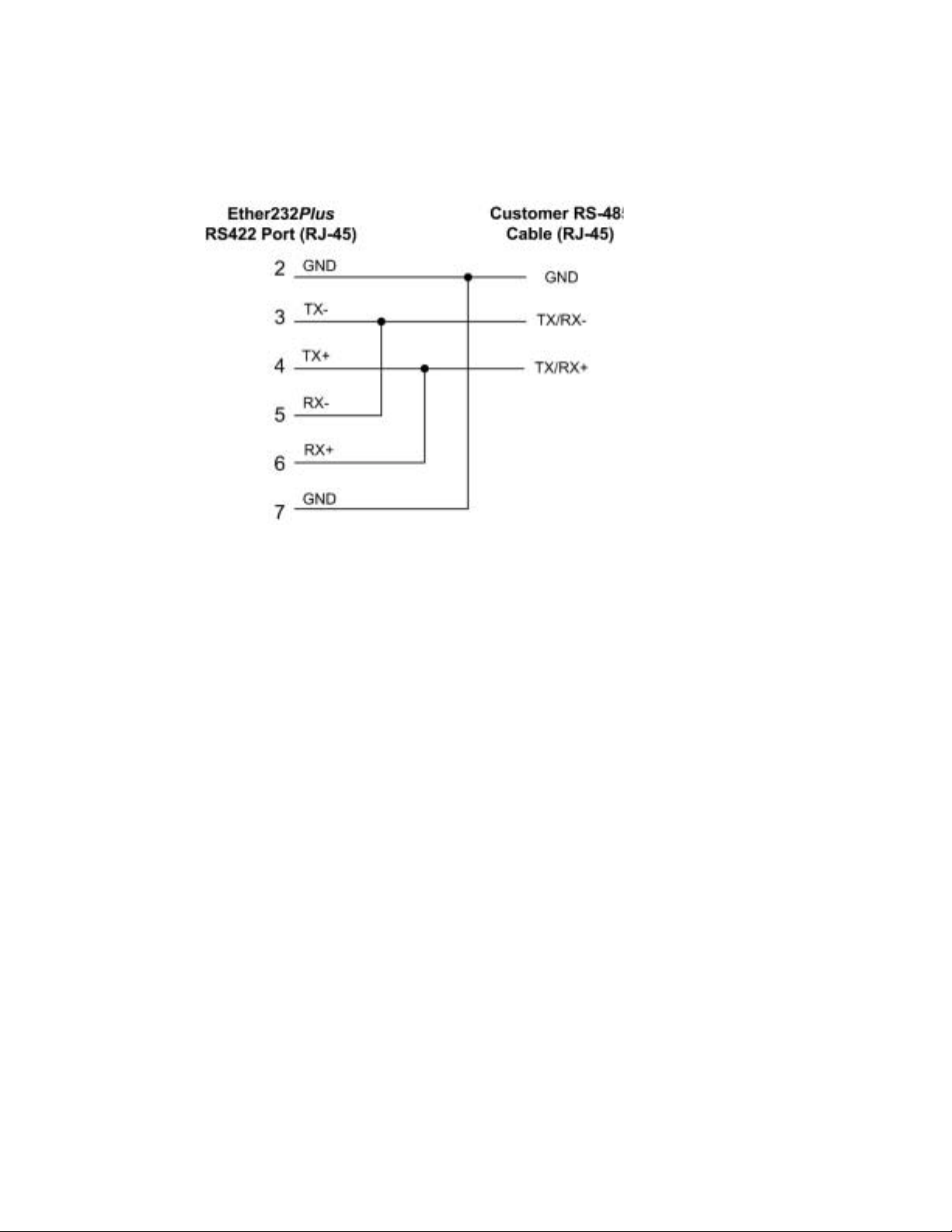

RS422 RS-422 and RS-485 mode only: Accepts RJ-45 con-
nector for RS-422 or RS-485 serial devices. Please see
Appendix E: Pinouts and Power Supply, for cable and
connector pinouts.
COM Accepts DB-9 null modem serial cable for configura-
tion.
Ether232 mode only: Accepts DB-9 null modem
serial cable for operation and configuration (typical).
1.4 Hardware Requirements
Installation and Configuration
The Precidia package includes:
• one (1) power adapter
• one (1) Ether232Plus device
To complete the installation you also need:
• one (1) PC with terminal software, or a dumb terminal for configuration
• one (1) Ethernet cable
02-CML000057 Precidia Technologies Inc. 5
Page 12
1 Before You Start Ether232Plus User Guide
• For RS-232 connections:
- If you are connecting the Precidia unit to a DTE (Data Terminal Equipment)
device, you need one (1) null modem serial cable for configuration and for
connecting your DTE serial device after configuration
- If you are connecting the Precidia unit to a DCE (Data Communication Equipment) device you need one (1) null modem serial cable for configuration and
one (1) RS-232 serial cable for connecting your DCE serial device to the
Ether232Plus
- If you are connecting the Precidia unit as a Hayes-compatible modem, or to a
Hayes-compatible modem, you need: one (1) specialized null modem serial
cable. Some POS terminals may also require this type of cable.
• For RS-422 connections:
- One (1) null modem serial cable for configuration, and one (1) RS-422 serial
cable with an RJ-45 connector
• For RS-485 connections:
- one (1) null modem serial cable for configuration and one (1) RS-485 serial
cable with an RJ-45 connector
MPORTANT
I
! Please see Appendix E: Pinouts and Power Supply, for cable and
connector pinouts.
TIP How do you know if your serial device is DCE or DTE?
DCE devices generally have a female (receptacle) DB-9 connector. Examples of DCE
devices include modems, Digital Service Units (DSU), Channel Service Units (CSU),
and most communications equipment.
DTE devices generally have a male (pin) DB-9 connector. Examples of DTE devices
include communications servers, terminals, serial printers, and PCs with native RS232-E serial ports.
Reconfiguration
After your Precidia unit is operational, you will require one null modem serial cable,
and a PC or dumb terminal to locally reconfigure the unit.
OTE
N

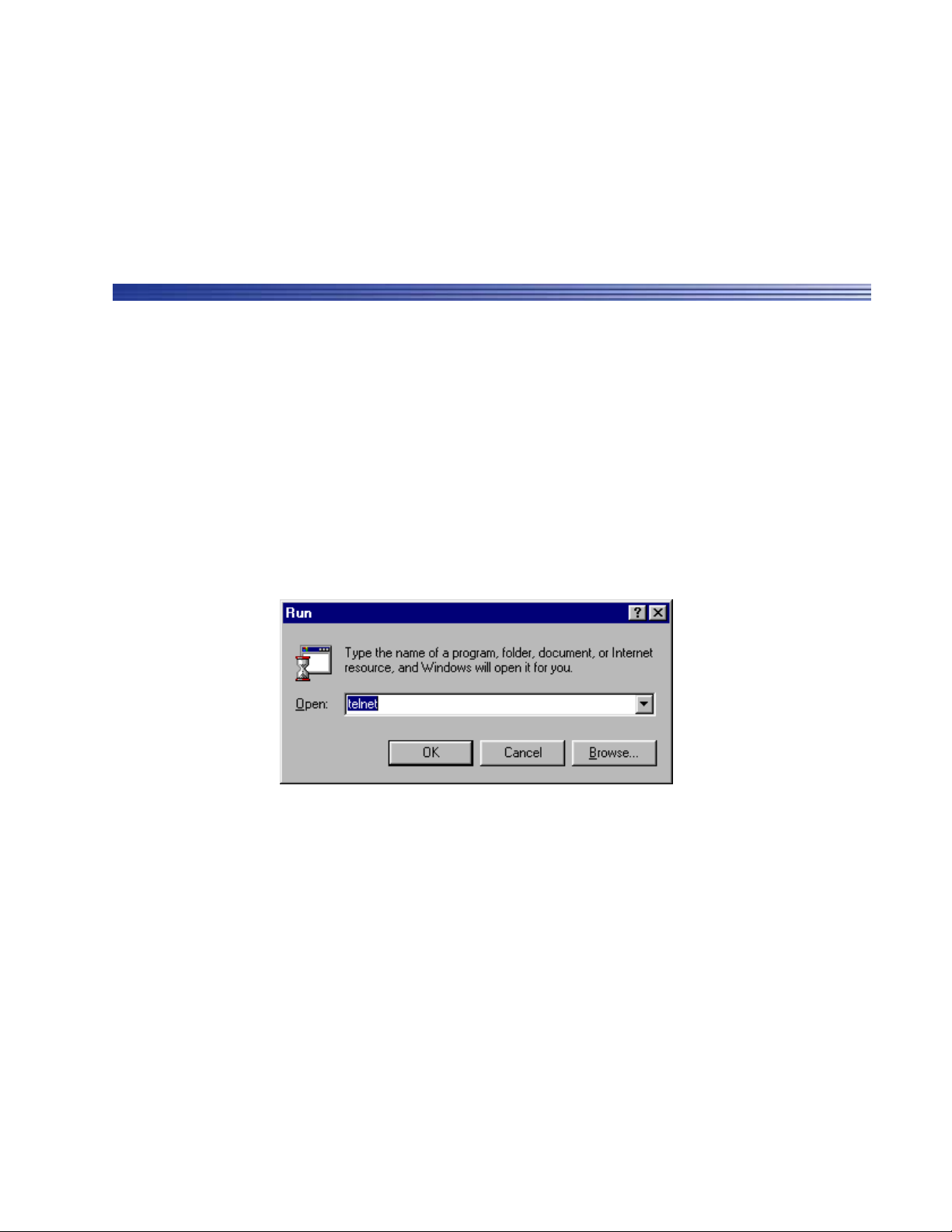

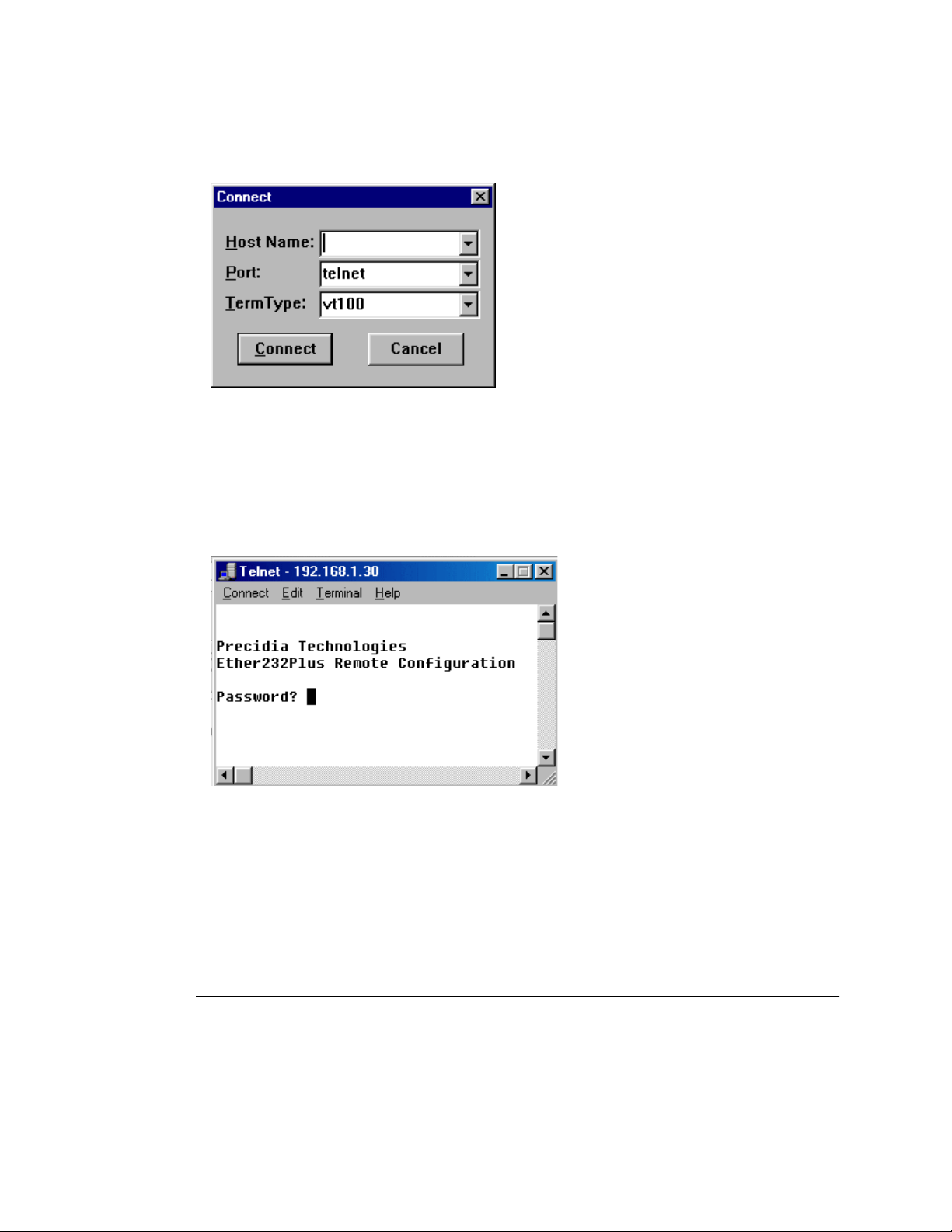

: You can reconfigure the Precidia unit remotely using telnet if you have set the
Remote Password. See Appendix D: Connecting with Telnet.
6 Precidia Technologies Inc. 02-CML000057
Page 13
Ether232Plus User Guide 1 Before You Start
1.5 Software Requirements
You will need terminal software (or a dumb terminal) to locally configure the unit.
Please see Section 2.2, Setting Up the Terminal for further details.
1.6 Configuration Requirements
The following settings represent the basic requirements for configuring the unit. You
may need to configure other settings depending on your set-up and the protocol you
are using.
Ethernet Settings
• IP Address, Subnet Mask, Gateway: These are the addressing information of the
unit and the network. Leave at zero if using a DHCP (Dynamic Host Configuration
Protocol) server to configure the IP addresses.
Serial Port Settings
• Protocol: Used by the attached device
• Port Setting: Port settings of the attached device
• Local Port: Port number on the unit (as required)
• Remote Port and Remote IP: Port number and IP address of remote host (as
required)
Security Settings
• Remote Password: Must be configured to enable remote access and configuration
02-CML000057 Precidia Technologies Inc. 7
Page 14
1 Before You Start Ether232Plus User Guide
8 Precidia Technologies Inc. 02-CML000057
Page 15
2
2.1 Installing the Hardware
Setting up the Ether232Plus
CAUTION: Use the 9V power adapter supplied by Precidia or an
!
1 Connect the power adapter to the POWER port of the unit.
2 Connect the Ethernet cable to the ETHERNET port of the unit.
3 Connect the null modem cable to the COM port of the unit.
adapter conforming exactly to the specifications in Appendix E: Pinouts
and Power Supply. Use of alternate power adapters can result in hardware damage and will render the warranty null and void!
4 Plug the power adapter into a power outlet.
5 Connect the null modem cable to one of the COM ports on your PC.
6 Follow Section 2.2 to set up your terminal software and access the Configuration
screen.
7 Configure the unit (Sections 3 through 6).
OTE
N
: You must set the Remote Password locally before you can configure the
Ether232Plus remotely.
After Configuration
1 Disconnect the null modem cable from the COM port of your PC.
2 Connect your serial device to the COM port of the Ether232Plus using the appropri-
ate cable. (See Section 1.4, Hardware Requirements‚ on page 5.)
02-CML000057 Precidia Technologies Inc. 9
Page 16
2 Setting up the Ether232Plus Ether232Plus User Guide
3 Connect the Ethernet cable to a hub or router if you have not already done so.
4 Ensure the LINK lamp is lit to indicate a valid Ethernet connection, and the STATUS
lamp is flashing to indicate the unit is ready to transmit/receive data.
5 If you know the IP address of the Precidia unit, ping the unit to ensure you have a
valid network connection. (See Check IP Address (Ping) on page B-3.)
2.2 Setting Up the Terminal
Once the Precidia unit is connected to your PC, you can access the Configuration
screen using terminal software.
You may use any terminal emulation software as HyperTerminal, which comes standard with Windows operating systems, or Procomm Plus (Symantec). For further help
on using Hyper Terminal, please refer to our Help Guide: Working With HyperTer-
minal
at http://www.precidia.com/products/documentation.html.
MPORTANT
I
! W
INDOWS
NT/2000/XP U
SERS
:
If using HyperTerminal to perform firmware upgrades, or to download static Web
pages to the Precidia unit, you need to use the latest version of HyperTerminal.
To obtain your free HyperTerminal upgrade, visit http://www.hilgraeve.com.
1 Start your terminal program.
2 Select the correct COM port in your terminal program (usually Com1 or Com2).
3 Configure the terminal with the following settings:
• Bits per second: 9600 (required)
• Data bits: 8
• Parity: None
• Stop bits: 1
• Flow control: Hardware
OTE
N
: The Data Bits, Parity, Stop Bits, and Flow control settings listed above are
recommended settings. Configuration can be accessed using any settings at 9600 bps.
10 Precidia Technologies Inc. 02-CML000057
Page 17
Ether232Plus User Guide 2 Setting up the Ether232Plus
4 Using a ballpoint pen or similar item, press and hold the recessed CONFIGURE
button at the rear of the unit for several seconds until the initial Configuration
screen appears, as shown below:

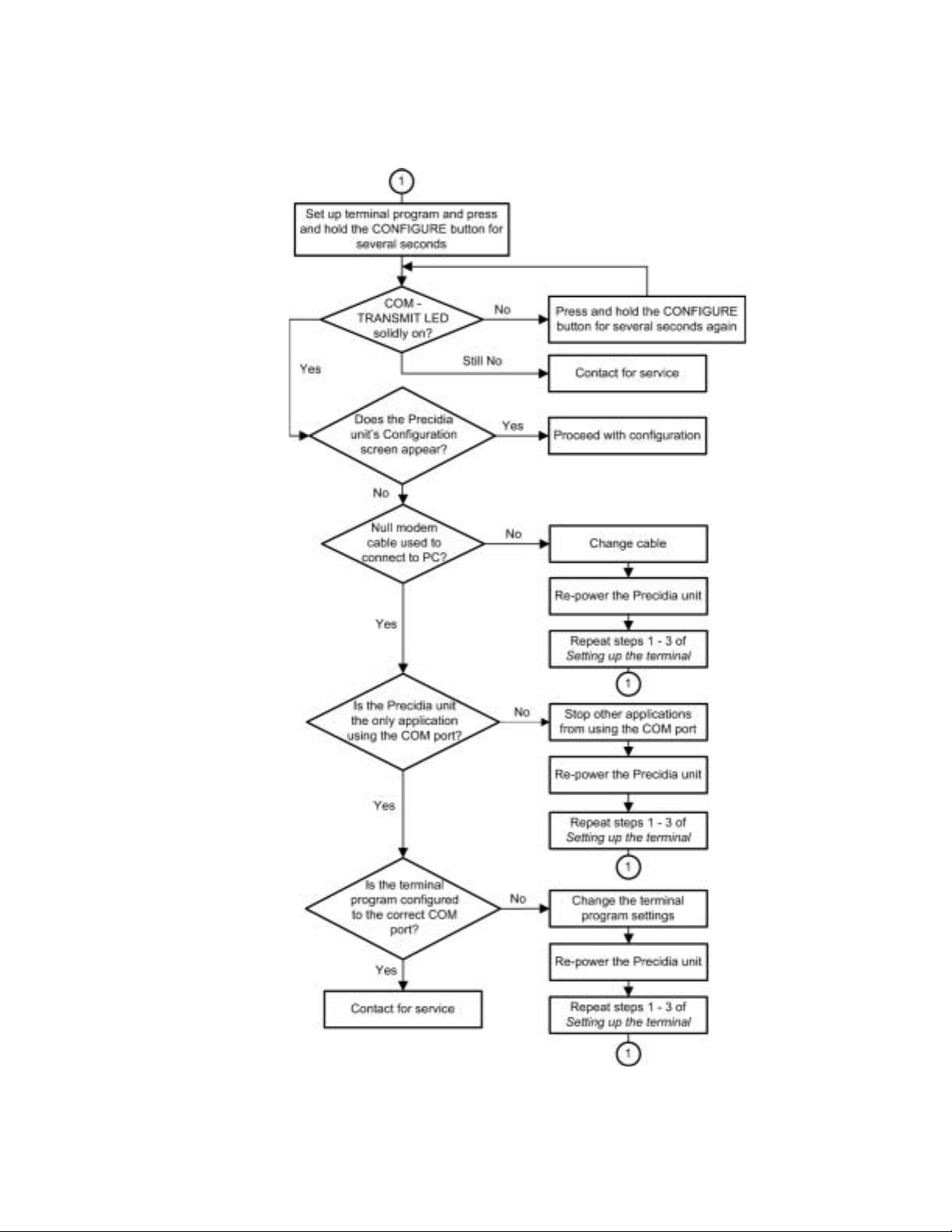

If the screen does not appear, refer to Appendix B:, Troubleshooting and Support..
,-----------------------------------------------------------------------------.
| Precidia Ether232Plus Configuration v4.04.00 |
|-----------------------------------------------------------------------------|
| Device Settings: | |
| | |
| 1) Ethernet: 0.0.0.0 | |
| | |
| 2) Serial Port: disabled | |
| | |
| *) Save Current Configuration | |
| -) Exit Configuration (no save) | |
| $) Security Settings | |
| #) System Settings | |
| ?) Refresh this Screen | |
`-----------------------------------------------------------------------------'
Change which option?
Initial Configuration Screen
OTE
N
: The COM TRANSMIT lamp stays illuminated throughout the configuration
process.
2.3 Understanding the Configuration Screen
The left half of the Configuration screen displays the Device Settings menu and the
right half of the screen displays the sub-menu of the option you select.
Table 2.1 provides a description of the menu items. Type the number or character
bracketed at the start of the line to chose a menu item.
OTE
N
: Pressing
prompt.
cancels the current action and returns you to the previous
ESC
02-CML000057 Precidia Technologies Inc. 11
Page 18
2 Setting up the Ether232Plus Ether232Plus User Guide
.
Table 2.1: Device Settings Menu Options
Menu
No.
1) Ethernet
2) Serial Port
*) Save Current
-) Exit Configuration
$) Security Settings
#) System Settings
?) Refresh this Screen
Menu Item Description
Configuration
(no save)
Configure the local network information before the
device is placed on a network so it does not cause a
problem with the existing LAN, or configure automatically with a DHCP server.
Configure host addresses and the protocols being
used by the serial device.
Save changes and exit from configuration mode.
Resets the unit.
Exit from the configuration mode without saving
any changes. Resets the unit if configuring locally.
Configure all passwords (Console, Remote and
Web Server), IPsec, and SNMP.
For administrator only. Perform Web page and
firmware downloads, and view system information.
Refresh the current Configuration screen.
2.4 Timeout During Configuration
After 4 minutes of inactivity the timeout notification appears under the prompt, as
shown below. Any unsaved changes will be lost.
Change which option?
!timeout! (changes not saved)
Timeout Notification
You must then press and hold the recessed CONFIGURE button for several seconds, or
re-establish your remote telnet connection, to access configuration and re-enter your
changes.
OTE
N
: Typing any character, or typing
4-minute timer.
to refresh the screen, will restart the
“?”
12 Precidia Technologies Inc. 02-CML000057
Page 19
Ether232Plus User Guide 2 Setting up the Ether232Plus
2.5 Resetting to Factory (Default) Configuration
You may need to reset to “factory” settings if you have configured and subsequently
lost a Console Password, or if you wish to completely reconfigure the unit. The procedure below will delete your previous configuration and revert all settings to factory
default.
1 Unplug the power cord from the back of the unit.
2 Press and hold the recessed CONFIGURE button and plug the power cord back in to
the POWER port.
3 Continue to press and hold the recessed CONFIGURE button for 15 seconds.
The Configuration screen appears, reset to the factory settings.
4 Reconfigure the unit.
5 Type “*” to save the new configuration.
OTE
N
: If you do not save the new settings, the unit will restart with the previously
saved settings.
02-CML000057 Precidia Technologies Inc. 13
Page 20
2 Setting up the Ether232Plus Ether232Plus User Guide
14 Precidia Technologies Inc. 02-CML000057
Page 21
3
Configuring the Ethernet Settings
The Ethernet Settings sub-menu allows you to specify a unique IP address for your
Precidia unit to enable communication over an IP network and with the remote host(s).
To configure or change the Ethernet Settings, choose
Settings
menu.
Ethernet
from the Device
The Ethernet Settings sub-menu appears on the right side of the Configuration screen,
as shown below.
,-----------------------------------------------------------------------------.
| Precidia Ether232Plus Configuration v4.04.00 |
|-----------------------------------------------------------------------------|
| Device Settings: | Ethernet Settings: |
| | |
| 1) Ethernet: 0.0.0.0 | A) IP Address: 0.0.0.0 |
| | B) Subnet Mask: 0.0.0.0 |
| 2) Serial Port: disabled | C) Gateway: 0.0.0.0 |
| | |
| *) Save Current Configuration | Additional Gateway: |
| -) Exit Configuration (no save) | D) Network Address: 0.0.0.0 |
| $) Security Settings | E) Network Mask: 0.0.0.0 |
| #) System Settings | F) Gateway: 0.0.0.0 |
| ?) Refresh this Screen | |
`-----------------------------------------------------------------------------'
Change which option?
Ethernet Settings Sub-menu
OTE
N
: Remember to save your changes by typing "*" to exit configuration!
02-CML000057 Precidia Technologies Inc. 15
Page 22
3 Configuring the Ethernet Settings Ether232Plus User Guide
3.1 IP Address
An IP address is an identifier for computers or devices on a TCP/IP network. Make
sure that the IP address you assign is not in use by any other device on your network.
IP addresses are made up of four numbers from 0 to 255, separated by periods.DHCP -
3.1.1 Dynamic IP Address
DHCP (Dynamic Host Configuration Protocol) allows you to dynamically allocate IP
addresses to devices on a TCP/IP network.
OTE
N
: The DHCP server must be on the same physical subnet as the Precidia unit.
OTE
N
: For further help on DHCP Administration, please refer to our DHCP Admin-
istration Help Guide at http://www.precidia.com/products/documentation.html.
Precidia units come configured with the IP address and subnet mask set at 0.0.0.0,
which automatically enables DHCP configuration. If you are using a DHCP server,
leave all Ethernet Settings at zero (0.0.0.0). The settings will always appear as zeros
in the menu regardless of the values assigned by the DHCP server.
The DHCP assigned IP addresses can be viewed in the unit’s System Status. Follow
the steps in 6.4, Display System Status to view the status information.
The first Local address listed under Network Routing is the IP address of the unit.
To enable DHCP configuration:
1 Choose
Ethernet Settings
from the Device Settings menu. (If the IP Address and
Subnet Mask are both 0.0.0.0, then DHCP is already enabled.)
2 Choose
3 Type
0.0.0.0
4 Choose
5 Type
0.0.0.0
IP Address
at the prompt and press
Subnet Mask
at the prompt and press
from the Ethernet Settings sub-menu.
.
Enter
from the Ethernet Settings sub-menu.
.
Enter
The unit should automatically obtain the Ethernet Settings from the DHCP server.
OTE
N
: The settings obtained from the DHCP server may change if the unit is reset,
since they will be lost and re-negotiated.
16 Precidia Technologies Inc. 02-CML000057
Page 23
Ether232Plus User Guide 3 Configuring the Ethernet Settings
3.1.2 Static - (No DHCP) IP Address Settings
To enter or change the IP address:
1 Choose
2 Choose
Ethernet
IP Address
from the Device Settings menu.
from the Ethernet Settings sub-menu.
You are prompted to enter the IP address of the device.
3 T ype the unique IP address at the prompt (in the format xxx.xxx.xxx.xxx) and press
.
Enter
3.2 Subnet Mask (Static — No DHCP)
The subnet mask is used to determine what subnet an IP address belongs to. The mask
allows a router to determine the network and host addresses, and forward data packets
correctly.
To enter or change the Subnet Mask:
1 Choose
2 Choose
Ethernet
Subnet Mask
You are prompted to enter the subnet mask of the device.
from the Device Settings menu.
from the Ethernet Settings sub-menu.
3 Type the subnet mask (e.g. 255.255.255.0) at the prompt (in the format
xxx.xxx.xxx.xxx) and press
Enter
.
3.3 Gateway (Static — No DHCP)
If the device will be communicating with a host that is not on the local subnet, you
must specify the router address (gateway) that will forward data to the destination. If
the destination is within the LAN and can be accessed without passing through a
router, you can leave this field blank (0.0.0.0). This setting is the default gateway.
To enter or change the Gateway:
1 Choose
2 Choose
Ethernet
Gateway
You are prompted to enter the IP address of the gateway.
3 Type the gateway address at the prompt (in the format xxx.xxx.xxx.xxx) and press
.
Enter
from the Device Settings menu.
from the Ethernet Settings sub-menu.
02-CML000057 Precidia Technologies Inc. 17
Page 24
3 Configuring the Ethernet Settings Ether232Plus User Guide
3.4 Additional Gateway
The Additional Gateway option allows you to specify a second gateway (router) for a
specific network address.
You can use the Additional Gateway to run the SNMP (Simple Network Management
Protocol) manager on a computer on another network. You can also telnet to the
Precidia unit, or ping to check its status, from a computer on another network. In this
way, if your primary network goes down, you can still access the Precidia unit and
remotely reconfigure it to another network.
OTE
N
: The Additional Gateway must be on the same subnet as the device.
Network Address
If the destination IP address of a packet matches this Network Address and the
Network Mask, it is forwarded to the second gateway address defined below.
To enter or change the Network Address:
1 Choose
2 Choose
Ethernet
Network Address
from the Device Settings menu.
from the Ethernet Settings sub-menu.
You are prompted to enter the IP address of this network.
3 Type the address at the prompt (in the format xxx.xxx.xxx.xxx) and press
Enter
Network Mask
To enter or change the Network Mask:
1 Choose
2 Choose
Ethernet
Network Mask
from the Device Settings menu.
from the Ethernet Settings sub-menu.
You are prompted to enter the subnet mask of the device.
3 Type the network mask at the prompt (in the format xxx.xxx.xxx.xxx) and press
.
Enter
.
Gateway
The Gateway specified under Additional Gateway defines the address of the second
router (gateway). Packets with destination addresses matching the Network Address
and Subnet Mask configured above are sent to the additional gateway.
18 Precidia Technologies Inc. 02-CML000057
Page 25
Ether232Plus User Guide 3 Configuring the Ethernet Settings
OTE
N
: The Additional Gateway must be on the same subnet as the device.
To enter or change the Gateway:
1 Choose
2 Choose
Ethernet
Gateway
from the Device Settings menu.
under
Additional Gateway
from the Ethernet Settings sub-
menu.
You are prompted to enter the IP address of the gateway.
3 Type the gateway address at the prompt (in the format xxx.xxx.xxx.xxx) and press
.
Enter
02-CML000057 Precidia Technologies Inc. 19
Page 26
3 Configuring the Ethernet Settings Ether232Plus User Guide
20 Precidia Technologies Inc. 02-CML000057
Page 27
4
Configuring the Serial Port Settings
The Serial Port Settings sub-menu allows you to choose the protocol for communicating with the remote server.
To configure or change the Serial Port Settings choose
Settings
menu.
Serial Port
from the Device
The Serial Port Settings sub-menu appears on the right side of the Configuration
screen, an example of which is shown below.
OTE
N
: Once you choose a protocol, different options appear in the sub-menu. Set the
Protocol option first.
,-----------------------------------------------------------------------------.
| Precidia Ether232Plus Configuration v4.04.00 |
|-----------------------------------------------------------------------------|
| Device Settings: | Serial Port Settings: |
| | |
| 1) Ethernet: 0.0.0.0 | A) Protocol: Transparent (tcp) |
| | B) Port Setting: 9600 bps 8N1 [hw] |
| 2) Serial Port: Transparent | C) Port Mode: RS-232 |
| | D) Connection Control: Automatic |
| | |
| | E) Local Port: 9998 |
| | F) Remote IP: 0.0.0.0 |
| | G) Remote Port: 0 |
| | H) Fallback IP: 255.255.255.255 |
| | I) Fallback Port: 0 |
| | |
| *) Save Current Configuration | J) Packet Prefix: none |
| -) Exit Configuration (no save) | K) Max Inter-Char Delay: 0 |
| $) Security Settings | L) Preferred Packet Size: 0 |
| #) System Settings | |
| ?) Refresh this Screen | M) Initial String: (not set) |
`-----------------------------------------------------------------------------'
Change which option?
Example of the Serial Port Settings Sub-menu
OTE
N
: Remember to save your changes by typing "*" to exit configuration!
02-CML000057 Precidia Technologies Inc. 21
Page 28
4 Configuring the Serial Port Settings Ether232Plus User Guide
4.1 Protocol
The Protocol setting defines how the Ether232Plus communicates with the remote
server. The Protocol setting has two parts: Data formatting an Session Mode.
The first part of the Protocol setting, data formatting, indicates how to parse or
process the data stream to provide compatibility with the remote server. Table 4.1
describes the data formatting options.
Table 4.1: Data Formatting Options
Menu Item Description
disabled
ComPort
Control
Default setting. The unit will not accept any host initiated or local
sessions. You must choose a protocol for the unit to become active.
Extends a serial link to allow remote configuration and control of a
serial port. Upon receipt of a message containing Com Port Control
commands, the Ether232Plus extracts the command information
from the message and sets the following parameters of the serial
port: baud rate, data length, parity bits, stop bits, DTR signal (often
used to disconnect a call), and flow control.
Once the serial port is set, the Ether232Plus forwards the data to the
serial device unchanged. If any changes to the Com Port or modem
line occur, the Ether232Plus will automatically send a notification
packet to the host.
Once the transaction/transmission is complete, the Ether232Plus
automatically resets to the Port Setting defined in the Serial Port
Settings
sub-menu until the next message is received.
Telnet Com Port Control is defined in RFC2217. Refer to the Help
Guide Com Port Control Compliance at http://www.precidia.com/
products/documentation.html for a list of the Com Port Control
commands supported by the Ether232Plus.
If you are connecting only one Ether232Plus to a PC and the appli-
cation requires COM port connection, you can use Com Port Redirector software. You can find more information and purchase this
software on the Precidia Web site at http://www.precidia.com/prod-
ucts/request_software.html.
22 Precidia Technologies Inc. 02-CML000057
Page 29
Ether232Plus User Guide 4 Configuring the Serial Port Settings
Table 4.1: Data Formatting Options
Menu Item Description
Telnet
Turns the Ether232Plus into either a telnet client (most common
use) or a telnet server and allows the user to telnet out of the
Ether232Plus to a remote server, such as a UNIX workstation.
The standard connection control options are supported. By leaving
the Connection Control parameter at Automatic (default setting),
the user can initiate the telnet session by pressing any alphanumeric
key. If the Connection Control parameter is set to DTR/DSR Control, the Ether232Plus tries to open a telnet session as soon as DSR
is detected from the terminal, but the timeout function of most hosts
makes this option somewhat unreliable.
Telnet-Client: The most common use of the telnet protocol. To create a telnet client, select tcp-client as the session mode. This configuration allows the Ether232Plus to communicate with the telnet
server at the configured Remote IP address and Remote Port.
Telnet-Server: To create a telnet server, select tcp-server as the
session mode when configuring this protocol. The Ether232Plus listens on port 23, and the Remote Password must be disabled so that
the standard configuration program is not listening on that port. You
can still use a Remote Password by configuring Telnet to listen on a
port other than 23 (but above 1024 to avoid using reserved ports).
Transparent
Typical setting. No alterations are made to the data stream, nor is it
parsed in any way. Data is collected until either the preferred packet
size is reached or there is a pause between characters that exceeds
the inter-character timer. The buffer is then transmitted as a single
frame. Preferred Packet Size and Max Inter- Char De lay can be left
at the default settings (0), and the unit will automatically determine
a reasonable setting based on the current serial port speed.
Transparent protocol includes the option Packet Prefix, which
allows you to include a header in the packet defining it’s length. See
Section 4.12, Packet Prefix (Transparent Protocol Only)‚ on
page 35.
02-CML000057 Precidia Technologies Inc. 23
Page 30
4 Configuring the Serial Port Settings Ether232Plus User Guide
Table 4.1: Data Formatting Options
Menu Item Description
Terminated
No alterations are made to the data stream, but incoming data is
checked for known "end-of-record" characters, or "terminators",
that identify the end of a block so that it can be transmitted as a
whole to the remote host. If this mode is selected, you will be
prompted to enter up to six T erminators in their ASCII decimal form
(e.g. <CR> = 13). This is ideal when the host requires pre-parsing of
the data, such as with an AS/400.
OTE
N
: To use zero (null) as a terminator, you must set it as Termi-
nator #1. Any zeroes after the first terminator are ignored.
The second part of the Protocol setting, session mode, determines how the data
channel between the terminal and the server is established. Communications between
the device and the host can be over TCP or UDP channels. In addition, the device can
initiate a session immediately or wait until either the server (host) or the terminal
(client) attempts to establish a connection. Table 4.2 describes the session mode
options.
Table 4.2: Session Mode Options
Menu Item Description
tcp(tunnel)
Typical configuration for most applications. Use tcp(tunnel) mode
when the Ether232Plus must be able to initiate TCP connections and
accept TCP connections from the host. In this configuration, the
Ether232Plus can communicate with the TCP/IP host as if it were
virtually connected. Local Port, Remote Port, and Remote IP must
be configured. Sections 4.6 through 4.10 describe how to configure
ports and IP addresses.
tcp-client
Use tcp-client mode when all transactions must be initiated by the
terminal. This ensures that a TCP/IP host (server) can never initiate
communications with the terminal.
tcp-server
Use tcp-server mode when the TCP/IP host must never be interrupted by the terminal unless it authorizes a connection. This
ensures that data from the terminal will be discarded until the server
establishes a session. As a security feature, the host address must
match the Remote IP configured in the Serial Port Settings. Local
Port and Remote Port must be configured. Sections 4.6 through 4.10
describe how to configure ports and IP addresses.
24 Precidia Technologies Inc. 02-CML000057
Page 31
Ether232Plus User Guide 4 Configuring the Serial Port Settings
Table 4.2: Session Mode Options
Menu Item Description
udp
Similar to tcp(tunnel) mode, use UDP mode when reception
acknowledgement of the data packets is not required. UDP is a connectionless channel, therefore, it is not necessary to initiate or accept
connections. This makes for slightly faster data flow. Setting the
Remote IP address to all zeros puts UDP into "reply mode" and the
Ether232Plus will send data to the last address it received data from.
For peer-to-peer communication, the host address must match the
Remote IP defined in configuration.
To set or change the Protocol:
1 Choose
2 Choose
Serial Port
Protocol
from the Device Settings menu.
from the Serial Port Settings sub-menu.
You are prompted to choose a new protocol, as shown below.
A. disabled B. ComPort Control C. Telnet D. Transparent
E. Terminated
1. tcp(tunnel) 2. tcp-client 3. tcp-server 4. udp
Choose new protocol (letter+number) or press ESC to cancel:
3 T ype the letter (A to E), plus the number (1 to 4), that corresponds to your selection
and press
4.2 Port Setting
Port Setting defines the Serial Port Settings of the Ether232Plus. The settings must
match the settings of the attached serial device to enable communication. Settings
include bit rate, data width, error detect, framing, and flow control.
OTE
N
: To avoid data loss, choose hardware flow control if you set the port speed to
19 200 bps or higher.
Enter
Choosing a Protocol
.
02-CML000057 Precidia Technologies Inc. 25
Page 32
4 Configuring the Serial Port Settings Ether232Plus User Guide
Flow control options are none, hardware, or software as described Table 4.3 .
Table 4.3: Flow Control Options for Port Setting Parameter
Option Description
None
h/w
(rts/cts)
s/w
(xon/xoff)
Default setting. No flow control enabled. Data may be lost due to
overflow during high speed communication.
Hardware handshaking uses the RTS/CTS (Request To Send/Clear
To Send) signal lines for flow control on the COM port. Hardware
handshaking works by altering voltage levels on these lines. When
the remote end is ready to receive data, it asserts the CTS signal to
tell the Ether232Plus to start transferring data. If the remote end is
unable to accept the data as fast as it is received from the
Ether232Plus, the remote end negates CTS, and the Ether232Plus
suspends data transfer . When the remote end is ready for more data,
it asserts CTS again.
When the Ether232Plus is ready to receive data, it asserts the RTS
signal. If the Ether232Plus cannot accept data as quickly as the
device is passing data, it negates RTS. The Ether232Plus asserts
RTS again when it is ready to resume receiving data. This setting
can be used for the majority of installations.
Software handshaking requires that XON/XOFF characters are
asserted and obeyed on the COM port. XON is used by either the
Ether232Plus or the remote host to signal the other end to start
sending data. XOFF can also be used by either the Ether232Plus or
the remote host to signal the other to stop sending data.
OTE
N
: XON/XOFF characters included in a data transmission are
interpreted as flow control characters and will cause transmission
problems. This option is not recommended for binary data transmission.
To set or change the Port Setti ng:
1 Choose
26 Precidia Technologies Inc. 02-CML000057
Serial Port
from the Device Settings menu.
Page 33
Ether232Plus User Guide 4 Configuring the Serial Port Settings
2 Choose
Port Setting
from the Serial Port Settings sub-menu.
You are prompted to enter one item from each column to configure the port, as
shown below.
Port configuration is made up of the several different par ameters:
Bit Rate Data Width Error Detect Framing Flow Control
~~~~~~~~~~~~~~ ~~~~~~~~~~~~~~ ~~~~~~~~~~~~~~ ~~~~~~~~~~~~~~ ~~~~~~~~~~~~~~~
A. 300 8. 8 bits N. no parity 1. 1 stop bit N. none
B. 600 7. 7 bits O. odd parity 2. 2 stop bits H. h/w (rts/cts)
C. 1200 9. 9 bits E. even parity S. s/w (xon/xoff)
D. 2400 M. mark parity
E. 4800 S. space parity
F. 9600
G. 19200
H. 38400
I. 57600
J. 115200
Enter one item from each column to configure port (eg. C-7E1-H):
Choosing the Port Configuration
3 T ype the letter or number from each column corresponding to your desired settings,
and press
Enter
.
OTE
N
: Serial ports communicate using the RS-232 serial (bit-stream) protocol. Each
byte of data transferred through the serial port consists of a predetermined number of
bits: 1 start bit, 7, 8, or 9 data bits, 1 or no parity bit, and 1 or 2 stop bits, for a total
between 9 and 13 bits. The port configuration “8E2”, for example, results in a 12-bit
data length consisting of 1 start bit + 8 data bits + 1 parity bit + 2 stop bits. Serial
ports on the Precidia unit, however, support only 10- and 11-bit transfers. Port
configurations of 9, 12, or 13 bits are automatically converted by adding an extra stop
bit to 9-bit transfers, and dropping stop bits and parity bits (if necessary) fr om 12- and
13-bit transfers.
4.3 Port Mode
Port Mode specifies the type of serial connection the Precidia unit has with the serial
device. You can choose from RS-232, RS-422, or RS-485, according to the type of
connector on the attached serial device. To ensure you are using the correct cable for
your serial device see Appendix E: Pinouts and Power Supply.
To set or change the Port Mode:
1 Choose
Serial Port
from the Device Settings menu.
02-CML000057 Precidia Technologies Inc. 27
Page 34
4 Configuring the Serial Port Settings Ether232Plus User Guide
2 Choose
Port Mode
You are prompted to choose a new mode, as shown below.
A. RS-232 B. RS-422 C. RS-485
Choose new mode (letter) or press ESC to cancel:
3 Type the letter that corresponds to the desired mode, and press
4.4 Connection Control
Connection Control specifies the method of connection between the Ether232Plus and
the remote serial device. The options are described in Table 4.4 .
Table 4.4: Connection Control Options
Option Description
from the Serial Port Settings sub-menu.
Choosing the Port Configuration
Enter
.
Automatic
Net-Linked
DTR/DSR
Control
RTS/CTS
Control
Default setting. Useful for most setups. Initiates a connection as soon
as there is data to send (except in tcp-server mode).
Links the protocol connection to the status of the network (Ethernet).
Attempts to keep the connection permanently open.
Uses the DTR/DSR lines to open and close connections. In tcp-client
mode, the Ether232Plus establishes an IP connection to the remote
host when DSR is asserted and terminates a connection when DSR is
negated.
In tcp-server mode, the Ether232Plus asserts DTR when there is a
valid incoming connection attempt and accepts the connection as soon
as DSR is asserted.
In tcp(tunnel) mode the Ether232Plus both accepts and establishes
connections to the host.
Uses the RTS/CTS lines to open and close connections. In tcp-client
or tcp(tunnel) mode, the Ether232Plus establishes an IP connection
to the remote host when CTS is asserted and terminates a connection
when CTS is negated.
In tcp-server or tcp(tunnel) mode, the Ether232Plus asserts RTS
when there is a valid incoming connection attempt and accepts the
connection if CTS is currently asserted.
28 Precidia Technologies Inc. 02-CML000057
Page 35
Ether232Plus User Guide 4 Configuring the Serial Port Settings
Table 4.4: Connection Control Options
Option Description
Modem
Enables the Ether232Plus to act as modem to a device connected to
its serial port. The Ether232Plus processes a superset of the standard
Hayes command set, including the ability to answer, dial, and originate a connection. FTP and HTTP are supported with extended AT
commands.
For implementation notes and a description of supported commands,
see the Modem Connection Control Help Guide at
http://www.precidia.com/products/documentation.html.
To set or change the Connection Control:
1 Choose
2 Choose
Serial Port
Connection Control
from the Device Settings menu.
from the Serial Port Settings sub-menu.
You are prompted to enter a connection control type, as shown below.
A. Automatic B. Net-Linked C. DTR/DSR Control D. RTS/CTS Control
E. Modem
Enter connection control type (letter):
Choosing the Connection Control
3 Type the letter that corresponds to the desired option and press
4.5 Terminal Type (Telnet Protocol Only)
If you select Telnet in the Protocol setting, you can enter the type of terminal you are
using. If the Terminal Type is unknown, this parameter may be left at (unset). The
telnet server will set a default type, but it is more effective to set it yourself. If the
terminal type is incorrect, the full screen telnet applications will not work properly.
To enter or change the Terminal Type (Telnet only):
1 Choose
Serial Port
from the Device Settings menu.
Enter
.
02-CML000057 Precidia Technologies Inc. 29
Page 36
4 Configuring the Serial Port Settings Ether232Plus User Guide
2 Choose
You are prompted to enter the type of attached terminal, as shown below.
The "terminal type" is not simply an arbitrary string of characters describing
the type of device attached to the serial port. It is a specific name that
will be recognized by the remote host and used by it to decide how to control
that type of terminal.
Common terminal types are "dumb", "ansi", "vt100", and "vt102".
Enter type of attached terminal:
3 Type in the terminal type and press
4.6 Local Port
Local Port is the port number that listens for incoming connections. This option must
be set if the Ether232Plus will ever receive a session initiated from an outside source
(in tcp(tunnel), tcp-server, and udp modes). If the Ether232Plus will only be used to
initiate sessions, this setting can be left at 0 (tcp-client mode).
Terminal Type
from the Serial Port Settings sub-menu.
Entering the Terminal Type
.
Enter
To enter or change the Local Port:
1 Choose
2 Choose
You are prompted to enter the port number on the local system.
3 Type the port number at the prompt and press
4.7 Remote IP
Remote IP is the IP address of the remote host to attempt connections to. If incoming
connections are being accepted, then only connections from the Remote IP address or
Fallback IP address are accepted.
Set Remote IP to all zeros (0.0.0.0) to disable outgoing connections and allow
incoming connections from anywhere.
To enter or change the Remote IP:
1 Choose
Serial Port
Local Port
Serial Port
from the Device Settings menu.
from the Serial Port Settings sub-menu.
Enter
.
from the Device Settings menu.
30 Precidia Technologies Inc. 02-CML000057
Page 37
Ether232Plus User Guide 4 Configuring the Serial Port Settings
2 Choose
Remote IP
You are prompted to enter the IP address of the remote system.
3 Type the remote IP address and press
4.8 Remote Port
Remote Port is the port address on the remote device to which the Ether232Plus sends
incoming data. Remote Port must be set in tcp(tunnel), tcp-client, and udp modes.
To enter or change the Remote Port:
1 Choose
2 Choose
You are prompted to enter the port number on the remote system.
3 Type the remote port number at the prompt and press
Serial Port
Remote Port
from the Serial Port Settings sub-menu.
Enter
.
from the Device Settings menu.
from the Serial Port Settings sub-menu.
Enter
.
4.9 Fallback IP
Fallback IP is the IP address of the machine the unit connects to if the Remote IP
address (primary) is not responding, not accepting connections, or not sending data.
The unit makes one attempt to connect to the Remote IP. If that attempt fails, it
attempts to connect to the Fallback IP, alternating until a connection is made. After
connecting to the Fallback IP address, the unit tries the Remote IP on the next attempt.
If data is received from either host, the next connection attempt is to the Remote IP
address.
Fallback can also be disabled, or enabled to accept incoming connections from any
host. Table 4.5 describes Fallback IP settings.
02-CML000057 Precidia Technologies Inc. 31
Page 38
4 Configuring the Serial Port Settings Ether232Plus User Guide
Table 4.5: Fallback IP Configurations
Fallback IP Setting Result
0.0.0.0
255.255.255.255
Fallback operation disabled.
Incoming connections are accepted from any source as
long as the unit is not already connected. Any host can
establish a connection if the primary host connection is
lost. This provides the same function as setting the Remote
IP to 0.0.0.0 and can be used when the Remote IP must be
configured, such as in tcp(tunnel) mode.
OTE
N
: When you set the Fallback IP to 255.255.255.255,
set the Fallback Port to zero (0) or an error will occur if
the primary host connection is lost.
xxx.xxx.xxx.xxx
Type the IP address of the backup machine to attempt connections to if the primary address (Remote IP) is not
responding.
To enter or change the Fallback IP:
1 Choose
Serial Port
from the Device Settings menu.
2 Choose
Fallback IP
You are prompted to enter the IP address of the fallback system.
3 Type the desired setting and press
4.10 Fallback Port
Fallback Port is the TCP port number to initiate connections to on the fallback host
(Fallback IP), if the Remote IP is not responding or not accepting connections. Set this
value to zero (0) to disable the fallback operation or if you have set the Fallback IP to
255.255.255.255. Use port numbers in the range of 1024 to 65 535 to avoid using
reserved port numbers.
OTE
N
: If the session mode is set to udp, this option is ignored.
To enter or change the Fallback Port:
1 Choose
Serial Port
from the Serial Port Settings sub-menu.
.
Enter
from the Device Settings menu.
32 Precidia Technologies Inc. 02-CML000057
Page 39
Ether232Plus User Guide 4 Configuring the Serial Port Settings
2 Choose
Fallback Port
from the Serial Port Settings sub-menu.
You are prompted to enter the port number on the fallback system.
3 Type the fallback port address and press
Enter
.
4.11 Terminators (Terminated Protocol Only)
If you select Terminated in the Protocol setting, you are able to configure up to six
terminators in the Serial Port Settings sub-menu, as shown below.
,-----------------------------------------------------------------------------.
| Precidia Ether232Plus Configuration v4.04.00 |
|-----------------------------------------------------------------------------|
| Device Settings: | Serial Port Settings: |
| | |
| 1) Ethernet: 192.168.2.56 | A) Protocol: Terminated (tcp) |
| | B) Port Setting: 9600 bps 8N1 [hw] |
| 2) Serial Port: Terminated | C) Port Mode: RS-232 |
| | D) Connection Control: Modem |
| | |
| | E) Local Port: 9998 |
| | F) Remote IP: 192.168.1.25 |
| | G) Remote Port: 9999 |
| | H) Fallback IP: 255.255.255.255 |
| | I) Fallback Port: 0 |
| | |
| | J) Terminator #1: 000 < > : 000 |
| *) Save Current Configuration | K) Terminator #2: 000 < > : 000 |
| -) Exit Configuration (no save) | L) Terminator #3: 000 < > : 000 |
| $) Security Settings | M) Terminator #4: 000 < > : 000 |
| #) System Settings | N) Terminator #5: 000 < > : 000 |
| ?) Refresh this Screen | O) Terminator #6: 000 < > : 000 |
`-----------------------------------------------------------------------------'
Change which option?
Setting the Terminators
The Ether232Plus continues to capture data from the serial port into the receive buffer
until any one of six specific terminators is identified. Once this character is marked,
the Ether232Plus continues to capture a configurable number of characters (tail bytes),
then terminates the frame and transmits it to the host.
Terminators must be specified in their ASCII decimal form. For example, Carriage
Return is entered as 13. The most common terminators are listed in Table 4.6 .
OTE
N
: To use zero (null) as a terminator, you must set it as Terminator #1. Any zeroes
after the first terminator are ignored.
To configure or change the terminating characters:
1 Choose
Serial Port
02-CML000057 Precidia Technologies Inc. 33
from the Device Settings menu.
Page 40
4 Configuring the Serial Port Settings Ether232Plus User Guide
2 Choose a
Terminator
You are prompted to enter a terminator character in decimal.
3 Type in a terminator and press
You are prompted to enter the number of tail bytes in decimal.
4 Enter the number of tail bytes and press
TIP The number of tail bytes determines how many characters to wait for after the
terminator before sending the packet.
For example, if you are parsing a data frame that ends with ETX and has a 2 byte CRC
that follows, you will want to terminate on 3, with 2 tail bytes. However, if you get an
ACK, you may not want to collect any tail bytes at all, so you would terminate on 6
with 0 tail bytes.
Table 4.6: Common Terminators
Terminator Mnemonic
from Terminator #1 through #6.
.
Enter
.
Enter
ASCII
Decimal
Terminator Mnemonic
ASCII
Decimal
Null NUL
End of Text ETX
End of Transmission
Enquire ENQ
Acknowledge ACK
Line Feed LF
Vertical tab VT
Form Feed FF
Carriage Return CR
Data Link Escape DLE
Data Control 1 DC1 or
EOT
XON
0
3
4
5
6
10
11
12
13
16
17
Data Control 2 DC2
Data Control 3 DC3 or
XOFF
Data Control 4 DC4
Neg-Acknowledge NAK
Synchronization SYN
End of Block ETB
Cancel CAN
End of Message EM
End of File EOF
Escape ESC
18
19
20
21
22
23
24
25
26
27
34 Precidia Technologies Inc. 02-CML000057
Page 41
Ether232Plus User Guide 4 Configuring the Serial Port Settings
4.12 Packet Prefix (Transparent Protocol Only)
If you select Transparent in the Protocol setting, you have a Packet Prefix option.
Packet Prefix allows you to insert a two-byte header stating the length of the data in
the packet, including or not including the header itself. Some POS systems, such as
ACI BASE24, may require these types of headers.
To set or change the Packet Prefix:
1 Choose
2 Choose
Serial Port
Packet Prefix
from the Device Settings menu.
from the Serial Port Settings sub-menu.
You are prompted to enter the packet prefix type, as shown below.
A. none - received bytes are sent in packets with nothing extra
B. length - a 2-byte header indicating the length of the data to follow
C. length+2 - a 2-byte header indicating the length of data plus header
Enter packet prefix type (letter):
Choosing the Packet Prefix Type
3 Choose a packet prefix type and press
Enter
.
4.13 Maximum Inter-Character Delay (Transparent Protocol Only)
Maximum inter-character delay specifies the maximum elapsed time in milliseconds
between received characters before the Ether232Plus forwards the data packet to the
destination, to a maximum of 60 000 ms. This option accumulates the data before
sending it and therefore tends to group related data together and reduce network overhead.
If left at zero (0), the Precidia unit determines a reasonable delay based on the configured Port Settings.
To enter or change the Max Inter-Char Delay:
1 Choose
2 Choose
Serial Port
Max Inter-Char Delay
from the Device Settings menu.
from the Serial Port Settings sub-menu.
You are prompted to enter the maximum inter-character delay in ms.
3 Type the time for the delay at the prompt and press
02-CML000057 Precidia Technologies Inc. 35
Enter
.
Page 42
4 Configuring the Serial Port Settings Ether232Plus User Guide
4.14 Preferred Packet Size (Transparent Protocol Only)
Preferred Packet Size specifies the maximum number of characters in a data packet. If
left at 0, data will be sent in amounts equal to the maximum network packet size
(usually about 1500 bytes). As with maximum inter-character delay, this option accumulates data before sending it, which can help reduce network overhead.
To enter or change the Preferred Packet Size:
1 Choose
2 Choose
Serial Port
Preferred Packet Size
from the Device Settings menu.
from the Serial Port Settings sub-menu.
You are prompted to enter the preferred packet size.
3 Type your preferred packet size and press
Enter
.
4.15 Initial String (Transparent Protocol Only)
Initial String allows you to insert a string of characters that are prepended to the initial
data packet at the beginning of every established connection between the
Ether232Plus and your serial device. The string can be a unique identifier for each
device, a maximum of 16 characters long, and can include the special characters listed
in Table 4.7.
Table 4.7: Initial String Special Characters
Character Description
\r Carriage return
\n Carriage return
\l line feed
\t tab
\x?? character ?? (two hex digits giving the ASCII value of the desired
character)
To configure an Initial String:
1 Choose
2 Choose
Serial Port
Initial String
from the Device Settings menu.
from the Serial Port Settings sub-menu.
You are prompted to enter the string to be sent upon connection.
3 Type the string at the prompt and press
36 Precidia Technologies Inc. 02-CML000057
Enter
.
Page 43
5
Configuring the Security Settings
The Security Settings sub-menu allows you to activate SNMP (Simple Network
Management Protocol) and IPsec (Internet Protocol security), and restrict access to the
Ether232Plus by specifying passwords and user IDs.
To configure or change the Security Settings, choose
Security Settings
from the
bottom of the Device Settings menu.
The Security Settings sub-menu appears on the right side of the Configuration screen,
as shown below.
,-----------------------------------------------------------------------------.
| Precidia Ether232Plus Configuration v4.04.00 |
|-----------------------------------------------------------------------------|
| Device Settings: | Security Settings: |
| | |
| 1) Ethernet: 192.168.2.56 | A) Console Password: (not set) |
| | B) Remote Password: (hidden) |
| 2) Serial Port: Transparent | |
| | C) Web Server: enabled |
| | D) Access Userid: (not set) |
| | E) Access Password: (not set) |
| | |
| *) Save Current Configuration | F) SNMP Server: enabled |
| -) Exit Configuration (no save) | G) SNMP Settings |
| $) Security Settings | |
| #) System Settings | H) IPsec Tunnel #1: disabled |
| ?) Refresh this Screen | I) IPsec Tunnel #2: disabled |
`-----------------------------------------------------------------------------'
Change which option?
Security Settings Sub-menu
OTE
N
: Remember to save your changes by typing "*" to exit configuration!
02-CML000057 Precidia Technologies Inc. 37
Page 44
5 Configuring the Security Settings Ether232Plus User Guide
5.1 Console Password
The Console Password allows you to restrict local access to configuration mode. After
creating a Console Password, anyone accessing the Ether232Plus locally through the
COM port must enter the password before the Configuration screen appears.
Setting the Console Password
OTE
N
: Passwords are case sensitive and can consist of uppercase letters, lowercase
letters, numbers, and symbols.
1 Choose
2 Choose
Security Settings
Console Password
from the Device Settings menu.
from the Security Settings sub-menu.
You are prompted to enter a console access password with a maximum of 8 characters.
3 Type your password (appears as a series of *** asterisks) and press
Enter
.
Viewing the Console Password
1 Choose
2 Choose
Security Settings
Console Password
from the Device Settings menu.
from the Security Settings sub-menu.
The current password is displayed in brackets: [was: password].
3 Do not type any characters. Press
to keep the same password and return to the
ESC
menu.
Clearing the Console Password
1 Choose
2 Choose
Security Settings
Console Password
3 Do not type any characters. Press
from the Device Settings menu.
from the Security Settings sub-menu.
to clear the password.
Enter
The password is displayed as (not set) in the Security Settings sub-menu.
38 Precidia Technologies Inc. 02-CML000057
Page 45
Ether232Plus User Guide 5 Configuring the Security Settings
5.2 Remote Password
To remotely configure the Ether232Plus, you must first set the Remote Password
through local configuration. This is a security option to disable unauthorized remote
access. Appendix D:, Connecting with Telnet., describes how to remotely telnet into
the Ether232Plus.
OTE
N
: You will not be able to telnet to the Ether232Plus for configuration, or perform
remote firmware and Web page downloads, unless you set a remote password.
Setting the Remote Password
OTE
N
: Passwords are case sensitive and can consist of uppercase letters, lowercase
letters, numbers, or symbols.
1 Choose
2 Choose
Security Settings
Remote Password
from the Device Settings menu.
from the Security Settings sub-menu.
You are prompted to enter a remote access password with a maximum of 8 characters.
3 Type your password (appears as a series of *** asterisks on the screen) and press
.
Enter
Viewing the Remote Password
1 Choose
2 Choose
Security Settings
Remote Password
from the Device Settings menu.
from the Security Settings sub-menu.
The current password is displayed in brackets: [was: password].
3 Do not type any characters. Press
to keep the same password and return to the
ESC
menu.
Clearing the Remote Password
OTE
N
: Clearing the Remote Password disables remote access to configuration
through telnet.
1 Choose
02-CML000057 Precidia Technologies Inc. 39
Security Settings
from the Device Settings menu.
Page 46
5 Configuring the Security Settings Ether232Plus User Guide
2 Choose
You are prompted to enter a remote access password with a maximum of 8 characters.
3 Do not type any characters. Press
The password is displayed as (not set) in the Security Settings sub-menu.
5.3 Web Server
The Web Server enables or disables access to the static Web page, and the dynamic
Status page and System Log stored in the unit. The default setting is “enabled”. The
pages are accessible through your Web browser and are described in Section 7,
Accessing System Information‚ on page 57.
If you enable the Web Server you can also define the Access Userid and Password to
restrict access to the dynamic Status Page and System Log. If you enable the Web
Server and do not configure Access Userid and Access Password (default), anyone
who knows the IP address of the unit can access the pages through a Web browser.
Remote Password
from the Security Settings sub-menu.
Enter
to clear the password.
OTE
N
: HTTP authentication schemes for passing the user ID and password to the
HTTP daemon include Basic and Digest Access Authentication. Most Web browsers
support one or both authentication schemes and should function correctly. Update
your browser if problems occur.
To enable or disable the Web Se rver:
1 Choose
2 Choose
Security Settings
Web Server
from the Device Settings menu.
from the Security Settings sub-menu.
You are prompted to enable or disable the Web Server, as shown below.
The web server allows access to the set of static pages loaded in to the unit
(see the system menu) and to the various dynamic pages such as system status
and system log.
A. enabled B. disabled
Choose desired setting or press ESC to cancel:
Web Server Options
3 Type the letter that corresponds to the desired setting and press
40 Precidia Technologies Inc. 02-CML000057
Enter
.
Page 47
Ether232Plus User Guide 5 Configuring the Security Settings
5.4 Access Userid
Along with Access Password, Access Userid provides security against unauthorized
access to the Precidia unit’s dynamic Web pages.
1 Choose
2 Choose
Security Settings
Access Userid
You are prompted to enter an access user ID for the dynamic Web pages, with a
maximum of 15 characters.
3 Type the user ID at the prompt and press
5.5 Access Password
Along with Access Userid, Access Password provides security against unauthorized
access to the Precidia unit’s dynamic Web pages.
Setting the Access Password
OTE
N
: Passwords are case sensitive and can consist of uppercase letters, lowercase
letters, numbers, or symbols.
from the Device Settings menu.
from the Security Settings sub-menu.
.
Enter
1 Choose
2 Choose
Security Settings
Access Password
from the Device Settings menu.
from the Security Settings sub-menu.
You are prompted to enter an access password with a maximum of 15 characters.
3 Type your password (appears as a series of *** asterisks on the screen) and press
.
Enter
Viewing the Access Password
1 Choose
2 Choose
Security Settings
Access Password
from the Device Settings menu.
from the Security Settings sub-menu.
The current password is displayed in brackets: [was: password].
3 Do not type any characters. Press
to keep the same password and return to the
ESC
menu.
02-CML000057 Precidia Technologies Inc. 41
Page 48
5 Configuring the Security Settings Ether232Plus User Guide
Clearing the Access Password
1 Choose
2 Choose
Security Settings
Access Password
3 Do not type any characters. Press
The password is displayed as (not set) in the Security Settings sub-menu.
5.6 SNMP Server
The SNMP Server enables or disables the SNMP function in the Precidia unit. The
default setting is “enabled”.
To enable or disable the SNMP Server:
1 Choose
2 Choose
You are prompted to enable or disable the SNMP Server, as shown below.
Security Settings
SNMP Server
The SNMP server allows access to many internal statisti cs as well as the values
seen in the system status page.
from the Device Settings menu.
from the Security Settings sub-menu.
to clear the password.
Enter
from the Device Settings menu.
from the Security Settings sub-menu.
A. enabled B. disabled
Choose desired setting or press ESC to cancel:
3 Type the letter that corresponds to the desired setting and press
5.7 SNMP Settings
Precidia products support SNMPv2c. SNMP (Simple Network Management Protocol)
is a protocol for viewing network statistics and settings. An SNMP management
system consists of a manager (remote) and an agent (Precidia device) using UDP as
the communication protocol.
The Precidia SNMP agent supports MIB-II, and allows GET (read) commands for
gathering information, SET (write) commands for managing how the information is
gathered, and trap (notification) generation for alerting the Network Manager when
selected or unusual events occur.
T o access the SNMP Set tings, choose
menu.
SNMP Server Options
SNMP Settings
from the Security Settings sub-
Enter
.
42 Precidia Technologies Inc. 02-CML000057
Page 49
Ether232Plus User Guide 5 Configuring the Security Settings
The SNMP Settings sub-menu appears, as shown below.
,-----------------------------------------------------------------------------.
| Precidia Ether232Plus Configuration v4.04.00 |
|-----------------------------------------------------------------------------|
| Device Settings: | SNMP Settings: |
| | |
| 1) Ethernet: 192.168.2.56 | Community Names: |
| | A) MIBII: (not set) |
| 2) Serial Port: Transparent | B) Precidia: (not set) |
| | C) Set: (not set) |
| | |
| | Trap Managers: |
| | D) IP Address #1: 0.0.0.0 |
| *) Save Current Configuration | E) IP Address #2: 0.0.0.0 |
| -) Exit Configuration (no save) | F) Trap Check Interval (s): 0 |
| $) Security Settings | |
| #) System Settings | G) SNMP Trap Settings |
| ?) Refresh this Screen | H) SNMP Allowed Hosts |
`-----------------------------------------------------------------------------'
Change which option?
SNMP Settings Sub-menu
For details on configuring the SNMP feature refer to the Help Guide SNMP Settings
and Compliance, available at http://www.precidia.com/products/documentation.html.
5.8 IPsec Tunnels #1 and #2
IPsec (Internet Protocol security) refers to a set of specifications for security at the IP
layer of TCP/IP networks. IPsec tunnels are special secure channels of communication
encapsulated within IP protocol that encrypt both the payload data and the packet
header. Encapsulated Secure Payload (ESP) for IP is defined in RFC1827. You can
define up to two tunnels to securely connect the Precidia unit to two separate
networks.
MPORTANT
I
may cause a significant decrease in the speed/ performance of the Pr ecidia unit. If your
application has performance or latency requirements, please ensur e that this decr ease
in performance does not break the timing requirements. Full baud rates may not be
achievable with IPsec enabled.
To access the Secure IP Association settings you must first select an IPsec protocol.
! IPsec contains computationally intensive algorithms. Enabling IPsec
02-CML000057 Precidia Technologies Inc. 43
Page 50
5 Configuring the Security Settings Ether232Plus User Guide
Protocol
The IPsec protocol defines the method of encryption and authentication to use through
the IPsec tunnel. You can choose between two modes: DES-MD5-96 or 3DES-MD5-
96. Encoding is provided by DES (Data Encryption Standard), a secret key cryptography method. DES uses a 56-bit key, while 3DES (tripleDES) uses a 168-bit key.
Authentication is provided by MD5 (Message Digest 5). The message digest allows
the receiver of a packet to ensure that a packet has not been altered en route from the
sender. MD5 is described in RFC1321.
Choose
IPsec Tunnel #1
or
IPsec Tunnel #2
from the Security Settings sub-menu.
The Secure IP Association #1 or #2 sub-menu appears, as shown below.
,-----------------------------------------------------------------------------.
| Precidia Ether232Plus Configuration v4.04.00 |
|-----------------------------------------------------------------------------|
| Device Settings: | Secure IP Association #1: |
| | |
| 1) Ethernet: 192.168.1.28 | A) Protocol: disabled |
| | |
| 2) Serial Port: Transparent | |
| | |
| *) Save Current Configuration | |
| -) Exit Configuration (no save) | |
| $) Security Settings | |
| #) System Settings | |
| ?) Refresh this Screen | |
`-----------------------------------------------------------------------------'
Change which option?
Secure IP Association Menu
4 Select
Protocol
from the Secure IP Association sub-menu.
You are prompted to select a new IPsec mode, as shown below.
A. disabled B. DES-MD5-96 C. 3DES-MD5-96
Choose new IPsec mode (letter) or press ESC to cancel:
Choosing an IPsec Protocol
44 Precidia Technologies Inc. 02-CML000057
Page 51
Ether232Plus User Guide 5 Configuring the Security Settings
5 Type the letter that corresponds to the desired mode and press
Enter
.
The Secure IP Association sub-menu appears, with new options, as shown below.
,-----------------------------------------------------------------------------.
| Precidia Ether232Plus Configuration v4.04.00 |
|-----------------------------------------------------------------------------|
| Device Settings: | Secure IP Association #1: |
| | |
| 1) Ethernet: 192.168.1.28 | A) Protocol: DES-MD5-96 |
| | B) Secure Address: (public) |
| 2) Serial Port: Transparent | C) SPI: 00000000 |
| | |
| | D) Network Address: 0.0.0.0 |
| | E) Network Mask: 0.0.0.0 |
| | F) Network Gateway: 0.0.0.0 |
| | |
| | Encode/Authenticate Keys: |
| | G) Encode (Pt1): 0000000000000000 |
| *) Save Current Configuration | H) Encode (Pt2): 0000000000000000 |
| -) Exit Configuration (no save) | I) Encode (Pt3): 0000000000000000 |
| $) Security Settings | |
| #) System Settings | J) Auth (Pt1): 0000000000000000 |
| ?) Refresh this Screen | K) Auth (Pt2): 0000000000000000 |
`-----------------------------------------------------------------------------'
Change which option?
Secure IP Association Sub-menu
6 Configure the Secure IP settings as described in the following sections.
Secure Address
Secure Address is an optional parameter to configure a “private” IP address for the
Precidia unit on the network. This IP address can be the same or different from the IP
address configured in the Ethernet Settings.
If you leave the Secure address set to zero (0.0.0.0) it will display as “public” in the
menu and automatically default to the configured or dynamic IP Address of the unit.
To enter or change the Secure IP address:
1 Choose
Secure Address
from the Secure IP Association sub-menu.
You are prompted to enter the secure IP address of this device.
2 T ype the secure IP address at the prompt (in th e format xxx.xxx.xxx.xxx) and press
.
Enter
02-CML000057 Precidia Technologies Inc. 45
Page 52
5 Configuring the Security Settings Ether232Plus User Guide
SPI
SPI (Security Parameters Index) is a 32-bit hexadecimal number used to identify the
security association of an IP packet. The SPI is used to look up the Encode and
Authenticate Keys, and must be the same at both ends of the tunnel. The first 256 SPI
values are reserved, but you can use any number from 100 hex up to FFFFFFFF hex as
the SPI.
To enter or change the SPI:
1 Choose
from the Secure IP Association sub-menu.
SPI
You are prompted to enter the SPI for this tunnel in Hex digits.
2 Type the SPI (up to 8 characters long) at the prompt, and press
Enter
.
Network Address
The Network Address under the Secure IP Association sub-menu is the network
address of the remote device.
To enter or change the Network Address:
1 Choose
Network Address
from the Secure IP Association sub-menu.
You are prompted to enter the IP address of the secure network.
2 Type the address at the prompt (in the format xxx.xxx.xxx.xxx) and press
Enter
.
Network Mask
Network Mask is the subnet mask of the network on which the remote device resides.
To enter or change the Network Mask:
1 Choose
Network Mask
from the Secure IP Association sub-menu.
You are prompted to enter the subnet mask of the secure network.
2 Type the network mask at the prompt (in the format xxx.xxx.xxx.xxx) and press
.
Enter
Network Gateway
The Network Gateway under the Secure IP Association sub-menu is the address of the
gateway of the network on which the remote device resides.
To enter or change the Network Gateway:
1 Choose
Network Gateway
from the Secure IP Association sub-menu.
You are prompted to enter the IP address of the secure network’s gateway.
46 Precidia Technologies Inc. 02-CML000057
Page 53
Ether232Plus User Guide 5 Configuring the Security Settings
2 Type the gateway address at the prompt (in the format xxx.xxx.xxx.xxx) and press
.
Enter
Encode/Authenticate Keys
Encode and Authenticate Keys are manually keyed in the Precidia unit by the user to
provide IP packet security. Encode and Authenticate Keys must be the same on both
ends of the IPsec tunnel. You must manually configure the remote end, a gateway or
device, with the same encode and authentication keys as you configured in the
Precidia unit.
The Encode Key is configured in up to three parts of 64 bits each. The Encode Key
must be input as a 64-bit hex number for DES and a 192-bit hex number for 3DES.
DES and 3DES remove the least significant bit (LSB) from each byte, making the
actual DES key 56 bits and the 3DES key 168 bits.
The Authenticate Key must be input as a 128-bit number in hex format. The Auth Key
is configured in two parts of 64 bits each.
To set or change the Encode Key:
1 Choose
Encode (Pt1)
from the Secure IP Association sub-menu.
You are prompted to enter bits 1–64 of the encoding key in hex.
2 Type the 64 bits (16 characters) of the encoding key in hexadecimal format at the
prompt, and press
Enter
.
If you are using DES-MD5-96 Protocol, configure the Authenticate Key now.
3 For 3DES-MD5-96 Protocol, choose
Encode (Pt2)
from the Secure IP Association
sub-menu.
You are prompted to enter bits 65–128 of the encoding key in hex.
4 Type the next part of the encoding key (16 more characters) in hexadecimal format
at the prompt, and press
5 Choose
Encode (Pt3)
from the Secure IP Association sub-menu.
Enter
.
You are prompted to enter bits 129–192 of the encoding key in hex.
6 Type the last part of the encoding key (16 characters) in hexadecimal format at the
prompt, and press
Enter
.
To set or change the Auth Key:
1 Choose
Auth (Pt1)
from the Secure IP Association sub-menu.
You are prompted to enter bits 1–64 of the authentication key in hex.
02-CML000057 Precidia Technologies Inc. 47
Page 54
5 Configuring the Security Settings Ether232Plus User Guide
2 Type the first half of the authentication key (16 characters) in hexadecimal format
at the prompt, and press
Enter
.
3 Choose
Auth (Pt2)
from the Secure IP Association sub-menu.
You are prompted to enter bits 65–128 of the authentication key in hex.
4 Type the second half of the authentication key (16 characters) in hexadecimal
format at the prompt, and press
Enter
.
The keys are displayed in the Secure IP Association sub-menu.
MPORTANT
I
! The SPI, Encode Keys, and Authenticate Keys must be the same on
both ends of the IPsec tunnel (secure connection).
48 Precidia Technologies Inc. 02-CML000057
Page 55
6
System Settings
The System Settings should only be configured by network administrators or
advanced users who need to upgrade the firmware or view log information.
T o configure or change the System Settings, select
Settings
menu.
System Settings
from the Device
The System Settings sub-menu appears on the right side of the Configuration screen,
as shown below.
,-----------------------------------------------------------------------------.
| Precidia Ether232Plus Configuration v4.04.00 |
|-----------------------------------------------------------------------------|
| Device Settings: | System Settings: |
| | |
| 1) Ethernet: 192.168.1.28 | A) Unit ID value: 00:01:1E:00:17:46 |
| | |
| 2) Serial Port: Transparent | B) Web Page Download: 59kB |
| | C) Firmware Download: 2004-03-05 |
| | |
| | D) Display System Status |
| | E) Dump System Log (long) |
| | F) Delete System Log |
| | |
| | G) Perform Self Test |
| *) Save Current Configuration | H) Reset Unit |
| -) Exit Configuration (no save) | |
| $) Security Settings | I) SNTP Settings |
| #) System Settings | |
| ?) Refresh this Screen | J) Disable TCP keep-alives: no |
`-----------------------------------------------------------------------------'
Change which option?
System Settings Sub-menu
OTE
N
: Remember to save your changes by typing "*" to exit configuration!
02-CML000057 Precidia Technologies Inc. 49
Page 56
6 System Settings Ether232Plus User Guide
6.1 Unit ID Value
Unit ID Value is the hardware address of the Ether232Plus and cannot be changed. It is
assigned at the factory and printed below the barcode on the bottom of the Precidia
unit.
6.2 Web Page Download
Use Web Page Download to change or upgrade the internal static web page in the
Precidia unit. You can access this page by obtaining the IP address of the unit and
typing it in the address bar of your browser like this:
http://
IPaddressOfUnit
/.
See Section 7.3, Static W eb Page‚ on page 68 and refer to the Help Guide Converting
and Downloading Static Web Pages at http://www.precidia.com/products/documenta-
tion.html for more information.
6.3 Firmware Download
CAUTION: Do not attempt a Firmware Download without first consult-
!
ing the instructions and obtaining the correct firmware file from Precidia. Improper downloading may render the warranty null and void!
Use Firmware Download to change or upgrade the firmware. The current firmware
version number is displayed in the top right corner of the Configuration screen, and the
release date is displayed beside Firmware Download in the System Settings sub-menu.
,-----------------------------------------------------------------------------.
| Precidia Ether232Plus Configuration v4.04.00 |
|-----------------------------------------------------------------------------|
| Device Settings: | System Settings: |
| | |
| 1) Ethernet: 0.0.0.0 | A) Unit ID value: 00:01:1E:00:17:46 |
| | |
| 2) Serial Port: Transparent | B) Web Page Download: 59kB |
| | C) Firmware Download: 2004-03-05 |
| | |
| | D) Display System Status |
| | E) Dump System Log (long) |
| | F) Delete System Log |
| | |
| | G) Perform Self Test |
| *) Save Current Configuration | H) Reset Unit |
| -) Exit Configuration (no save) | |
| $) Security Settings | I) SNTP Settings |
| #) System Settings | |
| ?) Refresh this Screen | J) Disable TCP keep-alives: yes |
`-----------------------------------------------------------------------------'
Software Version and Firmware Download Date
50 Precidia Technologies Inc. 02-CML000057
Page 57
Ether232Plus User Guide 6 System Settings
Refer to the Help Guides Local Software Download and Remote Software Download at
http://www.precidia.com/products/documentation.html for instructions.
6.4 Display System Status
The System Status page allows you to view useful statistics about the unit. This information includes system uptime, activity through the serial port (Port #1), and network
port settings. The System Status page displays the same information as the Status Web
page.
You can easily determine the IP address of the unit through the System Status page,
even if it is dynamically allocated. The first Local address listed under Network
Routing is the IP address of the unit.
Choose
Display System Status
from the System Settings sub-menu.
The status information appears, an example of which is shown below.
Ether232Plus Status:
Current time is 2004-03-12 20:26:10
System Uptime
Up 0 days, 0:07:57
Load Average: 5sec=19% 30sec=7% 5min=4% 30min=0%
Firmware Revision: 4.04.00 (2004-03-05)
Port #1 [serial] (transparent/tcp-server, idle)
Received Transmitted
Bytes: 0 Bytes: 0
Packets: 0 Packets: 0
Avg-BpP: 0 Avg-BpP: 0
Network Routing
Local Network Subnet Mask Gateway Iface Pkts-I
n Pkts-Out Pkts-Err
100.0.0.0 0.0.0.0 0.0.0.0 0.0.0.0 ipsec 0
0 0
0.0.0.0 0.0.0.0 0.0.0.0 0.0.0.0 ipsec 0
0 0
192.168.1.30 192.168.1.0 255.255.255.0 eth 142
66 0
127.0.0.1 127.0.0.0 255.0.0.0 lo 0
0 0
Please hit <return>:
Example of the System Status Page
See Section 7.1, System Status‚ on page 57 for a description of the System Status
page.
6.5 Dump System Log
Dump System Log allows you to review all activity that has occurred on the
Ether232Plus since it was configured, or since the Delete System Log option was
used. The dump may require a few minutes to complete.
02-CML000057 Precidia Technologies Inc. 51
Page 58
6 System Settings Ether232Plus User Guide
The System Log is a wrapping buffer up to 64KB. It will never run out of memory , but
will write over the earlier messages once the buffer fills up. See Section 7.2, System
Log‚ on page 61, for a description of the log information.
6.6 Delete System Log
Delete System Log erases the system log in the Ether232Plus. When diagnosing a
problem, you can clear the System Log to start capturing relevant information. For a
complete explanation of the information on the log refer to Section 7.2, System Log‚
on page 61.
6.7 Perform Self Test
Perform Self Test is a troubleshooting aid that performs a check on the unit’s memory
I/O system. You will not need to use this feature during the normal course of operation. The self-test takes a few minutes to run and the unit is unable to process any
information during this time.
To run Perform Self Test:
1 Choose
Perform Self Test
from the System Settings sub-menu.
You are prompted to continue with the Self Test or not, as shown below.
During a self test, the system will not be available for normal operations
and data processing until after all tests are complete. This will take a
few minutes. Are you sure this is what you wish to do? (y/n)
Perform Self Test Prompt
2 Type
to run the test.
y
The results of the test appear, an example of which is shown below.
CPU Internal Memory... passed
External Memory... passed
Application ROM... crc verification failed
Downloader ROM... passed
Ethernet Controller... passed
Com Port... skipped (external loopback not found)
All tests complete. Please hit <return>:
Example of Perform Self Test Results
3 Press
52 Precidia Technologies Inc. 02-CML000057
Enter
.
Page 59
Ether232Plus User Guide 6 System Settings
The Com Port portion of the test will always return “Com Port... skipped (external
loopback not found)
” if you are running the Self Test from a local connection and do
not have an external loopback dongle attached to the COM port. You must attach a
loopback dongle and run the Self Test remotely via telnet to test the com port.
Messages that may result from the Com Port test are described in Table 6.1.
Table 6.1: Com Port Self Test Results
Result Meaning
Com Port... passed
Com Port... character not received
Com Port... character not transmitted
Com Port... skipped (external loop-
back not found)
Com Port... control lines not looped
back
Com Port... transmitted and received
characters are different
6.8 Reset Unit
Reset Unit is useful for troubleshooting, since it allows you to ensure that modem
connections are dropped correctly. Reset Unit resets the Ether232Plus, and drops all
active modem connections. The Configuration screen is not changed nor is the System
Log cleared, however, the message “===== Ether232Plus Started =====” is appended
to the System Log.
Everything is fine
A transmitted character was not received
The internal port could not transmit
No loopback dongle found
The DTR/DSR, DTR/DCD lines, if
present, are not looped back as expected
The data sent is not the same as the data
received
Reset Unit allows you to reset the Ether232Plus from a telnet session without saving
any changes to the configuration menu.
6.9 SNTP Settings
Simple Network Time Protocol (SNTP) is used to synchronize computer clocks on the
Internet. Every 5 minutes, a request is sent to the
Primary Server
not been received by the unit within one minute, a request is sent to both the
Server
, and the
Secondary Server
(if defined). This feature is disabled if the Primary
IP address is not defined.
The real-time clock timestamp can be viewed in the System Log. Please refer to
section 7.2 System Log for further information.
02-CML000057 Precidia Technologies Inc. 53
. If a response has
Primary
Page 60
6 System Settings Ether232Plus User Guide
If you require a real-time clock and have access to an SNTP server , you may configure
the Primary Server and the Secondary Server as described below:
1 Choose
SNTP Settings
from the System Settings sub-menu.
The SNTP Settings sub-menu is displayed, as shown below:
,-----------------------------------------------------------------------------.
| Precidia Ether232Plus Configuration v4.04.00 |
|-----------------------------------------------------------------------------|
| Device Settings: | SNTP Settings: |
| | |
| 1) Ethernet: 192.168.1.30 | A) Primary Server: 192.168.1.1 |
| | B) Secondary Server: 192.168.1.2 |
| 2) Serial Port: Transparent | |
| | |
| *) Save Current Configuration | |
| -) Exit Configuration (no save) | |
| $) Security Settings | |
| #) System Settings | |
| ?) Refresh this Screen | |
`-----------------------------------------------------------------------------'
Change which option?
SNTP Settings Sub-menu
6.9.1 Primary Server
1 Choose
2 Choose
SNTP Settings
Primary Server
from the System Settings sub-menu.
from the SNTP Settings sub-menu.
You are prompted to enter the IP address of the device.
3 T ype the unique IP address at the prompt (in the format xxx.xxx.xxx.xxx) and press
.
Enter
6.9.2 Secondary Server
1 Choose
2 Choose
SNTP Settings
Secondary Server
from the System Settings sub-menu.
from the SNTP Settings sub-menu.
You are prompted to enter the IP address of the device.
3 T ype the unique IP address at the prompt (in the format xxx.xxx.xxx.xxx) and press
.
Enter
54 Precidia Technologies Inc. 02-CML000057
Page 61
Ether232Plus User Guide 6 System Settings
6.10Disable TCP Keep-Alives
This option can be enabled for bandwidth-sensitive applications. When enabled, the
TCP connections affected include HTTP, Telnet, and protocol traffic. Keep-alive
requests responded to include requests with a data length of zero (0).
MPORTANT
I
tions and will hold the connections open. The default, and recommended setting for
this option, is: <no>.
If it is necessary to change the Disable TCP keep-alives option:
! By enabling this option, you are no longer able to detect dead connec-
1 Choose
2 Choose
System Setting
Disable TCP keep-alives
from the Device Settings menu.
from the System Settings sub-menu.
You are prompted to choose a Disable TCP keep-alives option, shown below:
TCP can send keep-alive messages to determine if the peer is sti ll
responding. Normally these are sent (every 4 minutes) on idle
connections. Disabling keep-alives will prevent sending these
packets and make it impossible to detect dead connections. It
is not recommended that you change this setting.
NOTE that the unit will always respond to keep-alive packets.
Do you wish to DISABLE the TCP keep-alive packets?
A. yes B. no
Choose desired setting or press ESC to cancel:
Setting the Disable TCP Keep-Alives
3 Type the letter that corresponds to the desired setting, then press
Enter
.
02-CML000057 Precidia Technologies Inc. 55
Page 62
6 System Settings Ether232Plus User Guide
56 Precidia Technologies Inc. 02-CML000057
Page 63
7
Accessing System Information
The Ether232Plus stores information that can be used for management, diagnostics,
and troubleshooting. There are three types of information pages available:
• the System Status page
• the System Log page
• the static Web page(s)
OTE
N
: Ether232Plus information pages are accessible via a Web browser. To disable
this feature, or establish secure access using a user ID and password, see Section 5,
Configuring the Security Settings‚ on page 37.
Additionally, you have the ability to create custom Web pages through which you can
remotely control the serial device connected to the Precidia unit. Refer to 7.3 Static
Web Page for further information.
7.1 System Status
The System Status page provides valuable statistical and operational information such
as system uptime and the number of packets sent and received through the configured
port.
Accessing the System Status Page
To access the System Status page through a browser:
1 Ensure the Web Server in the Security Settings sub-menu is enabled and you have
the Access Userid and Access Password, if set.
2 Open your browser.
3 Type
02-CML000057 Precidia Technologies Inc. 57
http://
IPaddressOfUnit
/status.html
in the address bar.
Page 64
7 Accessing System Information Ether232Plus User Guide
The System Status is displayed as shown in the example below:
Ether232Plus Status
Current time is 2004-03-12 20:03:23.
System Uptime
Up 0 days, 0:08:01
Load Average: 5sec=0% 30sec=0% 5min=0% 30min=0%
Firmware Revision: 4.04.00 (2004-03-12)
Link to System Log
Port #1 [serial] (transparent/tcp-server , idle)
Received Transmitted
Bytes: 0 Bytes: 0
Packets: 0 Packets: 0
Avg-BpP: 0 Avg-BpP: 0
Network Routing
Local Network Subnet Mask Gateway
192.168.1.30 192.168.1.0 255.255.255.0
127.0.0.1 127.0.0.0 255.0.0.0
Example of the System Status Web Page
To access the System Status page in configuration mode:
1 Access the Ether232Plus Configuration screen either locally or remotely.
2 Choose
System Settings
from the Device Settings menu.
58 Precidia Technologies Inc. 02-CML000057
Page 65
Ether232Plus User Guide 7 Accessing System Information
3 Choose
Display System Status
from the System Settings sub-menu.
The System Status page appears, as shown below.
Ether232Plus Status:
Current time is 2004-03-12 20:26:10
System Uptime
Up 0 days, 0:07:57
Load Average: 5sec=19% 30sec=7% 5min=4% 30min=0%
Firmware Revision: 4.04.00 (2004-03-05)
Port #1 [serial] (transparent/tcp-server, idle)
Received Transmitted
Bytes: 0 Bytes: 0
Packets: 0 Packets: 0
Avg-BpP: 0 Avg-BpP: 0
Network Routing
Local Network Subnet Mask Gateway Iface Pkts-I
n Pkts-Out Pkts-Err
100.0.0.0 0.0.0.0 0.0.0.0 0.0.0.0 ipsec 0
0 0
0.0.0.0 0.0.0.0 0.0.0.0 0.0.0.0 ipsec 0
0 0
192.168.1.30 192.168.1.0 255.255.255.0 eth 142
66 0
127.0.0.1 127.0.0.0 255.0.0.0 lo 0
0 0
Please hit <return>:
Example of the System Status Page
Understanding the System Status Page
The System Status page has three sections:
• System Uptime
• Port #1
• Network Routing
System Uptime
This section reveals how long the system has been operating, the loading on the
Precidia device's CPU, and the firmware version in the Precidia unit. Table 7.1
describes each parameter.
Table 7.1: System Uptime on the System Status Page
Parameter Description
Time
The length of time the system has been operating since the last
reset in days, hours:minutes:seconds. Note that the time is not
accurate and may drift slightly.
Load Average
Firmware
Revision
The loading (activity) of the Ether232Plus CPU.
The software version currently installed in the Ether232Plus with
the date of the software build in parentheses.
02-CML000057 Precidia Technologies Inc. 59
Page 66
7 Accessing System Information Ether232Plus User Guide
Port #1
This section describes the configured serial port in the Ether232Plus. It consists of a
header line and a table showing the data received and transmitted.
OTE
N
: If the serial port is not configured, or incorrectly configured, this section does
not appear on the System Status page.
The header contains the following information:
• Port type (null, if no terminal connected, or serial) in brackets
• the Protocol (data formatting and session mode), and connection status in parentheses
Connection status can be connected, connecting, or idle. The information below the
header shows the number of bytes, the number of packets, and the average bytes per
packet received and transmitted by the unit.
Network Routing
This section reveals how the system is handling the data going through the Precidia
unit in the same style as the “print-route” command. Table 7.2 describes each parameter in the Network Routing section.
Table 7.2: Network Routing Parameters
Parameter Description
Local
The IP Address of the unit (configured in Ethernet Settings or
obatined through DHCP).
Network
Address
Subnet
Mask
Gateway
The network address, derived from the IP address and subnet mask,
for which this entry applies.
The Subnet Mask for which this entry applies (configured in Ethernet Settings or obatined through DHCP).
The Gateway (router) address for which this entry applies (configured in Ethernet Settings or obatined through DHCP).
Iface
Pkts-In
The interface used to connect to the remote host. eth = Ethernet
Total number of packets received by the unit since the last reset.
Pkts-Out
Pkts-Err
Total number of packets sent by the unit since the last reset.
Total number of error packets received by the unit since the last
reset.
60 Precidia Technologies Inc. 02-CML000057
Page 67
Ether232Plus User Guide 7 Accessing System Information
7.2 System Log
The System Log, an example of which is shown below, logs transaction data and
system information. Connection attempts and failures, and remote and console access
attempts are logged.
Ether232Plus Log:
===== Ether232Plus Started =====
00000 days 00:00:00 Port #1: Listening for connections on tcp port 9999...
00000 days 09:07:22 Port #1: Incoming connection on tcp port 9999 from 192.168.1.2:2569
00000 days 09:07:22 Port #1: Connection was established with 192.168.1.2:2569
00000 days 09:07:37 Port #1: Connection closed by remote host at 192.168.1.2:2569
00000 days 09:07:37 Port #1: Connection closed by us to host at 192.168.1.2:2569
00000 days 22:09:02 Port #1: Incoming connection on tcp port 9999 from 192.168.1.2:2664
00000 days 22:09:02 Port #1: Connection was established with 192.168.1.2:2664
00000 days 22:10:32 Port #1: Connection closed by remote host at 192.168.1.2:2664
00000 days 22:10:32 Port #1: Connection closed by us to host at 192.168.1.2:2664
===== Ether232Plus Started =====
00000 days 00:00:00 Port #1: Connection attempt to 192.168.1.2:999...
00000 days 00:00:00 Port #1: Connection with 192.168.1.2:999 stopped due to connection control
00000 days 00:00:01 Port #1: Connection attempt to 192.168.1.2:999...
00000 days 00:00:01 Port #1: Connection was established with 192.168.1.2:9999
00000 days 23:01:49 current system time
Please hit <return>:
Example of the System Log Page
Accessing the System Log
To access the System Log through a browser:
1 Ensure the Web Server in the Security Settings sub-menu is enabled and you have
the Access Userid and Access Password, if set.
2 Open your browser.
3 Type
http://
IPaddressOfUnit
/log.html
in the address bar.
02-CML000057 Precidia Technologies Inc. 61
Page 68
7 Accessing System Information Ether232Plus User Guide
The System Log is displayed as shown in the example below:
Ether232Plus Log
Jump to Latest Entries
===== Ether232Plus Started =====
00000 days 00:00:07 CONSOLE: configuration started
===== EtherPlus Started =====
00000 days 00:00:42 CONSOLE: configuration started
00000 days 00:02:25 Configuration changes saved -- restarting system
Link to Status Page
Example of the System Log Web Page
To access the System Log in configuration mode:
1 Access the Ether232Plus Configuration screen either locally or remotely.
2 Choose
3 Choose
System Settings
Dump System Log
from the Device Settings menu.
from the System Settings sub-menu.
62 Precidia Technologies Inc. 02-CML000057
Page 69
Ether232Plus User Guide 7 Accessing System Information
Understanding the System Log
Table 7.3 describes System Log messages you may see when performing a System
Log dump, and Table 7.4 lists possible error messages and what to do about them.
Table 7.3: System Log Messages
Message Description
=====Ether232Plus Started=====
=====Ether232Plus Log Deleted=====
CONSOLE: login accepted
CONSOLE: login rejected (timeout)
The unit has been started by: plugging in the power adapter, saving a
new configuration, timing out during
local configuration, exiting configuration without saving, or choosing
Reset Unit from the System Settings
menu. No timestamp presented. This
message indicates the unit was
started in normal mode. Timestamp
will start counting from zero (0)
after this message.
The Ether232Plus had its log
deleted. If present, this message will
always be the first entry in the log.
The unit went into console configuration mode, a password prompt was
given, and the correct password was
entered.
The unit went into console configuration mode, a password prompt was
given, but no response was input
within the 30 second timeout period.
Unit resets.
CONSOLE: login rejected (invalid password)
The unit went into console configuration mode, a password prompt was
given, but the password entered did
not match the configured Console
Password. Unit resets.
TELNET: login from xxx.xxx.xxx.xxx
rejected (configuration already running)
The unit went into telnet configuration mode, a password prompt was
given, and the correct password was
entered, but configuration was
already running (probably locally
through the COM port).
02-CML000057 Precidia Technologies Inc. 63
Page 70
7 Accessing System Information Ether232Plus User Guide
Table 7.3: System Log Messages
Message Description
TELNET: login from xxx.xxx.xxx.xxx
accepted
TELNET: login from xxx.xxx.xxx.xxx
rejected (timeout)
TELNET: login from xxx.xxx.xxx.xxx
rejected (invalid password)
Port #n: Listening for connection on tcp
port pppp...
Port #n: Connection attempt to
xxx.xxx.xxx.xxx:pppp...
The unit went into telnet configuration mode, a password prompt was
given, and the correct password
(configured Remote Password) was
entered.
The unit went into telnet configuration mode, a password prompt was
given, and the correct password was
entered, but no response was input
within the 30 second timeout period.
Unit does not reset.
The unit went into telnet configuration mode, a password prompt was
given, but the password entered did
not match the configured Remote
Password. Unit does not reset.
The unit will allow incoming TCP
connections on port pppp.
The unit is contacting the remote
server at the IP address and port
indicated.
Port #n: Incoming connection on tcp port
pppp from xxx.xxx.xxx.xxx:pppp
Port #n: Connection was established with
xxx.xxx.xxx.xxx:pppp
Port #n: No response connecting to host
at xxx.xxx.xxx.xxx:pppp
Port #n: No response from host at
xxx.xxx.xxx.xxx:pppp
Port #n: Connection was refused by
xxx.xxx.xxx.xxx:pppp...
The unit has detected an incoming
communication from the remote host
indicated on port pppp.
The unit has established a TCP connection with the remote host indicated on port pppp.
The remote host has not responded
to any TCP session establishment
requests.
The remote host is no longer
responding to TCP traffic (after it
had previously been responding).
The remote host actively refused a
connection request from the unit.
64 Precidia Technologies Inc. 02-CML000057
Page 71
Ether232Plus User Guide 7 Accessing System Information
Table 7.3: System Log Messages
Message Description
Connection was not from configured
remote address - refused
Port #n: Connection reset by remote host
at xxx.xxx.xxx.xxx:pppp
Port #n: Connection closed by remote
host at xxx.xxx.xxx.xxx:pppp
Port #n: Connection closed by us to host
at xxx.xxx.xxx.xxx:pppp
HTTP: host at xxx.xxx.xxx.xxx failed to
authenticate properly.
Configuration changes saved -- restarting
system
The incoming connection attempt
was not from the IP address configured as the Remote IP.
The remote host forcibly terminated
the active TCP session with the unit.
The remote host is taking the steps to
correctly close the TCP session with
the unit.
The unit is taking the steps to correctly close the TCP session with the
remote host.
The remote host attempted unsuccessfully to access the userid/password protected HTTP pages.
Internet Explorer may attempt
access using old data from previous
connections, resulting in this error.
A configuration change was saved.
Unit resets.
Port #n: Listening for connections on tcp
port pppp was not possible (Error # nn)
Port #n: Connection attempt to
xxx.xxx.xxx.xxx:pppp was not possible
(Error #nn)
Port #n: Incoming connection on tcp port
pppp from xxx.xxx.xxx.xxx:pppp (Error
#nn)
Incoming connection on tcp port held
waiting for connection control
The unit cannot listen on the specified port. Table 7.4 lists possible
error codes.
The unit could not connect to the
specified IP address and port number. Table 7.4 lists possible error
codes.
The unit could not accept the incoming connection. Table 7.4 lists possible error codes.
The connection control setting dictates that the incoming connection
not be established until the connection control signals are matched.
02-CML000057 Precidia Technologies Inc. 65
Page 72
7 Accessing System Information Ether232Plus User Guide
Table 7.3: System Log Messages
Message Description
Connection with xxx.xxx.xxx.xxx stopped
due to connection control
Connection with xxx.xxx.xxx.xxx dropped
due to connection control
Configuration changes could not be
saved--restarting system
DHCP: address xxx.xxx.xxx.xxx acquired
permanently
DHCP: address xxx.xxx.xxx.xxx acquired
for xxx seconds
The connection control setting and
signal lines dictate that the session
being established no longer become
established.
The connection control setting and
signal lines dictate that the session
that was established be dropped.
The configuration failed to be saved
to the unit. This could indicate bad
Flash.
DHCP assigned an IP address to the
unit which does not need renewal.
DHCP assigned an IP address to the
unit for the indicated number of seconds. Before expiration, DHCP
attempts to renew the licence. If
unsuccessful, DHCP attempts to
contact another DHCP server on the
network by sending a broadcast message. If the unit address is not
renewed, after expiration, it will no
longer have an IP address.
SNTP: Real-time clock updated (offset = x
seconds)
If a Primary server is configured, the
clock is enabled and updates every
five minutes. Its offset is a measurement of the difference between the
internal clock and the real-time
clock. The system uses the offset to
compensate for future time drifts.
SNTP: Unable to update real-time clock
Indicates that the configured server
did not respond to the time request.
66 Precidia Technologies Inc. 02-CML000057
Page 73
Ether232Plus User Guide 7 Accessing System Information
The following table lists all possible error codes that may appear in the system log.
Table 7.4: System Log Error Messages
Error
No.
1
2
3
4
5
6
7
8
9*
10
11
12
Error
the i/o request has been scheduled but not completed
no more i/o paths are available
requested operation was not supported by the driver
the provided i/o buffer was not valid
requested operation cannot be done in current state
too many connections of this type are already open
socket connection type (“domain”) is unknown
socket protocol type is unknown
“socket has already been bound to another port” Check that the port num-
ber is available for use. Change configuration if necessary.
requested port number is already in use
requested address was not valid for operation
operation requires bound port but socket is unbound
13
14
15
16
17
18
19
20*
21
22
device is not ready for the requested operation
cannot open connection because socket is already connected
operation requires connected socket but not connected
“data message is too big for transport type” Usually occurs with UDP
mode.
requested operation would break this thread -- try later
incoming data corruption has been detected
no data is available for this operation
“no route available from this host to destination host” Check the IP address
of the host. Change configuration if necessary.
storage device can accept no more data
requested option is not available
02-CML000057 Precidia Technologies Inc. 67
Page 74
7 Accessing System Information Ether232Plus User Guide
Table 7.4: System Log Error Messages
Error
No.
Error
If any other error number, name, or message appears in the System Log, contact
your Service Representative through the Service Request Form on our Web site
http://www.precidia.com/support/service_request.html or e-mail support@pre-
cidia.com
7.3 Static Web Page
You can host a static Web page or pages in the Precidia unit to display information
such as help desk telephone numbers or updates on the latest software downloads. The
Precidia unit comes loaded with a default static Web page that includes specifications
and product information.
Creating Static Web Pages
You can create one or more HTML pages that display any information that you
require, including graphics. The Precidia unit looks for a page called “index.html” as
the default main page. In addition to your main page, you can also create a custom
page called “Error404.html” that is displayed when a requested URL is not found. A
maximum of 64KB is allocated in memory for static web page(s). HTML pages and
associated files must be converted to a hex file format for download.
Refer to the Help Guide Coverting and Downloading Static Web Pages at
http://www.precidia.com/products/documentation.html for complete instructions.
Accessing the Static Web Page
1 Ensure the Web Server in the Security Settings sub-menu is enabled.
2 Open your browser.
3 Type
OTE
N
http://
: By default, your browser is directed to "index.html". To access a page with
IPaddressOfUnit/ in the address bar to display the static Web page.
another file name, type the complete URL in the address bar of your browser. For
example, to access a page called "mypage.html", type
mypage.html
.
http://
IPaddressOfUnit
/
68 Precidia Technologies Inc. 02-CML000057
Page 75
Appendix A: Glossary of Terms and Acronyms
ARP Address Resolution Protocol. A TCP/IP protocol used to convert an IP address
into a physical address, such as an Ethernet address. Defined in RFC826.
AT Attention. Modem command prefix.
BpP Bytes per Packet.
bps Bits per second. The standard measure of data transmission speeds.
CGI Common Gateway Interface. A standard for running external programs from a
World Wide Web HTTP server.
CPU Central Processing Unit.
CRC Cyclic Redundancy Checking. An error checking method that uses a 16 or 32-bit
polynomial that is derived from, stored and transmitted, with a block of data, in
order to detect corruption.
CSU Channel Service Unit. A device that performs protective and diagnostic functions
for a telecommunications line.
CTS Clear To Send. A modem signal line (pin 8 of DB-9 connectors), used for hard-
ware flow control. It is the counterpart to Request To Send (RTS). When the
remote end is ready to receive data, it sends a CTS signal to the local computer to
start transferring data.
DB-9 DB-xx is the designation for a series of port connectors for attaching devices to
computers. DB-9 specifically is a standard 9-pin, D-shell connector, used for RS232 serial communications.
DCD Data Carrier Detect. A modem signal line (pin 1 of DB-9 connectors).
DCE Data Communications Equipment. It is the interface that a modem or other serial
devices use to exchange data with a computer.
02-CML000057 Precidia Technologies Inc. A-1
Page 76
Appendix A: Glossary of Terms and Acronyms Ether232Plus User Guide
DES Data Encryption Standard. A standard cryptography method that uses a 56-bit private
key. DES performs encryption operations on 64-bit blocks of data in 16 rounds. DES
was developed by IBM in 1977 and was considered “strong” encryption.
3DES TripleDES provides even stronger encryption than DES, by extending the 56-bit pri-
vate key to 192 bits.
DHCP Dynamic Host Configuration Protocol. A protocol for assigning dynamic IP addresses
to devices on a network.
DLE Data Link Escape. Mnemonic for ASCII 16, a transmission control character that
changes the meaning of a limited number of contiguously following characters or
coded representations.
DSR Data Set Ready. A modem signal line (pin 6 of DB-9 connectors), used for RS-232
hardware flow control. It is the counterpart to Data Terminal Ready (DTR).
DSU Data Service Unit. A device that connects a terminal or computer to a digital line.
DTE Data Terminal Equipment. The interface used to exchange between computers.
DTR Data Terminal Ready. A modem signal line (pin 4 of DB-9 connectors), used for RS-
232 hardware flow control. It is the counterpart to Data Set Ready (DSR).
Ethernet An industry standard local area network architecture that serves as the basis for IEEE
802.3. Ethernet uses a bus or star topology and supports data transfer rates of 10 and
100 Mbps.
ETX End of Text. Mnemonic for the ASCII 3 character, signaling the end of a text frame.
Gateway A device that enables data to flow between different networks, forming an internet. In
this case, a router connects two broadcast networks at the IP layer 3.
Hex Hexadecimal. It refers to a base-16 numbering system, as opposed to binary, which is a
base-2 numbering system. Hexadecimal numbers consist of numbers 0-9, and letters
A-F. Hexadecimal numbering is commonly used to express 8-bit binary numbers. One
hexadecimal digit can represent the arrangement of four binary digits. Two hexadecimal digits can represent eight binary digits, or a byte.
ICMP Internet Control Message Protocol. An extension to IP, ICMP supports packets con-
taining error, control, and informational messages. Defined in RFC792.
ID Identification/Identifier/Identity.
IEEE Institute of Electrical and Electronic Engineers.
I/O Input/Output.
A-2 Precidia Technologies Inc. 06-CML000027
Page 77
Ether232Plus User Guide Appendix A: Glossary of Terms and Acronyms
IP Internet Protocol. The network layer for the TCP/IP protocol suite, widely used with
Ethernet networks. IP is a connectionless, best-effort packet switching protocol. It provides packet routing, fragmentation and re-assembly through the data link layer.
Defined in RFC791.
IPsec Internet Protocol Security. A protocol that provides security for transmission of sensi-
tive information over unprotected networks such as the Internet. IPsec acts at the network layer, protecting and authenticating IP packets between participating devices
("peers"), such as routers.
LAN Local Area Network. A data communications network which is geographically limited
(typically to a 1 km radius), allowing easy interconnection of terminals, microprocessors and computers with adjacent buildings.
LRC Longitudinal Redundancy Checking. An error checking method that generates a parity
byte from a specified string or block of bytes.
LSB Least Significant Bit/Byte. Bit zero, the bit in a binary number giving the number of
ones, the last or rightmost bit.
MD5 Message Digest 5. An algorithm used to verify data integrity through the creation of a
128-bit message digest from data input. Defined in RFC1321.
MIB Management Information Base. A database of managed objects accessed by network
management protocols. An SNMP MIB is a set of parameters which an SNMP management station can query, or set, in the SNMP agent of a network device (e.g. router).
ms Milliseconds.
MSB Most Significant Bit/Byte. Bit n-1 in a binary number with n bits, the bit with the great-
est weight, the first, or leftmost bit.
PC Personal Computer.
PDU Protocol Data Units.
POS Point of Sale. Refers to financial transaction devices located directly in stores/busi-
nesses, where the customer pays directly from their account.
RFC Request For Comments. A series of technical documents and organizational notes
about the Internet. See http://www.rfc-editor.org/
RTS Request To Send. A modem signal line (pin 7 of DB-9 connectors), used for hardware
flow control. It is the counterpart to Clear To Send (CTS). When the unit is ready to
receive data, it sends the RTS signal to the remote host to start transferring data.
06-CML000027 Precidia Technologies Inc. A-3
Page 78
Appendix A: Glossary of Terms and Acronyms Ether232Plus User Guide
SNMP Simple Network Management Protocol. A set of protocols for managing complex net-
works. SNMP sends messages, protocol data units (PDUs), to different parts of a network. SNMP-compliant devices, called agents, collect and store the data about
themselves in MIBs. The agents then return this data to the SNMP requesters. Defined
in RFC1157.
SNTP Simple Network Transport Protocol. Used to synchronize computer clocks on the
Internet. Defined in RFC1361. SNTP uses standard NTP timestamp format described
in RFC-1305.
SPI Security Parameters Index. A 32-bit value used to distinguish among IP packets using
IP security associations and arriving at the same destination.
STX Start of Text. Mnemonic for the ASCII 2 character, signaling the start of a text frame.
Subnet
mask
A bit mask used to identify which bits of an IP address correspond to the network
address, and subnet portions of the address. The subnet mask has ones in positions corresponding to the network and subnet numbers, and zeros in the host number positions.
TCP Transmission Control Protocol. TCP is the connection-oriented protocol built on top
of Internet Protocol (IP) and is nearly always seen in the combination TCP/IP (TCP
over IP). It adds reliable communication and flow-control and provides full-duplex,
process-to-process connections. Defined in RFC793.
TFTP Trivial File Transfer Protocol. A simple file transfer protocol used for many purposes
including downloading to diskless workstations.
UART Universal Asynchronous Receiver-Transmitter. A computer component (chip) that
handles asynchronous serial communication.
UDP User Datagram Protocol. A connectionless protocol that, like TCP, runs on top of an
IP network. Unlike TCP, UDP provides no error recovery services, offering instead, a
direct way to send and receive datagrams over an IP network.
URL Uniform Resource Locator. The global address of documents and other resources on
the global Internet.
VPN Virtual Private Network.
A-4 Precidia Technologies Inc. 06-CML000027
Page 79
Appendix B: Troubleshooting and Support
First Steps
1 Configure the unit with the correct settings. Follow the procedure in the figure
on the following page (B-2) to troubleshoot Configuration screen access.
2 Ensure that you are using the correct serial cables and that all cables are prop-
erly connected and in good working order.
- If you are connecting the Precidia unit to a DTE (Data Terminal Equipment) device, use a null modem serial cable.
- If you are connecting the Precidia unit to a DCE (Data Communication
Equipment) device, use an RS-232 serial cable.
- If you are connecting the Precidia unit as a Hayes-compatible modem, or
to a Hayes-compatible modem, use a specialized null modem serial cable.
See “Specialized Null Modem Serial Cable” on page E-1. Some POS
terminals may also require this type of cable.
3 If you know the IP address of the unit, you can check the network connection
by pinging the unit. (See Check IP Address (Ping) on page B-3.)
4 Check the indicator lamps on the front panel of the unit and use the indicator
lamp tables in this Appendix to diagnose the problem.
5 If, after following the suggestions in this guide, you are still having problems
accessing configuration or gaining connectivity, contact Precidia support by
filling out a Service Request Form at:
http://www.precidia.com/support/service_request.html.
A support representative will contact you within one business day.
For general information, User Guides and Help Guides, visit:
http://www.precidia.com/
See Appendix C: Specifications and Warranty for warranty information.
02-CML000057 Precidia Technologies Inc. B-1
Page 80
Appendix B: Troubleshooting and Support Ether232Plus User Guide
Troubleshooting Configuration Access
Troubleshooting Flow for Set-Up Connection
B-2 Precidia Technologies Inc. 02-CML000027
Page 81
Ether232Plus User Guide Appendix B: Troubleshooting and Support
Check IP Address (Ping)
Use ping to check if the Precidia unit is correctly configured on the network. If you
cannot reach the Precidia unit using Ping, the Precidia unit is either incorrectly configured or there is a network problem.
To “ping” the Precidia unit:
1 Open the MS-DOS Prompt. (Usually found under Start>Programs)
2 At the C:\WINDOWS> prompt type
- If you get Reply messages, the Precidia unit has a valid connection to the
network.
- If you get a Request timed out message, the Precidia unit is incorrectly configured with the IP address, or you have a network connection problem.
OTE
N
: You can also use ping to check if an IP address is already in use on your
network, before assigning it to a new unit.
Basic Troubleshooting
Table B.1: Basic Troubleshooting
Problem Solution
The Configuration screen does not
appear when I press the CONFIGURE
button
1 Follow the troubleshooting flow diagram on the
previous page (B-2).
2 Ensure your terminal software is set to 9600 bps
3 Ensure you are pressing and holding the CON-
FIGURE button for at least 2 seconds
ping
and the
IP address
you want to check.
I can’t access the unit using telnet 1 Ensure the unit is active on the network (check
by pinging or viewing the status page locally)
2 Set a Remote Password
I only see strange characters in the terminal window when I press the CONFIGURE button
The TRANSMIT lamp illuminates but
nothing appears on the terminal screen
when I press the CONFIGURE button
02-CML000027 Precidia Technologies Inc. B-3
Ensure the terminal software is set to 9600 bps.
1 Check the terminal settings. Ideal settings are
9600 bps, 8 data bits, no parity, 1 stop bit, hard-
ware flow control
2 Check that the terminal is configured to the cor-
rect Com port on your PC
3 Check that you are using a null modem cable to
connect the unit to your PC
4 Unplug the unit and plug it back in
5 Try again
Page 82
Appendix B: Troubleshooting and Support Ether232Plus User Guide
Table B.1: Basic Troubleshooting
Problem Solution
I completed set-up with 2 units, but
they do not appear to be communicating
1 Ensure IP Address, Subnet Mask, and Gateway
are configured or automatically obtained
2 Ensure the Local Port setting on each unit
matches the Remote Port on the other unit
I’m trying to connect my serial device to
my PC over the LAN/WAN
You need to use Com Port Redirector software on
your PC and the ComPort Control Connection Control setting for the Precidia unit.
What are the pinouts for the unit? See “Cables” on page E-1.
The unit is not connecting to the network
Ensure the IP Address, Subnet Mask, and Gateway
are correctly configured. This can be done manually, or through a DHCP server.
The unit is not communicating with the
serial device
1 Ensure all cables are properly connected
2 Ensure the proper cable is used. Modems and
some POS terminals require a sp ec ia l i zed null
modem cable. See “Specialized Null Modem
Serial Cable” on page E-1.
3 Ensure you have a configured a Protocol for the
Serial Port and any other necessary settings
I lost the Console Password and I cannot
access Configuration
1 If you have defined a Remote Password, access
the unit through telnet and view or change the
Console Password
2 See page 13 of the User Guide for instructions on
how to reset the entire configuration to factory
default settings, erasing all passwords
B-4 Precidia Technologies Inc. 02-CML000027
Page 83
Ether232Plus User Guide Appendix B: Troubleshooting and Support
Indicator Lamps (LEDs)
ON lamp
The ON lamp indicates power is available to the Ether232Plus.
Table B.2: ON Lamp Troubleshooting
Lamp Status Standard Troubleshooting Procedure
On OK - unit
has power
Off Unit has no
power
None
• Check connection of the power adapter into the
Ether232Plus
• Check to confirm the opposite end (with the black
transformer) is plugged into a power outlet
• Check the power outlet by plugging in a "known
operational" power plug
• Replace the power adapter with one approved by
Precidia
ETHERNET – LINK lamp
Illuminates when the Ethernet port has a 10BaseT Ethernet network connection.
Table B.3: LINK Lamp Troubleshooting
Lamp Status Standard Troubleshooting Procedure
On OK - Ethernet
connection in
place
None
OTE
N
: This light may be on if the Ether232Plus is
not configured.
Off No Ethernet
connection
• Ensure the Ethernet cable is properly plugged
into the Ether232Plus.
• Ensure the Ethernet cable's opposite end is properly plugged into your LAN hub.
OTE
N
: The hub also has Link lamps that will
provide further troubleshooting information.
02-CML000027 Precidia Technologies Inc. B-5
Page 84
Appendix B: Troubleshooting and Support Ether232Plus User Guide
ETHERNET – COLLISION lamp
Illuminates when more than one device is trying to use the Ethernet at the same time.
The IP protocol automatically attempts to rectify the situation and data is rarely lost.
Table B.4: COLLISION Lamp Troubleshooting
Lamp Status Standard Troubleshooting Procedure
On Collision
between data
streams has
occurred
• Ensure the Ethernet cable is properly plugged
into the Ether232Plus.
• Check that the Ethernet cable's opposite end is
properly plugged into your LAN hub.
OTE
N
: The hub also has Link lamps that will
provide further troubleshooting information.
Off OK
None
ETHERNET – TRANSMIT lamp
Illuminates when the Ether232Plus is sending or receiving data via the Ethernet port.
Normally you will see very short data bursts.
Table B.5: TRANSMIT Lamp Troubleshooting
Lamp Status Standard Troubleshooting Procedure
Flashing OK - data is
being transmitted
None
Off No data is
being transmitted
B-6 Precidia Technologies Inc. 02-CML000027
Ensure the Ethernet cable between the
Ether232Plus and the Ethernet device is properly
connected
Page 85
Ether232Plus User Guide Appendix B: Troubleshooting and Support
COM – TRANSMIT lamp
Illuminates when the Ether232Plus is sending or receiving data via the COM port
Normally you will see very short data bursts.
Table B.6: COM TRANSMIT Lamp Troubleshooting
Lamp Status Standard Troubleshooting Practice
On OK - In con-
figuration
mode
Flashing OK - data is
being transmitted
Off No data is
being transmitted
Finish configuring the Ether232Plus and exit from
configuration mode.
None
• Ensure the serial cable between the
Ether232Plus and the serial device is properly
connected
• W as the configuration recently changed? Look
at the System Status page to check the system
uptime. If it is a short period, check the configuration of the Ether232Plus to see if it has
been modified recently. Please refer to
Sections 3 and 4 for further information.
COM – STATUS lamp
This lamp indicates the status of the network connection.
Table B.7: COM STATUS Lamp Troubleshooting
Lamp Status Standard Troubleshooting Practice
On Network con-
nection is
established
Slow
Flash
Fast
Flash
02-CML000027 Precidia Technologies Inc. B-7
OK - no
activity
present
OK attempting
connection to
remote host
None
None
None
Page 86
Appendix B: Troubleshooting and Support Ether232Plus User Guide
Table B.7: COM STATUS Lamp Troubleshooting
Lamp Status Standard Troubleshooting Practice
Off Unit may be
incorrectly
connected or
configured
Service and Support
Fill out the Service Request Form at
http://www.precidia.com/support/service_request.html
and a support representative will contact you within one business day.
General information, User Guides and Help Guides available at
http://www.precidia.com/
See Appendix C, Specifications and Warranty, for warranty information.
• Ensure cable between the Ether232Plus and
the RS-232 device is properly connected with
the correct serial cable
• Check configuration of unit
B-8 Precidia Technologies Inc. 02-CML000027
Page 87
Appendix C: Specifications and Warranty
Ether232Plus Specifications
Serial interface:
Serial connector:
Serial speed:
Device support:
Ethernet interface:
Ethernet connector:
Ethernet speed:
Indicators:
Protocols/Services:
Configuration:
RS-232 mode
(COM Port)
RS-422 mode
(RS422 Port)
RS-485 mode
(RS422 Port)
RS-232 DTE RS-422 4-wire RS-485 2-wire
DB-9 male RJ-45 full duplex RJ-45 half duplex
300 – 115200 bps 300 – 115200 bps 300 – 115200 bps
Asynchronous serial devices with 7- or 8-bit data, with or w/out parity
Ethernet, IEEE 802.3, 10baseT
RJ-45
10 Mbps
Power (on), Ethernet (link, collision, transmit), COM (transmit, sta-
tus)
ARP, ICMP, UDP, TCP, IP, HTTP, telnet, TFTP, Com Port Control
(RFC2217), SNMPv2c, FTP, IPsec (manually keyed), SNTP
Serial interface protocol and IP addresses for device, subnet mask,
gateway router, and destination
Power adapter:
Operating temp.:
Dimensions (h x w x d):
Weight (incl. power sup-
ply):
Security:
9V DC external, 500mA (power req. 8.5V, 220mA)
0-50ºC / 32-125ºF
28mm x 155mm x 80mm / 1.1” x 6.0” x 3.1”
500g / 17.14oz.
IPsec (manually keyed), and Web, Remote and Console password pro-
tection
02-CML000057 Precidia Technologies Inc. C-1
Page 88
Appendix C: Specifications and Warranty Ether232Plus User Guide
Warranty
Precidia products are warranted against manufacturing defects in materials and workmanship for a period of one year. This warranty is conditional on the unit being
installed and used as directed in the User Guide. The warranty is extended to cover the
Precidia Unit as well as the power adapter.
Precidia's obligation under this warranty shall be limited to the repair, including all
necessary parts and the cost of labour connected therewith, or at our option the
exchange of a unit, which shows manufacturing defect within the warranty period with
a like new unit.
Customer obligations
The customer is responsible for transportation to the service depot and any applicable
brokerage fees.
Warranty exclusions
This warranty shall not apply to appearance or any accessory items including but not
limited to cables. This warranty shall, in addition, not apply to damages due to
handling, transportation, and unpacking. The warranty also does not extend to cover
any malfunction caused by, or resulting from, abnormal environmental conditions,
unauthorized service, improper maintenance, modifications or repairs by the customer,
abuse, misuse, neglect, accident, fire, flood, or other acts of nature, or incorrect line
voltage.
The customer may have other rights under existing state/provincial or federal laws,
and where such laws prohibit any terms of this warranty, they are deemed null and
void, but the remainder of the warranty shall remain in effect.
Service and Support
Fill out the warranty form at
http://www.precidia.com/support/service_request.htmll
and a support representative will contact you within one business day.
General information, user guides and help guides available at
www.precidia.com
C-2 Precidia Technologies Inc. 02-CML000027
Page 89
Appendix D: Connecting with Telnet
Before you can access and reconfigure Precidia products remotely, you must
configure the following settings locally:
• the IP Address and Subnet Mask (or automatically with DHCP)
• the Gateway address if necessary (or automatically with DHCP)
• the Remote Password
Refer to the User Guide for more information on configuring these settings.
To connect to the Precidia unit remotely using Telnet:
1 From the
The Run window appears.
2 Type
The Telnet application window appears.
Start menu
in the Open field and click OK.
telnet
, select
Run...
02-CML000057 Precidia Technologies Inc. D-1
Page 90
Appendix D: Connecting with Telnet Ether232Plus User Guide
3 From the
Connect
menu, chose
Remote Systems...
The Connect window appears.
4 Type the
Port field.
5 Click
Connect
IP address
of the unit in the Host Name field, and choose
.
You are prompted to enter your password in the Telnet window.
Telnet
in the
6 Type the
.
Enter
Remote Password
you created during local configuration, and press
The Configuration screen appears in the Telnet window.
If you typed an invalid password, the connection to the host will be dropped. Ensure
you have the correct IP address and Remote Password, and go back to Step 3.
OTE
N
: The Remote Password is case sensitive.
D-2 Precidia Technologies Inc. 02-CML000027
Page 91
Appendix E: Pinouts and Power Supply
Cables
Standard Null Modem Serial Cable
DB-9 Female DB-9 Female
11
23
32
46
55
64
78
87
Specialized Null Modem Serial Cable
If you are connecting a Precidia device to a Hayes-compatible modem, or the
Precidia device is acting as a Hayes-compatible modem (modem connection
control) you will need a null modem cable with the wiring below. This cable may
also be required for certain POS terminals. The cable below is available through
Cables To Go and various resellers in North America. Search part number
“03044”.
DB-9 Female DB-9 Female
23
32
41, 6
55
1, 6 4
78
87
02-CML000057 Precidia Technologies Inc. E-1
Page 92
Appendix E: Pinouts and Power Supply Ether232Plus User Guide
RS-485 Serial Cable
If you are connecting an RS-485 serial device to the Ether232Plus you will need a
2-wire cable with an RJ-45 connector as illustrated below:
E-2 Precidia Technologies Inc. 02-CML000027
Page 93
Ether232Plus User Guide Appendix E: Pinouts and Power Supply
Connectors
COM Port Pinout (DB-9)
Pin Signal Type
1 Data Carrier Detect (DCD) In
2 Receive Data (RD) In
3 Transmit Data (TD) Out
4 Data Terminal Ready (DTR) Out
5 Signal Ground (GND) Power
6 Data Set Ready (DSR) In
7 Request to Send (RTS) Out
8Clear to Send (CTS) In
9No Connect/Power Out
02-CML000027 Precidia Technologies Inc. E-3
Page 94
Appendix E: Pinouts and Power Supply Ether232Plus User Guide
ETHERNET Port Pinout
(RJ-45)
Pin Signal Type
1 Transmit positive (TX +) Out
2 Transmit negative (TX-) Out
3 Receive positive (RX+) In
4NC —
5NC —
6 Receive negative (RX-) In
7NC —
8NC —
RS422 Port Pinout
(RJ-45, full duplex)
Pin Signal Type
1NC —
2GND —
3 Transmit negative (TX-) Out
4 Transmit positive (TX+) Out
5 Receive negative (RX-) In
6 Receive positive (RX+) In
7GND —
8NC —
OTE
N
: The RS422 port is also used for RS-485 connections using an RS-485 cable
with an RJ-45 connector, as illustrated on page E-2.
E-4 Precidia Technologies Inc. 02-CML000027
Page 95
Ether232Plus User Guide Appendix E: Pinouts and Power Supply
Power Supply
Customers in North America are supplied with an AC power adapter conforming to
the specifications below. Customers in other parts of the world should obtain a power
supply that meets these requirements.
Output Voltage: 9 VDC @ 500 mA
Polarity: Center Pin Negative (-) or
Positive (+)
+
-
Inside Diameter: 2.1 mm
Outside Diameter: 5.5 mm
Barrel Length: 9.5 mm
Class 2 Transformer
Center Polarity: Negative (-)
Center Polarity: Pos (+) or Neg (-)
9.5 mm
9.5 mm
-
+
5.5 mm
5.5 mm
2.1
2.1 mm
mm
02-CML000027 Precidia Technologies Inc. E-5
Page 96
Appendix E: Pinouts and Power Supply Ether232Plus User Guide
E-6 Precidia Technologies Inc. 02-CML000027
Loading...
