Powerwerx TR7200 Users Manual

www.tera.co

User Manual

TR-7200

TR-7400

TERA

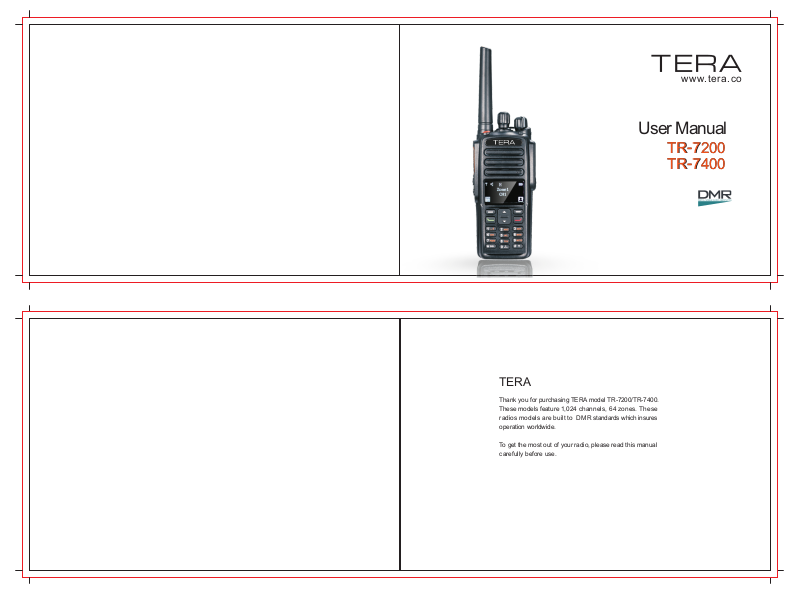

Thank you for purchasing TERA model TR-7200/TR-7400. These models feature 1,024 channels, 64 zones. These radios models are built to D M R standards which insures operation worldwide.

To get the most out of your radio, please read this manual carefully before use.

Initial Programming

This commercial handheld radio ships from the manufacture “Displayed Locked” per FCC rules. You must first use the programming software to unlock this radio for the first time of use. You will need the programming cable to connect your radio to your computer for programming. Please contact your dealer for radio programming software. When programming this radio for the first time , it is recommended you first READ the radio with the software and then save this file for future reference. In addition, after you READ this radio with software, first make your programming and frequency changes, then send this edited file back to your radio. Please contact the dealer you purchased this radio from or TERA should you have any questions.

On-line Service and Support

The TERA website provides additional information about obtaining service or support for the TERA line of digital portable radio and accessories.

visit: www.tera.co

User Manual

Safety Matters

The following recommendations will help you understand this radios safety requirements.

1. Only qualified TERA technicians are allowed to service this . Do not disassemble the radio by yourself as it will void the warranty.

2. Use only the TERA brand battery pack and desk charger, so as to not damage the transceiver.

3. Do not expose this radio to long periods of direct sunlight, or hot or humid areas.

4. Do not put this radio in dusty or dirty locations.

5. Do not use harsh chemicals, cleaning solvents, or strong detergent to wash this radio.

6. Never transmit on this radio without an antenna.

Caution

Safety and operability of this radio can’t be guaranteed unless TERA brand accessories or parts are used.

digital portable radio

Contents

Safety Matters

Product Inspection

Get Acquainted

Cautions in Charging

Antenna Information

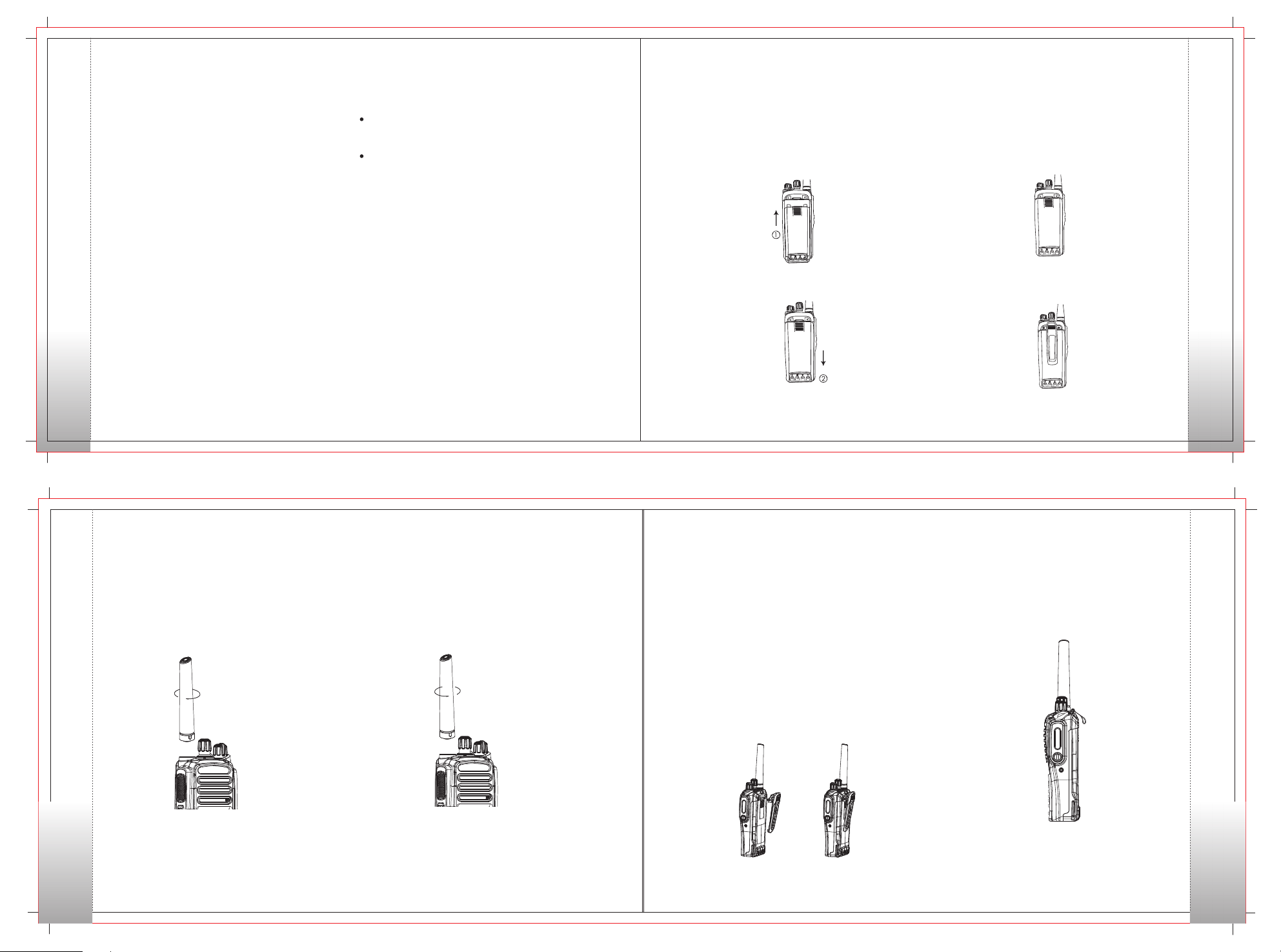

Attaching and Removing

Attaching/Removing the battery

Attaching/Removing the antenna

Installing/Removing the Belt Clip

Installing Hand Strap

Attaching the Audio Accessory /Removing

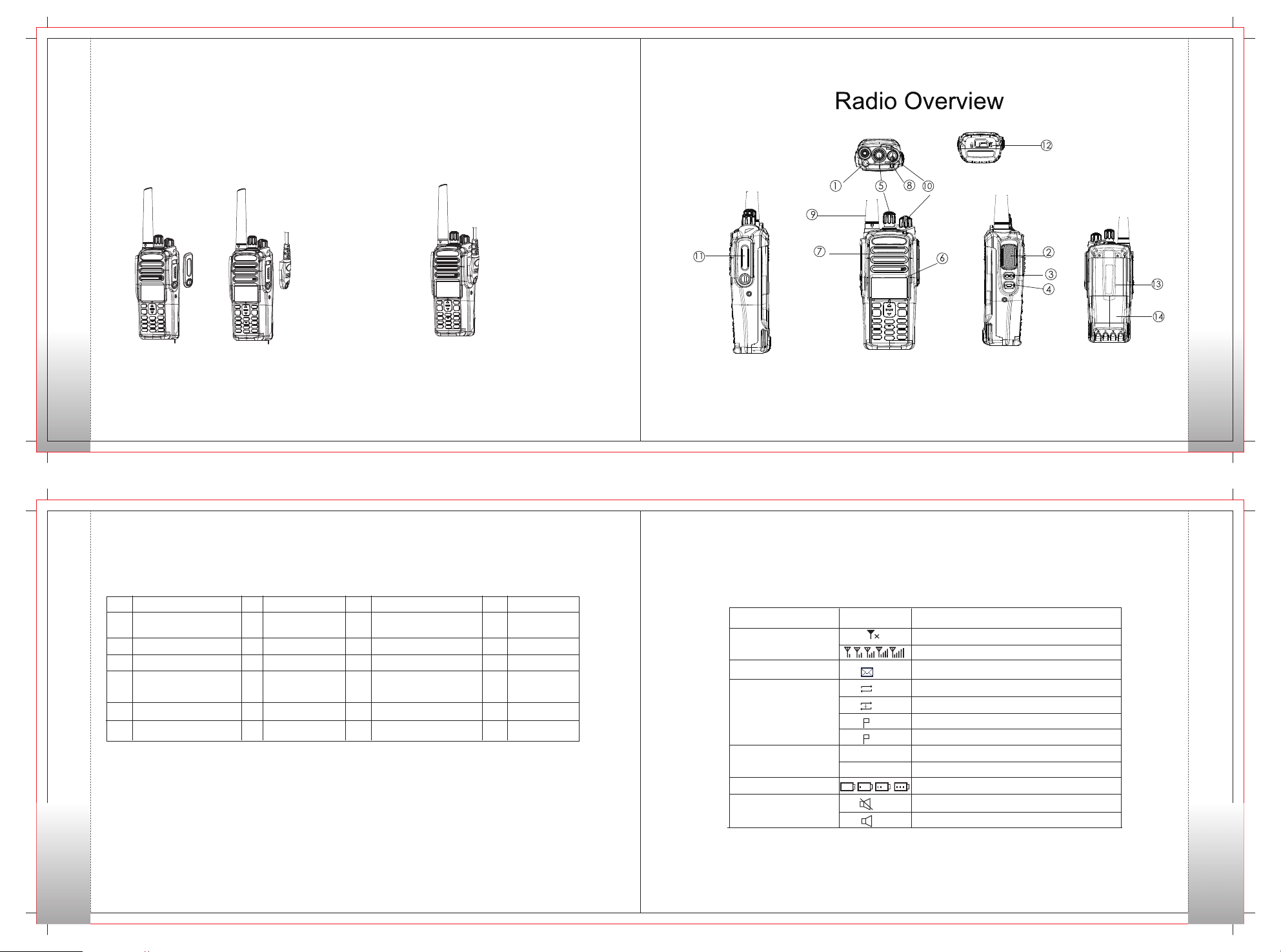

Radio Overview

Status Indicators

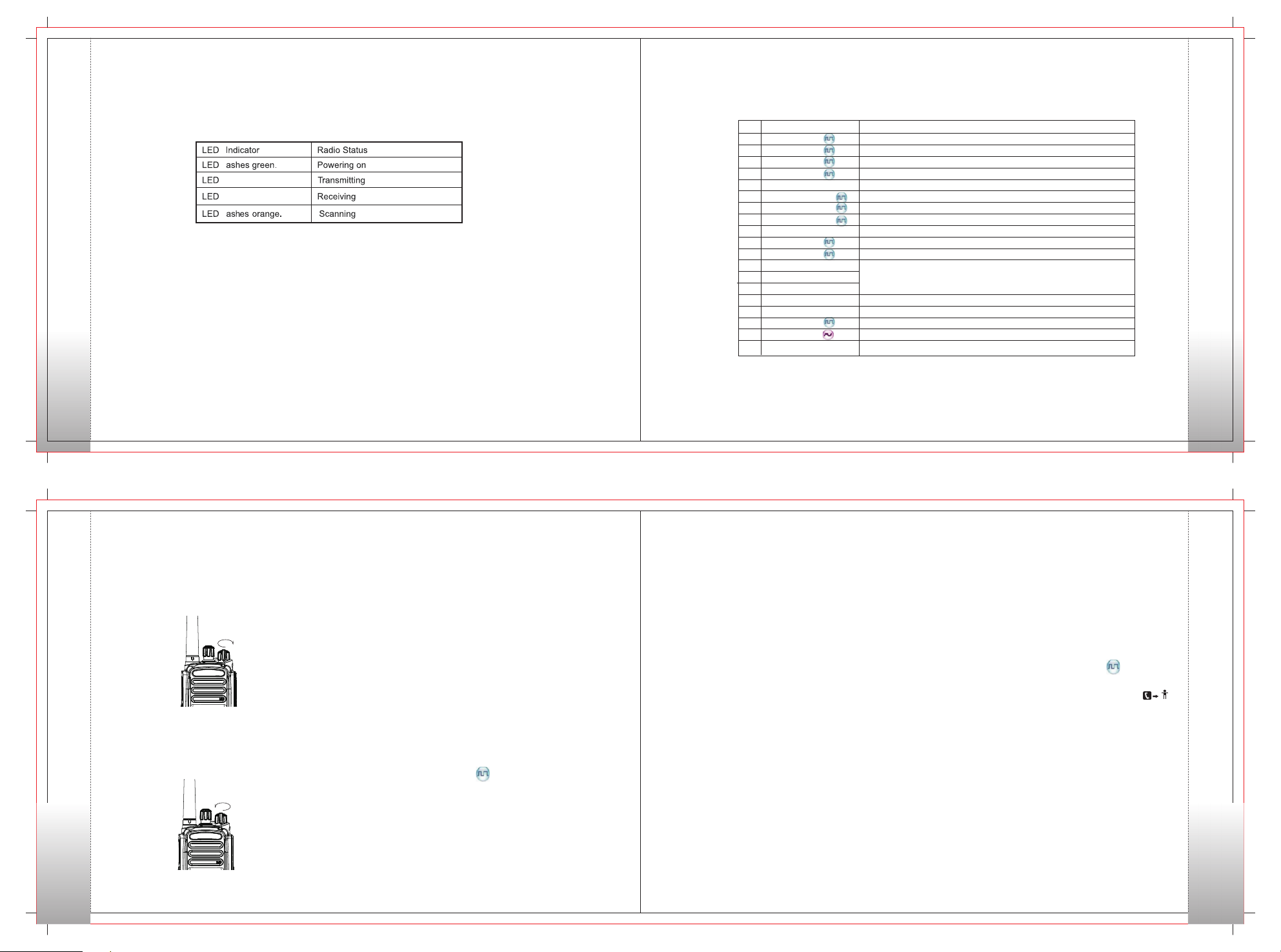

LED Indicator

Programmable Keys

Basic Operations

Turning the Radio On/Off

Adjusting the Volume

Selecting a Zone

Contents

Selecting a Channel

Analog/Digital Switch

Locking/Unlocking the Keypad

Private Call

Group Call

Transmitting an All Call

Menu Navigation

Message

Contact

Call Logs

Scan

Settings

TOT

TX Power

Basic Settings

Functions and Operations Care and Maintenance Service and Support

Terms of Warranty

Safety Matters

Please read rules below. Nonobservance of these rules may cause danger or violation of law.

The use this radio must comply with regulations of local government.

Turn off the radio before you enter places of flammable or explosive environment.

Do not replace or charge battery pack in places of flammable or explosive environment.

Turn off the radio before you approach blast area and detonator area.

Do not use the damaged antenna which may cause lightly burn on skin.

Only qualified technician are allowed to maintain this two-way radio. Do not disassemble the radio by yourself.

To avoid problems caused by electro mag neti c int erf eren ce or electromagnetic compatibility, please turn off the radio in places with “Wireless Communication Transmit Equipment Prohibited” mark, such as hospitals or other health care places. When taking a plane, turn off the radio if required.

In a car with air bag, do not place the radio within possibly involved area when air bag expands.

Do not expose the radio to direct sunlight or near heating devices for a long time.

Keep the radio vertical and speak near the mi cr oph on e during transmitting.

Make sure that the antenna is 2.5 cm away from the body during transmitting if you carry the radio on your body.

Safety Matters

Product Inspection

Thanks for using TR-7200 / TR-7400 . Before use, we recommend that: First check the package for any signs of damage; Carefully open the package and identify the items listed below; If any items are missing or damaged during shipment, please contact your dealer.

Product Inspectionrs

digital portable radio

Items

Radio DH-9800 Qty:1

Lanyard Strap Qty:1

Antenna Qty:1

Belt Clip Qty:1

Li-Ion Battery Qty:1

User Manual Qty:1

Charger Qty:1

Adapter Qty:1

Get Acquainted

Battery Information

Applicable Battery Model:

lease charge with TERA approv ed bat tery; Using other

batteries may burst and cause personal damage.

Note:

1. Do not short-circuit the battery terminals or dispose the battery in fire. Never attempt to disassemble the battery pack.

2. Charge the battery in 0-45℃ temperature. Otherwise the battery may not be fully charged.

3. Turn off the radio equipped with battery before charge. Use the radio while charging may interfere with charging.

4. Do not pull/plug the adapter and the battery during charging to avoid interfere with the charging procedure.

5. When the battery power consumes quickly even if it is fully and

correctly charged, that means the battery life is over and please replace with new battery.

6. Do not charge if the battery or radio is wet. Before charge, you should dry it with cloth to avoid danger.

Warning:

Co ndu ctiv e me tals s u ch a s j ew e l ry, k ey o r decorating lace may result in short ci r cu i t a n d generate a large quantity of heat when com in g to contact with battery ele c t rodes . Treat any battery carefully especially when placing it into pocket, wallet or other metal container.

Charge Operation

Please charge as follows:

Get Acquainted

Note: Frequency is marked on the color circle at the bottom of the antenna.
