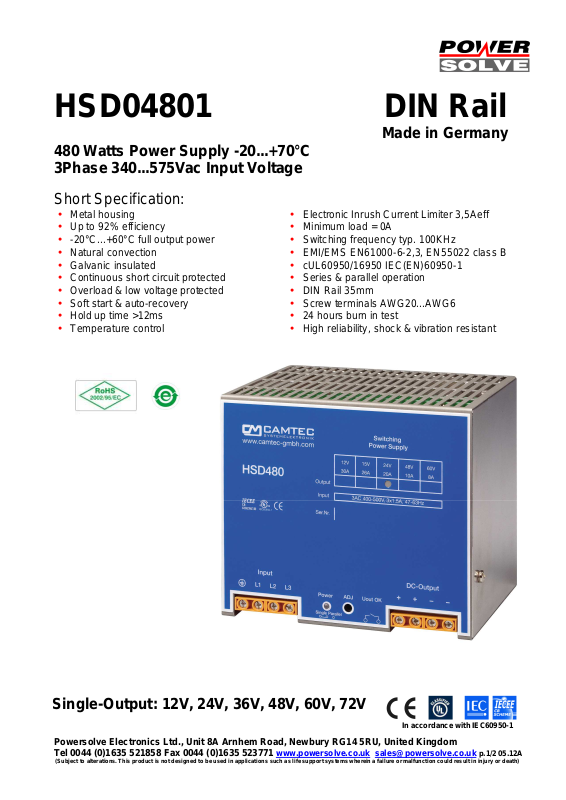

HSD04801 DIN Rail
Made in Germany
480 Watts Power Supply -20...+70°C
3Phase 340...575Vac Input Voltage
Short Specification:
Metal housing
• Up to 92% efficiency
• -20°C...+60°C full output power
• Natural convection
• Galvanic insulated
• Continuous short circuit protected
• Overload & low voltage protected
• Soft start & auto-recovery
• Hold up time >12ms
• Temperature control
Single-Output: 12V, 24V, 36V, 48V, 60V, 72V
Electronic Inrush Current Limiter 3,5Aeff
• Minimum load = 0A
• Switching frequency typ. 100KHz
• EMI/EMS EN61000-6-2,3, EN55022 class B
• cUL60950/16950 IEC(EN)60950-1
• Series & parallel operation
• DIN Rail 35mm
• Screw terminals AWG20...AWG6
• 24 hours burn in test
• High reliability, shock & vibration resistant
In accordance with IEC60950-1
Powersolve Electronics Ltd., Unit 8A Arnhem Road, Newbury RG14 5RU, United Kingdom
Tel 0044 (0)1635 521858 Fax 0044 (0)1635 523771
(Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)
www.powersolve.co.uk sales@powersolve.co.uk
p.1/2 05.12A
L1 L2 L3
AC
Input 3AC 340...575Vac 47...63Hz 450...820VDC
AC
Input Rating
3x400
...500
Vac 1.5A
/400Vac
(2PH operation with derating)
Rated DC Voltage
12V 24V 36V 48V 60V 72V
Rated DC Current
30.0A
20.0A
13.3A
10.0A
8.0A 6.7A
Powerboost
≤ 30Sec
36.0A
24.0A
16.0A
12.0A
9.6A 8.0A
Ripple [mVpp] 230Vac
50 (20MHz)
50 (20MHz)
100 (20MHz)
100 (20MHz)
120 (20MHz)
150 (20MHz)
Output adj. range
11,6
V...13,8V
22,5V...28,5V
32,8V...38,0V
45,6V...52,8V
57,0V...66,0V
68,0V...86,0V
Po
wer Good Relay
Yes Yes Yes Yes Yes*
Yes*
Order code:
HSD048
0
1.Vout
T
Exa
mple: 24V for DIN
-
Rail = HSD048
0
1.24T
*Power Good Relay & Shutdown: no
protective electrical separation >60Vdc !
Tolerance
± 1%
Load regulation
400Vac input
< ± 0.5% 10
-
100%, 100
-
10%
Switching Frequency
100KHz typical
Minimum Load
0 A
Efficiency
Up to 9
2%
L
oad Protection
1,2
x I
rated
,auto recovery
Voltage
Protection
135
% of U
out
, auto recovery
Short Circuit Protection
Continuous
Temperature Control
Yes
Hold Up Time
> 12
ms
400
Vac
Inrush Current
Limiter
< 3.5A
eff <5A peak
(230Vac)
Softstart
5ms typical
Cooling
Natural Convection
Ambient Temperature
-
20°C
…+70°C
Storage Temperature
-
40°C
…+85°C
EMI EN55022 class B / EN61000
-3-2
EMS EN61000
-6-
2,3
Safety
cUL60950/1950
,
EN60950
-1
Safety class 1(A)
VDE0805, VDE0100
Air & Surface Leakage Paths
> 12,2mm
Input / Output
Galv
anic insulated
3000Vac
Power Good Relay
(opener)
<48Vdc/500mA
(galv. Insulated)
MTBF IEC61709
60
0000h
Dimensions (HxW
xD) 130x15
0
x118.5
mm
Weight
1900g
Screw Terminal (AC and DC)
AWG20
...AWG6
(wall mount plate for base-plate cooling into the cabinet walls upon request)
Conception:
The HSD power supply series realizes very high power efficiency in a
space-saving housing. This design enables Green Power applications
and allows free air convection. Latest generation electrical devices
relate to the high reliability of all Camtec products. The Camtec
philosophy is, to employ 125°C low ESR ultra long life capacitors
where expedient to achieve a superior lifetime of our products. The
used screw terminal plugs allow easy to wire, smooth service and
protect you from mix-up the input with the output signals.
150
Terminal Connects:
1 = PE
SK1 2 = L1
3 = L2
4 = L3
1 = DC +
2 = DC +
SK2 3 = DC 4 = DC B = PG relay
B = PG relay
Parallel Operation Mode:
Parallel operation of equal HSD-Power-Supplies provides you
a higher output power. Make sure that the DC voltages differ
at only ±1% and that DC cables are of equal length.
Series Operation Mode:
To raise the output voltage you can drive equal HSD power
supplies in series, too. Observe to safety directives when the
output voltage achieves 60Vdc in sum.
Screw terminal order
codes:
(each package = 10 pcs )
Art.No.: 3520037 (2 pins)
for power good relay 1pc
required
Powersolve Electronics Ltd., Unit 8A Arnhem Road, Newbury RG14 5RU, United Kingdom
Tel 0044 (0)1635 521858 Fax 0044 (0)1635 523771
(Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)
B
www.powersolve.co.uk sales@powersolve.co.uk
p.2/2 05.12A
