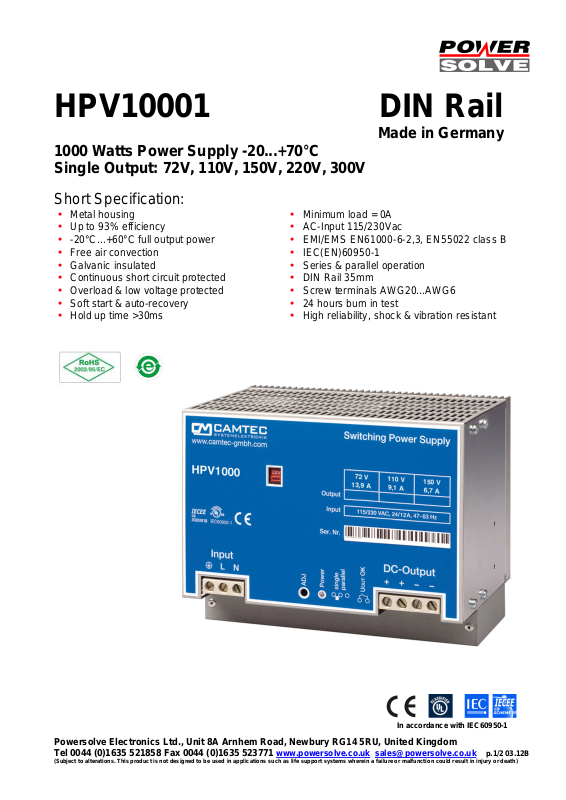

HPV10001 DIN Rail
Made in Germany
1000 Watts Power Supply -20...+70°C
Single Output: 72V, 110V, 150V, 220V, 300V
Short Specification:
Metal housing
• Up to 93% efficiency
• -20°C...+60°C full output power
• Free air convection
• Galvanic insulated
• Continuous short circuit protected
• Overload & low voltage protected
• Soft start & auto-recovery
• Hold up time >30ms
Minimum load = 0A
• AC-Input 115/230Vac
• EMI/EMS EN61000-6-2,3, EN55022 class B
• IEC(EN)60950-1
• Series & parallel operation
• DIN Rail 35mm
• Screw terminals AWG20...AWG6
• 24 hours burn in test
• High reliability, shock & vibration resistant
In accordance with IEC60950-1
Powersolve Electronics Ltd., Unit 8A Arnhem Road, Newbury RG14 5RU, United Kingdom
Tel 0044 (0)1635 521858 Fax 0044 (0)1635 523771
(Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)
www.powersolve.co.uk sales@powersolve.co.uk
p.1/2 03.12B
AC
Input 90
..132V
ac / 184..265Vac , 47…63Hz , 250
…375Vdc
AC
Input Rating
115Vac <16.8A 230Vac <9
A
Rated DC Voltage
72V 110V 150V 220V 300V*
Rated DC Current
13.9A
(1000W)
9.1A (1000W)
6.7A (1000W)
4.55A
(1000W)
3.33A
(1000W)
Ripple [mVpp] 230Vac
200 (20MHz)
250 (20MHz)
250 (20MHz)
300 (20MHz)
400 (20MHz)
Output adj. range
58...86
V 86
...132
V 132
...180V
180
...240
V 264
...360V
Order code:
HPV10001.Vout+(T= DIN Rail ; W= wall mount) Example: 150V for DIN
-
Rail = HPV10001.150T
Tolerance
± 1%
Load regulation
< ± 0.1% 10-
100%, 100
-
10%
Load Switch
<1ms 10
-
100%, 100
-
10%
Minimum Load
0 A
Efficiency
Up to 93
%
L
oad Protection
1,05
x I
rated
,auto recovery
Voltage Protection
140
% of U
out
, auto recovery
Short Circuit Protection
Continuous
Temperature Control
Yes
Hold Up Time
(230Vac)
> 30ms
Inrush Current
(230Vac)
< 162A
Softstart
100
ms typical
C
ooling
Controlled Fan (EBM
-
Papst)
Ambient
Temperature
-
20°C
…+70°C
Storage Temperature
-
40°C
…+85°C
EMI EN55022 class B
EMS EN61000
-6-
2,3
Safety
cUL60950
,
EN60950
-1
Safety class 1(A)
VDE0805, VDE0100
Air & Surface Leakage Paths
> 8mm
Input/Output
Galv
anic insulated
DC Fail
Relay (galv. Insulated)
Not available
MTBF
IEC61709
400000h
Dimensions (HxW
xD) 156x200x118
.5mm
Weight
3300g
Screw
Connectors (AC & DC)
AWG22
...AWG
6
Options for military
use
available up
on request
*upon request
Conception:
The HPV power supply series realizes very high power efficiency in a
space-saving housing. This design enables Green Power applications
and allows free air convection. Latest generation electrical devices
relate to the high reliability of all Camtec products. The Camtec
philosophy is, to employ 125°C low ESR ultra long life capacitors
where expedient to achieve a superior lifetime of our products. The
used screw terminals allow easy to wire and smooth service.
Terminal Connects:
1 = GND
SK1 2 = L
3 = N
1 = DC +
2 = DC +
SK2 3 = DC 4 = DC -
Parallel Operation Mode:
Parallel operation of equal HPV-Power-Supplies provides you
a higher output power. Make sure that the DC voltages differ
at only ±1% and that DC cables are equal of equal length.
Series Operation Mode:
To raise the output voltage you can drive equal HPV Power
Supplies in series, too.
118,5
114,5
HPV1000
B
A
