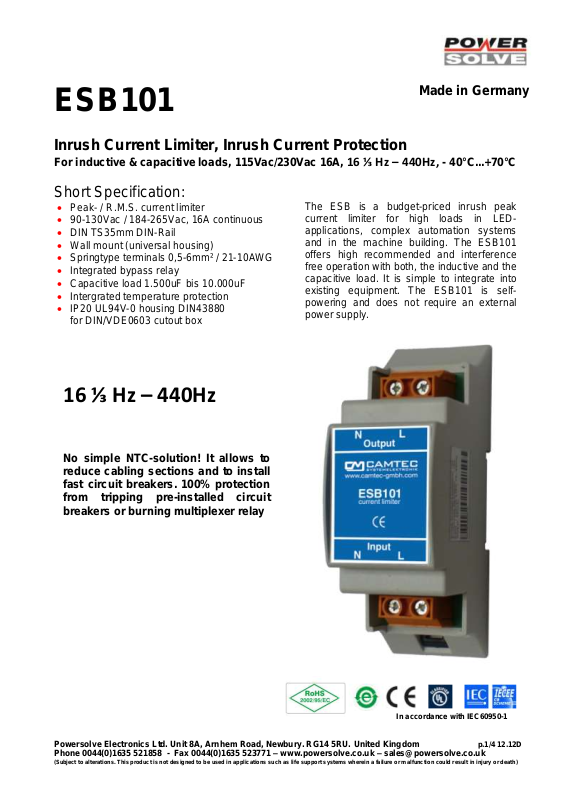

Powersolve ESB101 User Manual

ESB101

Inrush Current Limiter, Inrush Current Protection

For inductive & capacitive loads, 115Vac/230Vac 16A, 16 ⅓ Hz – 440Hz, - 40°C...+70°C

Short Specification:

 Peak- / R.M.S. current limiter
 90-130Vac / 184-265Vac, 16A continuous
 DIN TS35mm DIN-Rail
 Wall mount (universal housing)
 Springtype terminals 0,5-6mm² / 21-10AWG
 Integrated bypass relay
 Capacitive load 1.500uF bis 10.000uF
 Intergrated temperature protection
 IP20 UL94V-0 housing DIN43880

for DIN/VDE0603 cutout box

The ESB is a budget-priced inrush peak
current limiter for high loads in LED­applications, complex automation systems
and in the machine building. The ESB101
offers high recommended and interference
free operation with both, the inductive and the
capacitive load. It is simple to integrate into
existing equipment. The ESB101 is self­powering and does not require an external
power supply.

In accordance with IEC60950-1

Made in Germany

No simple NTC-solution! It allows to
reduce cabling sections and to install
fast circuit breakers. 100% protection
from tripping pre-installed circuit
breakers or burning multiplexer relay

16 ⅓ Hz – 440Hz

Powersolve Electronics Ltd. Unit 8A, Arnhem Road, Newbury. RG14 5RU. United Kingdom p.1/4 12.12D
Phone [phone] - Fax [phone] – www.powersolve.co.uk – [e-mail]

(Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)

Technical Table

Model

ESB101.16

ESB101.23

ESB101.23S

ESB101.33

ESB101.LED.230Vac

ESB101.LED.115Vac

ESB101.23S.115Vac

Article Number

3041081001

3041081002

3041081003

3041081004

3041081005

3041081006

3041081007

Peak Current
Limiting ±6%

16A

23A

23A

33A

48A

43A

23A

R.M.S Current
Limiting ±6%

11,3A

16,3A

16,3A

23,3A

33,9A

30,4A

16,3A

Allowed Capacitive
Load (max.)

1.500µF

2.000uF

2.000uF

4.000µF

6.000uF

10.000uF

4.000µF

Limiting Time
(Ton Power On)

300(±50)ms

300(±50)ms

500(±50)ms

300(±50)ms

300(±50)ms

300(±50)ms

500(±60)ms

Release Time
(T

off

Low Voltage)

500(±50)ms

500(±50)ms

800(±80)ms

500(±50)ms

550(±50)ms

550(±50)ms

900(±80)ms

Limiting Interval
[T

interval

for AC

cont.

)

≥ 900ms

≥ 900ms

≥ 1400ms

≥ 900ms

≥ 900ms

≥ 900ms

≥ 1400ms

Smallest advisable
Circuit Breaker
at 30°C

A6A
B4A
Z6A

A10A

B6A

Z10A

A10A

B6A

Z10A

A13A

B8A

Z13A

B13A

A16A
B13A
Z16A

A10A

B6A

Z10A

AC Input Range

184-265Vac

90-130Vac

AC Continous Range

230Vac

115Vac

Line Frequency

16 ⅓ Hz – 440Hz

16 ⅓ Hz – 440Hz

Switch-On Voltage

144Vac

79Vac

AC Lower Margin

52Vac (AC dump / drop)

28Vac (AC dump / drop)

AC Continous Current

16A continous

AC Peak Current

165A for 20ms / 800A for 200us (even while switching internal bypass relay)

Power Supply

item is self-powering

Current Consumption

19mA constant at continous operation

Limiting Cycles

3 cycles/minute

Internal Protection

Thermal fuse protects overload & fire

Cooling

Natural convection

Operation Temp.

Ambient temperature -40°C...+70°C continuous / +75°C short time

Storage Temp.

-40°C...+85°C for 2 years

EMI

EN55022 class B

EMS

EN61000-6-2,3

Safety Norms

IEC/EN60950-1 in accordance with cUL60950

Safety Class II

VDE0805, VDE0100/ÖVE8001

MTBF Calculation

300.000h (IEC/EN61709, Siemens SN29500)

MTTF Calculation

384.000h (+30°C) (IEC/EN61709, Siemens SN29500)

Humidity

95% (+25°C) not condensing

Pollution Degree

2 (IEC/EN50178)

Environmental

thermal environment 3K3, mechanics 3M4 (IEC/EN60721)

Altitude max.

4000m (13123 ft.) above sea level

Dimension (BxHxT)

(2TE)36,5x110x62mm

Hausing Parameters

UL94V-0 ABS IP20 DIN/EN43880 universal housing for DIN/VDE0603 cutout box and for wall mount

DIN-Rail

DIN-Rail TS35mm DIN/EN60715 (TS35/7,5 und TS35/15)

Weight

121g / 0,27 lb

Connections

Spring-type terminal with cable protection 0,5...6mm² 21…10AWG according with IEC/EN60664-1, IEC/EN61984

General Description:

The CAMTEC ESB101-series are the 2nd generation and cost effective inrush current limiters. The limiters are made for
115/230Vac 16A networks. The line frequency range is 16⅓Hz – 440Hz. The ESB101-Limiter shall be located between the
line-switcher/contactor and the load (p.2/Fig.1). The ESB-models are designed for inductive and capacitive loads. In the
moment of switching-on the system the inrush current of the installed load will be limited for the defined time T
(p.4/Fig.5). Independent from the previous inrush level; the current limiting is always strict. After Ton elapses the current
limiting circuit of the ESB101 will be bypassed. Then the load is directly connected to the AC. The electrical network can
be stressed with current loads as normal (e.g. motors, pumps). If an AC dump overshoots the defined time T
detected by the ESB101 (p.4/Fig.6). As soon as the AC recovers the inrush will be limited, again (p.2/Fig.3 & 4). The
ESB101-models provide an internal temperature control. In case of a failure the device shuts down to safely prevent
from overheating or burning.

Powersolve Electronics Ltd. Unit 8A, Arnhem Road, Newbury. RG14 5RU. United Kingdom p.2/4 12.12D
Phone [phone] - Fax [phone] – www.powersolve.co.uk – [e-mail]

(Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)

, it will be

off

on

AC input range

AC input range

Line voltage

line voltage

Installation with ESB101

Conventional installation without ESB101

* Expected load capacity

100uF / SMPS

Switch Mode PS *

4pcs max.

Switch Mode PS

Load e.g.
LED-array

Load e.g.
LED-array

CB Line-switcher

CB Line-switcher

(Fig.1) (Fig.2)

Field Applications:

The ESB101 limiter allows connecting much more loads (e.g. LED-power supply / LED-driver) to a pre-installed circuit
breaker CB (Fig.2). The ESB definitely avoids that the CB can be tripped. This occurs independent from the objective
initial current. The result is that the number of A.C. branch lines and the pre-installed CB can be reduced dramatically.
Installation cost exhibit a sustained decline.
Alternatively the cross section of the branch lines can be reduced when using smaller and faster responding circuit
breakers. The cost saving from copper is essential. Sensitive AC networks can be fused safer (e.g. Traffic Control Systems,
Street-Lighting, Parking Lots and Tunnels)
When the ESB101 is installed correctly, the neutral wire (N) is looped trough (Fig.1). The inrush protection circuit always
acts to the line conductor. The load is connected with the AC in such a way that a circuit breaker or an earth-leakage-trip
works within the limits of the legal rules. This fact is also applied while the limiting circuit acts.

Special Models ESB101.LED with 115Vac or 230Vac

Compared to all other ESB101-models the LED-types are the universal inrush current limiters. The concept design is
made to construct optimized A.C. networks in the building automation and in the lighting sector. Tripping the installed
circuit breaker will be effectively prevented. The inrush limiting time is adjusted to the values of a typical LED power
supply or LED-drivers. The connectable load capacity is such as high, that even in the extremes cases it is rather
impossible to exceed it in a 16A network. Installed contractors will be discharged and their lifetimes will considerable
increase. As well, the ESB101 LED-models are made to support the conventional lighting technology. The operation of an
ESB101 with an electronic ballast leads to the same repeatable results. To protect the installed relay in a controlled
DALI-/DMX-Multiplexer we advise to use the ESB101.23 for a 16A relay or the ESB101.16 for a smaller relay.

(Fig.3 operating range 230Vac) (Fig.4 operating range 115Vac)

Powersolve Electronics Ltd. Unit 8A, Arnhem Road, Newbury. RG14 5RU. United Kingdom p.3/4 12.12D
Phone [phone] - Fax [phone] – www.powersolve.co.uk – [e-mail]

(Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)

Design-In of the ESB101 into A.C. Networks

C
O
N
V
E
C
T
I
O
N

ton

Fig.7 and Fig.8
Fig.7 and Fig.8 show the typical start
behaviour of a NTC protected switch
mode power supply. The used test
item is a CAMTEC HSE10001.24T with
an output of 24V/42A (1008W) on
DIN-Rail.
The peak current recordings show
the precise limiting of the inrush
from formerly 62A

peak

to 16A

peak

. The
corresponding R.M.S level, that is
responsible for the magnetic tripping
of the CB, is mark down by factor
0,707. After the time Ton elapsed it is
identified that the power supply
starts neatly into the continuous
operation mode. Now the current is
absorbed pulse-shaped from the AC.
In detail the full load R.M.S. current
consumption level of the HSE10001
hits 9A @ 230Vac.

62A

peak

16A

peak

230Vac

230Vac

The ESB101 models are the precise inrush current limiter with an overall tolerance of ±6% of the face value. For the
dimension of an upstream connected circuit breaker the R.M.S is the key value of the inrush current, not the peak
current. The thermal trigger point will not be met, even while using an extreme fast CB. All-dominant is the magnetic
trigger current. By using the empirical formula I
Bear in mind that all the higher the inrush current is, all the faster the input capacitor of a number of connected switch
mode power supplies will be loaded. Deduced by this fact we can say that within a 230V 16A A.C. network not the
ESB101.16 limiter is the right selection for a CB B16A, but the ESB101.LED.230Vac. The technical table on page 2 shows
the R.M.S value of all the ESB101 types and models.

(Fig.5 limiting time Ton) (Fig.7 inrush without ESB101)

(Fig.6 AC dump detection T

Mechanics:

IP20 housing (ABS UL94V-0) DIN 43880 with IEC standardized ventilation slots. Save fix on DIN-Rail TS35mm
DIN/EN60715. It is designed for building cabinets DIN/VDE0603. Easy to wall mount by multifunctional housing; remove
the DIN-Rail latch and access the two mounting holes to screw the ESB101 to any old surface.

(Fig.9 mechanical drawing) (Fig.10 mounting restriction)

Powersolve Electronics Ltd. Unit 8A, Arnhem Road, Newbury. RG14 5RU. United Kingdom p.4/4 12.12D
Phone [phone] - Fax [phone] – www.powersolve.co.uk – [e-mail]

(Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)
