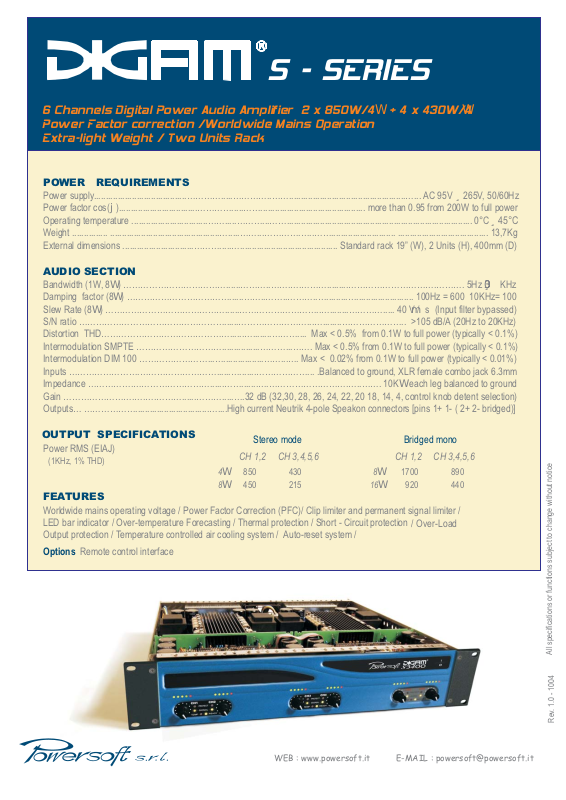

S - SERIES
6 Channels Digital Power Audio Amplifier
2 x 850W/4 + 4 x 430W/4WW
Power Factor correction /Worldwide Mains Operation
Extra-light Weight / Two Units Rack
POWER REQUIREMENTS
Power supply.......................................………….....…………..…….................................................…... AC 95V 265V, 50/60Hz¸
Power factor cos( ).................................………….....……............................................ more than 0.95 from 200W to full powerj
Operating temperature ................................…….....………...…….............................................................................. 0°C¸
Weight ............... ..............................................….....……...………….…..……........................... ...................................... 13,7Kg
External dimensions ..............................……….....…......................................... Standard rack 19” (W), 2 Units (H), 400mm (D)
AUDIO SECTION
Bandwidth (1W, 8 ) ………………………………......………..…….….……….........………………………….………. 5Hz KHzW ¸30
Damping factor (8 ) ………………………………......……..……..………..….........…........................ 100Hz = 600 10KHz= 100W
Slew Rate (8 ) ……………………………………......………………………..…........…………..... 40 V / s (Input filter bypassed)Wm
S/N ratio ……………………………………………......……………………...…........………………….. >105 dB/A (20Hz to 20KHz)
Distortion THD………………………………………......…........……….... Max < 0.5% from 0.1W to full power (typically < 0.1%)
Intermodulation SMPTE …………………………................………...……. Max < 0.5% from 0.1W to full power (typically < 0.1%)
Intermodulation DIM 100 ……………………...….................……...…. Max < 0.02% from 0.1W to full power (typically < 0.01%)
Inputs …………………….………………………......….......………………... .Balanced to ground, XLR female combo jack 6.3mm
Impedance …………….………………………......…….......….……………………….…..……. 10K each leg balanced to groundW
Gain …………………….….….………......……….....….32 dB (32,30, 28, 26, 24, 22, 20 18, 14, 4, control knob detent selection)
Outputs… ………………...............................…....High current Neutrik 4-pole Speakon connectors [pins 1+ 1- ( 2+ 2- bridged)]
45°C
OUTPUT SPECIFICATIONS
Power RMS (EIAJ)
(1KHz, 1% THD)
4W
8W
FEATURES
Worldwide mains operating voltage / Power Factor Correction (PFC)/ Clip limiter and permanent signal limiter /
LED bar indicator / Over-temperature Forecasting / Thermal protection /
Output protection / Temperature controlled air cooling system / Auto-reset system /
Options Remote control interface
Stereo mode
CH 1,2 CH 3,4,5,6
850 430
450 215
Short -
Circuit protection
8W
16W
Bridged mono
CH 1,2 CH 3,4,5,6
1700 890
920 440
/ Over-
Load
All specifications or functions subject to change without notice
WEB : www.powersoft.it E-MAIL : powersoft@powersoft.it
Rev. 1.0 - 1004
