Power Soak WCT800 Specifications

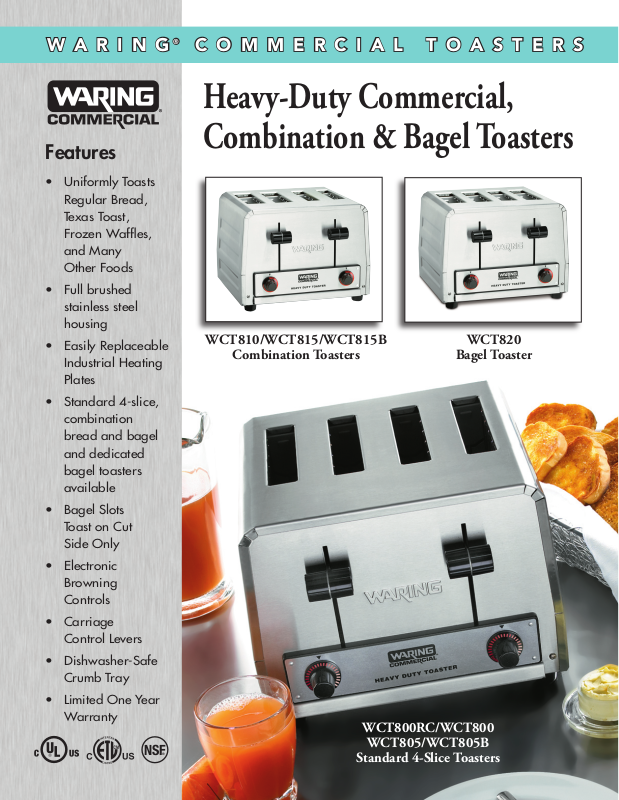

W A R I N G® C O M M E R C I A L T O A S T E R S
Heavy-Duty Commercial,
Combination & Bagel Toasters
Features
• Uniformly Toasts
Regular Bread,
Texas Toast,
Frozen Waffl es,
and Many
Other Foods
• Full brushed
stainless steel
housing
• Easily Replaceable
Industrial Heating
Plates
WCT810/WCT815/WCT815B
Combination Toasters
WCT820
Bagel Toaster
• Standard 4-slice,
combination
bread and bagel
and dedicated
bagel toasters
available
• Bagel Slots
Toast on Cut
Side Only
• Electronic
Browning
Controls
• Carriage
Control Levers
• Dishwasher-Safe
Crumb Tray
• Limited One Year
Warranty
NSF®
WCT800RC/WCT800
WCT805/WCT805B
Standard 4-Slice Toasters
Heavy-Duty Commercial,
Combination & Bagel Toasters
NSF®
Specifications
Item Electrical Listings Watts Amps Plug Dimensions Warranty
(H” x W” x D”)
WCT800RC 120 Volt, 50/60 Hz UL, CUL, NSF 1800 15 NEMA 5-15P 9" x 11 7/8" x 10 1/2" Limited 1 Year
WCT800 120 Volt, 50/60 Hz ETL, NSF 2200 19 NEMA 5-20P 9" x 11 7/8" x 10 1/2" Limited 1 Year
WCT805B 208 Volt, 50/60 Hz UL, CUL, NSF 2700 13 NEMA 6-15P 9" x 11 7/8" x 10 1/2" Limited 1 Year
WCT805 240 Volt, 50/60 Hz UL, CUL, NSF 2700 12 NEMA 6-15P 9" x 11 7/8" x 10 1/2" Limited 1 Year
WCT810 120 Volt, 50/60 Hz ETL, NSF 2025 17 NEMA 5-20P 9" x 11 7/8" x 10 1/2" Limited 1 Year
WCT815B 208 Volt, 50/60 Hz UL, CUL, NSF 2025 10 NEMA 6-15P 9" x 11 7/8" x 10 1/2" Limited 1 Year
WCT815 240 Volt, 50/60 Hz UL, CUL, NSF 2025 9 NEMA 6-15P 9" x 11 7/8" x 10 1/2" Limited 1 Year
WCT820 120 Volt, 50/60 Hz ETL, NSF 1500 12.5 NEMA 5-15P 9" x 11 7/8" x 10 1/2" Limited 1 Year
Ordering
Information
Description Catalog # Std Pkg. Ship Wt. Cubic Feet UPC Code
(Lbs.)
Heavy-Duty 120V Standard Toaster WCT800RC 1 22 lbs. 1.6 040072002915
Heavy-Duty 120V Standard Toaster WCT800 1 22 lbs. 1.6 040072001451
Heavy-Duty 208V Standard Toaster WCT805B 1 22 lbs. 1.6 040072003196
Heavy-Duty 240V Standard Toaster WCT805 1 22 lbs. 1.6 040072001468
Heavy-Duty 120V Combination Toaster WCT810 1 22 lbs. 1.6 040072001475
Heavy-Duty 208V Combination Toaster WCT815B 1 22 lbs. 1.6 040072003219
Heavy-Duty 240V Combination Toaster WCT815 1 22 lbs. 1.6 040072001482
Heavy-Duty 120V Bagel Toaster WCT820 1 22 lbs. 1.6 040072010019
117⁄8"
10½"
*Measurements
9"
are the same
for all models.
Waring Commercial • 314 Ella T. Grasso Ave. • Torrington • Connecticut 06790
Tel. (800) 492-7464 • Fax (860) 496-9008 • www.waringproducts.com • ©2007 Waring
07WC30102
PG-21496
