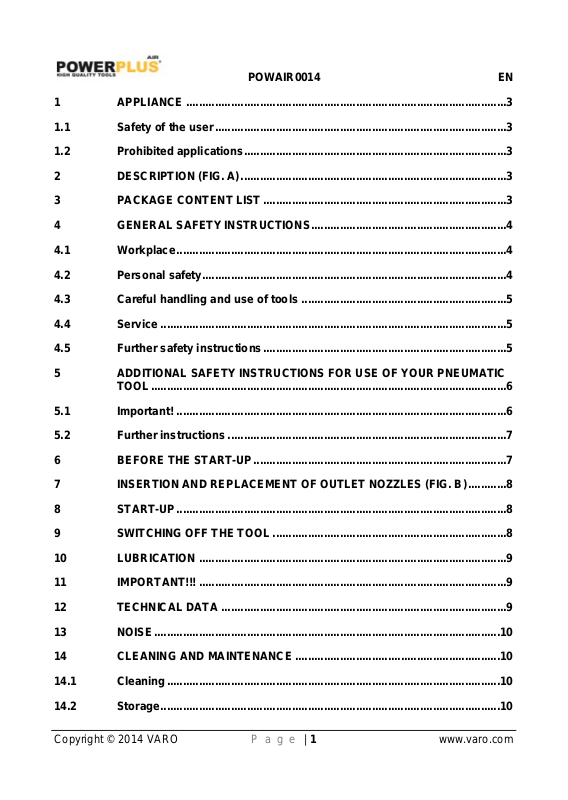

POWAIR0014 EN

1 APPLIANCE ....................................................................................................3

1.1 Safety of the user ...........................................................................................3

1.2 Prohibited applications..................................................................................3

2 DESCRIPTION (FIG. A) ...................................................................................3

3 PACKAGE CONTENT LIST ............................................................................3

4 GENERAL SAFETY INSTRUCTIONS .............................................................4

4.1 Workplace .......................................................................................................4

4.2 Personal safety ...............................................................................................4

4.3 Careful handling and use of tools ................................................................5

4.4 Service ............................................................................................................5

4.5 Further safety instructions ............................................................................5

5 ADDITIONAL SAFETY INSTRUCTIONS FOR USE OF YOUR PNEUMATIC

TOOL ...............................................................................................................6

5.1 Important! .......................................................................................................6

5.2 Further instructions .......................................................................................7

6 BEFORE THE START-UP ...............................................................................7

7 INSERTION AND REPLACEMENT OF OUTLET NOZZLES (FIG. B) ............8

8 START-UP ....................................................................................................... 8

9 SWITCHING OFF THE TOOL .........................................................................8

10 LUBRICATION ................................................................................................9

11 IMPORTANT!!! ................................................................................................9

12 TECHNICAL DATA .........................................................................................9

13 NOISE ............................................................................................................10

14 CLEANING AND MAINTENANCE ................................................................10

14.1 Cleaning ........................................................................................................10

14.2 Storage ..........................................................................................................10

POWAIR0014 EN

14.3 Cleaning and servicing by qualified personnel .........................................10

15 FAULT DETECTION AND TROUBLESHOOTING ........................................10

16 ENVIRONMENT .............................................................................................11

17 DECLARATION OF CONFORMITY ..............................................................12

POWAIR0014 EN

PNEUMATIC SAND BLASTER SET

POWAIR0014

1 APPLIANCE

This pneumatic sand blaster is an air-powered spraying tool. It is suitable for removal of

rust and paint residue from small and poorly accessible metal and wood surfaces. In

addition, the sand blasting is used to obtain an adhesive substrate for subsequent coatings.

The grit material is drawn through the riser and sprayed by means of the supplied

compressed air. The release of the material is carried out by a trigger mechanism that

manually controls the valve fitted in the tool.

The tool may only be powered by a suitable compressed air supply. Any other or additional

use is deemed to be improper. Proper use includes the observance of the operating,

installation and maintenance instructions.

WARNING! For your own safety, read this manual and general safety

instructions carefully before using the appliance. Your power tool should

only be passed on together with these instructions.

1.1 Safety of the user

To prevent unintended and uncontrolled operation, the trigger is designed in such a way

that, when released, it immediately flips back into the OFF position. The operation will stop

immediately.

Please note that the grit material may continue to run from the container until the pressure

reduction is completed. Do not aim the jet at people. Never aim the jet at yourself or other

people or animals.

Follow all safety instructions for the proper handling of the blast media. Read and follow all

safety and operating instructions of the manufacturer for the proper handling of the blast

media. Never use quartz sand for the sand blasting.

1.2 Prohibited applications

Do not use the tool in an explosive environment that contains substances such as

flammable liquids, gases and especially paint and dust fumes. These substances may be

ignited by contact with hot surfaces of the tool.

2 DESCRIPTION (FIG. A)

1. Handle

2. Collection bag for blast media

3. Outlet nozzle

4. Trigger

5. Threaded nipple, 1/4" outside thread

6. Container for blast media

3 PACKAGE CONTENT LIST

 Remove all packaging materials.

 Remove remaining packing and package inserts (if included).

 Check that the package contents are complete.

 Check the appliance, the power cord, the power plug and all accessories for

transportation damage.

POWAIR0014 EN

 Keep the packing materials as long as possible till the end of the warranty period.

Dispose it into your local waste disposal system afterwards.

WARNING: Packaging materials are not toys! Children must not play with

plastic bags! Danger of suffocation!

1 x sand blaster with container

1 x collection bag for blast media with velcro fastener

4 x various outlet nozzles

2 x plastic container with blast media (aluminium oxide powder)

1 x nipple

1 x manual

If any parts are missing or damaged, please contact your dealer.

4 GENERAL SAFETY INSTRUCTIONS

WARNING! When using technical equipment, you must observe the

following basic safety instructions to protect yourself from electric shock,

injury and fire. KEEP THESE INSTRUCTIONS.

4.1 Workplace

 Keep your workplace clean and tidy. Untidiness and unlit working areas can lead to

accidents.

 WARNING: Never work with the tool in an explosive environment that contains

flammable liquids, gases or dust. Tools can create sparks that may ignite the dust or

fumes.

 Keep other persons, especially children, away when using the tool. Do not allow

other persons, especially children, to touch the tool. You can lose control of the tool if

you are distracted.

 Consider environmental influences.

 Make sure that the workplace is well lit.

4.2 Personal safety

 Be attentive, watch what you are doing and use common sense when working with a

tool. Do not use the tool while you are tired or under the influence of drugs, alcohol or

medication. A moment of inattention while using the tool may lead to serious injuries.

 Wear personal safety equipment and always wear safety goggles. Wearing personal

protective equipment such as dust mask, non-skid safety shoes, safety helm or ear

protection, depending on the type and use of the tool, reduces the risk of injuries.

 Avoid accidental start-up. Ensure that the switch is in the “OFF” position before

plugging the tool into your power source. Carrying the tool with your finger on the

switch or plugging in the tool with the switch on, may lead to accidents.
