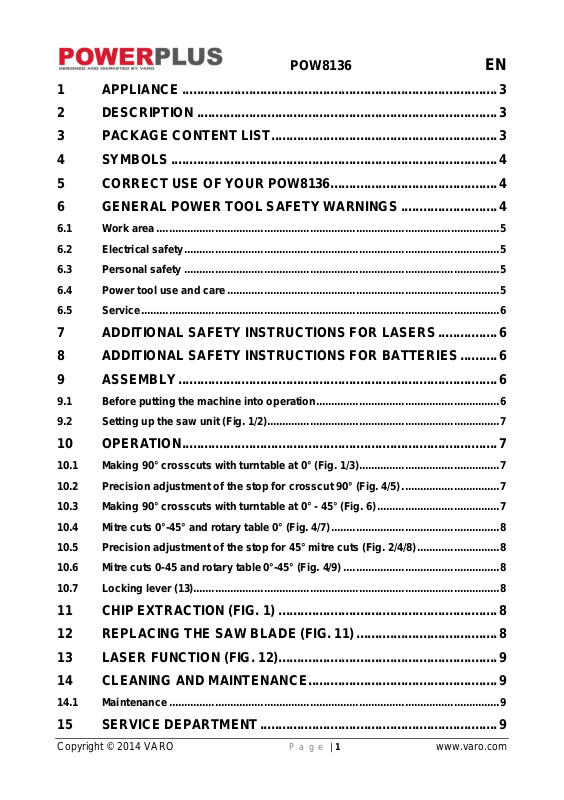

1 APPLIANCE ..................................................................................... 3

2 DESCRIPTION ................................................................................. 3

3 PACKAGE CONTENT LIST ............................................................. 3

4 SYMBOLS ........................................................................................ 4

5 CORRECT USE OF YOUR POW8136............................................. 4

6 GENERAL POWER TOOL SAFETY WARNINGS .......................... 4

6.1 Work area ................................................................................................................ 5

6.2 Electrical safety ....................................................................................................... 5

6.3 Personal safety ....................................................................................................... 5

6.4 Power tool use and care ......................................................................................... 5

6.5 Service ..................................................................................................................... 6

7 ADDITIONAL SAFETY INSTRUCTIONS FOR LASERS ................ 6

8 ADDITIONAL SAFETY INSTRUCTIONS FOR BATTERIES .......... 6

9 ASSEMBLY ...................................................................................... 6

9.1 Before putting the machine into operation ............................................................ 6

9.2 Setting up the saw unit (Fig. 1/2) ............................................................................ 7

10 OPERATION ..................................................................................... 7

10.1 Making 90° crosscuts with turntable at 0° (Fig. 1/3) .............................................. 7

10.2 Precision adjustment of the stop for crosscut 90° (Fig. 4/5) ................................ 7

10.3 Making 90° crosscuts with turntable at 0° - 45° (Fig. 6) ........................................ 7

10.4 Mitre cuts 0°-45° and rotary table 0° (Fig. 4/7) ....................................................... 8

10.5 Precision adjustment of the stop for 45° mitre cuts (Fig. 2/4/8) ........................... 8

10.6 Mitre cuts 0-45 and rotary table 0°-45° (Fig. 4/9) ................................................... 8

10.7 Locking lever (13).................................................................................................... 8

11 CHIP EXTRACTION (FIG. 1) ........................................................... 8

12 REPLACING THE SAW BLADE (FIG. 11) ...................................... 8

13 LASER FUNCTION (FIG. 12) ........................................................... 9

14 CLEANING AND MAINTENANCE ................................................... 9

14.1 Maintenance ............................................................................................................ 9

15 SERVICE DEPARTMENT ................................................................ 9

Page 2

POW8136 EN

16 TECHNICAL DATA ........................................................................ 10

17 NOISE ............................................................................................. 10

18 WARRANTY ................................................................................... 11

19 ENVIRONMENT ............................................................................. 11

20 DECLARATION OF CONFORMITY .............................................. 12

Page 3

POW8136 EN

TELESCOPIC MITRE SAW 2000W WITH TABLE POW8136

1 APPLIANCE

The circular drag, crosscut and miter box saw is designed to crosscut wood and plastic commensurate with the machine’s size. The machine is not to be used for cutting fire wood. It is not designed for commercial use.

WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions.

2 DESCRIPTION

1. Release lever

2. Handle

3. On/Off switch

4. Machine head

5. Saw blade

6. Saw blade guard, hinged

7. Stop rail

8. Turntable

3 PACKAGE CONTENT LIST

 Remove all packing materials  Remove remaining packaging and transit supports (if existing)  Check the completeness of the packing content  Check the appliance, the power cord, the power plug and all accessories for transportation

damages.

 Keep the packaging materials as far as possible till the end of the warranty period.

Dispose it into your local waste disposal system afterwards.

9. Base plate, fixed

10.

11. Pointer

12. Dial for turntable

13. Locking lever

14. Knurled screw

15. Scale

16. Retaining pin

WARNING Packing materials are no toys! Children must not play with plastic bags! Danger of suffocation!

1 x Telescopic mitre saw 2000W with table 2 x Saw blade 3 x Extension bars 1 x Work clamp 1 x Dust bag 1 x Wrench 1 x Table 1 x Manual

When parts are missing or damaged, please contact your dealer.

Page 4

POW8136 EN

Warning / Danger

Wear ear protection

Read manual before usage

Wear eye protection

Attention Laser radiation! Do not look into the beam. Laser class 2

Wear a mask In dusty conditions

In accordance with essential applicable safety standards of European directives

4 SYMBOLS

In this manual and/or on the machine the following symbols are used:

5 CORRECT USE OF YOUR POW8136

The circular drag, crosscut and miter box saw is designed to crosscut wood and plastic commensurate with the machine’s size. The machine is not to be used for cutting fire wood. The machine is to be used only for its prescribed purpose. Any use other than that mentioned is considered to be a case of misuse. The user/operator and not the manufacturer shall be liable for any damage or injury resulting from such cases of misuse. The machine is to be operated only with suitable saw blades. It is prohibited to use any type of cutting-off wheel. To use the machine properly you must also observe the safety regulations, the assembly instructions and the operating instructions to be found in this manual. All persons who use and service the machine have to be acquainted with this manual and must be informed about its potential hazards. It is also imperative to observe the accident prevention regulations in force in your area. The same applies for the general rules of occupational health and safety. The manufacturer shall not be liable for any changes made to the machine nor for any damage resulting from such changes. Even when the machine is used as prescribed it is still impossible to eliminate certain residual risk factors. The following hazards may arise in connection with the machine’s construction and design:

 Contact with the saw blade in the uncovered saw zone.  Reaching into the running saw blade (cut injuries).  Kick-back of workpieces and parts of workpieces.  Saw blade fracturing.  Catapulting of faulty carbide tips from the saw blade.  Damage to hearing if essential ear-muffs are not worn.  Harmful emissions of wood dust when the machine is used in closed rooms.

6 GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and all instructions. Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

Page 5

POW8136 EN

6.1 Work area

 Keep work area clean and well lit. Cluttered and dark areas invite accidents.  Do not operate power tools in explosive atmospheres, such as in the presence of

flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

 Keep children and bystanders away while operating a power tool. Distractions can cause

you to lose control.

6.2 Electrical safety

 Power tool plugs must match the outlet. Never modify the plug in any way. Do not use

any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

 Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges

and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

 Do not expose power tools to rain or wet conditions. Water entering a power tool will

increase the risk of electric shock.

 Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power

tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

 When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

 If operating a power tool in a damp location is unavoidable, use a residual current device

(RCD) protected supply. Use of an RCD reduces the risk of electric shock.

6.3 Personal safety

 Stay alert, watch what you are doing and use common sense when operating a power

tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

 Use safety equipment. Always wear eye protection. Safety equipment such as dust mask,

non-skid safety shoes, hard hat, or hearing protection used whenever conditions require will reduce personal injuries.

 Avoid accidental starting. Ensure the switch is in the off position before plugging in.

Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents.

 Remove any adjusting key or wrench before turning the power tool on. A wrench or a key

left attached to a rotating part of the power tool may result in personal injury.

 Do not overreach. Keep proper footing and balance at all times. This enables better

control of the power tool in unexpected situations.

 Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and

gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

 If devices are provided for the connection of dust extraction and collection facilities,

ensure these are connected and properly used. Use of these devices can reduce dust related hazards.

6.4 Power tool use and care

 Do not force the power tool. Use the correct power tool for your application. The correct

power tool will do the job better and safer at the rate for which it was designed.

 Do not use the power tool if the switch does not turn it on and off. Any power tool that

cannot be controlled with the switch is dangerous and must be repaired.

Page 6

POW8136 EN

 Disconnect the plug from the power source before making any adjustments, changing

accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

 Store idle power tools out of the reach of children and do not allow persons unfamiliar with

the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

 Maintain power tools. Check for misalignment or sticking of moving parts, breakage of

parts and any other condition that may affect the power tool’s operation. If damaged, have

the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

 Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting

edges are less likely to stick and are easier to control.

 Use the power tool, accessories and tool bits etc., in accordance with these instructions

and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from intended could lead to a hazardous situation.

6.5 Service

 Have your power tool serviced by a qualified repair person using only identical

replacement parts. This will ensure that the safety of the power tool is maintained.

7 ADDITIONAL SAFETY INSTRUCTIONS FOR LASERS

 Warning! The laser beam potentially causes severe eye damage. Never look or stare

directly into the laser beam.

 During use, do not point the laser beam at people, directly or indirectly through reflecting

surfaces.

 This laser complies with class 2 according to EN 60825-1:2001. The unit includes no

servicing components. Do not open the housing for any reason. If the unit is damaged, have the damage repaired by an authorized repair agent.

8 ADDITIONAL SAFETY INSTRUCTIONS FOR BATTERIES

 When replacing batteries, always replace the complete set. Do not mix old batteries with

new ones.

 Prevent removed batteries from short circuiting.  Do not store batteries where the temperature may rise above 50 °C, e.g. in a car which

has been parked in the sun.

 Do not burn batteries.  Never attempt to open batteries.  In case of battery leakage, carefully remove the liquid using a cloth. Avoid skin or eye

contact. Do not swallow. In case of skin or eye contact, rinse abundantly for 10 minutes with clean water and consult a physician.

9 ASSEMBLY

9.1 Before putting the machine into operation

 The machine must be firmly mounted in working position, e.g. on a workbench, the base

frame supplied with the machine, or similar.

 All the covers and safety devices have to be properly fitted before the machine is switched

on.

 It must be possible for the saw blade to run freely.  When working with wood that has been processed before, watch out for foreign bodies

such as nails or screws etc.

 Before you actuate the On/Off switch, make sure that the saw blade is correctly fitted and

that the machine's moving parts run smoothly.

Page 7

POW8136 EN

 Before you connect the machine to the power supply, make sure the data on the rating

plate is the same as that for your mains.

9.2 Setting up the saw unit (Fig. 1/2)

 To adjust the turntable (8), loosen the locking handle by approx. 2 turns, which frees the

turntable (8).

 Turn the turntable (8) and scale pointer (11) to the desired angular setting on the dial (12).  Lightly press the machine head (4) down while at the same time pulling the retaining pin

(16) out from the motor mounting; this causes the saw to move down to the lower working position.

 Swing the machine head (4) up until the retaining hook latches into place.  The clamping device (19) and the workpiece support (20) can be fastened on both right

and left sides of the base plate (9).

 By loosening the tightening screw (13), the machine head (4) can be angled to the left up

to 45°.

10 OPERATION

10.1 Making 90° crosscuts with turntable at 0° (Fig. 1/3)

For cutting widths up to 100 mm it is possible to fix the saw's drag function with the knurled screw (14) in rear position. If the cutting width exceeds 100 mm you must ensure that the knurled screw (14) is slackened and that the machine head (4) can be moved.

 Bring the machine head (4) to its upper position.  Push the machine head (4) back by its handle (2) and affix in this position if necessary

(depending on the cutting width).

 Place the piece of wood to be cut against the stop rail (7) and on the turntable (8).  Secure the workpiece in position with the clamping device (19) on the base plate (9) to

prevent the workpiece from moving during the cutting process.

 Turn the release lever (1) to the left to release the machine head (4).  Push the ON/OFF switch (3) to start the motor. Using the handle (2), push downward all

the way through the work-piece with uniform and light pressure.

 After the cutting process is finished, bring the machine head back to its upper (home)

position and release the ON/OFF button (3).

Caution! The resetting springs in the machine automatically raise the machine head. Do not simply let go of the handle (2) after cutting, but allow the machine head to slowly lift up by applying slight counterpressure.

10.2 Precision adjustment of the stop for crosscut 90° (Fig. 4/5)

 Lower the machine head (4) and fasten in place with the safety pin (16).  Slacken the tightening screw (13).  Place the angular stop (a) between the blade (5) and the turntable (8).  Slacken the counternut and adjust the adjustment screw (21) until the angle between the

blade (5) and the turntable (8) equals 90°.

 Retighten the counternut to secure this setting.  Finally, check the position of the angle indicator. If necessary, release the pointer with a

crosstip screwdriver, move to the 0° position of the angle scale (15) and retighten the holding screw.

10.3 Making 90° crosscuts with turntable at 0° - 45° (Fig. 6)

 With POW8136 you can make right and left angular cuts from 0° - 45° to the stop rail.  Use the handle (2) to set the turntable (8) to the desired angle i.e. the scale pointer (11) on

the turntable must coincide with the desired angular setting (12) on the stationary base plate (9).

Page 8

POW8136 EN

 Re-tighten the locking handle to lock the turntable (8) into place.  Cut as described under section10.2.

10.4 Mitre cuts 0°-45° and rotary table 0° (Fig. 4/7)

 The POW8136 can be used to make mitre cuts of 0°-45° relative to the machine bed on

the left side.

 Lift the machine head (4) to its top position.  Fix the rotary table (8) in 0° position.  Undo the locking nut (13) and, holding the handle (2), tilt the machine head (4) to the left

until the pointer (23) coincides with the required angle dimension (15).

 Re-tighten the locking nut (13) and make the cut as described in Section 10.2.

10.5 Precision adjustment of the stop for 45° mitre cuts (Fig. 2/4/8)

 Lower the machine head (4) and fix with the lock pin (16).  Fix the rotary table (8) in 0° position.  Undo the locking nut (13) and, holding the handle (2), tilt the machine head (4) to the left

by 45°

 Place the 45° stop angle (b) between the saw blade (5) and the rotary table (8).  Slacken the counter nut and adjust the setting screw (22) until the angle between the saw

(5) and the rotary table (8) equals exactly 45°.

 Re-tighten the locking nut (13) and make the cut as described in Section 10.2.

10.6 Mitre cuts 0-45 and rotary table 0°-45° (Fig. 4/9)

 The POW8136 can be used to make mitre cuts on the left at an angle of 0°-45° relative to

the work top and 0°-45° relative to the stop rail.

 Lift the machine head (4) to its top position.  Release the turntable (8) by loosening the locking grip .  Adjust the rotary table (8) by its handle (2) to the required angle (see also Section 7.4).  Re-tighten the locking handle to fix the rotary table in position.  Undo the clamping nut (13) and, holding the handle (2), tilt the machine head (4) to the left

to the required angle dimension

 (see also Section 10.5).  Re-tighten the locking nut (13) and make the cut as described in Section 10.2.

10.7 Locking lever (13)

You can lock the machine into the desired angle by using the locking lever (13). This lever needs to be turned 360° to the left to safely lock the machine into place. Because of the shape of the frame, the lever cannot make this turn in one go. Please turn the lever 90° to the left. Pull the lever out towards you and bring it back to its original position. Repeat this a few times until the machine is safely locked.

11 CHIP EXTRACTION (FIG. 1)

The saw is equipped with a chip collection bag (24). The chip bag (24) can be emptied by opening the zip fastener at the bottom.

12 REPLACING THE SAW BLADE (FIG. 11)

 Pull out the power plug.  Swing up the machine head (4).  Press the lever and swing up the saw blade guard to the point where the recess in the saw

blade guard is above the flange bolt.

 Press the saw shaft lock (17) with one hand while holding the wrench (31) on the flange

bolt with the other.

 Firmly press on the saw shaft lock (17) and slowly rotate the flange bolt in clockwise

direction. The saw shaft lock engages after no more than one rotation.

Page 9

POW8136 EN

 Turn the flange bolt until it is completely removed.  Take the blade (5) off the inner flange and pull out downwards.  Mount the new saw blade in reverse order and fasten.  Important! The cutting bevel of the teeth, i.e. the direction of rotation of the saw blade, has

to conform with the direction of the arrow marked on the housing.

 Clean the saw blade flanges thoroughly before mounting the saw blade.  Reattach the movable blade guard (6) in reverse order.  Before using the saw again, check that the safety devices are in good working order.  Important: Every time that you change the saw blade, check to see that it spins freely in

the groove of the turntable in both perpendicular and 45° angle settings.

13 LASER FUNCTION (FIG. 12)

You can switch the laser ON and OFF with the switch (a). The laser (35) directs a beam onto the work-piece. Extremely precise cuts can be made using the laser function.

14 CLEANING AND MAINTENANCE

Attention! Before performing any work on the equipment, pull the power plug.

14.1 Maintenance

 Keep the machine's air vents unclogged and clean at all times.  Remove dust and dirt regularly from the machine. Cleaning is best done with compressed

air or a rag.

 Re-lubricate all moving parts in regular intervals.  Never use caustic agents to clean plastic parts.

Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

15 SERVICE DEPARTMENT

 Damaged switches must be replaced by our after-sales service department.  If the connecting cable (or mains plug) is damaged, it must be replaced by a particular

connecting cable which is available from our service department. Replacement of the connecting cable must only be carried out by our service department (see last page) or by a qualified person (qualified electrician).

Page 10

POW8136 EN

Power

220-240V~ 50 Hz

Output

2000W

Operating mode

Idle speed n°

5000 min-1

Carbide-tipped saw blade

254 x 25,4 x 2,8 mm

Number of teeth

60 / 80 / 100

Tilting range

-45° / 0° / +45°

Mitre cuts

0° to 45° to the left

Sawing width at 90°

310 x 78 mm

Sawing width at 45°

210 x 78 mm

Sawing width at 2 x 45° (double mitre cuts)

210 x 42 mm

Weight

18 kg

Laser class

Laser wave length

650 nm

Laser output

ss 1 mW

Laser module power supply

2 x 1.5 V Micro (AAA)

Acoustic pressure level LpA

92 dB(A)

Acoustic power level LwA

105 dB(A)

aw (Vibration):

1.9 m/s²

K = 1.5 m/s²

16 TECHNICAL DATA

17 NOISE

Noise emission values measured according to relevant standard. (K=3)

ATTENTION! Wear hearing protection when sound pressure is over 85 dB(A).

Page 11

POW8136 EN

18 WARRANTY

 This product is warranted as provided by law for a 24 -month period effective from the

date of purchase by the first user.

 This warranty covers all material or production flaws excluding: batteries, chargers,

defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.

 Damage and/or defects resulting from inappropriate use also do not fall under the

warranty provisions.

 We also disclaim all liability for any bodily injury resulting from inappropriate use of the

tool.

 Repairs may only be carried out by an authorised customer service centre for Powerplus

tools.

 You can always obtain more information at the number 00 32 3 292 92 90.  Any transportation costs shall always be borne by the customer, unless agreed otherwise

in writing.

 At the same time, no claim can be made on the warranty if the damage of the device is the

result of negligent maintenance or overload.

 Definitely excluded from the warranty is damage resulting from fluid permeation, excessive

dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneus net voltage. This list is not exhaustive.

 Acceptance of claims under warranty can never lead to the prolongation of the warranty

period nor commencement of a new warranty period in case of a device replacement.

 Devices or parts which are replaced under the warranty therefore remain the property of

Varo NV.

 We reserve the right to reject a claim whenever the purchase cannot be verified or when it

is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).

 Your purchase receipt must be kept as proof of date of purchase.  Your appliance must be returned undismantled to your dealer in an acceptably clean state,

(in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.

19 ENVIRONMENT

Should your appliance need replacement after extended use, do not discard it with the household rubbish but dispose of it in an environmentally safe way. Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.

Page 12

POW8136 EN

20 DECLARATION OF CONFORMITY

VARO N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that,

product : Telescopic mitre saw 2000W with table trade mark : POWERplus model : POW8136

is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.

European Directives (including, if applicable, their amendments up to the date of signature);

2004/108/EC 2006/42/EC 2011/65/EU 2000/14/EC Annex V LwA 102dB(A) / 105dB(A)

European harmonized standards (including, if applicable, their amendments up to the date of signature);

EN61029-1 : 2009 EN61029-2-9 : 2009 EN55014-1 : 2006 EN55014-2 : 1997 EN61000-3-2 : 2006 EN61000-3-11 : 2000

Keeper of the Technical Documentation : Philippe Vankerkhove, VARO – Vic. Van Rompuy N.V.

The undersigned acts on behalf of the company CEO,

Hugo Cuypers Regulatory Affairs – Compliance Manager 01/07/2014
