Page 1

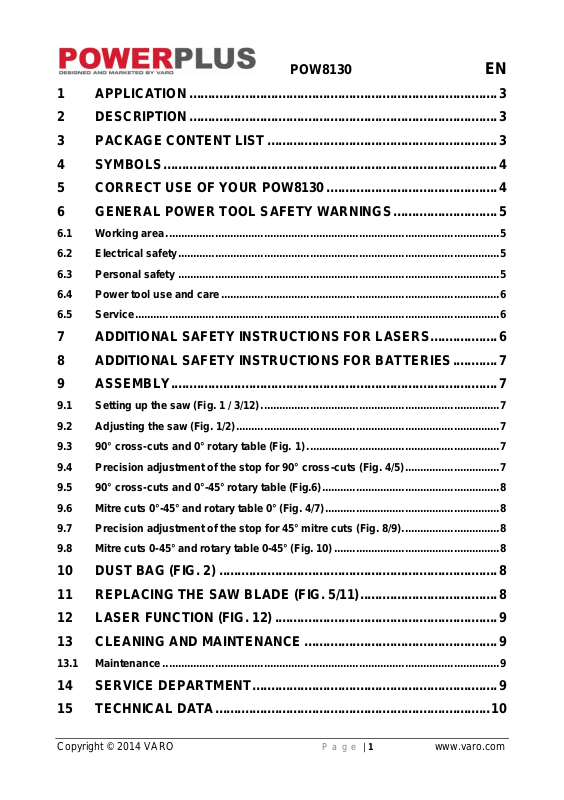

POW8130 EN

1 APPLICATION ................................................................................... 3

2 DESCRIPTION ................................................................................... 3

3 PACKAGE CONTENT LIST .............................................................. 3

4 SYMBOLS .......................................................................................... 4

5 CORRECT USE OF YOUR POW8130 .............................................. 4

6 GENERAL POWER TOOL SAFETY WARNINGS ............................ 5

6.1 Working area ............................................................................................................. 5

6.2 Electrical safety ......................................................................................................... 5

6.3 Personal safety ......................................................................................................... 5

6.4 Power tool use and care ........................................................................................... 6

6.5 Service ....................................................................................................................... 6

7 ADDITIONAL SAFETY INSTRUCTIONS FOR LASERS .................. 6

8 ADDITIONAL SAFETY INSTRUCTIONS FOR BATTERIES ............ 7

9 ASSEMBLY ........................................................................................ 7

9.1 Setting up the saw (Fig. 1 / 3/12) ................................................................ .............. 7

9.2 Adjusting the saw (Fig. 1/2) ...................................................................................... 7

9.3 90° cross-cuts and 0° rotary table (Fig. 1) ............................................................... 7

9.4 Precision adjustment of the stop for 90° cross-cuts (Fig. 4/5) ............................... 7

9.5 90° cross-cuts and 0°-45° rotary table (Fig.6) .......................................................... 8

9.6 Mitre cuts 0°-45° and rotary table 0° (Fig. 4/7) ......................................................... 8

9.7 Precision adjustment of the stop for 45° mitre cuts (Fig. 8/9) ................................ 8

9.8 Mitre cuts 0-45° and rotary table 0-45° (Fig. 10) ...................................................... 8

10 DUST BAG (FIG. 2) ........................................................................... 8

11 REPLACING THE SAW BLADE (FIG. 5/11) ..................................... 8

12 LASER FUNCTION (FIG. 12) ............................................................ 9

13 CLEANING AND MAINTENANCE .................................................... 9

13.1 Maintenance .............................................................................................................. 9

14 SERVICE DEPARTMENT .................................................................. 9

15 TECHNICAL DATA .......................................................................... 10

Page 2

POW8130 EN

16 NOISE ............................................................................................... 10

17 WARRANTY ..................................................................................... 10

18 ENVIRONMENT ............................................................................... 11

19 DECLARATION OF CONFORMITY ................................................ 12

Page 3

POW8130 EN

MITRE SAW 1500W POW8130

1 APPLICATION

The laser crosscut saw is designed to crosscut wood and plastic commensurate with the

machine’s size. The machine is not to be used for cutting fire wood. It is not designed for

commercial use.

WARNING! For your own safety, read this manual and general safety instructions carefully before using the appliance. Your power tool should only be passed on together with these instructions.

2 DESCRIPTION

1. Release lever

2. Handle

3. On/Off switch

4. Machine head

5. Saw blade

6. Saw blade guard, hinged

7. Stop rail

8. Turntable

3 PACKAGE CONTENT LIST

 Remove all packaging materials.  Remove remaining packing and package inserts (if included).  Check that the package contents are complete.  Check the appliance, the power cord, the power plug and all accessories for transportation

damage.

 Keep the packing materials as long as possible till the end of the warranty period. Dispose

it into your local waste disposal system afterwards.

9. Base plate, fixed

10. Handle

11. Tightening screw

12. Workpiece support

13. Sawdust bag

14. Angle scale

15. Retaining pin

16. Scale (rotary table)

WARNING: Packaging materials are not toys! Children must not play with plastic bags! Danger of suffocation!

1 x mitre saw 1200 W 1 x saw blade mounted 3 x extension bars 1 x work clamp 1 x dust bag 1 x wrench 1 x manual 1 set of batteries (for laser)

If any parts are missing or damaged, please contact your dealer.

Page 4

POW8130 EN

Warning / Danger!

Read manual before use.

Attention Laser radiation! Do not look into the beam. Laser class 2.

In accordance with essential applicable safety standards of European directives.

Wear gloves

Wear eye protection.

4 SYMBOLS

In this manual and/or on the machine the following symbols are used:

5 CORRECT USE OF YOUR POW8130

The laser crosscut saw is designed to crosscut wood and plastic commensurate with the machine’s size. The machine is not to be used for cutting fire wood. The machine is to be used only for its prescribed purpose. Any use other than that mentioned is considered to be a case of misuse. The user/operator and not the manufacturer shall be liable for any damage or injury resulting from such cases of misuse. The machine is to be operated only with suitable saw blades. It is prohibited to use any type of cutting-off wheel. To use the machine properly you must also observe the safety regulations, the assembly instructions and the operating instructions to be found in this manual. All persons who use and service the machine have to be acquainted with this manual and must be informed about its potential hazards. It is also imperative to observe the accident prevention regulations in force in your area. The same applies for the general rules of occupational health and safety. The manufacturer shall not be liable for any changes made to the machine nor for any damage resulting from such changes.

Page 5

POW8130 EN

Even when the machine is used as prescribed it is still impossible to eliminate certain residual

risk factors. The following hazards may arise in connection with the machine’s construction

and design:

 Contact with the saw blade in the uncovered saw zone.  Reaching into the running saw blade (cut injuries).  Kick-back of workpieces and parts of workpieces.  Saw blade fracturing.  Catapulting of faulty carbide tips from the saw blade.  Damage to hearing if essential ear-muffs are not worn.  Harmful emissions of wood dust when the machine is used in closed rooms.

6 GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and instructions. Failure to heed warnings and follow instructions may result in electric shock, fire and/or serious injury. Keep safety warnings and instructions for future reference. The term "power tool" in the safety warnings refers to your mainsoperated (corded) power tool or battery- operated (cordless) power tool.

6.1 Working area

 Keep working area clean and well lit. Untidy and dark areas can lead to accidents.  Do not operate power tools in potentially explosive surroundings, for example, in the

presence of inflammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

 Keep children and bystanders at a distance when operating a power tool. Distractions can

cause you to lose control of it.

6.2 Electrical safety

Always check that the power supply corresponds to the voltage on the rating plate.

 Power tool plugs must match the outlet. Never modify the plug in any way. Do not use

adapter plugs with earthed power tools. Unmodified plugs and matching outlets will reduce the risk of an electric shock.

 Avoid body contact with earthed surfaces such as pipes, radiators, kitchen ranges and

refrigerators. There is an increased risk of an electric shock if your body is earthed.

 Do not expose power tools to rain or wet conditions. If water gets inside a power tool, it will

increase the risk of an electric shock.

 Do not damage the cord. Never use the cord for carrying, pulling or unplugging the power

tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of an electric shock.

 When operating a power tool outdoors, use an extension cable suitable for outdoor use.

Using a cord suitable for outdoor use reduces the risk of an electric shock.

 If operating a power tool in a damp location is unavoidable, use a power supply protected

by a residual current device (RCD). Using an RCD reduces the risk of an electric shock.

6.3 Personal safety

 Stay alert, watch what you are doing and use common sense when operating a power

tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when operating a power tool may result in serious personal injury.

 Use safety equipment. Always wear eye protection. Using safety equipment such as a

dust mask, non-skid safety shoes, a hard hat, or hearing protection whenever it is needed will reduce the risk of personal injury.

Page 6

POW8130 EN

 Avoid accidental starts. Ensure the switch is in the off position before inserting the plug.

Carrying power tools with your finger on the switch or plugging in power tools when the switch is in the on position makes accidents more likely.

 Remove any adjusting keys or spanners before turning on the power tool. A spanner or

key left attached to a rotating part of the power tool may result in personal injury.

 Do not reach out too far. Keep your feet firmly on the ground at all times. This will enable

you retain control over the power tool in unexpected situations.

 Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and

gloves away from the power tool. Loose clothes, jewellery or long hair can become entangled in the moving parts.

 If there are devices for connecting dust extraction and collection facilities, please ensure

that they are attached and used correctly. Using such devices can reduce dust-related hazards.

6.4 Power tool use and care

 Do not expect the power tool to do more than it can. Use the correct power tool for what

you want to do. A power tool will achieve better results and be safer if used in the context for which it was designed.

 Do not use the power tool if the switch cannot turn it on and off. A power tool with a broken

switch is dangerous and must be repaired.

 Disconnect the plug from the power source before making adjustments, changing

accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

 Store power tools, when not in use, out of the reach of children and do not allow people

who are not familiar with the power tool or these instructions to operate it. Power tools are potentially dangerous in the hands of untrained users.

 Maintain power tools. Check for misalignment or jammed moving parts, breakages or any

other feature that might affect the operation of the power tool. If it is damaged, the power tool must be repaired. Many accidents are caused by using poorly maintained power tools.

 Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting

edges are less likely to jam and are easier to control.

 Use the power tool, accessories and cutting tools, etc., in accordance with these

instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work which needs to be done. Using a power tool in ways for which it was not intended can lead to potentially hazardous situations.

6.5 Service

 Your power tool should be serviced by a qualified specialist using only standard spare

parts. This will ensure that it meets the required safety standards.

7 ADDITIONAL SAFETY INSTRUCTIONS FOR LASERS

 Warning! The laser beam potentially causes severe eye damage. Never look or stare

directly into the laser beam.

 During use, do not point the laser beam at people, directly or indirectly through reflecting

surfaces.

 This laser complies with class 2 according to EN 60825-1:2001. The unit includes no

servicing components. Do not open the housing for any reason. If the unit is damaged, have the damage repaired by an authorized repair agent.

Page 7

POW8130 EN

8 ADDITIONAL SAFETY INSTRUCTIONS FOR BATTERIES

 When replacing batteries, always replace the complete set. Do not mix old batteries with

new ones.

 Prevent removed batteries from short circuiting.  Do not store batteries where the temperature may rise above 50 °C, e.g. in a car which

has been parked in the sun.

 Do not burn batteries.  Never attempt to open batteries.  In case of battery leakage, carefully remove the liquid using a cloth. Avoid skin or eye

contact. Do not swallow. In case of skin or eye contact, rinse abundantly for 10 minutes with clean water and consult a physician.

9 ASSEMBLY

9.1 Setting up the saw (Fig. 1 / 3/12)

 Insert the two workpiece support clips (12) in the mounts (21) provided on the side of the

tool and fasten them in place with thumb screws (22).

 Insert the clamping device (19) into one of the two mounts (20) provided on the top of stop

rail and fasten in place with the thumb screw (33).

 Screw the additional stability bar (32) to the back of the machine.

9.2 Adjusting the saw (Fig. 1/2)

 The rotary table (8) has latching positions at 0°, 15°, 22.5°, 30° and 45°. You can adjust

the angle by moving the table to the left or to the right using the black handle.

 While pressing down lightly on the machine head (4), pull the lock pin (16) out of the motor

holder to disengage the saw from its bottom working position.

 Swing up the machine head until the retaining hook latches home.  By loosening the lock screw (12), the machine head (4) can be angled to the left up to 45°.  Check that the voltage marked on the rating plate is the same as your mains voltage and

connect up the machine.

9.3 90° cross-cuts and 0° rotary table (Fig. 1)

 To turn the machine on, simultaneously press the main switch (3) and locking button (30).  Important! Place the material you want to saw flat on the machine surface and secure with

the clamping device (19) so that the material cannot move while you are cutting.

 After switching on the saw, wait for the blade (5) to reach its maximum speed.  Press the release lever (1) sideways and, using the handle (2), apply steady and light

downward pressure to move the machine head through the workpiece.

 When the cut is completed, return the machine to  its top parking position and let go of the On/Off  switch.

Caution! A return spring causes the machine head to rise automatically at the end of the cut. Do not let go of the handle (2) as soon as the cut is completed but steady the machine head and allow it to rise slowly.

9.4 Precision adjustment of the stop for 90° cross-cuts (Fig. 4/5)

 Lower the machine head (4) and fix with the lock pin (16).  Slacken the tightening screw (12).  Place the stop angle (A) between the saw blade (5) and the rotary table (8).  Slacken the counter nut (23) and adjust the setting screw (24) until the angle between the

saw blade (5) and the rotary table (8) equals 90°.

 Re-tighten the counter nut (23) to fix the machine in this setting.

Page 8

POW8130 EN

9.5 90° cross-cuts and 0°-45° rotary table (Fig.6)

 The POW8130 can be used to make angled cuts of 0°-45° relative to the stop rail on the

left and right side.

 You can adjust the angle by moving the table to the left or to the right using the black

handle.

 Release the rotary table (8) by slackening the locking handle (10) and pressing the latch

(11).

 Turn the rotary table (8) by its handle (2) to the angle you want, i.e. the mark (a) on the

rotary table has to comply with the required angle dimension (17) on the base plate (9).

 Make the cut as described in Section B.).

9.6 Mitre cuts 0°-45° and rotary table 0° (Fig. 4/7)

 The POW8130 can be used to make mitre cuts of 0°-45° relative to the machine bed on

the left side.

 Lift the machine head (4) to its top position.  Fix the rotary table (8) in 0° position.  Undo the tightening screw (12) and use the handle (2) to tilt the machine head (4) to the

left until the pointer (a) coincides with the required angle value (15).

 Re-tighten the tightening screw (12) and make the cut as described in Section B.

9.7 Precision adjustment of the stop for 45° mitre cuts (Fig. 8/9)

 Lower the machine head (4) and fix with the lock pin (16).  Fix the rotary table (8) in 0° position.  Undo the tightening screw (12) and use the handle (2) to tilt the machine head (4) to the

left until it coincides at 45°.

 Place the 45° stop angle (A) between the saw blade (5) and the rotary table (8).  Slacken the counter nut (25) and adjust the setting screw (26) until the angle between the

saw (5) and the rotary table (8) equals exactly 45°.

9.8 Mitre cuts 0-45° and rotary table 0-45° (Fig. 10)

 The POW8130 can be used to make mitre cuts on the left at an angle of 0°-45° relative to

the work top and 0°-45° relative to the stop rail.

 Lift the machine head (4) to its top position.  Adjust the rotary table (8) by its handle (2) to the required angle (see also Section D).  Undo the tightening screw (12) and use the handle (2) to tilt the machine head (4) to the

left until it coincides with the required angle value (in this connection see also section E).

 Screw the tightening screw (12) back down again.

10 DUST BAG (FIG. 2)

The saw is equipped with a bag (14) to collect sawdust and chips. You can pull off the sawdust bag (14) to the rear by pressing together the two clips (27). To empty the bag, undo the zip at the bottom.

11 REPLACING THE SAW BLADE (FIG. 5/11)

 Pull out the power plug.  Swing up the machine head (4).  Unscrew the two bolts (27, 28) and flip the cover plate up together with the saw blade

guard (6).

 Press the saw shaft lock with one hand while holding the wrench (32) on the flange bolt

(25) with the other.

 Firmly press on the saw shaft lock and slowly rotate the flange bolt (25) in clockwise

direction. The saw shaft lock engages after no more than one rotation.

 Now, using a little more force, slacken the flange bolt (25) in clockwise direction.  Turn the flange bolt (25) until it is completely removed.

Page 9

POW8130 EN

 Take the blade (5) off the inner flange and pull out downwards.  Mount the new saw blade in reverse order and fasten.  Important! The cutting bevel of the teeth, i.e. the  direction of rotation of the saw blade, has to conform with the direction of the arrow

marked on the housing.

 Clean the saw blade flanges thoroughly before mounting the saw blade.  Reattach the movable blade guard (6) in reverse order.  Before using the saw again, check that the safety devices are in good working order.  Important: Every time that you change the saw blade, check to see that it spins freely in

the groove of the turntable in both perpendicular and 45° angle settings.

12 LASER FUNCTION (FIG. 12)

You can switch the laser ON and OFF with the switch (a). The laser (35) directs a beam onto the work-piece. Extremely precise cuts can be made using the laser function.

13 CLEANING AND MAINTENANCE

Attention! Before performing any work on the equipment, pull the power plug.

13.1 Maintenance

 Keep the ventilation slots of the tool clean to prevent overheating of the engine.  Remove dust and dirt regularly from the machine. Cleaning is best done with compressed

air or a rag.

 Re-lubricate all moving parts in regular intervals.  Never use caustic agents to clean plastic parts.

Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

14 SERVICE DEPARTMENT

 Damaged switches must be replaced by our after-sales service department.  If the connecting cable (or mains plug) is damaged, it must be replaced by a particular

connecting cable which is available from our service department. Replacement of the connecting cable must only be carried out by our service department (see last page) or by a qualified person (qualified electrician).

Page 10

15 TECHNICAL DATA

Rated voltage

220-240 V

Rated frequency

50 Hz

Rated power

1500W

Rotation speed

5000 min-1

Blade size

210 x 30 mm

Max. cutting depth

Protection class

Class II

Cable length

Tilting range

-45° / 0° / +45°

Mitre cuts

0° to 45° to the left

Maximum cutting capacity 90°

Maximum cutting capacity 90°-90°

60 x 120 mm

Maximum cutting capacity 45°

Maximum cutting capacity 45°-90°

35 x 120 mm

Maximum cutting capacity 90°-45°

60 x 80 mm

Maximum cutting capacity 45°-45°

35 x 80 mm

Table size

Number of teeth

24 teeth

Weight

9 kg

Laser class

Laser wave length

650 nm

Laser output

ss 1 mW

Laser module power supply

2 x 1.5 V Micro (AAA)

Acoustic pressure level LpA

100 dB(A)

Acoustic power level LwA

113 dB(A)

aw (Vibration):

4.5 m/s²

K = 1.5 m/s²

POW8130 EN

16 NOISE

Noise emission values measured according to relevant standard. (K=3)

ATTENTION! Wear hearing protection when sound pressure is over 85 dB(A).

17 WARRANTY

 This product is warranted as provided by law for a 24 -month period effective from the

date of purchase by the first user.

 This warranty covers all material or production flaws excluding: batteries, chargers,

defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.

 Damage and/or defects resulting from inappropriate use also do not fall under the

warranty provisions.

 We also disclaim all liability for any bodily injury resulting from inappropriate use of the

tool.

Page 11

POW8130 EN

 Repairs may only be carried out by an authorised customer service centre for Powerplus

tools.

 You can always obtain more information at the number 00 32 3 292 92 90.  Any transportation costs shall always be borne by the customer, unless agreed otherwise

in writing.

 At the same time, no claim can be made on the warranty if the damage of the device is the

result of negligent maintenance or overload.

 Definitely excluded from the warranty is damage resulting from fluid permeation, excessive

dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneous net voltage. This list is not exhaustive.

 Acceptance of claims under warranty can never lead to the prolongation of the warranty

period nor commencement of a new warranty period in case of a device replacement.

 Devices or parts which are replaced under the warranty therefore remain the property of

Varo NV.

 We reserve the right to reject a claim whenever the purchase cannot be verified or when it

is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).

 Your purchase receipt must be kept as proof of date of purchase.  Your appliance must be returned undismantled to your dealer in an acceptably clean state,

(in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.

18 ENVIRONMENT

Should your appliance need replacement after extended use, do not dispose of it with the household refuse, but in an environmentally safe way. Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.

Page 12

POW8130 EN

19 DECLARATION OF CONFORMITY

VARO N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that,

product: Mitre saw 1500W trade mark: POWERplus model: POW8130

is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.

European Directives (including, if applicable, their amendments up to the date of signature);

2011/65/EU 2004/108/EC 2006/42/EC 2000/14/EC Annex V LwA 110dB(A) / 113dB(A)

European harmonized standards (including, if applicable, their amendments up to the date of signature);

EN61029-1 : 2009 EN61029-2-9 : 2009 EN55014-1 : 2006 EN55014-2 : 1997 EN61000-3-2 : 2006 EN61000-3-11 : 2000

Keeper of the Technical Documentation : Philippe Vankerkhove, VARO – Vic. Van Rompuy N.V.

The undersigned acts on behalf of the company CEO,

Hugo Cuypers Regulatory Affairs – Compliance Manager 25/04/14
