Powerplus POW8041 User Manual

Download

POW8041 EN

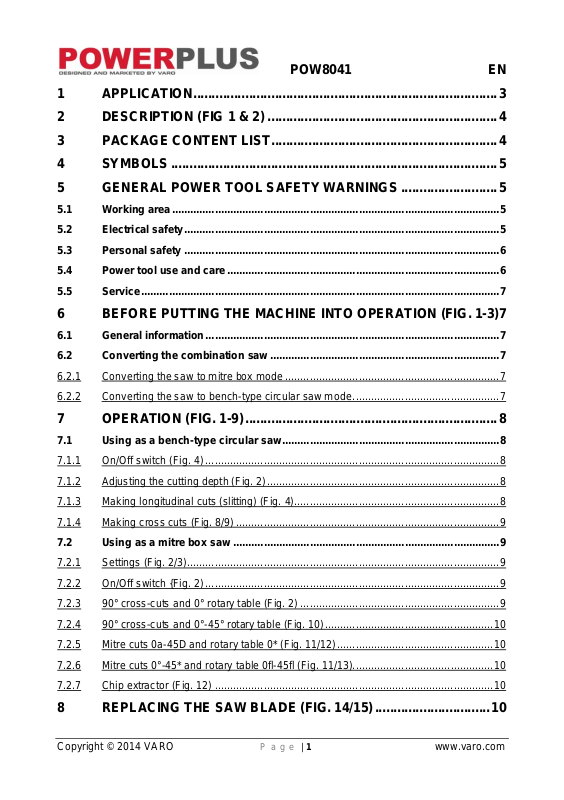

1 APPLICATION .................................................................................. 3

2 DESCRIPTION (FIG 1 & 2) .............................................................. 4

3 PACKAGE CONTENT LIST ............................................................. 4

4 SYMBOLS ........................................................................................ 5

5 GENERAL POWER TOOL SAFETY WARNINGS .......................... 5

5.1 Working area ........................................................................................................... 5

5.2 Electrical safety ....................................................................................................... 5

5.3 Personal safety ....................................................................................................... 6

5.4 Power tool use and care ......................................................................................... 6

5.5 Service ..................................................................................................................... 7

6 BEFORE PUTTING THE MACHINE INTO OPERATION (FIG. 1-3)7

6.1 General information ................................................................................................ 7

6.2 Converting the combination saw ........................................................................... 7

6.2.1 Converting the saw to mitre box mode ...................................................................... 7

6.2.2 Converting the saw to bench-type circular saw mode ................................ ................ 7

7 OPERATION (FIG. 1-9) .................................................................... 8

7.1 Using as a bench-type circular saw ....................................................................... 8

7.1.1 On/Off switch (Fig. 4) ................................................................................................ 8

7.1.2 Adjusting the cutting depth (Fig. 2) ............................................................................ 8

7.1.3 Making longitudinal cuts (slitting) (Fig. 4) ................................................................... 8

7.1.4 Making cross cuts (Fig. 8/9) ...................................................................................... 9

7.2 Using as a mitre box saw ....................................................................................... 9

7.2.1 Settings (Fig. 2/3) ...................................................................................................... 9

7.2.2 On/Off switch {Fig. 2) ................................................................................................ 9

7.2.3 90° cross-cuts and 0° rotary table (Fig. 2) ................................................................. 9

7.2.4 90° cross-cuts and 0°-45° rotary table (Fig. 10) ....................................................... 10

7.2.5 Mitre cuts 0a-45D and rotary table 0* (Fig. 11/12) ................................................... 10

7.2.6 Mitre cuts 0°-45* and rotary table 0fl-45fl (Fig. 11/13) .............................................. 10

7.2.7 Chip extractor (Fig. 12) ........................................................................................... 10

8 REPLACING THE SAW BLADE (FIG. 14/15) ............................... 10

POW8041 EN

9 TECHNICAL DATA ........................................................................ 11

10 NOISE ............................................................................................. 11

11 WARRANTY ................................................................................... 11

12 ENVIRONMENT ............................................................................. 12

13 DECLARATION OF CONFORMITY .............................................. 13

POW8041 EN

MITER SAW WITH UPPER TABLE POW8041

1 APPLICATION

The POW8041 circular cross-cut and mitre box saw with upper table is designed for making cross cuts. Longitudinal cuts and mitre cuts (using the stops) in timber and plastic commensurate with the machine's size. It is not suitable for cutting fire wood. A special jig is required to cut roundwood. The machine is to be used only for its prescribed purpose. Any use other than that mentioned is considered to be a case of misuse. The user/operator and not the manufacturer shall be liable for any damage or injury resulting from such cases of misuse. The machine is to be operated only with suitable saw blades. It is prohibited to use any type of cutting-off wheel. To use the machine properly you must also observe the safety regulations, the assembly instructions and the operating instructions to be found in this manual. All persons who use and service the machine have to be acquainted with this manual and must be informed about its potential hazards. It is also imperative to observe the accident prevention regulations in force in your area. The same applies for the general rules of occupational health and safely. The manufacturer shall not be liable for any changes made to the machine nor tor any damage resulting from such changes. Even when the machine is used as prescribed it is still impossible to eliminate certain residual risk factors. The following hazards may arise in connection with the machine's construction and design:

 Contact with the saw blade in the uncovered saw zone.  Reaching into the running saw blade (cut injuries).  Kick-back of workpieces and parts of workpieces due to improper handling.  Saw blade fracturing.  Catapulting of faulty carbide tips from the saw blade.  Damage to hearing if essential ear-muffs are not worn.

Machine is used in closed rooms.

WARNING! For your own safety, read this manual and the general safety instructions carefully before using the appliance. Your power tool should only be given to other users together with these instructions.

POW8041 EN 2 DESCRIPTION (FIG 1 & 2)

1. Release button

2. Handle

3. On/Off switch tor mitre box saw

mode

4. On/Oft switch for bench-type circular

saw mode

5. Saw blade

6. Saw blade guard- hinged

7. Stop rail

8. Rotary table

9. Lower saw table

10. Lock screw [or turntable

11. Scale

12. Table insert, bottom

13. Saw blade fixture

14. Lower saw blade cover

15. Locking nut

16. Saw table

17. Upper saw blade guard

18. Parallel stop

19. Hexagon wrench

20. Workpiece supports

21. Face wrench

22. Clamping screw

23. Retaining pin

24. Locking fork

25. Knurled screw for miter settings

26. Knurled screw

27. Stop rail

28. Lock screw tor cutting width

29. Push stick

30. Splitter

31. Extractor socket

32. Allen screw

33. Recessed head screw

34. Table insert, top

35. Outer flange

36. Lock screw for workpiece support

3 PACKAGE CONTENT LIST

 Remove all packaging materials.  Remove remaining packaging and packing inserts (if included).  Check that the package contents are complete.  Check the appliance, the power cord, the power plug and all accessories for transportation

damage.

 Keep the packaging materials as far as possible until the end of the warranty period. Then

take it to your local waste disposal system.

WARNING Packaging materials are not toys! Children must not play with plastic bags! There is a danger of suffocation!

1 x Circular cross-cut saw and mitre box saw with upper table 1 x Saw blade 1 x Push-off arm 1 x Allen wrench 2 x Extension wings 2 x Extension foot

If any parts are missing or damaged, please contact your dealer.

1 x Scale 1 x Dust pipe 1 x End wrench 1 x Socket wrench 1 x Cross stop 1 x Manual

POW8041 EN

Denotes risk of personal injury or damage to the tool.

Read manual before use.

Conforms to essential safety standards of applicable European directives.

Wear ear guards and goggles.

Wear eye protection.

Keep hands away from blades,

Don’t touch the blades when

starting or while operating the unit.

Wear a mask In dusty conditions!

Wear gloves!

Wearing of protective shoes advised!

Wear good, hardy work clothes!

Class II - The machine is double insulated; Earthing wire is therefore not necessary.

4 SYMBOLS

The following symbols are used in this manual and/or on the machine:

5 GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and instructions. Failure to heed warnings and follow instructions may result in electric shock, fire and/or serious injury. Keep safety warnings and instructions for future reference. The term "power tool" in the safety warnings refers to your mainsoperated (corded) power tool or battery-operated (cordless) power tool.

5.1 Working area

 Keep working area clean and well lit. Untidy and dark areas can lead to accidents.  Do not operate power tools in potentially explosive surroundings, for example, in the

presence of inflammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

 Keep children and bystanders at a distance when operating a power tool. Distractions can

cause you to lose control of it.

5.2 Electrical safety

Always check that the power supply corresponds to the voltage on the rating plate.

 Power tool plugs must match the outlet. Never modify the plug in any way. Do not use

adapter plugs with earthed power tools. Unmodified plugs and matching outlets will reduce the risk of a lethal electric shock.

 Avoid body contact with earthed surfaces such as pipes, radiators, kitchen ranges and

refrigerators. There is an increased risk of a lethal electric shock if your body is earthed.

 Do not expose power tools to rain or wet conditions. If water gets inside a power tool, it will

increase the risk of a lethal electric shock.

 Do not damage the cord. Never use the cord for carrying, pulling or unplugging the power

tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of a lethal electric shock.

 When operating a power tool outdoors, use an extension cable suitable for outdoor use.

Using a cord suitable for outdoor use reduces the risk of a lethal electric shock.

 If operating a power tool in a damp location is unavoidable, use a power supply protected

by a residual current device (RCD). Using an RCD reduces the risk of a lethal electric shock.

5.3 Personal safety

 Stay alert, watch what you are doing and use common sense when operating a power

tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when operating a power tool may result in serious personal injury.

 Use safety equipment. Always wear eye protection. Using safety equipment such as a

dust mask, non-skid safety shoes, a hard hat, or hearing protection whenever it is needed will reduce the risk of personal injury.

 Avoid accidental starts. Ensure the switch is in the off position before inserting the plug.

Carrying power tools with your finger on the switch or plugging in power tools when the switch is in the on position makes accidents more likely.

 Remove any adjusting keys or spanners before turning on the power tool. A spanner or

key left attached to a rotating part of the power tool may result in personal injury.

 Do not reach out too far. Keep your feet firmly on the ground at all times. This will enable

you retain control over the power tool in unexpected situations.

 Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and

gloves away from the power tool. Loose clothes, jewellery or long hair can become entangled in the moving parts.

 If there are devices for connecting dust extraction and collection facilities, please ensure

that they are attached and used correctly. Using such devices can reduce dust-related hazards.

5.4 Power tool use and care

 Do not expect the power tool to do more than it can. Use the correct power tool for what

you want to do. A power tool will achieve better results and be safer if used in the context for which it was designed.

 Do not use the power tool if the switch cannot turn it on and off. A power tool with a broken

switch is dangerous and must be repaired.

 Disconnect the plug from the power source before making adjustments, changing

accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

 Store power tools, when not in use, out of the reach of children and do not allow people

who are not familiar with the power tool or these instructions to operate it. Power tools are potentially dangerous in the hands of untrained users.

 Maintenance. Check for misalignment or jammed moving parts, breakages or any other

feature that might affect the operation of the power tool. If it is damaged, the power tool must be repaired. Many accidents are caused by using poorly maintained power tools.

 Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting

edges are less likely to jam and are easier to control.

 Use the power tool, accessories and cutting tools, etc., in accordance with these

instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work which needs to be done. Using a power tool in ways for which it was not intended can lead to potentially hazardous situations.

POW8041 EN

5.5 Service

 Your power tool should be serviced by a qualified specialist using only standard spare

parts. This will ensure that it meets the required safety standards.

6 BEFORE PUTTING THE MACHINE INTO OPERATION (FIG. 1-3)

6.1 General information

 The machine has to be set up where t can stand firmly, e.g. bolt it to a work bench, a

universal base or similar.

 All the covers and safety devices have to be properly fitted before the machine is switched

on.

 It must be possible for the saw Wade to run freely.  When working with wood that has been processed before, watch out for foreign bodies

such as rails or screws etc.

 Before you activate the On/Off switch, make sure that the saw blade is correctly fitted and

that the machines moving parts run smoothly.

 Before you connect the machine to the power supply, make sure the data on the rating

plate is the same as that for your mains.

6.2 Converting the combination saw

The saw has two wording positions: A: Bench-type Circular saw (Fig. 1) B: Cross-cut and mitre box saw (Fig. 2)

To convert the saw from one working position to another, proceed step by step exactly as described below or you may damage components.

Caution: Pull out the power plug each time before you convert the saw!

The saw is delivered in working position A (bench-type circular saw).

6.2.1 Converting the saw to mitre box mode

 First slacken the locking nut (15).  Raise the saw table (16) with the one hand while pressing down the machine head by the

handle (2) with the other.

 The blade (5} must disappear completely in the slot of the saw table (16).  Re-tighten the locking nut (15).  The locking fork (24) has lifted as the result and released the retaining pin (23).  Press down the machine head by the handle (2) and pull out the retaining pin (23).  This disconnects the power supply to the switch (4) for bench-type circular saw mode and

connects it to the switch (3) for mitre box saw mode.

POW8041 EN

Caution! A return spring causes the machine head to rise automatically at the end of the cut. Do not let go of the handle {2} as soon as the cut is completed but steady the machine head and allow it to rise slowly,

 Remove the saw blade cover (14).  The saw is now ready for use in mitre box saw mode,

6.2.2 Converting the saw to bench-type circular saw mode

 Set the machine head in vertical position and the rotary table (8) to 0°,  Fix the locking screws (10) and the clamping screw (22).

 Place the lower saw blade cover (14) on the rotary table (8), making sure that the two rear

feet of the cover latch securely behind the stop rail (7).

 Press the release button (1) and lower the machine head by the handle (2) until the lower

saw blade guard (14) completely covers the blade

 Insert the retaining p*n (23) in order to fix the saw in the lower position. This also redirects

the power supply from switch (3) to switch (4).

 Undo the locking nut (15) and lower the saw table (16) to the required cutting depth.  Re-fix the locking nut (15).  When toe saw table (16) is lowered it blocks the retaining pin (23) with the locking fork

(24) so that the pin cannot be pulled out.

 The saw is now ready for use again in bench-type circular saw mode.

7 OPERATION (FIG. 1-9)

After every change of setting we recommend that you make a test cut in order to check the new dimensions.

7.1 Using as a bench-type circular saw

Convert the saw to bench-type circular saw mode (see 6.2.2.). Be careful when starting the cut.

7.1.1 On/Off switch (Fig. 4)  To switch on the saw, press the green button (a). Wait for the blade to reach its maximum

speed before starting the cut.

 To switch off the saw. press the red button (b).

7.1.2 Adjusting the cutting depth (Fig. 2)

 Slacken the locking nut (15) and move the saw table {16) to the required sawing depth.  The blade (5) should project a few mm out of the workpiece.  Re-fix the locking nut (15).

7.1.3 Making longitudinal cuts (slitting) (Fig. 4)  Undo the knurled screw (25} and set the cross and parallel stop (18) to 90*. Re-fix the

screw (25).

 Insert the parallel stop (18) from the right into the front slot of the saw table (16).  Undo the two knurled screws (26). Slide the stop rail (27) forward to a pint above the

middle of the blade (5) and fix in place.

 Using the scale {c) on the saw table (16): set the parallel stop (18) to the required

dimension and clamp in place with the locking screw (28).

 Switch on the saw by pressing the green button (a).  Slowly and precisely slide the workpiece forward along the parallel stop (18) to the blade

(5).

 The upper blade guard (17) opens automatically when you slide the workpiece forward.  Caution:

POW8041 EN

For workpieces of less than 120 mm in width it is imperative to use the supplied push stick (29) in the area of the blade (5) (sec Fig. 5). For workpieces of less than 3D mm in width it is imperative to use a push block (d) to move the workpiece forward. (see Fig. 6) There is no push block supplied with your saw! Ask your specialized dealer.

 Always push the workpiece through as far as the end of the (30) splitter. {Fig. 7)

POW8041 EN

 When the cut is completed, the guard hood (17) closes, again automatically and covers

the blade (5).

 Switch off the saw.

Important: Secure long workpieces from sagging at the end of the cut (e.g. with a roller table etc.).

7.1.4 Making cross cuts (Fig. 8/9)  Insert the cross and parallel stop (18) from the right into the lateral slot of the saw table

(16).

 Tighten the locking screw (28) until the cross stop (18) can be moved in the slot of the saw

table (16) with little play.

 Slacken the knurled screw (25), move the cross stop (18) to the required angular setting

and fix in position.

 Slacken the two knurled screws (26) and Slide the stop rail (27) to the left until it no longer

touches the blade guard (17) when moved forward. Re-tighten the screws (26).

 Switch on the saw.  Press the workpiece firmly against the stop rail (27) and slowly slide it together with the

cross stop (18) against the blade (5) *n order to make the cut.

 When the cut is completed, switch off the saw.

7.2 Using as a mitre box saw

Convert the saw to mitre-box saw mode (see 6.2.1)

7.2.1 Settings (Fig. 2/3)  The machine head can be tilted a max. 45° lo the left by undoing the clamping screw (22)

with the hex wrench (19).

 The rotary table (8) can be adjusted from -45° to +45A by undoing the locking screws (10).

7.2.2 On/Off switch {Fig. 2)  The saw is started by pressing the On/Off switch (3). The switch has to be kept pressed

while making the cut.

7.2.3 90° cross-cuts and 0° rotary table (Fig. 2) Convert the saw from bench-type circular saw mode to mitre box saw mode.

 Press the main switch (3) to turn on the saw.  Wait for the blade to reach its maximum speed before starting the cut.  Place the workpiece on the lower saw table (9) and press it against the stop rail with your

left hand. Always position the material firmly on the machine bed so that it cannot move about while it is being cut.

 With the other hand, press the release button (1) and lower the machine head by its

handle (2) smoothly and with slight pressure down through the workpiece to make the cut.

 When the cut is completed, return the machine to its top parking position and let go of the

On/Off switch.

Caution! A return spring causes the machine head to rise automatically at the end of the cut. Do not let go of the handle (2) as soon as the cut is completed but steady the machine head and allow it to rise slowly,

7.2.4 90° cross-cuts and 0°-45° rotary table (Fig. 10)

POW8041 EN

The POW 8041 can be used to make angled cuts of 0°-45° relative to the stop rail on the left and right side.

 Undo the rotary table (8) by slackening the two locking screws (10) on the stop rail (7).  Turn the rotary table (8) by its handle (2) to the angle you want, i.e. the mark (a) on the

rotary table has to comply with the required angle dimension (11) on the stationary base plate (9).

 Re-tighten the lock screw (1 □) to fasten the turntable (8).  Make the cut as described in Section 7.2.3.

7.2.5 Mitre cuts 0a-45D and rotary table 0* (Fig. 11/12) The POW8041 can be used to make mitre cuts of 0°- 45'* relative to the machine bed on the

left side.

 Lift the machine head to its top position.  Fix the rotary table (8) in 0° position.  Use the hexagon wrench (19) to undo the clamping screw (22) and tilt the machine head

by its handle (2) to the left until the mark (a) on the machine head points to the required angle dimension (b).

 Re-tighten the clamping screw (22) and make the cut as described in Section 7.2.3.

7.2.6 Mitre cuts 0°-45* and rotary table 0fl-45fl (Fig. 11/13) The POW8041 can be used to make mitre cuts on the left at an angle of 0°- 45°" relative to

the work top and 0^- 45° relative to the stop rail (double mitre cuts).

 Lift the machine head to its top position.  Release the turntable {8) by slackening the lock screw (10) on the stop rail (7).  Adjust the rotary table (8) by its handle (2) to the required angle (see also Section 7.2.4).  Re-tighten the lock screw (10) to fasten the turntable.  Undo the clamping screw (22) and tilt the machine head (4) by its handle (2) to the left to

the required angle dimension

 (see also Section 7.2.5).  Re-tighten the clamping screw (22).  Make the cut as described in Section 7.2.3.

7.2.7 Chip extractor (Fig. 12) The saw is equipped with a chip extraction socket (3D.

It is easy therefore to connect the machine to a chip extraction system.

8 REPLACING THE SAW BLADE (FIG. 14/15)

 Pull out the power plug. The blade must slop moving completely.  Concert the saw to mitre box saw mode (see also Section 8.2.1).  Slacken the two Allen screws (32) and take off the splitter (30) together with the blade

guard (17).

 Remove the recessed head screws (33) and the table insert (34).  Use the supplied face wrench (21) to lock the outer flange in place and use the socket

wrench (19) to unscrew the hex screw (Important: left-hand thread. Unscrew clockwise!).

 Take the saw blade (5) off the inner flange and lift up and out through the slot in the saw

table (16}.

 Thoroughly clean the outer and inner flange and the motor shaft before inserting and

securing the new blade.

Important! The cutting bevel of the teeth, i.e. the direction of rotation of the

Asynchronous motor

230 V - 50 Hz

Power rating

1200 W

Operating mode

idle speed

4500 min-1

Carbide saw blade

Ø 210 x Ø 30 x 2.5 mm

Number of teeth

Connector for dust extractor

Ø35 mm

Standing area

400 x 285

Saw table

380 x 270 mm

Cutting height

0 – 33 mm

Parallel stop swinging range

-30° to +30°

Tilting range

-45° / 0° / +45°

Mitre cuts

0° to 45° to the left

Saw bed support

390 x 140 mm

Sawing width at 90°

120 x 55 mm

Sawing width at 45°

65 x 55 mm

Sawing width at 2 x 45°(double mitre cuts)

40 x 23 mm

Sawing width at 45°

120 x 35 mm

Acoustic pressure level LpA

99 dB(A)

Acoustic power level LwA

112 dB(A)

saw Wade, has to conform with the direction of the arrow marked on the housing.

 Re-mount the table insert (3), the splitter (30) and the blade guard (17) and secure in

place.

 When fastening the splitter (30} make sure that the distance between the teeth of the

blade and the splitter is a minimum 2 mm and a maximum 5 mm (Fig. 07).

 Before using the saw again, check that the safety devices are in good working order.

9 TECHNICAL DATA

POW8041 EN

10 NOISE

Noise emission values measured according to relevant standard. (K=3)

ATTENTION! Wear hearing protection when sound pressure is over 85 dB(A).

11 WARRANTY

 This product is warranted as provided by law for a 24 -month period effective from the

date of purchase by the first user.

 This warranty covers all material or production flaws excluding: batteries, chargers,

defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.

 Damage and/or defects resulting from inappropriate use also do not fall under the

warranty provisions.

 We also disclaim all liability for any bodily injury resulting from inappropriate use of the

POW8041 EN

tool.

 Repairs may only be carried out by an authorised customer service centre for Powerplus

tools.

 You can always obtain more information at the number 00 32 3 292 92 90.  Any transportation costs shall always be borne by the customer, unless agreed otherwise

in writing.

 At the same time, no claim can be made on the warranty if the damage of the device is the

result of negligent maintenance or overload.

 Definitely excluded from the warranty is damage resulting from fluid permeation, excessive

dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneus net voltage. This list is not exhaustive.

 Acceptance of claims under warranty can never lead to the prolongation of the warranty

period nor commencement of a new warranty period in case of a device replacement.

 Devices or parts which are replaced under the warranty therefore remain the property of

Varo NV.

 We reserve the right to reject a claim whenever the purchase cannot be verified or when it

is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).

 Your purchase receipt must be kept as proof of date of purchase.  Your appliance must be returned undismantled to your dealer in an acceptably clean state,

(in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.

12 ENVIRONMENT

Should your appliance need replacement after extended use, do not dispose of it with the household refuse, but in an environmentally safe way. Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.

POW8041 EN 13 DECLARATION OF CONFORMITY

VARO N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that,

product: Circular Cross-Cut Saw and Mitre Box Saw with Upper Table trade mark: POWERplus model: POW8041

is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.

European Directives (including, if applicable, their amendments up to the date of signature);

2011/65/EU 2004/108/EC 2006/42/EC 2000/14/EC Annex V LwA 109dB(A) / 112dB(A)

European harmonized standards (including, if applicable, their amendments up to the date of signature);

EN61029-1 : 2009 EN61029-2-11 : 2009 EN55014-1 : 2006 EN55014-2 : 1997 EN61000-3-2 : 2006 EN61000-3-3 : 2008

Keeper of the Technical Documentation : Philippe Vankerkhove, VARO – Vic. Van Rompuy N.V.

The undersigned acts on behalf of the company CEO,

Philippe Vankerkhove Regulatory Affairs – Compliance Manager 02/08/13

Powerplus POW8041 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
