ILLUSTRATED PARTS BOOK
43cc Earth Auger
PEA438
PEA438.1
MAT Engine Technologies, LLC, REV. 20170921 A201192
Table of Contents
Carburetor Kit………................................................................................................ 2-3
Fuel Line Kit………................................................................................................... 4
Muffler Kit………....................................................................................................... 5
Exploded View, 43cc Auger Engine.................................................................. 6-8
Exploded View, Auger Bit, Transmission, and Handle…............................ 9-10
Unit Decal Sheet………........................................................................................... 11
MAT Engine Technologies, LLC, REV. 20170921 - 1 - A201192
Kit, Carburetor – A201152 Model produced before November 10, 2017
REF. NO. DESCRIPTION PART NO. QTY
1 Gasket, Isolator A201108 1
2 Isolator, Carburetor A201109 1
3 Bolt, M5 x 25
4 Gasket, Carburetor A201111 1
5 Carburetor, 43cc A201112 1
6
6-1 Housing, Air Filter
6-2 Filter, Foam Element A203798 1
6-3 Cover, Air Filter
7 Bracket, Air Filter A201114 1
8 Screw, M5 x 60
9 Knob, Air Filter, M5 x 20 A201116 1
Assembly, Air Filter (including 61, 6-2 and 6-3)
For Reference Only
A201113 1
For Reference Only
For Reference Only
For Reference Only
2
1
1
2
MAT Engine Technologies, LLC, REV. 20170921 - 2 - A201192
Kit, Carburetor – Model produced after November 2017
REF. NO. DESCRIPTION PART NO. QTY
1 Gasket, Isolator A201108 1
2 Isolator, Carburetor A201109 1
3 Bolt, M5 x 25
4 Gasket, Carburetor A201111 1
5 Carburetor, 43cc A201112 1
6 Housing, Air Filter
7 Bracket, Air Filter A201114 1
8 Screw, M5 x 60
9 Filter, Pleated
10 Mounting Plate, Element
11 Filter, Foam Element
12 Cover, Air Filter
13 Knob, Air Filter A203718 1
14 Kit, Filters (Includes items #9 & 11) A203643 1
15 Kit, Air Filter A203714 1
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
2
1
2
1
1
1
1
MAT Engine Technologies, LLC, REV. 20170921 - 3 - A201192
Kit, Fuel Line – A201153
REF. NO. DESCRIPTION PART NO. QTY
1 Grommet, Fuel Tank
2 Outlet Line, Fuel
3 Inlet Line, Fuel
4 Filter, Fuel A201122 1
For Reference Only
For Reference Only
For Reference Only
1
1
1
MAT Engine Technologies, LLC, REV. 20170921 - 4 - A201192
Kit, Muffler – A201154
REF. NO. DESCRIPTION PART NO. QTY
1 Bolt, M6 x 55
2 Cover, Muffler
3 Muffler
4 Gasket, Muffler A201107 1
For Reference Only
For Reference Only
For Reference Only
2
1
1
MAT Engine Technologies, LLC, REV. 20170921 - 5 - A201192
Exploded View, 43cc Auger Engine – A202277
MAT Engine Technologies, LLC, REV. 20170921 - 6 - A201192
Exploded View, 43cc Auger Engine – A202277
REF. NO. DESCRIPTION PART NO. QTY
1 Bolt, M5 x 16
2 Washer, M5
3 Shroud, Engine A203420 1
4 Spark Plug, L7RTC A201103 1
5 Bolt, M6 x 55
6 Cover, Muffler
7 Muffler
8 Gasket, Muffler A201107 1
9 Gasket, Isolator A201108 1
10 Isolator, Carburetor A201109 1
11 Bolt, M5 x 25
12 Gasket, Carburetor A201111 1
13 Carburetor A201112 1
14
15 Bracket, Air Filter A201114 1
16 Screw, M5 x 60
17 Knob, Air Filter, M5 x 20 A201116 1
18
19 Screw, M5 x 20
20 Grommet, Fuel Tank
21 Outlet Line, Fuel
22 Inlet Line, Fuel
23 Filter, Fuel A201122 1
24 Fuel Tank A201123 1
25 Cap, Fuel A201124 1
26
27 Nut, M5
28 Cylinder
29 Gasket, Cylinder
30 Piston
31 Bolt, M5 x 20
32 Starter, Recoil A201131 1
33 Pawl, Starter A201132 1
34 Mounting Plate, Starter A201133 1
35 Seal, TC22X12X7, Crankcase
36 Crankcase, Right
37 Pin, 5 x 12
38 Ball Bearing, 6202
39 Crankshaft
40 Key, 3 x 5 x 13, Crankshaft
41 Seal, TC22X12X7, Crankcase
42 Crankcase, Left
43 Module, Ignition A201142 1
Assembly, Air Filter (including
14-1, 14-2 and 14-3)
Mounting Bracket, Fuel Tank,
Bottom
Mounting Bracket, Fuel Tank,
Top
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
A201113 1
For Reference Only
A201117 1
For Reference Only
For Reference Only
For Reference Only
For Reference Only
A201125 1
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
7
3
2
1
1
4
2
2
1
1
1
2
1
1
1
8
1
1
4
2
1
1
1
1
MAT Engine Technologies, LLC, REV. 20170921 - 7 - A201192
Exploded View, 43cc Auger Engine – A202277
44 Flywheel, 43cc A201143 1
45 Washer, M8
46 Nut, M8
47 Clutch A201146 1
48 Spring Washer, M8 A201147 2
49 Bolt, Clutch A201148 2
50 Cover, Flywheel A201149 1
51 Gasket, Heat Shield
52 Bolt, M5 x 12
53 Switch, On/Off A203370 1
For Reference Only
For Reference Only
For Reference Only
For Reference Only
2
1
1
2
MAT Engine Technologies, LLC, REV. 20170921 - 8 - A201192

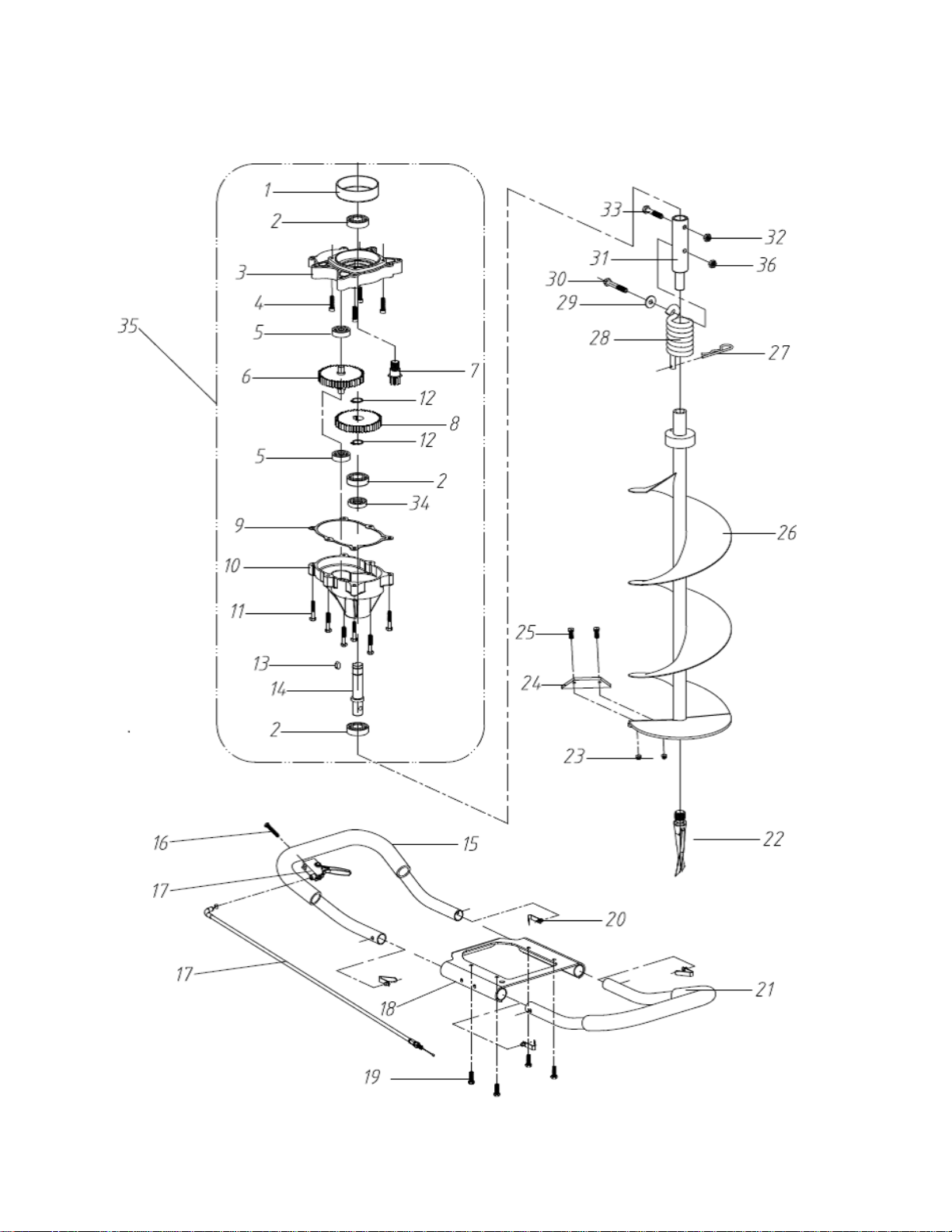

Exploded View, Auger Bit, Transmission, and Handle
MAT Engine Technologies, LLC, REV. 20170921 - 9 - A201192
Exploded View, Auger Bit, Transmission, and Handle
REF. NO. DESCRIPTION PART NO. QTY
1 Drum, Clutch A201158 1
2 Bearing, 6004-2RS
3 Gear Case, Top
4 Bolt, M6 x 25
5 Bearing, 6003-2RZ
6 Gear, 10T/48T
7 Gear, 7T, Pinion Threaded
8 Gear, 44T
9 Gasket A201166 1
10 Gear Case, Bottom
11 Bolt, M6 x 35
12 Snap Ring, Ø20
13 Dowel Pin, B6 x 12
14 Shaft, Output
15 Assembly, Handle Bar, Right
16 Screw, Throttle Trigger A201842 1
17 Assembly, Throttle Trigger A201843 1
18 Frame, 43cc Auger
19 Bolt, M6 x 20, Gear Box Mounting
20 Retainer, Handle Bar A201175 4
21 Assembly, Handle Bar, Left
22 Fishtail Point A201179 1
23 Lock Nut, M6
24 Blade, Earth A201181 1
25 Bolt, M6 x 16
26 Shaft, Auger Bit, 8”
27 Hair Pin, Auger Spring A201184 1
28 Spring, Auger Bit A201185 1
29 Washer, M8
30 Bolt, M8 x 55
31 Adaptor, Auger Bit A201188 1
32
33
34 Seal, Gear Box, TC20X36X8
35 Kit, Gear Box, 43cc Auger A201156 1
36 Lock Nut, M8
Note: The complete earth auger bit (includes Ref. Nos. 22-33) can be ordered with individual
packaging. Model # for 6” complete earth auger bit is SEAB6, and model # for 8” complete earth
auger bit is SEAB8.
Lock Nut, M8 (prior to Jan. 2012)
Lock Nut, M10 (Jan. 2012 & after)
Bolt, M8 x 45 (prior to Jan. 2012)
Bolt, M10 x 45 (Jan. 2012 & after)
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
For Reference Only
3
1
4
2
1
1
1
1
6
2
1
1
1
1
4
1
2
2
1
1
2
1
1
1
1
MAT Engine Technologies, LLC, REV. 20170921 - 10 - A201192
Unit Decal Sheet
REF. NO. DESCRIPTION PART NO. QTY
1 Decal Sheet, Unit A203453 1
MAT Engine Technologies, LLC, REV. 20170921 - 11 - A201192
