PowerLite® EB-720/EB-725W

Quick Setup

IMPORTANT: Before using the projector, make sure you read these instructions and the safety instructions in the online User’s Guide.

Note: Your product may differ from the illustrations on this sheet, but the instructions are the same.

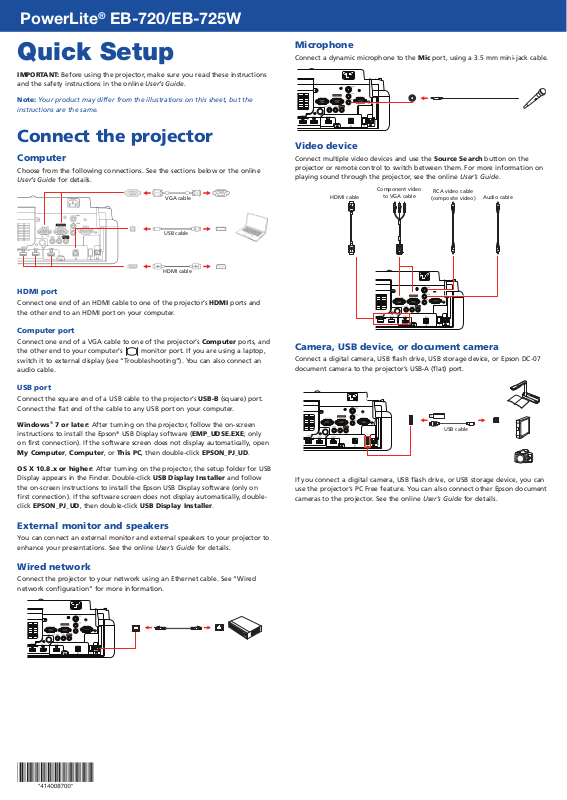

Connect the projector

Computer

Choose from the following connections. See the sections below or the online User’s Guide for details.

VGA cable

Microphone

Connect a dynamic microphone to the Mic port, using a 3.5 mm mini-jack cable.

Video device

Connect multiple video devices and use the Source Search button on the projector or remote control to switch between them. For more information on playing sound through the projector, see the online User’s Guide.

HDMI cable

Component video

to VGA cable

RCA video cable

(composite video)

Audio cable

USB cable

HDMI cable

HDMI port

Connect one end of an HDMI cable to one of the projector’s HDMI ports and the other end to an HDMI port on your computer.

Computer port

Connect one end of a VGA cable to one of the projector’s Computer ports, and the other end to your computer’s monitor port. If you are using a laptop, switch it to external display (see “Troubleshooting”). You can also connect an audio cable.

USB port

Connect the square end of a USB cable to the projector’s USB-B (square) port. Connect the flat end of the cable to any USB port on your computer.

Windows

instructions to install the Epson® USB Display software (EMP_UDSE.EXE; only on first connection). If the software screen does not display automatically, open

My Computer, Computer, or This PC, then double-click EPSON_PJ_UD.

7 or later: After turning on the projector, follow the on-screen

Camera, USB device, or document camera

Connect a digital camera, USB flash drive, USB storage device, or Epson DC-07 document camera to the projector’s USB-A (flat) port.

USB cable

OS X 10.8.x or higher: After turning on the projector, the setup folder for USB Display appears in the Finder. Double-click USB Display Installer and follow the on-screen instructions to install the Epson USB Display software (only on first connection). If the software screen does not display automatically, doubleclick EPSON_PJ_UD, then double-click USB Display Installer.

External monitor and speakers

You can connect an external monitor and external speakers to your projector to enhance your presentations. See the online User’s Guide for details.

Wired network

Connect the projector to your network using an Ethernet cable. See “Wired network configuration” for more information.

If you connect a digital camera, USB flash drive, or USB storage device, you can use the projector’s PC Free feature. You can also connect other Epson document cameras to the projector. See the online User’s Guide for details.

Page 2

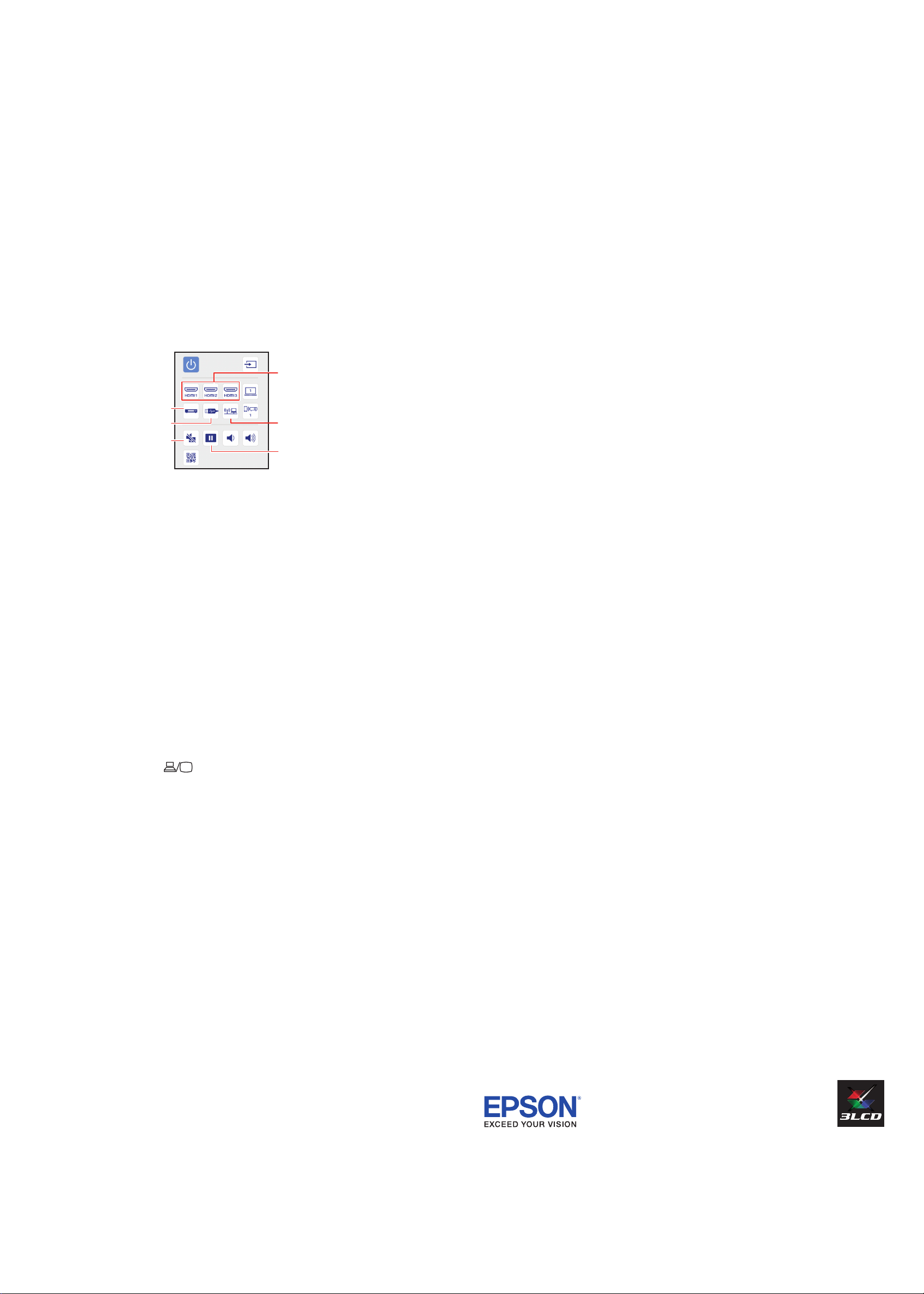

Using the remote control

Use the arrow buttons on the remote control to highlight any of the

options on the Home screen, then press to select it.

Install the two AA batteries as shown.

Turn projector on

and off

Access projector menus

Choose which source to display

Navigate projector menus

The default language of the menu system is English. To select another

language, press the Menu button on the remote control. Select Management and press . Select Language and press . Select your language and press . Press the Menu button to exit the menu system.

Wireless network configuration

Follow these steps to set up the projector for a wireless network connection.

Press the Menu button on the remote control.

Select the Management menu and press .

Control projector volume

Turn off projector

display and sound

For more information on using the remote control, see the online User’s Guide.

Access the Home screen

Turn on your equipment

Turn on your computer or video source.

Make sure the power cord is connected and plugged into an

electrical outlet.

Select On as the Wireless LAN Power setting.

Select the Network menu and press .

Select Network Settings and press .

Select Wireless LAN as the Priority Control Interface setting.

Select one of the following as the Simple AP setting:

• On for a direct connection to a computer, tablet, or smartphone.

• Off to connect your projector to a router or access point.

Note: If you directly connect to the projector, you can only project locallystored content.

Press the power button on the projector or remote control. The

projector beeps, and the Status light flashes blue and then stays on.

Note: To shut down the projector, press the

If you don’t see an image, press the Source Search button on the

remote control to select the image source.

Note: If you still see a blank screen or have other display problems, see

the troubleshooting tips on the back of this sheet.

If you need to focus the image, first slide the switch on the side of the

projector to open the air filter cover. Then raise or lower the focus lever to sharpen the image.

power button twice.

Select any other wireless settings as necessary. See the online User’s Guide

for details.

When you are finished, return to the Network Settings menu and select

Set to apply your settings.

Page 3

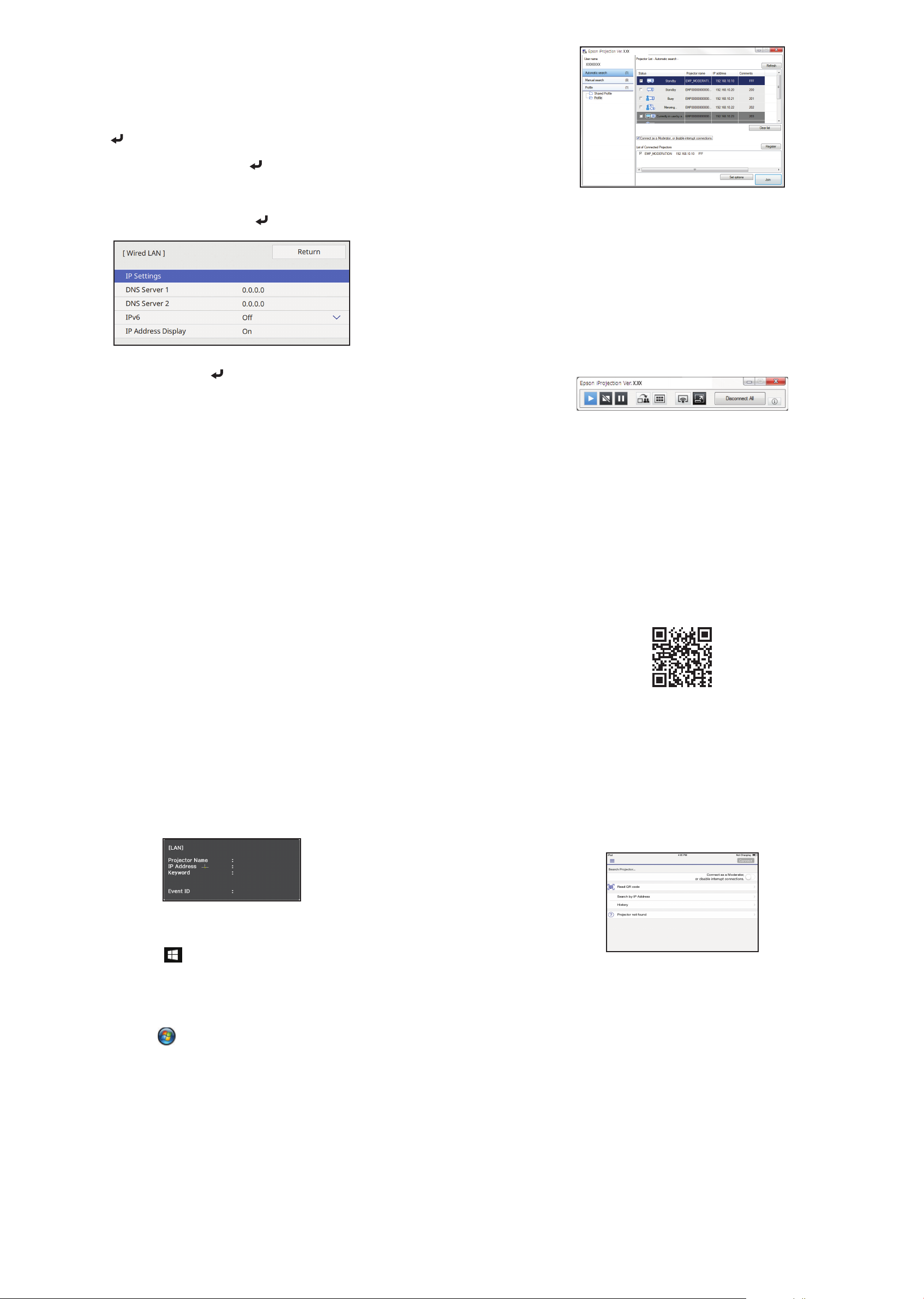

Wired network configuration

Follow these steps to set up your projector for a wired network connection.

Press the Menu button on the remote control, select the Network menu,

then press .

Choose Network Settings and press .

Select Wired LAN as the Priority Control Interface setting.

Select the Wired LAN menu and press .

Select Advanced Connection Mode and click OK.

Select the projector you want to connect to, then click Join.

If you don’t see the projector you want, click the Automatic search button to find the projector automatically, click the Manual search button to enter the projector’s IP address, or click the Profile button to find the projector based on a previously saved profile.

If you see a message asking for a keyword, enter the four digits that

appear on the LAN standby screen and click OK.

Choose IP Settings and press .

If your network assigns addresses automatically, make sure the DHCP

setting is on. If not, make sure DHCP is off and enter the projector’s IP Address, Subnet Mask, and Gateway Address, as needed. Then press Esc.

To prevent the IP address from appearing on the network standby screen,

set the IP Address Display setting to Off.

When you are finished, return to the Network Settings menu and select

Set to apply your settings.

Press the Menu button to exit the menu system.

Install the optional software

Download the Epson iProjection™ software and manual from your product’s support page (see “Where to get help”) and install the program on each computer that will project over the network.

To monitor and control your projector over the network, download and install the Epson Projector Management software (Windows only) and manual from your product’s support page (see “Where to get help”).

Project over a network

If you need to configure the projector for a wired network, see “Wired network configuration” on the back of this sheet.

Press the LAN button on the remote control. You see this screen:

Your computer image is projected, with a floating toolbar:

When you’re done presenting, click Disconnect All on the toolbar.

Using the Epson iProjection app

You can project wirelessly from a mobile device (iOS, Android™, or Chromebook™) using the Epson iProjection app and a QR code.

Use the following QR code to download and install the Epson

iProjection app.

If you connected the projector to a network wirelessly, make sure to

connect your mobile device to the same network.

Press the LAN button on the remote control to display a QR code on the

projector screen.

Start Epson iProjection on your mobile device.

Use the QR code reader feature to read the QR code displayed.

Start Epson iProjection on your computer.

Windows 10: Select Ver X.XX.

Windows 8.x: Navigate to the Apps screen and select Epson iProjection Ver. X.XX.

Windows 7: Select Projector > Epson iProjection > Epson iProjection Ver X.XX.

macOS: Double-click the Epson iProjection icon in the Applications folder.

> EPSON Projector > Epson iProjection

or Start > Programs or All Programs > EPSON

Follow the app instructions to connect your device to the projector.

For more information on setting up and using this app, visit www.epson.com/projectorapp (U.S.), www.epson.ca/projectorapp (Canada) or www.latin.epson.com/iprojection (Caribbean).

Page 4

Using web remote

Where to get help

You can use a standard web browser to control the projector through the network. A virtual remote control on your computer screen lets you perform many of the same functions as you can with the physical remote control.

Open your web browser and enter the IP address of the projector you want

to monitor in the browser’s address bar.

If you’re not sure what the IP address of the projector is, turn the projector on and select Wired LAN Info or Wireless LAN Info from the Network menu to display the IP address of the projector. (Do not enter the leading zeroes.)

Enter EPSONWEB as the default user name and admin as the default

password, then click OK. The Epson Web Control menu opens.

Select Basic Control. If you see a login screen, enter EPSONREMOTE as the

user name and guest as the password.

Use the on-screen buttons to operate the projector, as you would using the

remote control. See the online User’s Guide for details.

Select equipment connected to an HDMI port

Manuals

For more information about using the projector, see the online manuals. You can view or download the manuals from the Epson website, as described below.

Internet support services

Visit www.epson.com/support (U.S.) or www.epson.ca/support (Canada) and search for your product to download software and utilities, view manuals, get FAQs and troubleshooting advice, or contact Epson.

Telephone support

To use the Epson PrivateLine® Support service, call (800) 637-7661. This service is available for the duration of your warranty period. You may also speak with a support specialist by calling (562) 276-4394 (U.S.) or (905) 709-3839 (Canada).

Support hours are 6 7 am to 4 pm, Pacific Time, Saturday. Days and hours of support are subject to change without notice. Toll or long distance charges may apply.

am to 8 pm, Pacific Time, Monday through Friday, and

Optional accessories

Select video signal

Select USB display signal

Turn off picture

and sound

Select wired or wireless network signal

Pause video

Troubleshooting

If you see a blank screen or the No signal message after turning on your computer or video device, check the following:

Make sure the Status light on the projector is blue and not flashing.

•

Press the Source Search button on the projector or the remote control to

•

switch to the correct image source, if necessary.

Press the Home button on the projector or remote control to verify the

•

source input and settings.

On Windows 7 or later, hold down the Windows key and press P at the

•

same time, then click Duplicate.

For a list of optional accessories, see the online User’s Guide.

You can purchase screens or other accessories from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can purchase online at www.epsonstore.com (U.S. sales) or www.epsonstore.ca (Canadian sales).

If you’re using a Windows laptop, press the function key on your keyboard

•

that lets you display on an external monitor. It may be labeled CRT/LCD or have an icon such as . You may have to hold down the Fn key while pressing it (such as Fn + F7). Wait a moment for the display to appear.

If you’re using a Mac laptop, open System Preferences and select

•

Displays. Click the Arrangement tab and select the Mirror Displays checkbox.

Registration
