Power Electronics SD300612, SD300312F, SD300612F, SD301212F, SD300322 Getting Started Manual

SD300

GETTING STARTED
MANUAL

LOW VOLTAGE VARIABLE SPEED DRIVE

Variable Speed Drive

Getting Started Manual

Edition: February 2019

SD30IM01GI Rev. G

SD300

POWER ELECTRONICS

2

ABOUT THIS MANUAL

ABOUT THIS MANUAL

PURPOSE

This manual contains important instructions for the installation and
maintenance of Power Electronics SD300 variable speed drives.

AUDIENCE

This manual is intended for qualified customers who will install, operate and
maintain Power Electronics SD300 variable speed drives.

Only trained electricians may install and commission the drives.

POWER ELECTRONICS CONTACT INFORMATION

Power Electronics, S.A.
C/ Leonardo da Vinci, 24 – 26
46980 – PATERNA
SPAIN

Tel. [phone] (Spain) • Tel. [phone] • Fax [phone]
Website: www.power-electronics.com

POWER ELECTRONICS

SD300

REVISIONS

3

CONTROL OF REVISIONS

DATE

REVISION

DESCRIPTION

02 / 05 / 2017

A

First edition.

15 / 05 / 2017

B

Accessories. Subsidiaries. Misprints corrections

30 / 05 / 2017

C

Technical Characteristics. Mechanical. Installation.
Maintenance.

28 / 11 / 2017

D

Safety Instructions, Mechanical Installation, Power
Connections, Warning & Fault Messages, Description
of Programming Parameters, Modbus Communication,
Configuration Register, Declaration of Conformity CE,
Contact Information.

14 / 08 / 2018

E

Permanent magnet synchronous motor control.
Commonly used configurations.

11 / 10 / 2018

F

Commonly used configurations.

28 / 02 / 2019

G

References adjustment. Power terminals for IP66

The equipment and technical documentation are periodically updated. Power
Electronics reserves the right to modify all or part of the contents of this manual without
previous notice. To consult the most updated information of this product, you may
access our website www.power-electronics.com, where the latest version of this manual
can be downloaded. The reproduction or distribution of the present manual is strictly
forbidden, unless express authorization from Power Electronics.

SD300

POWER ELECTRONICS

4

TABLE OF CONTENTS

TABLE OF CONTENTS

ABOUT THIS MANUAL .................................................................................... 2

TABLE OF CONTENTS ................................................................................... 4

SAFETY SYMBOLS ......................................................................................... 7

SAFETY INSTRUCTIONS ................................................................................ 8

1. INTRODUCTION ..................................................................................... 14

2. CONFIGURATION TABLE & STANDARD RATINGS ........................... 15

Configuration Table ................................................................................. 15

Standard Ratings – 230VAC single-phase ............................................. 16

Standard Ratings – 230VAC 3-phase ..................................................... 16

Standard ratings – 400VAC .................................................................... 17

3. TECHNICAL CHARACTERISTICS ........................................................ 19

Enhanced Sensorless Control ................................................................ 22

4. DIMENSIONS .......................................................................................... 24

IP20 Drives Dimensions .......................................................................... 24

IP66 Drives Dimensions .......................................................................... 35

5. RECEPTION, HANDLING AND TRANSPORTATION ........................... 40

Reception and Storage ........................................................................... 40

Handling and Transportation ................................................................... 40

6. MECHANICAL INSTALLATION ............................................................. 42

Environmental Ratings ............................................................................ 42

Drive Mounting ........................................................................................ 43

Clearances .............................................................................................. 44

Cooling .................................................................................................... 46

7. POWER CONNECTIONS ........................................................................ 49

Basic Configuration ................................................................................. 49

Topology .................................................................................................. 50

Power Terminals ..................................................................................... 51

Power Connection and Wiring ................................................................ 58

Ground Connection ................................................................................. 62

POWER ELECTRONICS

SD300

TABLE OF CONTENTS

5

EMC Installation Requirements .............................................................. 63

Protections .............................................................................................. 68

Dynamic Braking Resistors ..................................................................... 70

8. CONTROL CONNECTION ...................................................................... 72

Wiring Recommendations ....................................................................... 72

Control Cables Access ............................................................................ 73

Control Board Terminals Description ...................................................... 74

Control Switches ..................................................................................... 80

STO - Safe Torque Off ............................................................................ 80

9. COMMISSIONING ................................................................................... 82

10. MAINTENANCE ...................................................................................... 85

Cooling .................................................................................................... 85

Warnings ................................................................................................. 86

Routine Inspection .................................................................................. 86

11. USE OF THE DISPLAY .......................................................................... 90

12. STATUS MESSAGES ............................................................................. 94

List of Status Messages .......................................................................... 94

13. WARNING & FAULT MESSAGES ......................................................... 95

List of Warning Messages ....................................................................... 95

List of Fault Messages & Troubleshooting .............................................. 97

14. DESCRIPTION OF PROGRAMMING PARAMETERS ........................ 104

Group 0: Operation ............................................................................... 104

Group 1: Drive → dr .............................................................................. 105

Group 2: Basic Functions → bA ............................................................ 116

Group 3: Expanded Functions → Ad .................................................... 128

Group 4: Control Functions → Cn ......................................................... 141

Group 5: Inputs → In ............................................................................. 158

Group 6: Outputs → OU ........................................................................ 173

Group 7: Communication Bus → CM.................................................... 182

Group 8: PID → AP ............................................................................... 188

Group 9: Protections → Pr .................................................................... 195

Group 10: Second Motor → M2 ............................................................ 207

Group 11: PLC Sequence → US .......................................................... 210

Group 12: PLC Function → UF ............................................................. 212

SD300

POWER ELECTRONICS

6

TABLE OF CONTENTS

15. MODBUS COMMUNICATION .............................................................. 219

Introduction ............................................................................................ 219

Supported Modbus Function Codes ..................................................... 223

Addressing Modes ................................................................................ 226

Summary of Modbus Addresses ........................................................... 227

16. ACCESSORIES ..................................................................................... 274

Communications.................................................................................... 275

Extension I/O ......................................................................................... 275

Conduit Kit ............................................................................................. 276

Flange Type .......................................................................................... 277

17. COMMONLY USED CONFIGURATIONS ............................................ 290

Start/Stop command and speed setting from keyboard ....................... 290

Start/Stop command by keyboard and speed setting by analogue

input .................................................................................................... 292

Start/Stop command by terminals and speed setting by analogue

input .................................................................................................... 295

Multi-speed commands (multi-step frequencies) using P5, P6

and P7 .................................................................................................. 298

Constant pressure control and automatic stop at zero level flow. ........ 301

Speed control (up/down potentiometer) and Start/Stop commands

by terminals ........................................................................................... 304

Permanent Magnet Synchronous Motor control ................................... 307

18. CONFIGURATION REGISTER ............................................................. 316

DECLARATION OF CONFORMITY CE ....................................................... 349

POWER ELECTRONICS

SD300

SAFETY SYMBOLS

7

SAFETY SYMBOLS

Always follow safety instructions to prevent accidents and potential hazards
from occurring.
In this manual, safety messages are classified as follows:

WARNING

Identifies potentially hazardous situations where
dangerous voltage may be present, which if not avoided,
could result in minor personal injury, serious injury or
death
Be extremely careful and follow the instructions to avoid
the risk of electrical shocks.

CAUTION

Identifies potentially hazardous situations, which if not
avoided, could result in product damage, or minor or
moderate personal injury.
Read the message and follow the instructions carefully.

NOTICE

Identifies important measures to take in order to prevent
damage equipment and warranty lost, as well as
encouraging good use and environmental practices

Other symbols used in this manual for CAUTION messages are the following:

Hot surface. Be careful and follow the instructions to avoid burns and
personal injuries.

Risk of fire. Be careful and follow the instructions to prevent causing
an unintentional fire.

Caution risk of electric shock. Timed discharge of stored energy. Wait
for the indicated time to prevent electrical hazards.

Caution, risk of hearing damage. Wear hearing protection.

SD300

POWER ELECTRONICS

8

SAFETY INSTRUCTIONS

SAFETY INSTRUCTIONS

IMPORTANT!

Read carefully this manual to maximize the performance of the product and to
ensure its safe use.
In order to appropriately use the drive, please, follow all instructions described
in the installation manual which refer to transportation, installation, electrical
connection and commissioning of the equipment.
Power Electronics accepts no responsibility or liability for partial or total
damages resulting from incorrect use of equipment.
Please, pay careful attention to the following recommendations:

WARNING

Do not remove the cover while power supply is connected or the drive
is operating. Otherwise, you may get an electric shock.

Do not run the drive with the front cover removed.

Otherwise, you may get an electric shock.

The drive does not remove the voltage from the input terminals.
Before working on the drive, isolate the whole drive from the supply.

If you do not remove the power supply, you may get an electric shock.

Do not remove the cover except for periodic inspections or wiring,
even if the input power is not applied.

Otherwise, you get an electric shock.

Before opening the covers for wiring or periodic inspections, ensure
DC voltage has been fully discharged. Check with a multimeter the
following measures:

• Measure between the output power busbars U, V, W and the cabinet
and check that the voltage is around 0V.

• Measure that the DC link terminals +, - and chassis voltage are below
30VDC.

Otherwise, you may get an electric shock.

Operate the drive with dry hands.

Otherwise, you may get an electric shock.

POWER ELECTRONICS

SD300

SAFETY INSTRUCTIONS

9

Do not use cables with damaged insulation.

Otherwise, you may get an electric shock.

Do not subject the cables to abrasions, excessive stress, heavy loads
or pinching. Otherwise, you may get an electric shock.

Do not make any insulation or voltage withstand tests on the motor
while the drive is connected.

CAUTION

Install the drive on a non-flammable surface. Do not place
flammable material nearby. Otherwise, a fire could occur.

Disconnect the input power if the drive is damaged.

Otherwise, it could result in a secondary accident or fire.

Do not allow lint, paper, wood chips, dust, metallic chips or other
foreign matter into the drive. Otherwise, a fire or accident could
occur.

The inverter becomes hot during operation. Wait until it cools
down before performing any actions.

Touching hot parts may result in skin burns.

Do not apply power to a damaged drive or to a drive with parts
missing, even if the installation is complete.

Otherwise, you may get an electric shock.

The equipment contains internal capacitors in the rectification
stage. Always check that the capacitors are discharged before

performing any maintenance.

SD300

POWER ELECTRONICS

10

SAFETY INSTRUCTIONS

NOTICE

RECEPTION

• The SD300 are carefully tested and perfectly packed before delivering.

• In the event of transport damage, please ensure to notify the transport

agency and POWER ELECTRONICS: 902 40 20 70 (International +34 96
136 65 57), or your nearest agent, within 24hrs from receiving the goods.

UNPACKING

• Make sure model and serial number of the variable speed drive are the
same on the box, delivery note and unit.

• Each variable speed drive is delivered with Hardware and Software
technical manuals.

RECYCLING

Equipment packaging must be recycled. Separate all different materials (plastic,

paper, cardboard, wood…) and place them in the corresponding containers.

Ensure waste collection is properly managed with a Non-Hazardous Waste
Agent.

To guarantee health and natural environmental sources protection,
the European Union has adopted the WEEE directive concerning
discarded electric and electronic equipment (SEEA).

Waste of electrical and electronic equipment (WEEE) must be
collected selectively for proper environmental management.

Our products contain electronic cards, capacitors and other
electronic devices that should be separated when they are no longer
functional. These WEEEs should be managed accordingly with a
Hazardous Waste Agent.
Power Electronics promotes good environmental practices and
recommends that all its products sold outside of the European Union,
once they reach the end of their life, are separated and the WEEE
managed according to the particular country applicable legislation
(especially: electronic cards, capacitors and other electronic
devices)

If you have any questions about the electric and electronic equipment waste,
please contact Power Electronics.

POWER ELECTRONICS

SD300

SAFETY INSTRUCTIONS

11

ELECTROMAGNETIC COMPATIBILITY (EMC)

• The drive is intended to be used in industrial environments (Second
Environment). It achieves compliance with C3 category defined in IEC/EN
61800-3 standard when the installation recommendation within this
manual are followed.

• Select communication and control system according to the drive EMC
environment. Otherwise, systems could suffer from interferences due to a
low EMS level.

SAFETY

Before operating the drive, read this manual thoroughly to gain an understanding
of the unit. If any doubt exists, please contact POWER ELECTRONICS, (902 40
20 70 / [phone]) or your nearest agent.

• Wear safety glasses when operating the drive with power applied or for
when the front cover is removed.

• Handle and transport the drive following the recommendations within this
manual.

• Install the drive according to the instructions within this manual and local
regulations.

• Do not place heavy objects on the drive.

• Ensure that the drive is mounted vertically and keeping the minimum

clearance distances.

• Do not drop the drive or subject it to impact.

• The SD300 drives contain static sensitive printed circuits boards. Use static

safety procedures when handling these boards.

• Avoid installing the drive under conditions that differ from those described
in the Environmental Ratings section.

SD300

POWER ELECTRONICS

12

SAFETY INSTRUCTIONS

CONNECTION PRECAUTIONS

• To ensure a correct operation of the drive, it is recommended to use a
SCREENED CABLE for the control wiring.

• The motor cable should comply with the requirements within this manual.
Due to increased leakage capacitance between conductors, the external
ground fault protection threshold value should be adjusted ad hoc.

• Do not disconnect motor cables if the input power supply remains
connected.

• The internal circuits of the SD300 Series will be damaged if the incoming
power is connected and applied to the output terminals (U, V, W).

• Do not use power factor correction capacitor banks, surge suppressors, or
RFI filters on the output side of the drive. Doing so may damage these
components.

• Before wiring the terminals, make sure that the inverter keypad display is
turned off and the front cover is off as well. The inverter may hold a high
voltage electric charge long after the power supply has been turned off.

EARTH CONNECTION

• The drive is a high frequency switching device; therefore, leakage current
may flow. Ground the drive to avoid electric shock. Use caution to prevent
the possibility of personal injury.

• Connect the input PE terminal only to the dedicated PE terminal of the
drive. Do not use the case, nor chassis screws for grounding.

• Ground the drive chassis through the labelled terminals. Use appropriate
conductors to comply with local regulations. The ground conductor should
be connected first and removed last.

• Motor ground cable must be connected to the PE output terminal of the
drive and not to the installation’s ground. We recommend that the section
of the ground conductor (PE) is equal or greater than the active conductor
(U, V, W).

TRIAL RUN

• Verify all parameters before operating the drive. Alteration of parameters
may be required depending on application and load.

• Always apply voltage and current signals to each terminal that are within
the levels indicated in this manual. Otherwise, damage to the drive may
occur.

POWER ELECTRONICS

SD300

SAFETY INSTRUCTIONS

13

CAPACITORS DEPLETION

If the drive has not been operated for a long time, capacitors lose their charging
characteristics and are depleted. To prevent depletion, once a year run the
device under no-load conditions during 30-60 minutes.

CYBER SECURITY DISCLAIMER

This product is designed to be connected to and to communicate information and
data via a network interface. The customer is the sole responsible for providing
and continuously ensuring a secure connection between the product and
customer network or any other network (as the case may be). Customer shall
establish and maintain any appropriate measures (such as but not limited to the
installation of firewalls, application of authentication measures, encryption of
data, installation of antivirus programs, etc) to protect the product, the network,
its system and the interface against any kind of security breaches, unauthorized
access, interference, intrusion, leakage and/or theft of data or information.

Power Electronics and its affiliates are not liable for damages and/or losses
related to such security breaches, any unauthorized access, interference,
intrusion, leakage and/or theft of data or information.

SD300

POWER ELECTRONICS

14

INTRODUCTION

1. INTRODUCTION

The SD300 is a high-performance general purpose AC driver. It excels in
demanding heavy-duty applications that require high starting torque and
precise control. The dual duty rating of the IP20 models ensures compatibility
with all normal duty loads. The IP66/NEMA4X models guarantee operation
even in the most severe environments. The versatile SD300 is ideal for
applications in water treatment and irrigation, food and beverage, ventilation
systems, materials handling, packaging systems, textiles, plastic, wood
processing, in fact, any general-purpose application where apparatus and
machinery needs to be automated.

Some of its outstanding features are:

• Easy-to-use, compact and robust product, offering users
savings in time and space.

• Space saving design with side by side mounting.

• The overall motor control features and the motor/drive

protection functions limit unexpected machine downtime.

• A built-in display with keypad offers programming and operation
capabilities. Remote LCD display option.

• Integrated communication port and Modbus protocol allows the
SD300 to exchange data for machine/process monitoring,
control and preventive maintenance.

• Safe Torque Off (STO) as standard.

1

POWER ELECTRONICS

SD300

CONFIGURATION TABLE & STANDARD RATINGS

15

2. CONFIGURATION TABLE &

STANDARD RATINGS

Configuration Table

EXAMPLE. CODE: SD305846F

SD3

058 4 6

F

SERIE

Drive current

(Normal Duty)

[1]

Drive Voltage

Protection

Degree

EMC Filter

SD3

SD300

002

2A

1

230VAC

single-phase

2

IP20 F Extended

…

2

230VAC

three-phase

6

IP66 - Standard

069

69A

4

400VAC

three-phase

[1] Heavy duty for IP66 models.

CODIFICATION EXAMPLES:

• SD305842F SD300, 58A, 400Vac three-phase, IP20 degree of protection,
EMC extended.

• SD301212 SD300, 12A, 230Vac single-phase, IP20 degree of protection.

• The following figure shows an example of designation label:

Type designation label (located on lateral panel)

2

SD300

POWER ELECTRONICS

16

CONFIGURATION TABLE & STANDARD RATINGS

Standard Ratings – 230VAC single-phase

Power

ND (kW)

Power

HD (kW)

Current

ND (A)

Current

HD (A)

EMC STANDARD

EMC EXTENDED

Model

Frame

Model

Frame

0.75

0.4

3.1

2.5

SD300312

2N

SD300312F

[1]

1F

1.5

0.75

6.0

5.0

SD300612

3N

SD300612F

[1]

2F

2.2

1.5

9.6

8.0

SD300912

4N

SD300912F

[1]

3.7

2.2

12.0

11.0

SD301212

5N

SD301212F

[1]

3F

Standard Ratings – 230VAC 3-phase

IP20

Power ND

(kW)

Power HD

(kW)

Current ND

(A)

Current HD

(A)

Model

Frame

0.75

0.4

3.1

2.5

SD300322

1N

1.5

0.75

6.0

5.0

SD300622

2N

2.2

1.5

9.6

8.0

SD300922

3N 4 2.2

12

11

SD301222

4N

5.5 4 18

17

SD301822

5N

7.5

5.5

30

24

SD303022

4

11

7.5

40

32

SD304022

15

11

56

46

SD305622

5

22

15

69

60

SD306922

6

IP66 (Only HD)

Power HD (kW)

Current HD (A)

Model

Frame

0.4

2.5

SD300326

1I

0.75

5.0

SD300526

1.5

8.0

SD300826

2I

2.2

11

SD301126 4 17

SD301726

5.5

24

SD302426

3I

7.5

32

SD303226

11

46

SD304626

4I

15

60

SD306026

5I

[1] EMC class 2

POWER ELECTRONICS

SD300

CONFIGURATION TABLE & STANDARD RATINGS

17

Standard ratings – 400VAC

IP20

Power ND

(kW)

Power HD

(kW)

Current ND

(A)

Current HD

(A)

EMC STANDARD

EMC EXTENDED

Model

Frame

Model

Frame

0.75

0.4

2.0

1.3

SD300242

1N

SD300242F

[2]

1F

1.5

0.75

3.1

2.4

SD300342

2N

SD300342F

[2]

2.2

1.5

5.1

4.0

SD300542

3N

SD300542F

[2]

2F

4

2.2

6.9

5.5

SD300742

4N

SD300742F

[2]

5.5 4 10

9.0

SD301042

5N

SD301042F

[2]

3F

7.5

5.5

16

12

-

SD301642F

[2]

4

11

7.5

23

16

SD302342F

[2]

15

11

30

24

SD303042F

[2]

5

18.5

15

38

30

SD303842F

[2]

22

18.5

44

39

SD304442F

[2]

6

30

22

58

45

SD305842F

[2]

IP66

Power HD (kW)

Current HD (A)
EMC STANDARD

EMC EXTENDED

Frame

Model

Model

0.4

1.3

SD300146

SD300146F

[2]

1I

0.75

2.4

SD300246

SD300246F

[2]

1.5

4.0

SD300446

SD300446F

[2]

2I

2.2

5.5

SD300646

SD300646F

[2]

4

9.0

SD300946

SD300946F

[2]

5.5

12

SD301246

SD301246F

[2]

3I

7.5

16

SD301646

SD301646F

[2]

11

24

SD302446

SD302446F

[2]

4I

15

30

SD303046

SD303046F

[2]

18.5

39

SD303946

SD303946F

[2]

5I

22

45

SD304546

SD304546F

[2]

[2] EMC class 3.

SD300

POWER ELECTRONICS

18

CONFIGURATION TABLE & STANDARD RATINGS

NOTES:

• Maximum applicable capacity is indicated in the case of using a 4-pole standard

motor (200 and 400V classes are based on 220 and 440V, respectively).

• For the rated capacity, 200 and 400V class input capacities are based on 220 and

440V, respectively.

• The rated output current is limited depending on the setup of carrier frequency

(Cn.4).

• The output voltage becomes 20~40% lower during no-load operations to protect the

drive from the impact of the motor closing and opening (0.4~4.0kW models only).

• Dual rating is supported except IP66/NEMA 4X.

POWER ELECTRONICS

SD300

TECHNICAL CHARACTERISTICS

19

3. TECHNICAL

CHARACTERISTICS

SD300 SERIES

INPUT

Power ranges

0.4kW – 2.2kW 230V – Single Phase

0.4kW – 22kW 230V – 3-Phase

0.4kW – 30kW 400V – 3-Phase

Voltage range

230V: 200-240V Single Phase / 3-Phase (­15%/+10%)
400V: 380V-480V 3-Phase (-15%/+10%)

EMC Filter

C2

[1]

(First environment)

C3 (Second environment)

OUTPUT

Overload capacity

150% for 60sec. (Heavy duty)
120% for 60sec. (Normal duty)

[2]

200% for 4sec. (Heavy Duty)

Control Method

V/f, Slip compensation, Sensorless vector,
PMSM VC

[3]

Frequency Setting
Resolution

Digital command: 0.01Hz / Analog command:

0.06Hz (maximum frequency: 60Hz)

Frequency Accuracy

1% of the maximum output frequency

V/F Pattern

Linear, Quadratic, User V/F

Output frequency

0-400Hz (Sensorless: 0-120Hz)

Torque Boost

Manual/Automatic torque boost

OPERATION

Operation Mode

Keypad / Terminal / Communication option
selectable

Frequency Setting

Analog: -10~10[V], 0~10[V], 4~20[mA] / Digital:
Keypad, Pulse train input

[1] Option external RFI filter required
[2]Only available for IP20
[3]Consult with Power Electronics before installing with this type of motors.

3

SD300 POWER ELECTRONICS

SD300 SERIES

PID control, 3-wire operation, Frequency limit,
Second function, Anti-forward and reverse
direction rotation, Speed search, Power

Operation Function

braking, Leakage reduction, Up-down
operation, DC braking, Frequency jump, Slip
compensation, Automatic restart, Automatic
tuning, Energy buffering, Flux braking, Fire
Mode.

NPN (Sink) / PNP (Source) Selectable

Function: Forward run, Reverse run, Reset,
External trip, Emergency stop, Jog operation,
Multi-step frequency-high, middle, low, Multi­step acceleration/ deceleration-high, middle,
low, DC braking at stop, 2nd motor select,
Frequency up/down, 3-wire operation, Change
into normal operation during PID operation,

Input

Multi-function
Terminal
IP66 degree:
5 DIs
IP20 degree:
7 DIs

Change into main body operation during option
operation, Analog command frequency fixing,
Acceleration/deceleration stop etc. Selectable

Analog Input V1: -10~10V, selectable V2: 0~10V/I2 4~20mA

0~32kHz, Low level: 0~2.5V, High level:

3.5~12V

Fault output and

Less than DC 24V 50mA

drive
operation status
output

(N.O., N.C.) less than
AC 250V 1A, less than
DC 30V 1A

Selectable 0~12Vdc/0~24mA Frequency,
Output current, Output voltage, DC stage
voltage etc. selectable

Output

Pulse Train

Open
Collector
Terminal

Multi-function
Relay

Analog
Output

Pulse Train Maximum 32kHz, 10~12 [V]

TECHNICAL CHARACTERISTICS

20

POWER ELECTRONICS

SD300

TECHNICAL CHARACTERISTICS

21

SD300 SERIES

PROTECTIVE

FUNCTION

Trip

Over current trip, External signal trip, ARM
short circuit current trip, Over heat trip, Input
imaging trip, Ground trip, Motor over heat trip,
I/O board link trip, No motor trip, Parameter
writing trip, Emergency stop trip, Command loss
trip, External memory error, CPU watchdog trip,
Motor normal load trip, Over voltage trip,
Temperature sensor trip, Drive over heat,
Option trip, Output imaging trip, Drive overload
trip, Fan trip, Pre-PID operation failure, External
break trip, Low voltage trip during operation,
Low voltage trip, Safety A(B) trip, Analog input
error, Motor overload trip.

Alarm

Command loss trip alarm, overload alarm,
normal load alarm, drive overload alarm, fan
operation alarm, resistance braking rate alarm,
number of corrections on rotor tuning error

Momentary Power Loss

HD below 15ms (ND below 8ms): Continuous
operation (To be within rated input voltage,
rated output) HD above 15ms (ND above 8ms):
Automatic restart operation enable

ENVIRONME

NT

Cooling Type

Forced fan cooling structure

Protection Degree

IP20/UL Open (Default), UL Enclosed Type 1
(Option), IP66/NEMA 4X (Option)

Ambient Temperature

IP20:

HD: -10~50˚C (14~122˚F)
ND: -10~40˚C (14~104˚F) [However, it is
recommended to use load below 80% when
using at 50°C under light load]

IP66:

HD: -10~40˚C (14~104˚F)

Storage Temperature

-20~65˚C (-4~149˚F)

Humidity

Relative humidity below 90% RH (no dew
formation)

Altitude, Vibration

Below 1,000m, below 9.8m/sec2 (1G)

Location

No corrosive gas, flammable gas, oil mist and
dust etc. indoors (Pollution Degree 3
Environment)

Pressure

70~106 kPa

SD300

POWER ELECTRONICS

22

TECHNICAL CHARACTERISTICS

SD300 SERIES

REGULATION

S

Global certification

CE, UL, cUL, RoHS

PCB

3C2 Conformal coating

Enhanced Sensorless Control

Sensorless Control

Starting torque of 200% / 0.5Hz is produced and provides robust power in
the low speed region.

The motor auto-tuning function is optimized to maximize motor
performance.

Sensorless control

POWER ELECTRONICS

SD300

TECHNICAL CHARACTERISTICS

23

Flying Start Function

The SD300 is capable of performing quick and reliable smooth restarts. It
is equipped with standstill/rotary auto-tuning.

Flying start function

SD300

POWER ELECTRONICS

24

DIMENSIONS

4. DIMENSIONS

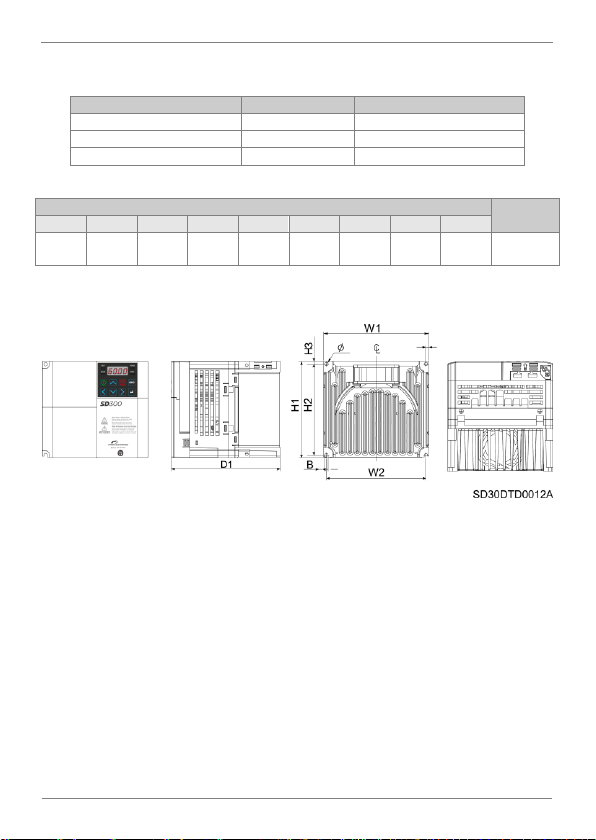

IP20 Drives Dimensions

Frame 1N Dimensions

INPUT VOLTAGE

PHASES

EQUIPMENT

200~240[V]

3

SD300322

380~480[V]

3

SD300242

DIMENSIONS [mm/inch]

WEIGHT

(kg/lb)

W1

W2

H1

H2

H3

D1 A B

Ø

68

(2.7”)

61.1

(2.4”)

128

(5”)

119

(4.7”)

5 (0,2”)

128

(4.8”)

3.5

(1,4”)

4 (0.2”)

4.2

(1.65’’)

0.86

(1.9lb)

Frame 1N dimensions

4

POWER ELECTRONICS

SD300

DIMENSIONS

25

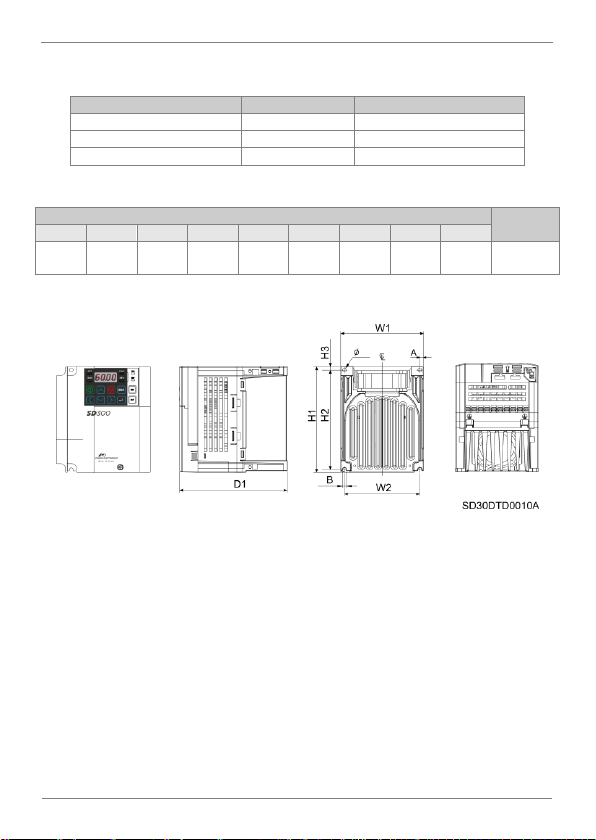

Frame 2N Dimensions

INPUT VOLTAGE

PHASES

EQUIPMENT

200~240[V]

1

SD300312

200~240[V]

3

SD300622

380~480[V]

3

SD300342

DIMENSIONS [mm/inch]

WEIGHT

(kg/lb)

W1

W2

H1

H2

H3

D1 A B

Ø

68

(2.7”)

61.1

(2.4”)

128

(5”)

119

(4.7”)

5 (0.2”)

128

(5”)

3.5

(1.4”)

4 (0.2”)

4.2

(1.65’’)

0.86

(1.9lb)

Frame 2N dimensions

SD300

POWER ELECTRONICS

26

DIMENSIONS

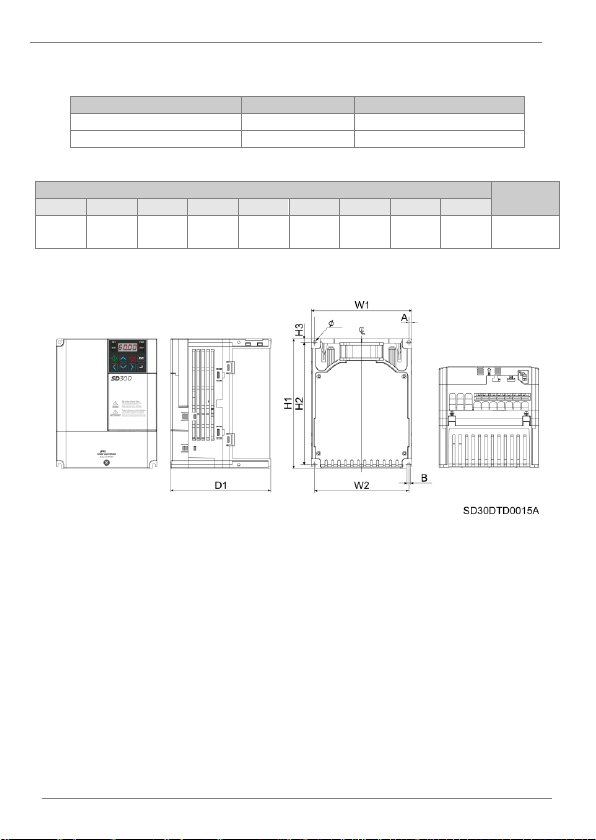

Frame 3N Dimensions

INPUT VOLTAGE

PHASES

EQUIPMENT

200~240[V]

1

SD300612

200~240[V]

3

SD300922

380~480[V]

3

SD300542

DIMENSIONS [mm/inch]

WEIGHT

(kg/lb)

W1

W2

H1

H2

H3

D1 A B

Ø

100

(3.9”)

91

(9.6”)

128

(5”)

120

(4.7”)

4.5

(0.2”)

130

(5.1’’)

4.5

(0.2”)

4.5

(0.2”)

4.5

(0.2”)

1.5 (3.3lb)

Frame 3N dimensions

POWER ELECTRONICS

SD300

DIMENSIONS

27

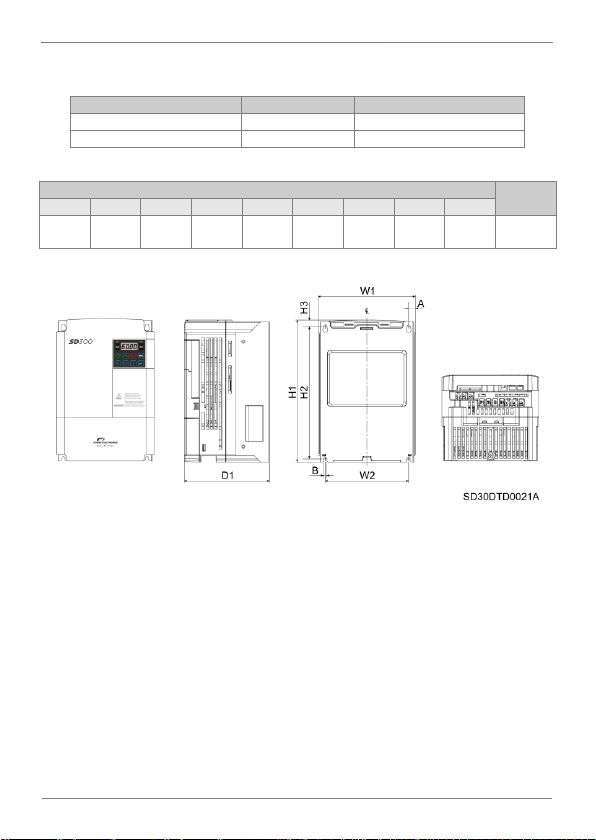

Frame 4N Dimensions

INPUT VOLTAGE

PHASES

EQUIPMENT

200~240[V]

1

SD300912

200~240[V]

3

SD301222

380~480[V]

3

SD300742

DIMENSIONS [mm/inch]

WEIGHT

(kg/lb)

W1

W2

H1

H2

H3

D1 A B

Ø

100

(3.9”)

91

(9.6”)

128

(5”)

120

(4.7”)

4.5

(0.2”)

145

(5.7’’)

4.5

(0.2”)

4.5

(0.2”)

4.5

(0.2”)

1.5 (3.3lb)

Frame 4N dimensions

SD300

POWER ELECTRONICS

28

DIMENSIONS

Frame 5N Dimensions

INPUT VOLTAGE

PHASES

EQUIPMENT

200~240[V]

1

SD301212

200~240[V]

3

SD301822

380~480[V]

3

SD301042

DIMENSIONS [mm/inch]

WEIGHT

(kg/lb)

W1

W2

H1

H2

H3

D1 A B

Ø

140

(5.5”)

132.2
(5.2”)

128

(5”)

120.7
(4.8”)

3.7

(0.1”)

145

(5.7”)

3.9

(0.2”)

4.4

(0.2”)

4.5

(0.2”)

2.7 (6lb)

Frame 5N dimensions

POWER ELECTRONICS

SD300

DIMENSIONS

29

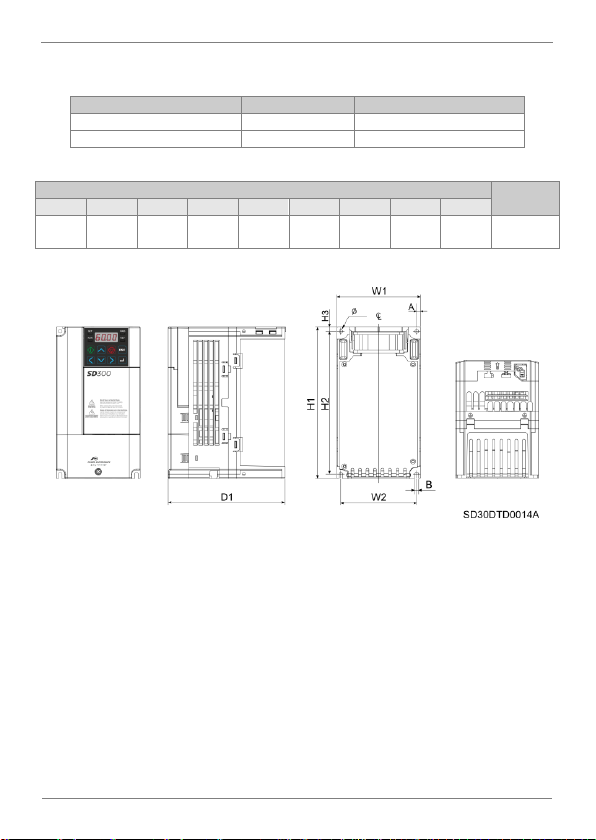

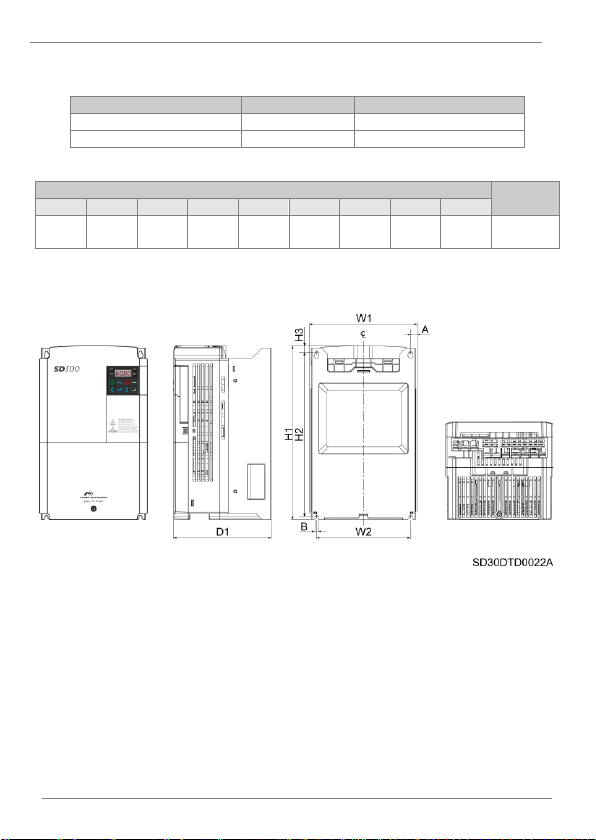

Frame 1F Dimensions

INPUT VOLTAGE

PHASES

EQUIPMENT

200~240[V]

1

SD300312F

380~480[V]

3

SD300242F, SD300342F

DIMENSIONS [mm/inch]

WEIGHT

(kg/lb)

W1

W2

H1

H2

H3

D1 A B

Ø

68

(2.7”)

59

(2.3“)

180(7.1

“)

170.5

(6.7”)

5 (0.2”)

130

(5.1”)

4.5

(0.2”)

4.5

(0.2”)

4.2

(0.2”)

1.2 (2.6lb)

Frame 1F dimensions

SD300

POWER ELECTRONICS

30

DIMENSIONS

Frame 2F Dimensions

INPUT VOLTAGE

PHASES

EQUIPMENT

200~240[V]

1

SD300612F, SD300912F

380~480[V]

3

SD300542F, SD300742F

DIMENSIONS [mm/inch]

WEIGHT

(kg/lb)

W1

W2

H1

H2

H3

D1 A B

Ø

100

(3.9”)

91

(3.6”)

180

(7.1”)

170

(6.7”)

5 (0.2”)

140

(5.5”)

4.5

(0.2”)

4.5

(0.2”)

4.2

(0.2”)

1.8 (4lb)

Frame 2F dimensions

POWER ELECTRONICS

SD300

DIMENSIONS

31

Frame 3F Dimensions

INPUT VOLTAGE

PHASES

EQUIPMENT

200~240[V]

1

SD301212F

380~480[V]

3

SD301042F

DIMENSIONS [mm/inch]

WEIGHT

(kg/lb)

W1

W2

H1

H2

H3

D1 A B

Ø

140

(5.5”)

132

(5.2”)

180

(7.1”)

170

(6.7”)

5 (0.2”)

140

(5.5”)

4 (0.2”)

4 (0.2”)

4.2

(0.2”)

2.2 (4.9lb)

Frame 3F dimensions

SD300

POWER ELECTRONICS

32

DIMENSIONS

Frame 4 Dimensions

INPUT VOLTAGE

PHASES

EQUIPMENT

200~240[V]

3

SD303022, SD304022

380~480[V]

3

SD301642F, SD302342F

DIMENSIONS [mm/inch]

WEIGHT

(kg/lb)

W1

W2

H1

H2

H3

D1 A B

Ø

160

(6.3”)

137

(5.4”)

232

(9.1”)

216.5

(8.5’’)

10.5

(0.4”)

140

(5.5”)

5 (0.2”)

5 (0.2”)

-

3.3

(7.3lb)

Frame 4 dimensions

POWER ELECTRONICS

SD300

DIMENSIONS

33

Frame 5 Dimensions

INPUT VOLTAGE

PHASES

EQUIPMENT

200~240[V]

3

SD305622

380~480[V]

3

SD303042F, SD303842F

DIMENSIONS [mm/inch]

WEIGHT

(kg/lb)

W1

W2

H1

H2

H3

D1 A B

Ø

180

(7.1”)

157

(6.2”)

290

(11.4’’)

274

(10.8”)

11.3

(0.4”)

163

(6.4”)

5 (0.2”)

5 (0.2”)

--

4.8

(10.6lb)

Frame 5 dimensions

SD300

POWER ELECTRONICS

34

DIMENSIONS

Frame 6 Dimensions

INPUT VOLTAGE

PHASES

EQUIPMENT

200~240[V]

2

SD306922

380~480[V]

3

SD304442F, SD305842F

DIMENSIONS [mm/inch]

WEIGHT

(kg/lb)

W1

W2

H1

H2

H3

D1 A B

Ø

220

(8.7”)

193.8
(7.6”)

350

(13.8’’)

331

(13”)

13

(0.5”)

187

(7.4”)

6 (0.2”)

6 (0.2”)

-

7.5

(15.4lb)

Frame 6 dimensions

POWER ELECTRONICS

SD300

DIMENSIONS

35

IP66 Drives Dimensions

Frame 1I Dimensions

INPUT VOLTAGE

PHASES

EQUIPMENT

200~240[V]

3

SD300326, SD300526

380~480[V]

3

SD300146F, SD300246F

DIMENSIONS [mm/inch]

WEIGHT

(kg/lb)

W1

W2

H1

H2

H3

D1

D2 A Ø

T1

T2

180

(7.1”)

170

(6.7”)

257

(10”)

245

(9.6”)

8.2

(0.3”)

174

(6.9”)

188

(7.4”)

4.5

(0.2”)

4.5

(0.2”)

22.3

(0.9”)

-

3.7 (8.2lb)

Frame 1I dimensions

SD300

POWER ELECTRONICS

36

DIMENSIONS

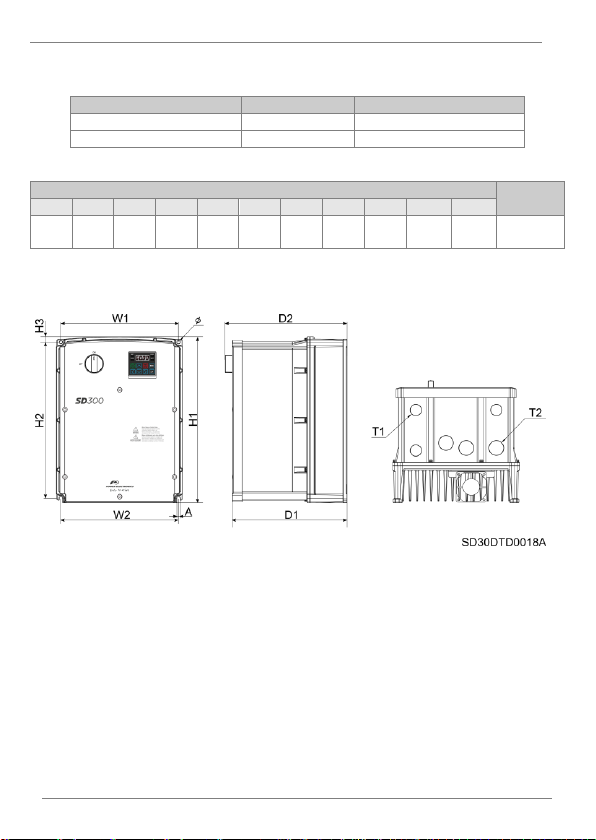

Frame 2I Dimensions

INPUT VOLTAGE

PHASES

EQUIPMENT

200~240[V]

3

SD300826, SD301126,

SD301726

380~480[V]

3

SD300446F, SD300646F,

SD300946F

DIMENSIONS [mm/inch]

WEIGHT

(kg/lb)

W1

W2

H1

H2

H3

D1

D2 A Ø

T1

T2

220

(8.7”)

204
(8”)

259

(10”)

241

(9.5”)

12

(0.5”)

201

(7.9”)

215

(8.5”)

5.5

(0.2”)

5.5

(0.2”)

22.3

(0.9”)

28.6

(1.1”)

5.3 (12lb)

Frame 2I dimensions

POWER ELECTRONICS

SD300

DIMENSIONS

37

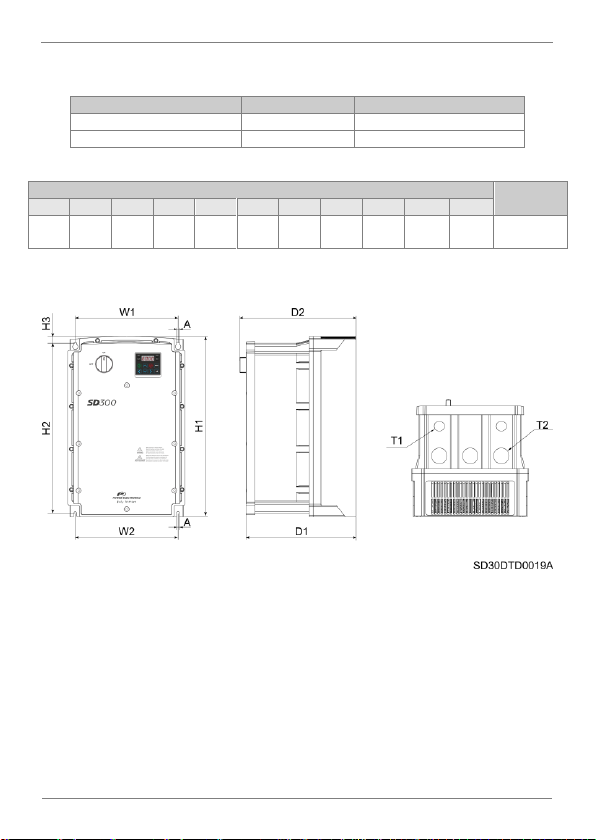

Frame 3I Dimensions

INPUT VOLTAGE

PHASES

EQUIPMENT

200~240[V]

3

SD302426, SD303226

380~480[V]

3

SD301246F, SD301646F

DIMENSIONS [mm/inch]

WEIGHT

(kg/lb)

W1

W2

H1

H2

H3

D1

D2 A Ø

T1

T2

250

(9.8”)

232

(9.1”)

328

(13”)

308

(12”)

11

(0.4)

227

(8.9”)

241

(9.5”) 6 (0.2”) 6 (0.2”)

22.3

(0.9”)

28.6

(1.1”)

9 (19.8lb)

Frame 3I dimensions

SD300

POWER ELECTRONICS

38

DIMENSIONS

Frame 4I Dimensions

INPUT VOLTAGE

PHASES

EQUIPMENT

200~240[V]

3

SD304626

380~480[V]

3

SD302446F, SD303046F

DIMENSIONS [mm/inch]

WEIGHT

(kg/lb)

W1

W2

H1

H2

H3

D1

D2 A Ø

T1

T2

260

(10”)

229
(9”)

400

(16”)

377

(15”)

15

(0.6”)

246

(9.7”)

260

(10”) 6 (0.2”)

-

22.3

(0.9”)

34.9

(1.4”)

9.6 (21lb)

Frame 4I dimensions

POWER ELECTRONICS

SD300

DIMENSIONS

39

Frame 5I Dimensions

INPUT VOLTAGE

PHASES

EQUIPMENT

200~240[V]

3

SD306026

380~480[V]

3

SD303946F, SD304546F

DIMENSIONS [mm/inch]

WEIGHT

(kg/lb)

W1

W2

H1

H2

H3

D1

D2 A Ø

T1

T2

300

(12”)

271

(10”)

460

(18”)

437

(17”)

16

(0.6”)

250

(9.8”)

264

(10”) 6 (0.2”)

-

22.3

(0.9”)

44.5

(1.8”)

12.4 (28lb)

Frame 5I dimensions

SD300

POWER ELECTRONICS

40

RECEPTION, HANDLING AND TRANSPORTATION

5. RECEPTION, HANDLING AND

TRANSPORTATION

CAUTION

Read carefully the following instructions to ensure correct
mechanical installation.

Otherwise, the equipment can be damaged and lead to personal injuries.

Reception and Storage

The SD300 is carefully tested and perfectly packed before delivery. In the
event of transport damage, please ensure that you notify the transport
agency and Power Electronics: 902 40 20 70 (International [phone]

57) or your nearest agent, within 24hrs from receipt of the goods.
Make sure model and serial number of the drive are the same on the delivery

note and unit.
Drive should be stored in a sun and moisture protected space and with an

ambient temperature between -20°C and +65°C, < 95 RH without
condensation. It is recommended not stacking more than two units.

Handling and Transportation

CAUTION

Handle the equipment carefully. Otherwise, the equipment can get

damaged.

SD300 is delivered horizontally in a cardboard box. Unpack the drive
carefully. Do not use sharp tools as they could damage the product. After
opening the package, please check the contained goods. Verify the item
numbers contained within the package with the packing inventory list. Please

5

POWER ELECTRONICS

SD300

RECEPTION, HANDLING AND TRANSPORTATION

41

remove and set aside any spare parts shipped with the product. There should
be no evident damage caused by vibration, dropping or moisture.

Drive unpacking

To unpack, carefully extract the drive from the box. The drive is packed with
its frontal side facing up. Remove and place in its vertical standing position.

SD300

POWER ELECTRONICS

42

MECHANICAL INSTALLATION

6. MECHANICAL INSTALLATION

CAUTION

The installation must be carried out by qualified personnel.

Otherwise, the equipment can get damaged and injuries could be
sustained.

Before the installation, make sure the chosen location is suitable.

There must be enough space to fit the drive meeting the recommended
clearances and ensuring that there are no obstacles impeding the cooling
fans air flow.

Environmental Ratings

Power Electronics recommends following closely the instructions stated
within this manual to ensure the correct operation of the drive. It is
responsibility of the installer to ensure correct installation and suitable
ambient conditions for the VFD. Additionally, any local regulations must be
adhered to by the installer. The environmental ratings are:

▪ Environmental category: Indoor / Outdoor
▪ Pollution degree: PD3
▪ Cooling type: Forced fan cooling structure. Forced cooling type:

0.4~15 kW 200V/0.4~75 kW 400V (excluding some models)

▪ Operation Ambient temperature: HD IP20: -10~50˚C (14~122˚F)

HD IP66: -10~40˚C (14~104˚F)
ND: -10~40˚C(14~104˚F)

[1]

No cold, no frost.

▪ Storage Ambient temperature: -20~65˚C (-4~149˚F)
▪ Humidity: Relative humidity below 90% RH (no dew formation)
▪ Altitude / Vibration: Below 1,000m, below 9.8m/s² (1G)
▪ Pressure: 70~106 kPa

[1] Power Electronics recommends to use load below 80% when using at 50°C under light
load.

6

POWER ELECTRONICS

SD300

MECHANICAL INSTALLATION

43

Drive Mounting

The SD300 variable speed drives are designed to be mounted on a wall or
inside a panel.

The inverter can become very hot during operation. Install the inverter on a
surface that is fire-resistant or flame-retardant and with sufficient clearance
around the inverter to allow air to circulate. Make sure to follow the clearance
recommendations in “Clearances” section.

Hang the SD300 drive through the anchorages placed on the rear part of the
drive on a solid wall or structure which supports the drive weight and the
possible forces generated by the wiring.

Use a level to draw a horizontal line on the mounting surface and mark the
fixing points. Then, drill the two upper mounting bolt holes, and then install
the mounting bolts. Do not fully tighten the bolts yet.

Mount the drive using the two upper bolts, and then fully tighten the mounting
bolts. Ensure that the SD300 is placed flat on the mounting surface.

SD300 wall mounting

SD300

POWER ELECTRONICS

44

MECHANICAL INSTALLATION

Note: The quantity and dimensions of the mounting brackets vary based on
frame size. Please refer to “DIMENSIONS” section to find the information
that corresponds to your model.

There is an optional flange for special installations. If you have ordered this
option, please refer to “Flange Type” section for installation instructions.

Clearances

The SD300 VFD must be installed in vertical position, and firmly fastened
through the dedicated anchorages placed in the rear part of the drive that
avoid any movement.

If the equipment is installed inside a cabinet, ensure that the hot air expelled
from the VFD flows outside. This hot air can recirculate, and cause the drive
to suffer from overheating. To guarantee a suitable ambient temperature,
avoid the recirculation of air and follow the minimum clearance distances, as
indicated below.

Minimum clearances

DISTANCE

[mm/inch]

A

100 / 4”

B

2 / 0.1”

C

50 / 2”

POWER ELECTRONICS

SD300

MECHANICAL INSTALLATION

45

If you wish to install two or more drives in a technical room or cabinet, mount
them side by side in a horizontal arrangement (do not stack one on top of the
other), it is necessary to remove the top cover using a screwdriver and
respect the minimum clearances in order to ensure proper cooling of the
product.

Installing multiple drives

NOTICE

Remove the top cover of the drives when they are mounted in a
horizontal arrangement.

Otherwise, the equipment can get damaged and the warranty will be
voided.

SD300

POWER ELECTRONICS

46

MECHANICAL INSTALLATION

Cooling

The heat sources inside the equipment correspond to the inverter bridge
(IGBTs), rectifier bridge and the input filter.

The drive has at least one cooling fan (this varies depending on the drive
size) at the bottom, the hot air is then dissipated through the gratings on the
top side.

Cooling airflow for SD300

It is possible to replace the cooling fans without dismounting the whole
equipment. To do this, unscrew the screws in the fan corners and disconnect
the connector.

POWER ELECTRONICS

SD300

MECHANICAL INSTALLATION

47

NOTICE

Ensure that the technical room or cabinet has good air flow,
considering that hot air cannot be recirculated by the drive.

Fan Air Flow

EXAMPLE. CODE: 3N Frame; 1,5kW-4

3 N 1,5 kW

-4

Frame

Filter

Power

Voltage

1 N No filter type

0,4 kW

-1

230VAC monophase

… F Filter type

…

-2

230VAC three-phase

6

22 kW

-4

400VAC

• Air Flow: 2N Frame / 3N Frame / 1F Frame.

2N Frame

3N Frame

1F Frame

0,4kW-1

0,8kW-1

0,4kW-1

0,4/0,8kW-2

1,5kW-2

0,4/0,8kW-2

0,4/0,8kW-4

1,5kW-4

0,4/0,8kW-4

Air flow

Max Air Flow [m3/min]

Average

0,31

Minimum

0,28

• Air Flow: 4N Frame / 5N Frame / 2F Frame / 3F Frame.

4N Frame

5N Frame

2F Frame

3F Frame

1,5kW-1

2,2kW-1

0,8/1,5kW-1

2,2kW-1

2,2kW-2

3,7/4,0kW-2

1,5/2,2kW-2

3,7/4,0kW-2

2,2kW-4

3,7/4,0kW-4

1,5/2,2kW-4

3,7/4,0kW-4

Air flow

Max Air Flow [m3/min]

Average

0,66

Minimum

0,64

SD300

POWER ELECTRONICS

48

MECHANICAL INSTALLATION

• Air Flow: 4 Frame.

4 Frame

5,5/7,5kW-2

5,5/7,5kW-4

Air flow

Max Air Flow [m3/min]

0,98 (34,6 CFM)

• Air Flow: 5 Frame.

5 Frame

11kW-2

11/15kW-4

Air Flow [m3/min]

Min.

1,45

Rated

1,55

• Air Flow: 6 Frame.

6 Frame

15kW-2

18,5/22kW-4

Air Flow [m3/min]

Min.

2,85

Rated

3,15

POWER ELECTRONICS

SD300

POWER CONNECTIONS

49

7. POWER CONNECTIONS

CAUTION

Read carefully the following instructions to ensure correct electrical
installation.

Otherwise, the equipment could get damaged and lead to personal injuries.

Basic Configuration

Appropriate safety equipment must be used and the unit properly connected
in order to guarantee correct operation. A drive which is incorrectly installed
or set up can result in system malfunction, component damage or a reduced
lifespan. You must read this manual thoroughly before proceeding.

AC Power

Supply

Use a power supply with a voltage range
compatible with the selected drive.
SD300 drives are available for TN and TT
grids, or IT grids (floating earth). Check the
serial number to ensure the correct drive
selection.

Circuit Breaker

Select circuit breakers or fuses in
accordance with applicable national and
local codes. We recommend using specified
circuit breakers or fuses to operate with the
drive.

Magnetic
contactor
(optional)

Install if necessary. When installed, do not
use it for the purpose of starting or stopping
the drive.

AC reactor

(optional)

Use an AC reactor if you wish to improve
the input power factor of the power supply,
reduce harmonics or suppress external
surges.

7

SD300

POWER ELECTRONICS

50

POWER CONNECTIONS

SD300

Installation

Install the drive following the
recommendation within this manual in
relation with the cooling requirements,
position, clearances, wiring access and
ground connection.

DC reactor

(optional)

DC reactors also contribute to improving the
power factor and harmonics reduction, but
DC reactors are usually used in facilities
with higher power supply capacity.

Motor cables

Select and install the motor cables
according to the recommendation within this
manual and the applicable national and
local codes, otherwise you could cause
EMC filtering malfunction and motor
damage.

Motor

Do not connect power factor capacitors,
surge arrestors or RFI filters to the output
side of the drive.

Topology

SD300 drive operates according to the principle of pulse-width modulation
(PWM). By varying the power supply voltage and the grid frequency, it is
possible to control the speed and torque of the connected induction three­phase motors by means of its main components: rectifier bridge, the DC bus,
inverter bridge, and power and control board.

The SD300 includes a gate drive and a control board to control the rectifier
thyristor diode’s bridge triggering, the inverter IGBT’s bridge triggering, the
soft charge, the DC bus voltage and the motor performance. In addition, the
control board integrates the interface terminals such as communication
ports, the digital and analogue inputs and outputs, display, etc.

POWER ELECTRONICS

SD300

POWER CONNECTIONS

51

Power Terminals

The available power terminals are shown in the figure below. For the power
connection, check section “Recommended Cable”.

Location of terminals in the control board

SIGNAL

DESCRIPTION

DC REACTOR

P1(+)

Connection terminal for DC reactor
Harmonic mitigation

P2(+)

DYNAMIC BRAKE

N(-)

DC voltage negative terminal
Integrated dynamic brake unit

B

POWER SUPPLY

R(L1)

AC Line Voltage input
(3-phase, AC 200 ~ 230V)
(3-phase, AC 380 ~ 480V)

S(L2)

T(L3)

MOTOR OUTPUT

U

Motor connection terminals
(3-phase, AC 200 ~ 230V)
(3-phase, AC 380 ~ 480V)

V

W

SD300

POWER ELECTRONICS

52

POWER CONNECTIONS

Power Terminals - IP20

To access the power terminals, users have to unscrew the bottom cover
as follows:

Bottom cover removal – IP20

POWER ELECTRONICS

SD300

POWER CONNECTIONS

53

Then, remove the power terminals plastic protection pushing sides clips
as shown in the following image:

Plastic protection removal

Power terminals for each frame:

Power terminals in frames 1N, 2N & 1F

SD300

POWER ELECTRONICS

54

POWER CONNECTIONS

Power terminals in frames 3N, 4N & 2F

Power terminals in frames 5N & 3F

POWER ELECTRONICS

SD300

POWER CONNECTIONS

55

Power terminals in frames 4, 5 & 6

Power Terminals – IP66

To access the power terminals, users have to unscrew the front cover and
take it out as follows:

Cover removal – IP66

SD300

POWER ELECTRONICS

56

POWER CONNECTIONS

Power terminals for each frame:

Power terminals in frame 1I

Power terminals in frame 2I – models SD300446 y SD300646

POWER ELECTRONICS

SD300

POWER CONNECTIONS

57

Power terminals in frame 2I – model SD300946

Power terminals in frames 3I - 4I - 5I

SD300

POWER ELECTRONICS

58

POWER CONNECTIONS

Power Connection and Wiring

CAUTION

The following installation recommendations are suitable for TN and TT
grids. For IT grids, consult Power Electronics. Otherwise, the equipment
could be damaged and the risk of injury heightened.

Any wiring or periodic inspections should be performed at least 10
minutes after disconnecting the input power. To remove the front cover,
first check that the DC Link red LED is off, then remove the metallic
cover and check with a multimeter the following:

• Measure between the output power busbars U, V, W and the cabinet
and check that the voltage is around 0V.

• Measure that the DC link terminals +, - and chassis voltage are below
30VDC.
Otherwise, you may get an electric shock.

The user input and output busbars are labelled according to the following
diagram.

Power wiring connection

POWER ELECTRONICS

SD300

POWER CONNECTIONS

59

As standard, the input and output terminals are made of tin plated copper. If
they are oxidized prior to its installation, the terminals will be poorly
connected and this is a cause of overheating. To avoid this effect, clean the
terminal lugs and all contact surfaces with ethanol and follow the
recommended cable section.

Use insulated ring lugs when connecting the power terminals.

CAUTION

Line voltage (input supply) must never be connected to U, V and W
terminals.

Incorrect connection will result in the drive being damaged.

It is necessary that the installer guarantees the correct observance of
the law and the regulations that are in force in those countries or areas
where this device is going to be installed.

Do not use capacitors for power factor correction, surge suppressors,
or RFI filters on the output side of the drive. In doing so, the components

could get damaged.

Use shielded and three-wire braided cable and ground. Do not use single­core wires.

If the drive settings are set by default (switching frequency 3 kHz), make sure
that the total cable length does not exceed:

• 100 m (328ft) for unshielded wires.

• 50m (165ft) for shielded wires.

For other switching frequencies, lengths may vary.
Voltage drop is calculated by using the following formula:

Voltage Drop (V) = [√3 x cable resistance (mΩ/m) x cable length (m) x
current(A)] / 1000

SD300

POWER ELECTRONICS

60

POWER CONNECTIONS

The allowed carrier frequency is:

Distance

< 50m (165ft)

< 100m (330ft)

> 100m (330ft)

Allowed carrier frequency

< 15kHz

< 5kHz

< 2.5kHz

The power cables must have a sufficient power rating in order to prevent
overheating and voltage drops. The installer must consider the cable cross­section, cable type, routing method and the ambient conditions to select the
appropriate cable. It is only permitted the use of cooper or aluminum cables.

NOTICE

Do not exceed the motor cable distances. Longer cables can cause

reduced motor torque in low frequency applications due to the voltage drop,
increase circuit susceptibility to stray capacitance which may trigger over­current protection devices or result in a malfunction of the equipment
connected to the drive.

POWER ELECTRONICS

SD300

POWER CONNECTIONS

61

Recommended Cable Section

Model

Screw

Torque

[1]

[Kgf * cm /

Nm]

Wire

[2]

mm²

AWG

R, S, T

U, V, W

R, S, T

U, V, W

230V

1-phase

0.4 kW

M3.5
(1/8“)

2.1 ~ 6.1 /

0.2 ~ 0.6

2 2 14

14

0.75 kW

1.5 kW

2.2 kW

M4 (1/8“)

3.5

3.5

12

12

230V

3-phase

0.4 kW

M3.5
(1/8“)

2 2 14

14

0.75 kW

1.5 kW

2.2 kW

3.7 kW

M4 (1/8“)

3.5

3.5

12

12

4 kW

5.5 kW

6 6 10

10

7.5 kW

11 kW

M5

(3/16“)

4.0 ~ 10.2 /

0.4 ~ 1.0

10

10 8 8

15 kW

16

16 6 6

400V

3-phase

0.4 kW

M3.5
(1/8“)

2.1 ~ 6.1 /

0.2 ~ 0.6
2 2 14

14

0.75 kW

1.5 kW

2.2 kW

3.7 kW

M4 (1/8“)

4 kW

5.5 kW

2.5

2.5

14

14

7.5 kW

4 4 12

12

11 kW

M5

(3/16“)

4.0 ~ 10.2 /

0.4 ~ 1.0

15 kW 6 6

10

10

18.5 kW

10

10 8 8

22 kW

[1] Use only the specified torque on the screws, otherwise damage could occur. Loose
screws can cause overheating and damage.
[2]

Wires must permanently support 600V and Tª >75ºC.

SD300

POWER ELECTRONICS

62

POWER CONNECTIONS

Ground Connection

Before connecting the power conductors, make sure that the chassis of the
drive and the adjoining cabinets are connected to ground through the
dedicated (PE) terminals. The PE terminals are located in the bottom part of
the drive and labelled with the appropriate ground connection.

PE terminals location

Motor chassis grounding must be connected to the drive. In other words,

connect the motor’s ground conductor to the PE output terminal of the drive
and not to the installation’s ground. We recommend that the cross section of
the motor’s ground conductor (PE) should have at least the cross section of

the active conductor (U, V, W). Additionally, it should be installed following
the recommendations indicated in previous sub-section.

When connecting the earth, ensure that all connected terminal lugs are
securely tightened and protected from mechanical forces. Check the
recommended tightening torque in “Recommended Cable” table, from this
section.

POWER ELECTRONICS

SD300

POWER CONNECTIONS

63

WARNING

EMC Installation Requirements

Introduction

The EMC European Directive defines electromagnetic compatibility as the
capability of an apparatus, an industrial plant, or a system to work
satisfactorily in the electromagnetic environment, without at the same time
causing electromagnetic disturbances in the apparatus, industrial plant or
systems present in the same environment.

The Electromagnetic Compatibility (EMC) depends on two main
characteristics of the equipment: Electromagnetic Interference (EMI) and
Electromagnetic Susceptibility (EMS). The EMC standards aims to ensure
that all the electrical equipment that could operate simultaneously in the
same environment are compatible. This means that the interference
immunity of all the devices is greater than the interference emission of all
the devices within the same environment.

The EMC requirements for Power Drive System (PDS) are defined in
IEC/EN 61800-3 standard that is included in the Declaration of conformity
CE enclosed. In the European Union, EN61800-3 standard takes priority
over all generic standards. The PDS in the context of this standard
comprises the drive converter, the motor cables and the motor. Therefore,
the installer as the ultimate responsible must follow the installation
instructions given within this manual.

For safety reasons, it is essential to measure the grounding resistance
of the installation. This must be established before the first start up of the
plant and with the drive disconnected.

The installer is responsible of providing the adequate amount, type
and cross section grounding conductor alongside the characteristics
of the drive used and the plant, in order to minimize the grounding
resistance, which must comply with local and national regulations.

SD300

POWER ELECTRONICS

64

POWER CONNECTIONS

Depending on the location of the drive, the standards define four
categories distributed in two environments.

• First Environment: Domestic installations. It also
includes premises directly connected to a low-voltage
power supply network without an intermediate
transformer which supplies buildings used for domestic
purposes such as shopping malls, cinemas, hospitals…

• Second environment: Industrial installations. Second
Environment includes all plants other than those
directly connected to the public low-voltage network
which supplies buildings used for domestic purposes,
e.g. factories and those other premises supplied by
their own dedicated transformer.

POWER ELECTRONICS

SD300

POWER CONNECTIONS

65

Environment definition
The two environments are divided in four categories C1 to C4 that are

summarized in the following table.

FIRST ENVIRONMENT

SECOND ENVIRONMENT

C1

C2

C3

C4

Restricted Installation

[1]

NO

YES

YES

YES

[2]

Notes:

[1] “Restricted Installation” means that the installation and commissioning must be

carried out by specialist personnel.
[2] C4 Category applies only for complex systems or when ratings are equal or above
to 1000 V or 400 A wich are unable to comply with the limits of C3 Category. In these
cases, C4 Category can be achieved by adjusting the equipment in situ and applying
the EMC recommendations.

SD300 compliance

SD300 variable speed drives with Extended EMC have been designed for
the industrial use (Second Environment). In the case of the Standard EMC
equipment, an external filter must be installed to meet C3. The correct
installation following the recommendations within this manual, permit to
achieve compliance with C3 category defined in IEC/EN 61800-3.

Optionally, the SD300 drive with non-floating earth can be installed in
residential areas (First Environment) by employing optional RFI filters that
permit to achieve the C2 category.

The SD300 is not a retail unit. It is neither a plug in device nor a movable
device and it is intended to be installed and commissioned by qualified
personnel. However, C1 category will not be required.

The SD300 with floating earth configuration can be installed in industrial
(Second Environment) IT grids. Equipment with Extended EMC comply
with C3 (Second Environment). In the case of the Standard EMC
equipment, an external filter must be installed to meet C3.

SD300

POWER ELECTRONICS

66

POWER CONNECTIONS

EMC Recommendations

To conform the EMC directive, it is necessary that these instructions be
followed as closely as possible. Follow the usual safety procedures when
working with electrical equipment. All electrical connections to the filter,
inverter and motor must be made by a qualified electrical technician.

1. Check the filter rating label to ensure that the current, voltage
rating and part number are correct.

2. For best results, the filter should be fitted as closely as possible to
the incoming mains supply of the wiring enclousure, usually
directly after the enclousures circuit breaker or supply switch.

3. The back panel of the wiring cabinet of board should be prepared
for the mounting dimensions of the filter. Be sure to remove any
paint etc from the mounting holes and face area of the panel to
ensure the best possible earthing of the filter.

4. Mount the filter securely.

5. Connect the mains supply to the filter terminals marked LINE,
connect any earth cables to the earth stud provided. Connect the
filter terminals marked LOAD to the mains input of the inverter
using short lengths of appropriate gauge cable.

6. Connect the motor and fit the ferrite core (output chokes) as close
to the inverter as possible. Armoured or screened cable should be
used with the 3 phase conductors only threaded twice through the
center of the ferrite core. The earth conductor should be securely
earthed at both drive and motor ends. The screen should be
connected to the enclousure body via and earthed cable gland.

7. Connect any control cables as instructed in “Wiring
Recommendations” section, inside “CONTROL CONNECTION”
section.

It is important that all lead lengths are kept as short as possible and that
incoming mains and outgoing motor cables are kept well separated.

POWER ELECTRONICS

SD300

POWER CONNECTIONS

67

Connection

It is recommended the use of braided shielded motor cables to achieve
compliance with C3 category. Wiring and Installation recommendations
are included in previous sections: “Power Connection and Wiring”,
“Ground Connection” and “EMC Installation Requirements”.

In shielded cables it is recommended to connect the shield by making 360°
contact in both the drive cabinet and the motor terminal box. As an
example, EMC cable glands can be installed as shown in the next figure.

Correct output motor cables shield bonding

SD300

POWER ELECTRONICS

68

POWER CONNECTIONS

It is recommended to use shielded cable for control signals and to follow
recommendations included in Wiring Recommendations section.

CAUTION

Select communication and control system according to the drive EMC
environment. Otherwise, systems could suffer from interferences due to a

low EMS level.

Protections

Safety Stop Function

Safe Torque Off (STO) allows the drive output to be disabled so that the
drive cannot provide power or generate torque in the motor.

The Safe Torque Off function meets EN ISO 13849-1 PLd and EN 61508
SIL2 (EN60204-1, stop category 0). This feature is standard and enables
compliance with current safety standards. See “STO” point, inside
“CONTROL CONNECTION” section for further information.

Ground Fault Protection

The drive is equipped with an internal software, the ground fault protective
function protects the drive against input and output unbalanced currents.
For further information, see the Programming and Software Manual.

This function is not intended to work as a safety or fire protection, so an
external protection must be provided to ensure that a substantial ground
fault current is promptly interrupted. The SD300 drives are compatible to
operate with Type B RCDs, if it is required. The EMC filters and long motor
cables increase the ground leakage currents, so the threshold response
of the protection should be adjusted to suit the surrounding plant
conditions. For additional information, contact with Power Electronics.

POWER ELECTRONICS

SD300

POWER CONNECTIONS

69

Short Circuit

The following table shows the voltage and current ratings for fuses and
circuit breakers.

Model

AC Input Fuse

AC Reactor

DC Reactor

Current

[A]

Voltage

[V]

Inductance [mH]

Current

[A]

Inductance [mH]

Current

[A]

230V

1-phase

0.4 kW

10

600

1.2

10 4 8.67

0.75 kW

1.5 kW

2.2 kW

0.4 kW
15

0.88

14 3 13.05

20

0.56

20

1.3

18.45

230V

3-phase

10

1.2

10 4 8.67

0.75 kW

1.5 kW

2.2 kW

3.7 kW

4 kW

15

0.88

14 3 13.05

20

0.56

20

1.33

18.45

32

0.39

30

26.35
50

5.5 kW

50

0.3

34

1.6

32

7.5 kW

63

0.22

45

1.25

43

11 kW
15 kW

0.4 kW
80

0.16

64

0.95

61

100

0.13

79

0.7

75

400V

3-phase

10

4.81

4.8

16

4.27

0.75 kW

1.5 kW

2.2 kW

3.7 kW

3.23

7.5

12

6.41

15

2.34

10 8 8.9

20

1.22

15

5.4

13.2

4 kW

32

5.5 kW

1.12

19

3.2

17

7.5 kW

11 kW
15 kW

35

0.78

27

2.5

25

50

0.59

35

1.9

32

63

0.46

44

1.4

41

18.5 kW

70

0.4

52 1 49

22 kW

100

0.3

68

0.7

64

SD300

POWER ELECTRONICS

70

POWER CONNECTIONS

Motor Thermal Protection

The drive includes a motor thermal protection that, based on the motor
performance parameters, mathematically calculates the thermal reservoir
of the motor. When this reservoir is reduced below the limits, the drive
automatically stops the motor. The thermal sensitivity is configured in the
programming parameters. For further information consult Software and
programming manual.

Others

The drive can implement additional motor and drive protections such as
power-loss ride through, automatic fly restart, high and low input and
output voltage, pump overload and underload... For further information,
consult Software and Programming manual.

Dynamic Braking Resistors

CAUTION

Do not touch the braking resistor during the drive operation. It could
be very hot (over 150ºC).

A dynamic brake controls the regenerated energy. The dynamic brake
activates an IGBT to discharge the DC bus over external resistors when the
DC voltage overpasses a pre-set value.

SD300 drives include a built-in dynamic brake as standard. The user only
has to connect a resistor between terminals P2 and B of the power board
(see “Power Terminals” section).

Reference

Input

voltage (V)

Drive

capacity

(kW)

100% Braking

150% Braking

Ω

W* Ω W*

SD300312, SD300312F,
SD300322, SD300326

230

0.4

400

50

300

100

SD300612, SD300612F,
SD300622, SD300526

0.75

200

100

150

150

SD300912, SD300912F,
SD300922, SD300826

1.5

100

200

60

300

POWER ELECTRONICS

SD300

POWER CONNECTIONS

71

Reference

Input

voltage (V)

Drive

capacity

(kW)

100% Braking

150% Braking

Ω

W* Ω W*

SD301212, SD301212F,
SD301222, SD301126

2.2

60

300

50

400

SD301822, SD301726

4

40

500

33

600

SD303022, SD302426

5.5

30

700

20

800

SD304022, SD303226

7.5

20

1000

15

1200

SD305622, SD304626

11

15

1400

10

2400

SD306922, SD306026

15

11

2000 8 2400

SD300242, SD300242F,
SD300146, SD300146F

400

0.4

1800

50

1200

100

SD300342, SD300342F,
SD300246, SD300246F

0.75

900

100

600

150

SD300542, SD300542F,
SD300446, SD300446F

1.5

450

200

300

300

SD300742, SD300742F,
SD300646, SD300646F

2.2

300

300

200

400

SD301042, SD301042F,
SD300946, SD300946F

4

200

500

130

600

SD301642F, SD301246,
SD301246F

5.5

120

700

85

1000

SD302342F, SD301646,
SD301646F

7.5

90

1000

60

1200

SD303042F, SD302446,
SD302446F

11

60

1400

40

2000

SD303842F, SD303046,
SD303046F

15

45

2000

30

2400

SD304442F, SD303946,
SD303946F

18.5

35

2400

20

3600

SD305842F, SD304546,
SD304546F

22

30

2800

10

3600

Notes:

• The values of the braking resistors that appear in the table are the minimum

recommended values. For a customized calculation, and adjusted to your
application, please contact Power Electronics.

• The braking resistor should be non-inductive.

• To connect the sensor to the drive, it is recommended to use shielded cable.

• The maximum cable length between the drive and the external braking

resistor is 20m. For other configurations, contact with Power Electronics

SD300

POWER ELECTRONICS

72

CONTROL CONNECTION

8. CONTROL CONNECTION

Wiring Recommendations

Before planning the installation, follow these recommendations. The parallel
cable routing should be minimized and the distance between the control
wiring and the power wiring should be maximized. It is recommended to route
control cables with different voltages in separate cable racks, trays or ducts.

It is recommended to use shielded twisted cable for all the data, signal or
control cables that exit the variable speed drive, with the shield correctly
bonded to ground. To ensure an effective shield bonding, it is recommended
to include in the SD300 front metal panel of the control board, EMC shield
clamps that ensure a 360º effective shield bonding.

Shield bonding

Digital signal cables must be grounded at both ends of the cable (when there
is no potential difference between equipment). It is recommended to use
independent shielded cables for digital and analogue signals. When using
multiple analogue signals do not use common return for them. If a low­interference is experienced (hum loops) using analogue signals disconnect
the shield grounding from one of the ends. Please refer to section
“Recommended Cable Section” for wire specifications and recommended
tightening.

8

POWER ELECTRONICS

SD300

CONTROL CONNECTION

73

Although the control board is insulated galvanically, for safety reasons it is
recommended not to modify the wiring while the equipment is connected to
the input power supply.

WARNING

Changes of control wiring or bridges should be performed after
disconnecting the input power and checking, with a multimeter, that the DC
Link voltage is discharged (below 30VDC). Otherwise, you may get an
electric shock

Control Cables Access

The control cables must be connected to the control terminals located below
the seven-segment display. Remove the terminals cover pushing on the
right-side clip as follows:

3

Terminals cover removal

SD300

POWER ELECTRONICS

74

CONTROL CONNECTION

Control Board Terminals Description

The control board of the drive integrates some switches and connection
terminals. These connection terminals vary depending on the equipment’s
degree of protection.

The following figures show the control board terminals schema:

IP20 drives standard control terminals connection

POWER ELECTRONICS

SD300

CONTROL CONNECTION

75

IP66 drives standard control terminals connection

Digital inputs can be configured individually or collectively. Analogue inputs
can be configured as comparators. For further information, please refer to
the Software and Programming Manual.

Note:

The frontal cover of the control terminals can be removed to facilitate ease of
connection.

SD300

POWER ELECTRONICS

76

CONTROL CONNECTION

The following figure shows the control terminals for IP20 drives:

Standard control terminals for IP20

The following figure shows the control terminals for IP66 drives:

Standard control terminals for IP66 drives.

POWER ELECTRONICS

SD300

CONTROL CONNECTION

77

The following table contains the control terminals description:

SIGNAL

PIN

DESCRIPTION

DIGITAL INPUTS

P1

Configurable multi- function Input. Default value: FX.

P2

Configurable multi- function Input. Default value: RX.

P3

Configurable multi- function Input. Default value: BX.

P4

Configurable multi- function Input. Default value: RST.

P5

Configurable multi- function Input. Default value: Spd-L.

P6

[1]

Configurable multi- function Input. Default value: Spd-M.

P7

[1]

Configurable multi- function Input. Default value: Spd-H.

CM

Common terminal for analog and digital terminal inputs and
outputs.

DIGITAL OUTPUTS

Q1

Multi-function Terminal (Open-collector). 26VDC, ≤100mA.
Default value: Run.

EG

Common ground contact for an open collector (with external
power source).

24

External 24V power source. 150mA maximum output current.

A1

Fault signal output. Sends out alarm signals when the
inverter safety features are activated (AC 250V <1A, DC 30V
< 1A).

- Fault condition: A1 and C1 contacts are connected (B1

and C1 open connection).

- Normal operation: B1 and C1 contacts are connected

(A1 and C1 open connection).

C1

B1

ANALOGUE

INPUTS

VR

Power terminal used to setup or modify a frequency
reference via analog voltage or current input.
Max output V/I: 12V / 100mA, Potentiometer 1~5kΩ.

V1

Setup or modify a frequency reference via analog voltage
input terminal.

- Unipolar: 0 ~ 10V (max12V)

- Bipolar: -10 ~ 10V (max ±12V)

[1]Only available in IP20 drives.

SD300

POWER ELECTRONICS

78

CONTROL CONNECTION

SIGNAL

PIN

DESCRIPTION

I2

Configurable voltage/current input using the SW2 switch.
Voltage / Current Analog Input (0~10V (max 12V) / 4~20mA
(max24mA, input resistance: 249Ω)).

TI

[1]

Frequency Setting (Pulse Train) 0~32kHz.

- Low level: 0-0.8V

- High Level: 3.5-12V
In IP66 drives, this input is shared with the P5 terminal. This
terminal must be set as TI in the parameter G5.69 to use it
as a train pulse input. For more information consult the
Programming and Software Manual.

ANALOGUE

OUTPUTS

AO

Configurable analogue output V/I (0~10V (max 12V/10mA) /
0~20 mA (max 24mA)).

TO

[1]

Pulse Output signals 0~32kHz and 0-12V. Use only a wire to
connect this signal to the input of another SD300 drive. Do
not install any resistor.
In IP66 drives, this output is shared with the Q1 terminal.

RS485

COMMUNICATION

S-

Communication port RS485 with Modbus protocol up to
115200 Kbit/s.

SG

S+

STO

SC

Safe Torque Off (STO) input available by default. Used to
block the drive’s output in an emergency. Built-in two NC
relays SA and SB. (24VDC, <25mA.)
Conditions:

- Normal Operation: Both the SA and SB terminals are

connected to the SC terminal.

- Output Block: One or both of the SA and SB terminals

lose connection with the SC terminal.

SA

SB

[1] Only available in IP20 drives.

POWER ELECTRONICS

SD300

CONTROL CONNECTION

79

Pulse Output Signals Connection in IP66 Drives

In IP66 drives, the pulse output signal is shared with the Q1 terminal. This
terminal must be set as TO in the parameter G6.33 and the next
connections must be performed to use it as a train pulse output:

• Connect a 1/4W, 560Ω resistor between VR and Q1
terminals.

• Connect EG and CM terminals.

Recommended Cable Section

The recommended wire characteristics are summarized in the table below.
The wire length of the safety input should not exceed 30m.

Terminal Type

Recommended wire size [mm2]

(AWG)

Screw

Torque

[N.m]

No crimp-style

terminal

Crimp-style

terminal

P1 – P7, CM

0.75 (18)

0.5 (20)

M2 (1/32“)

0.22 ~ 0.25

VR

V1

I2

AO

Q1

EG

24

TI

TO

SA, SB, SC

S+, S-, SG

A1, B1, C1

1.0 (17)

1.5 (15)

M2.6 (3/32“)

0.4
A2, C2

SD300

POWER ELECTRONICS

80

CONTROL CONNECTION

Control Switches

There are four control switches, one for the PNP/NPN mode, one for the
terminal resistor and two for analog signals. They are described in the table
below:

SWITCH

OPTIONS

DESCRIPTION

SW1

PNP / NPN

PNP / NPN

NPN/PNP mode selection switch.

SW2

ANALOG INPUT

V / I

Analog voltage/current input terminal
selection switch.

SW3

ANALOG OUTPUT

IO / VO

Analog voltage/current output terminal
selection switch.

SW4

TERMINAL RESISTOR

ON / OFF

Terminating Resistor selection switch.

STO - Safe Torque Off

The STO function is defined as follows:
Power, that can cause rotation, is not applied to the motor. The frequency

converter will not provide energy to the motor, which can generate torque.
For three-phase asynchronous motor, that means to stop supplying

alternating three-phase power to the stator.
This function is included as standard in SD300 drives and corresponds with

an Emergency Stop Category 0 according to IEC 60204-1. When the drive
is running and the STO function is applied, the motor will freely stop by its
own inertia.

The SD300’s STO function permits to achieve two Safety Levels for the STO
function. The safety integrity level SIL2 (PLe) requires the use of an external
SELV/PELV 24VDC source, emergency push button, and a safety relay SIL2
certified with feedback. For safety integrity, level SIL1 (PLc) it is only required
an external push button.

By using this function, cleaning, emergencies or maintenance work on non­electrical parts of the machinery can be performed without switching off the
input power supply to the drive.

Based on the study of each application and a risk assessment, the designer
should define the safety function required and each safety level.

POWER ELECTRONICS

SD300

CONTROL CONNECTION

81

The safety input function meets EN ISO 13849-1 PLd and EN 61508 SIL2
(EN60204-1, stop category 0)

Safe input function circuit

CAUTION

The STO safety function does not disconnect the main input power
and auxiliary power supply. The drive disconnects the output motor
power supply. Therefore, active conductors may be present inside so
do not carry out electrical maintenance tasks without isolating the
drive. Otherwise, it could cause damage to the equipment and lead to injury
and even death.

Do not use the STO function as a normal drive stop.

According to EN 60204-1 automatic restart is not allowed after an
emergency stop. For this reason, the machine control must prevent
an automatic start after emergency stop.

SD300

POWER ELECTRONICS

82

COMMISSIONING

9. COMMISSIONING

CAUTION

Only qualified personnel are allowed to commission the drive. Read
and follow the safety instructions on the first pages of this manual.
Neglecting the safety instructions can cause injuries or even death.

Ensure that there is no voltage present in the input power terminals
and no voltage can be connected to the drive inadvertently.

This chapter does not include all the tasks to be performed during
commissioning, follow local and national regulations.

In order to carry out a commissioning correctly, we recommend checking the
following steps:

Check the compatibility of the upstream protections (circuit breaker, fuses,

etc...) that could cause an unexpected stop during the soft charge.

Verify that the line voltage is compatible with drive voltage range. If not, the

drive could get damaged.

Connect input, PE and output power wiring, and verify that they are correctly

installed and fastened.

9

POWER ELECTRONICS

SD300

COMMISSIONING

83

Check that the drive protective covers are mounted.

Check control, and analogue and digital signals cables, functions (STO).

Voltage free.

Check that the drive follows the remote and local speed commands.

Connect input power supply.

Verify that the display is turned on and set the drive control parameters

Check line voltages with the display.

SD300

POWER ELECTRONICS

84

COMMISSIONING

Start the drive without motor using the display key “RUN”.

Check that the fans rotate smoothly and there is no obstacle reducing the

cooling capacity. Verify that there are no obstructing elements that could

affect equipment cooling.

Connect the motor and check its rotation direction.

Check that the drive follows the references of speed, current, etc.

POWER ELECTRONICS

SD300

MAINTENANCE

85

10. MAINTENANCE

SD300 drives consist of advanced semiconductor devices. Temperature,
humidity, vibration and deteriorated components can reduce their efficiency.
To avoid any possible irregularities, we recommend making periodic
inspections.

Cooling

It is possible to replace the cooling fan without dismounting the whole
equipment. To do this, unscrew the screws and disconnect the connector.

The following image shows the standard fan usage rate. Replacement level
can be set in parameter Pr.87.

Fan usage rate

10

SD300

POWER ELECTRONICS

86

MAINTENANCE

Warnings

▪ Make sure to disconnect the input power while performing

maintenance.

▪ Make sure to perform maintenance after checking the DC Link

capacitor has discharged. Check that the voltage between DC
terminals +, - is below DC 30V. The bus capacitors in the drive main
circuit can still be charged even after the power is turned off.

▪ The correct output voltage of the drive can only be measured by

using an RMS voltage meter. Other voltage meters, including digital
voltage meters, are likely to display incorrect values caused by the
high frequency PWM output voltage of the drive.

Routine Inspection

Make sure to check the following points before handling the drive:

▪ Installation site conditions.
▪ Drive cooling system conditions.
▪ Excessive vibrations or noise in the motor.
▪ Excessive overheating.
▪ Normal output current value on the monitor.

The following table summarizes the maintenance tasks that should be
carried out monthly, annually and every two years:

POWER ELECTRONICS

SD300

MAINTENANCE

87

Inspection site

Inspection

Period

Inspection

method

Criterion

Measurement

instrument

Monthly

1 year

2 years

All

AMBIENT CONDITIONS

Are the ambient
temperature and
humidity within
specification?

o

Visual check

Temperature: HD
IP20:

-10~50˚C

(14~122˚F) / HD
IP66: -10~40˚C
(14~104˚F) / ND:

-10~40˚C
(14~104˚F).

Humidity: below
95% non­condensing.

Thermometer,
Hygrometer,
Recorder.

MODULE

Are there any abnormal
noises or oscillations?

o

Visual and
audible.

There are no
anomalies.

POWER VOLTAGE

Are the input and output
voltages normal?

o

Measure voltage
between R/S/T
phases in. the
terminal block.

Values are within
Standard Ratings
(see section 2).

Digital
multimeter
tester

Main circuit

ALL

Megger test (between
input / output terminals
and ground terminal)

o o

Disconnect drive
and short R/S/T/
U/V/W terminals,
and then
measure from
each terminal to
the ground
terminal using a
Megger.

Above 5MΩ

Megger type
500V

Is there anything loose
in the device?

o o

Tighten up all
screws.

No anomaly.

Is there any evidence of
parts overheating?

o o

Visual inspection

No anomaly.

SD300

POWER ELECTRONICS

88

MAINTENANCE

Inspection site

Inspection

Period

Inspection

method

Criterion

Measurement

instrument

Monthly

1 year

2 years

Main circuit

CONDUCTOR / CABLE

Is the conductor
corroded?
Is the cable shield
damaged?

o o

Visual check.

No anomaly.

TERMINAL

Is there any visible
damage?

o

Visual check.

No anomaly.
CORRECT CAPACITOR

Have fluid leakages
been observed?
Is the capacitor well
fastened?
Are there any signs of
dilation or retraction?

o

o

o

Visual check.
Measure the
capacitance with
a proper
instrument.

No anomalies.
Capacitance
higher than 85%
of rated
capacitance.

Instrument for
measuring
capacity.

CONTACTOR

Is there any contactor
chatter?
Is the contact
damaged?

o

o

Audible check.

Visual check.

No anomaly.

OPTIONAL BRAKING RESISTOR

Is there any damage
from resistance?

o

Visual inspection.

No anomaly.

Digital
multimeter /
analog tester

Check for disconnection

o

Disconnect one
side and
measure with a
tester.

Must be within +/­10% of the rated
value of the
resistor.

Control circuit and

Protections

OPERATING CHECK

Is there any imbalance
between output voltage
phases?

o

Measure voltage
between output
terminals U, V
and W.

Balanced voltage
between phases.

Digital
multimeter /
RMS voltage
meter.

Are there any errors in
the display circuit after
the sequence protection
test?

o

Test the drive
output protection
in short and open
circuit conditions.

The circuit must
work according to
the sequence.

POWER ELECTRONICS

SD300

MAINTENANCE

89

Note: Long life of the main components above indicated are based on a

continuous operation for the stipulated load. These conditions can change
according to the environment conditions.

Inspection site

Inspection

Period

Inspection

method

Criterion

Measurement

instrument

Monthly

1 year

2 years

Cooling

system

COOLING FANS

Are there any abnormal
noises or oscillations?
Is the cooling fan
disconnected?

o

o

Disconnect the
power supply
(OFF) and rotate
the fan manually.
Check the
connections.

Fan should rotate
effortlessly.
No anomaly.

Display

MEASUREMENT

Is the displayed value
correct?

o o

Check the
reading
instrument with
an external
measurement.

Check the
specified values
and the control
values.

Voltage meter
/ Current meter
etc.

Motor

ALL

Is there any noise or
abnormal vibrations?
Has any unusual smell
been reported?

o

o

Audible, sensory
and visual check.
Check if
damages have
been produced
by overheating.

No anomaly.

INSULATION RESISTANCE

Megger test (between
the input, output and
ground terminals)

o

Disconnect the
cables for
terminals U/V/W
and test the
wiring.

Above 5MΩ

Megger type
500V

SD300

POWER ELECTRONICS

90

USE OF THE DISPLAY

11. USE OF THE DISPLAY

SD300 variable drives have a built-in seven segment display which provides
intuitive data presentation, an easy navigation through the control parameters
and allows storing thousands of user-customized configurations.

It has four indicator leds that supply information about the drive operational
status, plus eight control keys. They are described in the table below:

KEY / LED

NAME

FUNCTION

RUN key

Run command.

STOP/RESET key

STOP: Stop command during operation.
RESET: Reset command when a fault occurs.

UP key

Used both to scroll up through the parameters of a group
and to increase a parameter value.

11

POWER ELECTRONICS

SD300

USE OF THE DISPLAY

91

KEY / LED

NAME

FUNCTION

DOWN key

Used both to scroll down through the parameters of a group
and to decrease a parameter value.

Left key

Used to jump to other parameter groups or move the cursor
to the left.

Right key

Used to jump to other parameter groups or move the cursor
to the right.

Enter key

Used to set a parameter value or to save the changed
parameter value.

Escape key

Used to cancel the changes or to switch from Remote/Local
if this option was previously configured.

FWD LED

Forward Run

Illuminated during forward run.
LEDS flicker when a fault occurs.

REV LED

Reverse Run

Illuminated during reverse run.

RUN LED

Run

Illuminated during operation / Flickering during
acceleration/deceleration.

SET LED

Setting

Illuminated during parameter setting / Flickering when the
ESC key is operating as a multi-key.

Seven-segment

display

Current value

Indicates operating conditions and parameter data.

SD300

POWER ELECTRONICS

92

USE OF THE DISPLAY

The following table shows the different characters of the seven-segment
display:

POWER ELECTRONICS

SD300

USE OF THE DISPLAY

93

To learn how to switch between groups and parameters, follow the next
examples:

Step

Instruction

Keypad display

1

Move to the
desired group
using the
[◀] and [▶]
keys.

2

Move up and
down through
the
parameters

using the [▲]
and [▼]

keys.

3

Press the
[ENT] key to
save the
changes.

Binary numbers are shown in the integrated display as segment lines. “1” is
displayed in the top part of the display and “0” in the bottom part. For example,
“010” is represented as:

SD300

POWER ELECTRONICS

94

STATUS MESSAGES

12. STATUS MESSAGES

List of Status Messages

Screen

Name

Description

FLT

Fault trip

The drive is in fault state

DCB

DC Brake

The SD300 has injected DC current to stop the motor.

STP

Stopping

The drive is decreasing the output frequency due to a
stop order.

DCL

Decelerating

The drive is decreasing the output frequency. The
motor is decreasing its speed, it is decelerating.

ACL

Accelerating

The drive is increasing the output frequency. The motor
is increasing its speed, it is accelerating.

RUN

Running

The drive is operating at reference speed. The motor
will keep the introduced speed as setpoint. Operating in
nominal rate.

RDY

Ready

The drive is ready for commissioning.

12

POWER ELECTRONICS

SD300

WARNING & FAULT MESSAGES

95

13. WARNING & FAULT

MESSAGES

List of Warning Messages

The following table summarizes the possible warning messages that may be
displayed and their description.

Screen

Name

Description

OLU

Over Load

Displayed when the motor is overloaded. Operates
when Pr.17 is set to 1 ‘YES’. To operate, set the
digital output terminal or relay OU.31or OU.33 to 5
‘OVERLOAD’ to receive overload warning output
signals.

ULU

Under Load

Displayed when the motor is underloaded.
Operates when Pr.25 is set to 1 ‘YES’. Set the
digital output terminal or relay OU.31or OU.33 to 7
‘UNDERLOAD’ to receive underload warning
output signals.

IOLU

INV Over Load

Displayed when the overload time equivalent to
60% of the drive overheat protection level is
accumulated. Set the digital output terminal or relay
OU.31or OU.33 to 6 ‘IOL’ to receive drive overload
warning output signals.

LCU

Lost Command

Lost command warning alarm occurs even with
Pr.12 set to 0 ‘None’. The warning alarm occurs
based on the condition set at Pr.13 to Pr.15. Set the
digital output terminal or relay OU.31or OU.33 to 13
‘LOSTCOMMAND’ to receive lost command
warning output signals. If the communication
settings and status are not suitable for P2P, a Lost
Command alarm occurs.

FANU

Fan Warning

Displayed when an error is detected from the
cooling fan while Pr.79 is set to 1 ‘WARN’. Set the
digital output terminal or relay OU.31or OU.33 to 8
‘FAN WARNING’ to receive fan warning output
signals.

13

SD300

POWER ELECTRONICS

96

WARNING & FAULT MESSAGES

Screen

Name

Description

EFAN

Fan Exchange

An alarm occurs when the value set at Pr.86 is
above the value set at Pr.87. To receive fan
exchange output signals, set the digital output
terminal or relay OU.31 or OU.33 to 38 ‘FAN
EXCHANGE’.

ECAP

CAP Exchange

An alarm occurs when the value set at Pr.63 is less
than the value set at Pr.62 (the value set at Pr.61
must be 2 ‘Pre Diag’). To receive CAP exchange
signals, set the digital output terminal or relay
OU.31 or OU.33 to 36 ‘CAP Exchange’.

DBU

DB Warn %ED

Displayed when the DB resistor usage rate
exceeds the set value. Set the detection level at
Pr.66

TRTR

Retry Tr Tune

Tr tune error warning alarm is activated when dr.9
is set to 4 ‘S-less1’. The warning alarm occurs
when the motors rotor time constant (Tr) is either
too low or too high.

POWER ELECTRONICS

SD300

WARNING & FAULT MESSAGES

97

List of Fault Messages & Troubleshooting

Section List of fault messages shows a list of all possible faults. Probable
causes and troubleshooting for each fault are listed in section Fault
troubleshooting.

List of fault messages

SCREEN

DESCRIPTION

-

The equipment is operative. No fault is present.

Overload. The drive trips when the output current reaches the value
set in parameter Pr.21, exceeding the time limit set in parameter
Pr.22. The protection is operative if the parameter Pr.20 has been
set with a value different to 0 ‘NONE’.

Underload. The motor is working with insufficient load. The drive
trips when its current is within the values set in parameter Pr.29 and
Pr.30 exceeding the time limit set in parameter Pr.28. The protection
will be enabled if the parameter Pr.27 has been set with a value
different to 0 ‘NONE’.

Inverter Overload. The drive cuts the output supply when the
output current exceeds the value set in the corresponding
parameters (150% for 1 minute, 200% for 3 seconds of the drive
rated current). Protection is based on drive rated capacity, and may
vary depending on the device capacity.

E-Thermal. The internal thermo-electronic protection determines
the motor overheating. If the motor is overheated, the drive stops its
output. The protection is enabled setting the parameter Pr.40 to a
value different than 0 ‘NONE’.

Ground Fault. The drive trips when an earth leakage and its current
exceed the internal value configured in the drive. The overload
protection function will protect the drive from any ground fault
caused by a small leakage resistance.

Output Ph Loss. One of the three output phases is open. The

protection will be enabled if the parameter Pr.5 is set as 1 ‘OUTPUT’
or 3 ‘ALL’.

Input Ph Loss One of the three input phases is open. The
protection will be enabled if the parameter Pr.5 is set as 2 ‘INPUT’
or 3 ‘ALL’.

SD300

POWER ELECTRONICS

98

WARNING & FAULT MESSAGES

SCREEN

DESCRIPTION

NTC. The drive uses a NTC thermal sensor to detect temperature

increases within the supply system. When this message is
displayed, the thermal sensor cable may have been cut. (The drive
will continue running).

Overcurrent. The drive trips when the output current exceeds the
200% of the rated current value.

Overvoltage. The drive trips if the DC voltage within bus exceeds
the value established. This value has been established in the
internal configuration during the deceleration process or when the
motor regenerative energy return to the drive is excessive for the
capacitors which compose the DC bus. This fault can also be
caused due to a transitory overvoltage within the supply system.

External Trip. This function can be used whenever the user needs
to cut the output by the use of an external trip signal. The open
/closed contact use will depend on the configuration within the digital
inputs (In.65-In.71) configured as 4 ‘EXTERNAL TRIP’. The drive
cuts the motor output protecting it from the controlled situation within
the terminal.

Short ARM. The drive trips when a short-circuit occurs in the IGBT
or in the output power.

Overheat. The drive trips if overheated caused by a damaged
cooling fan or by the presence of any strange substance within the
cooling system.

Fan trip. An anomaly detecting within the cooling fan. The
protection will be enabled if parameter Pr.79 is set as 0 ‘TRIP’.

Param_Wr_Err. A problem has been detected during the writing of
a parameter by keypad.

Pipe Fill Flt. An error has been detected which makes the PID
feedback be always under the established value. Possible pipe
breakdown.

External Brake. Drive trips when the braking unit reaches a
dangerous temperature.
