Powercom 800VA, 1000VA, 1200VA, 1500VA, 2200VA User Manual

U P S

Uninterruptible Power System

Line-Interactive Network UPS

800VA/ 1000VA/ 1200VA/ 1500VA

2200VA/ 3000VA

■

■■

■

USER‘S MANUAL

■

■■

■

T

ABLE OF CONTENTS

I

NTRODUCTION

……………………………………………………………………..1

1. I

MPORTANT SAFETY INSTRUCTIONS

………………………...……………..………2

2. P

RESENTATION

………………...………………,.………………………..…………3

3. I

NSTALLATION

………………………………………………………...……………5

4. O

PERATION

………………………………………………………...………………7

5. S

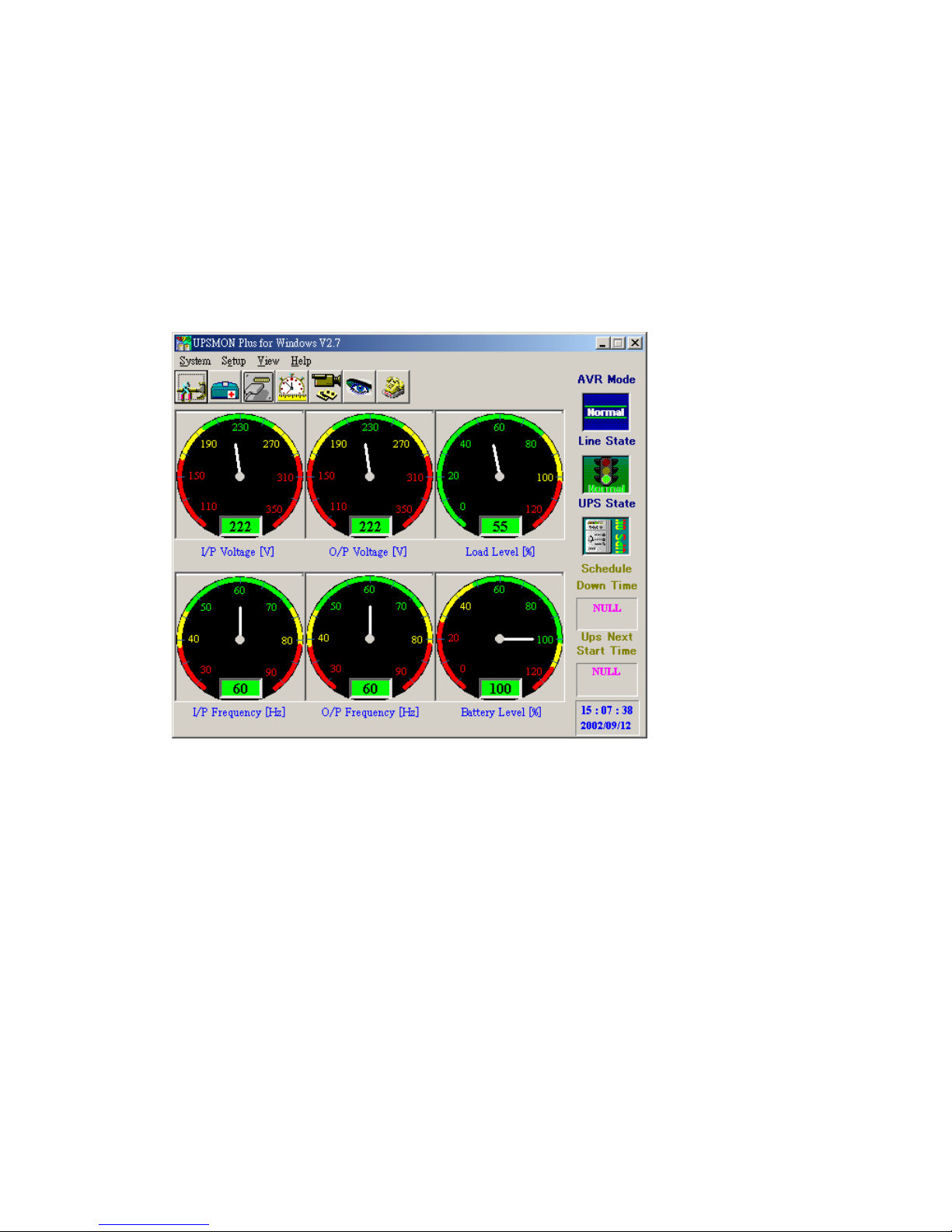

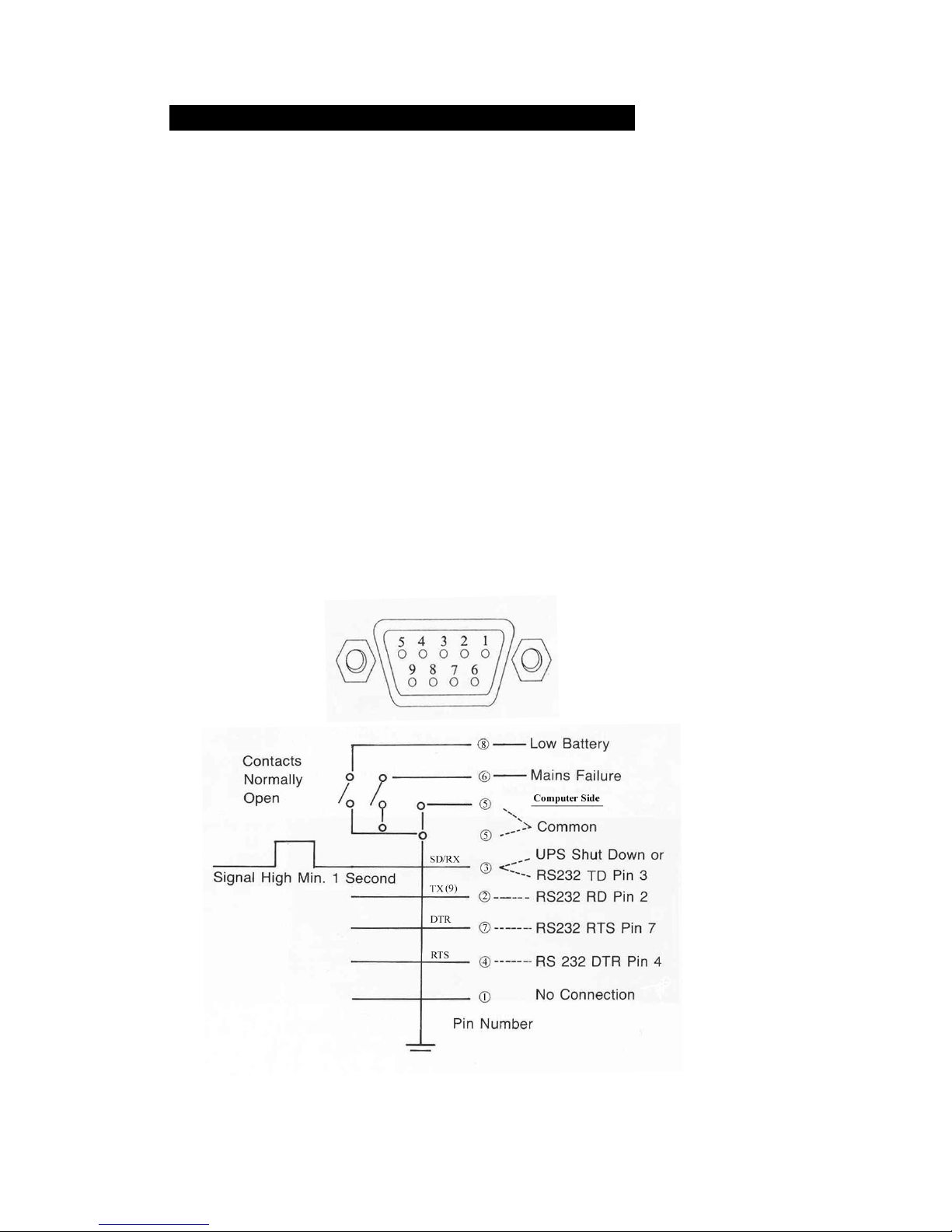

OFTWARE AND COMPUTER INTERFACE

………………..…………………………8

A

PPENDIX

A. T

ROUBLESHOOTING

……………………………………………………9

A

PPENDIX

B. S

PECIFICATIONS

……………………………………….………………10

I

NTRODUCTION

Please read and save this manual!

Thank you for selecting this uninterruptible power system (UPS). It provides you with a
perfect protection for connected equipment. The manual is a guide to install and use the
UPS. It includes important safety instructions for operation and correct installation of the
UPS. If you should have any problems with the UPS, please refer to this manual before
calling customer service.

Please save or recycle the packaging materials!

The UPS‘s shipping materials are designed with great care to provide protection within
delivery. These materials are invaluable if you ever have to return the UPS for service.
Damage happened during transit is not covered under the warranty.

Intelligent microprocessor control

The UPS is a microprocessor-controlled unit. This means that it operates with the
newest technology, high performance and powerful function.

The UPS is an intelligent protector and provides pure, reliable AC power to the critical
loads - protecting them from utility power blackout, swells, sags, surges and
interference.

Furthermore, in order to save the battery energy, UPS can automatically turn it off under
backup mode if none of the connected loads is operating.

Advanced battery management

The visual and audible indications of the UPS present the battery’s status. Self-test
function let UPS detect a weak battery before it is put into service. The UPS normally
perform a self-test at power up condition.

1

1. I

MPORTANT SAFETY INSTRUCTIONS

●

WARNING (SAVE THESE INSTRUCTIONS):

This manual contains important
instructions should be followed during installation and maintenance of the UPS and
batteries.

●

WARNING:

Intend for installation in a controlled environment.

●

WARNING (Fuses):

To reduce the risk of fire, replace only with the same type and

rating of fuse.

●

CAUTION (UPS Having Internal Batteries):

Risk of electric shock - Hazardous live
parts inside this unit are energized from the battery supply even when the input AC
power is disconnected.

●

CAUTION

: Do not dispose of batteries in a fire, the battery may explode.

●

CAUTION

: Do not open or mutilate the battery, released electrolyte is harmful to the

skin and eyes. It may be toxic.

●

CAUTION

: A battery can present a risk of electric shock and high short circuit current.

The following precaution should be observed when working on batteries

Remove watches, rings or other metal objects.
Use tools with insulated handles.
Wear rubber gloves and boots.
Do not lay tools or metal parts on top of batteries.
Disconnect charging source prior to connecting or disconnecting battery terminals.

●

Servicing of batteries should be performed or supervised by personnel knowledge of
batteries and the required precautions. Keep unauthorized personnel away from
batteries.

2

2. P

RESENTATION

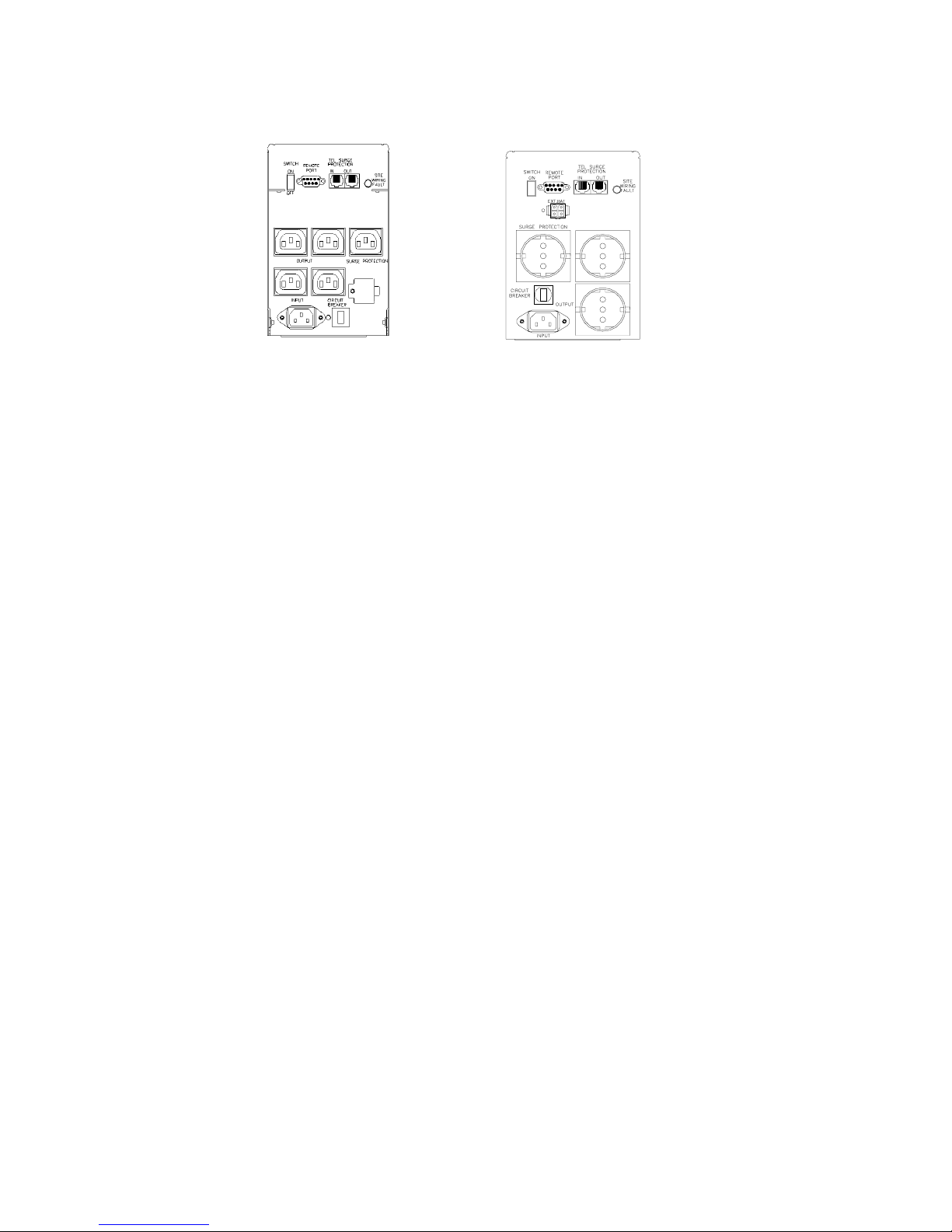

FRONT & REAR PANELS

2.1"REPLACE BATTERY" indicator (RED LED)

The LED illuminates when the UPS's battery is no
longer useful and must be replaced.

2.2 "BUCK AVR (VOLTAGE REDUCTION)"
indicator (YELLOW LED)

The LED illuminates when the UPS is correcting a
high utility voltage condition. The loads receive normal
power.

2.3 "BACK UP" indicator (YELLOW LED)

The LED illuminates when the UPS is supplying battery
power to the loads.

2.4 "BOOST AVR (VOLTAGE BOOST)" indicator
(YELLOW LED)

The LED illuminates when the UPS is correcting a low utility voltage condition.
The loads receive normal power.

2.5 "LINE NORMAL" indicator (GREEN LED)

2.6 "ON/OFF/TEST/SILENCE" button

Press the button more than 2 seconds to turn the UPS on or off, press the button less
than 1 second to activate the UPS's self-testing or silence the back up alarm.

3
